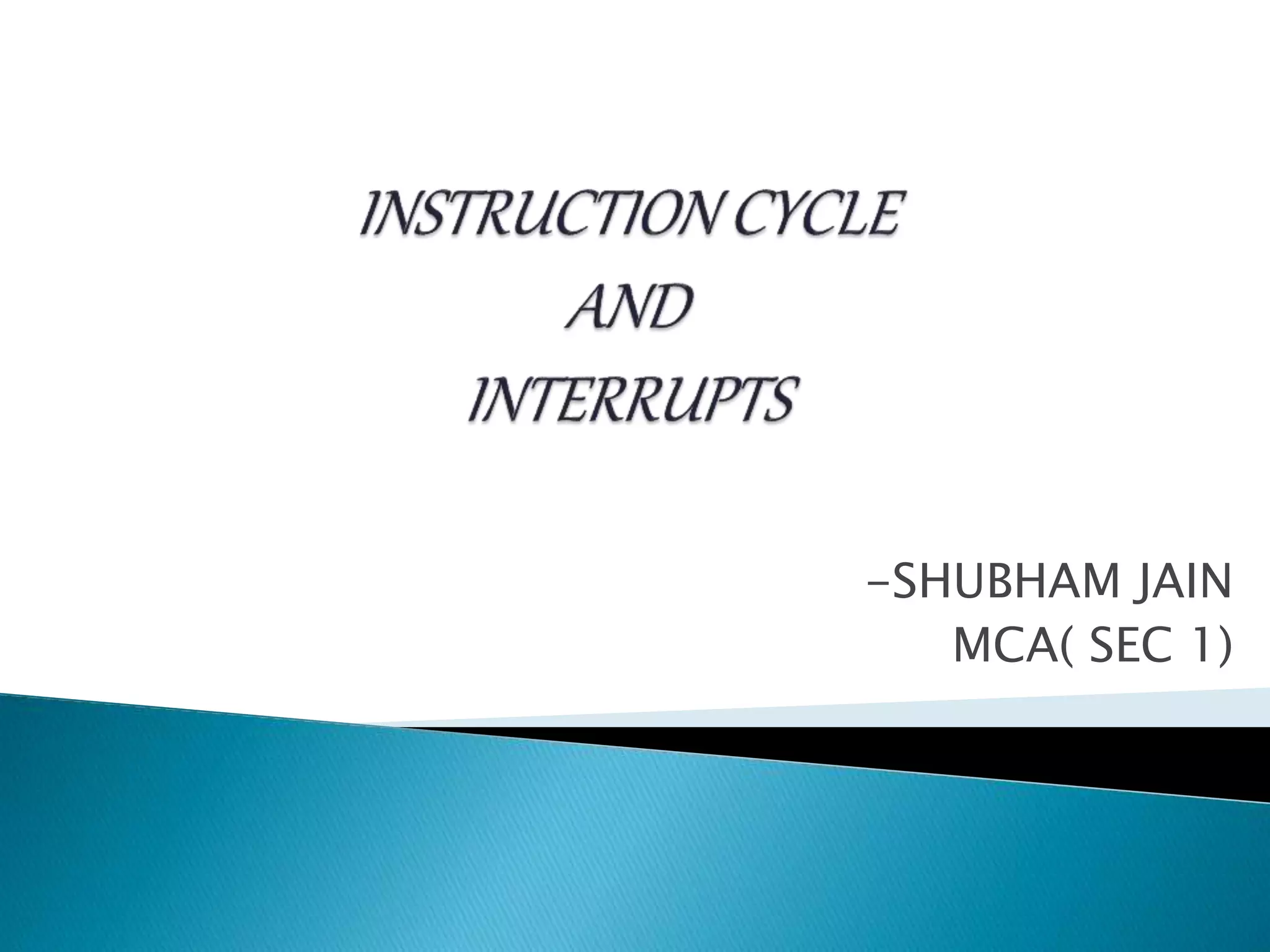

It's a powerpoint presentation on Instruction cycle . It's very precise and to the point.

1. -SHUBHAM JAIN
MCA( SEC 1)

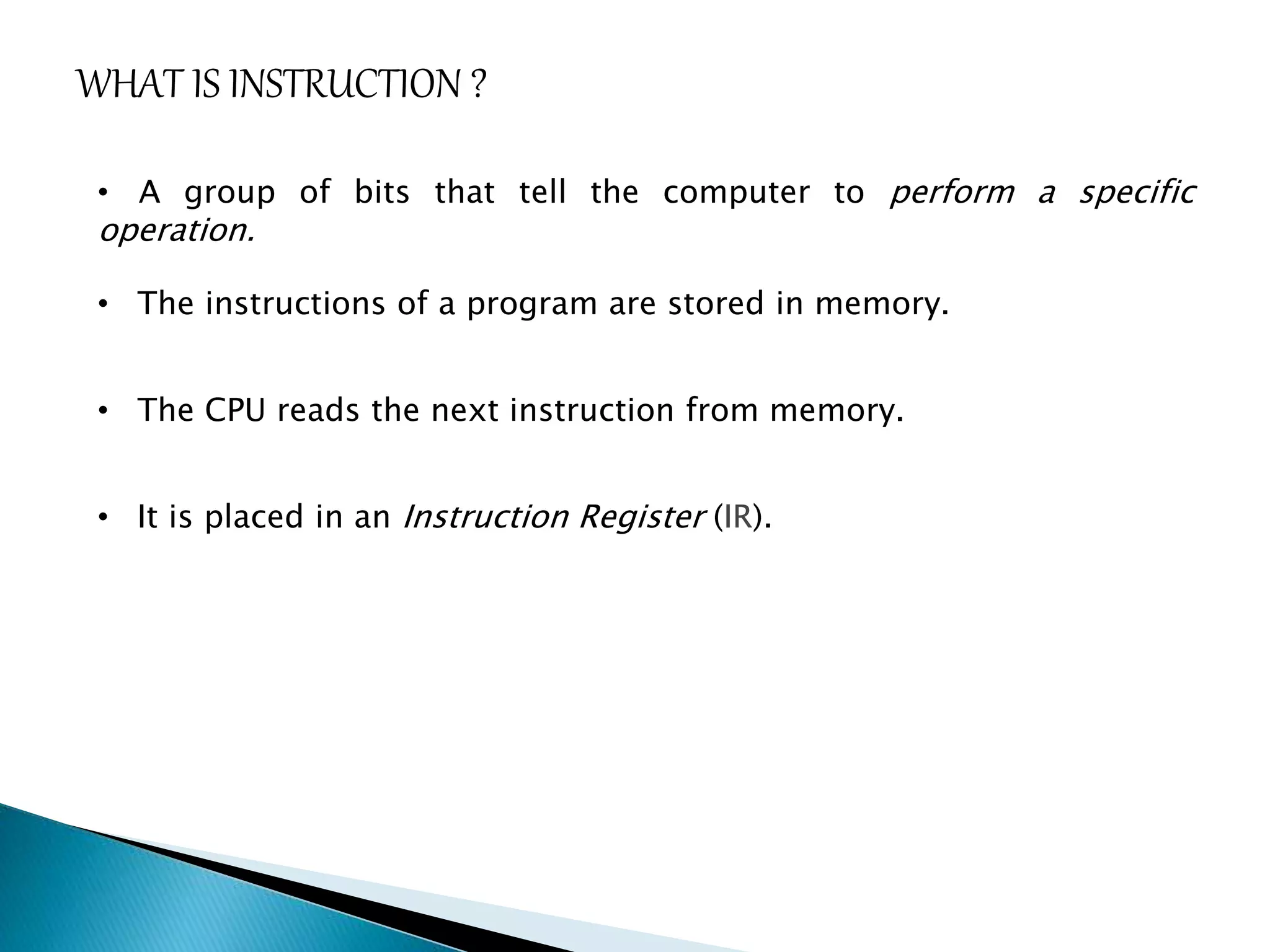

2. WHAT IS INSTRUCTION ?
• A group of bits that tell the computer to perform a specific
operation.
• The instructions of a program are stored in memory.
• The CPU reads the next instruction from memory.
• It is placed in an Instruction Register (IR).

3. INSTRUCTION FORMAT

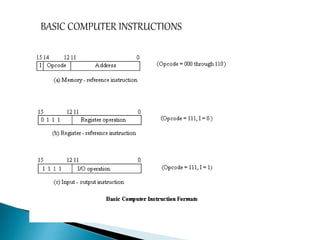

4. BASIC COMPUTER INSTRUCTIONS

5. CONTROL UNIT OF BASIC COMPUTER

6. INSTRUCTION CYCLE
A instruction is executed in three phases :
– Fetch an instruction from memory
– Decode the instruction.
– Read the effective address from memory if the
instruction has an indirect address. (OPTIONAL)
– Execute the instruction.

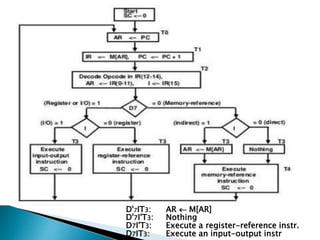

7. D'7IT3: AR M[AR]
D'7I'T3: Nothing
D7I'T3: Execute a register-reference instr.
D7IT3: Execute an input-output instr

8. MEMORY REFERENCE INSTRUCTIONS

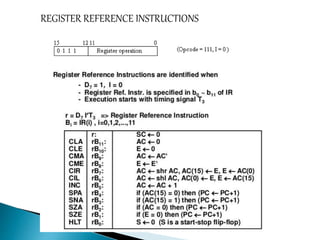

9. REGISTER REFERENCE INSTRUCTIONS

10. INPUT – OUTPUT INTERRUPT

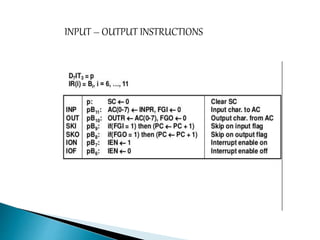

11. INPUT – OUTPUT INSTRUCTIONS

12. INTERRUPT CYCLE
