1. Míriam Bellver
miriam.bellver@bsc.edu
PhD Candidate
Barcelona Supercomputing Center
Instance Segmentation
Day 2 Lecture 4
#DLUPC
http://bit.ly/dlcv2018

2. Semantic Segmentation
Label every pixel!
Don’t differentiate
instances (cows)
Classic computer
vision problem
Slide Credit: CS231n 2

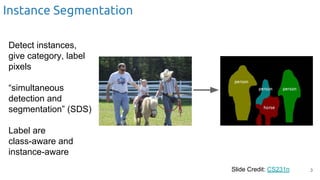

3. Instance Segmentation
Detect instances,
give category, label
pixels
“simultaneous
detection and
segmentation” (SDS)
Label are
class-aware and
instance-aware
Slide Credit: CS231n 3

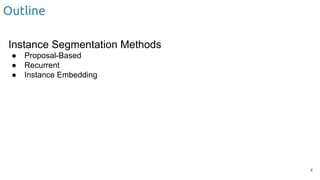

4. Outline
Instance Segmentation Methods
● Proposal-Based
● Recurrent
● Instance Embedding
4

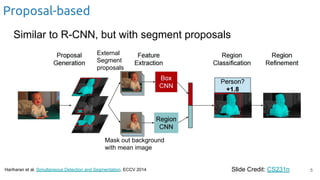

5. Proposal-based
Slide Credit: CS231nHariharan et al. Simultaneous Detection and Segmentation. ECCV 2014
External
Segment
proposals
Mask out background
with mean image
Similar to R-CNN, but with segment proposals
5

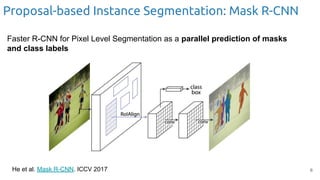

6. He et al. Mask R-CNN. ICCV 2017
Proposal-based Instance Segmentation: Mask R-CNN
Faster R-CNN for Pixel Level Segmentation as a parallel prediction of masks
and class labels
6

7. He et al. Mask R-CNN. ICCV 2017
Mask R-CNN
● Classification & box detection losses are identical to those in Faster R-CNN
● Addition of a new loss term for mask prediction:
The network outputs a K x m x m volume for mask prediction, where K is the
number of categories and m is the size of the mask (square)
7

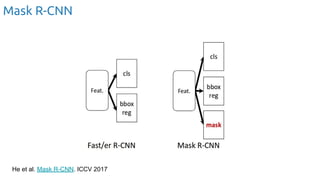

8. Mask R-CNN
He et al. Mask R-CNN. ICCV 2017

9. He et al. Mask R-CNN. ICCV 2017
Mask R-CNN: RoI Align
Reminder: RoI Pool from Fast R-CNN
Hi-res input image:
3 x 800 x 600
with region
proposal
Convolution
and Pooling
Hi-res conv features:
C x H x W
with region proposal
Fully-connected
layers
Max-pool within
each grid cell
RoI conv features:
C x h x w
for region proposal
Fully-connected layers expect
low-res conv features:
C x h x w
x/16 & rounding → misalignment ! + not differentiable
9

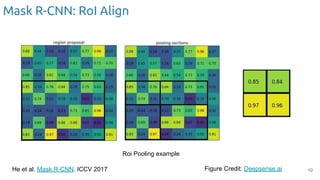

10. Mask R-CNN: RoI Align
10
Roi Pooling example
Figure Credit: Deepsense.aiHe et al. Mask R-CNN. ICCV 2017

11. Figure Credit: Silvio Galesso
Mask R-CNN: RoI Align
He et al. Mask R-CNN. ICCV 2017
use bilinear
interpolation

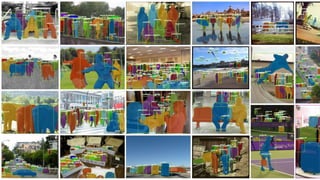

12. 12

13. Limitations of Proposal-based models
13
1. Two objects might share the same bounding box: Only
one will be kept after NMS step.
2. Choice of NMS threshold is application dependant
3. Same pixel can be assigned to multiple instances
4. Number of predictions is limited by the number of
proposals.

14. Recurrent Instance Segmentation
Romera-Paredes & H.S. Torr. Recurrent Instance Segmentation ECCV 2016
14
Sequential mask generation

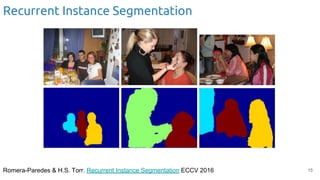

15. Recurrent Instance Segmentation
Romera-Paredes & H.S. Torr. Recurrent Instance Segmentation ECCV 2016 15

16. Recurrent Semantic Instance Segmentation
Salvador, A., Bellver, Campos. V, M., Baradad, M., Marqués, F., Torres, J., & Giro-i-Nieto, X. (2018) From
Pixels to Object Sequences: Recurrent Semantic Instance Segmentation.

17. Recurrent Semantic Instance Segmentation
Salvador, A., Bellver, Campos. V, M., Baradad, M., Marqués, F., Torres, J., & Giro-i-Nieto, X. (2018) From
Pixels to Object Sequences: Recurrent Semantic Instance Segmentation.

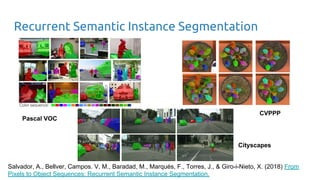

18. Recurrent Semantic Instance Segmentation
Pascal VOC
Cityscapes
CVPPP
Salvador, A., Bellver, Campos. V, M., Baradad, M., Marqués, F., Torres, J., & Giro-i-Nieto, X. (2018) From
Pixels to Object Sequences: Recurrent Semantic Instance Segmentation.

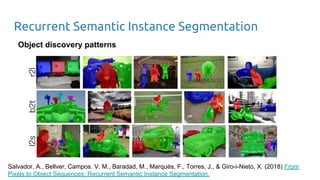

19. Recurrent Semantic Instance Segmentation
Salvador, A., Bellver, Campos. V, M., Baradad, M., Marqués, F., Torres, J., & Giro-i-Nieto, X. (2018) From
Pixels to Object Sequences: Recurrent Semantic Instance Segmentation.
Object discovery patterns

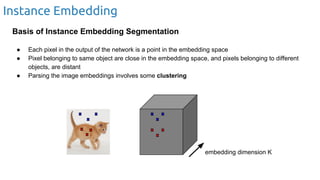

20. Instance Embedding
Basis of Instance Embedding Segmentation
● Each pixel in the output of the network is a point in the embedding space
● Pixel belonging to same object are close in the embedding space, and pixels belonging to different
objects, are distant
● Parsing the image embeddings involves some clustering
embedding dimension K

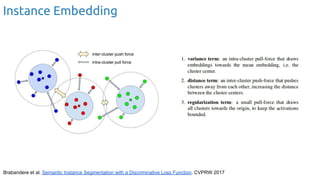

21. Instance Embedding
Brabandere et al. Semantic Instance Segmentation with a Discriminative Loss Function. CVPRW 2017

22. Instance Embedding
22
Mapping pixels to a N-dimensional space where pixels belonging to the same object are close to each other.
Results on Cityscapes
Brabandere et al. Semantic Instance Segmentation with a Discriminative Loss Function. CVPRW 2017

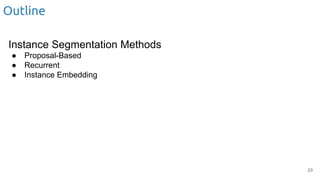

23. Outline
Instance Segmentation Methods
● Proposal-Based
● Recurrent
● Instance Embedding
23

24. Questions?
24
