https://telecombcn-dl.github.io/2018-dlcv/ Deep learning technologies are at the core of the current revolution in artificial intelligence for multimedia data analysis. The convergence of large-scale annotated datasets and affordable GPU hardware has allowed the training of neural networks for data analysis tasks which were previously addressed with hand-crafted features. Architectures such as convolutional neural networks, recurrent neural networks and Q-nets for reinforcement learning have shaped a brand new scenario in signal processing. This course will cover the basic principles and applications of deep learning to computer vision problems, such as image classification, object detection or image captioning.

1. Míriam Bellver
miriam.bellver@bsc.edu
PhD Candidate
Barcelona Supercomputing Center
Semantic Segmentation
Day 2 Lecture 3
#DLUPC
http://bit.ly/dlcv2018

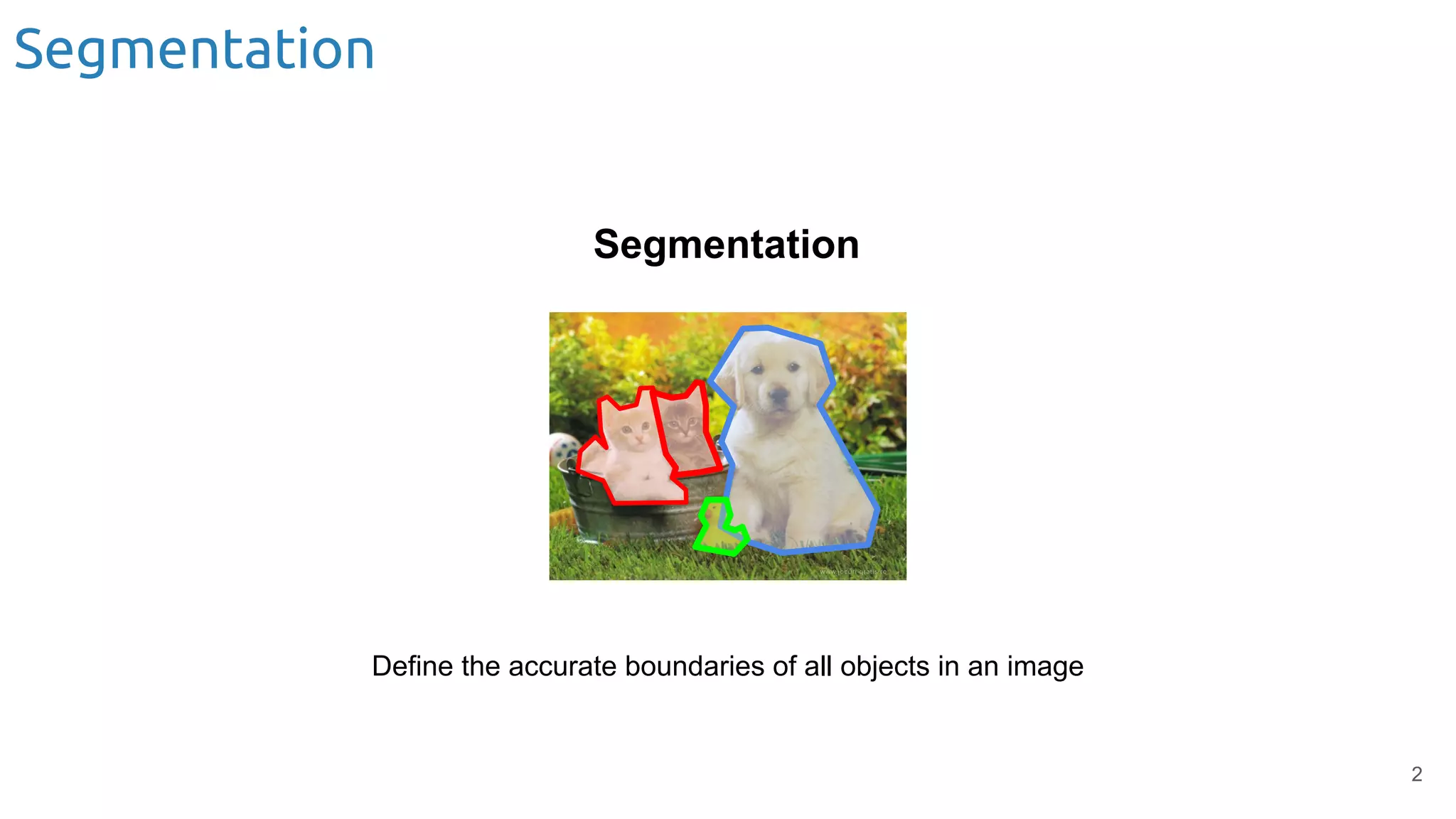

2. Segmentation
Segmentation
Define the accurate boundaries of all objects in an image
2

3. Semantic Segmentation
Label every pixel!
Don’t differentiate
instances (cows)
Classic computer
vision problem
Slide Credit: CS231n 3

4. Instance Segmentation
Detect instances,
give category, label
pixels
“simultaneous
detection and
segmentation” (SDS)
Label are
class-aware and
instance-aware
Slide Credit: CS231n 4

5. Outline
Segmentation Datasets
Semantic Segmentation Methods
● Deconvolution (or transposed convolution)
● Dilated Convolution
● Skip Connections
5

6. Segmentation: Datasets
● 20 categories
● +10,000 images
● Semantic segmentation GT
● Instance segmentation GT
● Real indoor & outdoor scenes
● 540 categories
● +10,000 images
● Dense annotations
● Semantic segmentation GT
● Objects + stuff
Pascal Visual Object Classes Pascal Context
6

7. Segmentation: Datasets
● Real indoor & outdoor scenes
● 80 categories
● +300,000 images
● 2M instances
● Partial annotations
● Semantic segmentation GT
● Instance segmentation GT
● Objects, but no stuff
COCO Common Objects in Context
7
● Real general scenes
● +150 categories
● +22,000 images
● Semantic segmentation GT
● Instance + parts segmentation GT
● Objects and stuff
ADE20K

8. Segmentation: Datasets
● Real driving scenes
● 30 categories
● +25,000 images
● 20,000 partial annotations
● 5,000 dense annotations
● Semantic segmentation GT
● Instance segmentation GT
● Depth, GPS and other metadata
● Objects and stuff
● Real driving scenes
● 100 categories
● 25,000 images
● Semantic segmentation GT
● Instance + parts segmentation GT
● Objects and stuff
CityScapes Mapillary Vistas Dataset
8

9. Outline
Segmentation Datasets
Semantic Segmentation Methods
● Deconvolution (or transposed convolution)
● Dilated Convolution
● Skip Connections
9

10. From Classification to Segmentation
Slide Credit: CS231n
CNN COW
Extract
patch
Run through
a CNN
Classify
center pixel
Repeat for
every pixel
10

11. From Classification to Segmentation
Slide Credit: CS231n
CNN
Run “fully convolutional” network
to get all pixels at once
11

12. Semantic Segmentation
Slide Credit: CS231n
CNN
Smaller output
due to pooling
Problem 1:
12

13. Learnable upsampling
Long et al. Fully Convolutional Networks for Semantic Segmentation. CVPR 2015 Slide Credit: CS231n 13

14. Reminder: Convolutional Layer
Slide Credit: CS231n
Typical 3 x 3 convolution, stride 1 pad 1
Input: 4 x 4 Output: 4 x 4
14

15. Reminder: Convolutional Layer
Slide Credit: CS231n
Typical 3 x 3 convolution, stride 1 pad 1
Input: 4 x 4 Output: 4 x 4
Dot product
between filter
and input
15

16. Reminder: Convolutional Layer
Slide Credit: CS231n
Typical 3 x 3 convolution, stride 1 pad 1
Input: 4 x 4 Output: 4 x 4
Dot product
between filter
and input
16

17. Reminder: Convolutional Layer
Slide Credit: CS231n
Typical 3 x 3 convolution, stride 2 pad 1
Input: 4 x 4 Output: 2 x 2
17

18. Reminder: Convolutional Layer
Slide Credit: CS231n
Typical 3 x 3 convolution, stride 2 pad 1
Input: 4 x 4 Output: 2 x 2
Dot product
between filter
and input
18

19. Reminder: Convolutional Layer
Slide Credit: CS231n
Typical 3 x 3 convolution, stride 2 pad 1
Input: 4 x 4 Output: 2 x 2
Dot product
between filter
and input
19

20. Learnable Upsample: Transposed Convolution
Slide Credit: CS231n
3 x 3 “deconvolution”, stride 2 pad 1
Input: 2 x 2 Output: 4 x 4
20

21. Slide Credit: CS231n
3 x 3 “deconvolution”, stride 2 pad 1
Input: 2 x 2 Output: 4 x 4
Input gives
weight for
filter values
Learnable Upsample: Transposed Convolution
21

22. Learnable Upsample: Transposed Convolution
Slide Credit: CS231n
3 x 3 “deconvolution”, stride 2 pad 1
Input: 2 x 2 Output: 4 x 4
Input gives
weight for
filter values
Sum where
output overlaps
22

23. Learnable Upsample: Transposed Convolution
Warning: Checkerboard effect when kernel size is not
divisible by the stride
Source: distill.pub
23

24. Learnable Upsample: Transposed Convolution
Source: distill.pub
stride = 2, kernel_size = 3
24
Warning: Checkerboard effect when kernel size is not
divisible by the stride

25. Learnable Upsample: Transposed Convolution
Warning: Checkerboard effect in images generated by
neural networks

26. Learnable Upsample: Transposed Convolution
Slide Credit: CS231n
Noh et al. Learning Deconvolution Network for Semantic Segmentation. ICCV 2015
“Regular” VGG “Upside down” VGG
26

27. Semantic Segmentation
CNN Coarse output
Problem 2:
High-level features (e.g. conv5 layer) from a pretrained classification network are the input for the
segmentation branch
27

28. Skip Connections
Slide Credit: CS231n
Skip connections = Better results
“skip
connections”
Long et al. Fully Convolutional Networks for Semantic Segmentation. CVPR 2015
Recovering low level features from early layers
28

29. Dilated Convolutions
Yu & Koltun. Multi-Scale Context Aggregation by Dilated Convolutions. ICLR 2016
Structural change in convolutional layers for dense prediction problems (e.g. image segmentation)
● The receptive field grows exponentially as you add more layers → more context information in deeper
layers wrt regular convolutions
● Number of parameters increases linearly as you add more layers
29

30. Dilated Convolutions
30Source: https://github.com/vdumoulin/conv_arithmetic

31. State-of-the-art models
31
● U-Net
○ Deconvolutions
○ skip connections
Ronneberger et al. U-Net: Convolutional Networks for Biomedical Image Segmentation. MICCAI 2015

32. State-of-the-art models
32
● PSPNet (dilated convolutions + pyramid pooling)
Zhao et al. Pyramid Scene Parsing Network. CVPR 2017

33. State-of-the-art models
33
● DeepLab v2 (dilated convolutions + CRF)
● DeepLab v3 (added pyramid pooling. Removed CRF)
Chen et al. DeepLab: Semantic Image Segmentation with Deep Convolutional Nets, Atrous Convolution, and Fully
Connected CRFs. TPAMI 2017
Chen et al. Rethinking Atrous Convolution for Semantic Image Segmentation. TPAMI 2017

34. Summary
Segmentation Datasets
Semantic Segmentation Methods
● Deconvolution (or transposed convolution)
● Dilated Convolution
● Skip Connections
34

35. Questions?
35
