1. Indoor Positioning
Prepared by:
Doaa Gamal
Lecturer Assistant
Faculty of Engineering – Suez Canal University
1

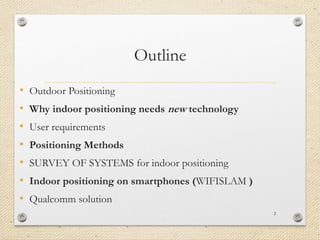

2. Outline
• Outdoor Positioning
• Why indoor positioning needs new technology
• User requirements
• Positioning Methods
• SURVEY OF SYSTEMS for indoor positioning
• Indoor positioning on smartphones (WIFISLAM )
• Qualcomm solution
2

3. Outdoor Positioning

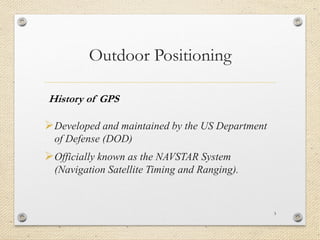

Developed and maintained by the US Department
of Defense (DOD)
Officially known as the NAVSTAR System
(Navigation Satellite Timing and Ranging).
3
History of GPS

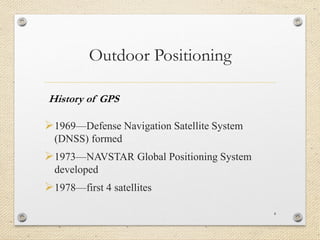

4. Outdoor Positioning
1969—Defense Navigation Satellite System
(DNSS) formed
1973—NAVSTAR Global Positioning System
developed
1978—first 4 satellites
4
History of GPS

5. Outdoor Positioning

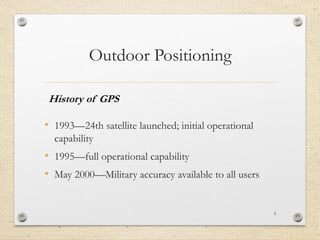

• 1993—24th satellite launched; initial operational
capability
• 1995—full operational capability
• May 2000—Military accuracy available to all users
5
History of GPS

6. Outdoor Positioning

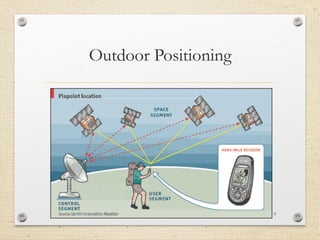

6

7. Outdoor Positioning
Differential GPS (DGPS)
Inertial Navigation Systems (INS)
Assisted GPS (AGPS)
7
GPS accuracy enhancement

8. Why indoor positioning needs new
technology
• Non‐Line‐of‐Sight (NLoS) conditions
• Severe multipath and signal scattering
• high attenuation
• fast temporal changes due to the presence of people
and opening of doors
• high demand for precision and accuracy
8

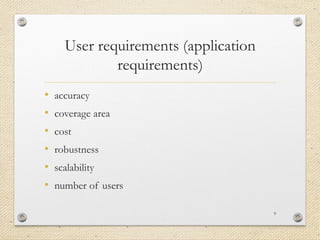

9. User requirements (application
requirements)
• accuracy
• coverage area
• cost
• robustness
• scalability
• number of users
9

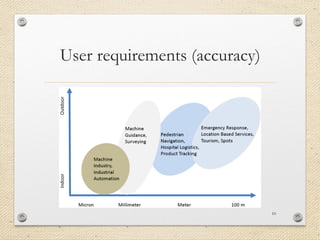

10. User requirements (accuracy)
10

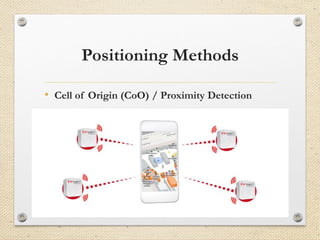

11. Positioning Methods
• Cell of Origin (CoO) / Proximity Detection
11

12. Positioning Methods

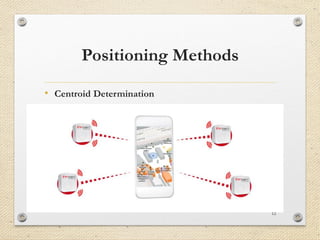

• Centroid Determination
12

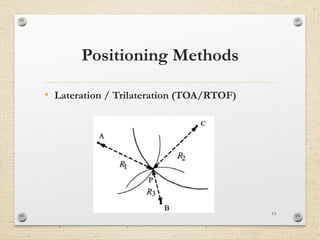

13. Positioning Methods
• Lateration / Trilateration (TOA/RTOF)
13

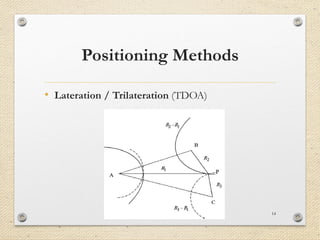

14. Positioning Methods
• Lateration / Trilateration (TDOA)
14

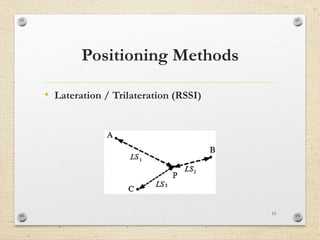

15. Positioning Methods
• Lateration / Trilateration (RSSI)
15

16. Positioning Methods
• Angulation (AOA)
16

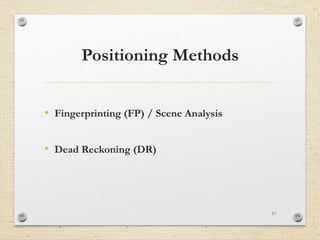

17. Positioning Methods
• Fingerprinting (FP) / Scene Analysis
• Dead Reckoning (DR)
17

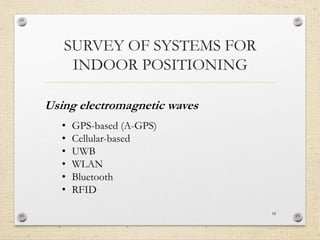

18. SURVEY OF SYSTEMS FOR
INDOOR POSITIONING
18
Using electromagnetic waves
• GPS-based (A-GPS)
• Cellular-based
• UWB
• WLAN
• Bluetooth
• RFID

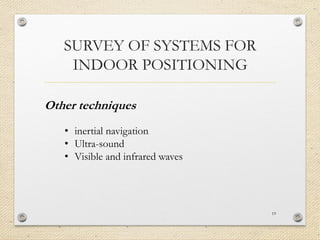

19. SURVEY OF SYSTEMS FOR
INDOOR POSITIONING
19
Other techniques
• inertial navigation
• Ultra-sound
• Visible and infrared waves

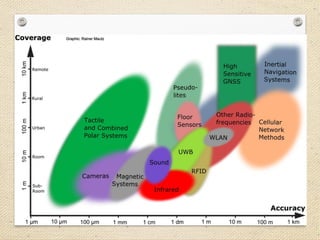

20. 20

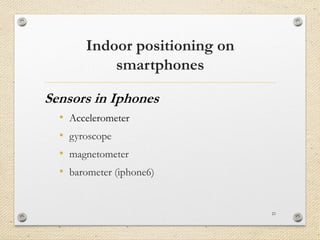

21. Indoor positioning on
smartphones
• Accelerometer
• gyroscope
• magnetometer
• barometer (iphone6)
21
Sensors in Iphones

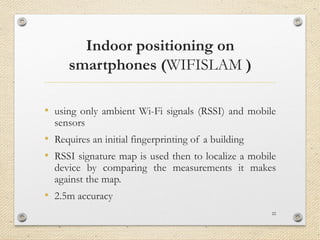

22. Indoor positioning on
smartphones (WIFISLAM )
• using only ambient Wi-Fi signals (RSSI) and mobile
sensors
• Requires an initial fingerprinting of a building
• RSSI signature map is used then to localize a mobile
device by comparing the measurements it makes
against the map.
• 2.5m accuracy
22

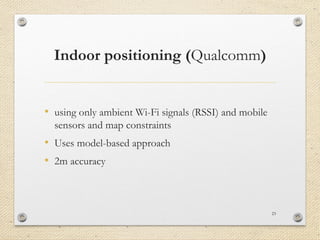

23. Indoor positioning (Qualcomm)
• using only ambient Wi-Fi signals (RSSI) and mobile
sensors and map constraints
• Uses model-based approach
• 2m accuracy
23

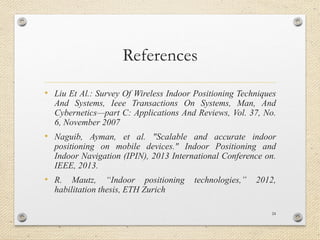

24. References
