1. IMAGE
QUANTIZA
TION

2. KEY STAGES IN
DIGITAL IMAGE
GENERATION

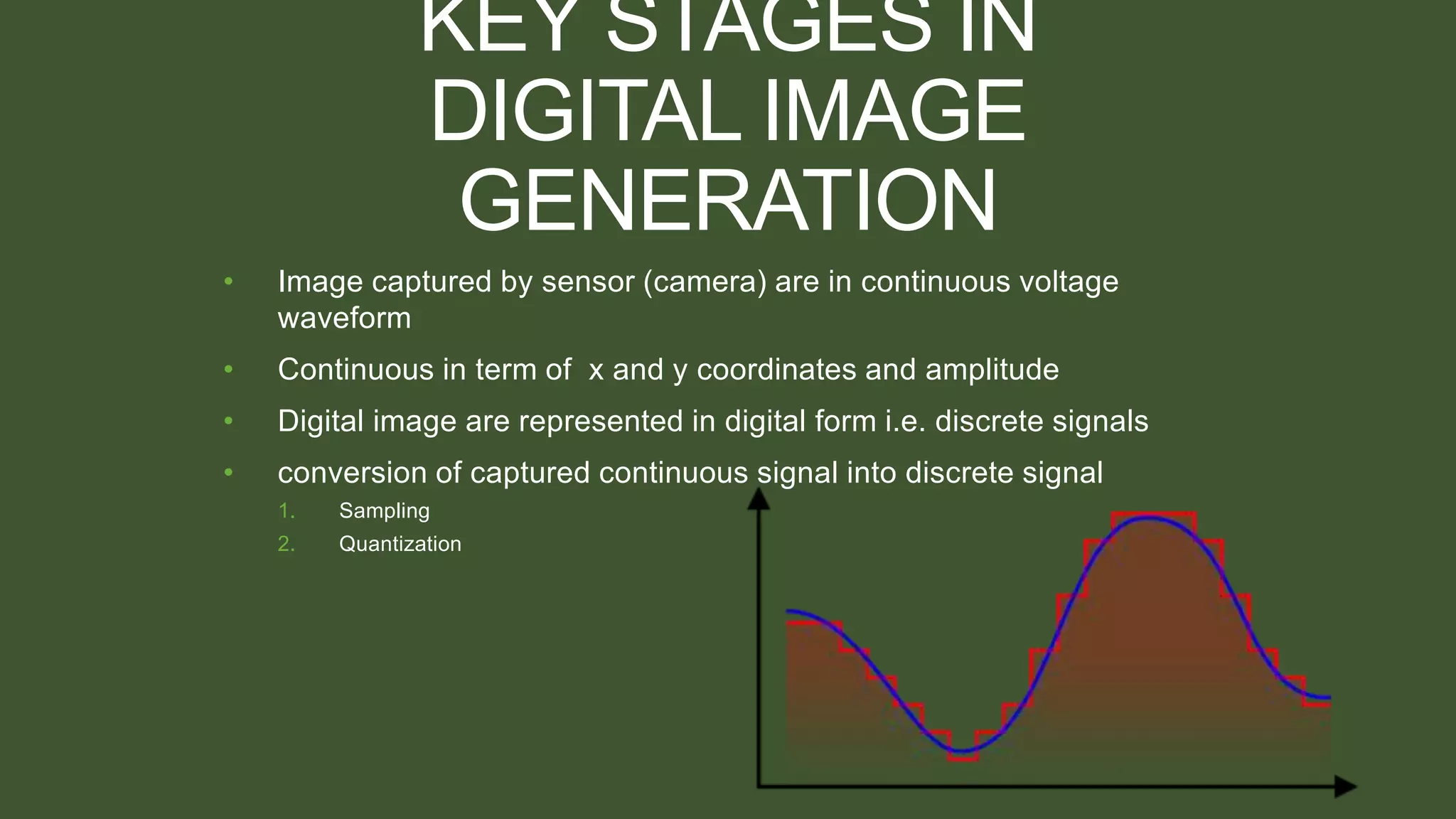

• Image captured by sensor (camera) are in continuous voltage
waveform
• Continuous in term of x and y coordinates and amplitude
• Digital image are represented in digital form i.e. discrete signals
• conversion of captured continuous signal into discrete signal
1. Sampling
2. Quantization

3. Image Quantization

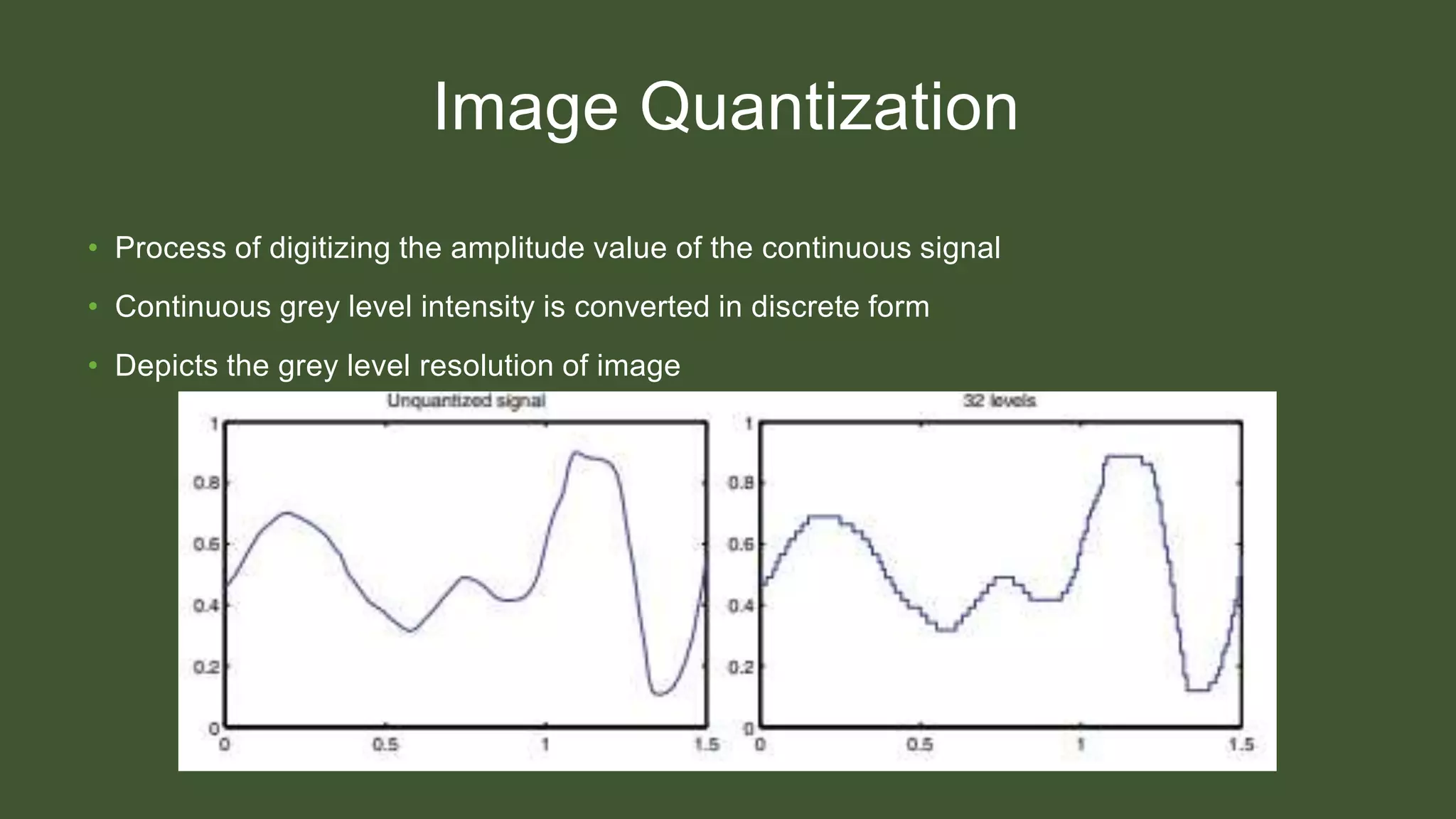

• Process of digitizing the amplitude value of the continuous signal
• Continuous grey level intensity is converted in discrete form
• Depicts the grey level resolution of image

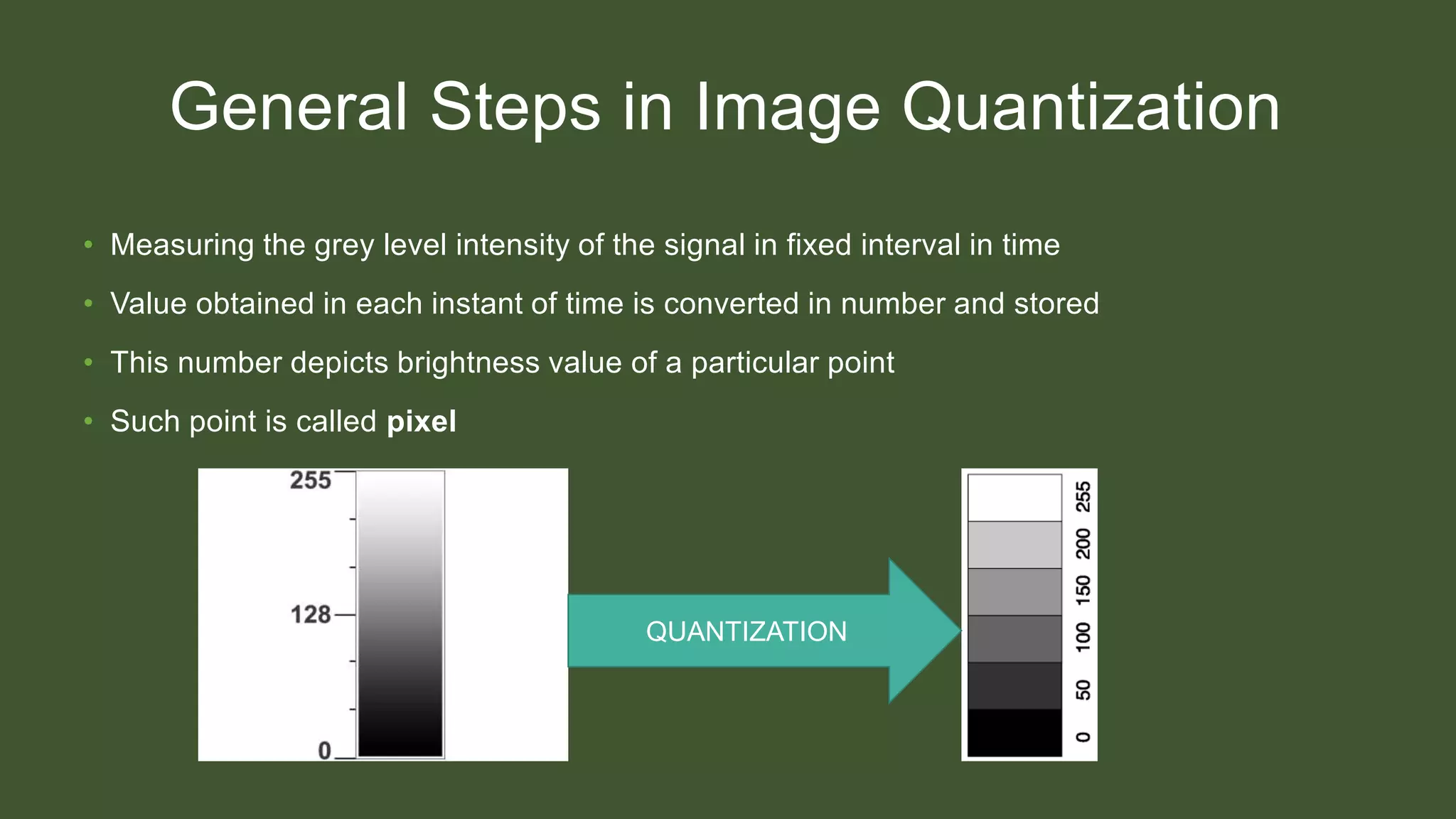

4. General Steps in Image Quantization
• Measuring the grey level intensity of the signal in fixed interval in time
• Value obtained in each instant of time is converted in number and stored
• This number depicts brightness value of a particular point
• Such point is called pixel
QUANTIZATION

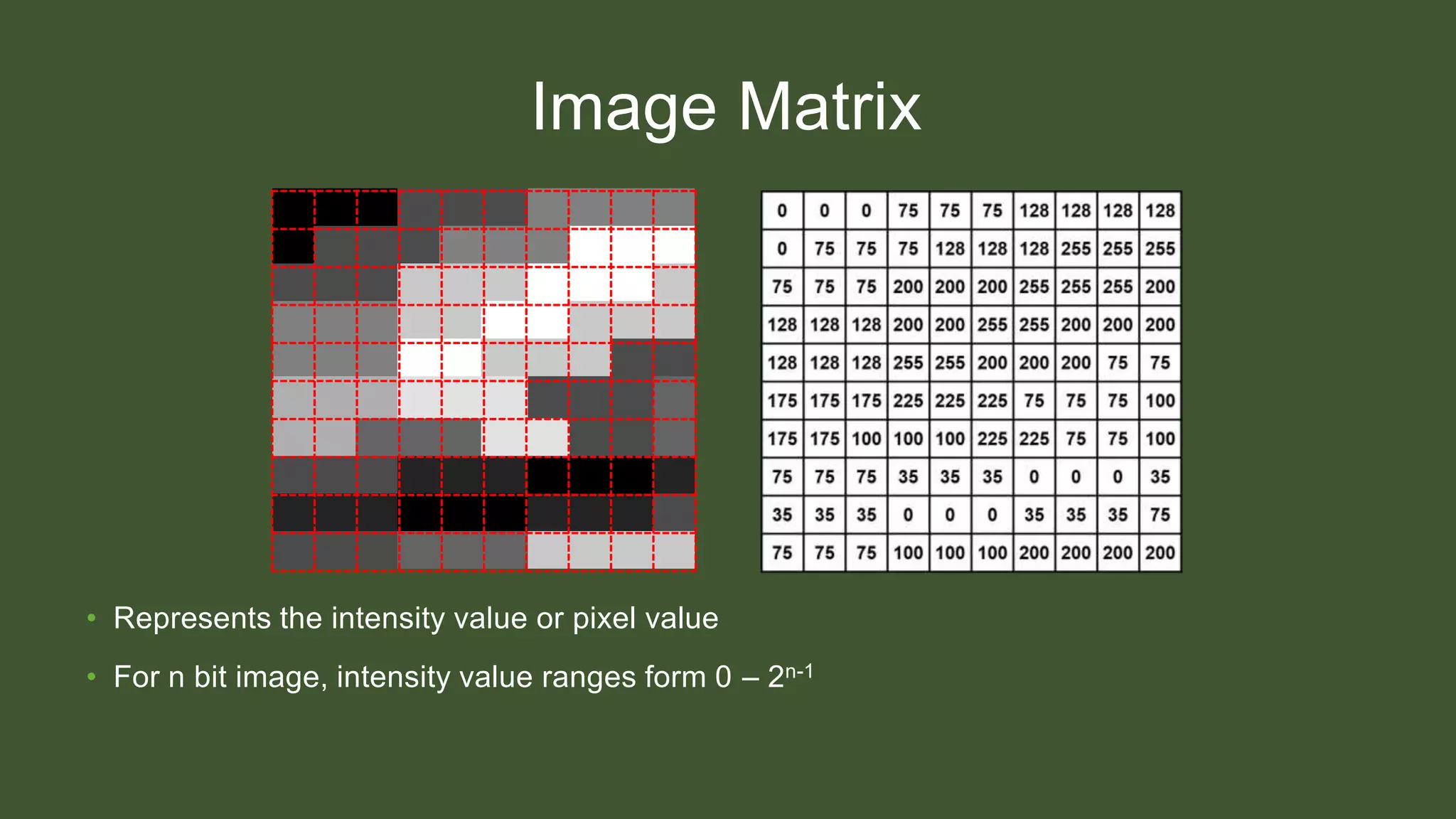

5. Image Matrix
• Represents the intensity value or pixel value
• For n bit image, intensity value ranges form 0 – 2n-1

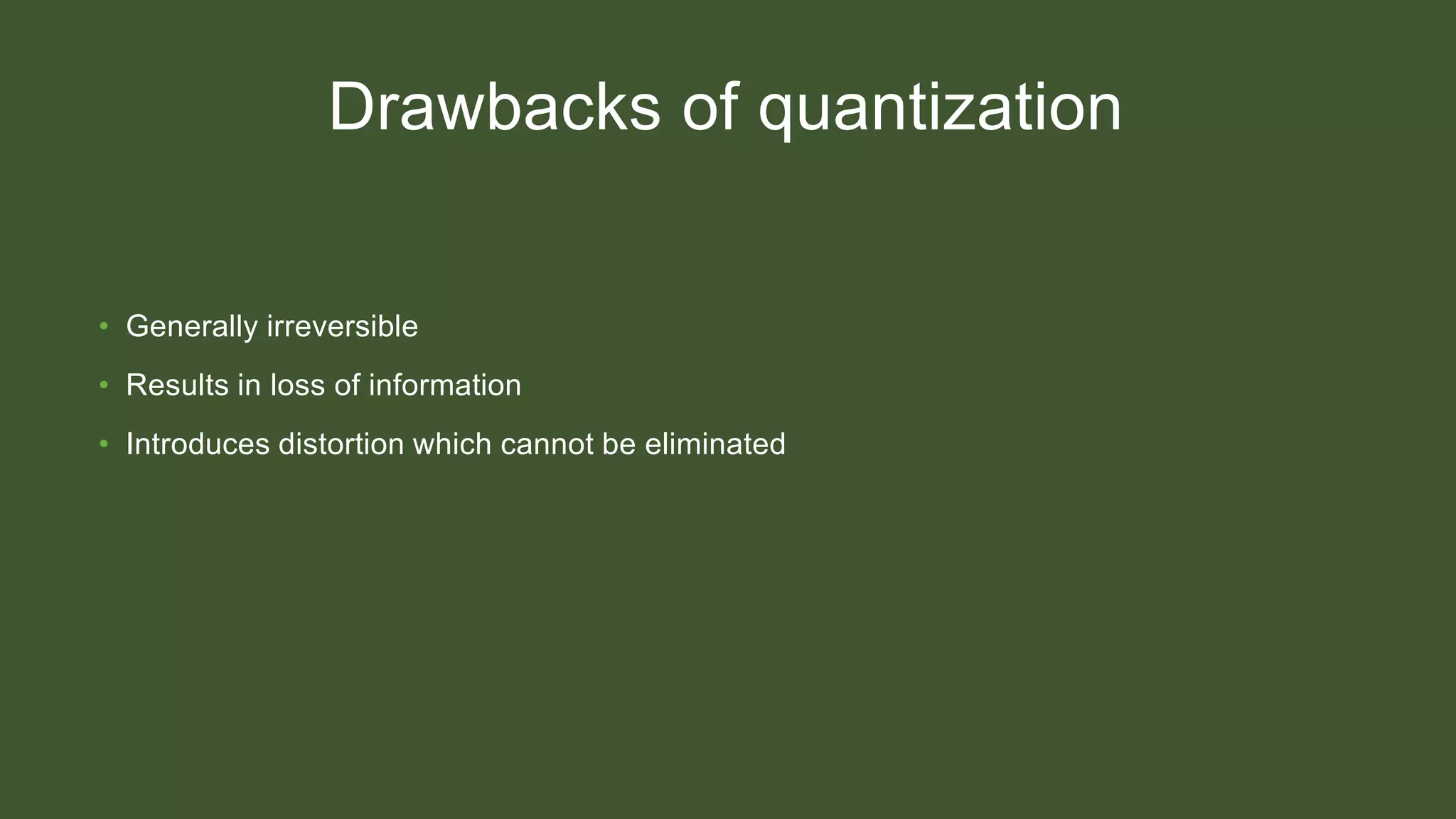

6. Drawbacks of quantization
• Generally irreversible
• Results in loss of information
• Introduces distortion which cannot be eliminated

7. Quantizing a grey-level image

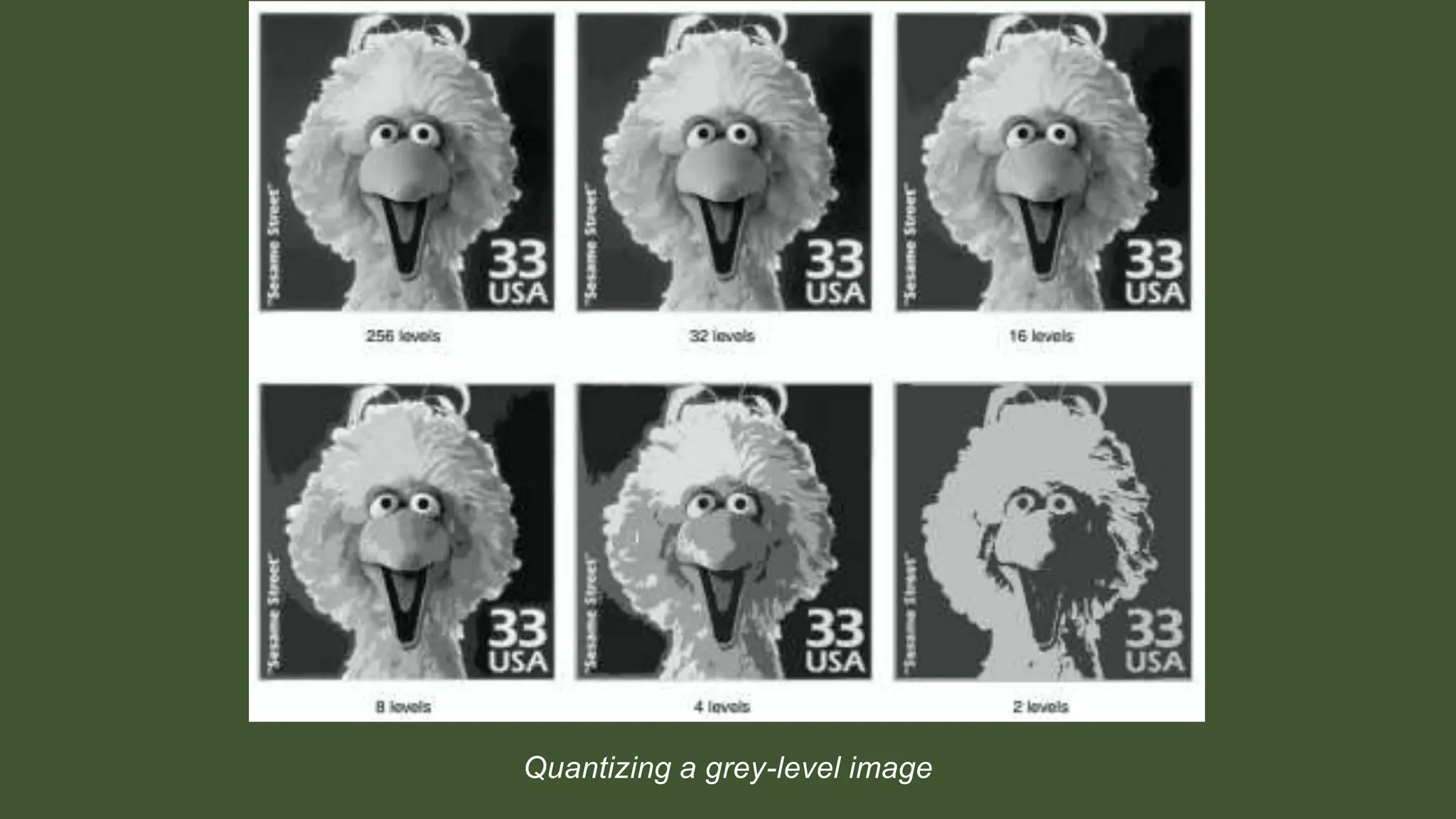

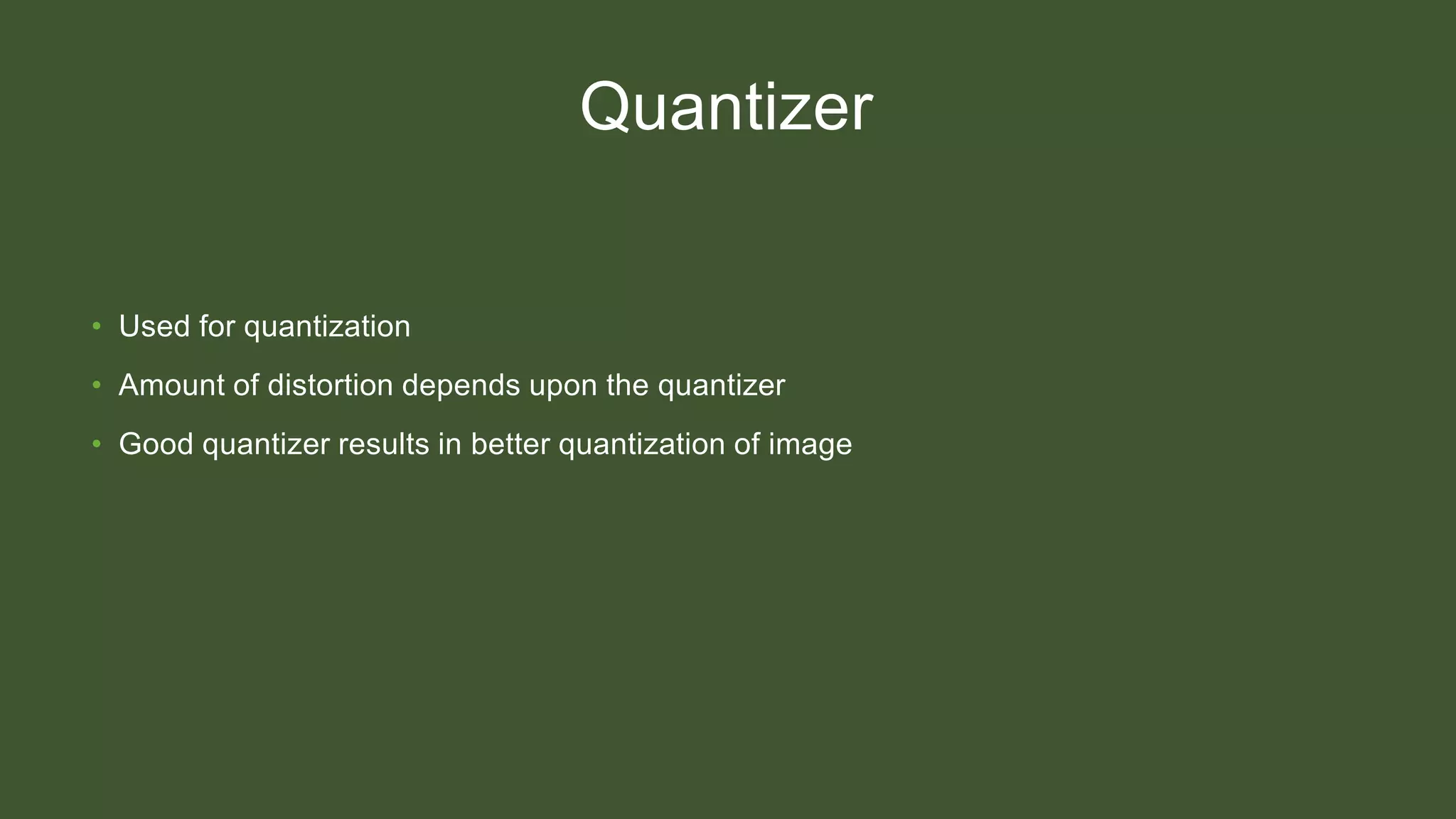

8. Quantizer
• Used for quantization
• Amount of distortion depends upon the quantizer
• Good quantizer results in better quantization of image

9. Classification of Quantizer
Quantizer
Uniform Quantizer
Non-uniform quantizer
Zero Memory Quantizer

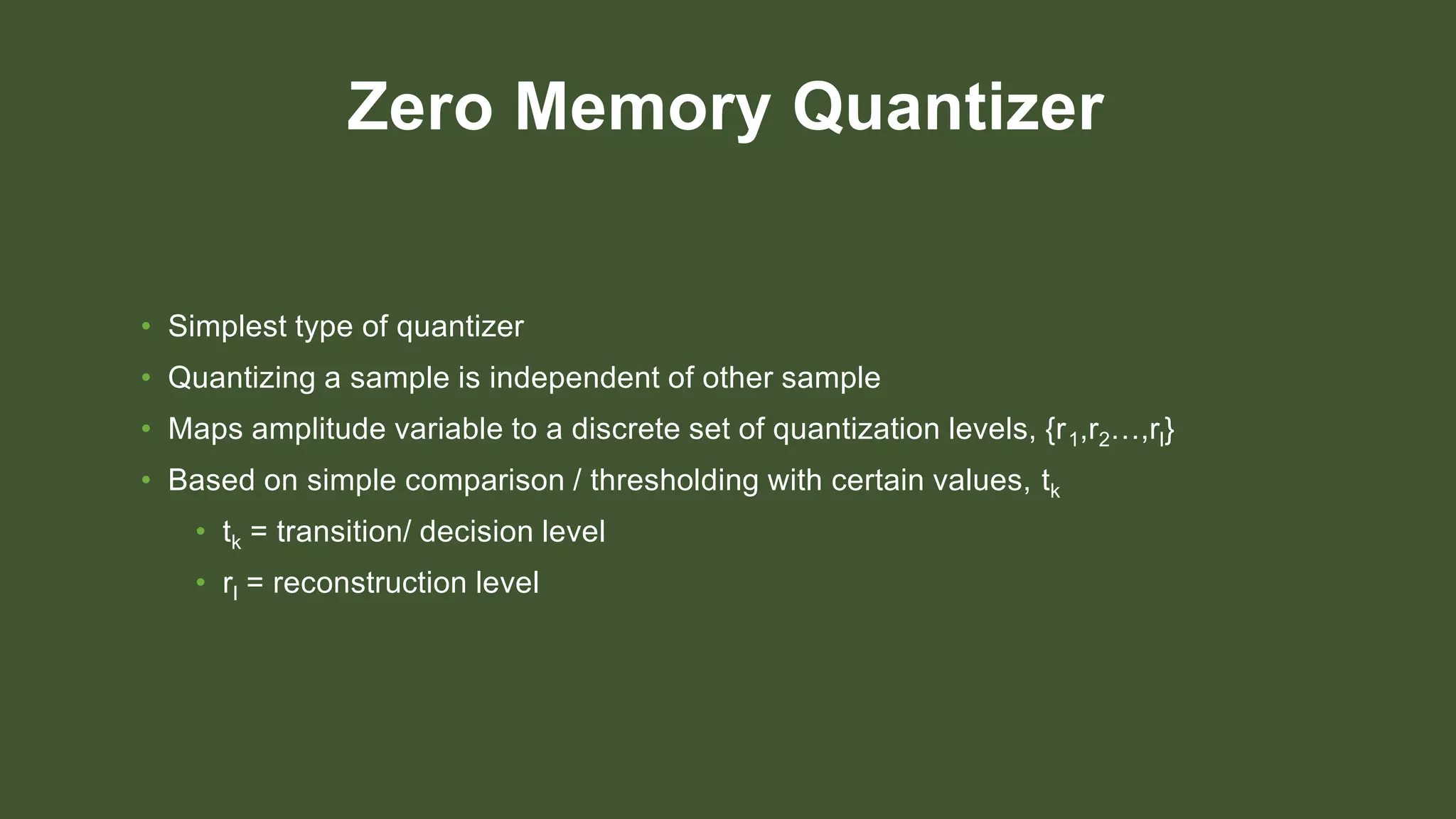

10. Zero Memory Quantizer
• Simplest type of quantizer
• Quantizing a sample is independent of other sample
• Maps amplitude variable to a discrete set of quantization levels, {r1,r2…,rl}
• Based on simple comparison / thresholding with certain values, tk
• tk = transition/ decision level
• rl = reconstruction level

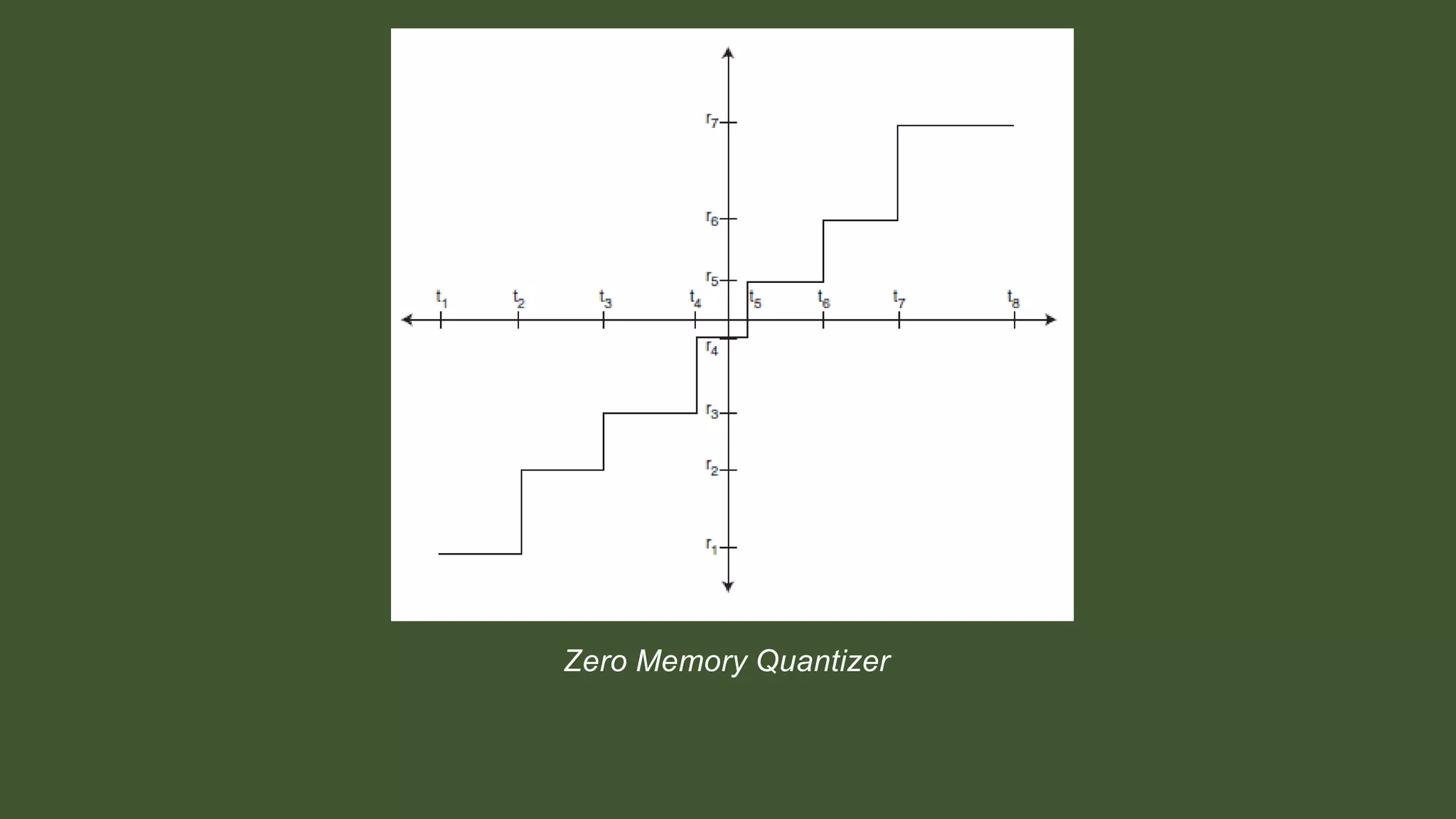

11. Zero Memory Quantizer

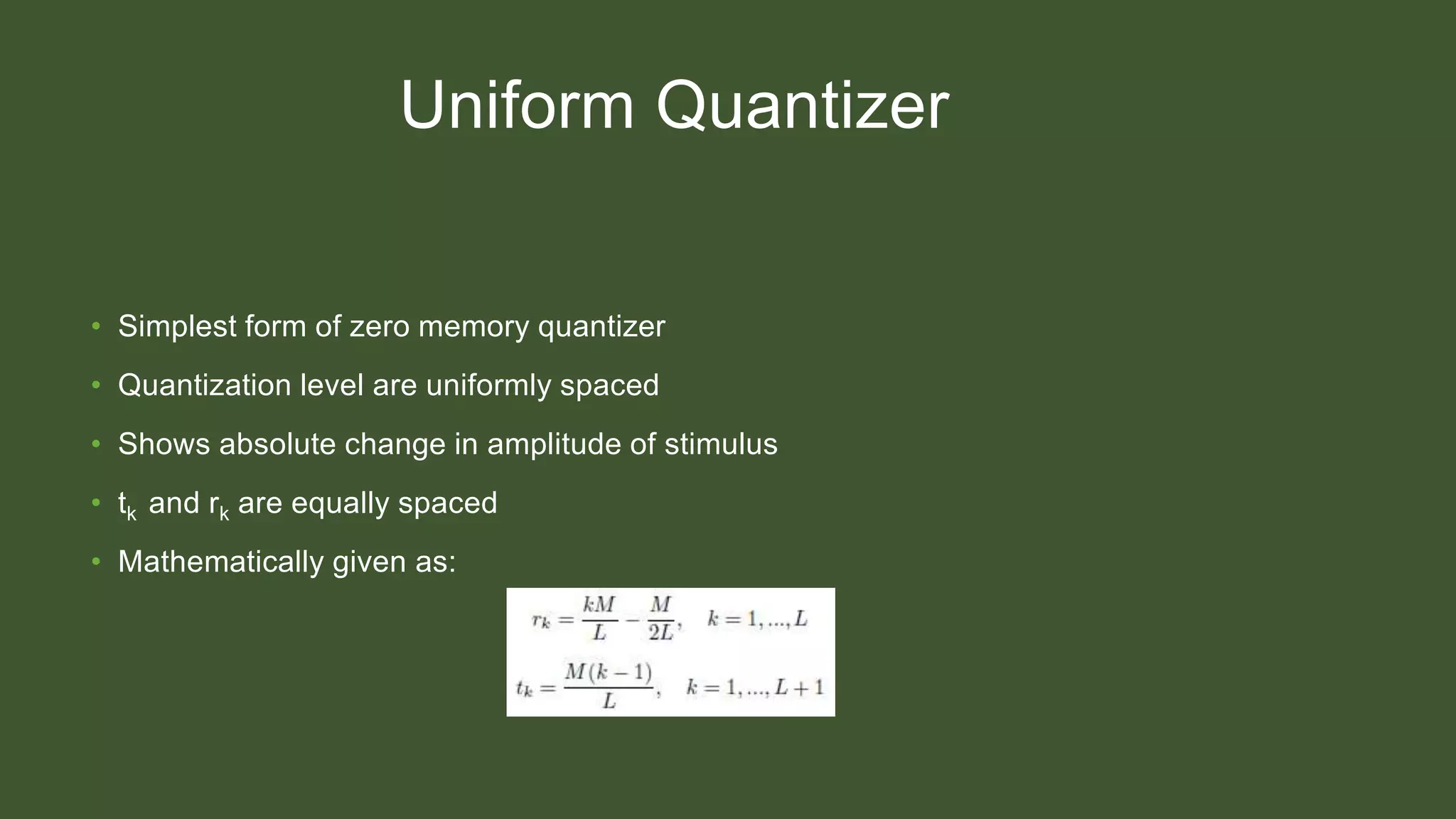

12. Uniform Quantizer
• Simplest form of zero memory quantizer
• Quantization level are uniformly spaced
• Shows absolute change in amplitude of stimulus
• tk and rk are equally spaced
• Mathematically given as:

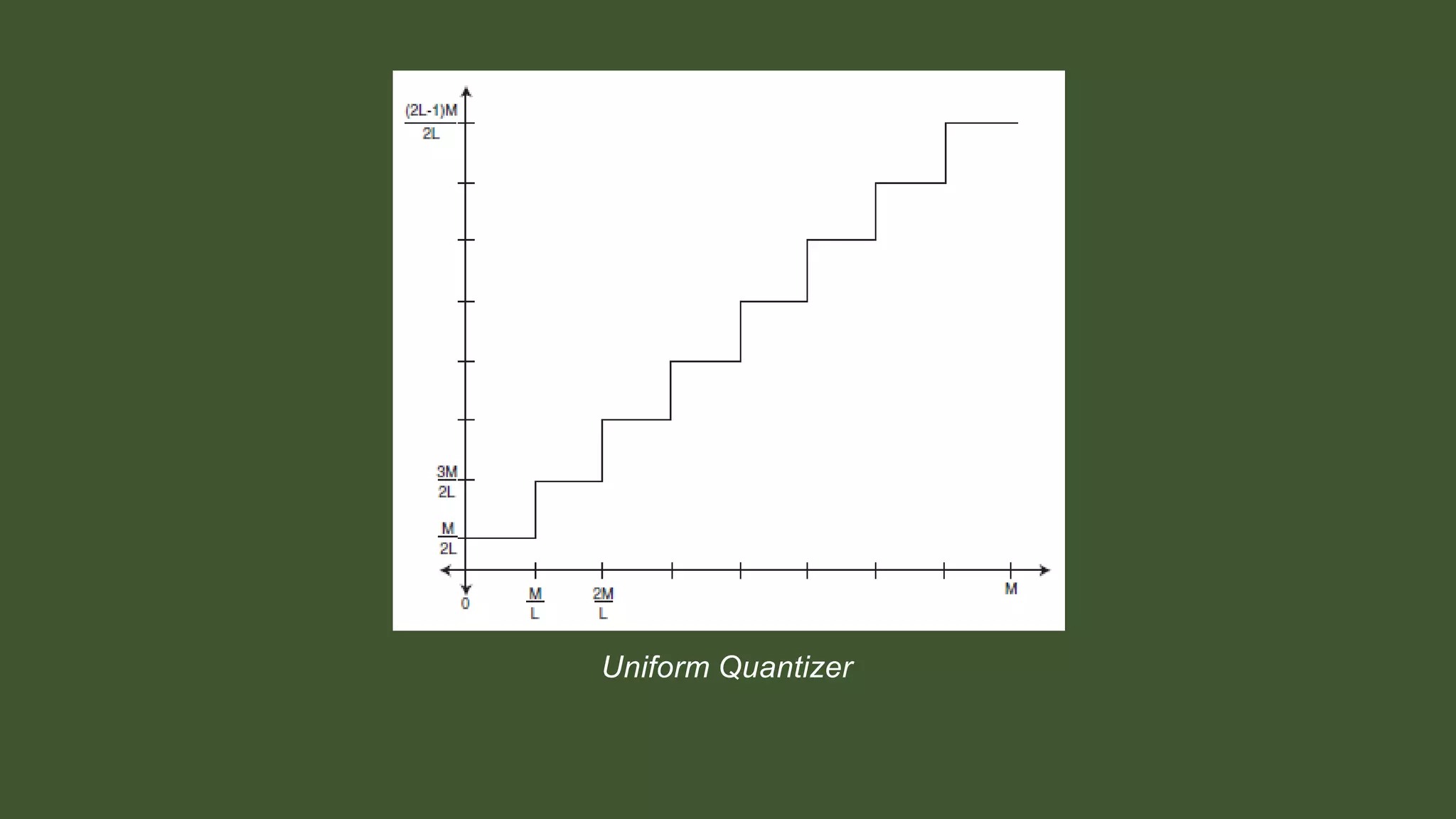

13. Uniform Quantizer

14. Non-Uniform Quantizer
• Quantization levels are not necessarily equally spaced
• Logarithmic relation between quantization levels
• Shows proportional change in amplitude of stimulus
• Better for human perception
• Quantization level are assigned from histogram analysis

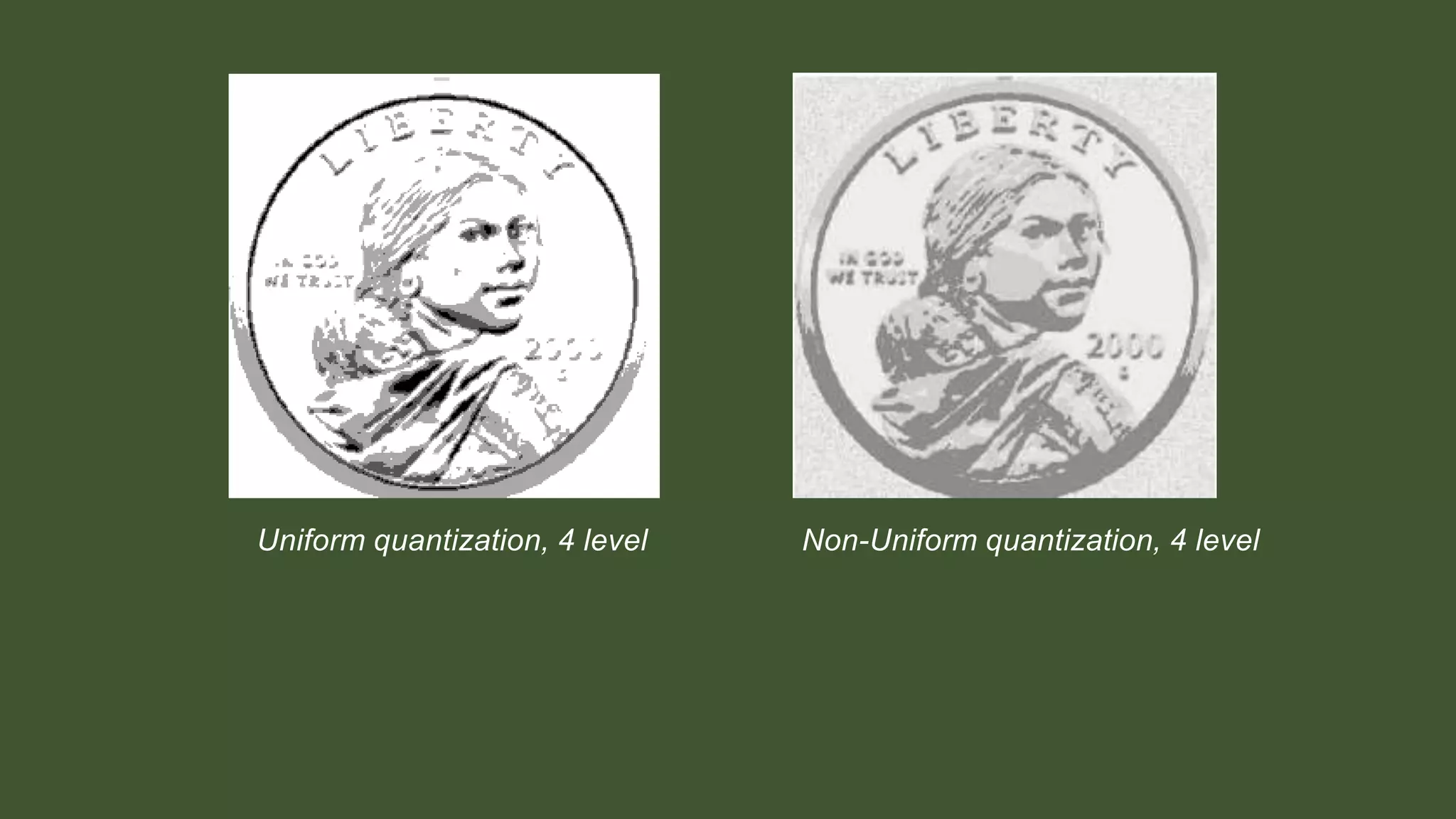

15. Non-Uniform quantization, 4 level
Uniform quantization, 4 level
