im injection presentation slide ........
1.
2.
3. Define Intramuscular injection
Enlist the indications& contraindications of IM
injection
Enumerate the sites of IM injection
Discuss the technique in IM injection
Explain the procedure in administering IM injection
4. A method of administering medications directly
into muscle tissues.
5. INDICATIONS CONTRAINDICATIONS
Administration and absorption
of large doses (up to 5 ml) in
appropriate sites
Medications that irritate
subcutaneous tissues
Cannot locate an appropriate
vein
Drugs that are altered by
digestive juices
Un cooperative /cannot take
medications orally
Active infection near the
injection site
A known allergy or
hypersensitivity to the material
or to the lidocaine
Acute myocardial infarction
Shock
Coagulation disorders

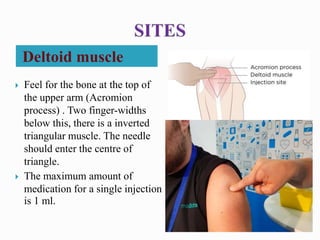

7. Deltoid muscle
Feel for the bone at the top of
the upper arm (Acromion
process) . Two finger-widths
below this, there is a inverted
triangular muscle. The needle
should enter the centre of
triangle.
The maximum amount of
medication for a single injection
is 1 ml.

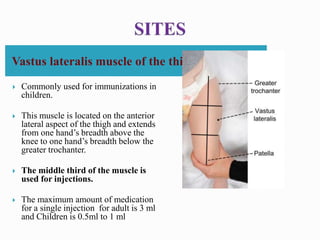

8. Vastus lateralis muscle of the thigh
Commonly used for immunizations in
children.
This muscle is located on the anterior
lateral aspect of the thigh and extends
from one hand’s breadth above the
knee to one hand’s breadth below the
greater trochanter.
The middle third of the muscle is
used for injections.
The maximum amount of medication
for a single injection for adult is 3 ml
and Children is 0.5ml to 1 ml
9. Ventrogluteal muscle of the hip
Locate the greater trochanter of
the femur with the palm of the
hand.
Spread index and middle fingers
posteriorly from the anterior
superior iliac spine to the furthest
area possible
Position the index and middle
fingers into a ‘V’ then administer
in the middle of the V.
The maximum amount of
medication for a single injection
for adult is 2.5 to 5 ml
10. The ventrogluteal site is free from blood vessels
and nerves, and has the greatest thickness of
muscle when compared to other sites

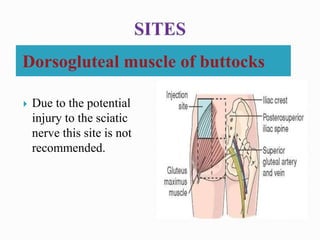

11. Dorsogluteal muscle of buttocks
Due to the potential
injury to the sciatic
nerve this site is not
recommended.
12. Rectus femoris muscle in thigh
Used occasionally for adult
Self administration is possible
May cause discomfort for some
clients.
This muscle is located on the
anterior middle aspect of the
thigh and extends from one
hand’s breadth above the knee to
one hand’s breadth below the
greater trochanter.
The maximum amount of
medication for a single injection
is 5 ml.
13. In an adult, the most commonly used needles are 1 or 1 ½
inch long and 18 to 25 Gauge thick.
An aqueous solution : 20 to 25 gauge needle.
Viscous or oil-based solutions :18 to 21 gauge
needles.
Children: 1 – 1 ¼ inch long and 22 to 25
Gauge thick
Safety needles should be used for IM injections to
reduce the risk of needle-stick injury

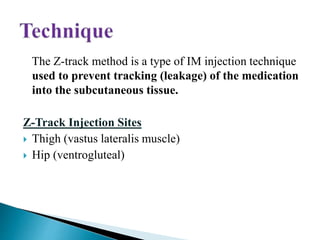

14. The Z-track method is a type of IM injection technique
used to prevent tracking (leakage) of the medication
into the subcutaneous tissue.
Z-Track Injection Sites
Thigh (vastus lateralis muscle)
Hip (ventrogluteal)
15. Purpose of Z-Track Injection
It helps to prevent medication from seeping into the
subcutaneous tissue and ensures a full dosage.
Some medications are dark colored (iron preparation)
and can cause staining on the skin. This technique is to
prevent injection site discoloration or lesions.

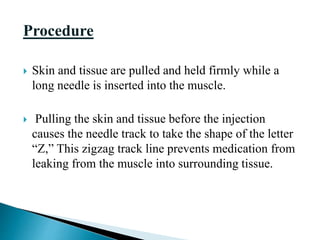

16. Procedure
Skin and tissue are pulled and held firmly while a
long needle is inserted into the muscle.
Pulling the skin and tissue before the injection
causes the needle track to take the shape of the letter
“Z,” This zigzag track line prevents medication from
leaking from the muscle into surrounding tissue.
17.

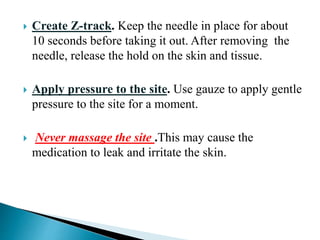

18. Create Z-track. Keep the needle in place for about
10 seconds before taking it out. After removing the
needle, release the hold on the skin and tissue.
Apply pressure to the site. Use gauze to apply gentle
pressure to the site for a moment.
Never massage the site .This may cause the
medication to leak and irritate the skin.

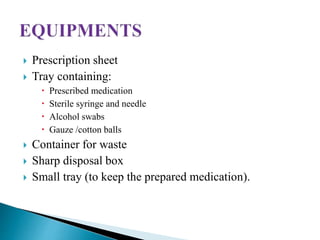

19. Prescription sheet
Tray containing:
Prescribed medication
Sterile syringe and needle
Alcohol swabs
Gauze /cotton balls
Container for waste
Sharp disposal box
Small tray (to keep the prepared medication).
21. 4.Calculate drug dosage
Inj.Rocephin (ceftriaxone) 1000 mg ( 1 gram) –powdered form
Diluent – Lidocaine 1% ( 3.5ml)
After reconstitution the volume is 4 ml
Formula
Dose ordered × Volume
Dose available
Eg. Dose ordered is 500 mg
Dose Available is 1000 mg
Volume is 4 ml
500mg × 4 ml = 2 ml
1000 mg
22. 5.Withdraw the drug
From a vial:
Expose and clean the rubber stopper of the vial with the alcohol swab
Prepare the appropriate syringe and needle
Dissolve and mix the drug ,if required
Inject air equal to the amount of medication needed into the vial and
withdraw the correct dosage of the drug.

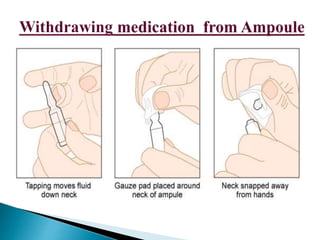

From ampoule:
Ensure that the medicine in the lower part of an ampoule
Prepare the appropriate syringe and needle
File the ampoule, if necessary
Break the neck of the ampoule protecting the fingers with gauze and
withdraw the correct dosage.

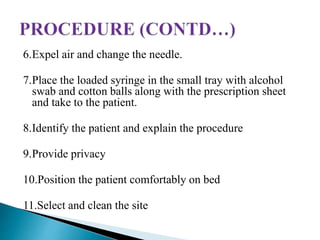

25. 6.Expel air and change the needle.
7.Place the loaded syringe in the small tray with alcohol
swab and cotton balls along with the prescription sheet
and take to the patient.
8.Identify the patient and explain the procedure
9.Provide privacy
10.Position the patient comfortably on bed
11.Select and clean the site
26. 12. Taut (stretch) the skin as required
13. Insert the needle at 90 degree angle
into the muscle
14. Withdraw the plunger. if no blood is aspirated, inject
the medicine slowly (if blood is aspirated, remove
and change the needle then select another site)
15.Withdraw the needle quickly and apply pressure over
the injected site using dry cotton ball.

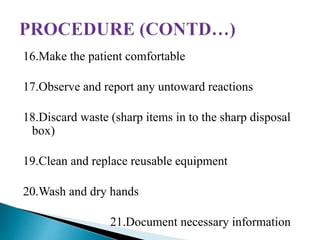

27. 16.Make the patient comfortable
17.Observe and report any untoward reactions
18.Discard waste (sharp items in to the sharp disposal
box)
19.Clean and replace reusable equipment
20.Wash and dry hands
21.Document necessary information
28. Immediate
Severe pain at the
injection site
Redness, swelling, or
warmth at the injection
site
Prolonged bleeding
Late
Tissue necrosis, or tissue
death
Injury to blood vessels and
nerves
Tingling or numbness
Sterile abscess
Muscle atrophy, injury to
bone, & cellulitis.
