1. 1
Introduction of Construction Industry
Samudra Timur , Kemaman , Terengganu
(REST AREA)
Lucas Ong Tun Cheik 0319939
Marco Leong Wong Ka Henn 0320026

2. 2

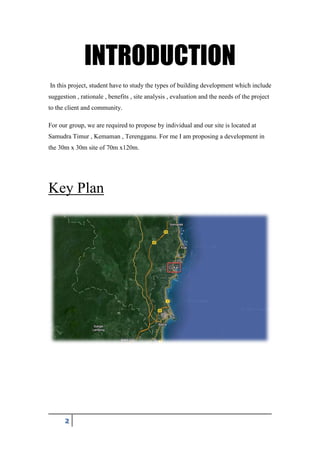

INTRODUCTION
In this project, student have to study the types of building development which include
suggestion , rationale , benefits , site analysis , evaluation and the needs of the project
to the client and community.
For our group, we are required to propose by individual and our site is located at
Samudra Timur , Kemaman , Terengganu. For me I am proposing a development in
the 30m x 30m site of 70m x120m.
Key Plan

3. 3

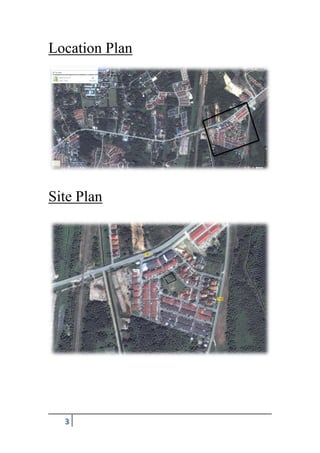

Location Plan
Site Plan

4. 4

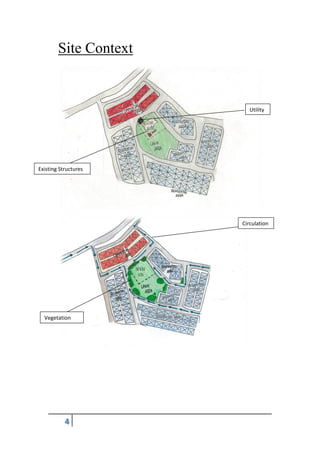

Site Context
Utility
Existing Structures
Circulation
Vegetation

5. 5

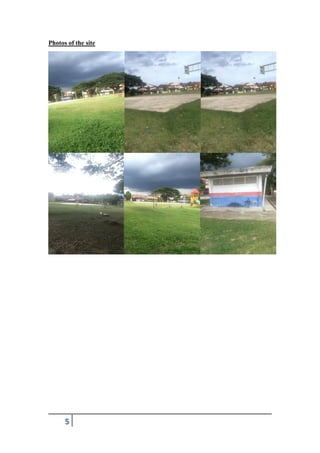

Photos of the site

6. 6

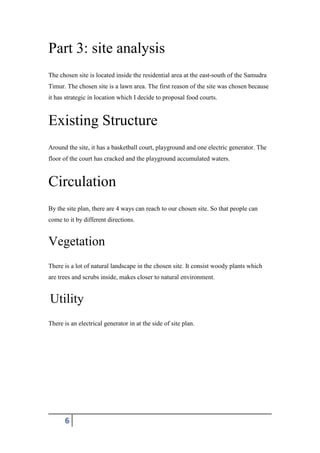

Part 3: site analysis
The chosen site is located inside the residential area at the east-south of the Samudra
Timur. The chosen site is a lawn area. The first reason of the site was chosen because
it has strategic in location which I decide to proposal food courts.
Existing Structure
Around the site, it has a basketball court, playground and one electric generator. The
floor of the court has cracked and the playground accumulated waters.
Circulation
By the site plan, there are 4 ways can reach to our chosen site. So that people can
come to it by different directions.
Vegetation
There is a lot of natural landscape in the chosen site. It consist woody plants which
are trees and scrubs inside, makes closer to natural environment.
Utility
There is an electrical generator in at the side of site plan.

7. 7

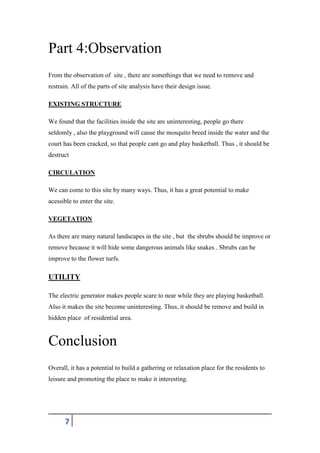

Part 4:Observation
From the observation of site , there are somethings that we need to remove and
restrain. All of the parts of site analysis have their design issue.
EXISTING STRUCTURE
We found that the facilities inside the site are uninteresting, people go there
seldomly , also the playground will cause the mosquito breed inside the water and the
court has been cracked, so that people cant go and play basketball. Thus , it should be
destruct
CIRCULATION
We can come to this site by many ways. Thus, it has a great potential to make
acessible to enter the site.
VEGETATION
As there are many natural landscapes in the site , but the sbrubs should be improve or
remove because it will hide some dangerous animals like snakes . Sbrubs can be
improve to the flower turfs.
UTILITY
The electric generator makes people scare to near while they are playing basketball.
Also it makes the site become uninteresting. Thus, it should be remove and build in
hidden place of residential area.
Conclusion
Overall, it has a potential to build a gathering or relaxation place for the residents to
leisure and promoting the place to make it interesting.

8. 8

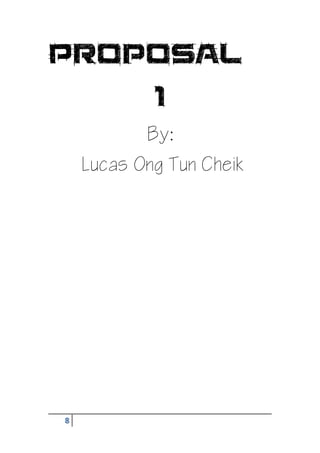

Proposal
1
By:
Lucas Ong Tun Cheik

9. 9

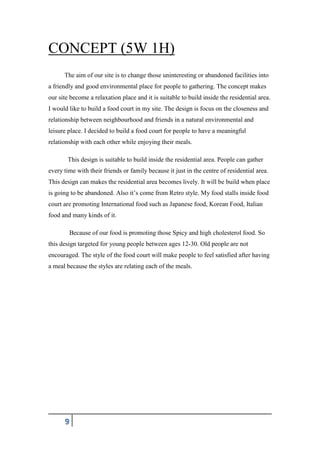

CONCEPT (5W 1H)
The aim of our site is to change those uninteresting or abandoned facilities into
a friendly and good environmental place for people to gathering. The concept makes
our site become a relaxation place and it is suitable to build inside the residential area.
I would like to build a food court in my site. The design is focus on the closeness and
relationship between neighbourhood and friends in a natural environmental and
leisure place. I decided to build a food court for people to have a meaningful
relationship with each other while enjoying their meals.
This design is suitable to build inside the residential area. People can gather
every time with their friends or family because it just in the centre of residential area.
This design can makes the residential area becomes lively. It will be build when place
is going to be abandoned. Also it’s come from Retro style. My food stalls inside food
court are promoting International food such as Japanese food, Korean Food, Italian
food and many kinds of it.
Because of our food is promoting those Spicy and high cholesterol food. So
this design targeted for young people between ages 12-30. Old people are not
encouraged. The style of the food court will make people to feel satisfied after having
a meal because the styles are relating each of the meals.

10. 10

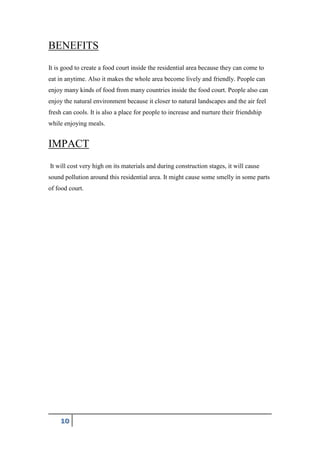

BENEFITS
It is good to create a food court inside the residential area because they can come to
eat in anytime. Also it makes the whole area become lively and friendly. People can
enjoy many kinds of food from many countries inside the food court. People also can
enjoy the natural environment because it closer to natural landscapes and the air feel
fresh can cools. It is also a place for people to increase and nurture their friendship
while enjoying meals.
IMPACT
It will cost very high on its materials and during construction stages, it will cause
sound pollution around this residential area. It might cause some smelly in some parts
of food court.

11. 11

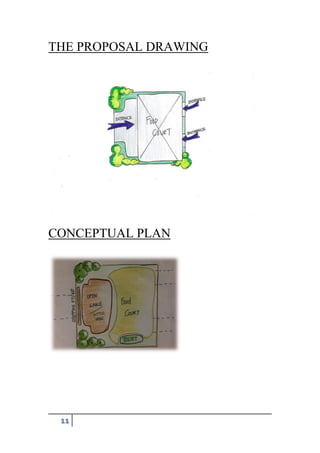

THE PROPOSAL DRAWING
CONCEPTUAL PLAN

12. 12

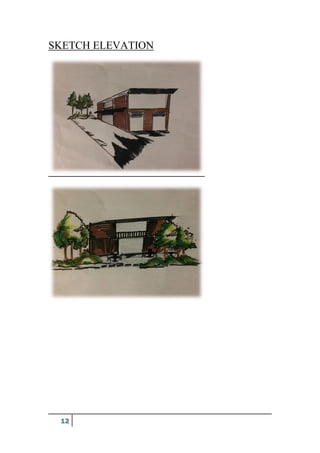

SKETCH ELEVATION

13. 13

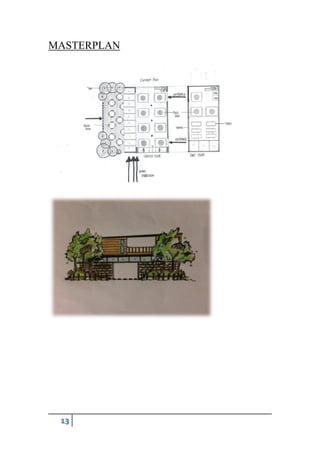

MASTERPLAN

14. 14

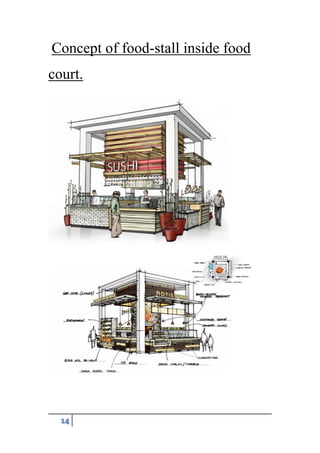

Concept of food-stall inside food
court.

15. 15

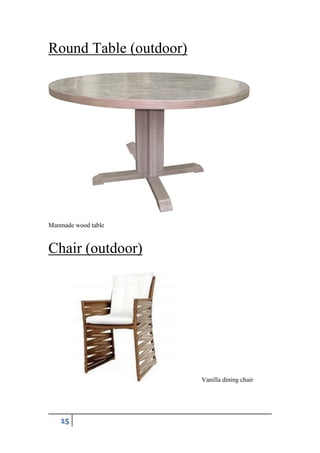

Round Table (outdoor)
Manmade wood table
Chair (outdoor)
Vanilla dining chair

16. 16

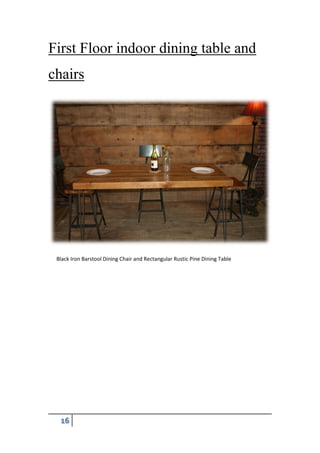

First Floor indoor dining table and
chairs
Black Iron Barstool Dining Chair and Rectangular Rustic Pine Dining Table

17. 17

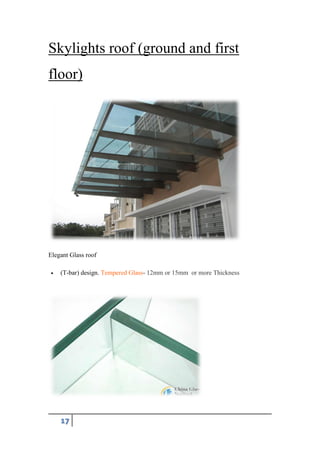

Skylights roof (ground and first
floor)
Elegant Glass roof
 (T-bar) design. Tempered Glass- 12mm or 15mm or more Thickness

18. 18

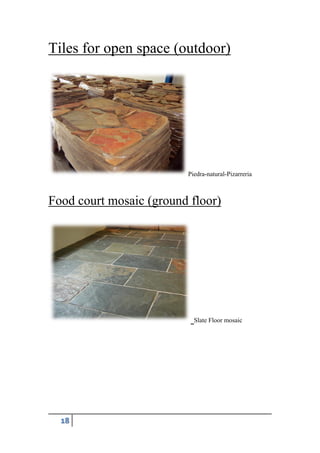

Tiles for open space (outdoor)
Piedra-natural-Pizarreria
Food court mosaic (ground floor)
Slate Floor mosaic

19. 19
(First Floor)

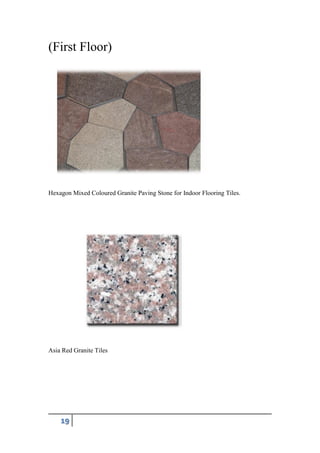

Hexagon Mixed Coloured Granite Paving Stone for Indoor Flooring Tiles.
Asia Red Granite Tiles

20. 20

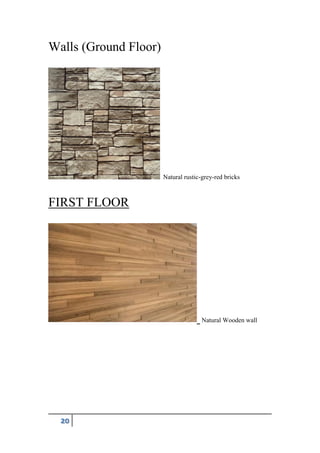

Walls (Ground Floor)
Natural rustic-grey-red bricks
FIRST FLOOR
Natural Wooden wall

21. 21

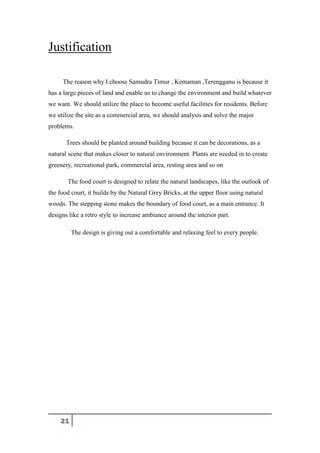

Justification
The reason why I choose Samudra Timur , Kemaman ,Terengganu is because it
has a large pieces of land and enable us to change the environment and build whatever
we want. We should utilize the place to become useful facilities for residents. Before
we utilize the site as a commercial area, we should analysis and solve the major
problems.
Trees should be planted around building because it can be decorations, as a
natural scene that makes closer to natural environment. Plants are needed in to create
greenery, recreational park, commercial area, resting area and so on
The food court is designed to relate the natural landscapes, like the outlook of
the food court, it builds by the Natural Grey Bricks, at the upper floor using natural
woods. The stepping stone makes the boundary of food court, as a main entrance. It
designs like a retro style to increase ambiance around the interior part.
The design is giving out a comfortable and relaxing feel to every people.

22. 22

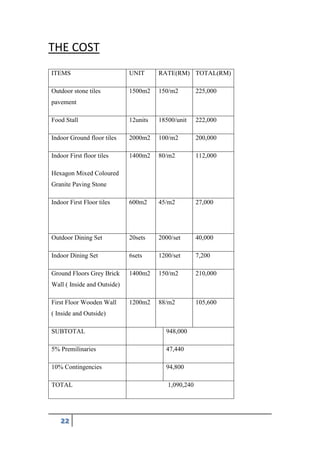

THE COST
ITEMS UNIT RATE(RM) TOTAL(RM)
Outdoor stone tiles
pavement
1500m2 150/m2 225,000
Food Stall 12units 18500/unit 222,000
Indoor Ground floor tiles 2000m2 100/m2 200,000
Indoor First floor tiles
Hexagon Mixed Coloured
Granite Paving Stone
1400m2 80/m2 112,000
Indoor First Floor tiles 600m2 45/m2 27,000
Outdoor Dining Set 20sets 2000/set 40,000
Indoor Dining Set 6sets 1200/set 7,200
Ground Floors Grey Brick
Wall ( Inside and Outside)
1400m2 150/m2 210,000
First Floor Wooden Wall
( Inside and Outside)
1200m2 88/m2 105,600
SUBTOTAL 948,000
5% Premilinaries 47,440
10% Contingencies 94,800
TOTAL 1,090,240

23. 23

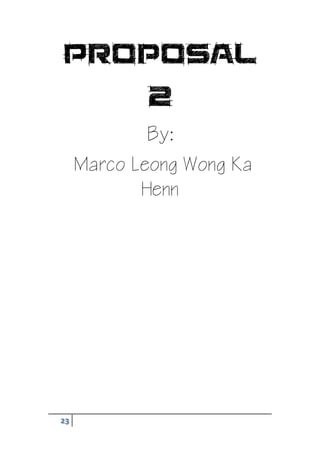

Proposal
2
By:
Marco Leong Wong Ka
Henn

24. 24
Types of Development
Recreational area

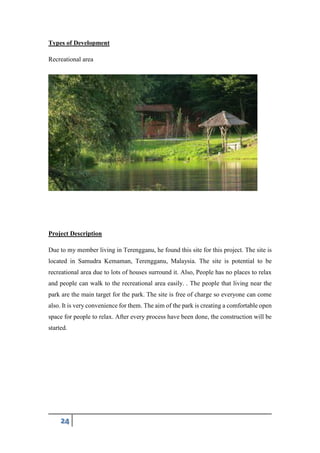

Project Description
Due to my member living in Terengganu, he found this site for this project. The site is
located in Samudra Kemaman, Terengganu, Malaysia. The site is potential to be
recreational area due to lots of houses surround it. Also, People has no places to relax
and people can walk to the recreational area easily. . The people that living near the
park are the main target for the park. The site is free of charge so everyone can come
also. It is very convenience for them. The aim of the park is creating a comfortable open
space for people to relax. After every process have been done, the construction will be
started.

25. 25
Benefits of creating recreational area
It is good to create a recreational area because it can let people get closer to the nature.
The park has lots of spaces for people and comfortable atmosphere. Due to the trees of
the park, the air near the park is very fresh. The park provides the open area for people
to do exercise or gather. People also can lie down on the lawn and breaths the fresh air,
further, the park also provide walk path for jogging. It is good for health. Create this
park will improve the environment of the place, produce fresh air, and create a natural
habitats for birds.
Impact of creating recreational area
During the construction stages, the sound pollution will affect the people that live near
the site. Also, the trucks will ruin the road and make the road dirty.
Conceptual Ideas of the recreational area

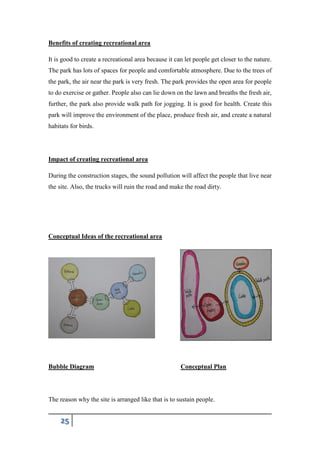

Bubble Diagram Conceptual Plan
The reason why the site is arranged like that is to sustain people.

26. 26

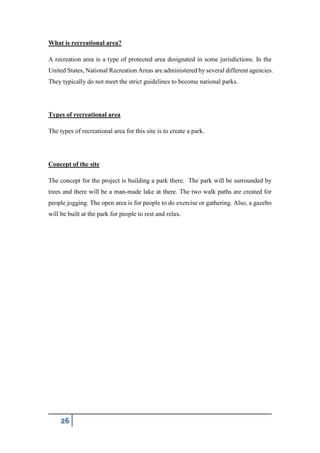

What is recreational area?
A recreation area is a type of protected area designated in some jurisdictions. In the
United States, National Recreation Areas are administered by several different agencies.
They typically do not meet the strict guidelines to become national parks.
Types of recreational area
The types of recreational area for this site is to create a park.
Concept of the site
The concept for the project is building a park there. The park will be surrounded by
trees and there will be a man-made lake at there. The two walk paths are created for
people jogging. The open area is for people to do exercise or gathering. Also, a gazebo
will be built at the park for people to rest and relax.

27. 27

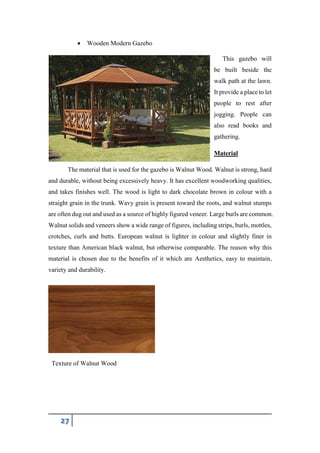

 Wooden Modern Gazebo
This gazebo will
be built beside the
walk path at the lawn.
It provide a place to let
people to rest after
jogging. People can
also read books and
gathering.
Material
The material that is used for the gazebo is Walnut Wood. Walnut is strong, hard
and durable, without being excessively heavy. It has excellent woodworking qualities,
and takes finishes well. The wood is light to dark chocolate brown in colour with a
straight grain in the trunk. Wavy grain is present toward the roots, and walnut stumps
are often dug out and used as a source of highly figured veneer. Large burls are common.
Walnut solids and veneers show a wide range of figures, including strips, burls, mottles,
crotches, curls and butts. European walnut is lighter in colour and slightly finer in
texture than American black walnut, but otherwise comparable. The reason why this
material is chosen due to the benefits of it which are Aesthetics, easy to maintain,
variety and durability.
Texture of Walnut Wood

28. 28

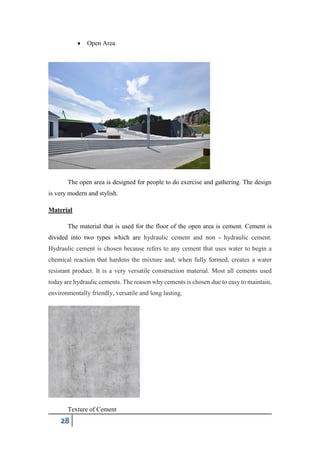

 Open Area
The open area is designed for people to do exercise and gathering. The design
is very modern and stylish.
Material
The material that is used for the floor of the open area is cement. Cement is
divided into two types which are hydraulic cement and non - hydraulic cement.
Hydraulic cement is chosen because refers to any cement that uses water to begin a
chemical reaction that hardens the mixture and, when fully formed, creates a water
resistant product. It is a very versatile construction material. Most all cements used
today are hydraulic cements. The reason why cements is chosen due to easy to maintain,
environmentally friendly, versatile and long lasting.
Texture of Cement

29. 29
 Walk paths

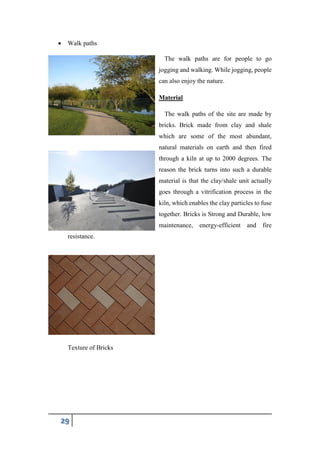

The walk paths are for people to go
jogging and walking. While jogging, people
can also enjoy the nature.
Material
The walk paths of the site are made by
bricks. Brick made from clay and shale
which are some of the most abundant,
natural materials on earth and then fired
through a kiln at up to 2000 degrees. The
reason the brick turns into such a durable
material is that the clay/shale unit actually
goes through a vitrification process in the
kiln, which enables the clay particles to fuse
together. Bricks is Strong and Durable, low
maintenance, energy-efficient and fire
resistance.
Texture of Bricks

30. 30
 Green Lung

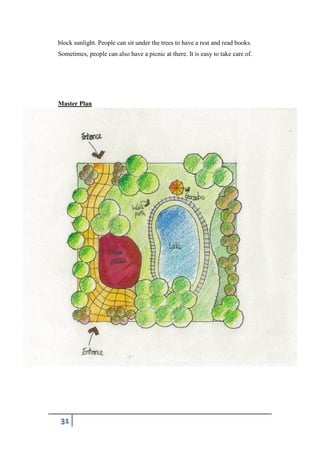

The site will be surrounded by trees. It will produce fresh air for the place. Also, it
can block the sunlight so people won’t feel so hot while jogging.
Types of trees

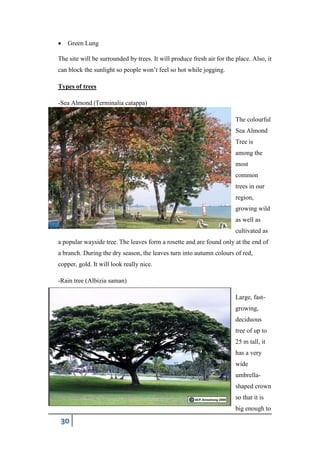

-Sea Almond (Terminalia catappa)
The colourful
Sea Almond
Tree is
among the
most
common
trees in our
region,
growing wild
as well as
cultivated as
a popular wayside tree. The leaves form a rosette and are found only at the end of
a branch. During the dry season, the leaves turn into autumn colours of red,
copper, gold. It will look really nice.
-Rain tree (Albizia saman)
Large, fast-
growing,
deciduous
tree of up to
25 m tall, it
has a very
wide
umbrella-
shaped crown
so that it is
big enough to

31. 31
block sunlight. People can sit under the trees to have a rest and read books.
Sometimes, people can also have a picnic at there. It is easy to take care of.
Master Plan

32. 32

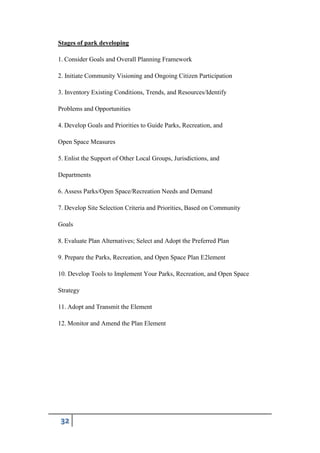

Stages of park developing
1. Consider Goals and Overall Planning Framework
2. Initiate Community Visioning and Ongoing Citizen Participation
3. Inventory Existing Conditions, Trends, and Resources/Identify
Problems and Opportunities
4. Develop Goals and Priorities to Guide Parks, Recreation, and
Open Space Measures
5. Enlist the Support of Other Local Groups, Jurisdictions, and
Departments
6. Assess Parks/Open Space/Recreation Needs and Demand
7. Develop Site Selection Criteria and Priorities, Based on Community
Goals
8. Evaluate Plan Alternatives; Select and Adopt the Preferred Plan
9. Prepare the Parks, Recreation, and Open Space Plan E2lement
10. Develop Tools to Implement Your Parks, Recreation, and Open Space
Strategy
11. Adopt and Transmit the Element
12. Monitor and Amend the Plan Element

33. 33

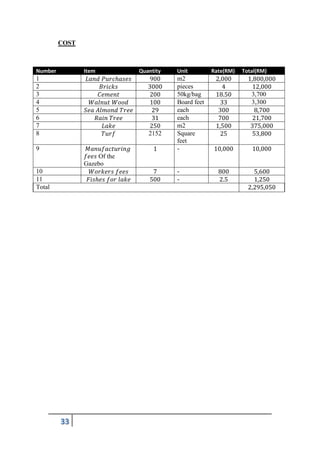

COST
Number Item Quantity Unit Rate(RM) Total(RM)
1 𝐿𝑎𝑛𝑑 𝑃𝑢𝑟𝑐ℎ𝑎𝑠𝑒𝑠 900 m2 2,000 1,800,000
2 𝐵𝑟𝑖𝑐𝑘𝑠 3000 pieces 4 12,000
3 𝐶𝑒𝑚𝑒𝑛𝑡 200 50kg/bag 18.50 3,700
4 𝑊𝑎𝑙𝑛𝑢𝑡 𝑊𝑜𝑜𝑑 100 Board feet 33 3,300
5 𝑆𝑒𝑎 𝐴𝑙𝑚𝑜𝑛𝑑 𝑇𝑟𝑒𝑒 29 each 300 8,700
6 𝑅𝑎𝑖𝑛 𝑇𝑟𝑒𝑒 31 each 700 21,700
7 𝐿𝑎𝑘𝑒 250 m2 1,500 375,000
8 𝑇𝑢𝑟𝑓 2152 Square
feet
25 53,800
9 𝑀𝑎𝑛𝑢𝑓𝑎𝑐𝑡𝑢𝑟𝑖𝑛𝑔
𝑓𝑒𝑒𝑠 Of the
Gazebo
1 - 10,000 10,000
10 𝑊𝑜𝑟𝑘𝑒𝑟𝑠 𝑓𝑒𝑒𝑠 7 - 800 5,600
11 𝐹𝑖𝑠ℎ𝑒𝑠 𝑓𝑜𝑟 𝑙𝑎𝑘𝑒 500 - 2.5 1,250
Total 2,295,050

34. 34
