INTRODUCTION of
CONSTRUCTION INDUSTRY
FINAL PROJECT
DEVELOPMENT PROPOSAL
Miss.Ann
CHONG HAO FOONG 0322343

3. 3 | P a g e

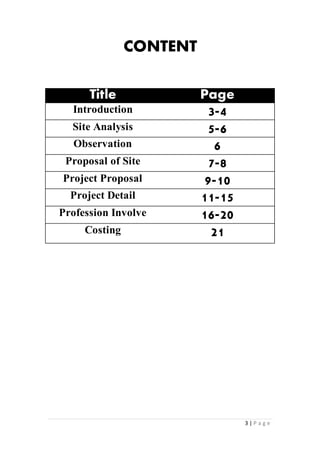

CONTENT
Title Page
Introduction 3-4
Site Analysis 5-6
Observation 6
Proposal of Site 7-8
Project Proposal 9-10
Project Detail 11-15
Profession Involve 16-20
Costing 21

4. 4 | P a g e
INTRODUCTION
In this project, students have to work in a group of 2 to find a specific empty land to
initiate a small construction project. The size of the land shall between 50m x 50m
(2500m2) – 50m x 70m (3500m2). The site we have chosen is located near the
residential and shop lots area to the road of Jalan Permaisuri, Bandar Mahkota Cheras,
43200 Cheras, Selangor, Malaysia.

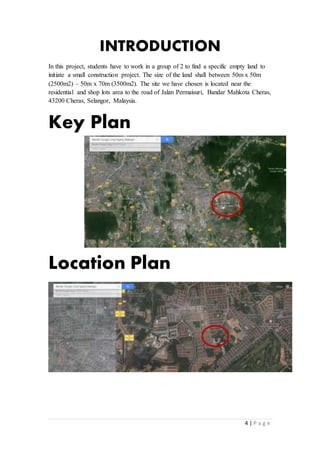

Key Plan
Location Plan

5. 5 | P a g e

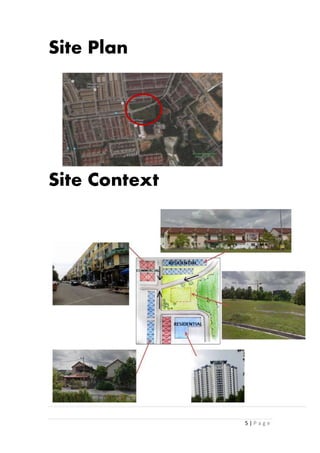

Site Plan
Site Context

6. 6 | P a g e

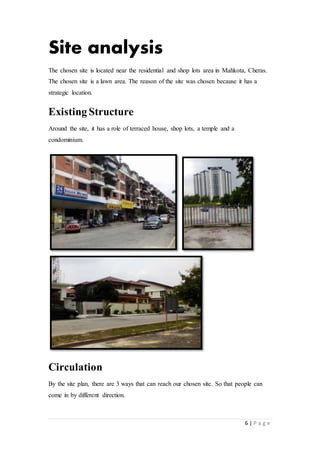

Site analysis
The chosen site is located near the residential and shop lots area in Mahkota, Cheras.
The chosen site is a lawn area. The reason of the site was chosen because it has a
strategic location.
Existing Structure
Around the site, it has a role of terraced house, shop lots, a temple and a
condominium.
Circulation
By the site plan, there are 3 ways that can reach our chosen site. So that people can
come in by different direction.

7. 7 | P a g e

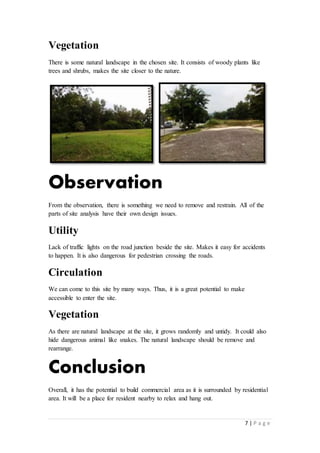

Vegetation
There is some natural landscape in the chosen site. It consists of woody plants like
trees and shrubs, makes the site closer to the nature.
Observation
From the observation, there is something we need to remove and restrain. All of the
parts of site analysis have their own design issues.
Utility
Lack of traffic lights on the road junction beside the site. Makes it easy for accidents
to happen. It is also dangerous for pedestrian crossing the roads.
Circulation
We can come to this site by many ways. Thus, it is a great potential to make
accessible to enter the site.
Vegetation
As there are natural landscape at the site, it grows randomly and untidy. It could also
hide dangerous animal like snakes. The natural landscape should be remove and
rearrange.
Conclusion
Overall, it has the potential to build commercial area as it is surrounded by residential
area. It will be a place for resident nearby to relax and hang out.

8. 8 | P a g e
Proposal of The Chosen
Site
Advantages
It is surrounded by residential area, which means there is many people around the area.
It is on a flat land that can built buildings easily without altering the site. The site also
have 3 open sides, providing a wide view and easy access from the residents nearby.
The site also have a good exposure to sunlight, open air and rainfall, which makes the
site suitable for many function. There are a few trees and shrubs which can be easily
removed, so the cost of clearing the site will not be high.
Disadvantages
The site has poor drainage system which need to be improve during the construction
of project. Another thing, the grass on the site needed to be trim as the site has been
bared for a long time.
Rationale
After analysing the site, the advantages and disadvantages, I decided to propose a
food court. The residents here have access to some commercial area, but they do not
have easy access to them. In addition, the commercial area nearby has only a few café
and restaurant in it. There are only a few places for the residents nearby to meet up
and hang out together. There are also only some parking spot for the commercial area
around there, with this new site, I will add in a parking lot for the food court. That
way, it will be easier for the residents to park and eat at the food court.
Benefits
As there are many residential area nearby, such as Taman Temenggung, Taman
Dayang, Taman Permaisuri and a condominium, the food court can provide them a
huge space to eat and meet. Resident around there can come to eat anytime they wish
and with a large variety of food choices all together at a place. Meet up with family
and friends is more easy and relaxing as there is a huge parking lot for parking

9. 9 | P a g e

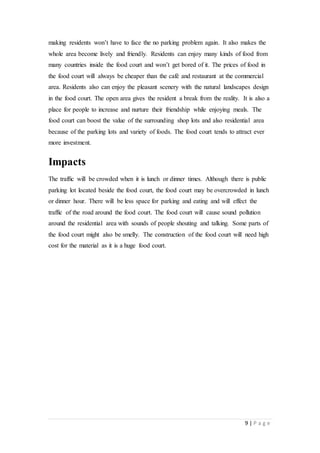

making residents won’t have to face the no parking problem again. It also makes the
whole area become lively and friendly. Residents can enjoy many kinds of food from
many countries inside the food court and won’t get bored of it. The prices of food in
the food court will always be cheaper than the café and restaurant at the commercial
area. Residents also can enjoy the pleasant scenery with the natural landscapes design
in the food court. The open area gives the resident a break from the reality. It is also a
place for people to increase and nurture their friendship while enjoying meals. The
food court can boost the value of the surrounding shop lots and also residential area
because of the parking lots and variety of foods. The food court tends to attract ever
more investment.
Impacts
The traffic will be crowded when it is lunch or dinner times. Although there is public
parking lot located beside the food court, the food court may be overcrowded in lunch
or dinner hour. There will be less space for parking and eating and will effect the
traffic of the road around the food court. The food court will cause sound pollution
around the residential area with sounds of people shouting and talking. Some parts of
the food court might also be smelly. The construction of the food court will need high
cost for the material as it is a huge food court.

10. 10 | P a g e
Project Proposal
After my analysis on the empty plot of land in Mahkota, Cheras. There are no
food court nearby for the residents to have a space to gather around, relax and eat. So
I decided to propose a food court as a commercial area for the nearby residents as it is
surrounded by resident area and some shop lots. This can create a harmony
atmosphere for the nearby residents to relax and eat together.
The design is focus on the closeness and relationship between neighbourhood
and friends in a natural environmental and leisure place. I decided to build a food
court for people to have a meaningful relationship with each other while enjoying
their meals. This design is suitable to build inside the residential area. People can
gather every time with their friends or family because it just in the centre of
residential area. This design can makes the residential area becomes lively.
The food stalls inside food court are promoting International food such as
Japanese food, Korean Food, Italian food and mostly the delicious Malaysian foods.
We consist of a huge variety of food around the world and domestic. So the food
court is targeted for people of all ages with many choices of food. The overall style of
the food court will make people to feel refresh and relax after having a meal because
it is an open air food court and based on green design.

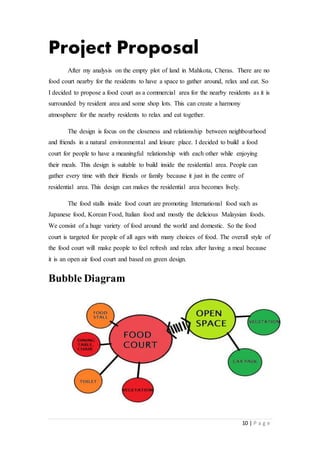

Bubble Diagram

11. 11 | P a g e

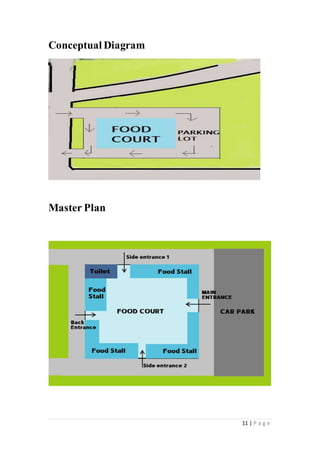

Conceptual Diagram

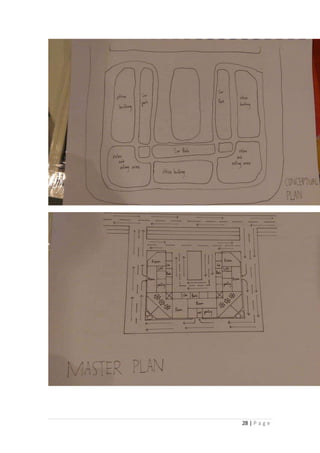

Master Plan

12. 12 | P a g e
Project Details
Open Space (Parking Lots)

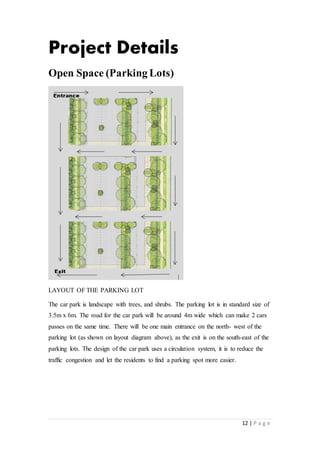

LAYOUT OF THE PARKING LOT
The car park is landscape with trees, and shrubs. The parking lot is in standard size of
3.5m x 6m. The road for the car park will be around 4m wide which can make 2 cars
passes on the same time. There will be one main entrance on the north- west of the
parking lot (as shown on layout diagram above), as the exit is on the south-east of the
parking lots. The design of the car park uses a circulation system, it is to reduce the
traffic congestion and let the residents to find a parking spot more easier.

13. 13 | P a g e
The car park is grass landscaped. The grass landscape decorates the parking lot and
gives the car park a greener scene. It also brings out some nature element to the
parking lot as the trees and shrubs decrease the pollute of the cars.
Design of the Roof of the FoodCourt
The pictures shown above will be the design of the roof. The food court will be open-
aired. The design of the roof shape like a 8, it is towards a more modern design. The
roof have a huge hole on the center. People sitting at the center can directly look up to

14. 14 | P a g e
the sky when they are dinning. This makes the food court more close to the air and
people dinning at the food court won’t feel like they are trap in a heat cage, they will
fell more refresh. They can enjoy the scenery of the sky day and night whenever they
like at the food court.
Design of the Entrance of the FoodCourt
This is the design of all the entrance of the food court. The food court have four
entrance on each row of the food stall. The entrance feature the name of the food
court, it also feature some famous food stall name on the entrance. The design go with
a modern look, with the glass and steel design. There is also plants to make the
entrance feature the green feeling. The entrance feature wood decking, it makes the
overall feel more close to nature.

15. 15 | P a g e

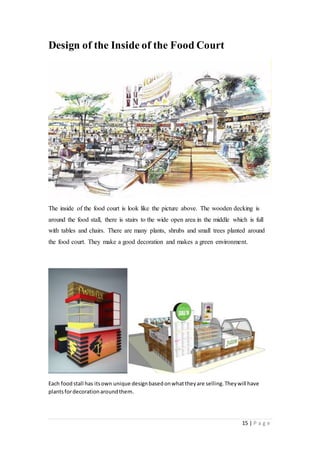

Design of the Inside of the Food Court
The inside of the food court is look like the picture above. The wooden decking is
around the food stall, there is stairs to the wide open area in the middle which is full
with tables and chairs. There are many plants, shrubs and small trees planted around
the food court. They make a good decoration and makes a green environment.
Each foodstall has itsown unique designbasedonwhattheyare selling.Theywill have
plantsfordecorationaroundthem.

16. 16 | P a g e

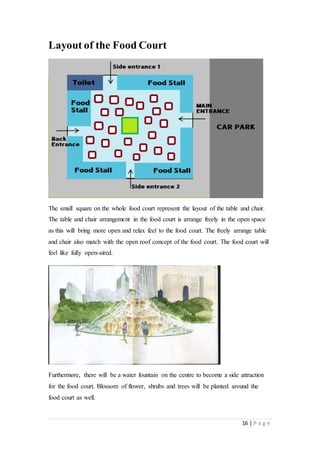

Layout of the Food Court
The small square on the whole food court represent the layout of the table and chair.
The table and chair arrangement in the food court is arrange freely in the open space
as this will bring more open and relax feel to the food court. The freely arrange table
and chair also match with the open roof concept of the food court. The food court will
feel like fully open-aired.
Furthermore, there will be a water fountain on the centre to become a side attraction
for the food court. Blossom of flower, shrubs and trees will be planted around the
food court as well.

17. 17 | P a g e

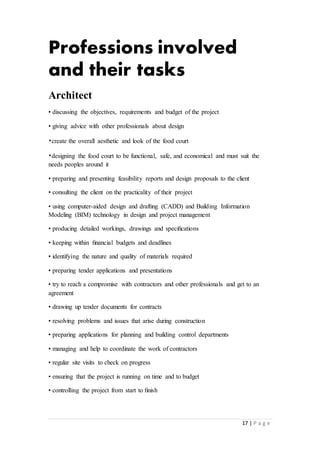

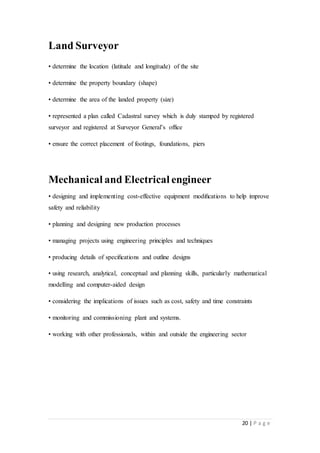

Professions involved
and their tasks
Architect
• discussing the objectives, requirements and budget of the project
• giving advice with other professionals about design
•create the overall aesthetic and look of the food court
•designing the food court to be functional, safe, and economical and must suit the
needs peoples around it
• preparing and presenting feasibility reports and design proposals to the client
• consulting the client on the practicality of their project
• using computer-aided design and drafting (CADD) and Building Information
Modeling (BIM) technology in design and project management
• producing detailed workings, drawings and specifications
• keeping within financial budgets and deadlines
• identifying the nature and quality of materials required
• preparing tender applications and presentations
• try to reach a compromise with contractors and other professionals and get to an
agreement
• drawing up tender documents for contracts
• resolving problems and issues that arise during construction
• preparing applications for planning and building control departments
• managing and help to coordinate the work of contractors
• regular site visits to check on progress
• ensuring that the project is running on time and to budget
• controlling the project from start to finish

18. 18 | P a g e

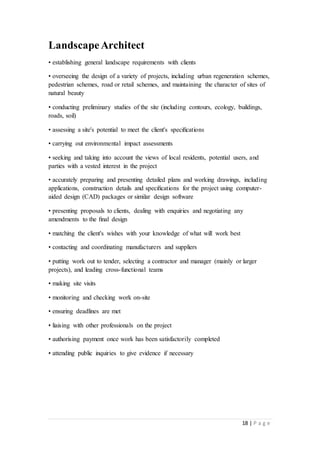

LandscapeArchitect
• establishing general landscape requirements with clients
• overseeing the design of a variety of projects, including urban regeneration schemes,
pedestrian schemes, road or retail schemes, and maintaining the character of sites of
natural beauty
• conducting preliminary studies of the site (including contours, ecology, buildings,
roads, soil)
• assessing a site's potential to meet the client's specifications
• carrying out environmental impact assessments
• seeking and taking into account the views of local residents, potential users, and
parties with a vested interest in the project
• accurately preparing and presenting detailed plans and working drawings, including
applications, construction details and specifications for the project using computer-
aided design (CAD) packages or similar design software
• presenting proposals to clients, dealing with enquiries and negotiating any
amendments to the final design
• matching the client's wishes with your knowledge of what will work best
• contacting and coordinating manufacturers and suppliers
• putting work out to tender, selecting a contractor and manager (mainly or larger
projects), and leading cross-functional teams
• making site visits
• monitoring and checking work on-site
• ensuring deadlines are met
• liaising with other professionals on the project
• authorising payment once work has been satisfactorily completed
• attending public inquiries to give evidence if necessary

19. 19 | P a g e

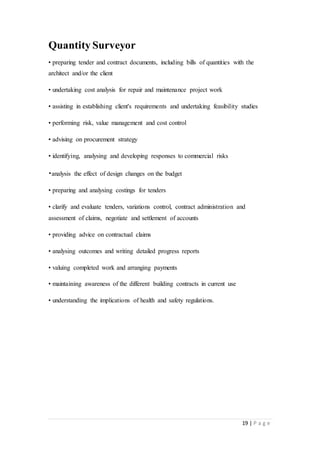

Quantity Surveyor
• preparing tender and contract documents, including bills of quantities with the
architect and/or the client
• undertaking cost analysis for repair and maintenance project work
• assisting in establishing client's requirements and undertaking feasibility studies
• performing risk, value management and cost control
• advising on procurement strategy
• identifying, analysing and developing responses to commercial risks
•analysis the effect of design changes on the budget
• preparing and analysing costings for tenders
• clarify and evaluate tenders, variations control, contract administration and
assessment of claims, negotiate and settlement of accounts
• providing advice on contractual claims
• analysing outcomes and writing detailed progress reports
• valuing completed work and arranging payments
• maintaining awareness of the different building contracts in current use
• understanding the implications of health and safety regulations.

20. 20 | P a g e
Land Surveyor
• determine the location (latitude and longitude) of the site
• determine the property boundary (shape)
• determine the area of the landed property (size)
• represented a plan called Cadastral survey which is duly stamped by registered
surveyor and registered at Surveyor General’s office
• ensure the correct placement of footings, foundations, piers
Mechanical and Electrical engineer
• designing and implementing cost-effective equipment modifications to help improve
safety and reliability
• planning and designing new production processes
• managing projects using engineering principles and techniques
• producing details of specifications and outline designs
• using research, analytical, conceptual and planning skills, particularly mathematical
modelling and computer-aided design
• considering the implications of issues such as cost, safety and time constraints
• monitoring and commissioning plant and systems.
• working with other professionals, within and outside the engineering sector

21. 21 | P a g e

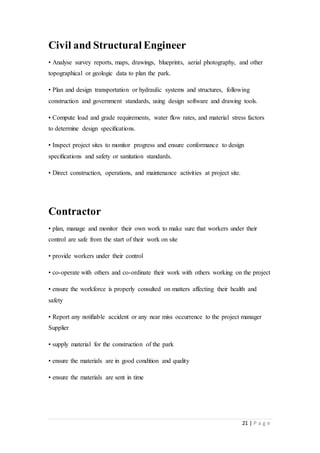

Civil and Structural Engineer
• Analyse survey reports, maps, drawings, blueprints, aerial photography, and other
topographical or geologic data to plan the park.
• Plan and design transportation or hydraulic systems and structures, following
construction and government standards, using design software and drawing tools.
• Compute load and grade requirements, water flow rates, and material stress factors
to determine design specifications.
• Inspect project sites to monitor progress and ensure conformance to design
specifications and safety or sanitation standards.
• Direct construction, operations, and maintenance activities at project site.
Contractor
• plan, manage and monitor their own work to make sure that workers under their
control are safe from the start of their work on site
• provide workers under their control
• co-operate with others and co-ordinate their work with others working on the project
• ensure the workforce is properly consulted on matters affecting their health and
safety
• Report any notifiable accident or any near miss occurrence to the project manager
Supplier
• supply material for the construction of the park
• ensure the materials are in good condition and quality
• ensure the materials are sent in time

22. 22 | P a g e

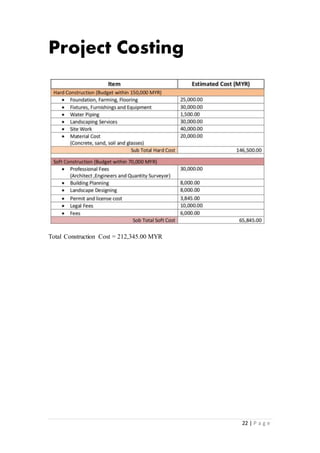

Project Costing
Total Construction Cost = 212,345.00 MYR

23. 23 | P a g e

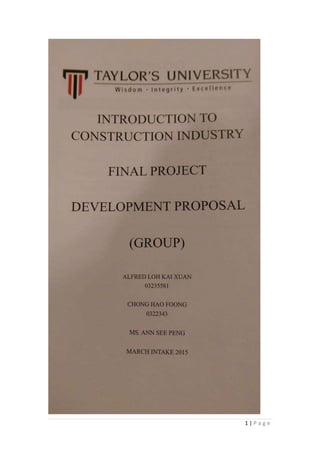

INTRODUCTION of
CONSTRUCTION INDUSTRY
FINAL PROJECT
DEVELOPMENT
PROPOSAL
ALFRED LOH KAI XUAN 0323581
MS. ANN SEE PENG
MARCH INTAKE 2015

24. 24 | P a g e

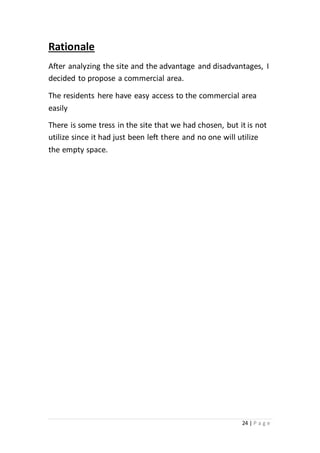

Rationale
After analyzing the site and the advantage and disadvantages, I
decided to propose a commercial area.
The residents here have easy access to the commercial area
easily
There is some tress in the site that we had chosen, but it is not
utilize since it had just been left there and no one will utilize
the empty space.

25. 25 | P a g e

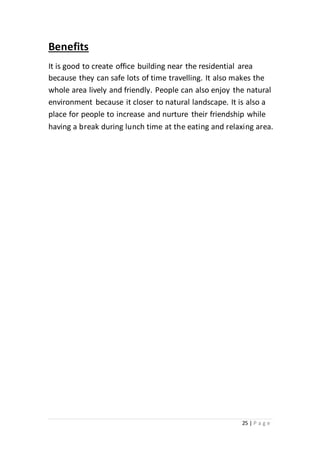

Benefits
It is good to create office building near the residential area
because they can safe lots of time travelling. It also makes the
whole area lively and friendly. People can also enjoy the natural
environment because it closer to natural landscape. It is also a
place for people to increase and nurture their friendship while
having a break during lunch time at the eating and relaxing area.

26. 26 | P a g e
Impacts
The traffic will be crowded when it is in the morning or evening
and times during lunch break in the afternoon. To overcome
this problem, the office building will have 15 parking located
outside the building to allow car to park and prevent traffic
congestion. Although there is a underground parking, the office
building maybe overcrowded in peak seasons.
There will be less space for other purposes in the area. The
local authorities will need to plan accordingly to ensure the
office building is sustainable. In long terms, the office building
will need maintenance and in need a high cost.

27. 27 | P a g e

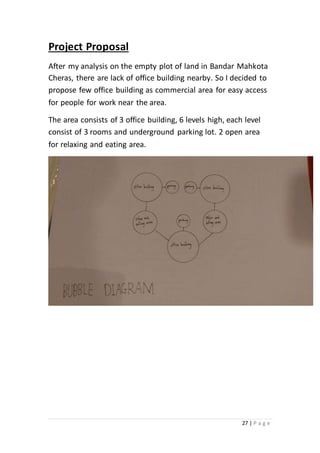

Project Proposal
After my analysis on the empty plot of land in Bandar Mahkota
Cheras, there are lack of office building nearby. So I decided to
propose few office building as commercial area for easy access
for people for work near the area.
The area consists of 3 office building, 6 levels high, each level
consist of 3 rooms and underground parking lot. 2 open area
for relaxing and eating area.

28. 28 | P a g e

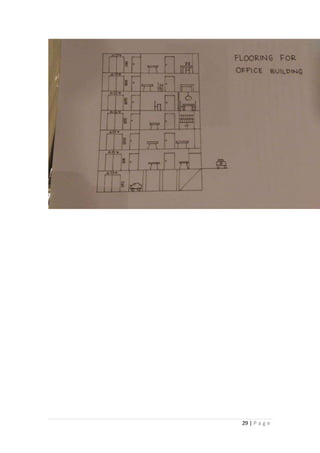

29. 29 | P a g e

30. 30 | P a g e

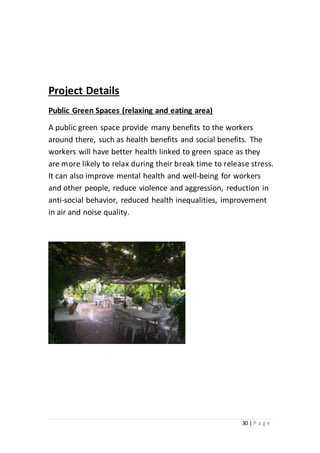

Project Details
Public Green Spaces (relaxing and eating area)
A public green space provide many benefits to the workers
around there, such as health benefits and social benefits. The
workers will have better health linked to green space as they
are more likely to relax during their break time to release stress.
It can also improve mental health and well-being for workers
and other people, reduce violence and aggression, reduction in
anti-social behavior, reduced health inequalities, improvement
in air and noise quality.

31. 31 | P a g e
Office Building and Underground Parking Lot
Parking Lots are made out of concrete
Floor on every office building and level are made out of white
marble tiles

32. 32 | P a g e

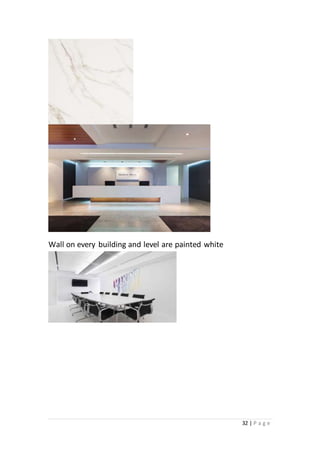

Wall on every building and level are painted white

33. 33 | P a g e

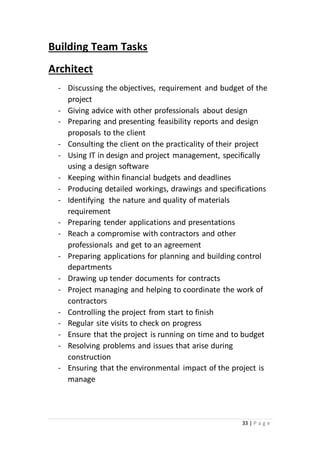

Building Team Tasks
Architect
- Discussing the objectives, requirement and budget of the
project
- Giving advice with other professionals about design
- Preparing and presenting feasibility reports and design
proposals to the client
- Consulting the client on the practicality of their project
- Using IT in design and project management, specifically
using a design software
- Keeping within financial budgets and deadlines
- Producing detailed workings, drawings and specifications
- Identifying the nature and quality of materials
requirement
- Preparing tender applications and presentations
- Reach a compromise with contractors and other
professionals and get to an agreement
- Preparing applications for planning and building control
departments
- Drawing up tender documents for contracts
- Project managing and helping to coordinate the work of
contractors
- Controlling the project from start to finish
- Regular site visits to check on progress
- Ensure that the project is running on time and to budget
- Resolving problems and issues that arise during
construction
- Ensuring that the environmental impact of the project is
manage

34. 34 | P a g e

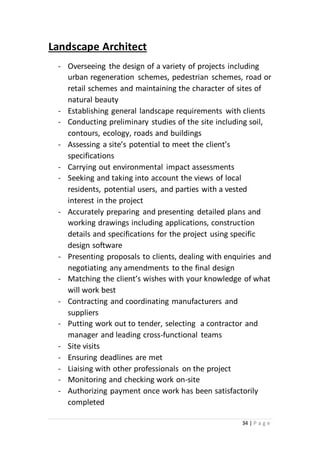

Landscape Architect
- Overseeing the design of a variety of projects including
urban regeneration schemes, pedestrian schemes, road or
retail schemes and maintaining the character of sites of
natural beauty
- Establishing general landscape requirements with clients
- Conducting preliminary studies of the site including soil,
contours, ecology, roads and buildings
- Assessing a site’s potential to meet the client’s
specifications
- Carrying out environmental impact assessments
- Seeking and taking into account the views of local
residents, potential users, and parties with a vested
interest in the project
- Accurately preparing and presenting detailed plans and
working drawings including applications, construction
details and specifications for the project using specific
design software
- Presenting proposals to clients, dealing with enquiries and
negotiating any amendments to the final design
- Matching the client’s wishes with your knowledge of what
will work best
- Contracting and coordinating manufacturers and
suppliers
- Putting work out to tender, selecting a contractor and
manager and leading cross-functional teams
- Site visits
- Ensuring deadlines are met
- Liaising with other professionals on the project
- Monitoring and checking work on-site
- Authorizing payment once work has been satisfactorily
completed

35. 35 | P a g e

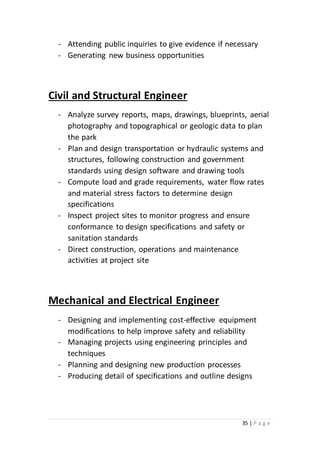

- Attending public inquiries to give evidence if necessary
- Generating new business opportunities
Civil and Structural Engineer
- Analyze survey reports, maps, drawings, blueprints, aerial
photography and topographical or geologic data to plan
the park
- Plan and design transportation or hydraulic systems and
structures, following construction and government
standards using design software and drawing tools
- Compute load and grade requirements, water flow rates
and material stress factors to determine design
specifications
- Inspect project sites to monitor progress and ensure
conformance to design specifications and safety or
sanitation standards
- Direct construction, operations and maintenance
activities at project site
Mechanical and Electrical Engineer
- Designing and implementing cost-effective equipment
modifications to help improve safety and reliability
- Managing projects using engineering principles and
techniques
- Planning and designing new production processes
- Producing detail of specifications and outline designs

36. 36 | P a g e

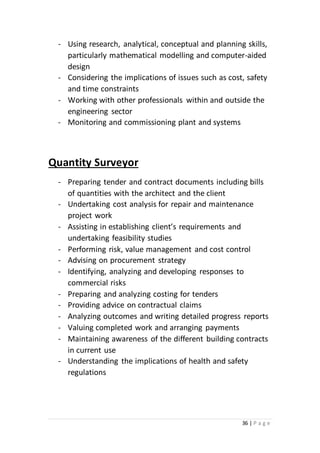

- Using research, analytical, conceptual and planning skills,
particularly mathematical modelling and computer-aided
design
- Considering the implications of issues such as cost, safety
and time constraints
- Working with other professionals within and outside the
engineering sector
- Monitoring and commissioning plant and systems
Quantity Surveyor
- Preparing tender and contract documents including bills
of quantities with the architect and the client
- Undertaking cost analysis for repair and maintenance
project work
- Assisting in establishing client’s requirements and
undertaking feasibility studies
- Performing risk, value management and cost control
- Advising on procurement strategy
- Identifying, analyzing and developing responses to
commercial risks
- Preparing and analyzing costing for tenders
- Providing advice on contractual claims
- Analyzing outcomes and writing detailed progress reports
- Valuing completed work and arranging payments
- Maintaining awareness of the different building contracts
in current use
- Understanding the implications of health and safety
regulations

37. 37 | P a g e

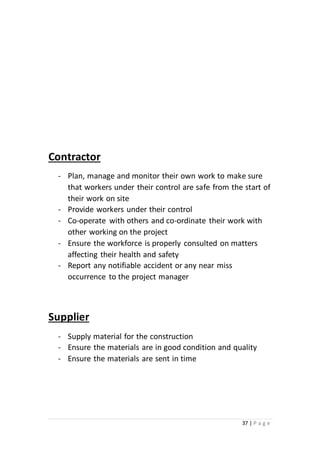

Contractor
- Plan, manage and monitor their own work to make sure
that workers under their control are safe from the start of
their work on site
- Provide workers under their control
- Co-operate with others and co-ordinate their work with
other working on the project
- Ensure the workforce is properly consulted on matters
affecting their health and safety
- Report any notifiable accident or any near miss
occurrence to the project manager
Supplier
- Supply material for the construction
- Ensure the materials are in good condition and quality
- Ensure the materials are sent in time

38. 38 | P a g e
