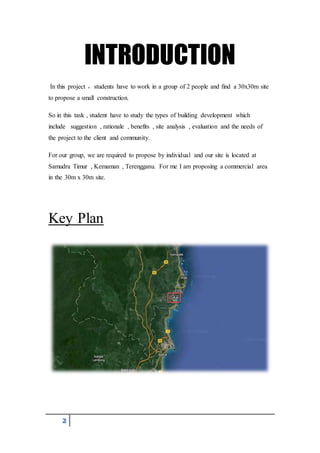

INTRODUCTION
In this project ，students have to work in a group of 2 people and find a 30x30m site
to propose a small construction.
So in this task , student have to study the types of building development which
include suggestion , rationale , benefits , site analysis , evaluation and the needs of
the project to the client and community.
For our group, we are required to propose by individual and our site is located at
Samudra Timur , Kemaman , Terengganu. For me I am proposing a commercial area
in the 30m x 30m site.
Key Plan

3. 3
Location Plan
Site Plan

4. 4

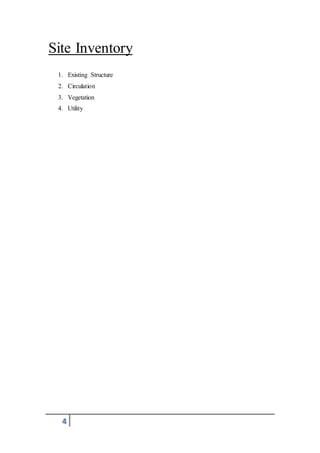

Site Inventory
1. Existing Structure
2. Circulation
3. Vegetation
4. Utility

5. 5

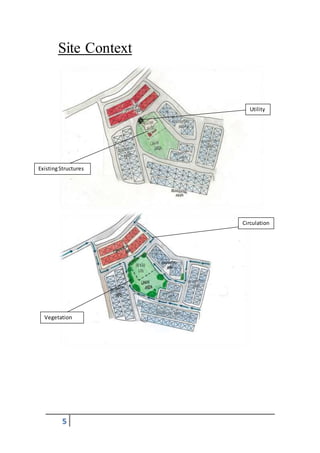

Site Context
Utility
ExistingStructures
Circulation
Vegetation

6. 6

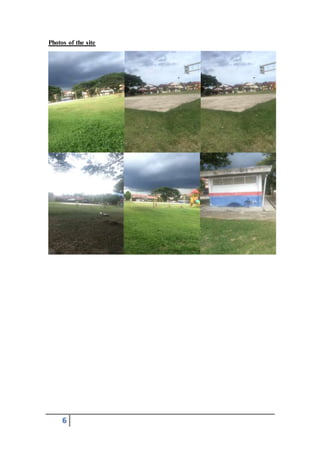

Photos of the site

7. 7

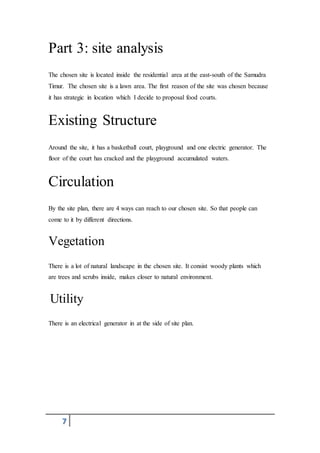

Part 3: site analysis
The chosen site is located inside the residential area at the east-south of the Samudra
Timur. The chosen site is a lawn area. The first reason of the site was chosen because
it has strategic in location which I decide to proposal food courts.
Existing Structure
Around the site, it has a basketball court, playground and one electric generator. The
floor of the court has cracked and the playground accumulated waters.
Circulation
By the site plan, there are 4 ways can reach to our chosen site. So that people can
come to it by different directions.
Vegetation
There is a lot of natural landscape in the chosen site. It consist woody plants which
are trees and scrubs inside, makes closer to natural environment.
Utility
There is an electrical generator in at the side of site plan.

8. 8

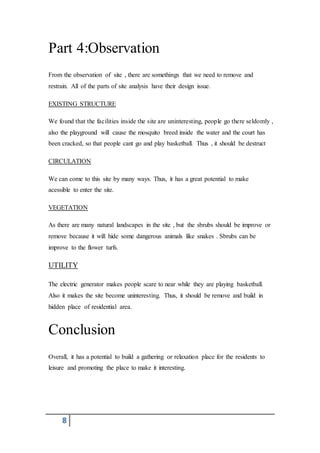

Part 4:Observation
From the observation of site , there are somethings that we need to remove and
restrain. All of the parts of site analysis have their design issue.
EXISTING STRUCTURE
We found that the facilities inside the site are uninteresting, people go there seldomly ,
also the playground will cause the mosquito breed inside the water and the court has
been cracked, so that people cant go and play basketball. Thus , it should be destruct
CIRCULATION
We can come to this site by many ways. Thus, it has a great potential to make
acessible to enter the site.
VEGETATION
As there are many natural landscapes in the site , but the sbrubs should be improve or
remove because it will hide some dangerous animals like snakes . Sbrubs can be
improve to the flower turfs.
UTILITY
The electric generator makes people scare to near while they are playing basketball.
Also it makes the site become uninteresting. Thus, it should be remove and build in
hidden place of residential area.
Conclusion
Overall, it has a potential to build a gathering or relaxation place for the residents to
leisure and promoting the place to make it interesting.

9. 9

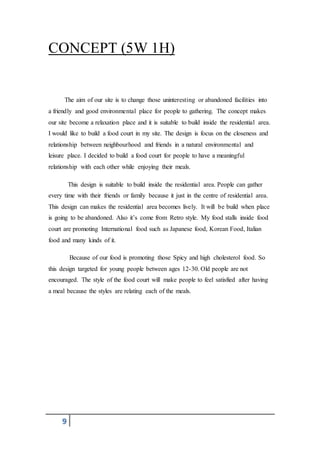

CONCEPT (5W 1H)
The aim of our site is to change those uninteresting or abandoned facilities into
a friendly and good environmental place for people to gathering. The concept makes
our site become a relaxation place and it is suitable to build inside the residential area.
I would like to build a food court in my site. The design is focus on the closeness and
relationship between neighbourhood and friends in a natural environmental and
leisure place. I decided to build a food court for people to have a meaningful
relationship with each other while enjoying their meals.
This design is suitable to build inside the residential area. People can gather
every time with their friends or family because it just in the centre of residential area.
This design can makes the residential area becomes lively. It will be build when place
is going to be abandoned. Also it’s come from Retro style. My food stalls inside food
court are promoting International food such as Japanese food, Korean Food, Italian
food and many kinds of it.
Because of our food is promoting those Spicy and high cholesterol food. So
this design targeted for young people between ages 12-30. Old people are not
encouraged. The style of the food court will make people to feel satisfied after having
a meal because the styles are relating each of the meals.

10. 10
BENEFITS
It is good to create a food court inside the residential area because they can come to
eat in anytime. Also it makes the whole area become lively and friendly. People can
enjoy many kinds of food from many countries inside the food court. People also can
enjoy the natural environment because it closer to natural landscapes and the air feel
fresh can cools. It is also a place for people to increase and nurture their friendship
while enjoying meals.
IMPACT
It will cost very high on its materials and during construction stages, it will cause
sound pollution around this residential area. It might cause some smelly in some parts
of food court.

11. 11

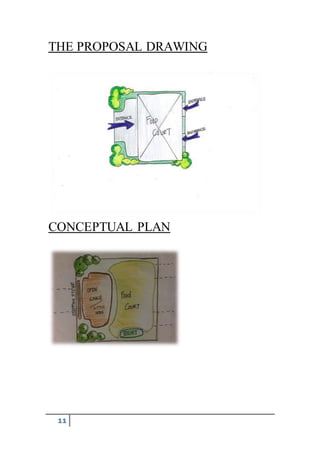

THE PROPOSAL DRAWING
CONCEPTUAL PLAN

12. 12

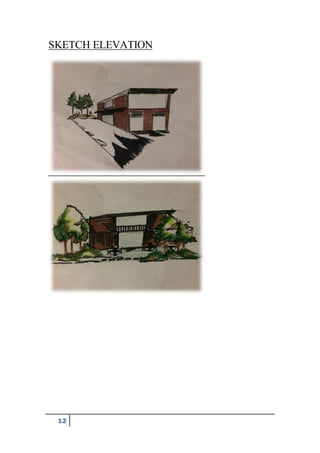

SKETCH ELEVATION

13. 13

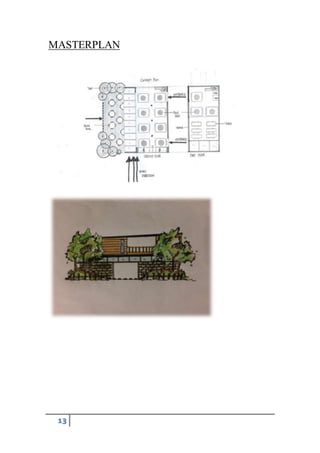

MASTERPLAN

14. 14

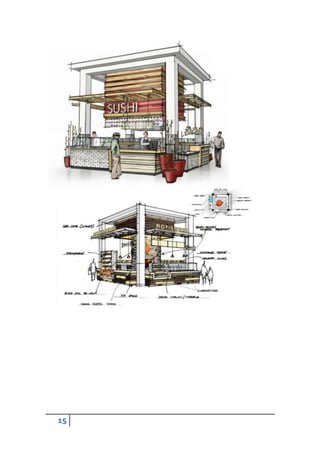

Concept of food-stall inside food
court.

15. 15

16. 16

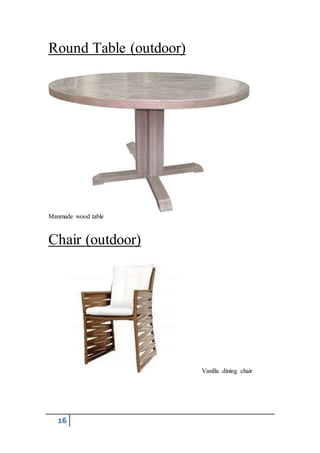

Round Table (outdoor)
Manmade wood table
Chair (outdoor)
Vanilla dining chair

17. 17

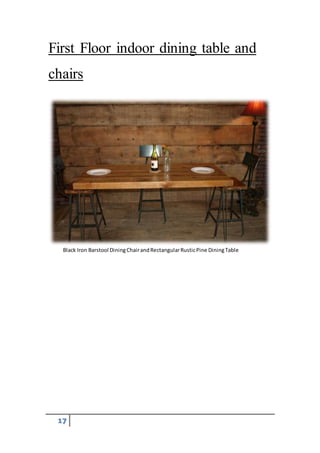

First Floor indoor dining table and
chairs
Black Iron Barstool DiningChairandRectangularRusticPine DiningTable

18. 18

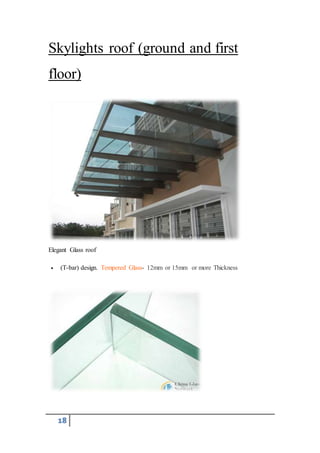

Skylights roof (ground and first
floor)
Elegant Glass roof
 (T-bar) design. Tempered Glass- 12mm or 15mm or more Thickness

19. 19

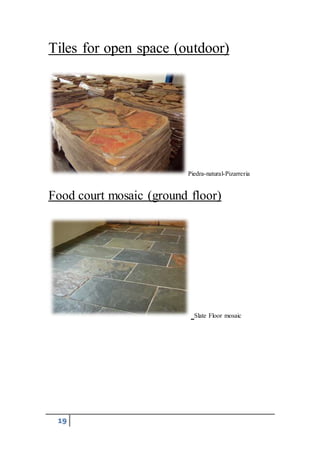

Tiles for open space (outdoor)
Piedra-natural-Pizarreria
Food court mosaic (ground floor)
Slate Floor mosaic

20. 20

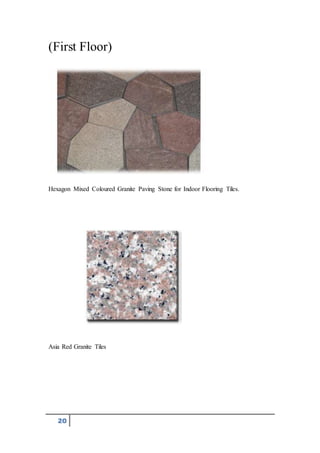

(First Floor)
Hexagon Mixed Coloured Granite Paving Stone for Indoor Flooring Tiles.
Asia Red Granite Tiles

21. 21

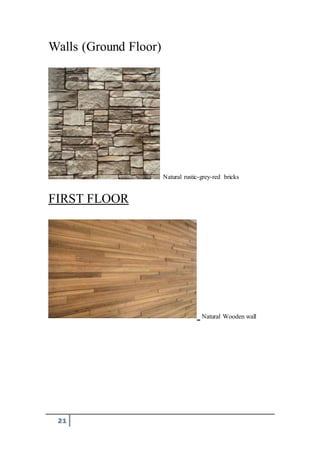

Walls (Ground Floor)
Natural rustic-grey-red bricks
FIRST FLOOR
Natural Wooden wall

22. 22

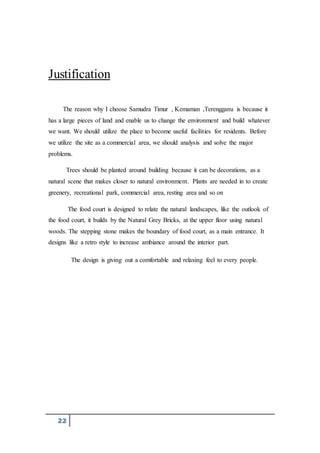

Justification
The reason why I choose Samudra Timur , Kemaman ,Terengganu is because it
has a large pieces of land and enable us to change the environment and build whatever
we want. We should utilize the place to become useful facilities for residents. Before
we utilize the site as a commercial area, we should analysis and solve the major
problems.
Trees should be planted around building because it can be decorations, as a
natural scene that makes closer to natural environment. Plants are needed in to create
greenery, recreational park, commercial area, resting area and so on
The food court is designed to relate the natural landscapes, like the outlook of
the food court, it builds by the Natural Grey Bricks, at the upper floor using natural
woods. The stepping stone makes the boundary of food court, as a main entrance. It
designs like a retro style to increase ambiance around the interior part.
The design is giving out a comfortable and relaxing feel to every people.

23. 23

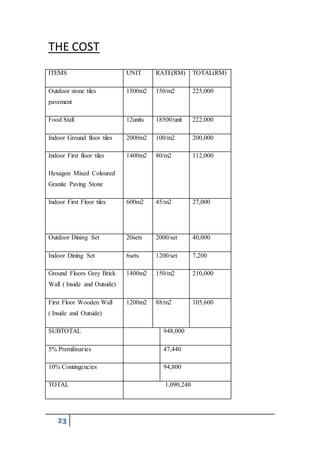

THE COST
ITEMS UNIT RATE(RM) TOTAL(RM)
Outdoor stone tiles
pavement
1500m2 150/m2 225,000
Food Stall 12units 18500/unit 222,000
Indoor Ground floor tiles 2000m2 100/m2 200,000
Indoor First floor tiles
Hexagon Mixed Coloured
Granite Paving Stone
1400m2 80/m2 112,000
Indoor First Floor tiles 600m2 45/m2 27,000
Outdoor Dining Set 20sets 2000/set 40,000
Indoor Dining Set 6sets 1200/set 7,200
Ground Floors Grey Brick
Wall ( Inside and Outside)
1400m2 150/m2 210,000
First Floor Wooden Wall
( Inside and Outside)
1200m2 88/m2 105,600
SUBTOTAL 948,000
5% Premilinaries 47,440
10% Contingencies 94,800
TOTAL 1,090,240
