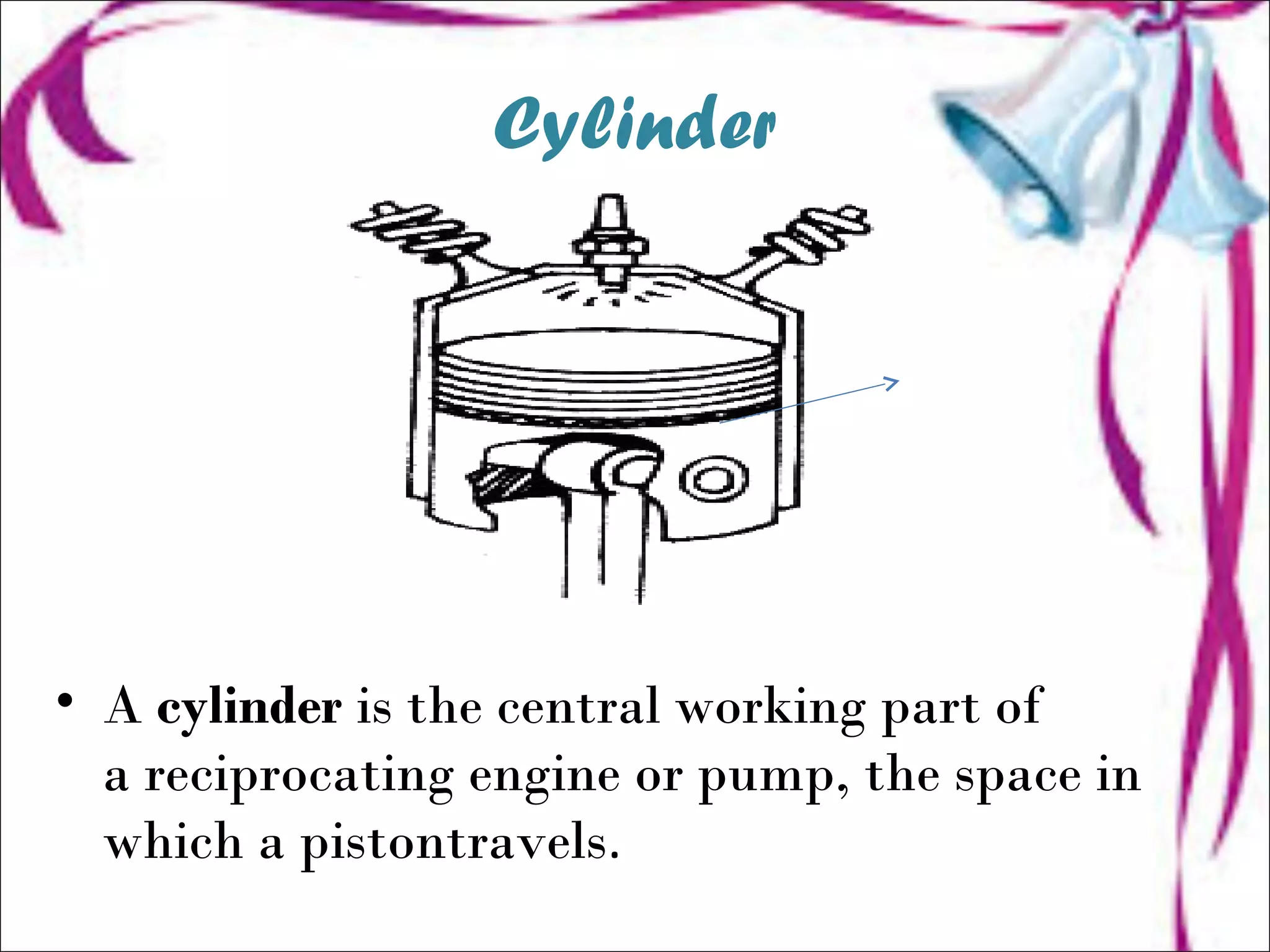

1. Cylinder
C
• A cylinder is the central working part of
a reciprocating engine or pump, the space in
which a pistontravels.

2. Seminar
on
IC Engine
By
Avinash Rajput
Branch – EC
2nd
yr

3. Types of Engine
Internal Engine
Petrol Engine Diesel Engine
External Engine
Steam Engine Turbines

4. Parts of IC engine

5. Connecting Rod
• In a reciprocating pistonengine,the connecting
rod or conrod connects the piston to the crank or
crankshaft.

6. What is IC Engine
• The Internal Combustion (IC) Engine Converts
• Chemical Energy into useful mechanical
Energy by Burning the fuel
• Chemical Energy is released when the fuel –
air mixture is ignited by a spark in the
combustion chamber

7. Piston rings
A piston ring is a split ring that fits into a
groove on the outer diameter of a piston in a
reciprocating engine such as an internal
combustion engine or steam engine.

8. Piston
Piston
The piston of an internal combustion engine is
acted upon by the pressure of the expanding
combustion gases in the combustion
chamber space at the top of the cylinder.

9. IC Engine

10. Advantags of IC egine as Compae
to EC engine
• The advantages of the internal combustion
engine is that it is:
* Cheap
* High power to weight ratio
* It is possible to raise the efficiency to
relatively high levels by minor means
* Emissions are minimized by advanced
combustion control, design and
aftertreatment.
