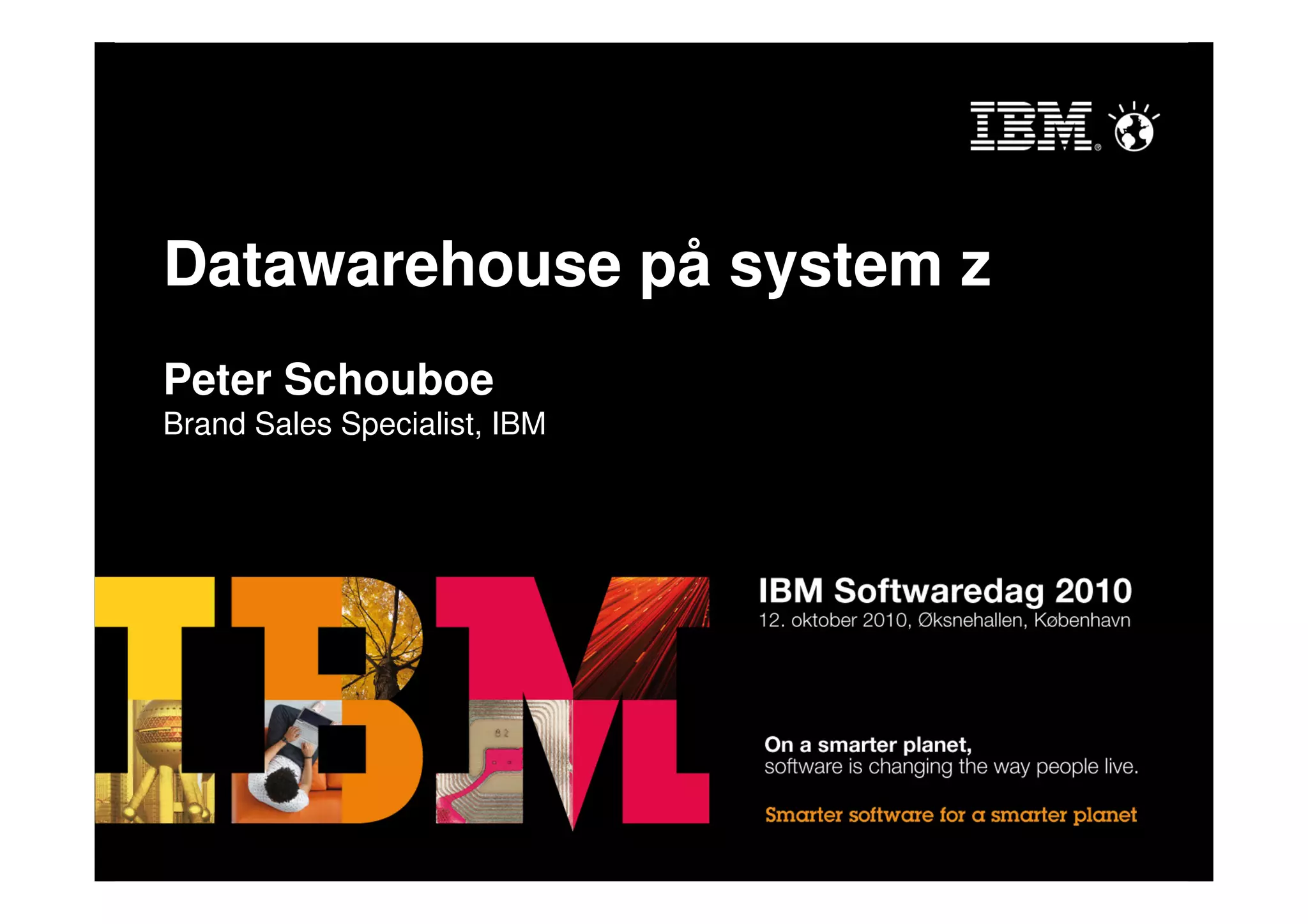

1. Datawarehouse på system z
Peter Schouboe
Brand Sales Specialist, IBM

2. Peter Schouboe – Information management on system z,
Nordic, 28.09.2010
IBM Softwaredag
Data Warehousing on System z
© 2010 IBM Corporation

3. Information Management

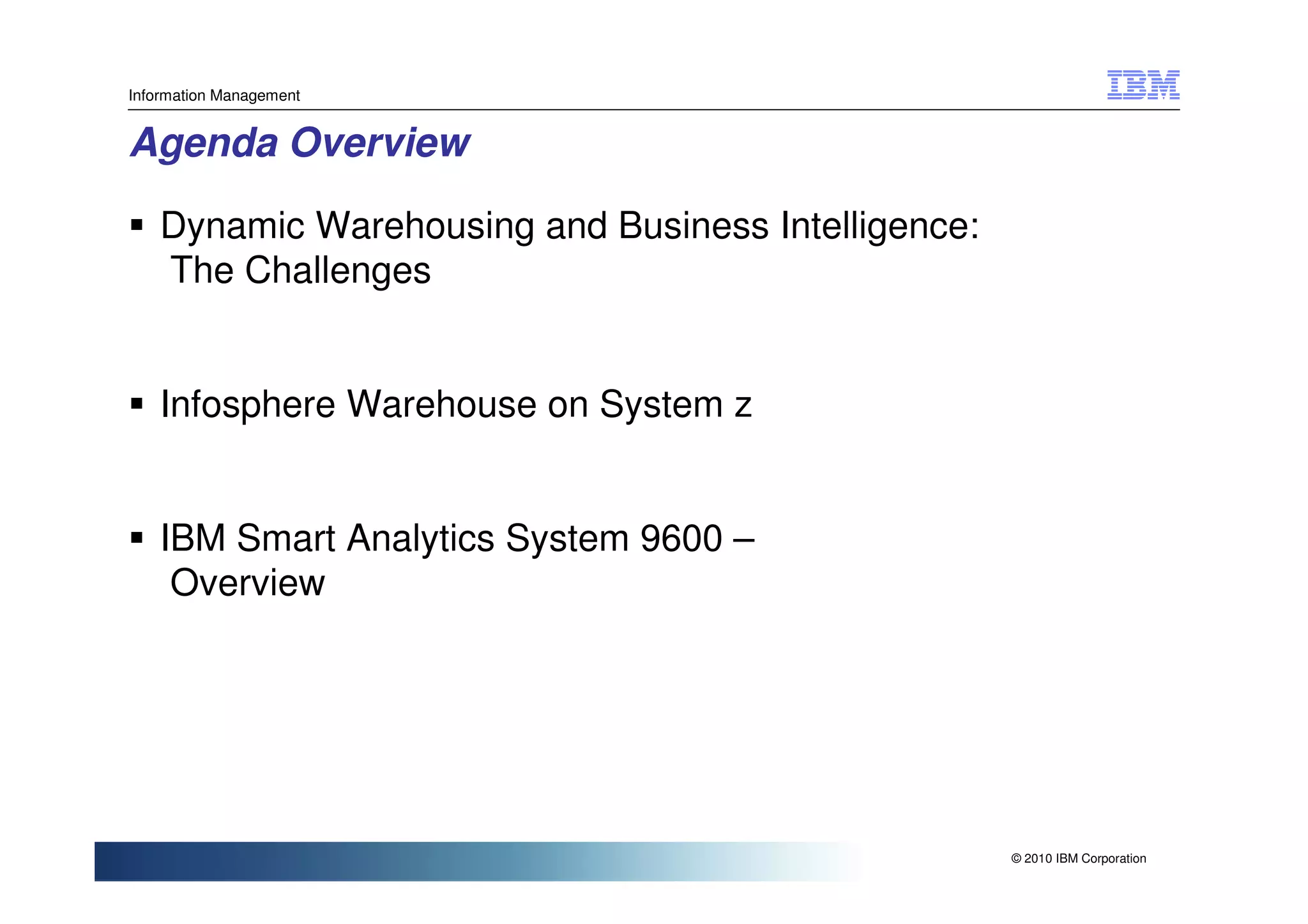

Agenda Overview
Dynamic Warehousing and Business Intelligence:
The Challenges
Infosphere Warehouse on System z
IBM Smart Analytics System 9600 –
Overview
© 2010 IBM Corporation

4. Information Management

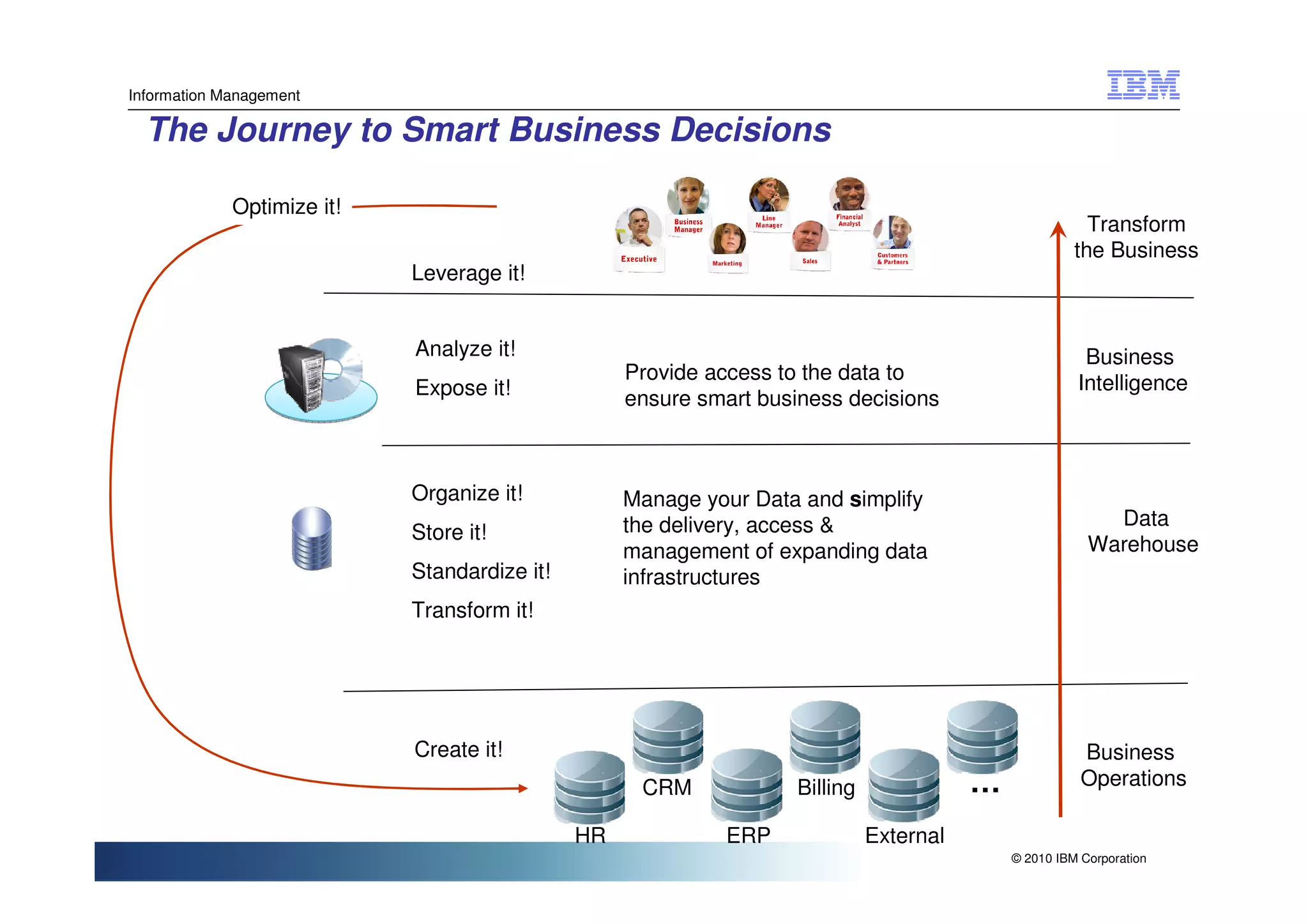

The Journey to Smart Business Decisions
Optimize it!
Transform
the Business
Leverage it!
Analyze it! Business
Provide access to the data to Intelligence
Expose it! ensure smart business decisions
Organize it! Manage your Data and simplify
the delivery, access & Data
Store it!
management of expanding data Warehouse
Standardize it! infrastructures
Transform it!
Create it! Business
CRM Billing … Operations
HR ERP External
© 2010 IBM Corporation

5. Information Management

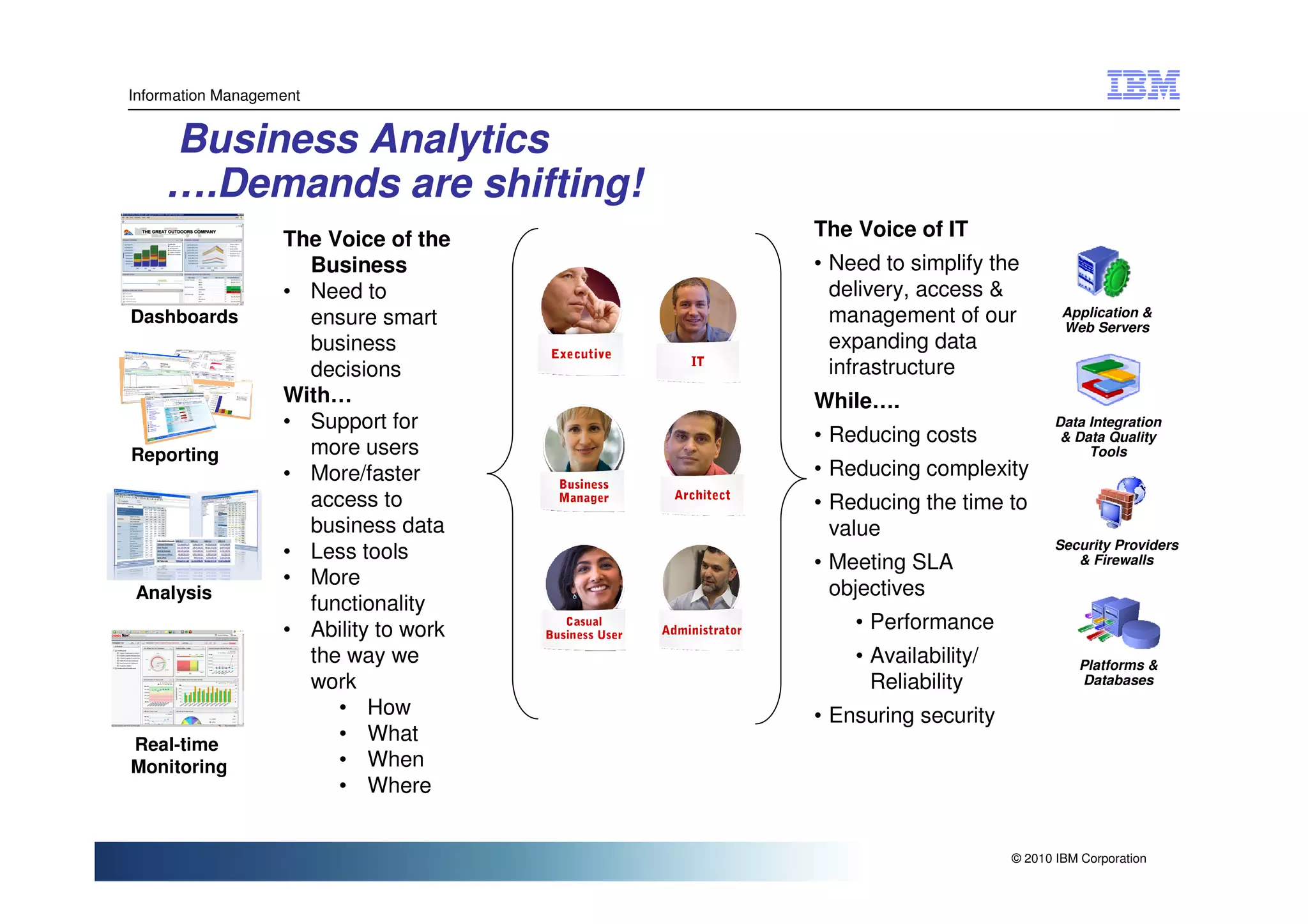

Business Analytics
….Demands are shifting!
The Voice of the The Voice of IT
Business • Need to simplify the
• Need to delivery, access &
Dashboards ensure smart management of our Application &
Web Servers
business expanding data
decisions infrastructure
With… While….
• Support for Data Integration
• Reducing costs & Data Quality
Reporting more users Tools
• More/faster • Reducing complexity
access to • Reducing the time to
business data value
Security Providers
• Less tools • Meeting SLA & Firewalls
• More objectives
Analysis
functionality
• Ability to work • Performance
the way we • Availability/ Platforms &
work Reliability Databases
• How • Ensuring security
Real-time
• What
Monitoring • When
• Where
© 2010 IBM Corporation

6. Information Management

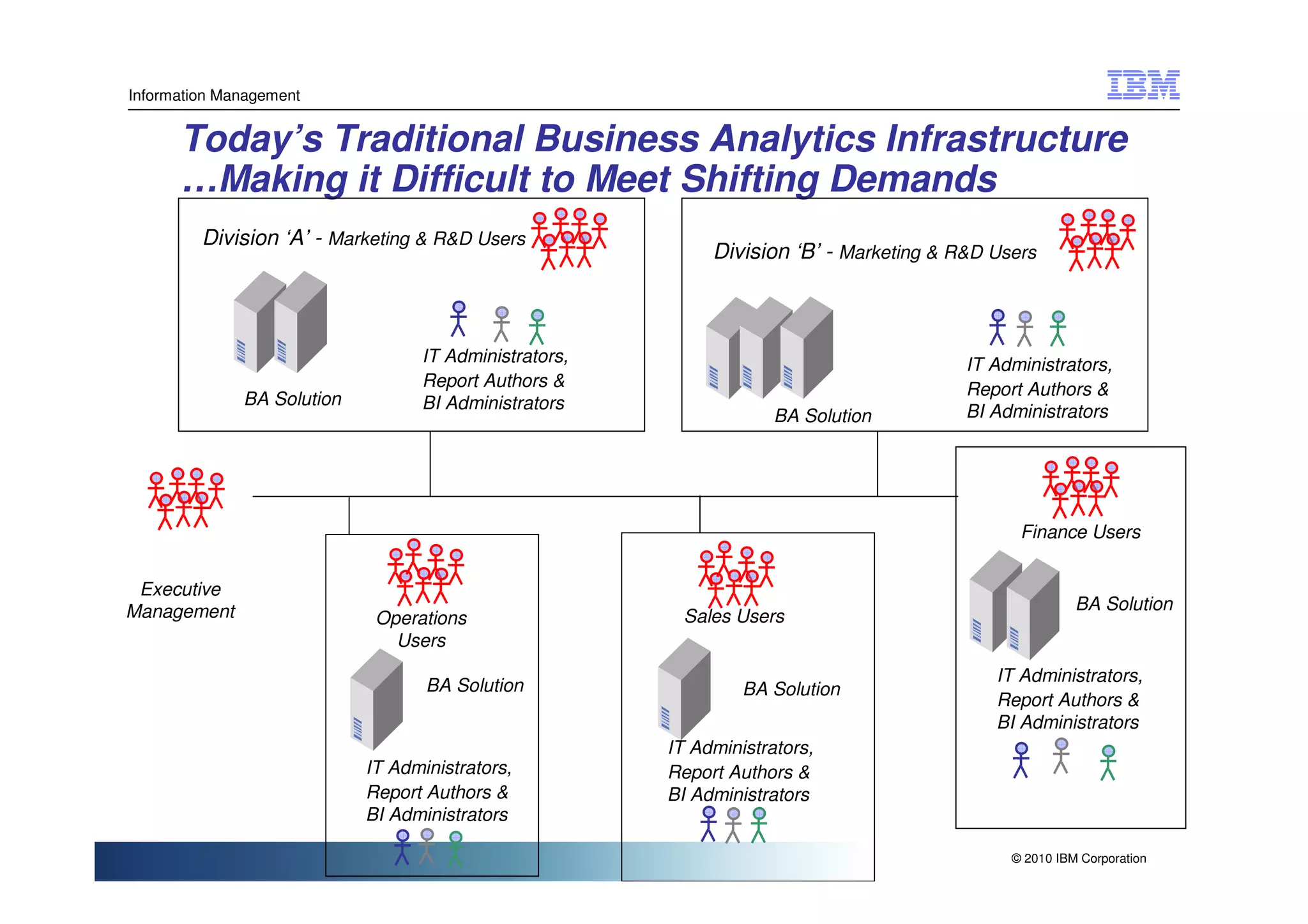

Today’s Traditional Business Analytics Infrastructure
…Making it Difficult to Meet Shifting Demands
Division ‘A’ - Marketing & R&D Users
Division ‘B’ - Marketing & R&D Users
IT Administrators, IT Administrators,
Report Authors & Report Authors &
BA Solution BI Administrators
BA Solution BI Administrators
Finance Users
Executive
Management BA Solution
Operations Sales Users
Users
IT Administrators,
BA Solution BA Solution
Report Authors &
BI Administrators
IT Administrators,
IT Administrators, Report Authors &
Report Authors & BI Administrators
BI Administrators
© 2010 IBM Corporation

7. Information Management

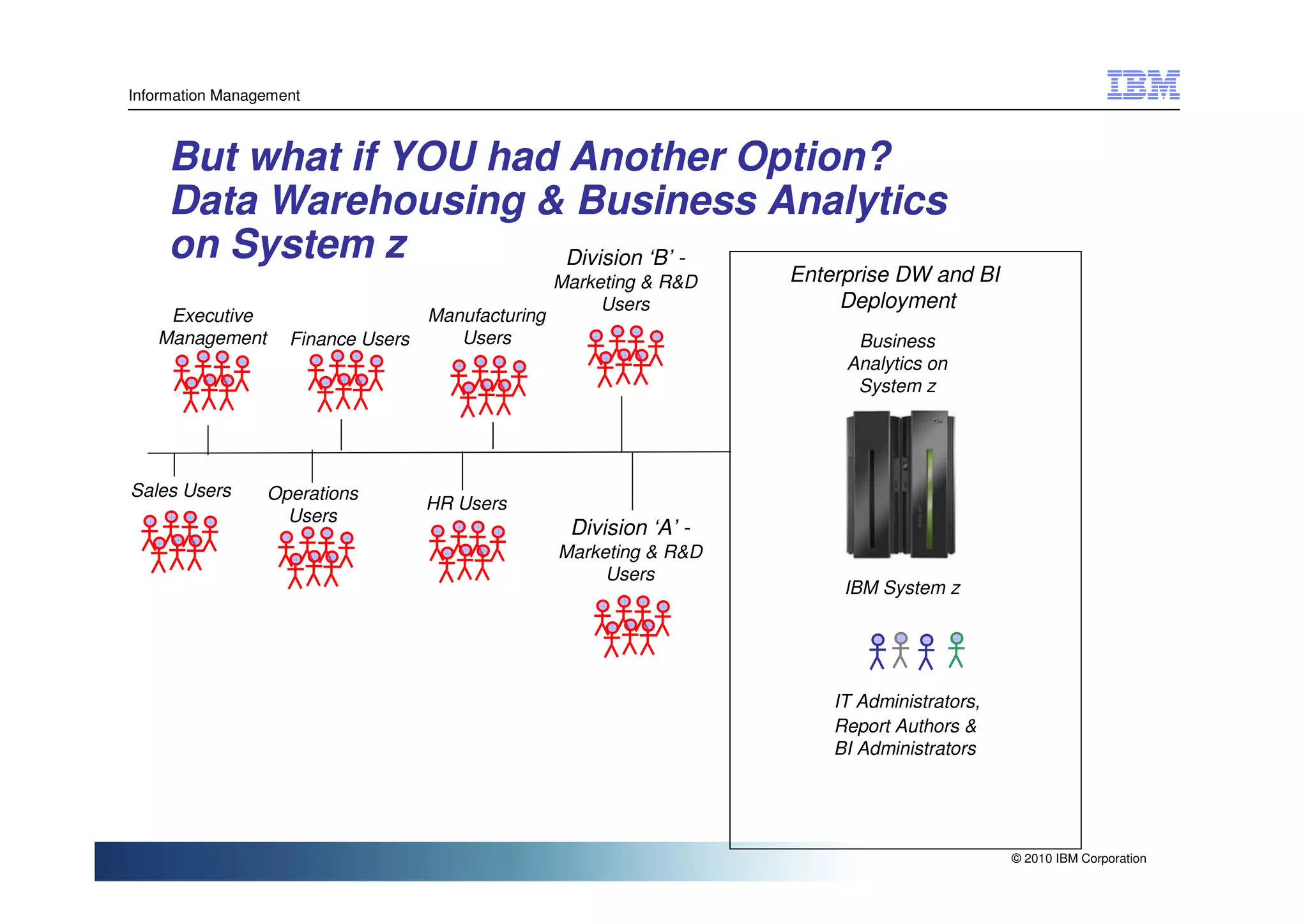

But what if YOU had Another Option?
Data Warehousing & Business Analytics
on System z Division ‘B’ -
Marketing & R&D Enterprise DW and BI
Users Deployment
Executive Manufacturing
Management Finance Users Users Business
Analytics on
System z
Sales Users Operations
HR Users
Users
Division ‘A’ -
Marketing & R&D
Users
IBM System z
IT Administrators,
Report Authors &
BI Administrators
© 2010 IBM Corporation

8. Information Management

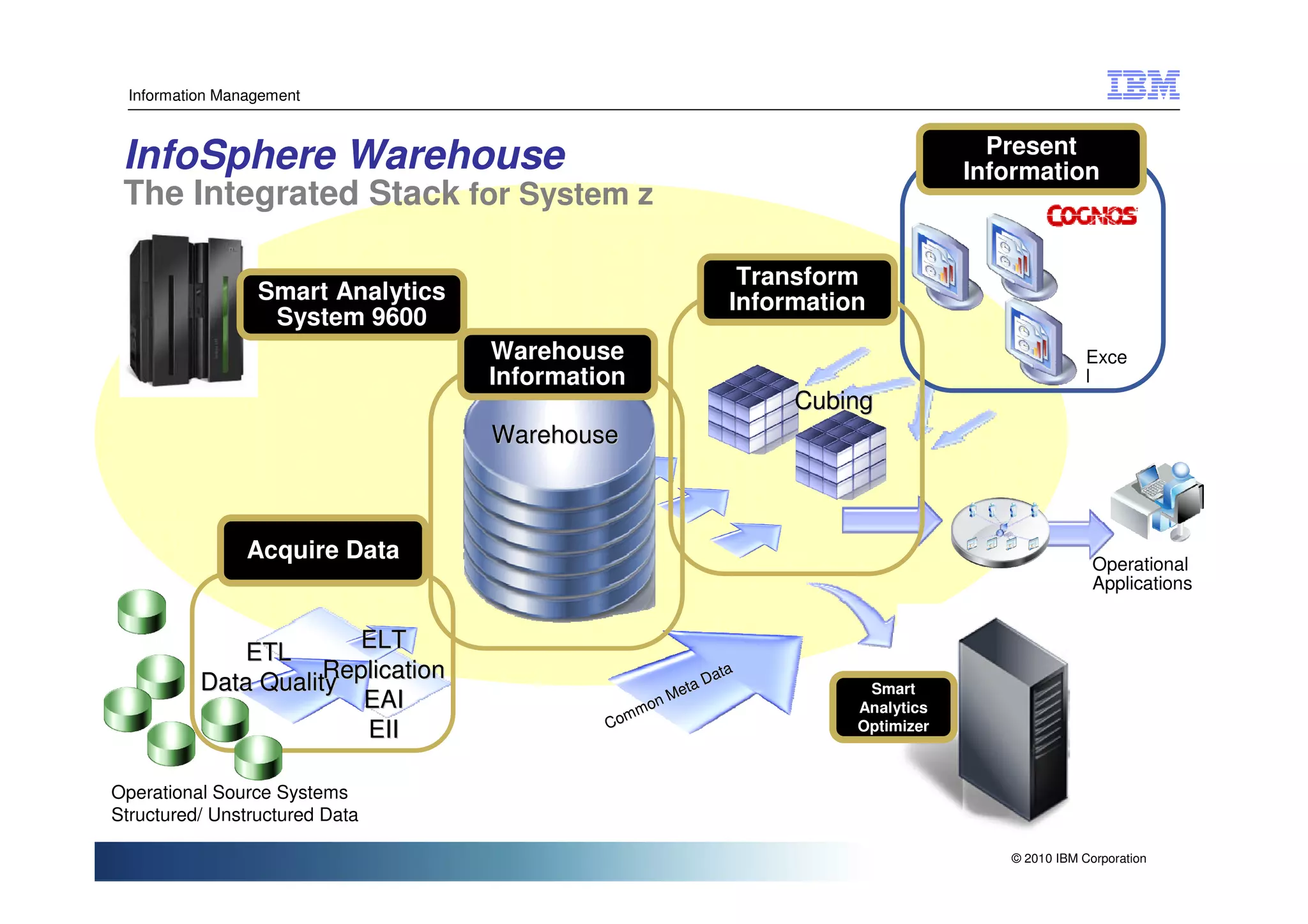

Present

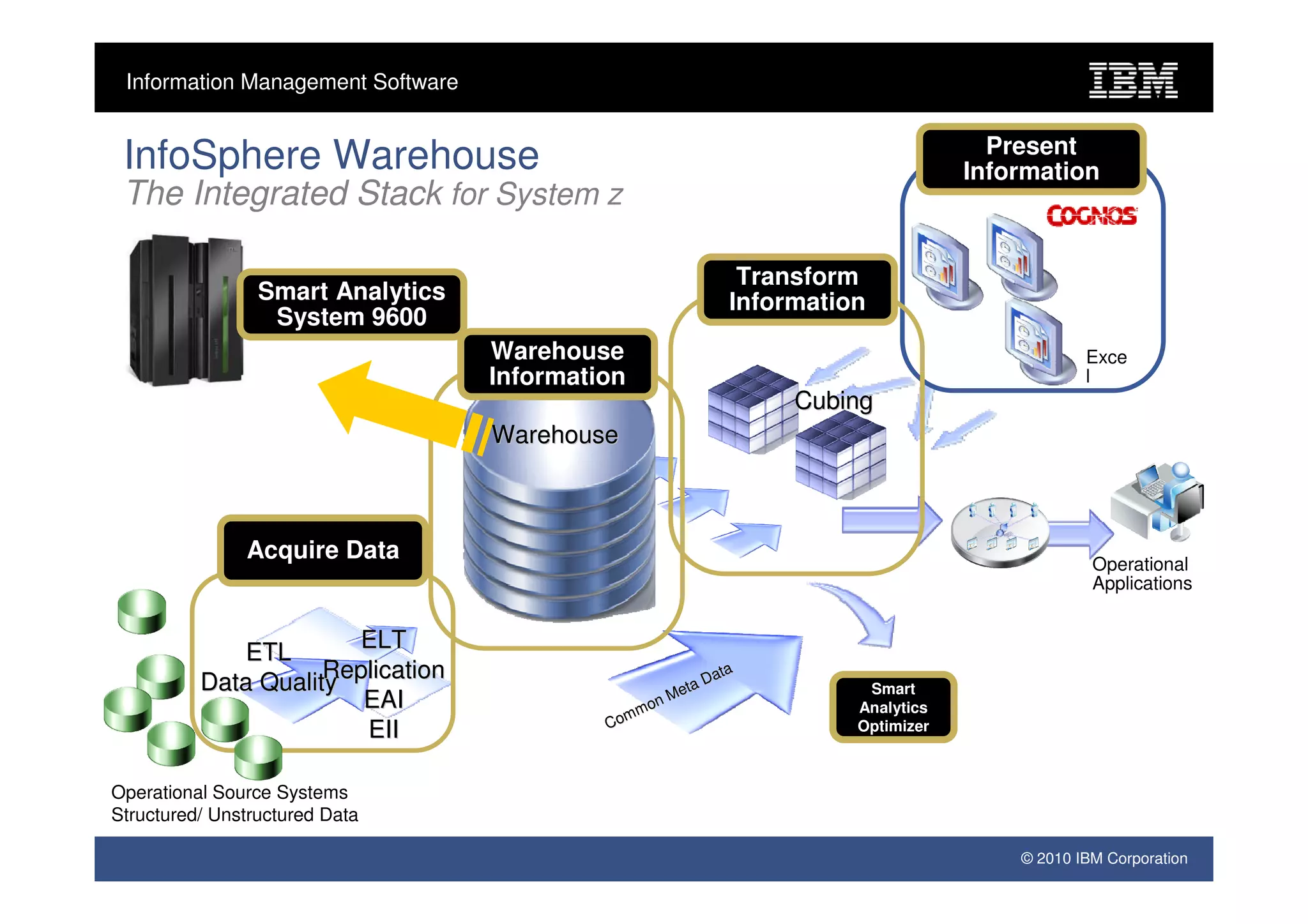

InfoSphere Warehouse Information
The Integrated Stack for System z
Transform
Smart Analytics Information
System 9600
Warehouse Exce
Information l
Cubing
Warehouse
Acquire Data Operational
Applications
ELT
ETL
Replication
Data Quality Da
ta
eta Smart
EAI mo
n M
Analytics
C om
EII Optimizer
Operational Source Systems
Structured/ Unstructured Data
© 2010 IBM Corporation

9. Information Management Software

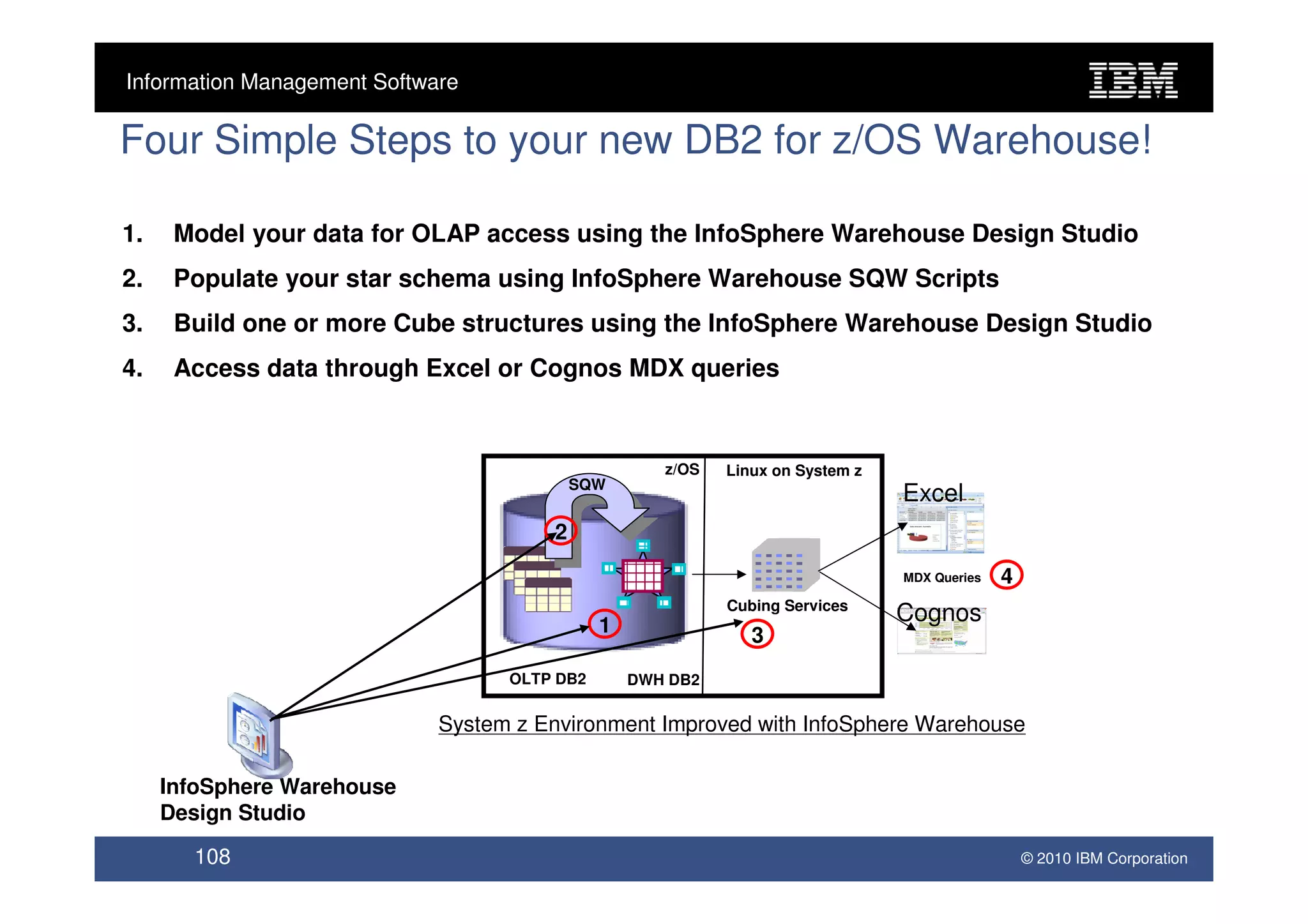

Four Simple Steps to your new DB2 for z/OS Warehouse!
1. Model your data for OLAP access using the InfoSphere Warehouse Design Studio
2. Populate your star schema using InfoSphere Warehouse SQW Scripts
3. Build one or more Cube structures using the InfoSphere Warehouse Design Studio
4. Access data through Excel or Cognos MDX queries
z/OS Linux on System z
SQW
Excel
2
MDX Queries 4
Cubing Services
1
Cognos
3
OLTP DB2 DWH DB2
System z Environment Improved with InfoSphere Warehouse
InfoSphere Warehouse
Design Studio
108 © 2010 IBM Corporation

10. Information Management Software

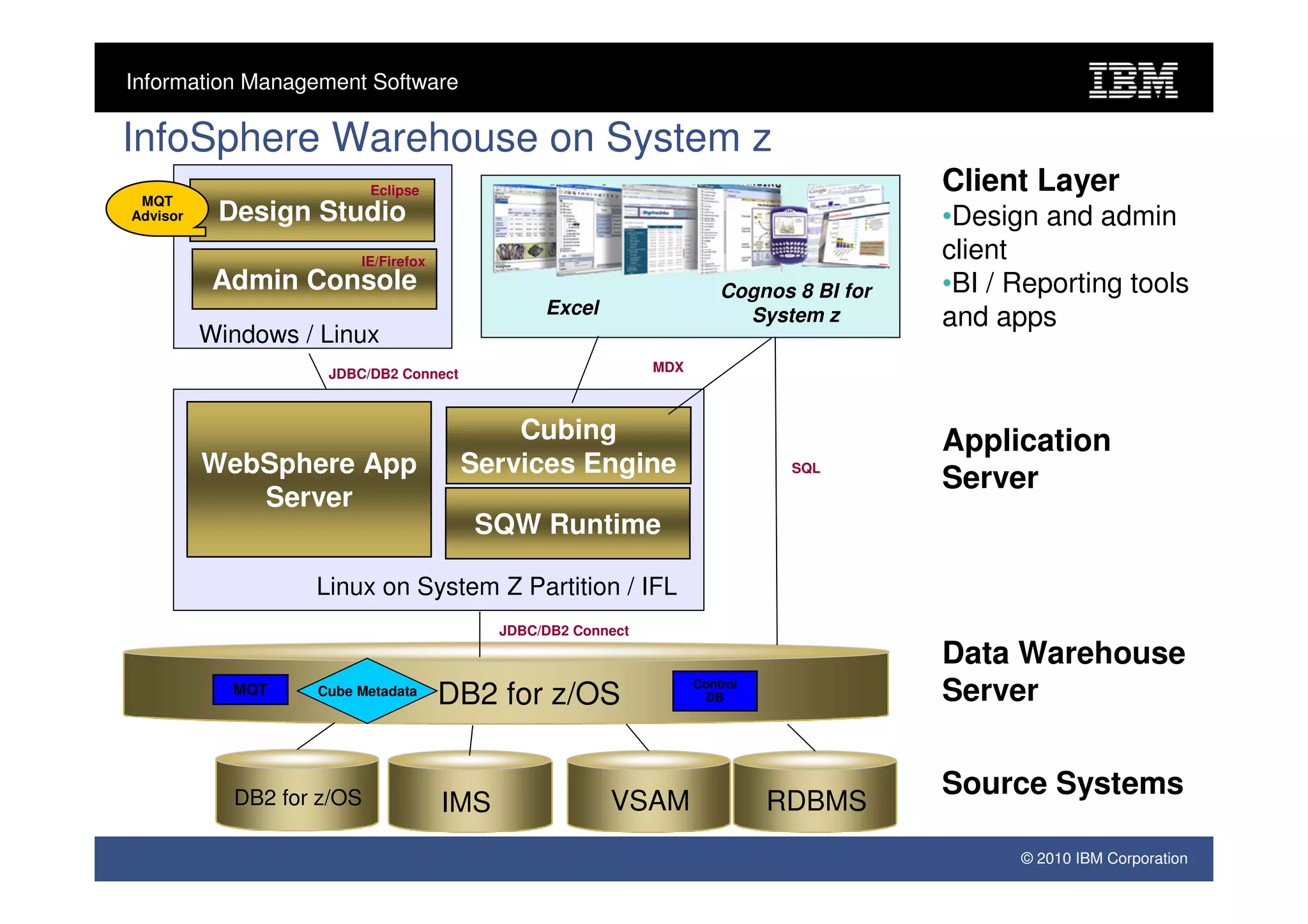

InfoSphere Warehouse on System z
MQT
Eclipse Client Layer
Advisor Design Studio •Design and admin
IE/Firefox
client
Admin Console Cognos 8 BI for •BI / Reporting tools
Excel System z and apps
Windows / Linux
JDBC/DB2 Connect MDX
Cubing Application
WebSphere App Services Engine SQL
Server
Server
SQW Runtime
Linux on System Z Partition / IFL
JDBC/DB2 Connect
Data Warehouse
MQT Cube Metadata
DB2 for z/OS
Control
DB Server
DB2 for z/OS
Source Systems
IMS VSAM RDBMS
© 2010 IBM Corporation

11. Information Management Software

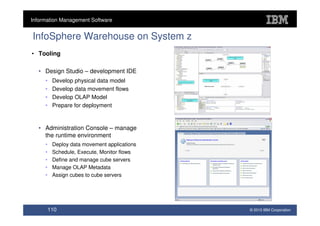

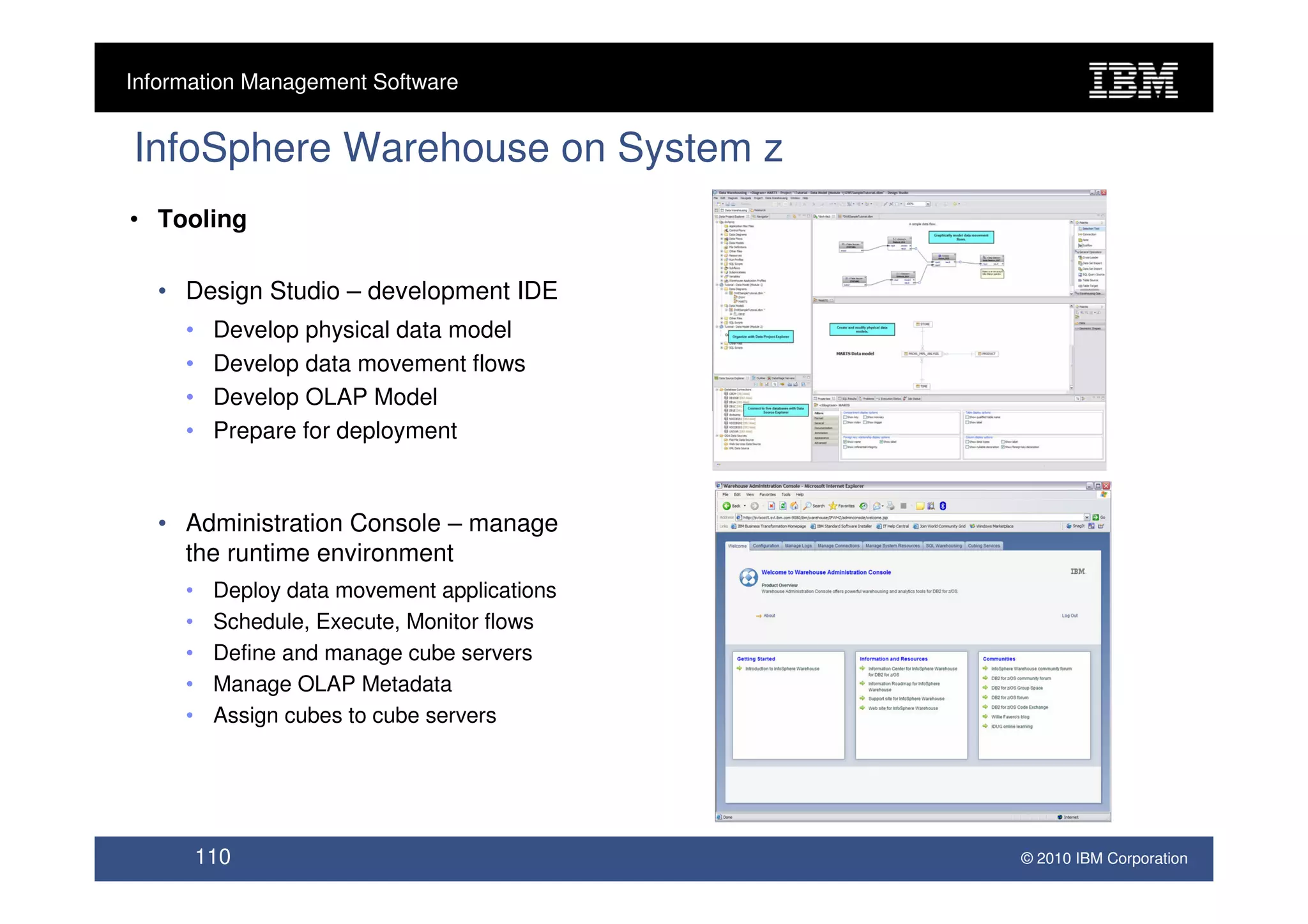

InfoSphere Warehouse on System z
• Tooling
• Design Studio – development IDE
• Develop physical data model
• Develop data movement flows
• Develop OLAP Model
• Prepare for deployment
• Administration Console – manage
the runtime environment
• Deploy data movement applications
• Schedule, Execute, Monitor flows
• Define and manage cube servers
• Manage OLAP Metadata
• Assign cubes to cube servers
110 © 2010 IBM Corporation

12. Information Management Software

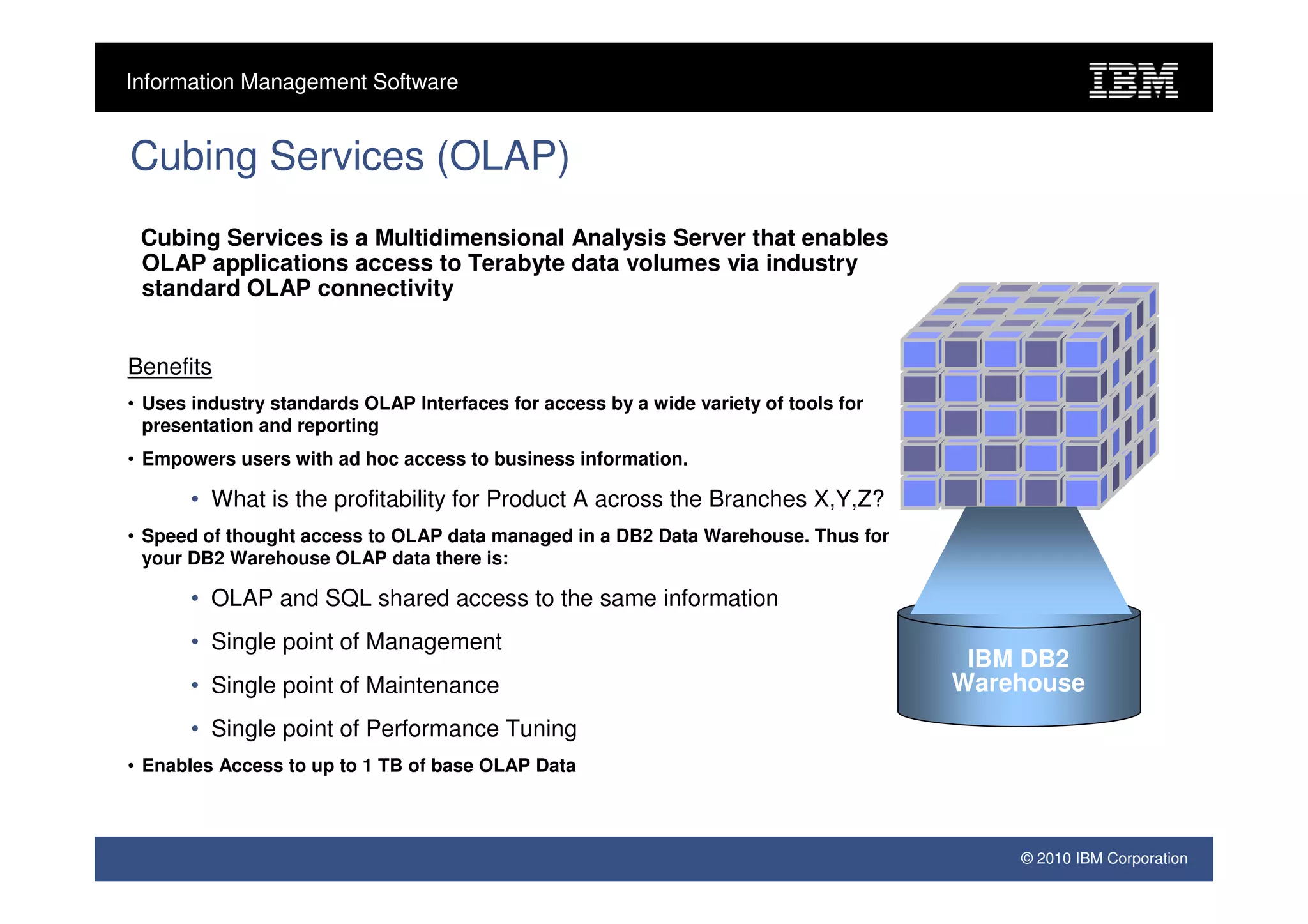

Cubing Services (OLAP)
Cubing Services is a Multidimensional Analysis Server that enables
OLAP applications access to Terabyte data volumes via industry
standard OLAP connectivity
Benefits
• Uses industry standards OLAP Interfaces for access by a wide variety of tools for
presentation and reporting
• Empowers users with ad hoc access to business information.
• What is the profitability for Product A across the Branches X,Y,Z?
• Speed of thought access to OLAP data managed in a DB2 Data Warehouse. Thus for
your DB2 Warehouse OLAP data there is:
• OLAP and SQL shared access to the same information
• Single point of Management
IBM DB2
• Single point of Maintenance Warehouse
• Single point of Performance Tuning
• Enables Access to up to 1 TB of base OLAP Data
© 2010 IBM Corporation

13. Information Management Software

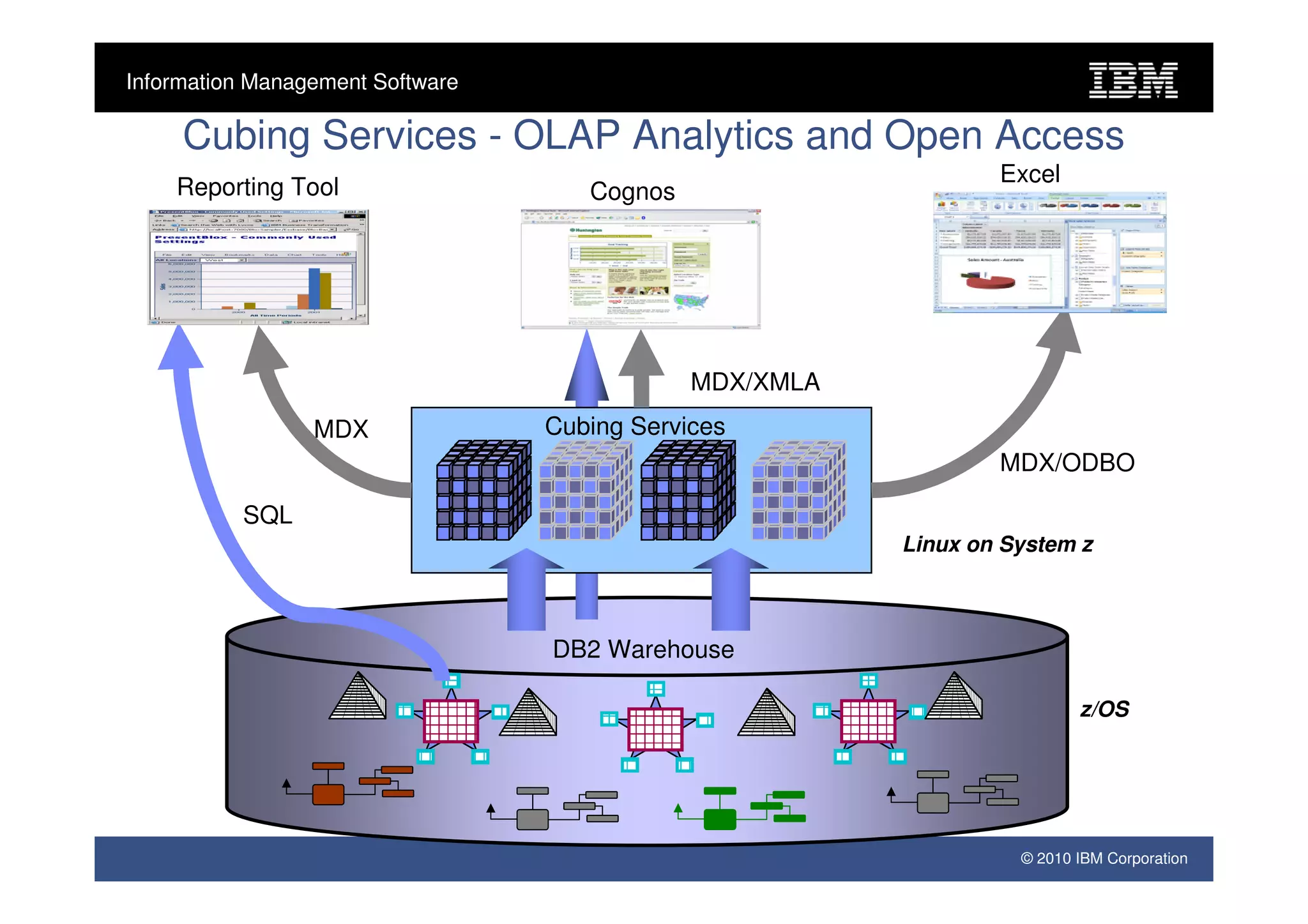

Cubing Services - OLAP Analytics and Open Access
Excel
Reporting Tool Cognos
MDX/XMLA
MDX Cubing Services
MDX/ODBO
SQL
Linux on System z
DB2 Warehouse
z/OS
© 2010 IBM Corporation

14. Information Management Software

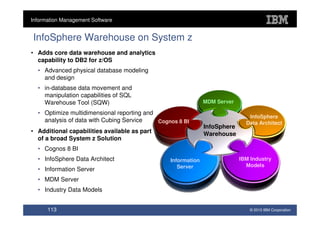

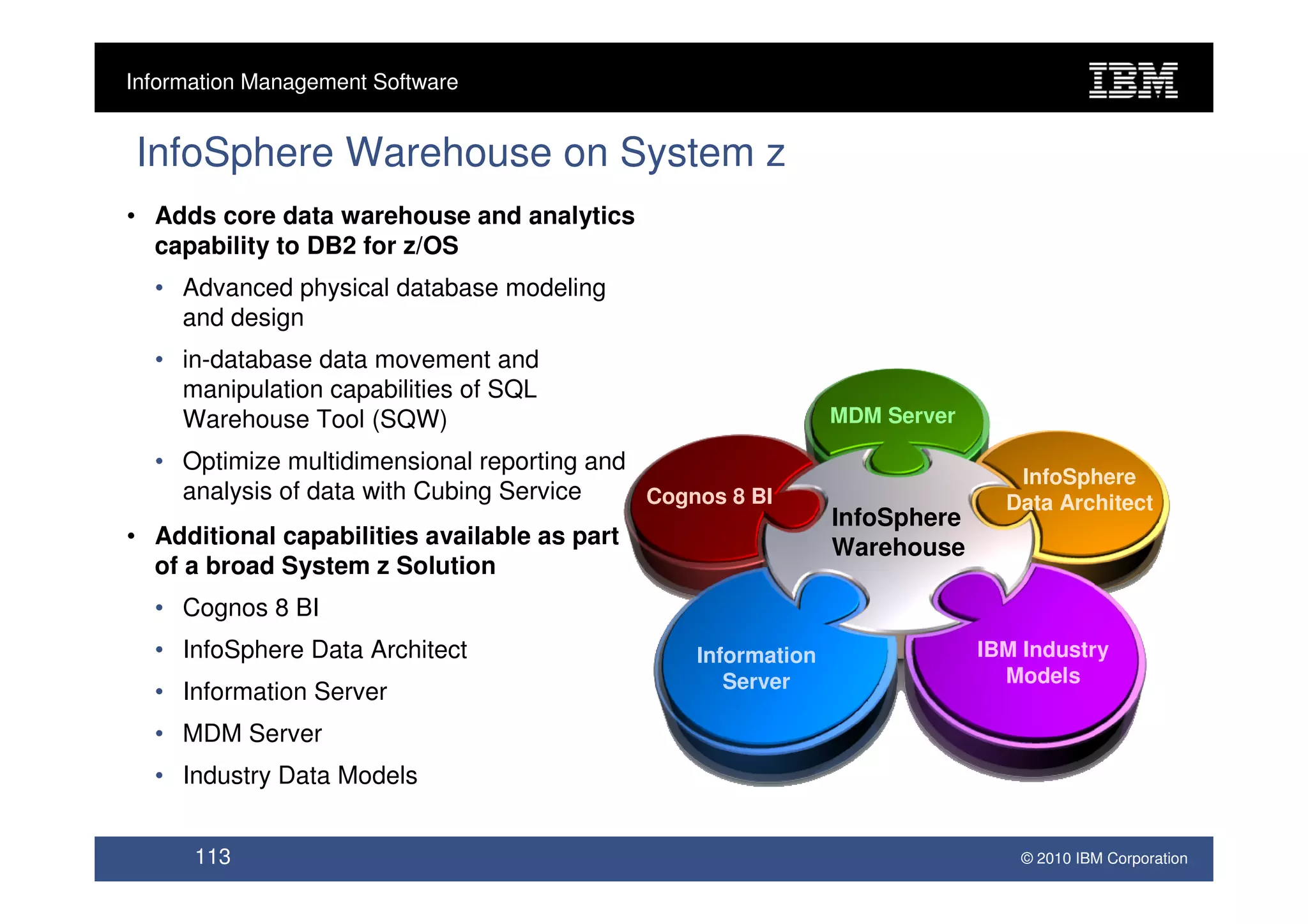

InfoSphere Warehouse on System z
• Adds core data warehouse and analytics
capability to DB2 for z/OS
• Advanced physical database modeling
and design
• in-database data movement and
manipulation capabilities of SQL
Warehouse Tool (SQW) MDM Server
• Optimize multidimensional reporting and
InfoSphere
analysis of data with Cubing Service Cognos 8 BI Data Architect
InfoSphere
• Additional capabilities available as part Warehouse
of a broad System z Solution
• Cognos 8 BI
• InfoSphere Data Architect Information IBM Industry
Server Models
• Information Server
• MDM Server
• Industry Data Models
113 © 2010 IBM Corporation

15. Information Management Software
Present

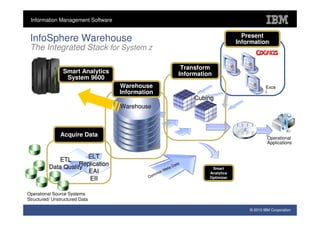

InfoSphere Warehouse Information
The Integrated Stack for System z
Transform
Smart Analytics Information
System 9600
Warehouse Exce
Information l
Cubing
Warehouse
Acquire Data Operational
Applications
ELT
ETL
Replication
Data Quality Da
ta
eta Smart
EAI mo
n M
Analytics
C om
EII Optimizer
Operational Source Systems
Structured/ Unstructured Data
© 2010 IBM Corporation

16. Information Management

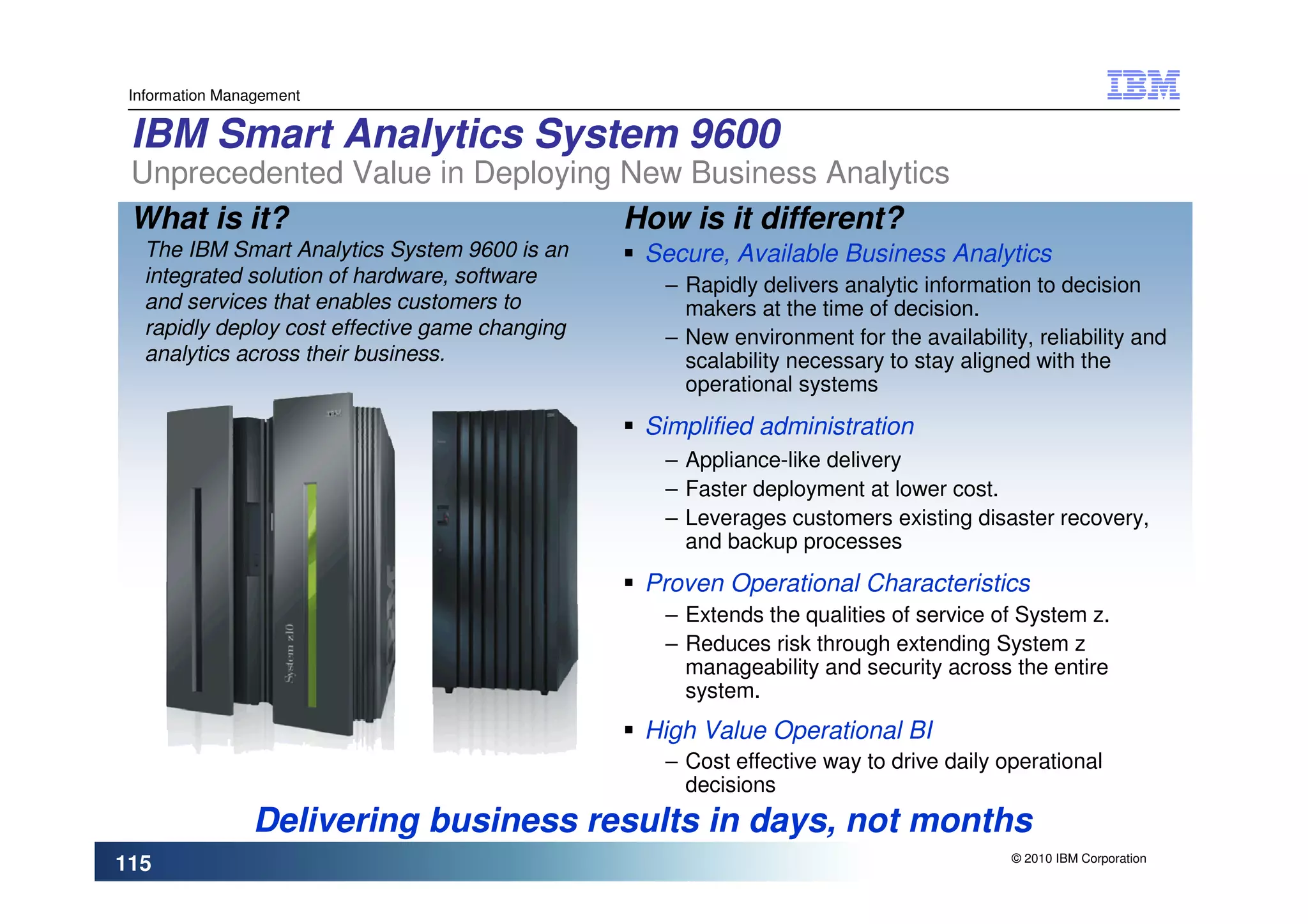

IBM Smart Analytics System 9600
Unprecedented Value in Deploying New Business Analytics
What is it? How is it different?
The IBM Smart Analytics System 9600 is an Secure, Available Business Analytics
integrated solution of hardware, software – Rapidly delivers analytic information to decision
and services that enables customers to makers at the time of decision.
rapidly deploy cost effective game changing – New environment for the availability, reliability and
analytics across their business. scalability necessary to stay aligned with the
operational systems
Simplified administration
– Appliance-like delivery
– Faster deployment at lower cost.
– Leverages customers existing disaster recovery,
and backup processes
Proven Operational Characteristics
– Extends the qualities of service of System z.
– Reduces risk through extending System z
manageability and security across the entire
system.
High Value Operational BI
– Cost effective way to drive daily operational
decisions
Delivering business results in days, not months
© 2010 IBM Corporation
115

17. Information Management

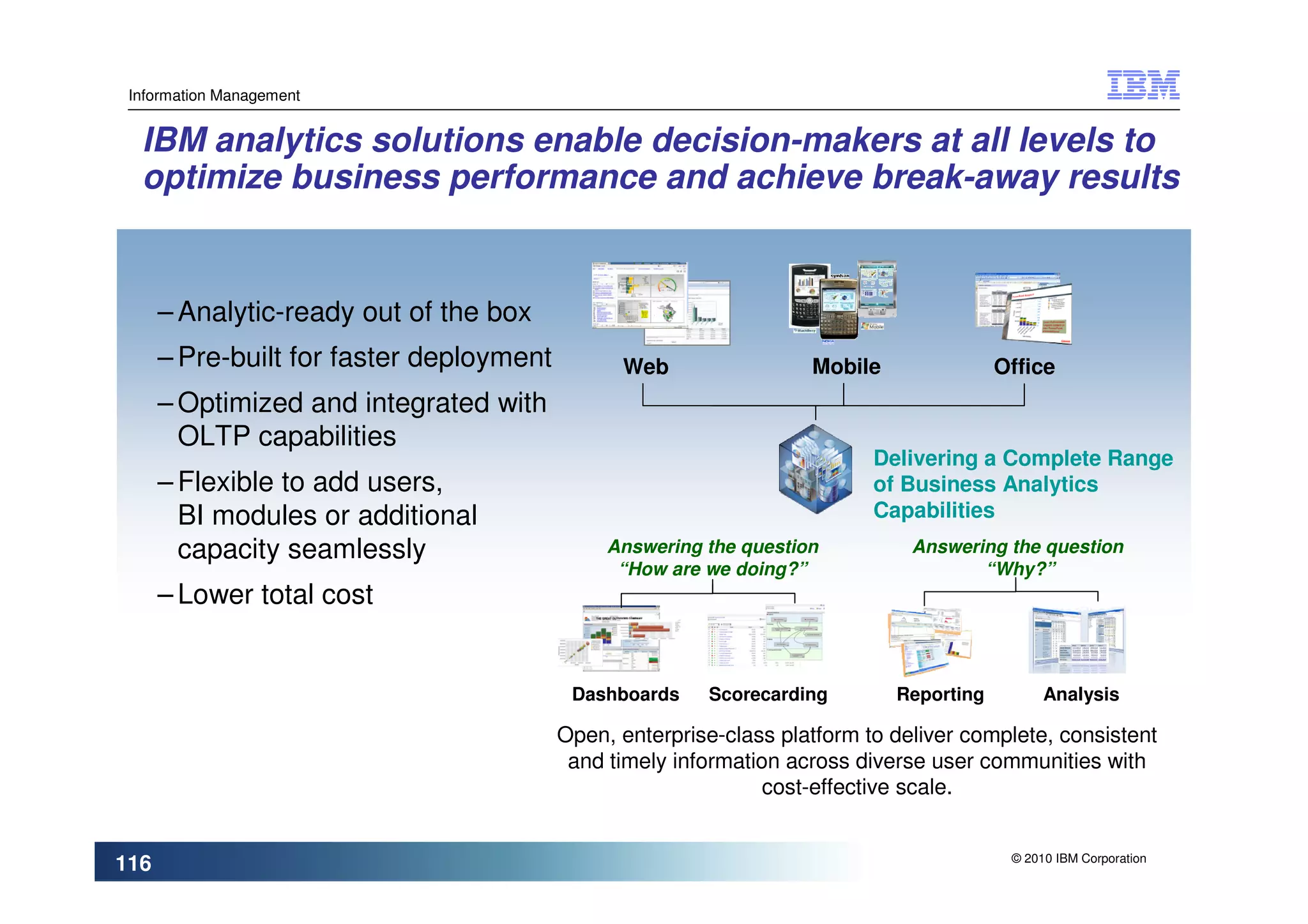

IBM analytics solutions enable decision-makers at all levels to
optimize business performance and achieve break-away results
– Analytic-ready out of the box
– Pre-built for faster deployment Web Mobile Office
– Optimized and integrated with
OLTP capabilities
Delivering a Complete Range
– Flexible to add users, of Business Analytics
BI modules or additional Capabilities
capacity seamlessly Answering the question Answering the question
“How are we doing?” “Why?”
– Lower total cost
Dashboards Scorecarding Reporting Analysis
Open, enterprise-class platform to deliver complete, consistent
and timely information across diverse user communities with
cost-effective scale.
© 2010 IBM Corporation
116

18. Information Management

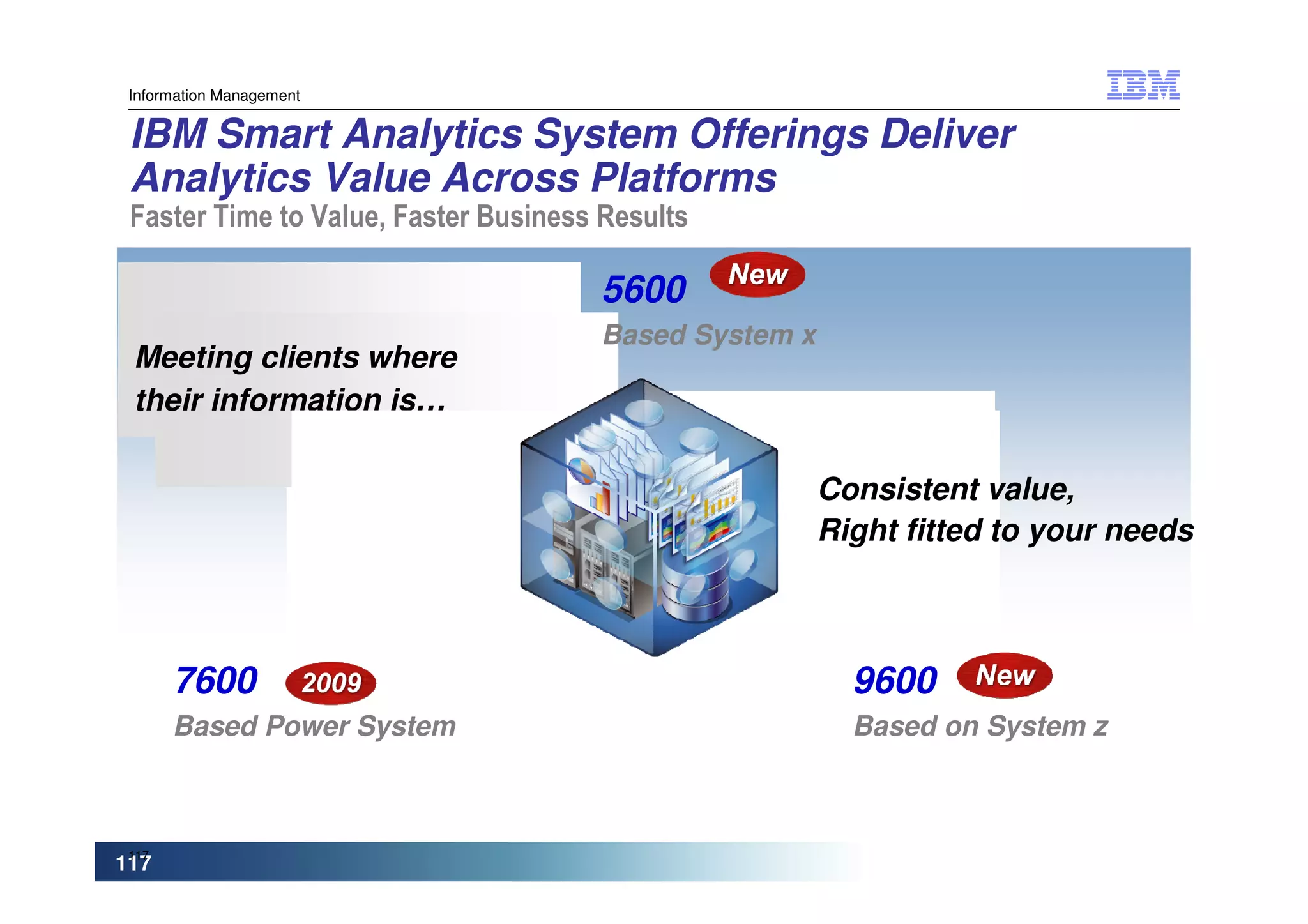

IBM Smart Analytics System Offerings Deliver
Analytics Value Across Platforms
Faster Time to Value, Faster Business Results
5600
Based System x
Meeting clients where
their information is…
Consistent value,
Right fitted to your needs
7600 9600
Based Power System Based on System z
117 © 2010 IBM Corporation
117

19. Information Management

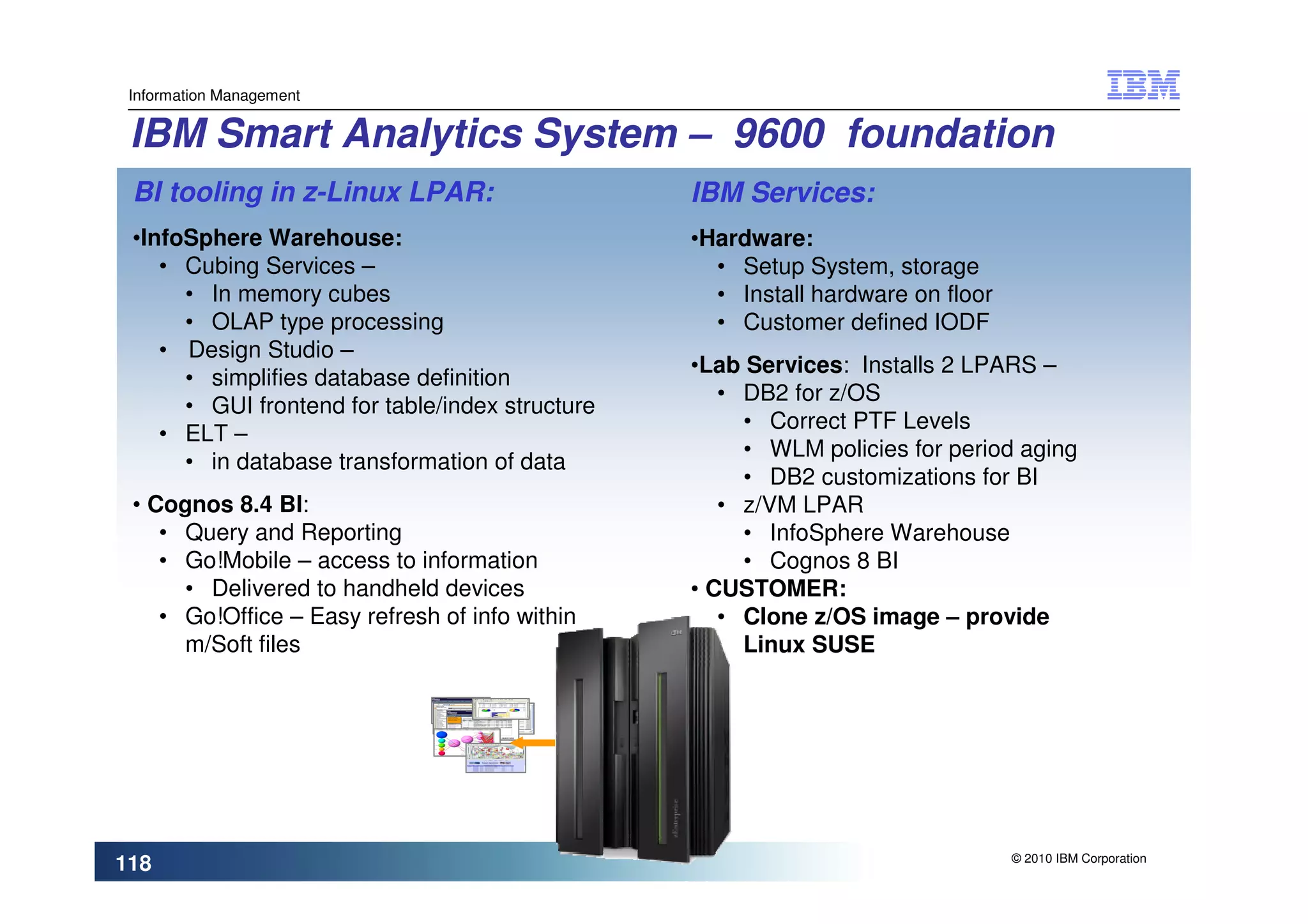

IBM Smart Analytics System – 9600 foundation
BI tooling in z-Linux LPAR: IBM Services:
•InfoSphere Warehouse: •Hardware:
• Cubing Services – • Setup System, storage
• In memory cubes • Install hardware on floor
• OLAP type processing • Customer defined IODF
• Design Studio –
•Lab Services: Installs 2 LPARS –
• simplifies database definition
• DB2 for z/OS
• GUI frontend for table/index structure
• Correct PTF Levels
• ELT –
• WLM policies for period aging
• in database transformation of data
• DB2 customizations for BI
• Cognos 8.4 BI: • z/VM LPAR
• Query and Reporting • InfoSphere Warehouse
• Go!Mobile – access to information • Cognos 8 BI
• Delivered to handheld devices • CUSTOMER:
• Go!Office – Easy refresh of info within • Clone z/OS image – provide
m/Soft files Linux SUSE
© 2010 IBM Corporation
118

20. Information Management

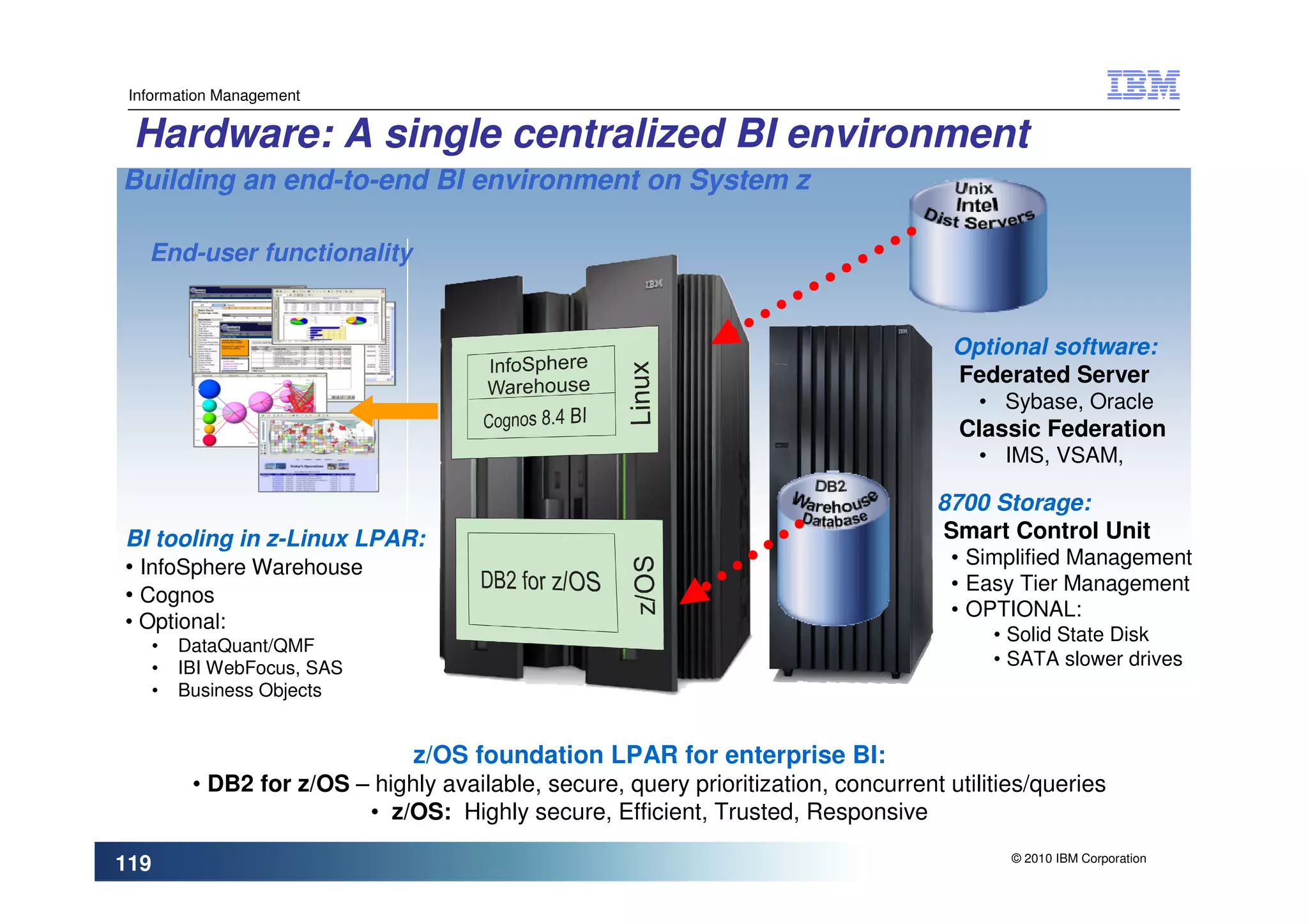

Hardware: A single centralized BI environment
Building an end-to-end BI environment on System z
End-user functionality
Optional software:
Federated Server
• Sybase, Oracle
Classic Federation
• IMS, VSAM,
8700 Storage:
BI tooling in z-Linux LPAR: Smart Control Unit
• InfoSphere Warehouse • Simplified Management
• Easy Tier Management
• Cognos
• OPTIONAL:
• Optional:
• Solid State Disk
• DataQuant/QMF
• IBI WebFocus, SAS • SATA slower drives
• Business Objects
z/OS foundation LPAR for enterprise BI:
• DB2 for z/OS – highly available, secure, query prioritization, concurrent utilities/queries
• z/OS: Highly secure, Efficient, Trusted, Responsive
© 2010 IBM Corporation
119

21. Information Management

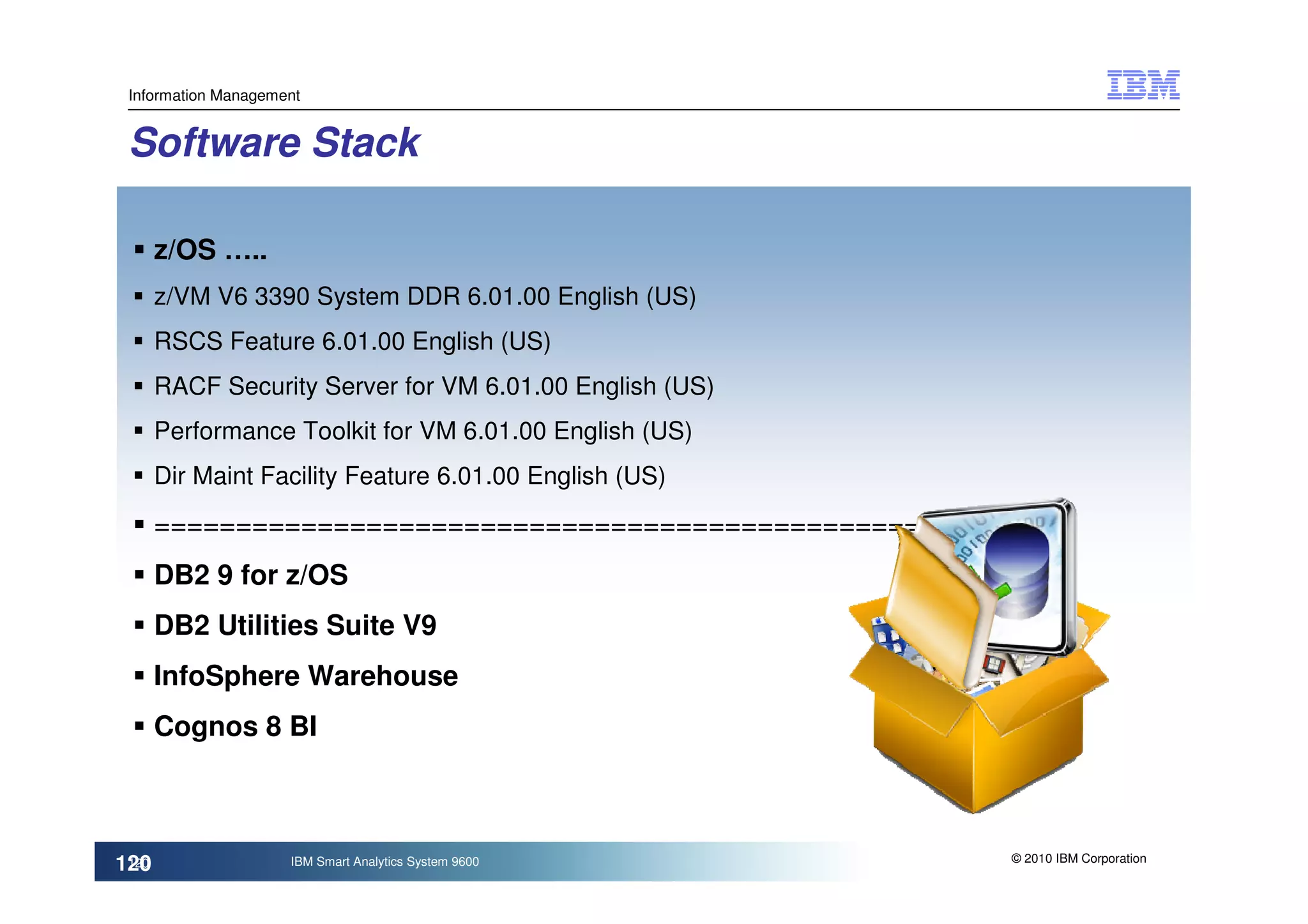

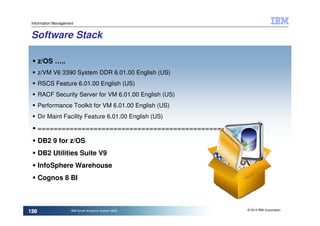

Software Stack
z/OS …..
z/VM V6 3390 System DDR 6.01.00 English (US)
RSCS Feature 6.01.00 English (US)
RACF Security Server for VM 6.01.00 English (US)
Performance Toolkit for VM 6.01.00 English (US)
Dir Maint Facility Feature 6.01.00 English (US)
=====================================================
DB2 9 for z/OS
DB2 Utilities Suite V9
InfoSphere Warehouse
Cognos 8 BI
© 2010 IBM Corporation
120
120 IBM Smart Analytics System 9600

22. Information Management

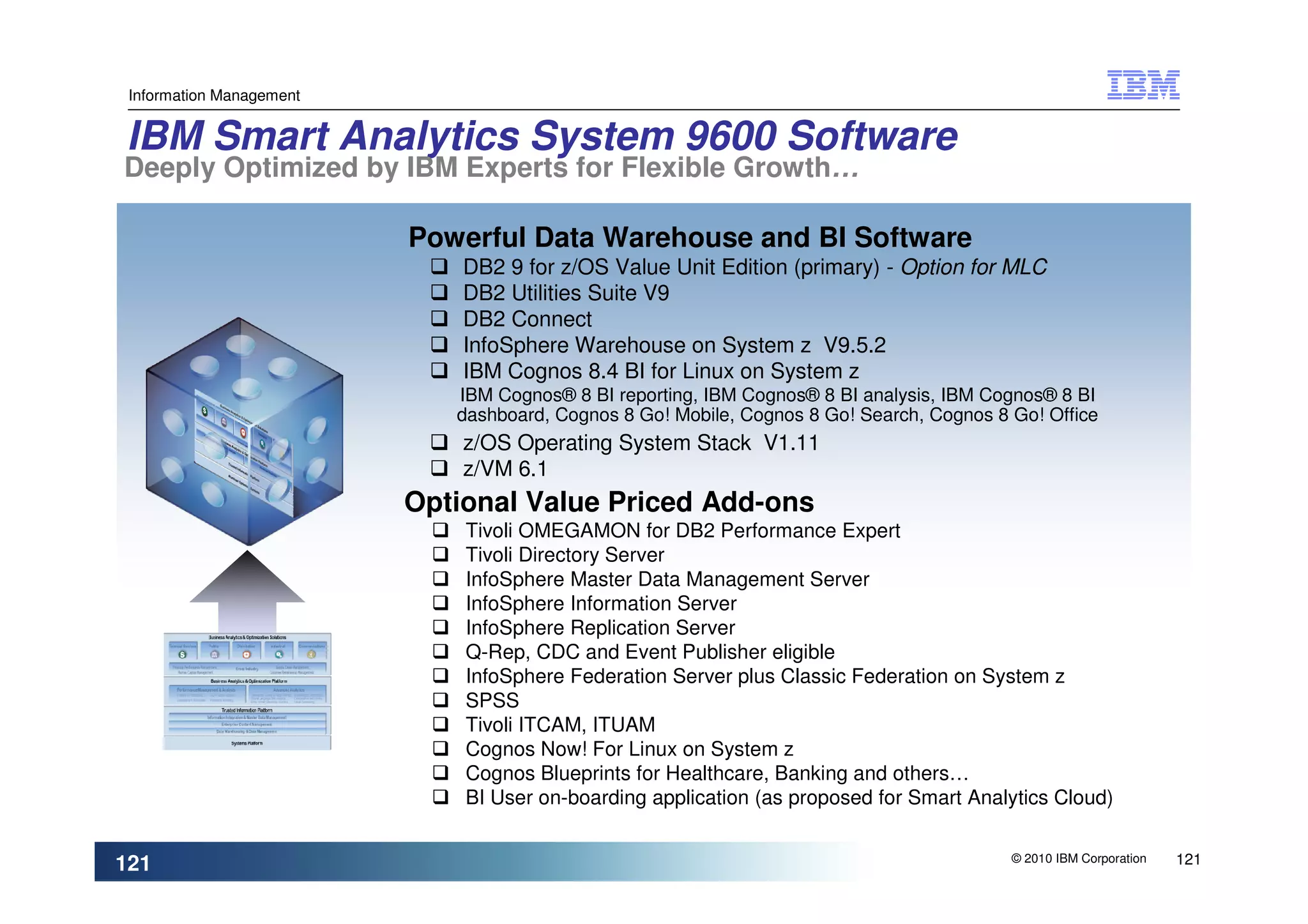

IBM Smart Analytics System 9600 Software
Deeply Optimized by IBM Experts for Flexible Growth…
Powerful Data Warehouse and BI Software
DB2 9 for z/OS Value Unit Edition (primary) - Option for MLC
DB2 Utilities Suite V9
DB2 Connect
InfoSphere Warehouse on System z V9.5.2
IBM Cognos 8.4 BI for Linux on System z
IBM Cognos® 8 BI reporting, IBM Cognos® 8 BI analysis, IBM Cognos® 8 BI
dashboard, Cognos 8 Go! Mobile, Cognos 8 Go! Search, Cognos 8 Go! Office
z/OS Operating System Stack V1.11
z/VM 6.1
Optional Value Priced Add-ons
Tivoli OMEGAMON for DB2 Performance Expert
Tivoli Directory Server
InfoSphere Master Data Management Server
InfoSphere Information Server
InfoSphere Replication Server
Q-Rep, CDC and Event Publisher eligible
InfoSphere Federation Server plus Classic Federation on System z
SPSS
Tivoli ITCAM, ITUAM
Cognos Now! For Linux on System z
Cognos Blueprints for Healthcare, Banking and others…
BI User on-boarding application (as proposed for Smart Analytics Cloud)
121 © 2010 IBM Corporation 121

23. Information Management

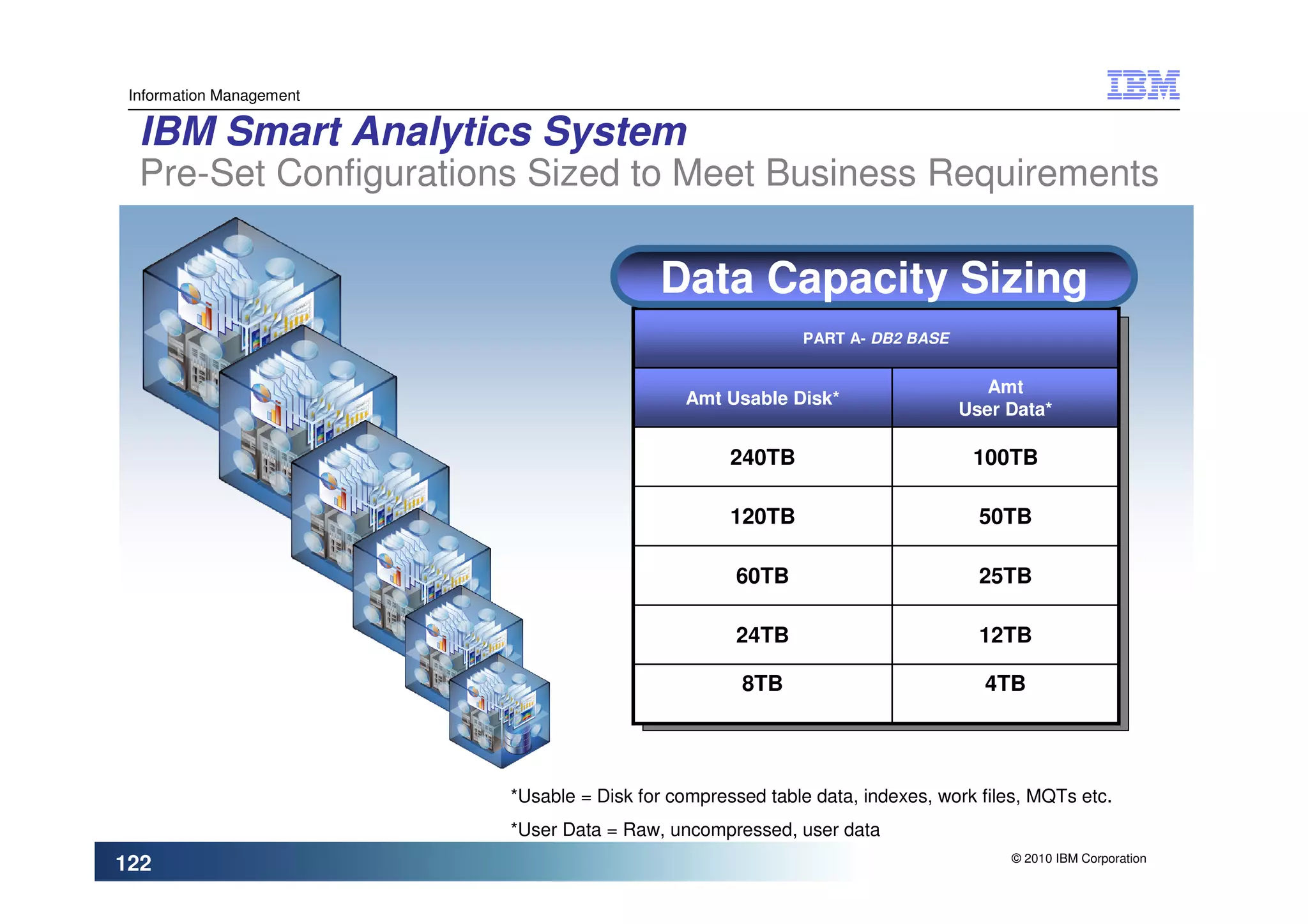

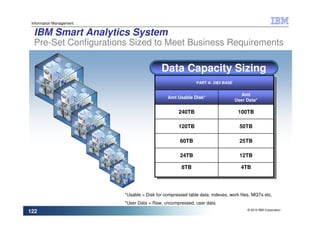

IBM Smart Analytics System
Pre-Set Configurations Sized to Meet Business Requirements
Data Capacity Sizing
PART A- DB2 BASE
Amt
Amt Usable Disk*
User Data*
240TB 100TB
120TB 50TB
60TB 25TB
24TB 12TB
8TB 4TB
*Usable = Disk for compressed table data, indexes, work files, MQTs etc.
*User Data = Raw, uncompressed, user data
© 2010 IBM Corporation
122

24. Information Management

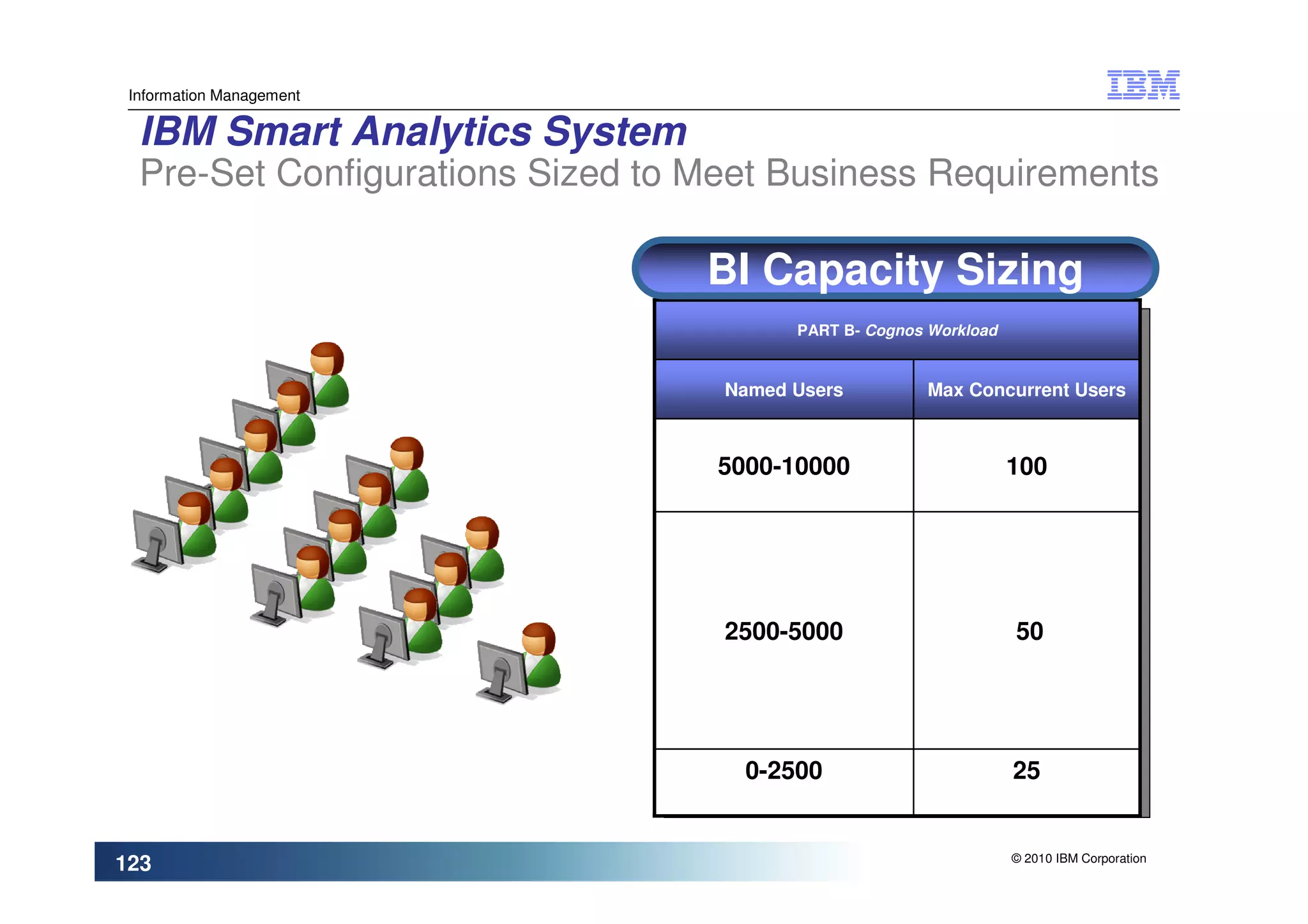

IBM Smart Analytics System
Pre-Set Configurations Sized to Meet Business Requirements
BI Capacity Sizing
PART B- Cognos Workload
Named Users Max Concurrent Users
5000-10000 100
2500-5000 50
0-2500 25
© 2010 IBM Corporation
123

25. Information Management

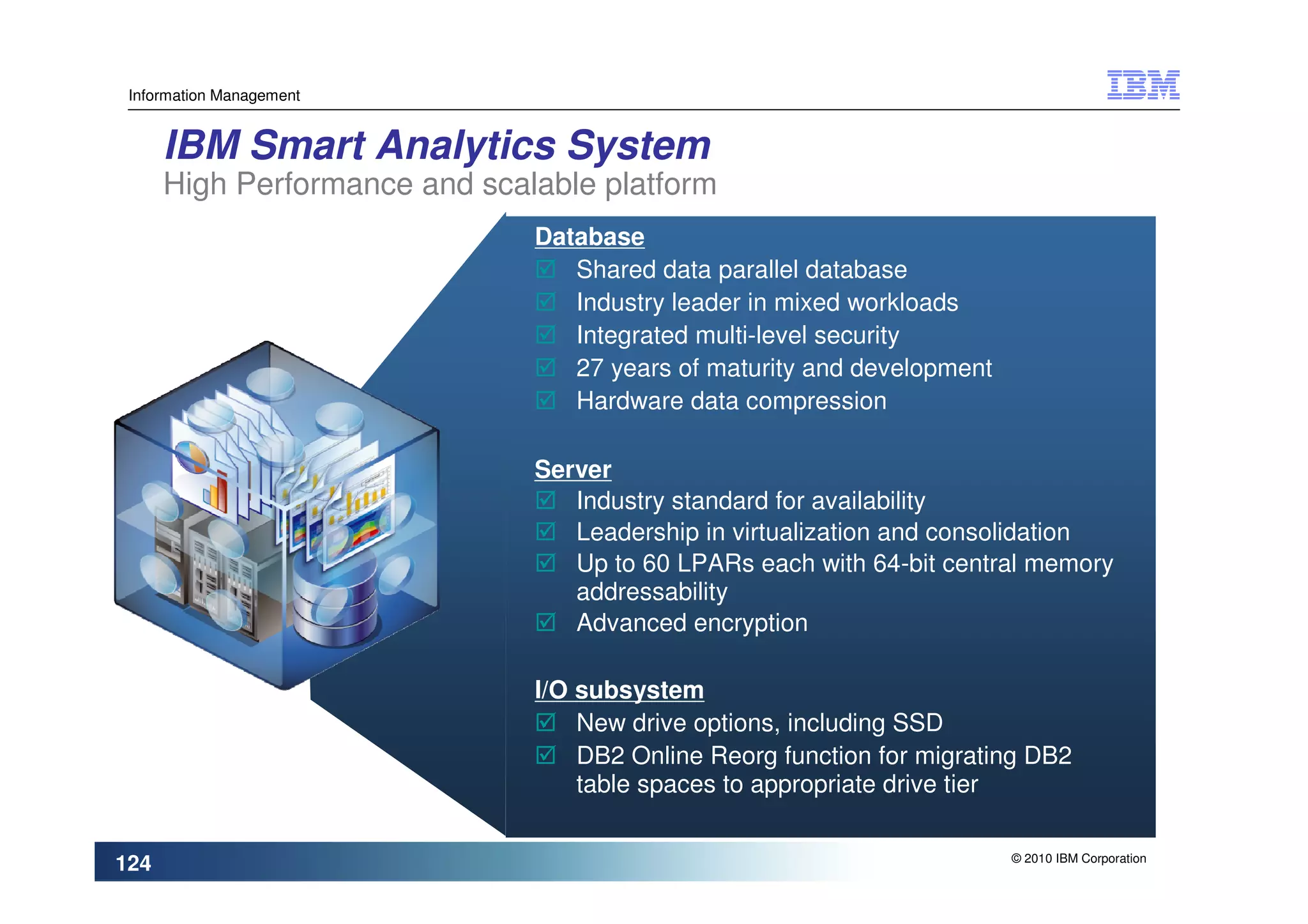

IBM Smart Analytics System
High Performance and scalable platform
Database
Shared data parallel database
Industry leader in mixed workloads
Integrated multi-level security
27 years of maturity and development
Hardware data compression
Server
Industry standard for availability
Leadership in virtualization and consolidation
Up to 60 LPARs each with 64-bit central memory
addressability
Advanced encryption
I/O subsystem
New drive options, including SSD
DB2 Online Reorg function for migrating DB2
table spaces to appropriate drive tier
© 2010 IBM Corporation
124

26. Information Management
IBM System z…the platform for the future
"you cannot think seriously about your longer-term IT
architecture without thinking equally seriously about
what today's mainframe environment has to offer“
CIO Magazine: Mainframe computing is
set for a rebirth – September 29, 2009
© 2010 IBM Corporation
125
