1. #engageug
The Other Face Of Domino,
Configuring and Securing
Gabriella Davis
The Turtle Partnership
gabriella@turtlepartnership.com
!1

2. #engageug

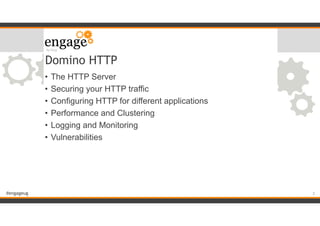

Domino HTTP
• The HTTP Server
• Securing your HTTP traffic
• Configuring HTTP for different applications
• Performance and Clustering
• Logging and Monitoring
• Vulnerabilities
!2

3. #engageug

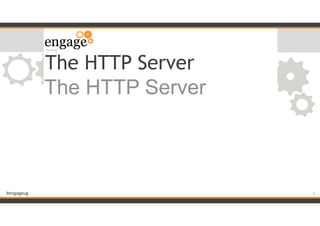

The HTTP Server
The HTTP Server
!3

4. #engageug
The HTTP Server

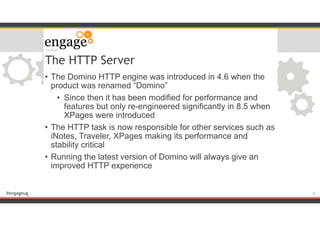

• The Domino HTTP engine was introduced in 4.6 when the
product was renamed “Domino”
• Since then it has been modified for performance and
features but only re-engineered significantly in 8.5 when
XPages were introduced
• The HTTP task is now responsible for other services such as
iNotes, Traveler, XPages making its performance and
stability critical
• Running the latest version of Domino will always give an
improved HTTP experience
!4

5. #engageug

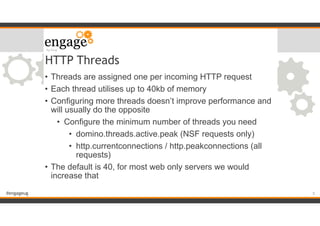

HTTP Threads
• Threads are assigned one per incoming HTTP request
• Each thread utilises up to 40kb of memory
• Configuring more threads doesn’t improve performance and
will usually do the opposite
• Configure the minimum number of threads you need
• domino.threads.active.peak (NSF requests only)
• http.currentconnections / http.peakconnections (all
requests)
• The default is 40, for most web only servers we would
increase that
!5

6. #engageug

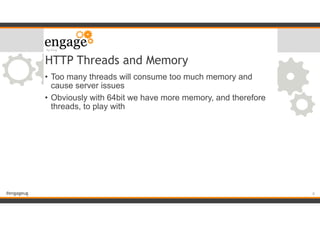

HTTP Threads and Memory
• Too many threads will consume too much memory and
cause server issues
• Obviously with 64bit we have more memory, and therefore
threads, to play with
!6

7. #engageug
HTTP Agents

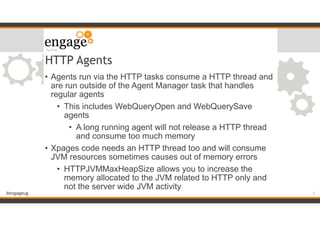

• Agents run via the HTTP tasks consume a HTTP thread and
are run outside of the Agent Manager task that handles
regular agents
• This includes WebQueryOpen and WebQuerySave
agents
• A long running agent will not release a HTTP thread
and consume too much memory
• Xpages code needs an HTTP thread too and will consume
JVM resources sometimes causes out of memory errors
• HTTPJVMMaxHeapSize allows you to increase the
memory allocated to the JVM related to HTTP only and
not the server wide JVM activity
!7

8. #engageug

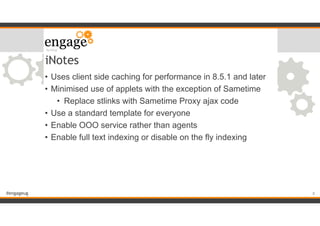

iNotes
• Uses client side caching for performance in 8.5.1 and later
• Minimised use of applets with the exception of Sametime
• Replace stlinks with Sametime Proxy ajax code
• Use a standard template for everyone
• Enable OOO service rather than agents
• Enable full text indexing or disable on the fly indexing
!8

9. #engageug

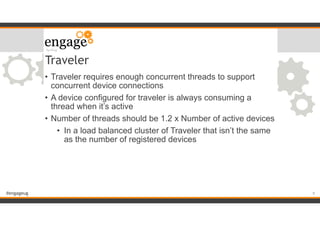

Traveler
• Traveler requires enough concurrent threads to support
concurrent device connections
• A device configured for traveler is always consuming a
thread when it’s active
• Number of threads should be 1.2 x Number of active devices
• In a load balanced cluster of Traveler that isn’t the same
as the number of registered devices
!9

10. #engageug
The HTTP Server
Securing Your HTTP
Traffic
!10

11. #engageug

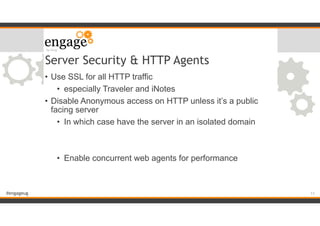

Server Security & HTTP Agents
• Use SSL for all HTTP traffic
• especially Traveler and iNotes
• Disable Anonymous access on HTTP unless it’s a public
facing server
• In which case have the server in an isolated domain
!
!
• Enable concurrent web agents for performance
!11

12. #engageug

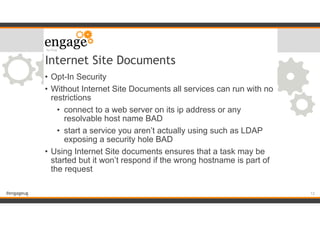

Internet Site Documents
• Opt-In Security
• Without Internet Site Documents all services can run with no
restrictions
• connect to a web server on its ip address or any
resolvable host name BAD
• start a service you aren’t actually using such as LDAP
exposing a security hole BAD
• Using Internet Site documents ensures that a task may be
started but it won’t respond if the wrong hostname is part of
the request
!12

13. #engageug

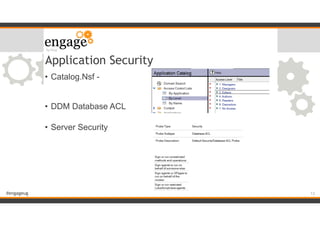

Application Security
• Catalog.Nsf -
• DDM Database ACL
• Server Security
!13

14. #engageug

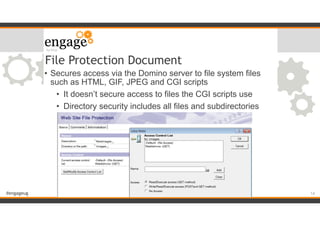

File Protection Document
• Secures access via the Domino server to file system files
such as HTML, GIF, JPEG and CGI scripts
• It doesn’t secure access to files the CGI scripts use
• Directory security includes all files and subdirectories
!14

15. #engageug

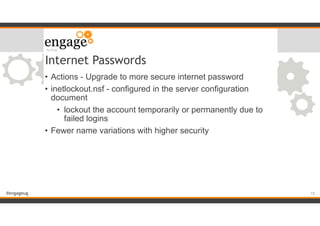

Internet Passwords
• Actions - Upgrade to more secure internet password
• inetlockout.nsf - configured in the server configuration
document
• lockout the account temporarily or permanently due to
failed logins
• Fewer name variations with higher security
!15

16. #engageug

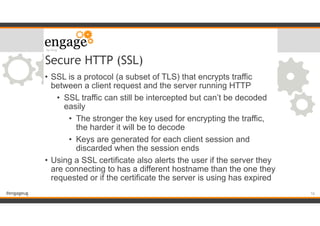

Secure HTTP (SSL)
• SSL is a protocol (a subset of TLS) that encrypts traffic
between a client request and the server running HTTP
• SSL traffic can still be intercepted but can’t be decoded
easily
• The stronger the key used for encrypting the traffic,
the harder it will be to decode
• Keys are generated for each client session and
discarded when the session ends
• Using a SSL certificate also alerts the user if the server they
are connecting to has a different hostname than the one they
requested or if the certificate the server is using has expired
!16

17. #engageug

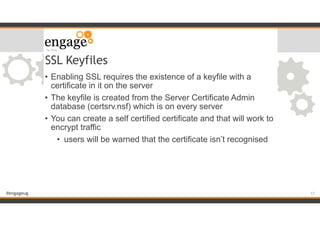

SSL Keyfiles
• Enabling SSL requires the existence of a keyfile with a
certificate in it on the server
• The keyfile is created from the Server Certificate Admin
database (certsrv.nsf) which is on every server
• You can create a self certified certificate and that will work to
encrypt traffic
• users will be warned that the certificate isn’t recognised
!17

18. #engageug

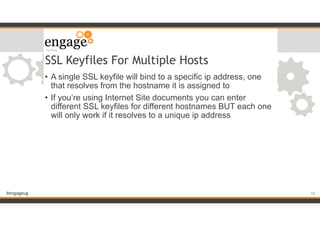

SSL Keyfiles For Multiple Hosts
• A single SSL keyfile will bind to a specific ip address, one
that resolves from the hostname it is assigned to
• If you’re using Internet Site documents you can enter
different SSL keyfiles for different hostnames BUT each one
will only work if it resolves to a unique ip address
!18

19. #engageug

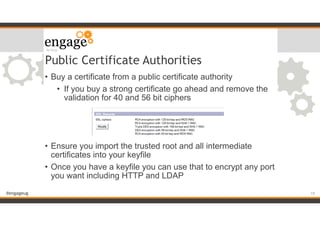

Public Certificate Authorities
• Buy a certificate from a public certificate authority
• If you buy a strong certificate go ahead and remove the
validation for 40 and 56 bit ciphers
!
!
!
• Ensure you import the trusted root and all intermediate
certificates into your keyfile
• Once you have a keyfile you can use that to encrypt any port
you want including HTTP and LDAP
!19

20. #engageug

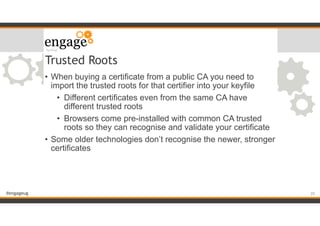

Trusted Roots
• When buying a certificate from a public CA you need to
import the trusted roots for that certifier into your keyfile
• Different certificates even from the same CA have
different trusted roots
• Browsers come pre-installed with common CA trusted
roots so they can recognise and validate your certificate
• Some older technologies don’t recognise the newer, stronger
certificates
!20

21. #engageug
Tip

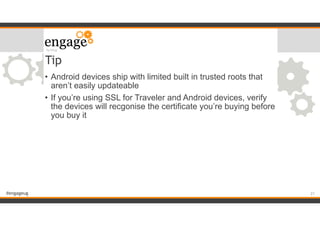

• Android devices ship with limited built in trusted roots that
aren’t easily updateable
• If you’re using SSL for Traveler and Android devices, verify
the devices will recgonise the certificate you’re buying before
you buy it
!21

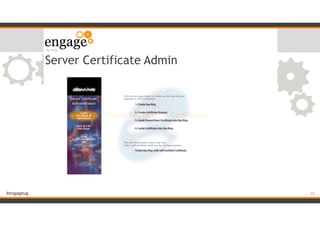

22. #engageug
Server Certificate Admin
!22

23. #engageug

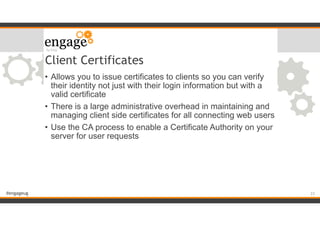

Client Certificates
• Allows you to issue certificates to clients so you can verify
their identity not just with their login information but with a
valid certificate
• There is a large administrative overhead in maintaining and
managing client side certificates for all connecting web users
• Use the CA process to enable a Certificate Authority on your
server for user requests
!23

24. #engageug

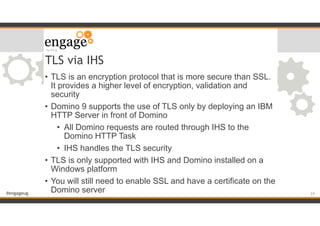

TLS via IHS
• TLS is an encryption protocol that is more secure than SSL.
It provides a higher level of encryption, validation and
security
• Domino 9 supports the use of TLS only by deploying an IBM
HTTP Server in front of Domino
• All Domino requests are routed through IHS to the
Domino HTTP Task
• IHS handles the TLS security
• TLS is only supported with IHS and Domino installed on a
Windows platform
• You will still need to enable SSL and have a certificate on the
Domino server !24

25. #engageug

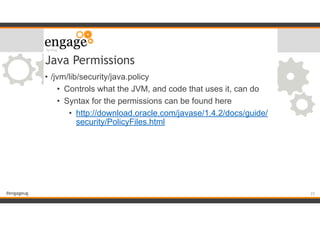

Java Permissions
• /jvm/lib/security/java.policy
• Controls what the JVM, and code that uses it, can do
• Syntax for the permissions can be found here
• http://download.oracle.com/javase/1.4.2/docs/guide/
security/PolicyFiles.html
!25

26. #engageug

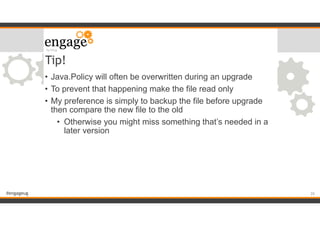

Tip!
• Java.Policy will often be overwritten during an upgrade
• To prevent that happening make the file read only
• My preference is simply to backup the file before upgrade
then compare the new file to the old
• Otherwise you might miss something that’s needed in a
later version
!26

27. #engageug
The HTTP Server

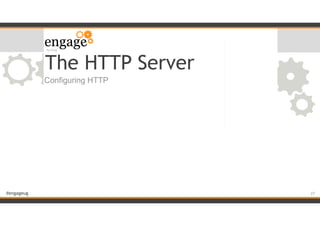

Configuring HTTP
!27

28. #engageug

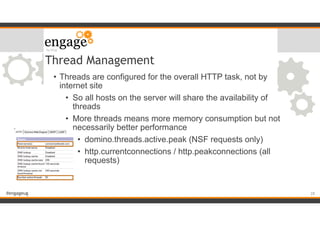

Thread Management
• Threads are configured for the overall HTTP task, not by
internet site
• So all hosts on the server will share the availability of
threads
• More threads means more memory consumption but not
necessarily better performance
• domino.threads.active.peak (NSF requests only)
• http.currentconnections / http.peakconnections (all
requests)
!28

29. #engageug

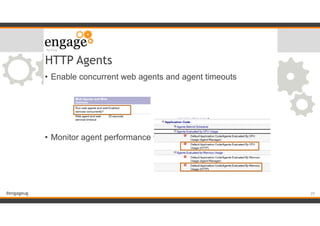

HTTP Agents
• Enable concurrent web agents and agent timeouts
!
!
!
!
• Monitor agent performance via DDM probes
!29

30. #engageug

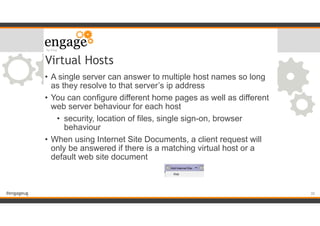

Virtual Hosts
• A single server can answer to multiple host names so long
as they resolve to that server’s ip address
• You can configure different home pages as well as different
web server behaviour for each host
• security, location of files, single sign-on, browser
behaviour
• When using Internet Site Documents, a client request will
only be answered if there is a matching virtual host or a
default web site document
!30

31. #engageug

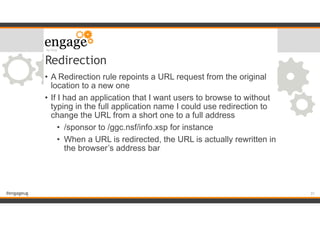

Redirection
• A Redirection rule repoints a URL request from the original
location to a new one
• If I had an application that I want users to browse to without
typing in the full application name I could use redirection to
change the URL from a short one to a full address
• /sponsor to /ggc.nsf/info.xsp for instance
• When a URL is redirected, the URL is actually rewritten in
the browser’s address bar
!31

32. #engageug

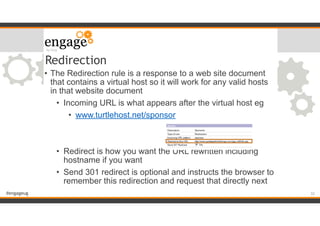

• The Redirection rule is a response to a web site document
that contains a virtual host so it will work for any valid hosts
in that website document
• Incoming URL is what appears after the virtual host eg
• www.turtlehost.net/sponsor
!
!
• Redirect is how you want the URL rewritten including
hostname if you want
• Send 301 redirect is optional and instructs the browser to
remember this redirection and request that directly next
Redirection
!32

33. #engageug

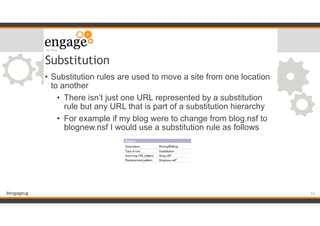

Substitution
• Substitution rules are used to move a site from one location
to another
• There isn’t just one URL represented by a substitution
rule but any URL that is part of a substitution hierarchy
• For example if my blog were to change from blog.nsf to
blognew.nsf I would use a substitution rule as follows
!33

34. #engageug

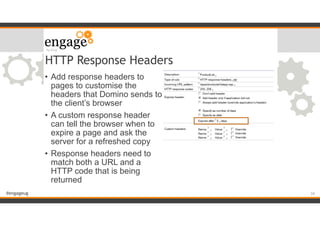

HTTP Response Headers
• Add response headers to
pages to customise the
headers that Domino sends to
the client’s browser
• A custom response header
can tell the browser when to
expire a page and ask the
server for a refreshed copy
• Response headers need to
match both a URL and a
HTTP code that is being
returned
!34

35. #engageug

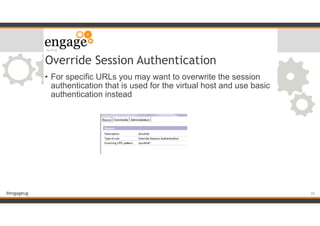

Override Session Authentication
• For specific URLs you may want to overwrite the session
authentication that is used for the virtual host and use basic
authentication instead
!35

36. #engageug

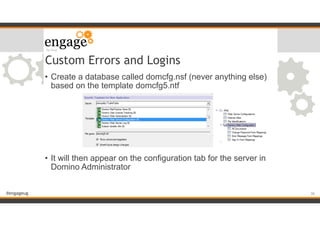

Custom Errors and Logins
• Create a database called domcfg.nsf (never anything else)
based on the template domcfg5.ntf
!
!
!
!
!
• It will then appear on the configuration tab for the server in
Domino Administrator
!36

37. #engageug
Custom Errors and Logins
• Create a default mapping for login - it is more customisable
and looks better than the standard session sign on
!37

38. #engageug

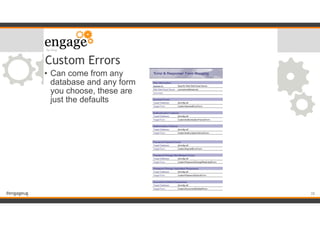

Custom Errors
• Can come from any
database and any form
you choose, these are
just the defaults
!38

39. #engageug
Httpd.cnf & Browser.cnf
• Files are written to the Domino program directory during
install and upgrades
• Browser.cnf has the configuration of each browser’s
supported features so Domino knows how to deliver content
to the user’s specific browser
• Httpd.cnf contains file types and associations so Domino
knows how to handle file attachments and embedded
content
• You would usually not edit either one of these files but if you
do you should mark them read only so they aren’t
overwritten on upgrade
• Or back them up and make them part of your upgrade
process !39

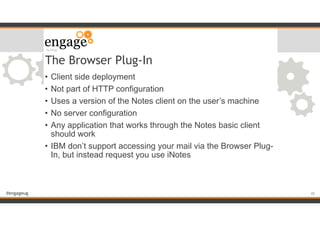

40. #engageug
The Browser Plug-In
• Client side deployment
• Not part of HTTP configuration
• Uses a version of the Notes client on the user’s machine
• No server configuration
• Any application that works through the Notes basic client
should work
• IBM don’t support accessing your mail via the Browser Plug-
In, but instead request you use iNotes
!40

41. #engageug

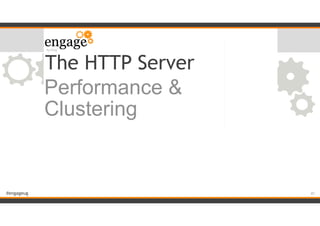

The HTTP Server
Performance &
Clustering
!41

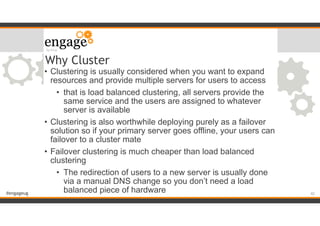

42. #engageug
Why Cluster
• Clustering is usually considered when you want to expand
resources and provide multiple servers for users to access
• that is load balanced clustering, all servers provide the
same service and the users are assigned to whatever
server is available
• Clustering is also worthwhile deploying purely as a failover
solution so if your primary server goes offline, your users can
failover to a cluster mate
• Failover clustering is much cheaper than load balanced
clustering
• The redirection of users to a new server is usually done
via a manual DNS change so you don’t need a load
balanced piece of hardware !42

43. #engageug
Tip!
• If the system is important to your business and you can’t
have extended minutes or hours of downtime you are going
to want to Cluster at some level, it’s just a case of deciding
how much hardware and money you want to apply to the job
!43

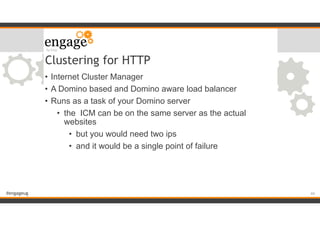

44. #engageug
Clustering for HTTP
• Internet Cluster Manager
• A Domino based and Domino aware load balancer
• Runs as a task of your Domino server
• the ICM can be on the same server as the actual
websites
• but you would need two ips
• and it would be a single point of failure
!44

45. #engageug

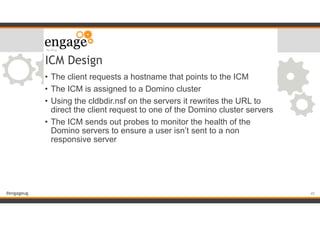

ICM Design
• The client requests a hostname that points to the ICM
• The ICM is assigned to a Domino cluster
• Using the cldbdir.nsf on the servers it rewrites the URL to
direct the client request to one of the Domino cluster servers
• The ICM sends out probes to monitor the health of the
Domino servers to ensure a user isn’t sent to a non
responsive server
!45

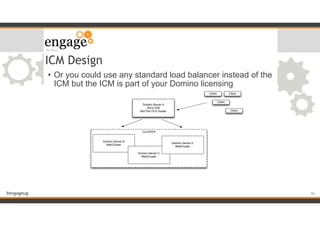

46. #engageug
• Or you could use any standard load balancer instead of the
ICM but the ICM is part of your Domino licensing
ICM Design
CLUSTER
Domino Server A
Runs ICM
Not Part Of A Cluster
Domino Server B
WebCluster
Domino Server C
WebCluster
Domino Server D
WebCluster
Client
Client
Client
Client
!46

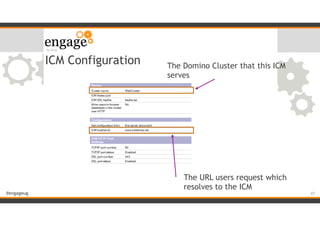

47. #engageug
ICM Configuration
!
!47
The Domino Cluster that this ICM
serves
The URL users request which
resolves to the ICM

48. #engageug

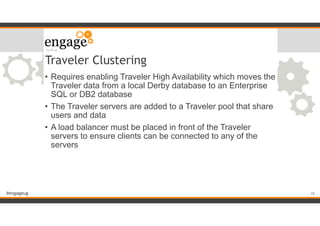

Traveler Clustering
• Requires enabling Traveler High Availability which moves the
Traveler data from a local Derby database to an Enterprise
SQL or DB2 database
• The Traveler servers are added to a Traveler pool that share
users and data
• A load balancer must be placed in front of the Traveler
servers to ensure clients can be connected to any of the
servers
!48

49. #engageug

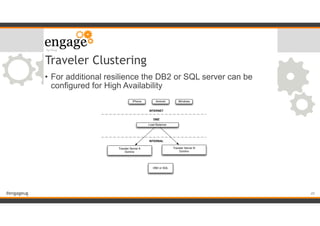

Traveler Clustering
• For additional resilience the DB2 or SQL server can be
configured for High Availability
!49
Load Balancer
Traveler Server A
Domino
DB2 or SQL
Traveler Server B
Domino
iPhone Android Windows
INTERNET
INTERNAL
DMZ

50. #engageug

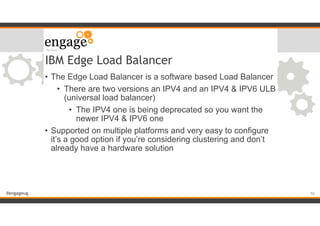

IBM Edge Load Balancer
• The Edge Load Balancer is a software based Load Balancer
• There are two versions an IPV4 and an IPV4 & IPV6 ULB
(universal load balancer)
• The IPV4 one is being deprecated so you want the
newer IPV4 & IPV6 one
• Supported on multiple platforms and very easy to configure
it’s a good option if you’re considering clustering and don’t
already have a hardware solution
!50

51. #engageug

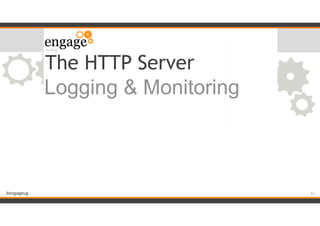

The HTTP Server
Logging & Monitoring
!51

52. #engageug

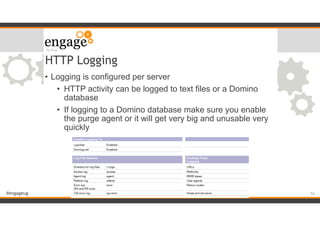

HTTP Logging
• Logging is configured per server
• HTTP activity can be logged to text files or a Domino
database
• If logging to a Domino database make sure you enable
the purge agent or it will get very big and unusable very
quickly
!52

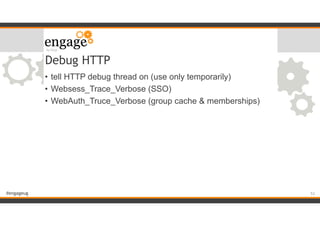

53. #engageug
Debug HTTP
• tell HTTP debug thread on (use only temporarily)
• Websess_Trace_Verbose (SSO)
• WebAuth_Truce_Verbose (group cache & memberships)
!53

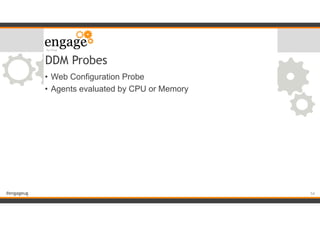

54. #engageug
DDM Probes
• Web Configuration Probe
• Agents evaluated by CPU or Memory
!54

55. #engageug

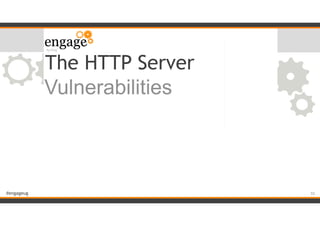

The HTTP Server
Vulnerabilities
!55

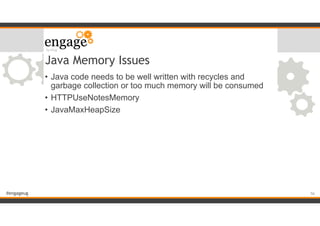

56. #engageug
Java Memory Issues
• Java code needs to be well written with recycles and
garbage collection or too much memory will be consumed
• HTTPUseNotesMemory
• JavaMaxHeapSize
!56

57. #engageug
Security
• Password Strength
• DDM Probe to monitor for Anonymous database access
• DIIOP, LDAP, SMTP
• SSL certificates
!57

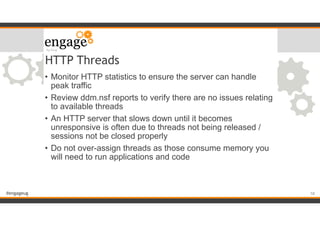

58. #engageug
HTTP Threads
• Monitor HTTP statistics to ensure the server can handle
peak traffic
• Review ddm.nsf reports to verify there are no issues relating
to available threads
• An HTTP server that slows down until it becomes
unresponsive is often due to threads not being released /
sessions not be closed properly
• Do not over-assign threads as those consume memory you
will need to run applications and code
!58

59. #engageug

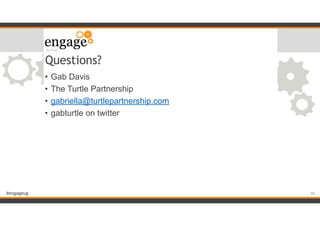

Questions?
• Gab Davis
• The Turtle Partnership
• gabriella@turtlepartnership.com
• gabturtle on twitter
!59
