How to Converting from native Domino Directory to LDAP and Migrating contact list from older Sametime versions to HCL Sametime 12

1. ALEŠ LICHTENBERG
twitter: @a_lichtenberg
blog: www.alichtenberg.cz
HCL Sametime 12.0 (for Docker)
Converting from native Domino Directory to LDAP
and
Migrating contact list from older Sametime versions
Step by Step
Ver. 1.0

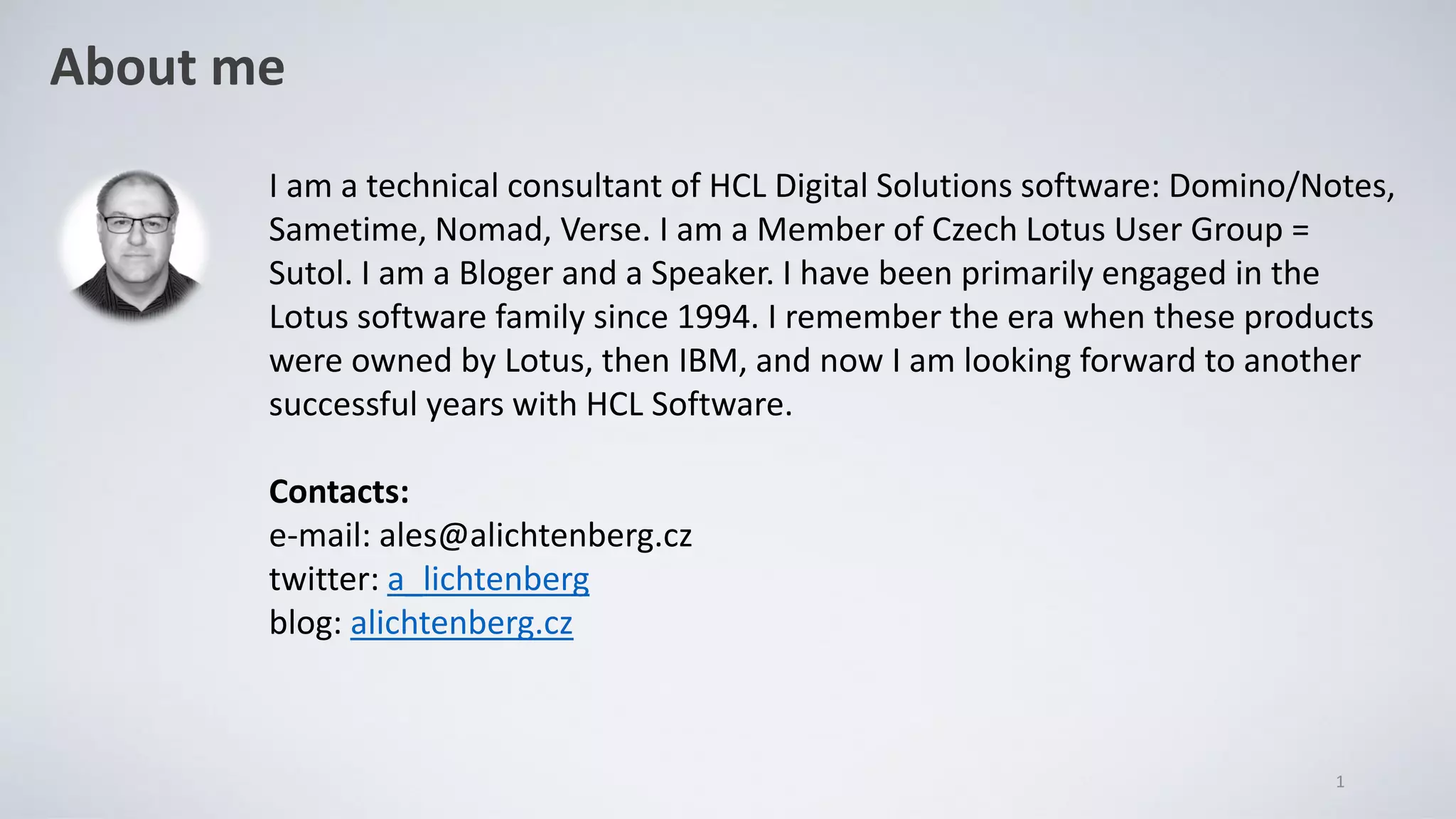

2. About me
1
I am a technical consultant of HCL Digital Solutions software: Domino/Notes,
Sametime, Nomad, Verse. I am a Member of Czech Lotus User Group =
Sutol. I am a Bloger and a Speaker. I have been primarily engaged in the
Lotus software family since 1994. I remember the era when these products
were owned by Lotus, then IBM, and now I am looking forward to another
successful years with HCL Software.
Contacts:
e-mail: ales@alichtenberg.cz
twitter: a_lichtenberg
blog: alichtenberg.cz

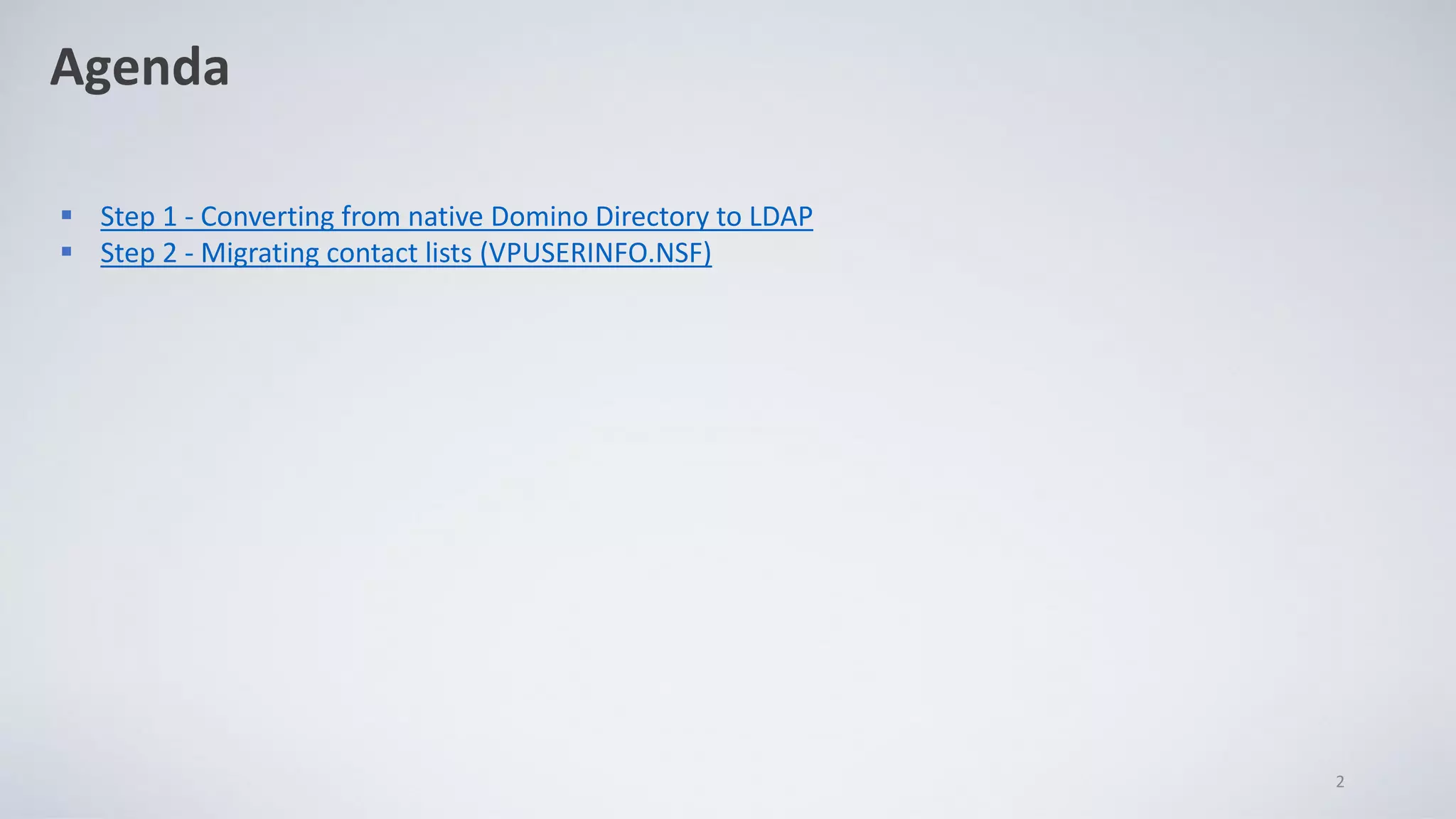

3. Agenda
▪ Step 1 - Converting from native Domino Directory to LDAP
▪ Step 2 - Migrating contact lists (VPUSERINFO.NSF)
2

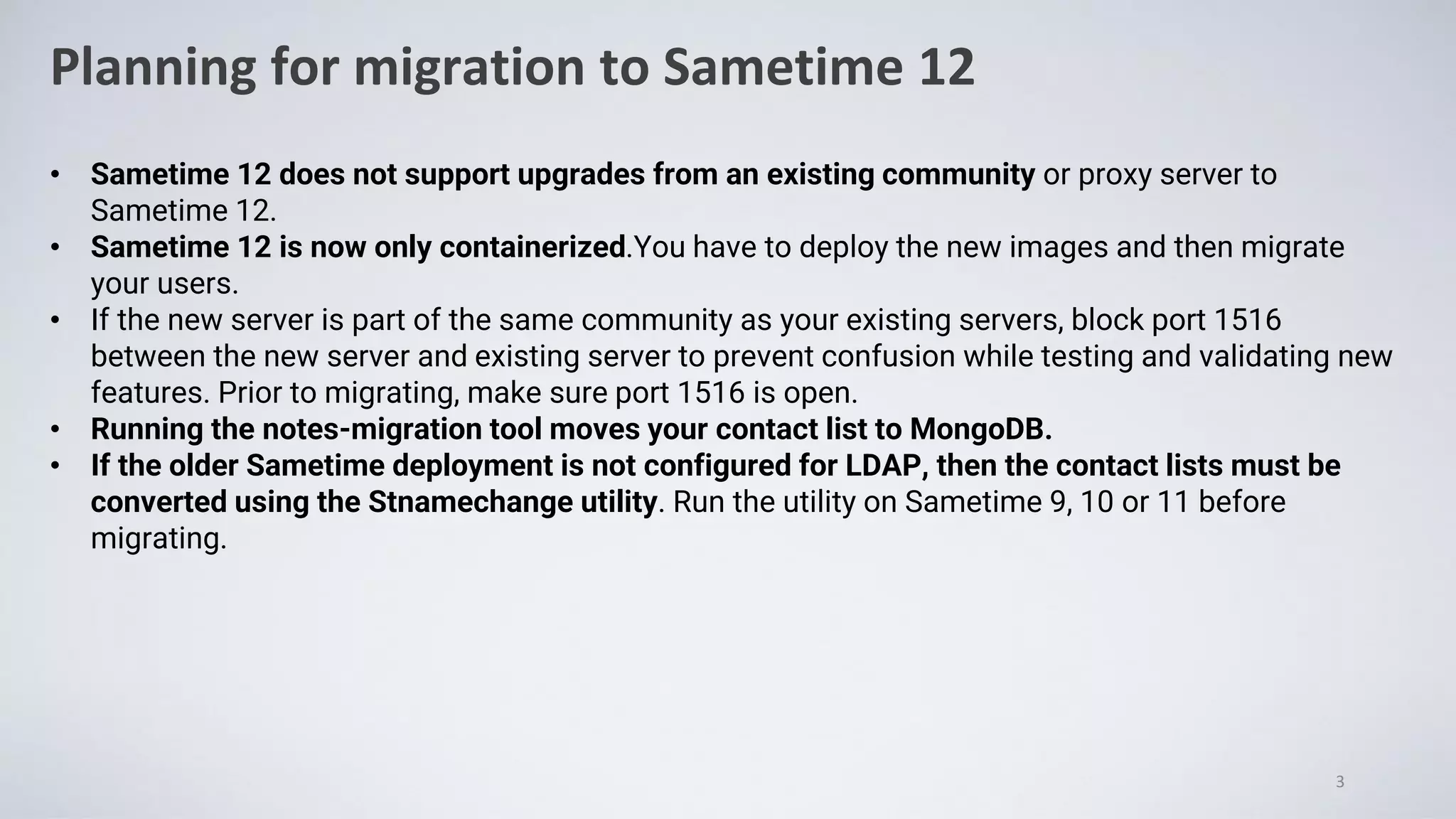

4. Planning for migration to Sametime 12
3
• Sametime 12 does not support upgrades from an existing community or proxy server to
Sametime 12.
• Sametime 12 is now only containerized.You have to deploy the new images and then migrate
your users.
• If the new server is part of the same community as your existing servers, block port 1516
between the new server and existing server to prevent confusion while testing and validating new
features. Prior to migrating, make sure port 1516 is open.
• Running the notes-migration tool moves your contact list to MongoDB.
• If the older Sametime deployment is not configured for LDAP, then the contact lists must be
converted using the Stnamechange utility. Run the utility on Sametime 9, 10 or 11 before
migrating.

5. 4
Step 1
Converting from native Domino directory
to LDAP
If you already have your existing Sametime configured for LDAP, you can skip this step

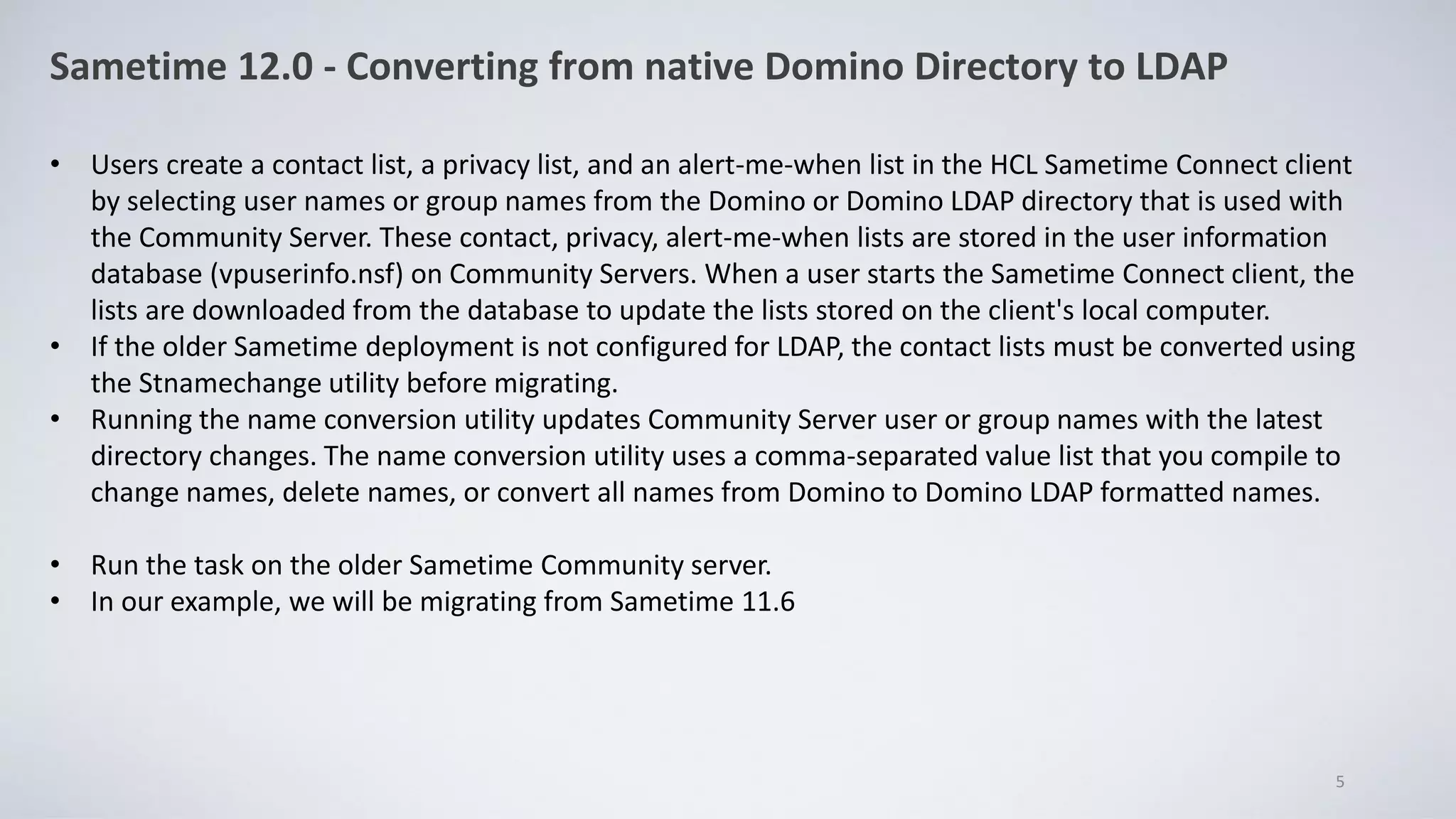

6. Sametime 12.0 - Converting from native Domino Directory to LDAP
• Users create a contact list, a privacy list, and an alert-me-when list in the HCL Sametime Connect client
by selecting user names or group names from the Domino or Domino LDAP directory that is used with
the Community Server. These contact, privacy, alert-me-when lists are stored in the user information
database (vpuserinfo.nsf) on Community Servers. When a user starts the Sametime Connect client, the
lists are downloaded from the database to update the lists stored on the client's local computer.
• If the older Sametime deployment is not configured for LDAP, the contact lists must be converted using
the Stnamechange utility before migrating.
• Running the name conversion utility updates Community Server user or group names with the latest
directory changes. The name conversion utility uses a comma-separated value list that you compile to
change names, delete names, or convert all names from Domino to Domino LDAP formatted names.
• Run the task on the older Sametime Community server.
• In our example, we will be migrating from Sametime 11.6
5

7. Sametime 12.0 - Converting from native Domino Directory to LDAP

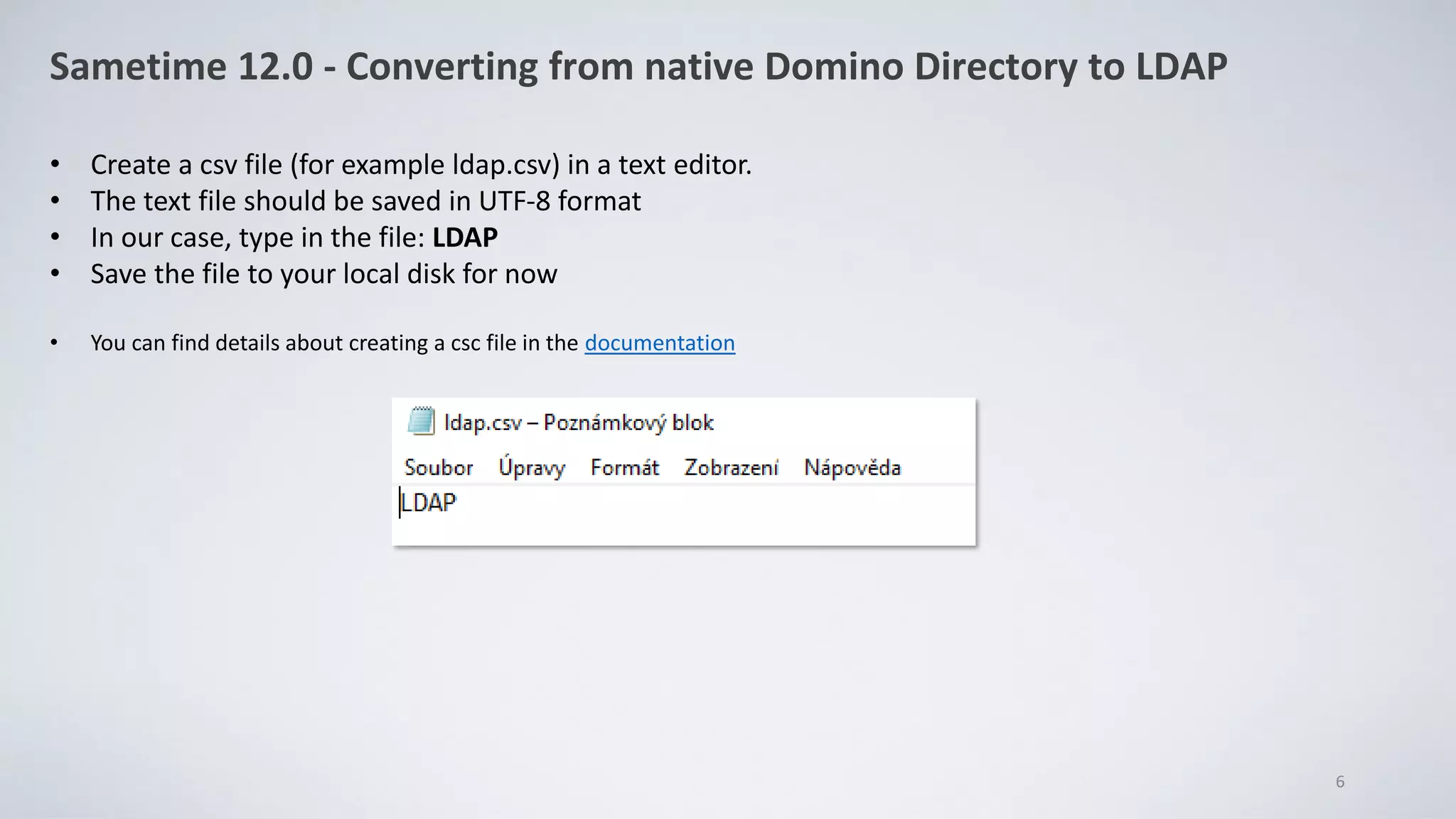

• Create a csv file (for example ldap.csv) in a text editor.
• The text file should be saved in UTF-8 format
• In our case, type in the file: LDAP
• Save the file to your local disk for now
• You can find details about creating a csc file in the documentation
6

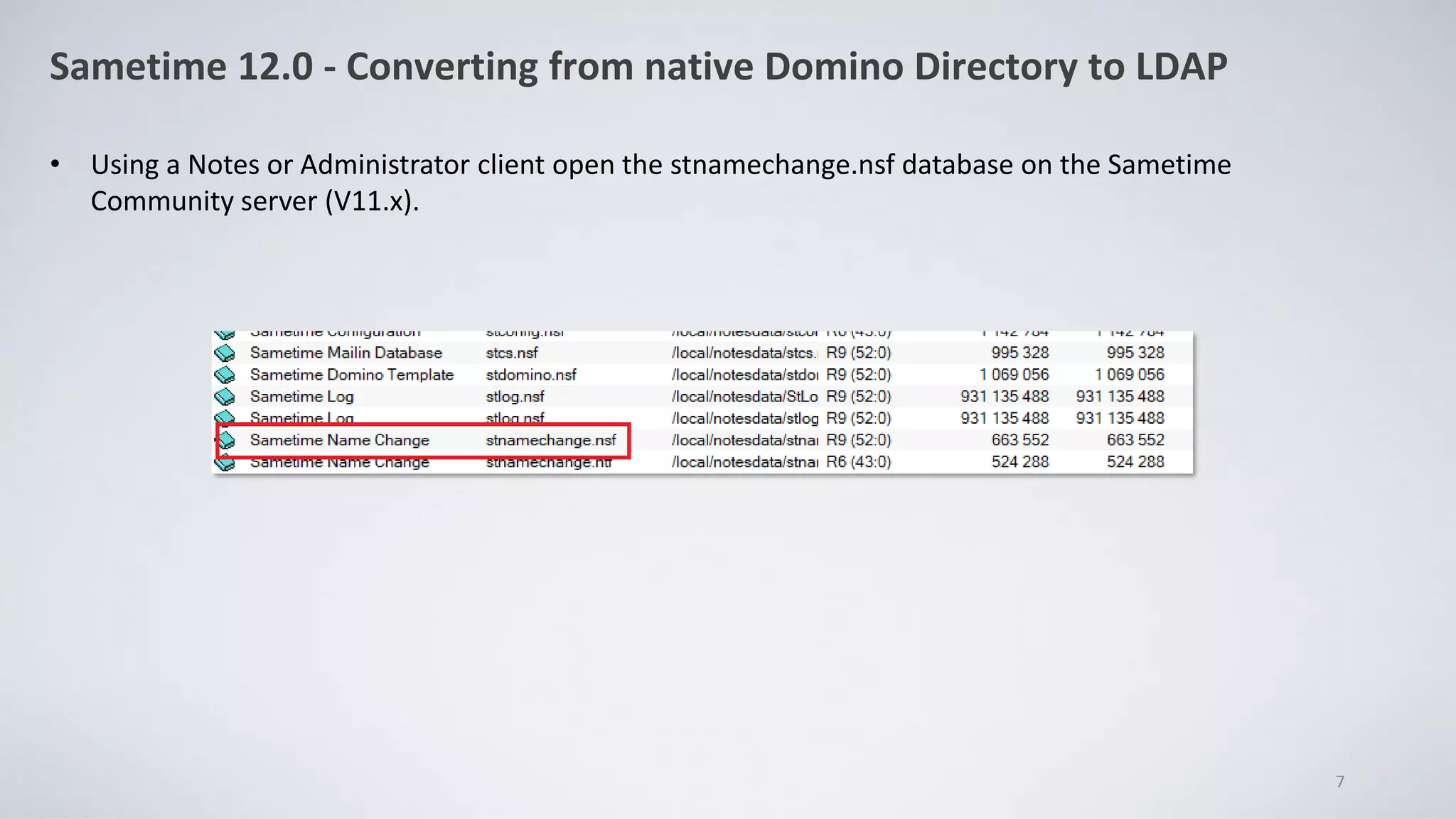

8. Sametime 12.0 - Converting from native Domino Directory to LDAP
• Using a Notes or Administrator client open the stnamechange.nsf database on the Sametime
Community server (V11.x).
7

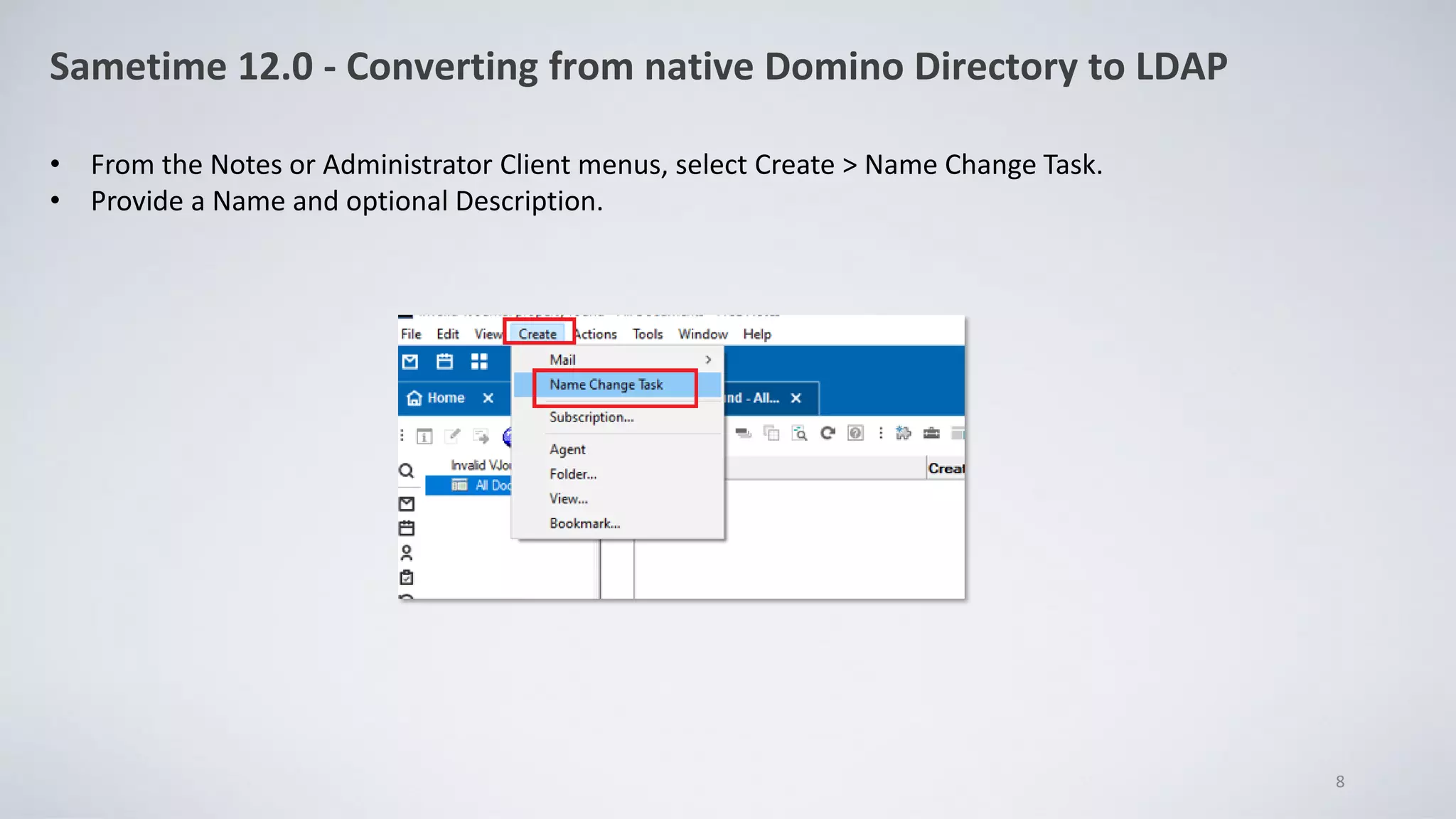

9. Sametime 12.0 - Converting from native Domino Directory to LDAP
• From the Notes or Administrator Client menus, select Create > Name Change Task.
• Provide a Name and optional Description.
8

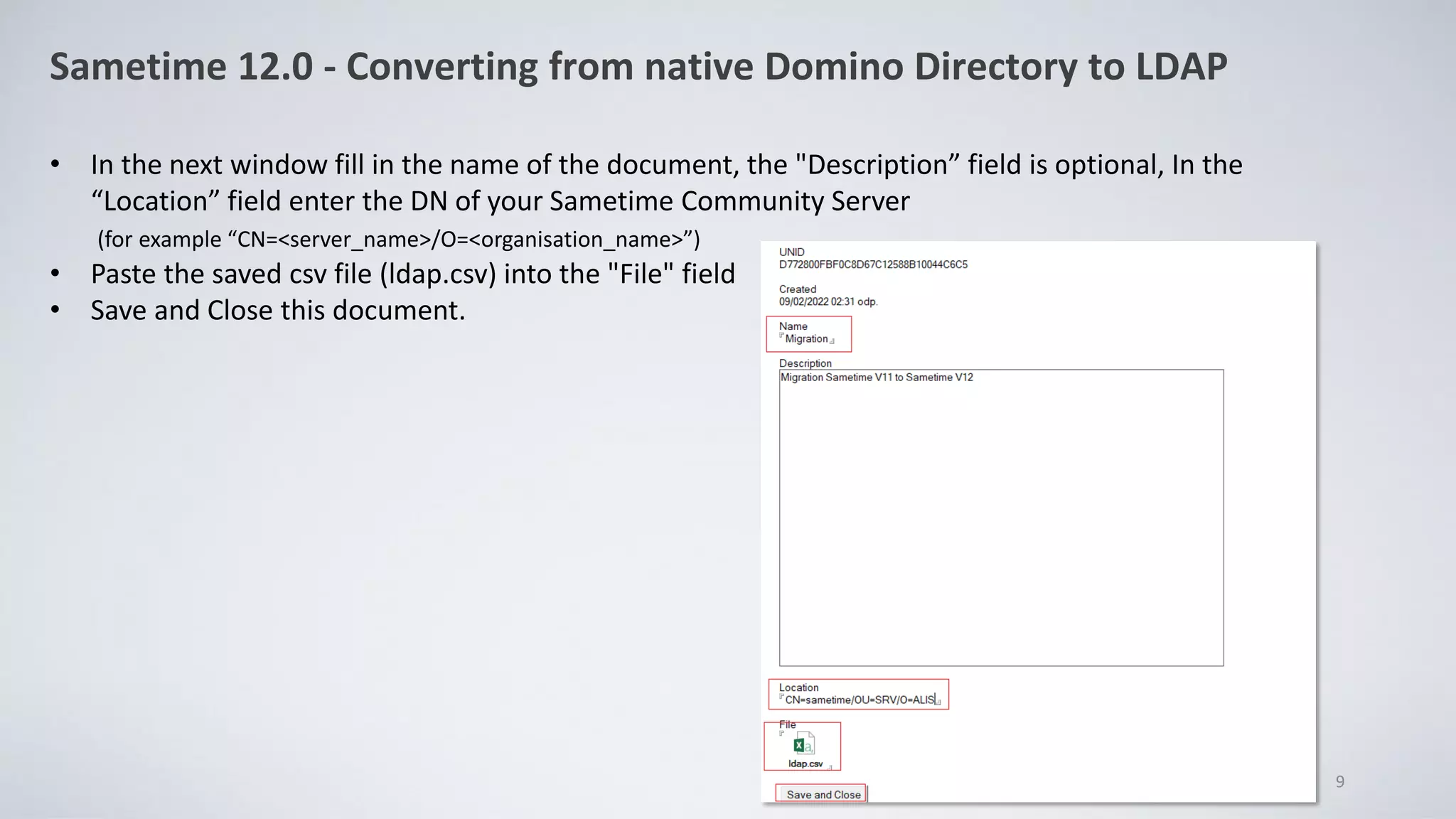

10. Sametime 12.0 - Converting from native Domino Directory to LDAP
• In the next window fill in the name of the document, the "Description” field is optional, In the
“Location” field enter the DN of your Sametime Community Server
(for example “CN=<server_name>/O=<organisation_name>”)
• Paste the saved csv file (ldap.csv) into the "File" field
• Save and Close this document.
9

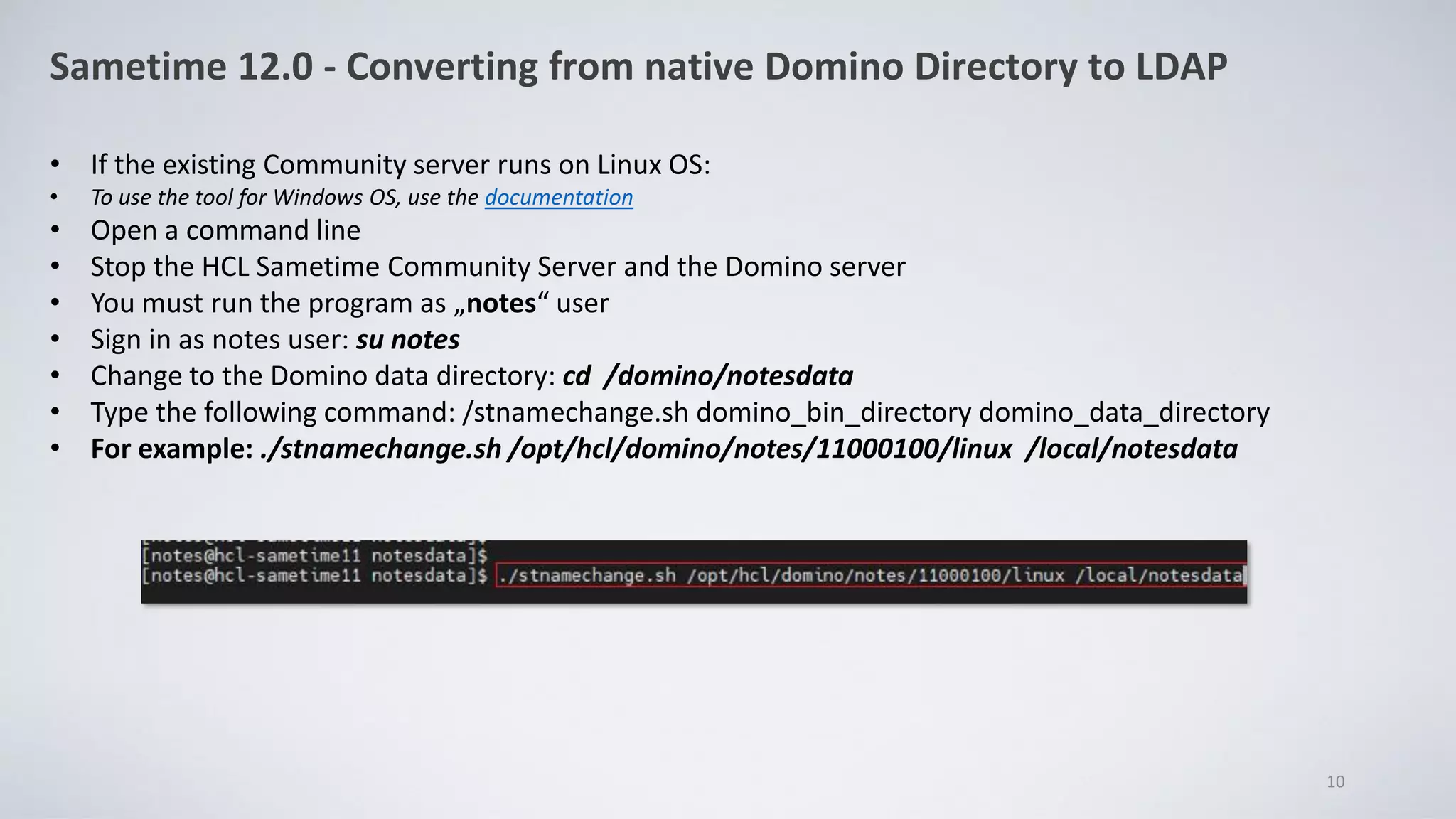

11. Sametime 12.0 - Converting from native Domino Directory to LDAP
• If the existing Community server runs on Linux OS:
• To use the tool for Windows OS, use the documentation
• Open a command line
• Stop the HCL Sametime Community Server and the Domino server
• You must run the program as „notes“ user
• Sign in as notes user: su notes
• Change to the Domino data directory: cd /domino/notesdata
• Type the following command: /stnamechange.sh domino_bin_directory domino_data_directory
• For example: ./stnamechange.sh /opt/hcl/domino/notes/11000100/linux /local/notesdata
10

12. Sametime 12.0 - Converting from native Domino Directory to LDAP

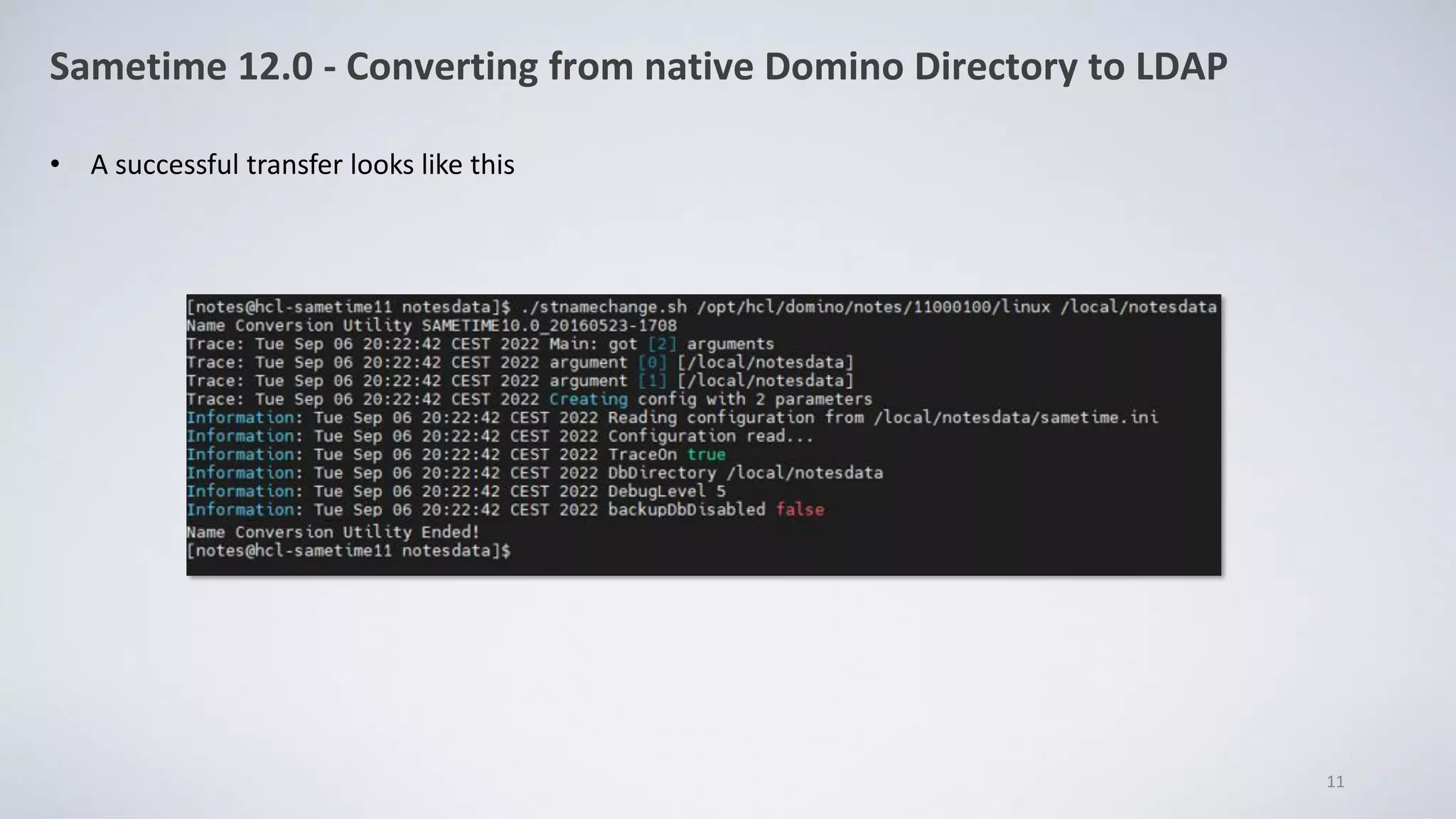

• A successful transfer looks like this
11

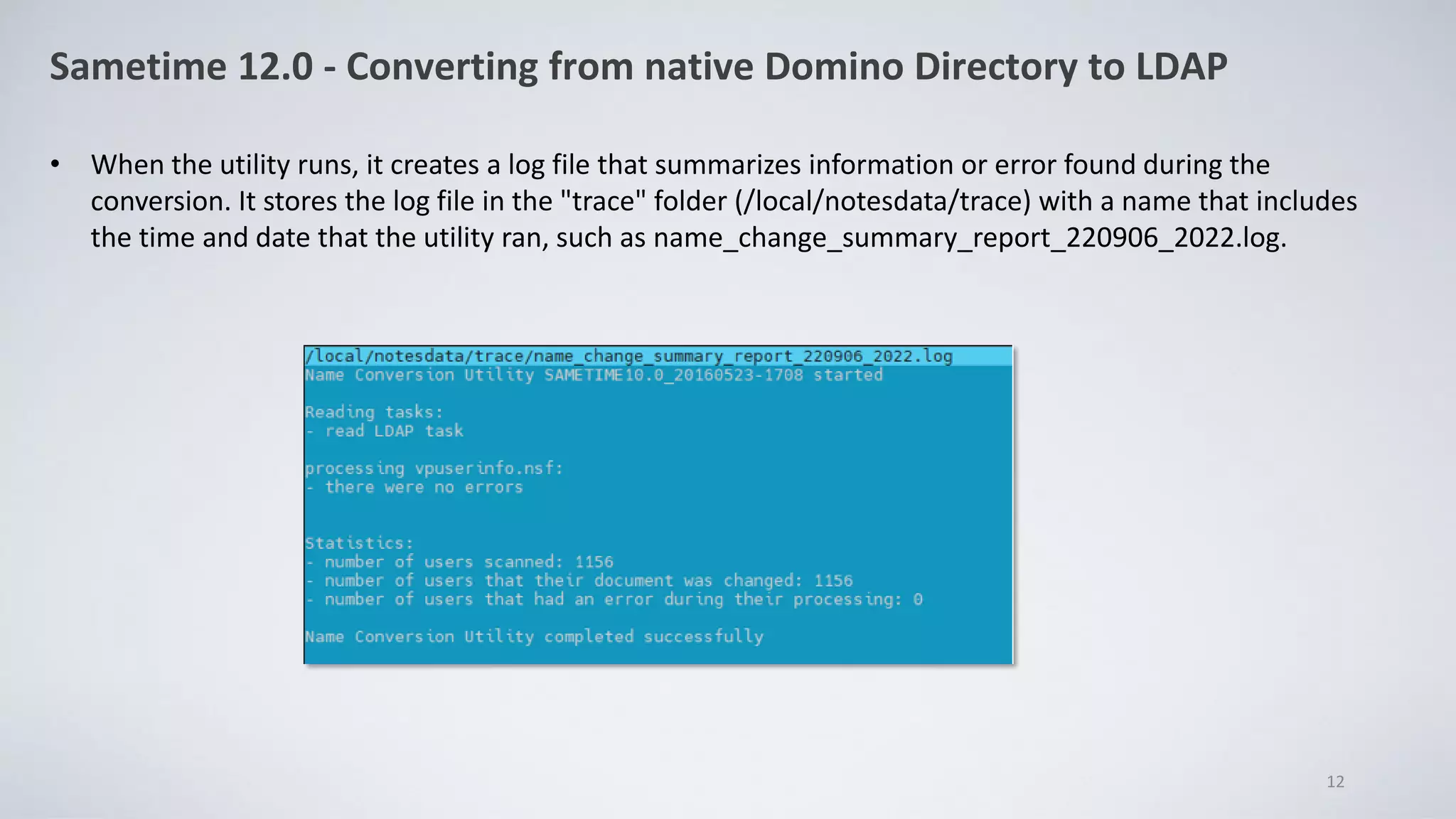

13. Sametime 12.0 - Converting from native Domino Directory to LDAP
• When the utility runs, it creates a log file that summarizes information or error found during the
conversion. It stores the log file in the "trace" folder (/local/notesdata/trace) with a name that includes
the time and date that the utility ran, such as name_change_summary_report_220906_2022.log.
12

14. DONE!
You have now completed the conversion from the native Domino Directory to LDAP
13

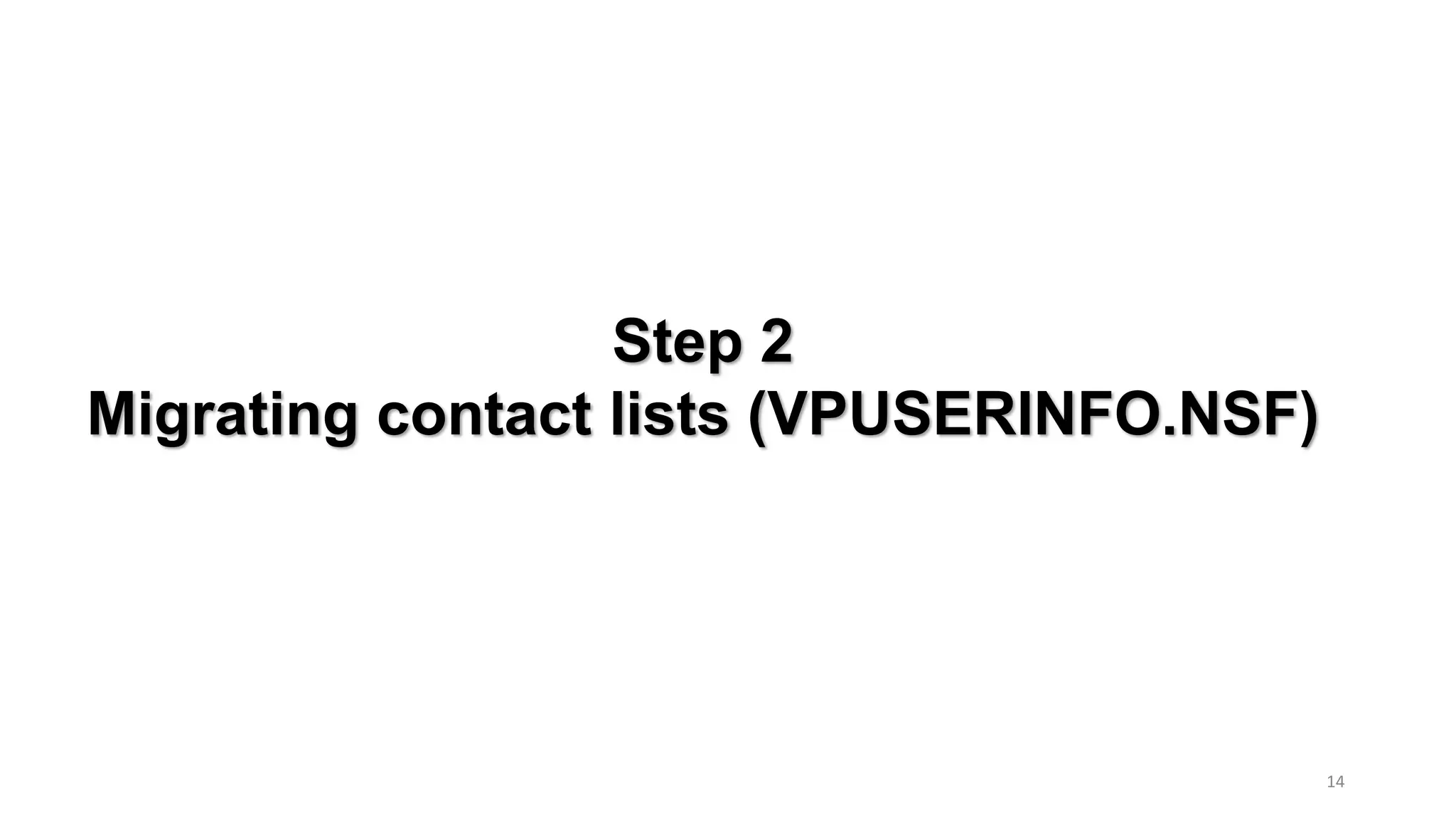

15. Step 2
Migrating contact lists (VPUSERINFO.NSF)
14

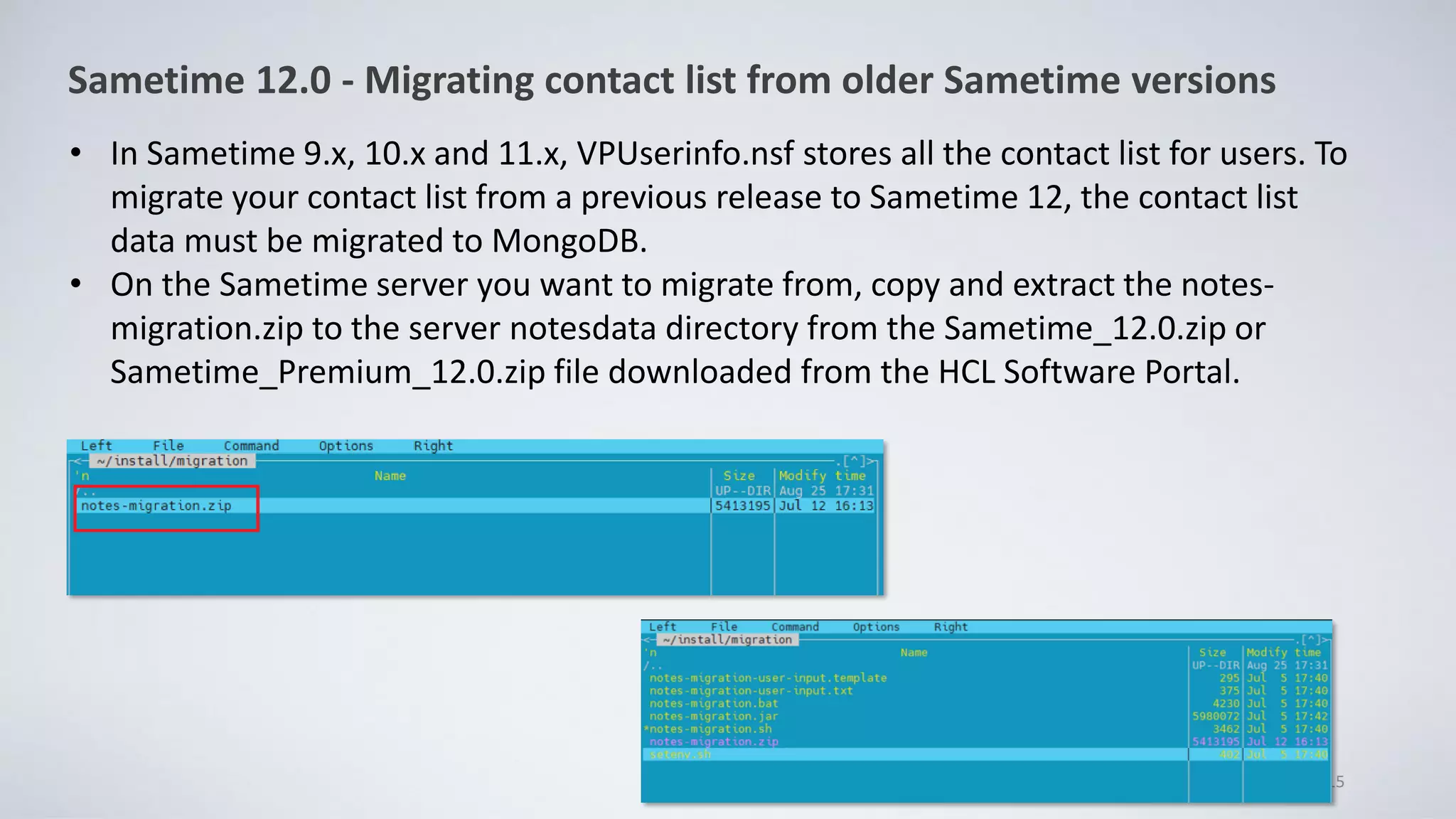

16. • In Sametime 9.x, 10.x and 11.x, VPUserinfo.nsf stores all the contact list for users. To
migrate your contact list from a previous release to Sametime 12, the contact list
data must be migrated to MongoDB.
• On the Sametime server you want to migrate from, copy and extract the notes-
migration.zip to the server notesdata directory from the Sametime_12.0.zip or
Sametime_Premium_12.0.zip file downloaded from the HCL Software Portal.
15
Sametime 12.0 - Migrating contact list from older Sametime versions

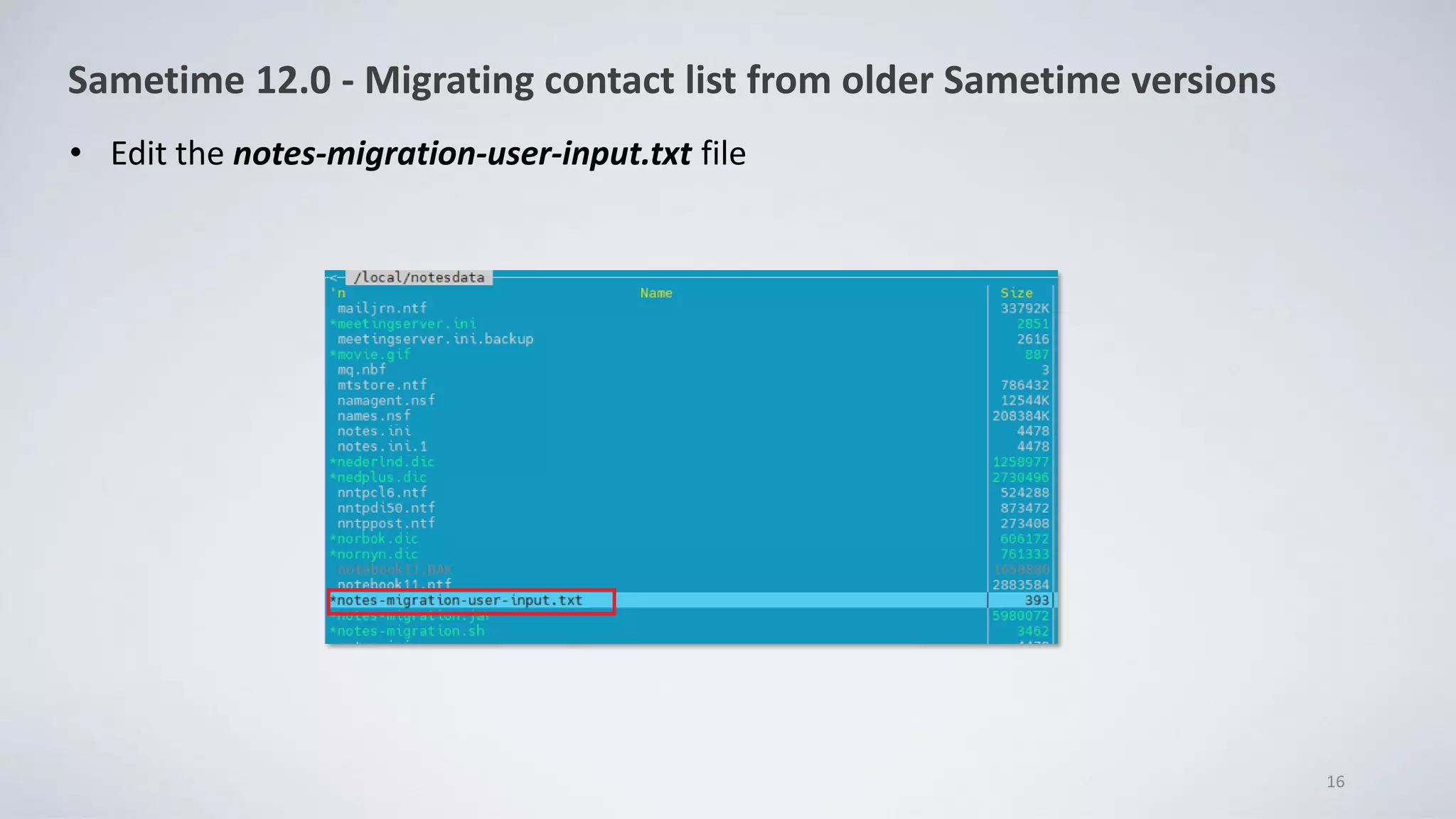

17. • Edit the notes-migration-user-input.txt file
16
Sametime 12.0 - Migrating contact list from older Sametime versions

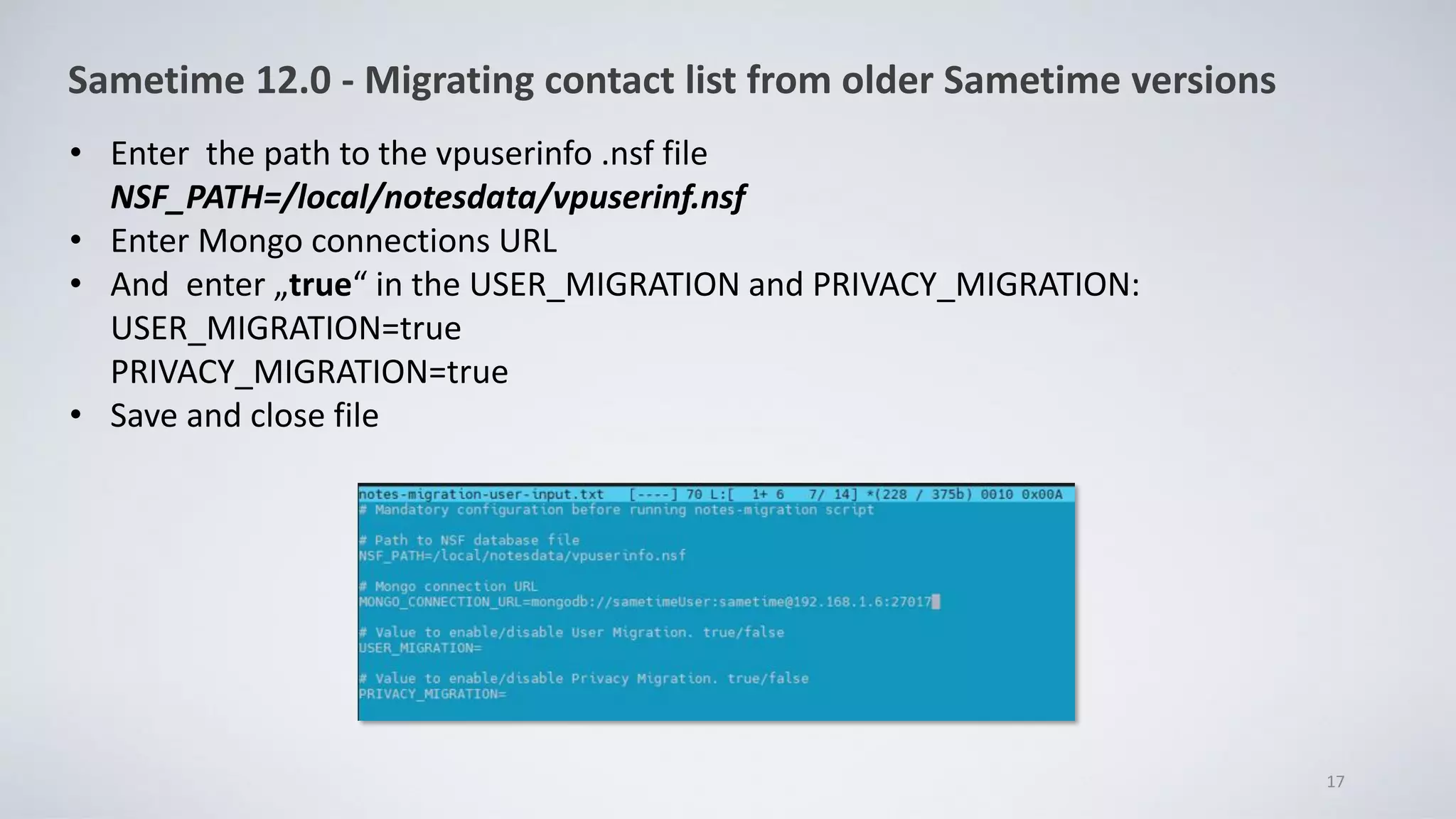

18. • Enter the path to the vpuserinfo .nsf file
NSF_PATH=/local/notesdata/vpuserinf.nsf
• Enter Mongo connections URL
• And enter „true“ in the USER_MIGRATION and PRIVACY_MIGRATION:
USER_MIGRATION=true
PRIVACY_MIGRATION=true
• Save and close file
17
Sametime 12.0 - Migrating contact list from older Sametime versions

19. 18

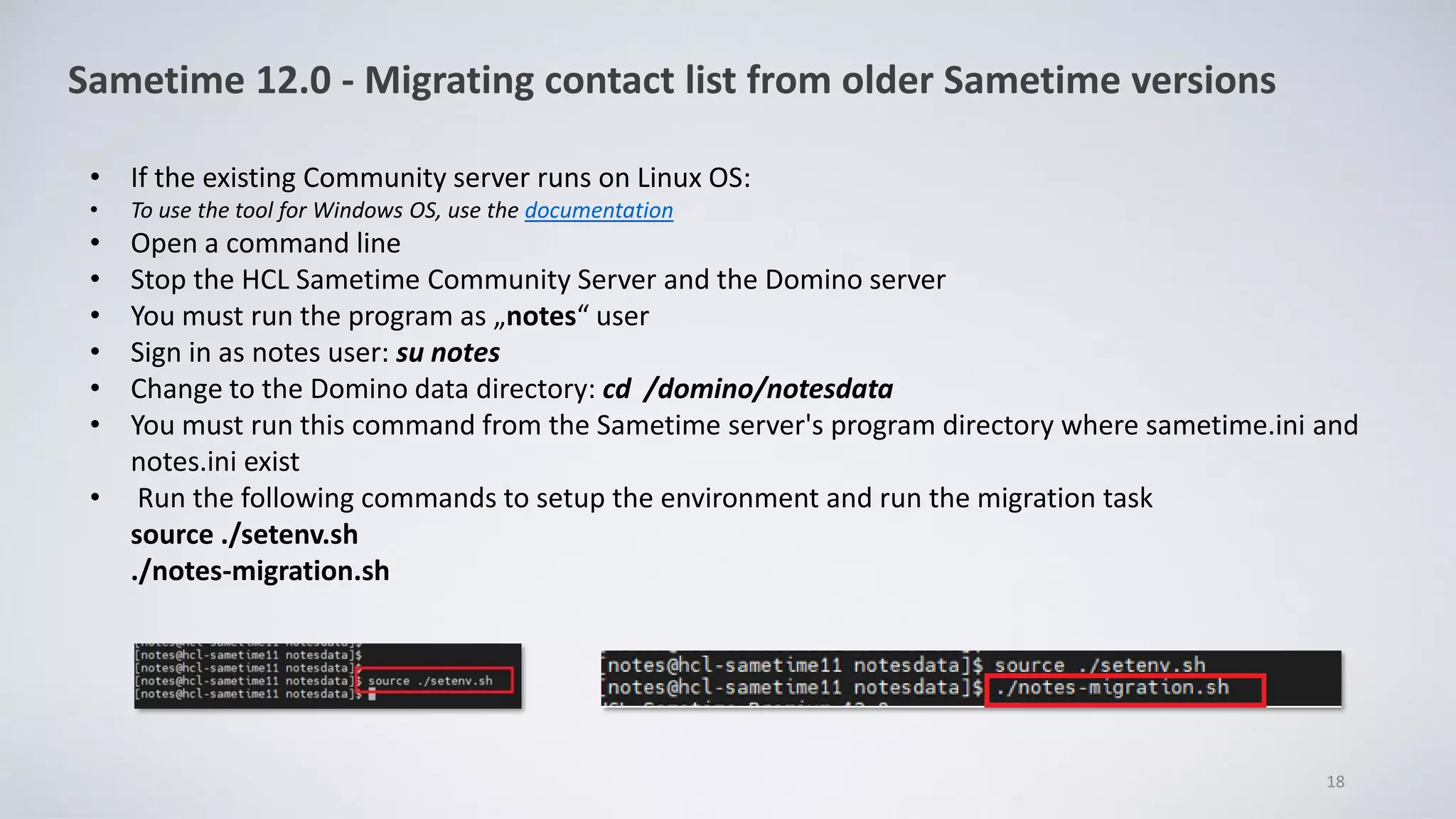

Sametime 12.0 - Migrating contact list from older Sametime versions
• If the existing Community server runs on Linux OS:
• To use the tool for Windows OS, use the documentation
• Open a command line
• Stop the HCL Sametime Community Server and the Domino server
• You must run the program as „notes“ user
• Sign in as notes user: su notes
• Change to the Domino data directory: cd /domino/notesdata
• You must run this command from the Sametime server's program directory where sametime.ini and
notes.ini exist
• Run the following commands to setup the environment and run the migration task
source ./setenv.sh
./notes-migration.sh

20. 19

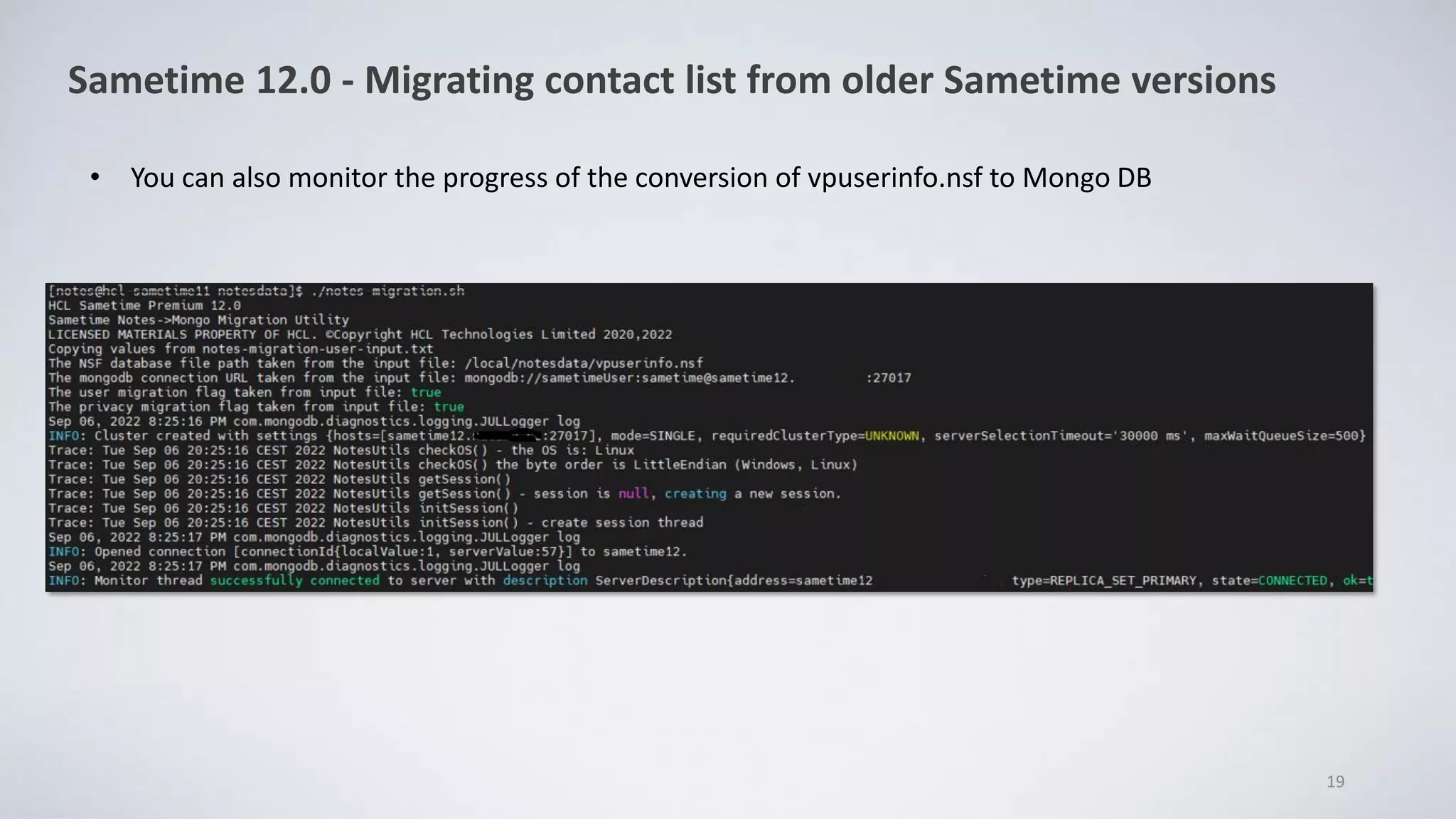

Sametime 12.0 - Migrating contact list from older Sametime versions
• You can also monitor the progress of the conversion of vpuserinfo.nsf to Mongo DB

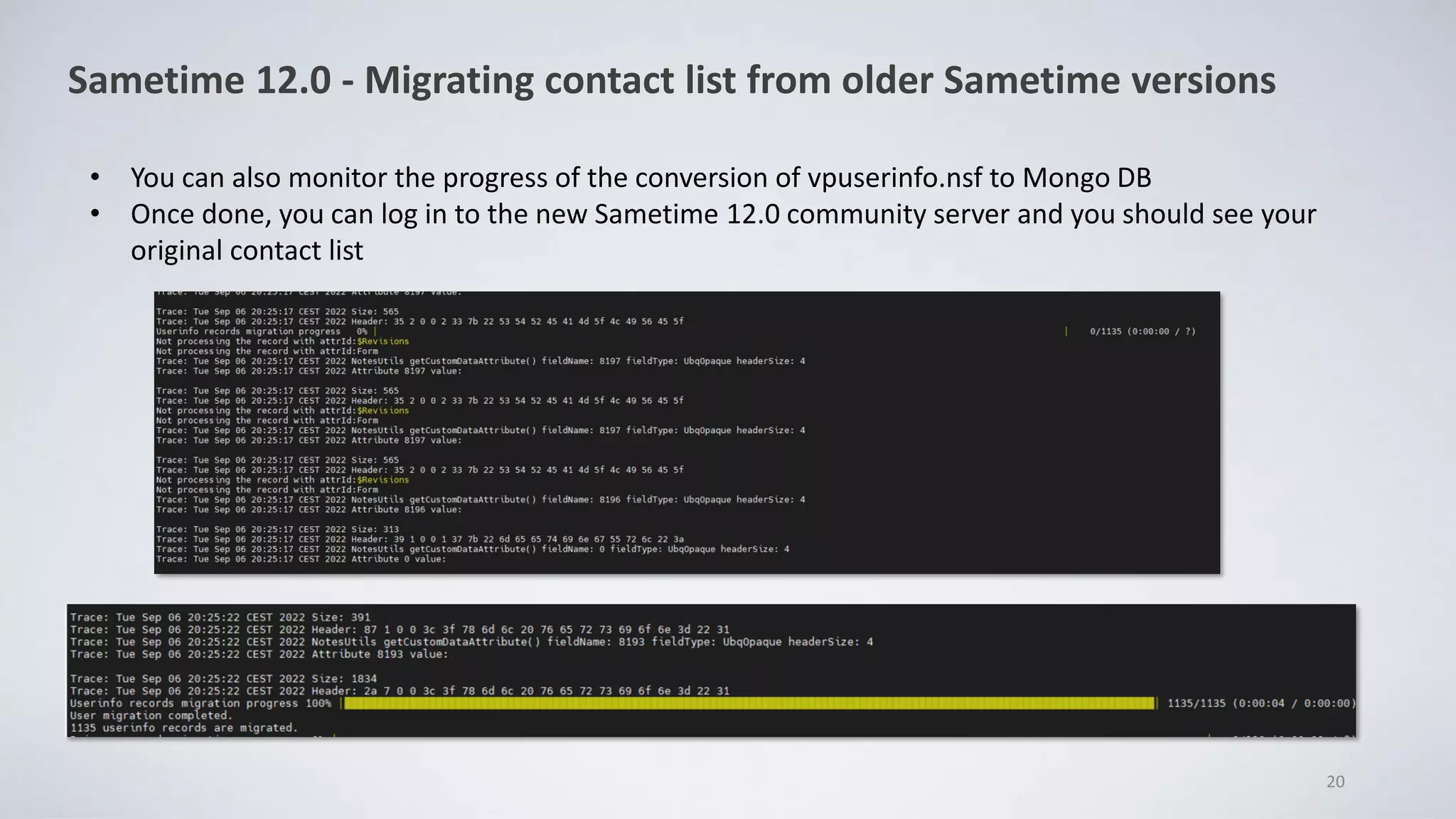

21. 20
Sametime 12.0 - Migrating contact list from older Sametime versions
• You can also monitor the progress of the conversion of vpuserinfo.nsf to Mongo DB
• Once done, you can log in to the new Sametime 12.0 community server and you should see your
original contact list

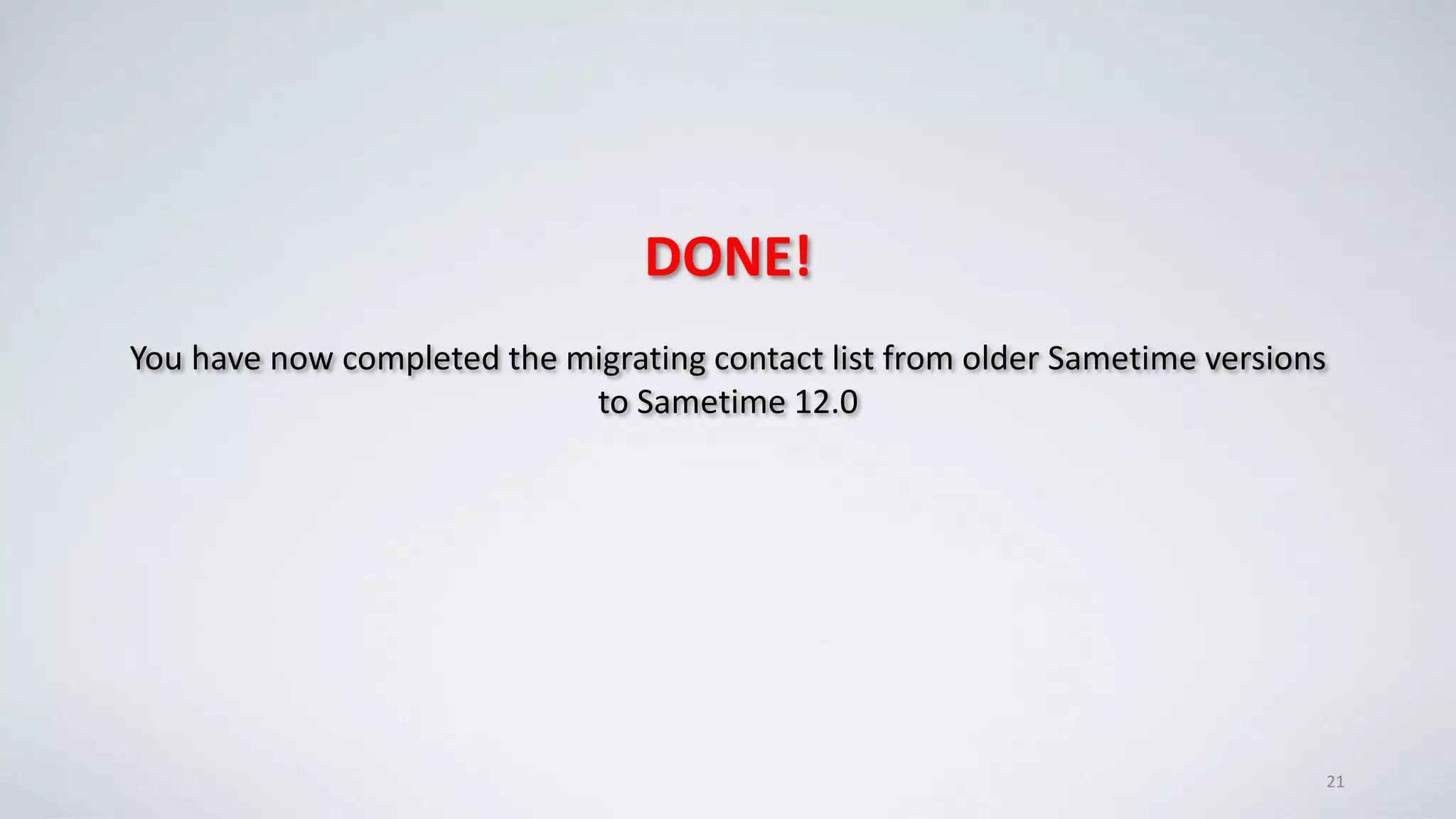

22. DONE!
You have now completed the migrating contact list from older Sametime versions
to Sametime 12.0
21
