ConnectED2015: IBM Domino Applications in Bluemix
The document discusses how IBM's Bluemix platform enables the rapid deployment and management of Domino applications in the cloud using various runtimes like XPages and Node.js. It highlights methods for modernizing applications, leveraging cloud services, and emphasizes the flexibility and scalability of Bluemix for future application development. Additionally, it outlines the architectural overview, session agenda, and tools available for developers to efficiently create and manage their applications.
More Related Content
Similar to ConnectED2015: IBM Domino Applications in Bluemix
ConnectED2015: IBM Domino Applications in Bluemix
- 2. AD201: Domino Applications inBluemix Martin Donnelly, Brian Gleeson IBM Ireland
- 3. Please note: IBM’s statementsregarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole discretion. Information regarding potential future products is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any material, code or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and timing of any future features or functionality described for our products remains at our sole discretion. Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput or performance that any user will experience will vary depending upon many factors, including considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve results similar to those stated here.

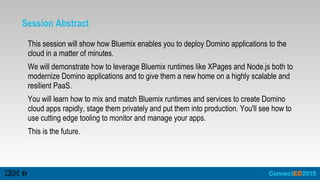

- 4. Session Abstract This sessionwill show how Bluemix enables you to deploy Domino applications to the cloud in a matter of minutes. We will demonstrate how to leverage Bluemix runtimes like XPages and Node.js both to modernize Domino applications and to give them a new home on a highly scalable and resilient PaaS. You will learn how to mix and match Bluemix runtimes and services to create Domino cloud apps rapidly, stage them privately and put them into production. You'll see how to use cutting edge tooling to monitor and manage your apps. This is the future.
- 5. Introductions… Martin Donnelly Software Architect @TweeterDonnelly BrianGleeson Software Developer @BGleesonIE

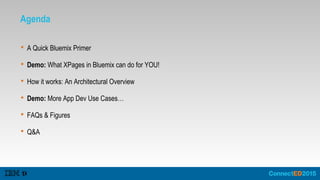

- 6. Agenda A QuickBluemix Primer Demo: What XPages in Bluemix can do for YOU! How it works: An Architectural Overview Demo: More App Dev Use Cases… FAQs & Figures Q&A
- 7. What is Bluemix? Bluemixis an open-standard, cloud-based platform for building, managing, and running applications of all types (web, mobile, big data, new smart devices, and so on). Go Live in Minutes The developer can choose any language runtime or bring their own. Zero to production in one command. DevOps Development, monitoring, deployment, and logging tools allow the developer to run the entire application. APIs and Services A catalog of IBM, third party, and open source API services allow the developer to stitch an application together in minutes. On-Prem Integration Build hybrid environments. Connect to on-premise assets plus other public and private clouds. Flexible Pricing Sign up in minutes. Pay as you go and subscription models offer choice and flexibility. Layered Security IBM secures the platform and infrastructure and provides you with the tools to secure your apps.

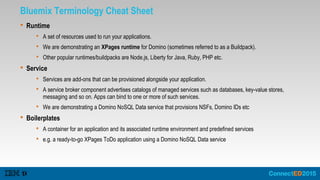

- 8. Bluemix Terminology CheatSheet Runtime A set of resources used to run your applications. We are demonstrating an XPages runtime for Domino (sometimes referred to as a Buildpack). Other popular runtimes/buildpacks are Node.js, Liberty for Java, Ruby, PHP etc. Service Services are add-ons that can be provisioned alongside your application. A service broker component advertises catalogs of managed services such as databases, key-value stores, messaging and so on. Apps can bind to one or more of such services. We are demonstrating a Domino NoSQL Data service that provisions NSFs, Domino IDs etc Boilerplates A container for an application and its associated runtime environment and predefined services e.g. a ready-to-go XPages ToDo application using a Domino NoSQL Data service
- 9. Demo Time XPages forDomino Apps on Bluemix
- 10. XPages Runtime (Buildpack) XPages Runtime (Buildpack) DominoServerDomino Server Domino NoSQL Database service instanceDomino NoSQL Database service instance To Do AppTo Do AppExpense App (1)Expense App (1) Expense App (2)Expense App (2) XPages App Instance XPages App Instance XPages App Instance XPages App Instance XPages App Instance XPages App Instance NRPC and/or REST API SoftLayer Designe Client Exp-Data.nsf ToDoData.nsf Exp-design.nsf Exp-design.nsf ToDo_design.nsf IDE/DevOps Domino Apps for Bluemix Architecture Internet IBMBluemixIBMBluemixIBMBluemixIBMBluemixIBMBluemix CloudFoundry

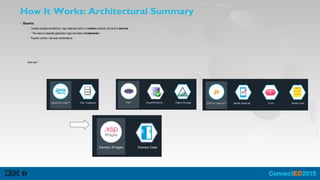

- 11. How It Works:Architectural Summary Bluemix Loosely-coupled architecture. App instances load in a runtime container and bind to services. The need to separate application logic and data is fundamental ! Popular runtime / services combinations: And now !

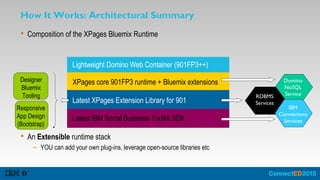

- 12. Latest XPages ExtensionLibrary for 901 XPages core 901FP3 runtime + Bluemix extensions Lightweight Domino Web Container (901FP3++) Latest IBM Social Business Toolkit SDK How It Works: Architectural Summary Composition of the XPages Bluemix Runtime An Extensible runtime stack – YOU can add your own plug-ins, leverage open-source libraries etc Designer Bluemix Tooling Responsive App Design (Bootstrap) Domino NoSQL ServiceRDBMS Services IBM Connections Services
- 13.

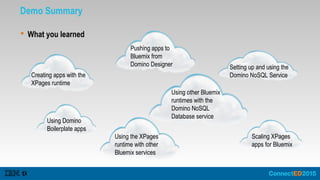

- 14. Demo Summary Whatyou learned Pushing apps to Bluemix from Domino Designer Creating apps with the XPages runtime Setting up and using the Domino NoSQL Service Scaling XPages apps for Bluemix Using Domino Boilerplate apps Using the XPages runtime with other Bluemix services Using other Bluemix runtimes with the Domino NoSQL Database service

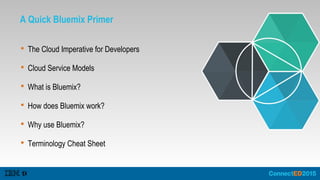

- 15. A Quick BluemixPrimer The Cloud Imperative for Developers Cloud Service Models What is Bluemix? How does Bluemix work? Why use Bluemix? Terminology Cheat Sheet
- 16. The app revolution Appsare everywhere The quantity and usefulness of web and mobile apps has led to an “app revolution” among consumers and businesses alike. Experience matters Customers and employees now expect a delightful and seamless experience across all interactions with a business. Cloud makes it possible Apps today can be stitched together quickly with pre-built assets. Cloud makes the API economy possible. Fundamentally changing the way we interact with technology.

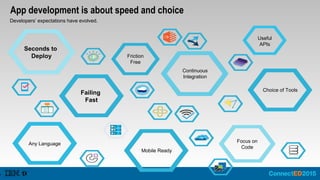

- 17. App development isabout speed and choice Failing Fast Seconds to Deploy Friction Free Any Language Continuous Integration Mobile Ready Focus on Code Choice of Tools Useful APIs Developers’ expectations have evolved. 7

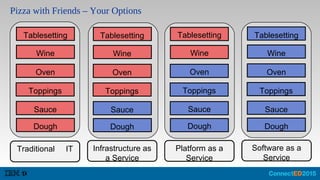

- 18. Pizza with Friends– Your Options Homemade Pizza Frozen Pizza Pizza Delivered Dine out in a Pizzeria Dough Sauce Toppings Oven Wine Tablesetting Dough Sauce Toppings Oven Wine Tablesetting Dough Sauce Toppings Oven Wine Tablesetting Dough Sauce Toppings Oven Wine Tablesetting Traditional IT Infrastructure as a Service Platform as a Service Software as a Service
- 19. Networki ng Storage Servers Virtualiz ation O/S Middlewa re Runtime Data Applicati ons Traditional On-Premises ClientManages zation; higher cost;slower time to value Standardization; lower cost; faster time t Cloud Service Models Networki ng Storage Servers Virtualiz ation O/S Middlewa re Runtime Data Applicati ons VendorManagesinCloud Softw are as a Servic e Networki ng Storage Servers Virtualiz ation O/S Middlewa re Runtime Data Applicati ons VendorManagesinCloud ClientManages Bluemix Platfo rm as a Servic e Networki ng Storage Servers Virtualiz ation O/S Middlewa re Runtime Data Applicati ons VendorManagesinCloud ClientManages SoftLa yer Infrast ructure as a Service

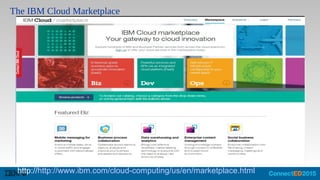

- 20. The IBM CloudMarketplace http://http://www.ibm.com/cloud-computing/us/en/marketplace.html

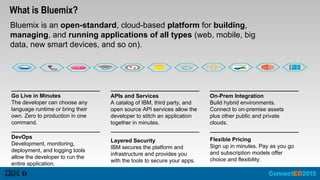

- 21. What is Bluemix? Bluemixis an open-standard, cloud-based platform for building, managing, and running applications of all types (web, mobile, big data, new smart devices, and so on). Go Live in Minutes The developer can choose any language runtime or bring their own. Zero to production in one command. DevOps Development, monitoring, deployment, and logging tools allow the developer to run the entire application. APIs and Services A catalog of IBM, third party, and open source API services allow the developer to stitch an application together in minutes. On-Prem Integration Build hybrid environments. Connect to on-premise assets plus other public and private clouds. Flexible Pricing Sign up in minutes. Pay as you go and subscription models offer choice and flexibility. Layered Security IBM secures the platform and infrastructure and provides you with the tools to secure your apps.

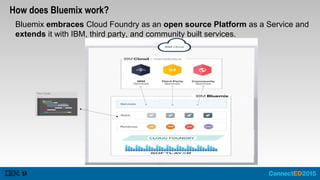

- 22. How does Bluemixwork? Bluemix embraces Cloud Foundry as an open source Platform as a Service and extends it with IBM, third party, and community built services.
- 23.

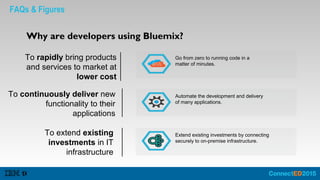

- 24. FAQs & Figures Gofrom zero to running code in a matter of minutes. Automate the development and delivery of many applications. To rapidly bring products and services to market at lower cost To continuously deliver new functionality to their applications To extend existing investments in IT infrastructure Extend existing investments by connecting securely to on-premise infrastructure. Why are developers using Bluemix?
- 25. FAQs & Figures Createcool responsive versions of your Notes client apps for the cloud The Bluemix runtime will have the latest XPages extended libraries for your apps To modernize your existing applications To always have the state of the art XPages runtime at your fingertips To scale your apps and obtain true resiliency Take advantage of Bluemix PaaS features to horizontally scale applications and recover without data loss Why should YOU use XPages for Domino on Bluemix?

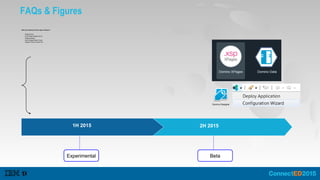

- 26. FAQs & Figures What is the roadmap for Domino Apps on Bluemix ? – XPages Runtime – Domino NoSQL Database Service – XPages Boilerplate – Domino Designer Bluemix Tooling – XPages for Domino of Bluemix Doc Beta 2H 20151H 2015 Experimental Domino Designer

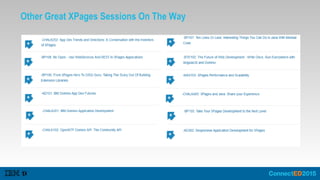

- 27. Other Great XPagesSessions On The Way
- 28. Technical Education IBMPress Books and eBooks – Three best-selling publications

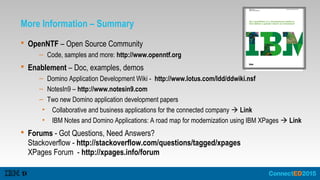

- 29. More Information –Summary OpenNTF – Open Source Community – Code, samples and more: http://www.openntf.org Enablement – Doc, examples, demos – Domino Application Development Wiki - http://www.lotus.com/ldd/ddwiki.nsf – NotesIn9 – http://www.notesin9.com – Two new Domino application development papers • Collaborative and business applications for the connected company Link • IBM Notes and Domino Applications: A road map for modernization using IBM XPages Link Forums - Got Questions, Need Answers? Stackoverflow - http://stackoverflow.com/questions/tagged/xpages XPages Forum - http://xpages.info/forum

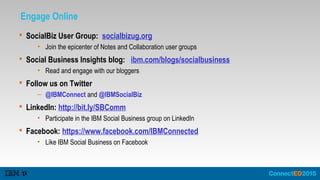

- 30. Engage Online SocialBizUser Group: socialbizug.org • Join the epicenter of Notes and Collaboration user groups Social Business Insights blog: ibm.com/blogs/socialbusiness • Read and engage with our bloggers Follow us on Twitter – @IBMConnect and @IBMSocialBiz LinkedIn: http://bit.ly/SBComm • Participate in the IBM Social Business group on LinkedIn Facebook: https://www.facebook.com/IBMConnected • Like IBM Social Business on Facebook
- 31. 31 Grazie Gracias Obrigado AD201… … … .. Danke Buíochas Merci Thanks! Pleasecomplete your session surveys

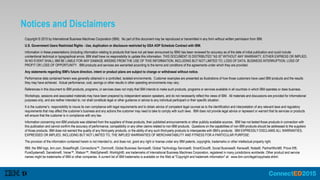

- 32. Notices and Disclaimers Copyright© 2015 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without written permission from IBM. U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM. Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of initial publication and could include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. THIS DOCUMENT IS DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISING FROM THE USE OF THIS INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF PROFIT OR LOSS OF OPPORTUNITY. IBM products and services are warranted according to the terms and conditions of the agreements under which they are provided. Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice. Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary. References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in which IBM operates or does business. Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials and discussions are provided for informational purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participant or their specific situation. It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification and interpretation of any relevant laws and regulatory requirements that may affect the customer’s business and any actions the customer may need to take to comply with such laws. IBM does not provide legal advice or represent or warrant that its services or products will ensure that the customer is in compliance with any law. Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products in connection with this publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM does not warrant the quality of any third-party products, or the ability of any such third-party products to interoperate with IBM’s products. IBM EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The provision of the information contained herein is not intended to, and does not, grant any right or license under any IBM patents, copyrights, trademarks or other intellectual property right. IBM, the IBM logo, ibm.com, BrassRing®, Connections™, Domino®, Global Business Services®, Global Technology Services®, SmartCloud®, Social Business®, Kenexa®, Notes®, PartnerWorld®, Prove It!®, PureSystems®, Sametime®, Verse™, Watson™, WebSphere®, Worklight®, are trademarks of International Business Machines Corporation, registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml.
- 33.
- 34. Presentation template slidesfollow Color Palette
- 35.
- 36.
Editor's Notes
- #8 BlueMix is IBM's PaaS (Platform as a Service) offering A cloud-based platform for rapidly building, managing and running applications of all types (web, mobile, big data, social, ... ). Allows developers to use capabilities (services) from IBM or ecosystem partners in a pay-as-you-go model in the cloud. - Running on IBM SoftLayer infrastructure (IaaS) - Based on open-standards (OpenStack, CloudFoundry) Key themes Speed Instant environments Quick deployments Sign up in minutes Ease of Use Instant Environments Services prebuilt for your use - IBM, Third Party, Community DevOps tools to monitor, plan, deploy, and manage your apps Flexibility On-Prem integration Flexible pricing Security IBM secures the platform and infrastructure - leveraging experience with softlayer and proven on-prem security implementations Provides you with the tools to secure your apps
- #11 An XPages Runtime is provisioned into a DEA container when an application instance is being staged A build pack contains all necessary elements to provide a “lite” Domino HTTP server “cf push” from Designer IDE stages an XPages “Design NSF” application into the runtime instance JazzHub integration also possible for On-Disk Design NSF application code in RTC or GIT with “headless” building A Domino NoSQL Database service instance is used to initially provision an IBM hosted Domino Server instance on SoftLayer A service instance can be shared amongst applications and developers within the same Bluemix organization A developer creates, re-uses, replicates “Data NSF” applications into the server instance using Designer IDE, Admin client, or Notes client Notes IDs are issued to registered users and used to control access to the server
- #13 What exactly is an XPages Buildpack? IBM Domino V901BMIX Ubuntu 14.10 / Linux 64Bit / Fix Pack 3 No Mail, DECS, DOLS, DIIOP, Design, Replication, …, capabilities Streamlined for optimal memory usage within Bluemix DEA Container environment Includes support for regular ACL / Security features as standard IBM XPages 9.0.1 FP3 Runtime & Extension Library V11 Includes clustered state management with new DataCache State Manager Provides Dojo 1.9.4, jQuery 3, Bootstrap 3, GlyphIcons, OneUI 2.1 / 3.0.2, IBM IDX Includes easy to use Bluemix Services API Provides Automatic Provisioning of certain Service dependencies such as IBM Social Business Toolkit
- #17 Apps Are Everywhere Over the last 5 or so years, we’ve experienced an “App Revolution” on the web, on our smartphones, in our cars, on wearable devices (like a NikeFuel band, Smart Watch, Google Glass), and in our homes. Apps today allow interactions that we wouldn't have imagined 5 years ago. Architects can design homes on their iPads, merchants can swipe credit cards and accept payments anywhere with their phones, and runners can track their progress with a band on their wrist. Even my mother knows the phrase “there’s an app for that.” Experience Matters All of the associated data (like a runner’s average speed and location over the course of a 30 minute run) is often times pushed up to the cloud (as it’s being generated) for further processing, storage, or to allow syncs other devices and services. Customers expect an integrated experience on the web, across all of their devices, in physical stores, and even talking with customer service on the phone. Cloud Makes it Possible Needless to say, the cloud has been a very large driving factor in the “App Revolution.” It provides a fast, simple, and cost effective way to for startups and enterprises alike to deploy and host applications and mobile backends over the internet. Apps can be stitched together quickly with pre-built assets exposed as APIs - cloud has made this possible. Simply put, cloud keeps all of us connected.
- #18 The instant power and speed of cloud has brought about new expectations for building applications on it. Developers now expect: To be able to deploy updates to their applications in seconds To write their code in whichever tool or language they choose Each has its own distinct “personality” and followings of developers have evolved around each of these To be able to continually integrate working copies of code into a shared mainline at multiple points during the day To focus on writing code, not on the administration of servers, virtualization, operating systems, and middleware. To “fail fast” - or ensure applications fail immediately and visibly to speed debugging and fixes To integrate useful APIs into their applications - who wants to write code that’s already been written and tested? To build applications that are mobile ready - as users today expect their experience to be tailored to whatever device they happen to be using.
- #19 Cloud Service Models: - Runtimes vs middleware & frameworks - IaaS - based on OpenStack standards & provided by SoftLayer - IaaS competitors include AWS, Heroku, Azure) Traditional/On-premise: IBM strategy is PureSystems, Pure Applications, PureData IaaS: Manage infrastructure resources in a resource pool, with self-service provisioning, rapid elasticity, and as measured services. Virtualization alone does not accomplish this vision and set of characteristics. After all infrastructure resources are provided and managed as a set of capacity services, the data center can be treated as a true software-defined environment Benefits Most control in the cloud. Necessary for some solutions. Infrastructure managed by SP Software defined environments is a hallmark of IaaS: - Expressing physical infrastructure as software services that can be manipulated and automated, programmatically. Overall infrastructure is always viewed and manipulated as a composite whole, not the network, storage, and compute as individual parts. Standards for building Software Defined Environments ensure portability, interoperability, and manageability of the software-defined environment. - The OpenStack Foundation has emerged as the most important consortium for the implementation of the software-defined environment by adopting many of the cross industry standards initiatives. SoftLayer is IBM’s BlueMix IaaS - provides a seamlessly unified global cloud computing infrastructure. It combines virtual public cloud instances, powerful bare metal servers, turnkey private clouds, and a broad range of storage, network and security devices, and services PaaS: The concept of composable solutions in a Cloud Operating Environment , which consists of finer grained services that can be recombined to create new capabilities, is a key element of the cloud. Composable environments can contain cloud services, which bring together operational, development, application, database, and third-party services – all with embedded monitoring and manageability capabilities. Developers can take advantage of these cloud services to quickly build new composable applications. These new applications are built as cloud-centric (designed for and deployed to the cloud) and for mobile-first UI/devices deployment Cloud Foundry is an open standard, open source Platform-as-a-Service framework and community founded by IBM and Pivotal in 2013. Cloud Foundry runs on a broad range of cloud infrastructure platforms, including OpenStack, Amazon Web Services (AWS), VMware, and IBM SoftLayer. It also supports a wide range of application programming language run times and frameworks including Java, Ruby, JavaScript, and Python. Cloud Foundry has a large, vibrant community ecosystem of partners, vendors, and users, enabling enterprises to develop cloud-centric applications based on its open standard without fear of vendor lock-in. SaaS: Modern applications are increasingly composed of a wide variety of composite services that are accessed through web-scale application programming interfaces (APIs) in order to access information and integrate with other applications. The rapid evolution and integration of social, mobile, web and traditional applications is fueling an increase in APIs. Composite applications leverage easily consumable APIs from internal and external providers across programming languages, runtimes and frameworks in a polyglot approach. The rapidly growth of APIs along with the consumerization of IT and applications is driving an economic model, where the consumption of the API may be tied to a fee or on-going subscription model, often referred to as the API economy. The explosion in APIs is fueling a dramatic shift in the business landscape where customers, business partners, vendors, and clients can directly participate in an enterprise's business processes and gain access to enterprise data, from both inside and outside of the enterprise. APIs offer a cost-effective way to provide access to large amounts of data and the enterprise can leverage sophisticated analytics that are available to increase the value of such data. BlueMix and SaaS strategy and value proposition: IBM is leveraging its middleware platforms, IBM PureSystems, IBM Worklight, OpenStack, and Cloud Foundry, to enable enterprises to build systems of interaction. Enterprises can build next generation applications using BlueMix to leverage the evolution of systems of interaction that take advantage of existing investments in middleware, packaged applications, line-of-business applications and business partner solutions – essentially systems of record – integrating with new cloud-centric services and applications – systems of engagement – deployed via Cloud delivery models for workload-optimized deployment. Tying together polyglot programming, marketplaces, DevOps, and open standards is what empowers the developer to bring more value to the enterprise faster. Strength of cloud platform and underlying infrastructure built on open standards such as OpenStack and CloudFoundry enables developers to rapidly develop, deploy, and scale applications and manage the application lifecycle. A robust ecosystem provides a rich library of easily consumable cloud services based on proven cloud technologies that can be simply composed into a solution that is deployed with minimal effort. Solutions that are composed from these proven services are able to be delivered to market faster and with higher quality, ultimately leading to better business outcomes.
- #20 Cloud Service Models: - Runtimes vs middleware & frameworks - IaaS - based on OpenStack standards & provided by SoftLayer - IaaS competitors include AWS, Heroku, Azure) Traditional/On-premise: BenefitsTime Commitment Fully customizable. Weeks to setup and deploy Few limitations.Maintenance/upgrades of hardware and software. Necessary for some solutions. Existing Investments. IaaS: Manage infrastructure resources in a resource pool, with self-service provisioning, rapid elasticity, and as measured services. Virtualization alone does not accomplish this vision and set of characteristics. After all infrastructure resources are provided and managed as a set of capacity services, the data center can be treated as a true software-defined environment BenefitsTime Commitment Most control in the cloud.Minutes to provision VM. Necessary for some solutions.Time to configure software and apps varies. Infrastructure managed by SP.Maintenance/upgrades of OS, middleware, runtime. Software defined environments is a hallmark of IaaS: - Expressing physical infrastructure as software services that can be manipulated and automated, programmatically. Overall infrastructure is always viewed and manipulated as a composite whole, not the network, storage, and compute as individual parts. Standards for building Software Defined Environments ensure portability, interoperability, and manageability of the software-defined environment. - The OpenStack Foundation has emerged as the most important consortium for the implementation of the software-defined environment by adopting many of the cross industry standards initiatives. SoftLayer is IBM’s BlueMix IaaS - provides a seamlessly unified global cloud computing infrastructure. It combines virtual public cloud instances, powerful bare metal servers, turnkey private clouds, and a broad range of storage, network and security devices, and services PaaS: BenefitsTime Commitment Setup environments and deploy apps very quickly.Minutes to setup and deploy. Infrastructure and platform managed by SP.Focus on your apps and their data. The concept of composable solutions in a Cloud Operating Environment , which consists of finer grained services that can be recombined to create new capabilities, is a key element of the cloud. Composable environments can contain cloud services, which bring together operational, development, application, database, and third-party services – all with embedded monitoring and manageability capabilities. Developers can take advantage of these cloud services to quickly build new composable applications. These new applications are built as cloud-centric (designed for and deployed to the cloud) and for mobile-first UI/devices deployment Cloud Foundry is an open standard, open source Platform-as-a-Service framework and community founded by IBM and Pivotal in 2013. Cloud Foundry runs on a broad range of cloud infrastructure platforms, including OpenStack, Amazon Web Services (AWS), VMware, and IBM SoftLayer. It also supports a wide range of application programming language run times and frameworks including Java, Ruby, JavaScript, and Python. Cloud Foundry has a large, vibrant community ecosystem of partners, vendors, and users, enabling enterprises to develop cloud-centric applications based on its open standard without fear of vendor lock-in. SaaS: Modern applications are increasingly composed of a wide variety of composite services that are accessed through web-scale application programming interfaces (APIs) in order to access information and integrate with other applications. The rapid evolution and integration of social, mobile, web and traditional applications is fueling an increase in APIs. Composite applications leverage easily consumable APIs from internal and external providers across programming languages, runtimes and frameworks in a polyglot approach. The rapidly growth of APIs along with the consumerization of IT and applications is driving an economic model, where the consumption of the API may be tied to a fee or on-going subscription model, often referred to as the API economy. The explosion in APIs is fueling a dramatic shift in the business landscape where customers, business partners, vendors, and clients can directly participate in an enterprise's business processes and gain access to enterprise data, from both inside and outside of the enterprise. APIs offer a cost-effective way to provide access to large amounts of data and the enterprise can leverage sophisticated analytics that are available to increase the value of such data. BlueMix and SaaS strategy and value proposition: IBM is leveraging its middleware platforms, IBM PureSystems, IBM Worklight, OpenStack, and Cloud Foundry, to enable enterprises to build systems of interaction. Enterprises can build next generation applications using BlueMix to leverage the evolution of systems of interaction that take advantage of existing investments in middleware, packaged applications, line-of-business applications and business partner solutions – essentially systems of record – integrating with new cloud-centric services and applications – systems of engagement – deployed via Cloud delivery models for workload-optimized deployment. Tying together polyglot programming, marketplaces, DevOps, and open standards is what empowers the developer to bring more value to the enterprise faster. Strength of cloud platform and underlying infrastructure built on open standards such as OpenStack and CloudFoundry enables developers to rapidly develop, deploy, and scale applications and manage the application lifecycle. A robust ecosystem provides a rich library of easily consumable cloud services based on proven cloud technologies that can be simply composed into a solution that is deployed with minimal effort. Solutions that are composed from these proven services are able to be delivered to market faster and with higher quality, ultimately leading to better business outcomes.
- #22 BlueMix is IBM's PaaS (Platform as a Service) offering A cloud-based platform for rapidly building, managing and running applications of all types (web, mobile, big data, social, ... ). Allows developers to use capabilities (services) from IBM or ecosystem partners in a pay-as-you-go model in the cloud. - Running on IBM SoftLayer infrastructure (IaaS) - Based on open-standards (OpenStack, CloudFoundry) Key themes Speed Instant environments Quick deployments Sign up in minutes Ease of Use Instant Environments Services prebuilt for your use - IBM, Third Party, Community DevOps tools to monitor, plan, deploy, and manage your apps Flexibility On-Prem integration Flexible pricing Security IBM secures the platform and infrastructure - leveraging experience with softlayer and proven on-prem security implementations Provides you with the tools to secure your apps
- #23 Bluemix is built on top of IBM’s infrastructure as a service offering - SoftLayer. It embraces Cloud Foundry as an open source platform as a service and extends it with IBM, third party, and community built services. Explain Diagram (verbs in blue - please use this terminology) Start by Pushing your code through Cloud Foundry Cloud Foundry interprets which language you’ve used and associates your code to the appropriate runtime - now you have a working app (layer above runtimes). Your app can Pull prebuilt services (IBM, 3rd party, or community built) in from the marketplace and utilize their functionality Connect to traditional IT - aka “Your Systems” with a secure connector Connect to other clouds that you utilize with a secure connector All of this sits on infrastructure (networking, storage, servers) hosted by IBM Softlayer (IBM’s IaaS cloud offering) Finally - when your app is built and ready to go, it can be accessed by anything with a web browser and a connection to the internet, a smartphone app (via the Bluemix SDK) to utilize backend services, or another type of app or system (via an API you create).
- #25 We’ve seen over 30,000 beta applications thus far and have spoken to numerous developers about the value Bluemix provides. We’ve learned that developers are joining for 3 key reasons (go through reasons on the page). Rapid setup and time to production Frequent releases - delivery of fixes or new functionality quickly Integrating apps with on premise infrastructure
- #26 Automatic scaling service – define a policy – let it automanage itself 3 is the magic number is for scaling
