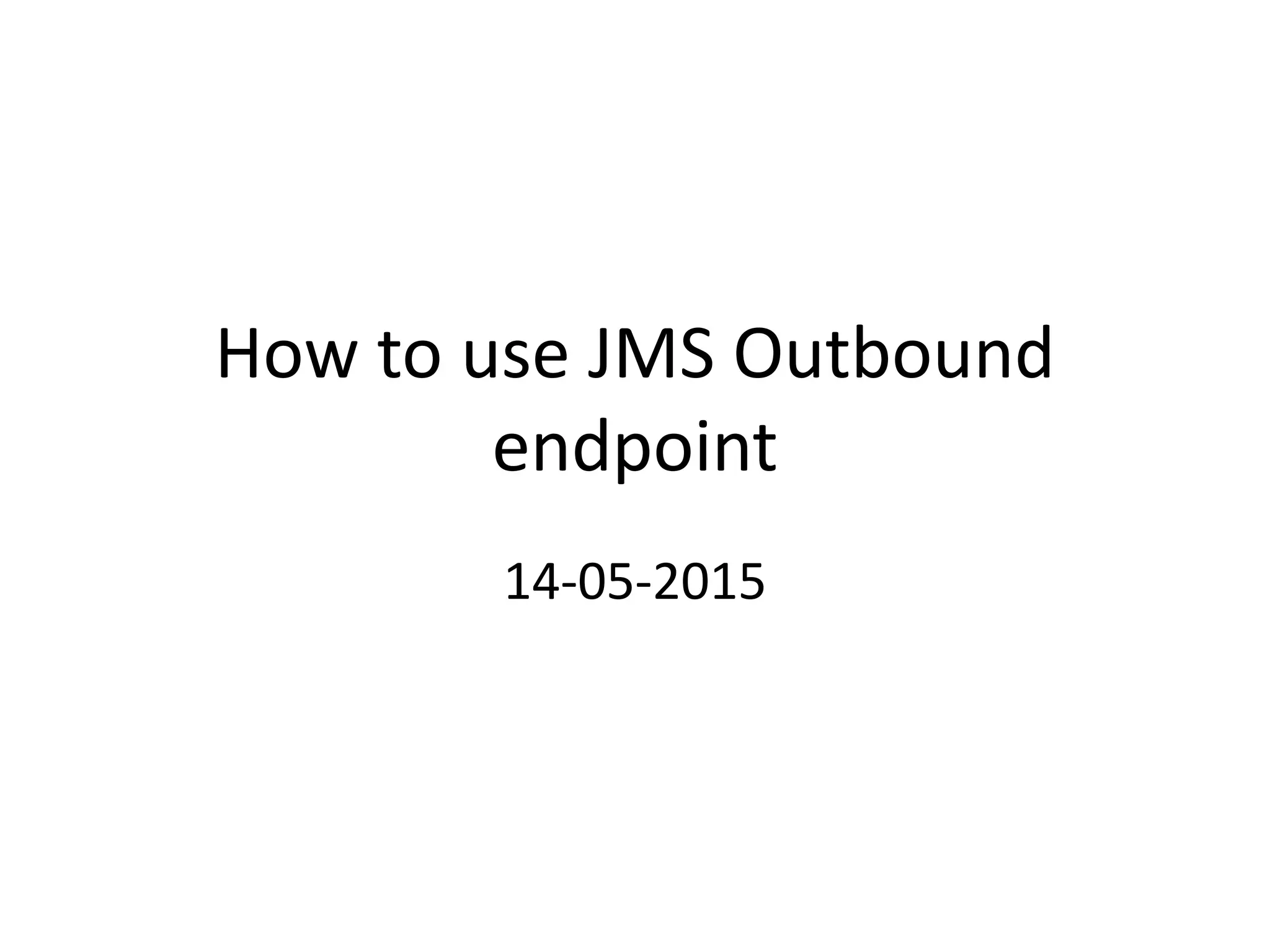

1. How to use JMS Outbound
endpoint
14-05-2015

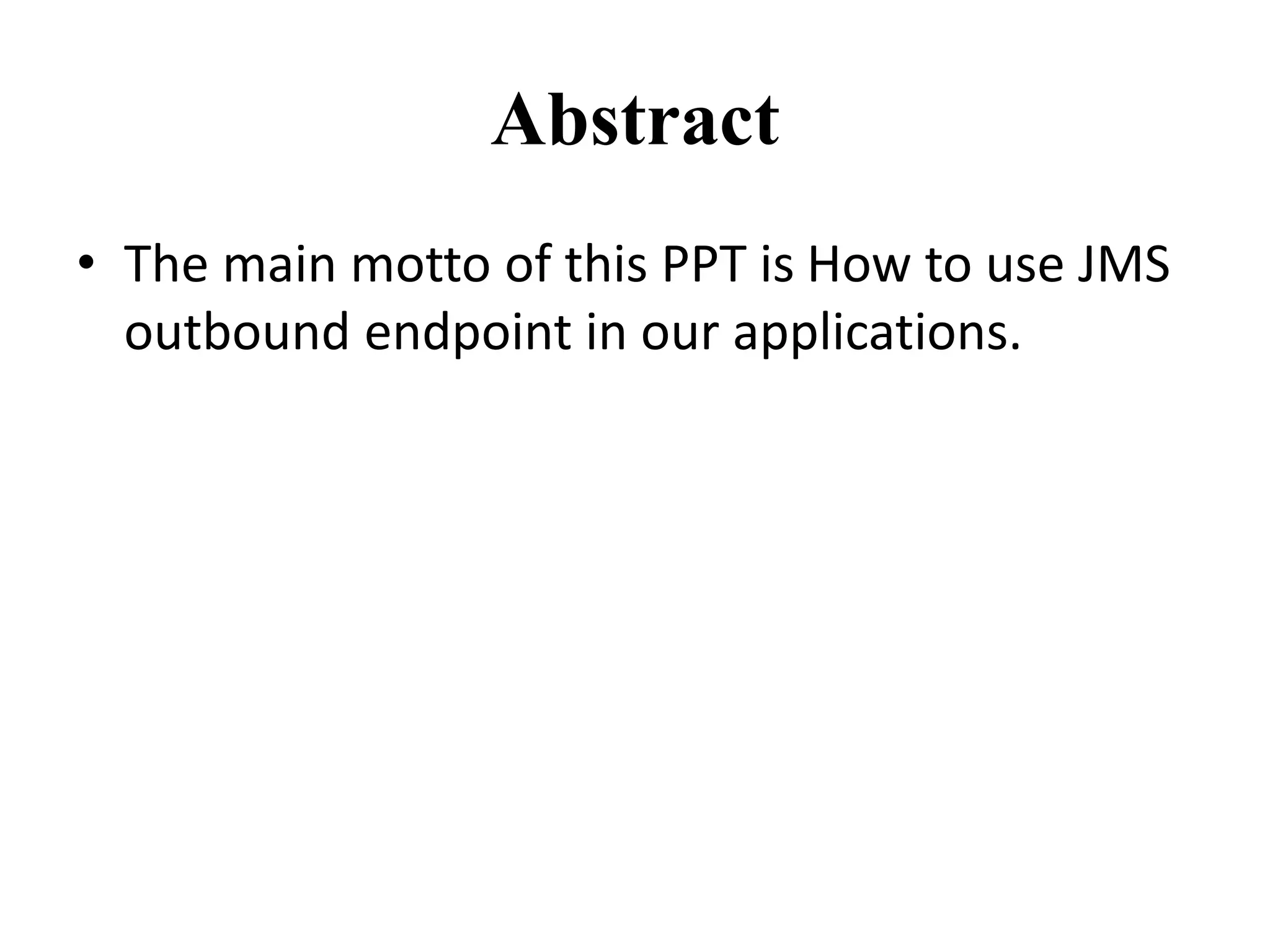

2. Abstract
• The main motto of this PPT is How to use JMS
outbound endpoint in our applications.

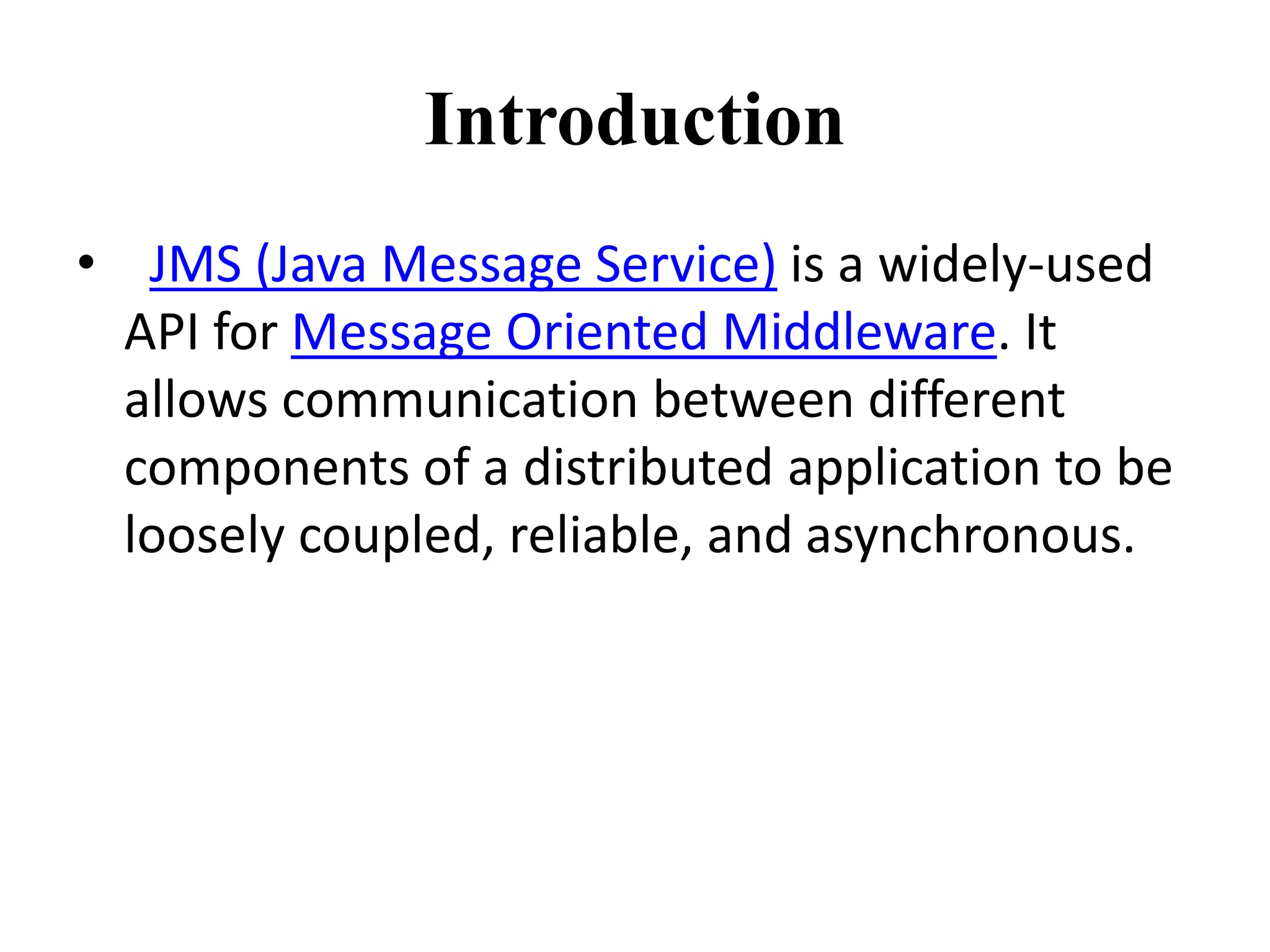

3. Introduction
• JMS (Java Message Service) is a widely-used
API for Message Oriented Middleware. It
allows communication between different
components of a distributed application to be
loosely coupled, reliable, and asynchronous.

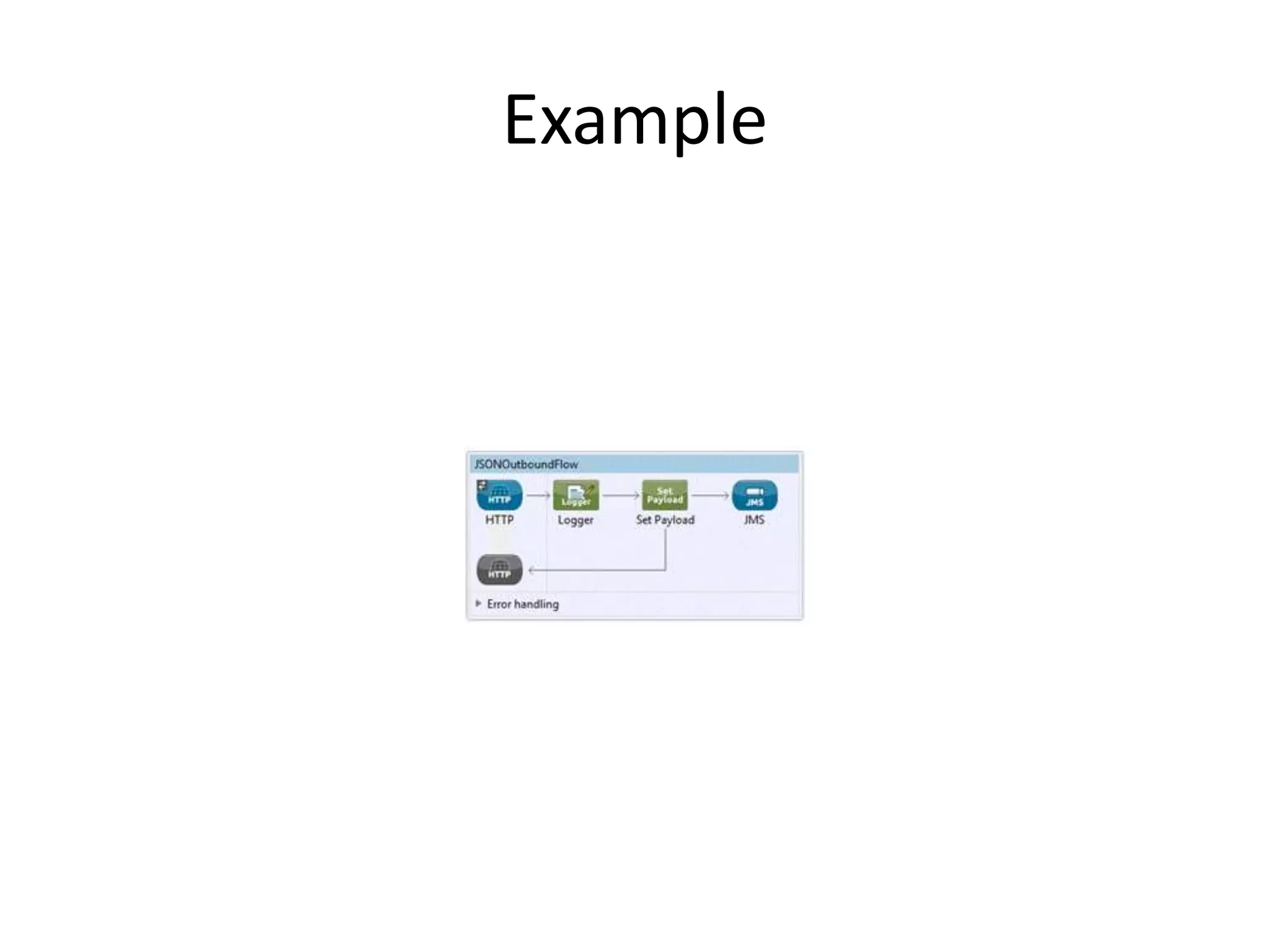

4. Example

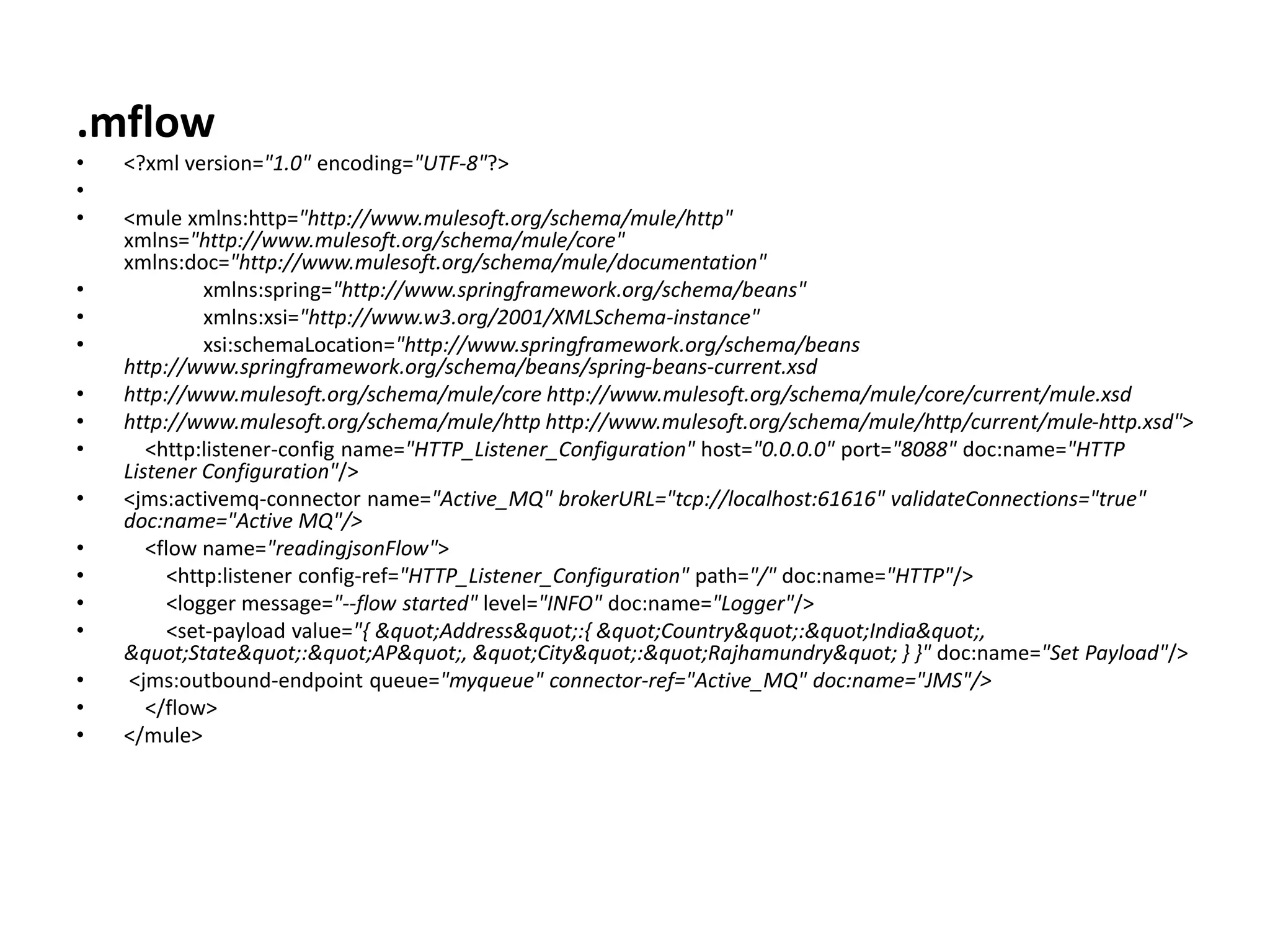

5. .mflow
• <?xml version="1.0" encoding="UTF-8"?>
•
• <mule xmlns:http="http://www.mulesoft.org/schema/mule/http"
xmlns="http://www.mulesoft.org/schema/mule/core"
xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
• xmlns:spring="http://www.springframework.org/schema/beans"
• xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
• xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-current.xsd
• http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
• http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd">
• <http:listener-config name="HTTP_Listener_Configuration" host="0.0.0.0" port="8088" doc:name="HTTP
Listener Configuration"/>
• <jms:activemq-connector name="Active_MQ" brokerURL="tcp://localhost:61616" validateConnections="true"
doc:name="Active MQ"/>
• <flow name="readingjsonFlow">
• <http:listener config-ref="HTTP_Listener_Configuration" path="/" doc:name="HTTP"/>
• <logger message="--flow started" level="INFO" doc:name="Logger"/>
• <set-payload value="{ &quot;Address&quot;:{ &quot;Country&quot;:&quot;India&quot;,
&quot;State&quot;:&quot;AP&quot;, &quot;City&quot;:&quot;Rajhamundry&quot; } }" doc:name="Set Payload"/>
• <jms:outbound-endpoint queue="myqueue" connector-ref="Active_MQ" doc:name="JMS"/>
• </flow>
• </mule>

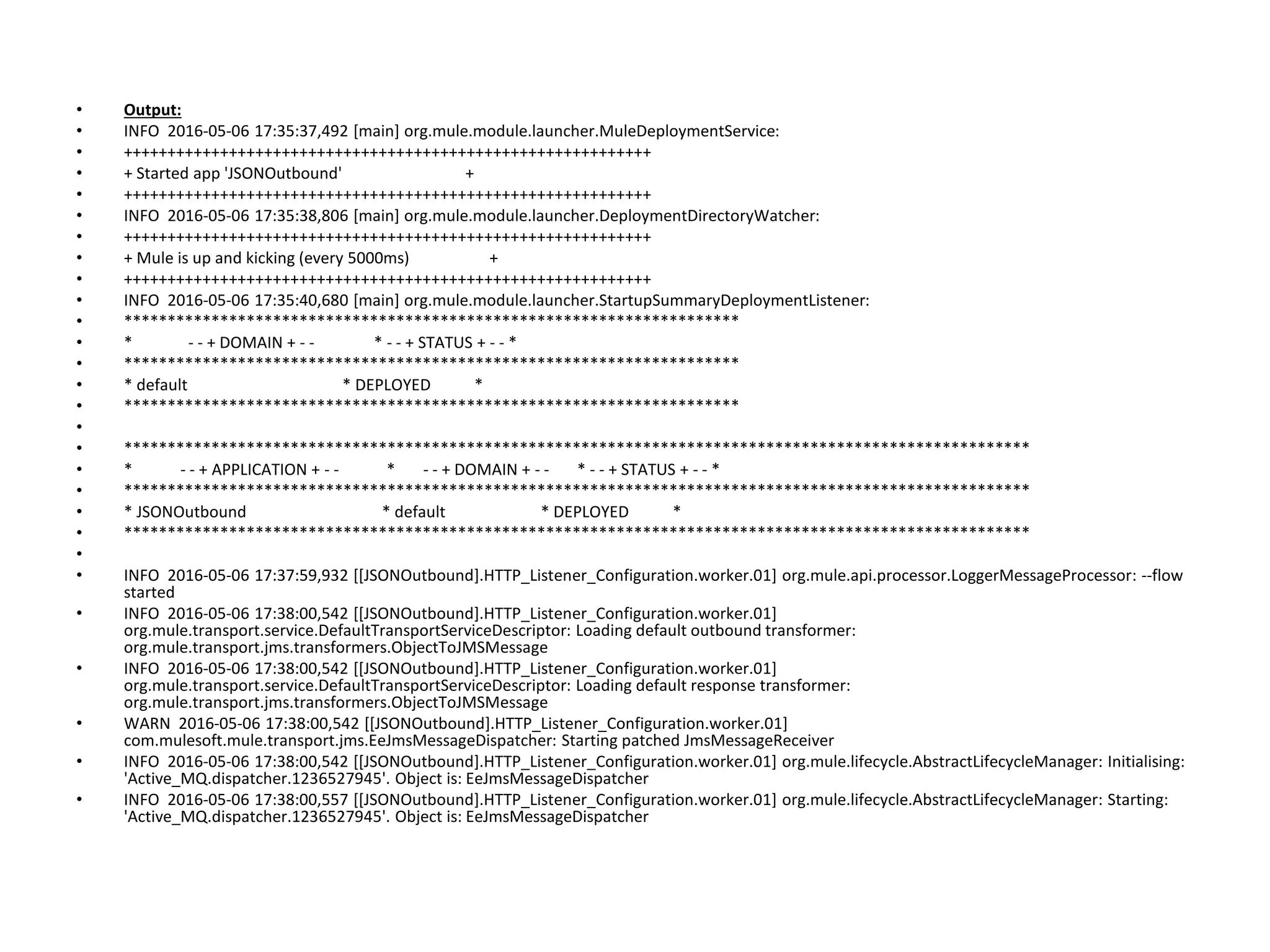

6. • Output:
• INFO 2016-05-06 17:35:37,492 [main] org.mule.module.launcher.MuleDeploymentService:
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• + Started app 'JSONOutbound' +
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• INFO 2016-05-06 17:35:38,806 [main] org.mule.module.launcher.DeploymentDirectoryWatcher:
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• + Mule is up and kicking (every 5000ms) +
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• INFO 2016-05-06 17:35:40,680 [main] org.mule.module.launcher.StartupSummaryDeploymentListener:
• **********************************************************************
• * - - + DOMAIN + - - * - - + STATUS + - - *
• **********************************************************************
• * default * DEPLOYED *
• **********************************************************************
•
• *******************************************************************************************************
• * - - + APPLICATION + - - * - - + DOMAIN + - - * - - + STATUS + - - *
• *******************************************************************************************************
• * JSONOutbound * default * DEPLOYED *
• *******************************************************************************************************
•
• INFO 2016-05-06 17:37:59,932 [[JSONOutbound].HTTP_Listener_Configuration.worker.01] org.mule.api.processor.LoggerMessageProcessor: --flow
started
• INFO 2016-05-06 17:38:00,542 [[JSONOutbound].HTTP_Listener_Configuration.worker.01]
org.mule.transport.service.DefaultTransportServiceDescriptor: Loading default outbound transformer:
org.mule.transport.jms.transformers.ObjectToJMSMessage
• INFO 2016-05-06 17:38:00,542 [[JSONOutbound].HTTP_Listener_Configuration.worker.01]
org.mule.transport.service.DefaultTransportServiceDescriptor: Loading default response transformer:
org.mule.transport.jms.transformers.ObjectToJMSMessage
• WARN 2016-05-06 17:38:00,542 [[JSONOutbound].HTTP_Listener_Configuration.worker.01]
com.mulesoft.mule.transport.jms.EeJmsMessageDispatcher: Starting patched JmsMessageReceiver
• INFO 2016-05-06 17:38:00,542 [[JSONOutbound].HTTP_Listener_Configuration.worker.01] org.mule.lifecycle.AbstractLifecycleManager: Initialising:
'Active_MQ.dispatcher.1236527945'. Object is: EeJmsMessageDispatcher
• INFO 2016-05-06 17:38:00,557 [[JSONOutbound].HTTP_Listener_Configuration.worker.01] org.mule.lifecycle.AbstractLifecycleManager: Starting:
'Active_MQ.dispatcher.1236527945'. Object is: EeJmsMessageDispatcher

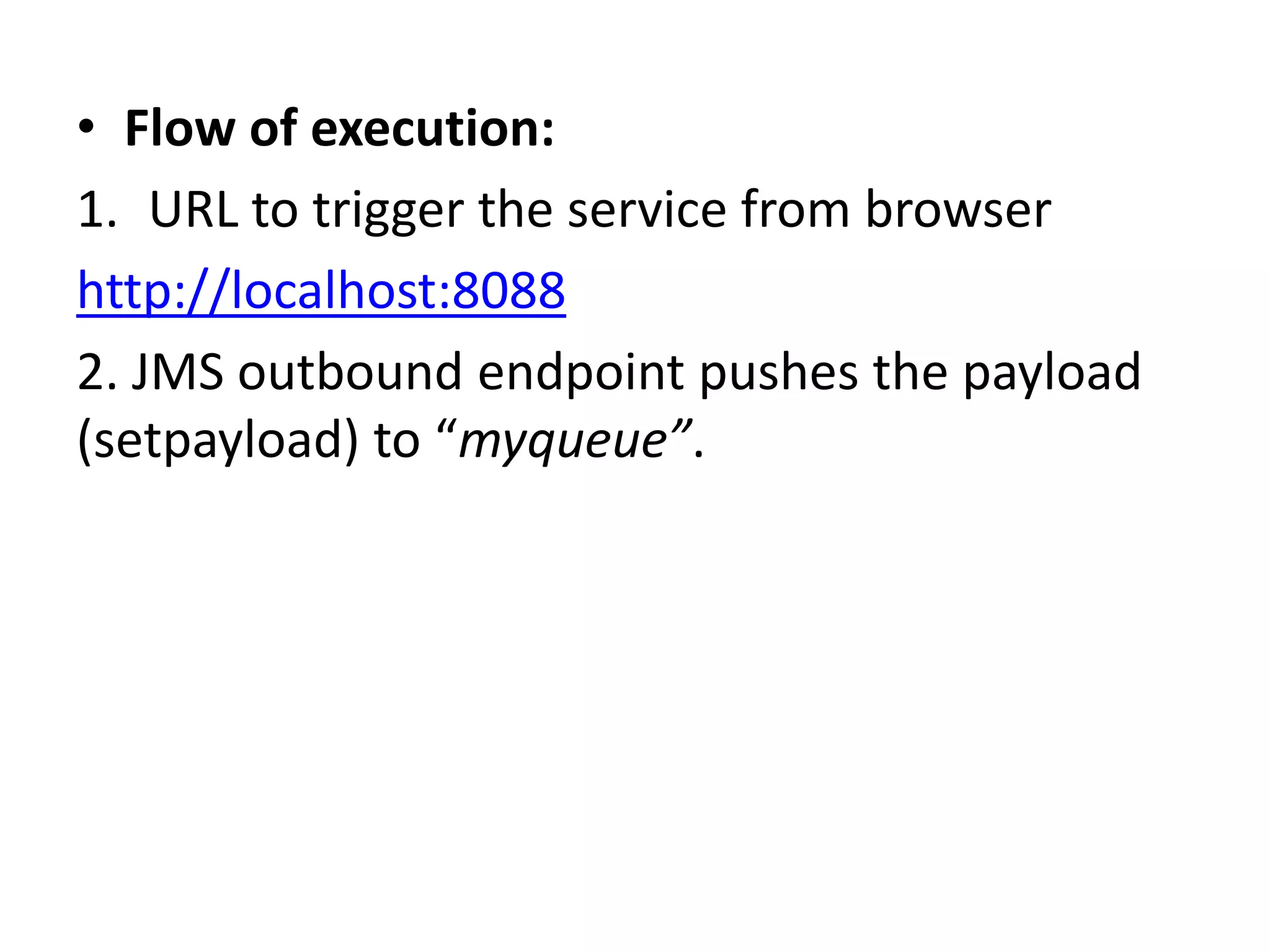

7. • Flow of execution:
1. URL to trigger the service from browser
http://localhost:8088
2. JMS outbound endpoint pushes the payload
(setpayload) to “myqueue”.

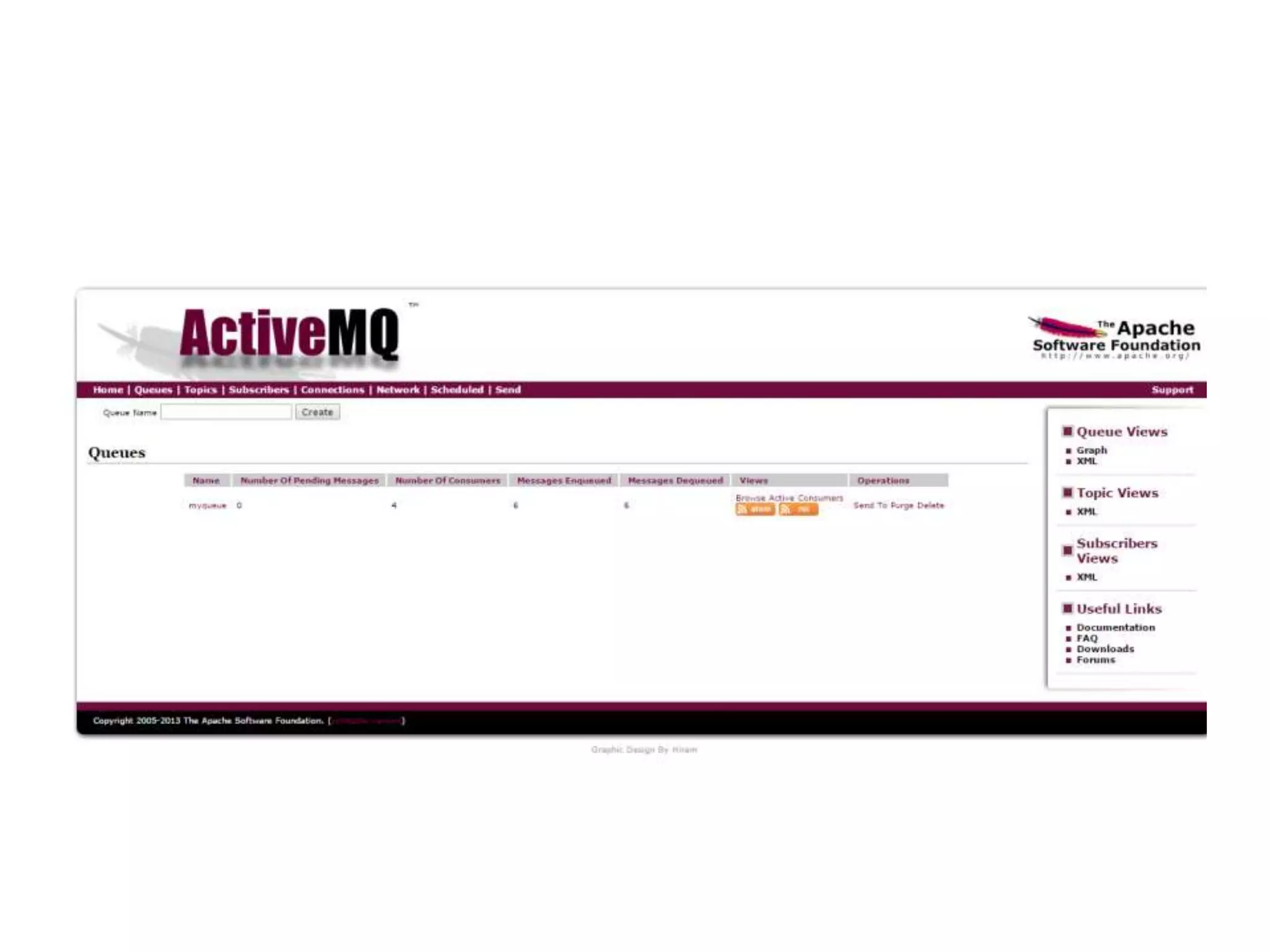

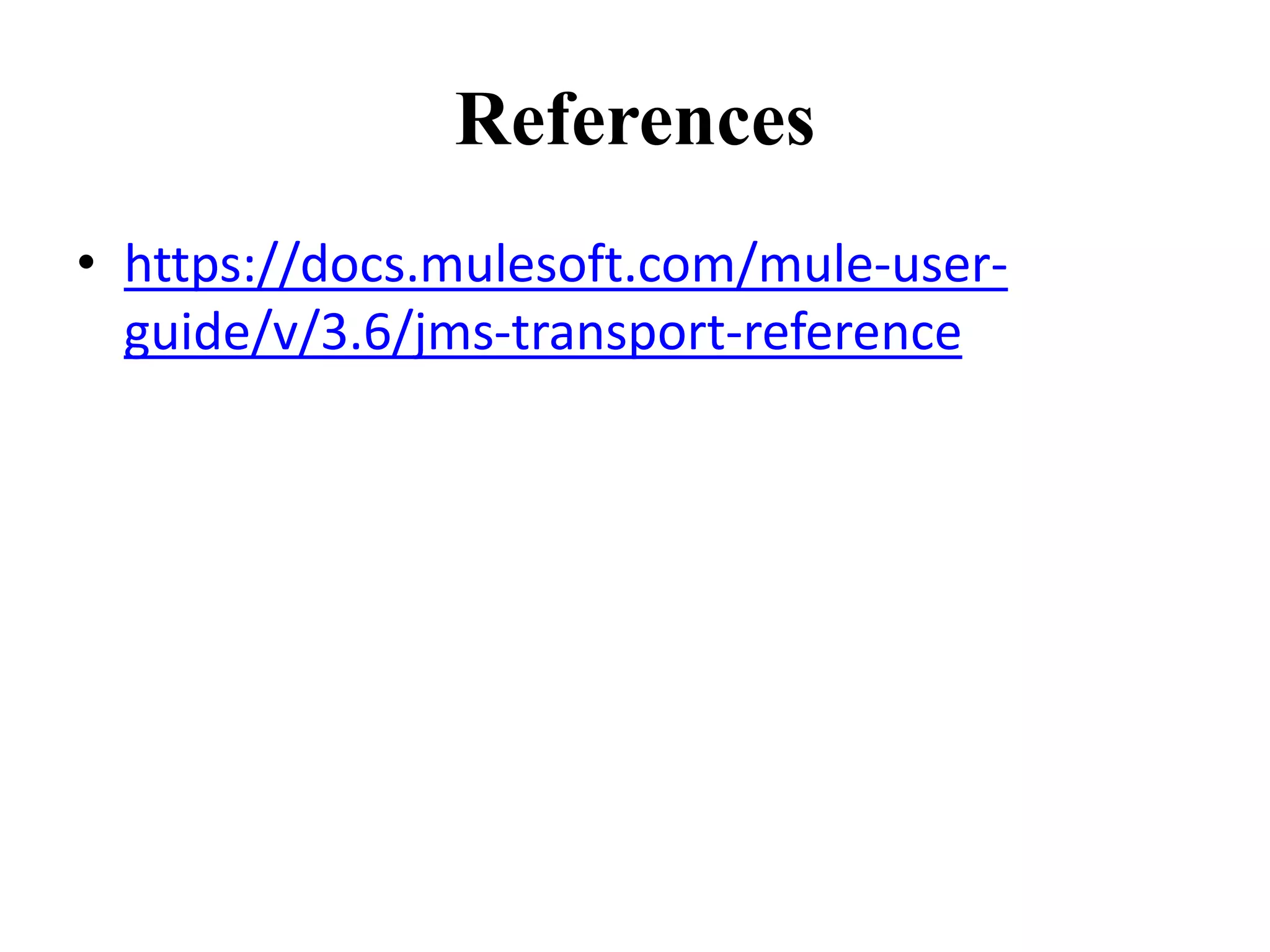

9. References
