This document provides an example of using the Salesforce connector in Mulesoft to query an Account by ID from Salesforce and output the results. The example flow hits an HTTP endpoint, uses the Salesforce connector configured with a username/password to query for a specific Account by ID, and logs the response. It provides the XML configuration and output showing the Account details being returned from Salesforce.

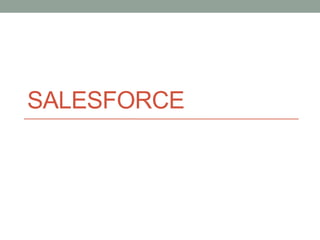

1. SALESFORCE

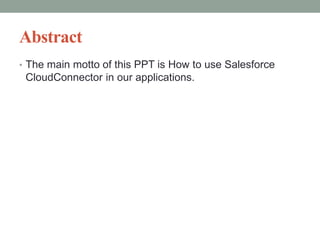

2. Abstract
• The main motto of this PPT is How to use Salesforce
CloudConnector in our applications.

3. Introduction
• The Anypoint™ Connector for Salesforce lets you
connect to the Salesforce platform. The connector
exposes convenient methods for exploiting the
capabilities of Salesforce, including working with Apex
classes.

4. Example

5. .mflow
<?xml version="1.0" encoding="UTF-8"?>
<mule xmlns:http="http://www.mulesoft.org/schema/mule/http"
xmlns:sfdc="http://www.mulesoft.org/schema/mule/sfdc" xmlns="http://www.mulesoft.org/schema/mule/core"
xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
xmlns:spring="http://www.springframework.org/schema/beans" version="EE-3.4.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-current.xsd
http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/sfdc http://www.mulesoft.org/schema/mule/sfdc/5.0/mule-sfdc.xsd">
<sfdc:config name="Salesforce" username="******" password="*****" securityToken="******"
url="https://******/services/Soap/u/26.0" doc:name="Salesforce">
<sfdc:connection-pooling-profile initialisationPolicy="INITIALISE_ONE"
exhaustedAction="WHEN_EXHAUSTED_GROW"/>
</sfdc:config>
<flow name="SalesforceCloudConnectorFlow1" doc:name="SalesforceCloudConnectorFlow1">
<http:inbound-endpoint exchange-pattern="request-response" host="localhost" port="8094"
doc:name="HTTP" path="Salesforce"/>
<logger level="INFO" doc:name="Logger" message="--Entered into the flow"/>
<sfdc:query config-ref="Salesforce" doc:name="Salesforce" query="select Id, LastModifiedDate from
Account where Id='*****'"/>
<logger message="--Salesforce response is:#[payload]" level="INFO" doc:name="Logger"/>
</flow>
</mule>

6. • Output:
INFO 2015-12-13 11:29:22,807 [main] org.mule.DefaultMuleContext:
**********************************************************************
* Application: SalesforceCloudConnector *
* OS encoding: Cp1252, Mule encoding: UTF-8 *
* *
* Agents Running: *
* DevKit Extension Information *
* Clustering Agent *
* JMX Agent *
**********************************************************************
INFO 2015-12-13 11:29:22,808 [main] org.mule.module.launcher.MuleDeploymentService:
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
+ Started app 'SalesforceCloudConnector' +
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
INFO 2015-12-13 11:29:40,330
[[SalesforceCloudConnector].connector.http.mule.default.receiver.02]
org.mule.api.processor.LoggerMessageProcessor: --Entered into the flow
INFO 2015-12-13 11:29:52,203
[[SalesforceCloudConnector].connector.http.mule.default.receiver.02]
org.mule.api.processor.LoggerMessageProcessor: --Salesforce response
is:[{LastModifiedDate=2015-09-18T11:49:20.000Z, *****, type=Account}]

7. • Flow of execution:
1. URL to trigger the service from browser
http://localhost:8094/Salesforce
2. Salesforce component connects to the specific account,
gets the Id, LastModifiedDate for the given id and prints the
same in console.

8. References
• https://docs.mulesoft.com/mule-user-
guide/v/3.7/salesforce-connector
