This document discusses how to use a JMS inbound endpoint in Mule applications to receive messages from a JMS queue. It provides an example Mule flow configuration with a JMS inbound endpoint connected to an ActiveMQ broker to receive messages from a "myqueue" queue. When a message is received, it is logged to output the payload. The JMS inbound endpoint allows asynchronous, loosely coupled communication between distributed application components via message queues.

1. How to use JMS Inbound
endpoint
14-05-2015

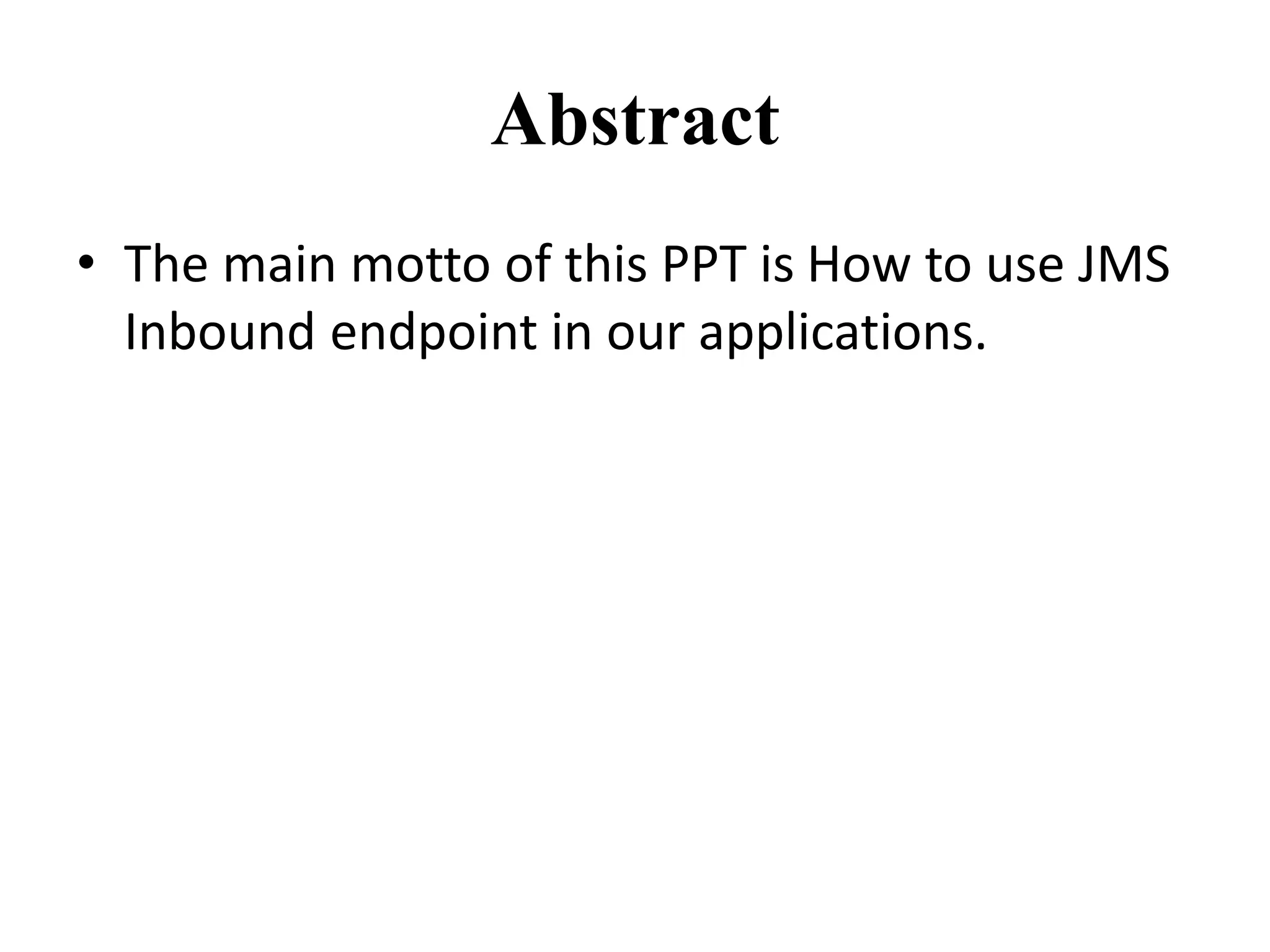

2. Abstract
• The main motto of this PPT is How to use JMS
Inbound endpoint in our applications.

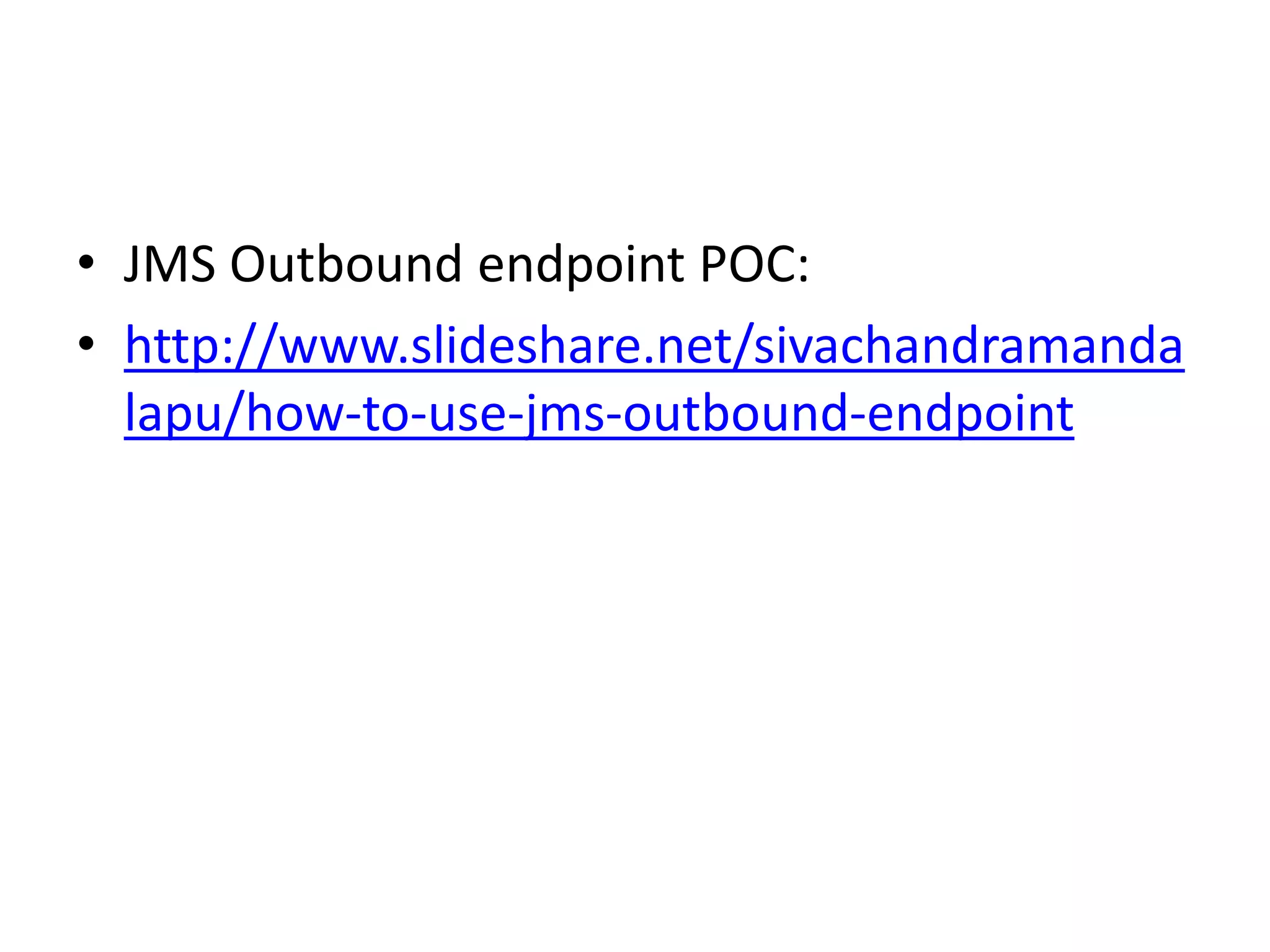

3. • JMS Outbound endpoint POC:
• http://www.slideshare.net/sivachandramanda
lapu/how-to-use-jms-outbound-endpoint

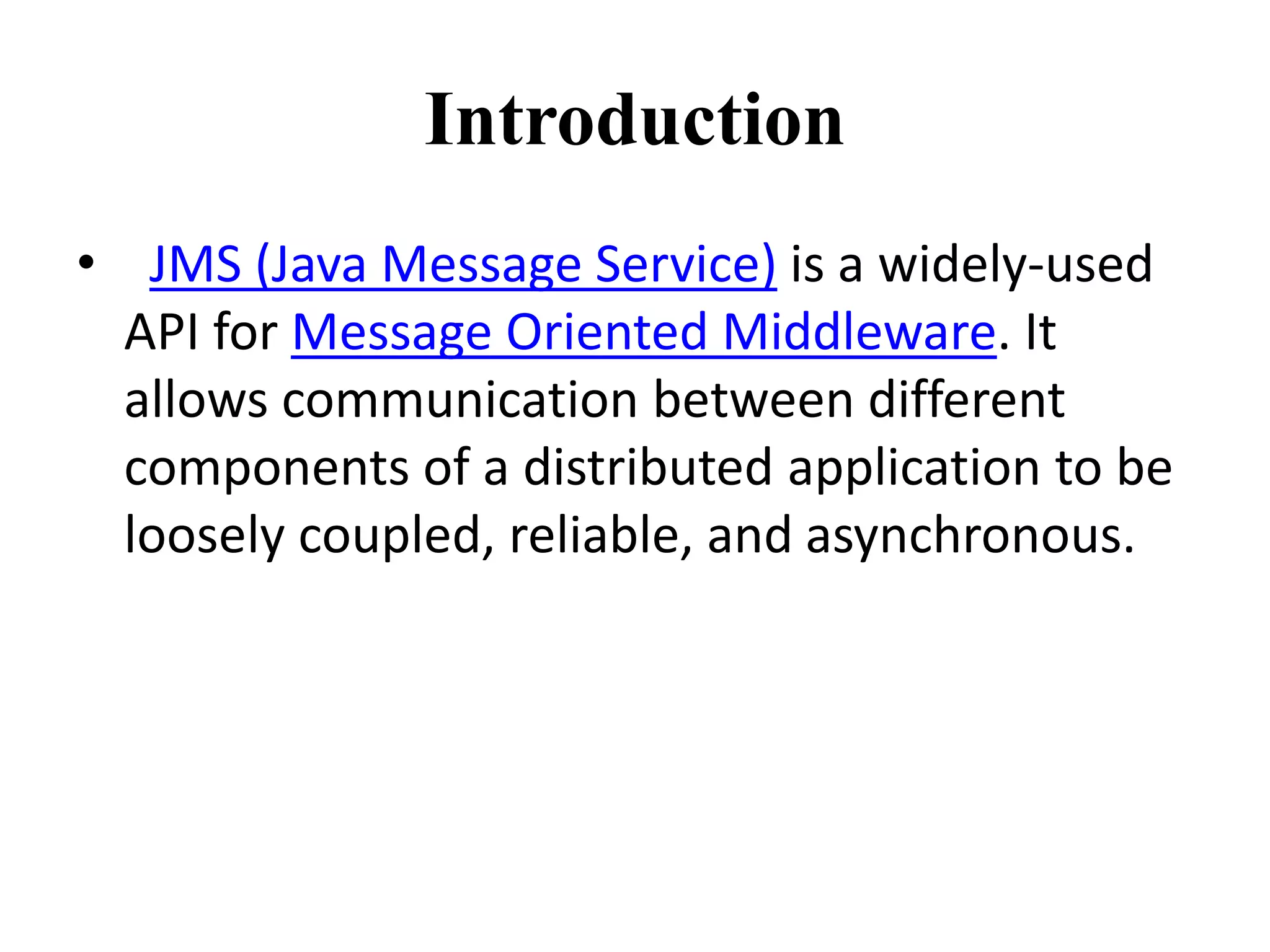

4. Introduction
• JMS (Java Message Service) is a widely-used
API for Message Oriented Middleware. It
allows communication between different
components of a distributed application to be
loosely coupled, reliable, and asynchronous.

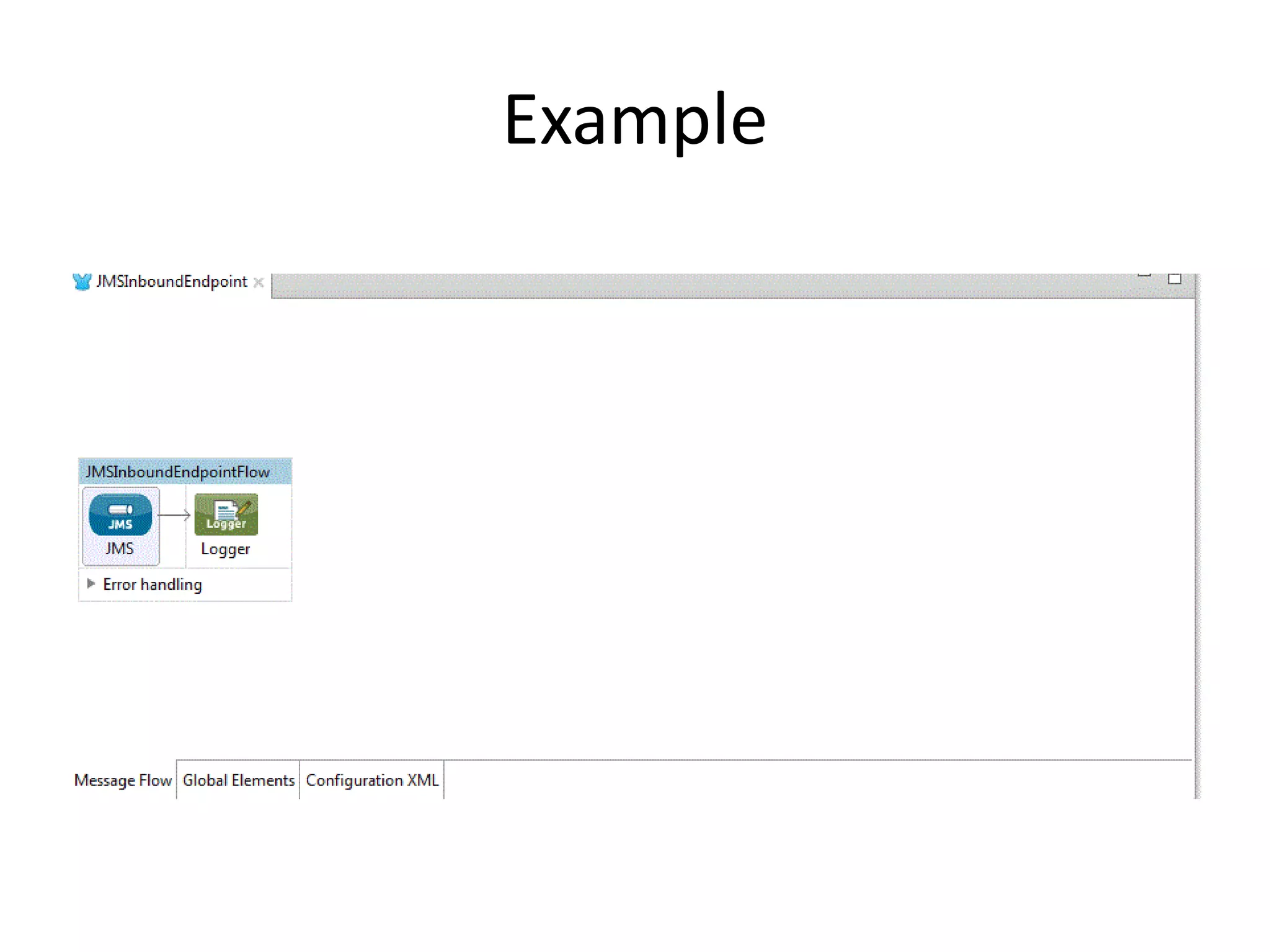

5. Example

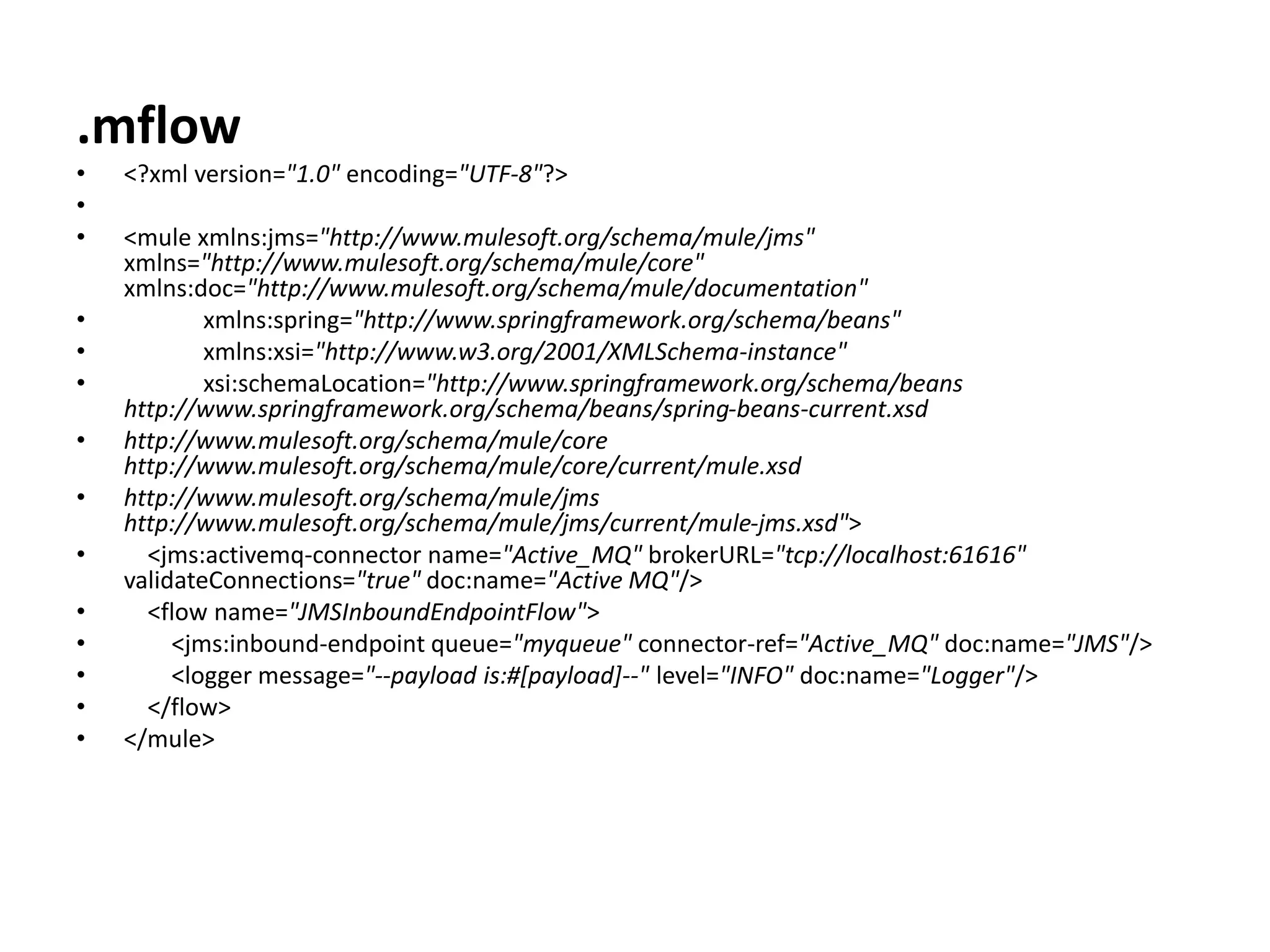

6. .mflow
• <?xml version="1.0" encoding="UTF-8"?>
•
• <mule xmlns:jms="http://www.mulesoft.org/schema/mule/jms"
xmlns="http://www.mulesoft.org/schema/mule/core"
xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
• xmlns:spring="http://www.springframework.org/schema/beans"
• xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
• xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-current.xsd
• http://www.mulesoft.org/schema/mule/core
http://www.mulesoft.org/schema/mule/core/current/mule.xsd
• http://www.mulesoft.org/schema/mule/jms
http://www.mulesoft.org/schema/mule/jms/current/mule-jms.xsd">
• <jms:activemq-connector name="Active_MQ" brokerURL="tcp://localhost:61616"
validateConnections="true" doc:name="Active MQ"/>
• <flow name="JMSInboundEndpointFlow">
• <jms:inbound-endpoint queue="myqueue" connector-ref="Active_MQ" doc:name="JMS"/>
• <logger message="--payload is:#[payload]--" level="INFO" doc:name="Logger"/>
• </flow>
• </mule>

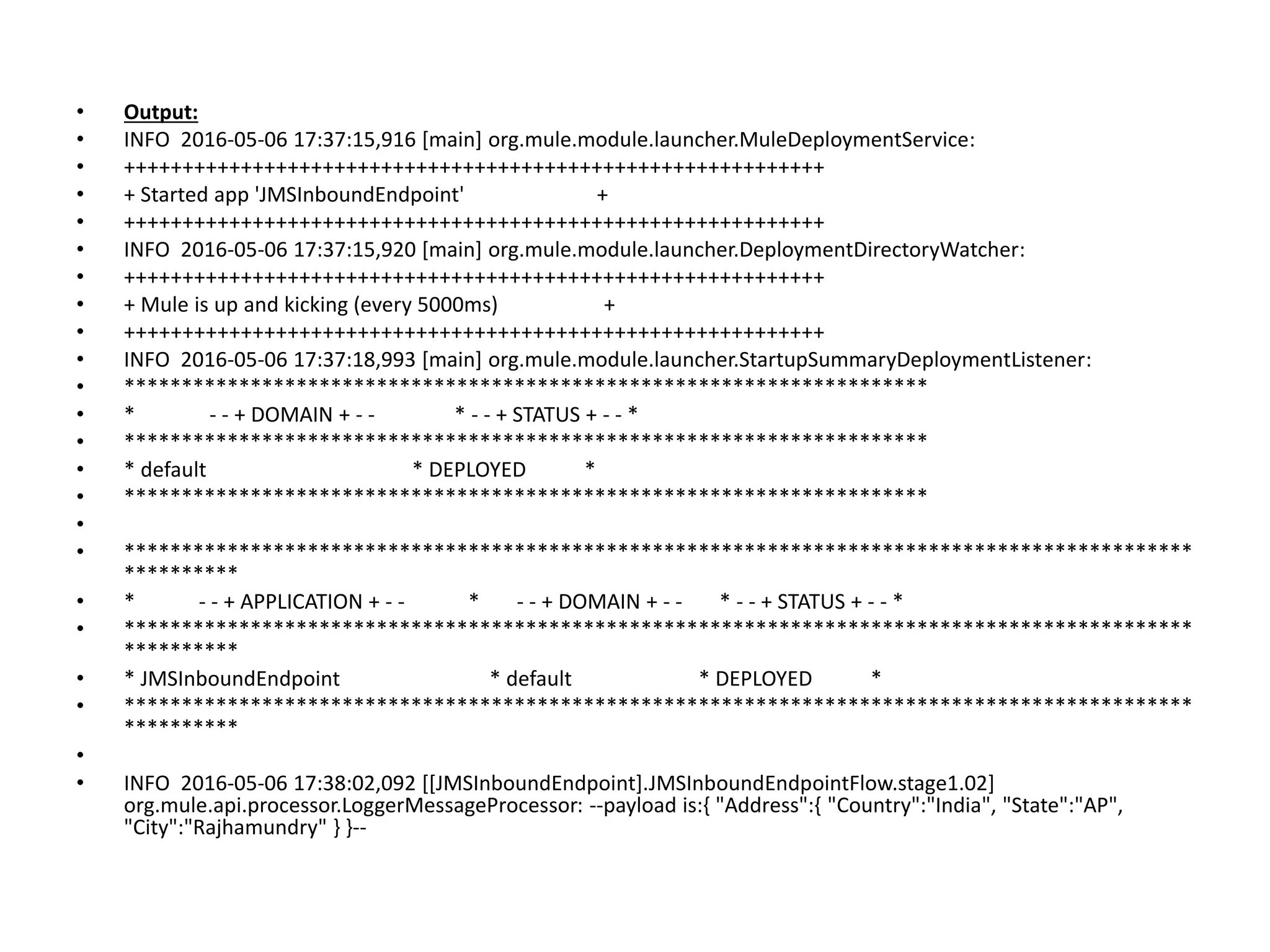

7. • Output:
• INFO 2016-05-06 17:37:15,916 [main] org.mule.module.launcher.MuleDeploymentService:
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• + Started app 'JMSInboundEndpoint' +
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• INFO 2016-05-06 17:37:15,920 [main] org.mule.module.launcher.DeploymentDirectoryWatcher:
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• + Mule is up and kicking (every 5000ms) +
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• INFO 2016-05-06 17:37:18,993 [main] org.mule.module.launcher.StartupSummaryDeploymentListener:
• **********************************************************************
• * - - + DOMAIN + - - * - - + STATUS + - - *
• **********************************************************************
• * default * DEPLOYED *
• **********************************************************************
•
• *********************************************************************************************
**********
• * - - + APPLICATION + - - * - - + DOMAIN + - - * - - + STATUS + - - *
• *********************************************************************************************
**********
• * JMSInboundEndpoint * default * DEPLOYED *
• *********************************************************************************************
**********
•
• INFO 2016-05-06 17:38:02,092 [[JMSInboundEndpoint].JMSInboundEndpointFlow.stage1.02]
org.mule.api.processor.LoggerMessageProcessor: --payload is:{ "Address":{ "Country":"India", "State":"AP",
"City":"Rajhamundry" } }--

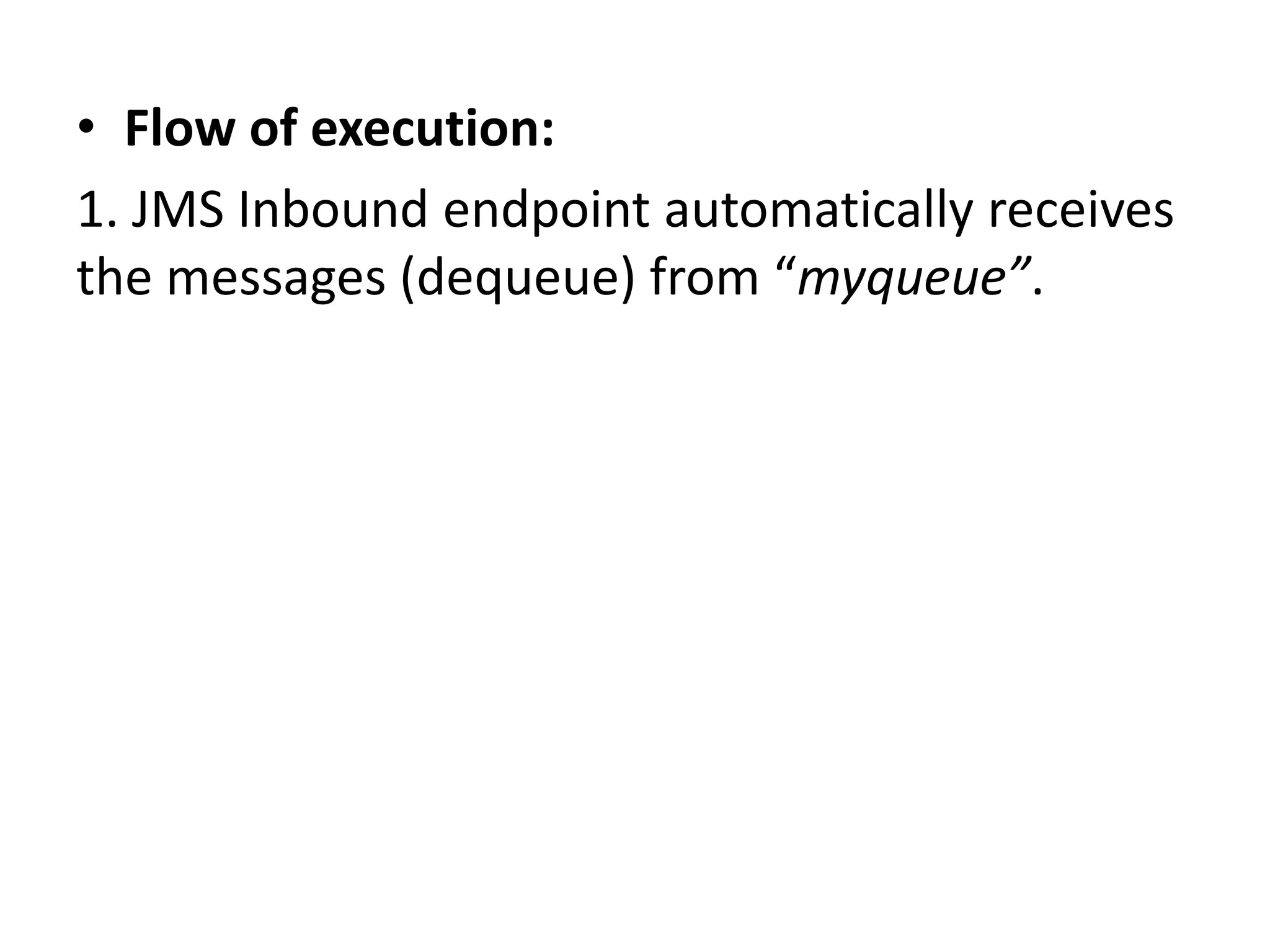

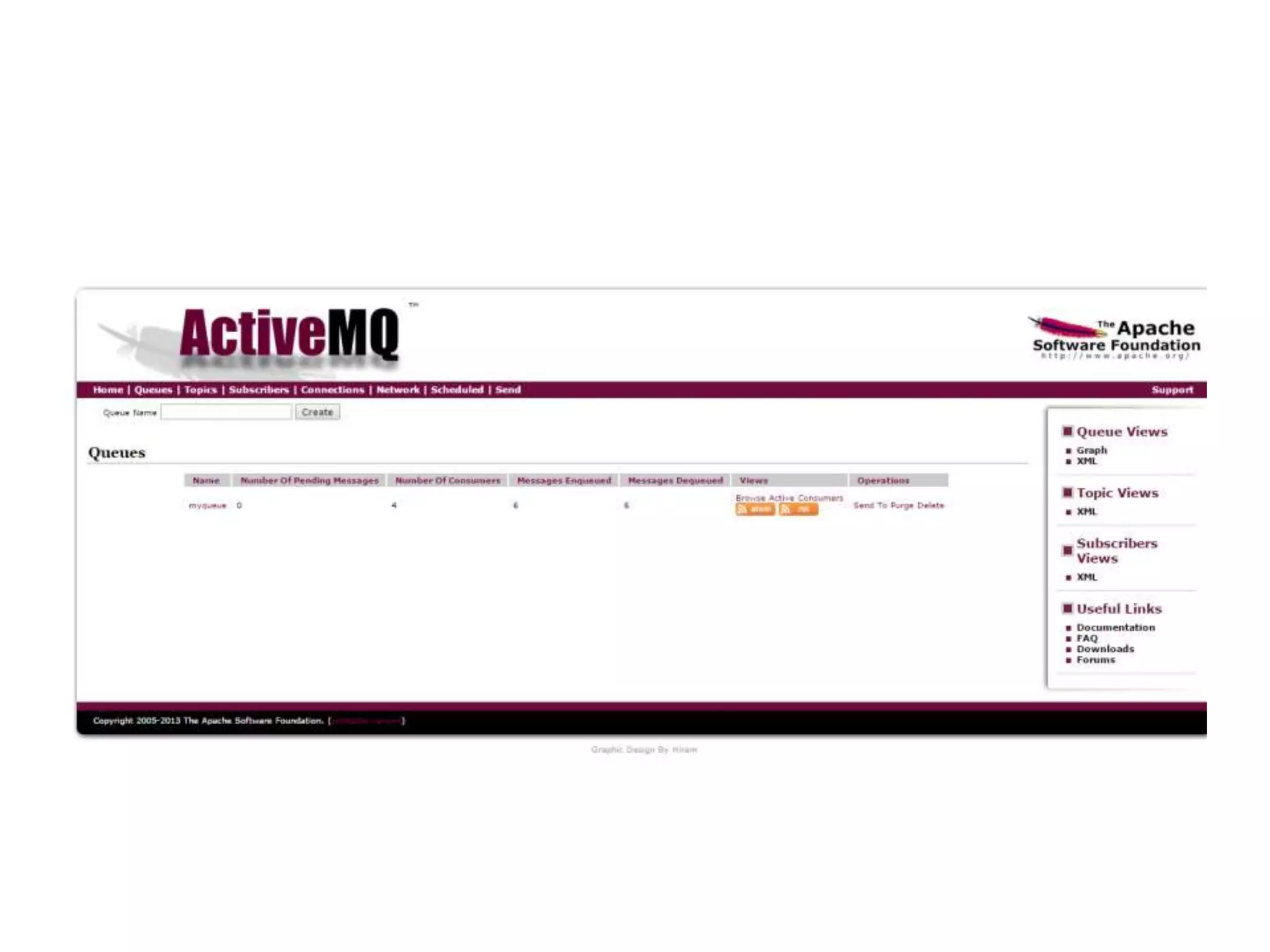

8. • Flow of execution:
1. JMS Inbound endpoint automatically receives
the messages (dequeue) from “myqueue”.

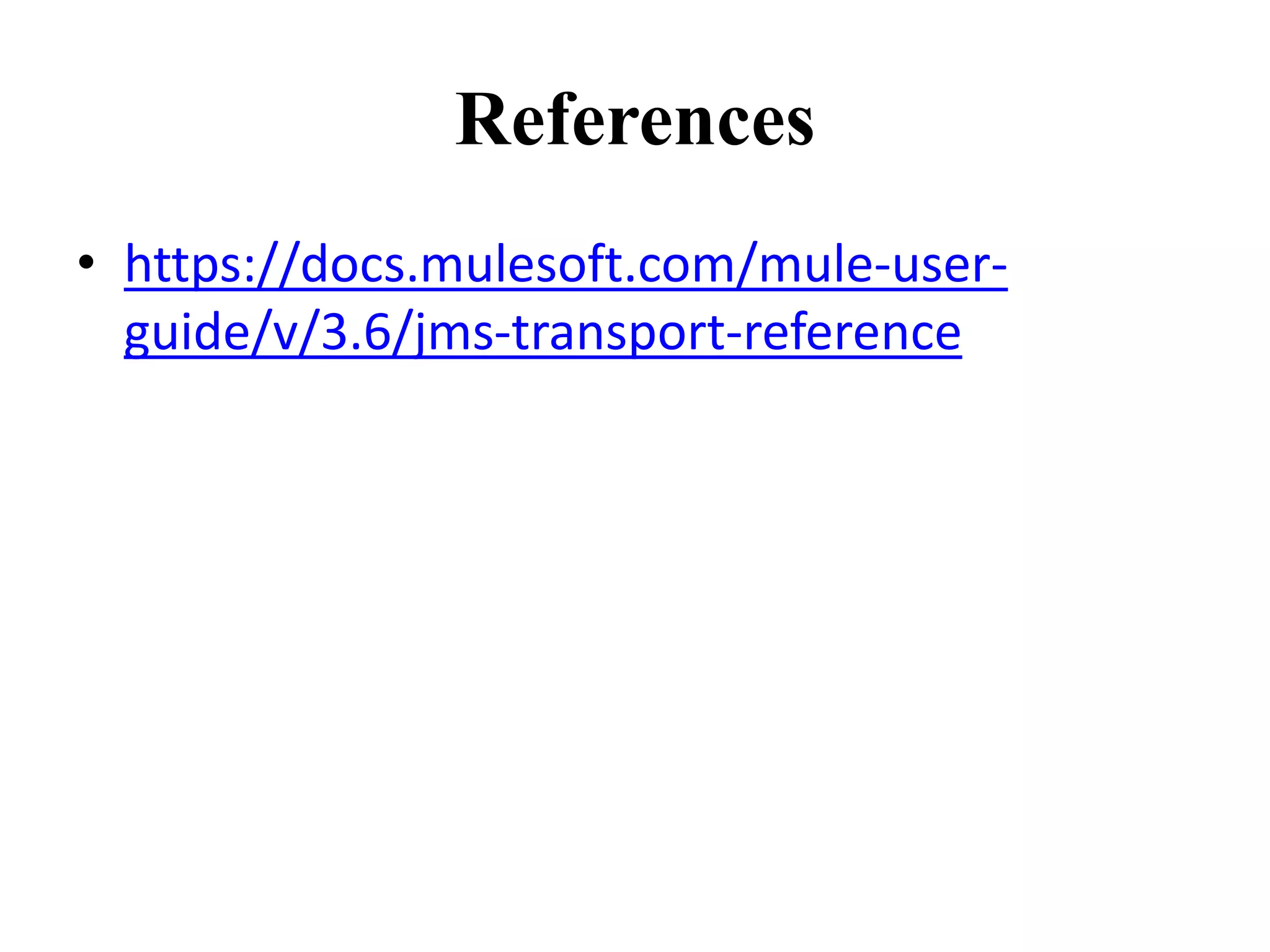

10. References
• https://docs.mulesoft.com/mule-user-
guide/v/3.6/jms-transport-reference
