The document discusses how to read JSON message payloads in Mule applications. It introduces JsonPath, a syntax for querying JSON data in Mule expressions. An example flow is provided that uses JsonPath to extract values from a JSON payload and log them. Key values like country, state, and city are queried from the JSON and output via logger components.

1. How to read JSON message
payload
16-05-2015

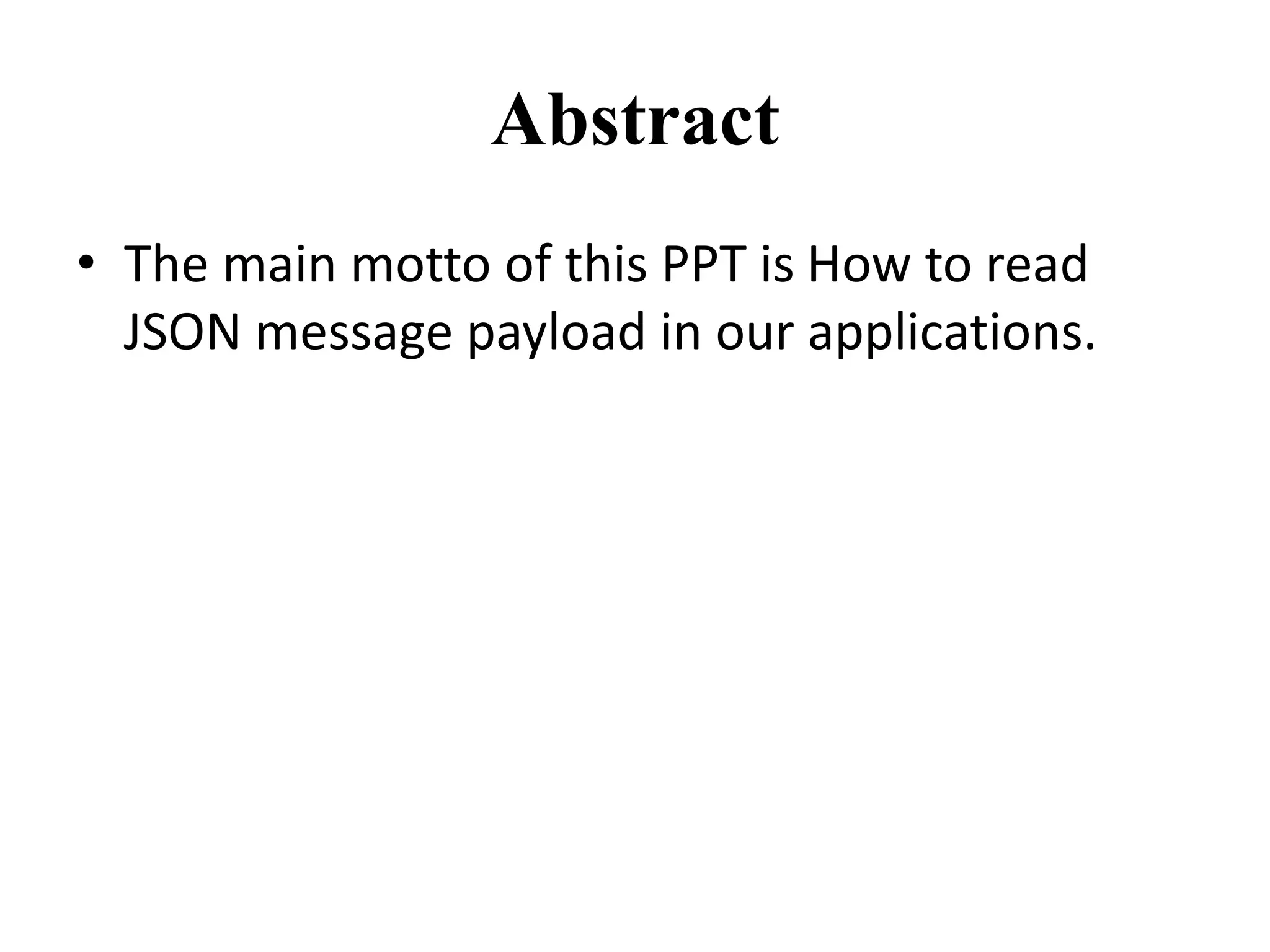

2. Abstract
• The main motto of this PPT is How to read
JSON message payload in our applications.

3. Introduction
• There is no standard language currently for
querying JSON data graphs in the same way
XPATH can query XML documents. Mule
provides a simple query syntax for working
with JSON data in Java, called JsonPath.
• You can use JsonPath in Mule expressions to
query JSON message payloads for filtering
or enrichment.

4. Example

5. .mflow
• <?xml version="1.0" encoding="UTF-8"?>
•
• <mule xmlns:http="http://www.mulesoft.org/schema/mule/http"
xmlns="http://www.mulesoft.org/schema/mule/core"
xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
• xmlns:spring="http://www.springframework.org/schema/beans"
• xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
• xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-current.xsd
• http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
• http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd">
• <http:listener-config name="HTTP_Listener_Configuration" host="0.0.0.0" port="8088" doc:name="HTTP
Listener Configuration"/>
• <flow name="readingjsonFlow">
• <http:listener config-ref="HTTP_Listener_Configuration" path="/" doc:name="HTTP"/>
• <logger message="--flow started" level="INFO" doc:name="Logger"/>
• <set-payload value="{ &quot;Address&quot;:{ &quot;Country&quot;:&quot;India&quot;,
&quot;State&quot;:&quot;AP&quot;, &quot;City&quot;:&quot;Rajhamundry&quot; } }" doc:name="Set Payload"/>
• <logger message="--country:#[json:Address/Country]--state:#[json:Address/State]--city:#[json:Address/City]"
level="INFO" doc:name="Logger"/>
• </flow>
• </mule>

6. • Output:
• INFO 2016-05-06 17:43:57,248 [main] org.mule.module.launcher.MuleDeploymentService:
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• + Started app 'readingjson' +
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• INFO 2016-05-06 17:43:57,257 [main] org.mule.module.launcher.DeploymentDirectoryWatcher:
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• + Mule is up and kicking (every 5000ms) +
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• INFO 2016-05-06 17:43:58,580 [main] org.mule.module.launcher.StartupSummaryDeploymentListener:
• **********************************************************************
• * - - + DOMAIN + - - * - - + STATUS + - - *
• **********************************************************************
• * default * DEPLOYED *
• **********************************************************************
•
• *******************************************************************************************************
• * - - + APPLICATION + - - * - - + DOMAIN + - - * - - + STATUS + - - *
• *******************************************************************************************************
• * readingjson * default * DEPLOYED *
• *******************************************************************************************************
•
• INFO 2016-05-06 17:44:30,742 [[readingjson].HTTP_Listener_Configuration.worker.01] org.mule.api.processor.LoggerMessageProcessor: --flow
started
• INFO 2016-05-06 17:44:31,103 [[readingjson].HTTP_Listener_Configuration.worker.01] org.mule.api.processor.LoggerMessageProcessor: --
country:India--state:AP--city:Rajhamundry
•
•
•

7. • Flow of execution:
1. URL to trigger the service from browser
http://localhost:8088
2. Using set-payload component we have set’s
the Input JSON as payload to the flow
3. Using MEL we have read and display values of
each and every key (JSON) In logger component

8. References
• https://docs.mulesoft.com/mule-user-
guide/v/3.7/json-module-reference
