How Networking works with Data Science
- 1.
- 2. Who Am I ◦Hung-Wei Chiu (hwchiu) ◦ MTS @ Open Networking Foundation ◦ Microsoft MVP ◦ Cloud and Datacenter Management ◦ Blog ◦ https://hwchiu.com ◦ Co-Organizer of SDNDS-TW/CNTUG
- 4.
- 5. COSCUP ◦ https://coscup.org/2019/ ◦ 81/17 ◦SDN x CNTUG x Golang ◦ 180 人會議室

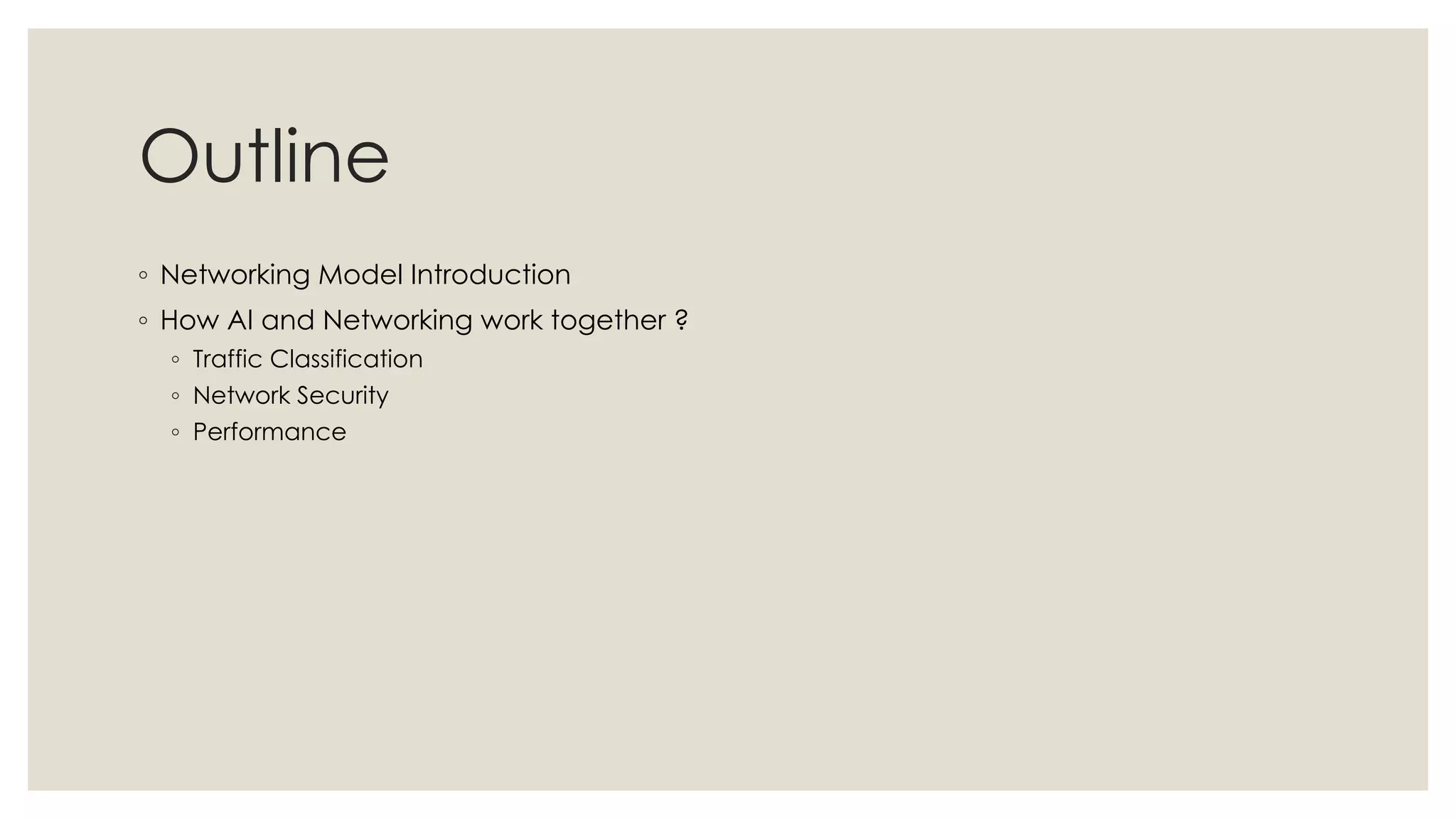

- 6. Outline ◦ Networking ModelIntroduction ◦ How AI and Networking work together ? ◦ Traffic Classification ◦ Network Security ◦ Performance

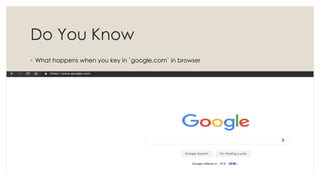

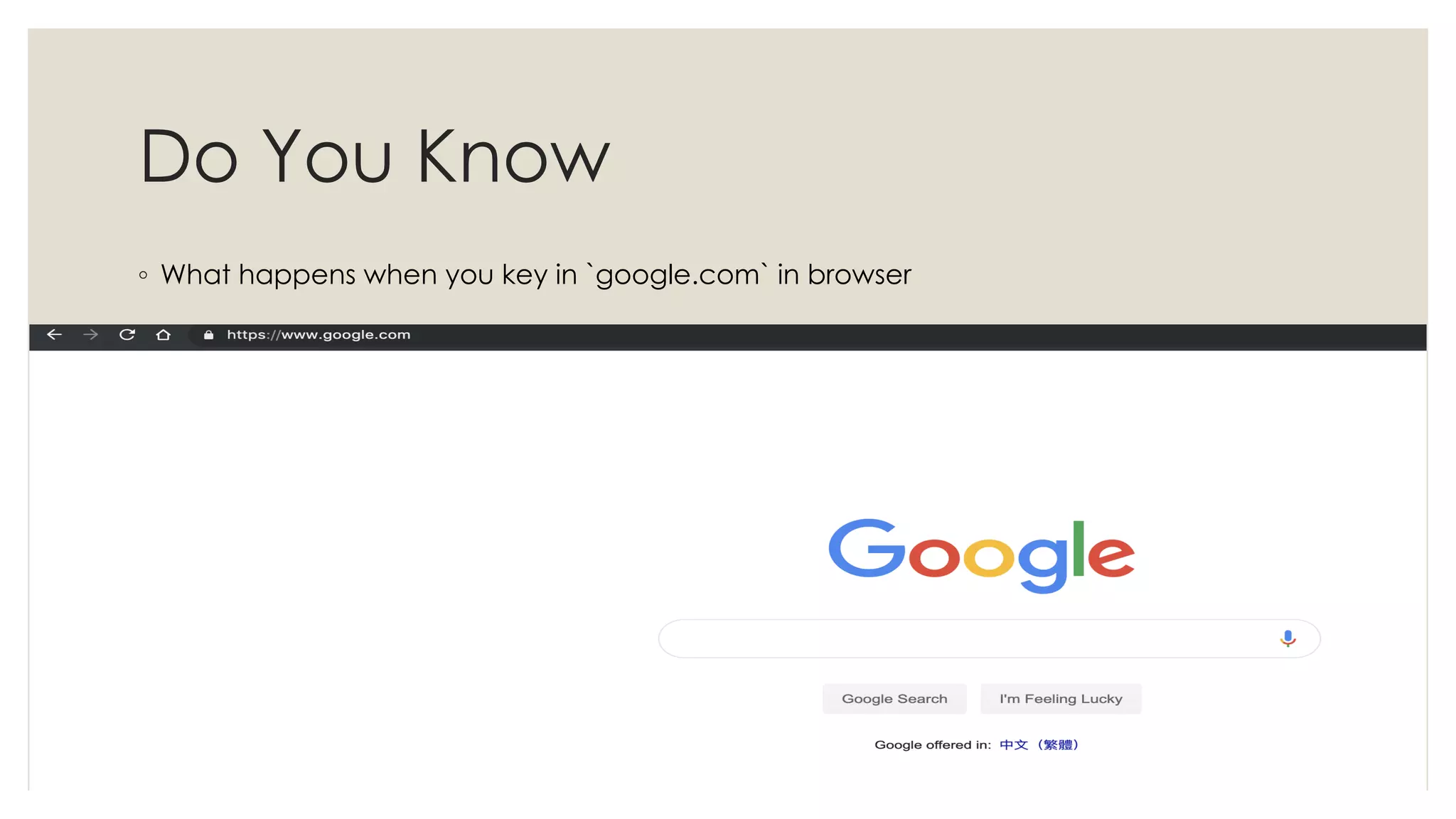

- 8. Do You Know ◦What happens when you key in `google.com` in browser

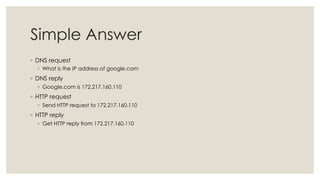

- 9. Simple Answer ◦ DNSrequest ◦ What is the IP address of google.com ◦ DNS reply ◦ Google.com is 172.217.160.110 ◦ HTTP request ◦ Send HTTP request to 172.217.160.110 ◦ HTTP reply ◦ Get HTTP reply from 172.217.160.110

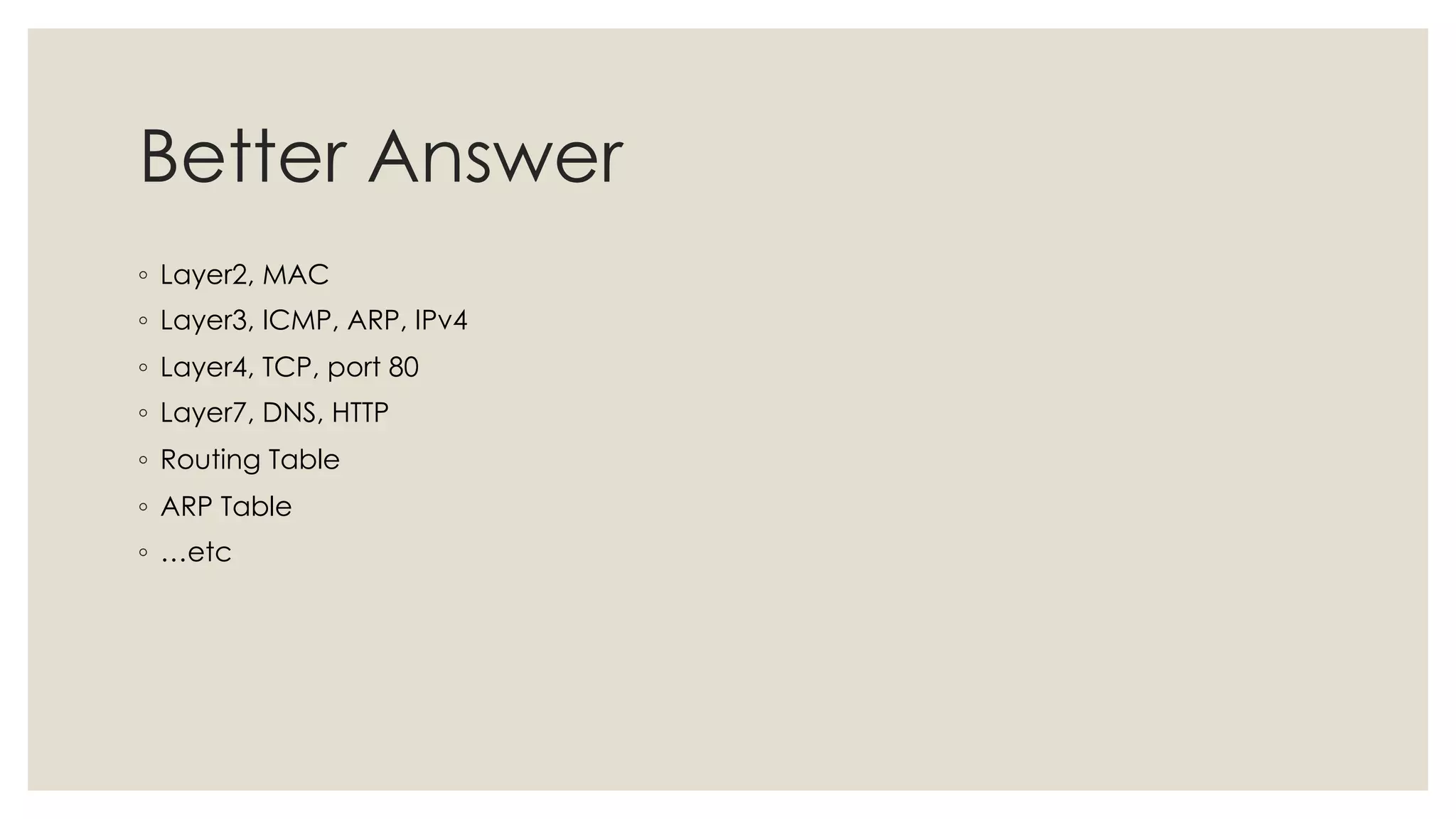

- 10. Better Answer ◦ Layer2,MAC ◦ Layer3, ICMP, ARP, IPv4 ◦ Layer4, TCP, port 80 ◦ Layer7, DNS, HTTP ◦ Routing Table ◦ ARP Table ◦ …etc

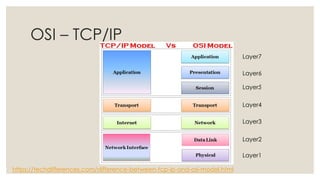

- 11.

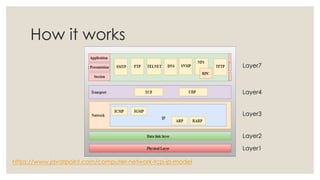

- 12.

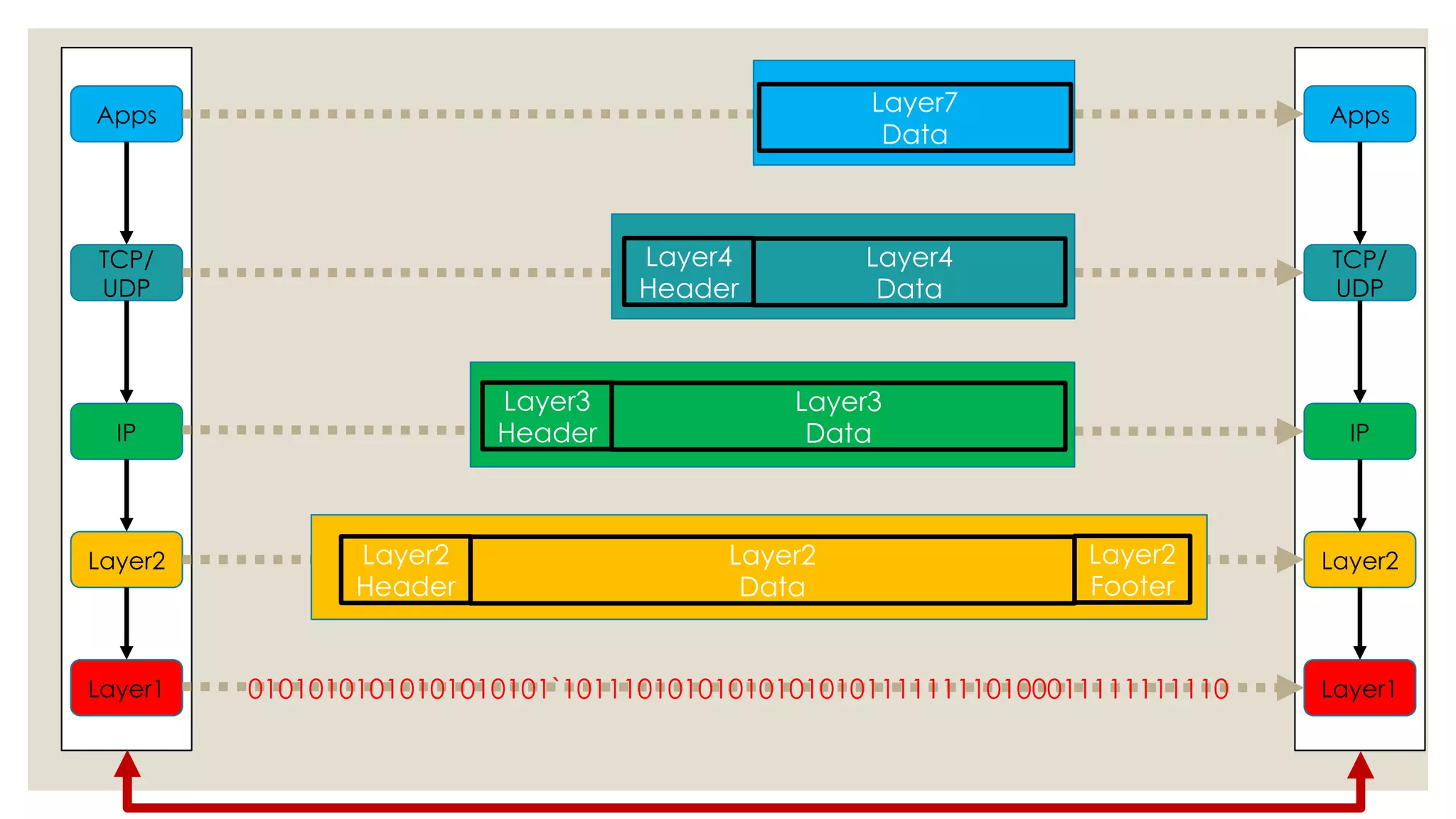

- 13.

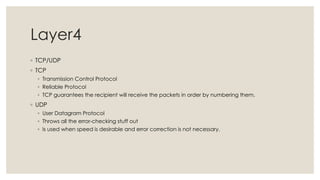

- 14. Layer4 ◦ TCP/UDP ◦ TCP ◦Transmission Control Protocol ◦ Reliable Protocol ◦ TCP guarantees the recipient will receive the packets in order by numbering them. ◦ UDP ◦ User Datagram Protocol ◦ Throws all the error-checking stuff out ◦ Is used when speed is desirable and error correction is not necessary.

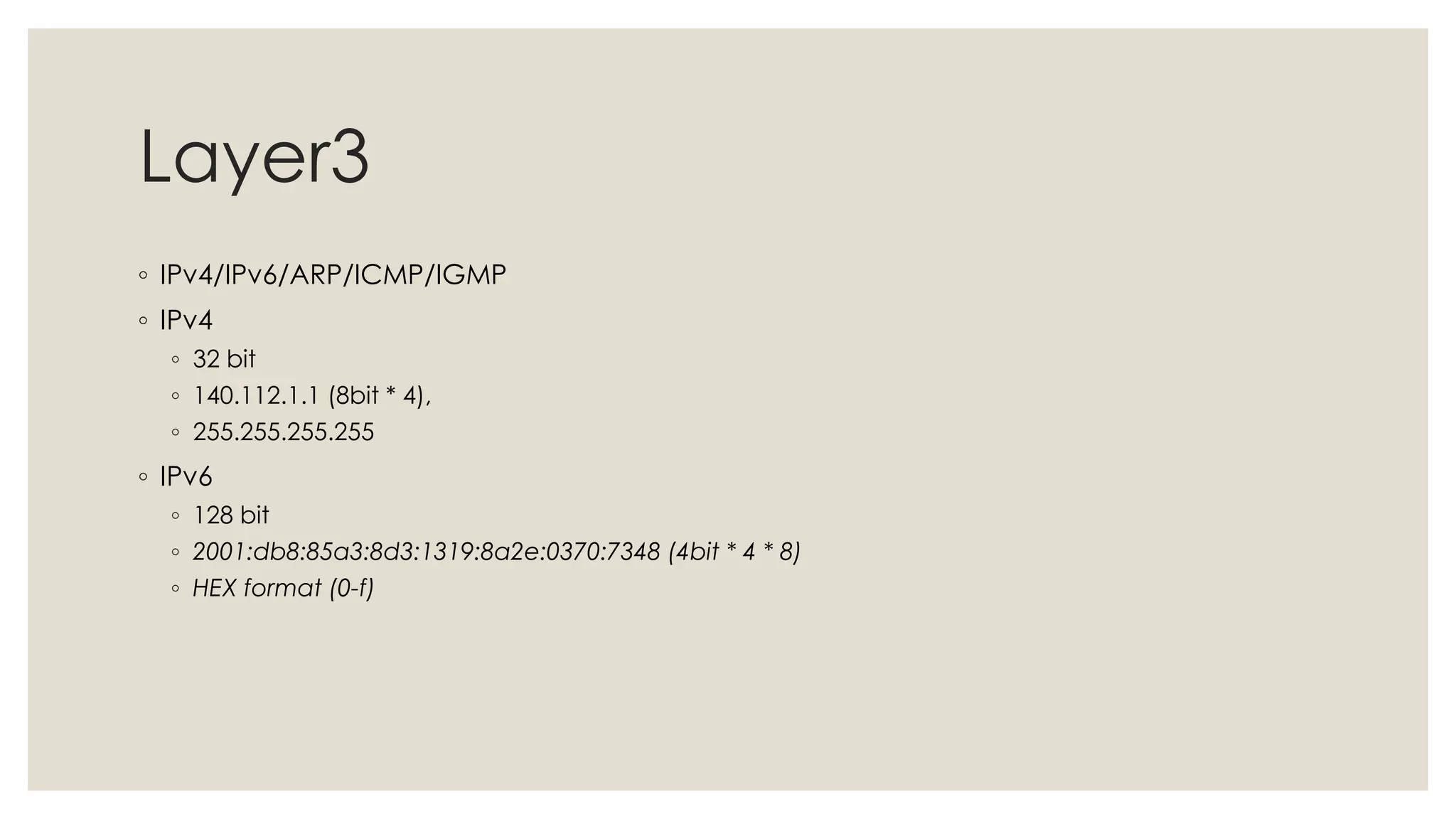

- 15. Layer3 ◦ IPv4/IPv6/ARP/ICMP/IGMP ◦ IPv4 ◦32 bit ◦ 140.112.1.1 (8bit * 4), ◦ 255.255.255.255 ◦ IPv6 ◦ 128 bit ◦ 2001:db8:85a3:8d3:1319:8a2e:0370:7348 (4bit * 4 * 8) ◦ HEX format (0-f)

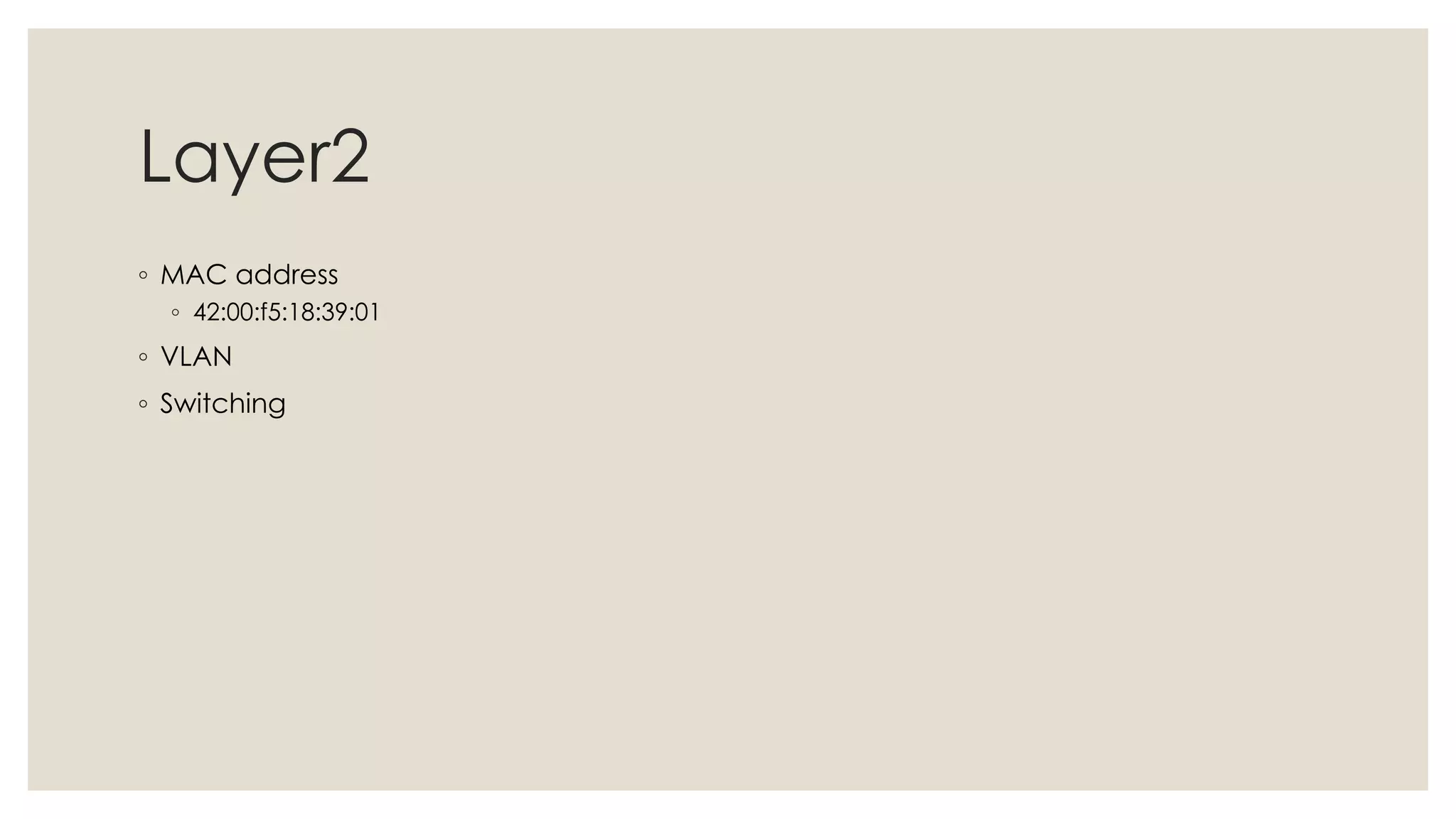

- 16. Layer2 ◦ MAC address ◦42:00:f5:18:39:01 ◦ VLAN ◦ Switching

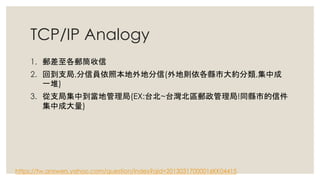

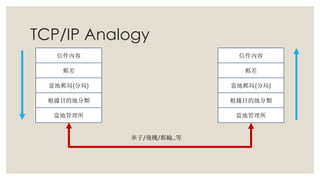

- 17. TCP/IP Analogy 1. 郵差至各郵筒收信 2.回到支局,分信員依照本地外地分信(外地則依各縣市大約分類,集中成 一堆) 3. 從支局集中到當地管理局(EX:台北~台灣北區郵政管理局!同縣市的信件 集中成大量) https://tw.answers.yahoo.com/question/index?qid=20130317000016KK04415

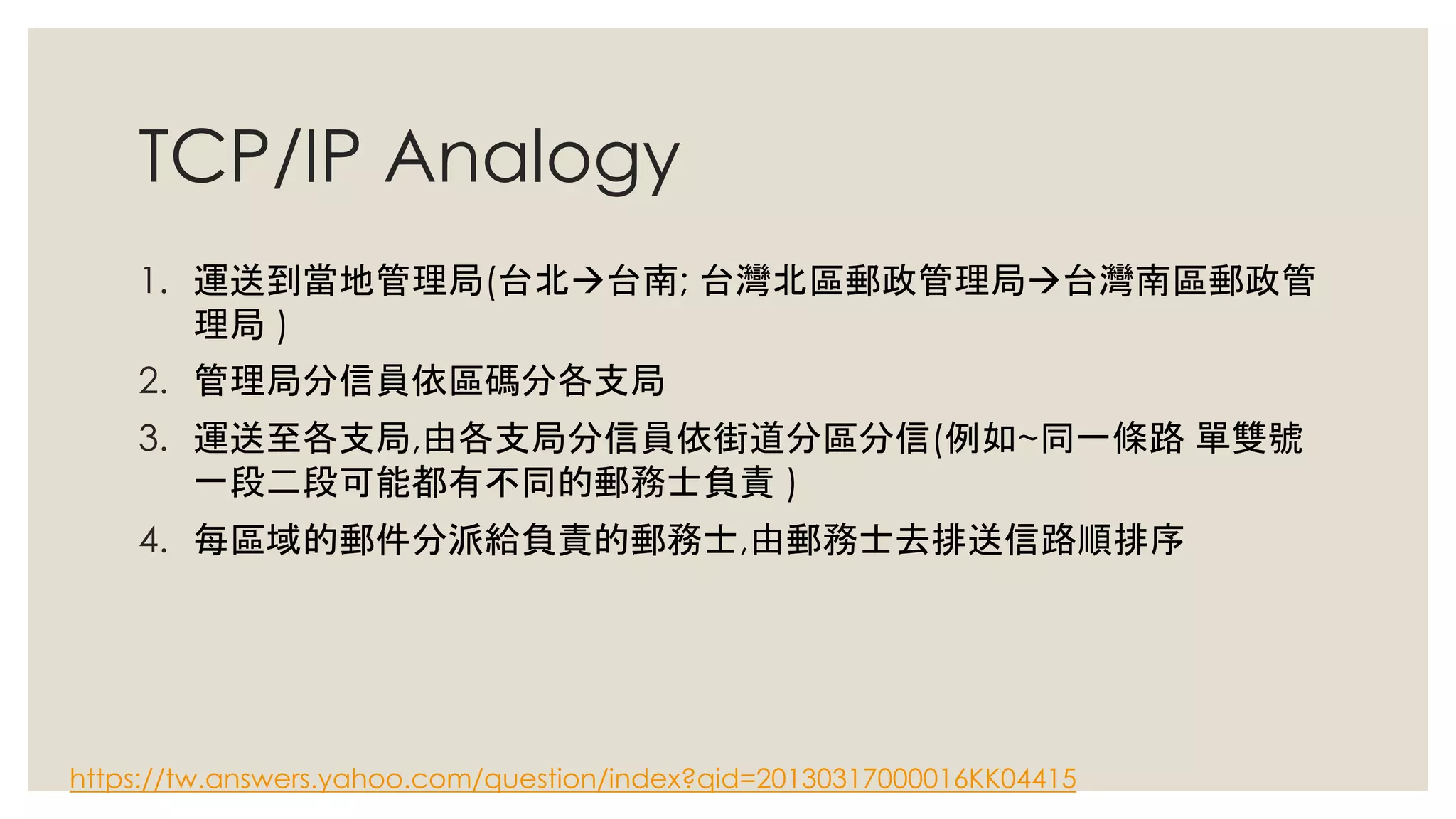

- 18. TCP/IP Analogy 1. 運送到當地管理局(台北à台南;台灣北區郵政管理局à台灣南區郵政管 理局 ) 2. 管理局分信員依區碼分各支局 3. 運送至各支局,由各支局分信員依街道分區分信(例如~同一條路 單雙號 一段二段可能都有不同的郵務士負責 ) 4. 每區域的郵件分派給負責的郵務士,由郵務士去排送信路順排序 https://tw.answers.yahoo.com/question/index?qid=20130317000016KK04415
- 19.
- 20.

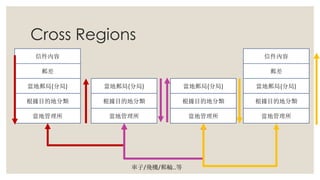

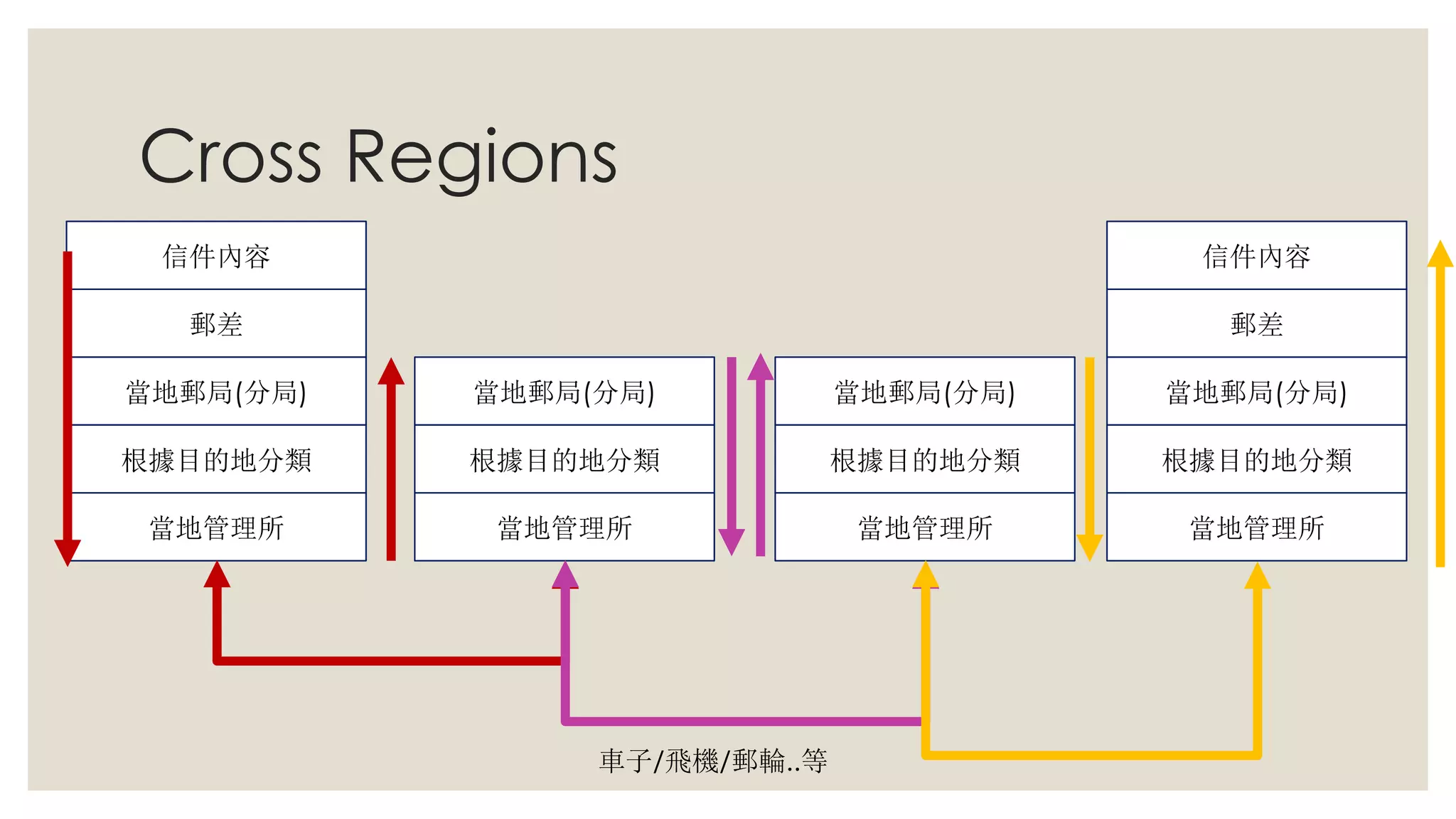

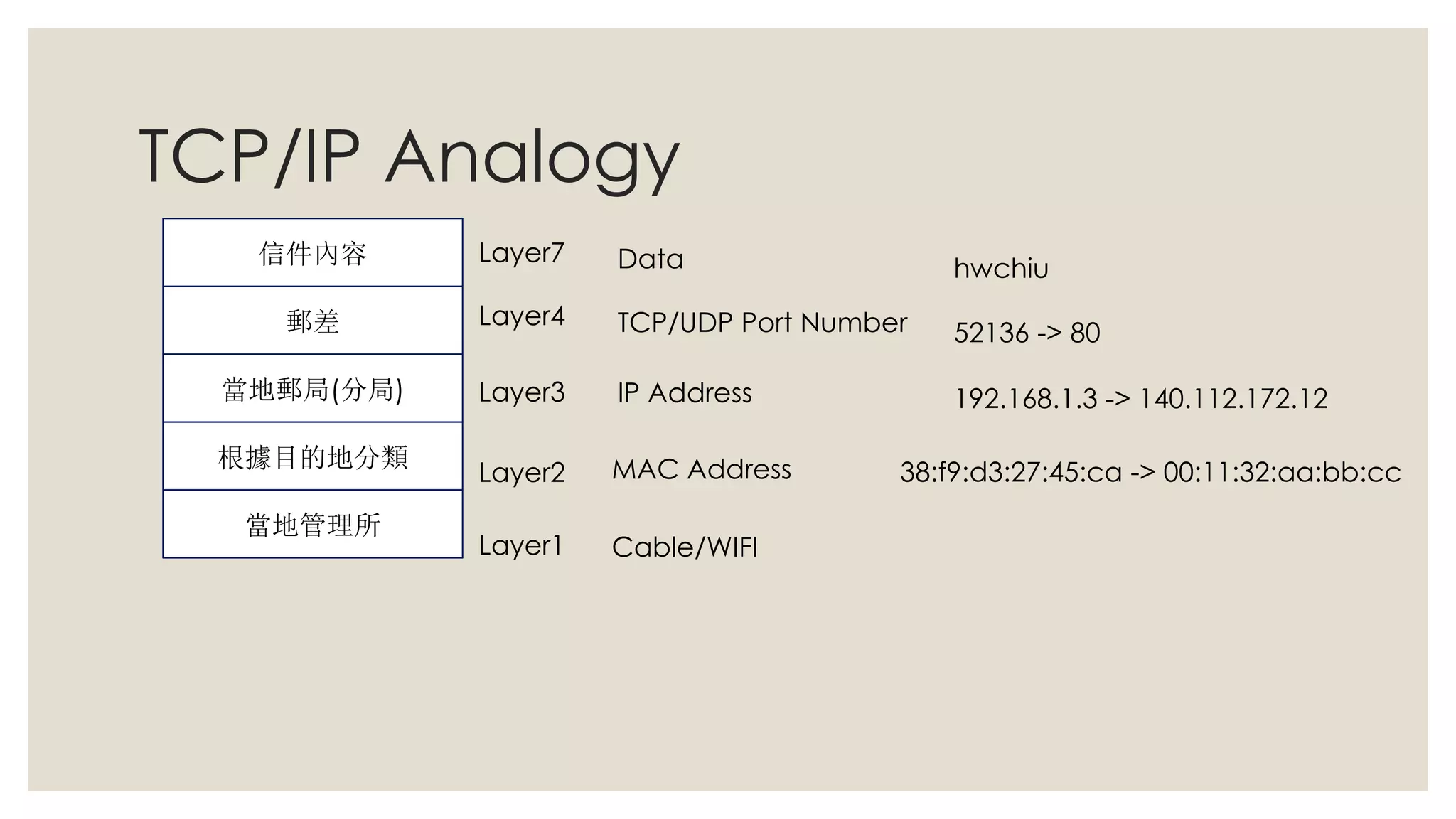

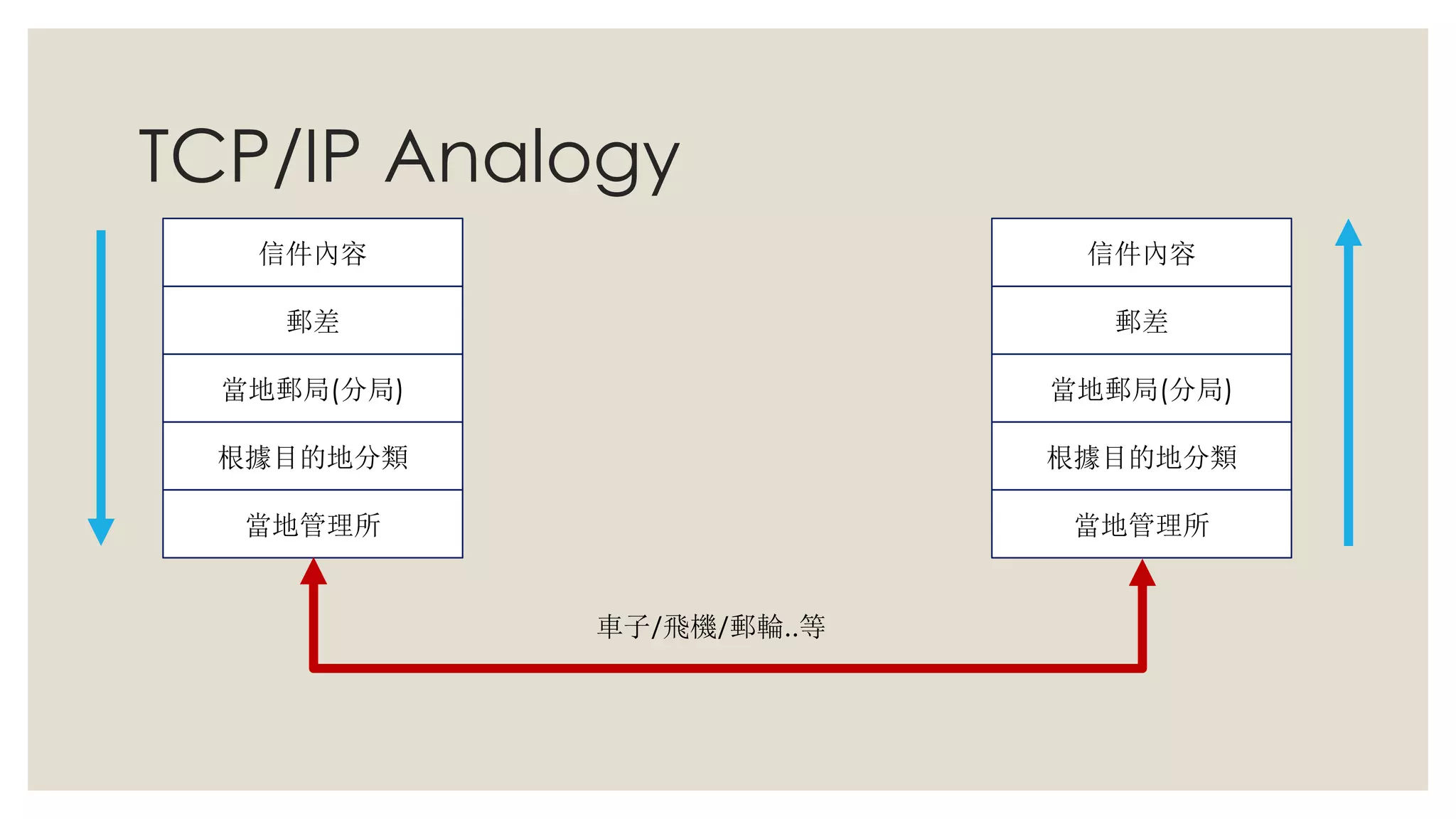

- 21. 郵差 當地郵局(分局) 根據目的地分類 信件內容 當地管理所 Cable/WIFI TCP/IP Analogy Layer1 Layer2 Layer3 Layer4 Layer7 MAC Address IPAddress TCP/UDP Port Number Data 38:f9:d3:27:45:ca -> 00:11:32:aa:bb:cc 192.168.1.3 -> 140.112.172.12 hwchiu 52136 -> 80

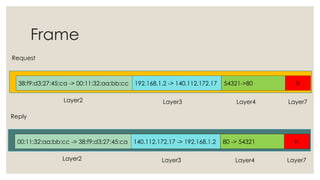

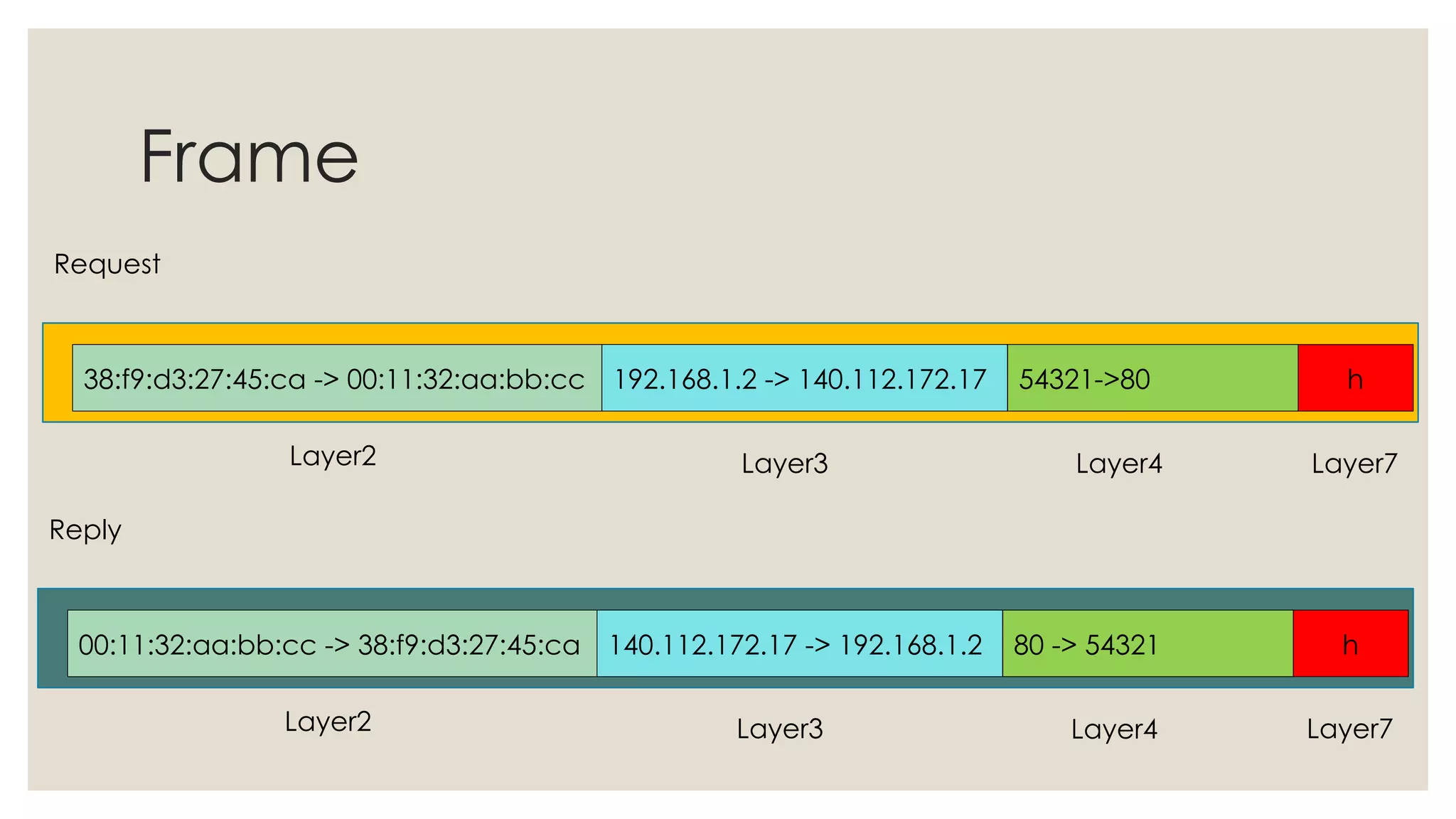

- 22. Frame 38:f9:d3:27:45:ca -> 00:11:32:aa:bb:cch192.168.1.2 -> 140.112.172.17 54321->80 Layer2 Layer3 Layer4 Layer7 Request 00:11:32:aa:bb:cc -> 38:f9:d3:27:45:ca h140.112.172.17 -> 192.168.1.2 80 -> 54321 Layer2 Layer3 Layer4 Layer7 Reply

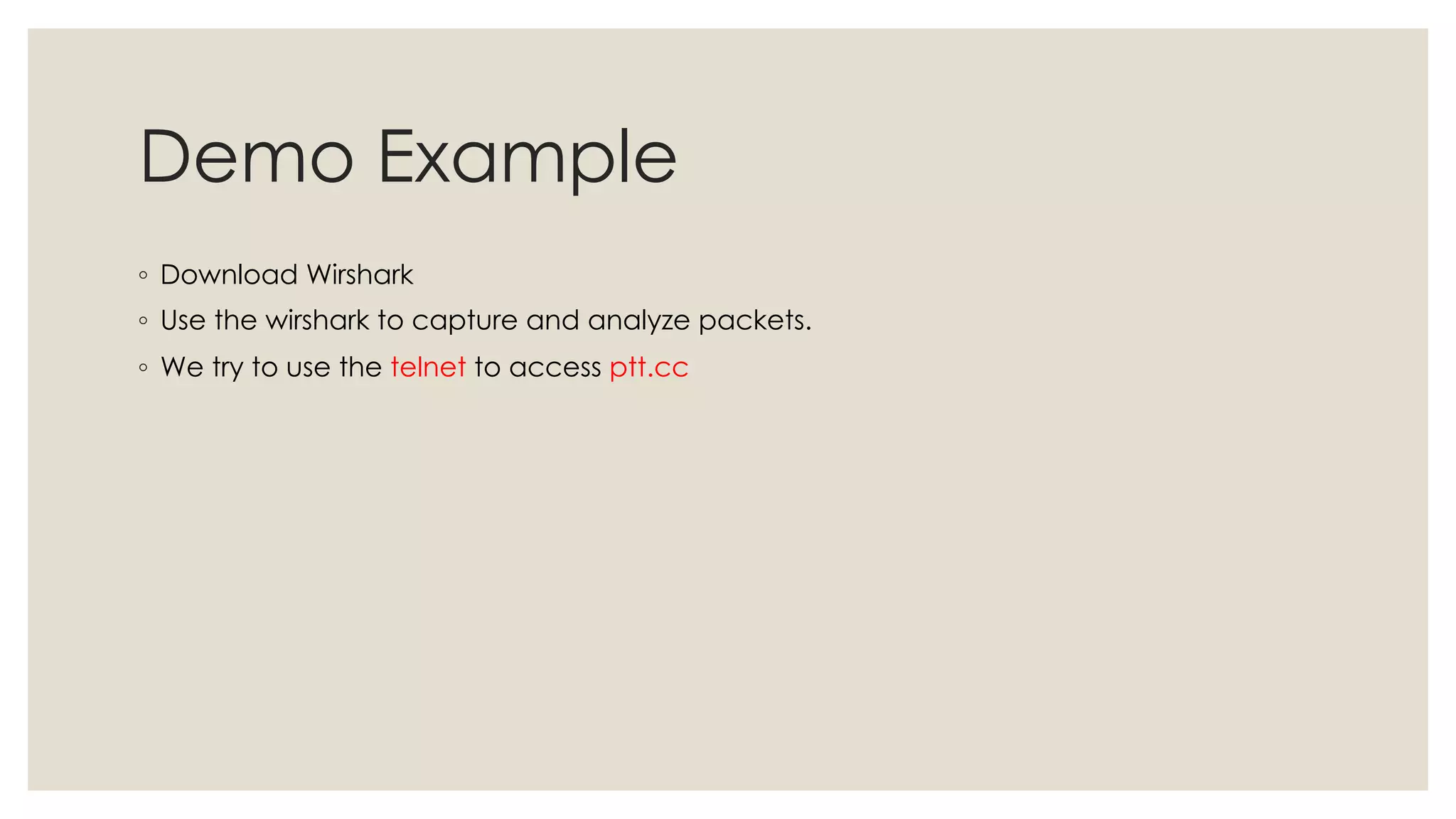

- 23. Demo Example ◦ DownloadWirshark ◦ Use the wirshark to capture and analyze packets. ◦ We try to use the telnet to access ptt.cc

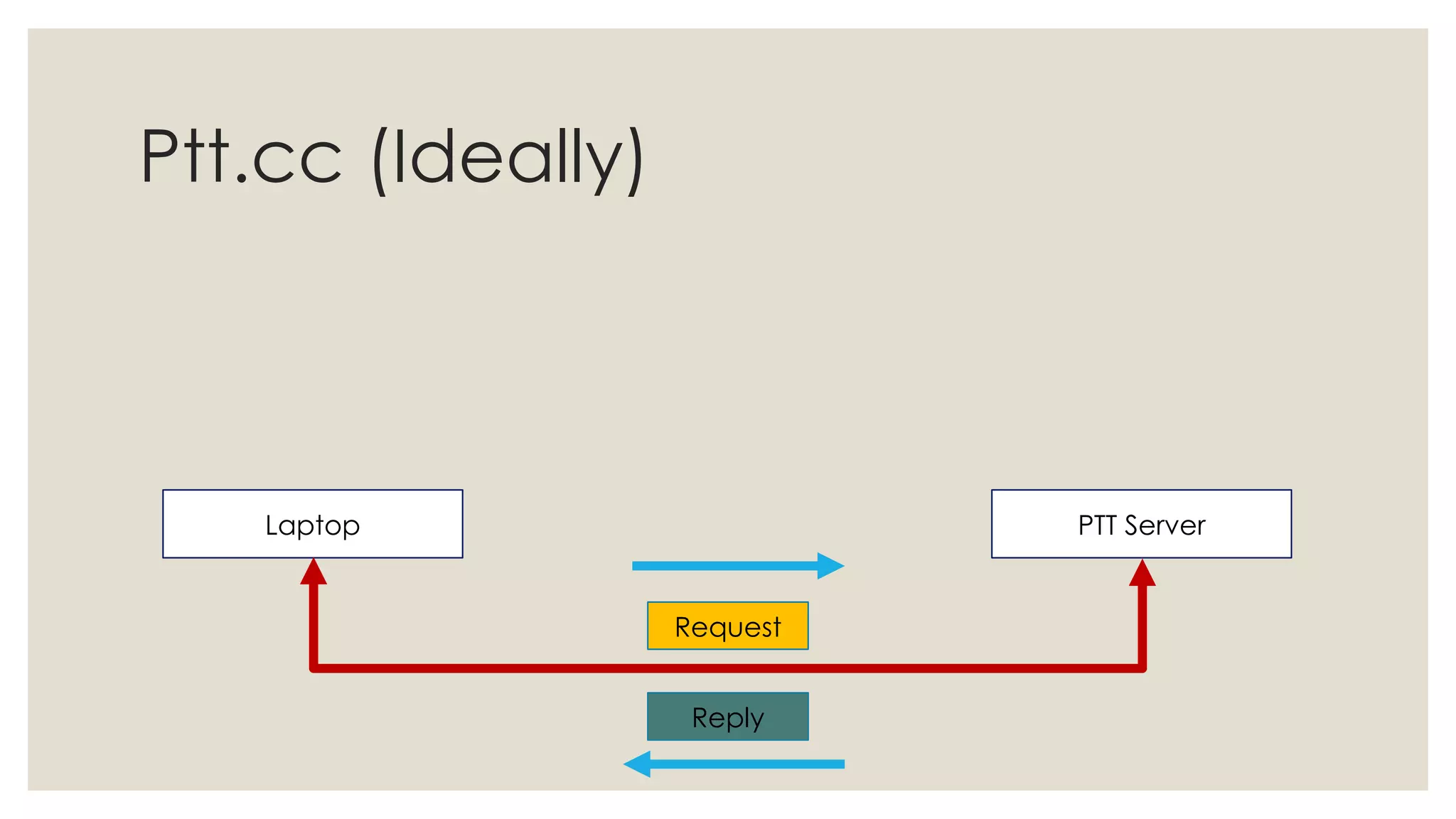

- 24. Laptop PTT Server Ptt.cc(Ideally) Request Reply

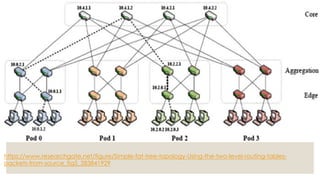

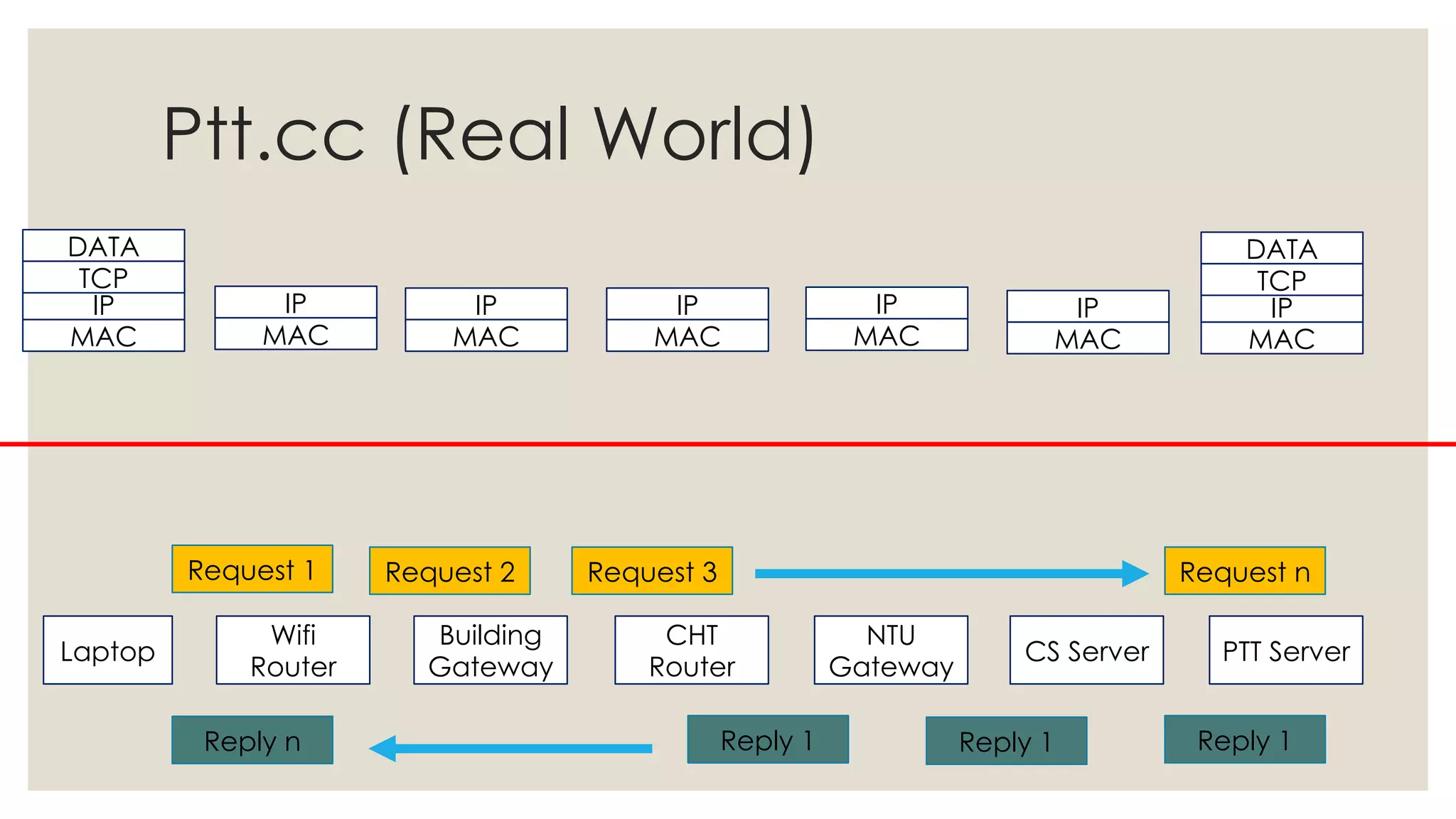

- 25. Laptop Wifi Router Ptt.cc (Real World) Request1 Reply 1 Building Gateway CHT Router NTU Gateway CS Server PTT Server Request 2 Request 3 Request n Reply 1Reply 1Reply n IP MAC IP MAC IP MAC IP MAC IP MAC IP MAC DATA TCP IP MAC DATA TCP
- 26.

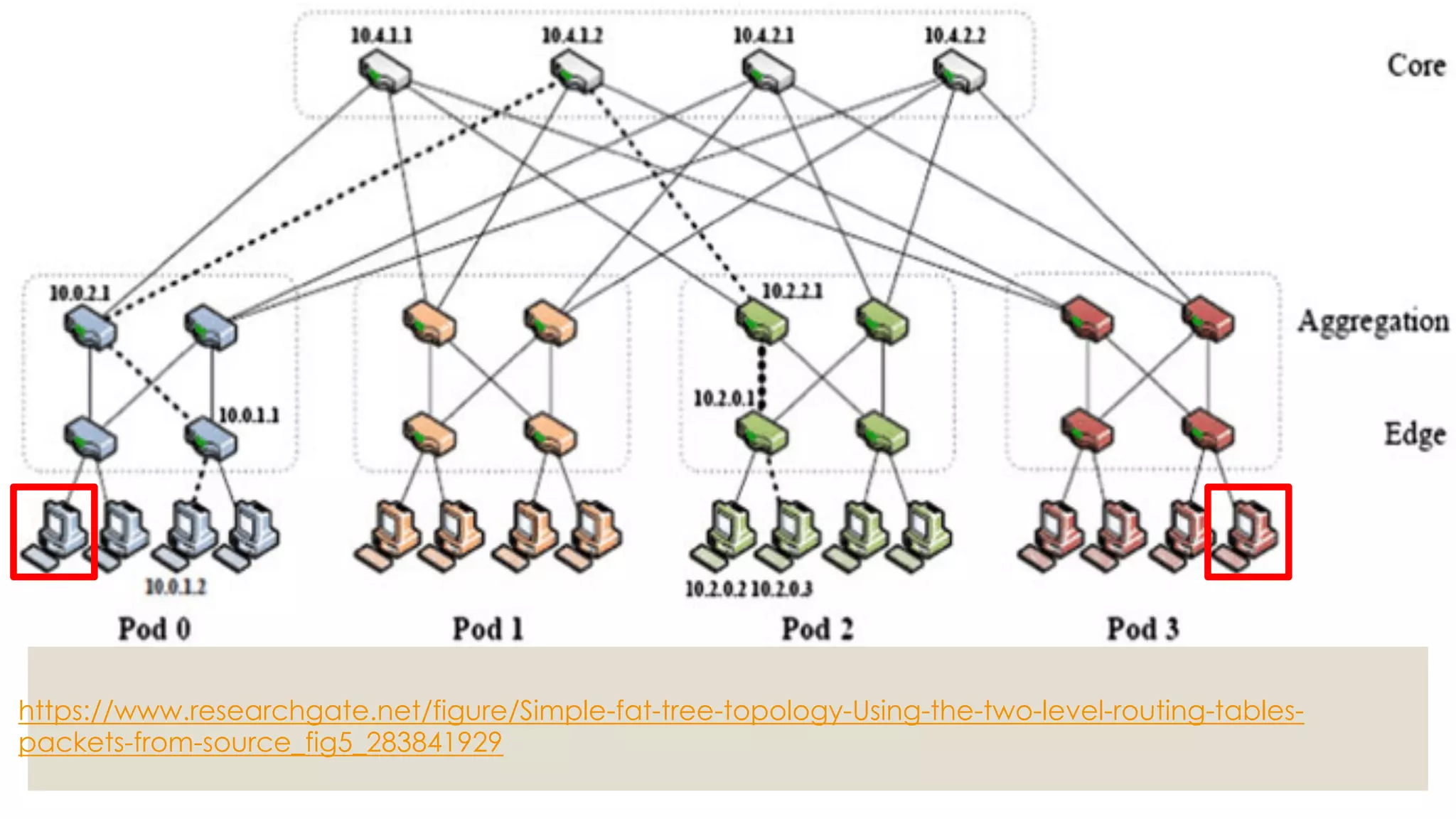

- 27.

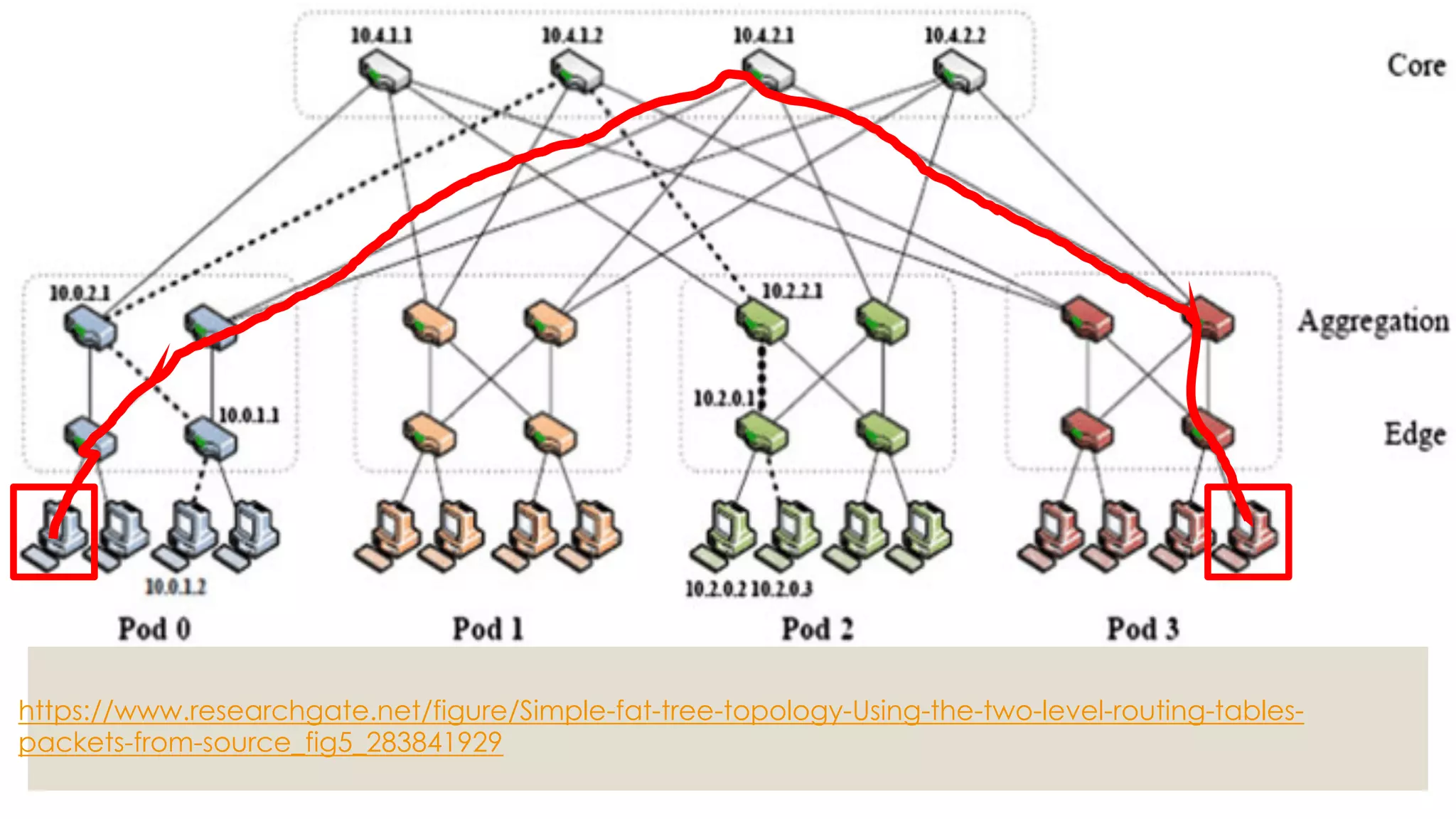

- 28.
- 29.

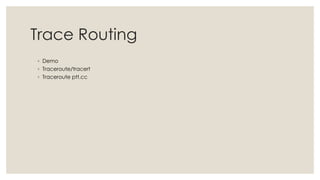

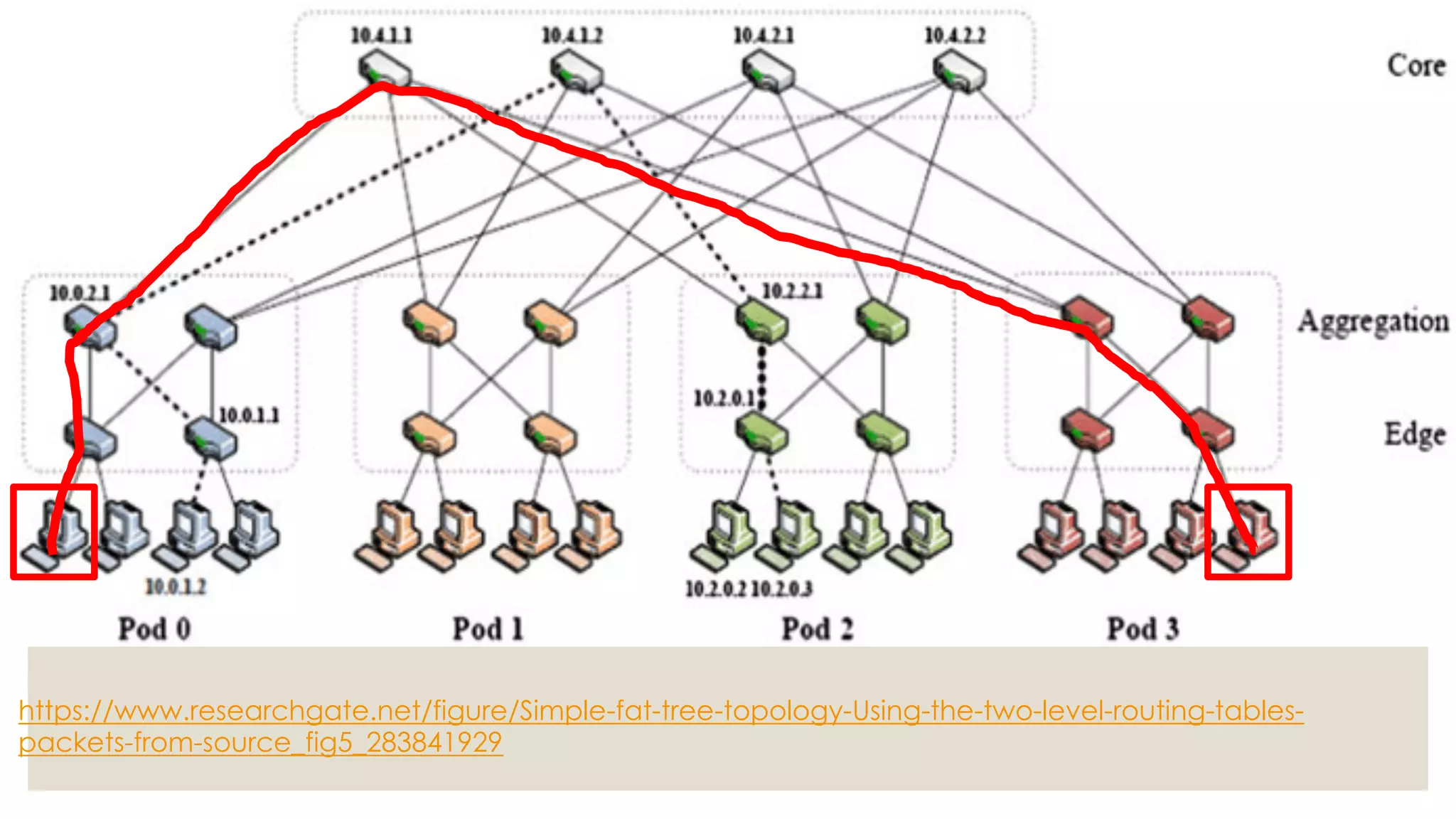

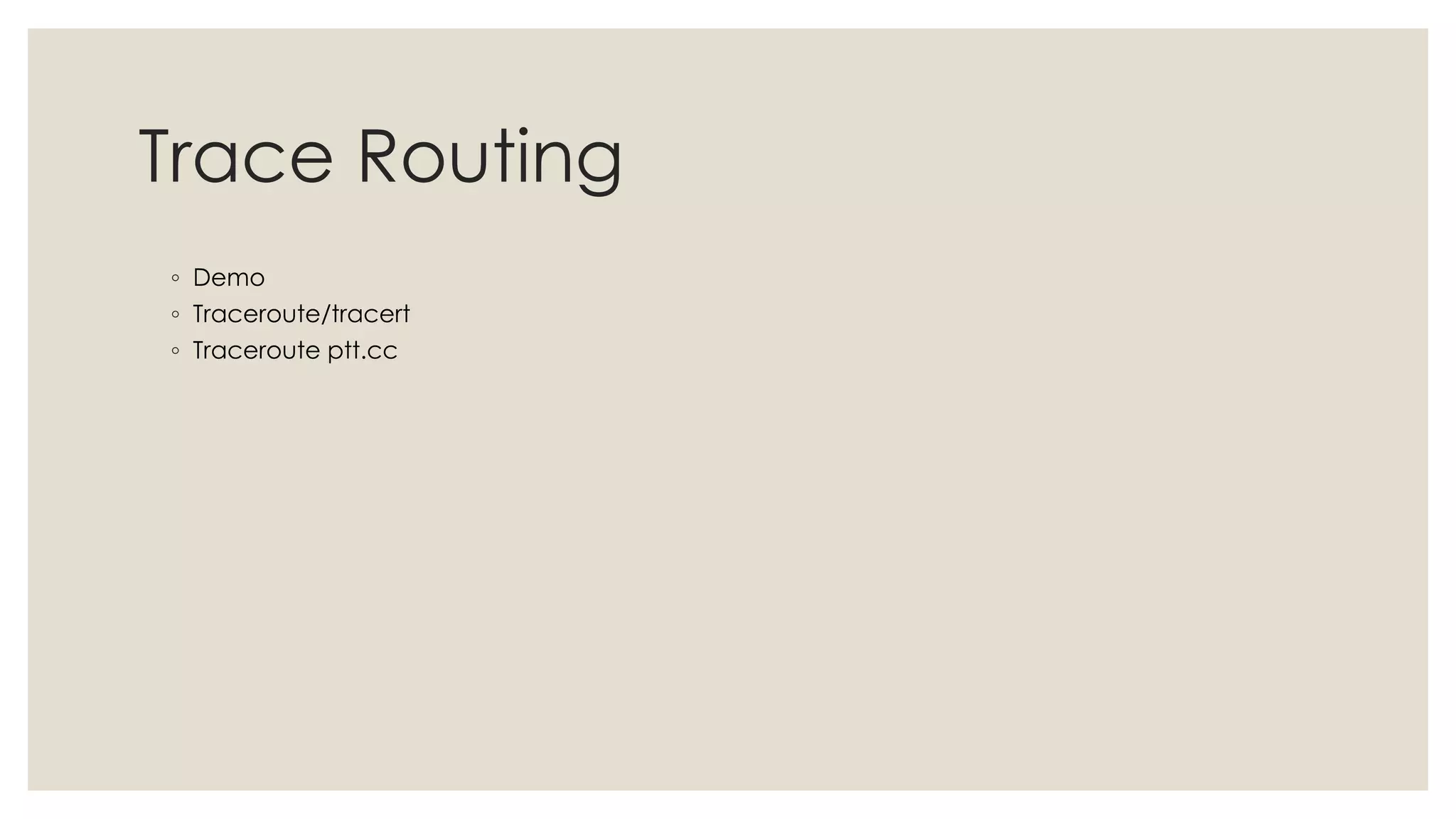

- 30. Trace Routing ◦ Demo ◦Traceroute/tracert ◦ Traceroute ptt.cc

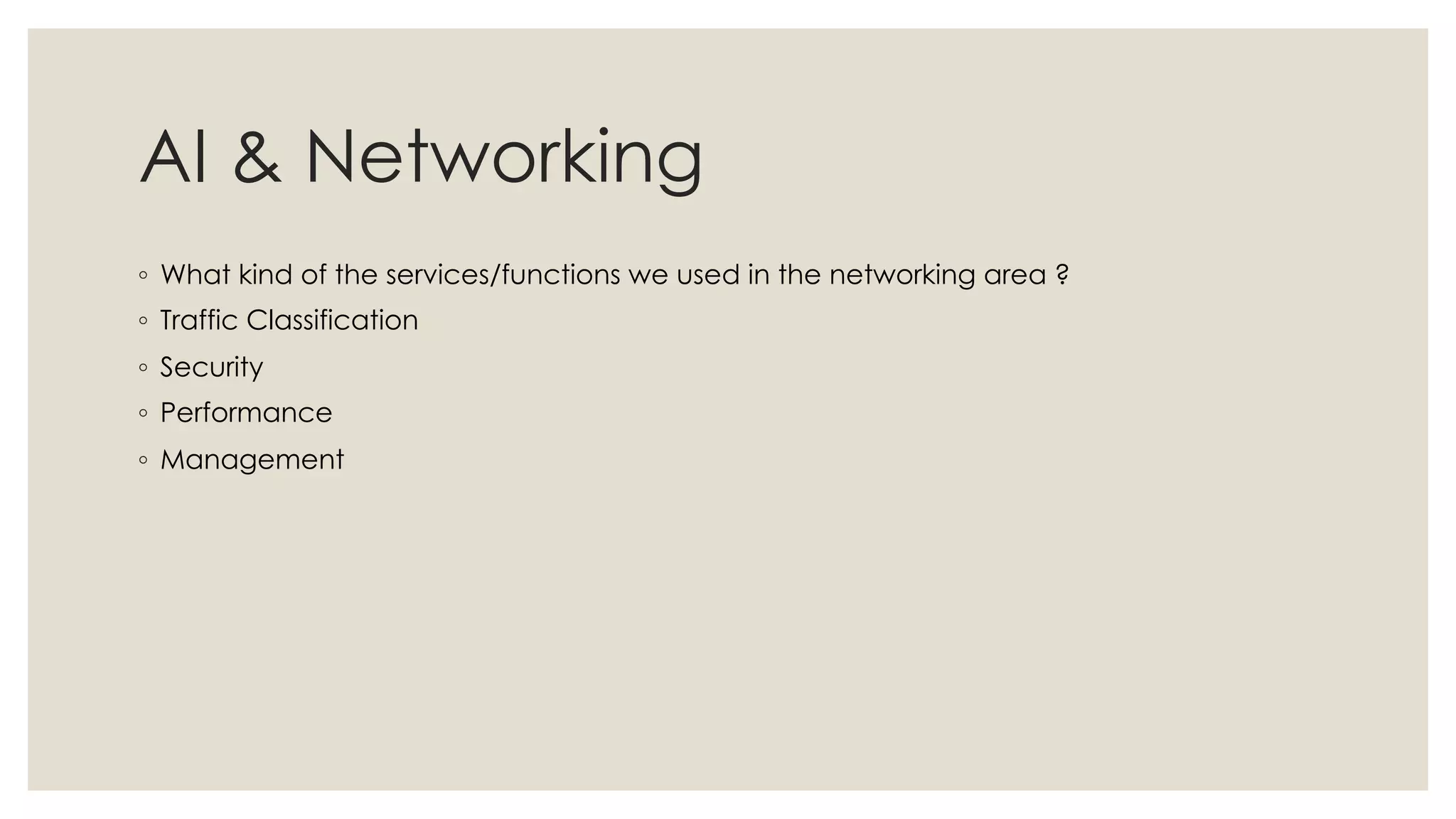

- 31. AI & Networking ◦What kind of the services/functions we used in the networking area ? ◦ Traffic Classification ◦ Security ◦ Performance ◦ Management

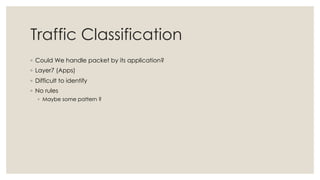

- 32. Traffic Classification ◦ CouldWe handle packet by its application? ◦ Layer7 (Apps) ◦ Difficult to identify ◦ No rules ◦ Maybe some pattern ?

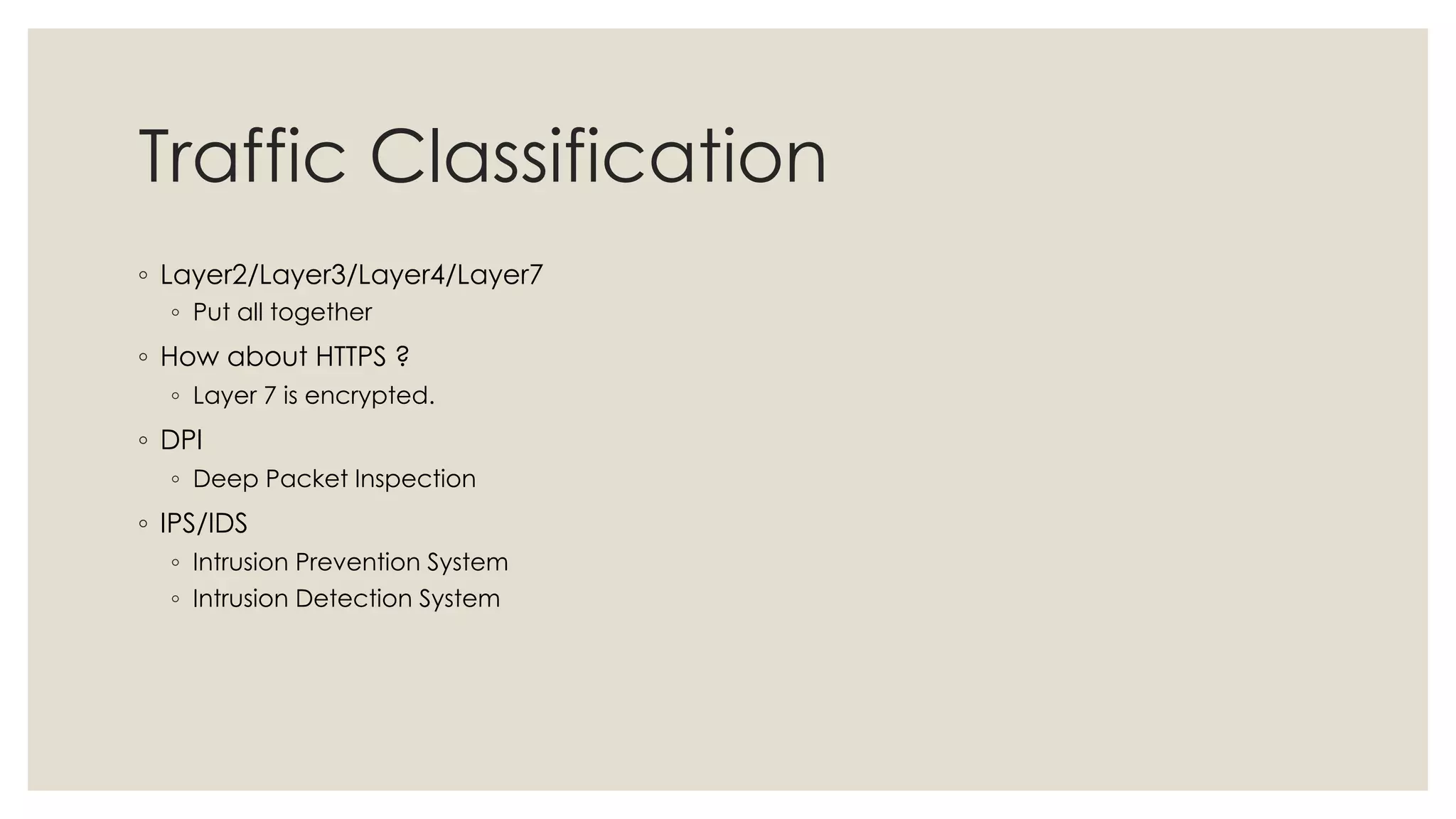

- 33. Traffic Classification ◦ Layer2/Layer3/Layer4/Layer7 ◦Put all together ◦ How about HTTPS ? ◦ Layer 7 is encrypted. ◦ DPI ◦ Deep Packet Inspection ◦ IPS/IDS ◦ Intrusion Prevention System ◦ Intrusion Detection System

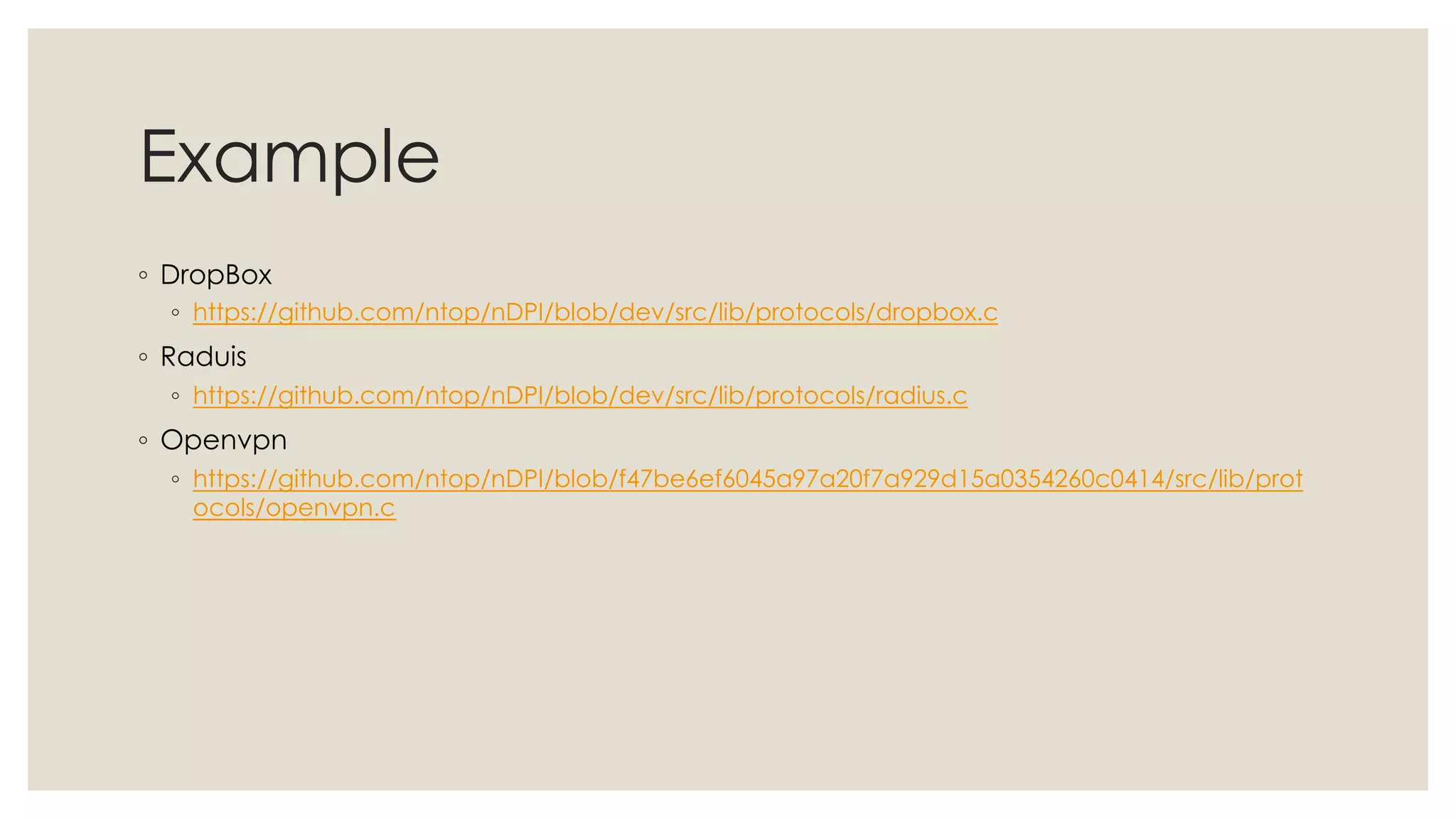

- 34. Example ◦ DropBox ◦ https://github.com/ntop/nDPI/blob/dev/src/lib/protocols/dropbox.c ◦Raduis ◦ https://github.com/ntop/nDPI/blob/dev/src/lib/protocols/radius.c ◦ Openvpn ◦ https://github.com/ntop/nDPI/blob/f47be6ef6045a97a20f7a929d15a0354260c0414/src/lib/prot ocols/openvpn.c

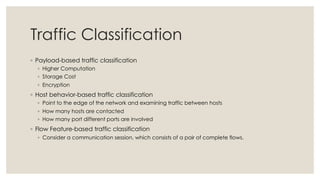

- 35. Traffic Classification ◦ Payload-basedtraffic classification ◦ Higher Computation ◦ Storage Cost ◦ Encryption ◦ Host behavior-based traffic classification ◦ Point to the edge of the network and examining traffic between hosts ◦ How many hosts are contacted ◦ How many port different ports are involved ◦ Flow Feature-based traffic classification ◦ Consider a communication session, which consists of a pair of complete flows.

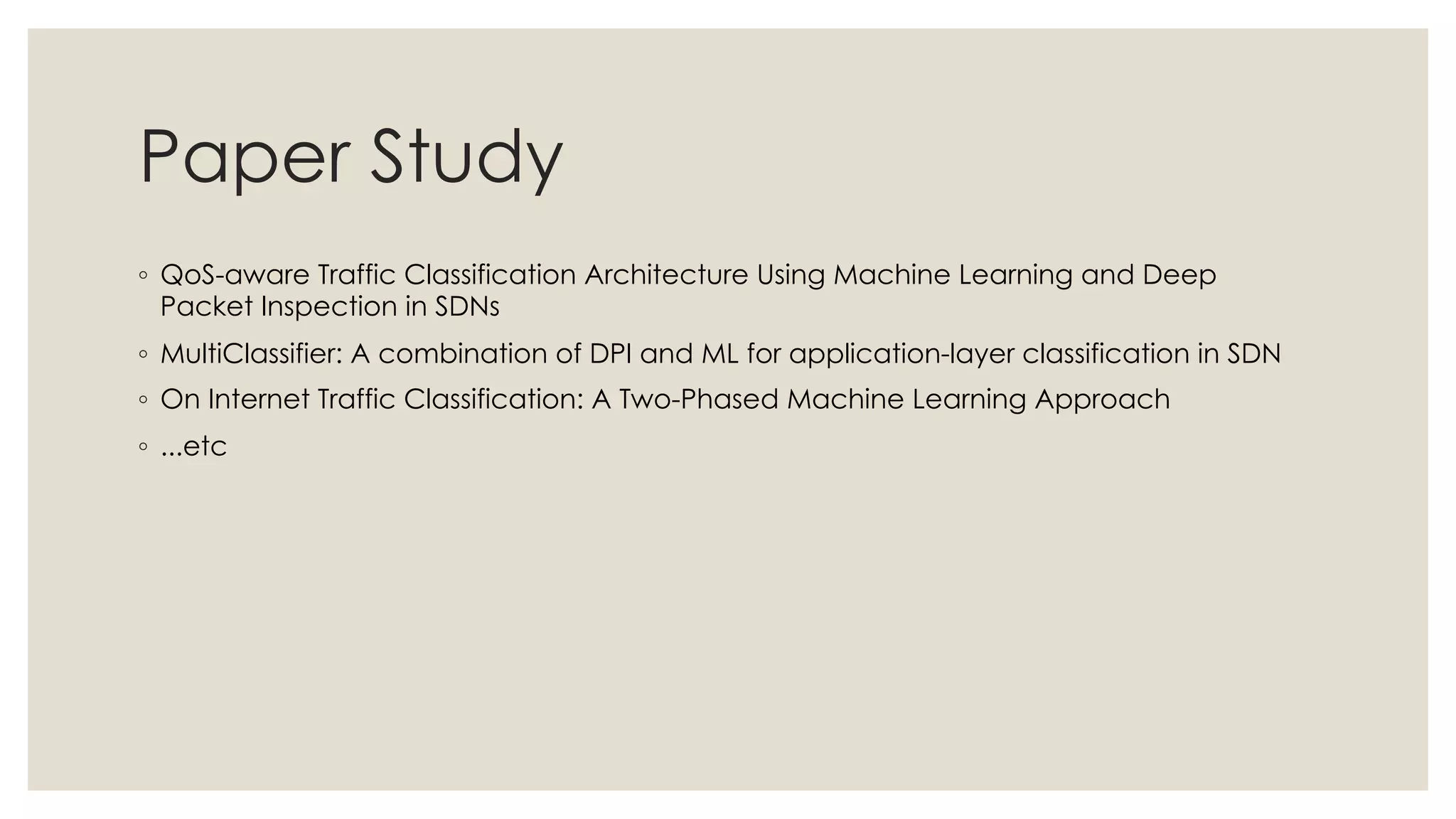

- 36. Paper Study ◦ QoS-awareTraffic Classification Architecture Using Machine Learning and Deep Packet Inspection in SDNs ◦ MultiClassifier: A combination of DPI and ML for application-layer classification in SDN ◦ On Internet Traffic Classification: A Two-Phased Machine Learning Approach ◦ ...etc

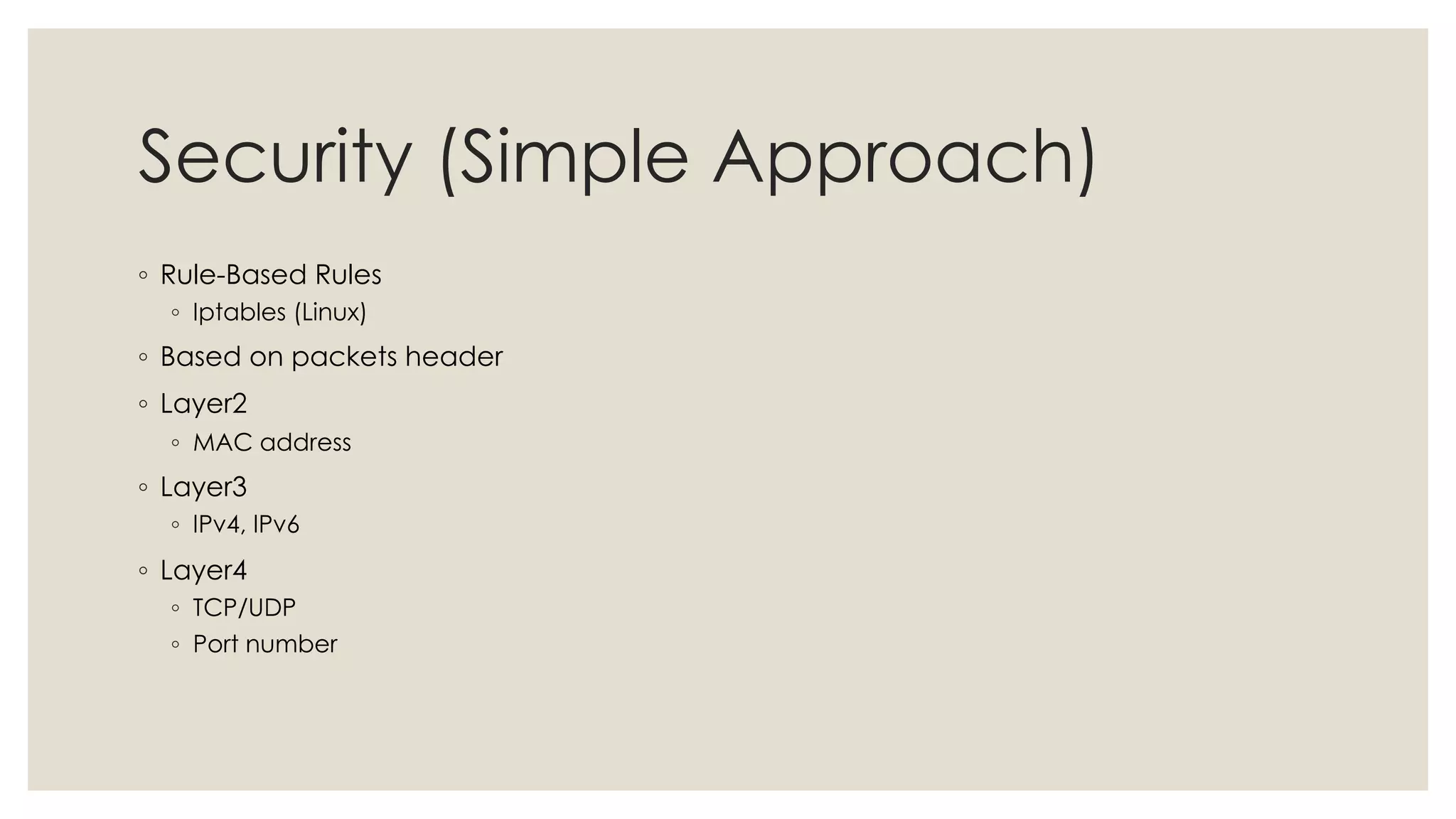

- 38. Security (Simple Approach) ◦Rule-Based Rules ◦ Iptables (Linux) ◦ Based on packets header ◦ Layer2 ◦ MAC address ◦ Layer3 ◦ IPv4, IPv6 ◦ Layer4 ◦ TCP/UDP ◦ Port number

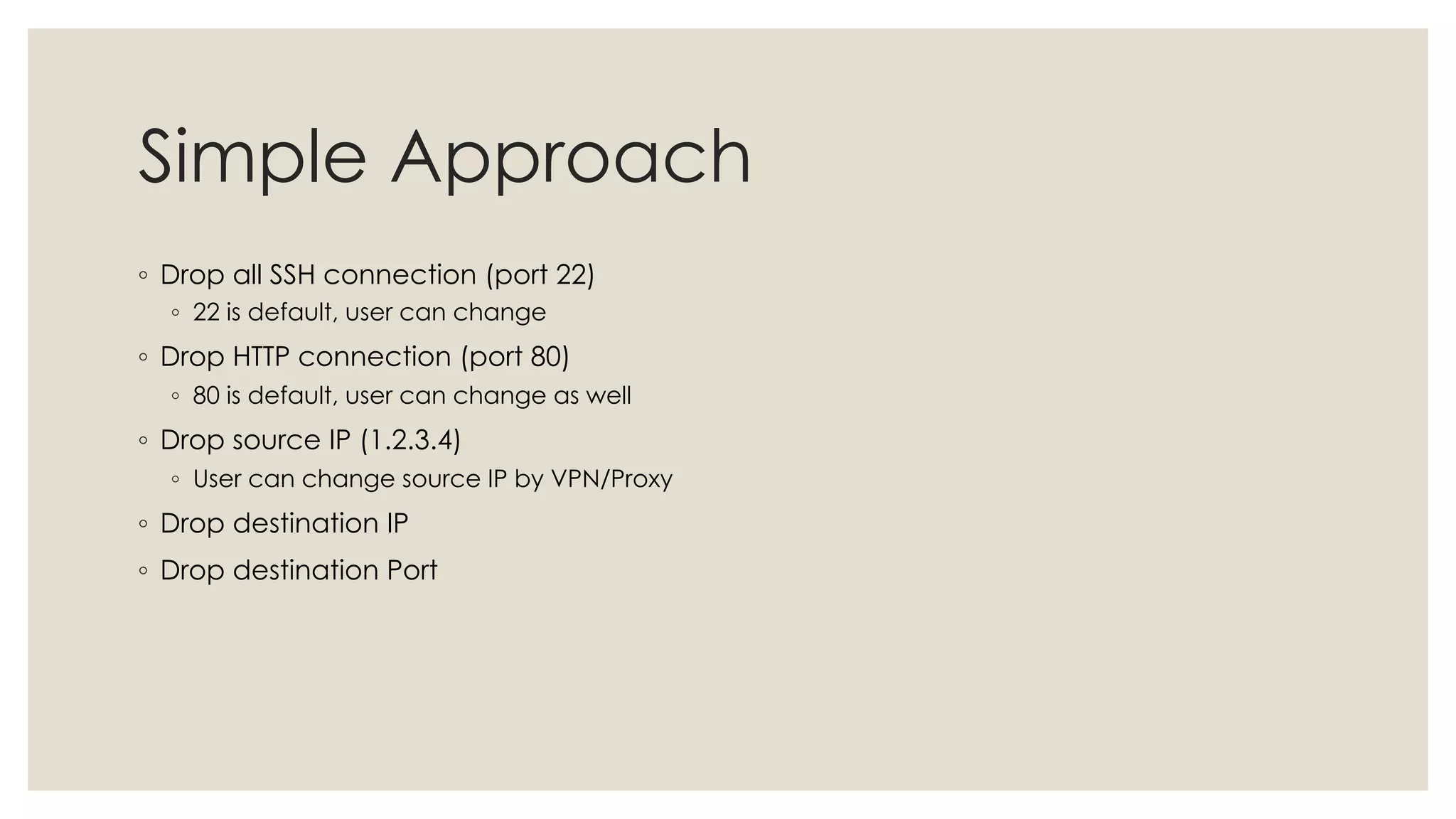

- 39. Simple Approach ◦ Dropall SSH connection (port 22) ◦ 22 is default, user can change ◦ Drop HTTP connection (port 80) ◦ 80 is default, user can change as well ◦ Drop source IP (1.2.3.4) ◦ User can change source IP by VPN/Proxy ◦ Drop destination IP ◦ Drop destination Port

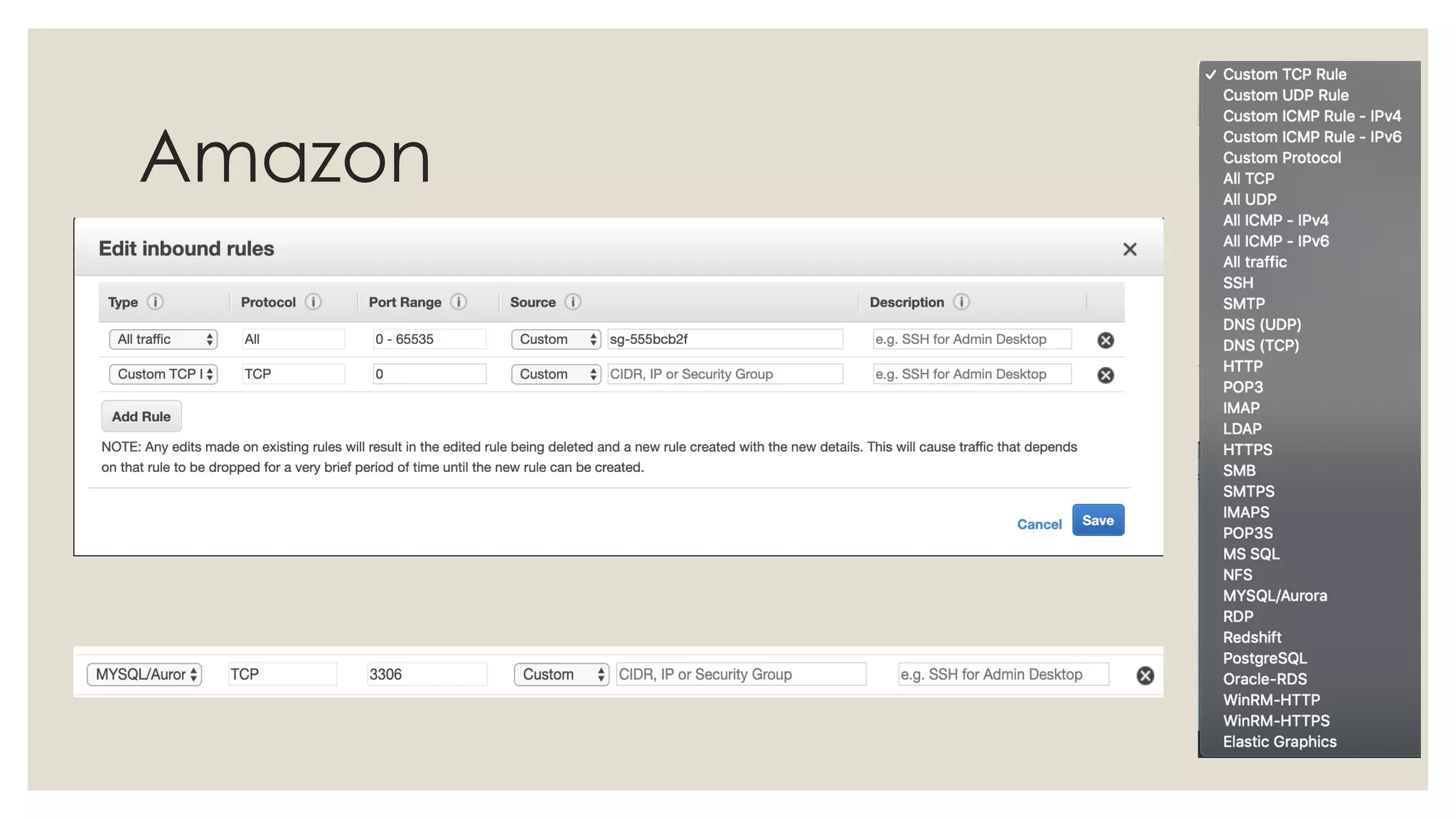

- 40.

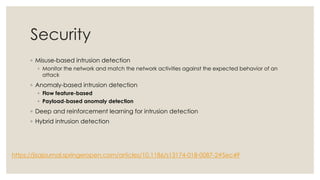

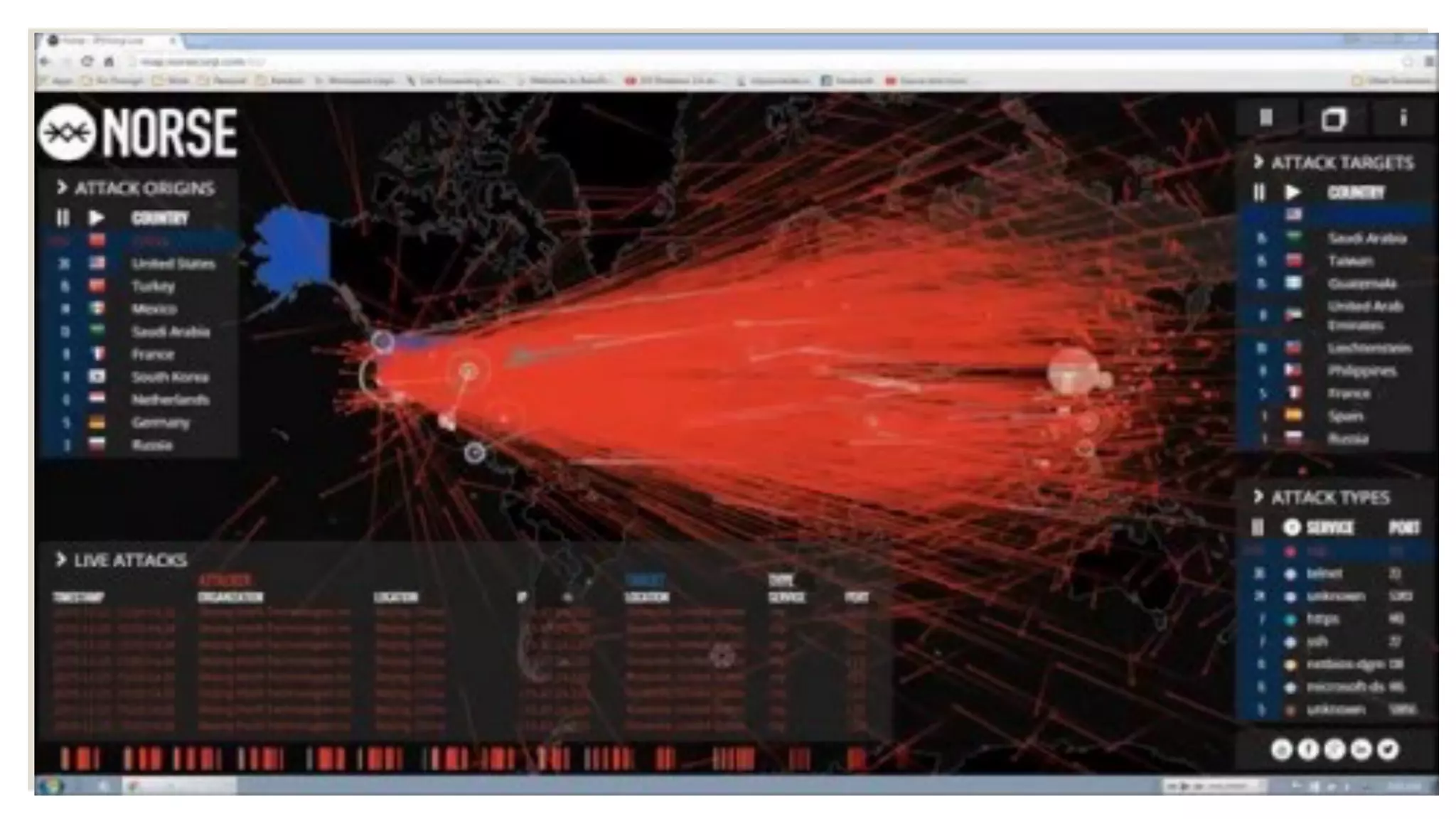

- 41. Security ◦ Misuse-based intrusiondetection ◦ Monitor the network and match the network activities against the expected behavior of an attack ◦ Anomaly-based intrusion detection ◦ Flow feature-based ◦ Payload-based anomaly detection ◦ Deep and reinforcement learning for intrusion detection ◦ Hybrid intrusion detection https://jisajournal.springeropen.com/articles/10.1186/s13174-018-0087-2#Sec49

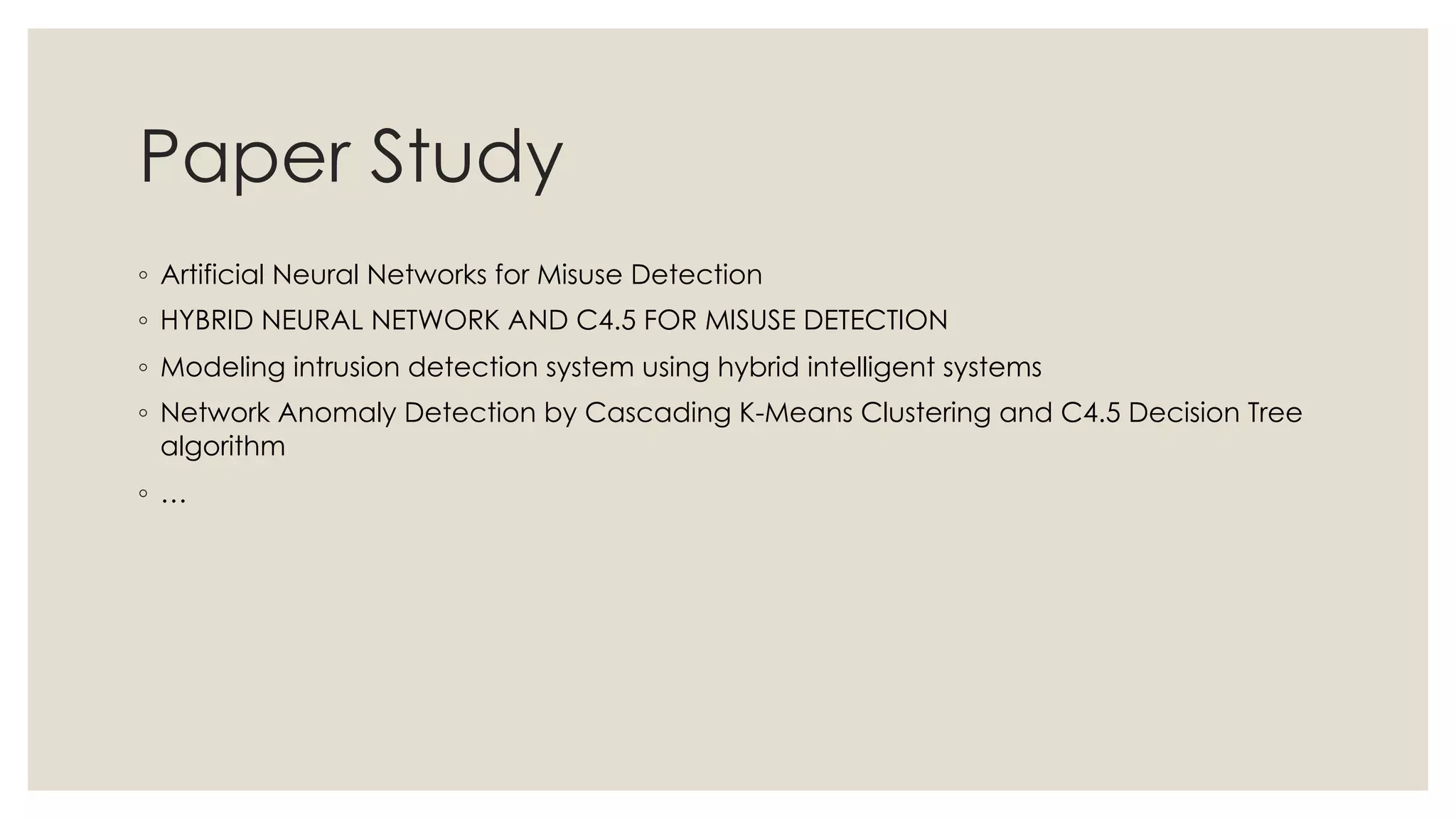

- 42. Paper Study ◦ ArtificialNeural Networks for Misuse Detection ◦ HYBRID NEURAL NETWORK AND C4.5 FOR MISUSE DETECTION ◦ Modeling intrusion detection system using hybrid intelligent systems ◦ Network Anomaly Detection by Cascading K-Means Clustering and C4.5 Decision Tree algorithm ◦ …

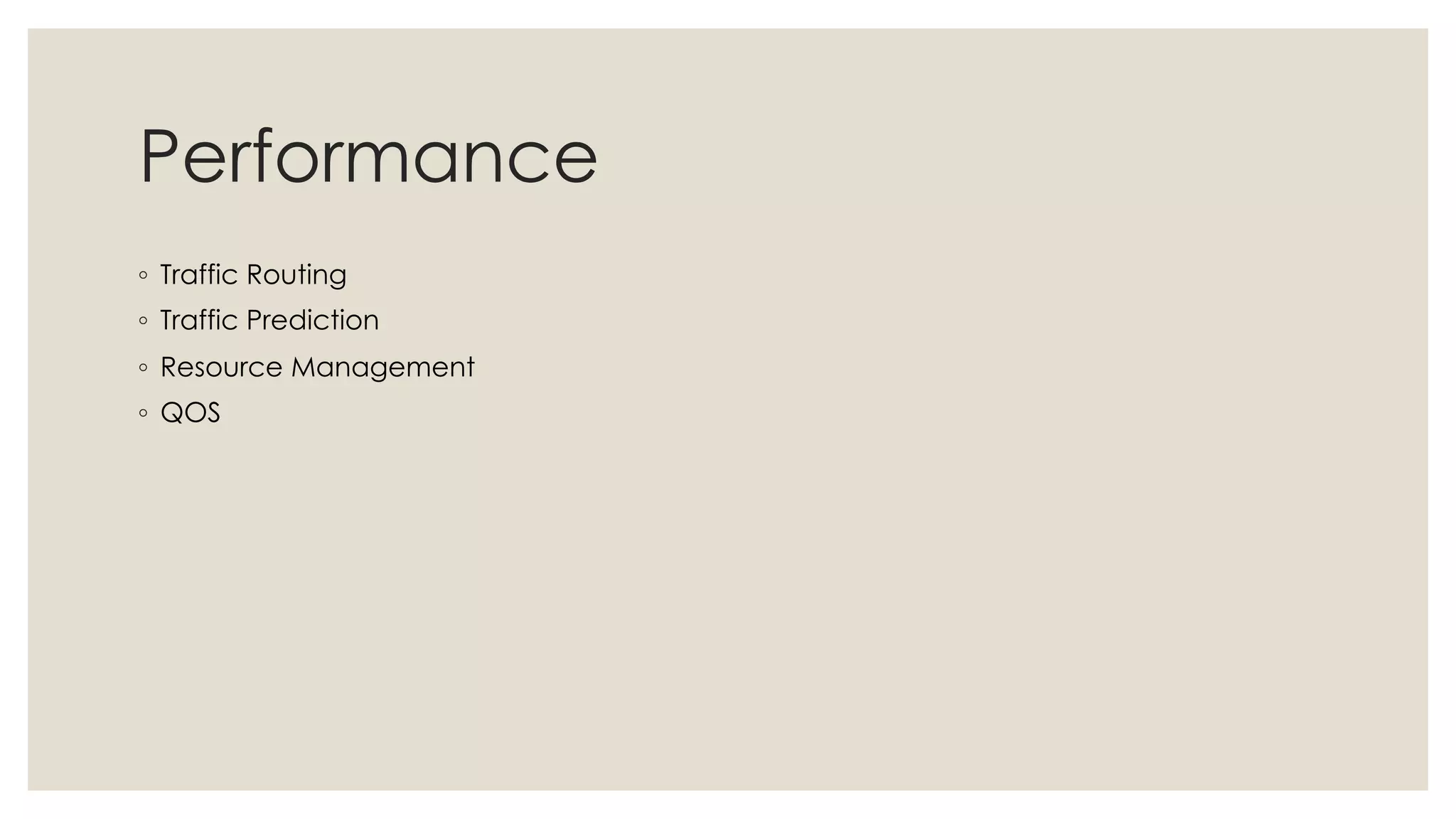

- 43. Performance ◦ Traffic Routing ◦Traffic Prediction ◦ Resource Management ◦ QOS

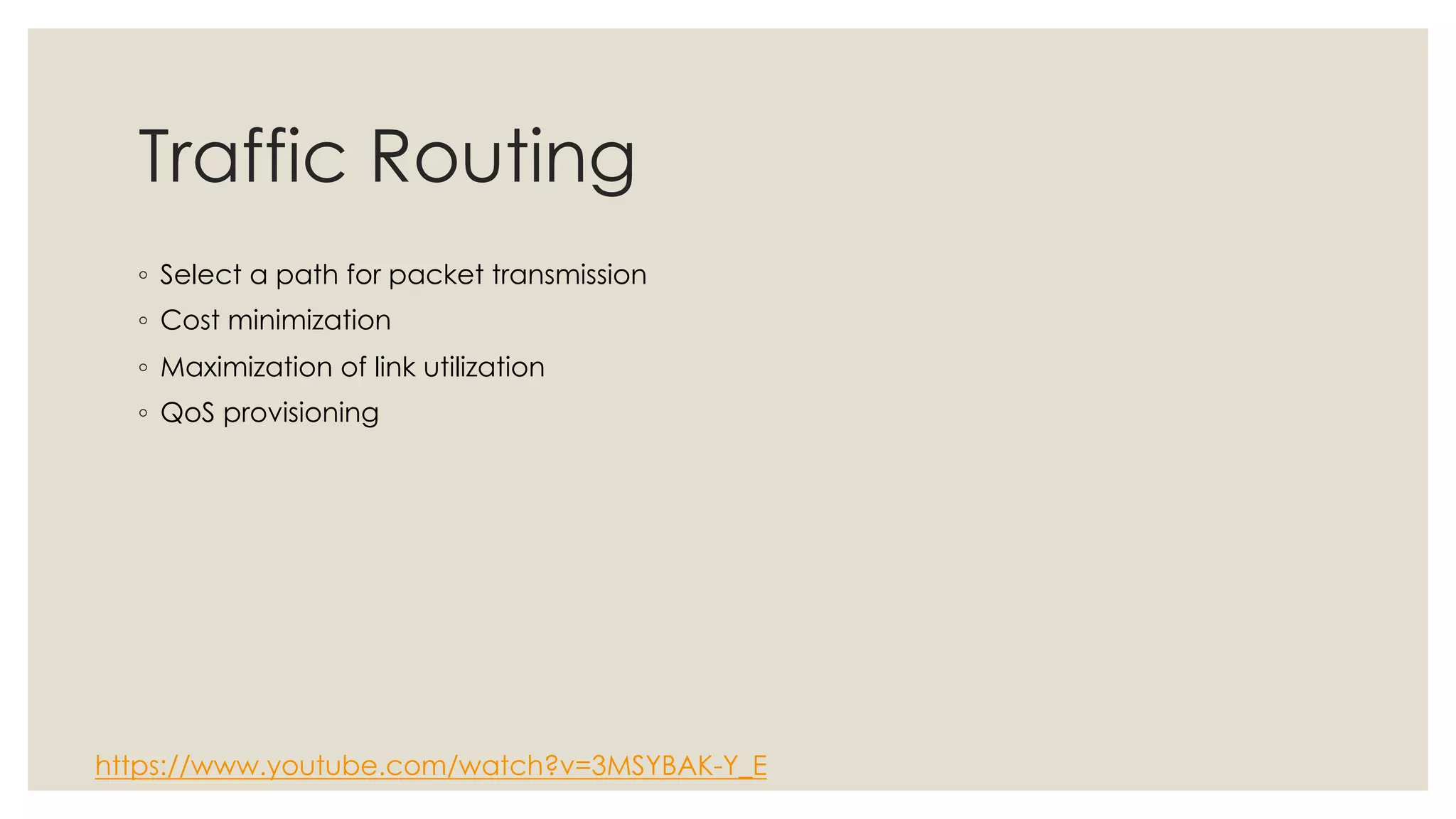

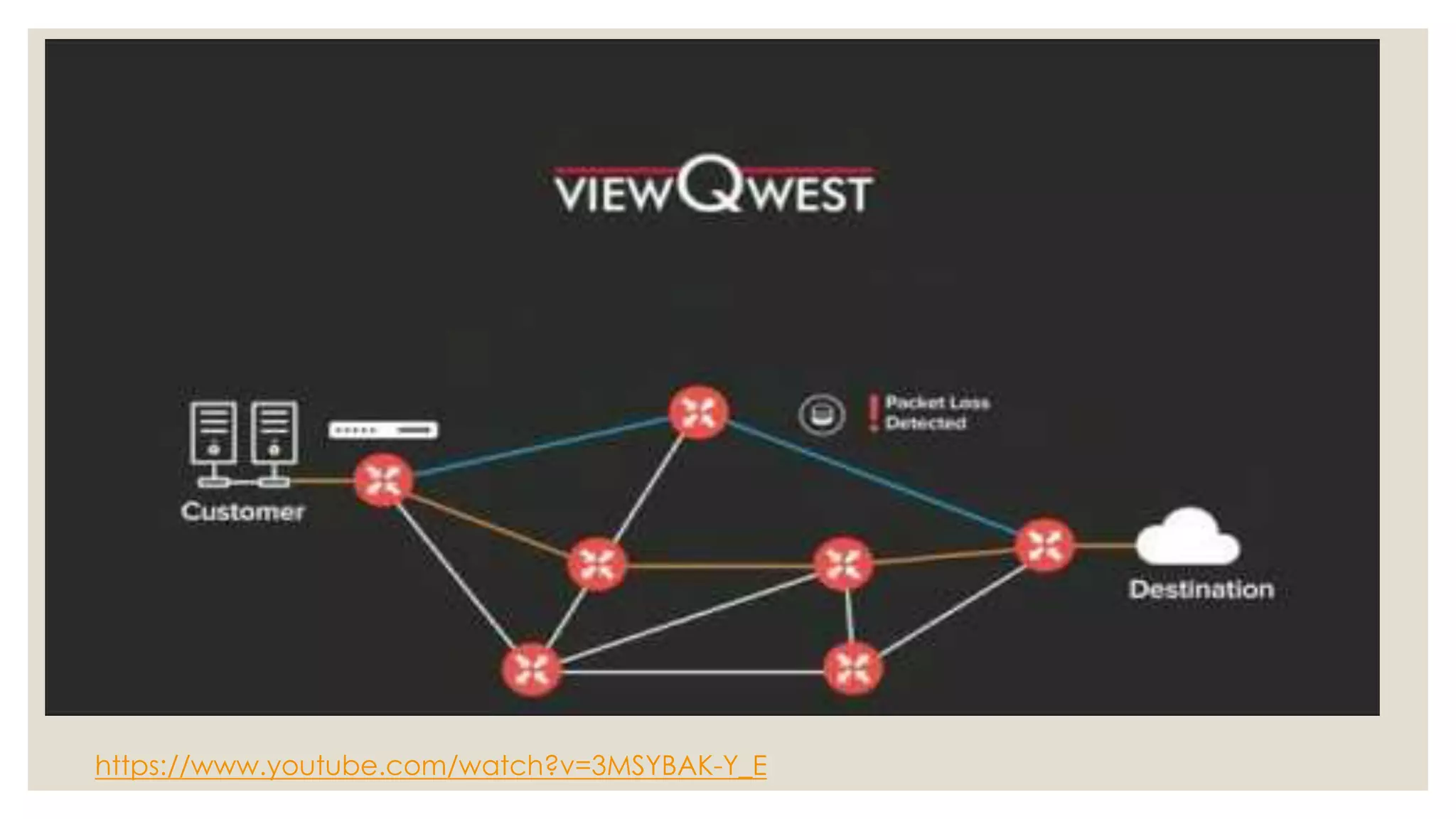

- 44. Traffic Routing ◦ Selecta path for packet transmission ◦ Cost minimization ◦ Maximization of link utilization ◦ QoS provisioning https://www.youtube.com/watch?v=3MSYBAK-Y_E
- 45.

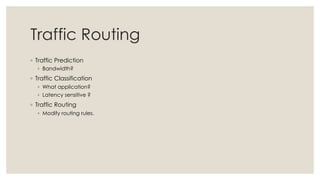

- 46. Traffic Routing ◦ TrafficPrediction ◦ Bandwidth? ◦ Traffic Classification ◦ What application? ◦ Latency sensitive ? ◦ Traffic Routing ◦ Modify routing rules.

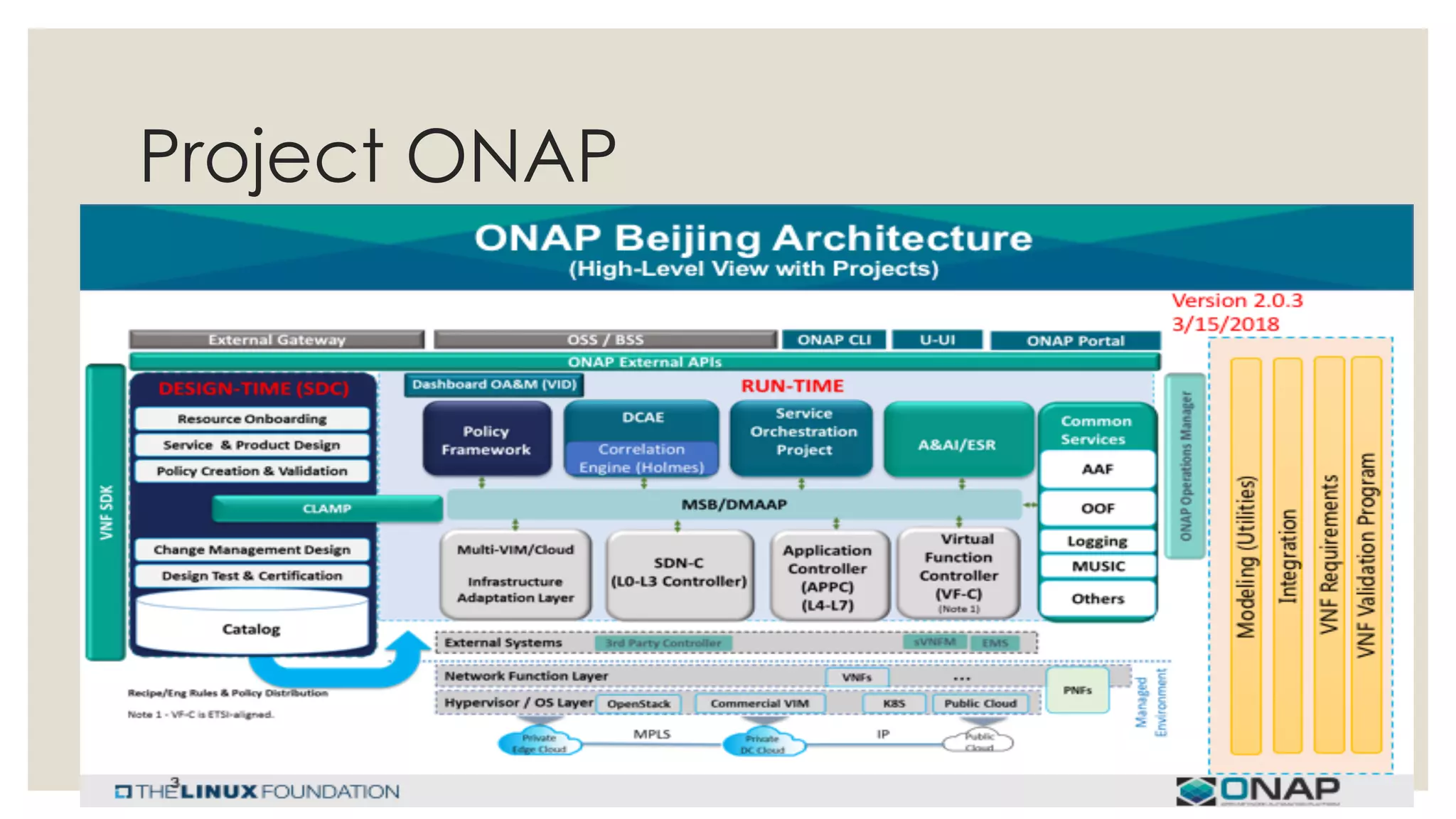

- 47.

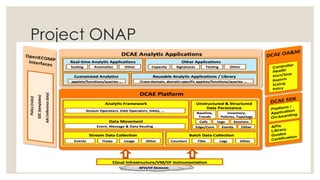

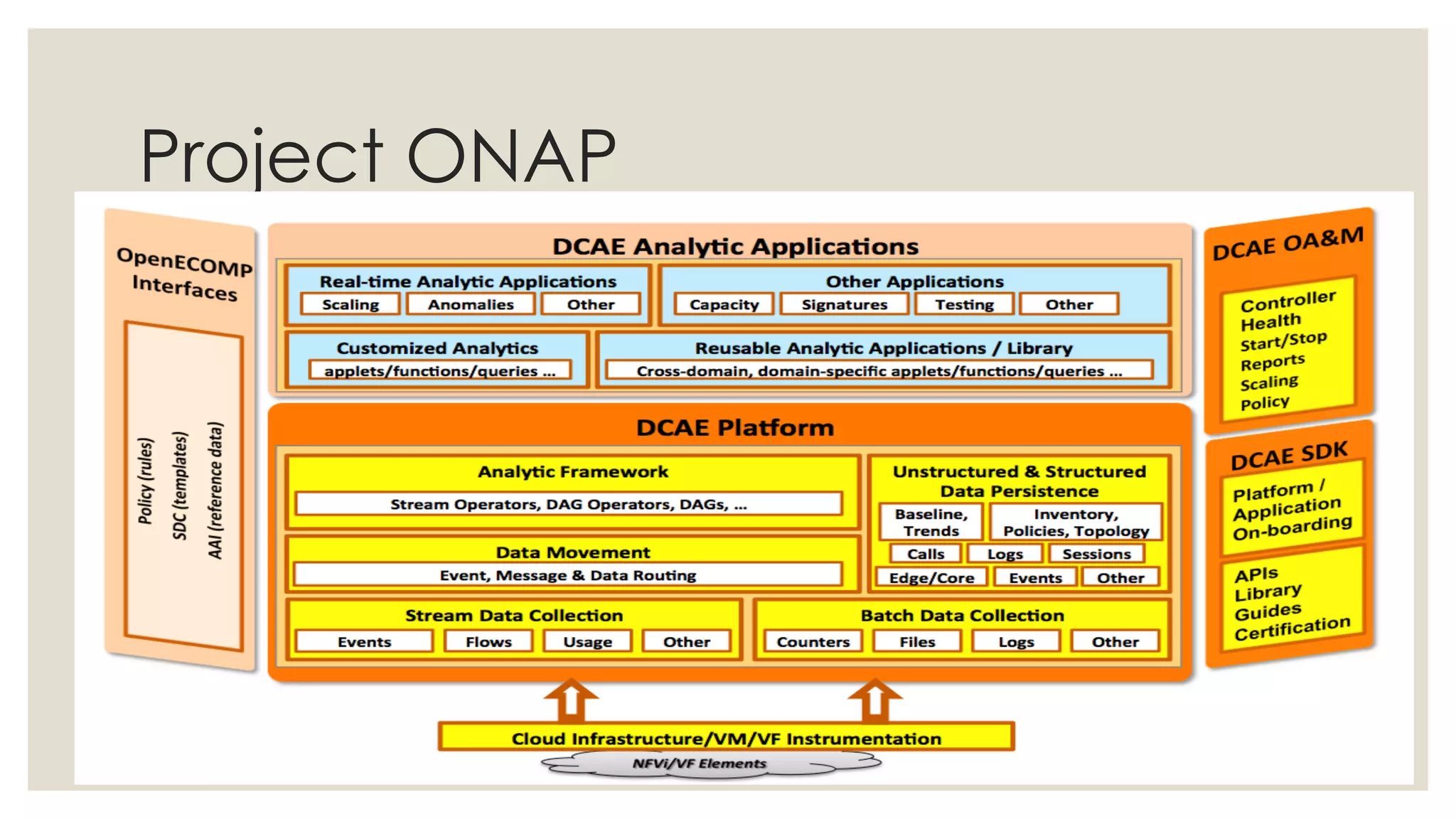

- 48.
