OpenStack Networking
Hands-On Tutorial
Kyle Mestery (@mestery)
Mark McClain (@gtwmm)
● Quick OpenStack and Neutron Overview
● Neutron Deployment Overview
● Hands-On With Neutron
○ Networks and Subnets
○ Routers and L3 constructs
○ LBaaS
○ VPNaaS
Agenda
OpenStack and Neutron Overview

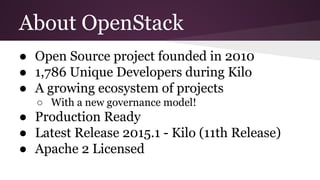

About OpenStack
● Open Source project founded in 2010
● 1,786 Unique Developers during Kilo
● A growing ecosystem of projects
○ With a new governance model!
● Production Ready
● Latest Release 2015.1 - Kilo (11th Release)
● Apache 2 Licensed
OpenStack
What does the user see?
What is Neutron?
● Provides “networking as a service”
● Provides Rich Topologies
● Technology Agnostic
● Extensible
● Advanced Services Support
○ LBaaS, VPNaaS, FWaaS
Neutron Design Goals
● Unified API
● Small Core
● Pluggable Open Architecture
● Extensible
● Growing ecosystem (Neutron as a platform)
Abstractions
Basic Deployment
Neutron Installation Tips
Types of Network Traffic
● Management
○ Internal communication between services
● API
○ Exposes OpenStack APIs to users of the cloud
● Guest
○ A network dedicated to instance traffic
● External
○ Provides Neutron routers with network access
Single NIC Setup
VM
VM
VM
br-int
br-tun
br-eth0 eth0
overlay
networks
mgmt and
API
external
Multi-Nic Setup
VM
VM
VM
br-int
br-tun
br-eth1 eth1
overlay
networks
mgmt and
API
external
eth0 eth0
Bonded NIC Setup
VM
VM
VM
br-int
br-tun
br-bond0
eth1
overlay
networks
mgmt and
API
external
eth0
bond0
What Type Of Neutron Network To Use
Neutron Provider Network Setup
Compute
Host
Compute
Host
Compute
Host
Provider VLAN 100
Provider VLAN 200

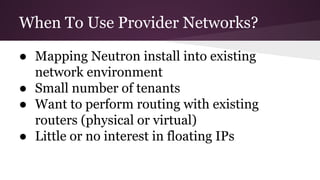

When To Use Provider Networks?
● Mapping Neutron install into existing
network environment
● Small number of tenants
● Want to perform routing with existing
routers (physical or virtual)
● Little or no interest in floating IPs
Neutron With Overlays (and L2 gateways!)
Compute
Host
Compute
Host
Compute
Host
Network
Node
Underlay Network
L2 Gateway
Node
L2 Gateway node
handles translating
between overlay
networks to VLAN
networks
Network
node
handles L3
routing N/S,
and SNAT
when used
with DVR
DVR routes E/W
traffic and performs
DNAT locally
When To Use Neutron With Overlays?
● Large number of tenant networks
● Floating IPs central to installation
Neutron Tutorial
Thank you to our sponsor!
● Two options for gaining access to provided VMs
○ Join “tutorial” wifi network (password openstackneutron)
○ OR
○ ssh into the jumphost as “onug@67.205.58.120”
● Username/password for VMs: onug / ONUG2015
Components used in the tutorial
All-In-One Control/Compute Node (Ubuntu 14.04.1)
nova
glance
keystone
neutron
neutron l2
neutron l3
metadata
dhcp
Open vSwitch
rabbitmq
Tutorial Assumptions
● You are using a devstack install on a cloud
VM provided by Dreamhost
● The Tutorial uses the Kilo release of
OpenStack
Neutron Networks and Subnets
In this section, we’ll cover basic Neutron
operations around networks, ports and subnets
Neutron Network Types
● local networks
● provider networks
● overlay networks

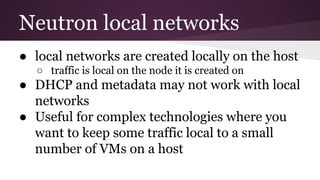

Neutron local networks
● local networks are created locally on the host
○ traffic is local on the node it is created on
● DHCP and metadata may not work with local
networks
● Useful for complex technologies where you
want to keep some traffic local to a small
number of VMs on a host
Create a local network
neutron net-create --provider:network_type=local onug_local
Neutron provider networks
● Useful when using a small number of tenants
and you want to share networks created by
the admin
● Assumes L3 routing handled in existing
infrastructure
Creating a provider network
neutron net-create --provider:network_type=vlan --provider:
physical_network=physnet1 --provider:segmentation_id=200 --shared
onug_vlan_network

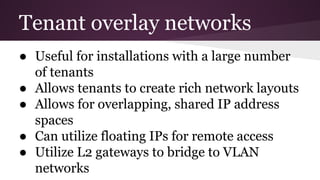

Tenant overlay networks
● Useful for installations with a large number
of tenants
● Allows tenants to create rich network layouts
● Allows for overlapping, shared IP address
spaces
● Can utilize floating IPs for remote access
● Utilize L2 gateways to bridge to VLAN
networks

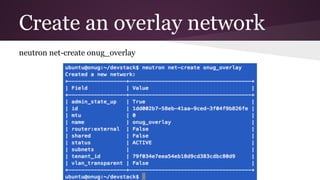

Create an overlay network
neutron net-create onug_overlay

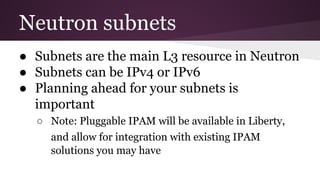

Neutron subnets
● Subnets are the main L3 resource in Neutron
● Subnets can be IPv4 or IPv6
● Planning ahead for your subnets is
important
○ Note: Pluggable IPAM will be available in Liberty,
and allow for integration with existing IPAM
solutions you may have
Creating a subnet
neutron subnet-create onug_overlay 192.168.100.0/24 --name onug_overlay_subnet --ip-version=4 --
gateway=192.168.100.1 --allocation-pool start=192.168.100.2,end=192.168.100.254 --dns-
nameservers 8.8.8.8 8.8.4.4
Quick Detour: Neutron Ports
Port created for DHCP agent from previous port

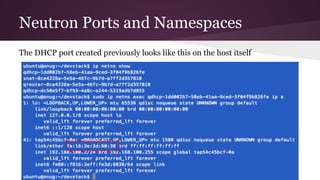

Neutron Ports and Namespaces
The DHCP port created previously looks like this on the host itself
Neutron Routers
We’ll cover Neutron routers, floating IPs, and
building complex topologies with them

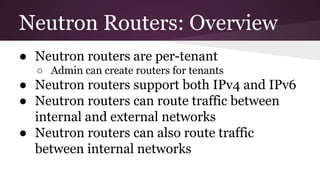

Neutron Routers: Overview
● Neutron routers are per-tenant
○ Admin can create routers for tenants
● Neutron routers support both IPv4 and IPv6
● Neutron routers can route traffic between
internal and external networks
● Neutron routers can also route traffic
between internal networks
Neutron With Routers
Create a router
neutron router-create onug_router
Neutron router ports
Neutron router
Internal
interface
Gateway
interfaceThis interface is
attached to a local
subnet
This interface is
attached to an
upstream device to
provide external
connectivity
Distributed Routers!
Neutron With Distributed Routers!
Attaching router ports
● Attach the internal router port
○ neutron router-interface-add 87e8ca5c-7446-40d2-9973-
b57c6a9f1b0a 68f34192-72d7-4e4d-82ae-b87410113a9a
● Attach the gateway port
○ neutron router-gateway-set 87e8ca5c-7446-40d2-9973-b57c6a9f1b0a
dab3f1f7-7015-4439-b393-0ad75d2de536

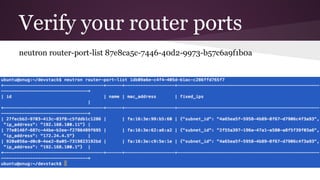

Verify your router ports
neutron router-port-list 87e8ca5c-7446-40d2-9973-b57c6a9f1b0a

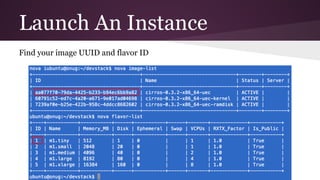

Launch An Instance
Find your image UUID and flavor ID
Launch an Instance (cont.)
Boot the instance
attaching to your
tenant created
network

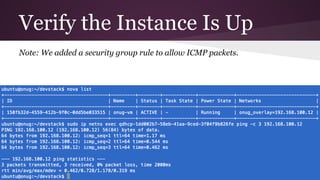

Verify the Instance Is Up
Note: We added a security group rule to allow ICMP packets.
Neutron NAT
● Neutron supports two types of NAT
○ one-to-one (with floating IPs)
○ one-to-many (without floating IPs)
● NAT and DVR
○ DVR supports decentralized DNAT but requires
centralized SNAT

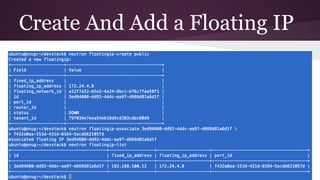

Create And Add a Floating IP

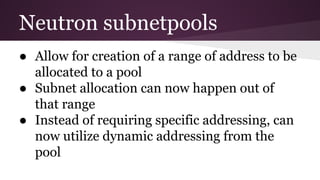

Neutron subnetpools
● Allow for creation of a range of address to be
allocated to a pool
● Subnet allocation can now happen out of
that range
● Instead of requiring specific addressing, can
now utilize dynamic addressing from the
pool

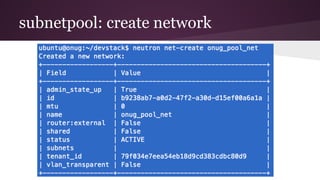

subnetpool: create network
subnetpool: create subnetpool

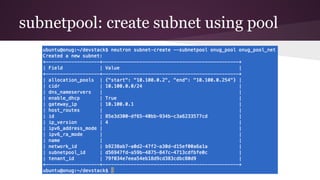

subnetpool: create subnet using pool
Neutron LBaaS
We’ll walk through Neutron Load Balancing as
a Service here, creating LBaaS constructs using
the new for Kilo LBaaS V2 API
Neutron LBaaS V2
● Neutron LBaaS V2 is new in Kilo
○ New API with different objects and attributes
○ http://developer.openstack.org/api-ref-networking-
v2-ext.html#lbaas-v2.0
● Lets give it a try!

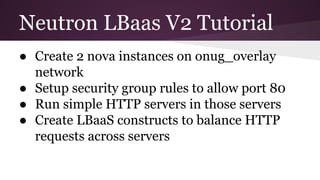

Neutron LBaas V2 Tutorial
● Create 2 nova instances on onug_overlay
network
● Setup security group rules to allow port 80
● Run simple HTTP servers in those servers
● Create LBaaS constructs to balance HTTP
requests across servers
Create 2 Nova Instances
Add security group rules
Spinup simple web servers

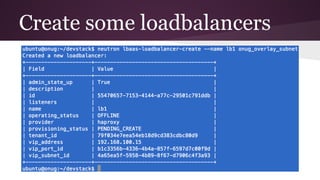

Create some loadbalancers
Create the listener
Create the pool
Add members
Verify it’s working
Debugging Neutron
Neutron Open Source Backends
Open Source Options
● Dragonflow
● OpenContrail
● OpenDaylight
● OVN
● Announced today: Akanda
Dragonflow
● A fully distributed virtual router using
OpenFlow and Open vSwitch
● Removes the use of namespaces on the host
for DVR
○ Implementation utilizes straight OpenFlow

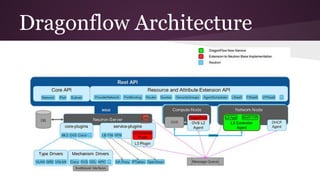

Dragonflow Architecture

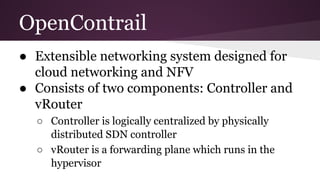

OpenContrail
● Extensible networking system designed for
cloud networking and NFV
● Consists of two components: Controller and
vRouter
○ Controller is logically centralized by physically
distributed SDN controller
○ vRouter is a forwarding plane which runs in the
hypervisor
OpenContrail Architecture
OpenStack
Nova
OpenContrail
Neutron
Plugin
Compute Node
OpenStack
Nova Agent
vRouter
Agent
Contrail Node
Configuration Node
OpenDaylight
● A community led, industry supported open
source platform to support the adoption of
SDN and NFV
● A platform to allow for many different APIs
on both the north and south side
OpenDaylight Architecture
OpenStack
Nova
OpenDaylight
ML2 Driver
Compute Node
OpenStack
Nova Agent
Open
vSwitch
Compute Node
OpenStack
Nova Agent
Open
vSwitch

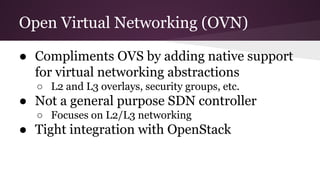

Open Virtual Networking (OVN)
● Compliments OVS by adding native support
for virtual networking abstractions
○ L2 and L3 overlays, security groups, etc.
● Not a general purpose SDN controller
○ Focuses on L2/L3 networking
● Tight integration with OpenStack
OVN
OpenStack
OVN NB Database
OVN ML2
Driver
ovn-nbd
OVN DB
ovn-controller
ovs-vswitchd ovsdb-server
ovn-controller
ovs-vswitchd ovsdb-server

More Related Content

What's hot

Virtualized network with openvswitch
Virtualized network with openvswitchVirtualized network with openvswitch
Virtualized network with openvswitchSim Janghoon

[OpenStack 하반기 스터디] Interoperability with ML2: LinuxBridge, OVS and SDN
[OpenStack 하반기 스터디] Interoperability with ML2: LinuxBridge, OVS and SDN[OpenStack 하반기 스터디] Interoperability with ML2: LinuxBridge, OVS and SDN
[OpenStack 하반기 스터디] Interoperability with ML2: LinuxBridge, OVS and SDNOpenStack Korea Community

OVN 設定サンプル | OVN config example 2015/12/27
OVN 設定サンプル | OVN config example 2015/12/27OVN 設定サンプル | OVN config example 2015/12/27
OVN 設定サンプル | OVN config example 2015/12/27Kentaro Ebisawa

오픈스택 기반 클라우드 서비스 구축 방안 및 사례
오픈스택 기반 클라우드 서비스 구축 방안 및 사례오픈스택 기반 클라우드 서비스 구축 방안 및 사례
오픈스택 기반 클라우드 서비스 구축 방안 및 사례SONG INSEOB

Room 1 - 7 - Lê Quốc Đạt - Upgrading network of Openstack to SDN with Tungste...
Room 1 - 7 - Lê Quốc Đạt - Upgrading network of Openstack to SDN with Tungste...Room 1 - 7 - Lê Quốc Đạt - Upgrading network of Openstack to SDN with Tungste...
Room 1 - 7 - Lê Quốc Đạt - Upgrading network of Openstack to SDN with Tungste...Vietnam Open Infrastructure User Group

クラウドオーケストレーション「OpenStack Heat」に迫る!
クラウドオーケストレーション「OpenStack Heat」に迫る!クラウドオーケストレーション「OpenStack Heat」に迫る!
クラウドオーケストレーション「OpenStack Heat」に迫る!Etsuji Nakai

Large scale overlay networks with ovn: problems and solutions
Large scale overlay networks with ovn: problems and solutionsLarge scale overlay networks with ovn: problems and solutions
Large scale overlay networks with ovn: problems and solutionsHan Zhou

L3HA-VRRP-20141201
L3HA-VRRP-20141201L3HA-VRRP-20141201
L3HA-VRRP-20141201Manabu Ori

OpenStack Architecture
OpenStack ArchitectureOpenStack Architecture
OpenStack ArchitectureMirantis

OpenvSwitch Deep Dive
OpenvSwitch Deep DiveOpenvSwitch Deep Dive
OpenvSwitch Deep Diverajdeep

Migrating VMware Infra to KVM Using CloudStack - Nicolas Vazquez - ShapeBlue
Migrating VMware Infra to KVM Using CloudStack - Nicolas Vazquez - ShapeBlueMigrating VMware Infra to KVM Using CloudStack - Nicolas Vazquez - ShapeBlue
Migrating VMware Infra to KVM Using CloudStack - Nicolas Vazquez - ShapeBlueShapeBlue

Open vSwitch Introduction
Open vSwitch IntroductionOpen vSwitch Introduction
Open vSwitch IntroductionHungWei Chiu

[OpenStack] 공개 소프트웨어 오픈스택 입문 & 파헤치기
[OpenStack] 공개 소프트웨어 오픈스택 입문 & 파헤치기[OpenStack] 공개 소프트웨어 오픈스택 입문 & 파헤치기
[OpenStack] 공개 소프트웨어 오픈스택 입문 & 파헤치기Ian Choi

Open vSwitch 패킷 처리 구조
Open vSwitch 패킷 처리 구조Open vSwitch 패킷 처리 구조
Open vSwitch 패킷 처리 구조Seung-Hoon Baek

OpenStack networking
OpenStack networkingOpenStack networking
OpenStack networkingSim Janghoon

Open stack networking vlan, gre
Open stack networking   vlan, greOpen stack networking   vlan, gre
Open stack networking vlan, greSim Janghoon

[오픈소스컨설팅] Open Stack Ceph, Neutron, HA, Multi-Region
[오픈소스컨설팅] Open Stack Ceph, Neutron, HA, Multi-Region[오픈소스컨설팅] Open Stack Ceph, Neutron, HA, Multi-Region
[오픈소스컨설팅] Open Stack Ceph, Neutron, HA, Multi-RegionJi-Woong Choi

日本OpenStackユーザ会 第37回勉強会
日本OpenStackユーザ会 第37回勉強会日本OpenStackユーザ会 第37回勉強会
日本OpenStackユーザ会 第37回勉強会Yushiro Furukawa

OpenStack Architecture and Use Cases
OpenStack Architecture and Use CasesOpenStack Architecture and Use Cases
OpenStack Architecture and Use CasesJalal Mostafa


What's hot (20)

Virtualized network with openvswitch
Virtualized network with openvswitchVirtualized network with openvswitch
Virtualized network with openvswitch

[OpenStack 하반기 스터디] Interoperability with ML2: LinuxBridge, OVS and SDN
[OpenStack 하반기 스터디] Interoperability with ML2: LinuxBridge, OVS and SDN[OpenStack 하반기 스터디] Interoperability with ML2: LinuxBridge, OVS and SDN
[OpenStack 하반기 스터디] Interoperability with ML2: LinuxBridge, OVS and SDN

OVN 設定サンプル | OVN config example 2015/12/27
OVN 設定サンプル | OVN config example 2015/12/27OVN 設定サンプル | OVN config example 2015/12/27
OVN 設定サンプル | OVN config example 2015/12/27

오픈스택 기반 클라우드 서비스 구축 방안 및 사례
오픈스택 기반 클라우드 서비스 구축 방안 및 사례오픈스택 기반 클라우드 서비스 구축 방안 및 사례
오픈스택 기반 클라우드 서비스 구축 방안 및 사례

OpenStack Neutron behind the Scenes
OpenStack Neutron behind the ScenesOpenStack Neutron behind the Scenes
OpenStack Neutron behind the Scenes

Room 1 - 7 - Lê Quốc Đạt - Upgrading network of Openstack to SDN with Tungste...
Room 1 - 7 - Lê Quốc Đạt - Upgrading network of Openstack to SDN with Tungste...Room 1 - 7 - Lê Quốc Đạt - Upgrading network of Openstack to SDN with Tungste...
Room 1 - 7 - Lê Quốc Đạt - Upgrading network of Openstack to SDN with Tungste...

クラウドオーケストレーション「OpenStack Heat」に迫る!
クラウドオーケストレーション「OpenStack Heat」に迫る!クラウドオーケストレーション「OpenStack Heat」に迫る!
クラウドオーケストレーション「OpenStack Heat」に迫る!

Large scale overlay networks with ovn: problems and solutions
Large scale overlay networks with ovn: problems and solutionsLarge scale overlay networks with ovn: problems and solutions
Large scale overlay networks with ovn: problems and solutions

L3HA-VRRP-20141201
L3HA-VRRP-20141201L3HA-VRRP-20141201
L3HA-VRRP-20141201

OpenStack Architecture
OpenStack ArchitectureOpenStack Architecture
OpenStack Architecture

OpenvSwitch Deep Dive
OpenvSwitch Deep DiveOpenvSwitch Deep Dive
OpenvSwitch Deep Dive

Migrating VMware Infra to KVM Using CloudStack - Nicolas Vazquez - ShapeBlue
Migrating VMware Infra to KVM Using CloudStack - Nicolas Vazquez - ShapeBlueMigrating VMware Infra to KVM Using CloudStack - Nicolas Vazquez - ShapeBlue
Migrating VMware Infra to KVM Using CloudStack - Nicolas Vazquez - ShapeBlue

Open vSwitch Introduction
Open vSwitch IntroductionOpen vSwitch Introduction
Open vSwitch Introduction

[OpenStack] 공개 소프트웨어 오픈스택 입문 & 파헤치기
[OpenStack] 공개 소프트웨어 오픈스택 입문 & 파헤치기[OpenStack] 공개 소프트웨어 오픈스택 입문 & 파헤치기
[OpenStack] 공개 소프트웨어 오픈스택 입문 & 파헤치기

Open vSwitch 패킷 처리 구조
Open vSwitch 패킷 처리 구조Open vSwitch 패킷 처리 구조
Open vSwitch 패킷 처리 구조

OpenStack networking
OpenStack networkingOpenStack networking
OpenStack networking

Open stack networking vlan, gre
Open stack networking   vlan, greOpen stack networking   vlan, gre
Open stack networking vlan, gre

[오픈소스컨설팅] Open Stack Ceph, Neutron, HA, Multi-Region
[오픈소스컨설팅] Open Stack Ceph, Neutron, HA, Multi-Region[오픈소스컨설팅] Open Stack Ceph, Neutron, HA, Multi-Region
[오픈소스컨설팅] Open Stack Ceph, Neutron, HA, Multi-Region

日本OpenStackユーザ会 第37回勉強会
日本OpenStackユーザ会 第37回勉強会日本OpenStackユーザ会 第37回勉強会
日本OpenStackユーザ会 第37回勉強会

OpenStack Architecture and Use Cases
OpenStack Architecture and Use CasesOpenStack Architecture and Use Cases
OpenStack Architecture and Use Cases


Similar to OpenStack Neutron Tutorial

OpenStack Neutron: What's New In Kilo and a Look Toward Liberty
OpenStack Neutron: What's New In Kilo and a Look Toward LibertyOpenStack Neutron: What's New In Kilo and a Look Toward Liberty
OpenStack Neutron: What's New In Kilo and a Look Toward Libertymestery

Yechielthur1100red hat-cloud-infrastructure-networking-deep-dive-140417165107...
Yechielthur1100red hat-cloud-infrastructure-networking-deep-dive-140417165107...Yechielthur1100red hat-cloud-infrastructure-networking-deep-dive-140417165107...
Yechielthur1100red hat-cloud-infrastructure-networking-deep-dive-140417165107...Công TÔ

Open Source Backends for OpenStack Neutron
Open Source Backends for OpenStack NeutronOpen Source Backends for OpenStack Neutron
Open Source Backends for OpenStack Neutronmestery

Networking Updates - Juno Edition
Networking Updates - Juno Edition Networking Updates - Juno Edition
Networking Updates - Juno Edition OpenStack Foundation

What's new in OpenStack Liberty
What's new in OpenStack LibertyWhat's new in OpenStack Liberty
What's new in OpenStack LibertyStephen Gordon

Open stack networking juno update
Open stack networking juno updateOpen stack networking juno update
Open stack networking juno updatemargieOpenStack

OpenStack Neutron Liberty Updates
OpenStack Neutron Liberty UpdatesOpenStack Neutron Liberty Updates
OpenStack Neutron Liberty Updatesmestery

Neutron Updates - Liberty Edition
Neutron Updates - Liberty Edition Neutron Updates - Liberty Edition
Neutron Updates - Liberty Edition OpenStack Foundation

ONUG Tutorial: Bridges and Tunnels Drive Through OpenStack Networking
ONUG Tutorial: Bridges and Tunnels Drive Through OpenStack NetworkingONUG Tutorial: Bridges and Tunnels Drive Through OpenStack Networking
ONUG Tutorial: Bridges and Tunnels Drive Through OpenStack Networkingmarkmcclain

OpenStack Neutron Havana Overview - Oct 2013
OpenStack Neutron Havana Overview - Oct 2013OpenStack Neutron Havana Overview - Oct 2013
OpenStack Neutron Havana Overview - Oct 2013Edgar Magana

neutron_icehouse_update
neutron_icehouse_updateneutron_icehouse_update
neutron_icehouse_updateAkihiro Motoki

OpenStack and OpenDaylight: An Integrated IaaS for SDN/NFV
OpenStack and OpenDaylight: An Integrated IaaS for SDN/NFVOpenStack and OpenDaylight: An Integrated IaaS for SDN/NFV
OpenStack and OpenDaylight: An Integrated IaaS for SDN/NFVCloud Native Day Tel Aviv

Open stack networking_101_update_2014
Open stack networking_101_update_2014Open stack networking_101_update_2014
Open stack networking_101_update_2014yfauser

MidoNet gives OpenStack Neutron a Boost
MidoNet gives OpenStack Neutron a BoostMidoNet gives OpenStack Neutron a Boost
MidoNet gives OpenStack Neutron a BoostOpenStack_Online

OpenStack-and-OpenDaylight-Integrated-IaaS-for-SDN-and-NFV.pdf
OpenStack-and-OpenDaylight-Integrated-IaaS-for-SDN-and-NFV.pdfOpenStack-and-OpenDaylight-Integrated-IaaS-for-SDN-and-NFV.pdf
OpenStack-and-OpenDaylight-Integrated-IaaS-for-SDN-and-NFV.pdfAjit Dash

Open stack networking_101_update_2014-os-meetups
Open stack networking_101_update_2014-os-meetupsOpen stack networking_101_update_2014-os-meetups
Open stack networking_101_update_2014-os-meetupsyfauser

OpenDaylight Netvirt and Neutron - Mike Kolesnik, Josh Hershberg - OpenStack ...
OpenDaylight Netvirt and Neutron - Mike Kolesnik, Josh Hershberg - OpenStack ...OpenDaylight Netvirt and Neutron - Mike Kolesnik, Josh Hershberg - OpenStack ...
OpenDaylight Netvirt and Neutron - Mike Kolesnik, Josh Hershberg - OpenStack ...Cloud Native Day Tel Aviv

Openstack Overview
Openstack OverviewOpenstack Overview
Openstack Overviewrajdeep

What's new in OpenStack Liberty
What's new in OpenStack LibertyWhat's new in OpenStack Liberty
What's new in OpenStack LibertyMichael Solberg


Similar to OpenStack Neutron Tutorial (20)

Networking in Openstack - Neutron 101
Networking in Openstack - Neutron 101Networking in Openstack - Neutron 101
Networking in Openstack - Neutron 101

OpenStack Neutron: What's New In Kilo and a Look Toward Liberty
OpenStack Neutron: What's New In Kilo and a Look Toward LibertyOpenStack Neutron: What's New In Kilo and a Look Toward Liberty
OpenStack Neutron: What's New In Kilo and a Look Toward Liberty

Yechielthur1100red hat-cloud-infrastructure-networking-deep-dive-140417165107...
Yechielthur1100red hat-cloud-infrastructure-networking-deep-dive-140417165107...Yechielthur1100red hat-cloud-infrastructure-networking-deep-dive-140417165107...
Yechielthur1100red hat-cloud-infrastructure-networking-deep-dive-140417165107...

Open Source Backends for OpenStack Neutron
Open Source Backends for OpenStack NeutronOpen Source Backends for OpenStack Neutron
Open Source Backends for OpenStack Neutron

Networking Updates - Juno Edition
Networking Updates - Juno Edition Networking Updates - Juno Edition
Networking Updates - Juno Edition

What's new in OpenStack Liberty
What's new in OpenStack LibertyWhat's new in OpenStack Liberty
What's new in OpenStack Liberty

Open stack networking juno update
Open stack networking juno updateOpen stack networking juno update
Open stack networking juno update

OpenStack Neutron Liberty Updates
OpenStack Neutron Liberty UpdatesOpenStack Neutron Liberty Updates
OpenStack Neutron Liberty Updates

Neutron Updates - Liberty Edition
Neutron Updates - Liberty Edition Neutron Updates - Liberty Edition
Neutron Updates - Liberty Edition

ONUG Tutorial: Bridges and Tunnels Drive Through OpenStack Networking
ONUG Tutorial: Bridges and Tunnels Drive Through OpenStack NetworkingONUG Tutorial: Bridges and Tunnels Drive Through OpenStack Networking
ONUG Tutorial: Bridges and Tunnels Drive Through OpenStack Networking

OpenStack Neutron Havana Overview - Oct 2013
OpenStack Neutron Havana Overview - Oct 2013OpenStack Neutron Havana Overview - Oct 2013
OpenStack Neutron Havana Overview - Oct 2013

neutron_icehouse_update
neutron_icehouse_updateneutron_icehouse_update
neutron_icehouse_update

OpenStack and OpenDaylight: An Integrated IaaS for SDN/NFV
OpenStack and OpenDaylight: An Integrated IaaS for SDN/NFVOpenStack and OpenDaylight: An Integrated IaaS for SDN/NFV
OpenStack and OpenDaylight: An Integrated IaaS for SDN/NFV

Open stack networking_101_update_2014
Open stack networking_101_update_2014Open stack networking_101_update_2014
Open stack networking_101_update_2014

MidoNet gives OpenStack Neutron a Boost
MidoNet gives OpenStack Neutron a BoostMidoNet gives OpenStack Neutron a Boost
MidoNet gives OpenStack Neutron a Boost

OpenStack-and-OpenDaylight-Integrated-IaaS-for-SDN-and-NFV.pdf
OpenStack-and-OpenDaylight-Integrated-IaaS-for-SDN-and-NFV.pdfOpenStack-and-OpenDaylight-Integrated-IaaS-for-SDN-and-NFV.pdf
OpenStack-and-OpenDaylight-Integrated-IaaS-for-SDN-and-NFV.pdf

Open stack networking_101_update_2014-os-meetups
Open stack networking_101_update_2014-os-meetupsOpen stack networking_101_update_2014-os-meetups
Open stack networking_101_update_2014-os-meetups

OpenDaylight Netvirt and Neutron - Mike Kolesnik, Josh Hershberg - OpenStack ...
OpenDaylight Netvirt and Neutron - Mike Kolesnik, Josh Hershberg - OpenStack ...OpenDaylight Netvirt and Neutron - Mike Kolesnik, Josh Hershberg - OpenStack ...
OpenDaylight Netvirt and Neutron - Mike Kolesnik, Josh Hershberg - OpenStack ...

Openstack Overview
Openstack OverviewOpenstack Overview
Openstack Overview

What's new in OpenStack Liberty
What's new in OpenStack LibertyWhat's new in OpenStack Liberty
What's new in OpenStack Liberty


More from mestery

OVN: Scaleable Virtual Networking for Open vSwitch
OVN: Scaleable Virtual Networking for Open vSwitchOVN: Scaleable Virtual Networking for Open vSwitch
OVN: Scaleable Virtual Networking for Open vSwitchmestery

OpenStack Tokyo Summit Keynote Slides
OpenStack Tokyo Summit Keynote SlidesOpenStack Tokyo Summit Keynote Slides
OpenStack Tokyo Summit Keynote Slidesmestery

Group Based Policy: Open Source Policy in OpenDaylight and OpenStack Neutron
Group Based Policy: Open Source Policy in OpenDaylight and OpenStack NeutronGroup Based Policy: Open Source Policy in OpenDaylight and OpenStack Neutron
Group Based Policy: Open Source Policy in OpenDaylight and OpenStack Neutronmestery

OpenStack and OpenDaylight Workshop: ONUG Spring 2014
OpenStack and OpenDaylight Workshop: ONUG Spring 2014OpenStack and OpenDaylight Workshop: ONUG Spring 2014
OpenStack and OpenDaylight Workshop: ONUG Spring 2014mestery

OpenDaylight Integration with OpenStack Neutron: A Tutorial
OpenDaylight Integration with OpenStack Neutron: A TutorialOpenDaylight Integration with OpenStack Neutron: A Tutorial
OpenDaylight Integration with OpenStack Neutron: A Tutorialmestery

Next Generation Network Developer Skills
Next Generation Network Developer SkillsNext Generation Network Developer Skills
Next Generation Network Developer Skillsmestery

Modular Layer 2 In OpenStack Neutron
Modular Layer 2 In OpenStack NeutronModular Layer 2 In OpenStack Neutron
Modular Layer 2 In OpenStack Neutronmestery

LISP and NSH in Open vSwitch
LISP and NSH in Open vSwitchLISP and NSH in Open vSwitch
LISP and NSH in Open vSwitchmestery

vBrownBag OpenStack Networking Talk
vBrownBag OpenStack Networking TalkvBrownBag OpenStack Networking Talk
vBrownBag OpenStack Networking Talkmestery

OpenStack: Why Is It Gaining So Much Traction?
OpenStack: Why Is It Gaining So Much Traction?OpenStack: Why Is It Gaining So Much Traction?
OpenStack: Why Is It Gaining So Much Traction?mestery

Triangle OpenStack Meetup
Triangle OpenStack MeetupTriangle OpenStack Meetup
Triangle OpenStack Meetupmestery

OpenStack Development Using devstack
OpenStack Development Using devstackOpenStack Development Using devstack
OpenStack Development Using devstackmestery

Open Source Cloud, Virtualization and Deployment Technologies
Open Source Cloud, Virtualization and Deployment TechnologiesOpen Source Cloud, Virtualization and Deployment Technologies
Open Source Cloud, Virtualization and Deployment Technologiesmestery


More from mestery (13)

OVN: Scaleable Virtual Networking for Open vSwitch
OVN: Scaleable Virtual Networking for Open vSwitchOVN: Scaleable Virtual Networking for Open vSwitch
OVN: Scaleable Virtual Networking for Open vSwitch

OpenStack Tokyo Summit Keynote Slides
OpenStack Tokyo Summit Keynote SlidesOpenStack Tokyo Summit Keynote Slides
OpenStack Tokyo Summit Keynote Slides

Group Based Policy: Open Source Policy in OpenDaylight and OpenStack Neutron
Group Based Policy: Open Source Policy in OpenDaylight and OpenStack NeutronGroup Based Policy: Open Source Policy in OpenDaylight and OpenStack Neutron
Group Based Policy: Open Source Policy in OpenDaylight and OpenStack Neutron

OpenStack and OpenDaylight Workshop: ONUG Spring 2014
OpenStack and OpenDaylight Workshop: ONUG Spring 2014OpenStack and OpenDaylight Workshop: ONUG Spring 2014
OpenStack and OpenDaylight Workshop: ONUG Spring 2014

OpenDaylight Integration with OpenStack Neutron: A Tutorial
OpenDaylight Integration with OpenStack Neutron: A TutorialOpenDaylight Integration with OpenStack Neutron: A Tutorial
OpenDaylight Integration with OpenStack Neutron: A Tutorial

Next Generation Network Developer Skills
Next Generation Network Developer SkillsNext Generation Network Developer Skills
Next Generation Network Developer Skills

Modular Layer 2 In OpenStack Neutron
Modular Layer 2 In OpenStack NeutronModular Layer 2 In OpenStack Neutron
Modular Layer 2 In OpenStack Neutron

LISP and NSH in Open vSwitch
LISP and NSH in Open vSwitchLISP and NSH in Open vSwitch
LISP and NSH in Open vSwitch

vBrownBag OpenStack Networking Talk
vBrownBag OpenStack Networking TalkvBrownBag OpenStack Networking Talk
vBrownBag OpenStack Networking Talk

OpenStack: Why Is It Gaining So Much Traction?
OpenStack: Why Is It Gaining So Much Traction?OpenStack: Why Is It Gaining So Much Traction?
OpenStack: Why Is It Gaining So Much Traction?

Triangle OpenStack Meetup
Triangle OpenStack MeetupTriangle OpenStack Meetup
Triangle OpenStack Meetup

OpenStack Development Using devstack
OpenStack Development Using devstackOpenStack Development Using devstack
OpenStack Development Using devstack

Open Source Cloud, Virtualization and Deployment Technologies
Open Source Cloud, Virtualization and Deployment TechnologiesOpen Source Cloud, Virtualization and Deployment Technologies
Open Source Cloud, Virtualization and Deployment Technologies


Recently uploaded

WSO2Con2024 - Organization Management: The Revolution in B2B CIAM
WSO2Con2024 - Organization Management: The Revolution in B2B CIAMWSO2Con2024 - Organization Management: The Revolution in B2B CIAM
WSO2Con2024 - Organization Management: The Revolution in B2B CIAMWSO2

WSO2CON 2024 Slides - Open Source to SaaS
WSO2CON 2024 Slides - Open Source to SaaSWSO2CON 2024 Slides - Open Source to SaaS
WSO2CON 2024 Slides - Open Source to SaaSWSO2

WSO2Con2024 - Hello Choreo Presentation - Kanchana
WSO2Con2024 - Hello Choreo Presentation - KanchanaWSO2Con2024 - Hello Choreo Presentation - Kanchana
WSO2Con2024 - Hello Choreo Presentation - KanchanaWSO2

Artyushina_Guest lecture_YorkU CS May 2024.pptx
Artyushina_Guest lecture_YorkU CS May 2024.pptxArtyushina_Guest lecture_YorkU CS May 2024.pptx
Artyushina_Guest lecture_YorkU CS May 2024.pptxAnnaArtyushina1

Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024
Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024
Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024VictoriaMetrics

WSO2CON 2024 - IoT Needs CIAM: The Importance of Centralized IAM in a Growing...
WSO2CON 2024 - IoT Needs CIAM: The Importance of Centralized IAM in a Growing...WSO2CON 2024 - IoT Needs CIAM: The Importance of Centralized IAM in a Growing...
WSO2CON 2024 - IoT Needs CIAM: The Importance of Centralized IAM in a Growing...WSO2

[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse
[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse
[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypseTomasz Kowalczewski

WSO2Con2024 - From Code To Cloud: Fast Track Your Cloud Native Journey with C...
WSO2Con2024 - From Code To Cloud: Fast Track Your Cloud Native Journey with C...WSO2Con2024 - From Code To Cloud: Fast Track Your Cloud Native Journey with C...
WSO2Con2024 - From Code To Cloud: Fast Track Your Cloud Native Journey with C...WSO2

WSO2Con2024 - Low-Code Integration Tooling
WSO2Con2024 - Low-Code Integration ToolingWSO2Con2024 - Low-Code Integration Tooling
WSO2Con2024 - Low-Code Integration ToolingWSO2

WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!
WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!
WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!WSO2

AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf
AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdfAzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf
AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdfryanfarris8

WSO2CON 2024 - Building the API First Enterprise – Running an API Program, fr...
WSO2CON 2024 - Building the API First Enterprise – Running an API Program, fr...WSO2CON 2024 - Building the API First Enterprise – Running an API Program, fr...
WSO2CON 2024 - Building the API First Enterprise – Running an API Program, fr...WSO2

Driving Innovation: Scania's API Revolution with WSO2
Driving Innovation: Scania's API Revolution with WSO2Driving Innovation: Scania's API Revolution with WSO2
Driving Innovation: Scania's API Revolution with WSO2WSO2

WSO2CON2024 - It's time to go Platformless
WSO2CON2024 - It's time to go PlatformlessWSO2CON2024 - It's time to go Platformless
WSO2CON2024 - It's time to go PlatformlessWSO2

Effective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeConEffective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeConNatan Silnitsky

WSO2CON 2024 - How to Run a Security Program
WSO2CON 2024 - How to Run a Security ProgramWSO2CON 2024 - How to Run a Security Program
WSO2CON 2024 - How to Run a Security ProgramWSO2

WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...
WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...
WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...WSO2

WSO2Con2024 - Simplified Integration: Unveiling the Latest Features in WSO2 L...
WSO2Con2024 - Simplified Integration: Unveiling the Latest Features in WSO2 L...WSO2Con2024 - Simplified Integration: Unveiling the Latest Features in WSO2 L...
WSO2Con2024 - Simplified Integration: Unveiling the Latest Features in WSO2 L...WSO2

WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...
WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...
WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...WSO2

What Goes Wrong with Language Definitions and How to Improve the Situation
What Goes Wrong with Language Definitions and How to Improve the SituationWhat Goes Wrong with Language Definitions and How to Improve the Situation
What Goes Wrong with Language Definitions and How to Improve the SituationJuha-Pekka Tolvanen


Recently uploaded (20)

WSO2Con2024 - Organization Management: The Revolution in B2B CIAM
WSO2Con2024 - Organization Management: The Revolution in B2B CIAMWSO2Con2024 - Organization Management: The Revolution in B2B CIAM
WSO2Con2024 - Organization Management: The Revolution in B2B CIAM

WSO2CON 2024 Slides - Open Source to SaaS
WSO2CON 2024 Slides - Open Source to SaaSWSO2CON 2024 Slides - Open Source to SaaS
WSO2CON 2024 Slides - Open Source to SaaS

WSO2Con2024 - Hello Choreo Presentation - Kanchana
WSO2Con2024 - Hello Choreo Presentation - KanchanaWSO2Con2024 - Hello Choreo Presentation - Kanchana
WSO2Con2024 - Hello Choreo Presentation - Kanchana

Artyushina_Guest lecture_YorkU CS May 2024.pptx
Artyushina_Guest lecture_YorkU CS May 2024.pptxArtyushina_Guest lecture_YorkU CS May 2024.pptx
Artyushina_Guest lecture_YorkU CS May 2024.pptx

Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024
Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024
Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024

WSO2CON 2024 - IoT Needs CIAM: The Importance of Centralized IAM in a Growing...
WSO2CON 2024 - IoT Needs CIAM: The Importance of Centralized IAM in a Growing...WSO2CON 2024 - IoT Needs CIAM: The Importance of Centralized IAM in a Growing...
WSO2CON 2024 - IoT Needs CIAM: The Importance of Centralized IAM in a Growing...

[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse
[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse
[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse

WSO2Con2024 - From Code To Cloud: Fast Track Your Cloud Native Journey with C...
WSO2Con2024 - From Code To Cloud: Fast Track Your Cloud Native Journey with C...WSO2Con2024 - From Code To Cloud: Fast Track Your Cloud Native Journey with C...
WSO2Con2024 - From Code To Cloud: Fast Track Your Cloud Native Journey with C...

WSO2Con2024 - Low-Code Integration Tooling
WSO2Con2024 - Low-Code Integration ToolingWSO2Con2024 - Low-Code Integration Tooling
WSO2Con2024 - Low-Code Integration Tooling

WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!
WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!
WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!

AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf
AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdfAzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf
AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf

WSO2CON 2024 - Building the API First Enterprise – Running an API Program, fr...
WSO2CON 2024 - Building the API First Enterprise – Running an API Program, fr...WSO2CON 2024 - Building the API First Enterprise – Running an API Program, fr...
WSO2CON 2024 - Building the API First Enterprise – Running an API Program, fr...

Driving Innovation: Scania's API Revolution with WSO2
Driving Innovation: Scania's API Revolution with WSO2Driving Innovation: Scania's API Revolution with WSO2
Driving Innovation: Scania's API Revolution with WSO2

WSO2CON2024 - It's time to go Platformless
WSO2CON2024 - It's time to go PlatformlessWSO2CON2024 - It's time to go Platformless
WSO2CON2024 - It's time to go Platformless

Effective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeConEffective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeCon

WSO2CON 2024 - How to Run a Security Program
WSO2CON 2024 - How to Run a Security ProgramWSO2CON 2024 - How to Run a Security Program
WSO2CON 2024 - How to Run a Security Program

WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...
WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...
WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...

WSO2Con2024 - Simplified Integration: Unveiling the Latest Features in WSO2 L...
WSO2Con2024 - Simplified Integration: Unveiling the Latest Features in WSO2 L...WSO2Con2024 - Simplified Integration: Unveiling the Latest Features in WSO2 L...
WSO2Con2024 - Simplified Integration: Unveiling the Latest Features in WSO2 L...

WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...
WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...
WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...

What Goes Wrong with Language Definitions and How to Improve the Situation
What Goes Wrong with Language Definitions and How to Improve the SituationWhat Goes Wrong with Language Definitions and How to Improve the Situation
What Goes Wrong with Language Definitions and How to Improve the Situation


OpenStack Neutron Tutorial
