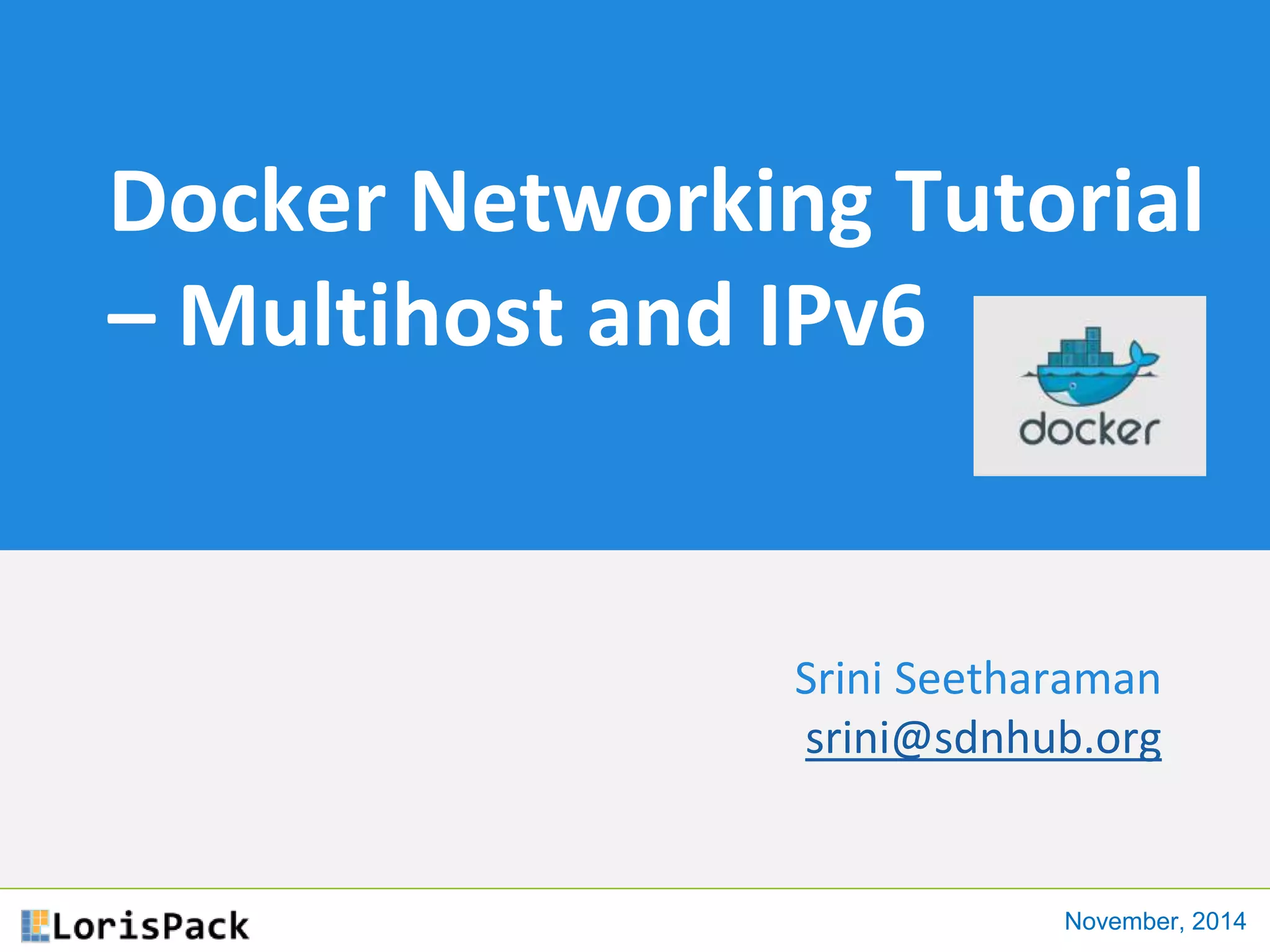

1. Docker Networking Tutorial
– Multihost and IPv6
Srini Seetharaman
srini@sdnhub.org
November, 2014

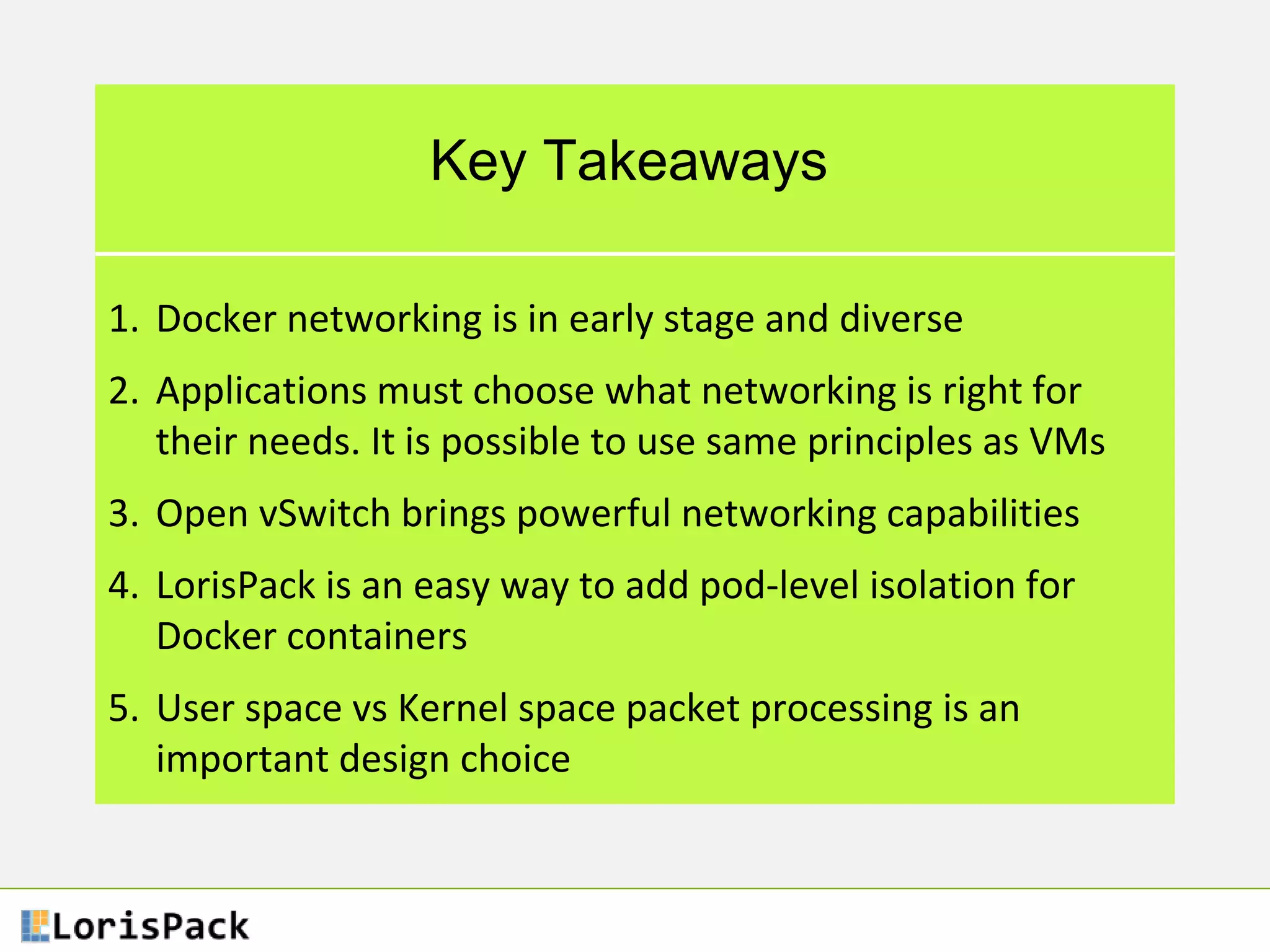

2. Key Takeaways
1. Docker networking is in early stage and diverse
2. Applications must choose what networking is right for
their needs. It is possible to use same principles as VMs
3. Open vSwitch brings powerful networking capabilities
4. LorisPack is an easy way to add pod-level isolation for
Docker containers
5. User space vs Kernel space packet processing is an
important design choice

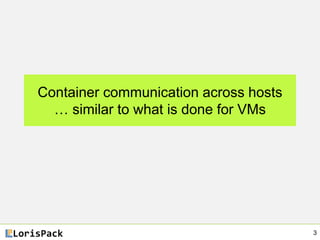

3. Container communication across hosts
… similar to what is done for VMs
3

4. Copyright Reserved

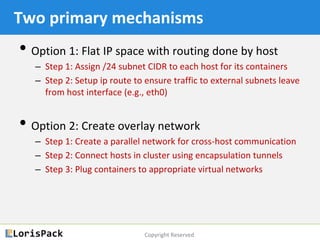

Two primary mechanisms
• Option 1: Flat IP space (at container level) with
routing (and possibly NAT) done by host
‒ Step 1: Assign /24 subnet CIDR to each host for its containers
‒ Step 2: Setup ip route to ensure traffic to external subnets leave
from host interface (e.g., eth0)
• Option 2: Create overlay network
‒ Step 1: Create a parallel network for cross-host communication
‒ Step 2: Connect hosts in cluster using encapsulation tunnels
‒ Step 3: Plug containers to appropriate virtual networks

5. Copyright Reserved

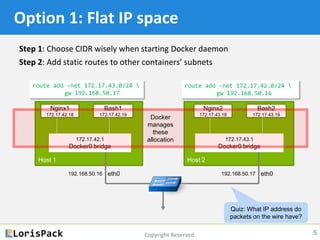

Option 1: Flat IP space
Step 1: Choose CIDR wisely when starting Docker daemon
Step 2: Add static routes to other containers’ subnets
5
Host 1
Nginx1
172.17.42.18
Bash1
172.17.42.19
172.17.42.1
Docker0 bridge
eth0192.168.50.16
Host 2
Nginx2
172.17.43.18
Bash2
172.17.43.19
172.17.43.1
Docker0 bridge
eth0192.168.50.17
Docker
manages
these
allocation
route add -net 172.17.43.0/24
gw 192.168.50.17
route add -net 172.17.42.0/24
gw 192.168.50.16
Quiz: What IP address do
packets on the wire have?
NAT rules already in
place to masquerade
internal IP addresses

6. Copyright Reserved
192.168.50.16 192.168.50.17
nginx1 ContainerX
Host 1
bash1 ContainerY
docker0
Open vSwitch
Host 2
Internet
Open vSwitch
docker0
vxlan vxlanvxlan vxlan
Other
cluster
hosts
Option 2: Open vSwitch based Overlay
Create parallel
network that
decouples
container
networking
from
underlying
infrastructure

7. Copyright Reserved
Recommend using Open vSwitch
• Why OpenvSwitch? It has many useful features
‒ VxLAN, GRE, VLAN based encapsulation and L2 forwarding
‒ Encapsulation allows containers to pick any MAC/IP they want
‒ Also possible to do L3 routing, ARP proxy etc, load-balancing
‒ Access control, traffic rate limiting and prioritization
‒ 10G/s or more packet processing through possible
‒ 1) kernel, or 2) userspace, with optionally DPDK acceleration

8. Copyright Reserved

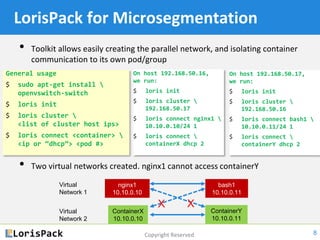

LorisPack for Microsegmentation
• Toolkit allows easily creating the parallel network, and isolating container
communication to its own pod/group
• Two virtual networks created. nginx1 cannot access containerY
8
On host 192.168.50.16,
we run:
$ loris init
$ loris cluster
192.168.50.17
$ loris connect nginx1
10.10.0.10/24 1
$ loris connect
containerX dhcp 2
General usage
$ sudo apt-get install
openvswitch-switch
$ loris init
$ loris cluster
<list of cluster host ips>
$ loris connect <container>
<ip or “dhcp”> <pod #>
nginx1
10.10.0.10
ContainerX
10.10.0.10
bash1
10.10.0.11
ContainerY
10.10.0.11
Virtual
Network 1
Virtual
Network 2
On host 192.168.50.17,
we run:
$ loris init
$ loris cluster
192.168.50.16
$ loris connect bash1
10.10.0.11/24 1
$ loris connect
containerY dhcp 2
X X

9. Copyright Reserved

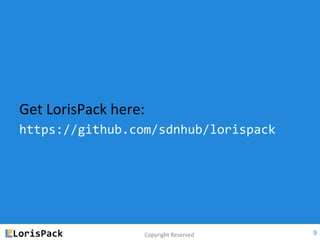

Get LorisPack here:
https://github.com/sdnhub/lorispack
9

10. Copyright Reserved

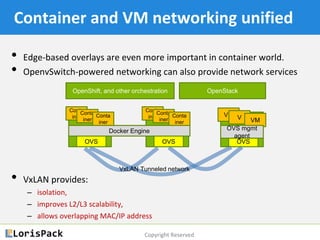

Container and VM networking unified
• Edge-based overlays are even more important in container world.
• OpenvSwitch-powered networking can also provide network services
• VxLAN provides:
‒ isolation,
‒ improves L2/L3 scalability,
‒ allows overlapping MAC/IP address
Docker Engine
OVS OVS OVS
Conta
iner
Conta
iner
Conta
iner
Conta
iner
Conta
iner
Conta
iner
VM V VM
OpenShift, and other orchestration OpenStack
VxLAN Tunneled network
OVS mgmt
agent

11. IPv6 Addressing for Docker
11

12. Copyright Reserved

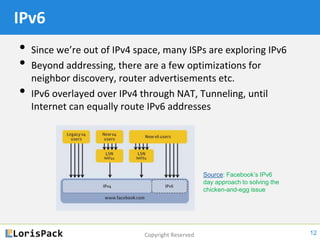

IPv6
• Since we’re out of IPv4 space, many ISPs are exploring IPv6
• Beyond addressing, there are a few optimizations for
neighbor discovery, router advertisements etc.
• IPv6 overlayed over IPv4 through NAT, Tunneling, until
Internet can equally route IPv6 addresses
12
Source: Facebook’s IPv6
day approach to solving the
chicken-and-egg issue

13. Copyright Reserved

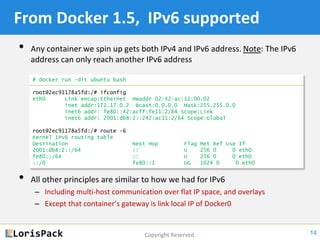

From Docker 1.5, IPv6 supported
• Dual Stack supported
‒ Both bridge and containers get both IPv4 and IPv6
addresses, automatically assigned
‒ Start Docker daemon with --ipv6 flag and appropriate CIDR
# docker -d --ipv6 --fixed-cidr-v6="2001:db8:2::/64"
$ ifconfig docker0
docker0 Link encap:Ethernet HWaddr 56:84:7a:fe:97:99
inet addr:172.17.42.1 Bcast:0.0.0.0 Mask:255.255.0.0
inet6 addr: fe80::5484:7aff:fefe:9799/64 Scope:Link
inet6 addr: fe80::1/64 Scope:Link
IPv4 address
Link local
IPv6 address

14. Copyright Reserved
From Docker 1.5, IPv6 supported
• Any container we spin up gets both IPv4 and IPv6 address. Note: The IPv6
address can only reach another IPv6 address
• All other principles are similar to how we had for IPv4
‒ Including multi-host communication over flat IP space, and overlays
‒ Except that container’s gateway is link local IP of Docker0
14
# docker run -dit ubuntu bash
root@2ec91178a5fd:/# ifconfig
eth0 Link encap:Ethernet HWaddr 02:42:ac:11:00:02
inet addr:172.17.0.2 Bcast:0.0.0.0 Mask:255.255.0.0
inet6 addr: fe80::42:acff:fe11:2/64 Scope:Link
inet6 addr: 2001:db8:2::242:ac11:2/64 Scope:Global
root@2ec91178a5fd:/# route -6
Kernel IPv6 routing table
Destination Next Hop Flag Met Ref Use If
2001:db8:2::/64 :: U 256 0 0 eth0
fe80::/64 :: U 256 0 0 eth0
::/0 fe80::1 UG 1024 0 0 eth0

15. Copyright Reserved

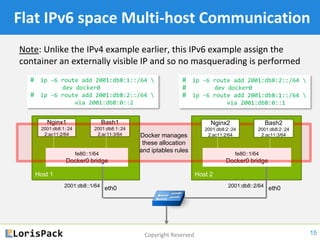

Flat IPv6 space Multi-host Communication
Note: Unlike the IPv4 example earlier, this IPv6 example assign the
container an externally visible IP and so no masquerading is performed
15
Host 1
Nginx1
2001:db8:1::24
2:ac11:2/64
Bash1
2001:db8:1::24
2:ac11:3/64
fe80::1/64
Docker0 bridge
eth02001:db8::1/64
Host 2
fe80::1/64
Docker0 bridge
eth02001:db8::2/64
Docker manages
these allocation
and iptables rules
# ip -6 route add 2001:db8:1::/64
dev docker0
# ip -6 route add 2001:db8:2::/64
via 2001:db8::2
# ip -6 route add 2001:db8:2::/64
dev docker0
# ip -6 route add 2001:db8:1::/64
via 2001:db8::1
Nginx2
2001:db8:2::24
2:ac11:2/64
Bash2
2001:db8:2::24
2:ac11:3/64

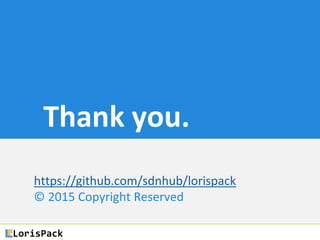

16. Thank you.
