Understand the iptables step by step

COSCUP2018
x
openSUSE.Asia GNOME.Asia
I am Hung-Wei Chiu
Co-organizer of SDNDS-TW
Co-organizer of CNTUUG
I love
Linux Network/Kubernetes/SDN
You can find me at:
blog.hwchiu.com

COSCUP2018
x
How Many People Known Iptables?

COSCUP2018
x

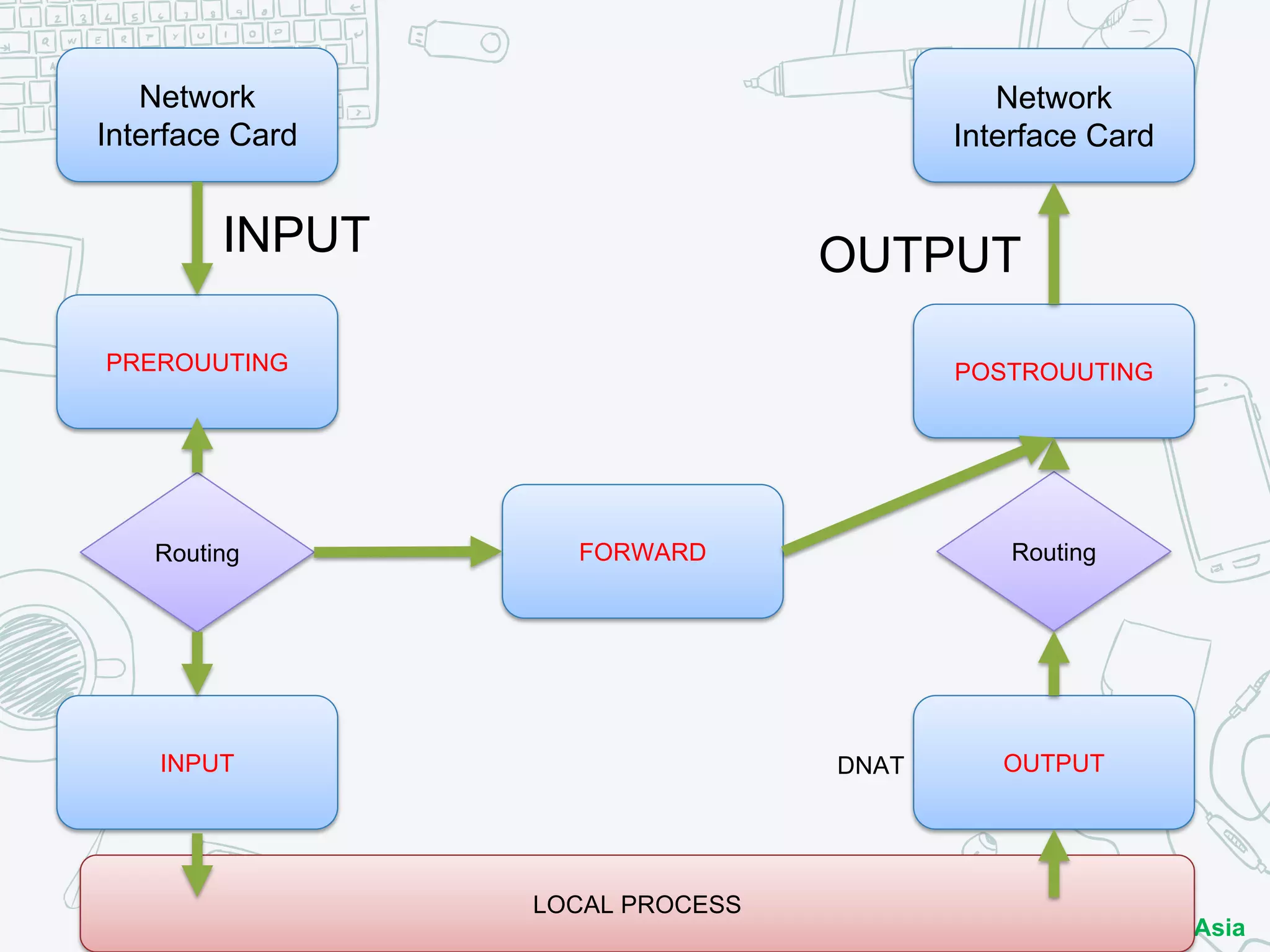

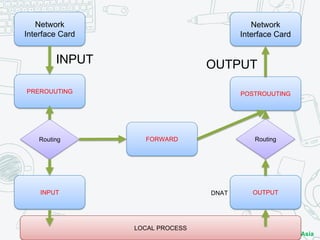

Network
Interface Card
PREROUUTING
Network
Interface Card
POSTROUUTING
INPUT OUTPUT
INPUT OUTPUT
FORWARDRouting Routing
LOCAL PROCESS
DNAT

COSCUP2018
x
We Don’t Focus On Those Table/Chain
Today

COSCUP2018
x

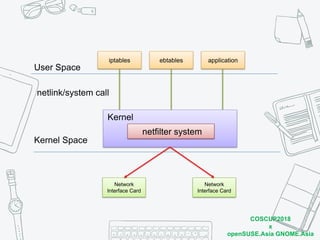

User Space
Kernel Space
iptables ebtables application
netlink/system call
Kernel
netfilter system
Network
Interface Card
Network
Interface Card

COSCUP2018
x
iptables, a command-line tool

COSCUP2018
x

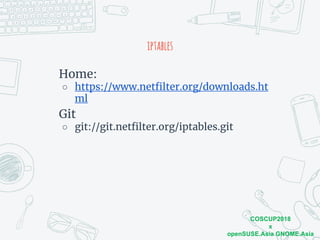

iptables
Home:
○ https://www.netfilter.org/downloads.ht
ml
Git
○ git://git.netfilter.org/iptables.git

COSCUP2018
x
We Focus On What Will Happen For
Each Command

COSCUP2018
x
Do You Have Meet The Following
Message?

COSCUP2018
x

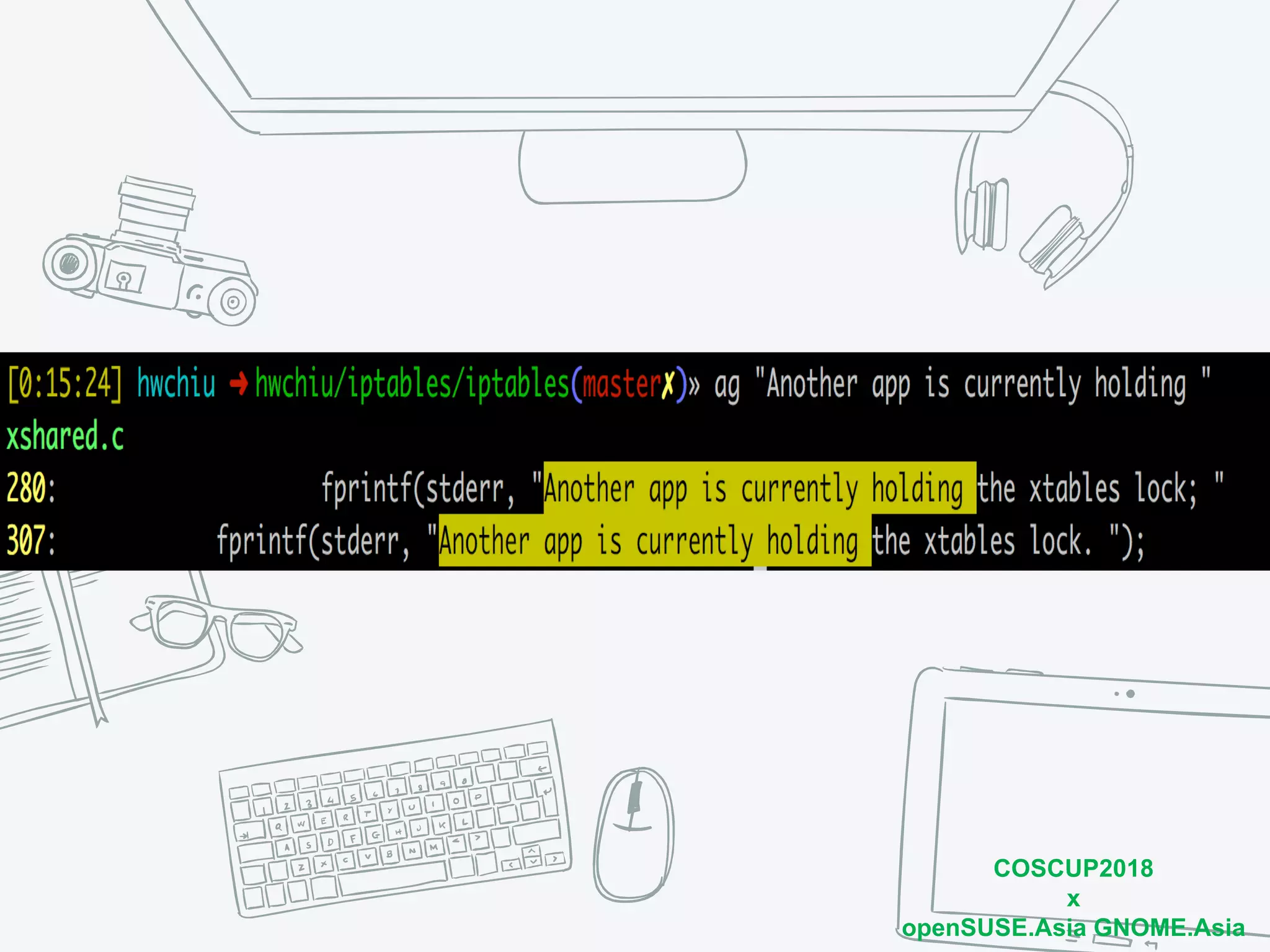

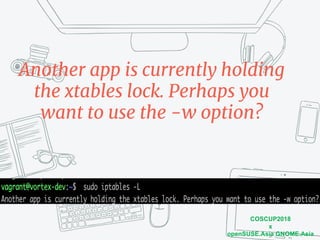

Another app is currently holding
the xtables lock. Perhaps you
want to use the -w option?

COSCUP2018
x
Whathappen
iptables command needs a
communication between user and
kernel space.
It need a lock to make sure the
consistence
iptables will exit if it can’t acquire the
lock by default.
Use the –w option to wait the lock.

COSCUP2018
x

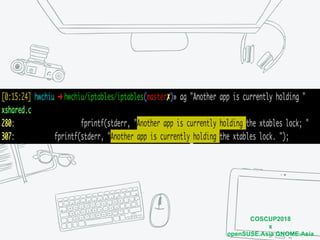

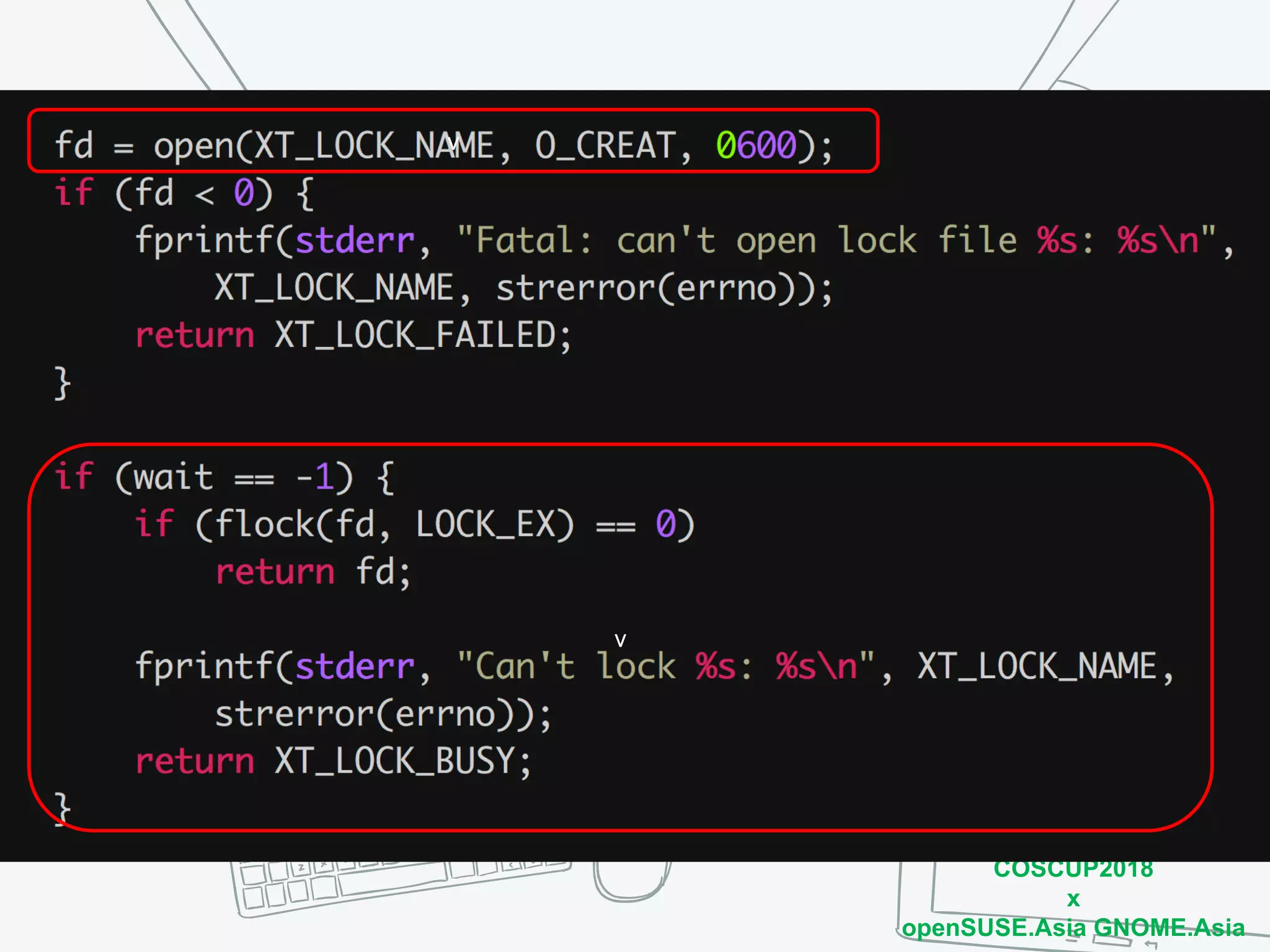

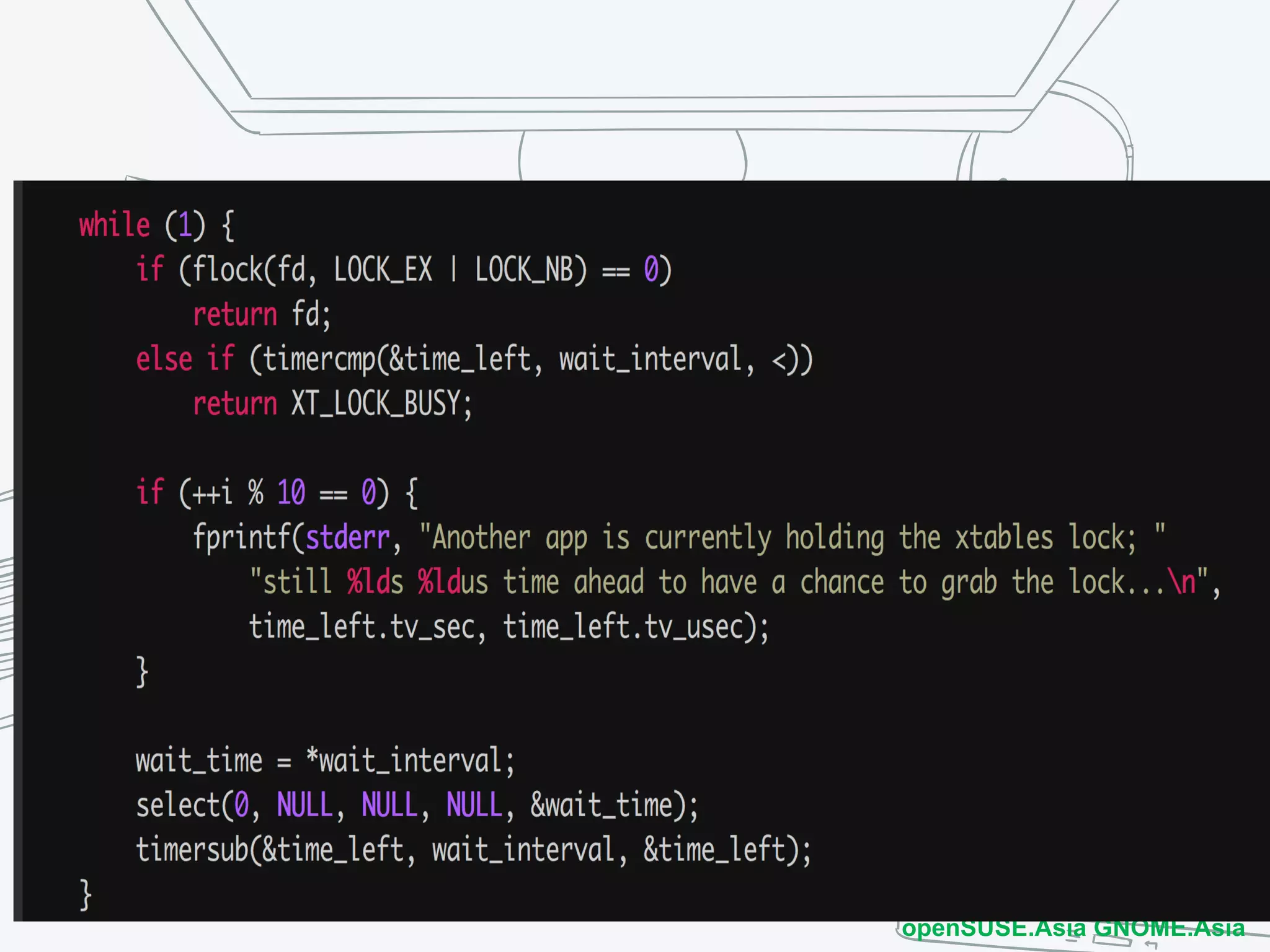

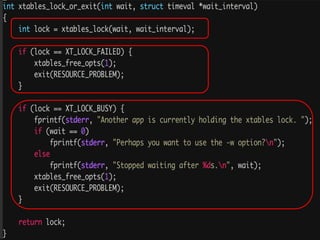

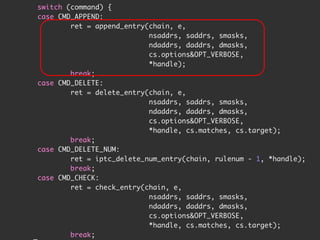

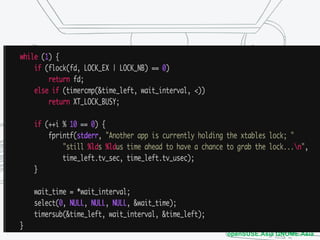

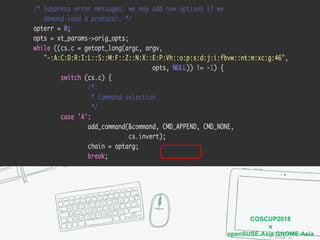

Let Read The Source Code

COSCUP2018
x

COSCUP2018
x
v
v

COSCUP2018
x
So, We Know The Iptables Use The File
Lock

COSCUP2018
x

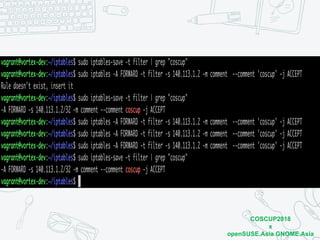

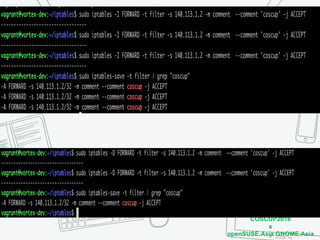

Do You Meet The Duplicated Rules ?

COSCUP2018
x
How Could We Solve This?

COSCUP2018
x
solution
Custom chain
○ Use the ‘-F’ to flush all rules.

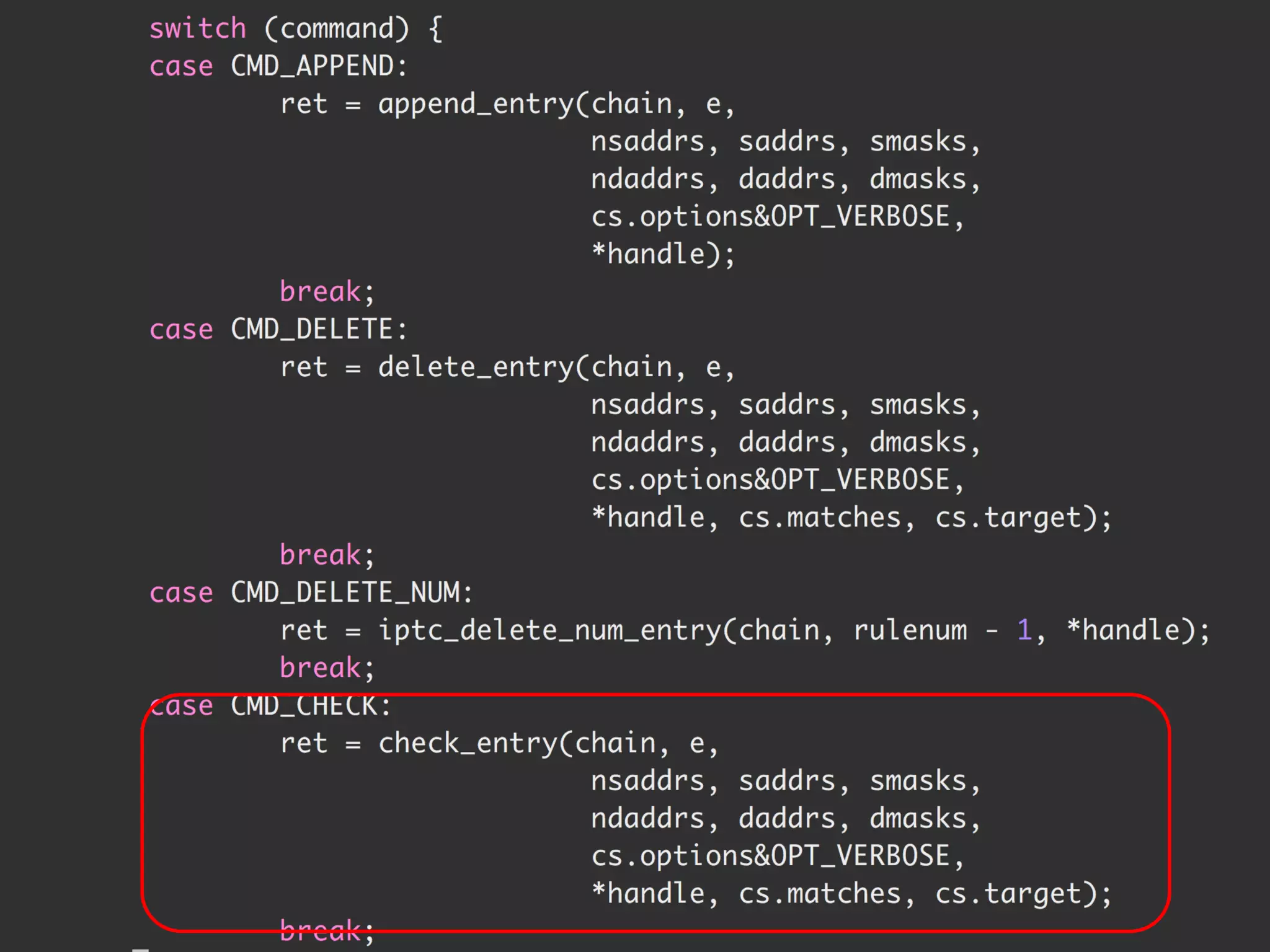

Check before inserting rule
○ Use the ‘-C’ to check.

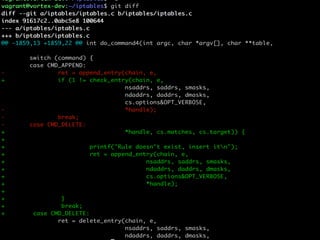

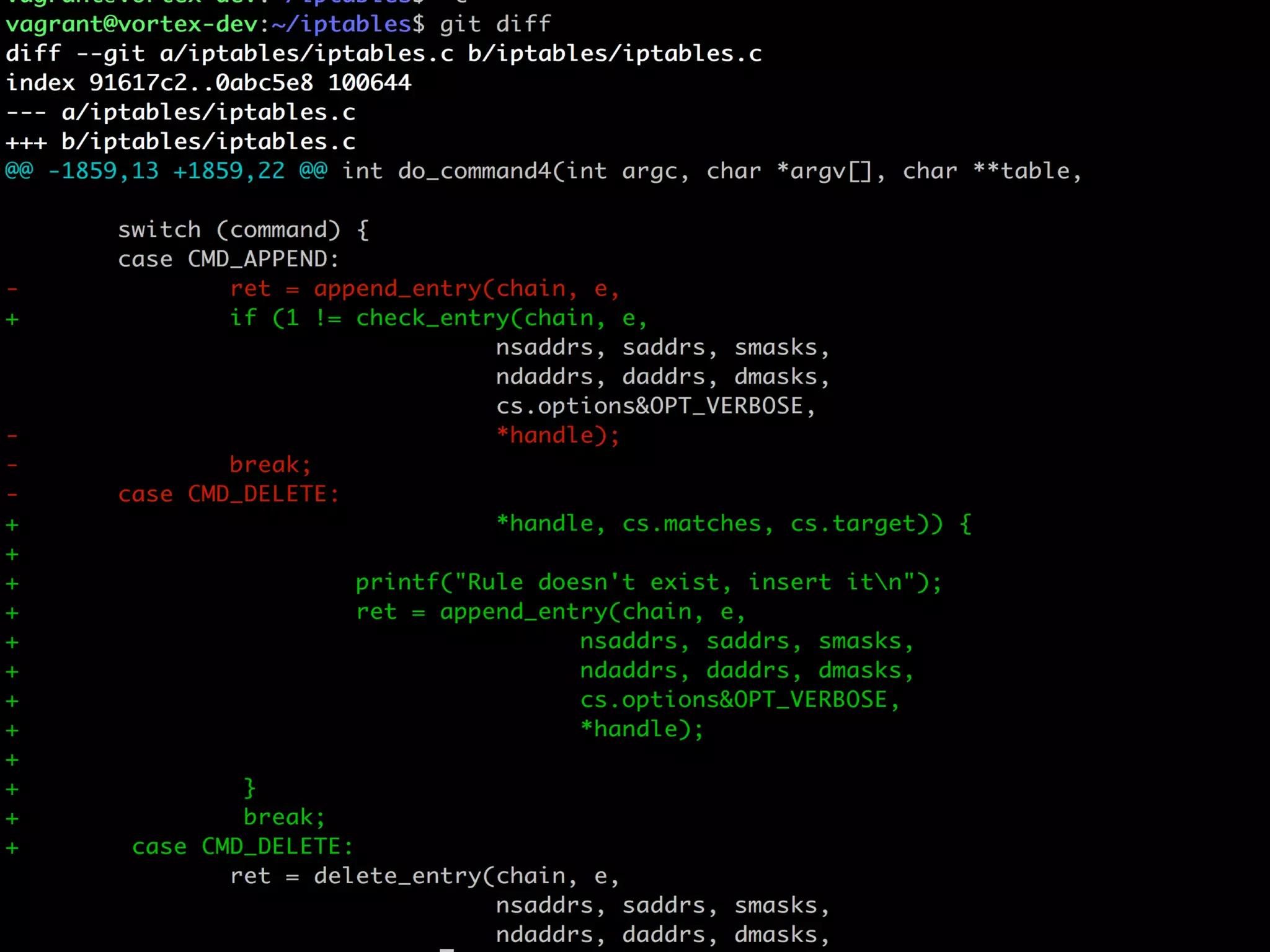

Modify the iptables to avoid
duplicated rules.

COSCUP2018
x

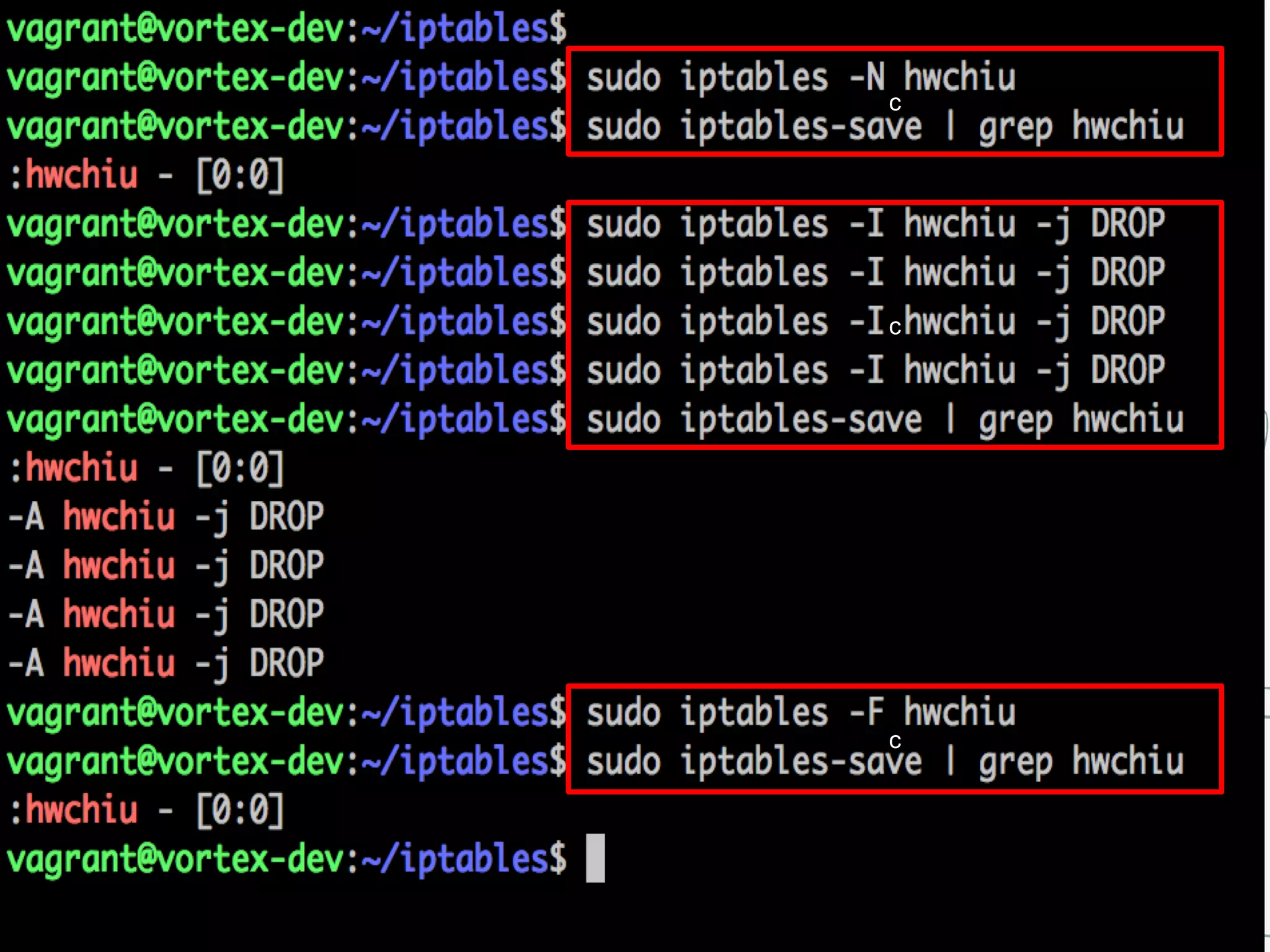

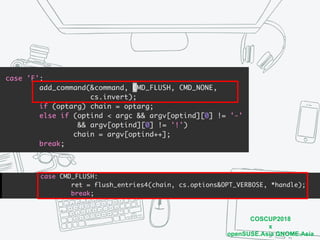

Now, Let We Learn How To Flush The
Rules.

COSCUP2018
x
c
c
c

COSCUP2018
x
First, we need to know how iptables
works with kernel?

COSCUP2018
x
libiptc

COSCUP2018
x
libiptc
Library which manipulates firewall
rules
Use the system call to interact with
kernel
○ GetSocketOpt
○ SetSocketOpt
Maintain a cache for each iptables
command.

COSCUP2018
x

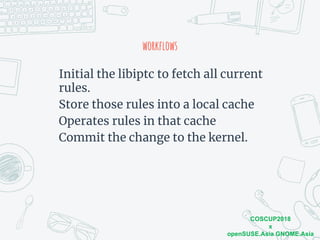

workflows

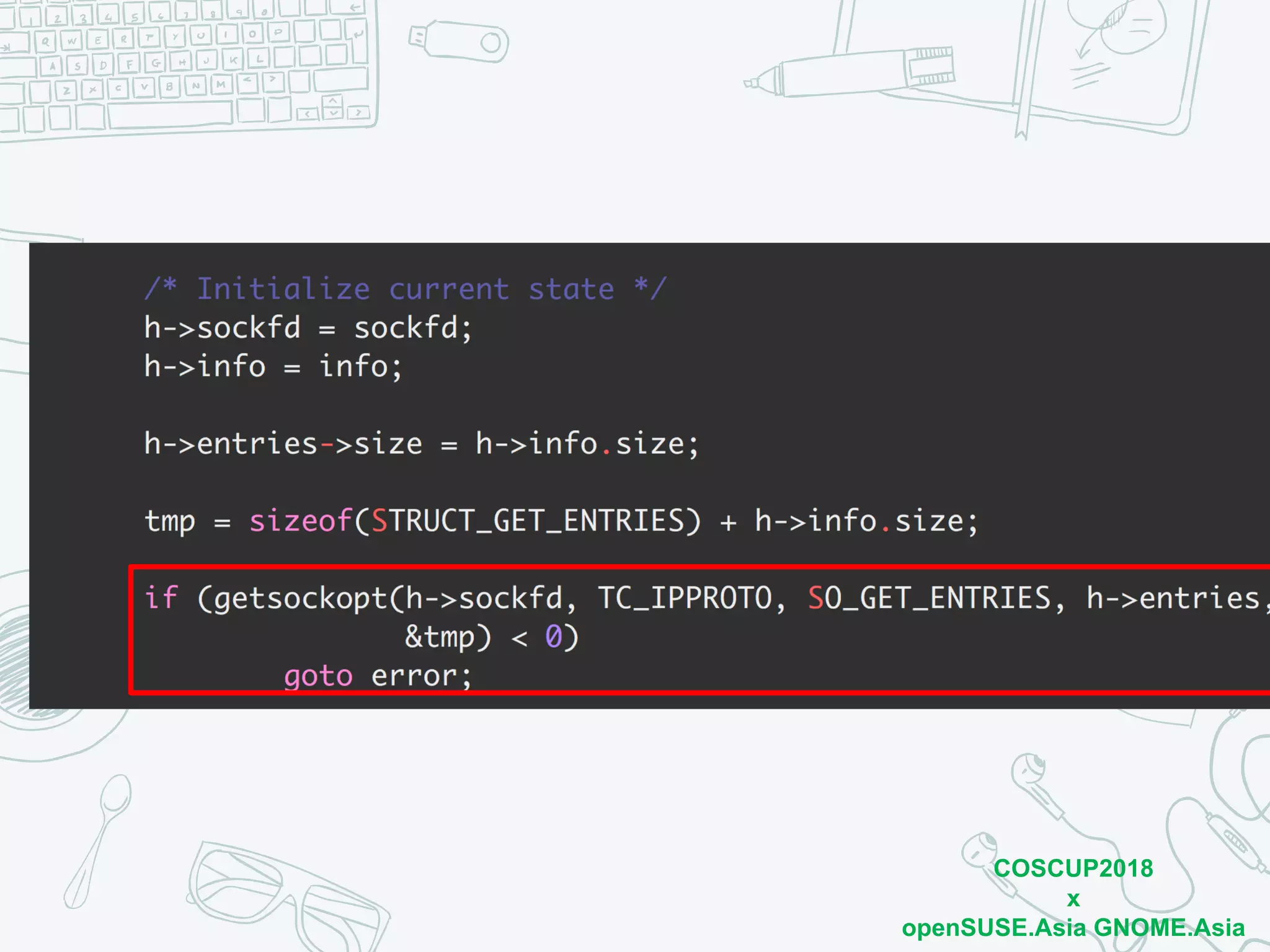

Initial the libiptc to fetch all current
rules.
Store those rules into a local cache
Operates rules in that cache
Commit the change to the kernel.

COSCUP2018
x

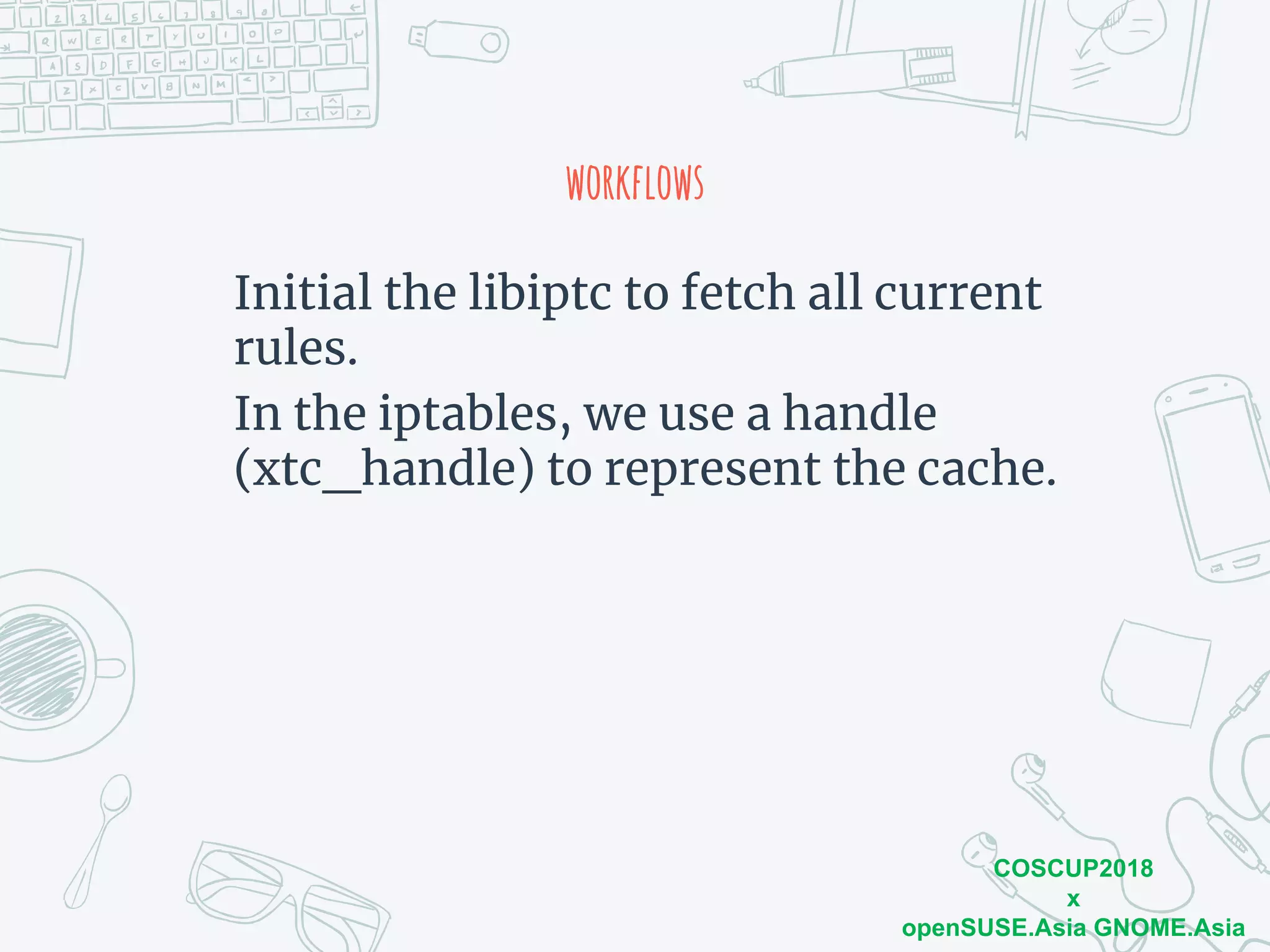

workflows
rules.
In the iptables, we use a handle
(xtc_handle) to represent the cache.

COSCUP2018
x

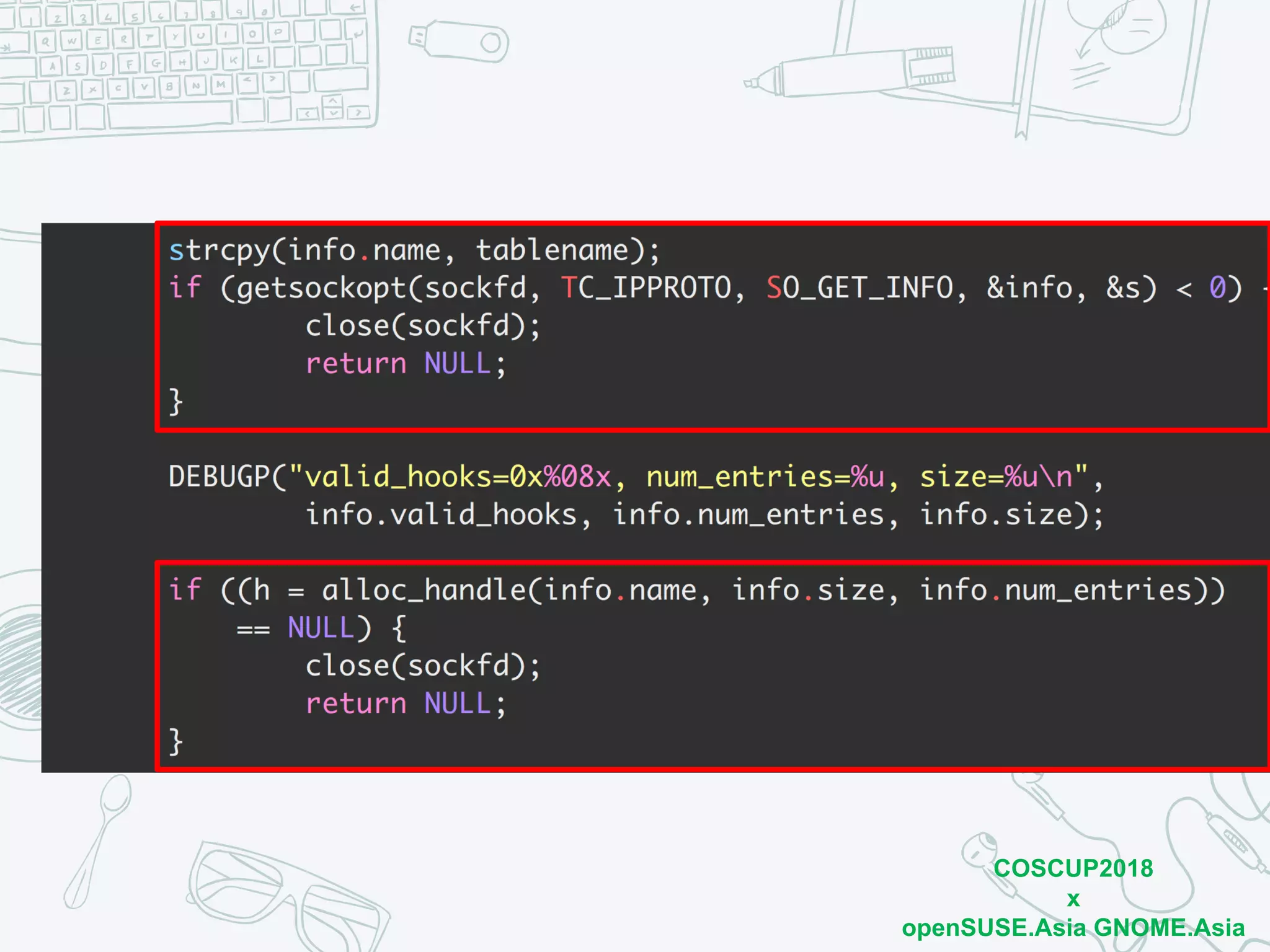

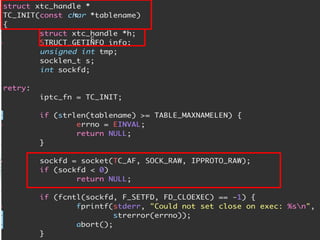

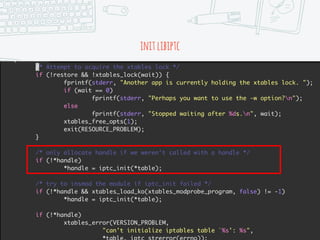

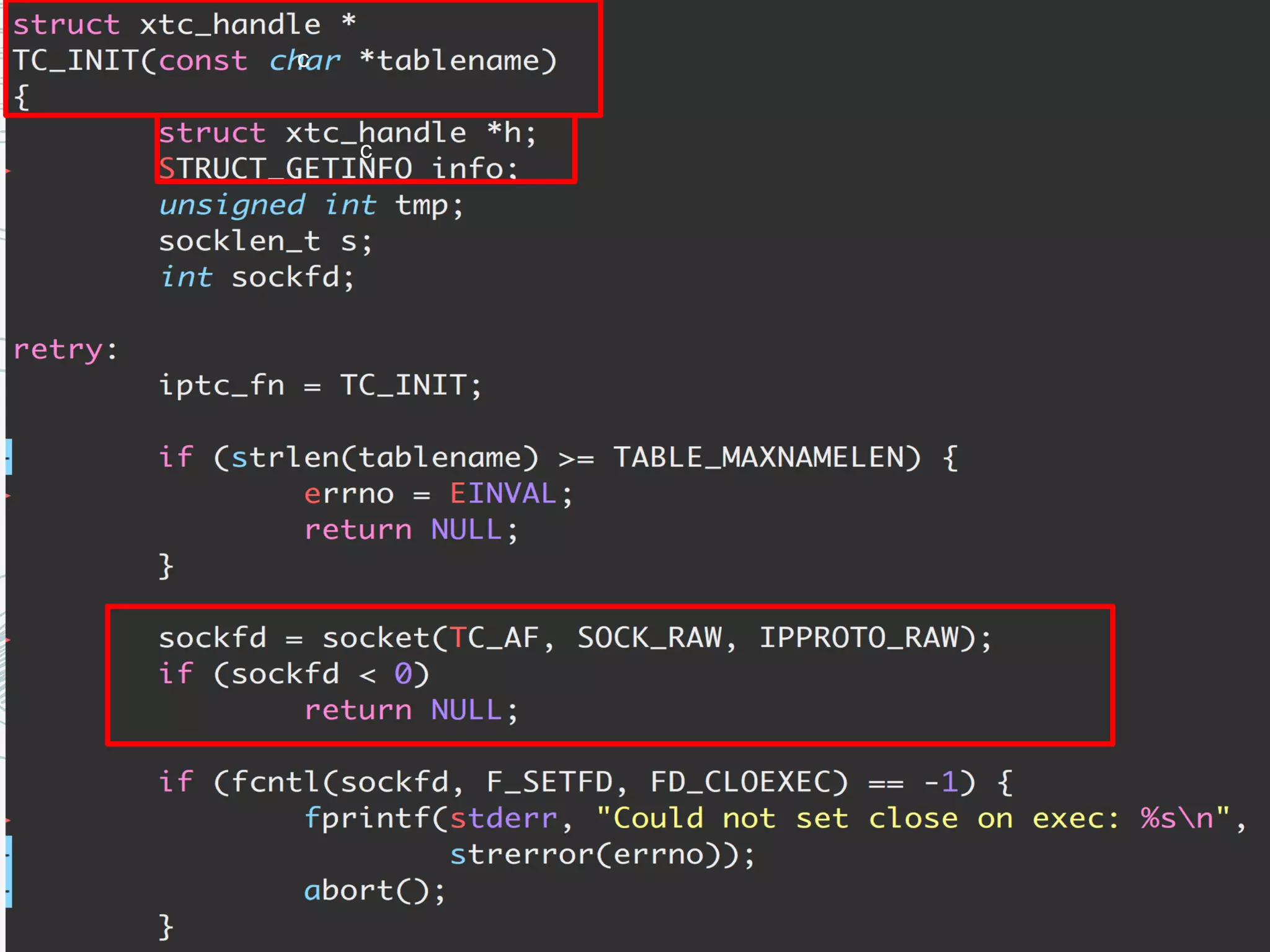

initlibiptc
rules.

COSCUP2018
x
c
c

COSCUP2018
x
Now, we have the cache of the current
rules.

COSCUP2018
x

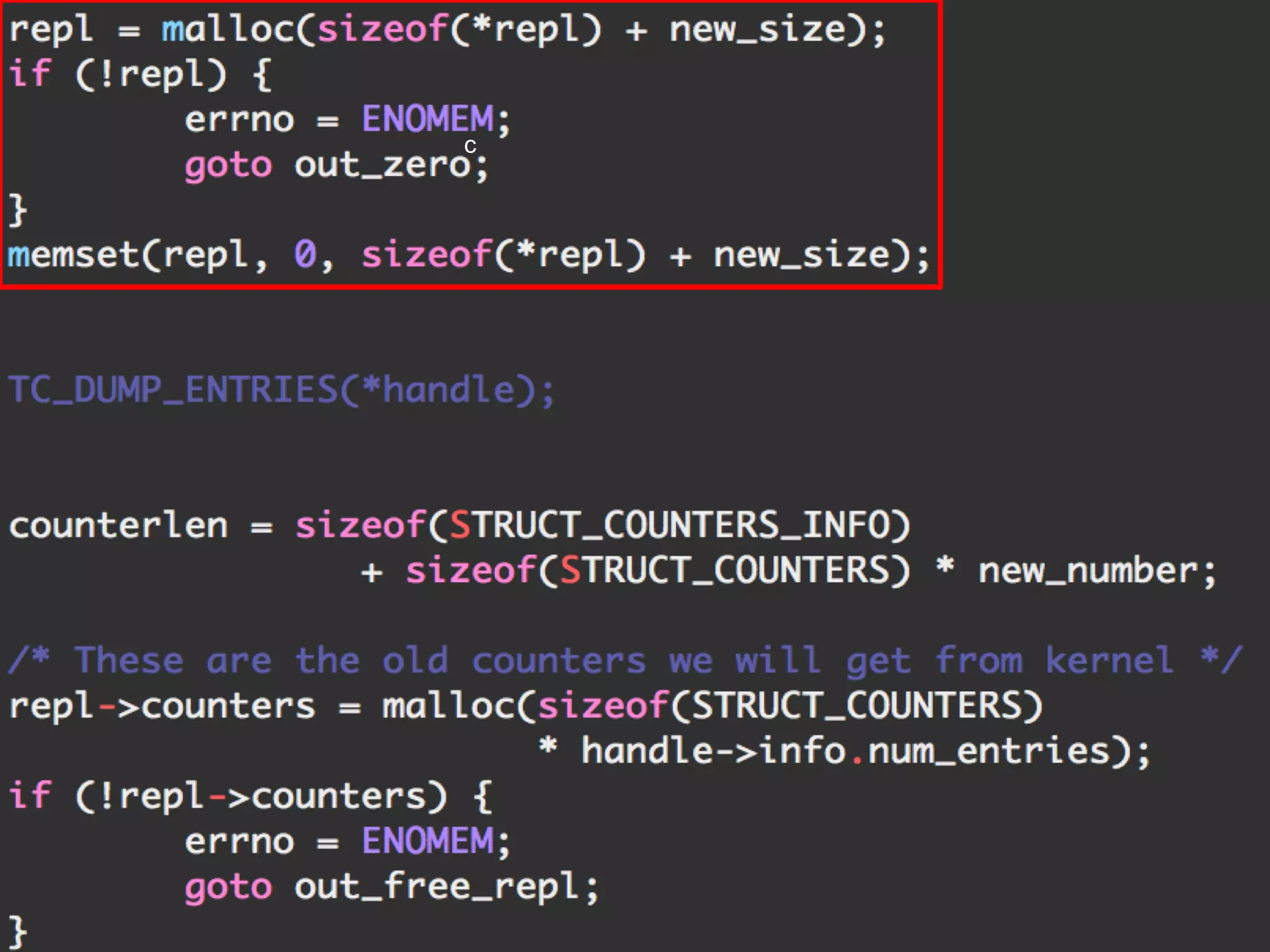

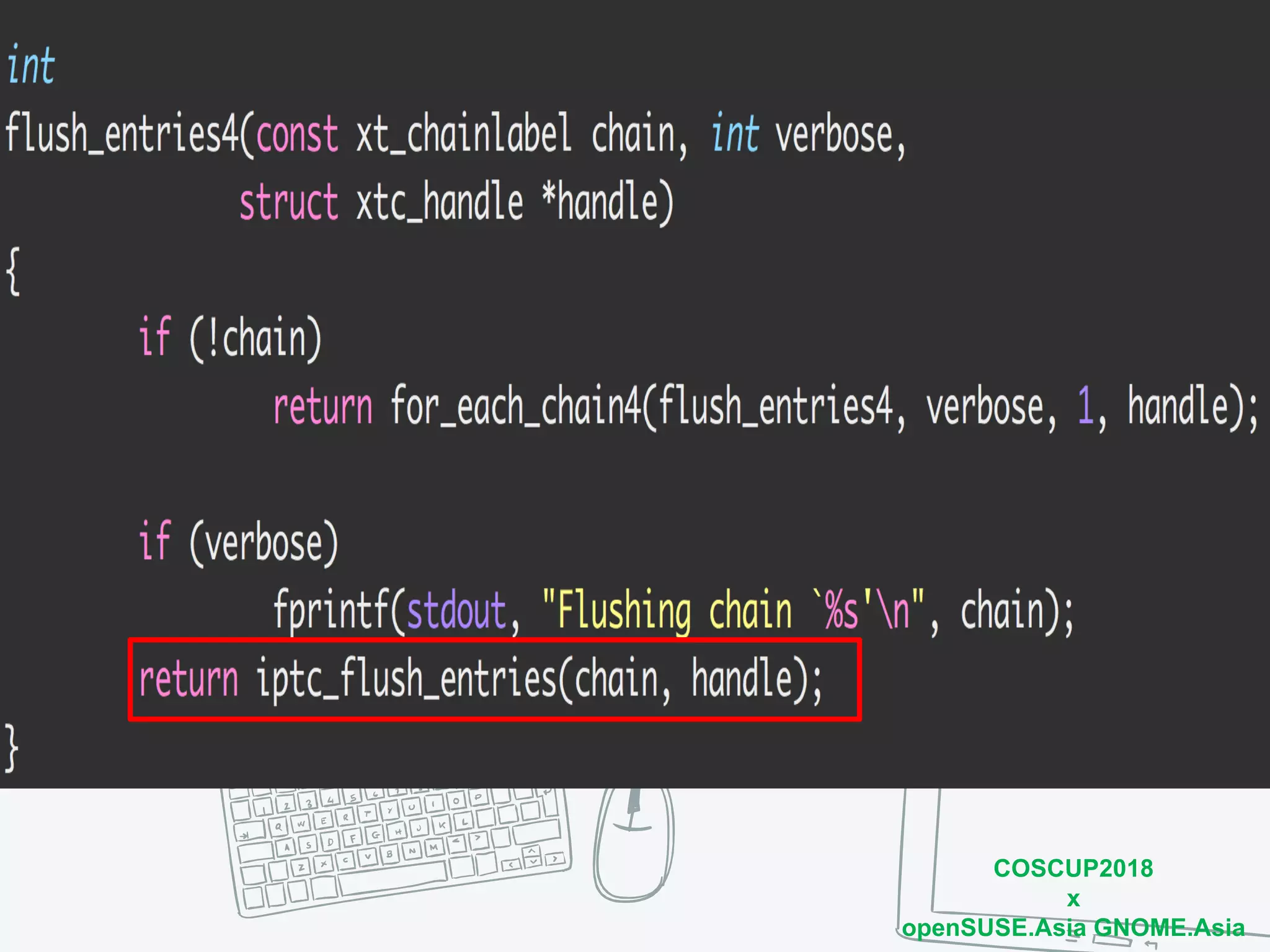

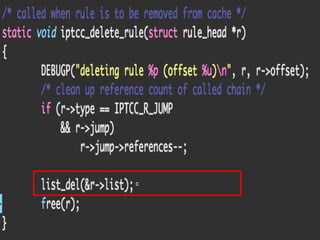

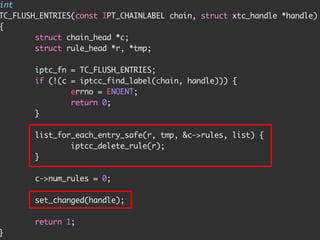

Let We Flush Rules

COSCUP2018
x
c

COSCUP2018
x
Now, We Have Remove Rules From
Cache

COSCUP2018
x

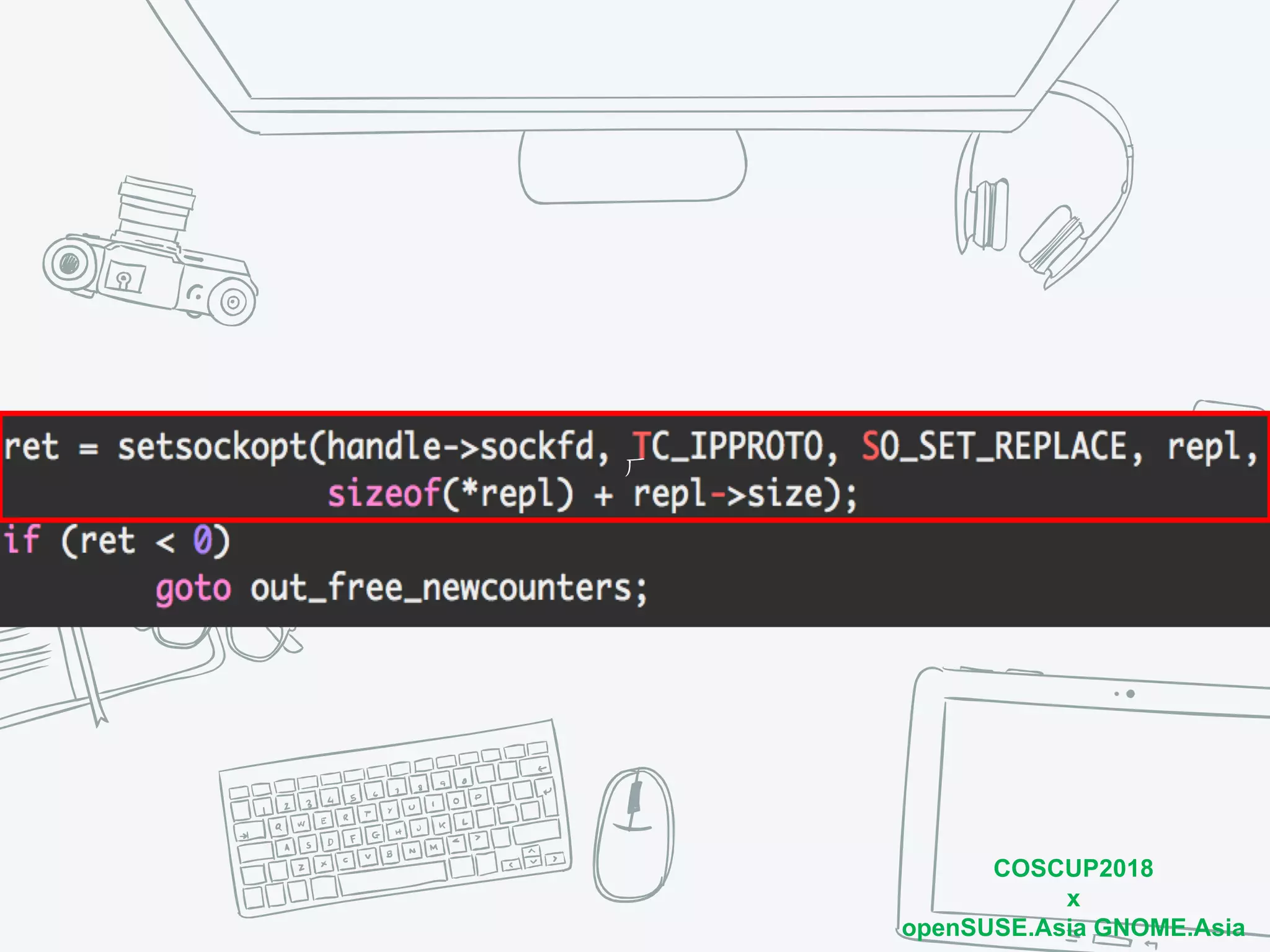

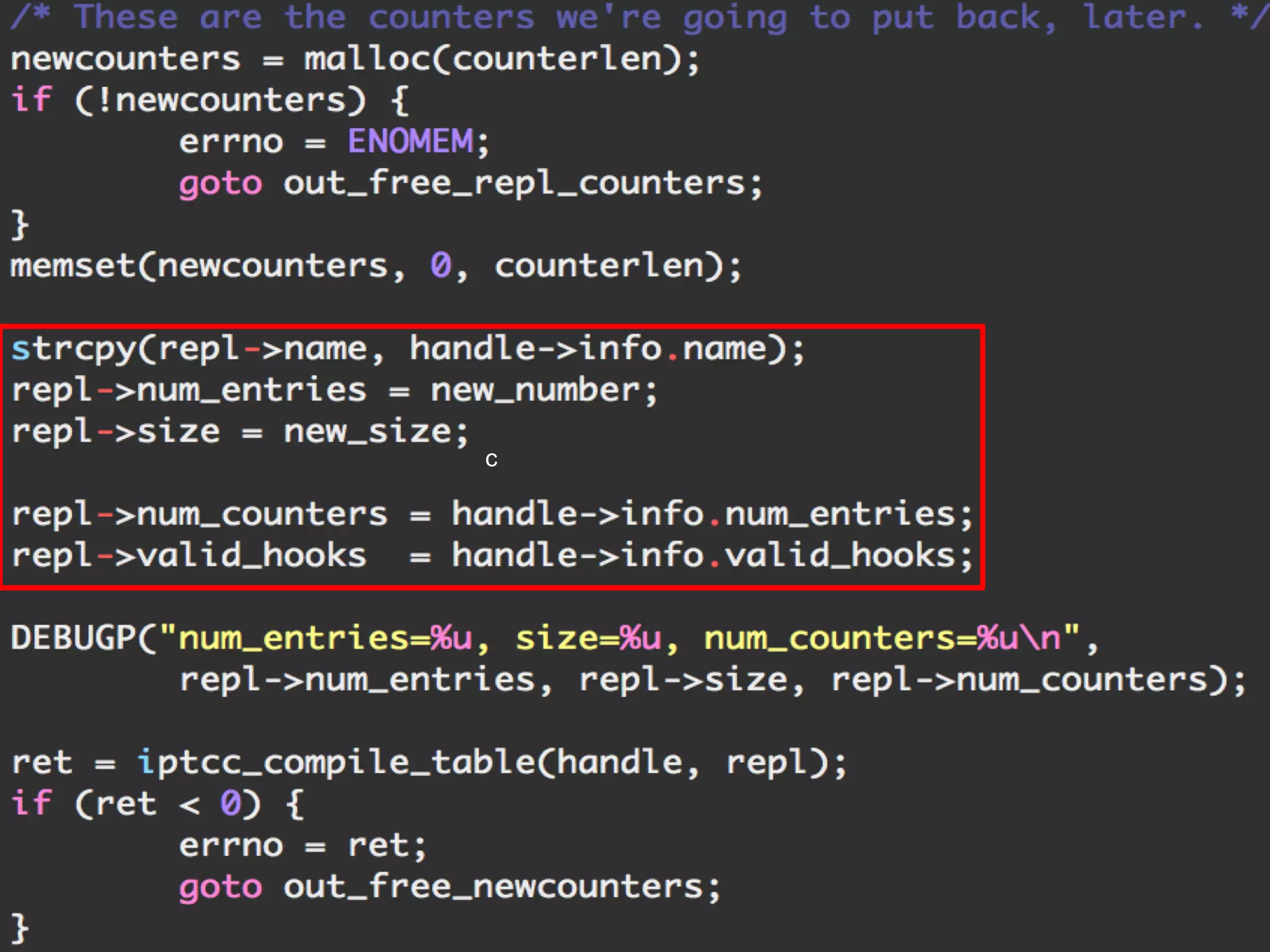

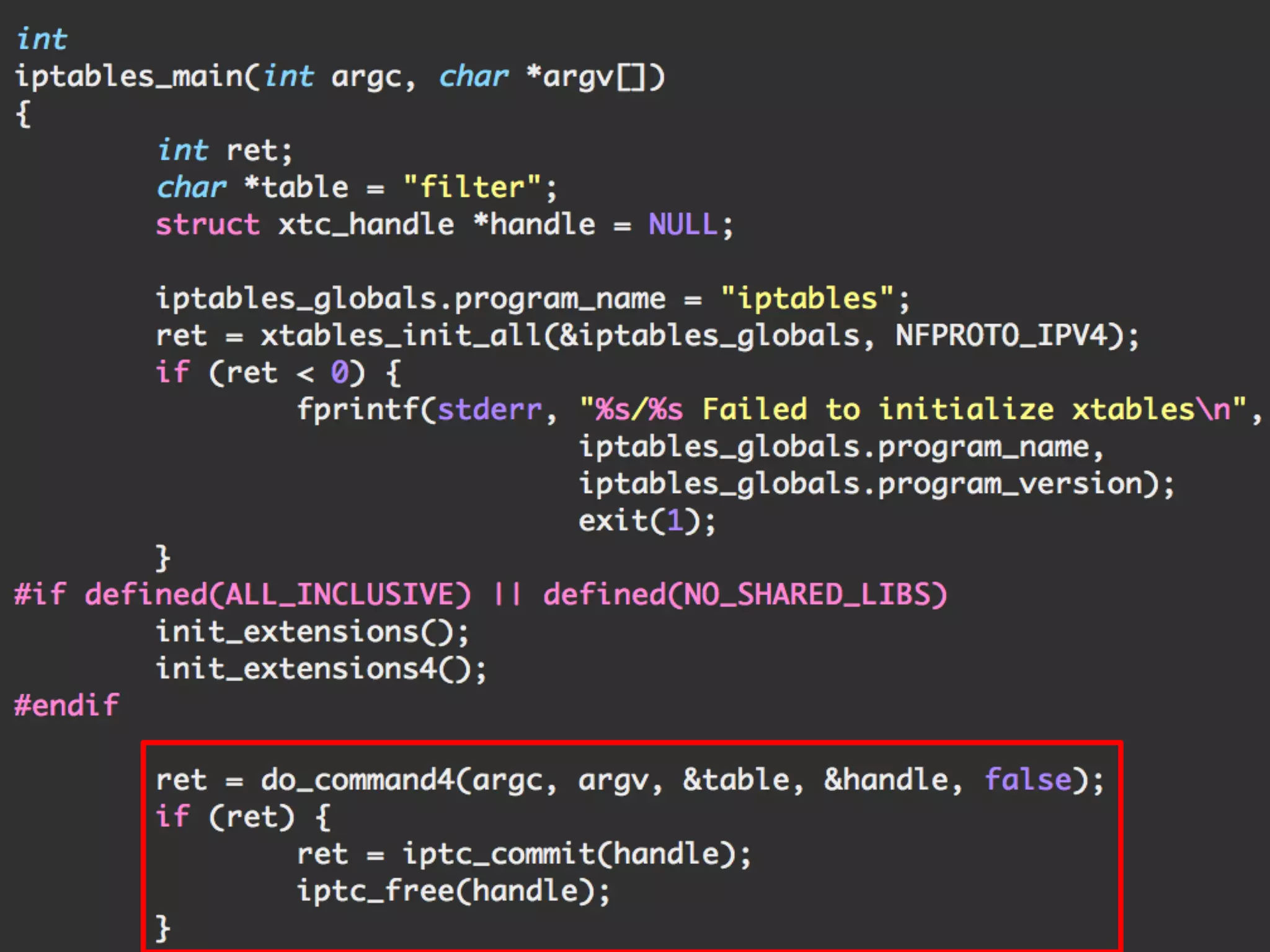

We Commit The Change After Any
Commands

COSCUP2018
x
Now, We Have Flush The Rules.

COSCUP2018
x
Now, Let’s See What’s The Extension

COSCUP2018
x

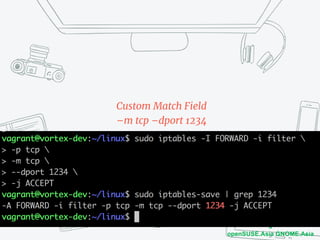

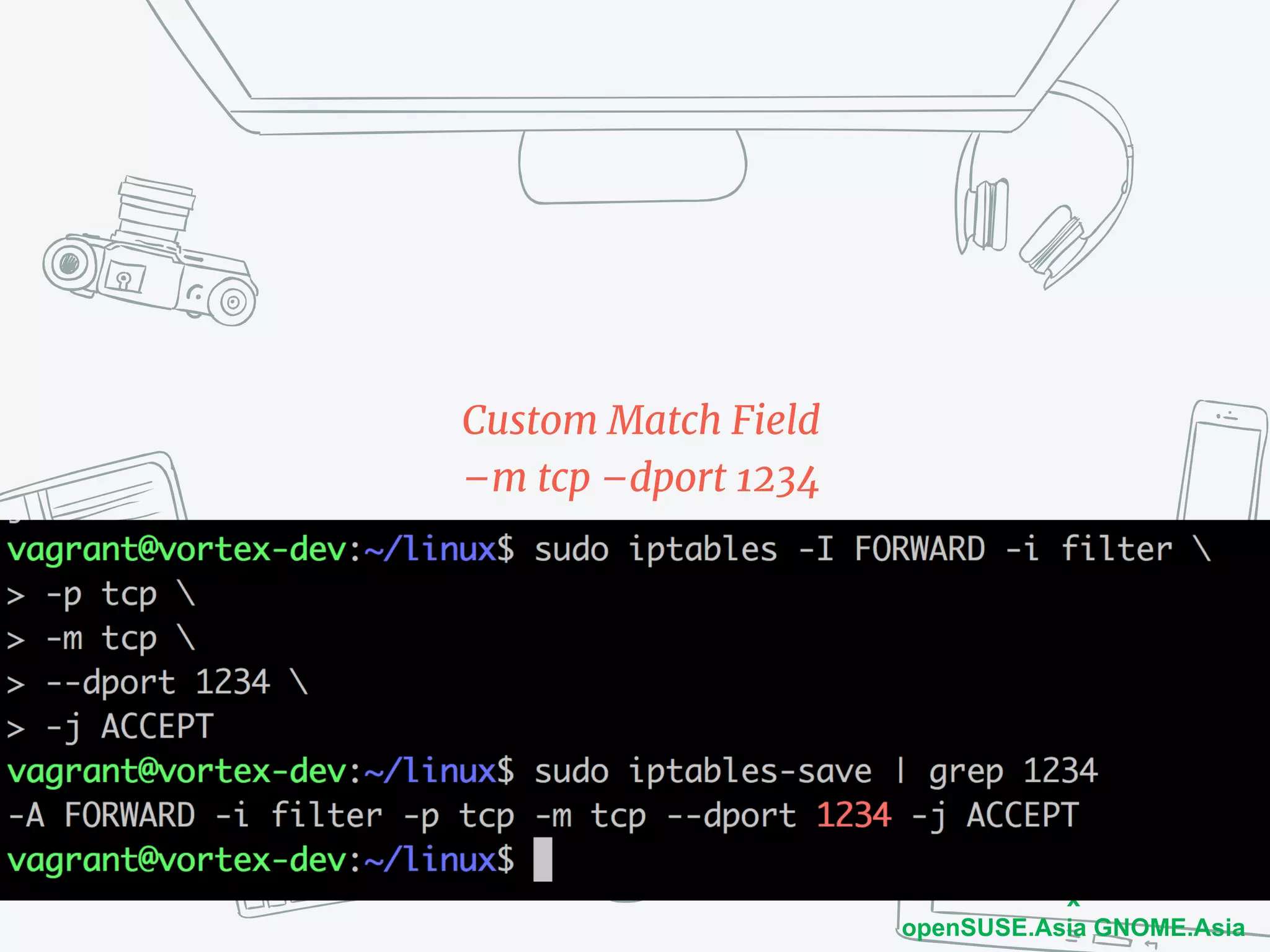

Custom Match Field
–m tcp –dport 1234

COSCUP2018
x

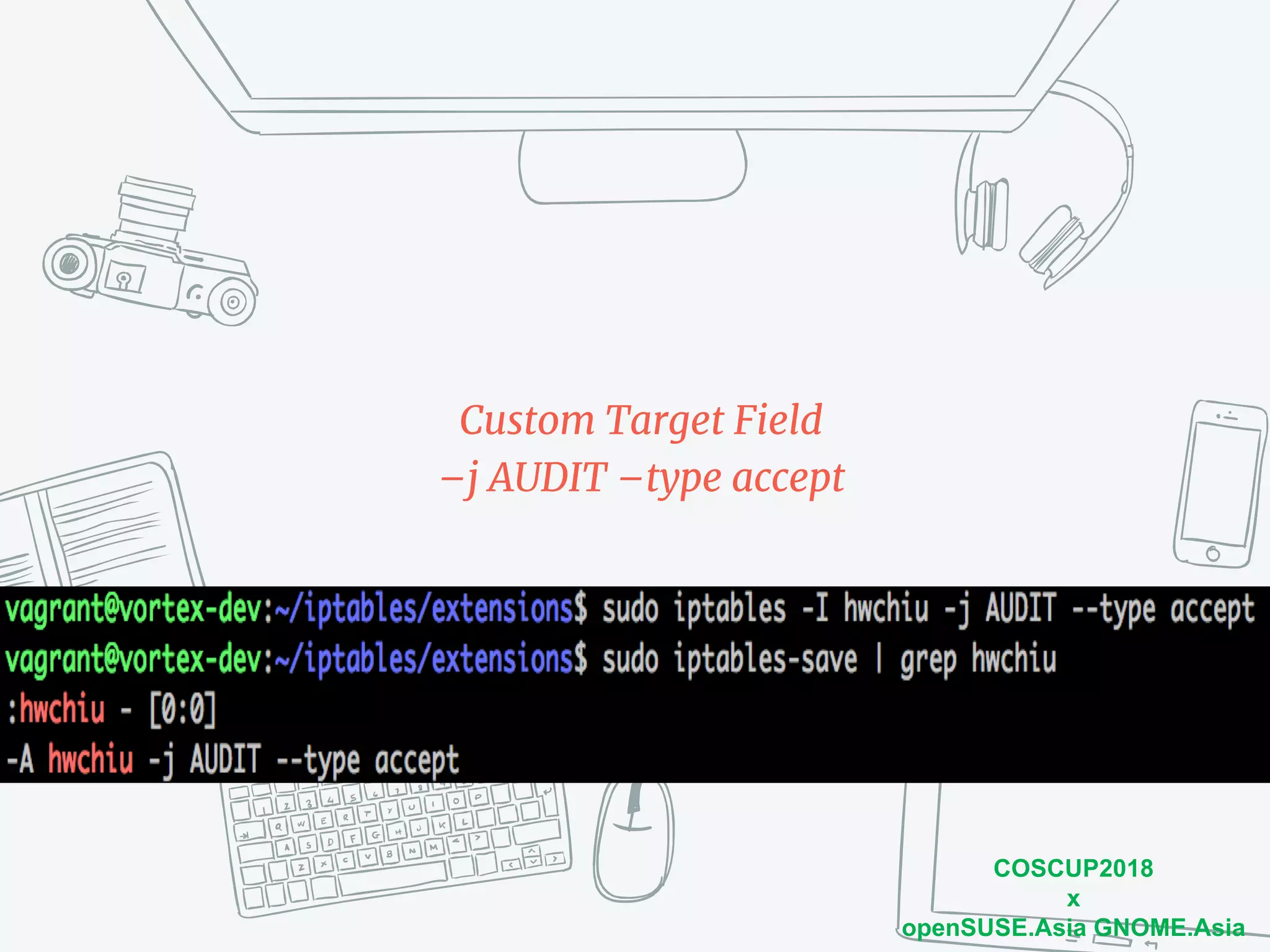

Custom Target Field
–j AUDIT –type accept

COSCUP2018
x

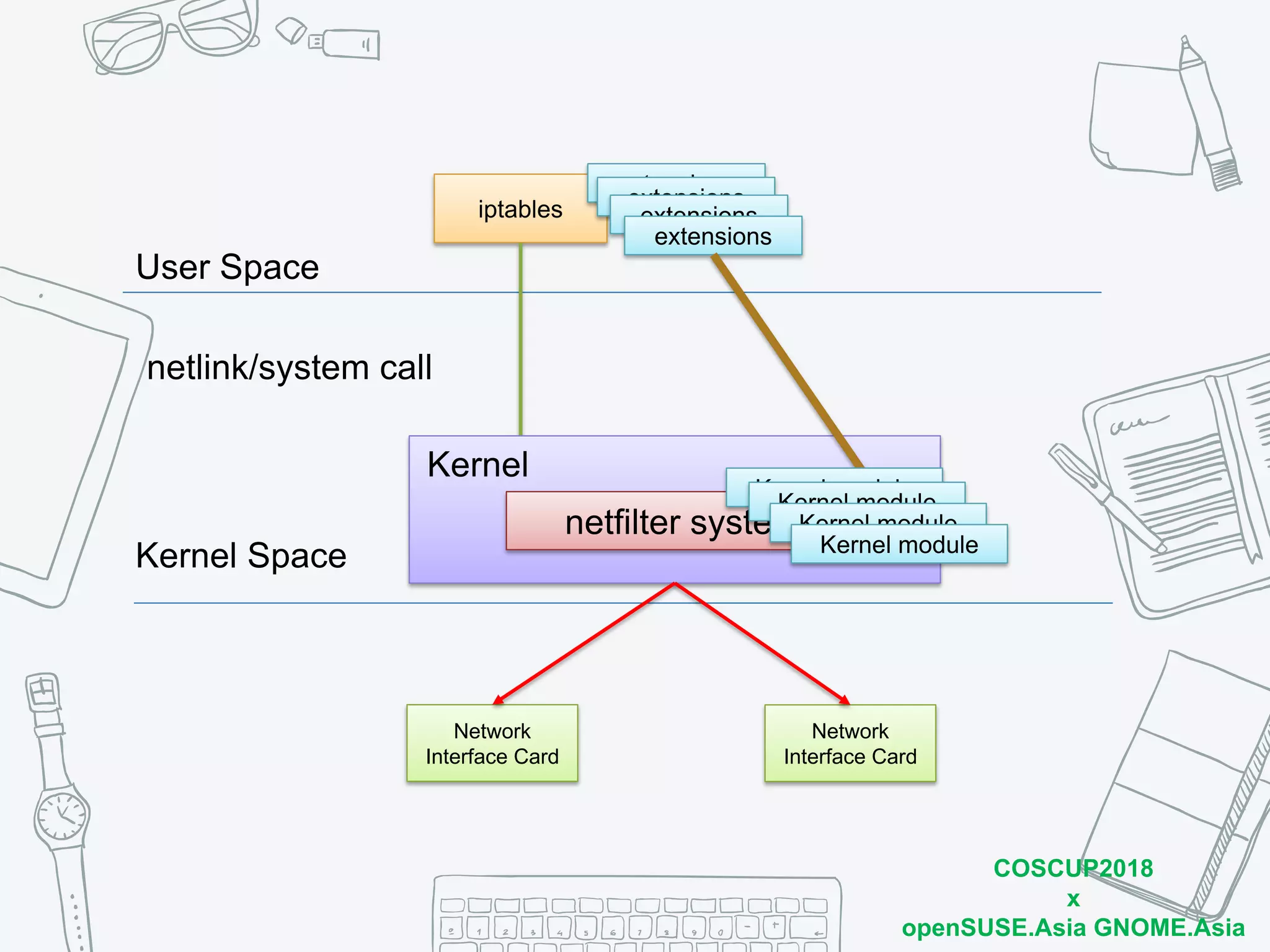

User Space
Kernel Space
iptables
extensions
netlink/system call
Kernel
netfilter system
Network
Interface Card
Network
Interface Card
extensions
extensions
extensions
Kernel module
Kernel module
Kernel module
Kernel module

COSCUP2018
x

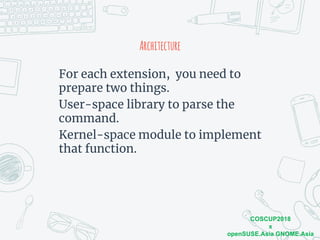

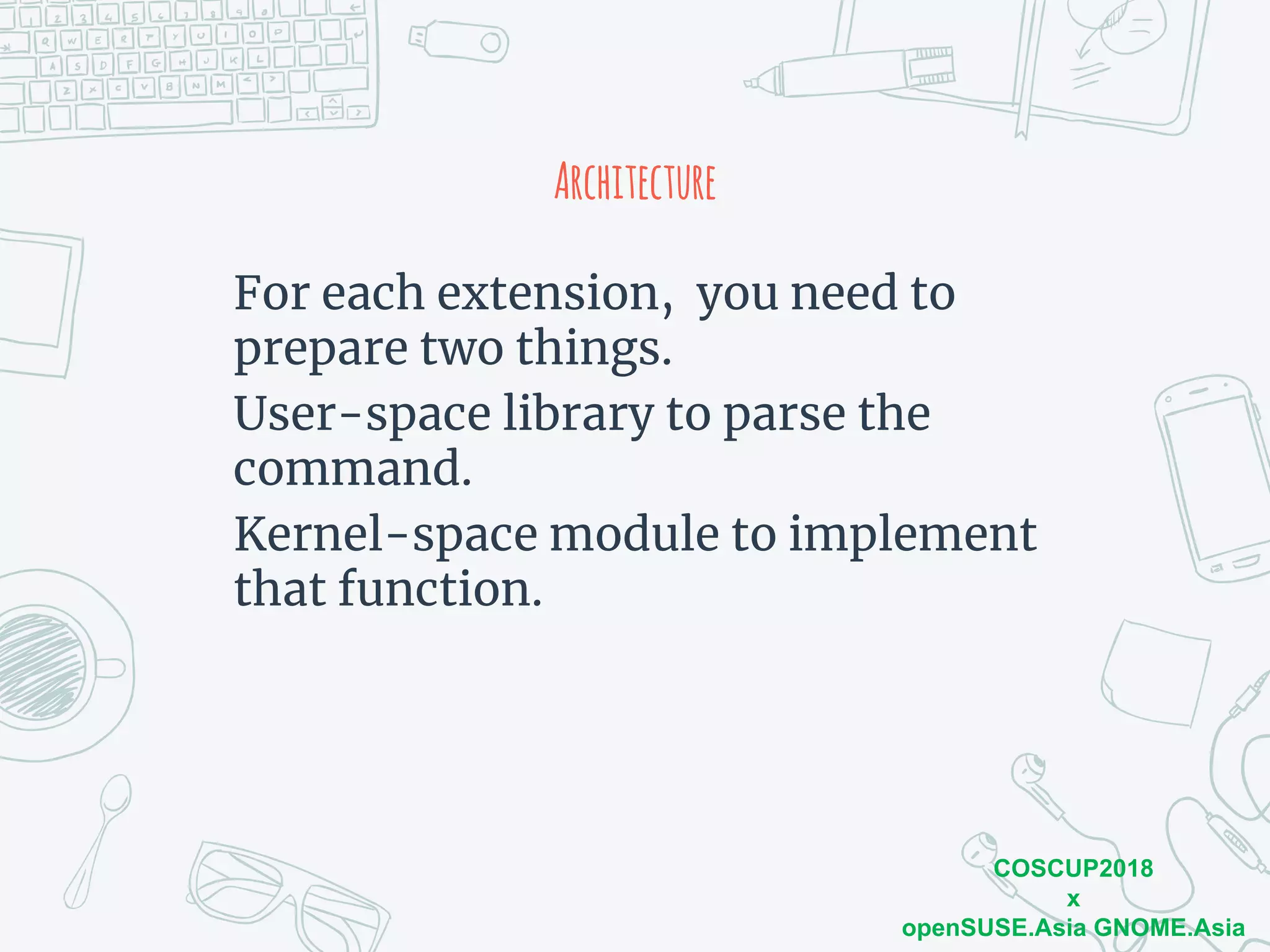

Architecture
For each extension, you need to
prepare two things.
User-space library to parse the
command.
Kernel-space module to implement
that function.

COSCUP2018
x
For User-Space, iptables command
should know how to parse arguments.

COSCUP2018
x

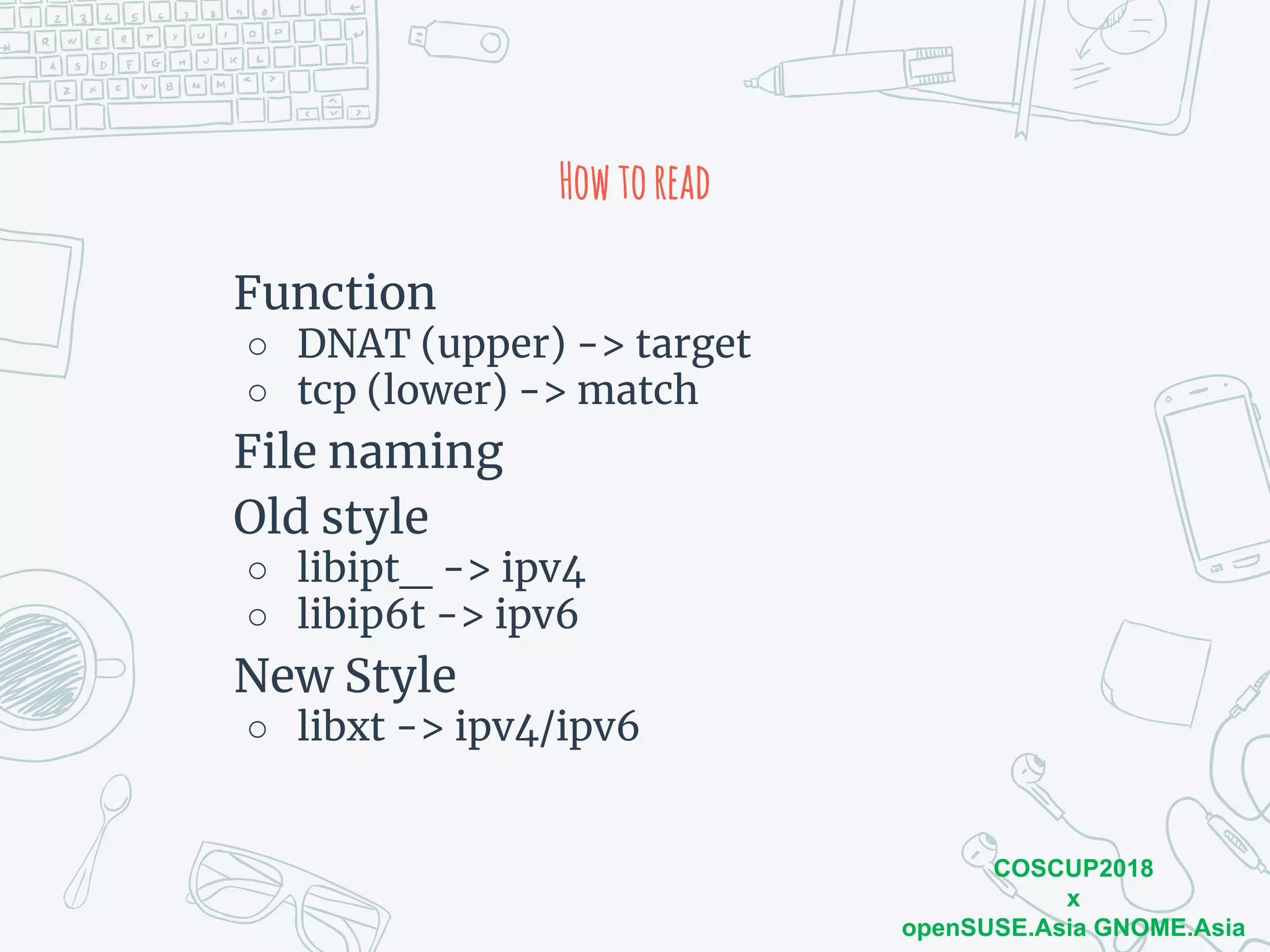

Howtoread
Function
○ DNAT (upper) -> target
○ tcp (lower) -> match

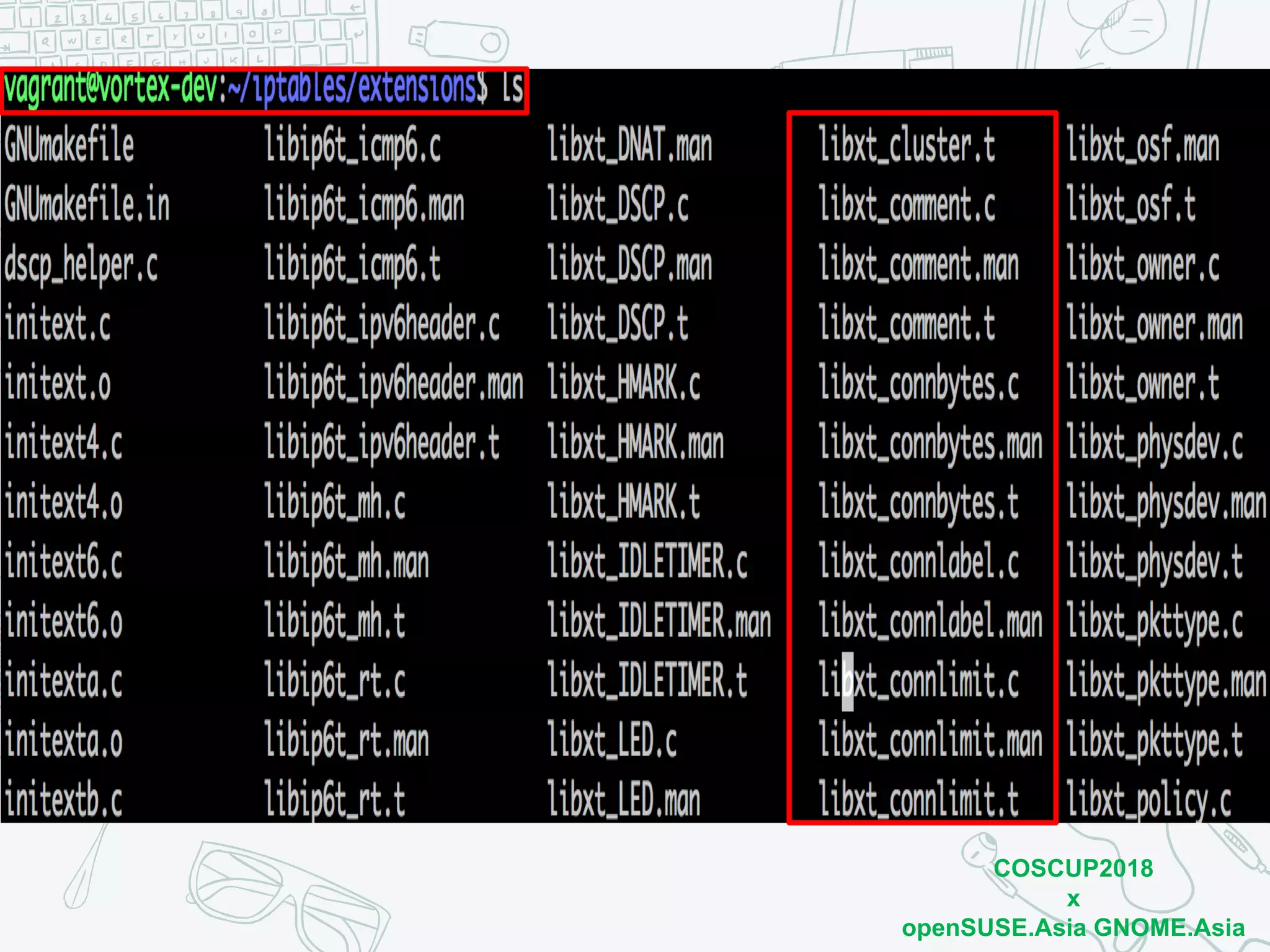

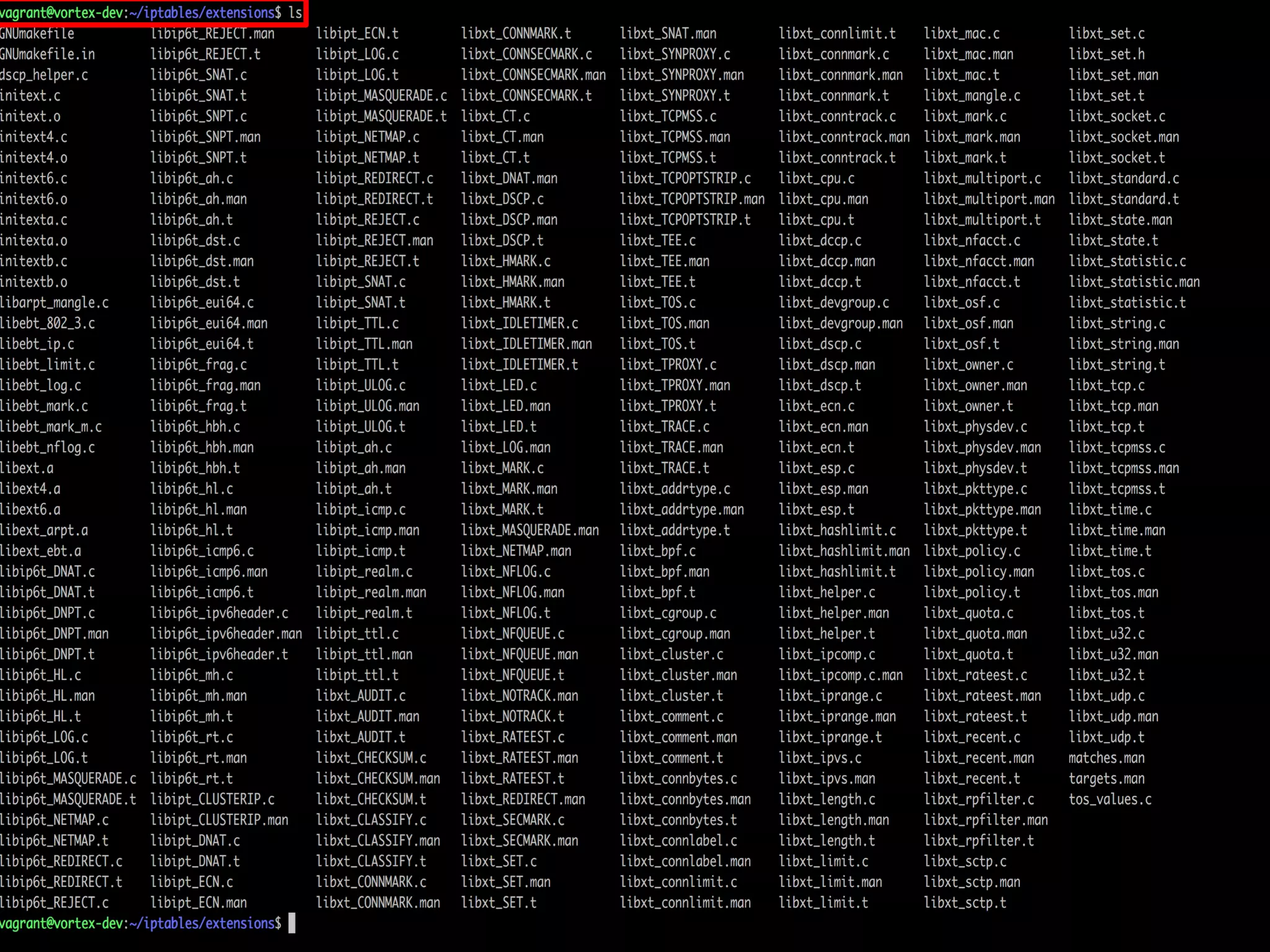

File naming
Old style
○ libipt_ -> ipv4
○ libip6t -> ipv6
New Style
○ libxt -> ipv4/ipv6

COSCUP2018
x

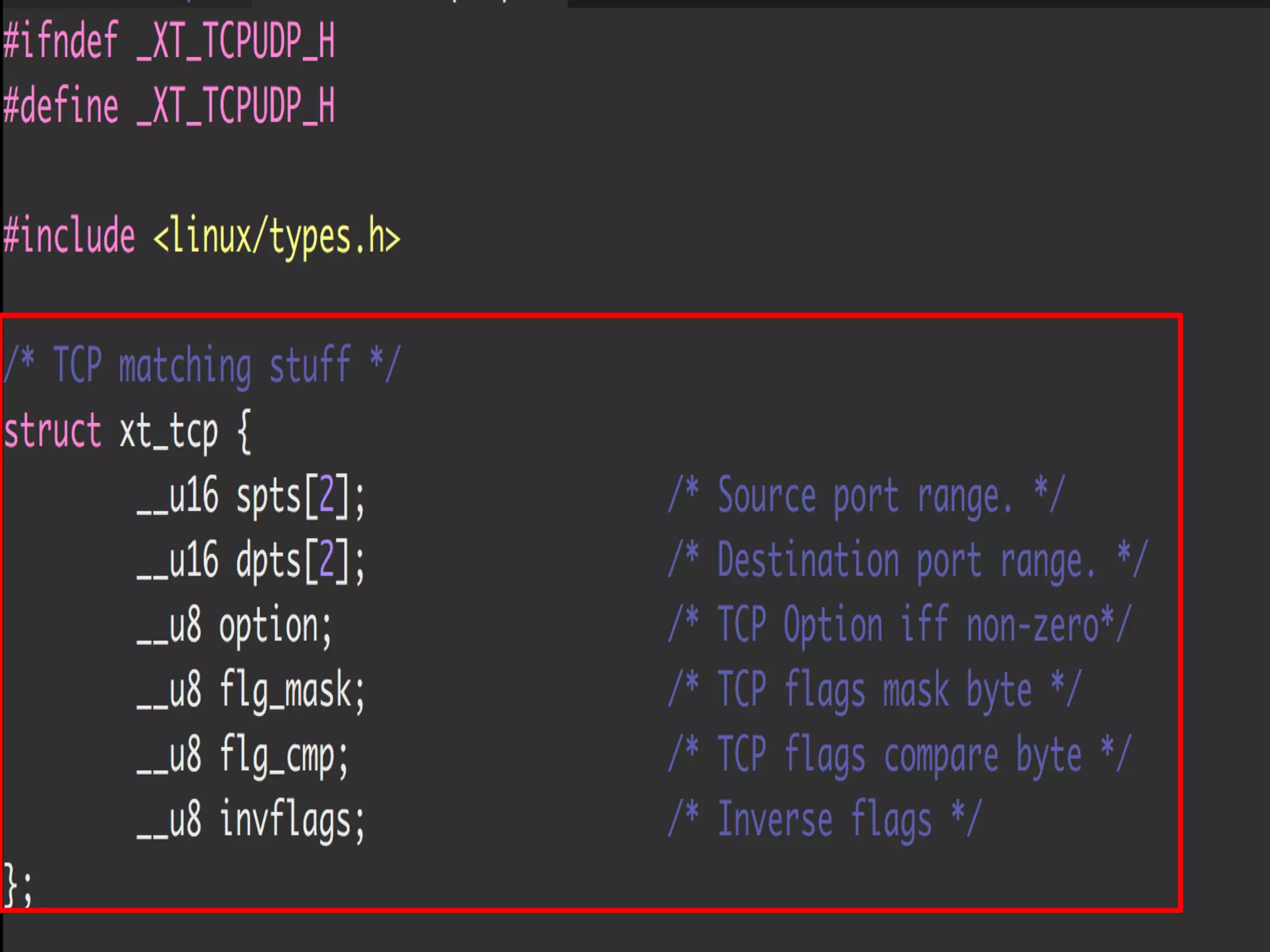

Now, We Take The Custom Match TCP
as Example

COSCUP2018
x

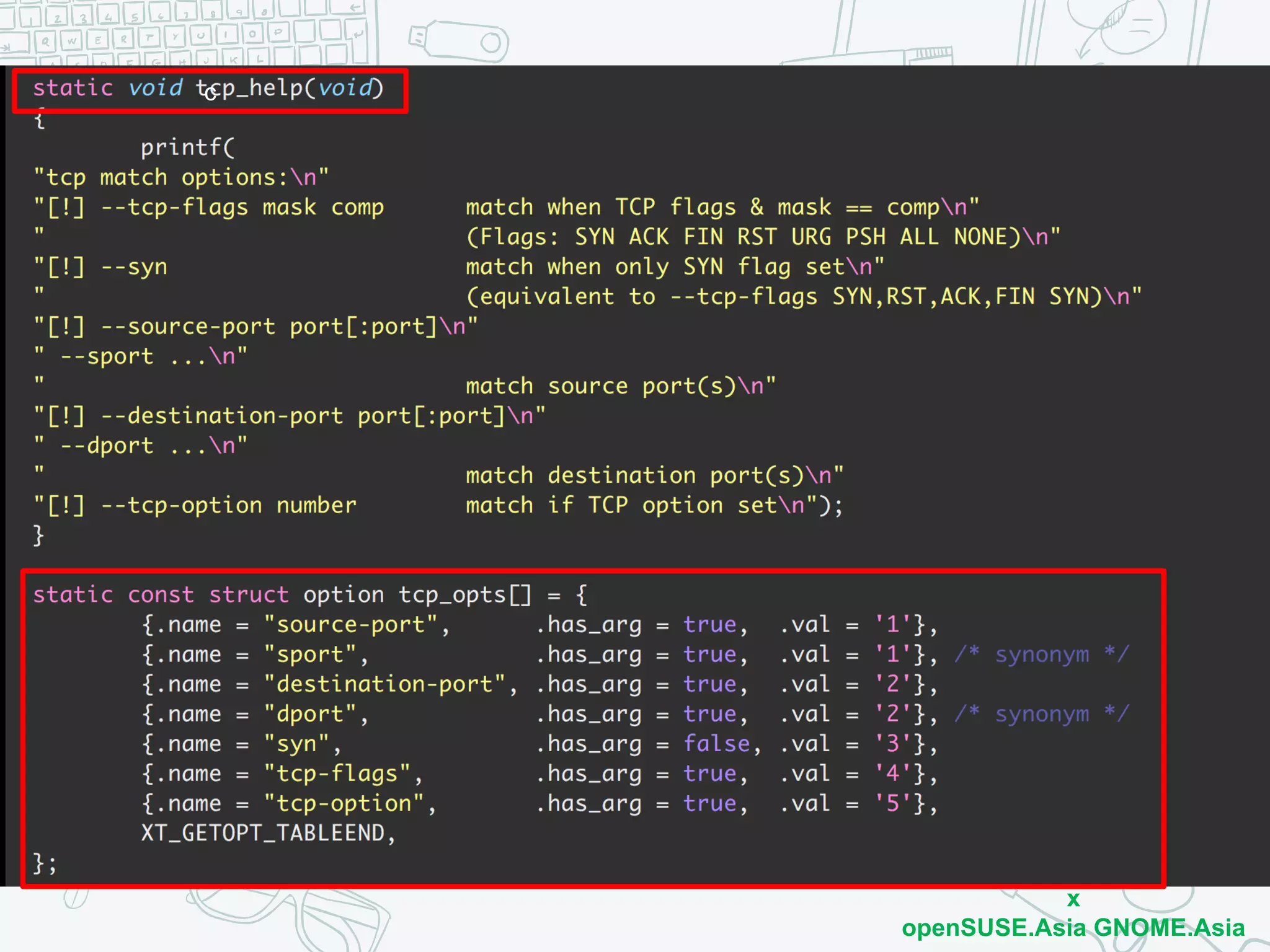

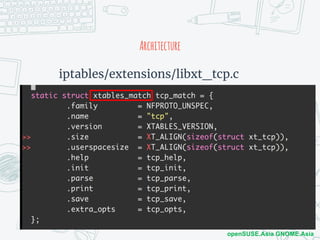

Architecture

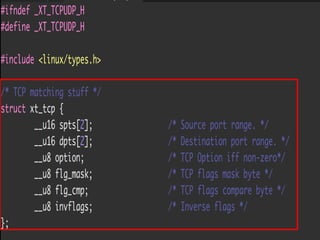

iptables/extensions/libxt_tcp.c

COSCUP2018
x

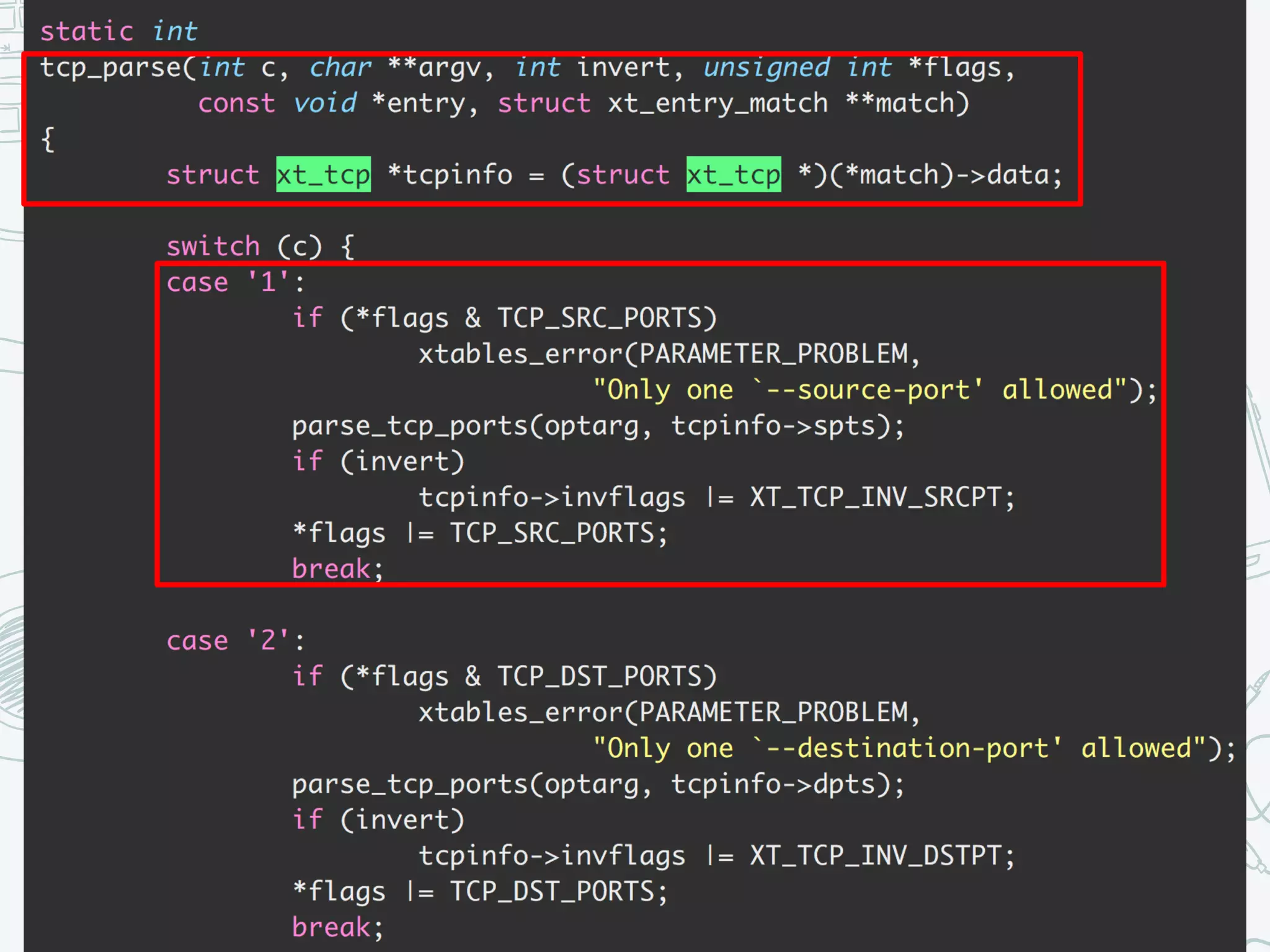

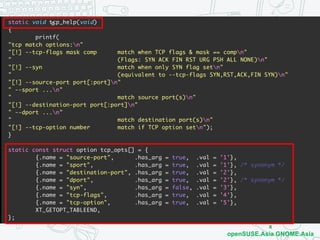

Architecture
iptables/extensions/libxt_tcp.c
c

COSCUP2018
x

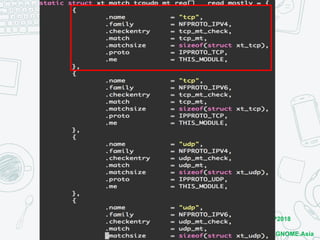

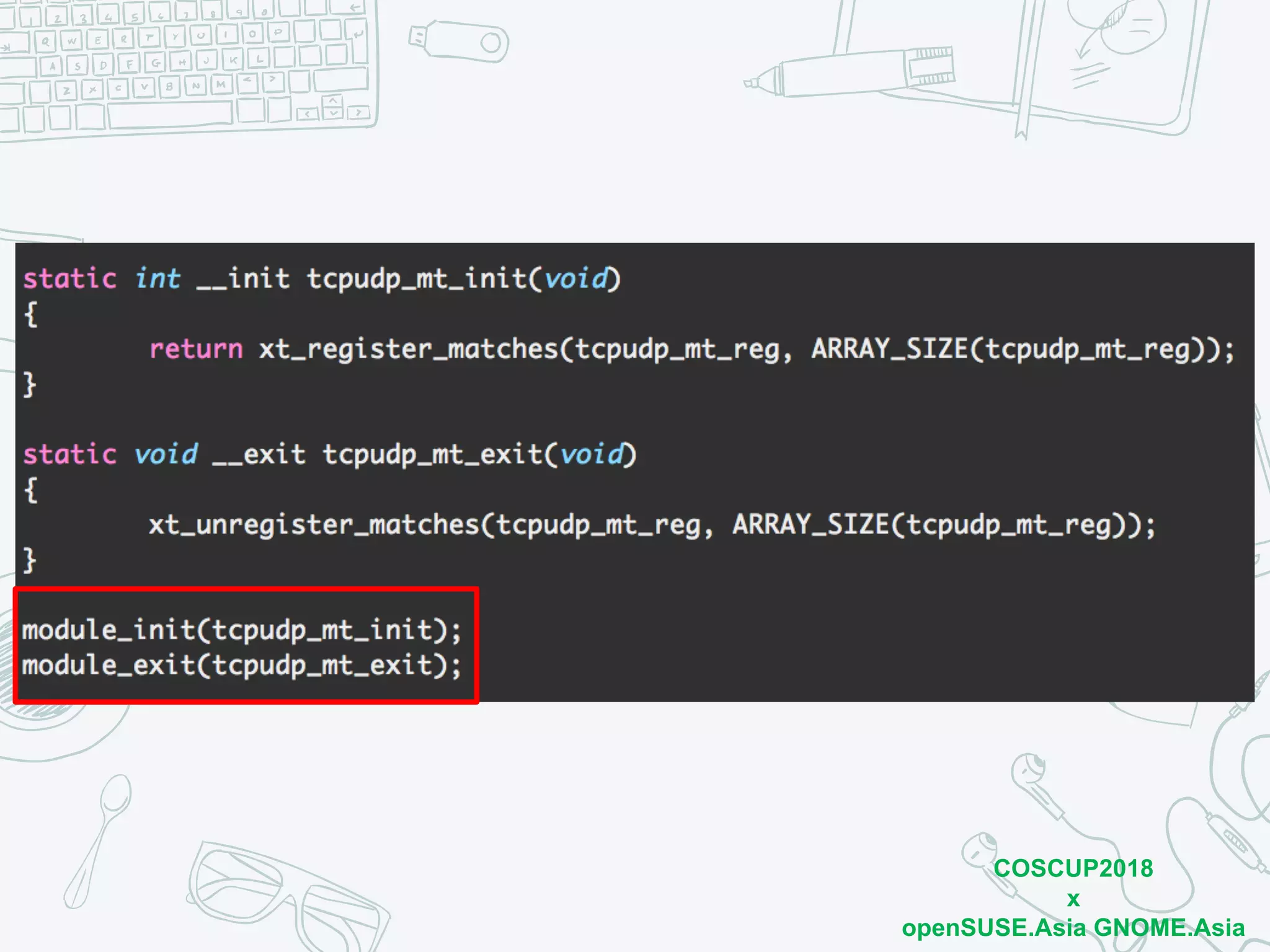

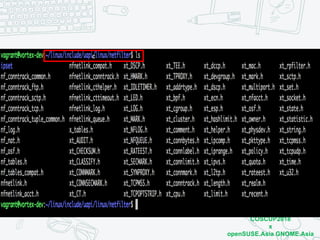

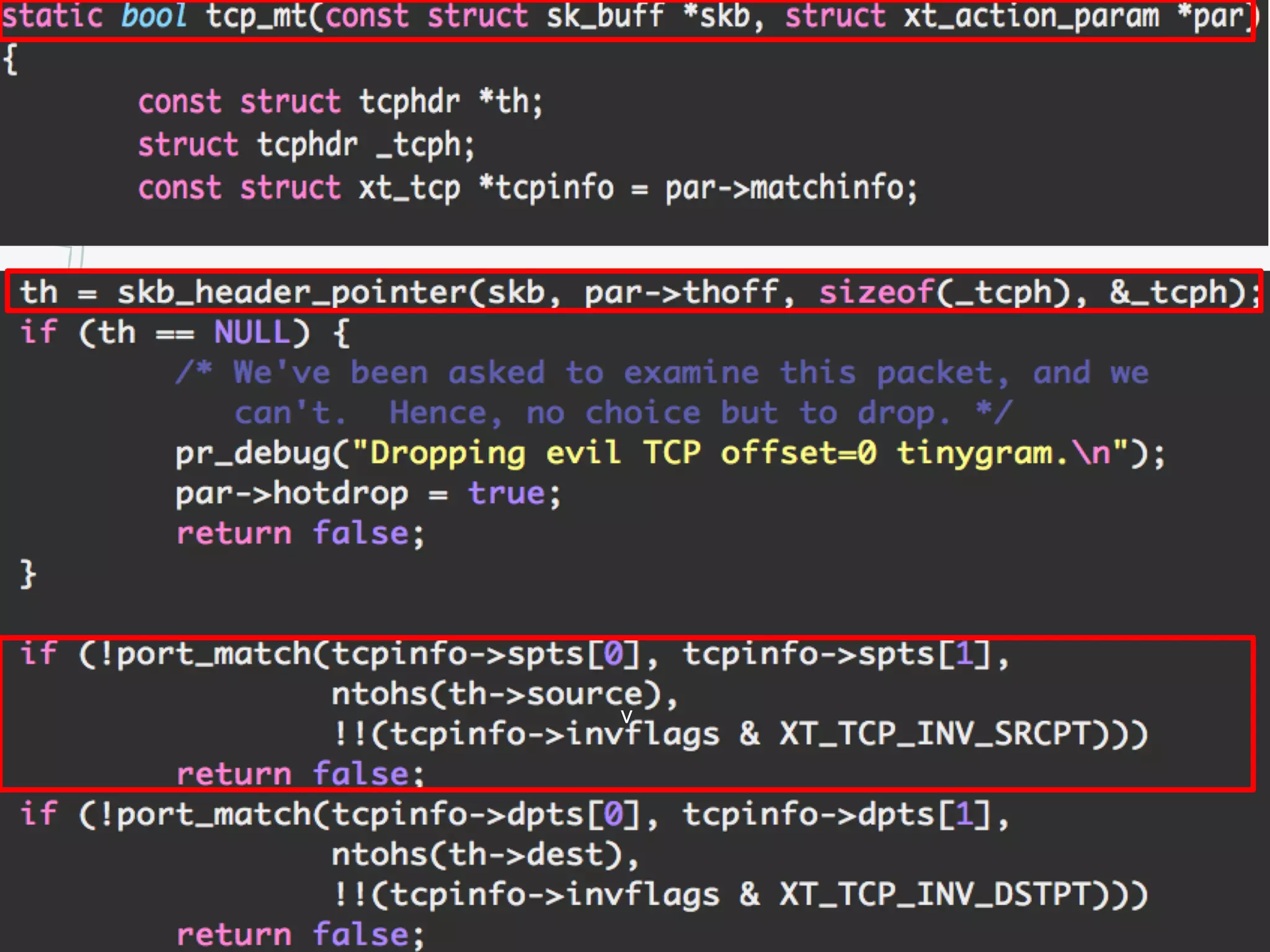

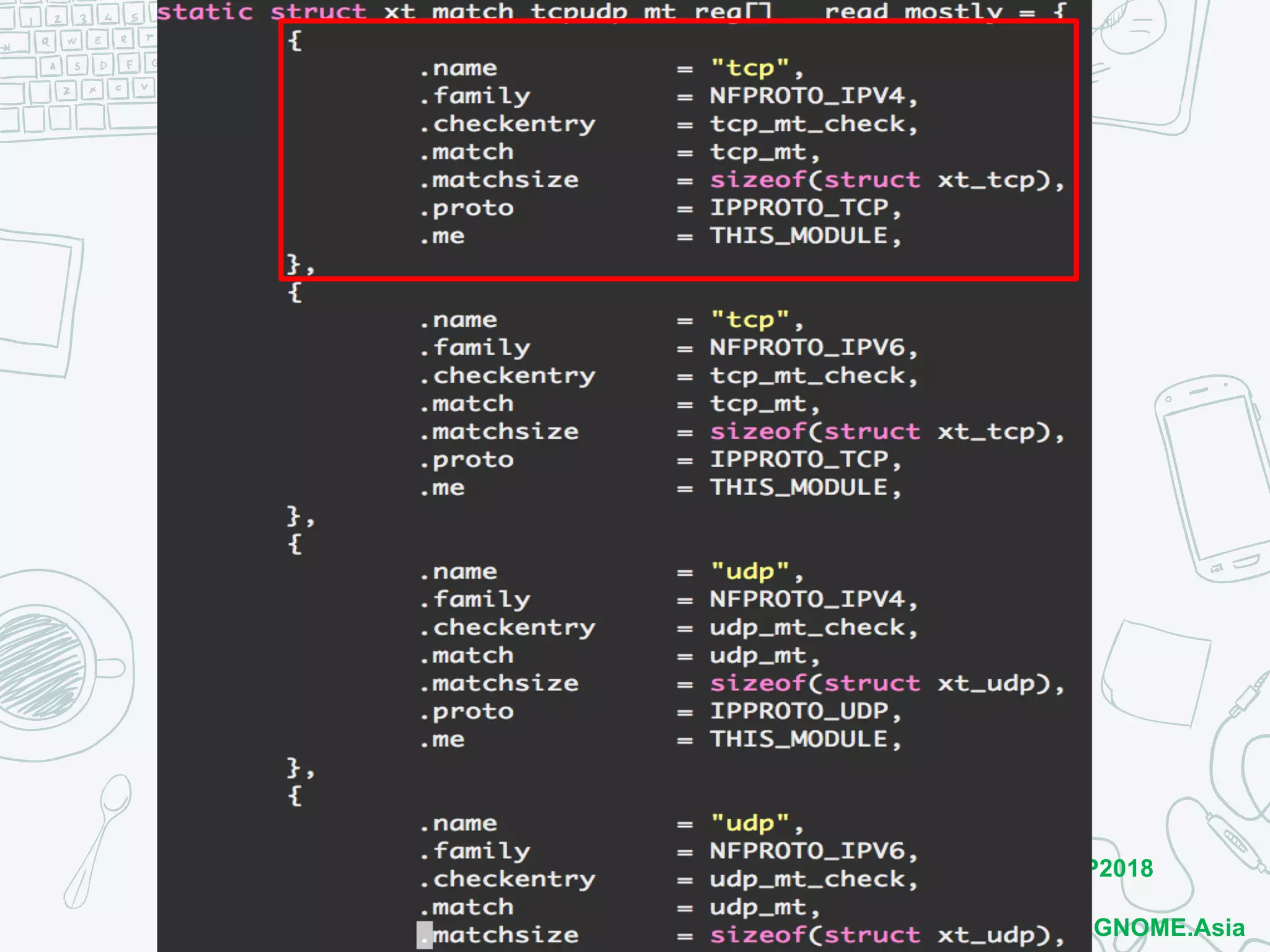

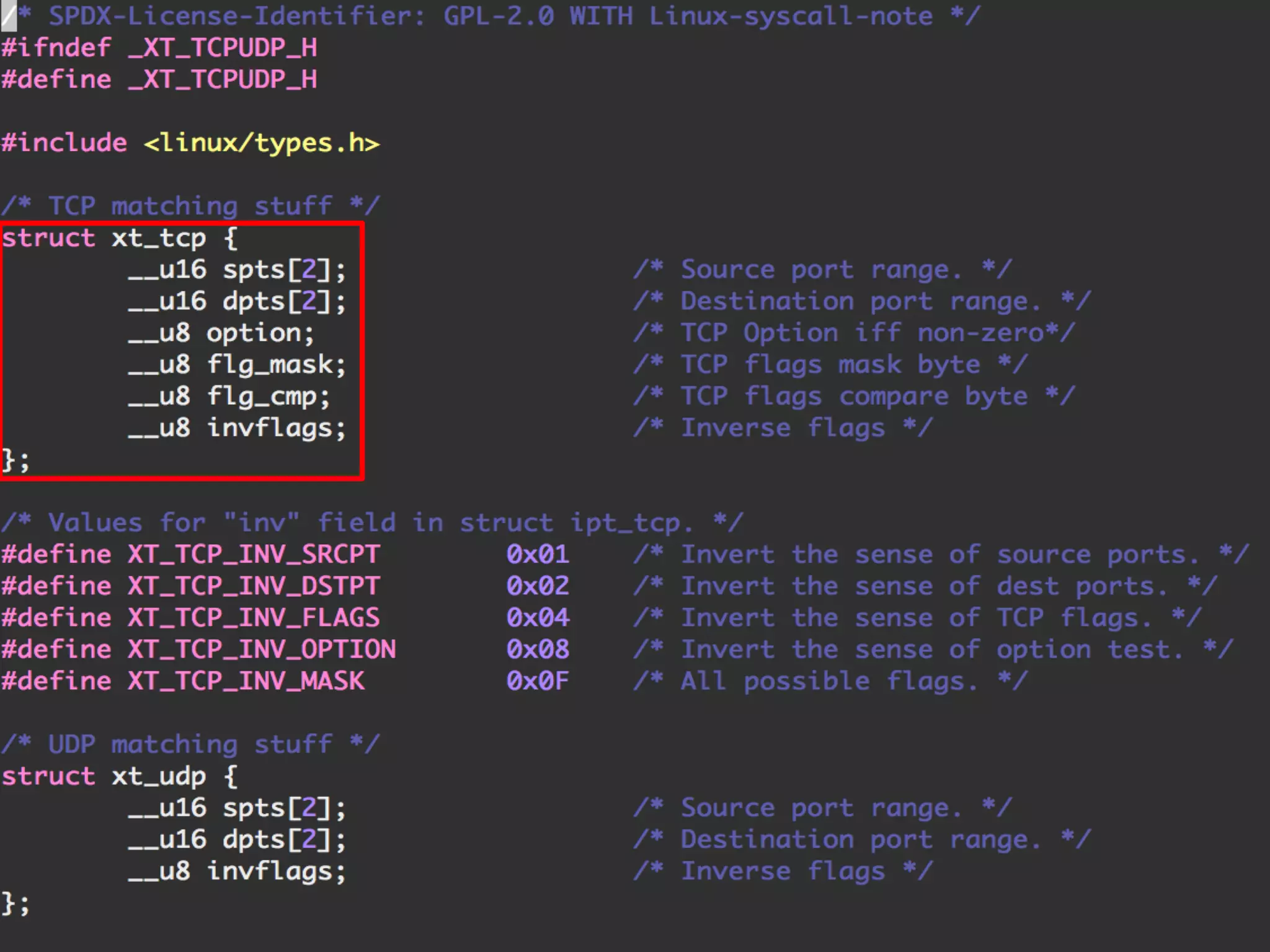

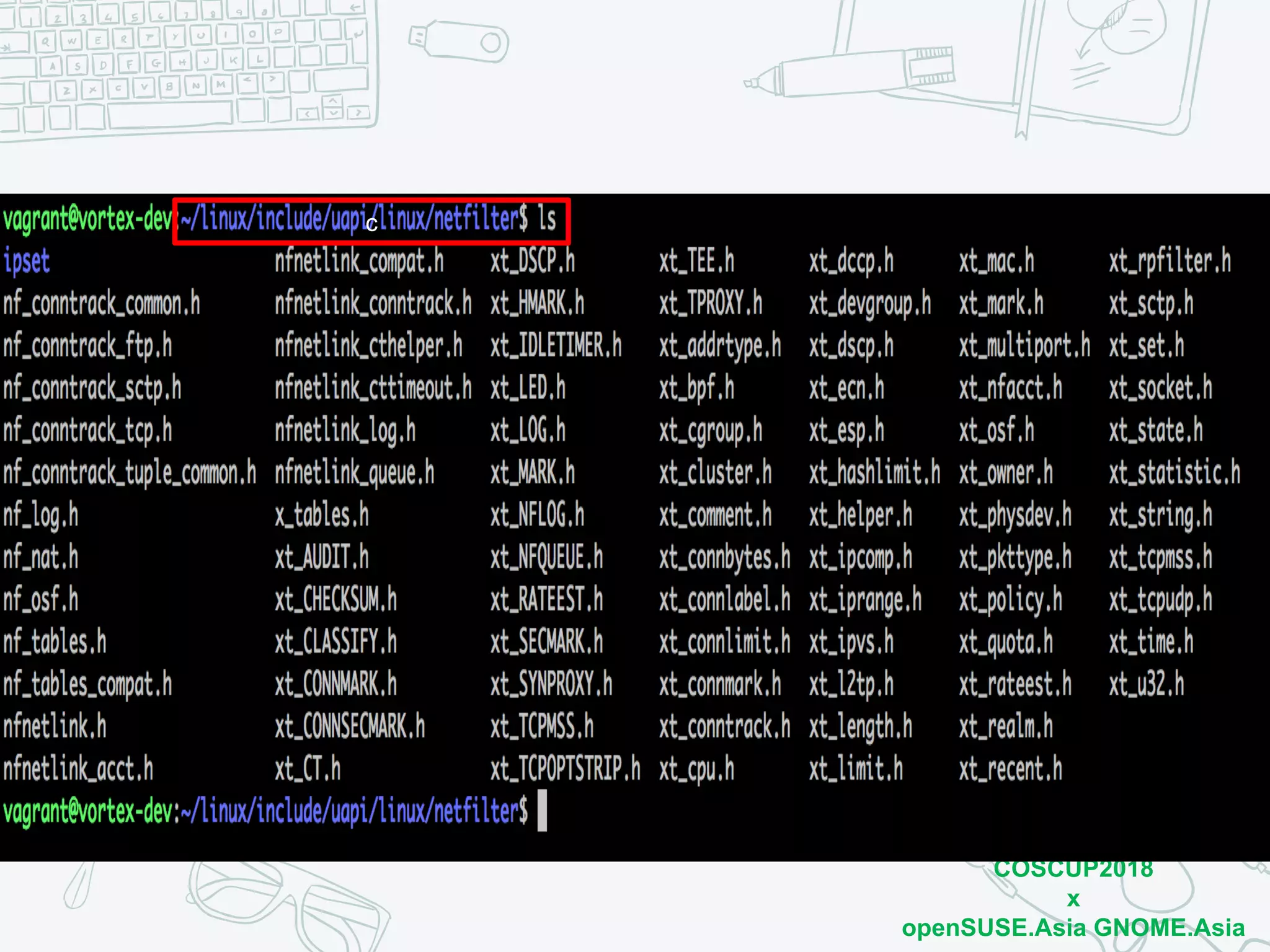

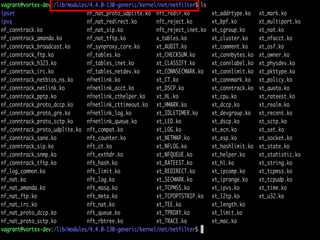

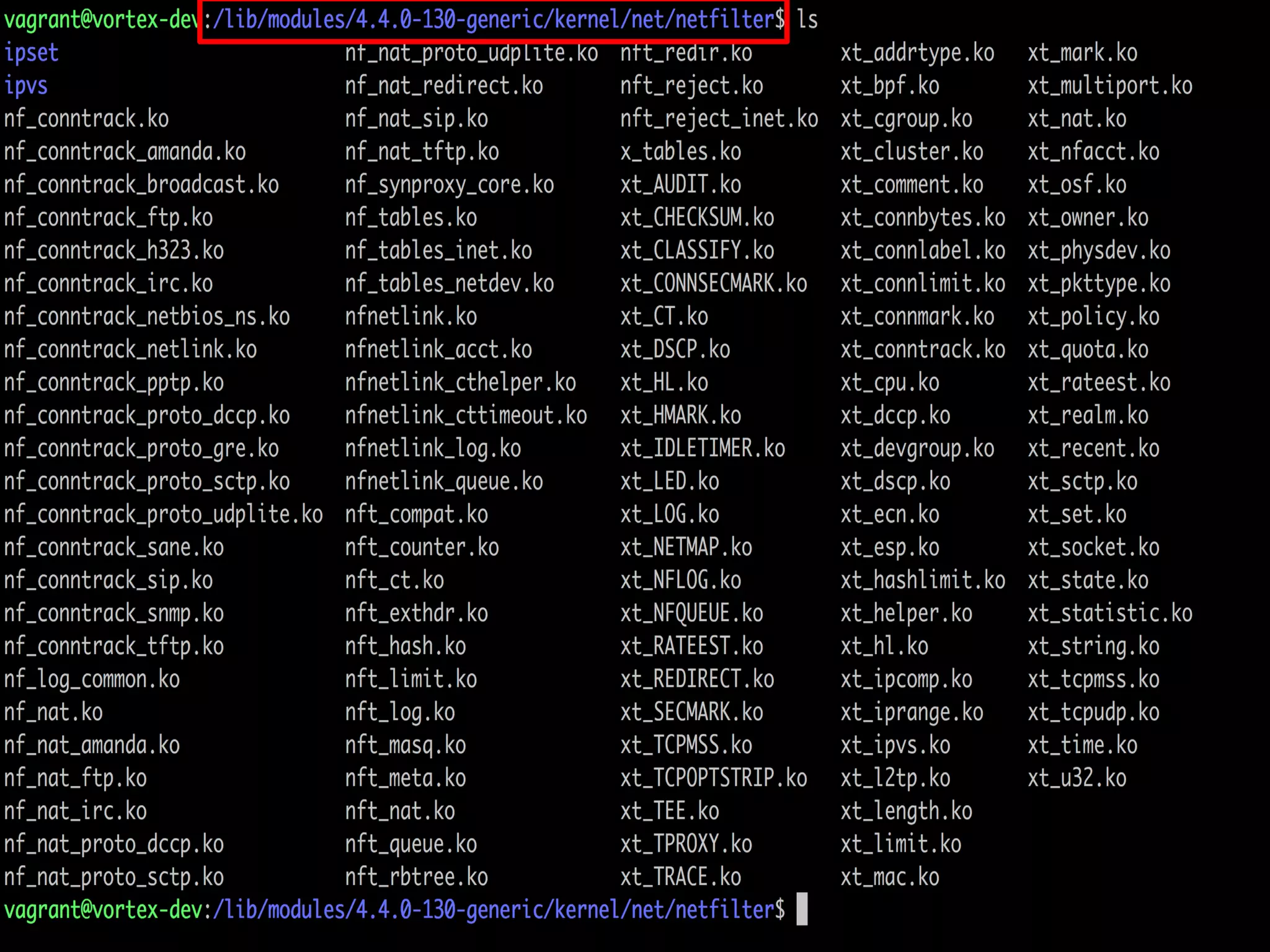

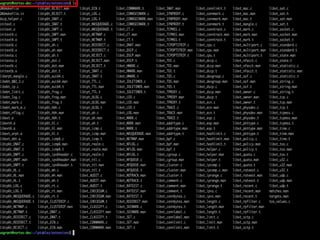

For Kernel-Space, There’re Some
Kernel Modules In The System.

COSCUP2018
x
v

COSCUP2018
x
Demo Time

COSCUP2018
x

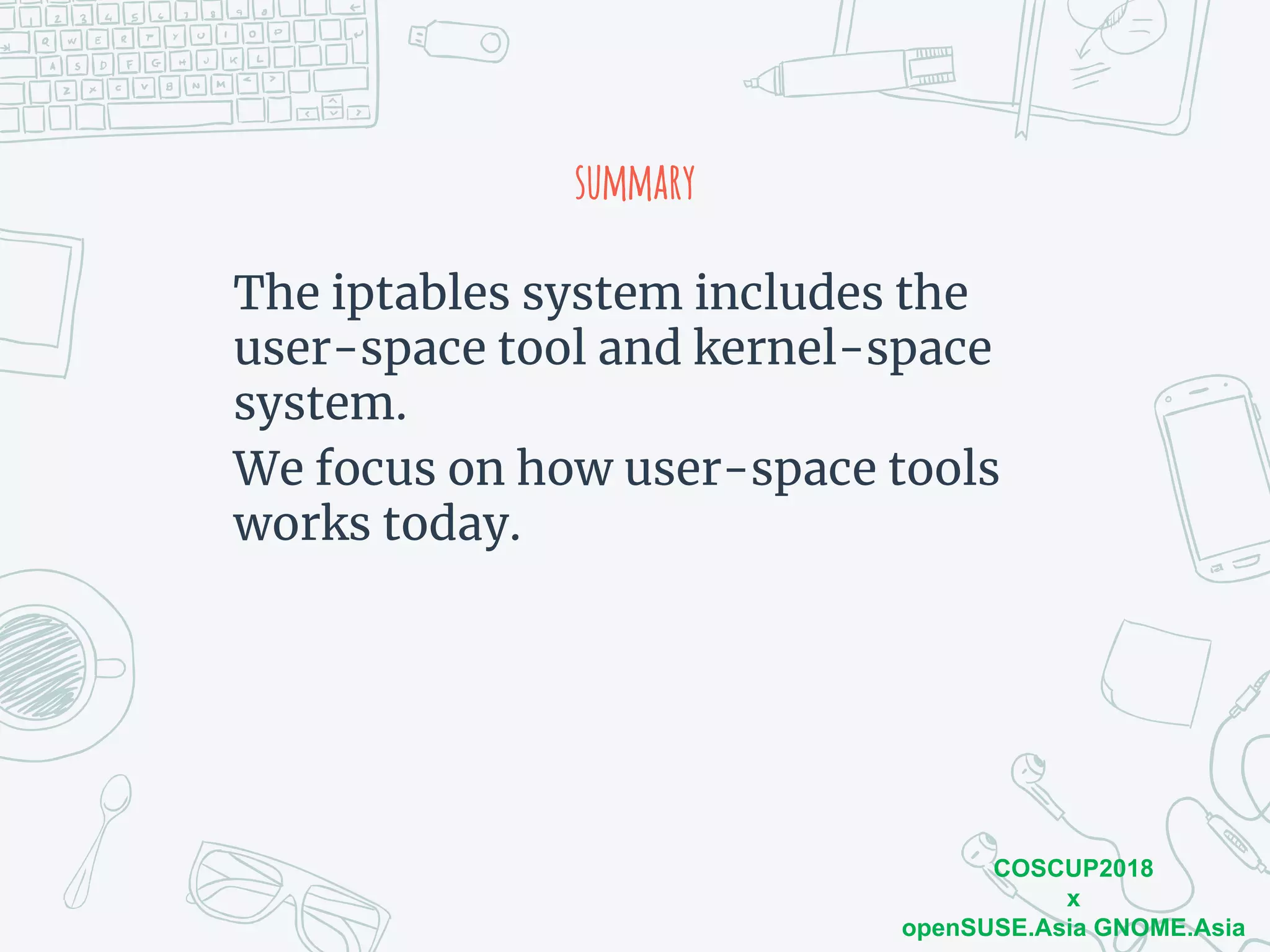

summary
The iptables system includes the
user-space tool and kernel-space
system.
We focus on how user-space tools
works today.

COSCUP2018
x

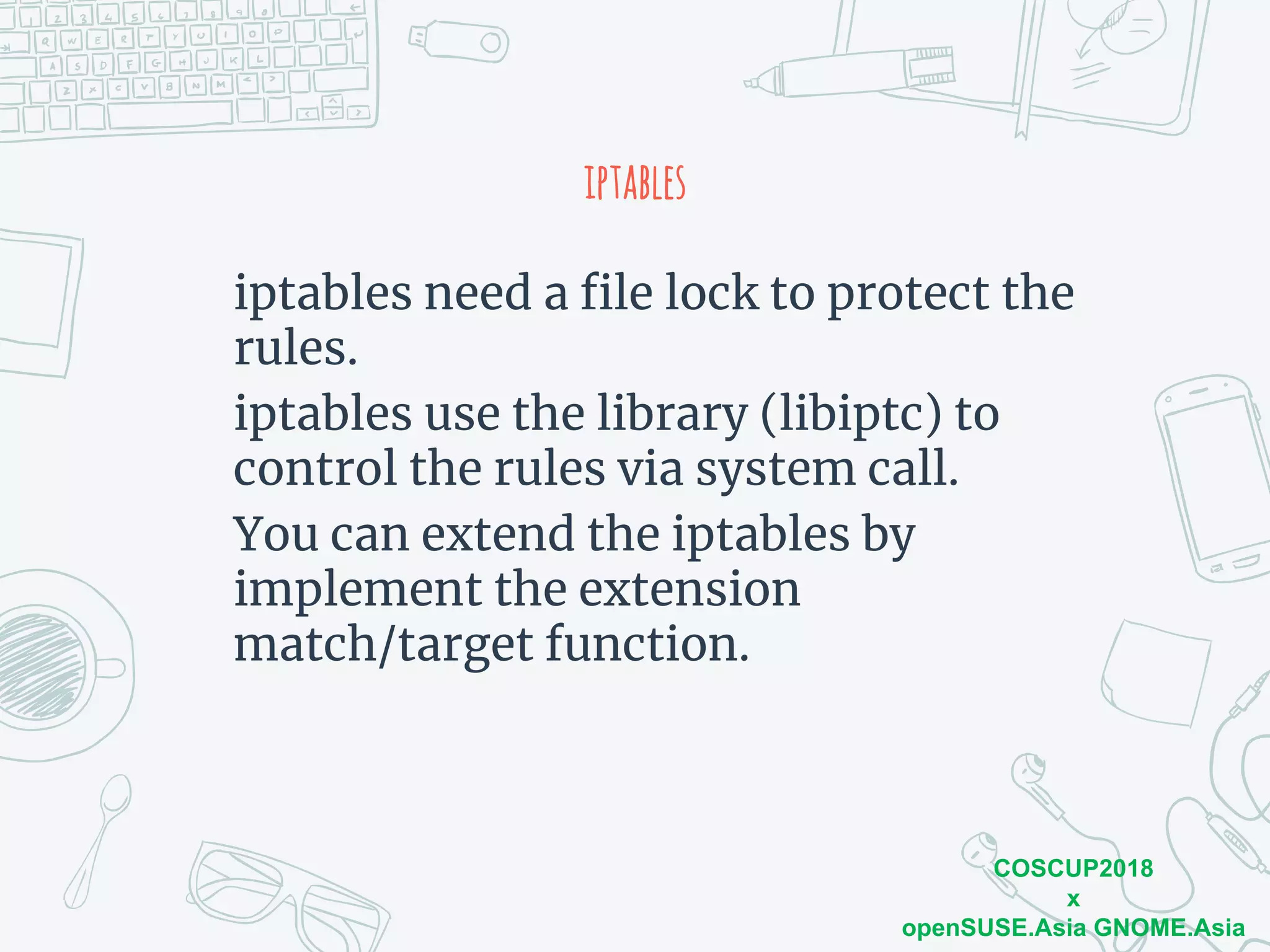

iptables
iptables need a file lock to protect the
rules.
iptables use the library (libiptc) to
control the rules via system call.
You can extend the iptables by
implement the extension
match/target function.

COSCUP2018
x
Extenstion
For each iptables extension module,
you should both user-space and
kernel-space.
Please make sure the kernel version
consistent
Use—Space
○ Implement the arguments and store the
data into pre-defined structure.
Kernel-Space
○ Implement the match function

COSCUP2018
x
Thanks!
