Haglund's deformity, also known as "pump bump", is characterized by a triad of retrocalcaneal bursitis, tendoachilles bursitis, and a partial tear of the Achilles tendon. MRI is useful for evaluating the condition and can demonstrate fluid and inflammation in the retrocalcaneal and tendoachilles bursae as well as thickening and tearing of the Achilles tendon. The deformity is caused by a bony prominence on the back of the heel bone that irritates the Achilles tendon and associated bursae, commonly from overuse, ill-fitting shoes, or inflammatory conditions.

1. HAGLUNDS DEFORMITY
( PUMP AND HUMP
DEFORMITY)
TRIAD OF
1.RETROCALCANEAL BURSITIS
2.TENDOACHILLES BURSITIS
3.PARTIAL TEAR OF THE ACHILLES TENDON
FREELANCE RADIOLOGY
CONTINUATION OF BASIC DIAGNOSTIC
RADIOLOGY

2. HAGLUND’S
DEFORMITY
( PUMP/ HUMP
DEFORMITY)
Two bursae are
appreciated in
relation to distal
attachment of the
Achilles tendon .
Retrocalcaneal
bursae.
Tendoachilles
bursae

3. HAGLUND’S DEFORMITY
( PUMP/ HUMP DEFORMITY)
RETRO CALCANEAL RETROACHILLES BURSAE
BURSAE
 Tear drop shaped bursae  Acquired adventitious
 Present along Posterior aspect bursae
of the upper calcaneum .  Located posterior to distal
 Little fluid is appreciated in the Achilles tendon .
bursae if it is not inflammed.
 Distension of bursae with
fluid and inflammatory
thickening of the synovium is
sequael to bursitis .
 Patient presents with heel pain
 Chronic overuse / illfitting foot
wear / inflammatory
arthropathy .

4. SAGITTAL
T2W
SEQUENCE
TEAR DROP SHAPED
PRE ACHILLES
BURSAE IS FLUID
FILLED AND HAS
SYNOVIAL
THICKENING
APPRECIATED IN
CASE OF
INFLAMMATION
RETROCALCANEAL
BURSITIS

5. SAGITTAL
STIR
SEQUENCE
TENDOACHILLES
BURSITIS
FAINT STREAK OF
EDEMA IS
APPRECIATED IN THE
REGION DORSAL TO
ACHILLES TENDON.

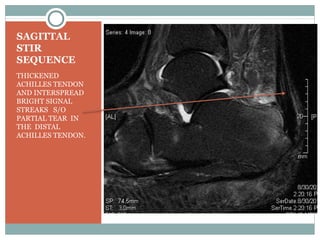

6. SAGITTAL
STIR
SEQUENCE
THICKENED
ACHILLES TENDON
AND INTERSPREAD
BRIGHT SIGNAL
STREAKS S/O
PARTIAL TEAR IN
THE DISTAL
ACHILLES TENDON.

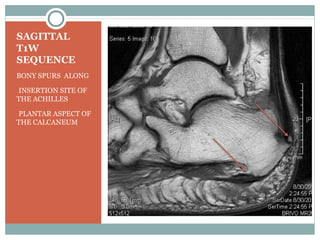

7. SAGITTAL
T1W
SEQUENCE
BONY SPURS ALONG
•INSERTION SITE OF
THE ACHILLES
•PLANTAR ASPECT OF
THE CALCANEUM

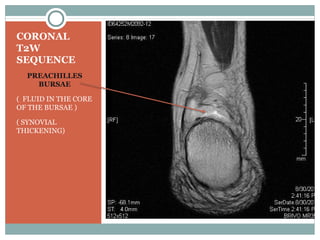

8. CORONAL
T2W
SEQUENCE
PREACHILLES
BURSAE
( FLUID IN THE CORE
OF THE BURSAE )
( SYNOVIAL
THICKENING)

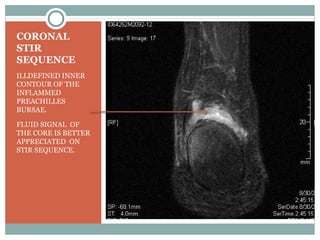

9. CORONAL
STIR
SEQUENCE
ILLDEFINED INNER
CONTOUR OF THE
INFLAMMED
PREACHILLES
BURSAE.
FLUID SIGNAL OF
THE CORE IS BETTER
APPRECIATED ON
STIR SEQUENCE.

10. AXIAL STIR
SEQUENCE
BETTER DEPICTION
OF PREACHILLES
POSITION OF THE
BURSAE

11. COMPONENTS
OF HAGLUNDS
DEFORMITY
RETROCALCANEAL
BURSITIS
MARROW EDEMA
IN THE
CALCANEUM
THICK ACHILLES
TENDON WITH
PARTIAL TEAR
TENDOACHILLES
BURSITIS
