Ground geophysical surveys use magnetic, electrical, and gravitational measurements to map subsurface rock properties. Magnetics surveys measure the earth's magnetic field and magnetic responses from rocks to map geology and locate magnetic ore bodies. Resistivity and induced polarization (IP) surveys measure electrical properties to detect disseminated sulfides and map stratigraphy. Time-domain electromagnetics (TDEM) uses electromagnetic induction to identify conductive features like ores, groundwater, and permafrost. Geophysical methods provide non-invasive exploration techniques but their results require careful processing and interpretation.

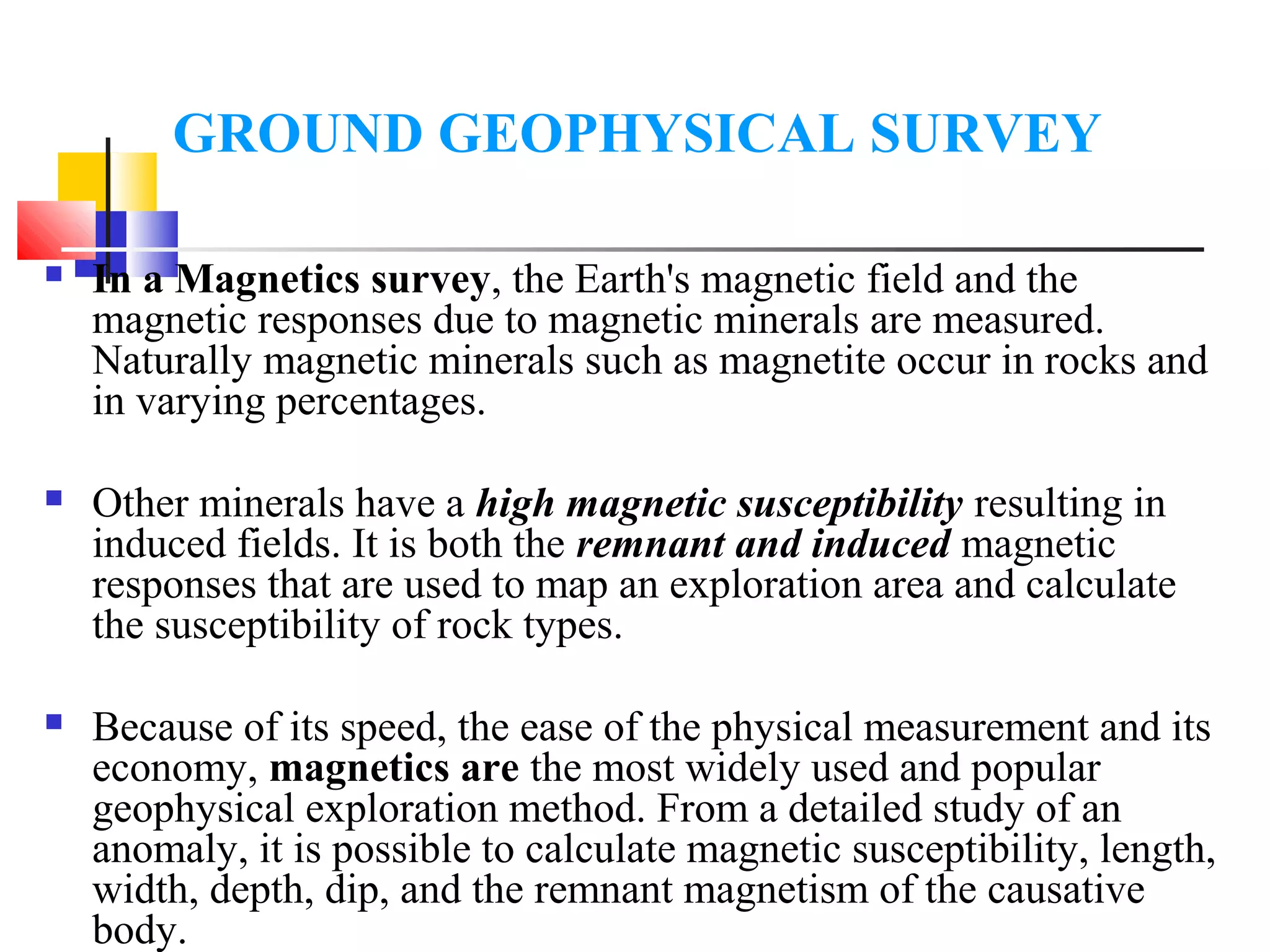

1. GROUND GEOPHYSICAL SURVEY
 In a Magnetics survey, the Earth's magnetic field and the
magnetic responses due to magnetic minerals are measured.
Naturally magnetic minerals such as magnetite occur in rocks and
in varying percentages.
 Other minerals have a high magnetic susceptibility resulting in
induced fields. It is both the remnant and induced magnetic
responses that are used to map an exploration area and calculate
the susceptibility of rock types.
 Because of its speed, the ease of the physical measurement and its
economy, magnetics are the most widely used and popular
geophysical exploration method. From a detailed study of an
anomaly, it is possible to calculate magnetic susceptibility, length,
width, depth, dip, and the remnant magnetism of the causative
body.

2.  Ground magnetics is used for detailed work, occasionally
for the location of airborne anomalies, and in areas where
there is no suitably accurate and detailed airborne data,
and where the area of interest is too small to justify
mobilising an airborne crew.
 However, the availability of cheap and accurate GPS
systems has allowed grids or cut lines to be avoided in
many areas.

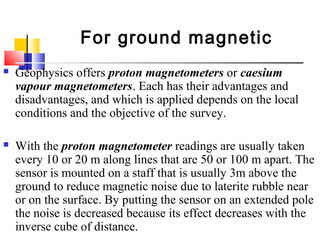

3.  Geophysics offers proton magnetometers or caesium
vapour magnetometers. Each has their advantages and
disadvantages, and which is applied depends on the local
conditions and the objective of the survey.
 With the proton magnetometer readings are usually taken
every 10 or 20 m along lines that are 50 or 100 m apart. The
sensor is mounted on a staff that is usually 3m above the
ground to reduce magnetic noise due to laterite rubble near
or on the surface. By putting the sensor on an extended pole
the noise is decreased because its effect decreases with the
inverse cube of distance.
For ground magnetic

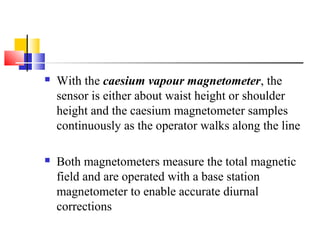

4.  With the caesium vapour magnetometer, the
sensor is either about waist height or shoulder
height and the caesium magnetometer samples
continuously as the operator walks along the line
 Both magnetometers measure the total magnetic
field and are operated with a base station
magnetometer to enable accurate diurnal
corrections

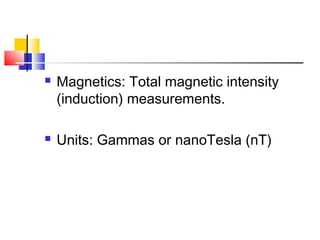

5.  Magnetics: Total magnetic intensity
(induction) measurements.
 Units: Gammas or nanoTesla (nT)

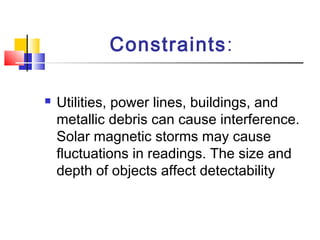

6. Constraints:
 Utilities, power lines, buildings, and
metallic debris can cause interference.
Solar magnetic storms may cause
fluctuations in readings. The size and
depth of objects affect detectability

7. Ground magnetic survey
 The ground magnetic
measurements were
performed using
walking
magnetometer GSM
19TW (Proton
precision
magnetometer fitted
with GPS)

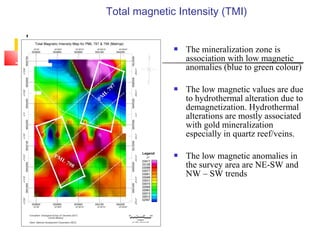

8. Total magnetic Intensity (TMI)
 The mineralization zone is
association with low magnetic
anomalies (blue to green colour)
 The low magnetic values are due
to hydrothermal alteration due to
demagnetization. Hydrothermal
alterations are mostly associated
with gold mineralization
especially in quartz reef/veins.
 The low magnetic anomalies in
the survey area are NE-SW and
NW – SW trends

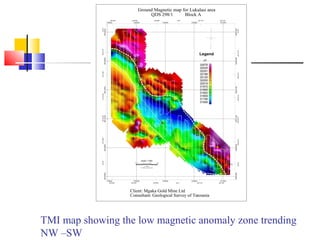

9. TMI map showing the low magnetic anomaly zone trending
NW –SW

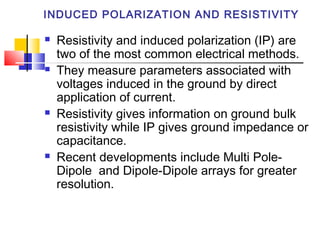

10. INDUCED POLARIZATION AND RESISTIVITY
 Resistivity and induced polarization (IP) are
two of the most common electrical methods.
 They measure parameters associated with
voltages induced in the ground by direct
application of current.
 Resistivity gives information on ground bulk
resistivity while IP gives ground impedance or
capacitance.
 Recent developments include Multi Pole-
Dipole and Dipole-Dipole arrays for greater
resolution.

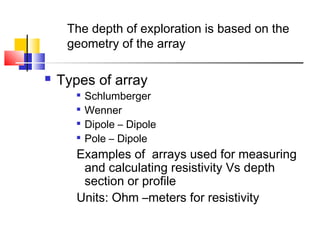

11.  Types of array

Schlumberger

Wenner

Dipole – Dipole

Pole – Dipole
Examples of arrays used for measuring
and calculating resistivity Vs depth
section or profile
Units: Ohm –meters for resistivity
The depth of exploration is based on the
geometry of the array

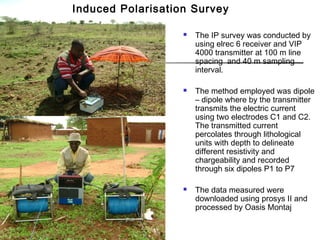

12.  The IP survey was conducted by
using elrec 6 receiver and VIP
4000 transmitter at 100 m line
spacing and 40 m sampling
interval.
 The method employed was dipole
– dipole where by the transmitter
transmits the electric current
using two electrodes C1 and C2.
The transmitted current
percolates through lithological
units with depth to delineate
different resistivity and
chargeability and recorded
through six dipoles P1 to P7
 The data measured were
downloaded using prosys II and
processed by Oasis Montaj
Induced Polarisation Survey

13. DATA PROCESSING AND
PRESENTATION
 Geophysicists are assigned to all field crews in
order to ensure efficient field operations and to
monitor data quality. In-field data products
include contoured colour-image, pseudo-section
profiles and contoured shaded colour image
plan maps of several parameters.
 Interpretation of the data is available using
various computer modelling routines such as
Interpex RESIXIP2DI using Zonge or Interpex
algorithms and Oasis Montaj.

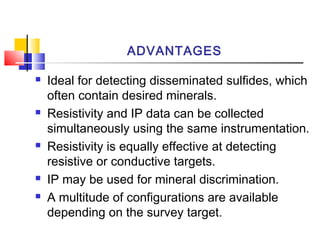

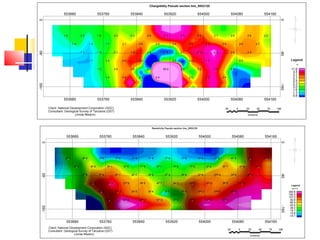

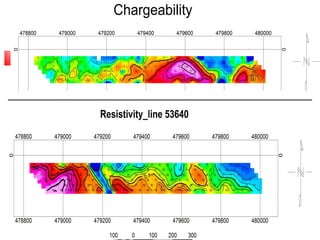

16. ADVANTAGES
 Ideal for detecting disseminated sulfides, which
often contain desired minerals.
 Resistivity and IP data can be collected
simultaneously using the same instrumentation.
 Resistivity is equally effective at detecting
resistive or conductive targets.
 IP may be used for mineral discrimination.
 A multitude of configurations are available
depending on the survey target.

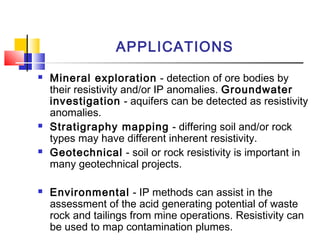

17. APPLICATIONS
 Mineral exploration - detection of ore bodies by
their resistivity and/or IP anomalies. Groundwater
investigation - aquifers can be detected as resistivity
anomalies.
 Stratigraphy mapping - differing soil and/or rock
types may have different inherent resistivity.
 Geotechnical - soil or rock resistivity is important in
many geotechnical projects.
 Environmental - IP methods can assist in the
assessment of the acid generating potential of waste
rock and tailings from mine operations. Resistivity can
be used to map contamination plumes.

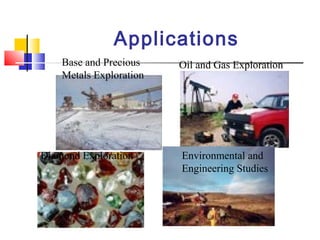

18. Applications
Base and Precious
Metals Exploration
Oil and Gas Exploration
Diamond Exploration Environmental and
Engineering Studies

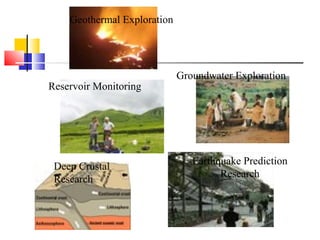

19. Geothermal Exploration
Reservoir Monitoring
Groundwater Exploration
Deep Crustal
Research
Earthquake Prediction
Research

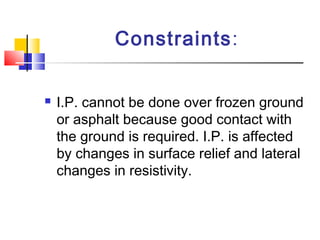

20. Constraints:
 I.P. cannot be done over frozen ground
or asphalt because good contact with
the ground is required. I.P. is affected
by changes in surface relief and lateral
changes in resistivity.

21. TIME DOMAIN ELECTROMAGNETICS
 Time-Domain ElectroMagnetic (TDEM) methods are based
on the principle of using electromagnetic induction
to generate measurable responses from sub-surface
features.
 When a steady current in a cable loop is terminated
a time varying magnetic field is generated. As a
result of this magnetic field, eddy currents are
induced in underground conductive materials.
 The decay of the eddy currents in these materials is
directly related to their conductive properties, and
may be measured by a suitable receiver coil on the
surface.

22. TEDM
 In order to identify a specific feature, it is
necessary that its inherent electrical
conductivity contrast significantly with the
conductivity of surrounding materials.
 In most successful TDEM applications, the
targets sought possess enhanced
conductivities relative to their host material,
as demonstrated in the image below.

23. TDEM

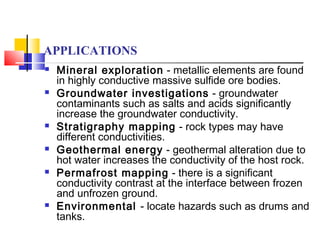

24. APPLICATIONS
 Mineral exploration - metallic elements are found
in highly conductive massive sulfide ore bodies.
 Groundwater investigations - groundwater
contaminants such as salts and acids significantly
increase the groundwater conductivity.
 Stratigraphy mapping - rock types may have
different conductivities.
 Geothermal energy - geothermal alteration due to
hot water increases the conductivity of the host rock.
 Permafrost mapping - there is a significant
conductivity contrast at the interface between frozen
and unfrozen ground.
 Environmental - locate hazards such as drums and
tanks.

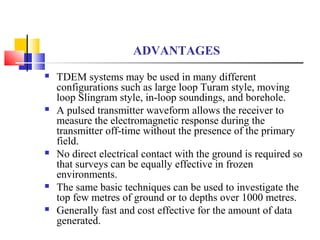

25. ADVANTAGES
 TDEM systems may be used in many different
configurations such as large loop Turam style, moving
loop Slingram style, in-loop soundings, and borehole.
 A pulsed transmitter waveform allows the receiver to
measure the electromagnetic response during the
transmitter off-time without the presence of the primary
field.
 No direct electrical contact with the ground is required so
that surveys can be equally effective in frozen
environments.
 The same basic techniques can be used to investigate the
top few metres of ground or to depths over 1000 metres.
 Generally fast and cost effective for the amount of data
generated.

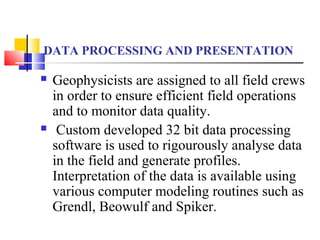

26. DATA PROCESSING AND PRESENTATION
 Geophysicists are assigned to all field crews
in order to ensure efficient field operations
and to monitor data quality.
 Custom developed 32 bit data processing
software is used to rigourously analyse data
in the field and generate profiles.
Interpretation of the data is available using
various computer modeling routines such as
Grendl, Beowulf and Spiker.

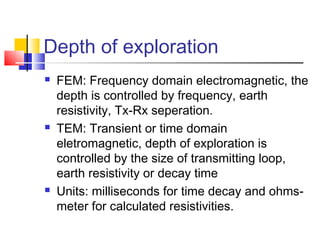

27. Depth of exploration
 FEM: Frequency domain electromagnetic, the
depth is controlled by frequency, earth
resistivity, Tx-Rx seperation.
 TEM: Transient or time domain
eletromagnetic, depth of exploration is
controlled by the size of transmitting loop,
earth resistivity or decay time
 Units: milliseconds for time decay and ohms-
meter for calculated resistivities.

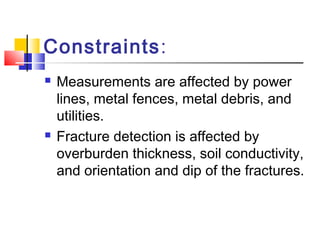

28. Constraints:
 Measurements are affected by power
lines, metal fences, metal debris, and
utilities.
 Fracture detection is affected by
overburden thickness, soil conductivity,
and orientation and dip of the fractures.

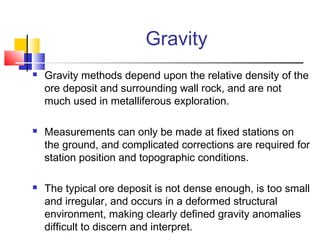

29. Gravity
 Gravity methods depend upon the relative density of the
ore deposit and surrounding wall rock, and are not
much used in metalliferous exploration.
 Measurements can only be made at fixed stations on
the ground, and complicated corrections are required for
station position and topographic conditions.
 The typical ore deposit is not dense enough, is too small
and irregular, and occurs in a deformed structural
environment, making clearly defined gravity anomalies
difficult to discern and interpret.

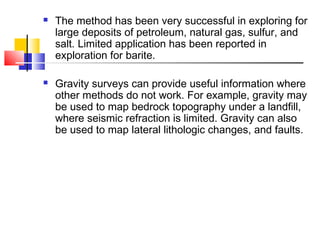

30.  The method has been very successful in exploring for
large deposits of petroleum, natural gas, sulfur, and
salt. Limited application has been reported in
exploration for barite.
 Gravity surveys can provide useful information where
other methods do not work. For example, gravity may
be used to map bedrock topography under a landfill,
where seismic refraction is limited. Gravity can also
be used to map lateral lithologic changes, and faults.

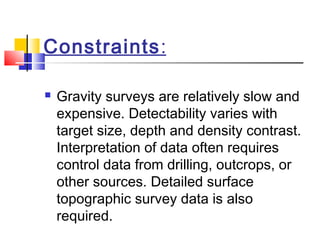

31. Constraints:
 Gravity surveys are relatively slow and
expensive. Detectability varies with
target size, depth and density contrast.
Interpretation of data often requires
control data from drilling, outcrops, or
other sources. Detailed surface
topographic survey data is also
required.

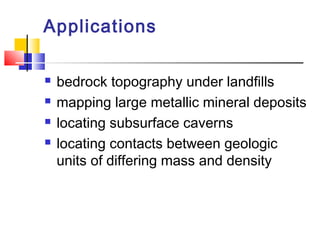

32. Applications
 bedrock topography under landfills
 mapping large metallic mineral deposits
 locating subsurface caverns
 locating contacts between geologic
units of differing mass and density

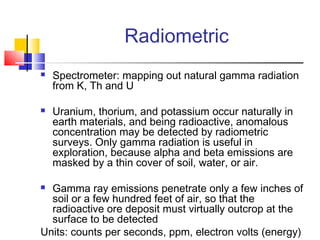

33. Radiometric
 Spectrometer: mapping out natural gamma radiation
from K, Th and U
 Uranium, thorium, and potassium occur naturally in
earth materials, and being radioactive, anomalous
concentration may be detected by radiometric
surveys. Only gamma radiation is useful in
exploration, because alpha and beta emissions are
masked by a thin cover of soil, water, or air.
 Gamma ray emissions penetrate only a few inches of
soil or a few hundred feet of air, so that the
radioactive ore deposit must virtually outcrop at the
surface to be detected
Units: counts per seconds, ppm, electron volts (energy)

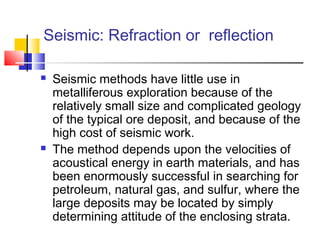

34. Seismic: Refraction or reflection
 Seismic methods have little use in
metalliferous exploration because of the
relatively small size and complicated geology
of the typical ore deposit, and because of the
high cost of seismic work.
 The method depends upon the velocities of
acoustical energy in earth materials, and has
been enormously successful in searching for
petroleum, natural gas, and sulfur, where the
large deposits may be located by simply
determining attitude of the enclosing strata.

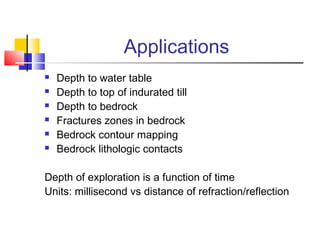

35. Applications
 Depth to water table
 Depth to top of indurated till
 Depth to bedrock
 Fractures zones in bedrock
 Bedrock contour mapping
 Bedrock lithologic contacts
Depth of exploration is a function of time
Units: millisecond vs distance of refraction/reflection

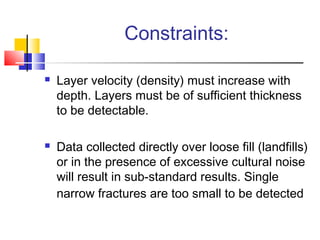

36. Constraints:
 Layer velocity (density) must increase with
depth. Layers must be of sufficient thickness
to be detectable.
 Data collected directly over loose fill (landfills)
or in the presence of excessive cultural noise
will result in sub-standard results. Single
narrow fractures are too small to be detected
