1. GONIOSCOPY
• Dr. Yashas Goyal
• Ophthalmology

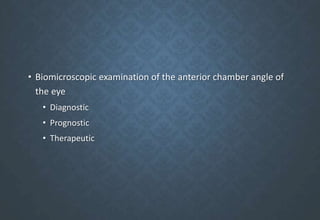

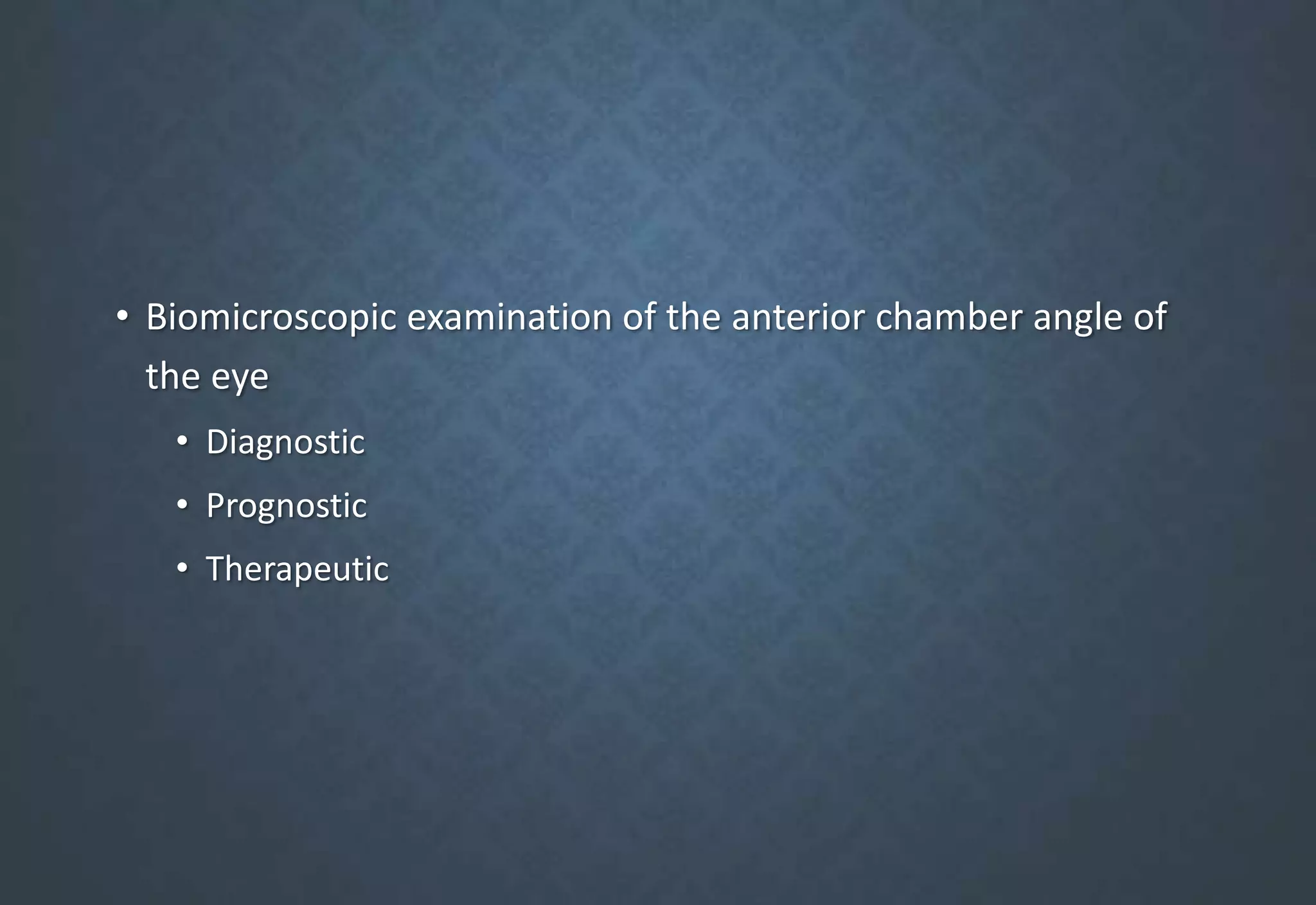

2. • Biomicroscopic examination of the anterior chamber angle of
the eye
• Diagnostic
• Prognostic
• Therapeutic

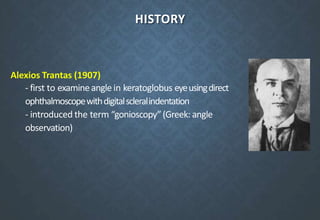

3. HISTORY
Alexios Trantas (1907)
- first to examineangle in keratoglobus eyeusingdirect
ophthalmoscopewithdigitalscleralindentation
- introduced the term “gonioscopy”(Greek: angle
observation)

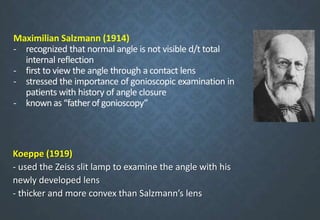

4. Maximilian Salzmann (1914)
- recognized that normal angle is not visible d/t total
internal reflection
- first to view the angle through a contact lens
- stressed the importance of gonioscopic examination in
patients with history of angle closure
- known as “fatherof gonioscopy”
Koeppe (1919)
- used the Zeiss slit lamp to examine the angle with his
newly developed lens
- thicker and more convex than Salzmann’s lens

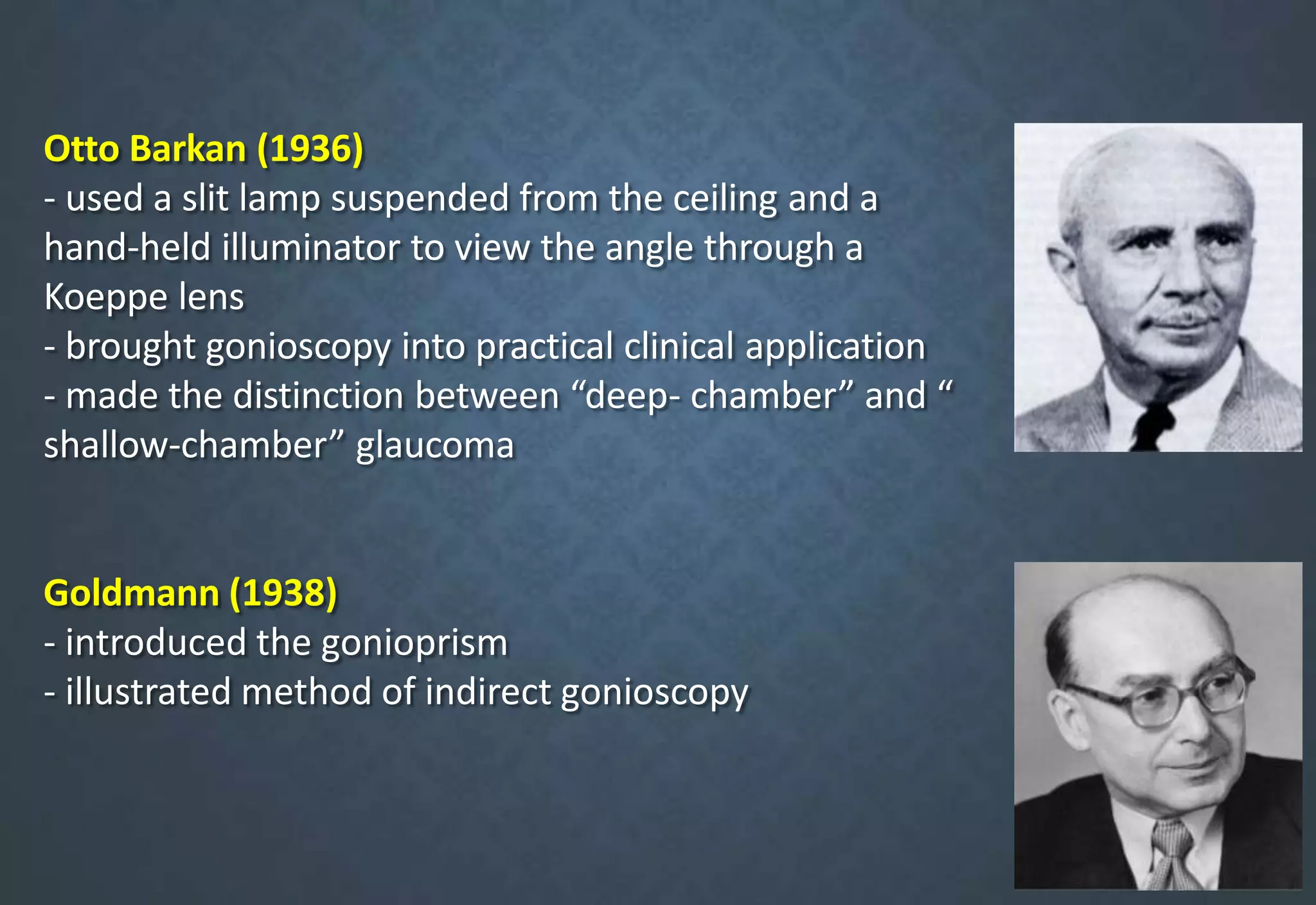

5. Otto Barkan (1936)
- used a slit lamp suspended from the ceiling and a
hand-held illuminator to view the angle through a
Koeppe lens
- brought gonioscopy into practical clinical application
- made the distinction between “deep- chamber” and “
shallow-chamber” glaucoma
Goldmann (1938)
- introduced the gonioprism
- illustrated method of indirect gonioscopy

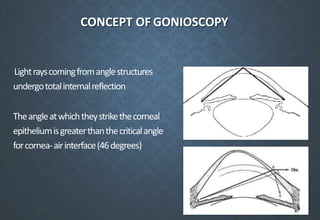

6. CONCEPT OF GONIOSCOPY
Lightrayscomingfromanglestructures
undergototalinternalreflection
Theangleatwhichtheystrikethecorneal
epitheliumisgreaterthanthecriticalangle
forcornea-airinterface(46degrees)

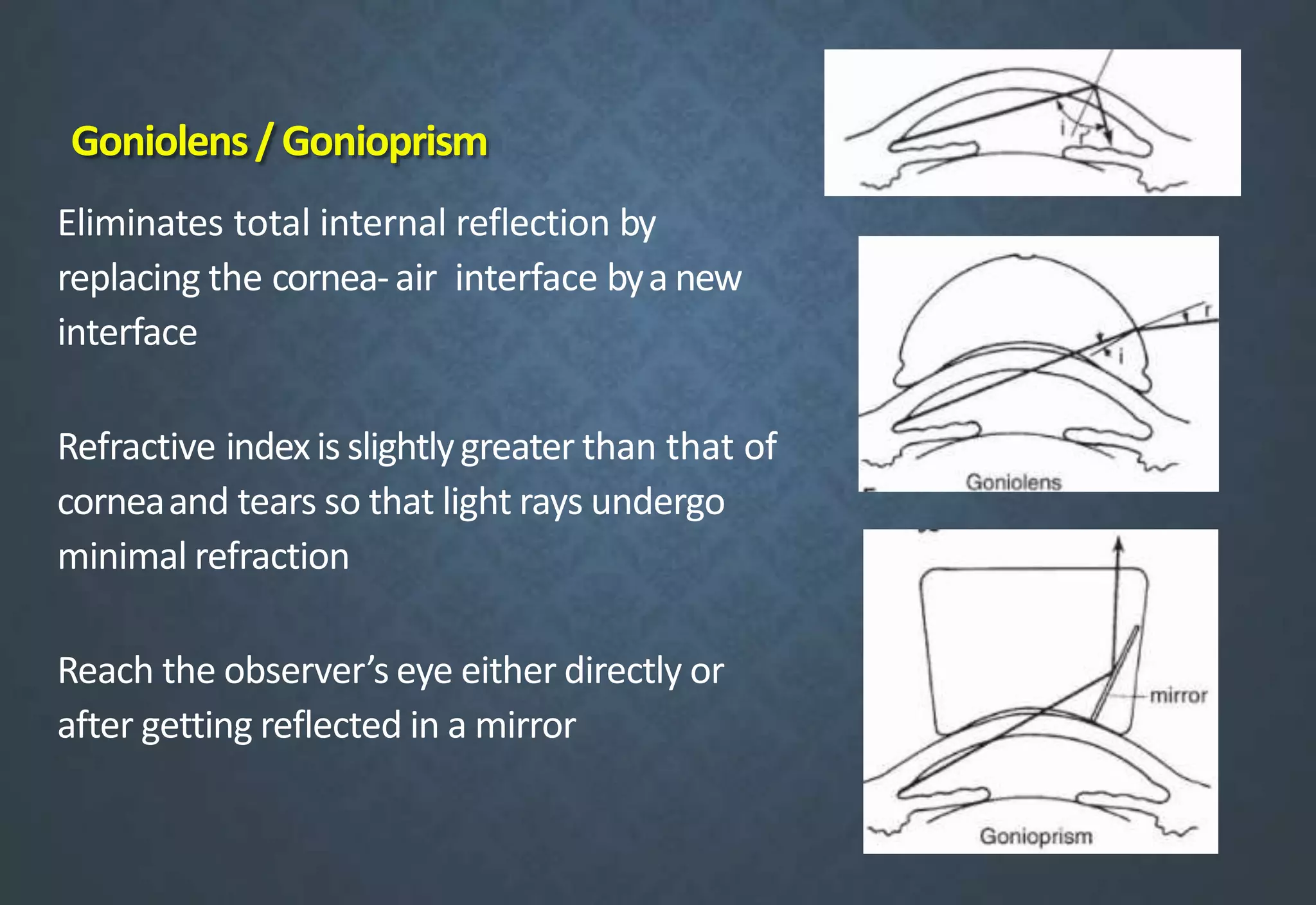

7. Goniolens/ Gonioprism
Eliminates total internal reflection by
replacing the cornea-air interface bya new
interface
Refractive indexis slightlygreater than that of
corneaand tears so that light rays undergo
minimal refraction
Reach the observer’s eye either directly or
after getting reflected in a mirror

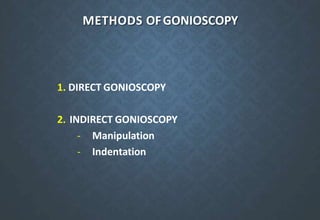

8. METHODS OFGONIOSCOPY
1. DIRECT GONIOSCOPY
2. INDIRECT GONIOSCOPY
- Manipulation
- Indentation

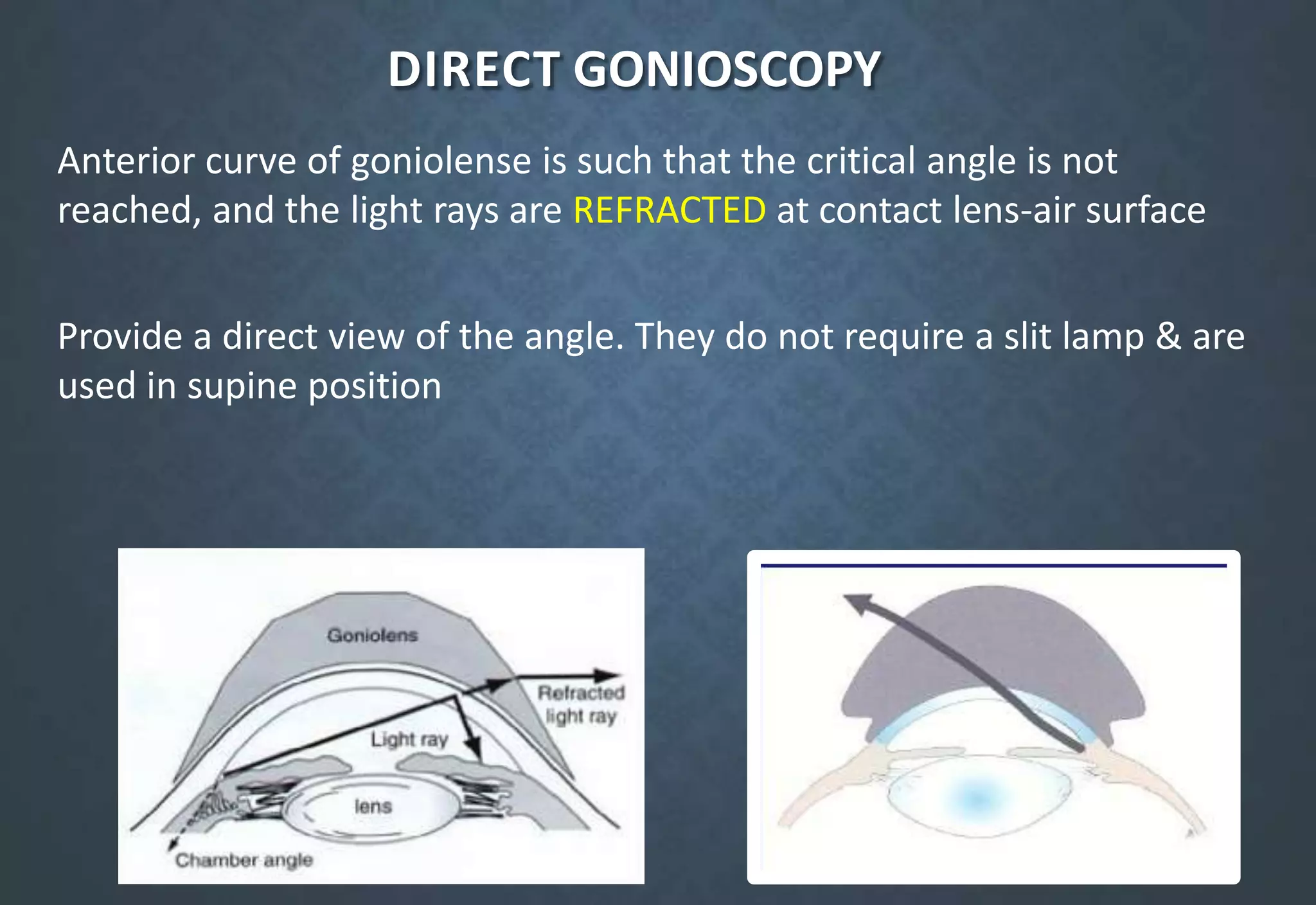

9. DIRECT GONIOSCOPY
Anterior curve of goniolense is such that the critical angle is not
reached, and the light rays are REFRACTED at contact lens-air surface
Provide a direct view of the angle. They do not require a slit lamp & are
used in supine position

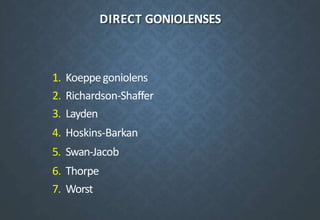

10. DIRECT GONIOLENSES
1. Koeppegoniolens
2. Richardson-Shaffer
3. Layden
4. Hoskins-Barkan
5. Swan-Jacob
6. Thorpe
7. Worst

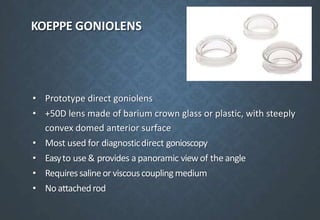

11. KOEPPE GONIOLENS
• Prototype direct goniolens
• +50D lens made of barium crown glass or plastic, with steeply
convex domed anterior surface
• Most used for diagnosticdirect gonioscopy
• Easyto use & provides a panoramic viewof the angle
• Requiressalineorviscouscouplingmedium
• No attachedrod

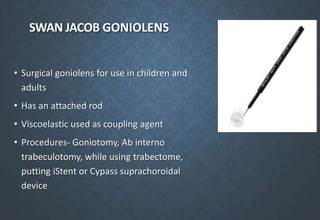

12. SWAN JACOB GONIOLENS
• Surgical goniolens for use in children and
adults
• Has an attached rod
• Viscoelastic used as coupling agent
• Procedures- Goniotomy, Ab interno
trabeculotomy, while using trabectome,
putting iStent or Cypass suprachoroidal
device

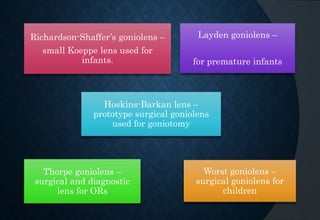

13. Richardson-Shaffer’s goniolens –
small Koeppe lens used for
infants.
Layden goniolens –
for premature infants
Hoskins-Barkan lens –
prototype surgical goniolens
used for goniotomy
Thorpe goniolens –
surgical and diagnostic
lens for ORs
Worst goniolens –
surgical goniolens for
children

14. TECHNIQUE
Patientlies supine with examiner seated on
the sideof the eyeto beexamined
After topical anesthesia, goniolens is
positioned on the cornea, usingbalanced
salt solution or methyl cellulose
Withthebiomicroscope in onehand & the
Barkan light sourcein other, examiner
scansthe anterior chamber angle by
shifting his or her position until all 360
degreeshavebeen studied
Mag of Koeppe lens: 1.5x
Mag of biomicroscope: 16x
Total magnification: 24x

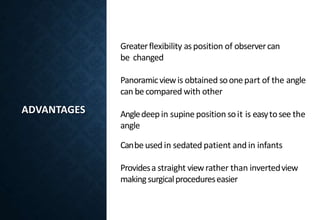

15. ADVANTAGES
Greaterflexibility asposition of observercan
be changed
Panoramicviewis obtained soonepart of the angle
can becompared with other
Angledeepin supine position soit is easytosee the
angle
Canbeused in sedated patient and in infants
Providesa straight viewrather than invertedview
makingsurgicalprocedureseasier

16. DISADVANTAGES
• Annoyinglight reflexes from cornea
• Timeconsuming
• Benefits of slit-lamp likevariable light &
better clarity are not available

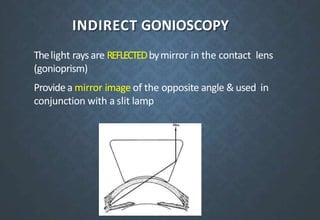

17. INDIRECT GONIOSCOPY
Thelight rays are REFLECTEDbymirror in the contact lens
(gonioprism)
Providea mirror image of the opposite angle & used in
conjunction with a slit lamp

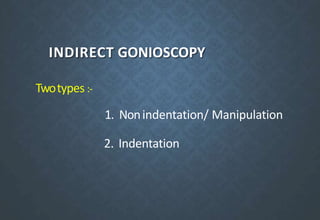

18. INDIRECT GONIOSCOPY
Twotypes :-
1. Nonindentation/ Manipulation
2. Indentation

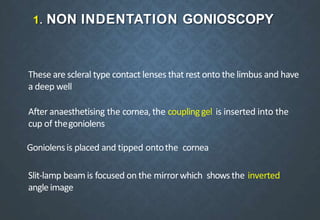

19. 1. NON INDENTATION GONIOSCOPY
These are scleral type contact lenses that rest onto the limbus and have
a deep well
After anaesthetising the cornea,the couplinggel is inserted into the
cup of thegoniolens
Goniolensis placed and tipped ontothe cornea
Slit-lamp beam is focused on the mirrorwhich showsthe inverted
angleimage

21. GONIOPRISMS (MANIPULATION) -
Surface is slightly larger than cornea& requirea coupling gel:
1. Goldmann single mirror: single mirror inclined at 62°
2. Goldmann double mirror: two mirrors aligned at 62 ° each
3. Goldmann 3 mirror: mirror for gonioscopy at 59°, for pars plana at 67°,
and for equator 73°
4. Allen-Thorpe: 4 mirrors inclined at 62° each

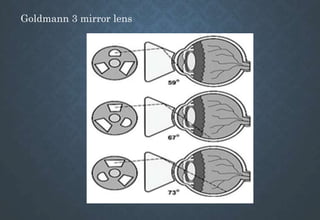

22. Goldmann 3 mirror lens

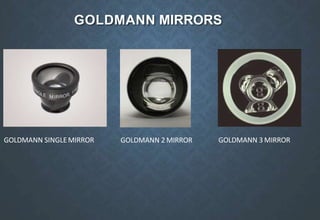

23. GOLDMANN MIRRORS
GOLDMANN SINGLEMIRROR GOLDMANN 2 MIRROR GOLDMANN 3 MIRROR

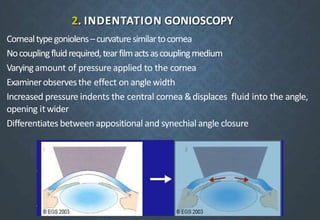

24. 2. INDENTATION GONIOSCOPY
Cornealtypegoniolens–curvaturesimilartocornea
Nocouplingfluidrequired,tearfilmactsascouplingmedium
Varyingamount of pressure applied to the cornea
Examinerobservesthe effect on angle width
Increased pressure indents the central cornea &displaces fluid into the angle,
opening itwider
Differentiates between appositional and synechial angle closure

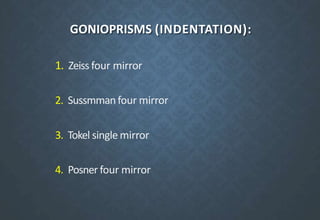

25. GONIOPRISMS (INDENTATION):
1. Zeiss four mirror
2. Sussmmanfour mirror
3. Tokel single mirror
4. Posner four mirror

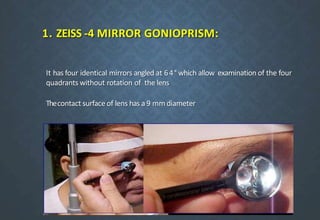

26. 1. ZEISS -4 MIRROR GONIOPRISM:
It has four identical mirrors angled at 64° which allow examination of the four
quadrants without rotation of the lens
Thecontact surface of lens has a 9 mm diameter

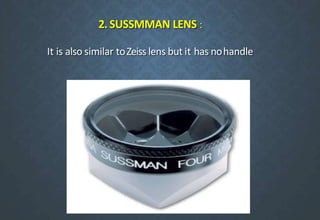

27. 2. SUSSMMAN LENS :
It is also similar toZeiss lens but it has nohandle

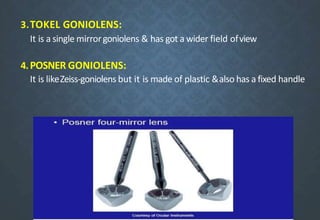

28. 3.TOKEL GONIOLENS:
It is a single mirrorgoniolens & has got a wider field ofview
4.POSNER GONIOLENS:
It is likeZeiss-goniolens but it is made of plastic &also has a fixed handle

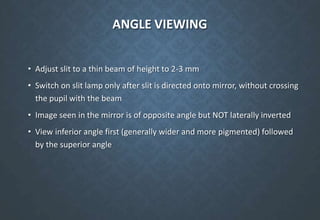

29. ANGLE VIEWING
• Adjust slit to a thin beam of height to 2-3 mm
• Switch on slit lamp only after slit is directed onto mirror, without crossing
the pupil with the beam
• Image seen in the mirror is of opposite angle but NOT laterally inverted
• View inferior angle first (generally wider and more pigmented) followed
by the superior angle

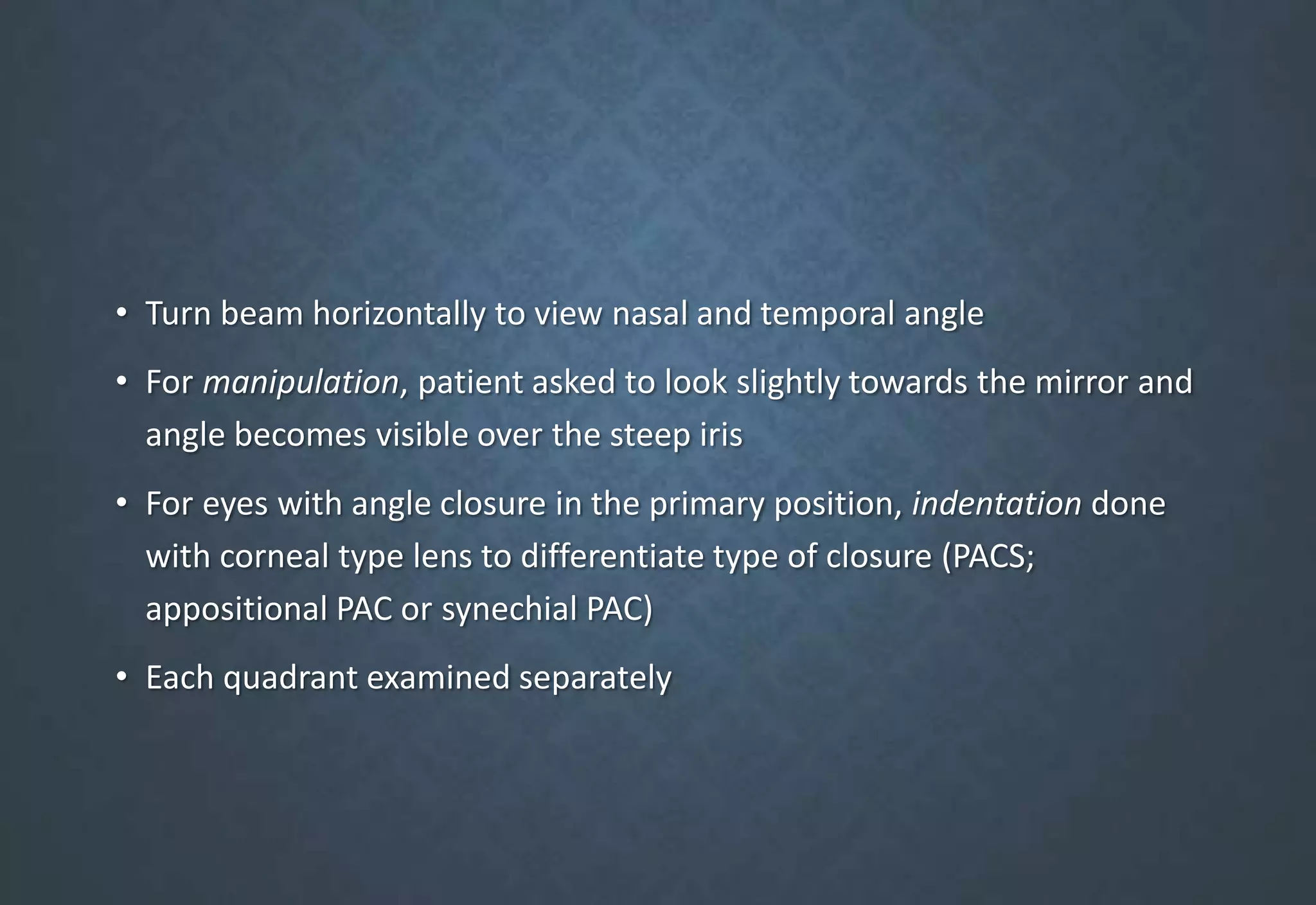

30. • Turn beam horizontally to view nasal and temporal angle
• For manipulation, patient asked to look slightly towards the mirror and
angle becomes visible over the steep iris
• For eyes with angle closure in the primary position, indentation done
with corneal type lens to differentiate type of closure (PACS;
appositional PAC or synechial PAC)
• Each quadrant examined separately

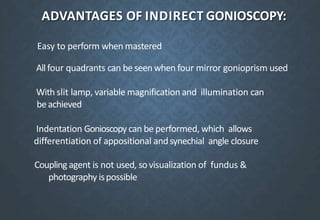

31. ADVANTAGES OF INDIRECT GONIOSCOPY:
Easy to perform when mastered
Allfour quadrants can be seenwhen four mirror gonioprism used
With slit lamp, variable magnification and illumination can
beachieved
Indentation Gonioscopy can be performed, which allows
differentiation of appositional andsynechial angle closure
Couplingagent is not used, sovisualization of fundus &
photography ispossible

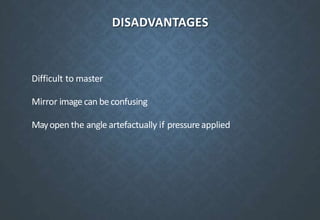

32. DISADVANTAGES
Difficult to master
Mirror image can be confusing
Mayopen the angle artefactually if pressureapplied

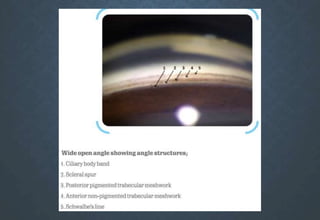

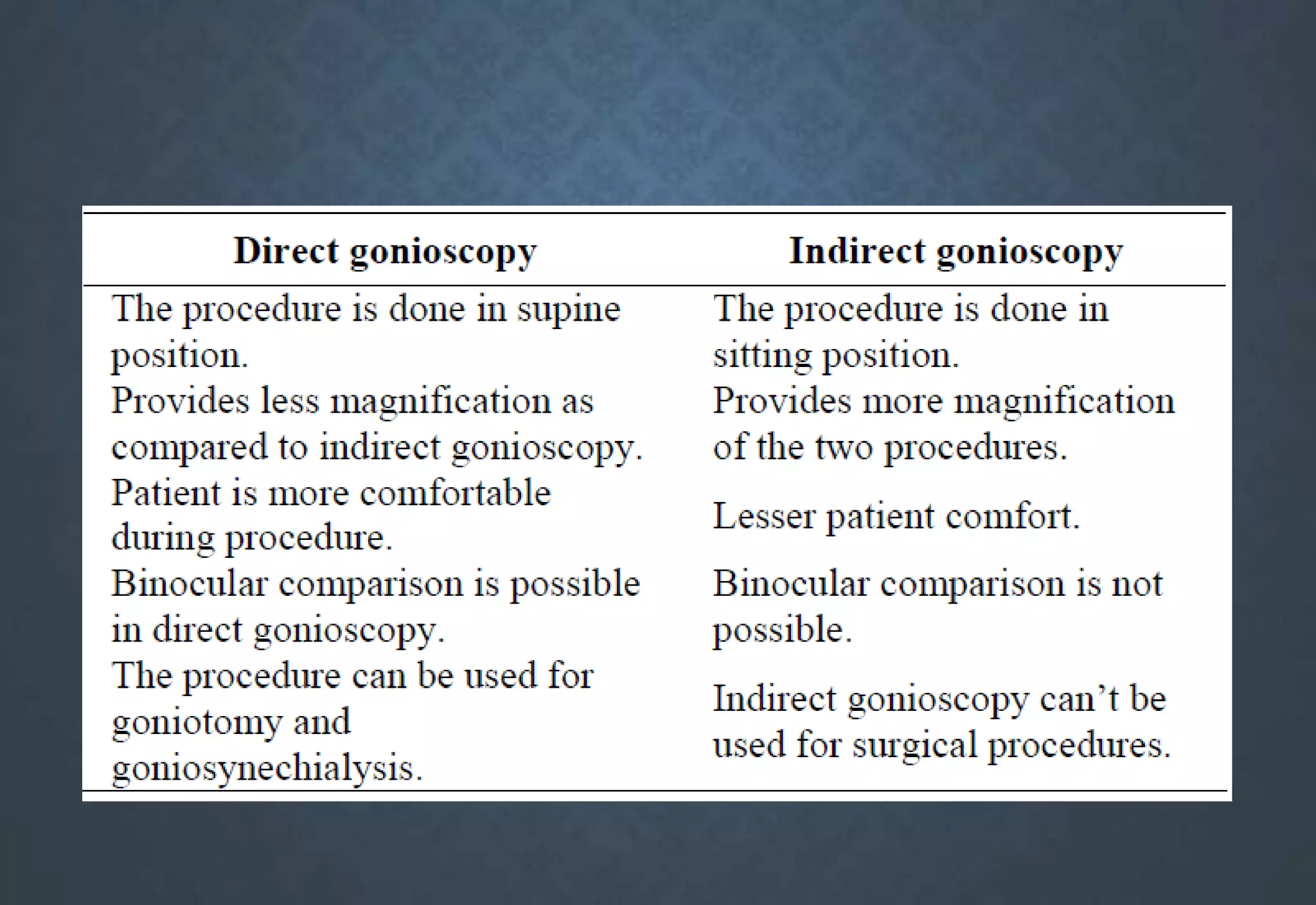

34. GONIOSCOPIC VIEW OF ANGLE STRUCTURES

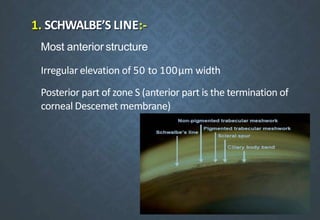

35. 1. SCHWALBE’S LINE:-
Most anterior structure
Irregular elevation of 50 to 100µm width
Posterior part of zone S (anterior part is the termination of
corneal Descemet membrane)

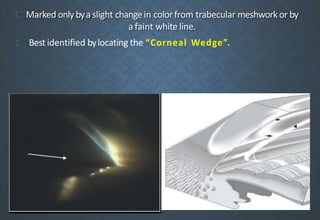

36. Marked only bya slight changein colorfrom trabecular meshwork or by
a faint white line.
Best identified bylocating the “Corneal Wedge”.

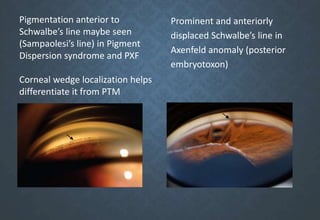

37. Prominent and anteriorly
displaced Schwalbe’s line in
Axenfeld anomaly (posterior
embryotoxon)
Pigmentation anterior to
Schwalbe’s line maybe seen
(Sampaolesi’s line) in Pigment
Dispersion syndrome and PXF
Corneal wedge localization helps
differentiate it from PTM

38. 2. TRABECULAR MESHWORK :-
- It lies between the Schwalbe’s line
anteriorly &scleral spur posteriorly and
has an averagewidth of 600 µm
- Anterior non pigmented part (non-
functional) and posterior pigmented
part that overlies the canal of Schlemm
- Smoothin infants but becomes coarseandpigmented with age
- Inferior TM more pigmented than superior, due to gravity and
aqueous currents

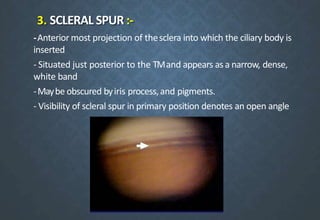

39. 3. SCLERAL SPUR :-
-Anterior most projection of thesclera into which the ciliary body is
inserted
- Situated just posterior to the TMand appears as a narrow, dense,
white band
-Maybe obscured byiris process,and pigments.
- Visibility of scleral spur in primary position denotes an open angle

40. 4. CILIARY BODY BAND:-
- Liesjust behind the scleral spur asa dull brownor slate greyband
- Portion of ciliary bodywhich is visible in the angle asa result of insertion
of the iris into the ciliary body
- Maybewideinmyopes andnarrow inhyperopes.

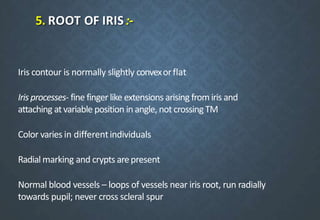

41. 5. ROOT OF IRIS :-
Iris contour is normally slightly convexorflat
Iris processes- fine finger like extensions arising fromiris and
attaching atvariable position in angle, not crossing TM
Color varies in differentindividuals
Radial marking and crypts arepresent
Normal blood vessels – loops of vessels near iris root, run radially
towards pupil; never cross scleral spur

42. IRIS PROCESSES VS. PERIPHERAL ANTERIOR
SYNECHIAE
Iris processes PAS
Fine, finger like Broad based
Do not cross trabecular meshwork Attach on and anterior to TM
Follow concavity of iris Bridge the angle structures
Allow free movement of iris
posteriorly upon indentation
Do not allow free movement of iris

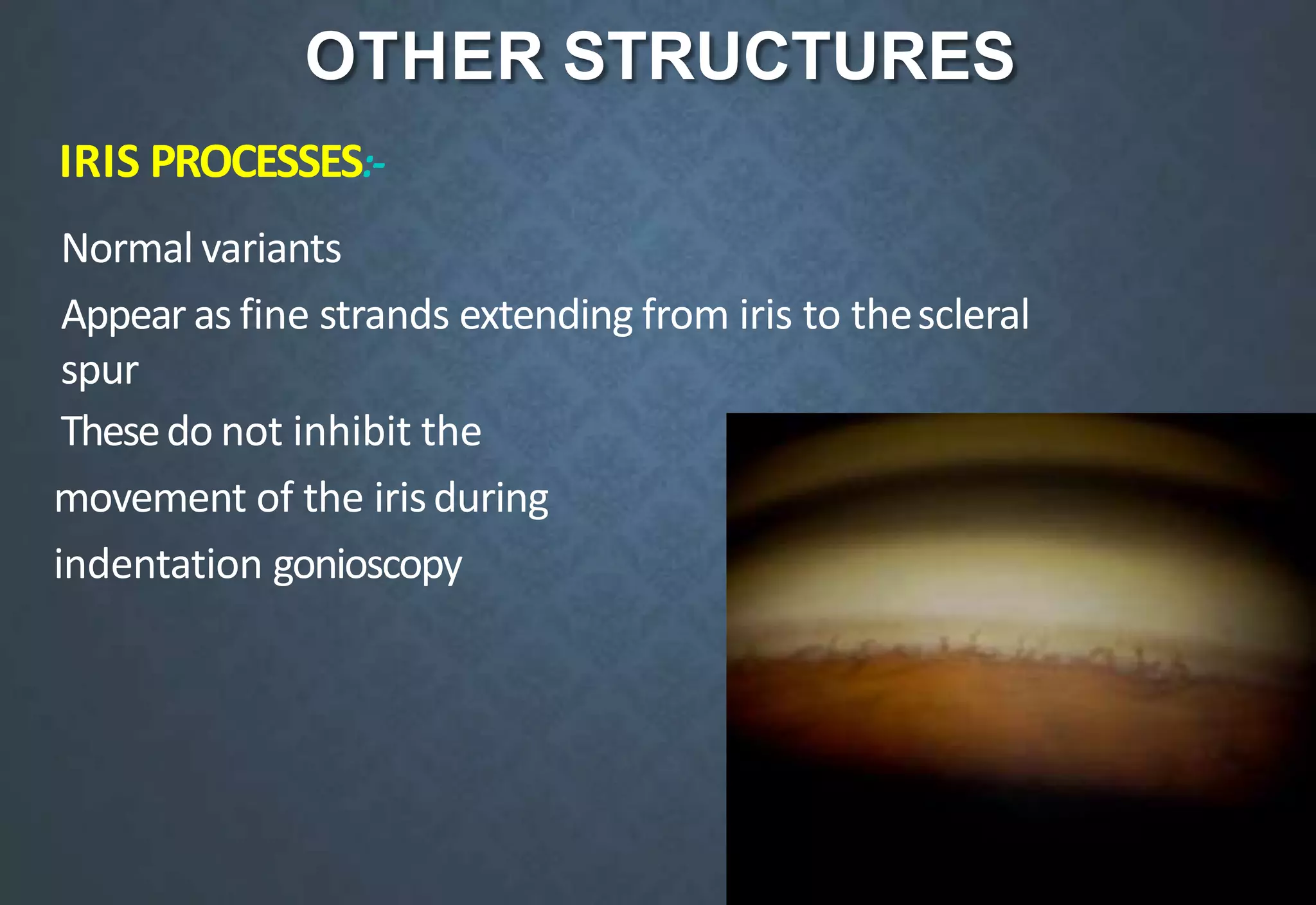

44. OTHER STRUCTURES
IRIS PROCESSES:-
Normal variants
Appear as fine strands extending from iris to thescleral
spur
Thesedo not inhibit the
movement of the irisduring
indentation gonioscopy

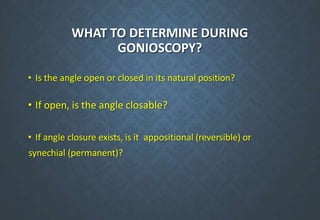

45. WHAT TO DETERMINE DURING
GONIOSCOPY?
• Is the angle open or closed in its natural position?
• If open, is the angle closable?
• If angle closure exists, is it appositional (reversible) or
synechial (permanent)?

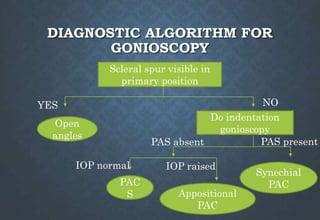

46. DIAGNOSTIC ALGORITHM FOR
GONIOSCOPY
Scleral spur visible in
primary position
Open
angles
YES NO
Do indentation
gonioscopy
PAS present
PAS absent
Synechial
PAC
PAC
S
IOP normal IOP raised
Appositional
PAC

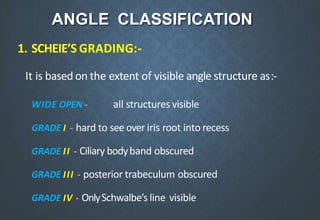

47. ANGLE CLASSIFICATION
1. SCHEIE’S GRADING:-
It is based on the extent of visible angle structure as:-
WIDE OPEN - all structures visible
GRADE I - hard to see over iris root into recess
GRADE II - Ciliary bodyband obscured
GRADE III - posterior trabeculum obscured
GRADE IV - OnlySchwalbe’s line visible

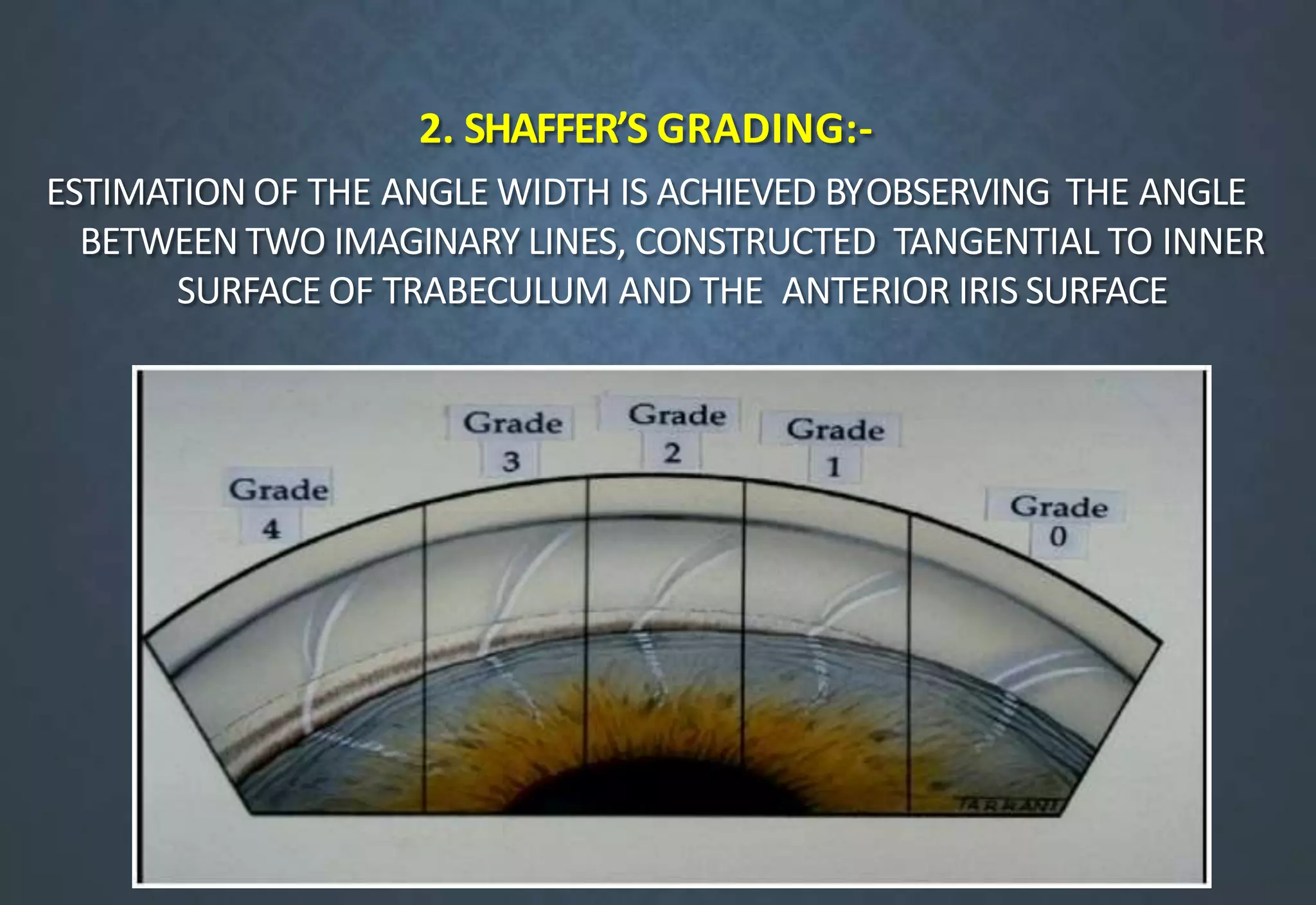

48. 2. SHAFFER’S GRADING:-
ESTIMATION OF THE ANGLE WIDTH IS ACHIEVED BYOBSERVING THE ANGLE
BETWEEN TWO IMAGINARY LINES, CONSTRUCTED TANGENTIAL TO INNER
SURFACE OF TRABECULUM AND THE ANTERIOR IRIS SURFACE

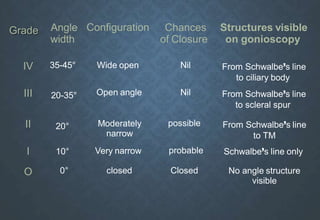

49. Grade Angle
width
Configuration Chances
of Closure
Structures visible
on gonioscopy
IV 35-45° Wide open Nil
III 20-35° Open angle Nil
From Schwalbe’s line
to ciliary body
From Schwalbe’s line
to scleral spur
II 20° possible
10°
Moderately
narrow
Very narrow probable
I
O 0° closed Closed
From Schwalbe’s line
to TM
Schwalbe’s line only
No angle structure
visible

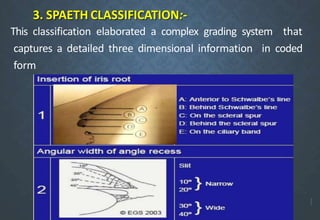

50. 3. SPAETH CLASSIFICATION:-
This classification elaborated a complex grading system that
captures a detailed three dimensional information in coded
form

51. or flat

52. DOCUMENTATION OF GONIOSCOPIC FINDINGS
- Posterior most structure visible in
primary gaze with thin short slit beam
- Posterior most structure on indentation
or manipulation
- Iris configuration – concave, regular or
convex/steep
- Any specific angle abnormality
• Goniosynechiae
• Pigmentation
• Angle recession
• Anterior insertion of iris
• Iridodialysis/cyclodialysis
S
L
TM
+2
TM
+1
TM
+1
Diagrammatic representation
ATM
TO SS
ATM
TO SS
ATM
PTM
TO SS
PTM
TO SS
PTM

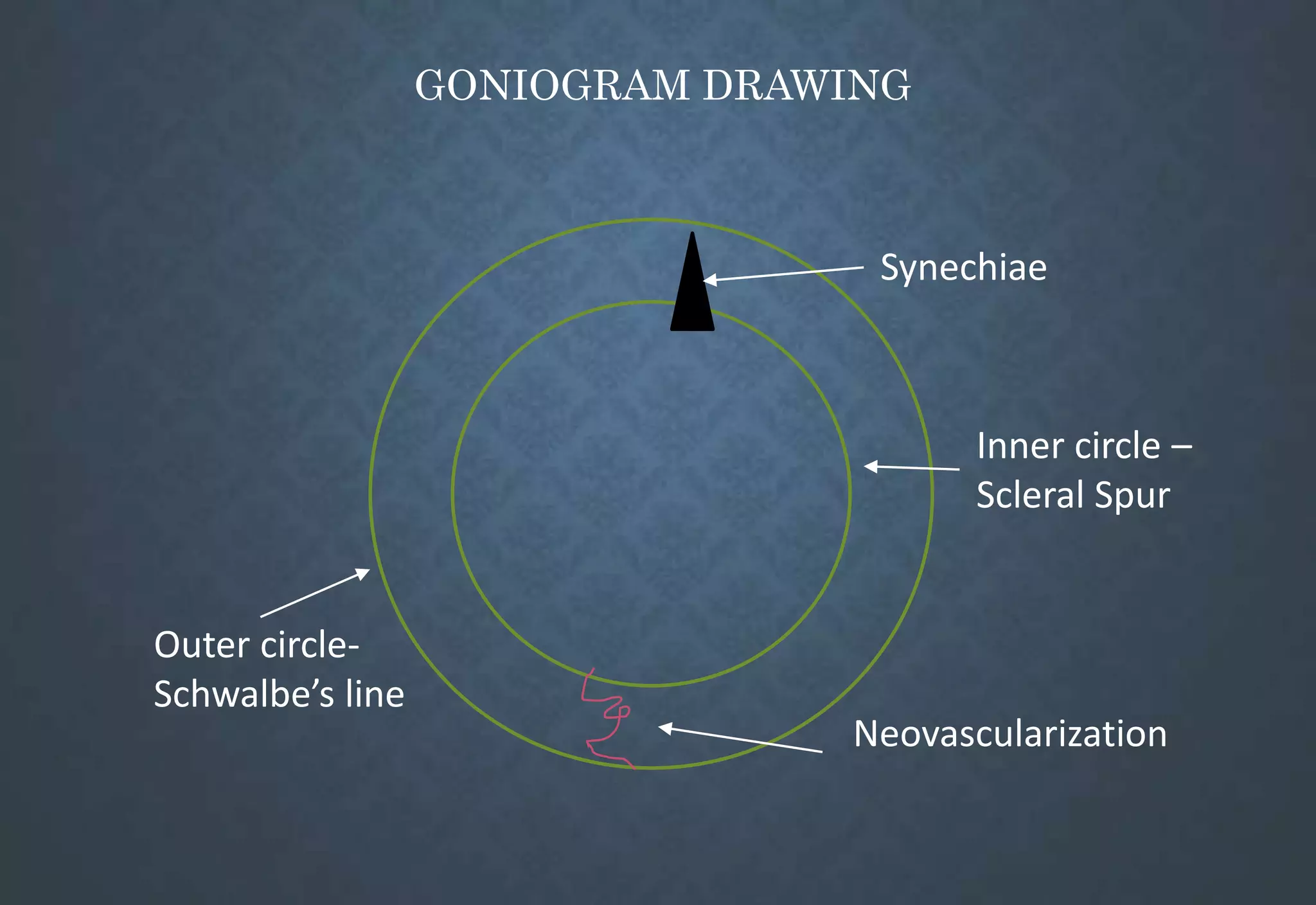

53. GONIOGRAM DRAWING
Inner circle –
Scleral Spur
Outer circle-
Schwalbe’s line
Synechiae
Neovascularization

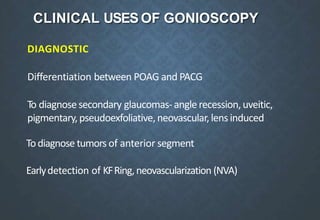

54. CLINICAL USES OF GONIOSCOPY
DIAGNOSTIC
Differentiation between POAG and PACG
To diagnosesecondary glaucomas-anglerecession,uveitic,
pigmentary,pseudoexfoliative,neovascular,lens induced
Todiagnose tumors of anterior segment
Earlydetection of KFRing,neovascularization (NVA)

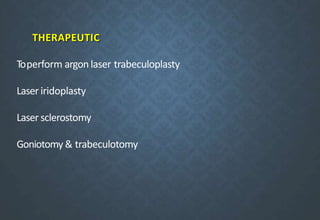

55. THERAPEUTIC
Toperform argon laser trabeculoplasty
Laser iridoplasty
Laser sclerostomy
Goniotomy & trabeculotomy

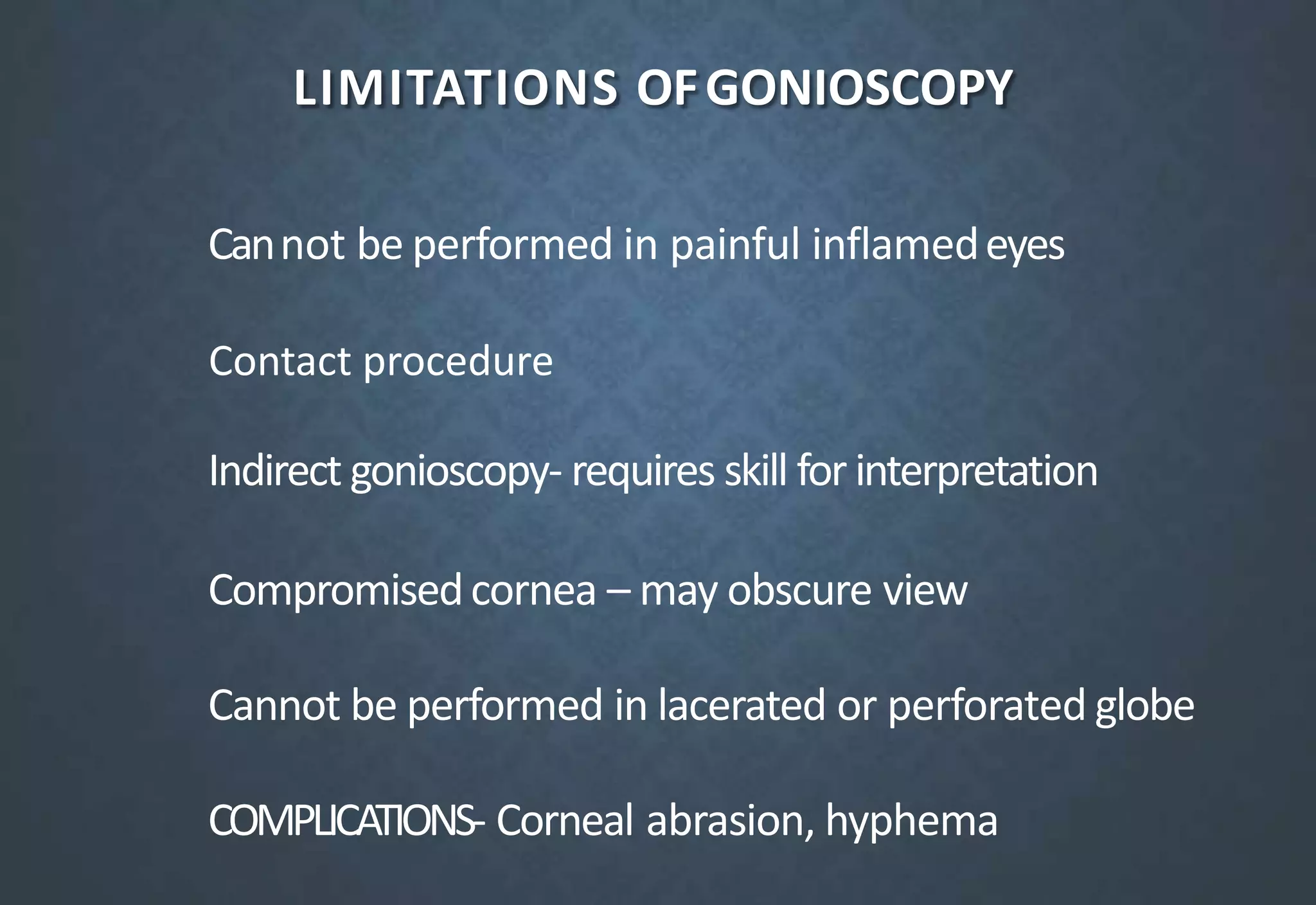

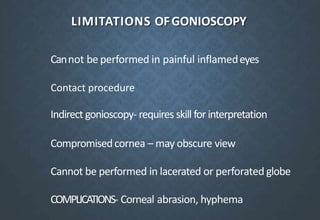

56. LIMITATIONS OFGONIOSCOPY
Cannot be performed in painful inflamedeyes
Indirect gonioscopy- requires skill for interpretation
Compromisedcornea – may obscure view
Cannot be performed in lacerated or perforated globe
COMPLICATIONS- Corneal abrasion, hyphema
Contact procedure

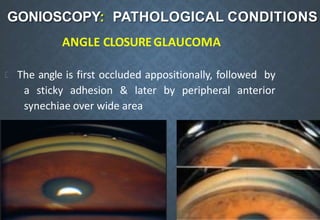

57. GONIOSCOPY: PATHOLOGICAL CONDITIONS
ANGLE CLOSUREGLAUCOMA
The angle is first occluded appositionally, followed by
a sticky adhesion & later by peripheral anterior
synechiae over wide area
.

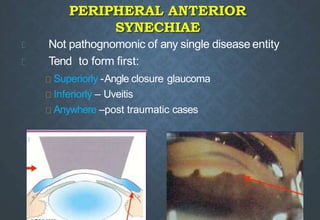

58. PERIPHERAL ANTERIOR
SYNECHIAE
Not pathognomonic of any single disease entity
Tend to form first:
Superiorly -Angle closure glaucoma
Inferiorly – Uveitis
Anywhere –post traumatic cases

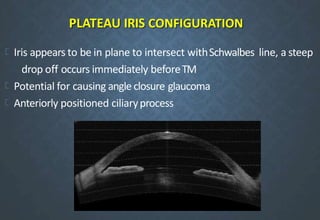

59. PLATEAU IRIS CONFIGURATION
Iris appears to be in plane to intersect withSchwalbes line, a steep
drop off occurs immediately beforeTM
Potential for causing angle closure glaucoma
Anteriorly positioned ciliaryprocess

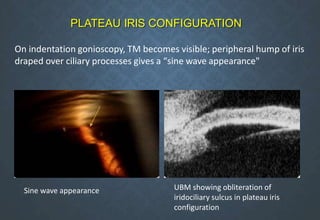

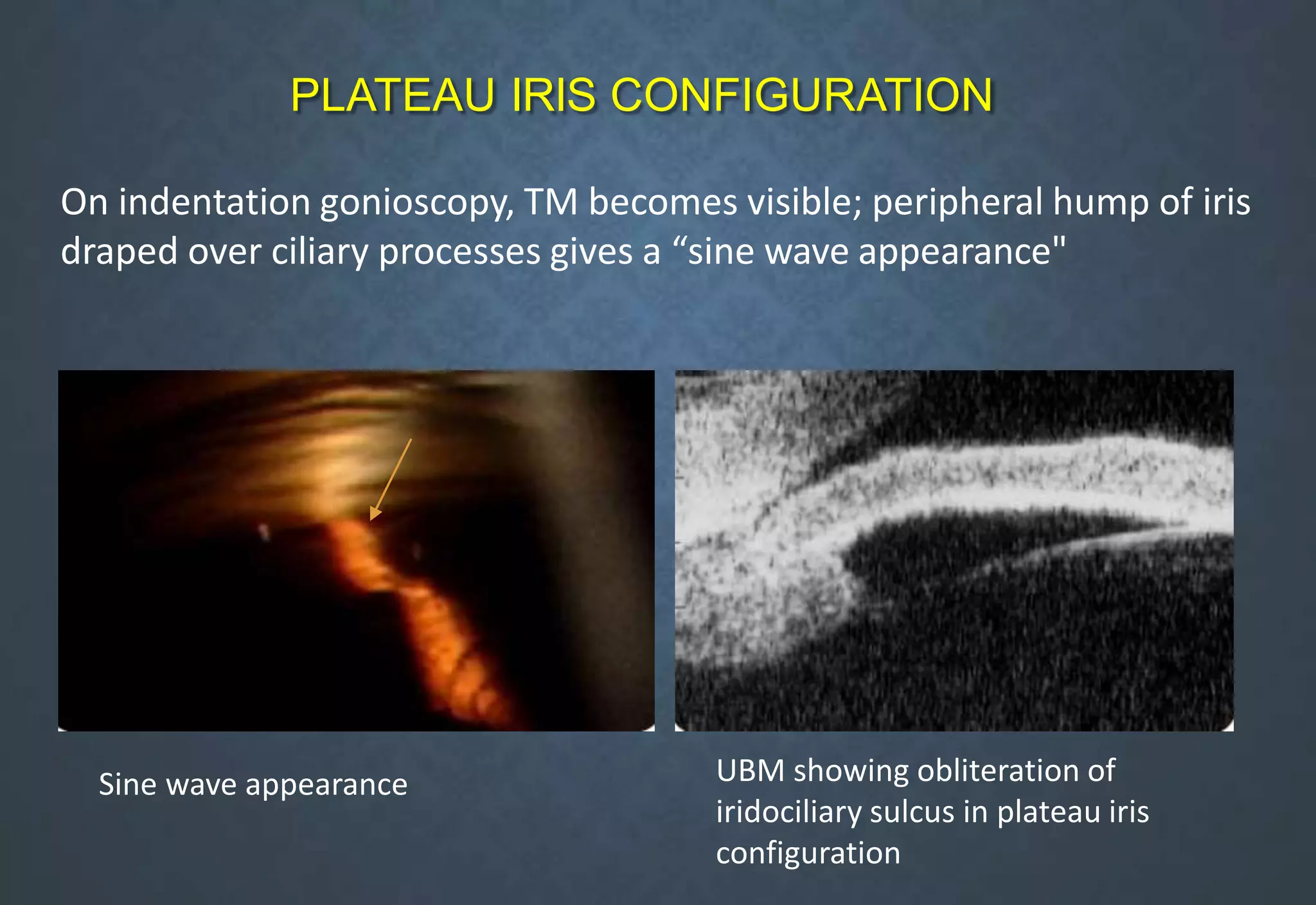

60. On indentation gonioscopy, TM becomes visible; peripheral hump of iris
draped over ciliary processes gives a “sine wave appearance"
PLATEAU IRIS CONFIGURATION
UBM showing obliteration of
iridociliary sulcus in plateau iris
configuration
Sine wave appearance

61. PIGMENTARY GLAUCOMA
Heavypigment dispersion in leadingto occlusionof trabecularmeshwork
Typical patients are youngmyopic males
Iris configuration is anteriorly concave due to posterior bowing of peripheral iris
contact with zonules leads to dispersion of pigments from posterior pigmented iris
epithelium

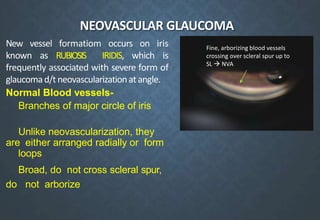

62. NEOVASCULAR GLAUCOMA
New vessel formatiom occurs on iris
known as RUBIOSIS IRIDIS, which is
frequently associated with severe form of
glaucomad/t neovascularizationatangle.
Normal Blood vessels-
Branches of major circle of iris
Unlike neovascularization, they
are either arranged radially or form
loops
Broad, do not cross scleral spur,
do not arborize
Fine, arborizing blood vessels
crossing over scleral spur up to
SL  NVA

63. ANGLE RECESSION
- Irregular widening of ciliary bodyband occurs sometimes following blunt
trauma to the eye
- It occurs due to tearbetween longitudenal and circular muscles of ciliary
body
- Indirectindicatorofsevereinjurytothetrabecularmeshworkleadingtorise
inIOPovertime

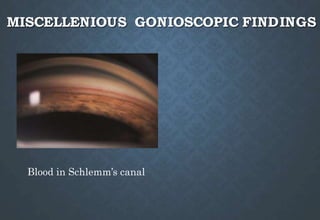

64. MISCELLENIOUS GONIOSCOPIC FINDINGS
Blood in Schlemm’s canal

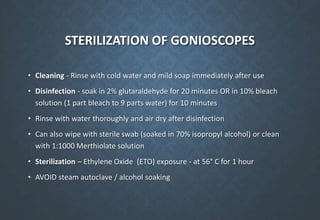

65. STERILIZATION OF GONIOSCOPES
• Cleaning - Rinse with cold water and mild soap immediately after use
• Disinfection - soak in 2% glutaraldehyde for 20 minutes OR in 10% bleach
solution (1 part bleach to 9 parts water) for 10 minutes
• Rinse with water thoroughly and air dry after disinfection
• Can also wipe with sterile swab (soaked in 70% isopropyl alcohol) or clean
with 1:1000 Merthiolate solution
• Sterilization – Ethylene Oxide (ETO) exposure - at 56° C for 1 hour
• AVOID steam autoclave / alcohol soaking

66. NEWER WAYSTO EVALUATE ANTERIOR CHAMBER
ANGLE

67. THANK YOU!
