Glycogen storage disorders are a group of inherited metabolic disorders caused by deficiencies in enzymes involved in glycogen synthesis or breakdown. There are several types classified by the affected enzyme and tissue. Type I, Von Gierke's disease, is caused by glucose-6-phosphatase deficiency affecting the liver and kidneys, leading to organ enlargement, high lactate levels, and gout. Type II, Pompe's disease, results from acid maltase deficiency impacting many tissues including heart, liver, and muscles. Symptoms range from cardiac failure in infants to late-onset muscle weakness. Treatment may include enzyme replacement therapy or diet modification.

1. Glycogen storage disease (gsd)Saddam AnsariTbilisi State Medical University4th May 2011

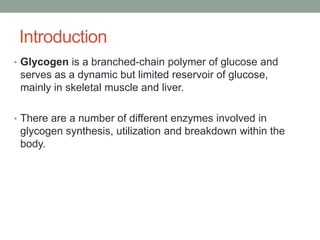

2. IntroductionGlycogen is a branched-chain polymer of glucose and serves as a dynamic but limited reservoir of glucose, mainly in skeletal muscle and liver.There are a number of different enzymes involved in glycogen synthesis, utilization and breakdown within the body.

3. Continued…Glycogen storage disorders (GSD) are a group of inherited inborn errors of metabolism due to deficiency or dysfunction of these enzymes.confined to just liver and muscleBut some cause more generalised pathology and affect tissues such as the kidney, heart and bowel. The classification of glycogen storage disorders is based on the enzyme deficiency and the affected tissue.

5. EpidiomologyThe overall GSD incidence is estimated at 1 case per 20,000-43,000 live births.Type I is the most common (25% of all GSD).

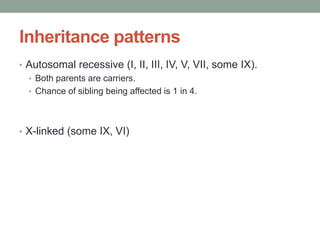

6. Inheritance patternsAutosomal recessive (I, II, III, IV, V, VII, some IX). Both parents are carriers. Chance of sibling being affected is 1 in 4.X-linked (some IX, VI)

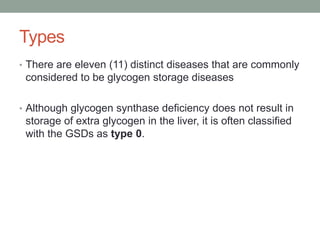

7. Types There are eleven (11) distinct diseases that are commonly considered to be glycogen storage diseases Although glycogen synthase deficiency does not result in storage of extra glycogen in the liver, it is often classified with the GSDs as type 0.

8. Type I, Von Gierke's diseaseAffected enzyme: glucose-6-phosphataseAffected tissue: Liver and kidney Clinical features:Large quantities of glycogen are formed and stored in hepatocytes, renal and intestinal mucosa cells. The liver and kidneys become enlarged.

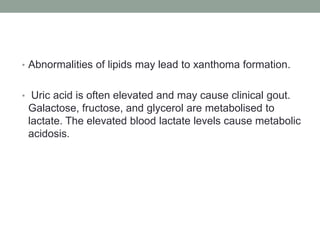

9. Abnormalities of lipids may lead to xanthoma formation. Uric acid is often elevated and may cause clinical gout. Galactose, fructose, and glycerol are metabolised to lactate. The elevated blood lactate levels cause metabolic acidosis.

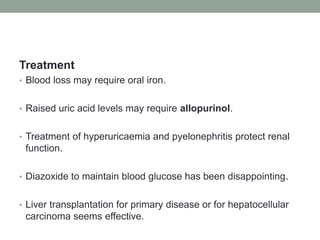

10. Treatment Blood loss may require oral iron.Raised uric acid levels may require allopurinol.Treatment of hyperuricaemia and pyelonephritis protect renal function.Diazoxide to maintain blood glucose has been disappointing.Liver transplantation for primary disease or for hepatocellular carcinoma seems effective.

11. Type II, Pompe's disease Cause: The deficiency of the lysosomal enzyme alpha-1,4-glucosidase (acid maltase) leads to the accumulation of glycogen in many tissues.Clinical feature:The clinical spectrum is continuous and broad, with presentation in infants, children and adults.In the infantile form, accumulation of glycogen in cardiac muscle leads to cardiac failure.

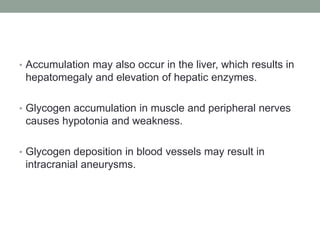

12. Accumulation may also occur in the liver, which results in hepatomegaly and elevation of hepatic enzymes.Glycogen accumulation in muscle and peripheral nerves causes hypotonia and weakness.Glycogen deposition in blood vessels may result in intracranial aneurysms.

13. Treatment:Enzyme replacement therapy (Alglucosidasealfa)Diet therapy may provide temporary improvement but does not alter the disease course: a high-protein, low-carbohydrate diet may be beneficial.Physiotherapy and occupational therapy may be required.

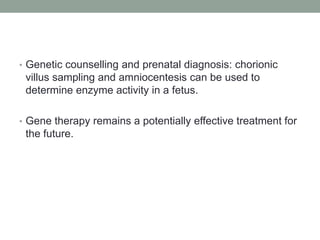

14. Genetic counselling and prenatal diagnosis: chorionic villus sampling and amniocentesis can be used to determine enzyme activity in a fetus.Gene therapy remains a potentially effective treatment for the future.

15. Type III, Cori diseaseAffected enzyme: Glycogen debranching enzyme. Deposition of abnormal glycogen structure.Affected tissues: Liver and muscle.Clinical features:About 15% affect liver only. Hypoglycaemia, poor growth, hepatomegaly, moderate progressive myopathy.Symptoms can regress with age.A few cases of liver cirrhosis and hepatocellular carcinoma have been reported.

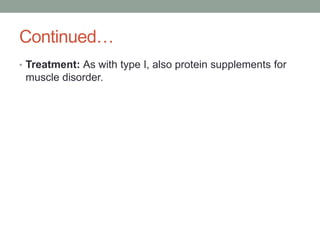

16. Continued…Treatment: As with type I, also protein supplements for muscle disorder.

17. Type IV, Andersen's disease, AmylopectinosisAffected enzyme: Glycogen branching enzyme. Abnormally structured glycogen forms.Affected tissues: Many, including liver. Rare variant affects peripheral nerves.Clinical features:Hepatomegaly, failure to thrive, cirrhosis, splenomegaly, jaundice, hypotonia, waddling gait, lumbar lordosis.

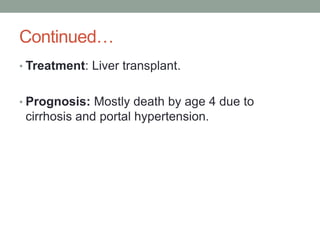

18. Continued…Treatment: Liver transplant.Prognosis: Mostly death by age 4 due to cirrhosis and portal hypertension.

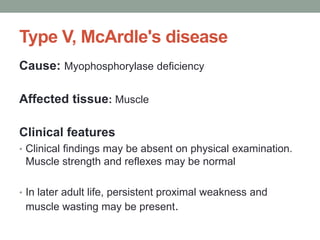

19. Type V, McArdle's diseaseCause: Myophosphorylase deficiencyAffected tissue: MuscleClinical featuresClinical findings may be absent on physical examination. Muscle strength and reflexes may be normalIn later adult life, persistent proximal weakness and muscle wasting may be present.

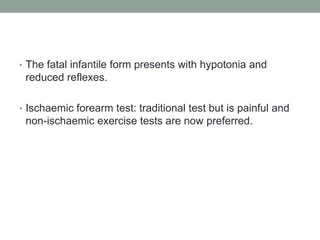

20. The fatal infantile form presents with hypotonia and reduced reflexes.Ischaemic forearm test: traditional test but is painful and non-ischaemic exercise tests are now preferred.

21. Treatment No specific treatment exists.Avoid strenuous (anaerobic or sustained) exercise, including lifting or pushing.A carbohydrate rich diet did benefit patients.

22. Type VI, Hers diseaseAffected enzyme: Liver phosphorylase.Affected tissues: Liver, rare cardiac form.Clinical features:Most common variant is X-linked therefore usually affects only males.Hepatomegaly, hypoglycaemia, growth retardation, hyperlipidaemia.

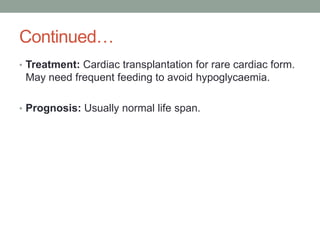

23. Continued…Treatment: Cardiac transplantation for rare cardiac form. May need frequent feeding to avoid hypoglycaemia.Prognosis: Usually normal life span.

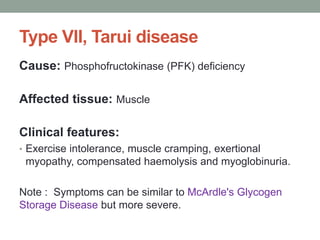

24. Type VII, Tarui diseaseCause: Phosphofructokinase (PFK) deficiencyAffected tissue: MuscleClinical features:Exercise intolerance, muscle cramping, exertionalmyopathy, compensated haemolysis and myoglobinuria.Note : Symptoms can be similar to McArdle's Glycogen Storage Diseasebut more severe.

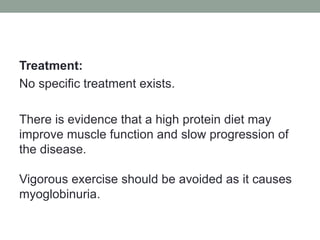

25. Treatment:No specific treatment exists.There is evidence that a high protein diet may improve muscle function and slow progression of the disease.Vigorous exercise should be avoided as it causes myoglobinuria.

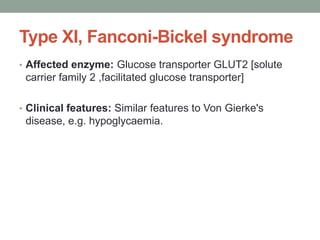

26. Type XI, Fanconi-Bickel syndromeAffected enzyme: Glucose transporter GLUT2[solute carrier family 2 ,facilitated glucose transporter]Clinical features: Similar features to Von Gierke's disease, e.g. hypoglycaemia.

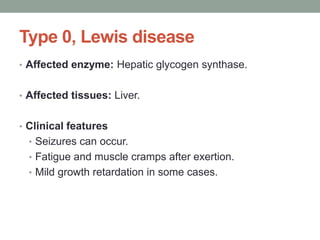

27. Type 0, Lewis diseaseAffected enzyme: Hepatic glycogen synthase.Affected tissues: Liver. Clinical featuresSeizures can occur. Fatigue and muscle cramps after exertion. Mild growth retardation in some cases.

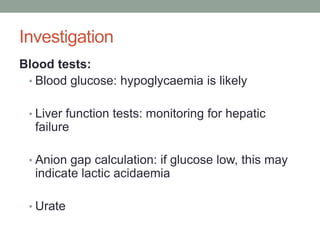

28. Investigation Blood tests:Blood glucose: hypoglycaemia is likelyLiver function tests: monitoring for hepatic failureAnion gap calculation: if glucose low, this may indicate lactic acidaemiaUrate

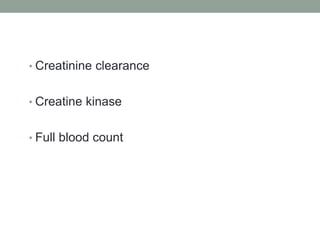

29. Creatinine clearanceCreatine kinaseFull blood count

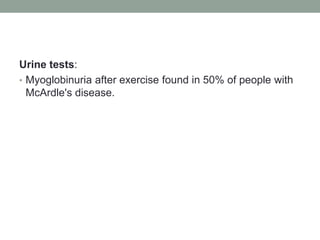

30. Urine tests:Myoglobinuria after exercise found in 50% of people with McArdle's disease.

31. ImagingAbdominal ultrasound scan: hepatomegalyEchocardiography: to look for cardiac involvement in certain types of GSD

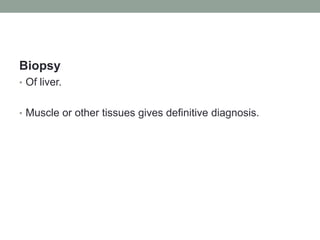

32. BiopsyOf liver.Muscle or other tissues gives definitive diagnosis.

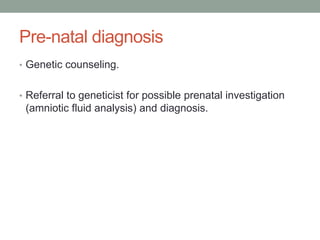

33. Pre-natal diagnosisGenetic counseling.Referral to geneticist for possible prenatal investigation (amniotic fluid analysis) and diagnosis.

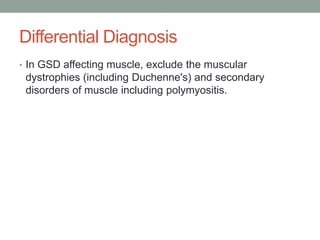

34. Differential DiagnosisIn GSD affecting muscle, exclude the muscular dystrophies (including Duchenne's) and secondary disorders of muscle including polymyositis.

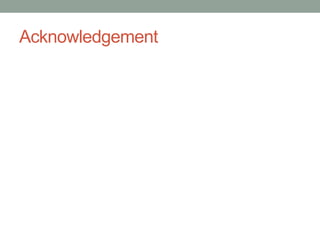

35. Acknowledgement
