Android Apps Development Course UNIT

1. PERKYTORIAL
Topic: Getting Started with Android
Programming

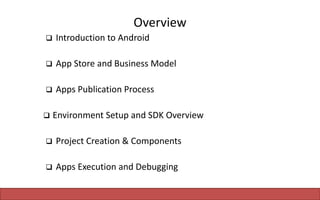

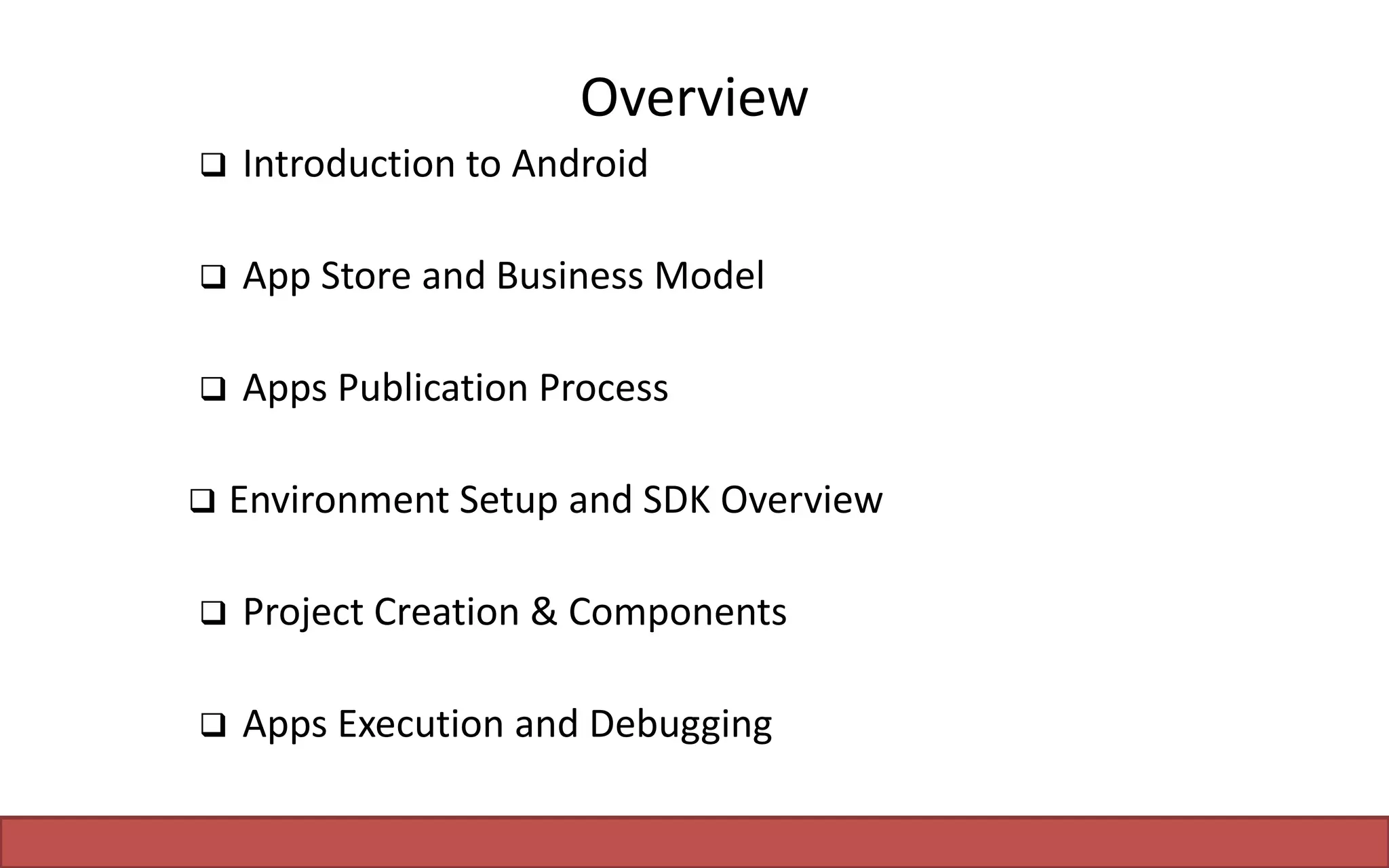

2. Overview
 Introduction to Android
 App Store and Business Model
 Apps Publication Process
 Environment Setup and SDK Overview
 Project Creation & Components
 Apps Execution and Debugging

3. Introduction to Android
What is Android?

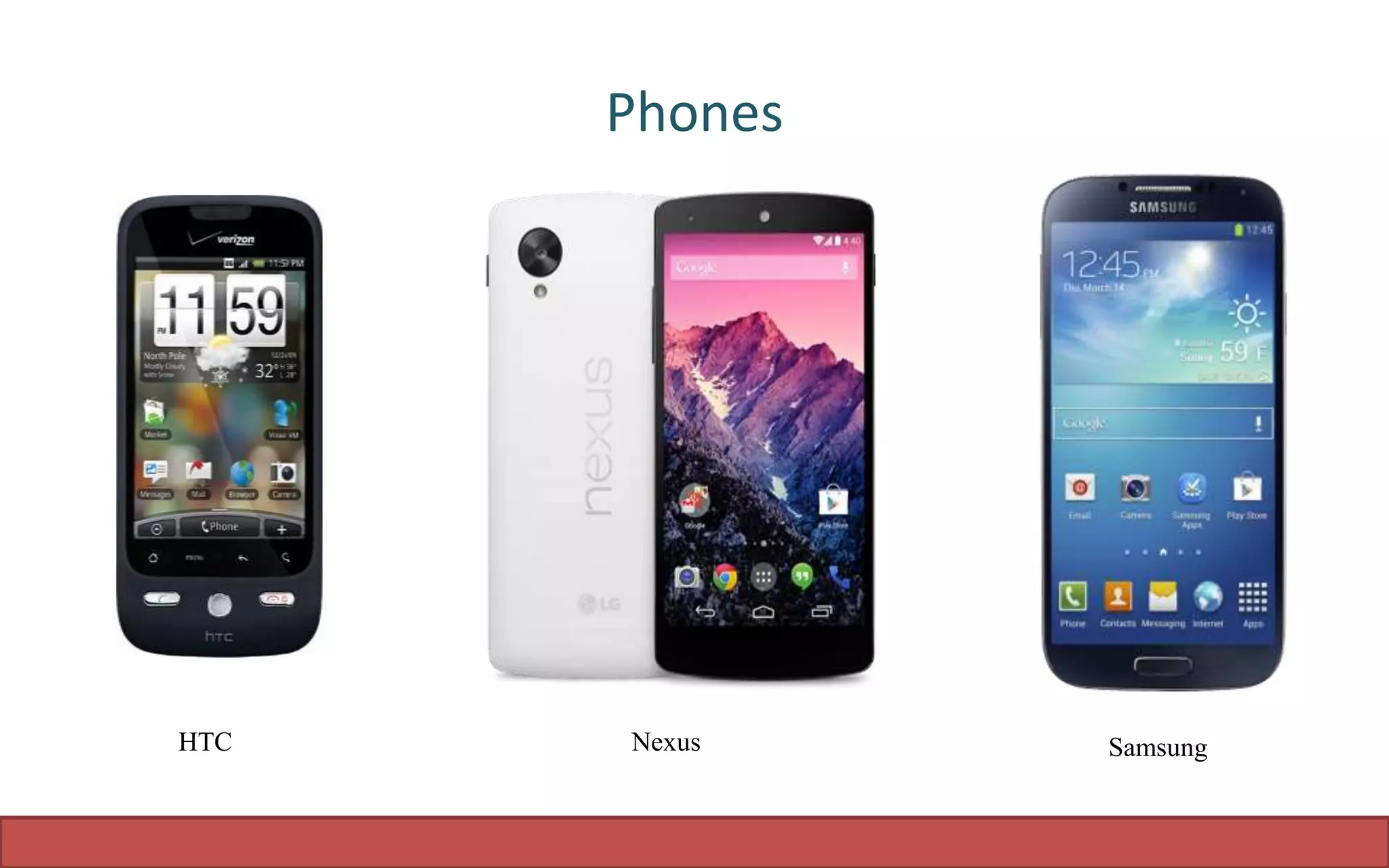

4. Phones
HTC Nexus Samsung

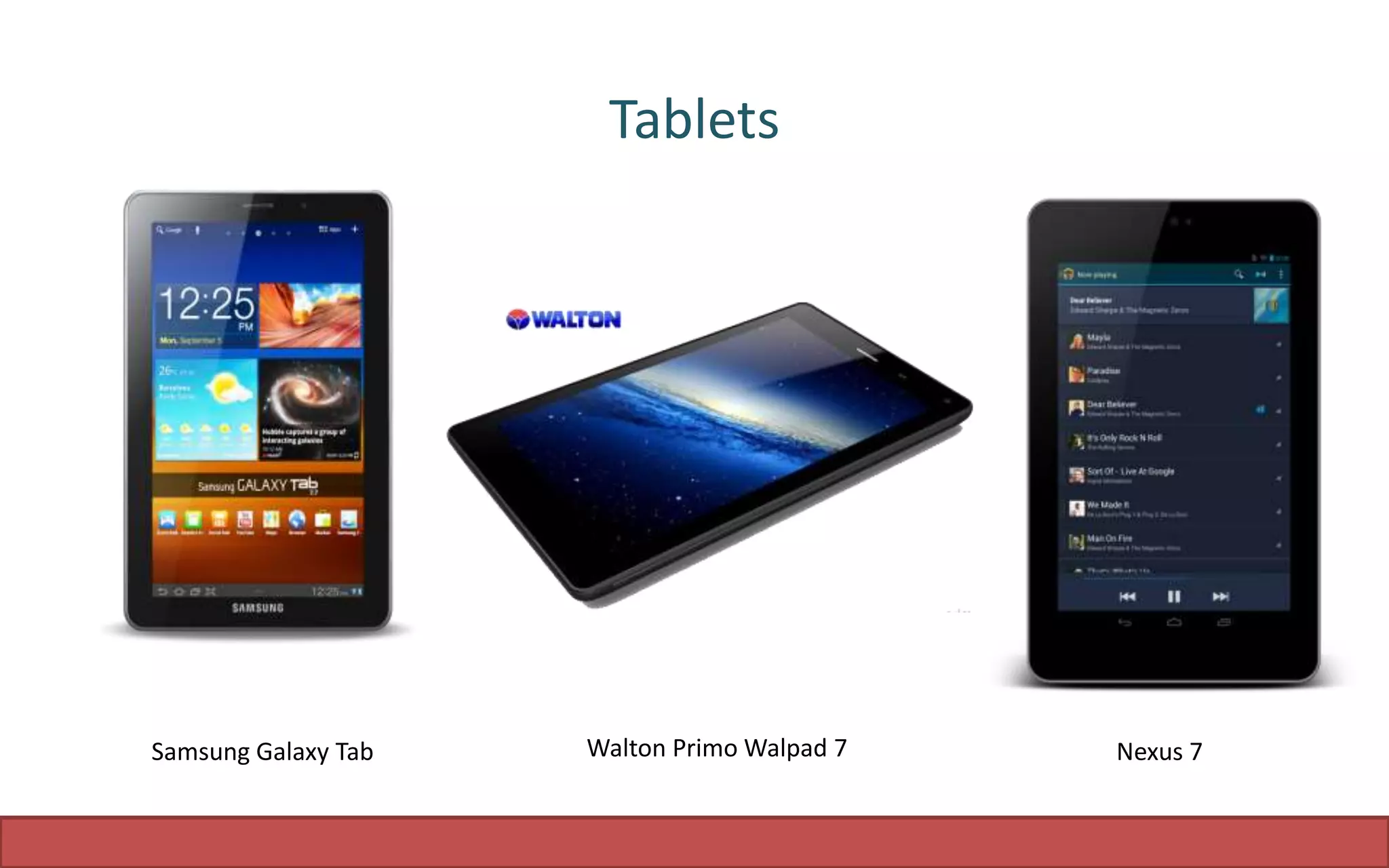

5. Tablets
Nexus 7Walton Primo Walpad 7Samsung Galaxy Tab

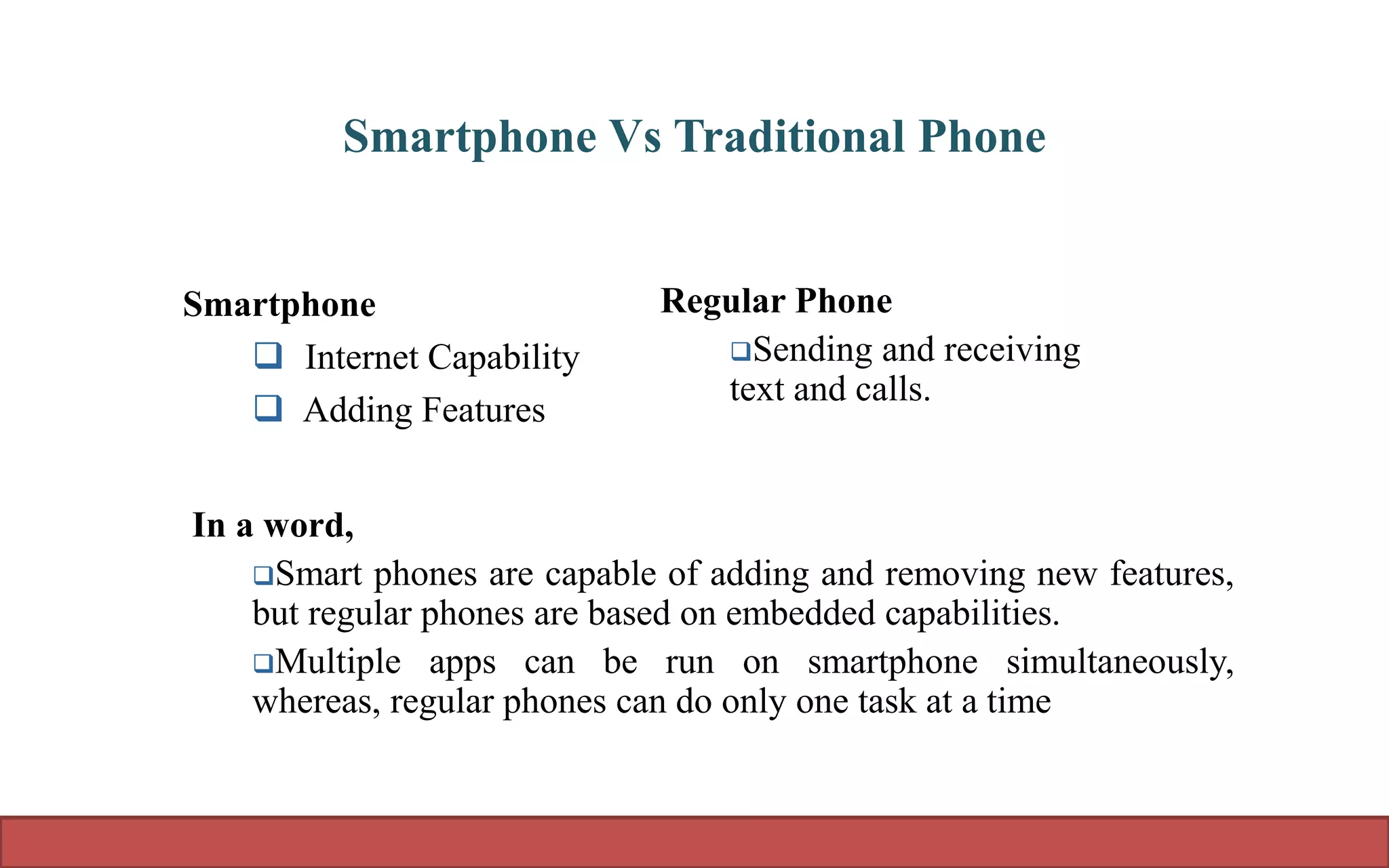

6. Smartphone Vs Traditional Phone
Smartphone
 Internet Capability
 Adding Features
Regular Phone
Sending and receiving
text and calls.
In a word,
Smart phones are capable of adding and removing new features,
but regular phones are based on embedded capabilities.
Multiple apps can be run on smartphone simultaneously,
whereas, regular phones can do only one task at a time

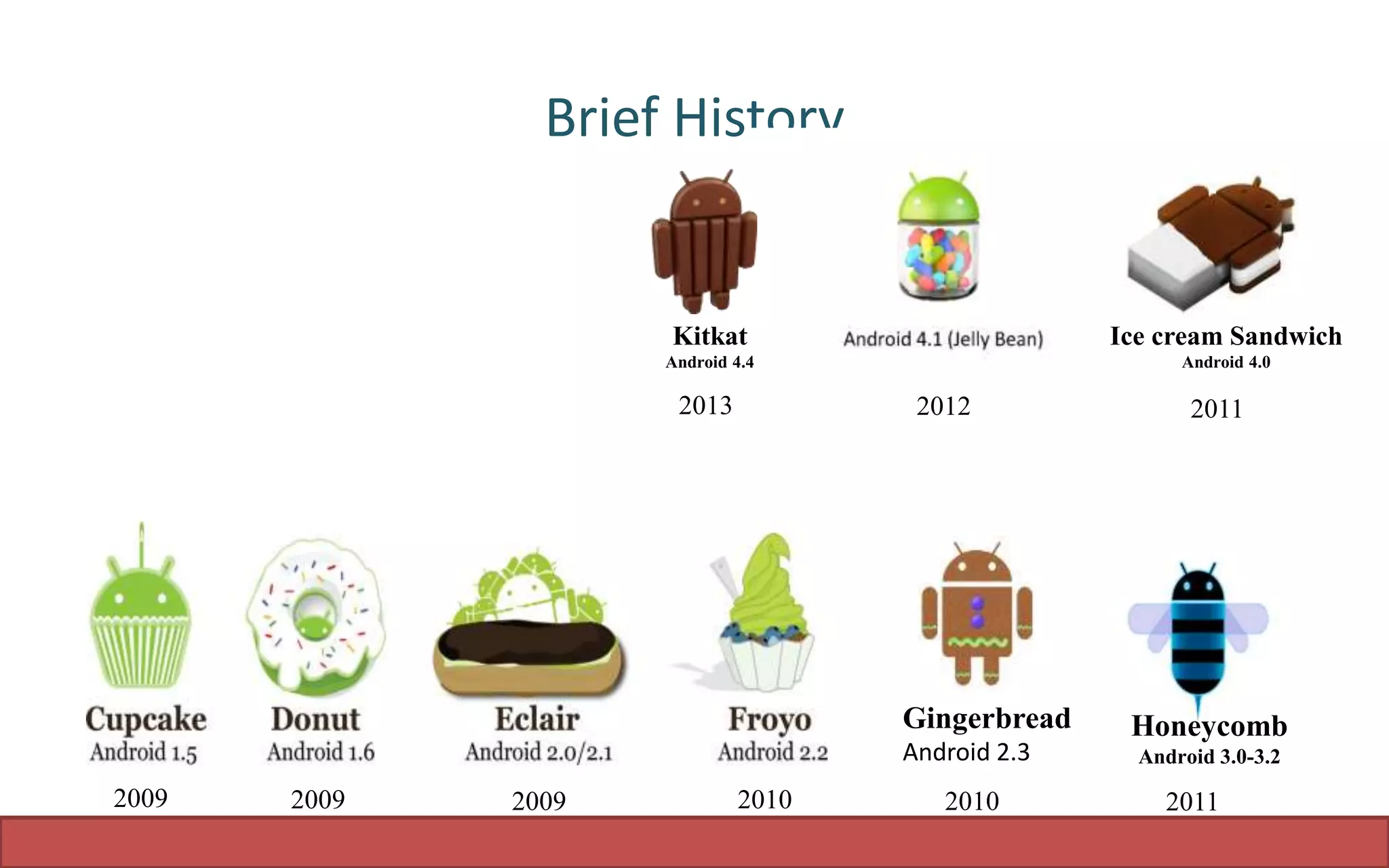

7. Brief History
Honeycomb
Android 3.0-3.2
Gingerbread
Android 2.3
Kitkat
Android 4.4
2009 2009 2009 2010 2010 2011
2011
Ice cream Sandwich
Android 4.0
2013 2012

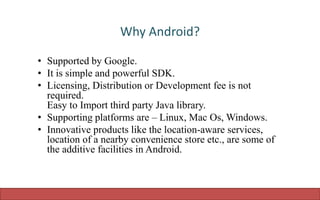

8. Why Android?
• Supported by Google.
• It is simple and powerful SDK.
• Licensing, Distribution or Development fee is not
required.
Easy to Import third party Java library.
• Supporting platforms are – Linux, Mac Os, Windows.
• Innovative products like the location-aware services,
location of a nearby convenience store etc., are some of
the additive facilities in Android.

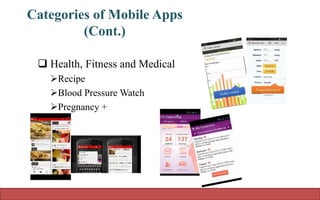

9. Categories of Mobile Apps
(Cont.)
 Health, Fitness and Medical
Recipe
Blood Pressure Watch
Pregnancy +

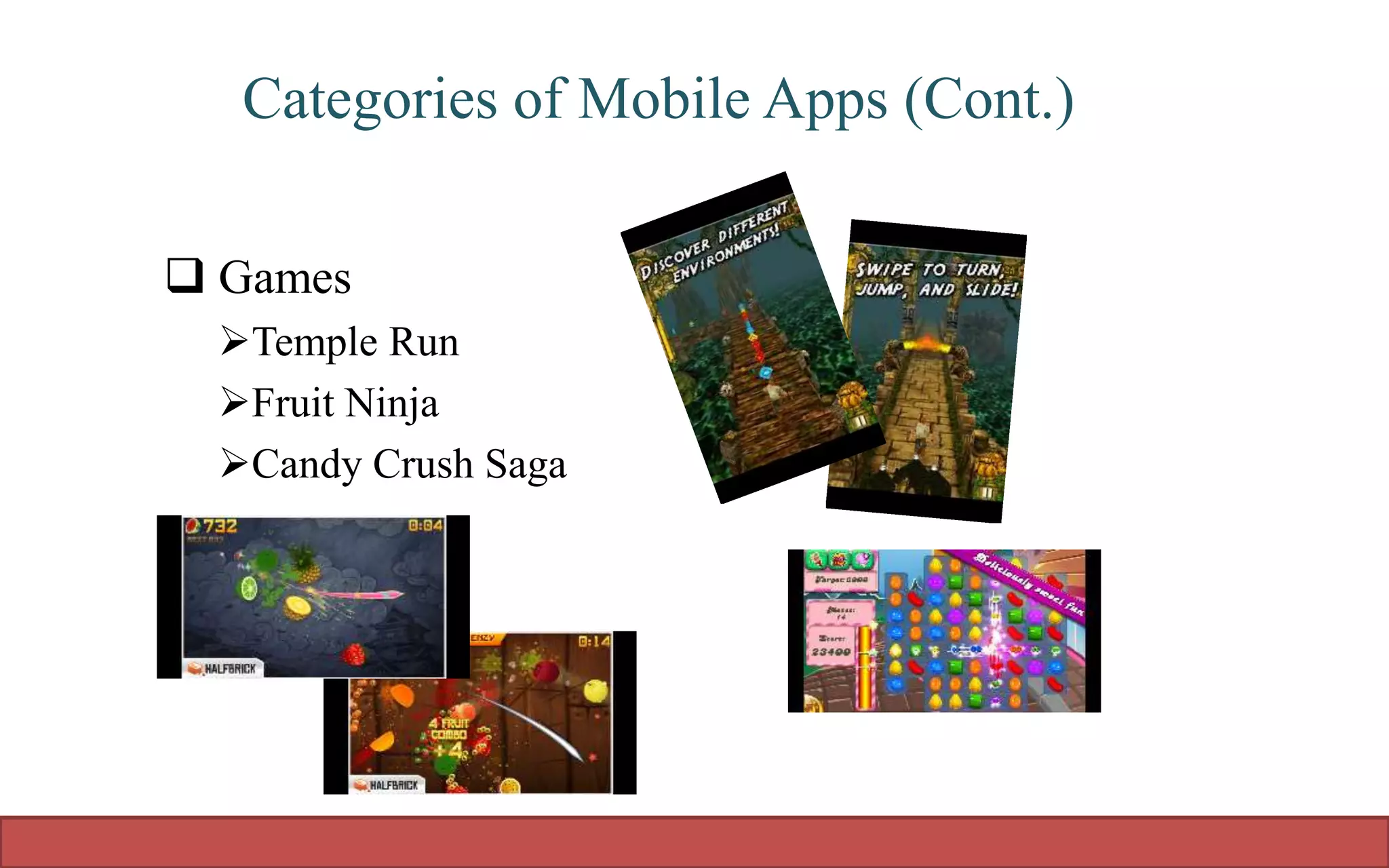

10. Categories of Mobile Apps (Cont.)
 Games
Temple Run
Fruit Ninja
Candy Crush Saga

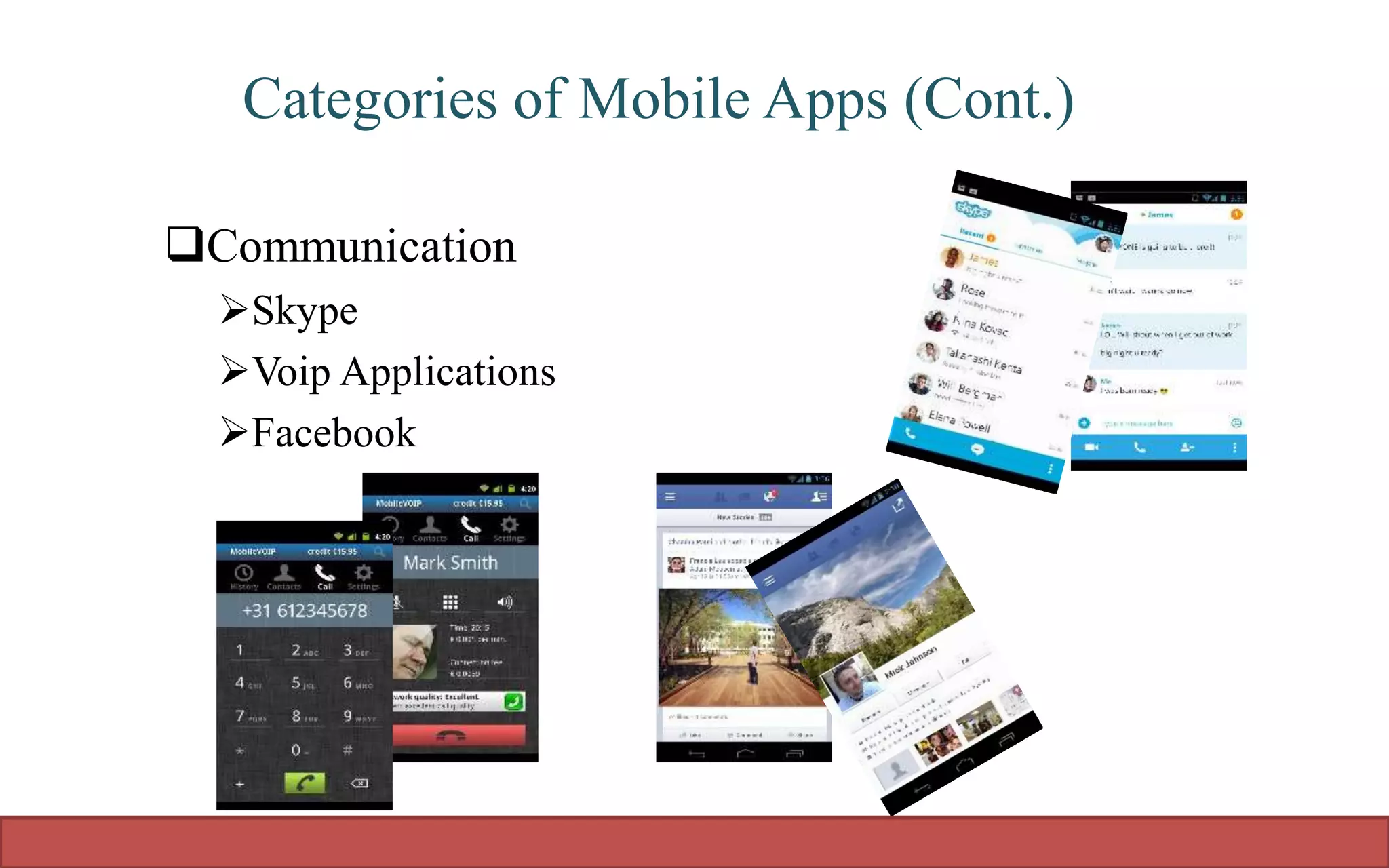

11. Categories of Mobile Apps (Cont.)
Communication
Skype
Voip Applications
Facebook

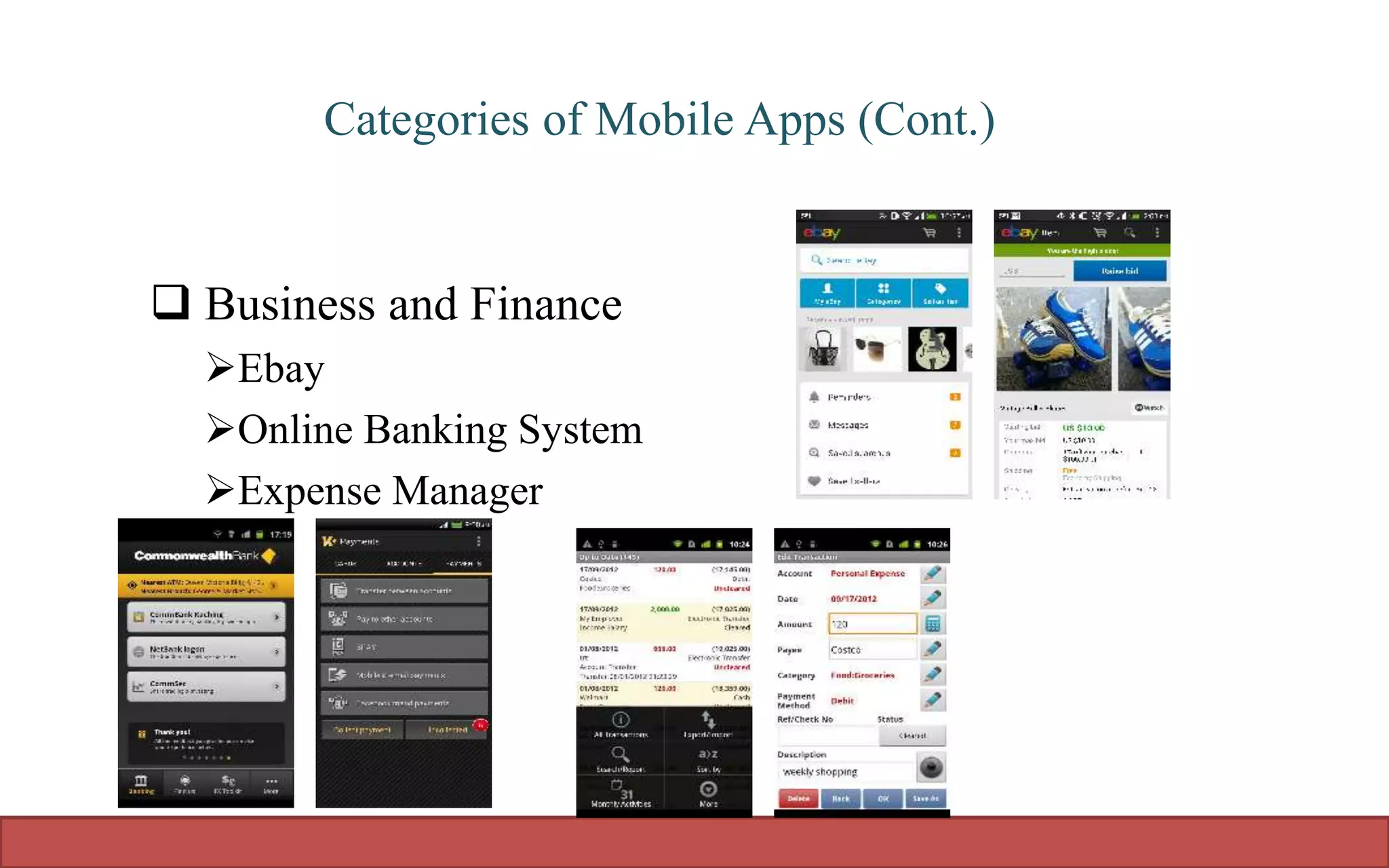

12. Categories of Mobile Apps (Cont.)
 Business and Finance
Ebay
Online Banking System
Expense Manager

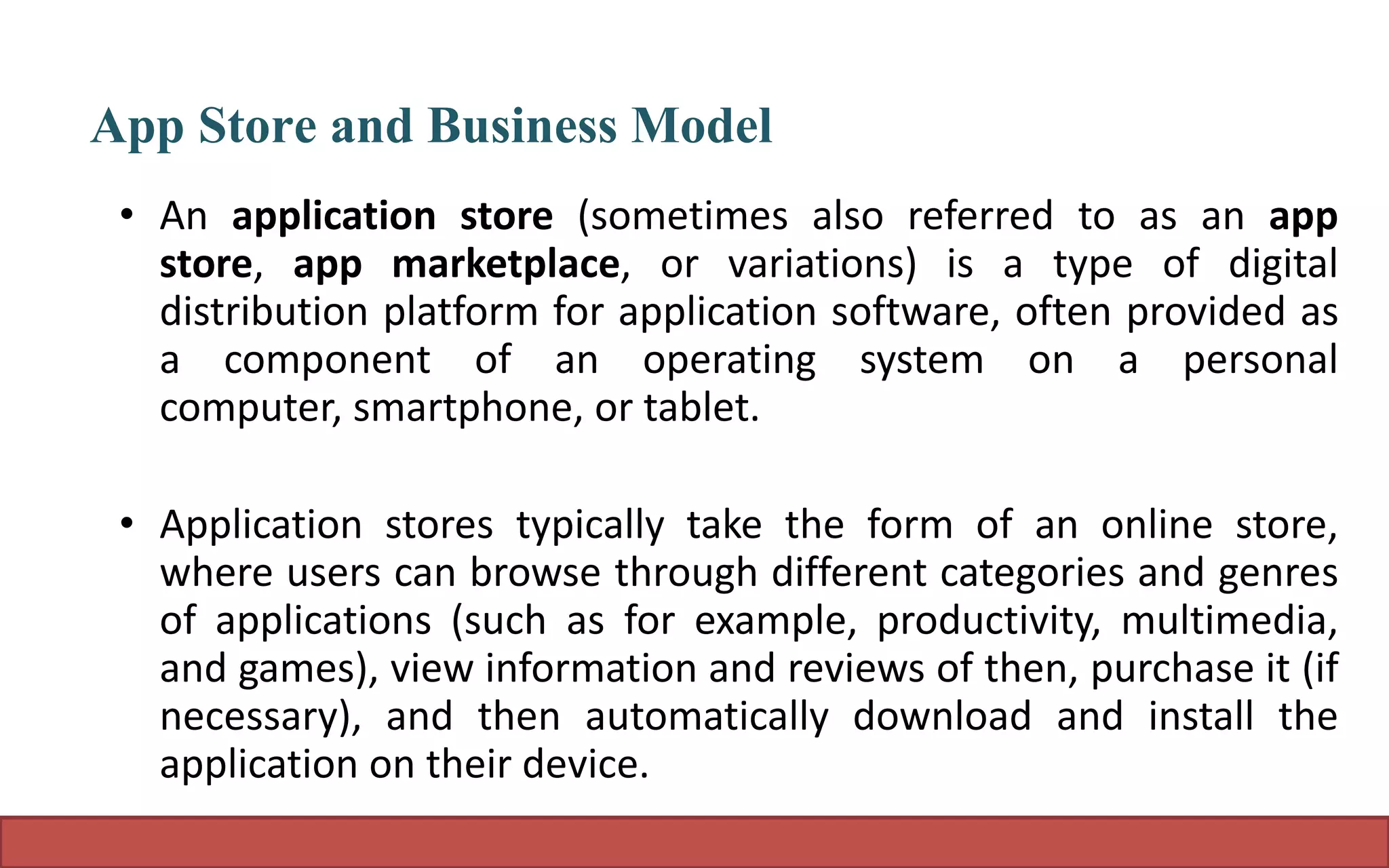

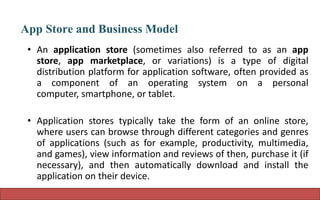

13. App Store and Business Model
• An application store (sometimes also referred to as an app
store, app marketplace, or variations) is a type of digital
distribution platform for application software, often provided as
a component of an operating system on a personal
computer, smartphone, or tablet.
• Application stores typically take the form of an online store,
where users can browse through different categories and genres
of applications (such as for example, productivity, multimedia,
and games), view information and reviews of then, purchase it (if
necessary), and then automatically download and install the
application on their device.

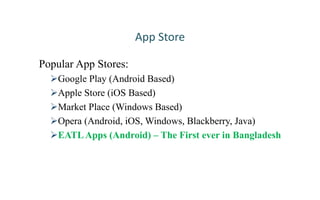

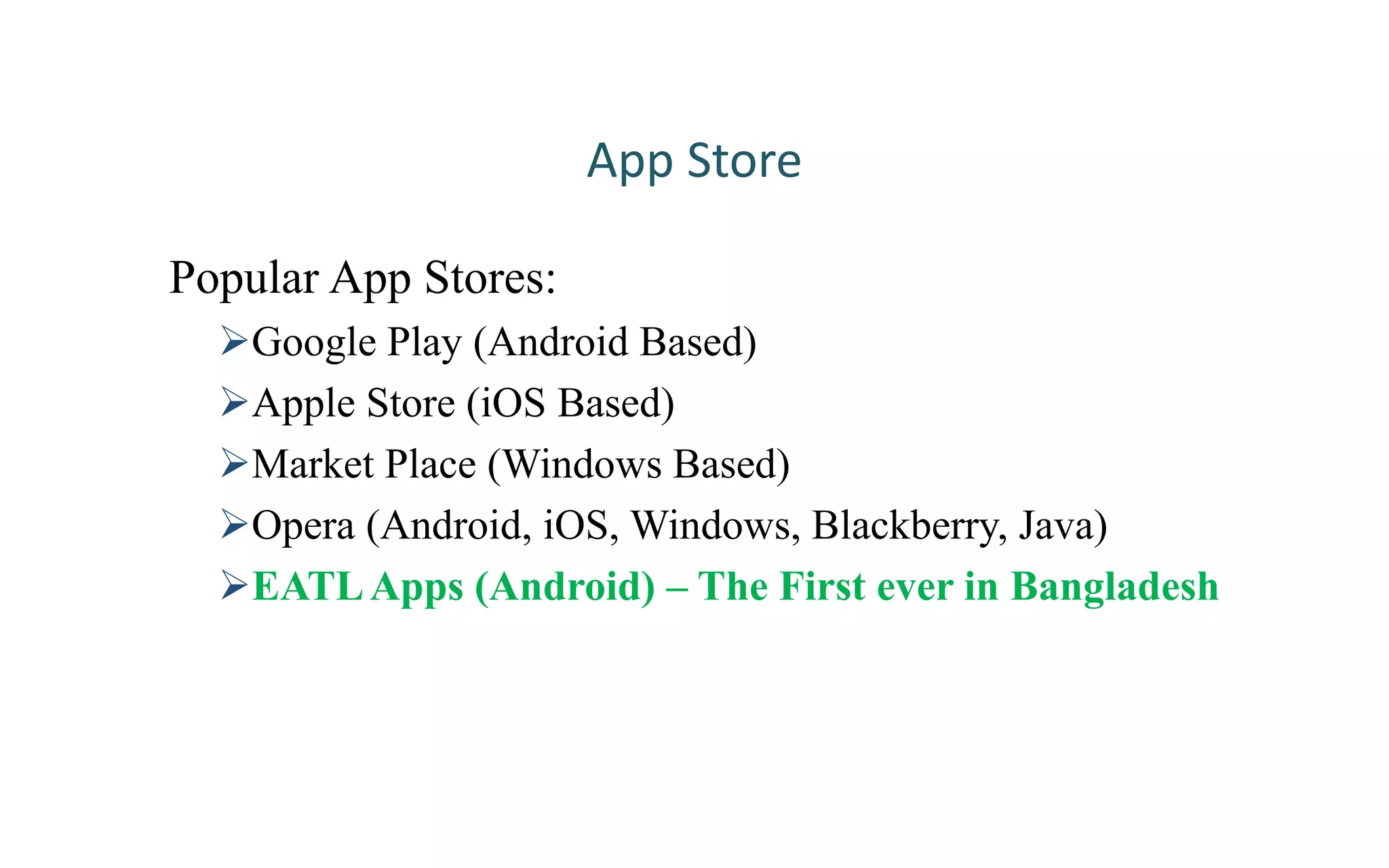

14. App Store
Popular App Stores:
Google Play (Android Based)
Apple Store (iOS Based)
Market Place (Windows Based)
Opera (Android, iOS, Windows, Blackberry, Java)
EATLApps (Android) – The First ever in Bangladesh

15. App Store and Business Model
The Mobile network is the world’s
largest distribution &
communication platform, with more
than
6,000,000,0000
(six billion) subscribers worldwide.

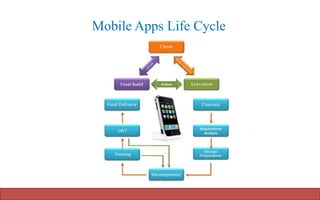

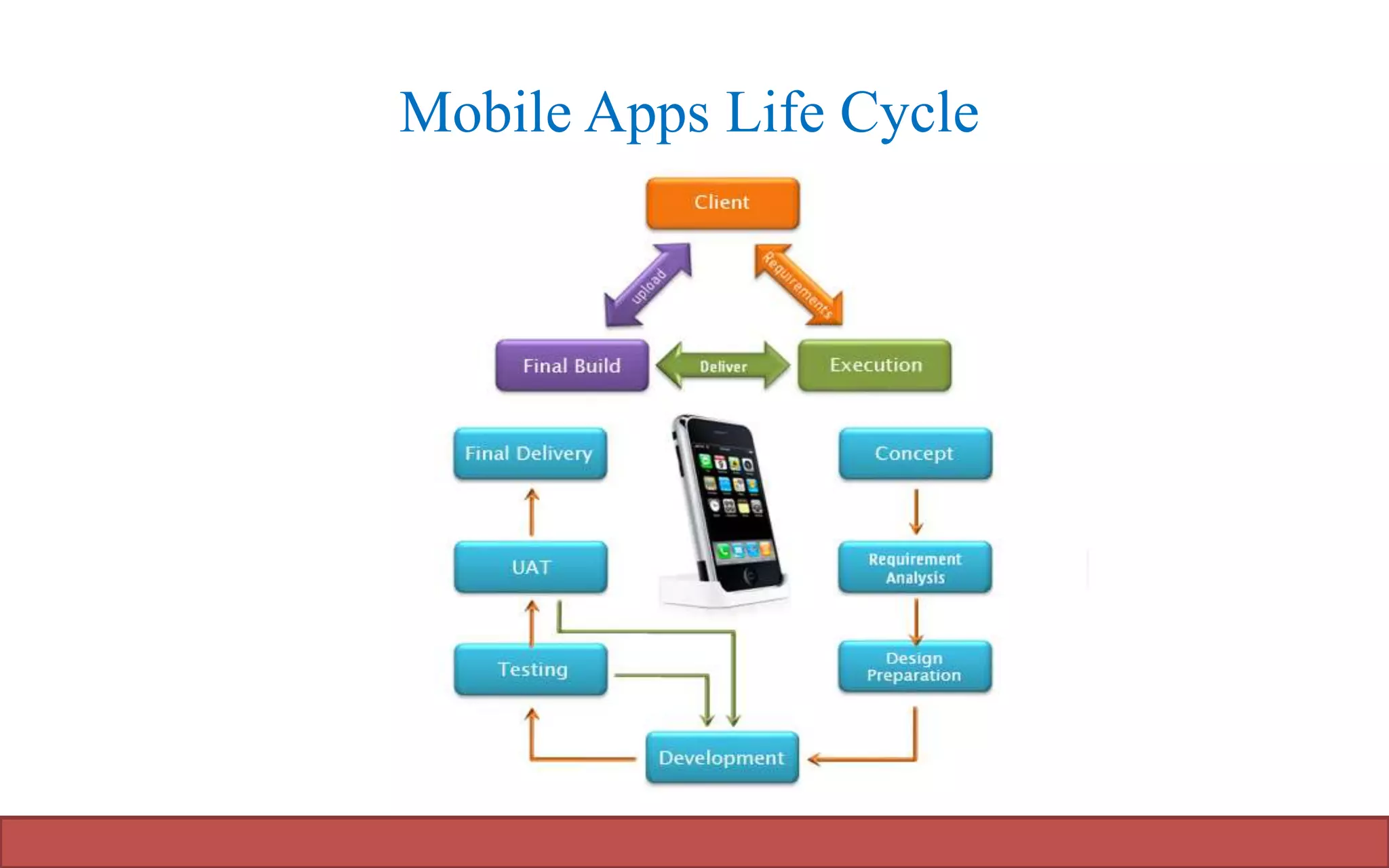

16. Mobile Apps Life Cycle

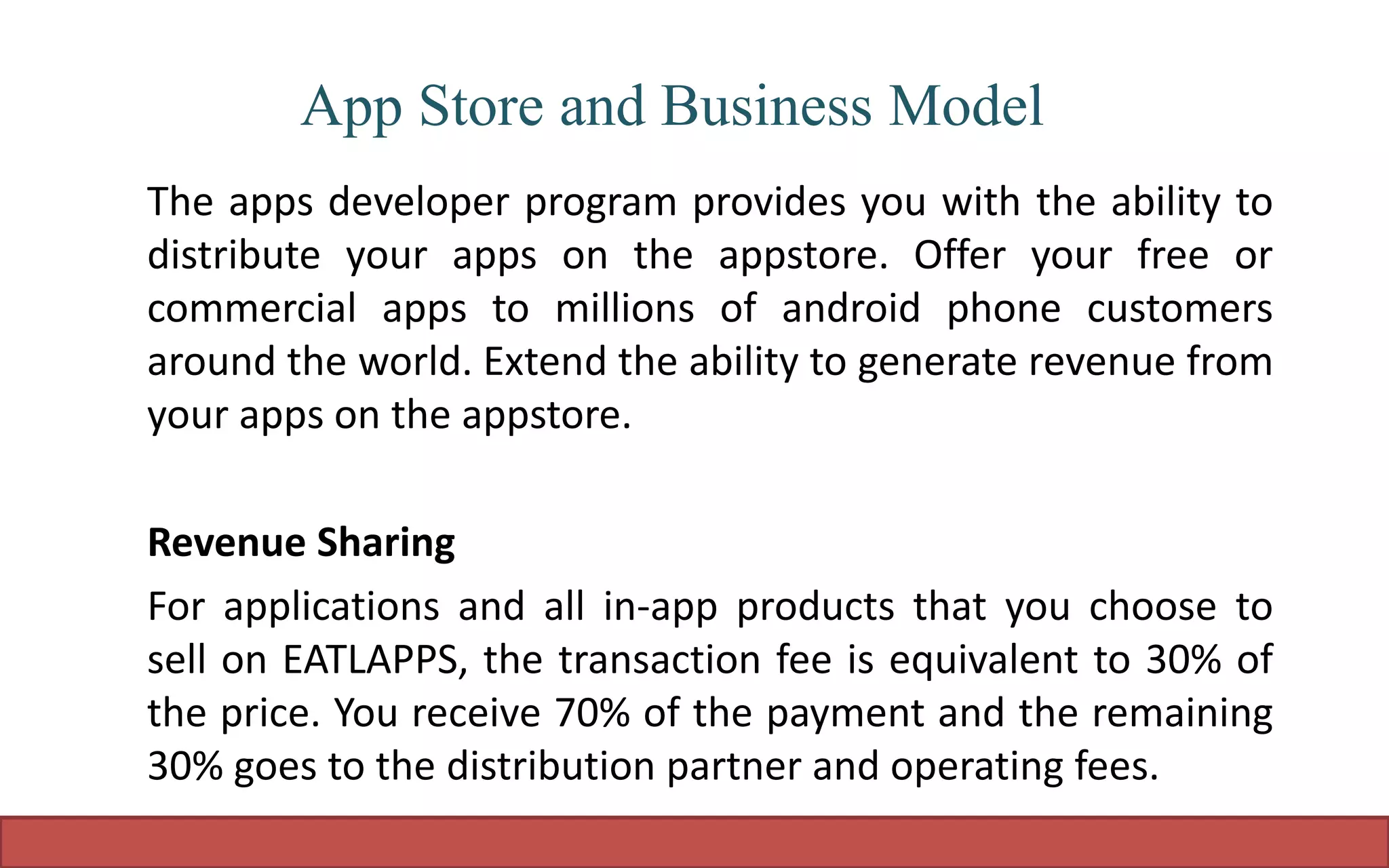

17. App Store and Business Model
The apps developer program provides you with the ability to
distribute your apps on the appstore. Offer your free or
commercial apps to millions of android phone customers
around the world. Extend the ability to generate revenue from
your apps on the appstore.
Revenue Sharing
For applications and all in-app products that you choose to
sell on EATLAPPS, the transaction fee is equivalent to 30% of
the price. You receive 70% of the payment and the remaining
30% goes to the distribution partner and operating fees.

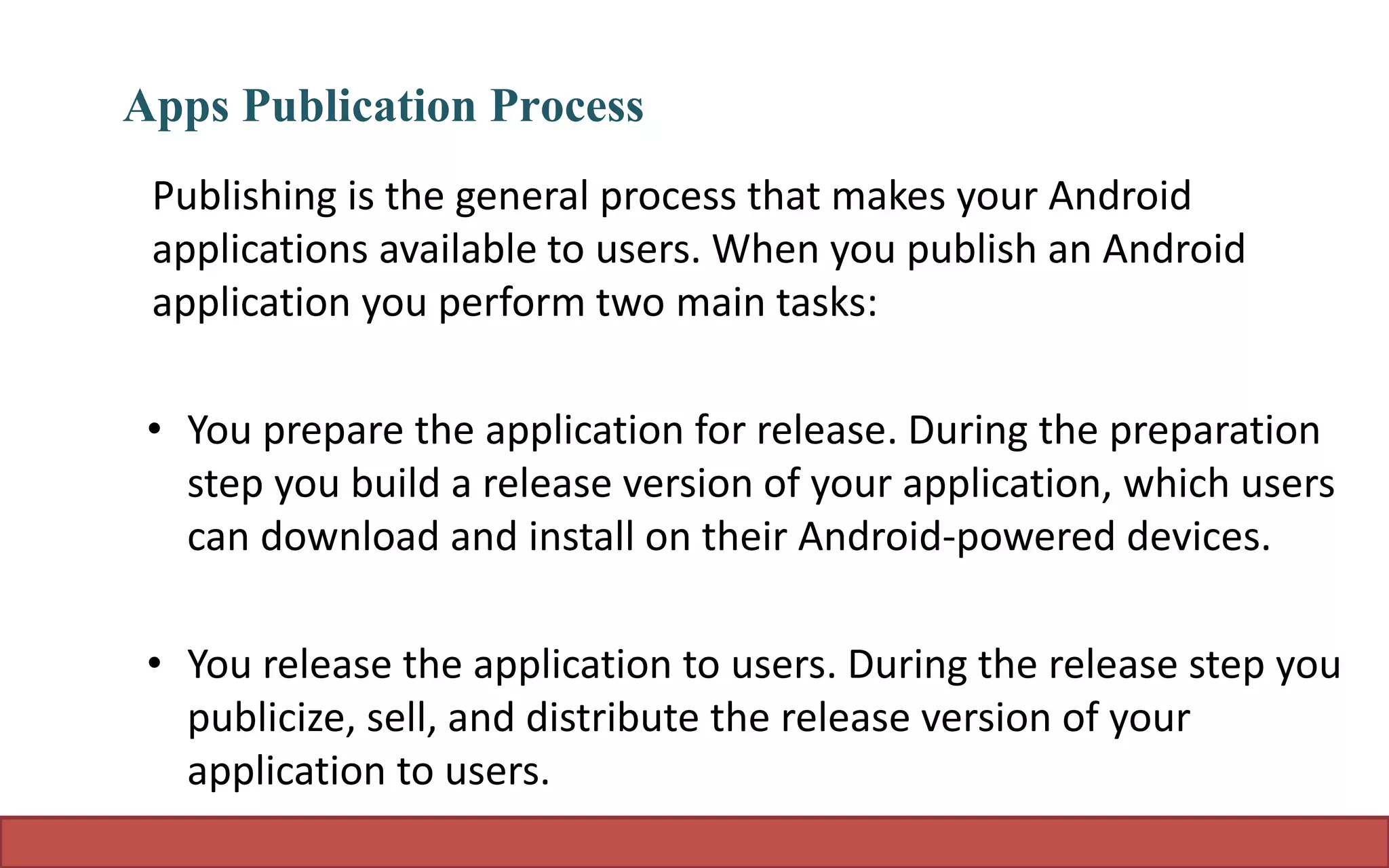

18. Apps Publication Process
Publishing is the general process that makes your Android
applications available to users. When you publish an Android
application you perform two main tasks:
• You prepare the application for release. During the preparation
step you build a release version of your application, which users
can download and install on their Android-powered devices.
• You release the application to users. During the release step you
publicize, sell, and distribute the release version of your
application to users.

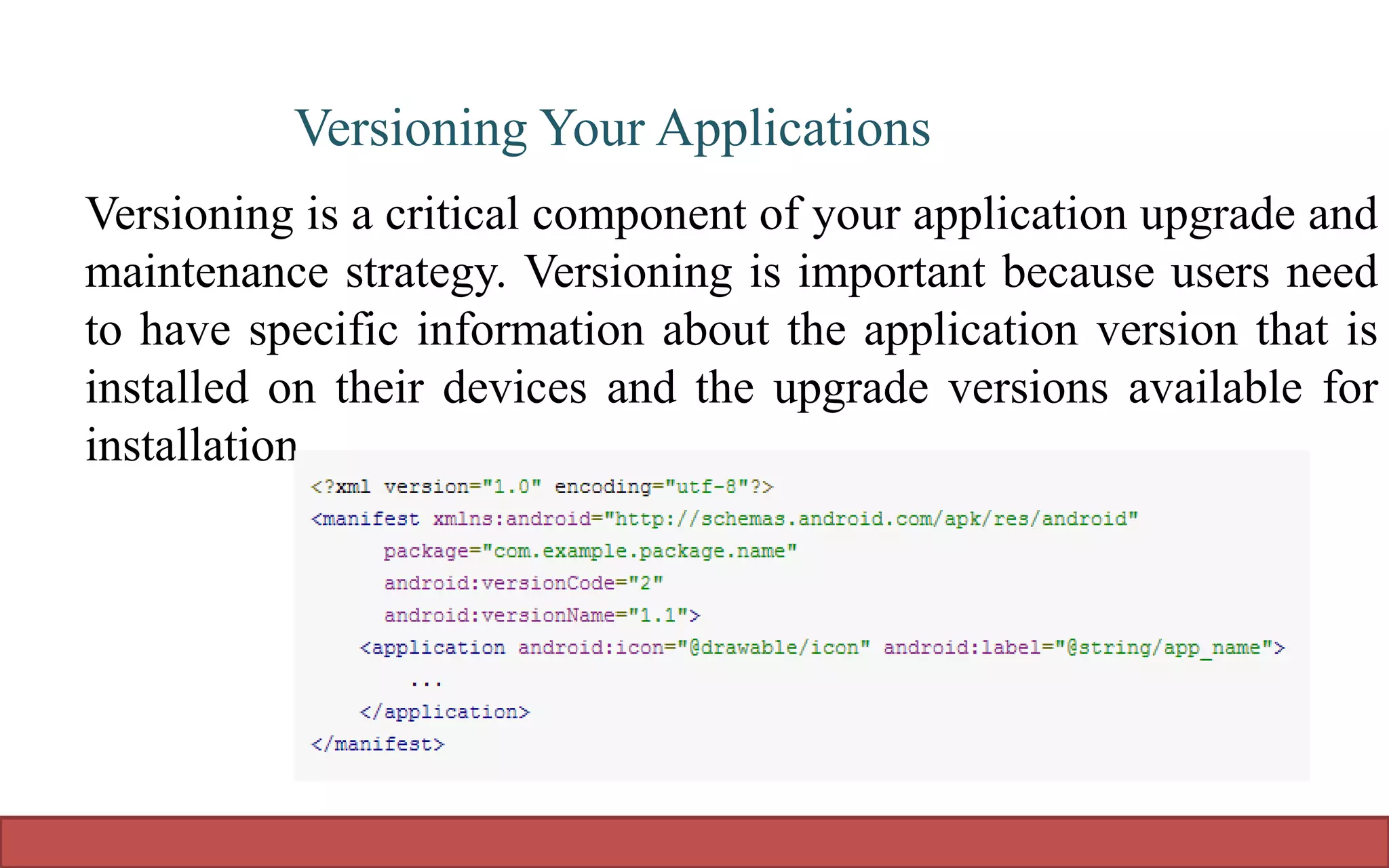

19. Versioning Your Applications
Versioning is a critical component of your application upgrade and
maintenance strategy. Versioning is important because users need
to have specific information about the application version that is
installed on their devices and the upgrade versions available for
installation.

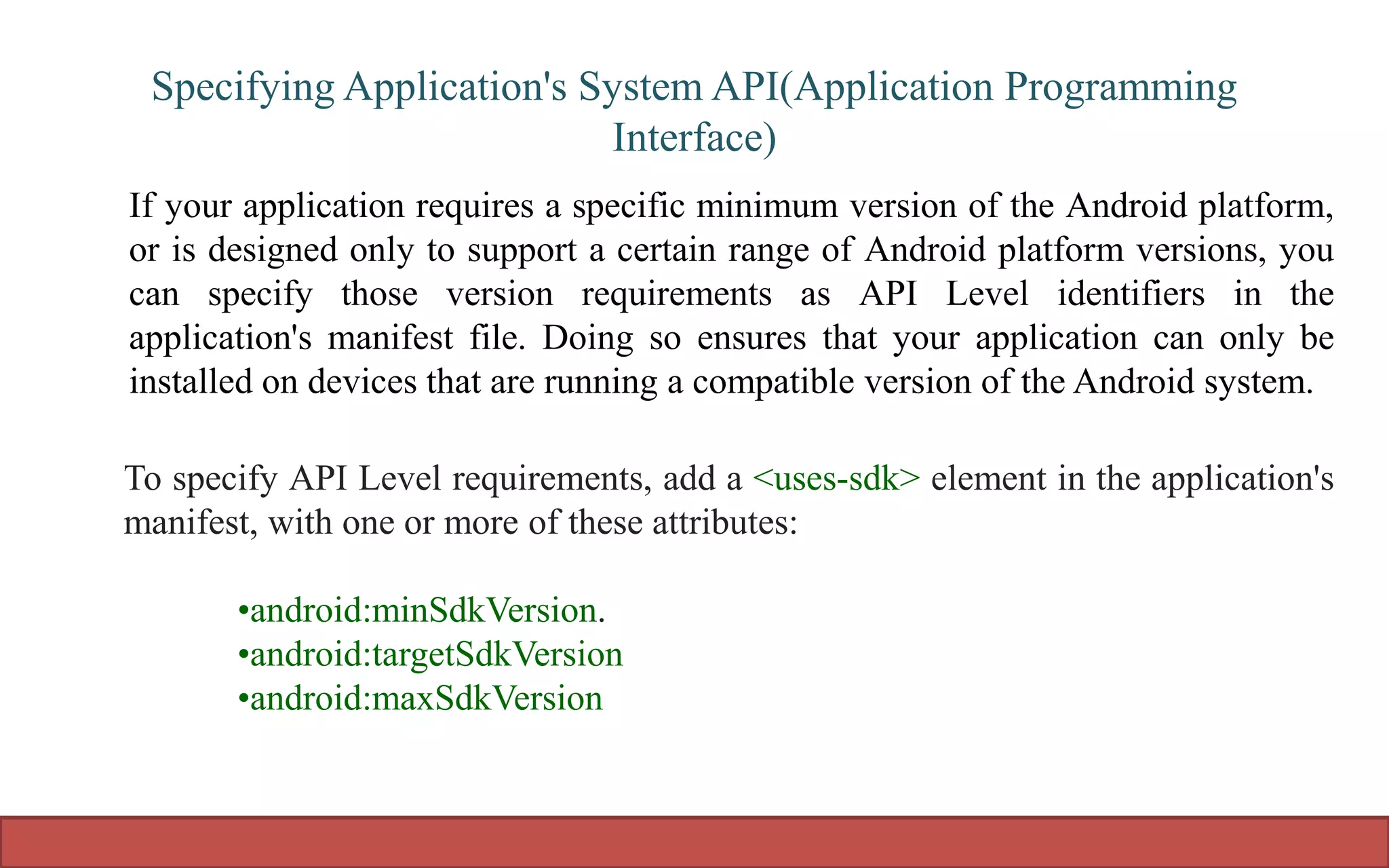

20. Specifying Application's System API(Application Programming
Interface)
If your application requires a specific minimum version of the Android platform,
or is designed only to support a certain range of Android platform versions, you
can specify those version requirements as API Level identifiers in the
application's manifest file. Doing so ensures that your application can only be
installed on devices that are running a compatible version of the Android system.
To specify API Level requirements, add a <uses-sdk> element in the application's
manifest, with one or more of these attributes:
•android:minSdkVersion.
•android:targetSdkVersion
•android:maxSdkVersion

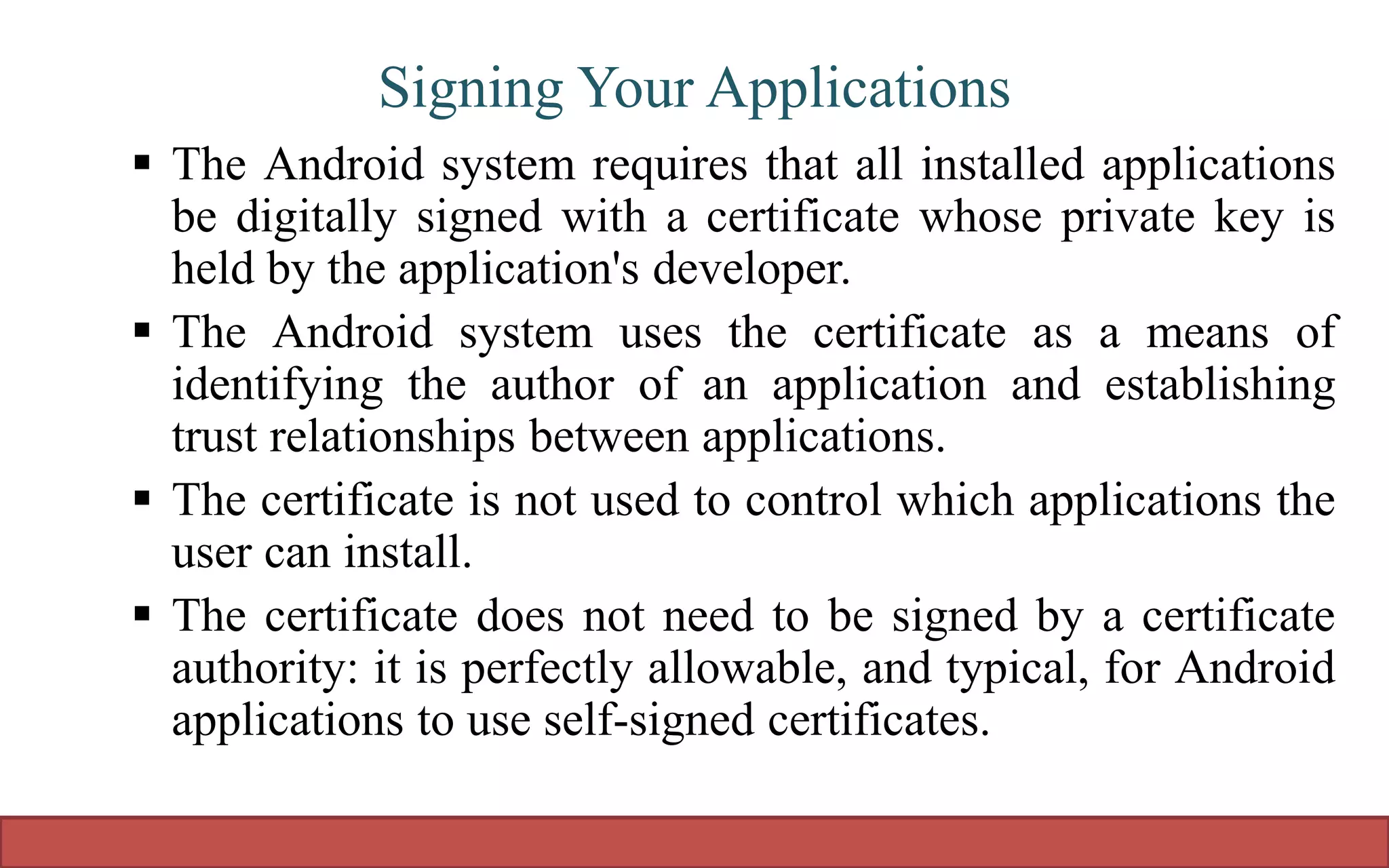

21. Signing Your Applications
 The Android system requires that all installed applications
be digitally signed with a certificate whose private key is
held by the application's developer.
 The Android system uses the certificate as a means of
identifying the author of an application and establishing
trust relationships between applications.
 The certificate is not used to control which applications the
user can install.
 The certificate does not need to be signed by a certificate
authority: it is perfectly allowable, and typical, for Android
applications to use self-signed certificates.

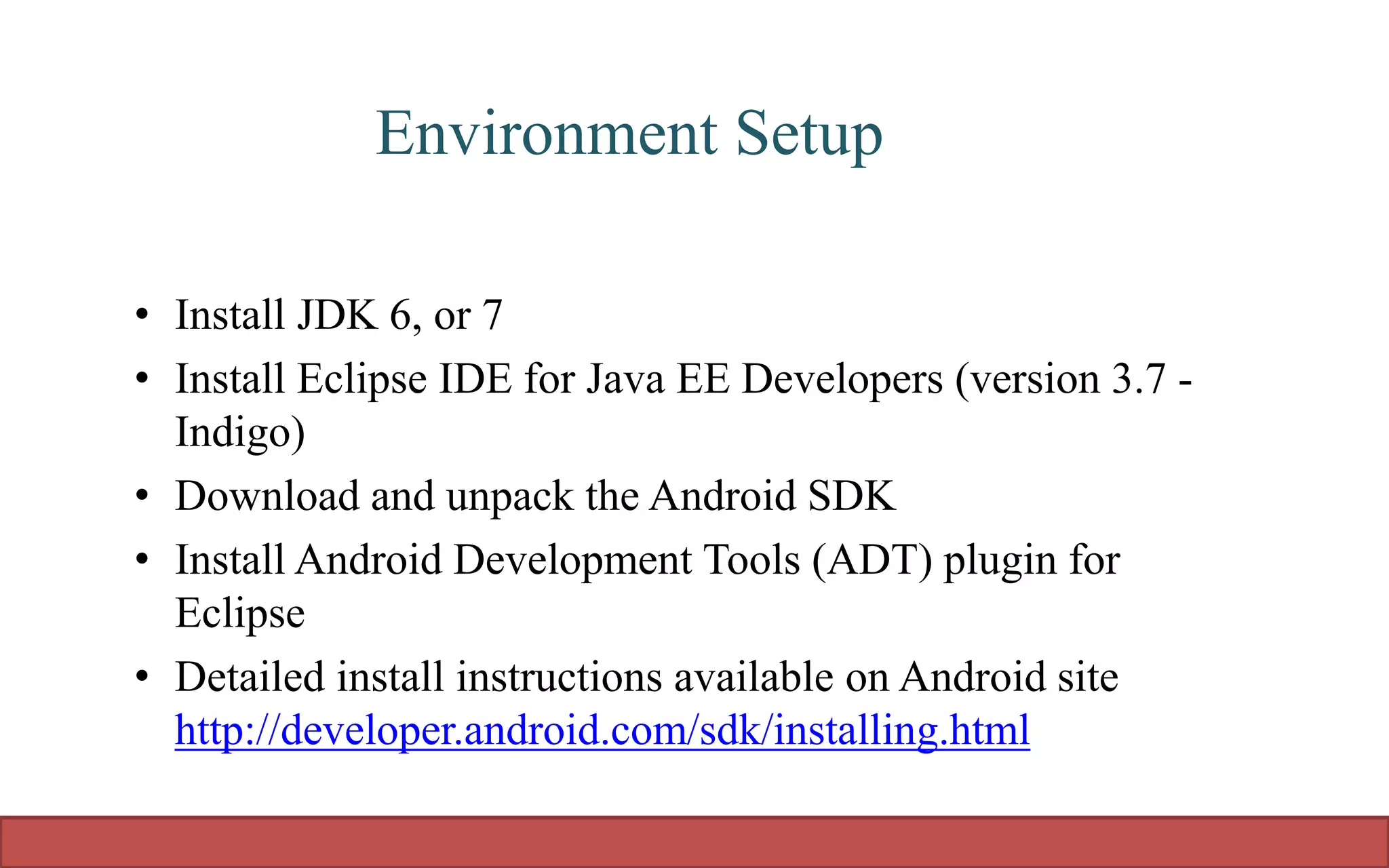

22. Environment Setup
• Install JDK 6, or 7
• Install Eclipse IDE for Java EE Developers (version 3.7 -
Indigo)
• Download and unpack the Android SDK
• Install Android Development Tools (ADT) plugin for
Eclipse
• Detailed install instructions available on Android site
http://developer.android.com/sdk/installing.html

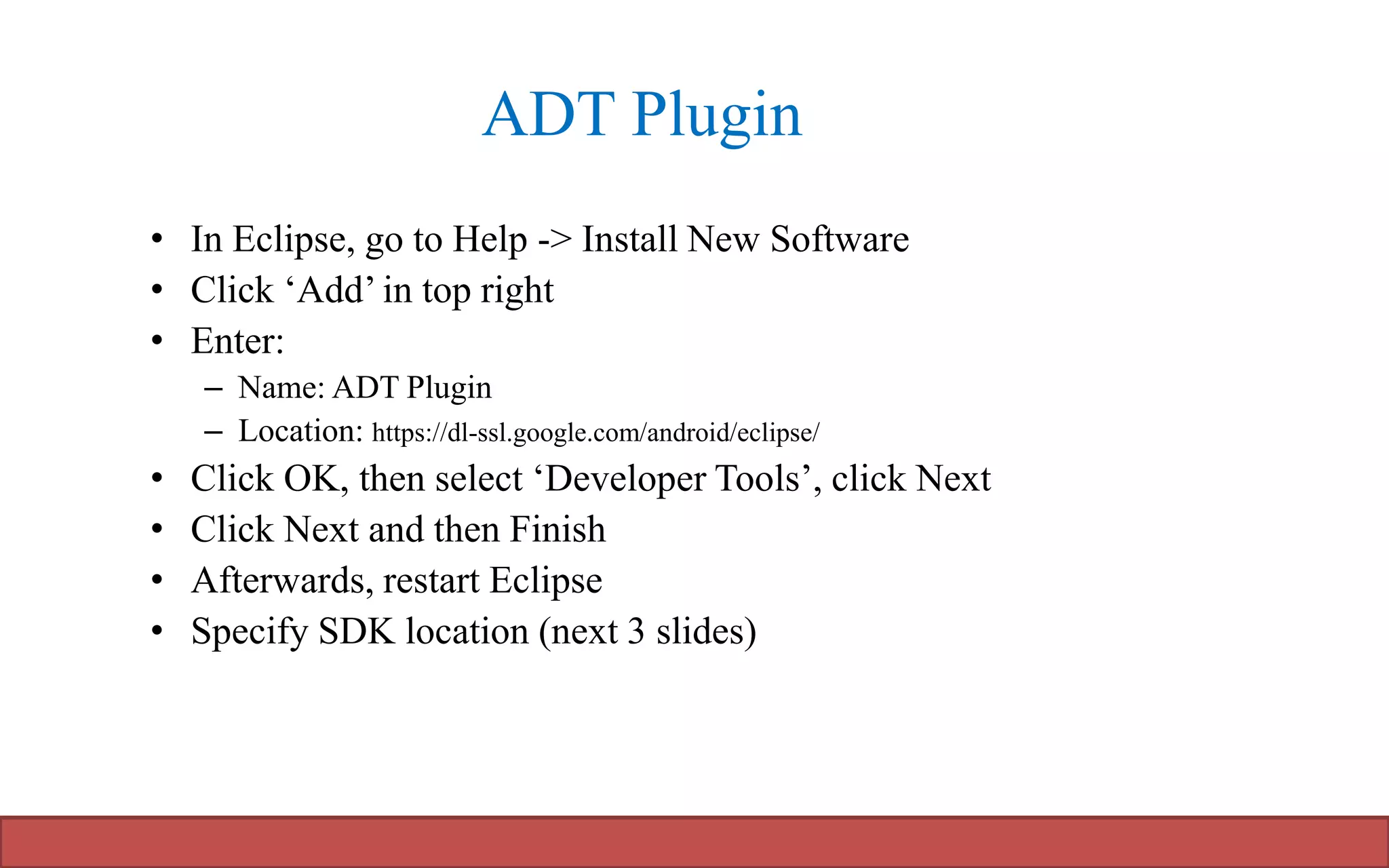

23. ADT Plugin
• In Eclipse, go to Help -> Install New Software
• Click ‘Add’ in top right
• Enter:
– Name: ADT Plugin
– Location: https://dl-ssl.google.com/android/eclipse/
• Click OK, then select ‘Developer Tools’, click Next
• Click Next and then Finish
• Afterwards, restart Eclipse
• Specify SDK location (next 3 slides)

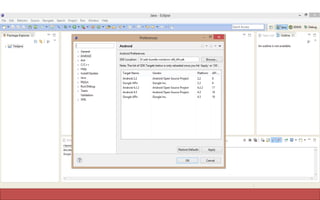

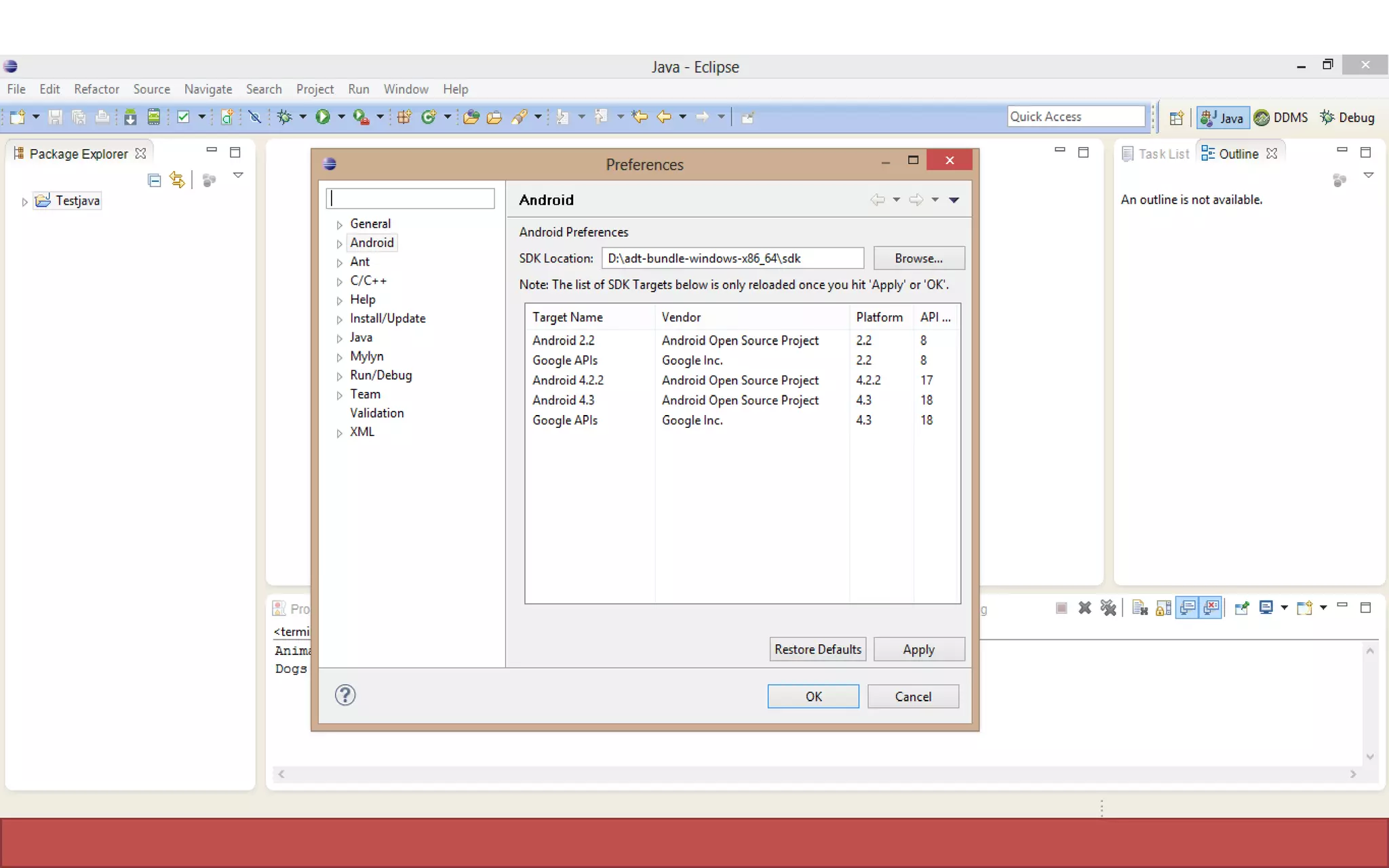

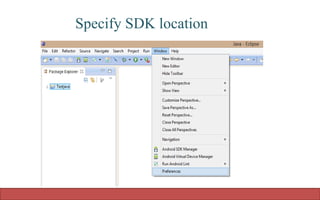

24. Specify SDK location

25. Specify SDK location

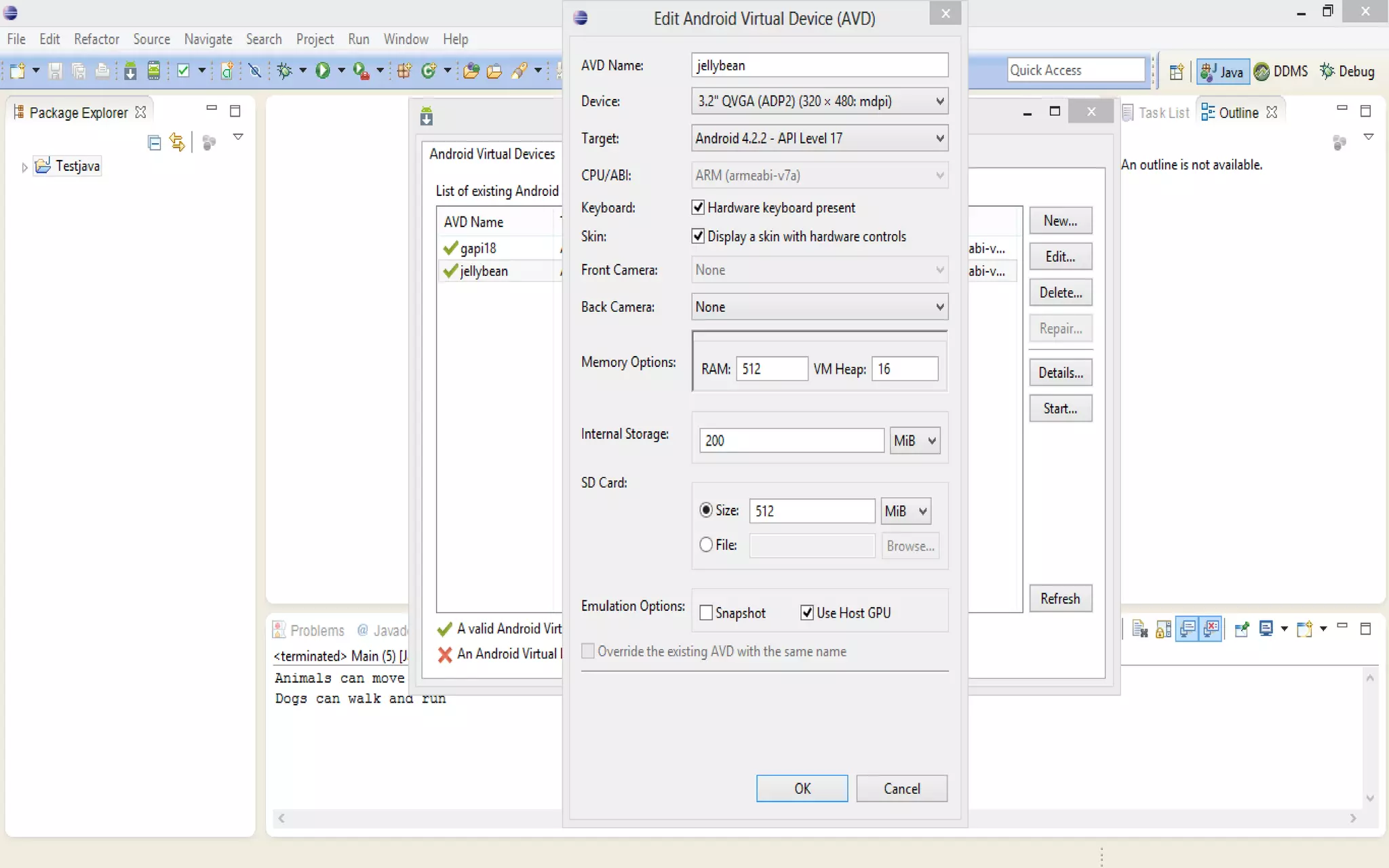

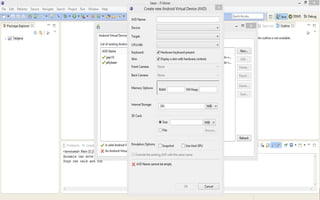

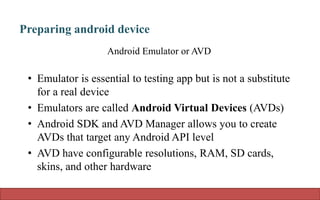

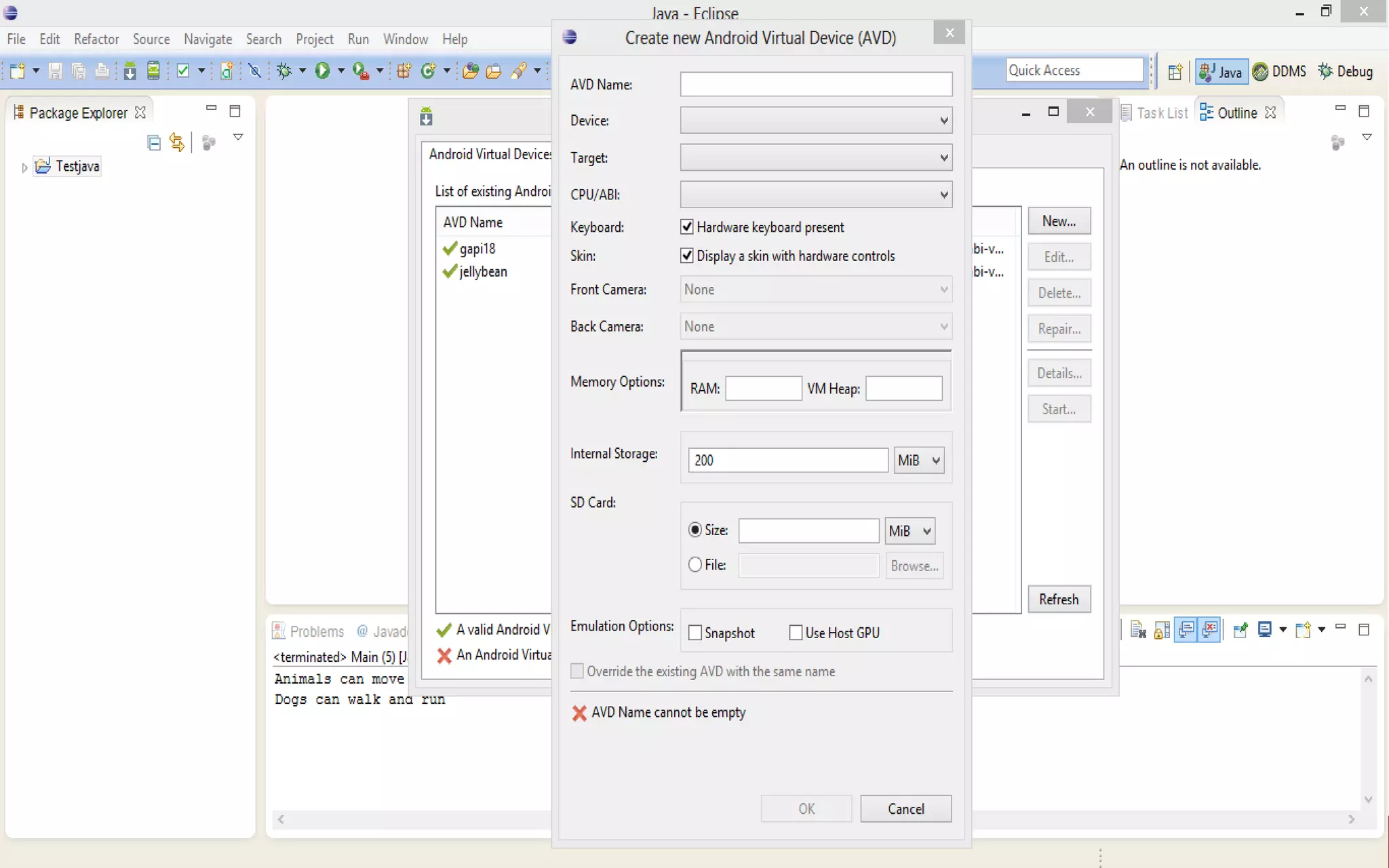

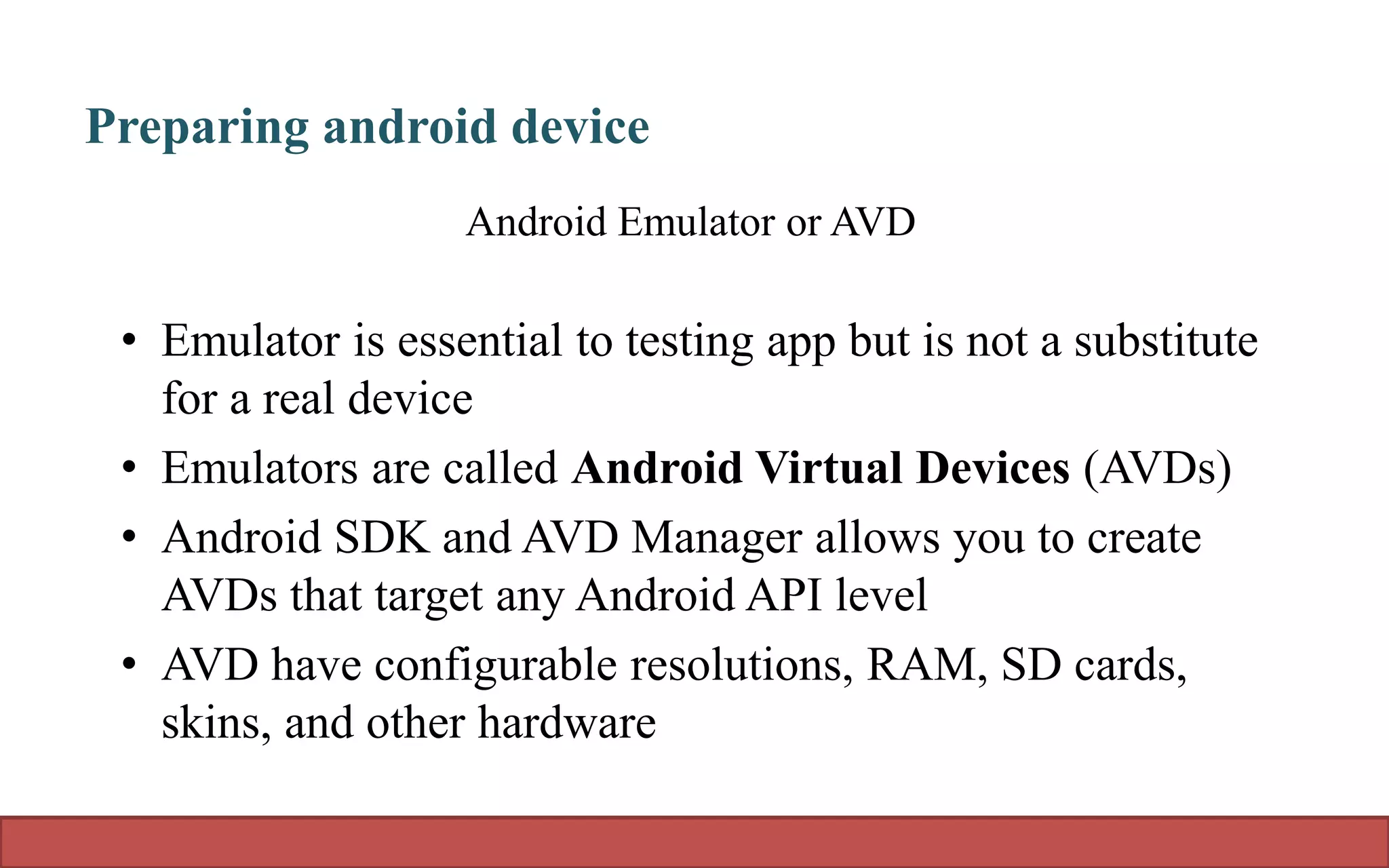

27. Android Emulator or AVD
• Emulator is essential to testing app but is not a substitute
for a real device
• Emulators are called Android Virtual Devices (AVDs)
• Android SDK and AVD Manager allows you to create
AVDs that target any Android API level
• AVD have configurable resolutions, RAM, SD cards,
skins, and other hardware
Preparing android device

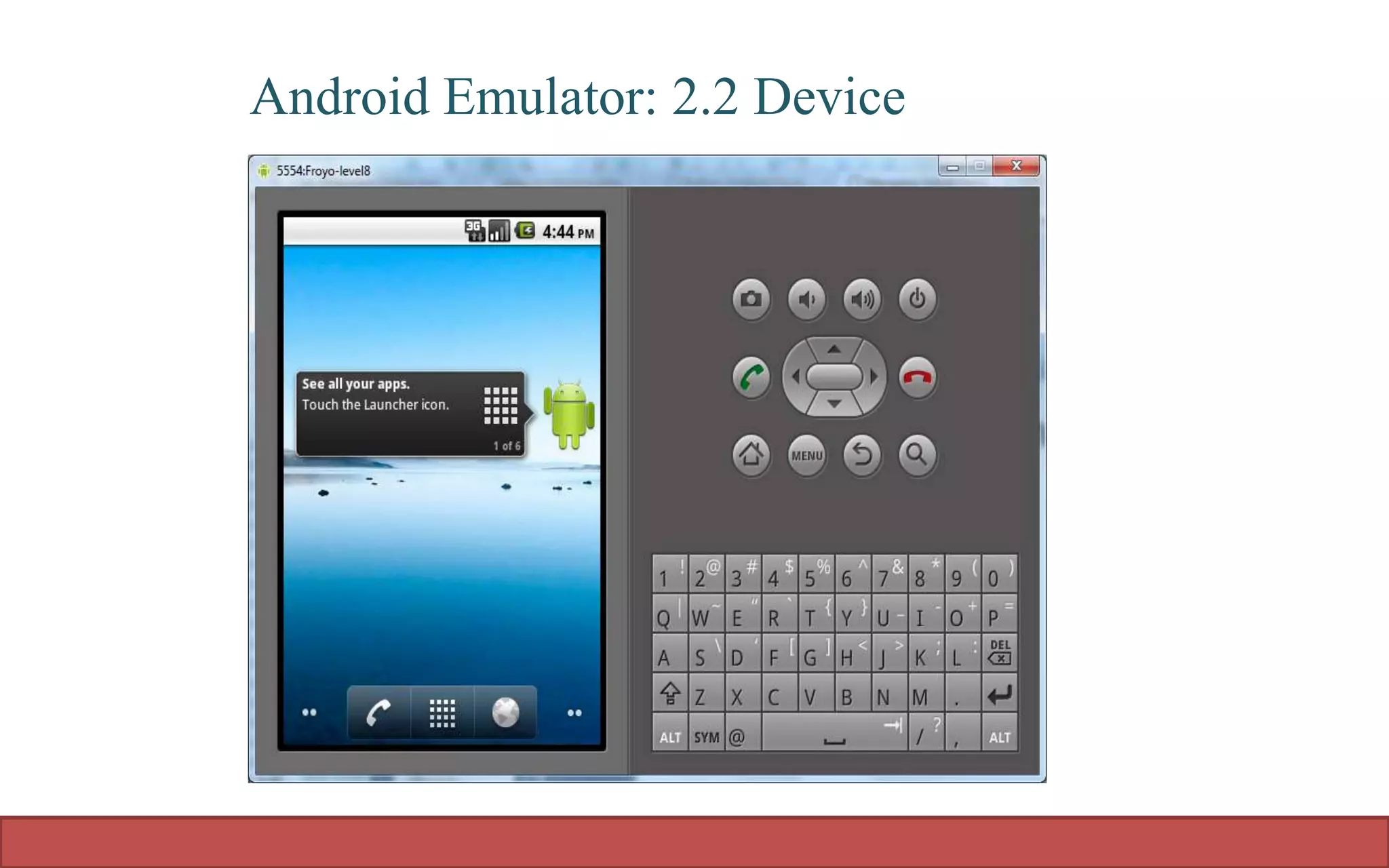

30. Android Emulator: 2.2 Device

31. Android Emulator: 4.2 Device

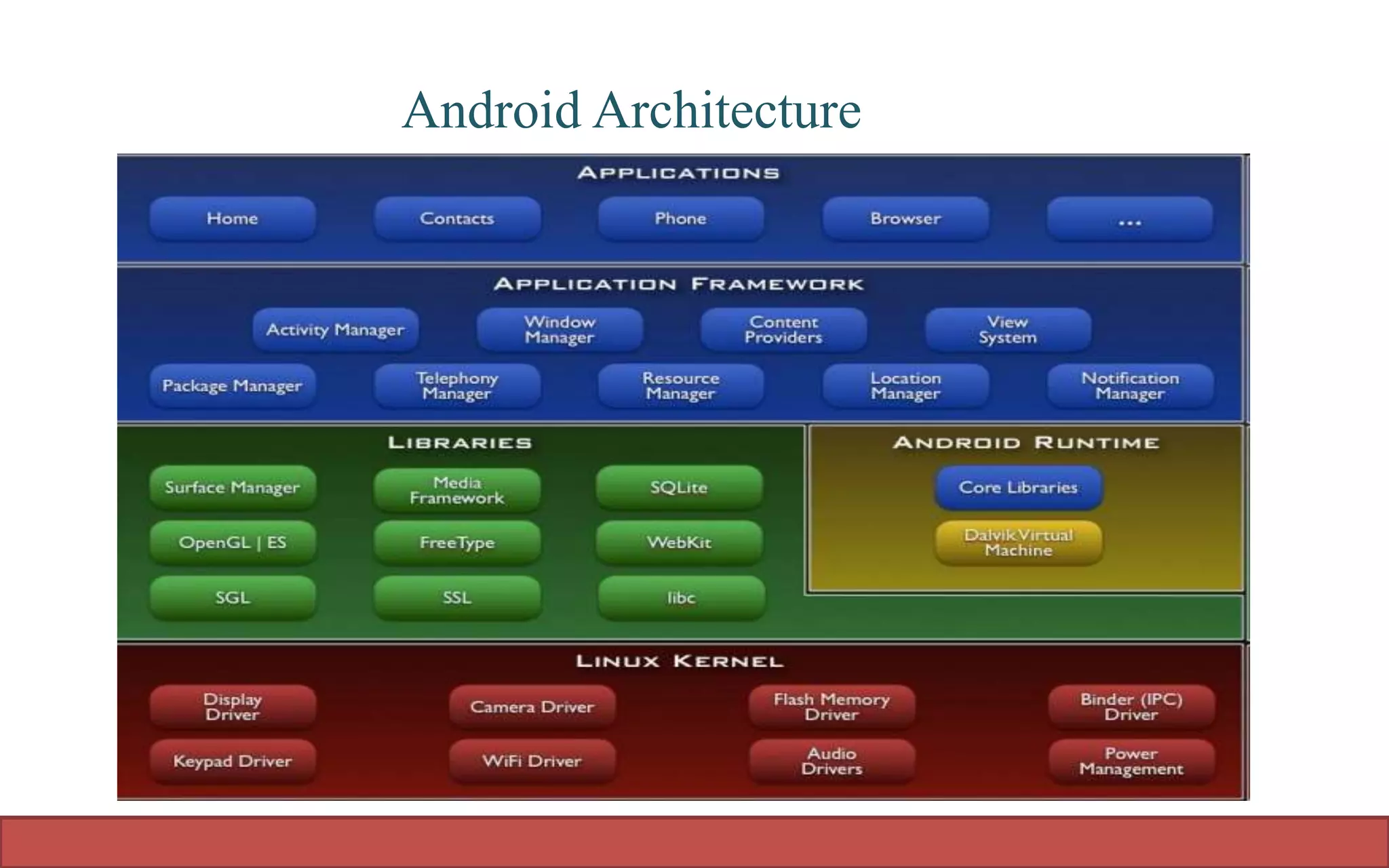

32. Android Architecture

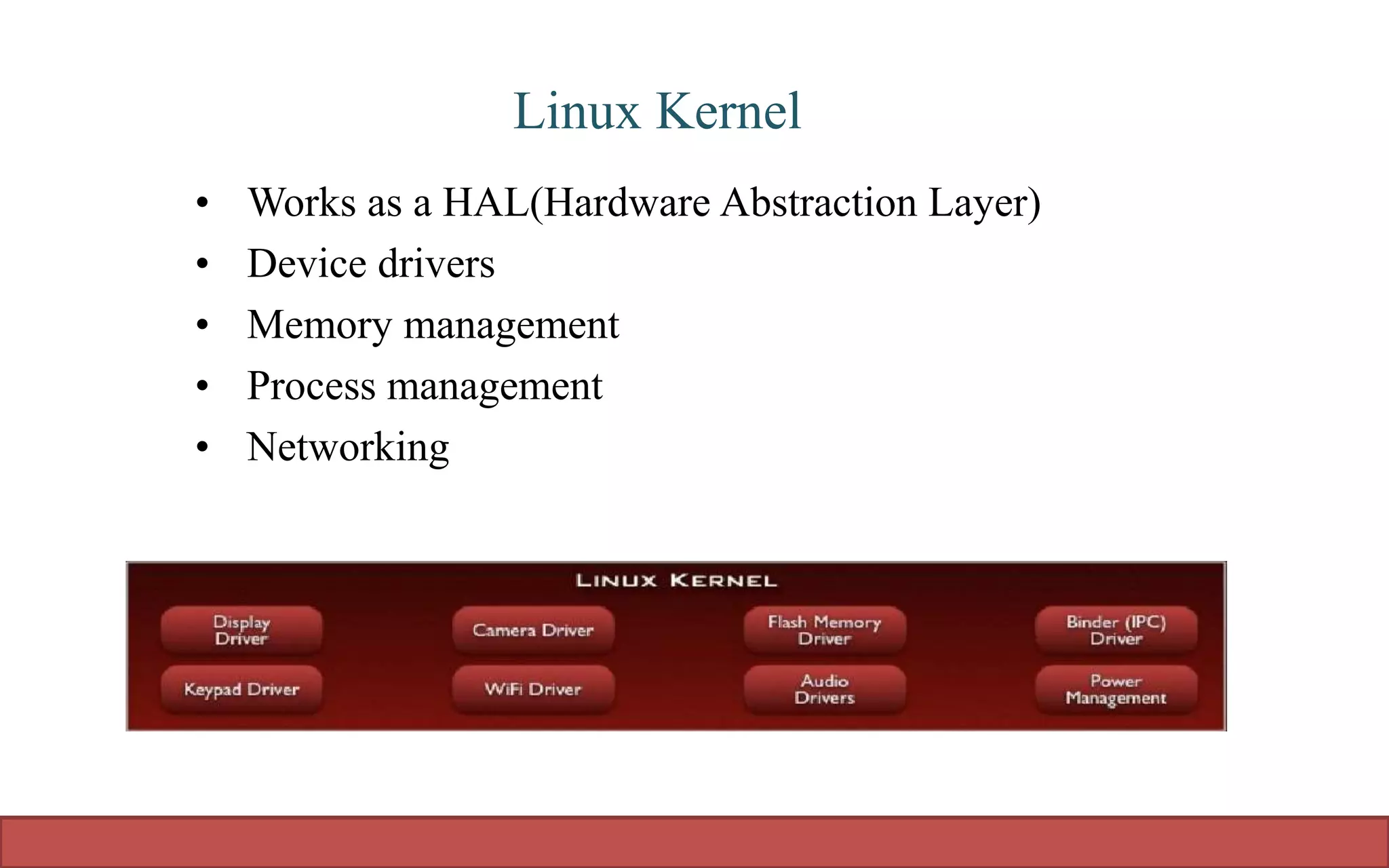

33. Linux Kernel
• Works as a HAL(Hardware Abstraction Layer)
• Device drivers
• Memory management
• Process management
• Networking

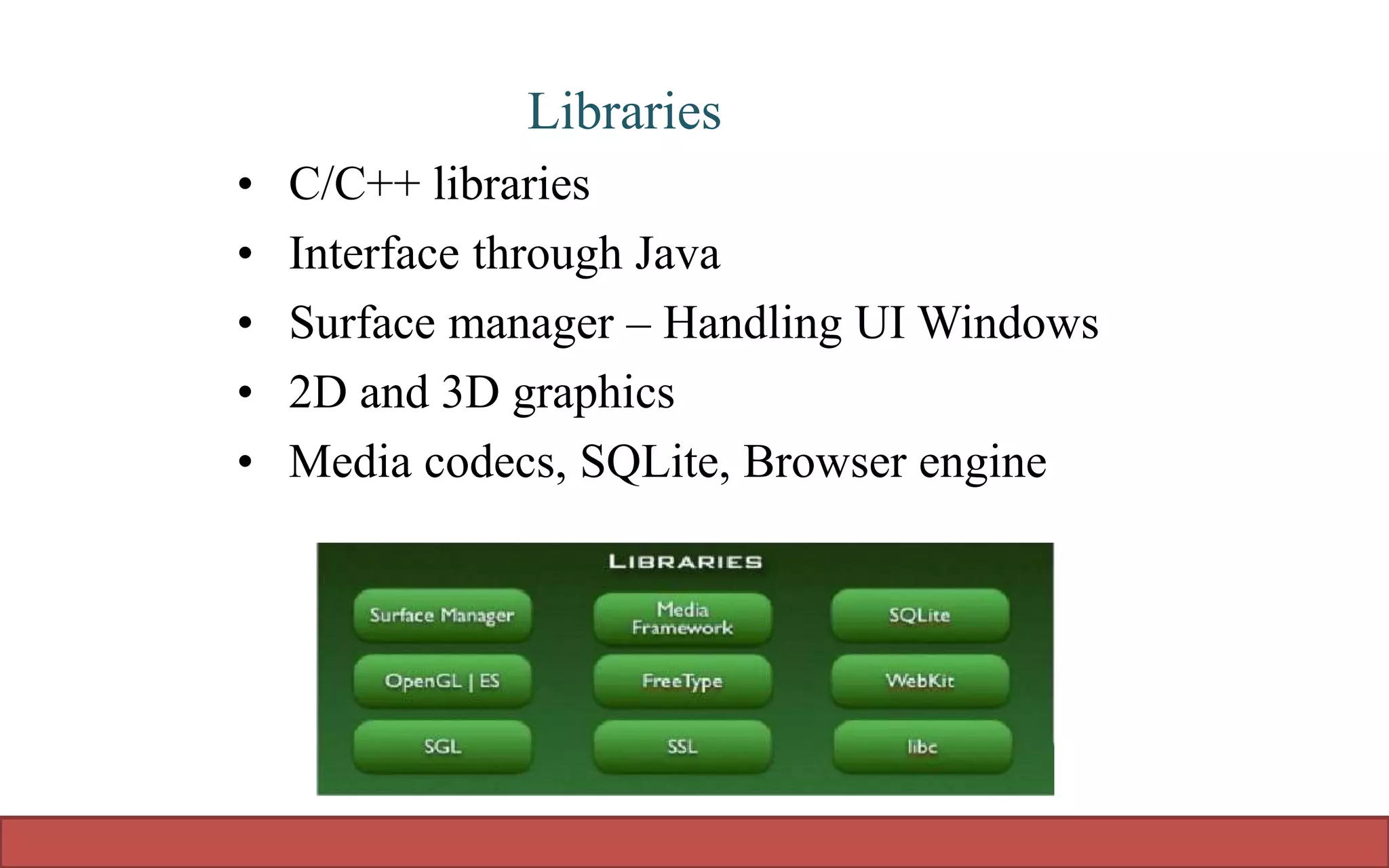

34. Libraries
• C/C++ libraries
• Interface through Java
• Surface manager – Handling UI Windows
• 2D and 3D graphics
• Media codecs, SQLite, Browser engine

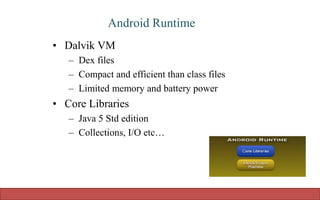

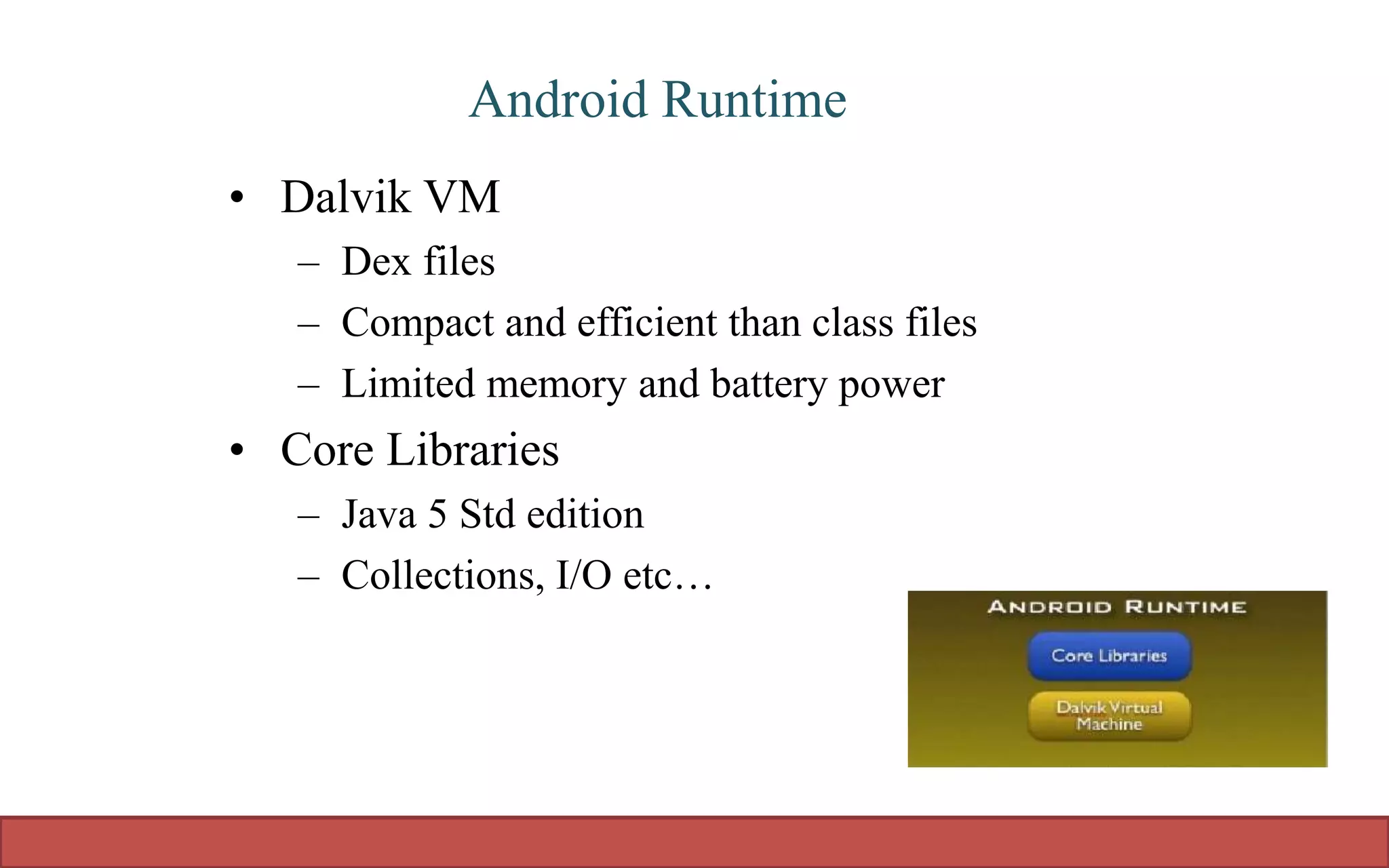

35. Android Runtime
• Dalvik VM
– Dex files
– Compact and efficient than class files
– Limited memory and battery power
• Core Libraries
– Java 5 Std edition
– Collections, I/O etc…

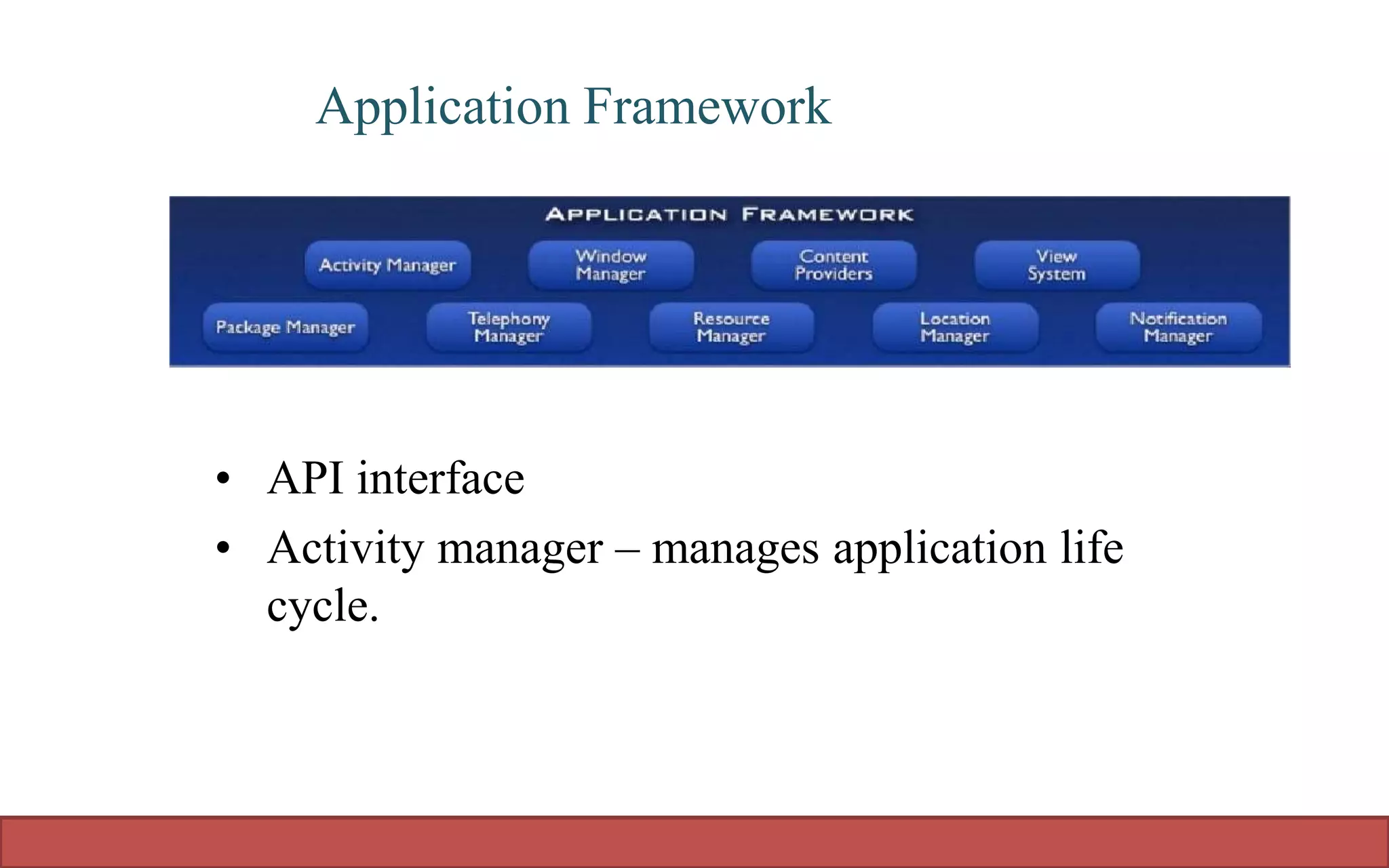

36. Application Framework
• API interface
• Activity manager – manages application life
cycle.

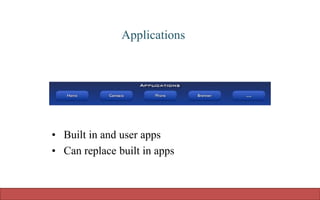

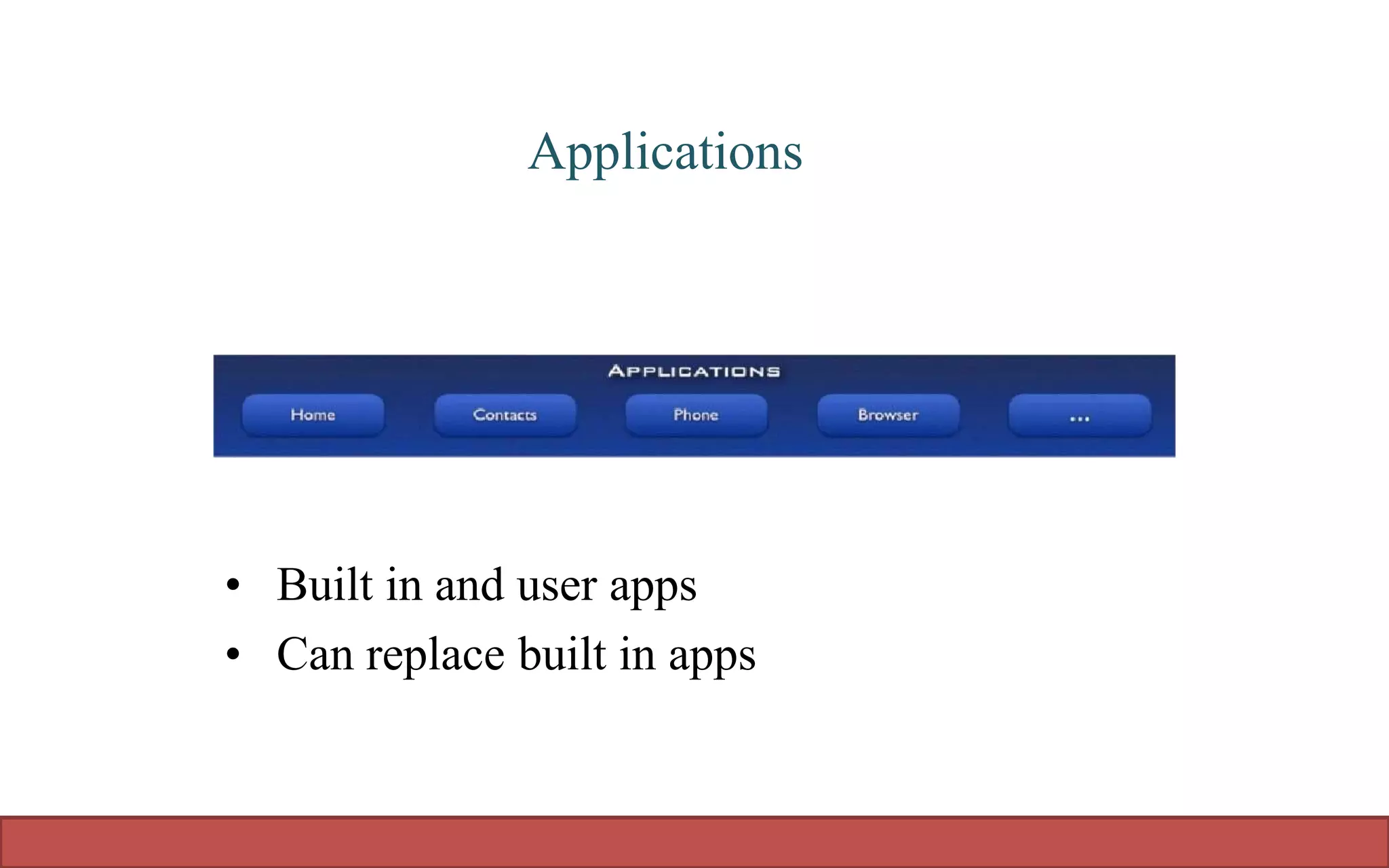

37. Applications
• Built in and user apps
• Can replace built in apps

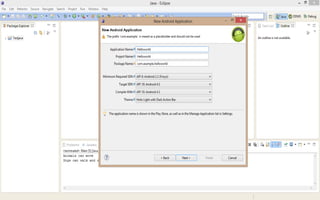

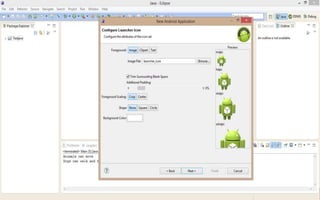

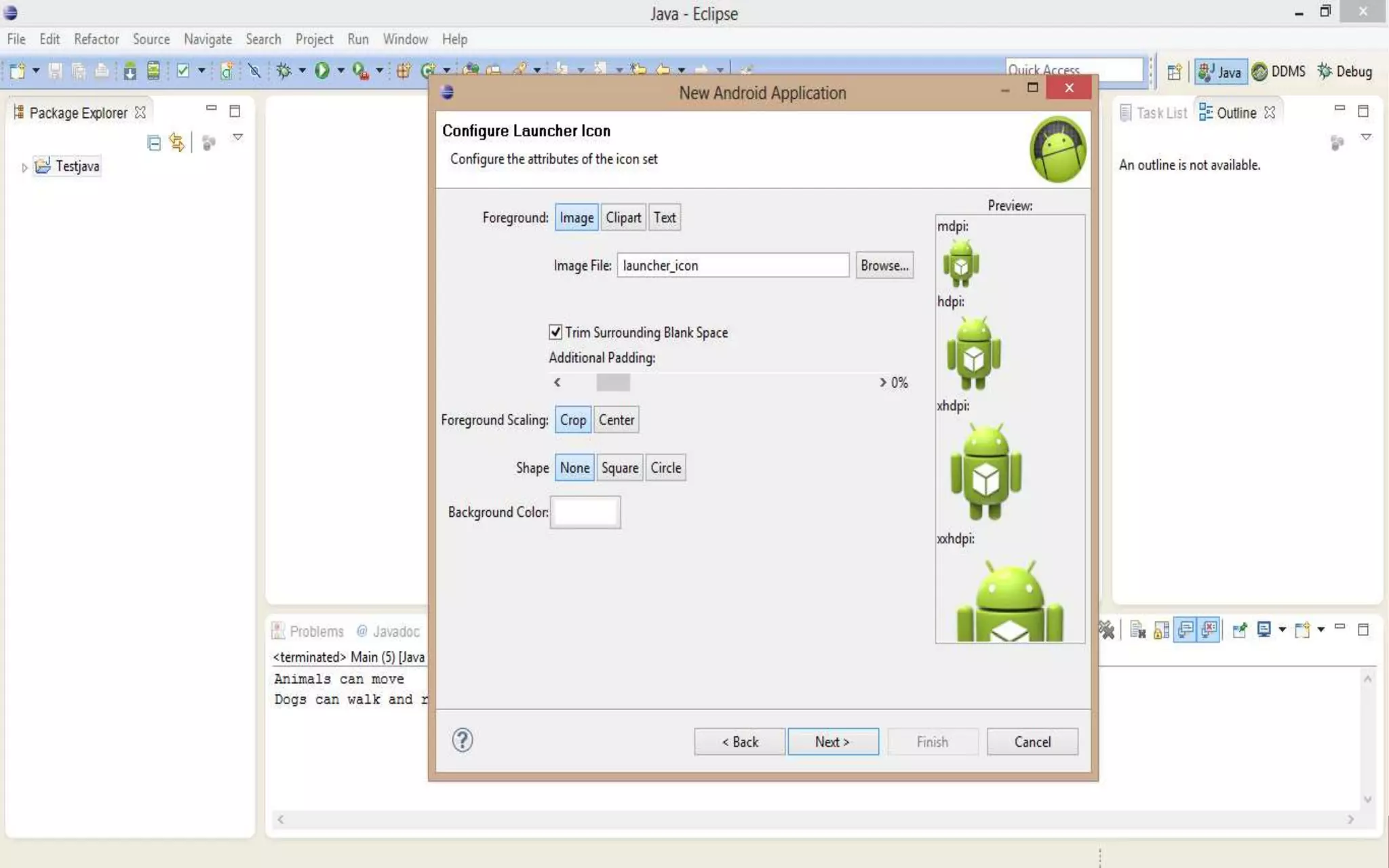

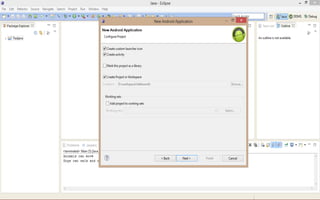

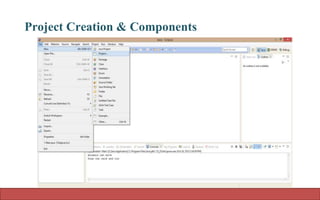

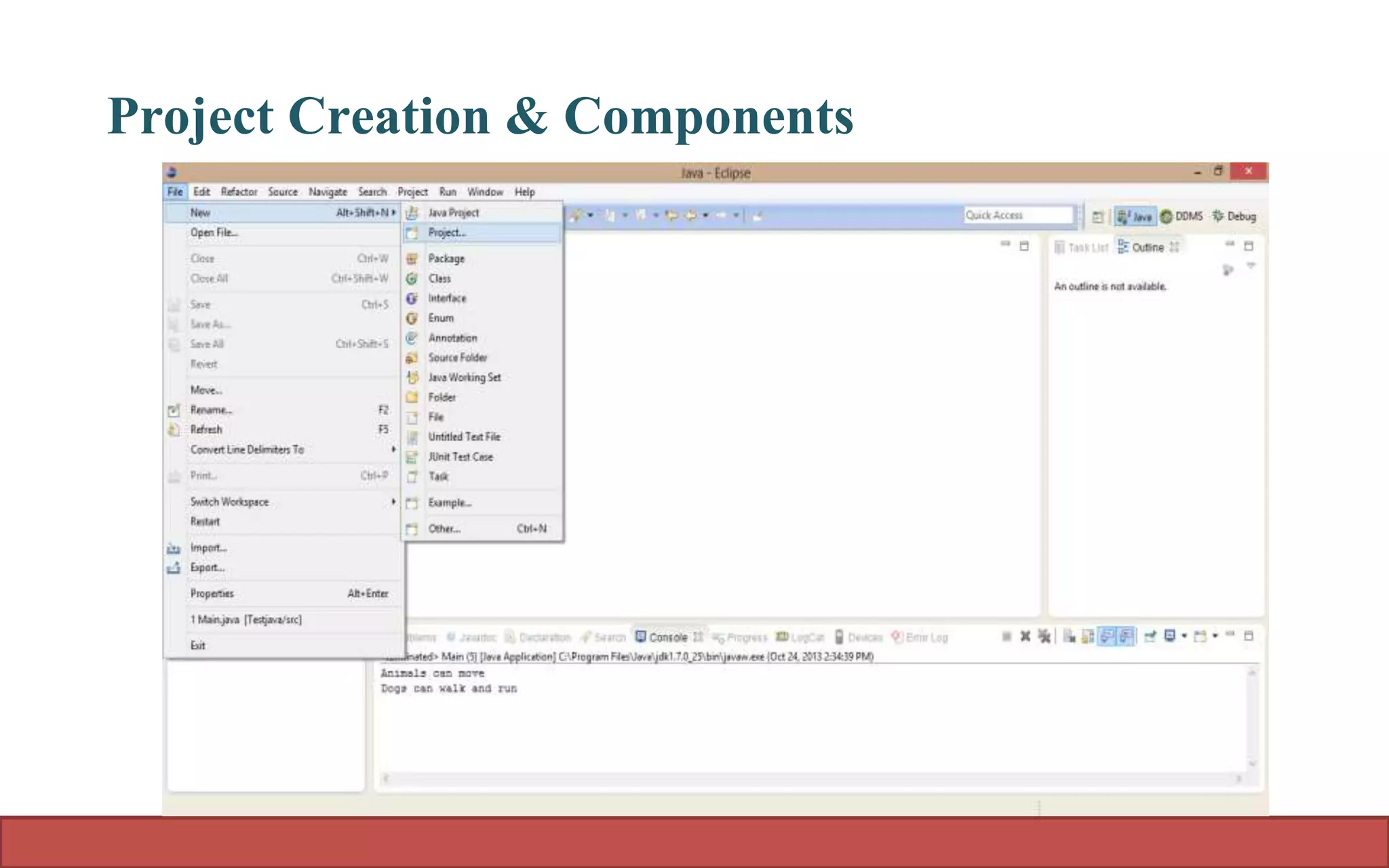

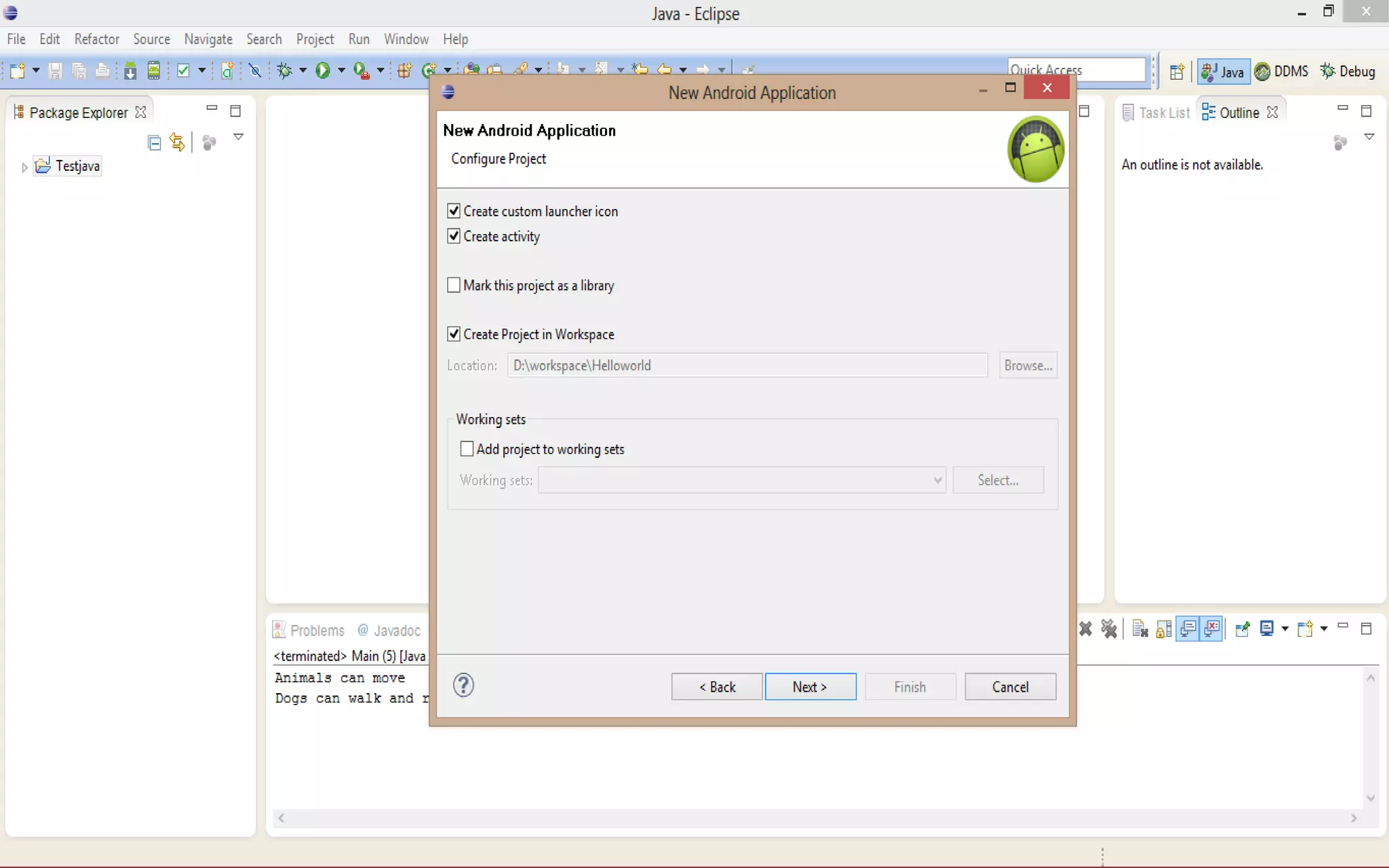

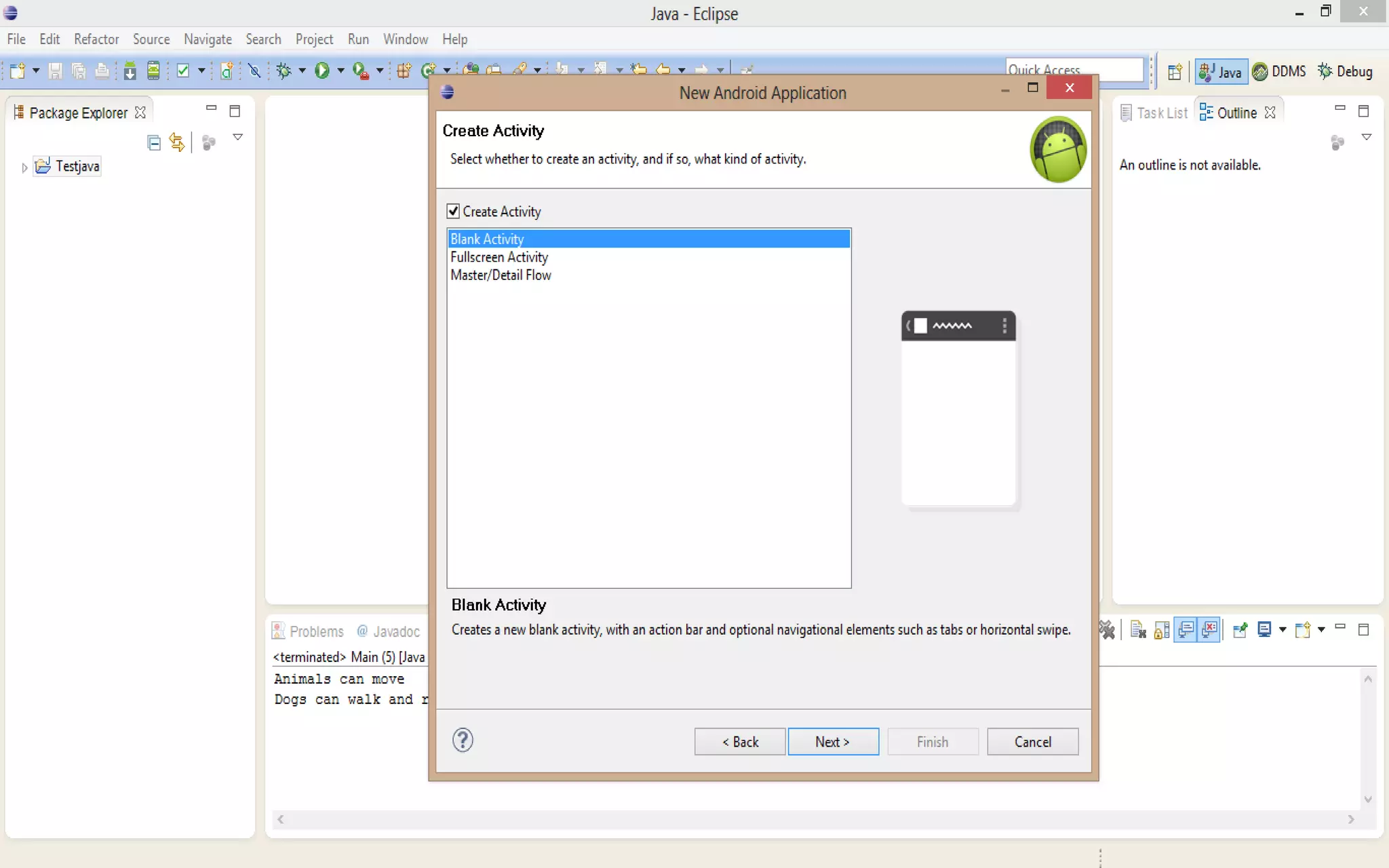

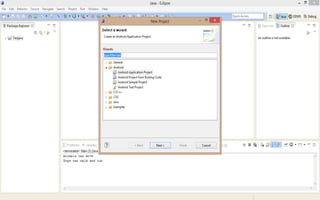

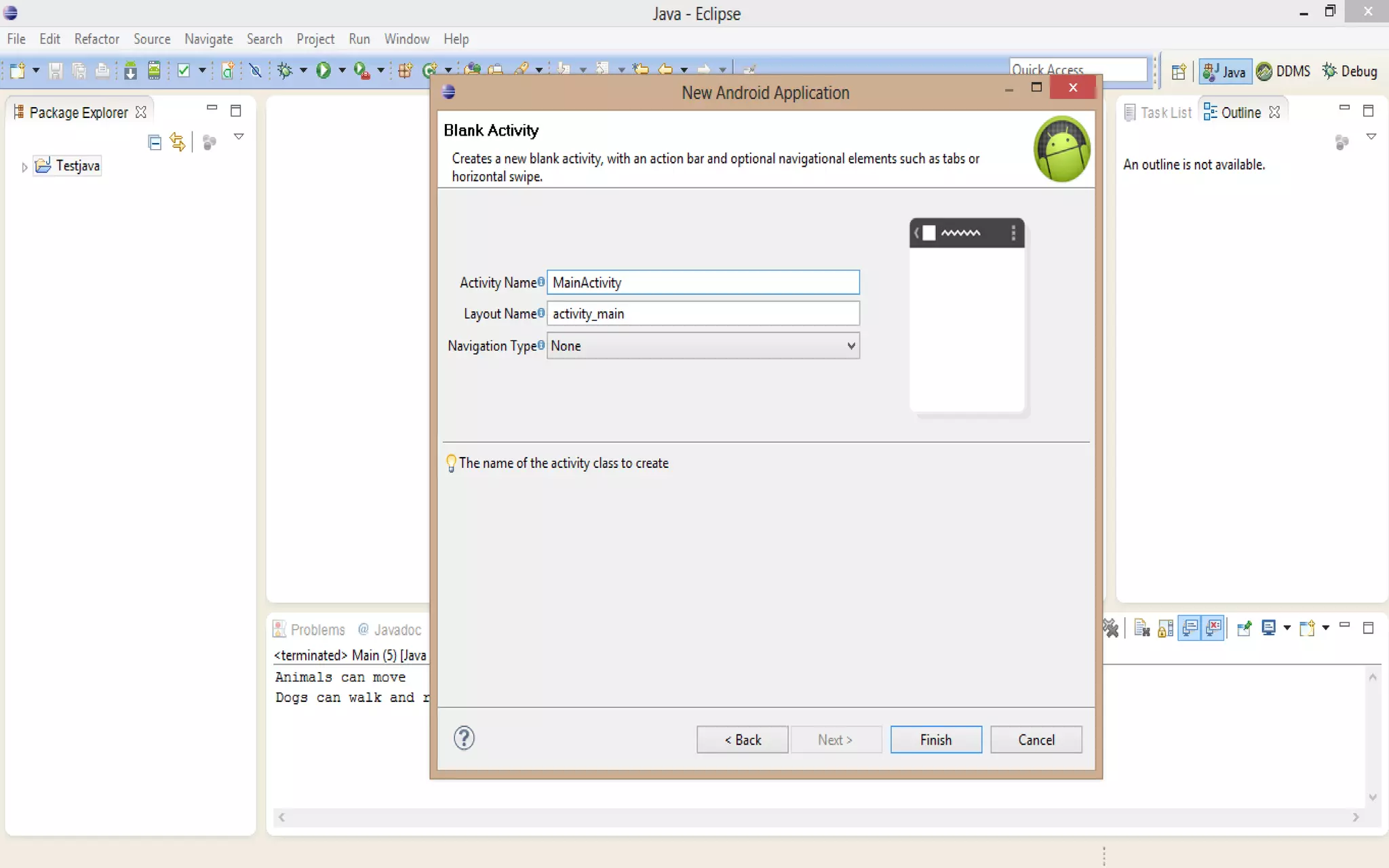

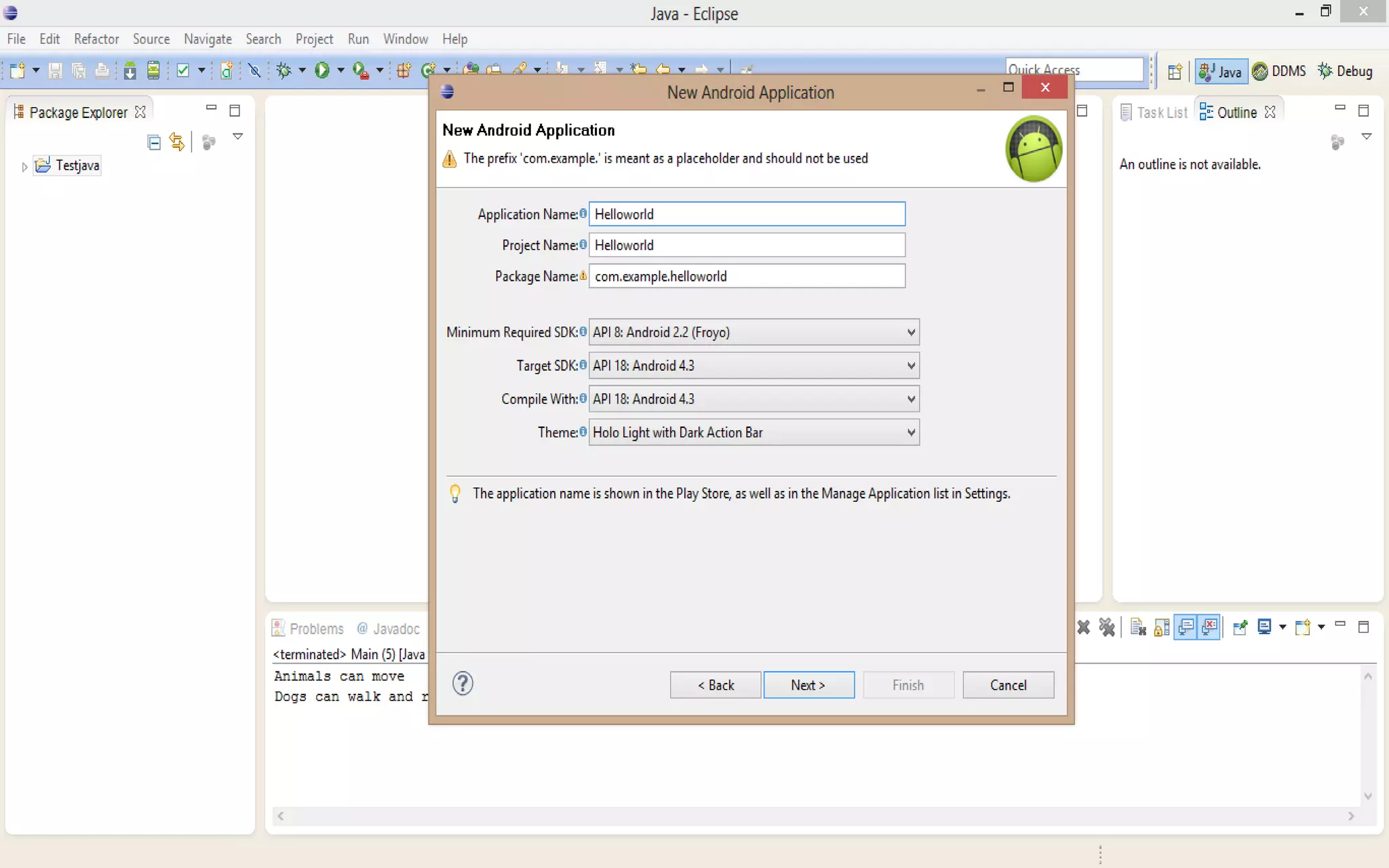

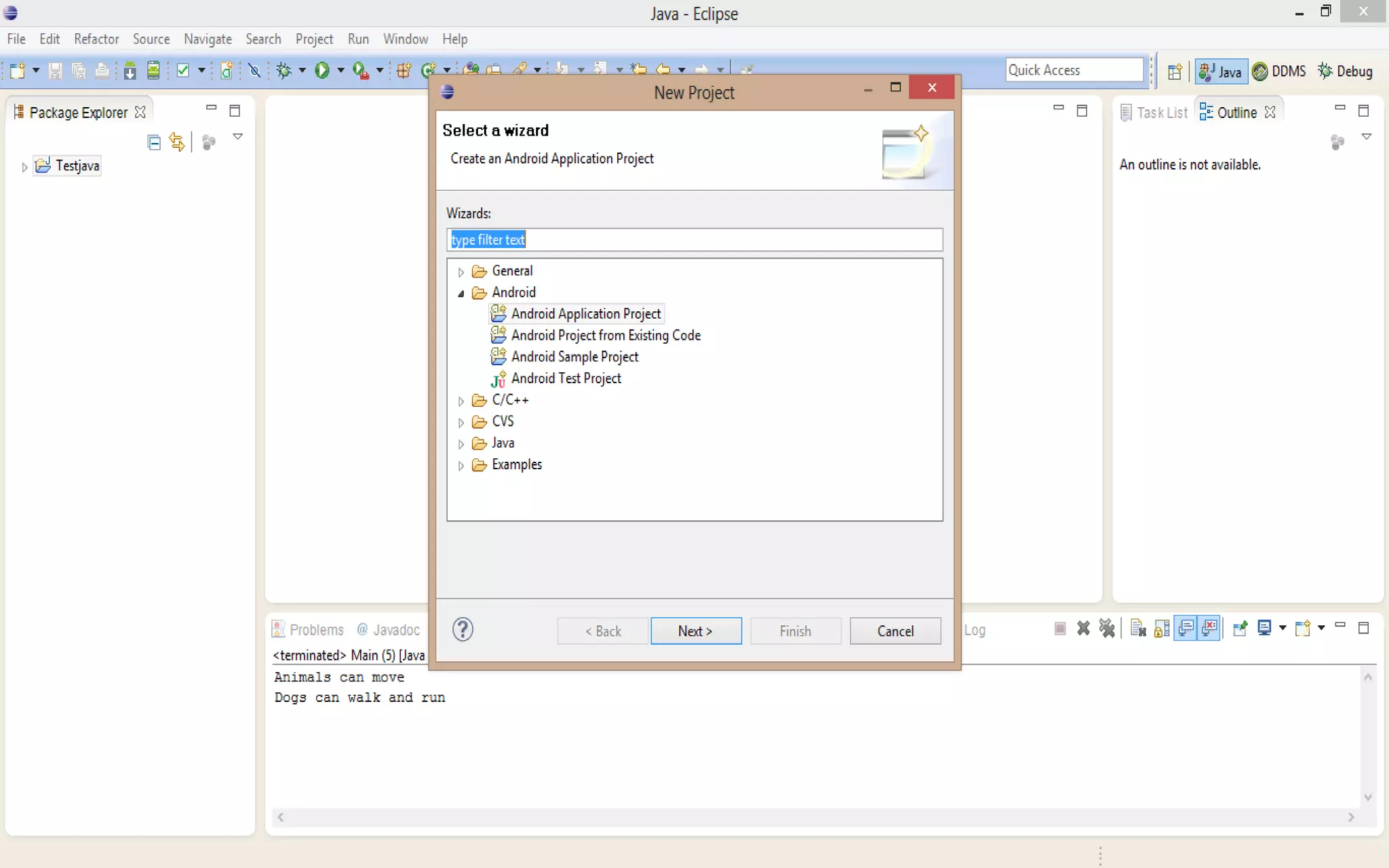

38. Project Creation & Components

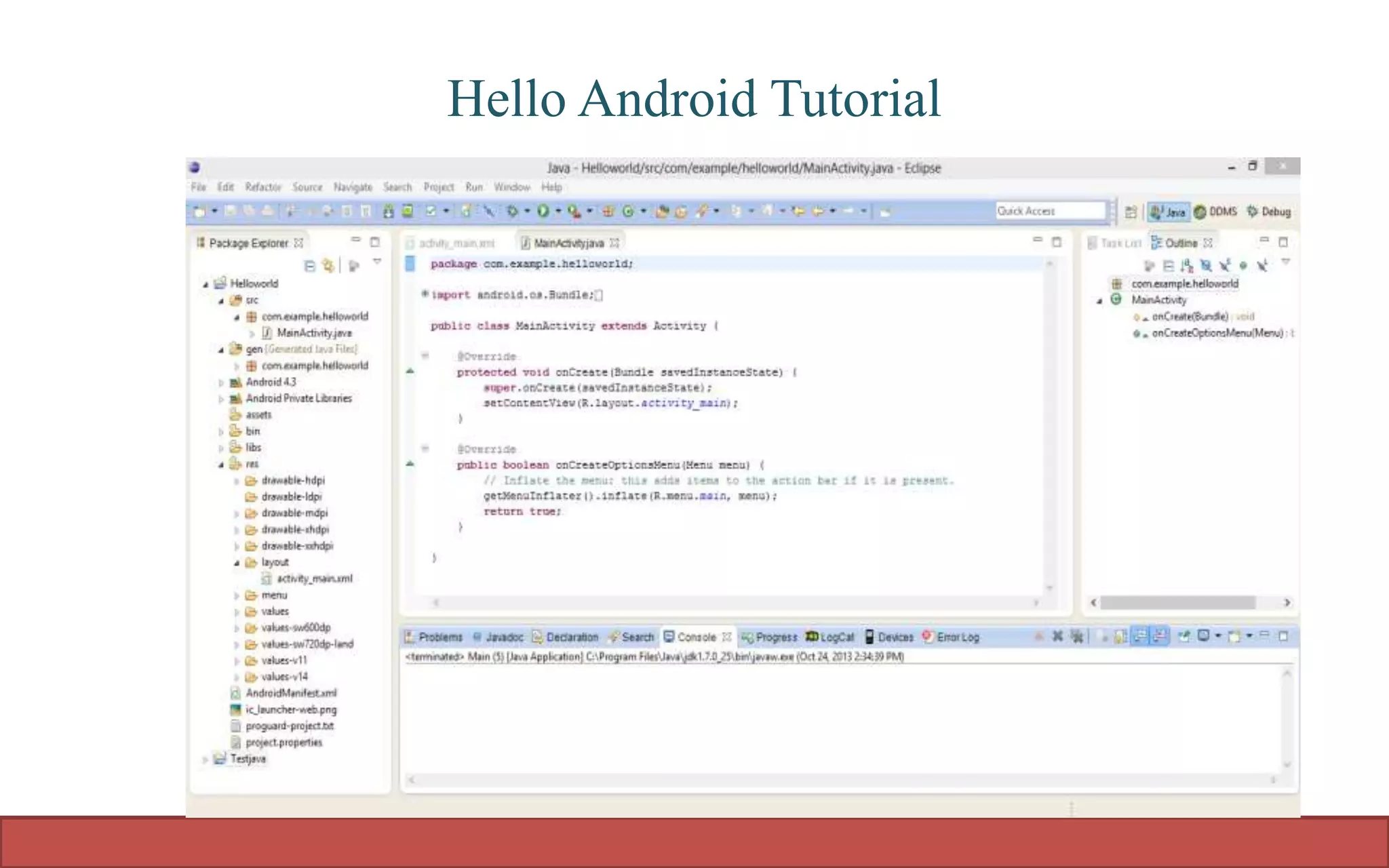

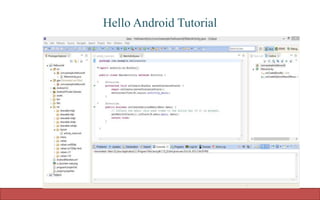

45. Hello Android Tutorial

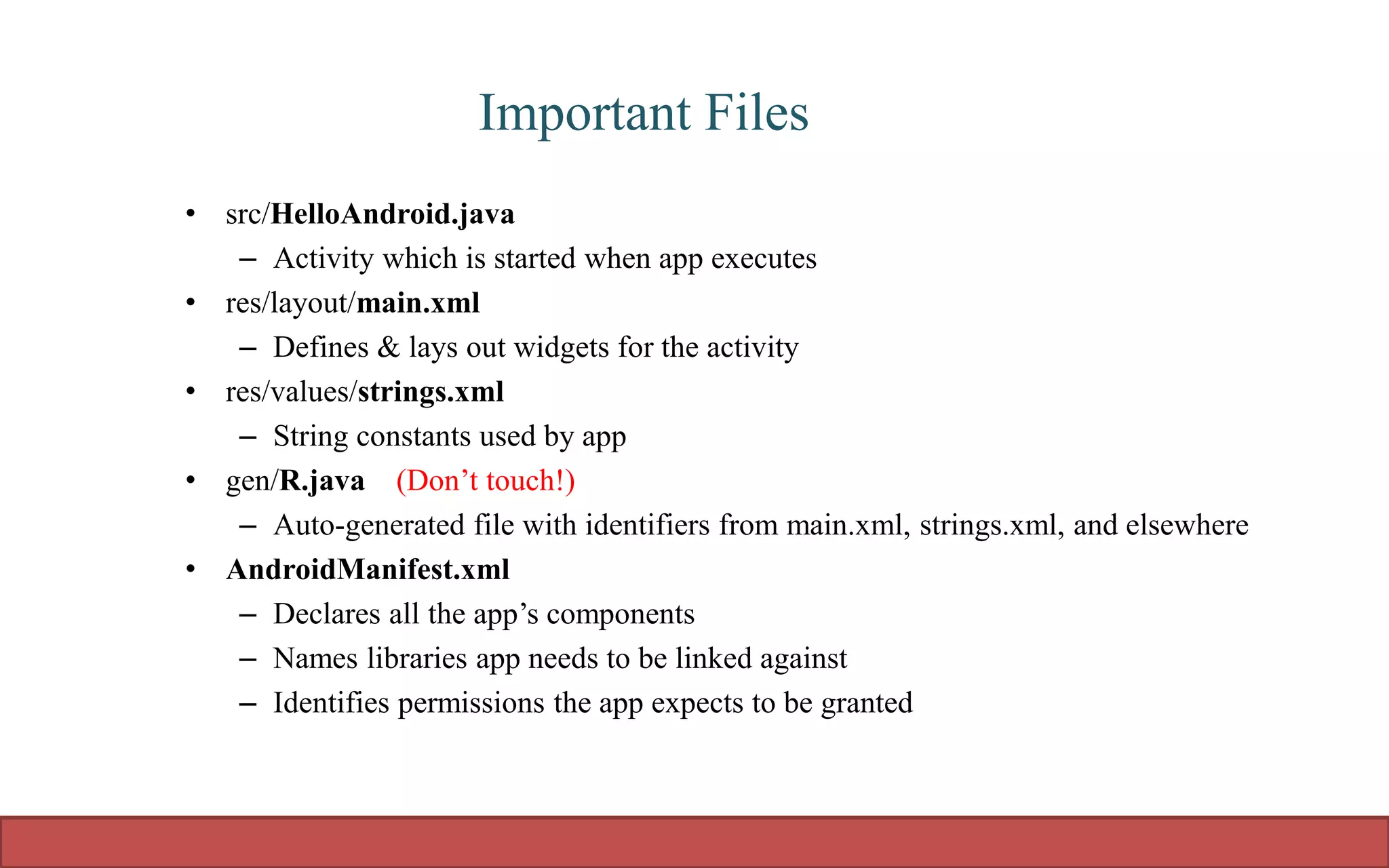

46. Important Files
• src/HelloAndroid.java
– Activity which is started when app executes
• res/layout/main.xml
– Defines & lays out widgets for the activity
• res/values/strings.xml
– String constants used by app
• gen/R.java (Don’t touch!)
– Auto-generated file with identifiers from main.xml, strings.xml, and elsewhere
• AndroidManifest.xml
– Declares all the app’s components
– Names libraries app needs to be linked against
– Identifies permissions the app expects to be granted

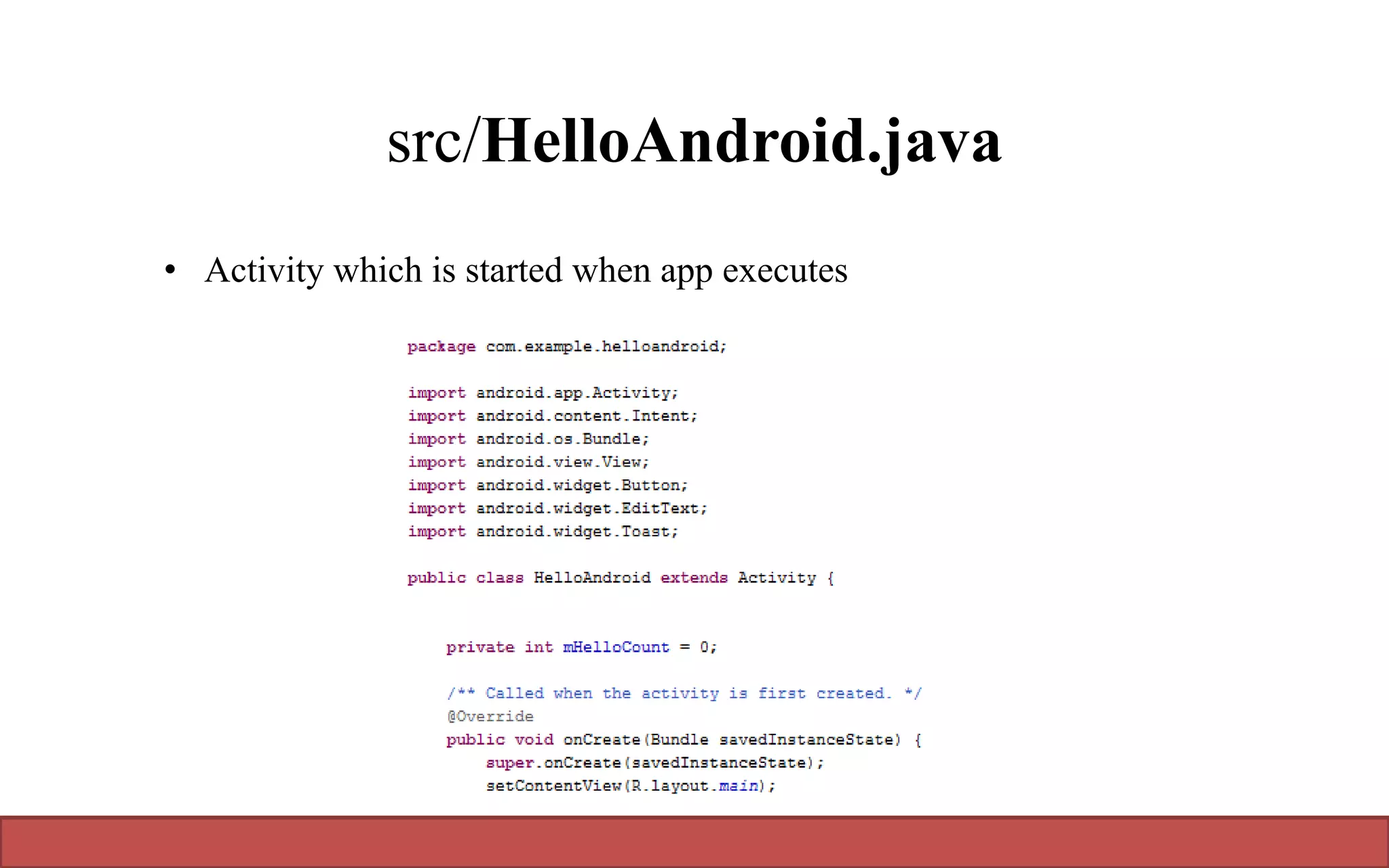

47. src/HelloAndroid.java
• Activity which is started when app executes

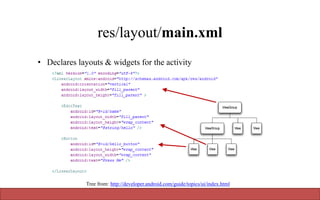

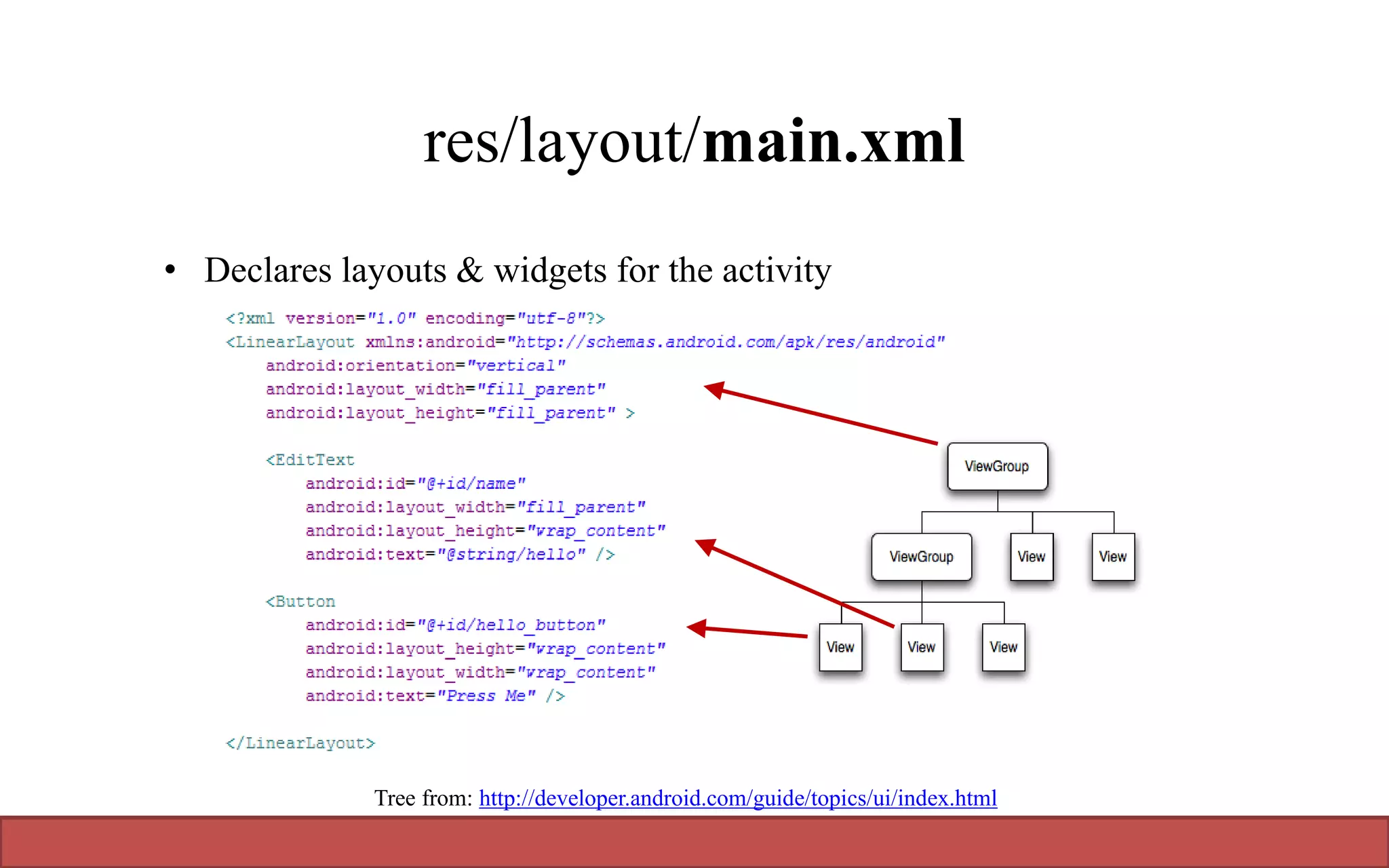

48. res/layout/main.xml
• Declares layouts & widgets for the activity
Tree from: http://developer.android.com/guide/topics/ui/index.html

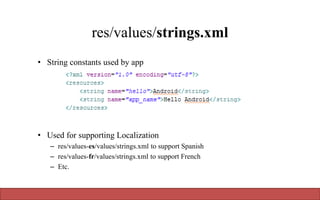

49. res/values/strings.xml
• String constants used by app
• Used for supporting Localization
– res/values-es/values/strings.xml to support Spanish
– res/values-fr/values/strings.xml to support French
– Etc.

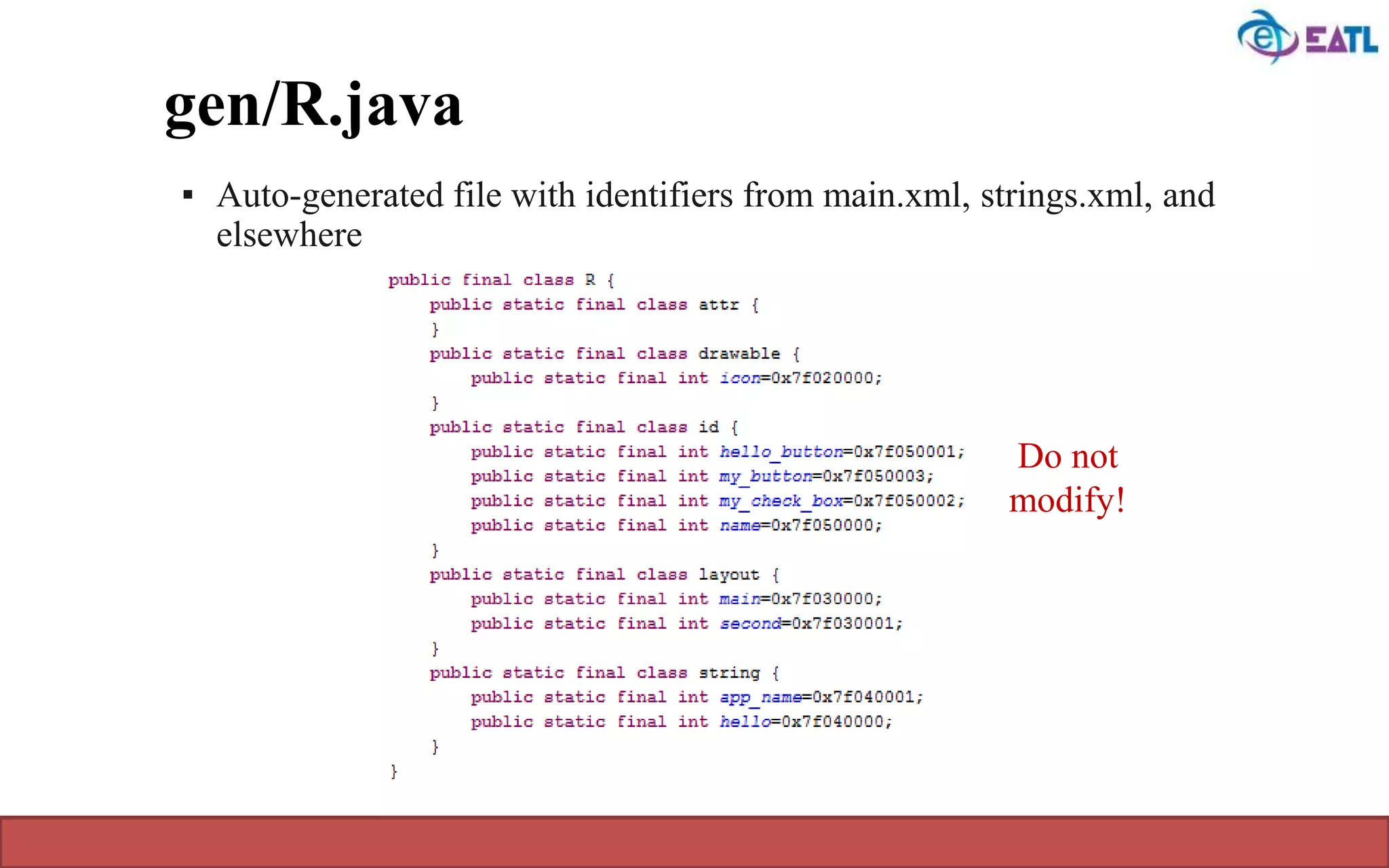

50. gen/R.java
▪ Auto-generated file with identifiers from main.xml, strings.xml, and
elsewhere
Do not
modify!

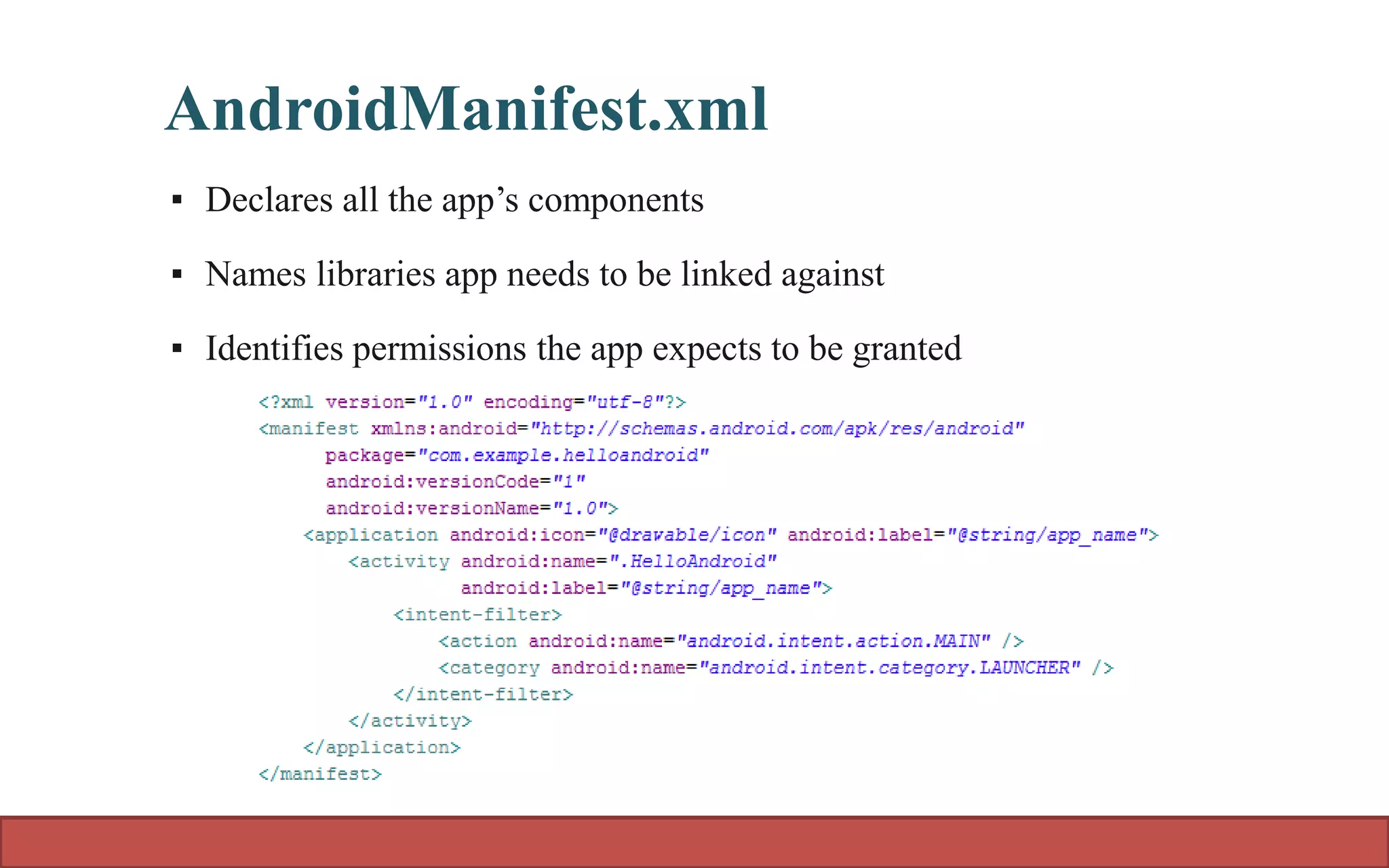

51. AndroidManifest.xml
▪ Declares all the app’s components
▪ Names libraries app needs to be linked against
▪ Identifies permissions the app expects to be granted

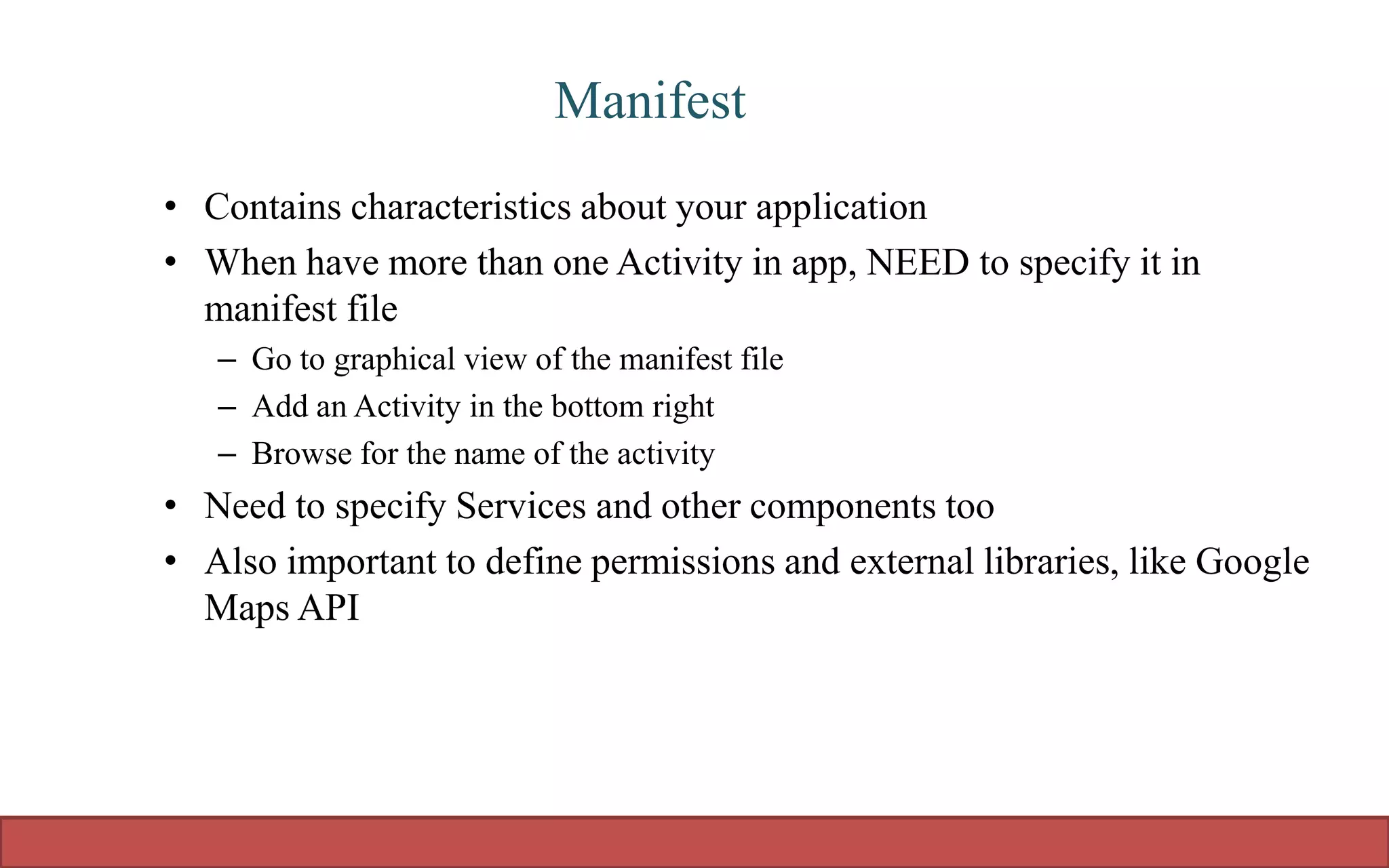

52. Manifest
• Contains characteristics about your application
• When have more than one Activity in app, NEED to specify it in
manifest file
– Go to graphical view of the manifest file
– Add an Activity in the bottom right
– Browse for the name of the activity
• Need to specify Services and other components too
• Also important to define permissions and external libraries, like Google
Maps API

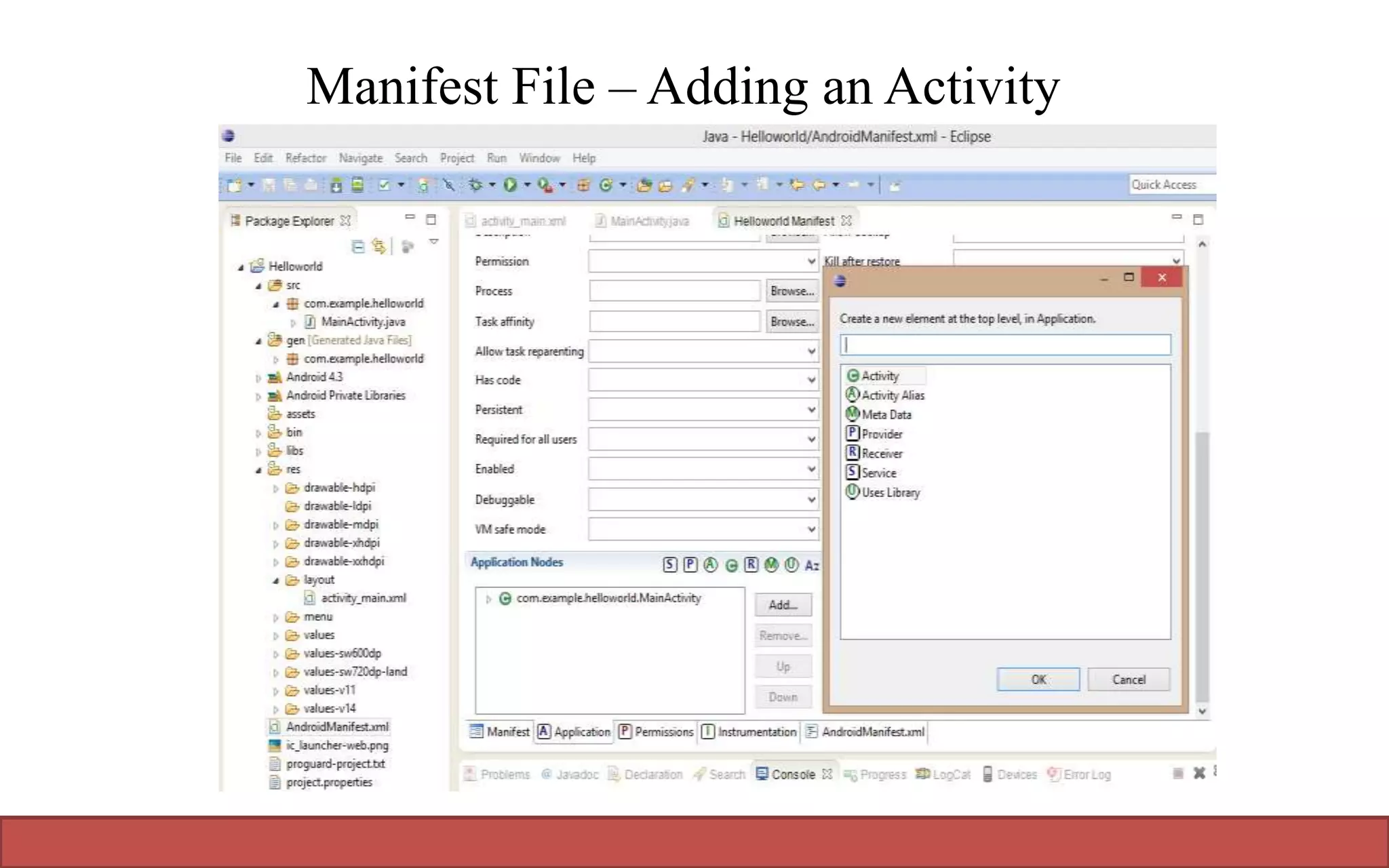

53. Manifest File – Adding an Activity

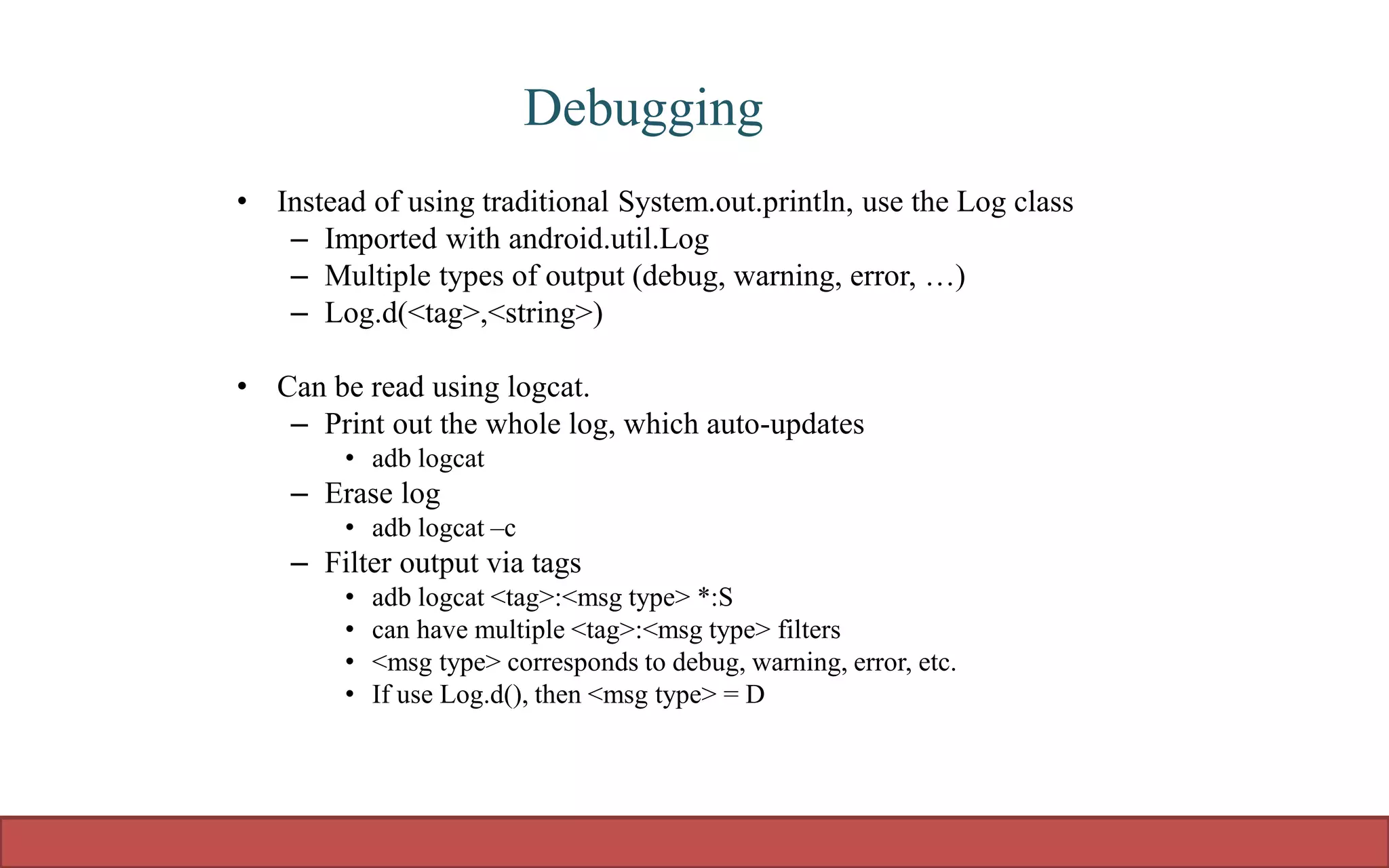

54. Debugging
• Instead of using traditional System.out.println, use the Log class
– Imported with android.util.Log
– Multiple types of output (debug, warning, error, …)
– Log.d(<tag>,<string>)
• Can be read using logcat.
– Print out the whole log, which auto-updates
• adb logcat
– Erase log
• adb logcat –c
– Filter output via tags
• adb logcat <tag>:<msg type> *:S
• can have multiple <tag>:<msg type> filters
• <msg type> corresponds to debug, warning, error, etc.
• If use Log.d(), then <msg type> = D

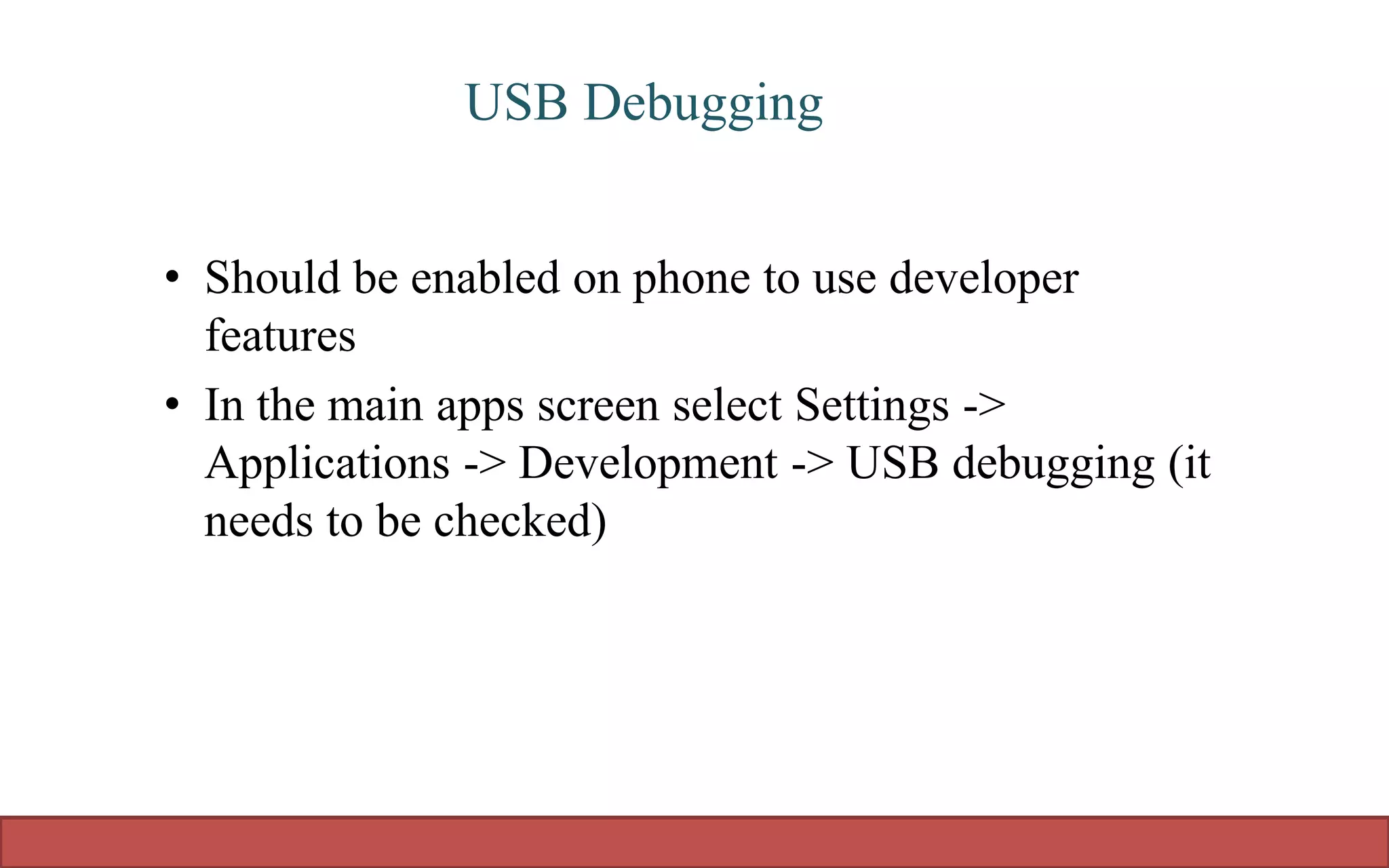

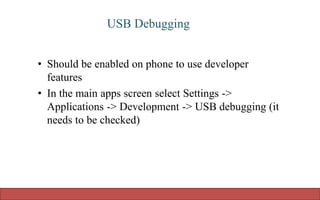

55. USB Debugging
• Should be enabled on phone to use developer
features
• In the main apps screen select Settings ->
Applications -> Development -> USB debugging (it
needs to be checked)

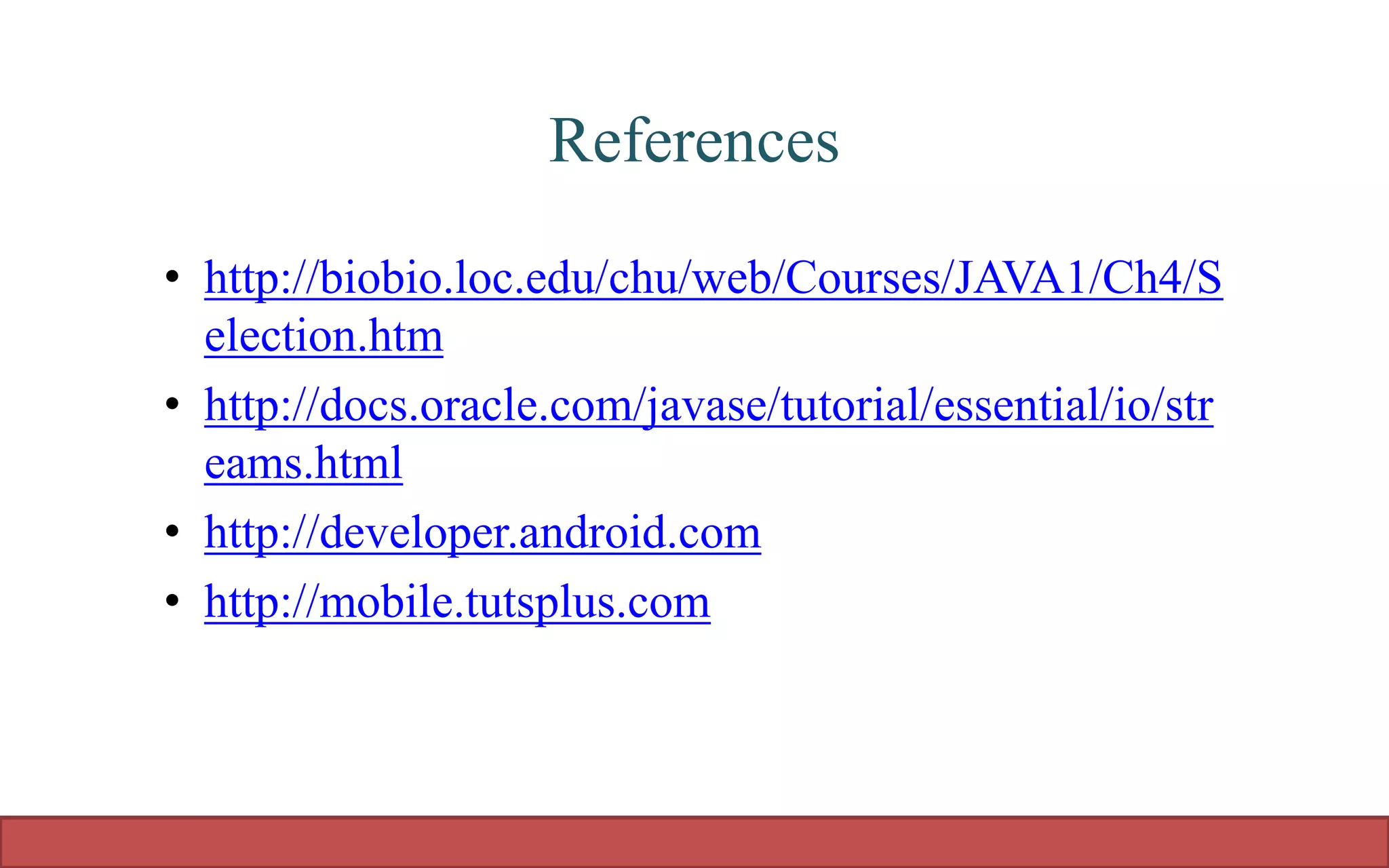

56. References
• http://biobio.loc.edu/chu/web/Courses/JAVA1/Ch4/S
election.htm
• http://docs.oracle.com/javase/tutorial/essential/io/str
eams.html
• http://developer.android.com
• http://mobile.tutsplus.com
