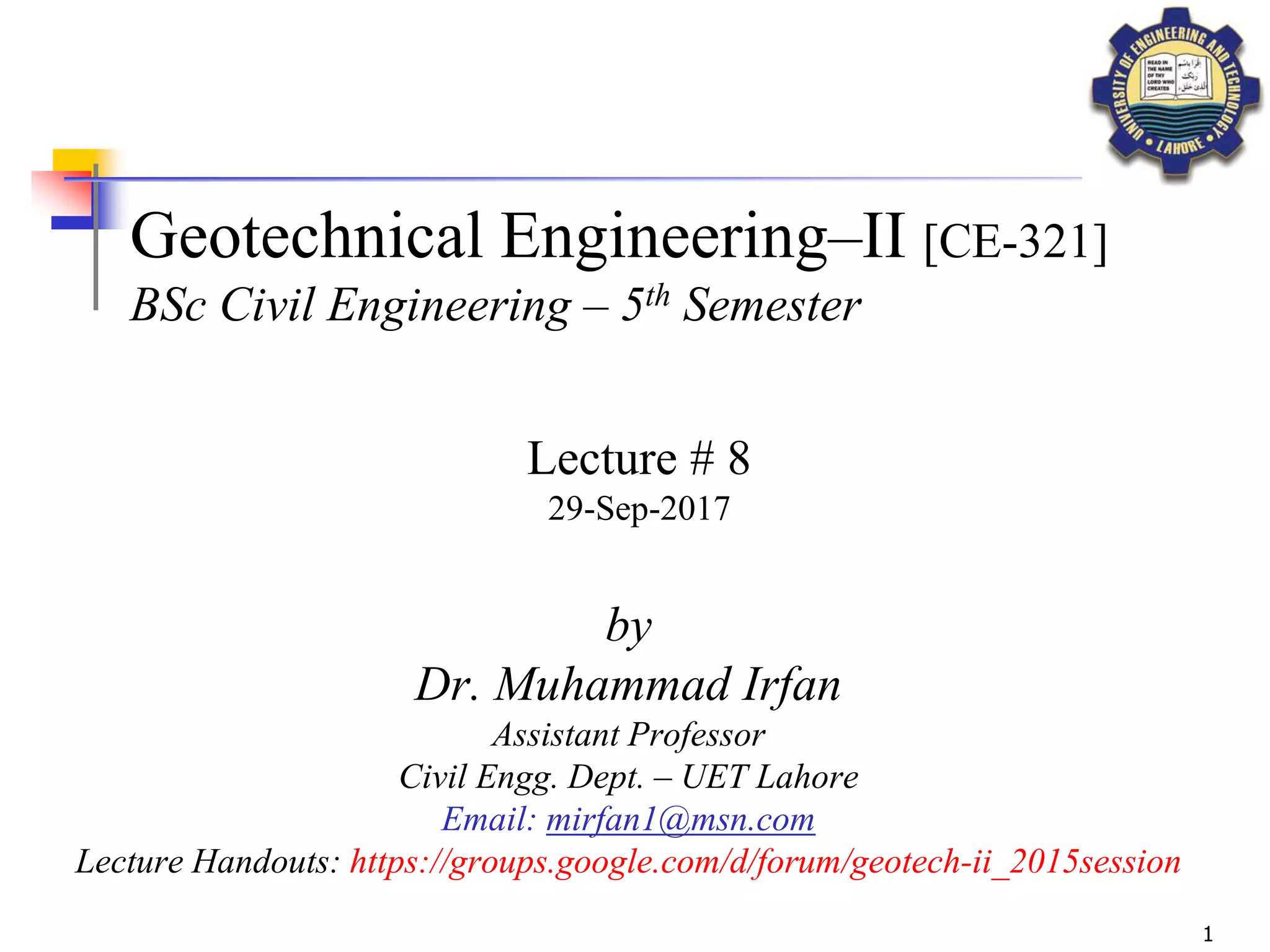

1. 1
Geotechnical Engineering–II [CE-321]
BSc Civil Engineering – 5th Semester
by
Dr. Muhammad Irfan
Assistant Professor
Civil Engg. Dept. – UET Lahore
Email: mirfan1@msn.com
Lecture Handouts: https://groups.google.com/d/forum/geotech-ii_2015session
Lecture # 8
29-Sep-2017

2. 2
STRESS UNDER UNIFORMLY LOADED
RECTANGULAR AREA
Bousinesq equation can be extended for uniformly loaded
rectangular area as;
),( nmIq recz 
where,
IZ = Shape function/ Influence factor
m = b/z; n=l/z
x
z
q
A
y
z
dx
dy

3. 3
STRESS UNDER
UNIFORMLY
LOADED
RECTANGULAR
AREA
•3
z
L
n
z
B
m  ,
Log scale

4. 4
STRESS UNDER UNIFORMLY LOADED
RECTANGULAR AREA
This methods gives stress at the corner of rectangular area
),( nmIq recz 
A B
D C
Case I
E
F
G
A B
D C
Case II
σz due to ABCD =
4 x σz due to EBFG

5. 5
E
FH
G
E
FH
I
STRESS UNDER UNIFORMLY LOADED
RECTANGULAR AREA
G
A B
D C
A B
D C
I
A B
D C
Case I Case II
σz due to ABCD =
4 x σz due to EBFG
Case III
σz due to ABCD = σz due to
(EBFI + IFCG + IGDH + AEIH)

6. 6
E
I
STRESS UNDER UNIFORMLY LOADED
RECTANGULAR AREA
A B
D C
EF
GH
F
A B
D
C
Case IV
σz due to ABCD = 2 x σz due to ABEF
Case V
σz due to ABCD = 2 x σz due to EBCF
Case VI
σz due to ABCD = σz due to
(AEGI – BEGH – DFGI + CFGH)
A BE
D CF

7. 7
A rectangular footing with load intensity of 20 t/m2 is shown.
Find z at 2.5 m depth for point
a) R
b) S
c) T
d) U
Practice Problem #9

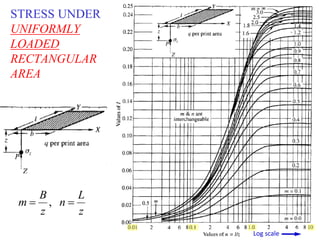

8. 8
STRESS UNDER
UNIFORMLY
LOADED
RECTANGULAR
AREA
•8
z
L
n
z
B
m  ,
Log scale

9. 9
The uniform contact pressure under a rectangular footing of 6m
x 5m is 200kPa. Compute the vertical stress component under
points A and B at a depth of 2m.
Practice Problem #10

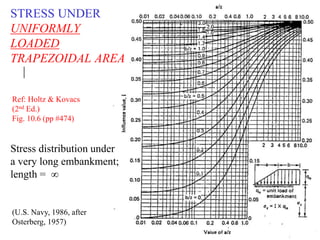

10. 11
STRESS UNDER
UNIFORMLY
LOADED
TRAPEZOIDAL AREA
Stress distribution under
a very long embankment;
length = ∞
(U.S. Navy, 1986, after
Osterberg, 1957)
Ref: Holtz & Kovacs
(2nd Ed.)
Fig. 10.6 (pp #474)

11. 12
STRESS UNDER
UNIFORMLY
LOADED
TRIANGULAR AREA
Influence values for vertical
stress under the corners of a
triangular load of limited
length.
(U.S. Navy, 1986)
Ref: Holtz & Kovacs
(2nd Ed.)
Fig. 10.7 (pp #475)

12. 13
CONCLUDED
REFERENCE MATERIAL
An Introduction to Geotechnical Engineering (2nd Ed.)
Robert D. Holtz & William D. Kovacs
Chapter #10
