Geometric tolerancing is a method used in manufacturing to provide more precise control over a component's geometric features than basic dimensioning and tolerancing. It uses standardized symbols to specify geometric requirements for features and considers their form, orientation, location, and runout relative to datums. Only geometric tolerancing should be used if normal dimensioning is insufficient for a component's required design function. The symbols represent a range of potential geometric features and are constructed within tolerance frames that may or may not reference a datum depending on the geometric feature.

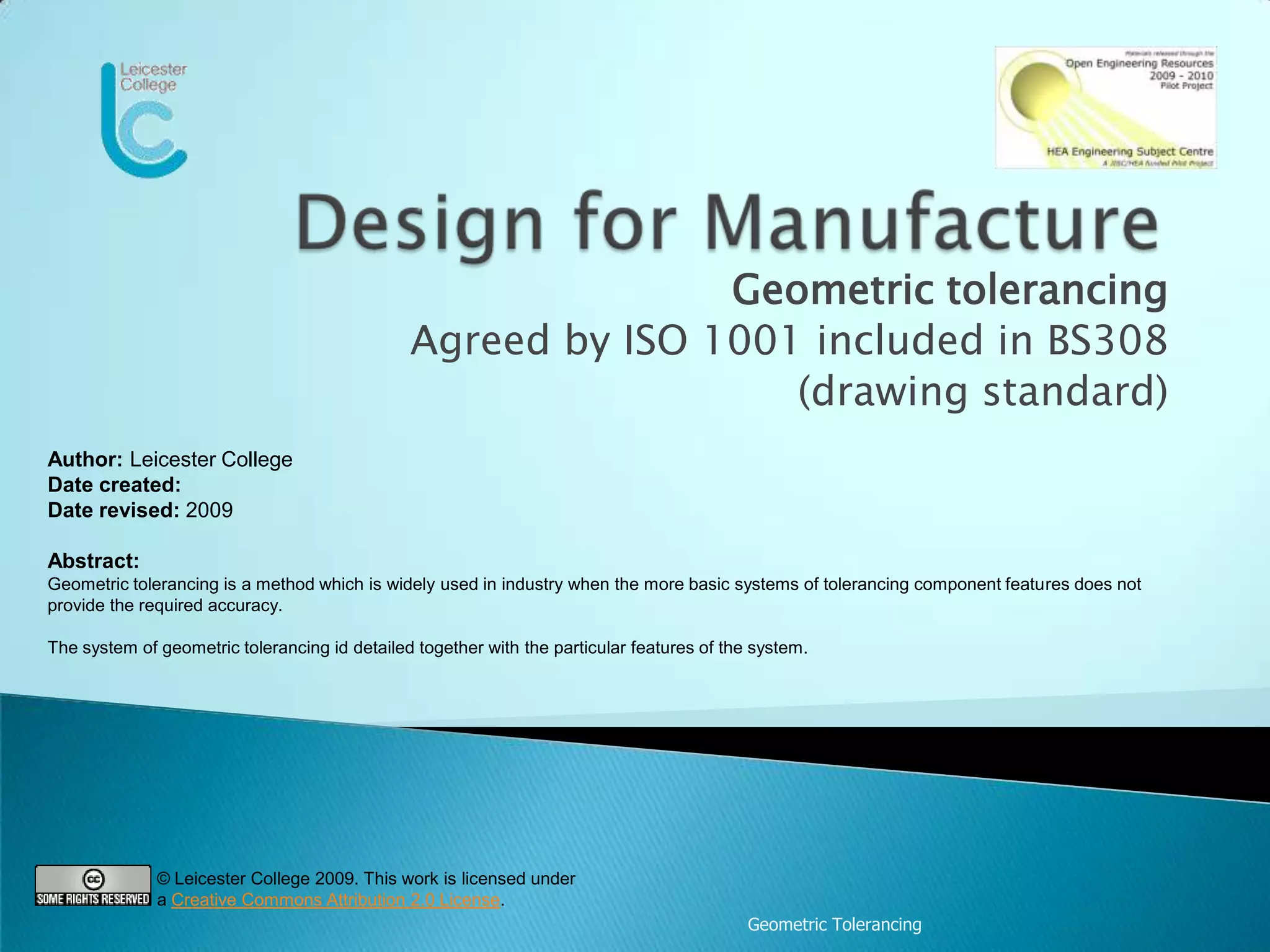

1. Geometric TolerancingDesign for ManufactureGeometric tolerancingAgreed by ISO 1001 included in BS308 (drawing standard) Author: Leicester CollegeDate created:Date revised: 2009Abstract: Geometric tolerancing is a method which is widely used in industry when the more basic systems of tolerancing component features does not provide the required accuracy. The system of geometric tolerancing id detailed together with the particular features of the system.© Leicester College 2009. This work is licensed under a Creative Commons Attribution 2.0 License.

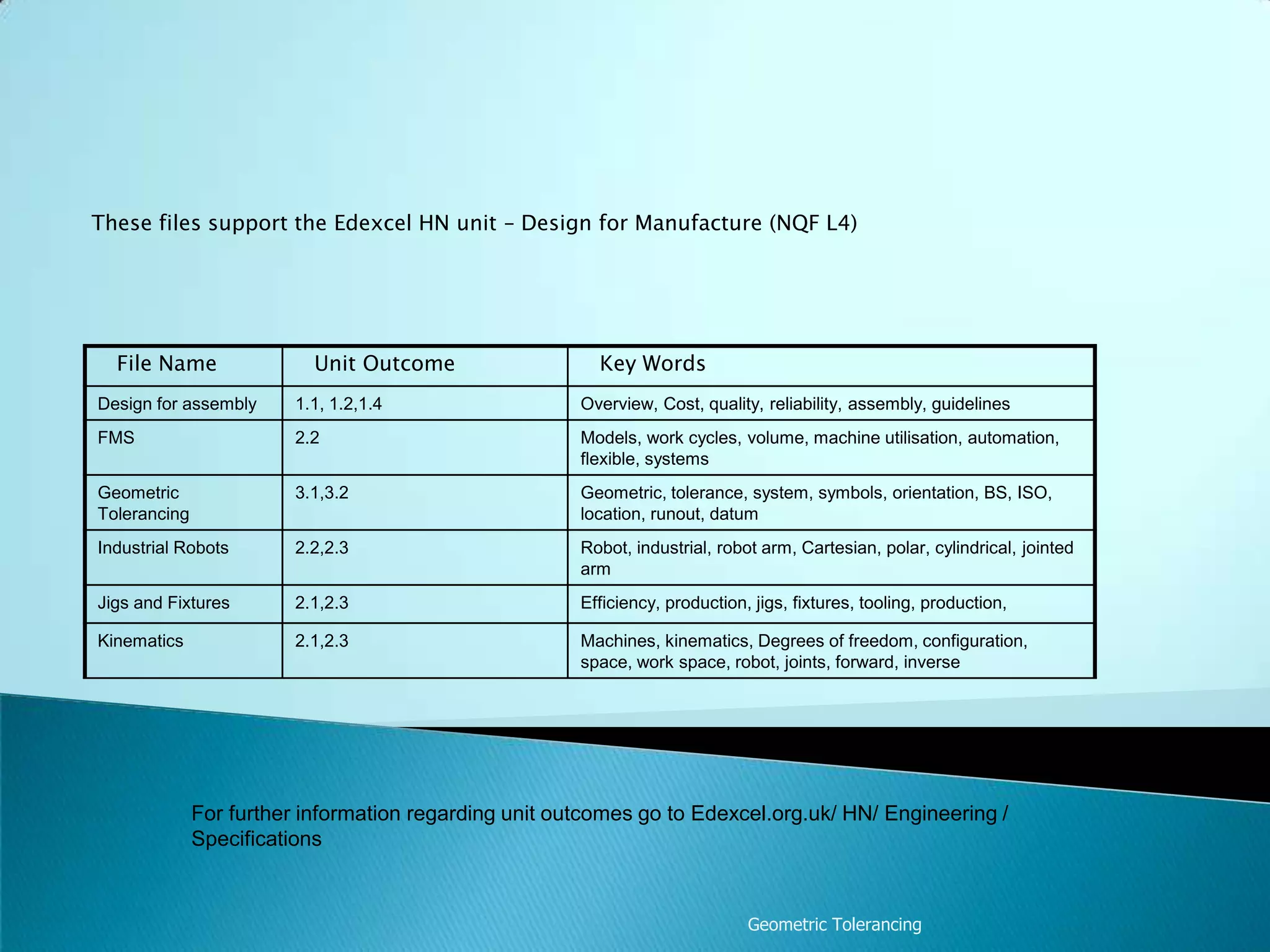

2. These files support the Edexcel HN unit – Design for Manufacture (NQF L4)For further information regarding unit outcomes go to Edexcel.org.uk/ HN/ Engineering / SpecificationsGeometric Tolerancing

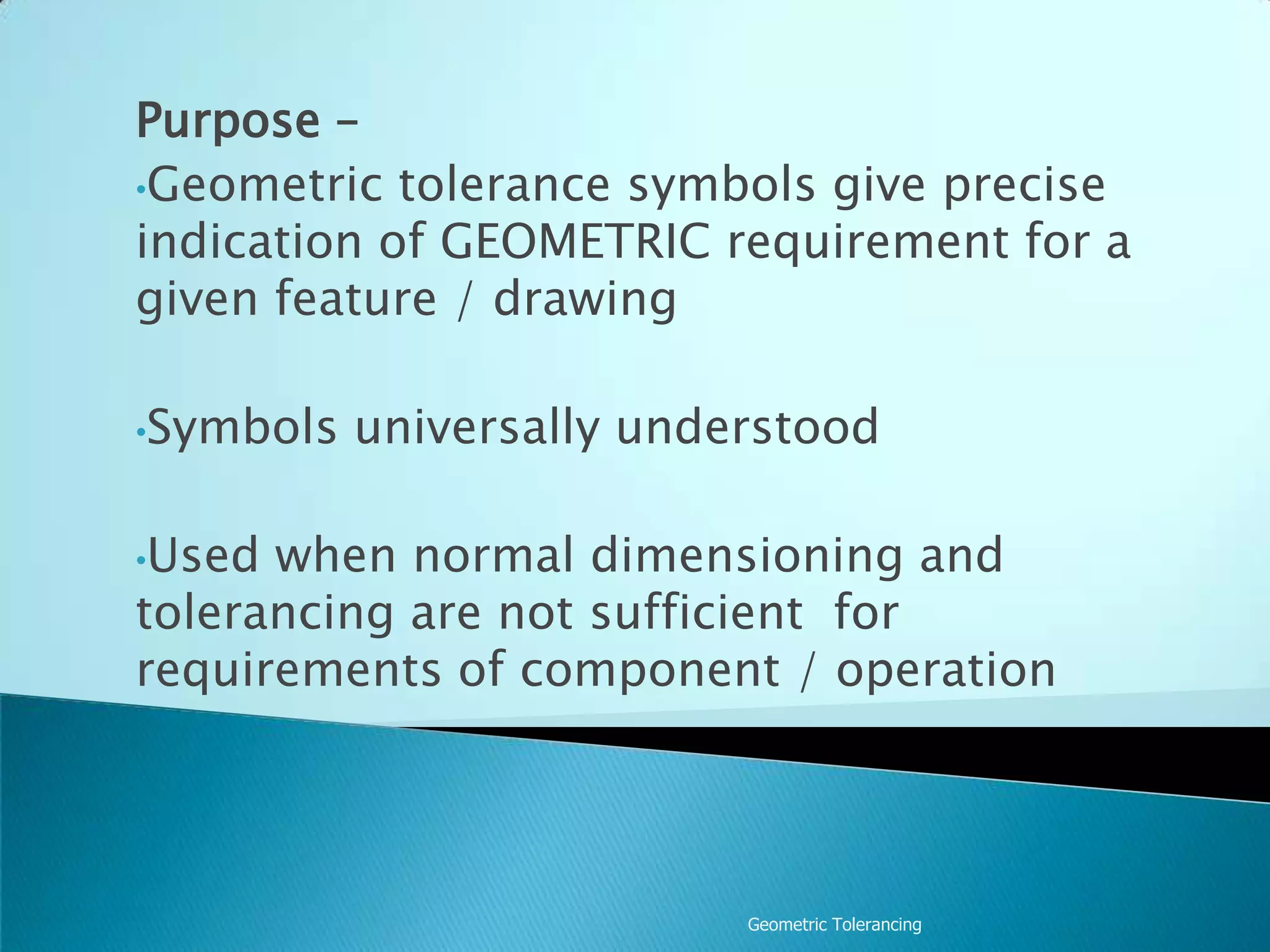

3. Geometric TolerancingPurpose – Geometric tolerance symbols give precise indication of GEOMETRIC requirement for a given feature / drawing

4. Symbols universally understood

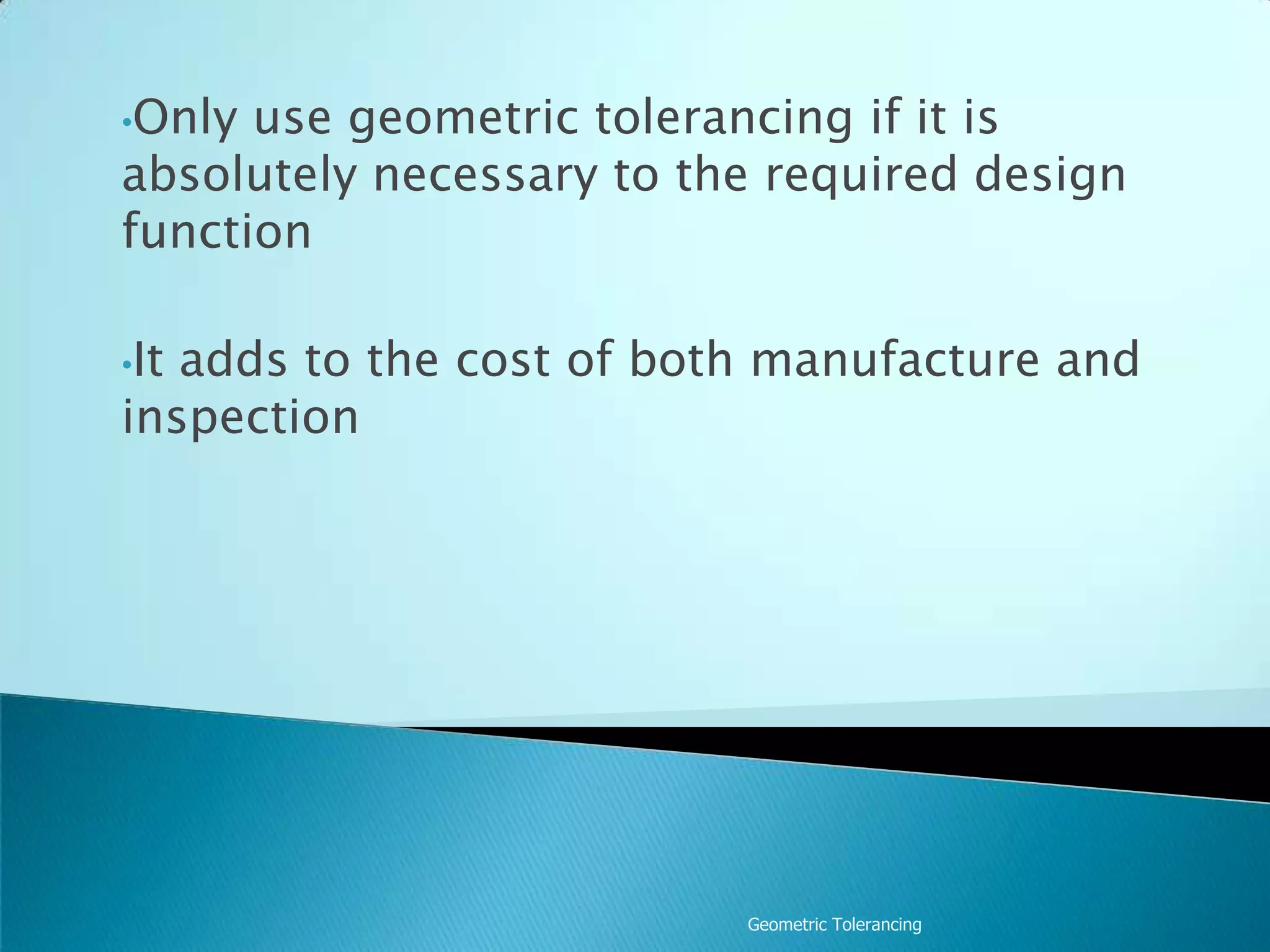

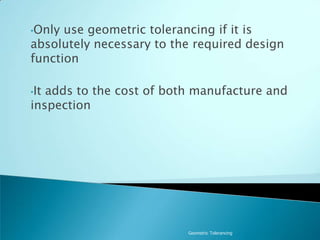

5. Used when normal dimensioning and tolerancing are not sufficient for requirements of component / operationGeometric TolerancingOnly use geometric tolerancing if it is absolutely necessary to the required design function

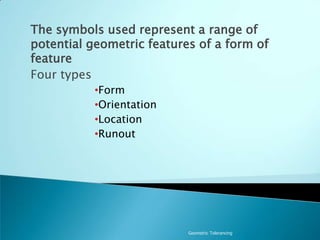

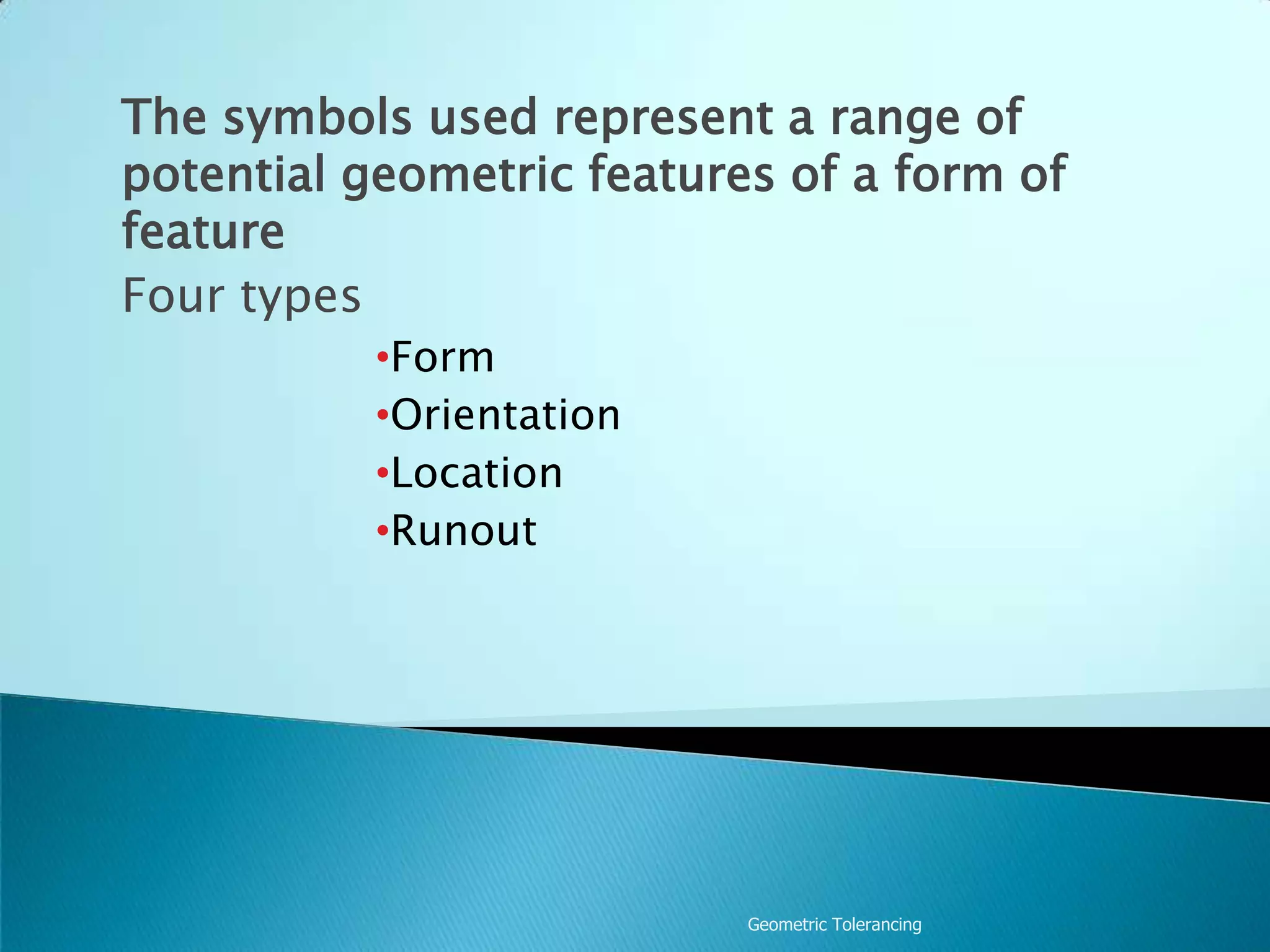

6. It adds to the cost of both manufacture and inspectionGeometric TolerancingThe symbols used represent a range of potential geometric features of a form of featureFour typesForm

7. Orientation

8. Location

9. RunoutGeometric TolerancingSymbol construction

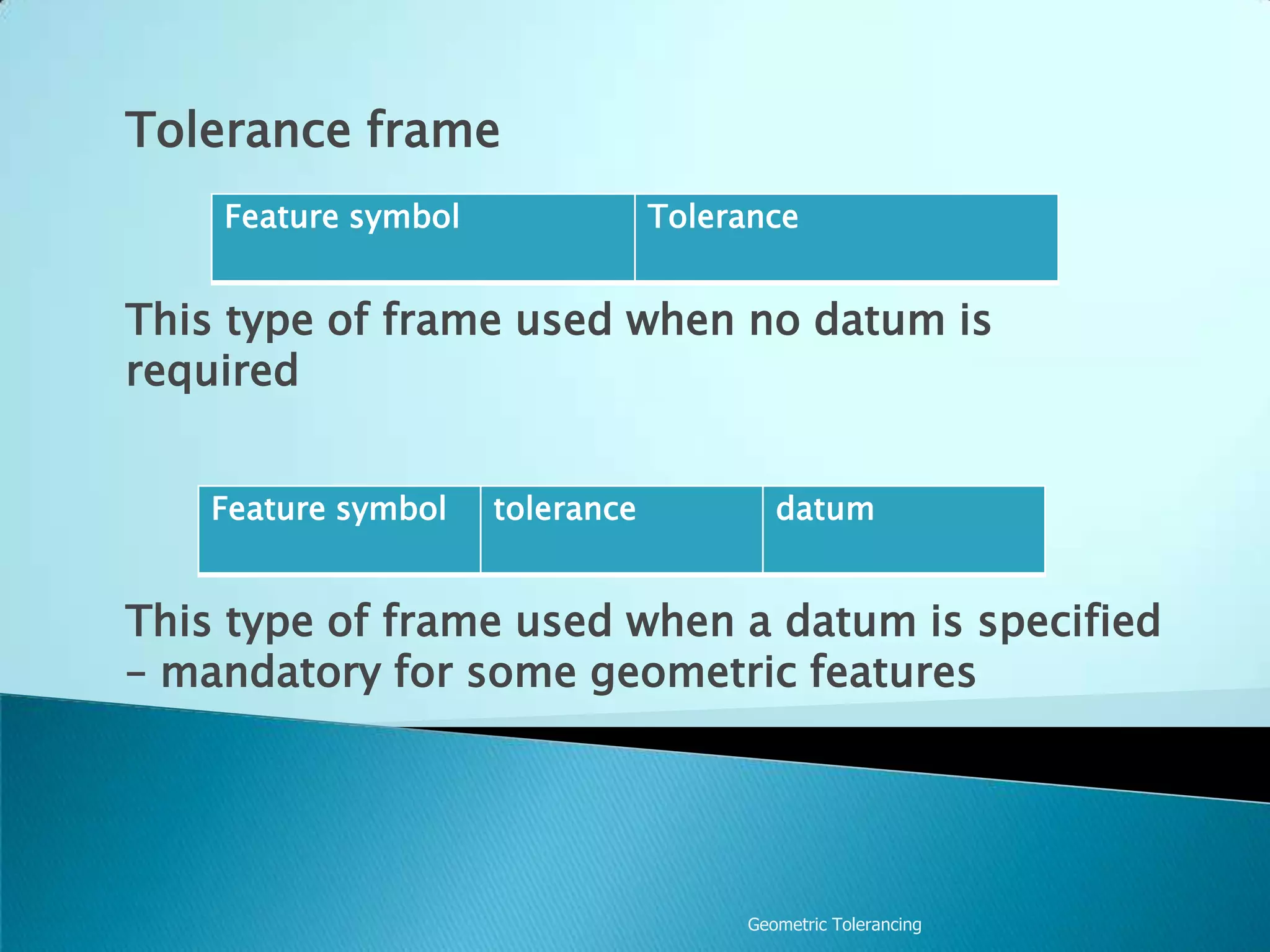

10. Geometric TolerancingTolerance frameThis type of frame used when no datum is requiredThis type of frame used when a datum is specified – mandatory for some geometric features

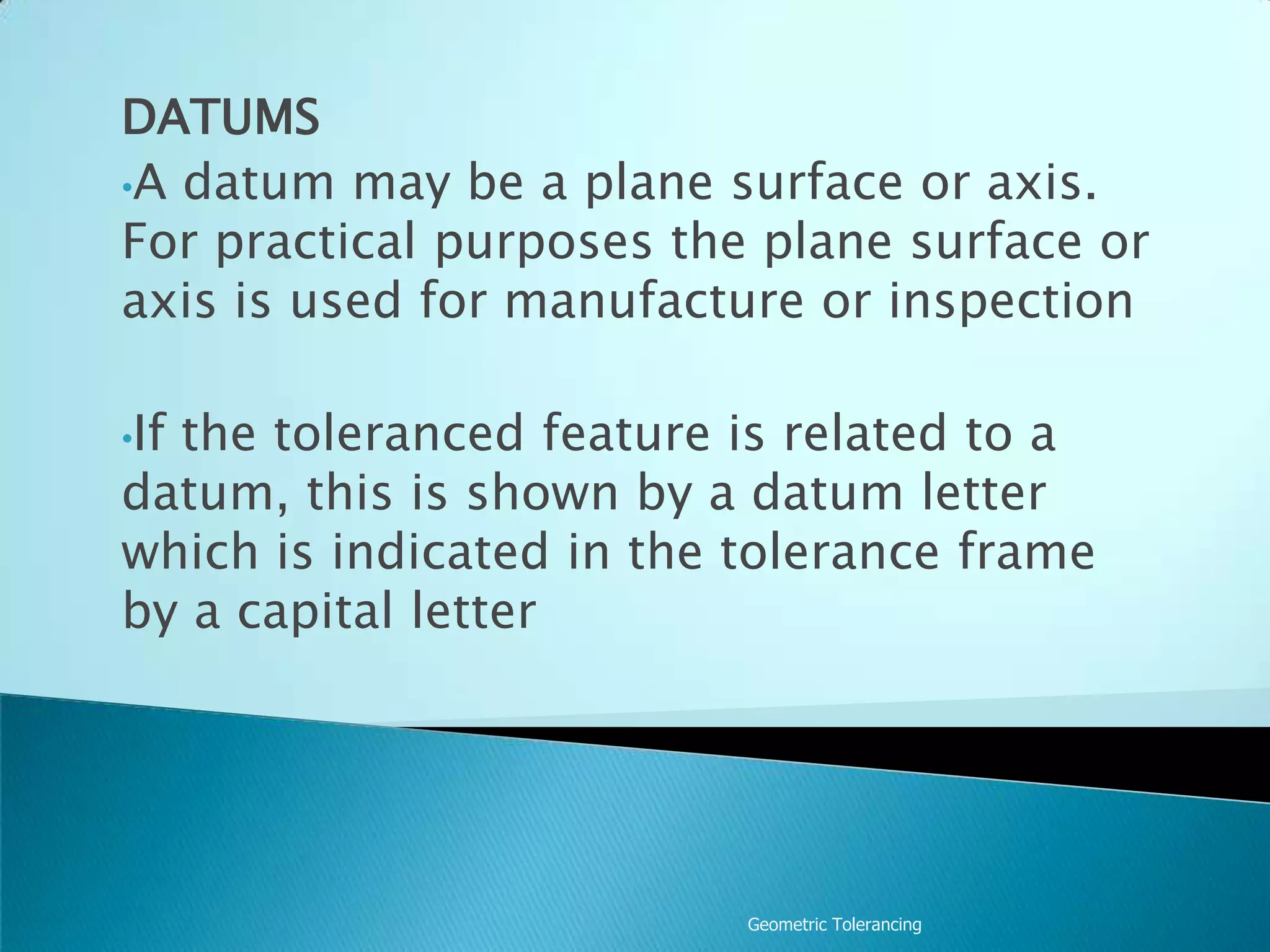

11. Geometric TolerancingDATUMSA datum may be a plane surface or axis. For practical purposes the plane surface or axis is used for manufacture or inspection

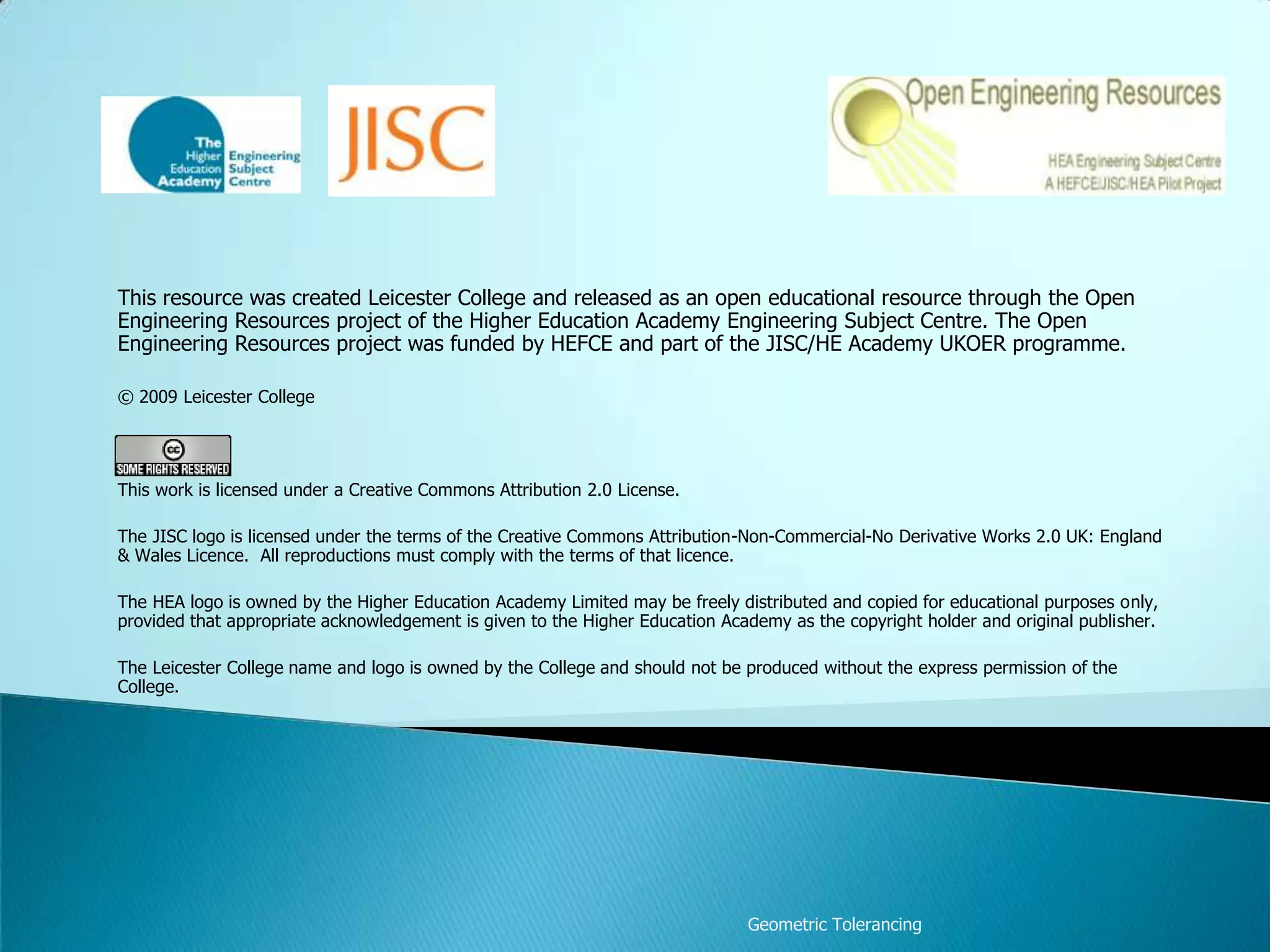

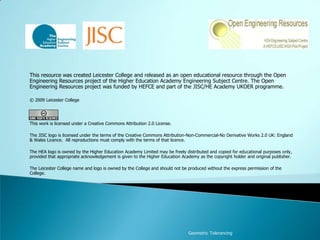

12. If the toleranced feature is related to a datum, this is shown by a datum letter which is indicated in the tolerance frame by a capital letterGeometric TolerancingThis resource was created Leicester College and released as an open educational resource through the Open Engineering Resources project of the Higher Education Academy Engineering Subject Centre. The Open Engineering Resources project was funded by HEFCE and part of the JISC/HE Academy UKOER programme.© 2009 Leicester CollegeThis work is licensed under a Creative Commons Attribution 2.0 License. The JISC logo is licensed under the terms of the Creative Commons Attribution-Non-Commercial-No Derivative Works 2.0 UK: England & Wales Licence. All reproductions must comply with the terms of that licence.The HEA logo is owned by the Higher Education Academy Limited may be freely distributed and copied for educational purposes only, provided that appropriate acknowledgement is given to the Higher Education Academy as the copyright holder and original publisher.The Leicester College name and logo is owned by the College and should not be produced without the express permission of the College.
