The GENETIC ALGORITHM is a model of machine learning which derives its behavior from a metaphor of the processes of EVOLUTION in nature. Genetic Algorithm (GA) is a search heuristic that mimics the process of natural selection. This heuristic (also sometimes called a metaheuristic) is routinely used to generate useful solutions to optimization and search problems.

1. GENETIC
ALGORITHM
Submitted by…
Pratheeban R
Register Number
103478165
Date
03/11/2012
Event
Seminar 1

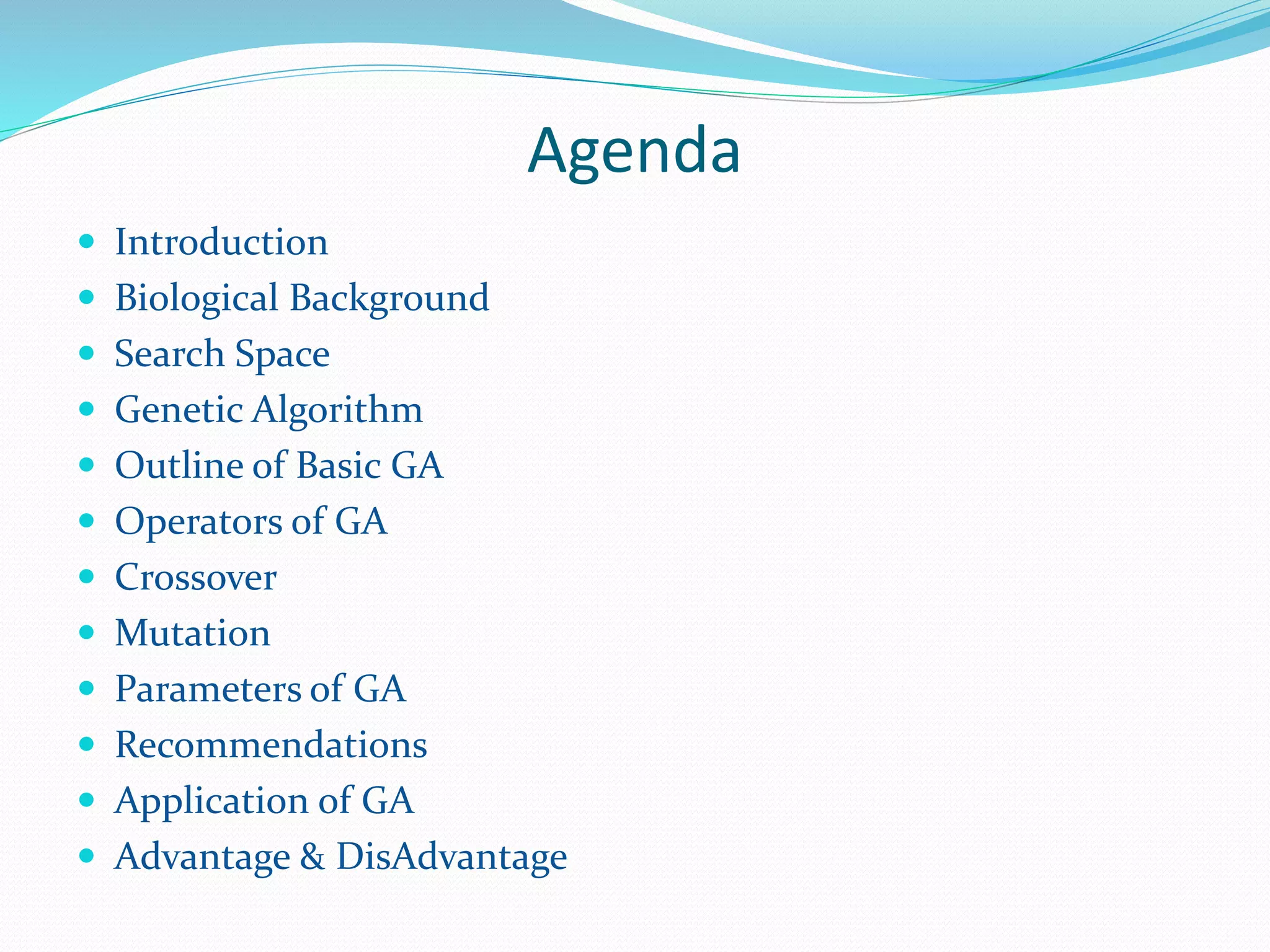

2. Agenda
 Introduction
 Biological Background
 Search Space
 Genetic Algorithm
 Outline of Basic GA
 Operators of GA
 Crossover
 Mutation
 Parameters of GA
 Recommendations
 Application of GA
 Advantage & DisAdvantage

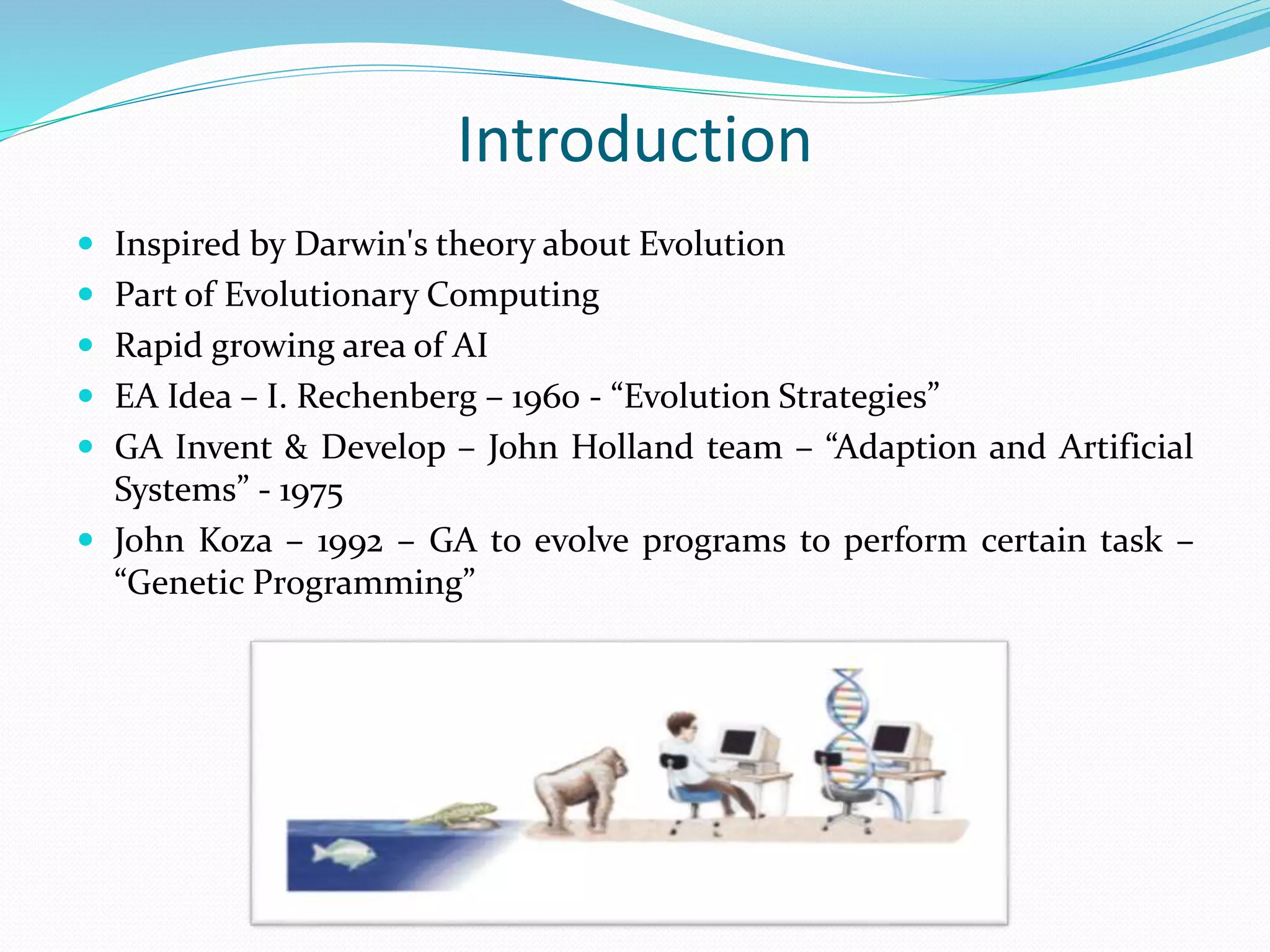

3. Introduction
 Inspired by Darwin's theory about Evolution
 Part of Evolutionary Computing
 Rapid growing area of AI
 EA Idea – I. Rechenberg – 1960 - “Evolution Strategies”
 GA Invent & Develop – John Holland team – “Adaption and Artificial
Systems” - 1975
 John Koza – 1992 – GA to evolve programs to perform certain task –
“Genetic Programming”

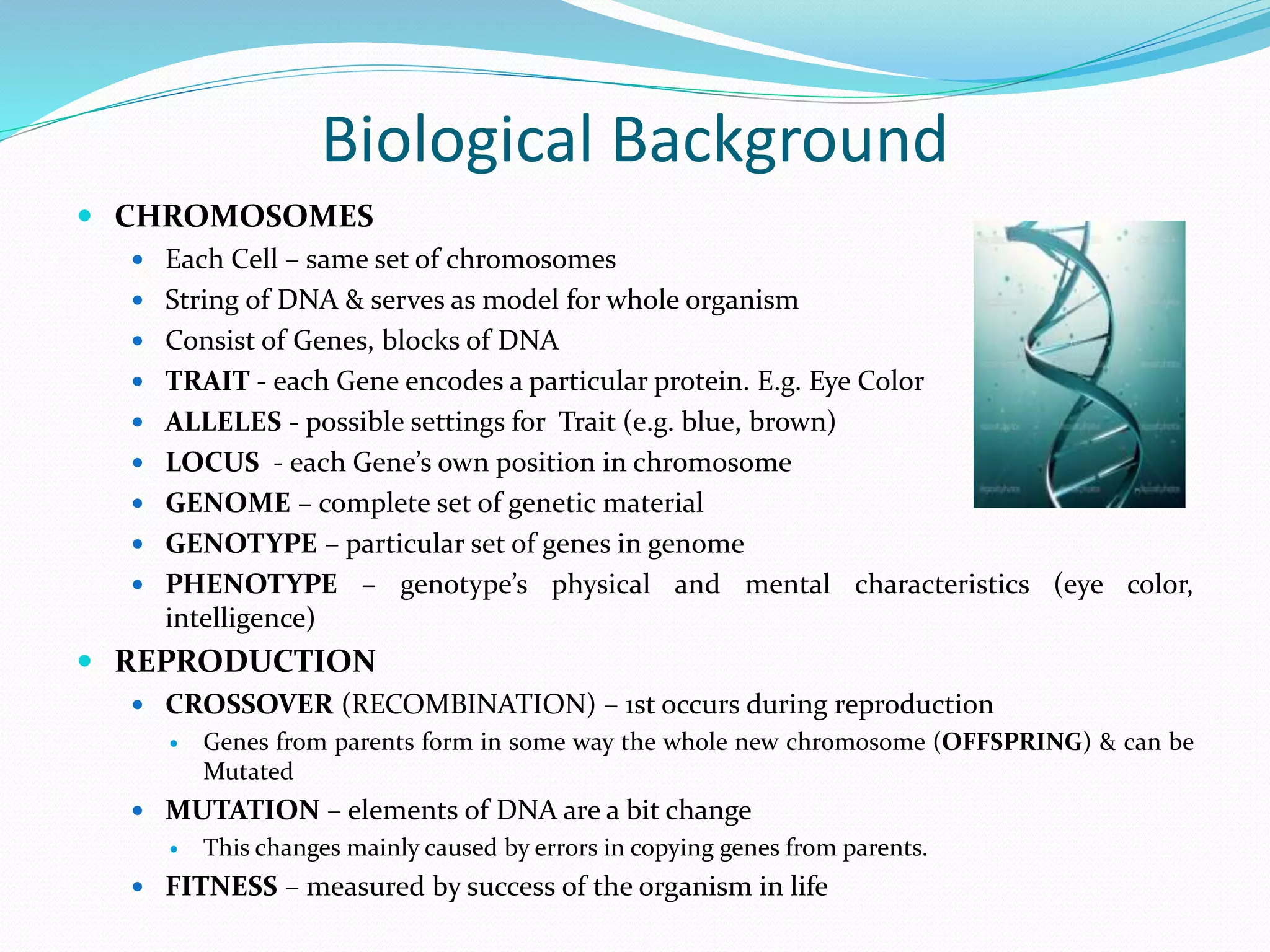

4. Biological Background
 CHROMOSOMES
 Each Cell – same set of chromosomes
 String of DNA & serves as model for whole organism
 Consist of Genes, blocks of DNA
 TRAIT - each Gene encodes a particular protein. E.g. Eye Color
 ALLELES - possible settings for Trait (e.g. blue, brown)
 LOCUS - each Gene’s own position in chromosome
 GENOME – complete set of genetic material
 GENOTYPE – particular set of genes in genome
 PHENOTYPE – genotype’s physical and mental characteristics (eye
color, intelligence)
 REPRODUCTION
 CROSSOVER (RECOMBINATION) – 1st occurs during reproduction
 Genes from parents form in some way the whole new chromosome (OFFSPRING) & can be
Mutated
 MUTATION – elements of DNA are a bit change
 This changes mainly caused by errors in copying genes from parents.
 FITNESS – measured by success of the organism in life

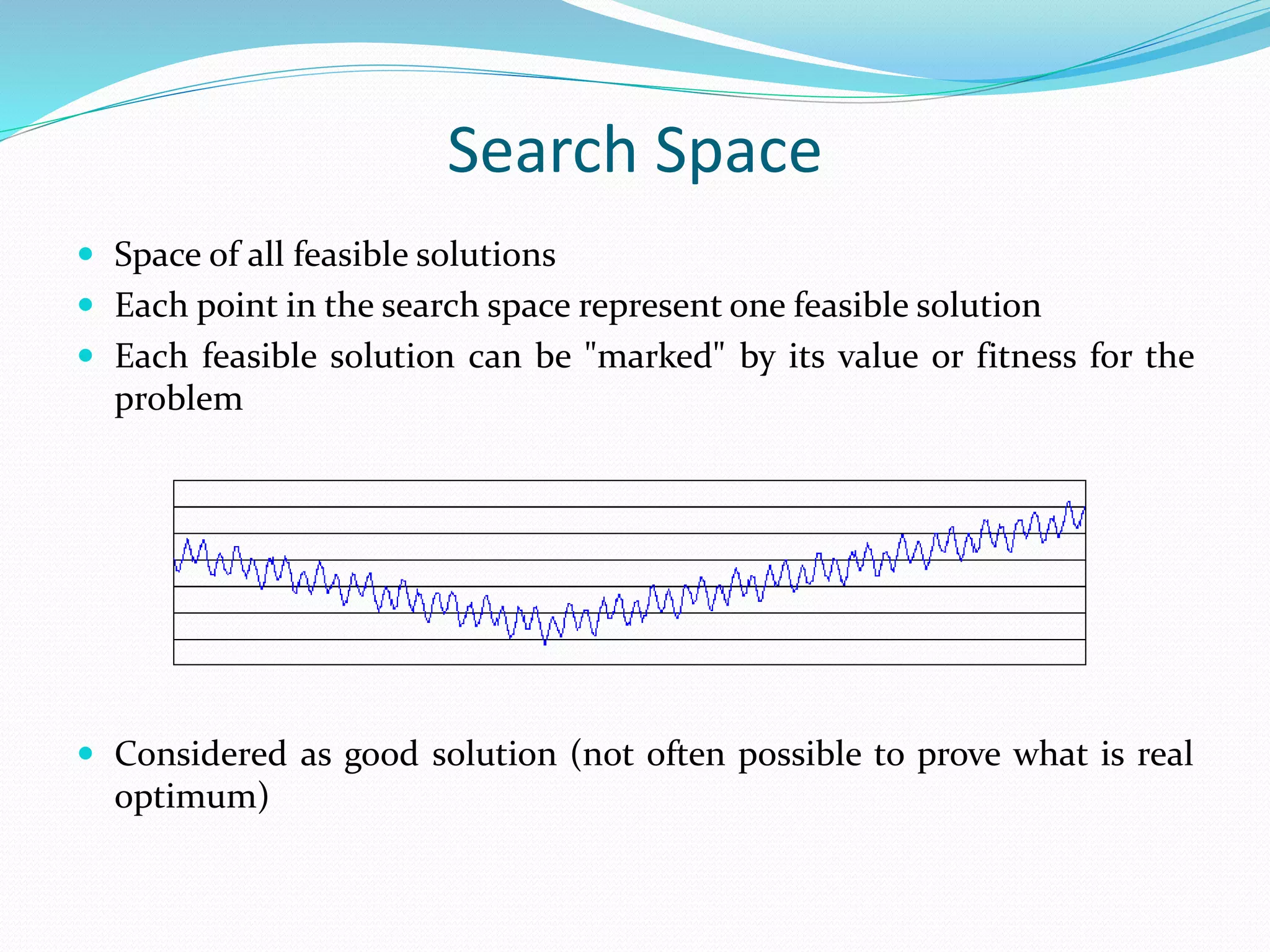

5. Search Space
 Space of all feasible solutions
 Each point in the search space represent one feasible solution
 Each feasible solution can be "marked" by its value or fitness for the
problem
 Considered as good solution (not often possible to prove what is real
optimum)

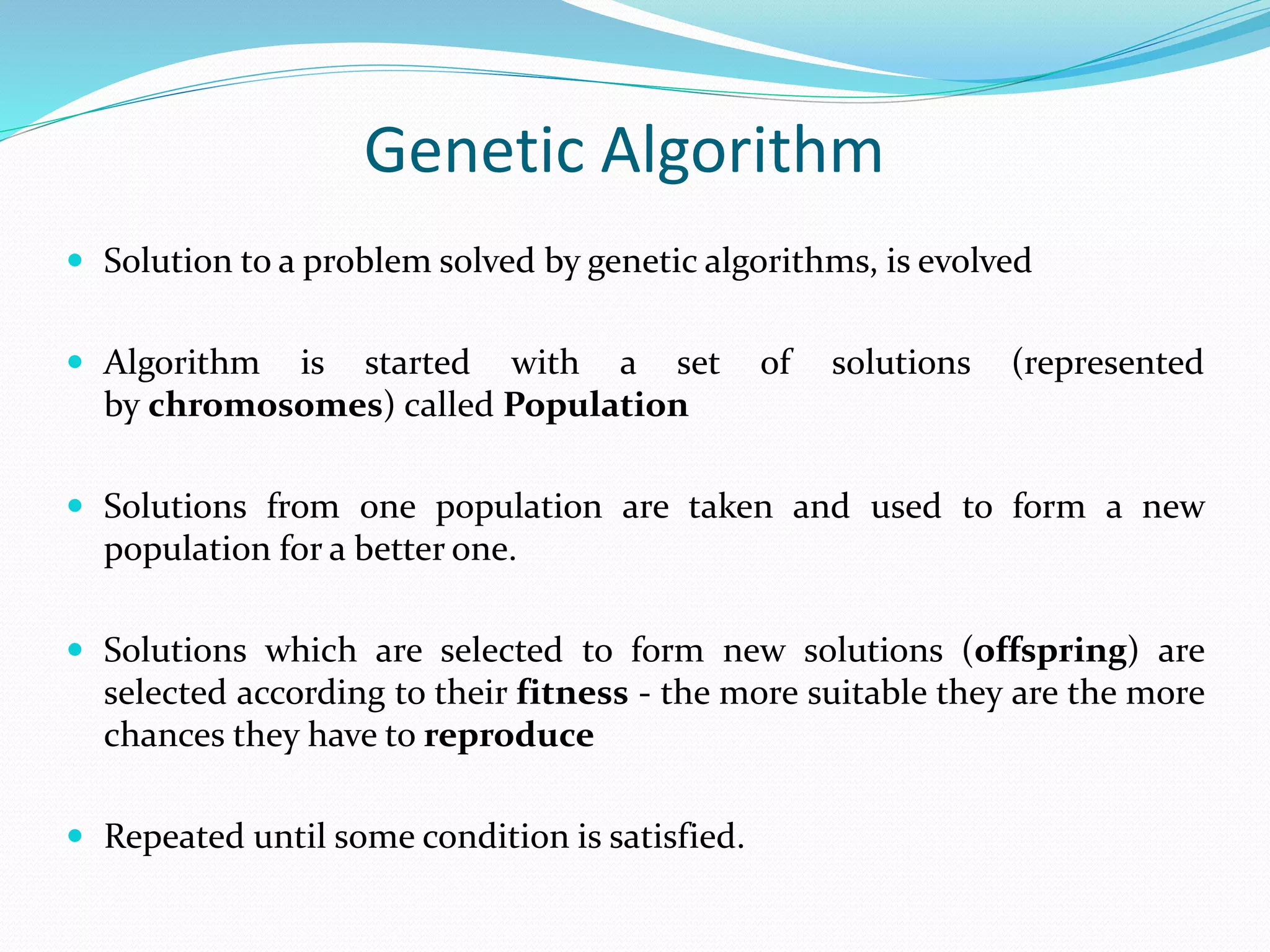

6. Genetic Algorithm
 Solution to a problem solved by genetic algorithms, is evolved
 Algorithm is started with a set of solutions (represented
by chromosomes) called Population
 Solutions from one population are taken and used to form a new
population for a better one.
 Solutions which are selected to form new solutions (offspring) are
selected according to their fitness - the more suitable they are the more
chances they have to reproduce
 Repeated until some condition is satisfied.

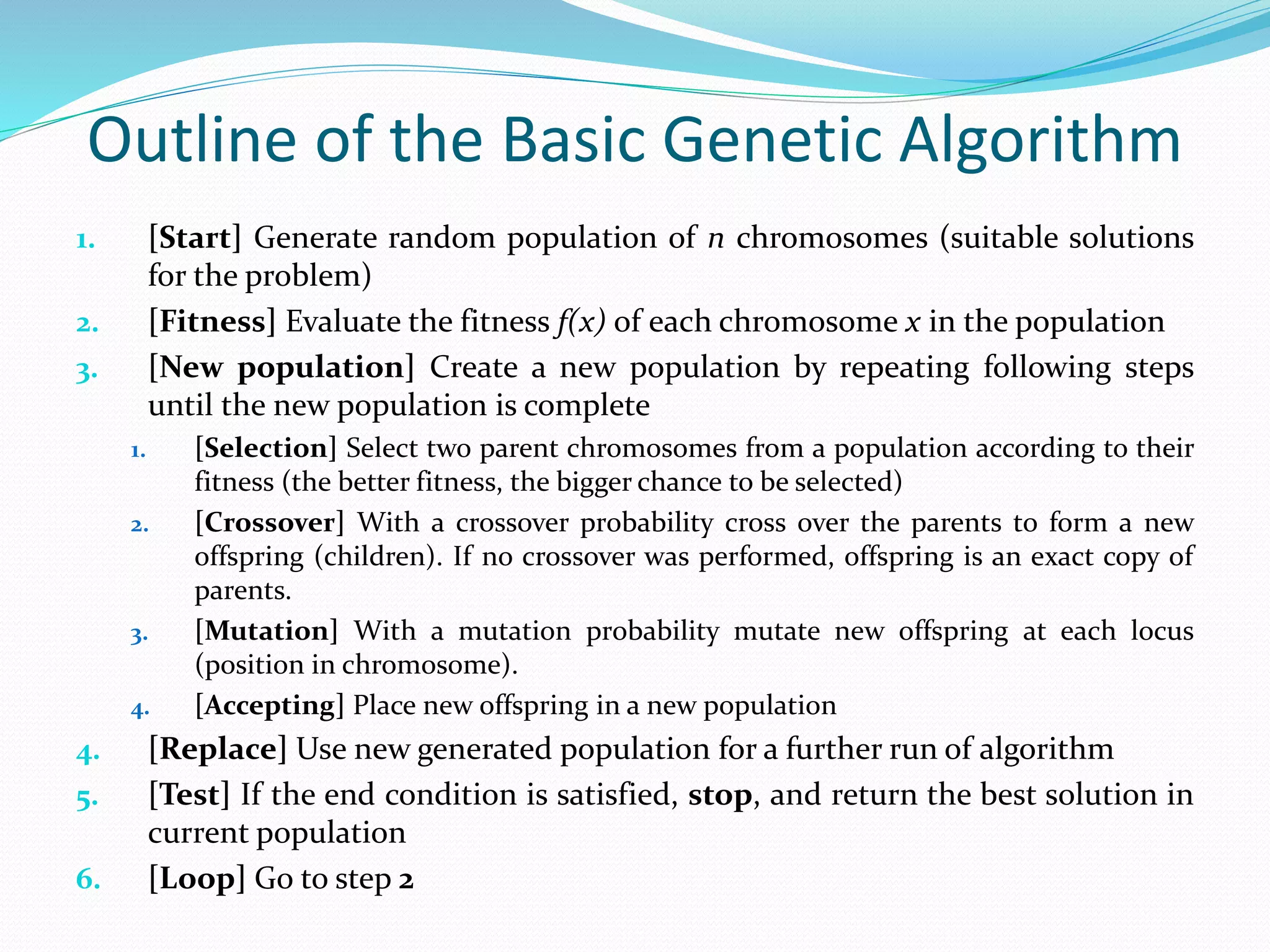

7. Outline of the Basic Genetic Algorithm
1. [Start] Generate random population of n chromosomes (suitable solutions
for the problem)
2. [Fitness] Evaluate the fitness f(x) of each chromosome x in the population
3. [New population] Create a new population by repeating following steps
until the new population is complete
1. [Selection] Select two parent chromosomes from a population according to their
fitness (the better fitness, the bigger chance to be selected)
2. [Crossover] With a crossover probability cross over the parents to form a new
offspring (children). If no crossover was performed, offspring is an exact copy of
parents.
3. [Mutation] With a mutation probability mutate new offspring at each locus
(position in chromosome).
4. [Accepting] Place new offspring in a new population
4. [Replace] Use new generated population for a further run of algorithm
5. [Test] If the end condition is satisfied, stop, and return the best solution in
current population
6. [Loop] Go to step 2

8. Operators of GA
Crossover + Mutation
 Encoding of a Chromosome
 represent chromosome in Binary String
 each chromosome has one binary string
 each bit in this string can represent some characteristic of the
solution
(OR)
 whole string can represent a number
 many ways to Encode – Depends on solved problem
Chromosome 1 1101100100110110
Chromosome 2 1101111000011110

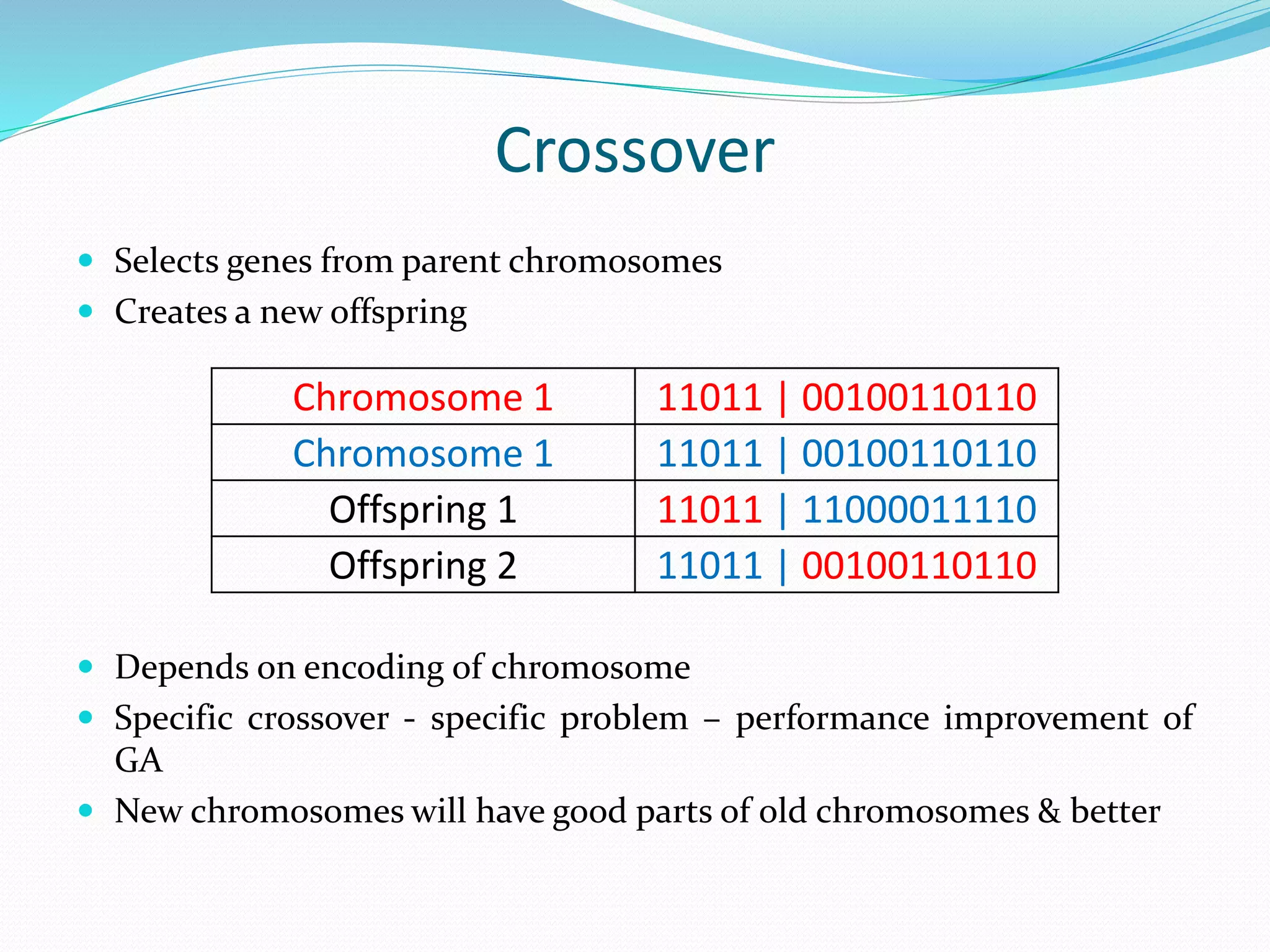

9. Crossover
 Selects genes from parent chromosomes
 Creates a new offspring
 Depends on encoding of chromosome
 Specific crossover - specific problem – performance improvement of
GA
 New chromosomes will have good parts of old chromosomes & better
Chromosome 1 11011 | 00100110110
Chromosome 1 11011 | 00100110110
Offspring 1 11011 | 11000011110
Offspring 2 11011 | 00100110110

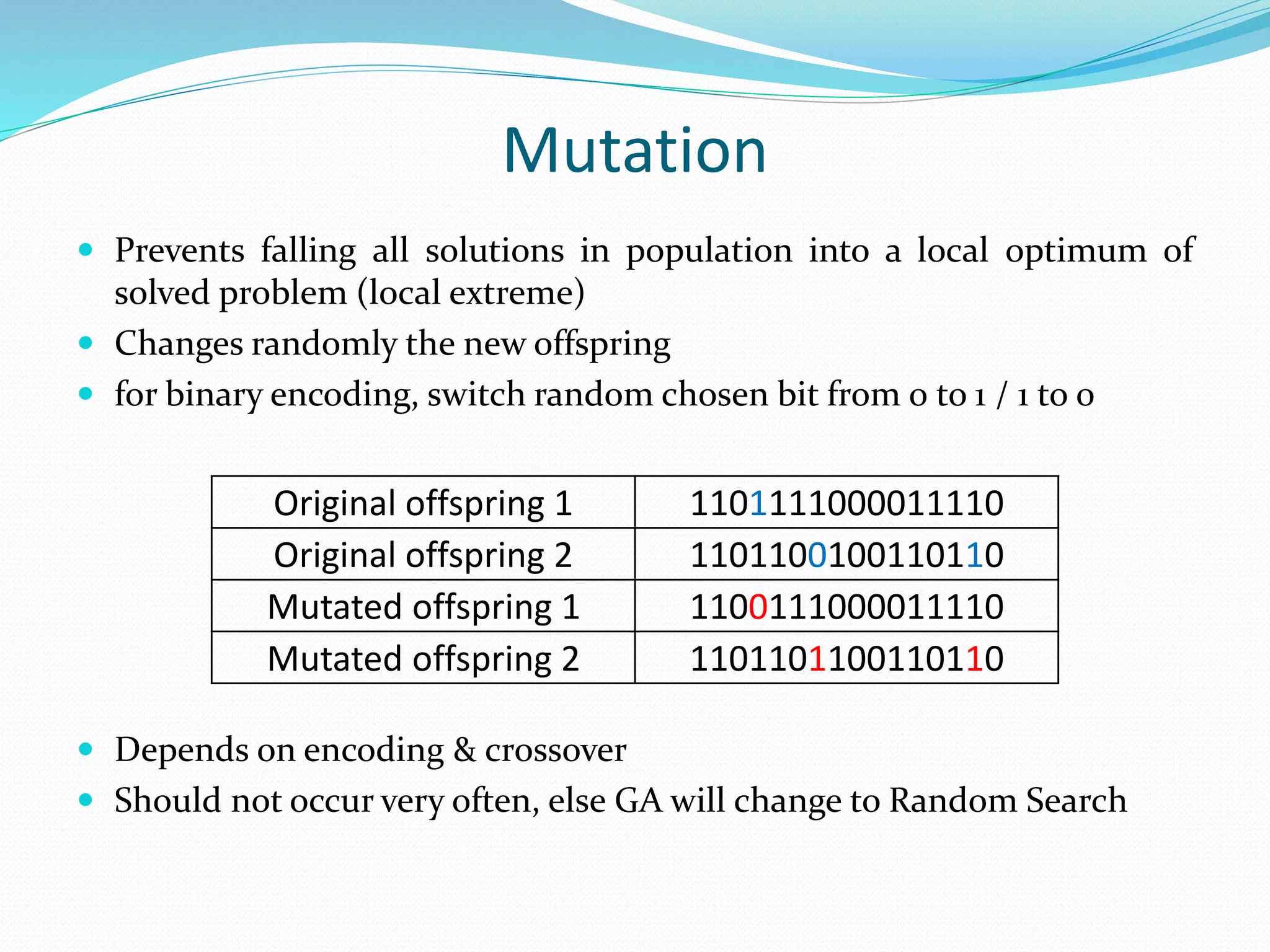

10. Mutation
 Prevents falling all solutions in population into a local optimum of
solved problem (local extreme)
 Changes randomly the new offspring
 for binary encoding, switch random chosen bit from 0 to 1 / 1 to 0
 Depends on encoding & crossover
 Should not occur very often, else GA will change to Random Search
Original offspring 1 1101111000011110
Original offspring 2 1101100100110110
Mutated offspring 1 1100111000011110
Mutated offspring 2 1101101100110110

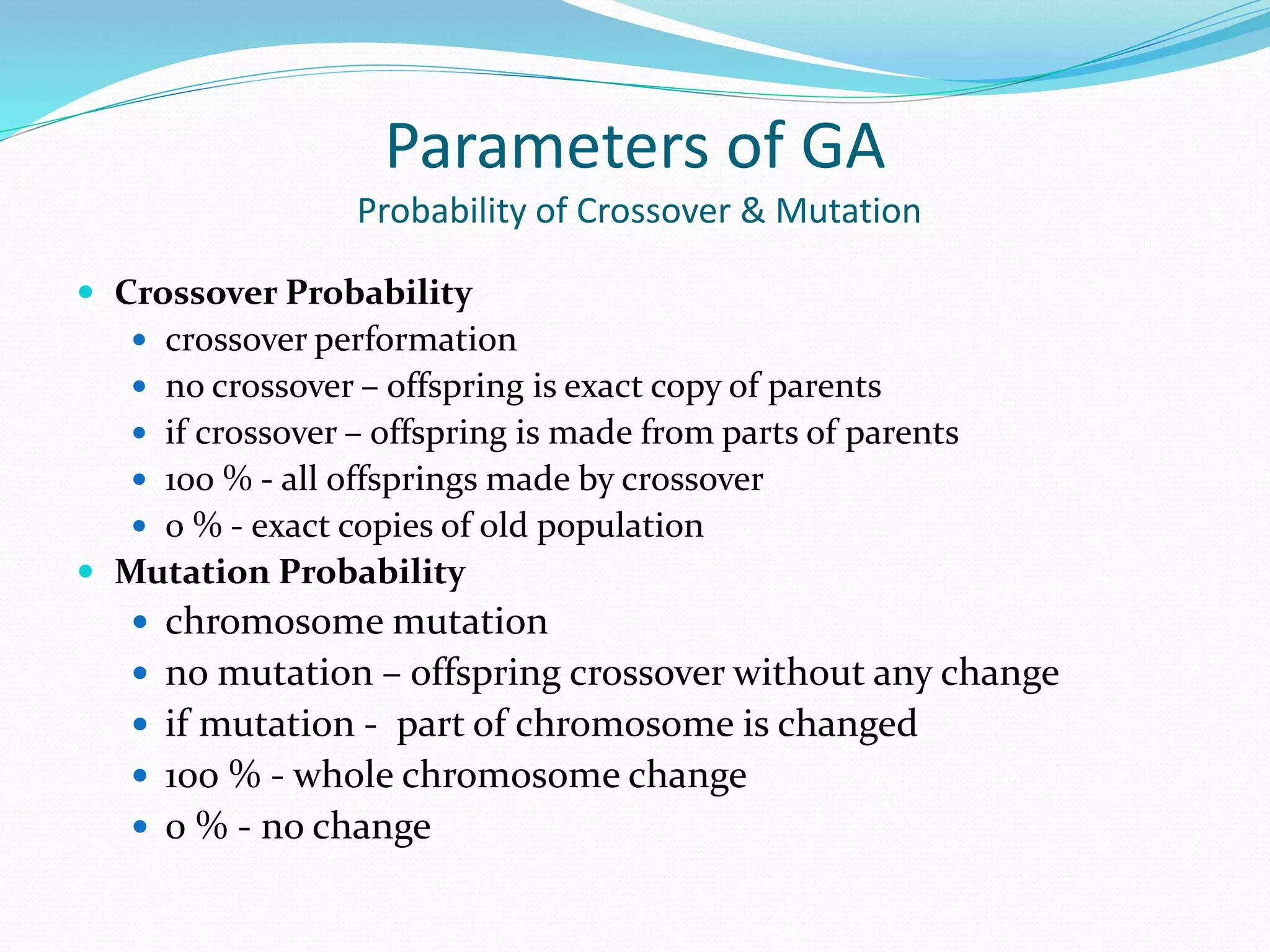

11. Parameters of GA
Probability of Crossover & Mutation
 Crossover Probability
 crossover performation
 no crossover – offspring is exact copy of parents
 if crossover – offspring is made from parts of parents
 100 % - all offsprings made by crossover
 0 % - exact copies of old population
 Mutation Probability
 chromosome mutation
 no mutation – offspring crossover without any change
 if mutation - part of chromosome is changed
 100 % - whole chromosome change
 0 % - no change

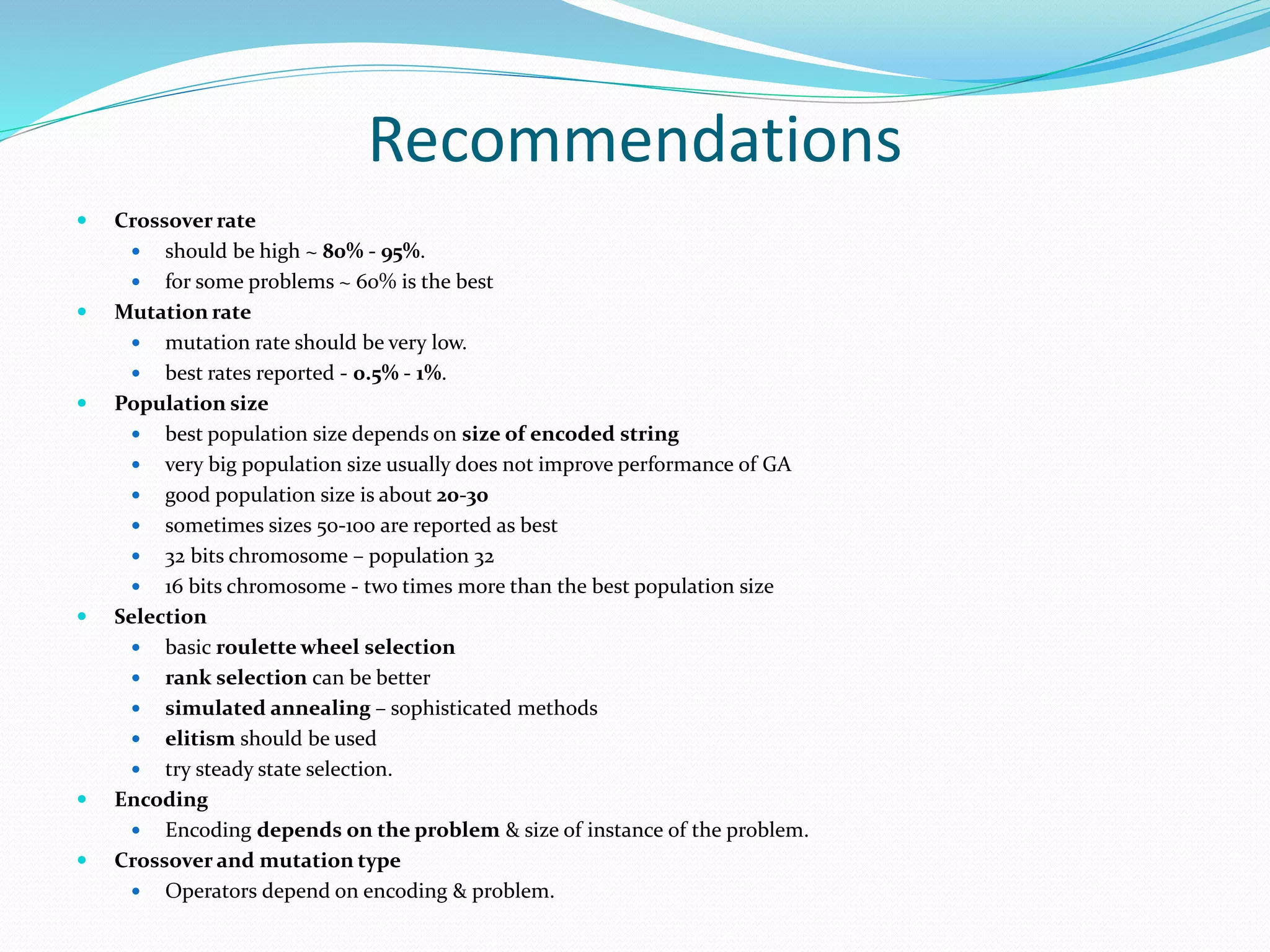

12. Recommendations
 Crossover rate
 should be high ~ 80% - 95%.
 for some problems ~ 60% is the best
 Mutation rate
 mutation rate should be very low.
 best rates reported - 0.5% - 1%.
 Population size
 best population size depends on size of encoded string
 very big population size usually does not improve performance of GA
 good population size is about 20-30
 sometimes sizes 50-100 are reported as best
 32 bits chromosome – population 32
 16 bits chromosome - two times more than the best population size
 Selection
 basic roulette wheel selection
 rank selection can be better
 simulated annealing – sophisticated methods
 elitism should be used
 try steady state selection.
 Encoding
 Encoding depends on the problem & size of instance of the problem.
 Crossover and mutation type
 Operators depend on encoding & problem.

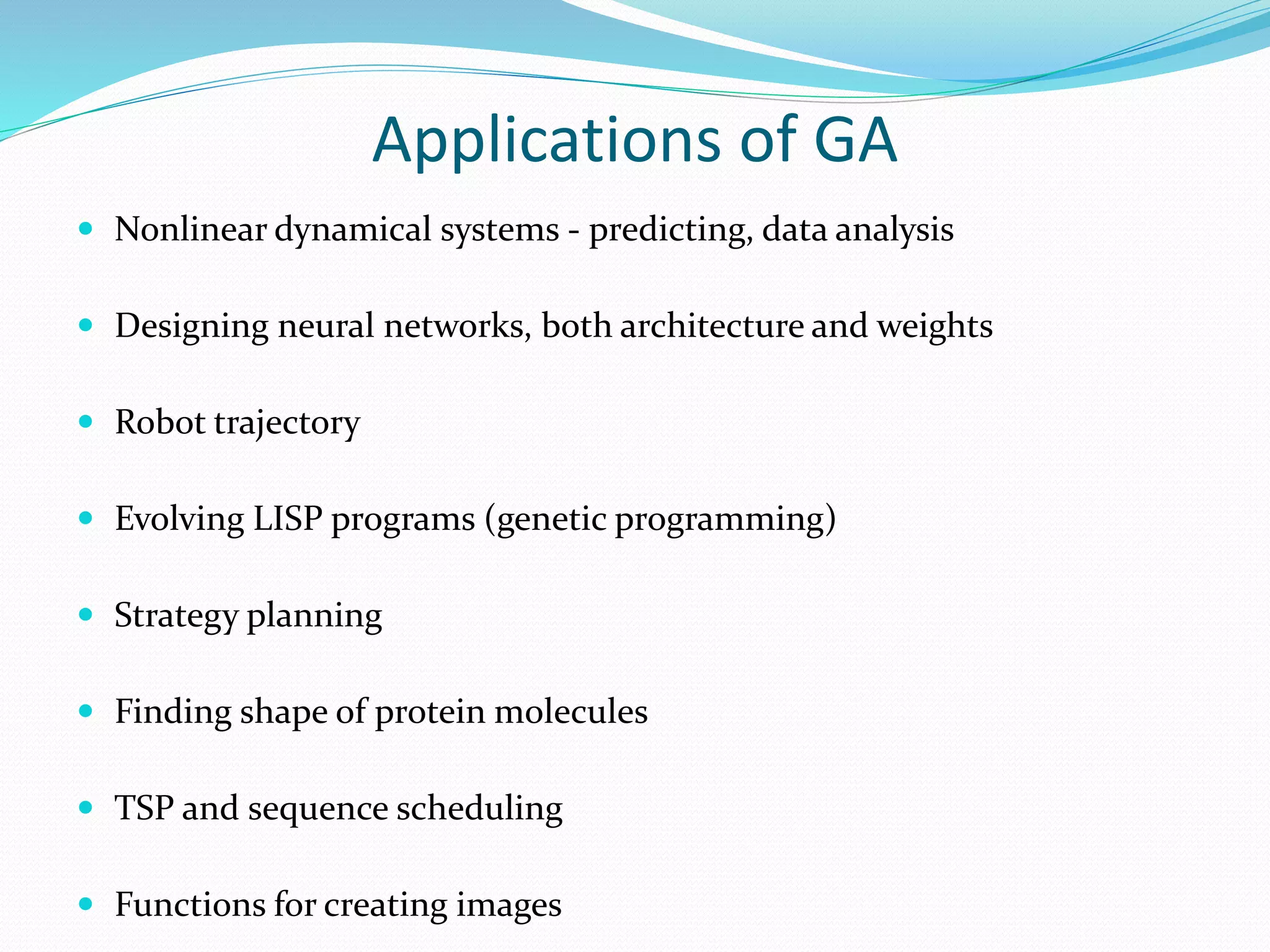

13. Applications of GA
 Nonlinear dynamical systems - predicting, data analysis
 Designing neural networks, both architecture and weights
 Robot trajectory
 Evolving LISP programs (genetic programming)
 Strategy planning
 Finding shape of protein molecules
 TSP and sequence scheduling
 Functions for creating images

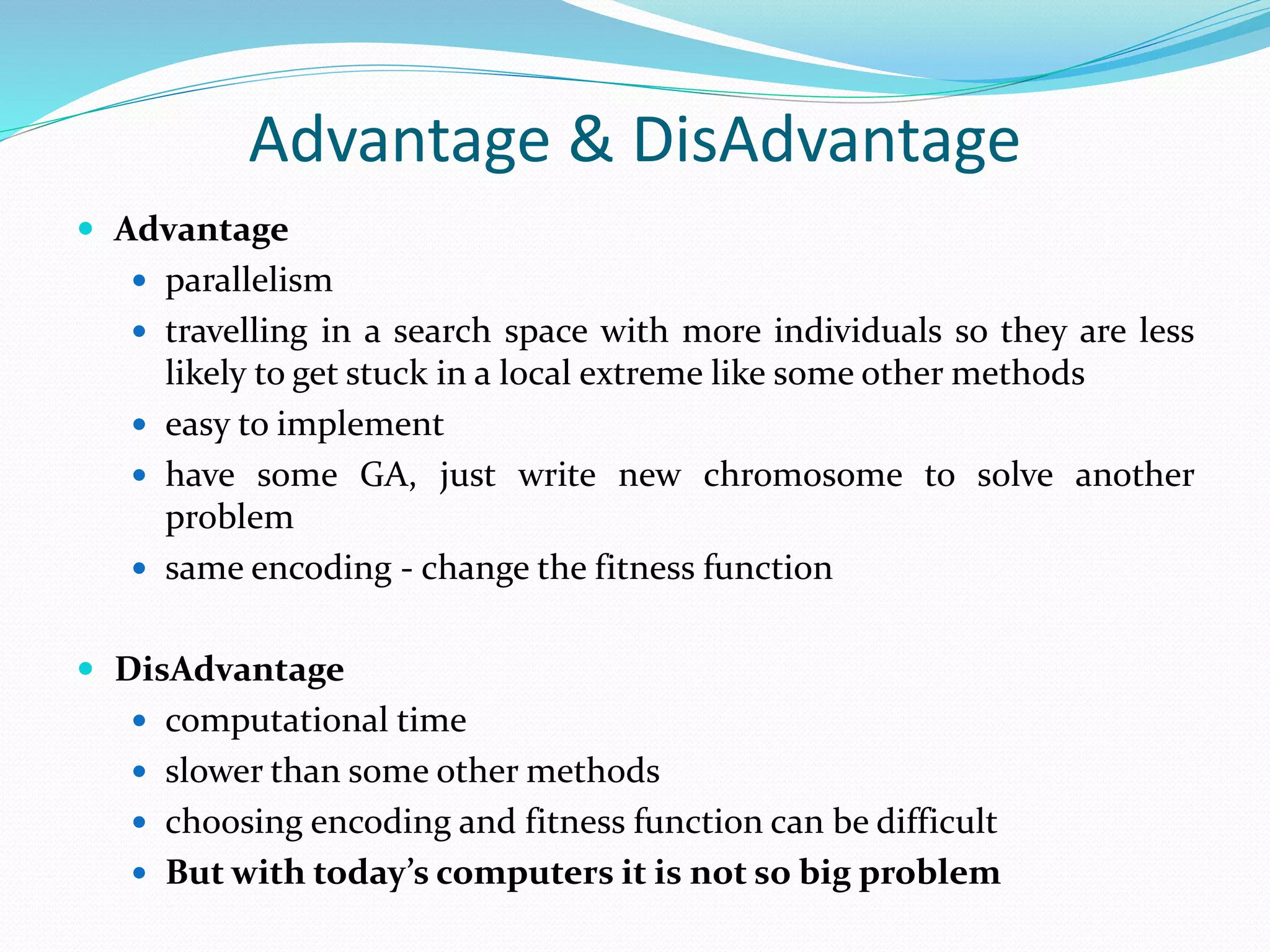

14. Advantage & DisAdvantage
 Advantage
 parallelism
 travelling in a search space with more individuals so they are less
likely to get stuck in a local extreme like some other methods
 easy to implement
 have some GA, just write new chromosome to solve another
problem
 same encoding - change the fitness function
 DisAdvantage
 computational time
 slower than some other methods
 choosing encoding and fitness function can be difficult
 But with today’s computers it is not so big problem

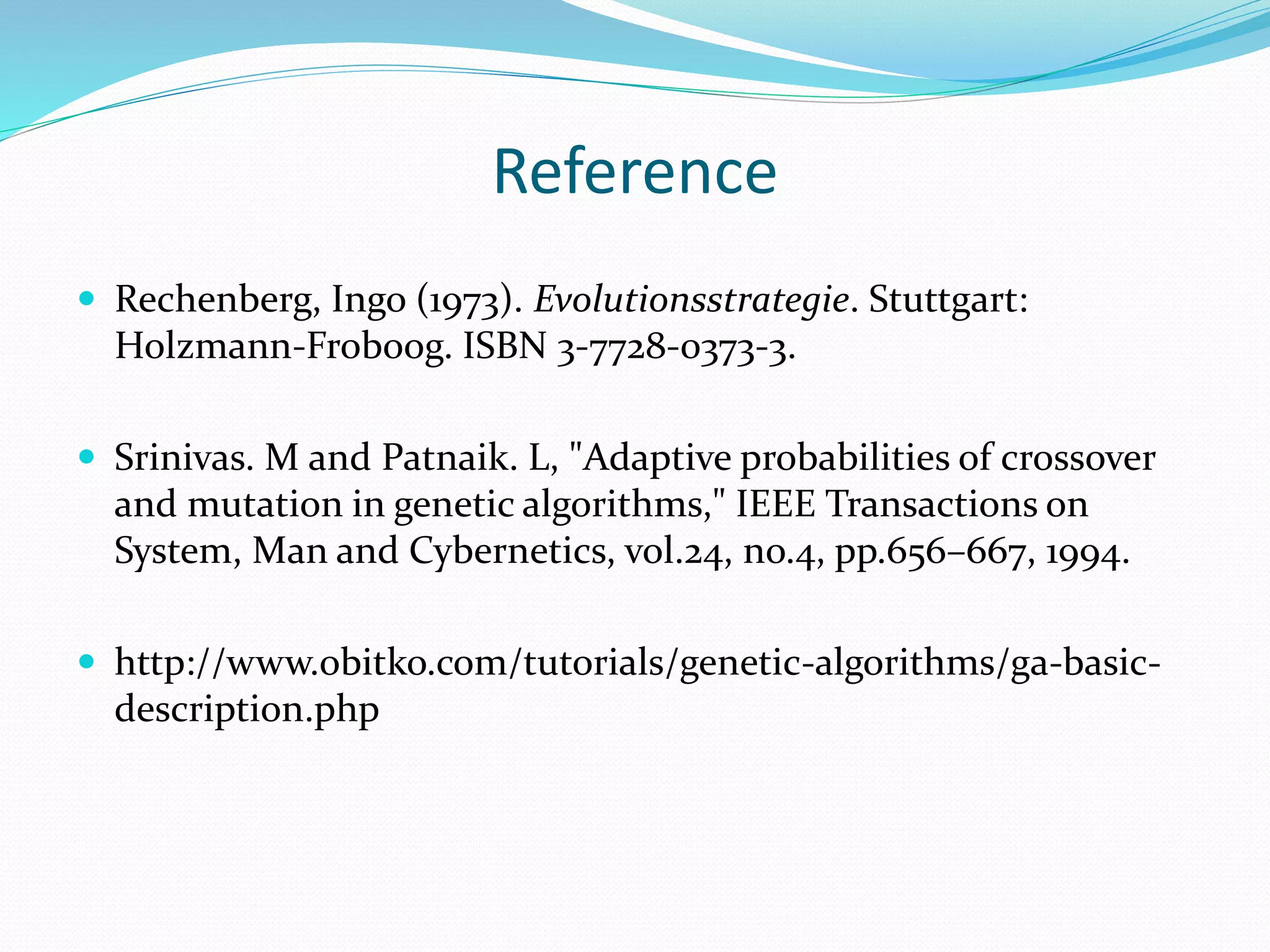

15. Reference
 Rechenberg, Ingo (1973). Evolutionsstrategie. Stuttgart:
Holzmann-Froboog. ISBN 3-7728-0373-3.
 Srinivas. M and Patnaik. L, "Adaptive probabilities of crossover
and mutation in genetic algorithms," IEEE Transactions on
System, Man and Cybernetics, vol.24, no.4, pp.656–667, 1994.
 http://www.obitko.com/tutorials/genetic-algorithms/ga-basic-
description.php
