1. Polybase and
Time Travel
(Temporal Tables)
March 2nd, 2016

2. About
• Sr. Product Manager with IDERA
– Performance Monitoring of Microsoft BI stack
– Backup and Recovery of Microsoft SQL Server
• Geek Sync Presenter
• Blog Contributor
• HSSUG presenter
• Over 25 years experience
– BI, Data Architect
– DBA
– Developer
– Data Analyst

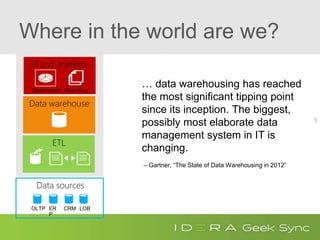

3. Where in the world are we?
3
… data warehousing has reached
the most significant tipping point
since its inception. The biggest,
possibly most elaborate data
management system in IT is
changing.
– Gartner, “The State of Data Warehousing in 2012”
Data sources
ETL
Data warehouse
BI and analytics

4. The Cool Kid’s Data
Warehouse
4

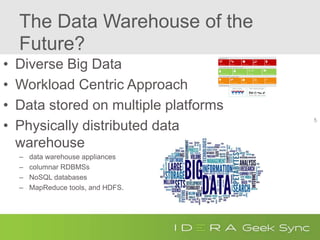

5. The Data Warehouse of the
Future?
• Diverse Big Data
• Workload Centric Approach
• Data stored on multiple platforms
• Physically distributed data
warehouse
– data warehouse appliances
– columnar RDBMSs
– NoSQL databases
– MapReduce tools, and HDFS.
5

6. The Data Warehouse of the Future…Its
Here!
6

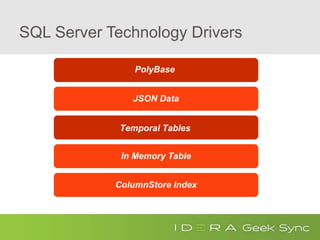

7. SQL Server Technology Drivers
PolyBase
JSON Data
Temporal Tables
In Memory Table
ColumnStore Index

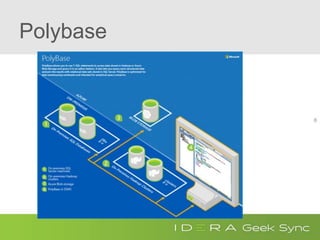

8. Polybase
8

9. Polybase
• Use T-SQL to store data in SQL Server from
Hadoop or Azure as tables.
• Knowledge of Hadoop or Azure is not
required to use.
• Pushes computation to where data resides
• Export relational data into Hadoop or Azure
9

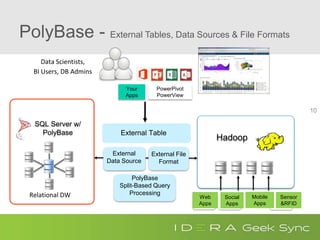

10. PolyBase - External Tables, Data Sources & File Formats
10
SQL Server w/
PolyBase
Social
Apps
Sensor
&RFID
Mobile
Apps
Web
Apps
Data Scientists,
BI Users, DB Admins
Your
Apps
PowerPivot
PowerView
PolyBase
Split-Based Query
Processing
External Table
External
Data Source
External File
Format
Hadoop
Relational DW

11. PolyBase Scenarios
• Querying
– Run T-SQL over HDFS
– Combine data from different Hadoop clusters
– Join relational with non-relational data
• ETL
– Subset of Hadoop in Columnar Format
– Enable data aging scenarios to more economic storage
• Allows building of multi-temperate DW platforms
– SQL Server acts as hot query engine processing most
recent data sets
– Aged data immediately accessible via external tables
– No need to groom data
• Hybrid (Azure Integration)
– Mesh-up on-premise and cloud apps
– Bridge between on-premise and Azure
11

12. Polybase
1. Create external data source (Hadoop).
2. Create external file format (delimited text file).
3. Create external table pointing to file stored in Hadoop.
12
CREATE EXTERNAL TABLE [dbo].[CarSensor_Data] (
[SensorKey] int NOT NULL,
[CustomerKey] int NOT NULL,
[GeographyKey] int NULL,
[Speed] float NOT NULL,
[YearMeasured] int NOT NULL
)
WITH (LOCATION='/Demo/car_sensordata.tbl',
DATA_SOURCE = hdp2,
FILE_FORMAT = ff2,
REJECT_TYPE = VALUE,
REJECT_VALUE = 0
CREATE EXTERNAL DATA SOURCE hdp2 with (
TYPE = HADOOP,
LOCATION ='hdfs://10.xxx.xx.xxx:xxxx',
RESOURCE_MANAGER_LOCATION='10.xxx.xx.xxx:xxxx')
CREATE EXTERNAL FILE FORMAT ff2 WITH (
FORMAT_TYPE = DELIMITEDTEXT,
FORMAT_OPTIONS (FIELD_TERMINATOR ='|',
USE_TYPE_DEFAULT = TRUE)

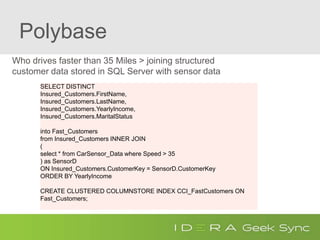

13. Polybase
Who drives faster than 35 Miles > joining structured
customer data stored in SQL Server with sensor data
Ad-HocQueryjoiningrelationalwithHadoopdata
SELECT DISTINCT
Insured_Customers.FirstName,
Insured_Customers.LastName,
Insured_Customers.YearlyIncome,
Insured_Customers.MaritalStatus
into Fast_Customers
from Insured_Customers INNER JOIN
(
select * from CarSensor_Data where Speed > 35
) as SensorD
ON Insured_Customers.CustomerKey = SensorD.CustomerKey
ORDER BY YearlyIncome
CREATE CLUSTERED COLUMNSTORE INDEX CCI_FastCustomers ON
Fast_Customers;

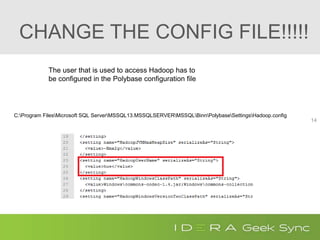

14. CHANGE THE CONFIG FILE!!!!!
14
C:Program FilesMicrosoft SQL ServerMSSQL13.MSSQLSERVERMSSQLBinnPolybaseSettingsHadoop.config
The user that is used to access Hadoop has to
be configured in the Polybase configuration file

15. Demo

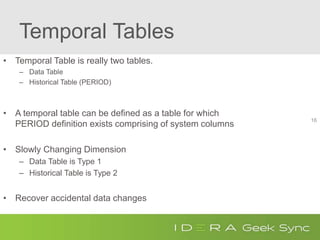

16. Temporal Tables
• Temporal Table is really two tables.
– Data Table
– Historical Table (PERIOD)
• A temporal table can be defined as a table for which
PERIOD definition exists comprising of system columns
• Slowly Changing Dimension
– Data Table is Type 1
– Historical Table is Type 2
• Recover accidental data changes
16

17. Temporal Tables
• Slowly Changing Dimensions
– Type 1
• Records will be updated with no history log
– Type 2
• Keep history with a From Date and To Date
• Set existing record as obsolete (with setting
the To Date)
• Create a new record (with new From Date)
– Type 3
• Limited History
– Type 4
• Similar to Type 2 but broken out as 2 tables.

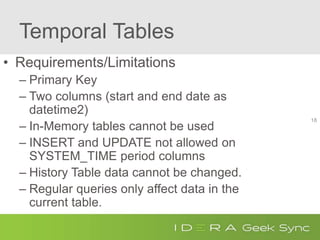

18. Temporal Tables
• Requirements/Limitations
– Primary Key
– Two columns (start and end date as
datetime2)
– In-Memory tables cannot be used
– INSERT and UPDATE not allowed on
SYSTEM_TIME period columns
– History Table data cannot be changed.
– Regular queries only affect data in the
current table.
18

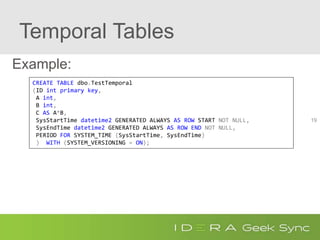

19. Temporal Tables
Example:
19
CREATE TABLE dbo.TestTemporal
(ID int primary key,
A int,
B int,
C AS A*B,
SysStartTime datetime2 GENERATED ALWAYS AS ROW START NOT NULL,
SysEndTime datetime2 GENERATED ALWAYS AS ROW END NOT NULL,
PERIOD FOR SYSTEM_TIME (SysStartTime, SysEndTime)
) WITH (SYSTEM_VERSIONING = ON);

20. Temporal Tables
20

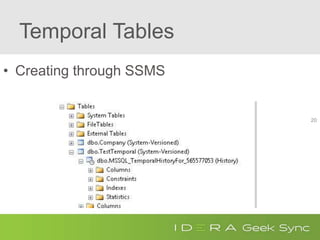

• Creating through SSMS

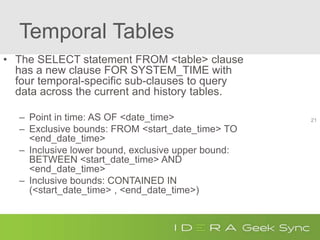

21. Temporal Tables
• The SELECT statement FROM <table> clause
has a new clause FOR SYSTEM_TIME with
four temporal-specific sub-clauses to query
data across the current and history tables.
– Point in time: AS OF <date_time>
– Exclusive bounds: FROM <start_date_time> TO
<end_date_time>
– Inclusive lower bound, exclusive upper bound:
BETWEEN <start_date_time> AND
<end_date_time>
– Inclusive bounds: CONTAINED IN
(<start_date_time> , <end_date_time>)
21

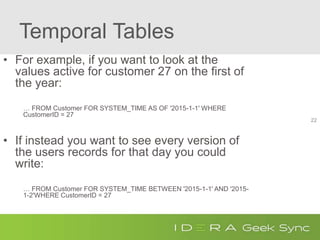

22. Temporal Tables
• For example, if you want to look at the
values active for customer 27 on the first of
the year:
… FROM Customer FOR SYSTEM_TIME AS OF '2015-1-1' WHERE
CustomerID = 27
• If instead you want to see every version of
the users records for that day you could
write:
… FROM Customer FOR SYSTEM_TIME BETWEEN '2015-1-1' AND '2015-
1-2'WHERE CustomerID = 27
22

23. Demo

24. Try any of our tools for free!
Twitter: @MSBI_Stan
Email: stan.geiger@idera.com
www.idera.com
