Introduction to PolyBase
James Serra
Big Data Evangelist
Microsoft
JamesSerra3@gmail.com
About Me
 Microsoft, Big Data Evangelist
 In IT for 30 years, worked on many BI and DW projects
 Worked as desktop/web/database developer, DBA, BI and DW architect and developer, MDM
architect, PDW/APS developer
 Been perm employee, contractor, consultant, business owner
 Presenter at PASS Business Analytics Conference, PASS Summit, Enterprise Data World conference
 Certifications: MCSE: Data Platform, Business Intelligence; MS: Architecting Microsoft Azure
Solutions, Design and Implement Big Data Analytics Solutions, Design and Implement Cloud Data
Platform Solutions
 Blog at JamesSerra.com
 Former SQL Server MVP
 Author of book “Reporting with Microsoft SQL Server 2012”

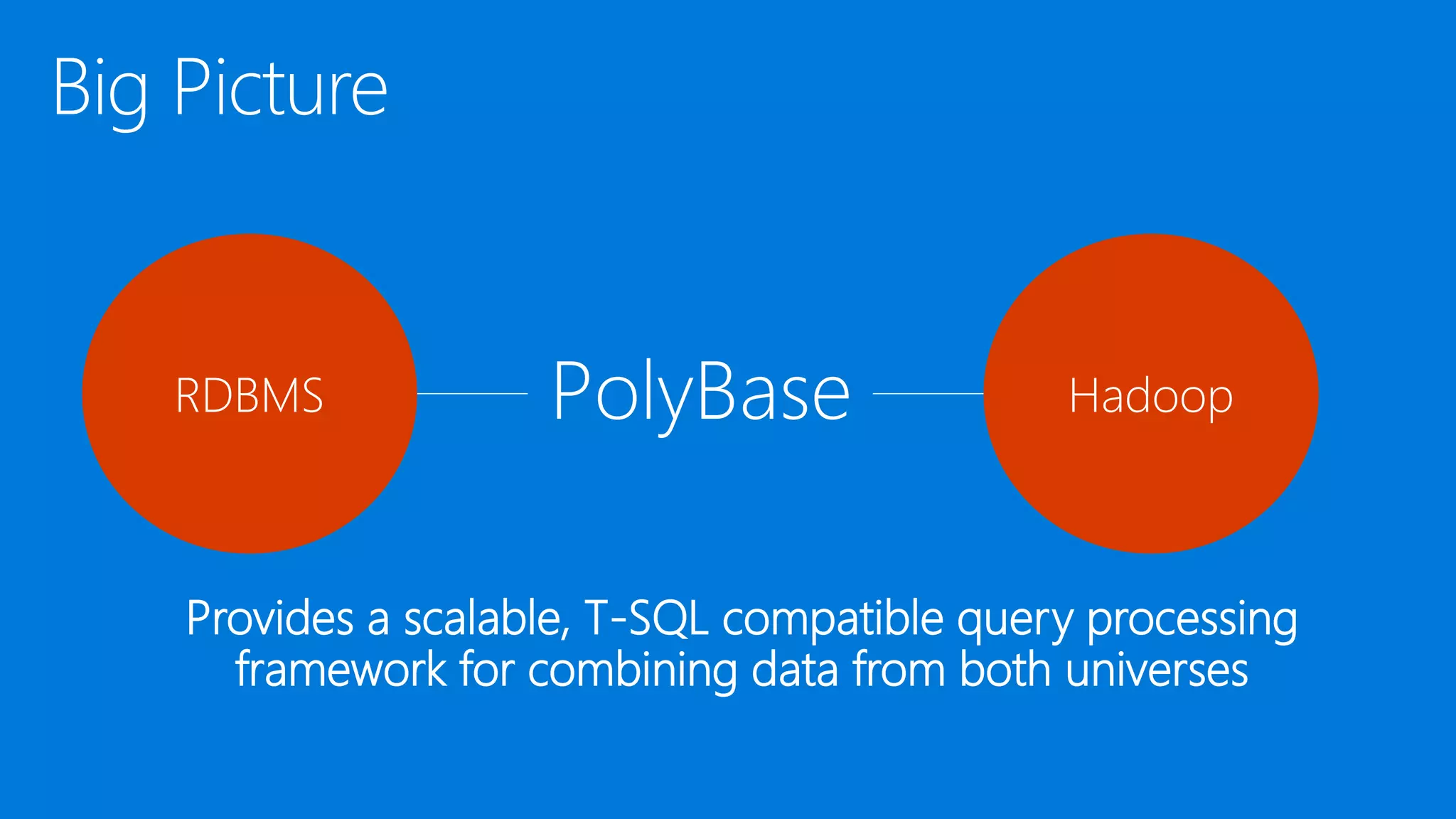

Provides a scalable, T-SQL compatible query processing
framework for combining data from both universes

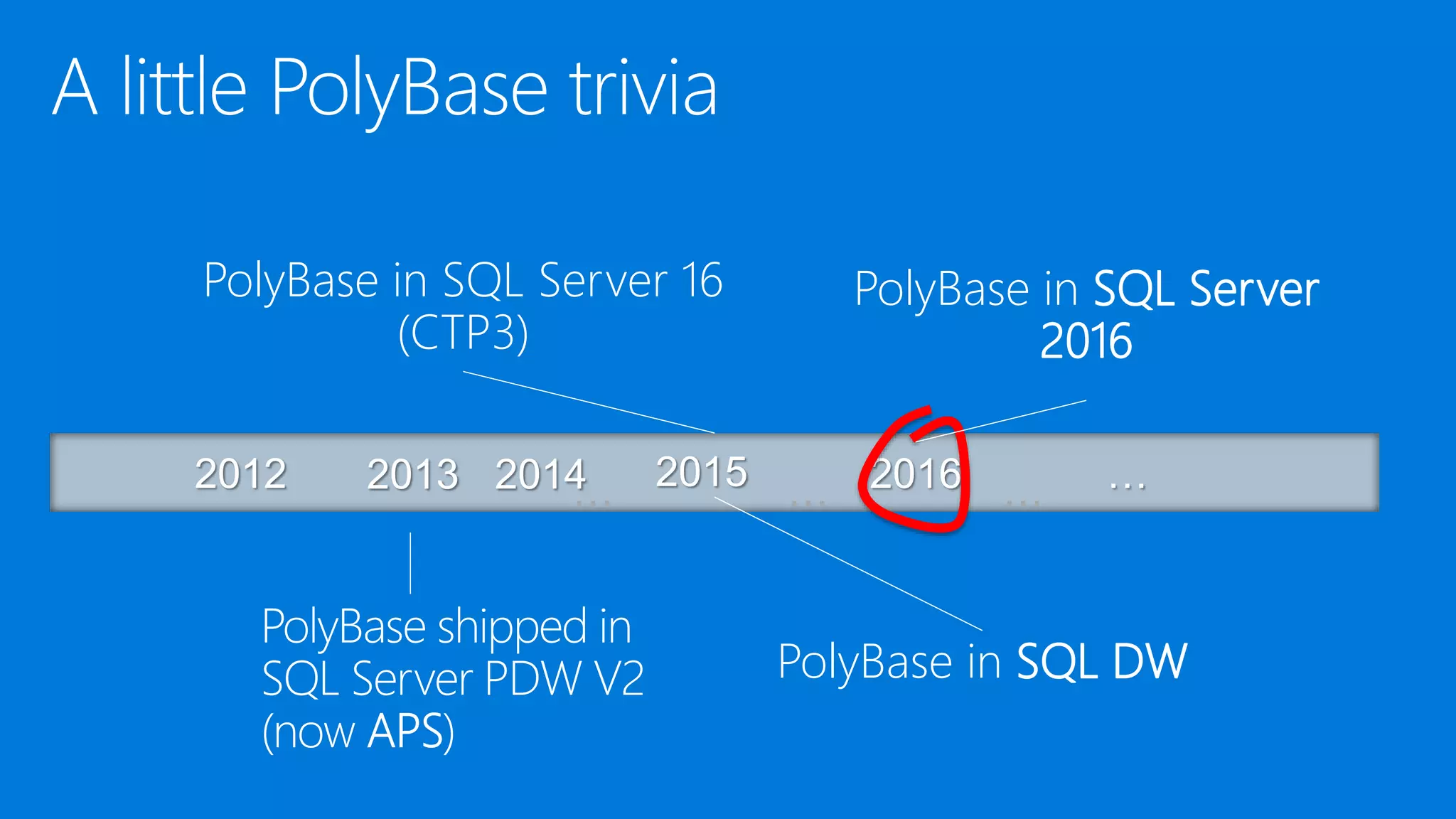

2012 2013 ……… 2016…2014
PolyBase in SQL Server 16
(CTP3)
PolyBase in SQL DW
PolyBase in SQL Server
2016
2015

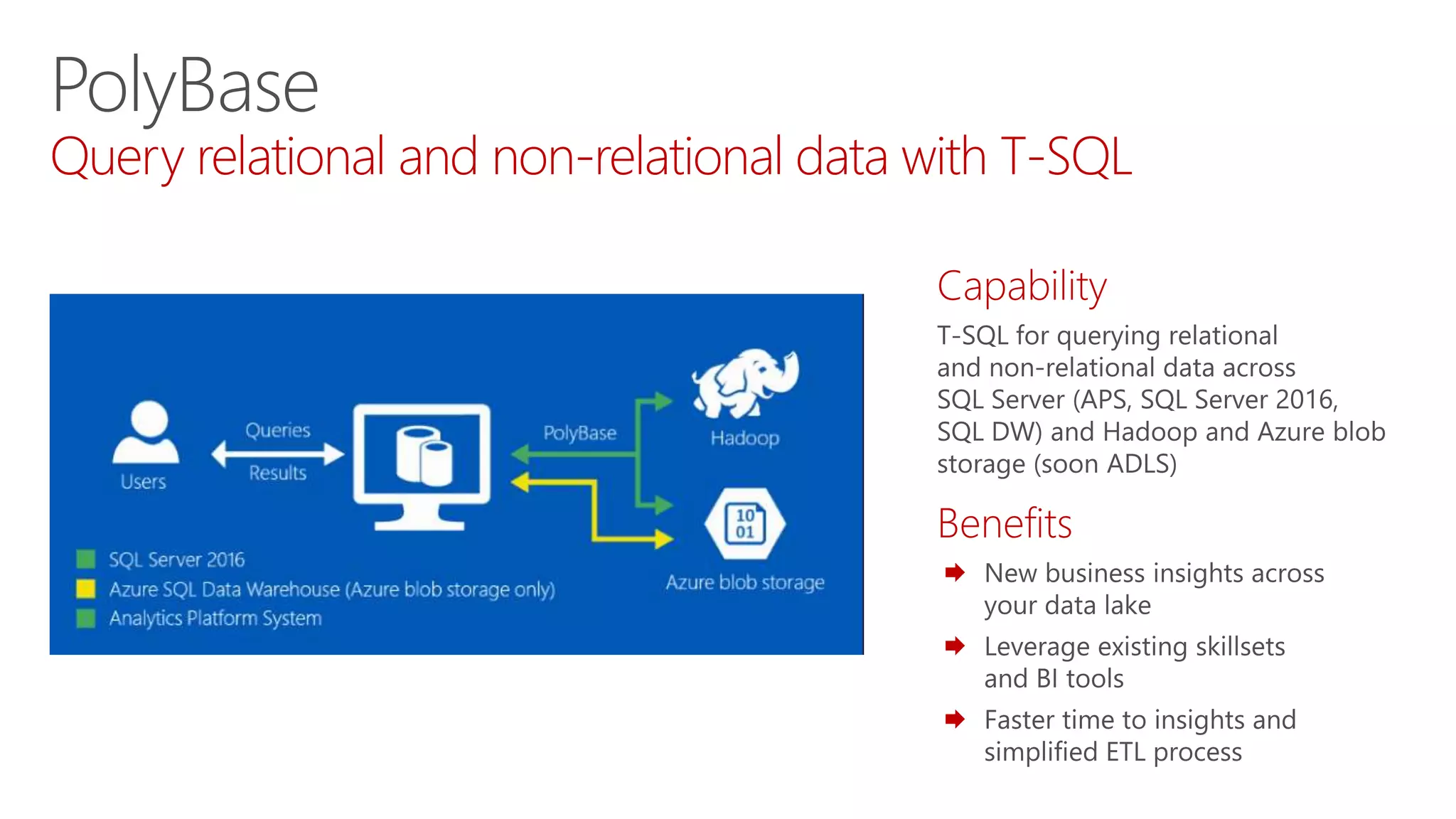

PolyBase
Query relational and non-relational data with T-SQL

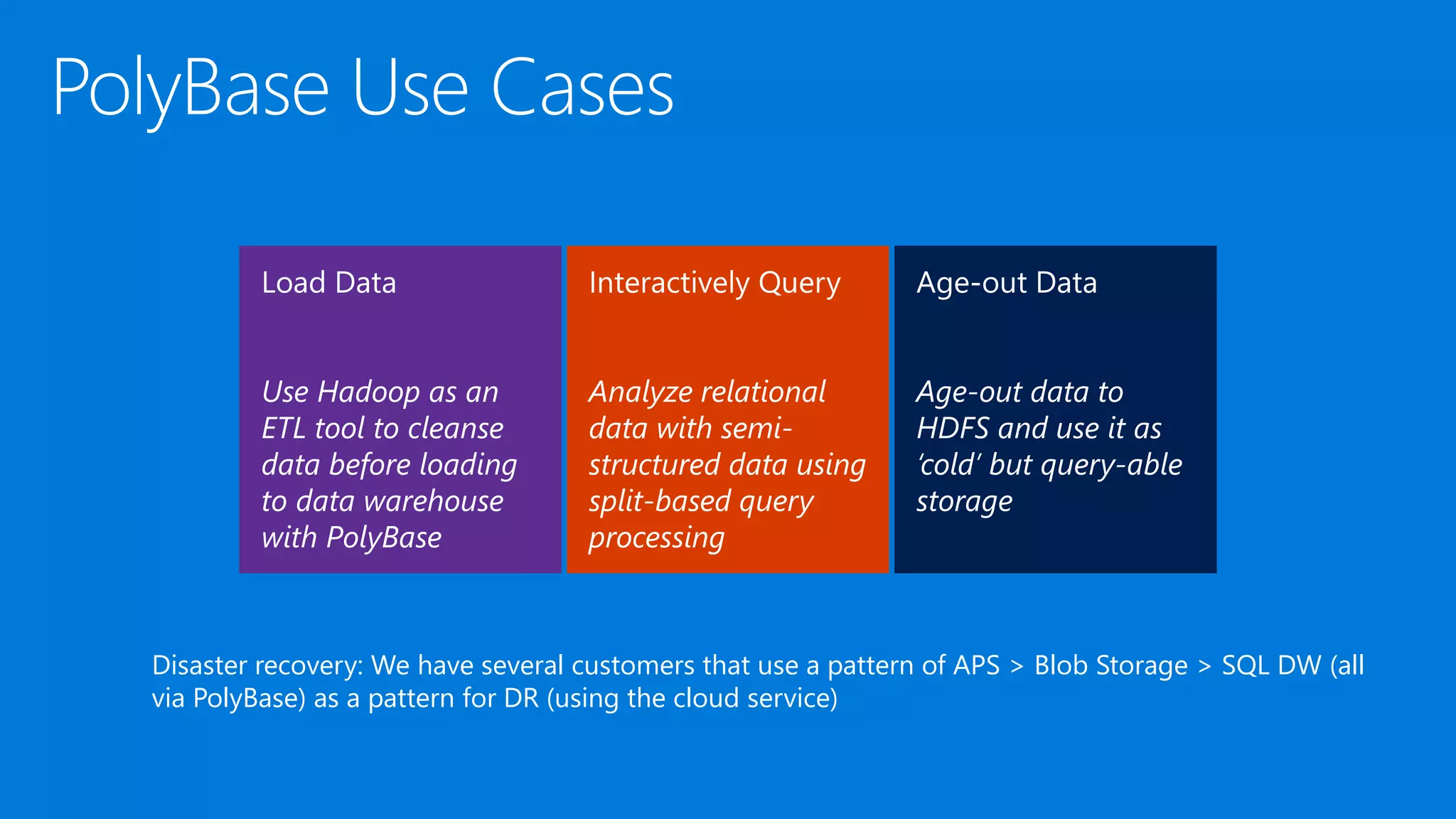

Disaster recovery: We have several customers that use a pattern of APS > Blob Storage > SQL DW (all
via PolyBase) as a pattern for DR (using the cloud service)

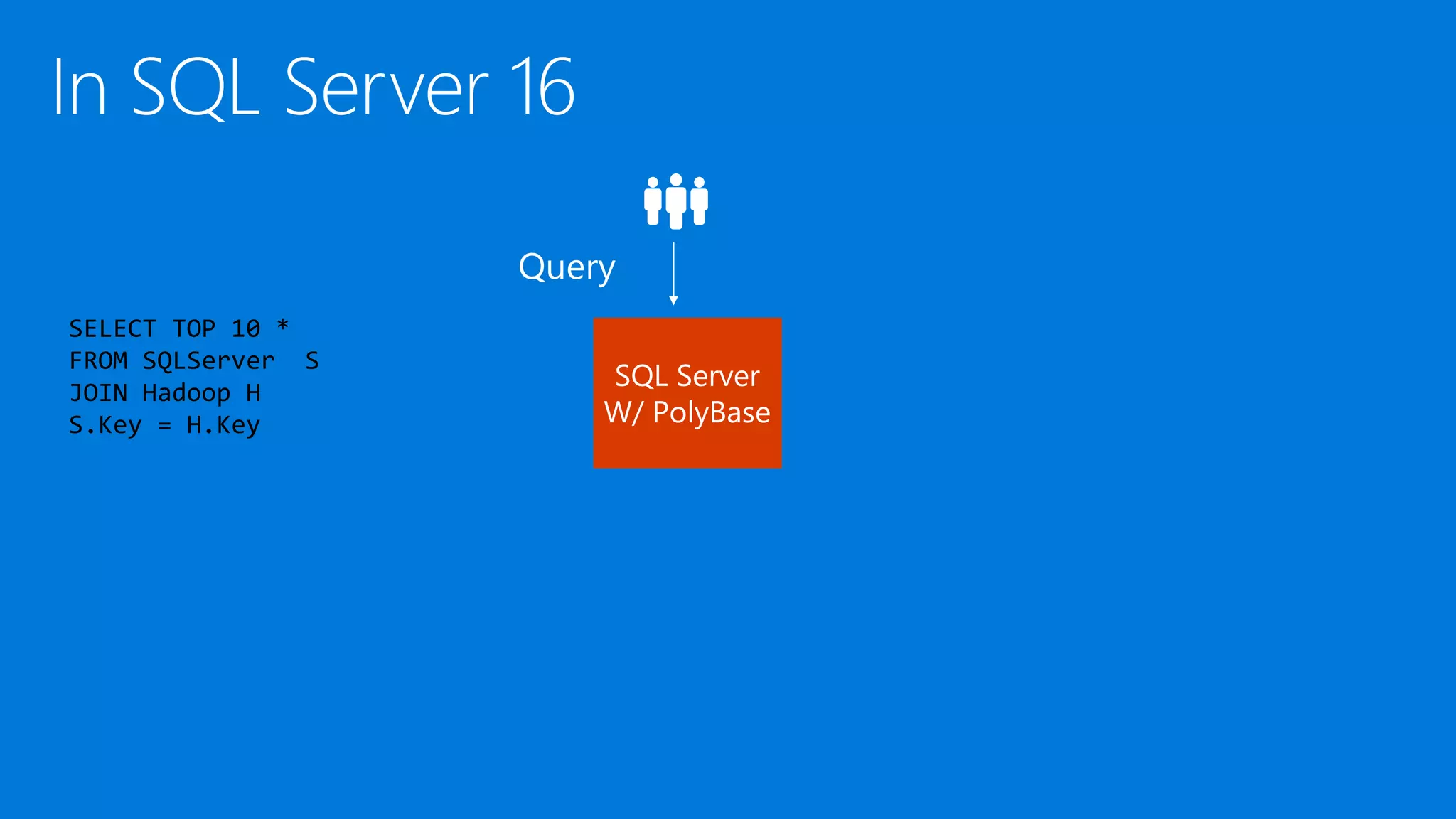

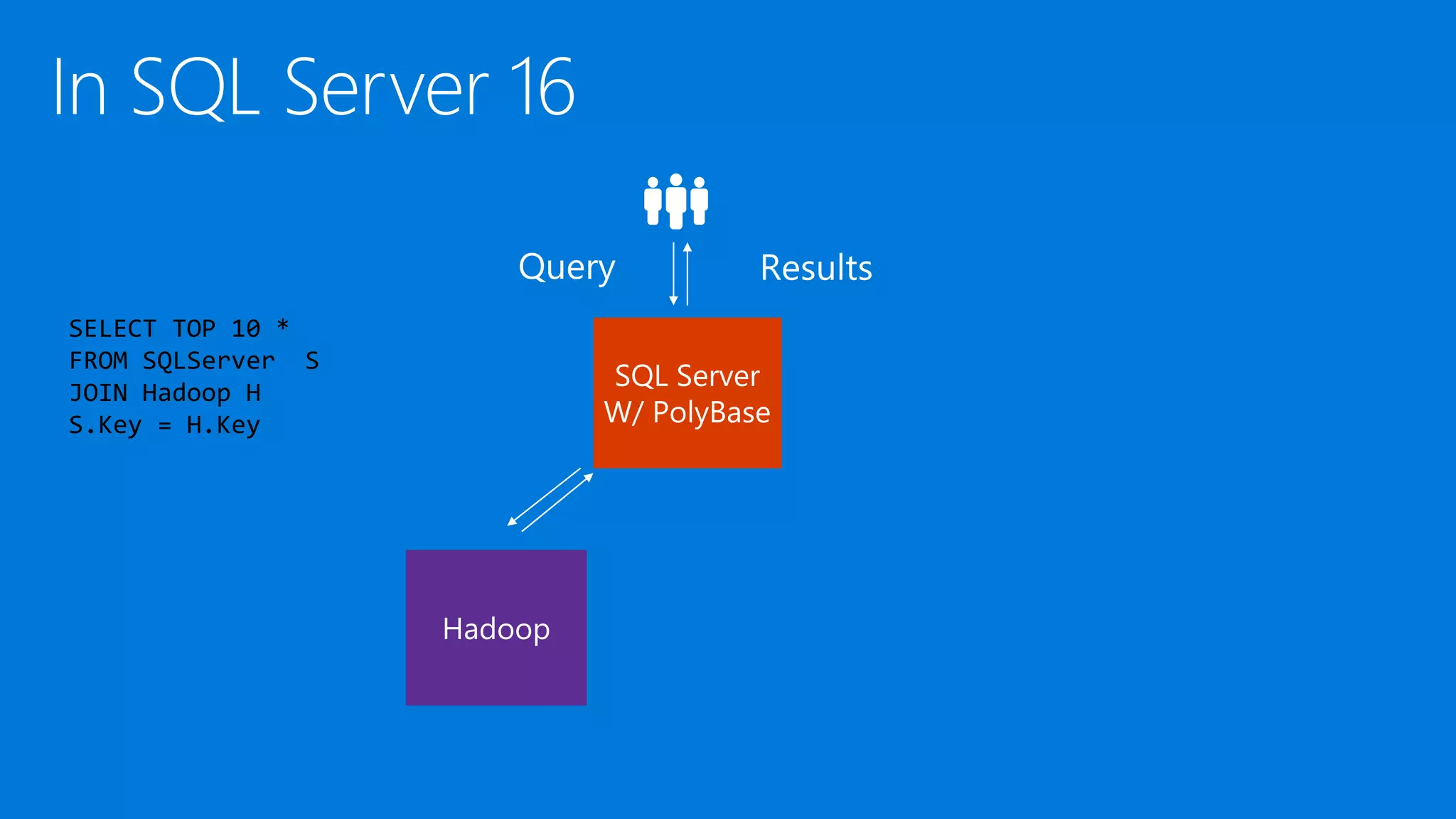

SELECT TOP 10 *
FROM SQLServer S
JOIN Hadoop H
S.Key = H.Key

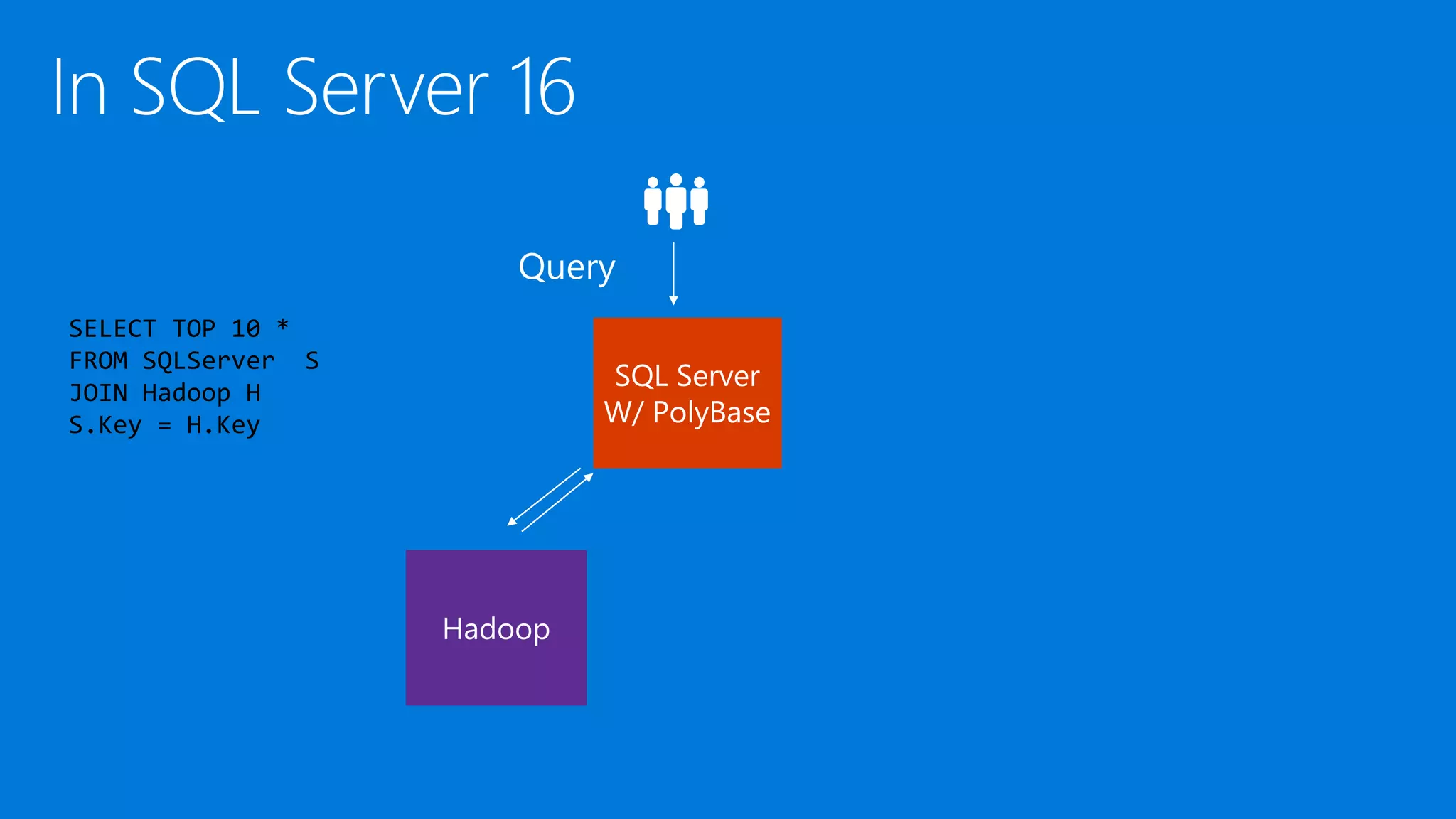

SELECT TOP 10 *
FROM SQLServer S
JOIN Hadoop H
S.Key = H.Key
SELECT TOP 10 *
FROM SQLServer S
JOIN Hadoop H
S.Key = H.Key

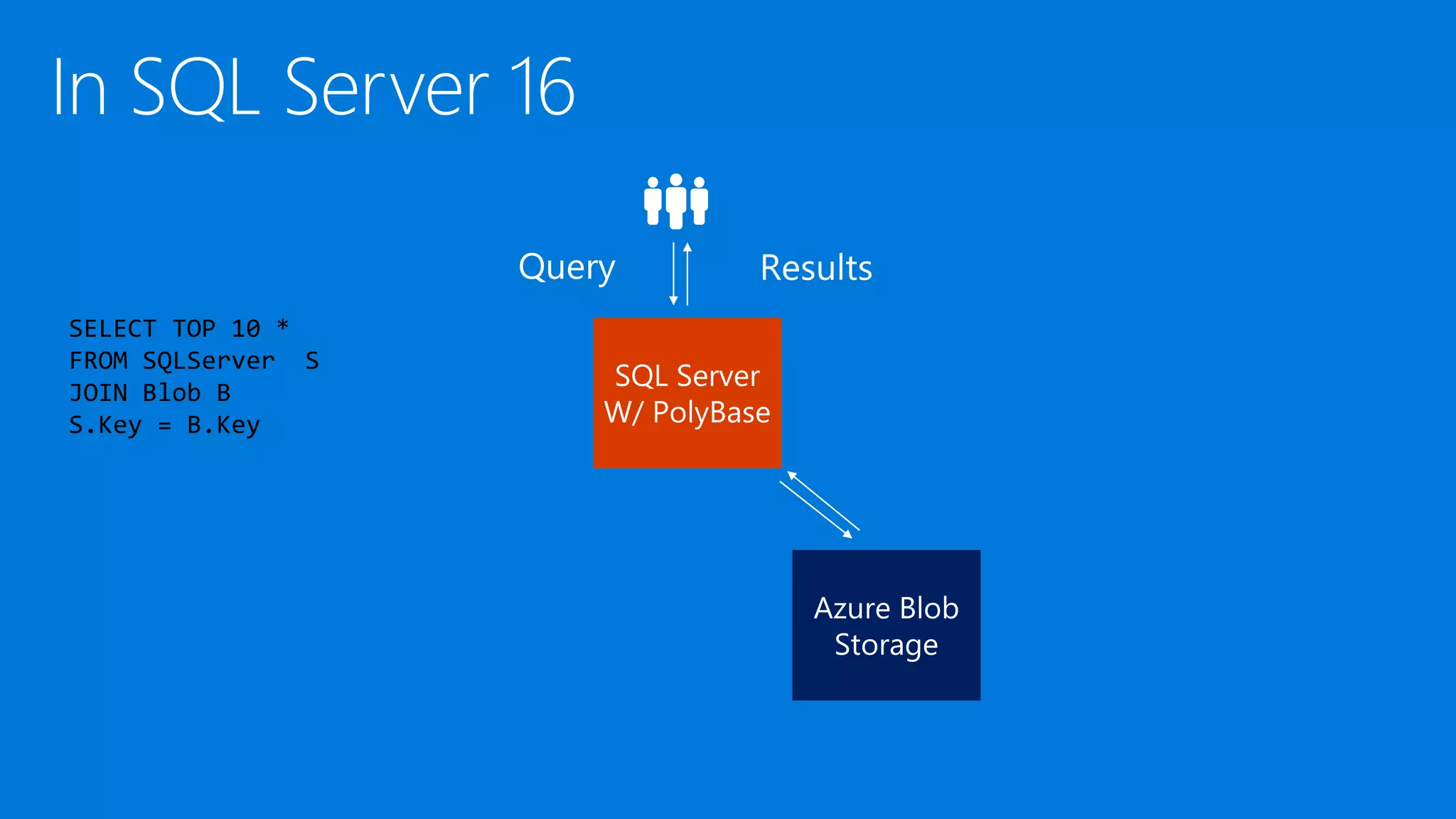

SELECT TOP 10 *
FROM SQLServer S
JOIN Blob B
S.Key = B.Key

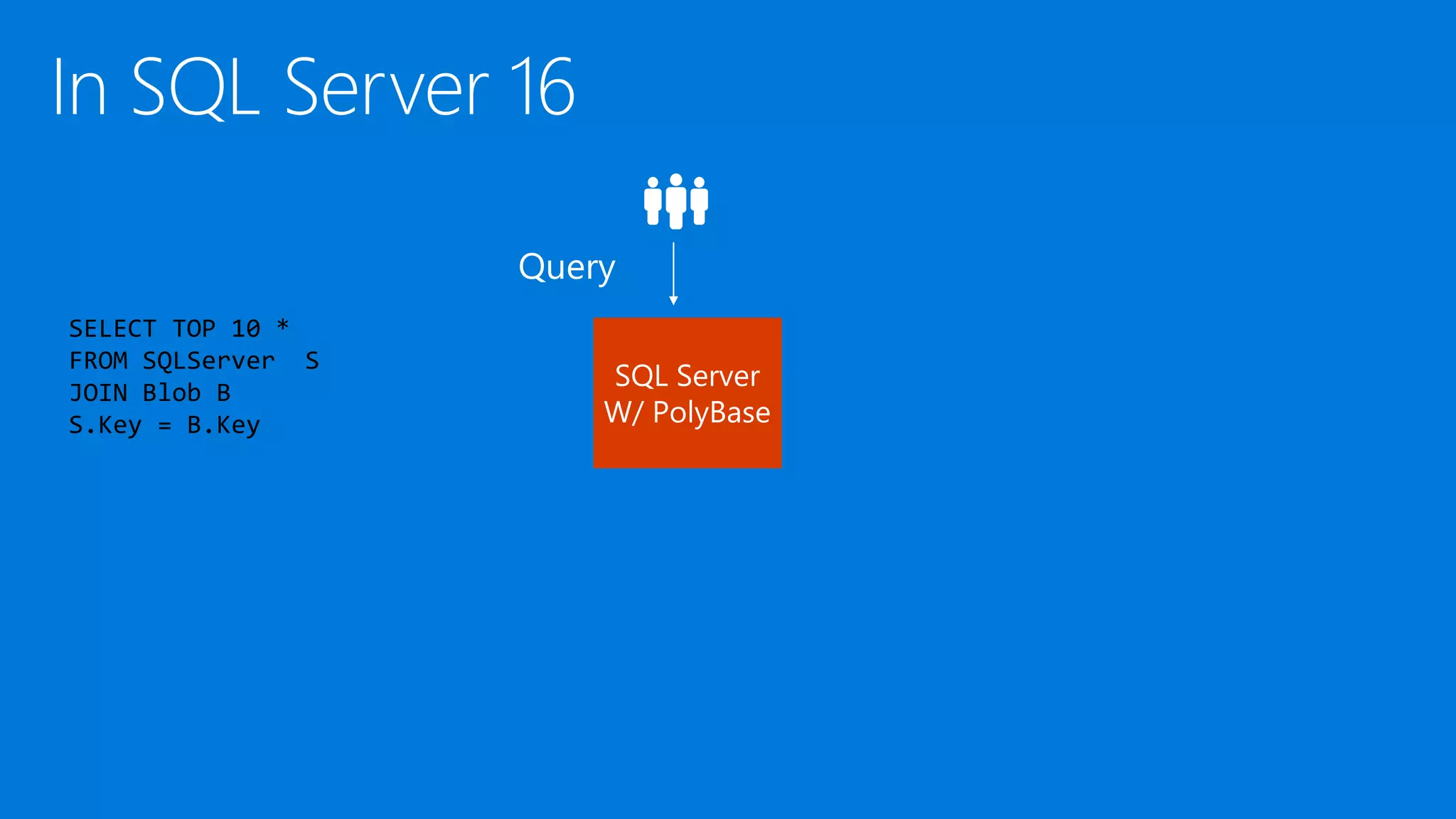

SELECT TOP 10 *
FROM SQLServer S
JOIN Blob B
S.Key = B.Key

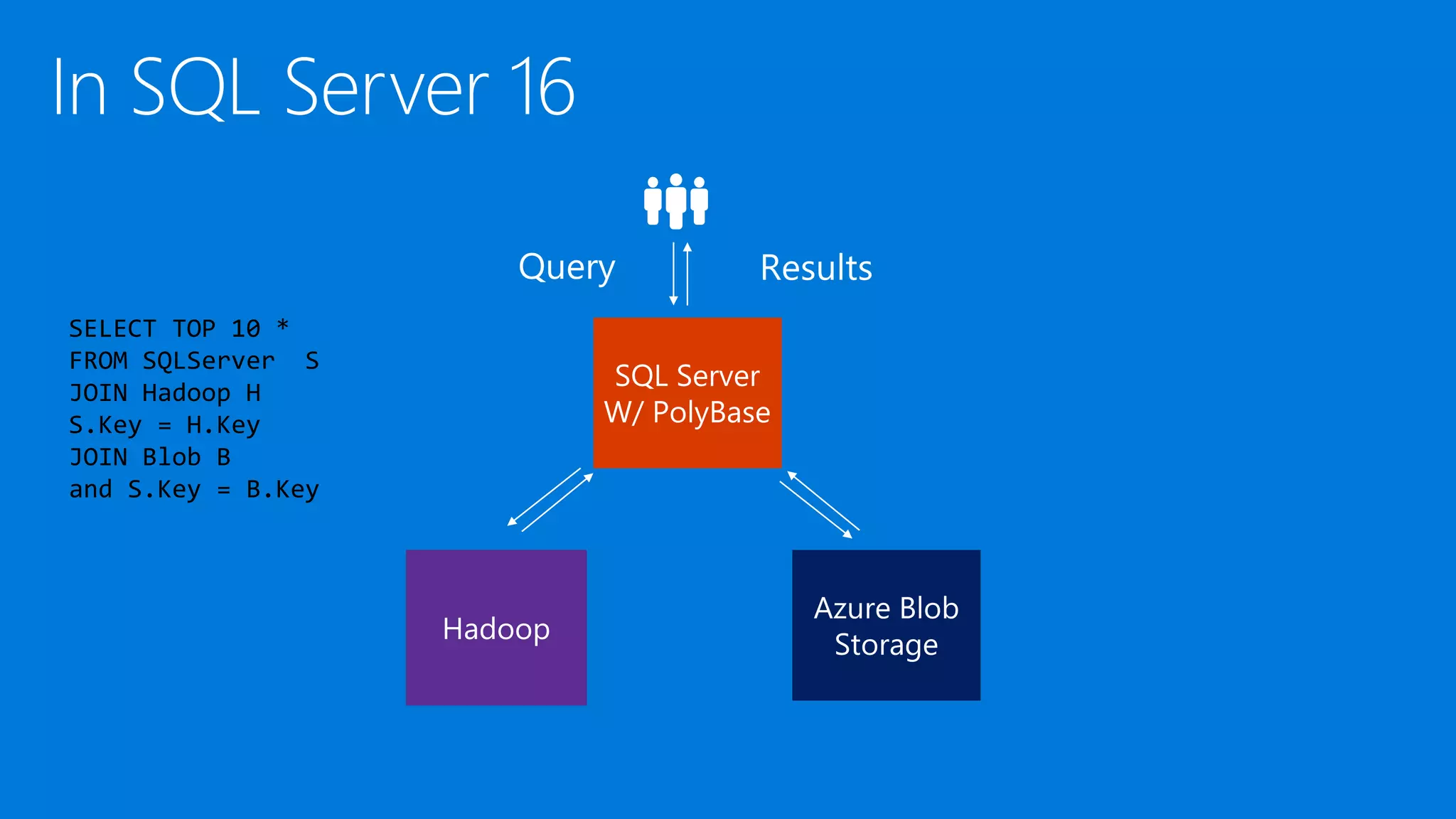

SELECT TOP 10 *
FROM SQLServer S
JOIN Hadoop H
S.Key = H.Key
JOIN Blob B
and S.Key = B.Key

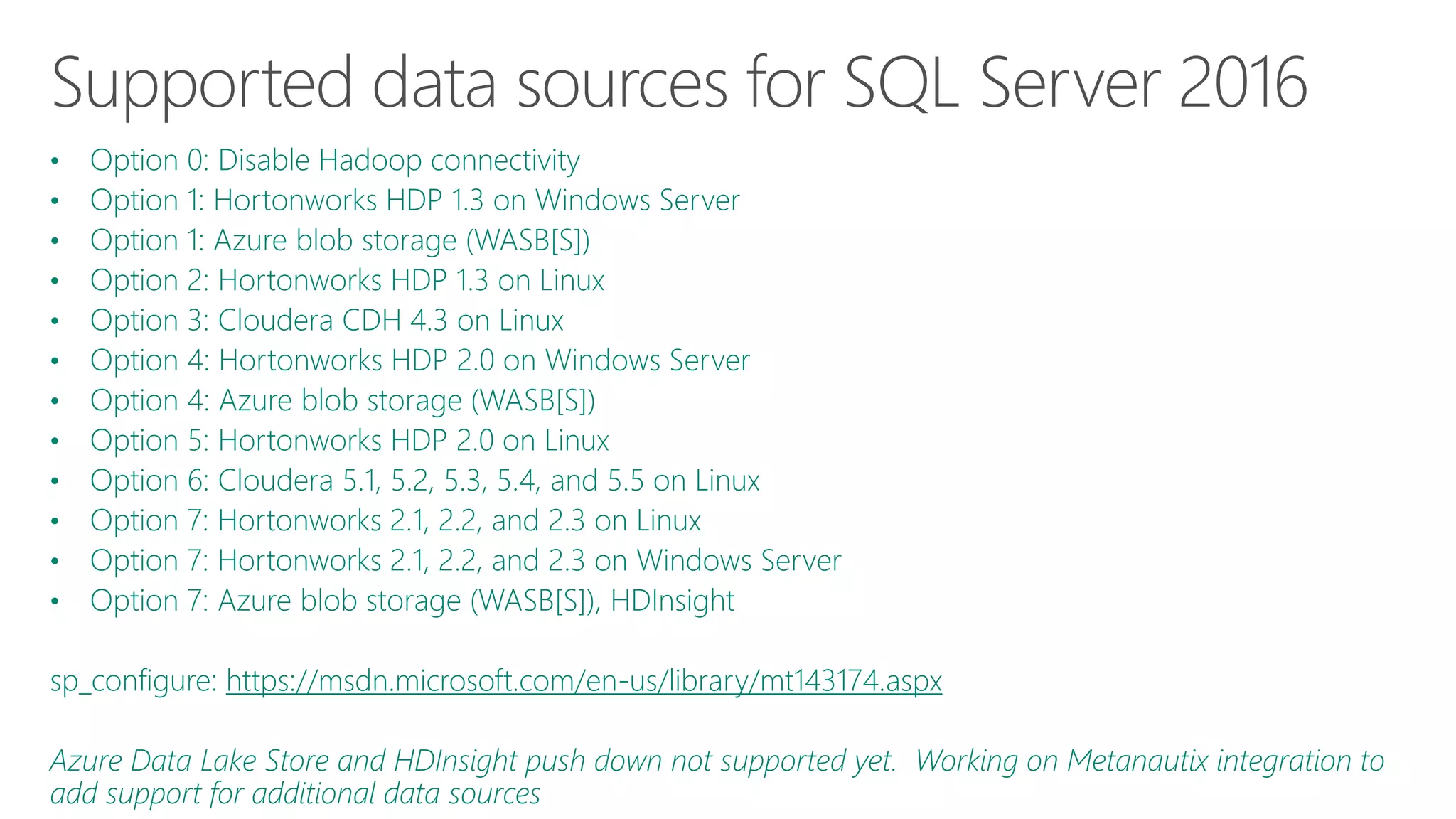

https://msdn.microsoft.com/en-us/library/mt143174.aspx

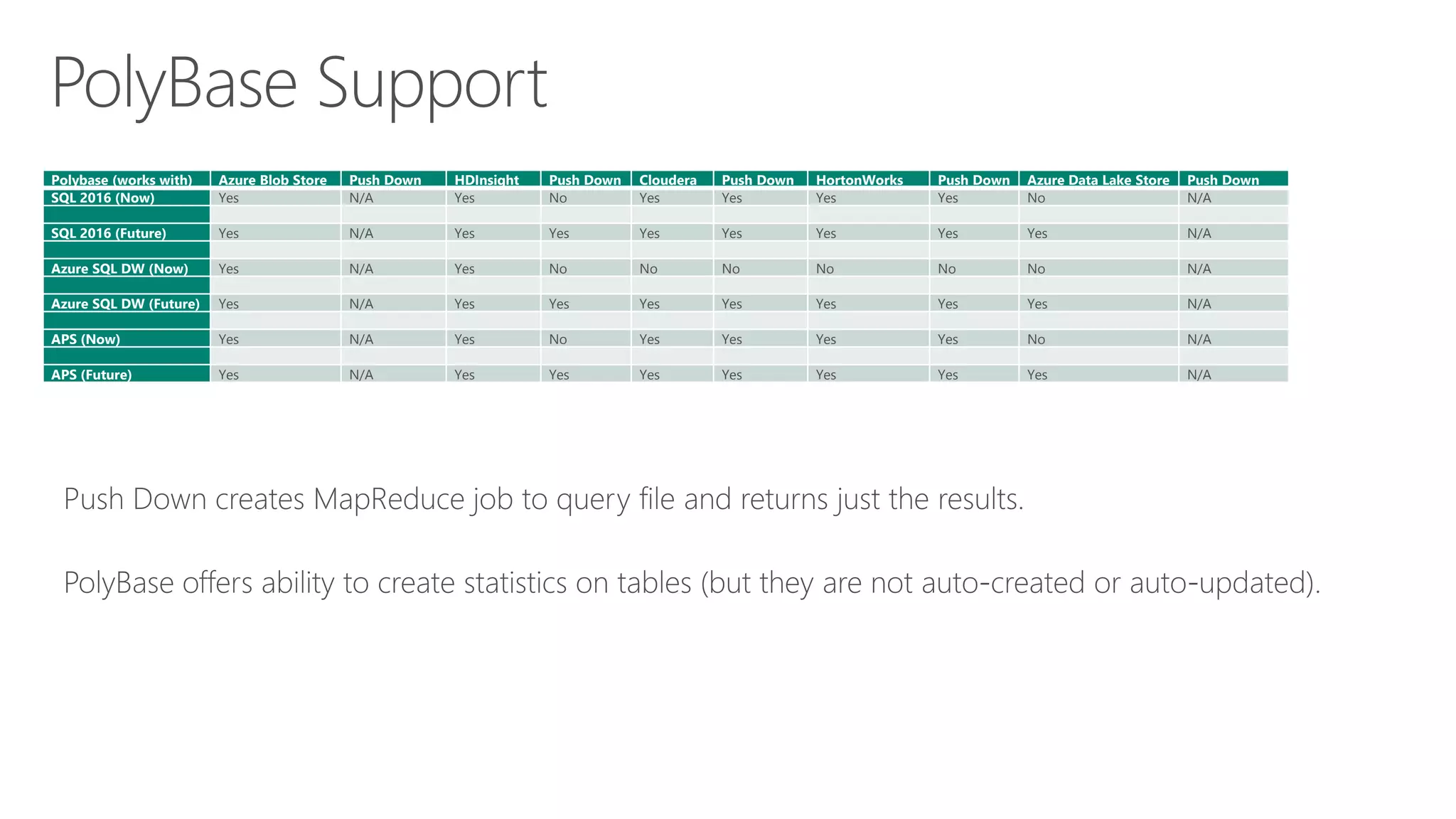

Polybase (works
with)
Azure Blob
Store Push Down HDInsight
Push
Down Cloudera
Push
Down HortonWorks
Push
Down
Azure Data Lake
Store Push Down
SQL 2016 (Now) Yes N/A Yes No Yes Yes Yes Yes No N/A
SQL 2016 (Near
future) Yes N/A Yes No Yes Yes Yes Yes No N/A
Azure SQL DW
(Now) Yes N/A Yes No No No No No Yes! N/A
Azure SQL DW (Near
future) Yes N/A Yes No No No No No Yes N/A
APS (Now) Yes N/A Yes
Yes (int).
No (ext) Yes Yes Yes Yes No N/A
APS (Near future) Yes N/A Yes Yes/No Yes Yes Yes Yes No N/A

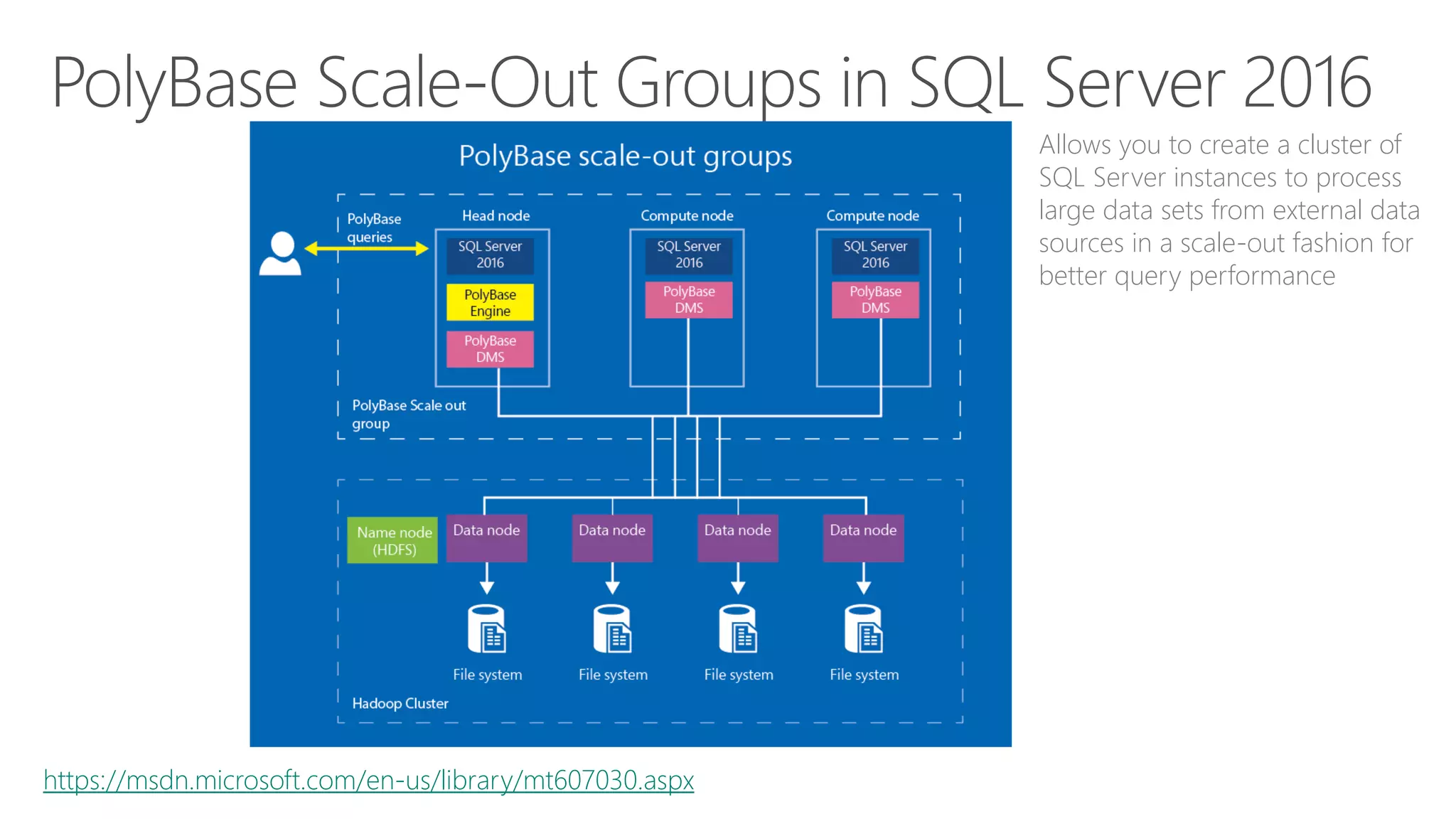

https://msdn.microsoft.com/en-us/library/mt607030.aspx
Allows you to create a cluster of
SQL Server instances to process
large data sets from external data
sources in a scale-out fashion for
better query performance

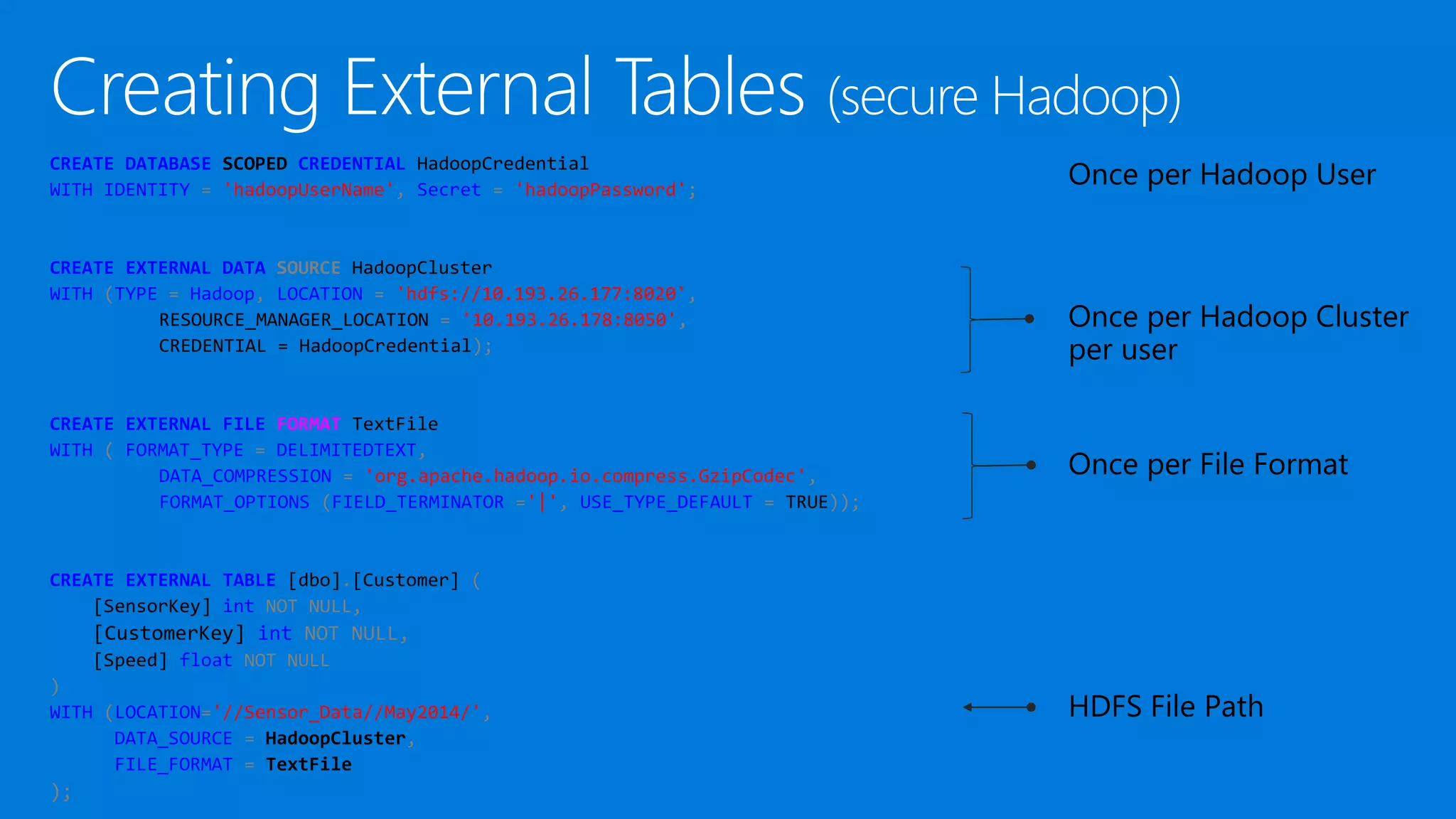

CREATE DATABASE SCOPED CREDENTIAL HadoopCredential
WITH IDENTITY = 'hadoopUserName', Secret = 'hadoopPassword';
CREATE EXTERNAL DATA SOURCE HadoopCluster
WITH (TYPE = Hadoop, LOCATION = 'hdfs://10.193.26.177:8020',
RESOURCE_MANAGER_LOCATION = '10.193.26.178:8050',
HadoopCredential);
CREATE EXTERNAL FILE FORMAT TextFile
WITH ( FORMAT_TYPE = DELIMITEDTEXT,
DATA_COMPRESSION = 'org.apache.hadoop.io.compress.GzipCodec',
FORMAT_OPTIONS (FIELD_TERMINATOR ='|', USE_TYPE_DEFAULT = TRUE));
CREATE EXTERNAL TABLE [dbo].[Customer] (
[SensorKey] int NOT NULL,
int NOT NULL,
[Speed] float NOT NULL
)
WITH (LOCATION='//Sensor_Data//May2014/',
DATA_SOURCE = HadoopCluster,
FILE_FORMAT = TextFile
);
Once per Hadoop User
HDFS File Path
Once per File Format
Once per Hadoop Cluster
per user

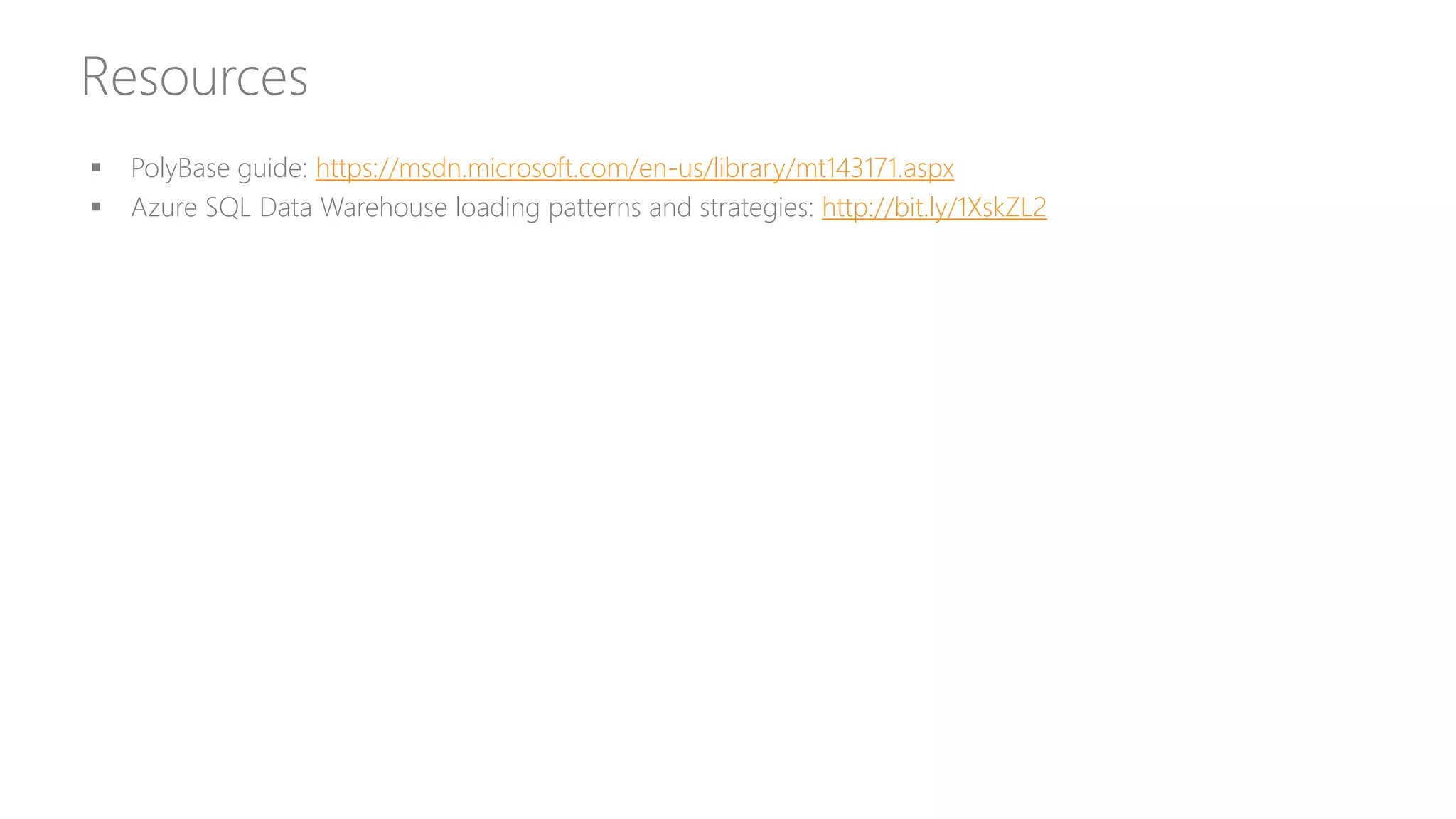

Resources
 PolyBase guide: https://msdn.microsoft.com/en-us/library/mt143171.aspx
 Azure SQL Data Warehouse loading patterns and strategies: http://bit.ly/1XskZL2
Q & A ?
James Serra, Big Data Evangelist
Email me at: JamesSerra3@gmail.com
Follow me at: @JamesSerra
Link to me at: www.linkedin.com/in/JamesSerra
Visit my blog at: JamesSerra.com (where this slide deck is posted via the
“Presentations” link on the top menu)
