John Evans
© 2008The MathWorks, Inc.
The MATLAB Low-Level HDF5 Interface

2. ®
®
Introduction
Two Solutions Provided
“High Level” Interface: HDF5READ, HDF5WRITE,
HDF5INFO mex-files. Provides “one-stop-shopping” to
reading and writing HDF5 files. Easy introduction, but not
flexible.
“Low Level” Interface: Over 200 functions that correspond
to the HDF5 C API. Far more flexible, but the user needs to
know the C API.
2

3. ®
®
How We Differ From the C API
C API for H5Aread:
herr_t H5Aread(hid_t attr_id, hid_t mem_type_id, void *buf );
3

4. ®
®
How We Differ From the C API
C API for H5Aread:
herr_t H5Aread (hid_t attr_id, hid_t mem_type_id, void *buf );
MATLAB API
buf = H5A.read(attr_id,mem_type_id);
No “herr_t” returns values.
OUTPUTs on the left, INPUTs on the right.
4

5. ®
®
Help for H5A.read
>> help H5A.read
H5A.read HDF5 H5Aread library function
attr = H5A.read(attr_id, dtype_id) reads the attribute specified by attr_id.
dtype_id specifies the attribute's memory datatype. The memory datatype may
be 'H5ML_DEFAULT', which specifies that MATLAB should determine the
appropriate memory datatype.
To use this function, you must be familiar with the information about
the Attribute Interface contained in the User's Guide and Reference Manual
for HDF5 version 1.6.5. This documentation may be obtained from the
National Center for Supercomputing Applications (NCSA) at
<http://hdf.ncsa.uiuc.edu> or The HDF Group at
<http://www.hdfgroup.org/>.
For more help on the Attribute Interface functions, type:
help imagesci/@H5A
5

6. ®
®
What's with the dot in “H5A.read”?
The MATLAB HDF5 functions are divided into “classes” that correspond
to the HDF5 interfaces. One such class is “H5A”, which has “read” as a
member function.
H5, H5A, H5D, H5E, H5F, H5G, H5I, H5ML(??), H5P, H5R, H5S,
H5T, H5Z.
H5ML is a special MATLAB “helper” class.
6

7. ®
®

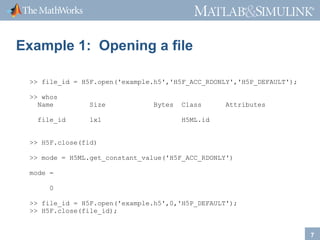

Example 1: Opening a file
>> file_id = H5F.open('example.h5','H5F_ACC_RDONLY','H5P_DEFAULT');
>> whos
Name
file_id
Size
1x1
Bytes
Class
Attributes
H5ML.id
>> H5F.close(fid)
>> mode = H5ML.get_constant_value('H5F_ACC_RDONLY')
mode =
0
>> file_id = H5F.open('example.h5',0,'H5P_DEFAULT');
>> H5F.close(file_id);
7

8. ®
®
Example 2: Creating a 2x3 Dataset
file_id
= H5F.create('tst.h5','H5F_ACC_TRUNC','H5P_DEFAULT','H5P_DEFAULT');
dims = [2 3];
space_id = H5S.create_simple(2,dims,[]);
dset_id = H5D.create(file_id,'foo','H5T_STD_I32LE',space_id,'H5P_DEFAULT');
data = [1 3 5; 2 4 6];
data = int32(data);
H5D.write(dset_id,'H5T_NATIVE_INT','H5S_ALL','H5S_ALL','H5P_DEFAULT',indata);
H5D.close(dset_id); H5F.close(file_id);
file_id = H5F.open('tst.h5','H5F_ACC_RDONLY','H5P_DEFAULT');
dset_id = H5D.open(file_id,'/foo');
outdata = H5D.read(dset_id,'H5ML_DEFAULT','H5S_ALL','H5S_ALL','H5P_DEFAULT');
H5D.close(dset_id); H5F.close(file_id);
8

9. ®
®

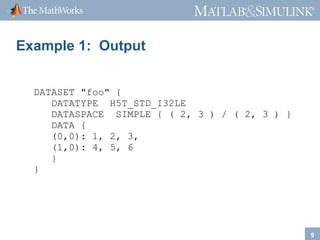

Example 1: Output
DATASET "foo" {
DATATYPE H5T_STD_I32LE
DATASPACE SIMPLE { ( 2, 3 ) / ( 2, 3 ) }
DATA {
(0,0): 1, 2, 3,
(1,0): 4, 5, 6
}
}
9

10. ®
®

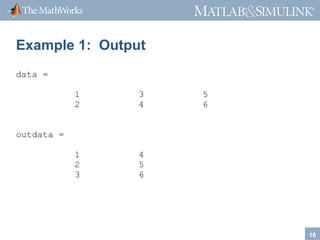

Example 1: Output
data =
1
2
3
4
1
2
3
5
6
4
5
6
outdata =
10

11. ®
®
MATLAB Uses Column-Major Ordering
So What Should One Do?
Users can transpose their data before read, after write. This works,
but inflicts a performance penalty.
Other option is “flip” the dataspace... No performance penalty here,
but the user must remember that the dimensions will look reversed
from the C API.
11

12. ®
®
Example 2: flipping the dataspace
data = [1 3 5; ...
2 4 6];
data = int32(data);
dims = [2 3];
space_id = H5S.create_simple(2,fliplr(dims),[]);
dset_id = H5D.create(file_id,'foo',...
'H5T_STD_I32LE',space_id,'H5P_DEFAULT');
H5D.write(dset_id,'H5T_NATIVE_INT', ...
'H5S_ALL','H5S_ALL','H5P_DEFAULT',data);
12

13. ®
®

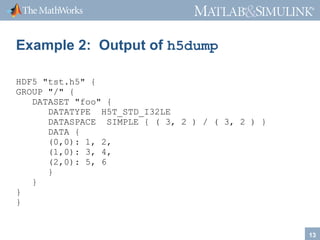

Example 2: Output of h5dump
HDF5 "tst.h5" {
GROUP "/" {
DATASET "foo" {
DATATYPE H5T_STD_I32LE
DATASPACE SIMPLE { ( 3, 2 ) / ( 3, 2 ) }
DATA {
(0,0): 1, 2,
(1,0): 3, 4,
(2,0): 5, 6
}
}
}
}
13

14. ®
®
Example 3: Compression
dims = [2000 3000];
data = int32(zeros(2000,3000));
% Remember to flip the dataspace.
space_id = H5S.create_simple(2,fliplr(dims),[]);
dcpl_id = H5P.create('H5P_DATASET_CREATE');
H5P.set_deflate(dcpl_id,6);
% Flip the chunking as well!
H5P.set_chunk(dcpl_id,fliplr([200 300]));
dset_id = H5D.create(file_id,'foo','H5T_NATIVE_INT',space_id,dcpl_id);
H5D.write(dset_id,'H5T_NATIVE_INT','H5S_ALL','H5S_ALL','H5P_DEFAULT',data);
14

15. ®
®

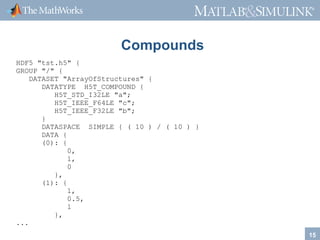

Compounds
HDF5 "tst.h5" {
GROUP "/" {
DATASET "ArrayOfStructures" {
DATATYPE H5T_COMPOUND {
H5T_STD_I32LE "a";
H5T_IEEE_F64LE "c";
H5T_IEEE_F32LE "b";
}
DATASPACE SIMPLE { ( 10 ) / ( 10 ) }
DATA {
(0): {
0,
1,
0
},
(1): {
1,
0.5,
1
},
...
15

16. ®
®
Compounds: continued
>> d = h5varget('tst.h5','/ArrayOfStructures')
d =
a: [10x1 int32]
c: [10x1 double]
b: [10x1 single]
>> d.a
ans =
0
1
2
3
4
5
6
7
8
9
16

17. ®
®

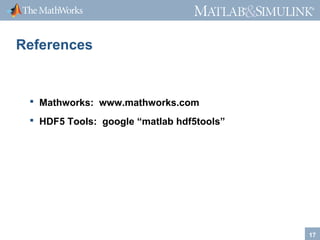

References
 Mathworks: www.mathworks.com
 HDF5 Tools: google “matlab hdf5tools”
