James Serra
Data Platform Solution Architect
Microsoft
Parallel Data
Warehouse v1
Data Allegro
product on
Windows &
SQL. First DW
appliance by
MSFT in
partnership
with
Dell and HP
Microsoft
Acquired Data
Allegro
Company
viewed as
most efficient
way to bring
MPP to SQL
Server world
Analytics
Platform
System (APS)
Introduction of
Hadoop region
within
appliance and
new naming to
reflect broader
Big Data
capabilities
SQL DW
Service
Introduction of
Azure SQL DW
Service based
on APS’s MPP
capabilities
Fast Track
Data
Warehouse
Launch
DW Reference
Architectures
based on SMP
DW best
practices
offered with
leading H/W
Partners
Parallel Data
Warehouse v2
Re-architected
Product
delivering new
form factors
and greatly
improved
price/performa
nce.

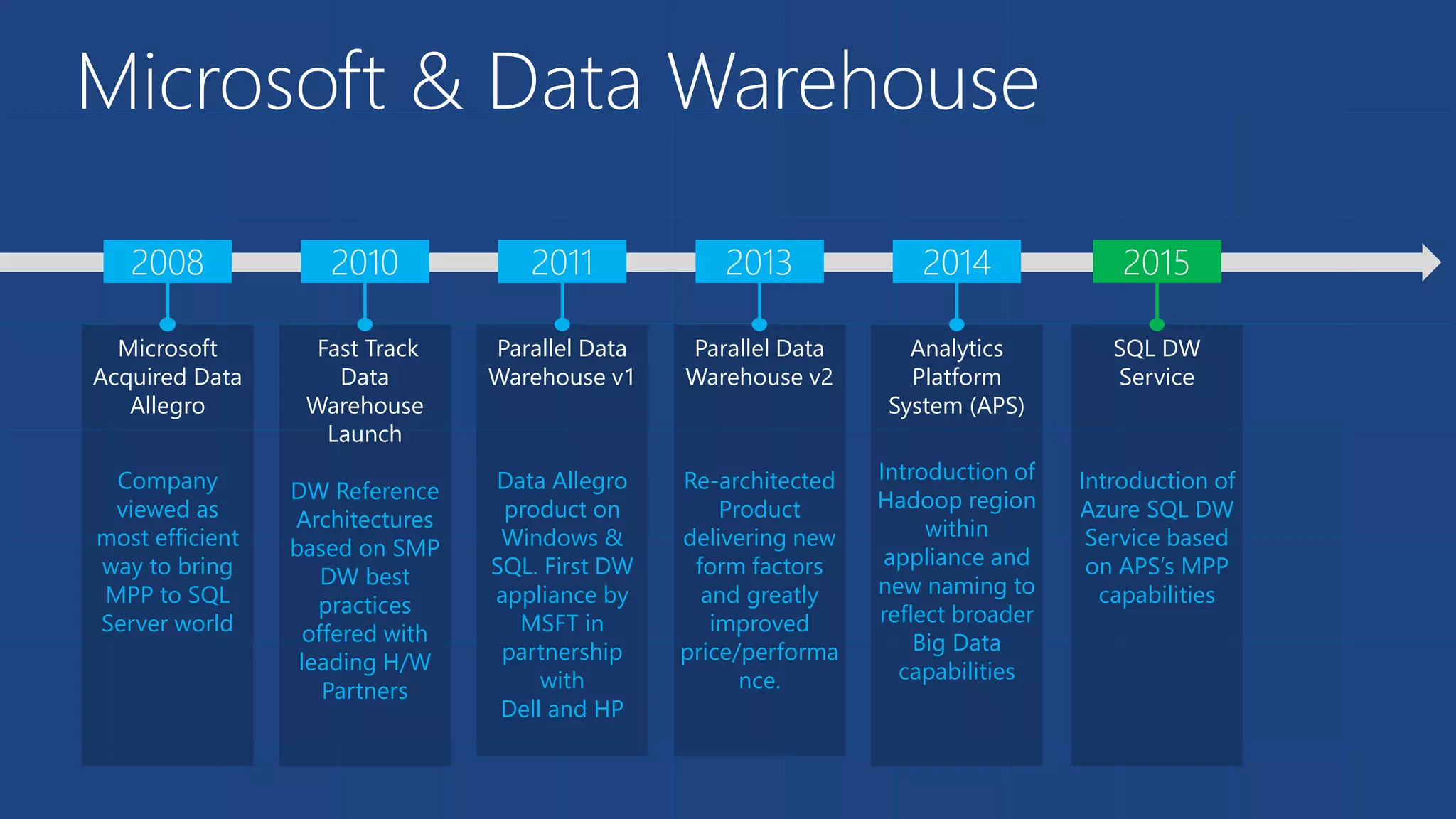

Microsoft & Data Warehouse
2008 20132010 201520142011

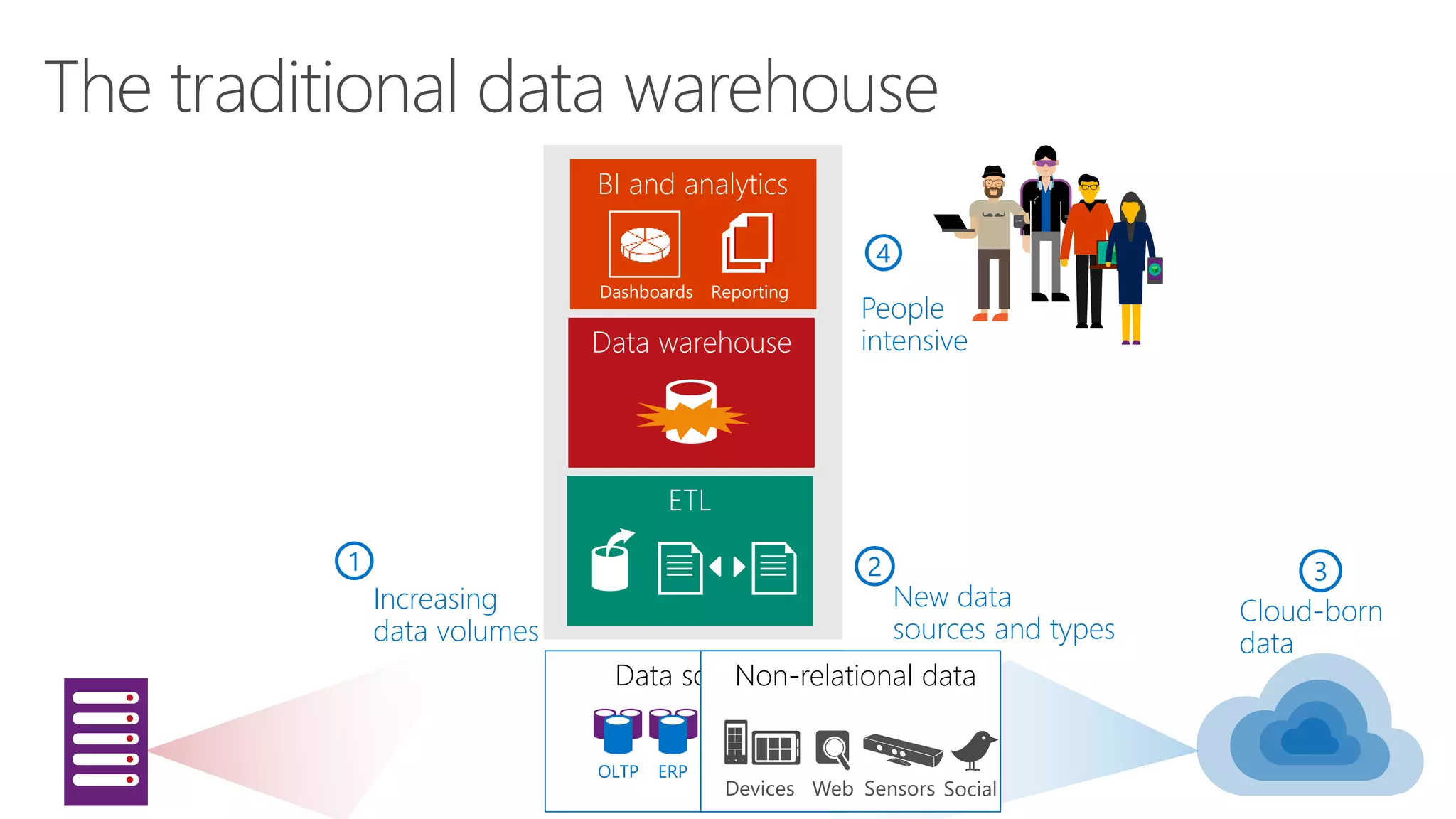

Customer challenges in managing data
Increased data
types and volumes
Varied data sources
Added complexity
and cost

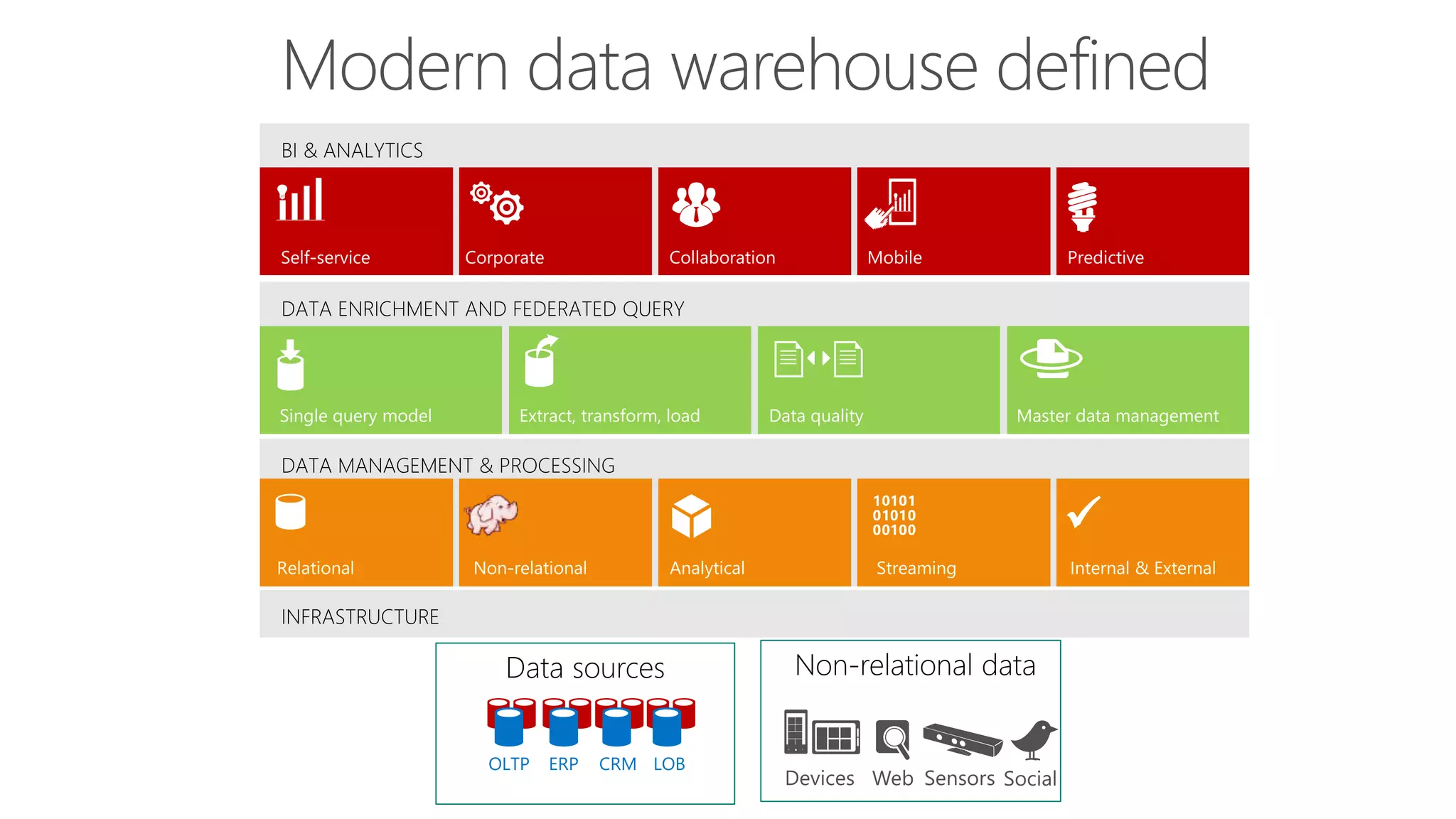

BI and analytics
Data management and processing
Data sources Non-relational data
Data enrichment and federated query
OLTP ERP CRM LOB Devices Web Sensors Social
Self-service Corporate Collaboration Mobile Machine learning
Single query model Extract, transform, load Data quality Master data management
Box software Appliances Cloud
SQL Server
Box software Appliances Cloud
Office 365
Azure

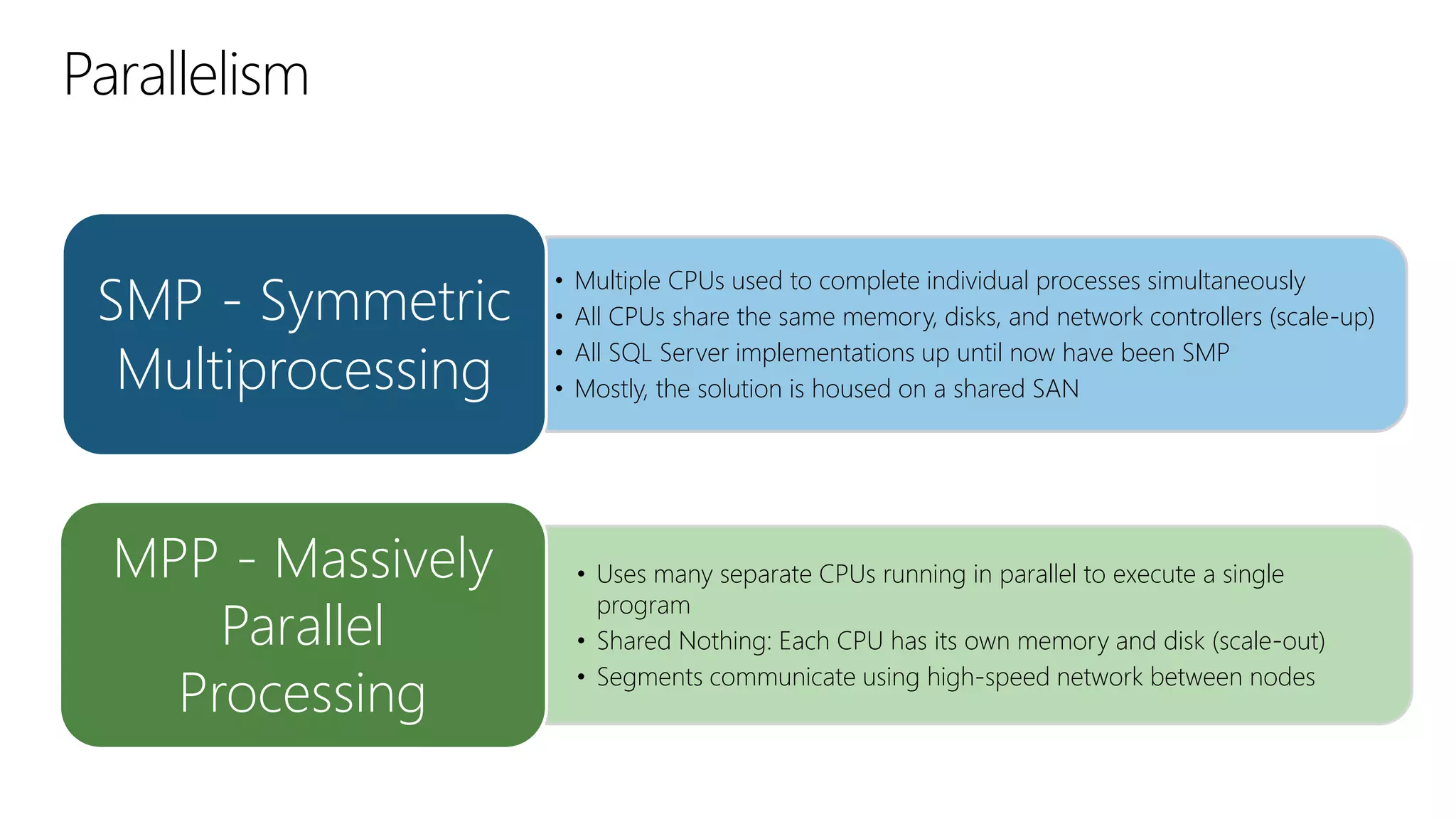

Parallelism
• Uses many separate CPUs running in parallel to execute a single
program
• Shared Nothing: Each CPU has its own memory and disk (scale-out)
• Segments communicate using high-speed network between nodes
MPP - Massively
Parallel
Processing
• Multiple CPUs used to complete individual processes simultaneously
• All CPUs share the same memory, disks, and network controllers (scale-up)
• All SQL Server implementations up until now have been SMP
• Mostly, the solution is housed on a shared SAN
SMP - Symmetric
Multiprocessing

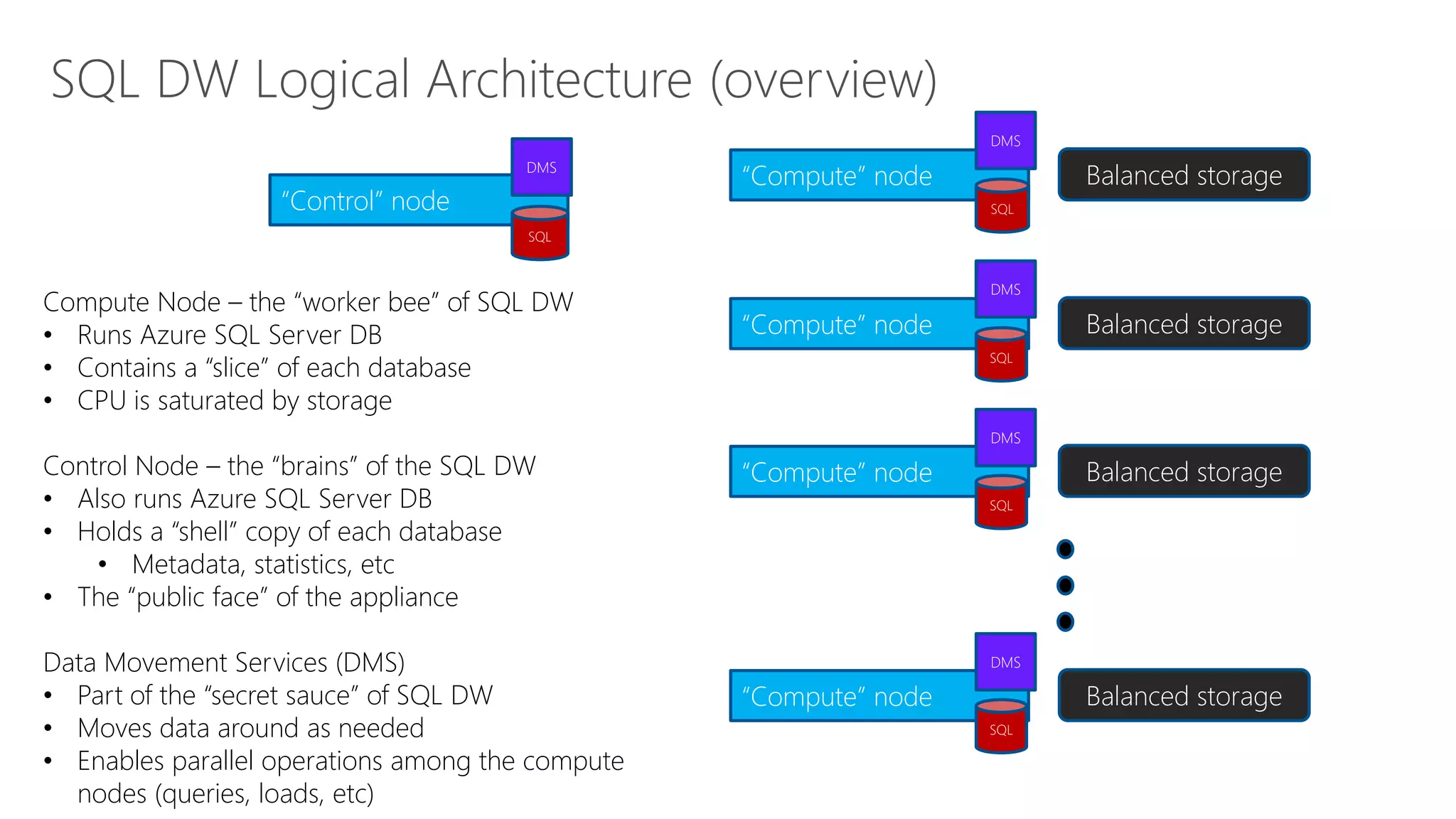

SQL DW Logical Architecture (overview)
“Compute” node Balanced storage
SQL
“Compute” node Balanced storage
SQL
“Compute” node Balanced storage
SQL
“Compute” node Balanced storage
SQL
DMS
DMS
DMS
DMS
Compute Node – the “worker bee” of SQL DW
• Runs Azure SQL Server DB
• Contains a “slice” of each database
• CPU is saturated by storage
Control Node – the “brains” of the SQL DW
• Also runs Azure SQL Server DB
• Holds a “shell” copy of each database
• Metadata, statistics, etc
• The “public face” of the appliance
Data Movement Services (DMS)
• Part of the “secret sauce” of SQL DW
• Moves data around as needed
• Enables parallel operations among the compute
nodes (queries, loads, etc)
“Control” node
SQL
DMS

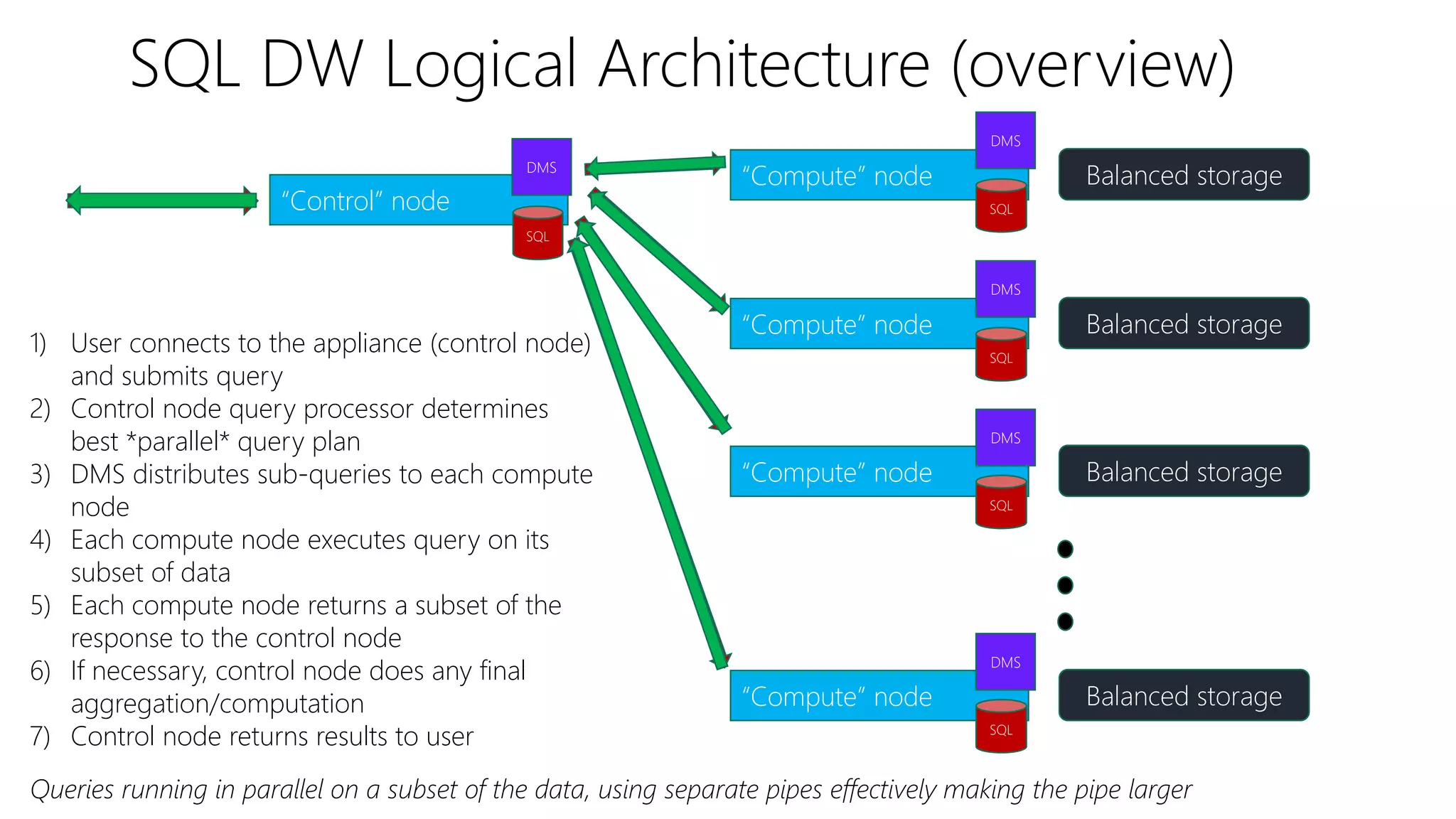

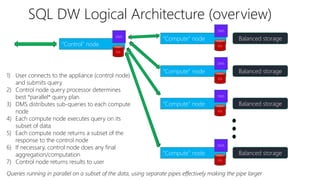

SQL DW Logical Architecture (overview)
“Compute” node Balanced storage
SQL“Control” node
SQL
“Compute” node Balanced storage
SQL
“Compute” node Balanced storage
SQL
“Compute” node Balanced storage
SQL
DMS
DMS
DMS
DMS
DMS
1) User connects to the appliance (control node)
and submits query
2) Control node query processor determines
best *parallel* query plan
3) DMS distributes sub-queries to each compute
node
4) Each compute node executes query on its
subset of data
5) Each compute node returns a subset of the
response to the control node
6) If necessary, control node does any final
aggregation/computation
7) Control node returns results to user
Queries running in parallel on a subset of the data, using separate pipes effectively making the pipe larger

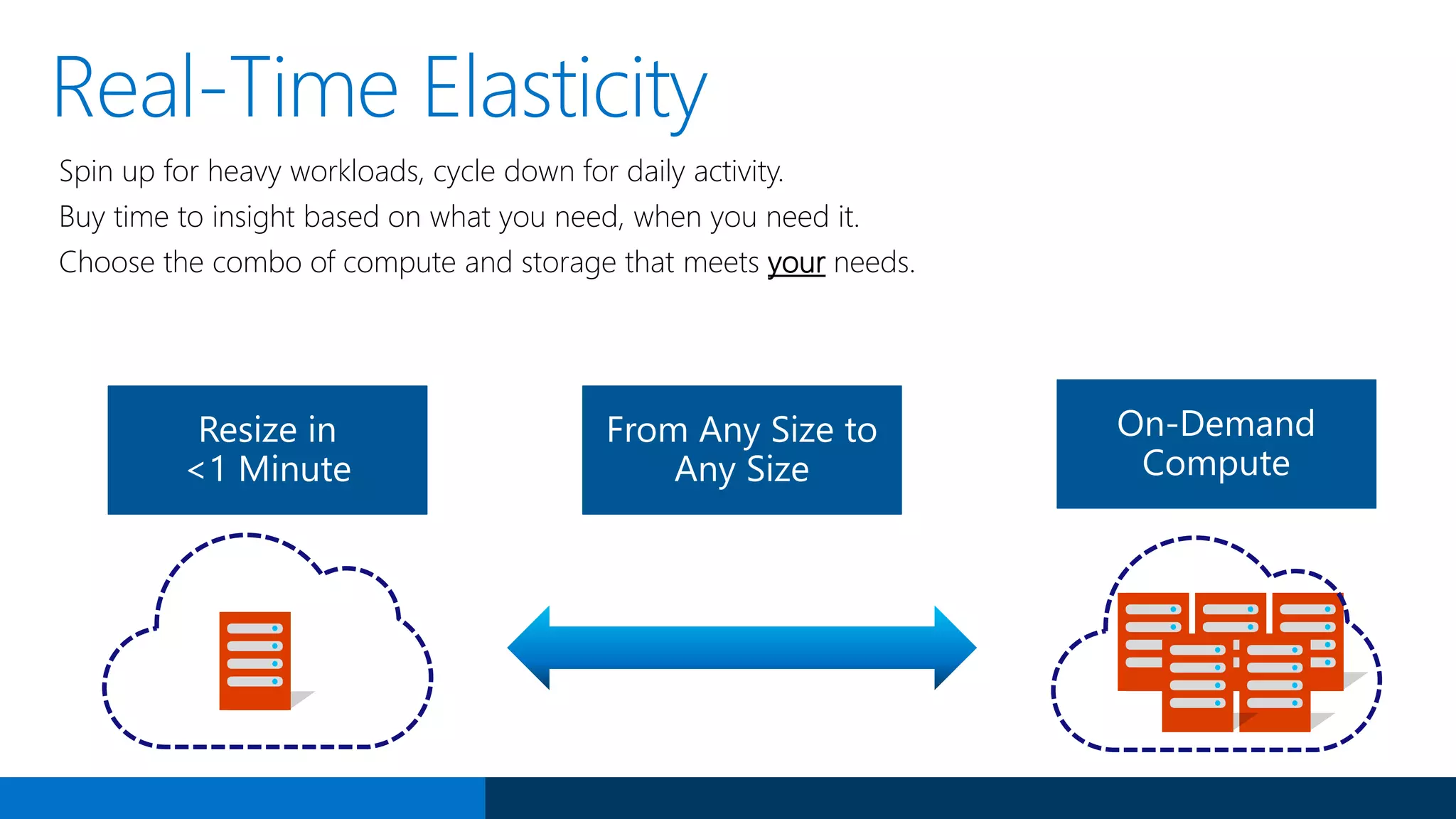

Elastic scale & performance
Real-time elasticity
Resize in <1 minute On-demand compute
Expand or reduce
as needed
Storage can be as big or
small as required
Customers can execute niche
workloads without re-scanning data
Elastic scale & performance
Scale
Scale DWU’s
App Service
Intelligent App
Hadoop
Azure Machine
Learning
Power BI
Azure SQL
Database
SQL
AzureSQL Data
Warehouse
End-to-end platform built for the cloud
Power of integration
Azure Data Factory
Migration Accelerator
ExpressRoute
End-to-end platform built for the cloud
Bring compute to data, keep data in its place
Market leading price/performance

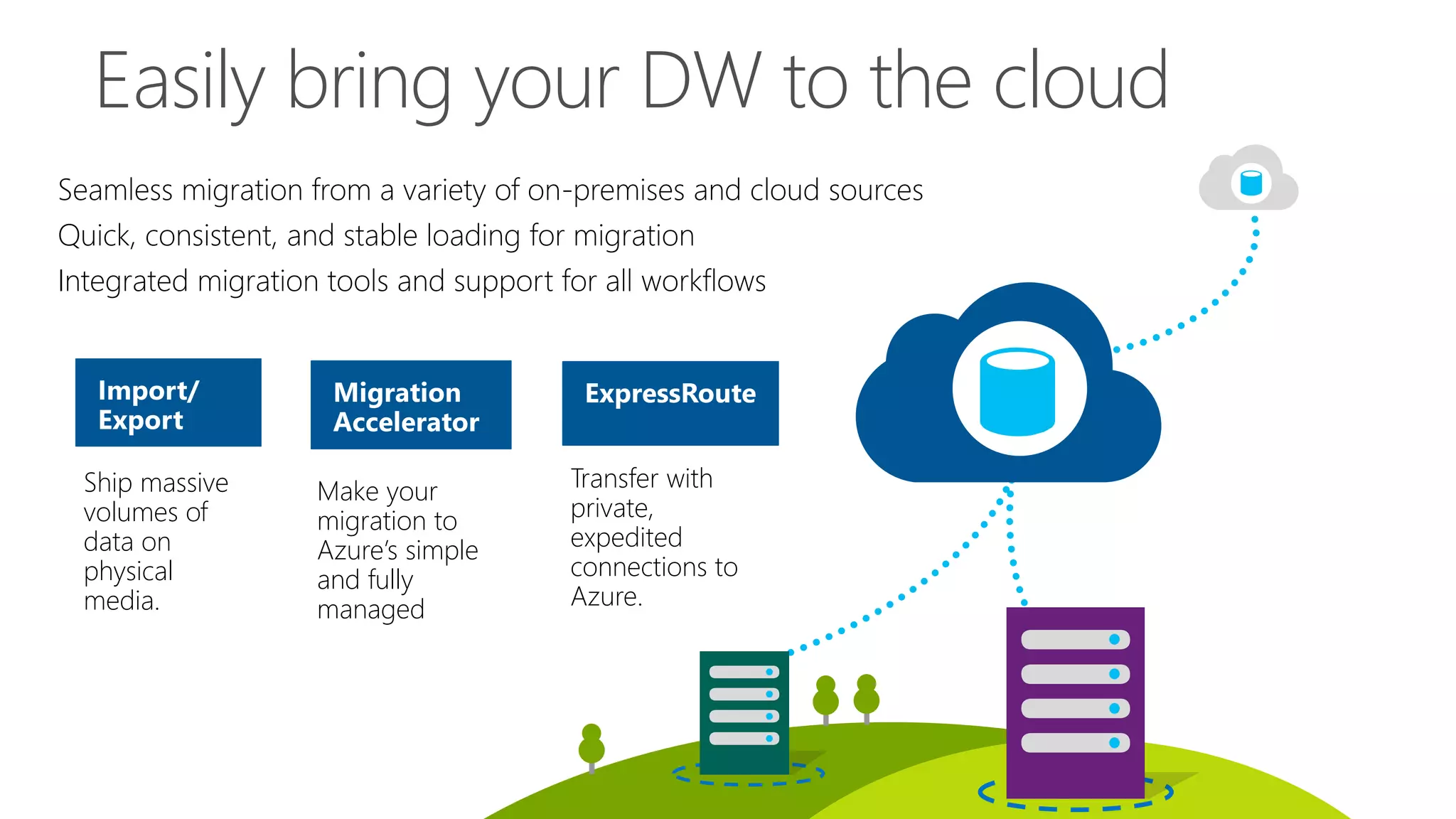

Bring your data warehouse to the cloud
Automated
Minimize cost
Policy-based
Secure data
Market leading price/performance

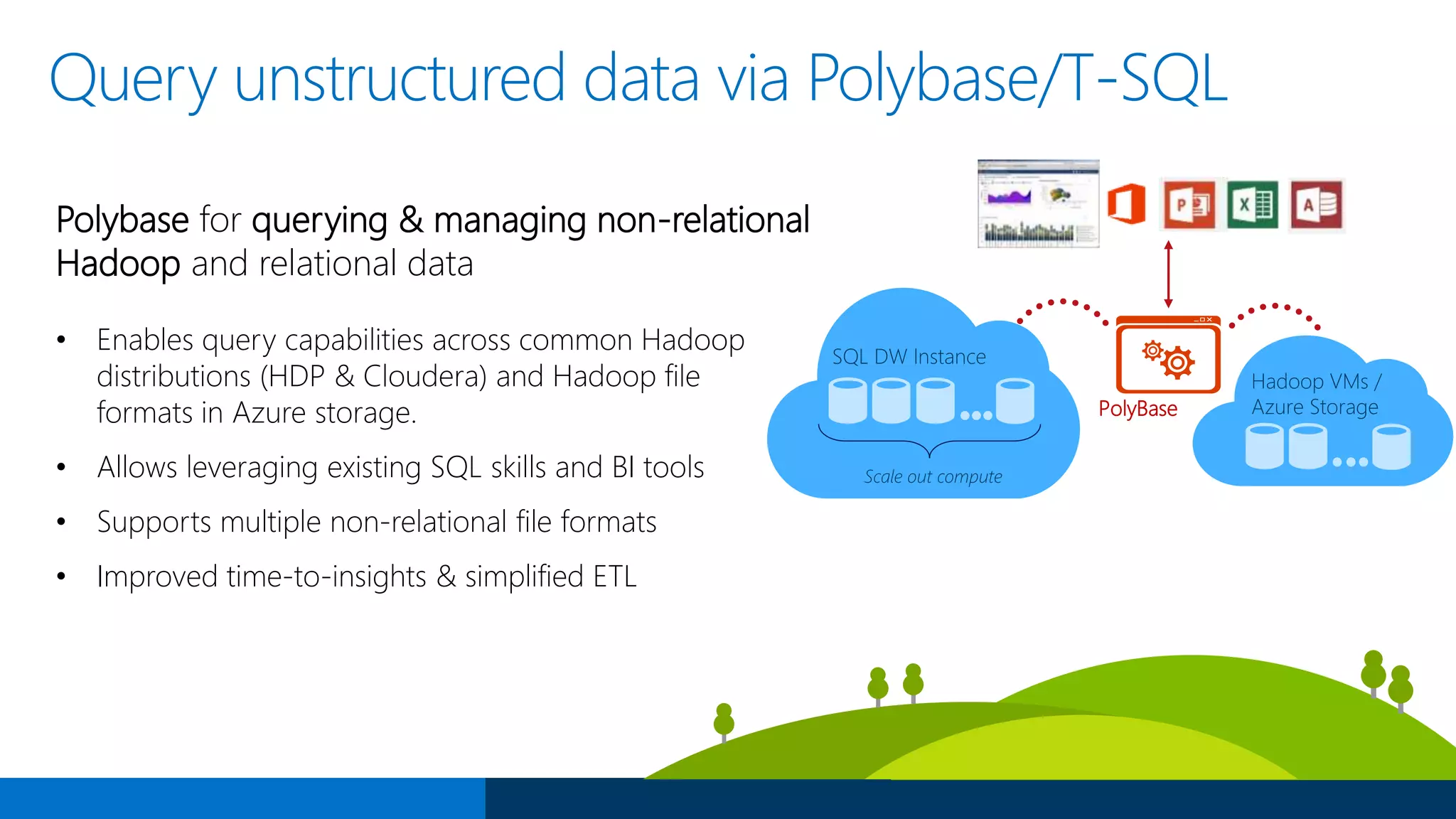

Query unstructured data via PolyBase/T-SQL
PolyBase
Scale out compute
SQL DW Instance
Hadoop VMs /
Azure Storage
Any data, any size, anywhere
Market leading price/performance
Hassle-free management
Infrastructure
Management
Azure support
With built-in ease of use

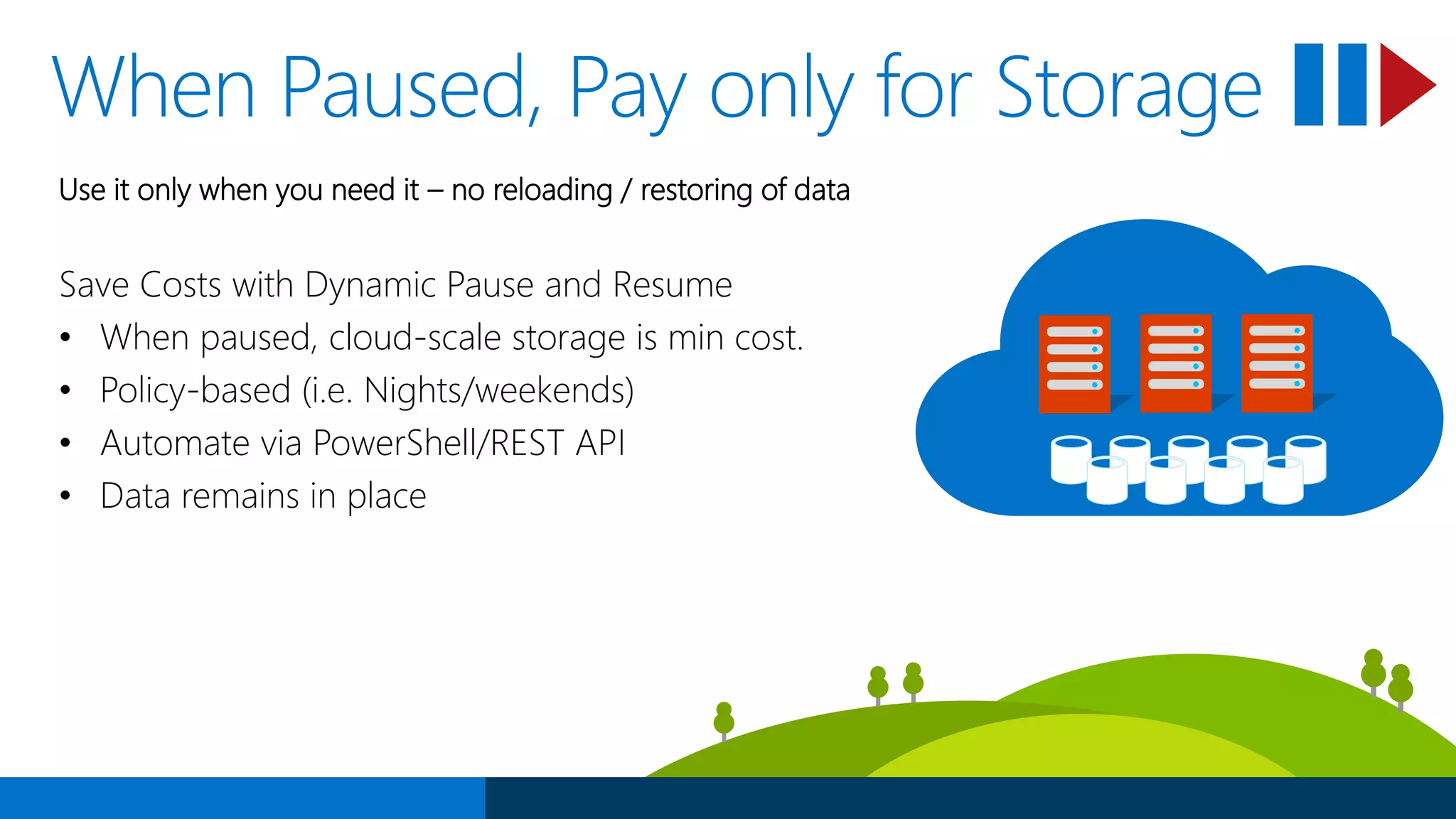

When Paused, Pay only for Storage
Use it only when you need it – no reloading / restoring of data
Save Costs with Dynamic Pause and Resume
• When paused, cloud-scale storage is min cost.
• Policy-based (i.e. Nights/weekends)
• Automate via PowerShell/REST API
• Data remains in place

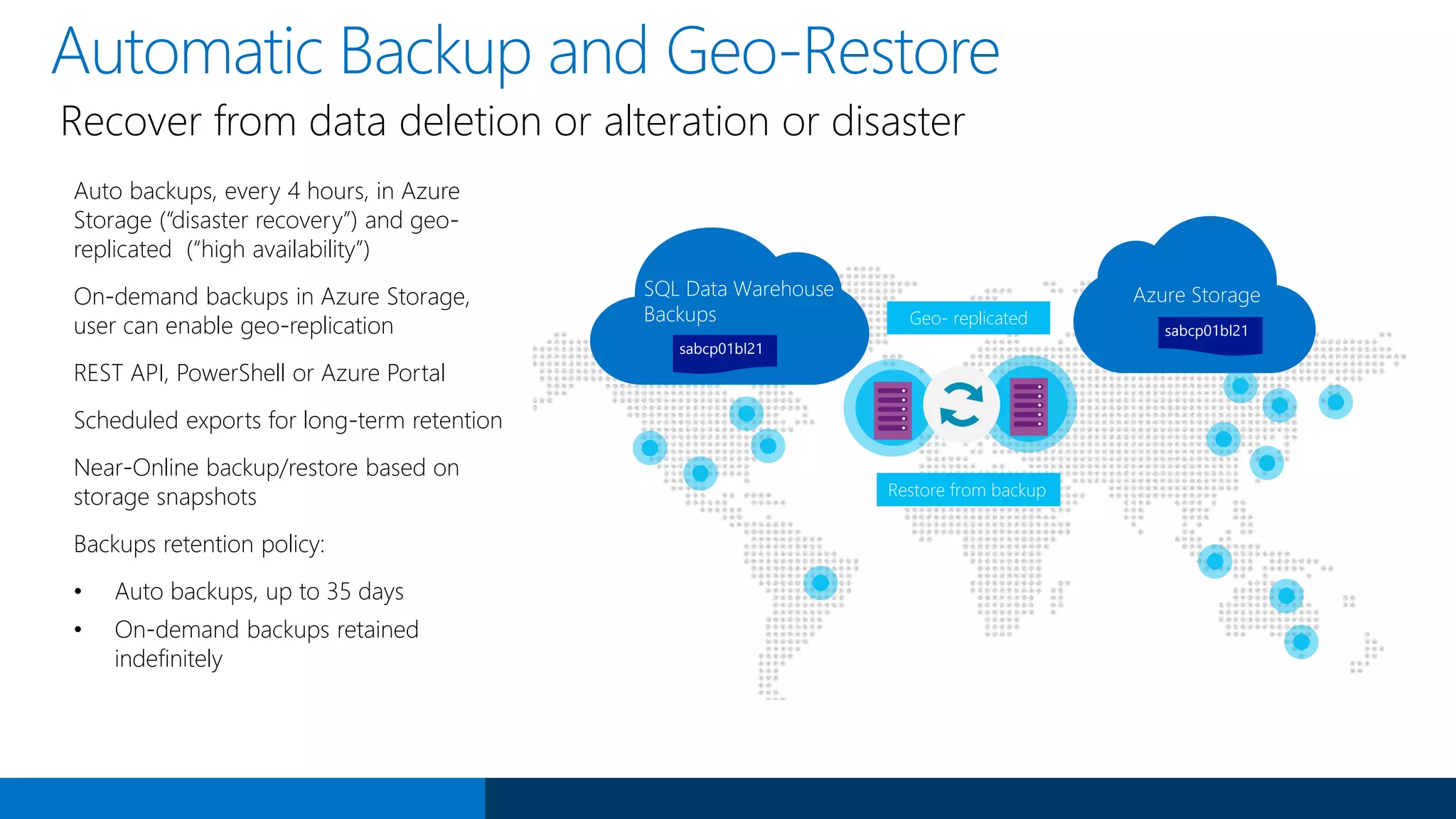

Geo-storage replication
 Azure Storage Page Blobs, 3 copies locally
 High durability/availability
 Another 3 copies in different region
Defend against regional disasters
Geo replication
• Auto backups, every 4 hours
• On-demand backups in Azure Storage
• REST API, PowerShell or Azure Portal
• Scheduled exports
• Near-online backup/restore
• Backups retention policy:
• Auto backups, up to 35 days
• On-demand backups
retained indefinitely
Geo- replicated
Restore from backup
SQL DW backups
sabcp01bl21
Azure Storage
sabcp01bl21
Automatic backup and geo-restore
Recover from data deletion or alteration or disaster
Hybrid scenarios which work well
Both Analytics Platform System and Azure SQL Data Warehouse
have a Massively Parallel Processing (MPP) engine. Here are a
few scenarios where they can be leveraged together.
Dev/test
Test new ideas in
SQL DW before rolling
out to production in APS
Archive
Archive cold data to blob
storage for any workload
execution
Governance
Store data in APS that
company policy prohibits
being in the cloud
Microsoft
Data
Platform
Relational Beyond-Relational
On-premisesCloud
Comprehensive
Connected
Choice
SQL ServerAzureVM
Azure SQL DB
Azure SQL DW
AzureData Lake Analytics
AzureData Lake Store
Fast Trackfor SQL Server
AnalyticsPlatformSystem
SQL Server2016 + SuperdomeX
AnalyticsPlatformSystem
Hadoop
Federated Query
Power BI
AzureMachineLearning
AzureData Factory

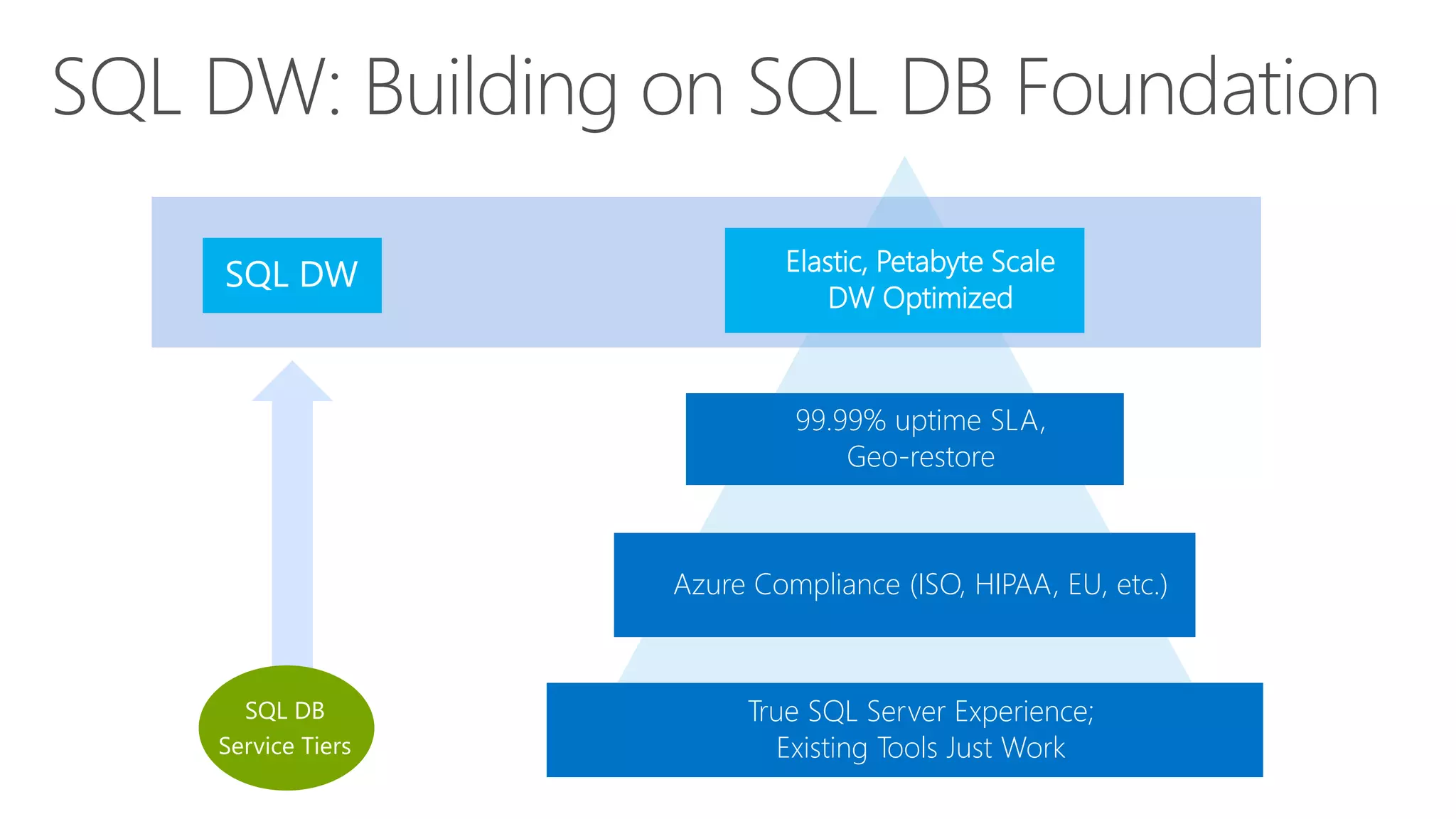

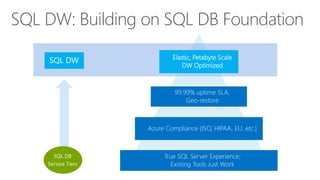

SQL DW: Building on SQL DB Foundation
Elastic, Petabyte Scale
DW Optimized
99.99% uptime SLA,
Geo-restore
Azure Compliance (ISO, HIPAA, EU, etc.)
True SQL Server Experience;
Existing Tools Just Work
SQL DW
SQL DB

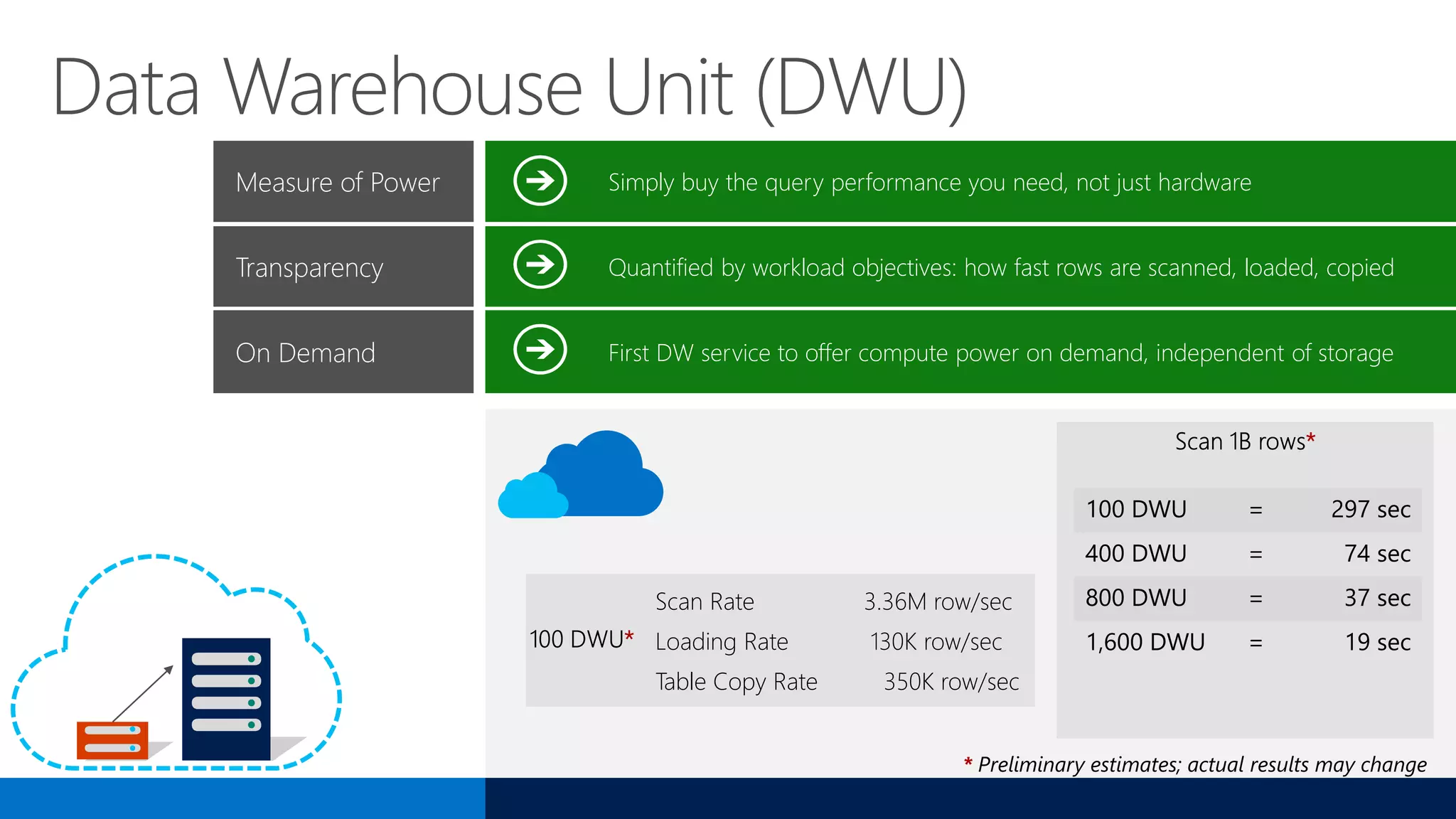

Service Tiers
Measure of power Simply buy the query performance you need, not just hardware
Transparency Quantified by workload objectives: how fast rows are scanned, loaded, copied
On demand First DW service to offer compute power on demand, independent of storage
Scan Rate 3.36M row/sec
Loading Rate 130K row/sec
Table Copy Rate 350K row/sec
* *
100 DWU = 297 sec
400 DWU = 74 sec
800 DWU = 37 sec
1,600 DWU = 19 sec
*

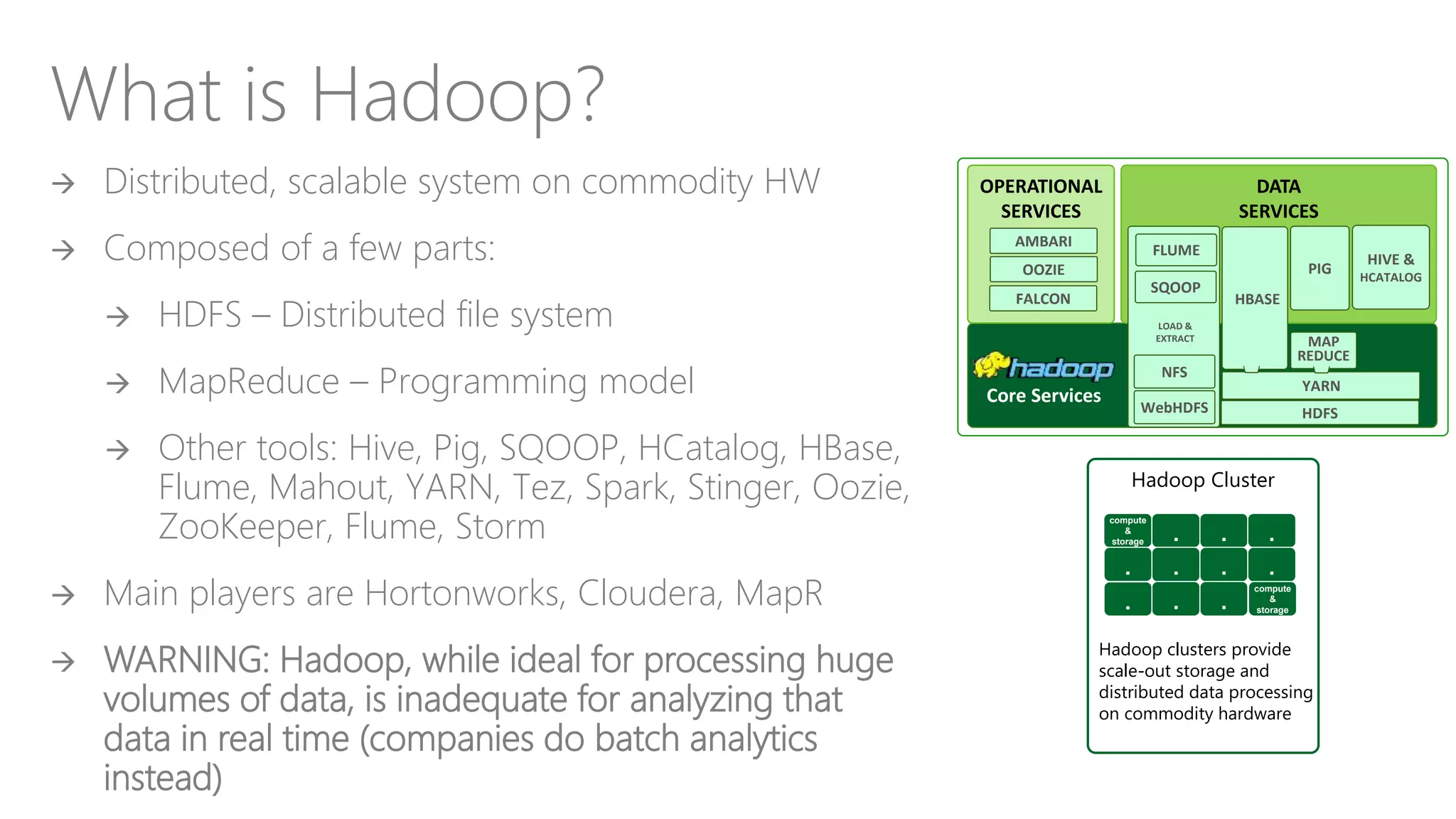

What is Hadoop?
Microsoft Confidential
 Distributed, scalable system on commodity HW
 Composed of a few parts:
 HDFS – Distributed file system
 MapReduce – Programming model
 Other tools: Hive, Pig, SQOOP, HCatalog, HBase,
Flume, Mahout, YARN, Tez, Spark, Stinger, Oozie,
ZooKeeper, Flume, Storm
 Main players are Hortonworks, Cloudera, MapR
 WARNING: Hadoop, while ideal for processing huge
volumes of data, is inadequate for analyzing that
data in real time (companies do batch analytics
instead)
Core Services
OPERATIONAL
SERVICES
DATA
SERVICES
HDFS
SQOOP
FLUME
NFS
LOAD &
EXTRACT
WebHDFS
OOZIE
AMBARI
YARN
MAP
REDUCE
HIVE &
HCATALOG
PIG
HBASEFALCON
Hadoop Cluster
compute
&
storage . . .
. . .
. .
compute
&
storage
.
.
Hadoop clusters provide
scale-out storage and
distributed data processing
on commodity hardware

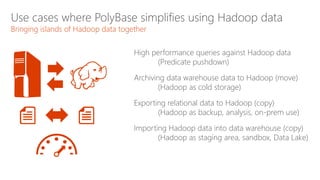

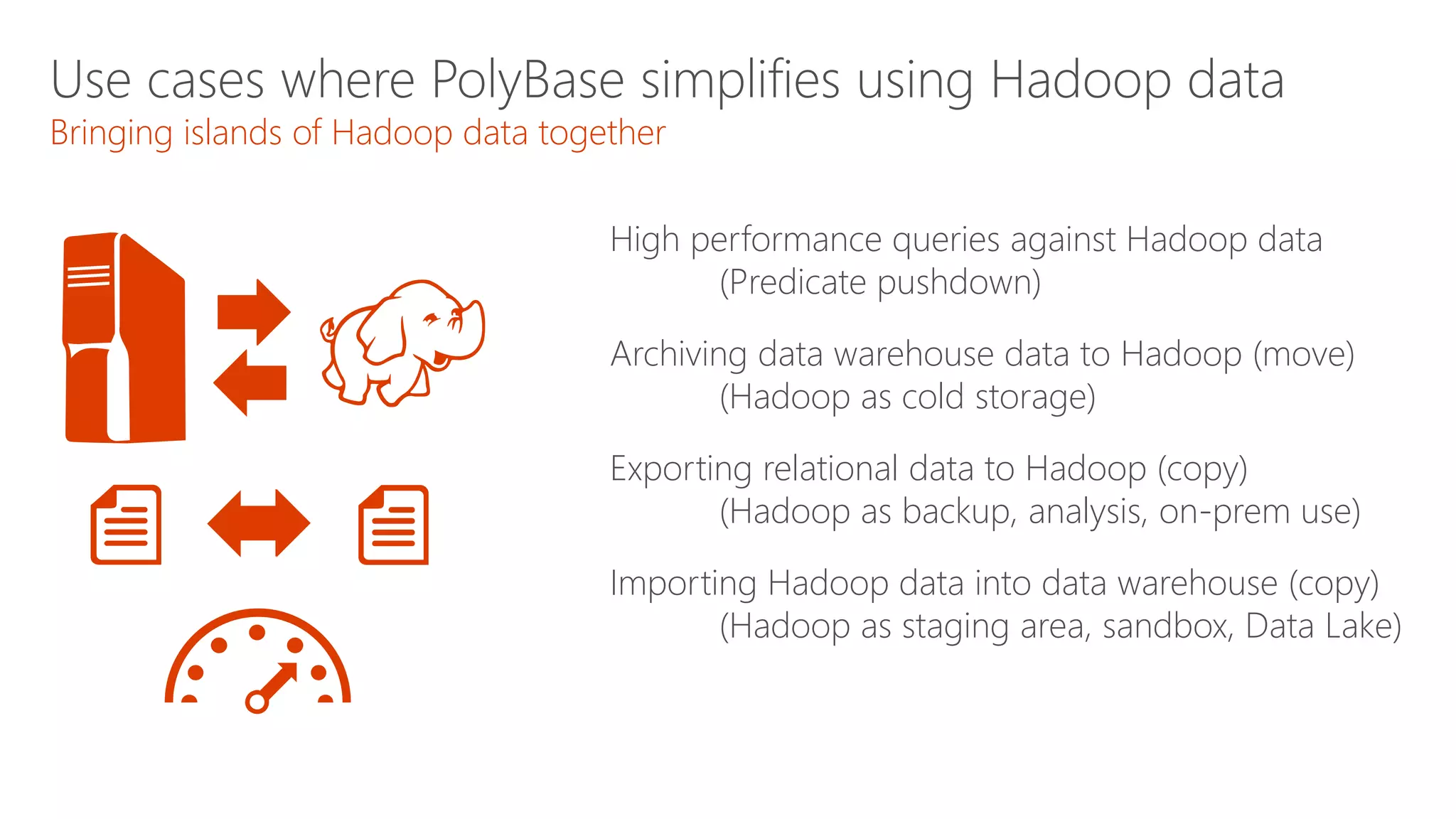

Use cases where PolyBase simplifies using Hadoop data
Bringing islands of Hadoop data together
High performance queries against Hadoop data
(Predicate pushdown)
Archiving data warehouse data to Hadoop (move)
(Hadoop as cold storage)
Exporting relational data to Hadoop (copy)
(Hadoop as backup, analysis, on-prem use)
Importing Hadoop data into data warehouse (copy)
(Hadoop as staging area, sandbox, Data Lake)




Azure SQL Data Warehouse loading patterns and strategies: https://blogs.msdn.microsoft.com/sqlcat/2016/02/06/azure-sql-data-warehouse-loading-patterns-and-strategies/

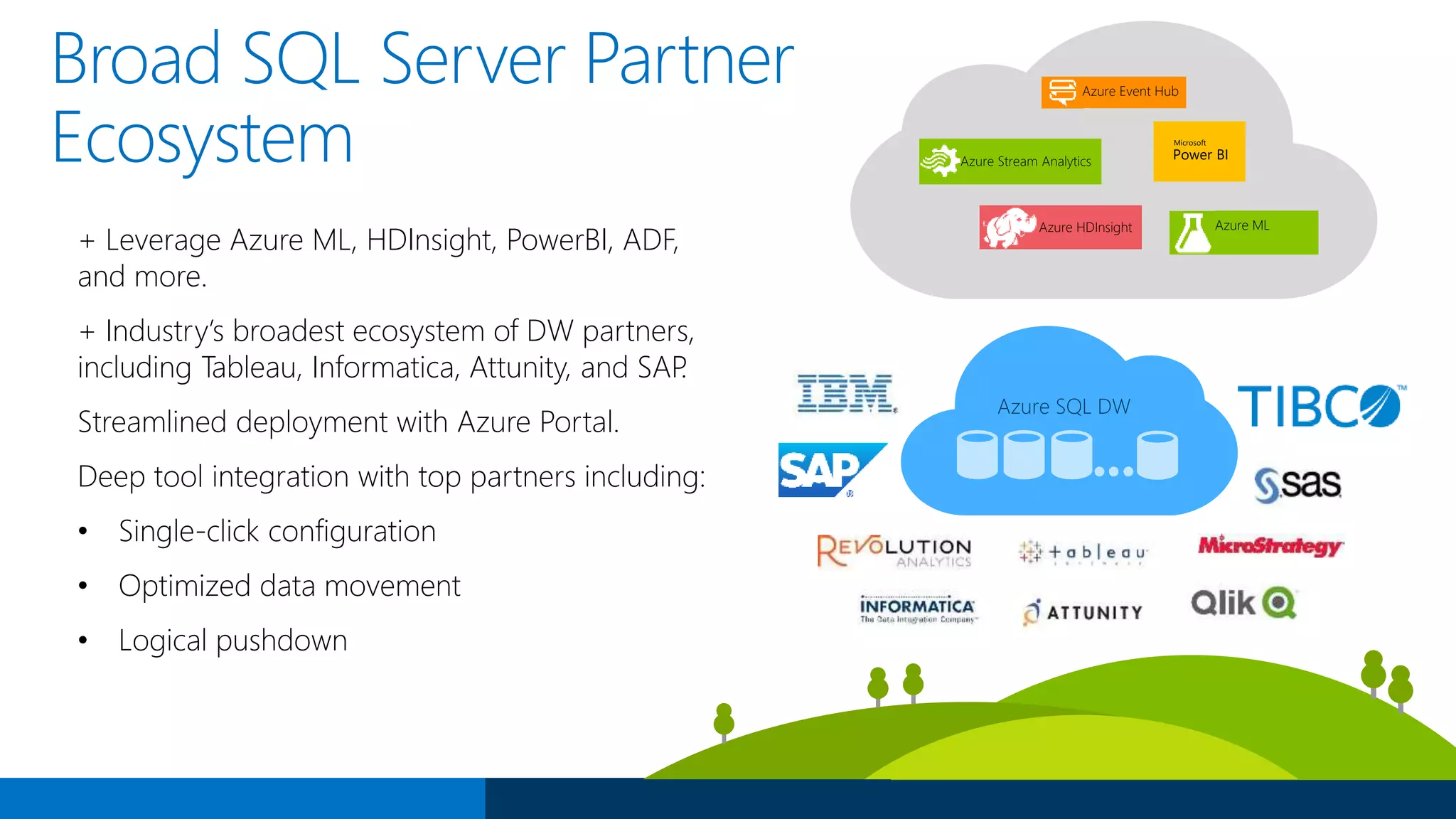

Broad SQL Server Partner
Ecosystem
+ Leverage Azure ML, HDInsight, PowerBI, ADF,
and more.
+ Industry’s broadest ecosystem of DW partners,
including Tableau, Informatica, Attunity, and SAP.

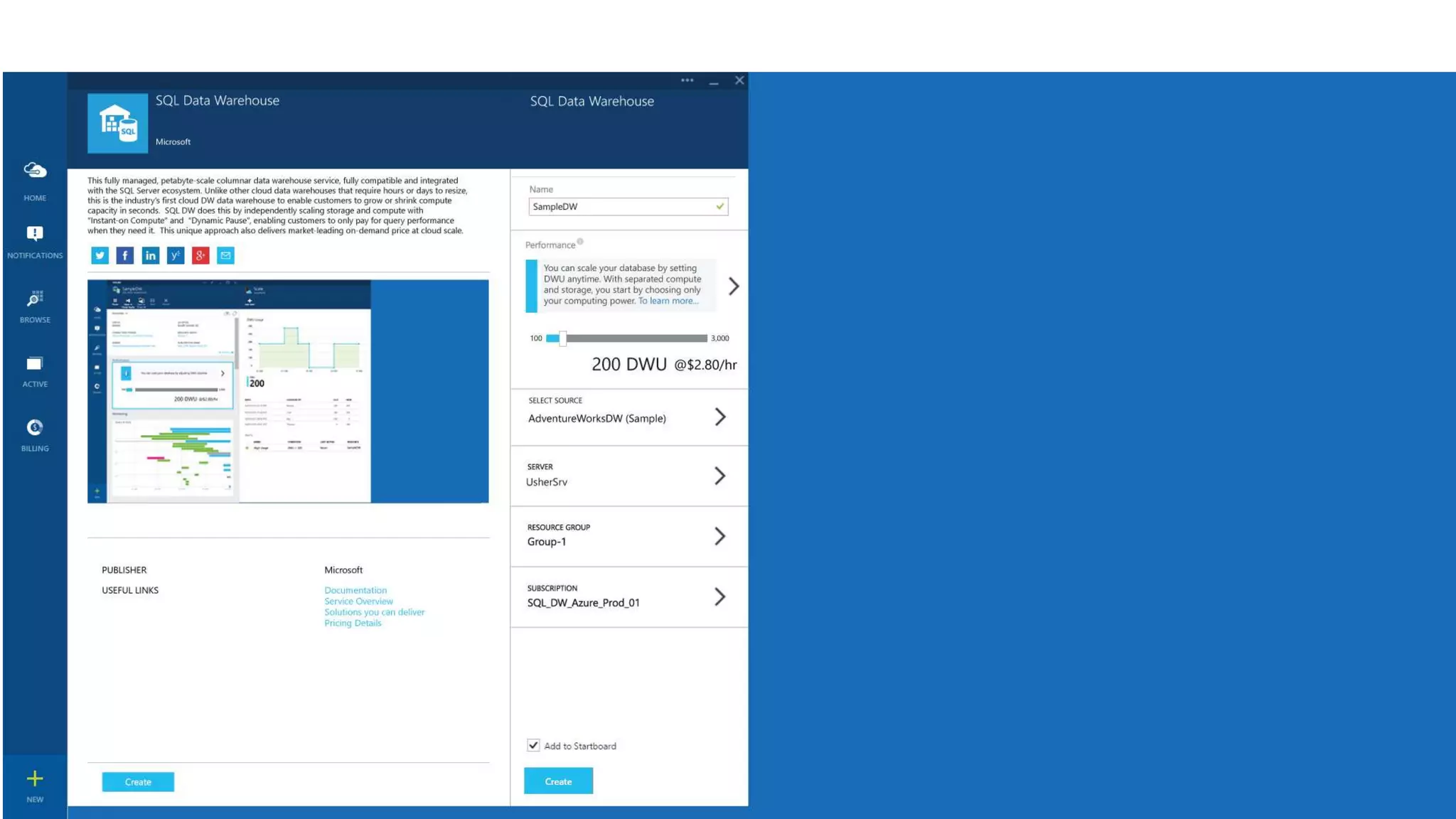

Streamlined deployment with Azure Portal.
Deep tool integration with top partners including:
• Single-click configuration
• Optimized data movement
• Logical pushdown
Azure SQL DW
Azure ML
Azure Event Hub
Azure HDInsight

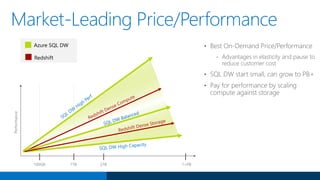

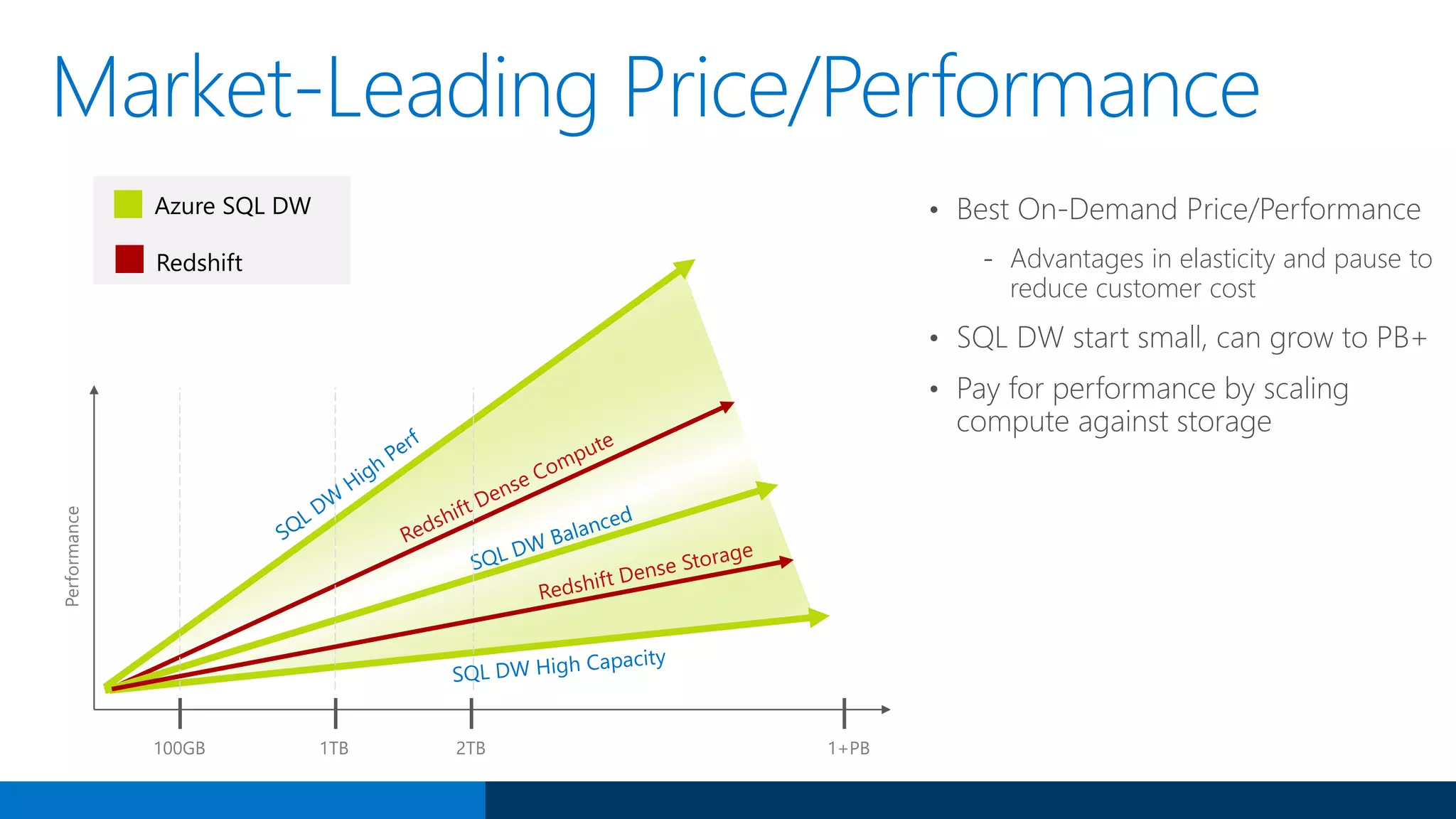

Market-Leading Price/Performance
• Best On-Demand Price/Performance
‐ Advantages in elasticity and pause to
reduce customer cost
• SQL DW start small, can grow to PB+
• Pay for performance by scaling
compute against storage
100GB 1TB 2TB 1+PB
Performance

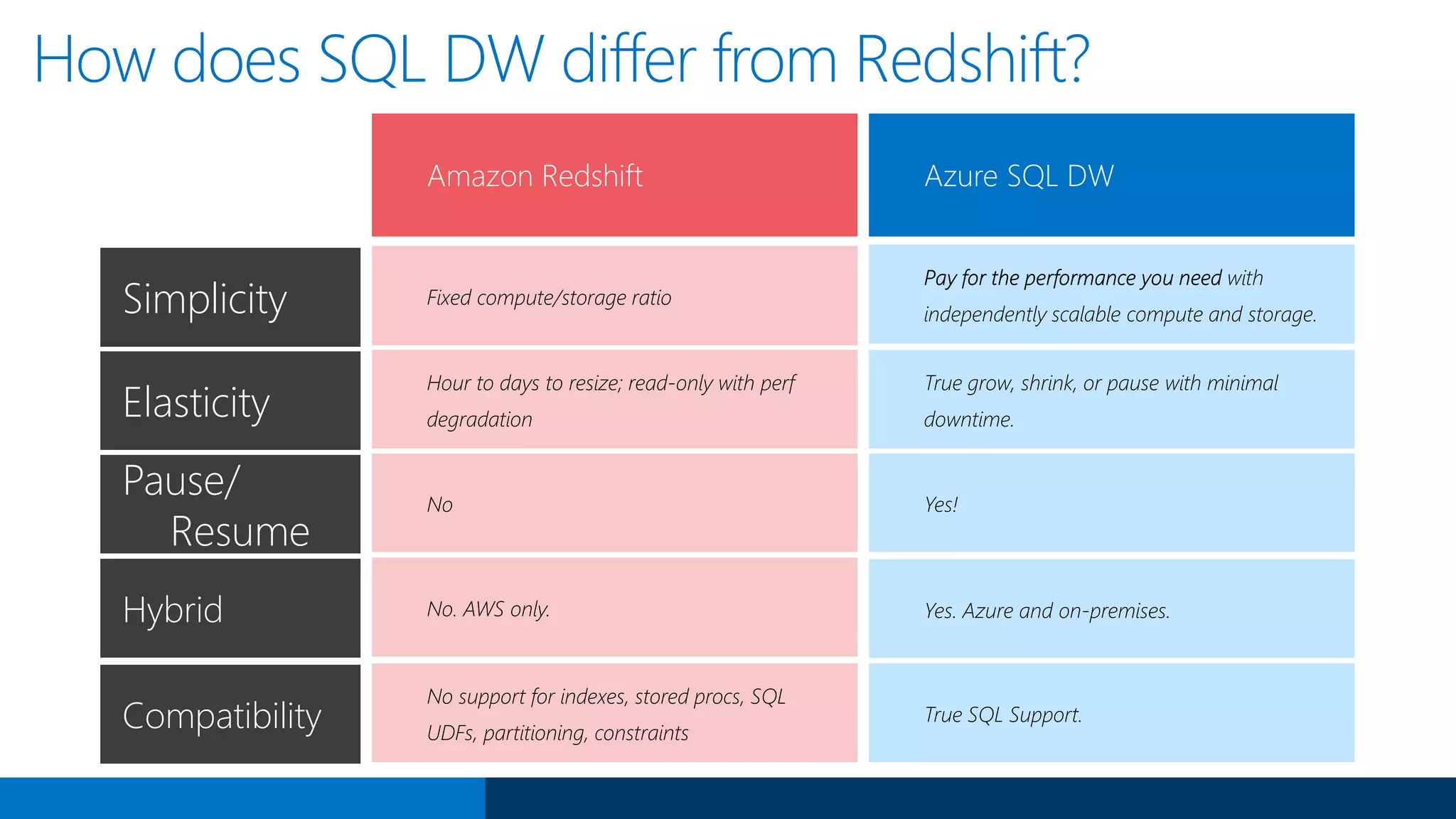

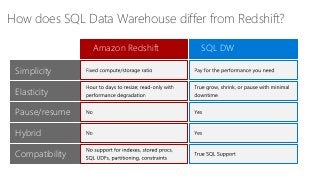

How does SQL Data Warehouse differ from Redshift?
Elasticity
Amazon Redshift SQL DW
Pause/resume
Simplicity
Hybrid
Compatibility

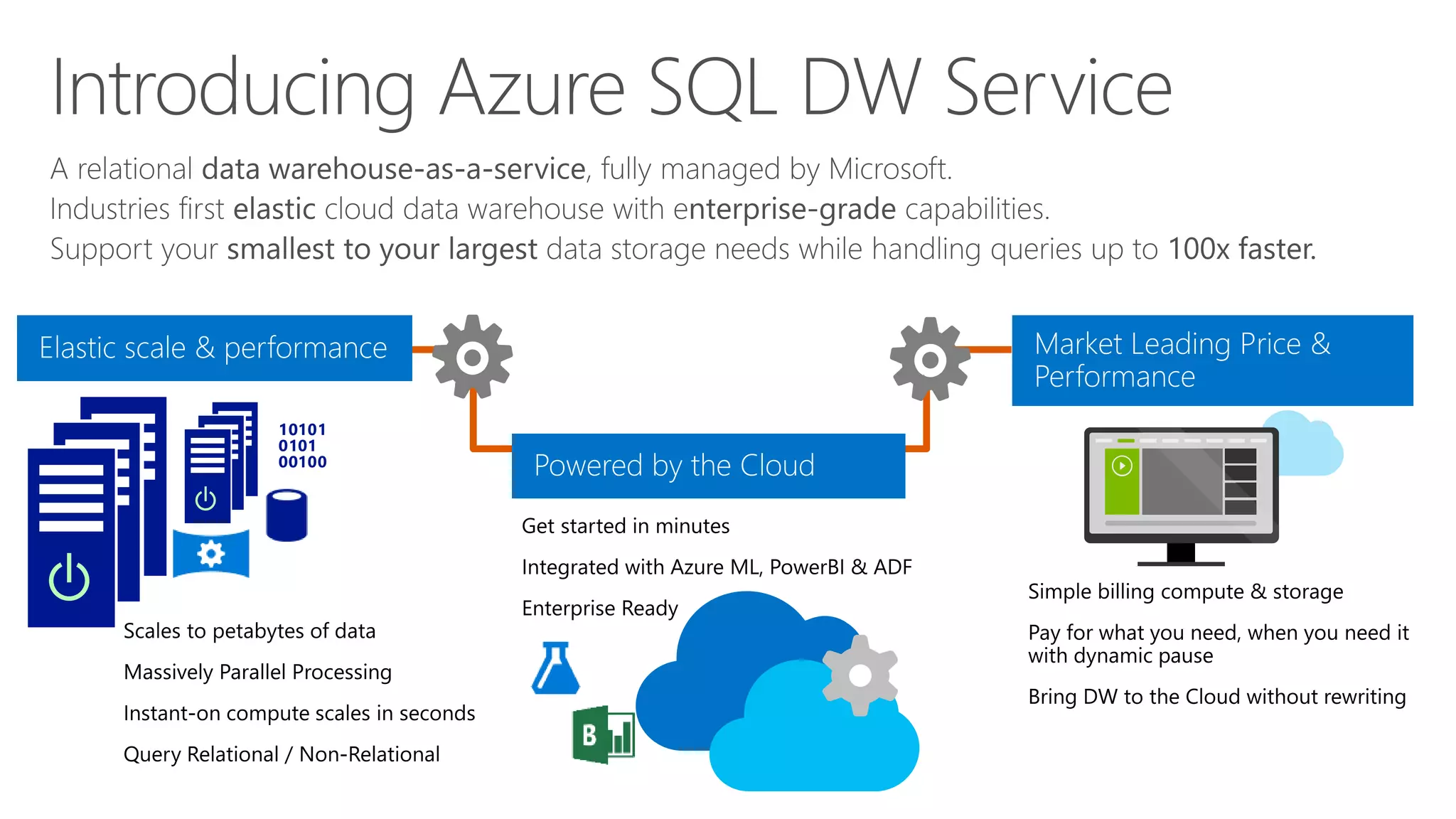

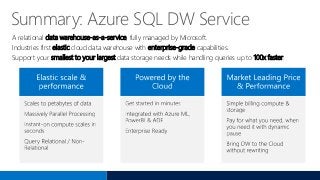

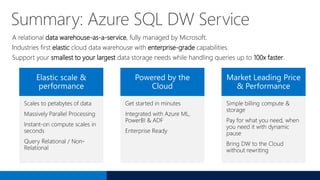

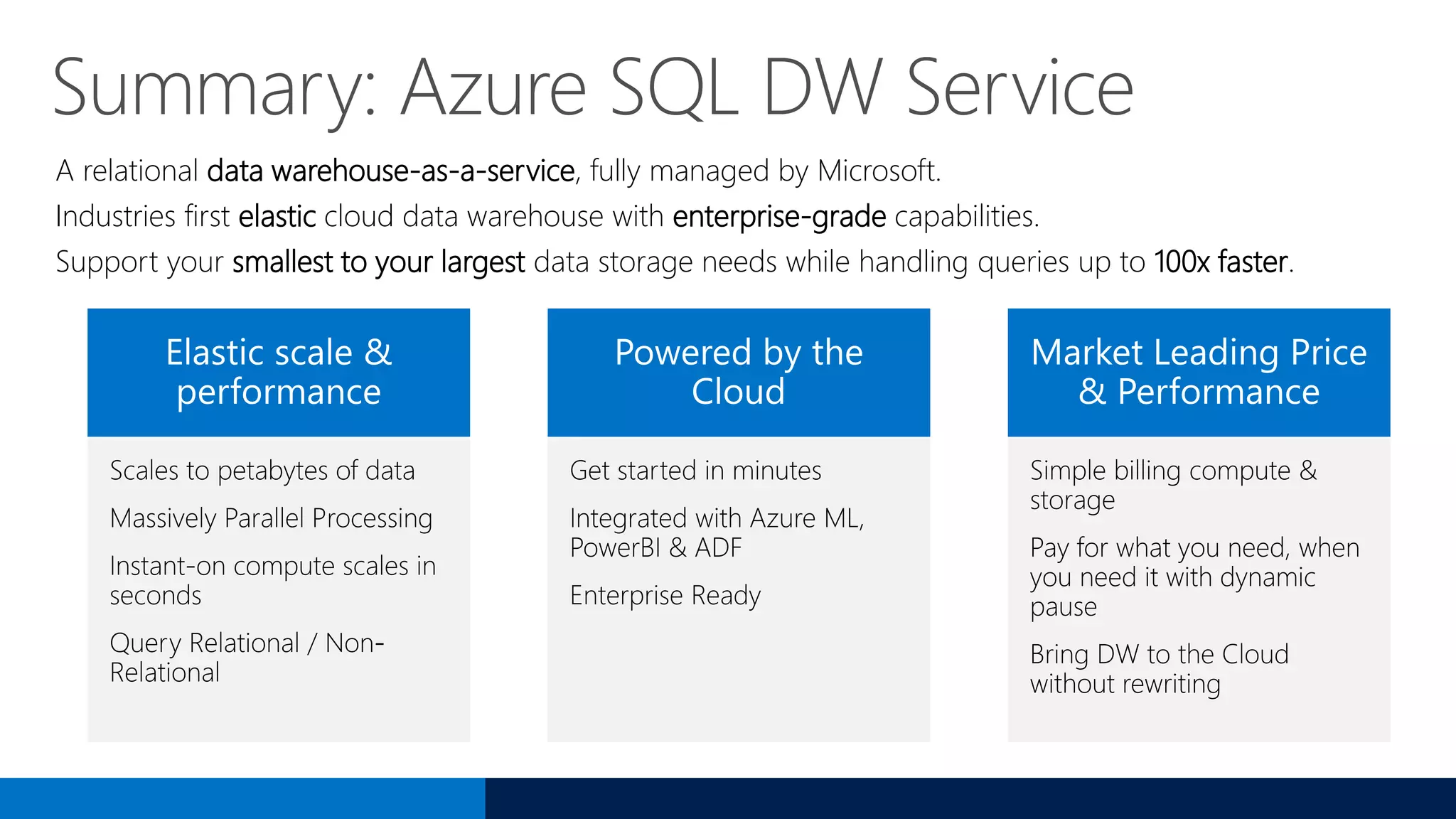

Summary: Azure SQL DW Service
A relational data warehouse-as-a-service, fully managed by Microsoft.
Industries first elastic cloud data warehouse with enterprise-grade capabilities.
Support your smallest to your largest data storage needs while handling queries up to 100x faster.
Azure getting started
• Free Azure account, $200 in credit, https://azure.microsoft.com/en-us/free/
• Startups: BizSpark, $750/month free Azure, BizSpark Plus - $120k/year free Azure,
https://www.microsoft.com/bizspark/
• MSDN subscription, $150/month free Azure, https://azure.microsoft.com/en-us/pricing/member-
offers/msdn-benefits/
• Microsoft Educator Grant Program, faculty - $250/month free Azure for a year, students -
$100/month free Azure for 6 months, https://azure.microsoft.com/en-us/pricing/member-
offers/msdn-benefits/
• Microsoft Azure for Research Grant, http://research.microsoft.com/en-
us/projects/azure/default.aspx
• DreamSpark for students, https://www.dreamspark.com/Student/Default.aspx
• DreamSpark for academic institutions: https://www.dreamspark.com/Institution/Subscription.aspx
• Various Microsoft funds
Questions?
James Serra
jserra@microsoft.com

More Related Content

What's hot

Snowflake Best Practices for Elastic Data Warehousing
Snowflake Best Practices for Elastic Data WarehousingSnowflake Best Practices for Elastic Data Warehousing
Snowflake Best Practices for Elastic Data Warehousing
Amazon Web Services

An overview of snowflake
An overview of snowflakeAn overview of snowflake
An overview of snowflake
Sivakumar Ramar

Modernizing to a Cloud Data Architecture
Modernizing to a Cloud Data ArchitectureModernizing to a Cloud Data Architecture
Modernizing to a Cloud Data Architecture
Databricks

Databricks Platform.pptx
Databricks Platform.pptxDatabricks Platform.pptx
Databricks Platform.pptx
Alex Ivy

Microsoft Azure Data Factory Hands-On Lab Overview Slides
Microsoft Azure Data Factory Hands-On Lab Overview SlidesMicrosoft Azure Data Factory Hands-On Lab Overview Slides
Microsoft Azure Data Factory Hands-On Lab Overview Slides
Mark Kromer

Traditional data warehouse vs data lake
Traditional data warehouse vs data lakeTraditional data warehouse vs data lake
Traditional data warehouse vs data lake
BHASKAR CHAUDHURY

Introducing the Snowflake Computing Cloud Data Warehouse
Introducing the Snowflake Computing Cloud Data WarehouseIntroducing the Snowflake Computing Cloud Data Warehouse
Introducing the Snowflake Computing Cloud Data Warehouse
Snowflake Computing

Demystifying Data Warehouse as a Service
Demystifying Data Warehouse as a ServiceDemystifying Data Warehouse as a Service
Demystifying Data Warehouse as a Service
Snowflake Computing

3D: DBT using Databricks and Delta
3D: DBT using Databricks and Delta3D: DBT using Databricks and Delta
3D: DBT using Databricks and Delta
Databricks

Snowflake for Data Engineering
Snowflake for Data EngineeringSnowflake for Data Engineering
Snowflake for Data Engineering
Harald Erb

Build Real-Time Applications with Databricks Streaming
Build Real-Time Applications with Databricks StreamingBuild Real-Time Applications with Databricks Streaming
Build Real-Time Applications with Databricks Streaming
Databricks

How to Take Advantage of an Enterprise Data Warehouse in the Cloud
How to Take Advantage of an Enterprise Data Warehouse in the CloudHow to Take Advantage of an Enterprise Data Warehouse in the Cloud
How to Take Advantage of an Enterprise Data Warehouse in the Cloud
Denodo

Modern Data architecture Design
Modern Data architecture DesignModern Data architecture Design
Modern Data architecture Design
Kujambu Murugesan

Architect’s Open-Source Guide for a Data Mesh Architecture
Architect’s Open-Source Guide for a Data Mesh ArchitectureArchitect’s Open-Source Guide for a Data Mesh Architecture
Architect’s Open-Source Guide for a Data Mesh Architecture
Databricks

Snowflake essentials
Snowflake essentialsSnowflake essentials
Snowflake essentials
qureshihamid

Hadoop and Enterprise Data Warehouse
Hadoop and Enterprise Data WarehouseHadoop and Enterprise Data Warehouse
Hadoop and Enterprise Data Warehouse
DataWorks Summit

Achieving Lakehouse Models with Spark 3.0
Achieving Lakehouse Models with Spark 3.0Achieving Lakehouse Models with Spark 3.0
Achieving Lakehouse Models with Spark 3.0
Databricks

Intro to Delta Lake
Intro to Delta LakeIntro to Delta Lake
Intro to Delta Lake
Databricks

Learn to Use Databricks for Data Science
Learn to Use Databricks for Data ScienceLearn to Use Databricks for Data Science
Learn to Use Databricks for Data Science
Databricks

Data Warehouse - Incremental Migration to the Cloud
Data Warehouse - Incremental Migration to the CloudData Warehouse - Incremental Migration to the Cloud
Data Warehouse - Incremental Migration to the Cloud
Michael Rainey


What's hot (20)

Snowflake Best Practices for Elastic Data Warehousing
Snowflake Best Practices for Elastic Data WarehousingSnowflake Best Practices for Elastic Data Warehousing
Snowflake Best Practices for Elastic Data Warehousing

An overview of snowflake
An overview of snowflakeAn overview of snowflake
An overview of snowflake

Modernizing to a Cloud Data Architecture
Modernizing to a Cloud Data ArchitectureModernizing to a Cloud Data Architecture
Modernizing to a Cloud Data Architecture

Databricks Platform.pptx
Databricks Platform.pptxDatabricks Platform.pptx
Databricks Platform.pptx

Microsoft Azure Data Factory Hands-On Lab Overview Slides
Microsoft Azure Data Factory Hands-On Lab Overview SlidesMicrosoft Azure Data Factory Hands-On Lab Overview Slides
Microsoft Azure Data Factory Hands-On Lab Overview Slides

Traditional data warehouse vs data lake
Traditional data warehouse vs data lakeTraditional data warehouse vs data lake
Traditional data warehouse vs data lake

Introducing the Snowflake Computing Cloud Data Warehouse
Introducing the Snowflake Computing Cloud Data WarehouseIntroducing the Snowflake Computing Cloud Data Warehouse
Introducing the Snowflake Computing Cloud Data Warehouse

Demystifying Data Warehouse as a Service
Demystifying Data Warehouse as a ServiceDemystifying Data Warehouse as a Service
Demystifying Data Warehouse as a Service

3D: DBT using Databricks and Delta
3D: DBT using Databricks and Delta3D: DBT using Databricks and Delta
3D: DBT using Databricks and Delta

Snowflake for Data Engineering
Snowflake for Data EngineeringSnowflake for Data Engineering
Snowflake for Data Engineering

Build Real-Time Applications with Databricks Streaming
Build Real-Time Applications with Databricks StreamingBuild Real-Time Applications with Databricks Streaming
Build Real-Time Applications with Databricks Streaming

How to Take Advantage of an Enterprise Data Warehouse in the Cloud
How to Take Advantage of an Enterprise Data Warehouse in the CloudHow to Take Advantage of an Enterprise Data Warehouse in the Cloud
How to Take Advantage of an Enterprise Data Warehouse in the Cloud

Modern Data architecture Design
Modern Data architecture DesignModern Data architecture Design
Modern Data architecture Design

Architect’s Open-Source Guide for a Data Mesh Architecture
Architect’s Open-Source Guide for a Data Mesh ArchitectureArchitect’s Open-Source Guide for a Data Mesh Architecture
Architect’s Open-Source Guide for a Data Mesh Architecture

Snowflake essentials
Snowflake essentialsSnowflake essentials
Snowflake essentials

Hadoop and Enterprise Data Warehouse
Hadoop and Enterprise Data WarehouseHadoop and Enterprise Data Warehouse
Hadoop and Enterprise Data Warehouse

Achieving Lakehouse Models with Spark 3.0
Achieving Lakehouse Models with Spark 3.0Achieving Lakehouse Models with Spark 3.0
Achieving Lakehouse Models with Spark 3.0

Intro to Delta Lake
Intro to Delta LakeIntro to Delta Lake
Intro to Delta Lake

Learn to Use Databricks for Data Science
Learn to Use Databricks for Data ScienceLearn to Use Databricks for Data Science
Learn to Use Databricks for Data Science

Data Warehouse - Incremental Migration to the Cloud
Data Warehouse - Incremental Migration to the CloudData Warehouse - Incremental Migration to the Cloud
Data Warehouse - Incremental Migration to the Cloud


Similar to Introducing Azure SQL Data Warehouse

Azure Data platform
Azure Data platformAzure Data platform
Azure Data platform
Mostafa

Afternoons with Azure - Azure Data Services
Afternoons with Azure - Azure Data ServicesAfternoons with Azure - Azure Data Services
Afternoons with Azure - Azure Data Services
CCG

AZURE Data Related Services
AZURE Data Related ServicesAZURE Data Related Services
AZURE Data Related Services
Ruslan Drahomeretskyy

Azure SQL Database
Azure SQL DatabaseAzure SQL Database
Azure SQL Database
rockplace

Exploring Microsoft Azure Infrastructures
Exploring Microsoft Azure InfrastructuresExploring Microsoft Azure Infrastructures
Exploring Microsoft Azure Infrastructures
CCG

Microsoft Data Platform - What's included
Microsoft Data Platform - What's includedMicrosoft Data Platform - What's included
Microsoft Data Platform - What's included
James Serra

A Tour of Azure SQL Databases (NOVA SQL UG 2020)
A Tour of Azure SQL Databases  (NOVA SQL UG 2020)A Tour of Azure SQL Databases  (NOVA SQL UG 2020)
A Tour of Azure SQL Databases (NOVA SQL UG 2020)
Timothy McAliley

Azure data platform overview
Azure data platform overviewAzure data platform overview
Azure data platform overview
Alessandro Melchiori

Azure SQL DWH
Azure SQL DWHAzure SQL DWH
Azure SQL DWH
Shy Engelberg

Azure Days 2019: Business Intelligence auf Azure (Marco Amhof & Yves Mauron)
Azure Days 2019: Business Intelligence auf Azure (Marco Amhof & Yves Mauron)Azure Days 2019: Business Intelligence auf Azure (Marco Amhof & Yves Mauron)
Azure Days 2019: Business Intelligence auf Azure (Marco Amhof & Yves Mauron)
Trivadis

Designing a modern data warehouse in azure
Designing a modern data warehouse in azure   Designing a modern data warehouse in azure
Designing a modern data warehouse in azure
Antonios Chatzipavlis

Designing a modern data warehouse in azure
Designing a modern data warehouse in azure   Designing a modern data warehouse in azure
Designing a modern data warehouse in azure
Antonios Chatzipavlis

Prague data management meetup 2018-03-27
Prague data management meetup 2018-03-27Prague data management meetup 2018-03-27
Prague data management meetup 2018-03-27
Martin Bém

Azure Data Factory ETL Patterns in the Cloud
Azure Data Factory ETL Patterns in the CloudAzure Data Factory ETL Patterns in the Cloud
Azure Data Factory ETL Patterns in the Cloud
Mark Kromer

Scalable relational database with SQL Azure
Scalable relational database with SQL AzureScalable relational database with SQL Azure
Scalable relational database with SQL Azure
Shy Engelberg

Azure SQL Database Managed Instance
Azure SQL Database Managed InstanceAzure SQL Database Managed Instance
Azure SQL Database Managed Instance
James Serra

Should I move my database to the cloud?
Should I move my database to the cloud?Should I move my database to the cloud?
Should I move my database to the cloud?
James Serra

Cepta The Future of Data with Power BI
Cepta The Future of Data with Power BICepta The Future of Data with Power BI
Cepta The Future of Data with Power BI
Kellyn Pot'Vin-Gorman

Azure Data.pptx
Azure Data.pptxAzure Data.pptx
Azure Data.pptx
FedoRam1

Big Data Goes Airborne. Propelling Your Big Data Initiative with Ironcluster ...
Big Data Goes Airborne. Propelling Your Big Data Initiative with Ironcluster ...Big Data Goes Airborne. Propelling Your Big Data Initiative with Ironcluster ...
Big Data Goes Airborne. Propelling Your Big Data Initiative with Ironcluster ...
Precisely


Similar to Introducing Azure SQL Data Warehouse (20)

Azure Data platform
Azure Data platformAzure Data platform
Azure Data platform

Afternoons with Azure - Azure Data Services
Afternoons with Azure - Azure Data ServicesAfternoons with Azure - Azure Data Services
Afternoons with Azure - Azure Data Services

AZURE Data Related Services
AZURE Data Related ServicesAZURE Data Related Services
AZURE Data Related Services

Azure SQL Database
Azure SQL DatabaseAzure SQL Database
Azure SQL Database

Exploring Microsoft Azure Infrastructures
Exploring Microsoft Azure InfrastructuresExploring Microsoft Azure Infrastructures
Exploring Microsoft Azure Infrastructures

Microsoft Data Platform - What's included
Microsoft Data Platform - What's includedMicrosoft Data Platform - What's included
Microsoft Data Platform - What's included

A Tour of Azure SQL Databases (NOVA SQL UG 2020)
A Tour of Azure SQL Databases  (NOVA SQL UG 2020)A Tour of Azure SQL Databases  (NOVA SQL UG 2020)
A Tour of Azure SQL Databases (NOVA SQL UG 2020)

Azure data platform overview
Azure data platform overviewAzure data platform overview
Azure data platform overview

Azure SQL DWH
Azure SQL DWHAzure SQL DWH
Azure SQL DWH

Azure Days 2019: Business Intelligence auf Azure (Marco Amhof & Yves Mauron)
Azure Days 2019: Business Intelligence auf Azure (Marco Amhof & Yves Mauron)Azure Days 2019: Business Intelligence auf Azure (Marco Amhof & Yves Mauron)
Azure Days 2019: Business Intelligence auf Azure (Marco Amhof & Yves Mauron)

Designing a modern data warehouse in azure
Designing a modern data warehouse in azure   Designing a modern data warehouse in azure
Designing a modern data warehouse in azure

Designing a modern data warehouse in azure
Designing a modern data warehouse in azure   Designing a modern data warehouse in azure
Designing a modern data warehouse in azure

Prague data management meetup 2018-03-27
Prague data management meetup 2018-03-27Prague data management meetup 2018-03-27
Prague data management meetup 2018-03-27

Azure Data Factory ETL Patterns in the Cloud
Azure Data Factory ETL Patterns in the CloudAzure Data Factory ETL Patterns in the Cloud
Azure Data Factory ETL Patterns in the Cloud

Scalable relational database with SQL Azure
Scalable relational database with SQL AzureScalable relational database with SQL Azure
Scalable relational database with SQL Azure

Azure SQL Database Managed Instance
Azure SQL Database Managed InstanceAzure SQL Database Managed Instance
Azure SQL Database Managed Instance

Should I move my database to the cloud?
Should I move my database to the cloud?Should I move my database to the cloud?
Should I move my database to the cloud?

Cepta The Future of Data with Power BI
Cepta The Future of Data with Power BICepta The Future of Data with Power BI
Cepta The Future of Data with Power BI

Azure Data.pptx
Azure Data.pptxAzure Data.pptx
Azure Data.pptx

Big Data Goes Airborne. Propelling Your Big Data Initiative with Ironcluster ...
Big Data Goes Airborne. Propelling Your Big Data Initiative with Ironcluster ...Big Data Goes Airborne. Propelling Your Big Data Initiative with Ironcluster ...
Big Data Goes Airborne. Propelling Your Big Data Initiative with Ironcluster ...


More from James Serra

Microsoft Fabric Introduction
Microsoft Fabric IntroductionMicrosoft Fabric Introduction
Microsoft Fabric Introduction
James Serra

Data Lakehouse, Data Mesh, and Data Fabric (r2)
Data Lakehouse, Data Mesh, and Data Fabric (r2)Data Lakehouse, Data Mesh, and Data Fabric (r2)
Data Lakehouse, Data Mesh, and Data Fabric (r2)
James Serra

Data Lakehouse, Data Mesh, and Data Fabric (r1)
Data Lakehouse, Data Mesh, and Data Fabric (r1)Data Lakehouse, Data Mesh, and Data Fabric (r1)
Data Lakehouse, Data Mesh, and Data Fabric (r1)
James Serra

Data Warehousing Trends, Best Practices, and Future Outlook
Data Warehousing Trends, Best Practices, and Future OutlookData Warehousing Trends, Best Practices, and Future Outlook
Data Warehousing Trends, Best Practices, and Future Outlook
James Serra

Data Lake Overview
Data Lake OverviewData Lake Overview
Data Lake Overview
James Serra

Power BI Overview, Deployment and Governance
Power BI Overview, Deployment and GovernancePower BI Overview, Deployment and Governance
Power BI Overview, Deployment and Governance
James Serra

Power BI Overview
Power BI OverviewPower BI Overview
Power BI Overview
James Serra

Machine Learning and AI
Machine Learning and AIMachine Learning and AI
Machine Learning and AI
James Serra

Building a modern data warehouse
Building a modern data warehouseBuilding a modern data warehouse
Building a modern data warehouse
James Serra

AI for an intelligent cloud and intelligent edge: Discover, deploy, and manag...
AI for an intelligent cloud and intelligent edge: Discover, deploy, and manag...AI for an intelligent cloud and intelligent edge: Discover, deploy, and manag...
AI for an intelligent cloud and intelligent edge: Discover, deploy, and manag...
James Serra

Power BI for Big Data and the New Look of Big Data Solutions
Power BI for Big Data and the New Look of Big Data SolutionsPower BI for Big Data and the New Look of Big Data Solutions
Power BI for Big Data and the New Look of Big Data Solutions
James Serra

How to build your career
How to build your careerHow to build your career
How to build your career
James Serra

Is the traditional data warehouse dead?
Is the traditional data warehouse dead?Is the traditional data warehouse dead?
Is the traditional data warehouse dead?
James Serra

Differentiate Big Data vs Data Warehouse use cases for a cloud solution
Differentiate Big Data vs Data Warehouse use cases for a cloud solutionDifferentiate Big Data vs Data Warehouse use cases for a cloud solution
Differentiate Big Data vs Data Warehouse use cases for a cloud solution
James Serra

Introduction to Azure Databricks
Introduction to Azure DatabricksIntroduction to Azure Databricks
Introduction to Azure Databricks
James Serra

What’s new in SQL Server 2017
What’s new in SQL Server 2017What’s new in SQL Server 2017
What’s new in SQL Server 2017
James Serra

Learning to present and becoming good at it
Learning to present and becoming good at itLearning to present and becoming good at it
Learning to present and becoming good at it
James Serra

Microsoft cloud big data strategy
Microsoft cloud big data strategyMicrosoft cloud big data strategy
Microsoft cloud big data strategy
James Serra

Choosing technologies for a big data solution in the cloud
Choosing technologies for a big data solution in the cloudChoosing technologies for a big data solution in the cloud
Choosing technologies for a big data solution in the cloud
James Serra

What's new in SQL Server 2016
What's new in SQL Server 2016What's new in SQL Server 2016
What's new in SQL Server 2016
James Serra


More from James Serra (20)

Microsoft Fabric Introduction
Microsoft Fabric IntroductionMicrosoft Fabric Introduction
Microsoft Fabric Introduction

Data Lakehouse, Data Mesh, and Data Fabric (r2)
Data Lakehouse, Data Mesh, and Data Fabric (r2)Data Lakehouse, Data Mesh, and Data Fabric (r2)
Data Lakehouse, Data Mesh, and Data Fabric (r2)

Data Lakehouse, Data Mesh, and Data Fabric (r1)
Data Lakehouse, Data Mesh, and Data Fabric (r1)Data Lakehouse, Data Mesh, and Data Fabric (r1)
Data Lakehouse, Data Mesh, and Data Fabric (r1)

Data Warehousing Trends, Best Practices, and Future Outlook
Data Warehousing Trends, Best Practices, and Future OutlookData Warehousing Trends, Best Practices, and Future Outlook
Data Warehousing Trends, Best Practices, and Future Outlook

Data Lake Overview
Data Lake OverviewData Lake Overview
Data Lake Overview

Power BI Overview, Deployment and Governance
Power BI Overview, Deployment and GovernancePower BI Overview, Deployment and Governance
Power BI Overview, Deployment and Governance

Power BI Overview
Power BI OverviewPower BI Overview
Power BI Overview

Machine Learning and AI
Machine Learning and AIMachine Learning and AI
Machine Learning and AI

Building a modern data warehouse
Building a modern data warehouseBuilding a modern data warehouse
Building a modern data warehouse

AI for an intelligent cloud and intelligent edge: Discover, deploy, and manag...
AI for an intelligent cloud and intelligent edge: Discover, deploy, and manag...AI for an intelligent cloud and intelligent edge: Discover, deploy, and manag...
AI for an intelligent cloud and intelligent edge: Discover, deploy, and manag...

Power BI for Big Data and the New Look of Big Data Solutions
Power BI for Big Data and the New Look of Big Data SolutionsPower BI for Big Data and the New Look of Big Data Solutions
Power BI for Big Data and the New Look of Big Data Solutions

How to build your career
How to build your careerHow to build your career
How to build your career

Is the traditional data warehouse dead?
Is the traditional data warehouse dead?Is the traditional data warehouse dead?
Is the traditional data warehouse dead?

Differentiate Big Data vs Data Warehouse use cases for a cloud solution
Differentiate Big Data vs Data Warehouse use cases for a cloud solutionDifferentiate Big Data vs Data Warehouse use cases for a cloud solution
Differentiate Big Data vs Data Warehouse use cases for a cloud solution

Introduction to Azure Databricks
Introduction to Azure DatabricksIntroduction to Azure Databricks
Introduction to Azure Databricks

What’s new in SQL Server 2017
What’s new in SQL Server 2017What’s new in SQL Server 2017
What’s new in SQL Server 2017

Learning to present and becoming good at it
Learning to present and becoming good at itLearning to present and becoming good at it
Learning to present and becoming good at it

Microsoft cloud big data strategy
Microsoft cloud big data strategyMicrosoft cloud big data strategy
Microsoft cloud big data strategy

Choosing technologies for a big data solution in the cloud
Choosing technologies for a big data solution in the cloudChoosing technologies for a big data solution in the cloud
Choosing technologies for a big data solution in the cloud

What's new in SQL Server 2016
What's new in SQL Server 2016What's new in SQL Server 2016
What's new in SQL Server 2016


Recently uploaded

"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk
Fwdays

Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
saastr

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data
Ivo Velitchkov

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus
Zilliz

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
Edge AI and Vision Alliance

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
DianaGray10

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP
c5vrf27qcz

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx
MichaelKnudsen27

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)
Javier Junquera

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr

The Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptxThe Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptx
operationspcvita

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
ScyllaDB

“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
Edge AI and Vision Alliance

Mutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented ChatbotsMutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented Chatbots
Pablo Gómez Abajo

Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframeDigital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Precisely

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda


Recently uploaded (20)

Artificial Intelligence and Electronic Warfare
Artificial Intelligence and Electronic WarfareArtificial Intelligence and Electronic Warfare
Artificial Intelligence and Electronic Warfare

"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk

Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...

The Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptxThe Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptx

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...

Mutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented ChatbotsMutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented Chatbots

Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframeDigital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU


Introducing Azure SQL Data Warehouse

  • 1. James Serra Data Platform Solution Architect Microsoft
  • 2. Parallel Data Warehouse v1 Data Allegro product on Windows & SQL. First DW appliance by MSFT in partnership with Dell and HP Microsoft Acquired Data Allegro Company viewed as most efficient way to bring MPP to SQL Server world Analytics Platform System (APS) Introduction of Hadoop region within appliance and new naming to reflect broader Big Data capabilities SQL DW Service Introduction of Azure SQL DW Service based on APS’s MPP capabilities Fast Track Data Warehouse Launch DW Reference Architectures based on SMP DW best practices offered with leading H/W Partners Parallel Data Warehouse v2 Re-architected Product delivering new form factors and greatly improved price/performa nce. Microsoft & Data Warehouse 2008 20132010 201520142011
  • 3. Customer challenges in managing data Increased data types and volumes Varied data sources Added complexity and cost
  • 4. BI and analytics Data management and processing Data sources Non-relational data Data enrichment and federated query OLTP ERP CRM LOB Devices Web Sensors Social Self-service Corporate Collaboration Mobile Machine learning Single query model Extract, transform, load Data quality Master data management Box software Appliances Cloud SQL Server Box software Appliances Cloud
  • 6. Parallelism • Uses many separate CPUs running in parallel to execute a single program • Shared Nothing: Each CPU has its own memory and disk (scale-out) • Segments communicate using high-speed network between nodes MPP - Massively Parallel Processing • Multiple CPUs used to complete individual processes simultaneously • All CPUs share the same memory, disks, and network controllers (scale-up) • All SQL Server implementations up until now have been SMP • Mostly, the solution is housed on a shared SAN SMP - Symmetric Multiprocessing
  • 7. SQL DW Logical Architecture (overview) “Compute” node Balanced storage SQL “Compute” node Balanced storage SQL “Compute” node Balanced storage SQL “Compute” node Balanced storage SQL DMS DMS DMS DMS Compute Node – the “worker bee” of SQL DW • Runs Azure SQL Server DB • Contains a “slice” of each database • CPU is saturated by storage Control Node – the “brains” of the SQL DW • Also runs Azure SQL Server DB • Holds a “shell” copy of each database • Metadata, statistics, etc • The “public face” of the appliance Data Movement Services (DMS) • Part of the “secret sauce” of SQL DW • Moves data around as needed • Enables parallel operations among the compute nodes (queries, loads, etc) “Control” node SQL DMS
  • 8. SQL DW Logical Architecture (overview) “Compute” node Balanced storage SQL“Control” node SQL “Compute” node Balanced storage SQL “Compute” node Balanced storage SQL “Compute” node Balanced storage SQL DMS DMS DMS DMS DMS 1) User connects to the appliance (control node) and submits query 2) Control node query processor determines best *parallel* query plan 3) DMS distributes sub-queries to each compute node 4) Each compute node executes query on its subset of data 5) Each compute node returns a subset of the response to the control node 6) If necessary, control node does any final aggregation/computation 7) Control node returns results to user Queries running in parallel on a subset of the data, using separate pipes effectively making the pipe larger
  • 9. Elastic scale & performance Real-time elasticity Resize in <1 minute On-demand compute Expand or reduce as needed
  • 10. Storage can be as big or small as required Customers can execute niche workloads without re-scanning data Elastic scale & performance Scale
  • 12. App Service Intelligent App Hadoop Azure Machine Learning Power BI Azure SQL Database SQL AzureSQL Data Warehouse End-to-end platform built for the cloud Power of integration
  • 13. Azure Data Factory Migration Accelerator ExpressRoute End-to-end platform built for the cloud Bring compute to data, keep data in its place
  • 14. Market leading price/performance Bring your data warehouse to the cloud Automated Minimize cost Policy-based Secure data
  • 15. Market leading price/performance Query unstructured data via PolyBase/T-SQL PolyBase Scale out compute SQL DW Instance Hadoop VMs / Azure Storage Any data, any size, anywhere
  • 16. Market leading price/performance Hassle-free management Infrastructure Management Azure support With built-in ease of use
  • 17. When Paused, Pay only for Storage Use it only when you need it – no reloading / restoring of data Save Costs with Dynamic Pause and Resume • When paused, cloud-scale storage is min cost. • Policy-based (i.e. Nights/weekends) • Automate via PowerShell/REST API • Data remains in place
  • 18. Geo-storage replication  Azure Storage Page Blobs, 3 copies locally  High durability/availability  Another 3 copies in different region Defend against regional disasters Geo replication
  • 19. • Auto backups, every 4 hours • On-demand backups in Azure Storage • REST API, PowerShell or Azure Portal • Scheduled exports • Near-online backup/restore • Backups retention policy: • Auto backups, up to 35 days • On-demand backups retained indefinitely Geo- replicated Restore from backup SQL DW backups sabcp01bl21 Azure Storage sabcp01bl21 Automatic backup and geo-restore Recover from data deletion or alteration or disaster
  • 20. Hybrid scenarios which work well Both Analytics Platform System and Azure SQL Data Warehouse have a Massively Parallel Processing (MPP) engine. Here are a few scenarios where they can be leveraged together. Dev/test Test new ideas in SQL DW before rolling out to production in APS Archive Archive cold data to blob storage for any workload execution Governance Store data in APS that company policy prohibits being in the cloud
  • 21. Microsoft Data Platform Relational Beyond-Relational On-premisesCloud Comprehensive Connected Choice SQL ServerAzureVM Azure SQL DB Azure SQL DW AzureData Lake Analytics AzureData Lake Store Fast Trackfor SQL Server AnalyticsPlatformSystem SQL Server2016 + SuperdomeX AnalyticsPlatformSystem Hadoop Federated Query Power BI AzureMachineLearning AzureData Factory
  • 22. SQL DW: Building on SQL DB Foundation Elastic, Petabyte Scale DW Optimized 99.99% uptime SLA, Geo-restore Azure Compliance (ISO, HIPAA, EU, etc.) True SQL Server Experience; Existing Tools Just Work SQL DW SQL DB Service Tiers
  • 23. Measure of power Simply buy the query performance you need, not just hardware Transparency Quantified by workload objectives: how fast rows are scanned, loaded, copied On demand First DW service to offer compute power on demand, independent of storage Scan Rate 3.36M row/sec Loading Rate 130K row/sec Table Copy Rate 350K row/sec * * 100 DWU = 297 sec 400 DWU = 74 sec 800 DWU = 37 sec 1,600 DWU = 19 sec *
  • 24. What is Hadoop? Microsoft Confidential  Distributed, scalable system on commodity HW  Composed of a few parts:  HDFS – Distributed file system  MapReduce – Programming model  Other tools: Hive, Pig, SQOOP, HCatalog, HBase, Flume, Mahout, YARN, Tez, Spark, Stinger, Oozie, ZooKeeper, Flume, Storm  Main players are Hortonworks, Cloudera, MapR  WARNING: Hadoop, while ideal for processing huge volumes of data, is inadequate for analyzing that data in real time (companies do batch analytics instead) Core Services OPERATIONAL SERVICES DATA SERVICES HDFS SQOOP FLUME NFS LOAD & EXTRACT WebHDFS OOZIE AMBARI YARN MAP REDUCE HIVE & HCATALOG PIG HBASEFALCON Hadoop Cluster compute & storage . . . . . . . . compute & storage . . Hadoop clusters provide scale-out storage and distributed data processing on commodity hardware
  • 25. Use cases where PolyBase simplifies using Hadoop data Bringing islands of Hadoop data together High performance queries against Hadoop data (Predicate pushdown) Archiving data warehouse data to Hadoop (move) (Hadoop as cold storage) Exporting relational data to Hadoop (copy) (Hadoop as backup, analysis, on-prem use) Importing Hadoop data into data warehouse (copy) (Hadoop as staging area, sandbox, Data Lake)
  • 26.
  • 27.     Azure SQL Data Warehouse loading patterns and strategies: https://blogs.msdn.microsoft.com/sqlcat/2016/02/06/azure-sql-data-warehouse-loading-patterns-and-strategies/
  • 28. Broad SQL Server Partner Ecosystem + Leverage Azure ML, HDInsight, PowerBI, ADF, and more. + Industry’s broadest ecosystem of DW partners, including Tableau, Informatica, Attunity, and SAP. Streamlined deployment with Azure Portal. Deep tool integration with top partners including: • Single-click configuration • Optimized data movement • Logical pushdown Azure SQL DW Azure ML Azure Event Hub Azure HDInsight
  • 29. Market-Leading Price/Performance • Best On-Demand Price/Performance ‐ Advantages in elasticity and pause to reduce customer cost • SQL DW start small, can grow to PB+ • Pay for performance by scaling compute against storage 100GB 1TB 2TB 1+PB Performance
  • 30. How does SQL Data Warehouse differ from Redshift? Elasticity Amazon Redshift SQL DW Pause/resume Simplicity Hybrid Compatibility
  • 31. Summary: Azure SQL DW Service A relational data warehouse-as-a-service, fully managed by Microsoft. Industries first elastic cloud data warehouse with enterprise-grade capabilities. Support your smallest to your largest data storage needs while handling queries up to 100x faster.
  • 32. Azure getting started • Free Azure account, $200 in credit, https://azure.microsoft.com/en-us/free/ • Startups: BizSpark, $750/month free Azure, BizSpark Plus - $120k/year free Azure, https://www.microsoft.com/bizspark/ • MSDN subscription, $150/month free Azure, https://azure.microsoft.com/en-us/pricing/member- offers/msdn-benefits/ • Microsoft Educator Grant Program, faculty - $250/month free Azure for a year, students - $100/month free Azure for 6 months, https://azure.microsoft.com/en-us/pricing/member- offers/msdn-benefits/ • Microsoft Azure for Research Grant, http://research.microsoft.com/en- us/projects/azure/default.aspx • DreamSpark for students, https://www.dreamspark.com/Student/Default.aspx • DreamSpark for academic institutions: https://www.dreamspark.com/Institution/Subscription.aspx • Various Microsoft funds
