1. Data Integration through
Data Virtualization
Cathrine Wilhelmsen, Inmeta
@cathrinew | cathrinew.net
February 21st 2019

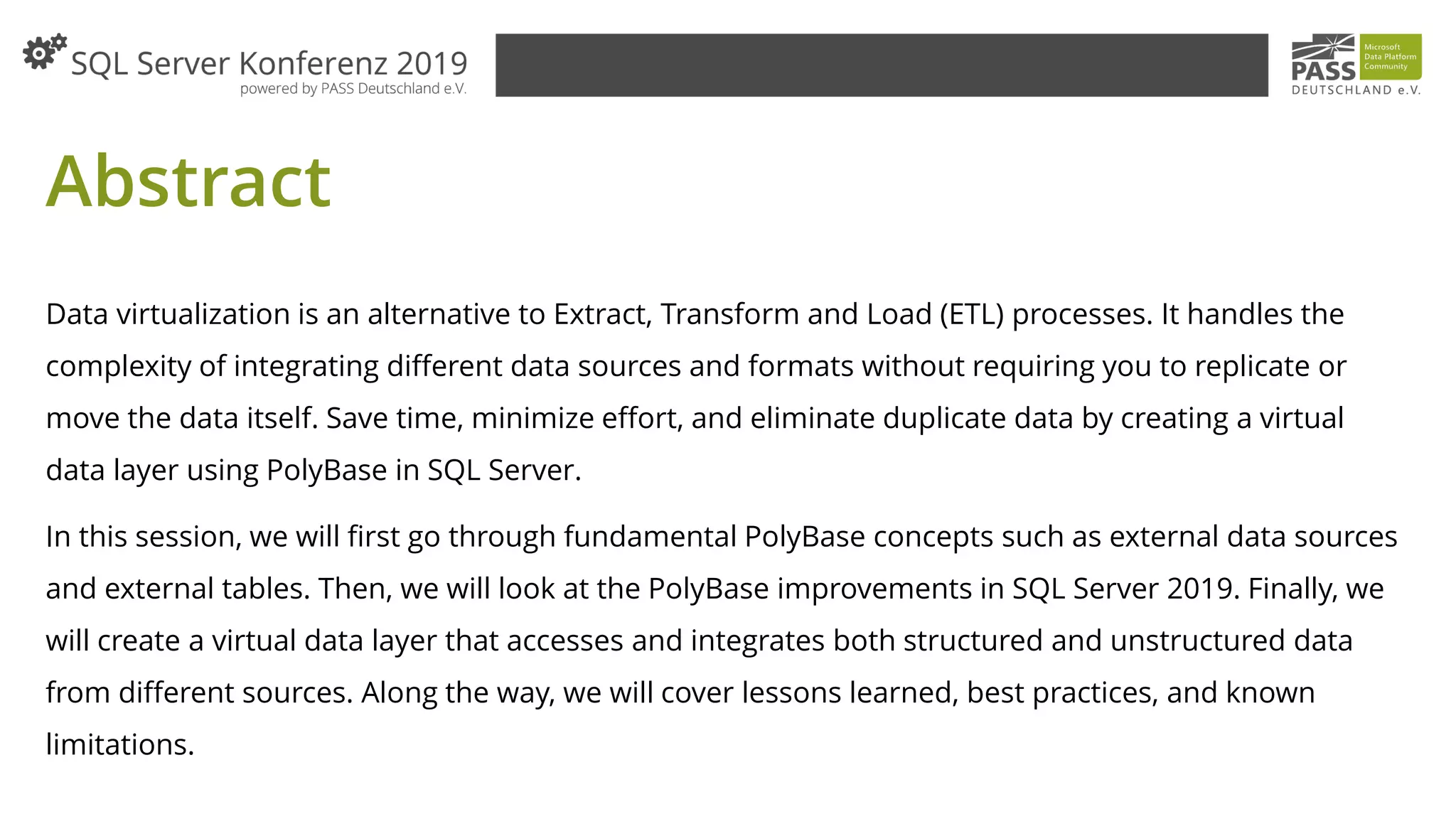

2. Abstract
Data virtualization is an alternative to Extract, Transform and Load (ETL) processes. It handles the
complexity of integrating different data sources and formats without requiring you to replicate or
move the data itself. Save time, minimize effort, and eliminate duplicate data by creating a virtual
data layer using PolyBase in SQL Server.
In this session, we will first go through fundamental PolyBase concepts such as external data sources
and external tables. Then, we will look at the PolyBase improvements in SQL Server 2019. Finally, we
will create a virtual data layer that accesses and integrates both structured and unstructured data
from different sources. Along the way, we will cover lessons learned, best practices, and known
limitations.

3. @cathrinew
cathrinew.net

4. …the next 60 minutes…
PolyBase
Virtual
Data Layer
Data
Virtualization
Data
Integration

5. Data
Integration

6. Combine Data in Different Formats
from Separate Sources into Useful
and Valuable Information

7. Combine Data in Different Formats
from Separate Sources into Useful
and Valuable Information

8. Combine Data
Extract Transform Load
Extract Load Transform
Data Ingestion
Data Preparation
Data Wrangling

9. Combine Data in Different Formats
from Separate Sources into Useful
and Valuable Information

10. Different Formats
SQL
TXT
CSV
XLS
XML
JSON
Orc
Parquet

11. Combine Data in Different Formats
from Separate Sources into Useful
and Valuable Information

12. Separate Sources
SQL Server
Oracle
Teradata
MongoDB
Hadoop
Azure Blob Storage
Azure Data-Lake
Local File System

13. Combine Data in Different Formats
from Separate Sources into Useful
and Valuable Information

14. Useful Information
Accurate
Complete
Consistent
Timely
Unique
Valid

15. Combine Data in Different Formats
from Separate Sources into Useful
and Valuable Information

16. Valuable Information
What you need
Answer questions
Solve problems
Timesaving
Reduce effort
Improve efficiency

17. Combine Data in Different Formats
from Separate Sources into Useful
and Valuable Information

20. ETL – Extract Transform Load
ELT – Extract Load Transform

21. ETL – Extract Transform Load
ELT – Extract Load Transform
= data movement

22. Data Movement: Costs
Duplicated storage costs
Need resources to build and maintain

23. Data Movement: Speed
Takes time to build and maintain
Delays before data can be used

24. Data Movement: Security
Increased attack surface area
Inconsistent security models

25. Data Movement: Data Quality
More storage layers and pipelines
Higher complexity

26. Data movement is a
barrier to faster insights
- Microsoft

27. Data
Virtualization

28. Data Virtualization
Logical Layers and Abstractions
(Near) Real-Time View of Data
Store in separate locations
View in one location

29. Data Virtualization: Costs
Lower storage costs
Fewer resources to build and maintain

30. Data Virtualization: Speed
No data latency
Rapid iterations and prototypes

31. Data Virtualization: Security
Smaller attack surface area
Consistent security models

32. Data Virtualization: Data Quality
Fewer storage layers and pipelines
Less complexity

33. Data virtualization
creates solutions
- Microsoft

34. Data Movement = Bad ?
Data Virtualization = Good ?

35. Data Movement = Bad ?
Data Virtualization = Good ?
no, just different use cases!

36. PolyBase

37. PolyBase
Feature in SQL Server 2016 and later
Query tables and files using T-SQL
Used to query, import, and export data

38. PolyBase Performance
Push-Down Computations
Scale-Out Groups

39. PolyBase in SQL Server 2016 / 2017
Hadoop
Azure Blob Storage
Azure Data Lake

40. PolyBase in SQL Server 2019
Hadoop
Azure Blob Storage
Azure Data Lake
SQL Server
Oracle
Teradata
MongoDB

41. ODBC NoSQL Relational Databases Big Data
PolyBase

42. How to use PolyBase?
1. Install PolyPase
2. Configure PolyBase Connectivity
3. Create Database Master Key
4. Create Database Scoped Credential
5. ...

43. How to use PolyBase?
4. ...
5. Create External Data Sources
6. Create External File Formats
7. Create External Tables
8. Create Statistics

44. Install PolyBase

45. 1. Install Prerequisites
Microsoft .NET Framework 4.5
Oracle Java SE Runtime Environment (JRE) 7 or 8
2. Install PolyBase
Single Node or Scale-Out Group
3. Enable PolyBase

46. Install Prerequisites
Microsoft .NET Framework 4.5
https://www.microsoft.com/nl-nl/download/details.aspx?id=30653
Oracle Java SE Runtime Environment (JRE) 7 or 8
https://www.oracle.com/technetwork/java/javase/downloads/jre8-downloads-2133155.html

47. Install PolyBase
Note: PolyBase can be installed on only one SQL
Server instance per machine.
Note: After you install PolyBase either standalone
or in a scale-out group, you have to uninstall and
reinstall to change it.
. . . Ask me how I know : )

48. Enable PolyBase
sp_configure
'polybase enabled', 1;
RECONFIGURE;

49. Verify Installation
SELECT SERVERPROPERTY
('IsPolyBaseInstalled');

50. Configure PolyBase
Connectivity

51. 1. Configure PolyBase Connectivity
2. Restart Services
SQL Server
SQL Server PolyBase Engine
SQL Server PolyBase Data Movement

52. Configure PolyBase Connectivity
sp_configure
'hadoop connectivity', 7;
RECONFIGURE;

53. Configure PolyBase Connectivity
Hadoop Connectivity:
• Specify type of data source
• Values: 0-7
• 1, 4, 7: Multiple Data Sources

54. Configure PolyBase Connectivity

55. Configure PolyBase Connectivity

56. Restart Services

57. Restart Services

58. Create Database
Master Key

59. Create Database Master Key
CREATE MASTER KEY ENCRYPTION
BY PASSWORD = '<password>';

60. Create Database
Scoped Credential

61. Create Database Scoped Credential
CREATE DATABASE SCOPED CREDENTIAL
<CredentialName>
WITH IDENTITY = '<identity>',
SECRET = '<secret>';

62. Create External
Data Sources

63. Create External Data Source

64. Create External Data Source

65. Create External Data Source

66. Create External Data Source
CREATE EXTERNAL DATA SOURCE <HadoopName> WITH (
TYPE = HADOOP,
LOCATION ='<hdfs://...>',
CREDENTIAL = <CredentialName>,
RESOURCE_MANAGER_LOCATION = '<ip>'
);

67. Create External Data Source
CREATE EXTERNAL DATA SOURCE <AzureBlobName> WITH (
TYPE = HADOOP,
LOCATION ='<wasbs://...>',
CREDENTIAL = <CredentialName>
);

68. Create External Data Source
CREATE EXTERNAL DATA SOURCE <OracleName> WITH (
LOCATION ='<oracle://...>',
CREDENTIAL = <CredentialName>
);

69. Create External
File Formats

70. Create External File Format

71. Create External File Format

72. Create External File Format

73. Create External File Format
CREATE EXTERNAL FILE FORMAT <FileFormatName> WITH (
FORMAT_TYPE = DELIMITEDTEXT,
FORMAT_OPTIONS (
FIELD_TERMINATOR = ';',
USE_TYPE_DEFAULT = TRUE
)
);

74. Create External
Tables

75. Create External Table

76. Create External Table

77. Create External Table

78. Create External Table
CREATE EXTERNAL TABLE [SchemaName].[TableName] (
[ColumnName] INT NOT NULL
) WITH (
LOCATION = <FileName>',
DATA_SOURCE = <DataSourceName>,
FILE_FORMAT = <FileFormatName>
)

79. Create Statistics

80. Create Statistics
Note: To create statistics, SQL Server imports the
external data into temp table first. Remember to
choose sampling or full scan.
Note: Updating statistics is not supported. Drop
and re-create instead.

81. Create Statistics
CREATE STATISTICS <StatName>
ON <TableName>(<ColumnName>);
CREATE STATISTICS <StatName>
ON <TableName>(<ColumnName>) WITH FULLSCAN;

82. All Done

83. Verify using Catalog Views
SELECT * FROM sys.external_data_sources
SELECT * FROM sys.external_file_formats;
SELECT * FROM sys.external_tables;

84. T-SQL All The Things :)

85. …or…?

86. PolyBase can be grumpy :(

87. Unexpected error encountered filling record
reader buffer: HadoopExecutionException:
Not enough columns in this line.

88. Unexpected error encountered filling record
reader buffer: HadoopExecutionException:
Too many columns in the line.

89. Unexpected error encountered filling record
reader buffer: HadoopExecutionException:
Could not find a delimiter after
string delimiter.

90. Unexpected error encountered filling record
reader buffer: HadoopExecutionException:
Error converting data type NVARCHAR to INT.

91. Unexpected error encountered filling record
reader buffer: HadoopExecutionException:
Conversion failed when converting the
NVARCHAR value '"0"' to data type BIT.

92. Unexpected error encountered filling record
reader buffer: HadoopExecutionException:
Too long string in column [-1]:
Actual len = [4242]. MaxLEN=[4000]

93. Msg 46518, Level 16, State 12, Line 1:
The type 'nvarchar(max)' is not supported
with external tables.

94. Msg 2717, Level 16, State 2, Line 1:
The size (10000) given to the parameter
exceeds the maximum allowed (4000).

95. Msg 131, Level 15, State 2, Line 1:
The size (10000) given to the column
exceeds the maximum allowed for any data
type (8000).

96. = Know your data :)

97. SQL Server 2019
Big Data Clusters

98. SQL Server 2019 Big Data Clusters
SQL Server, Spark, and HDFS
Scalable clusters of containers
Runs on Kubernetes

99. Kubernetes Pod Kubernetes Pod Kubernetes Pod Kubernetes Pod
SQL Server
Master Instance
SQL Server
HDFS Data Node
SparkSQL Server
HDFS Data Node
Spark SQL Server
HDFS Data Node
Spark SQL Server
HDFS Data Node
Spark

100. Build Virtual
Data Layer

101. Build Virtual Data Layer
Scenarios:
1. Text Files in Azure Blob Storage
2. Tables in Oracle Database

102. Text Files in Azure Blob Storage

103. Tables in Oracle Database

104. DEMO
Build Virtual
Data Layer in SSMS

105. It's as easy as 1, 2, 3!

106. …4, 5, 6, 7, 8, 9, 10…

107. Is there an easier way?

109. Biml 💚 PolyBase
Ben Weissman:
Using Biml to automagically keep your external
polybase tables in sync!
https://www.solisyon.de/biml-polybase-external-tables/

111. Azure Data Studio
1. Install Azure Data Studio
docs.microsoft.com/en-us/sql/azure-data-studio/download
2. Install Extension: SQL Server 2019 (Preview)
docs.microsoft.com/en-us/sql/azure-data-studio/sql-server-2019-extension

112. Extension: SQL Server 2019 (Preview)

113. Extension: SQL Server 2019 (Preview)
Double-clicking the .vsix
file doesn't work…

114. Extension: SQL Server 2019 (Preview)
…install preview
extensions from Azure
Data Studio

116. Azure Data Studio
Wizard: CSV Files

124. Azure Data Studio
Wizard: Oracle

134. DEMO
Build Virtual
Data Layer in ADS

135. Next Steps

136. Where can I learn more?
Microsoft SQL Docs:
docs.microsoft.com/sql

137. Where can I learn more?
Kevin Feasel:
36chambers.wordpress.com/polybase

138. How can I try PolyBase?
Microsoft Hands-on Labs:
microsoft.com/handsonlabs

139. How can I try SQL Server 2019?
For Windows, Linux, and containers:
aka.ms/trysqlserver2019

140. How can I try Big Data Clusters?
SQL Server 2019 Early Adoption Program:
aka.ms/eapsignup

141. @cathrinew
cathrinew.net
hi@cathrinew.net
Vielen Dank!

142. Thank you very much for your attention.
Vielen Dank für Eure Aufmerksamkeit.
