The document contains descriptions and figures about stop-and-wait, sliding window, and selective reject transmission protocols. Stop-and-wait uses acknowledgments to ensure frames are received correctly one at a time, while sliding window protocols allow multiple unacknowledged frames to be sent by keeping a window of outstanding frames. The figures demonstrate examples of how these protocols handle damaged frames, lost frames, and lost acknowledgments to ensure reliable data transmission.

1. Figure 10-9
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

2. Stop and Wait
Figure 10-10
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

3. Sliding Window
Figure 10-11
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

4. Figure 10-12
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Sender Sliding Window

5. Figure 10-13
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Receiver Sliding Window

6. Figure 10-14
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Sliding Window Example

7. Figure 10-14-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Sender

8. Figure 10-14-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Receiver

9. Figure 10-15
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

10. Damaged Frame
Figure 10-16
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

11. Lost Frame
Figure 10-17
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

12. Lost ACK
Figure 10-18
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

13. Damaged Frame
Figure 10-19
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

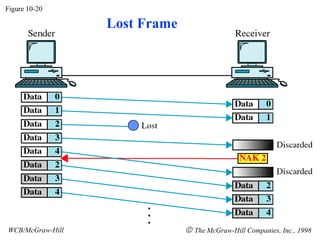

14. Lost Frame
Figure 10-20
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

15. Lost ACK
Figure 10-21
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

16. Selective Reject
Figure 10-22
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
