Fiber optic solution (bright wires)

The document discusses various fiber optic cable and connectivity products including: - Simplex and duplex fiber optic assembly cables - Outdoor drop cables and indoor drop cables - Fiber optic patch cords, pigtails, connectors, adapters and accessories - Field assembly optical connectors and AFL fast connectors - Fixed connector attenuators, splice connects, and PLC splitters

Embed presentation

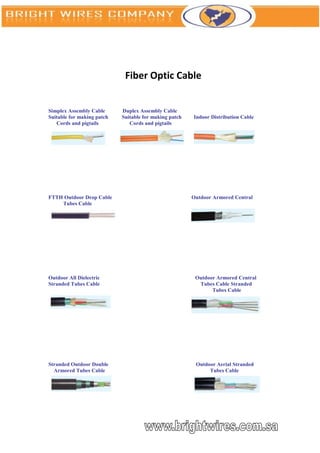

Fiber Optic Cable Simplex Assembly Cable Duplex Assembly Cable Suitable for making patch Suitable for making patch Indoor Distribution Cable Cords and pigtails Cords and pigtails FTTH Outdoor Drop Cable Outdoor Armored Central Tubes Cable Outdoor All Dielectric Outdoor Armored Central Stranded Tubes Cable Tubes Cable Stranded Tubes Cable Stranded Outdoor Double Outdoor Aerial Stranded Armored Tubes Cable Tubes Cable

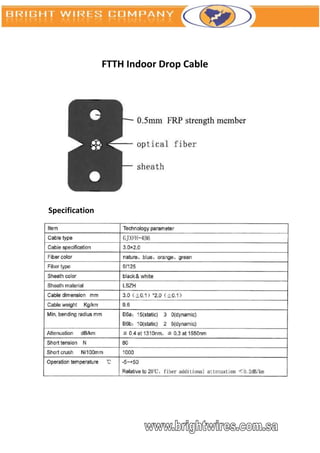

FTTH Indoor Drop Cable Specification

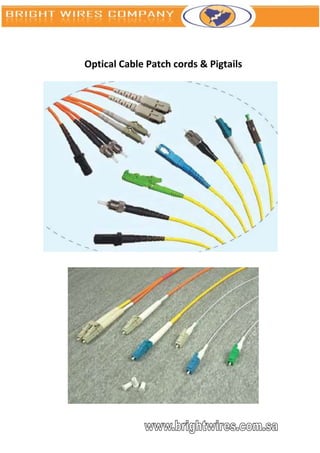

Optical Cable Patch cords & Pigtails

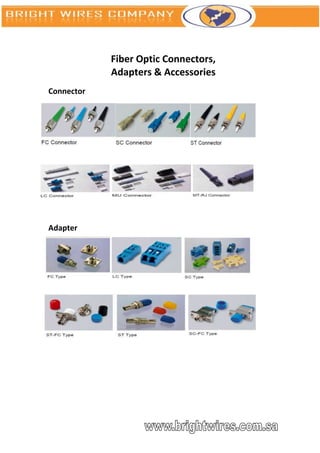

Fiber Optic Connectors, Adapters & Accessories Connector Adapter

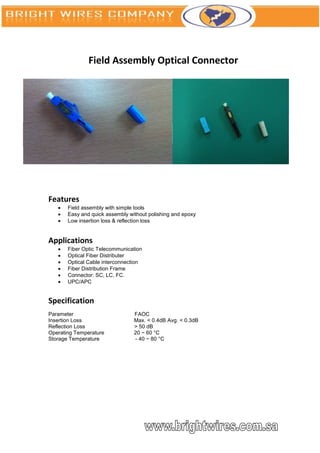

Field Assembly Optical Connector Features  Field assembly with simple tools  Easy and quick assembly without polishing and epoxy  Low insertion loss & reflection loss Applications  Fiber Optic Telecommunication  Optical Fiber Distributer  Optical Cable interconnection  Fiber Distribution Frame  Connector: SC, LC, FC.  UPC/APC Specification Parameter FAOC Insertion Loss Max. < 0.4dB Avg. < 0.3dB Reflection Loss > 50 dB Operating Temperature 20 ~ 60 °C Storage Temperature - 40 ~ 80 °C

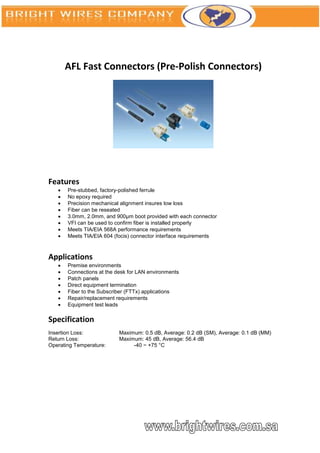

AFL Fast Connectors (Pre-Polish Connectors) Features  Pre-stubbed, factory-polished ferrule  No epoxy required  Precision mechanical alignment insures low loss  Fiber can be reseated  3.0mm, 2.0mm, and 900μm boot provided with each connector  VFI can be used to confirm fiber is installed properly  Meets TIA/EIA 568A performance requirements  Meets TIA/EIA 604 (focis) connector interface requirements Applications  Premise environments  Connections at the desk for LAN environments  Patch panels  Direct equipment termination  Fiber to the Subscriber (FTTx) applications  Repair/replacement requirements  Equipment test leads Specification Insertion Loss: Maximum: 0.5 dB, Average: 0.2 dB (SM), Average: 0.1 dB (MM) Return Loss: Maximum: 45 dB, Average: 56.4 dB Operating Temperature: -40 ~ +75 °C

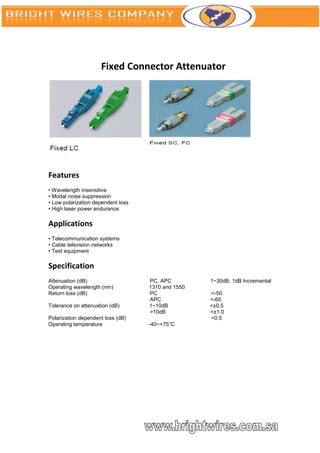

Fixed Connector Attenuator Features • Wavelength insensitive • Modal noise suppression • Low polarization dependent loss • High laser power endurance Applications • Telecommunication systems • Cable television networks • Test equipment Specification Attenuation (dB) PC, APC 1~30dB, 1dB Incremental Operating wavelength (nm) 1310 and 1550 Return loss (dB) PC <-50 APC <-60 Tolerance on attenuation (dB) 1~10dB <±0.5 >10dB <±1.0 Polarization dependent loss (dB) <0.5 Operating temperature -40~+75°C

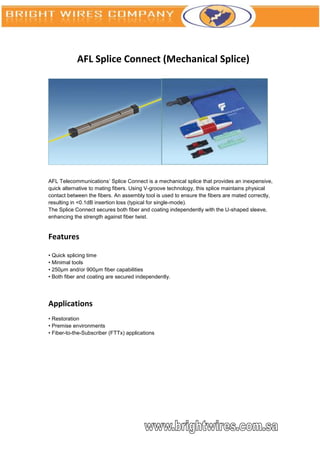

AFL Splice Connect (Mechanical Splice) AFL Telecommunications’ Splice Connect is a mechanical splice that provides an inexpensive, quick alternative to mating fibers. Using V-groove technology, this splice maintains physical contact between the fibers. An assembly tool is used to ensure the fibers are mated correctly, resulting in <0.1dB insertion loss (typical for single-mode). The Splice Connect secures both fiber and coating independently with the U-shaped sleeve, enhancing the strength against fiber twist. Features • Quick splicing time • Minimal tools • 250μm and/or 900μm fiber capabilities • Both fiber and coating are secured independently. Applications • Restoration • Premise environments • Fiber-to-the-Subscriber (FTTx) applications

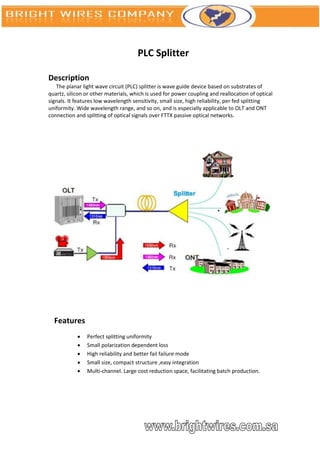

PLC Splitter Description The planar light wave circuit (PLC) splitter is wave guide device based on substrates of quartz, silicon or other materials, which is used for power coupling and reallocation of optical signals. It features low wavelength sensitivity, small size, high reliability, per fed splitting uniformity. Wide wavelength range, and so on, and is especially applicable to OLT and ONT connection and splitting of optical signals over FTTX passive optical networks. Features  Perfect splitting uniformity  Small polarization dependent loss  High reliability and better fail failure mode  Small size, compact structure ,easy integration  Multi-channel. Large cost reduction space, facilitating batch production.

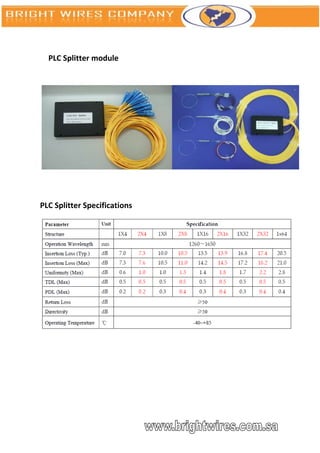

PLC Splitter module PLC Splitter Specifications

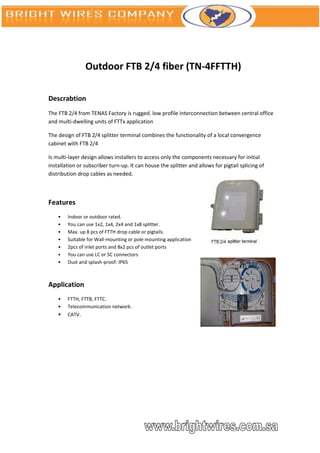

Outdoor FTB 2/4 fiber (TN-4FFTTH) Descrabtion The FTB 2/4 from TENAS Factory is rugged. low profile interconnection between central office and multi-dwelling units of FTTx application The design of FTB 2/4 splitter terminal combines the functionality of a local convergence cabinet with FTB 2/4 Is multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter and allows for pigtail splicing of distribution drop cables as needed. Features • Indoor or outdoor rated. • You can use 1x2, 1x4, 2x4 and 1x8 splitter. • Max. up 8 pcs of FTTH drop cable or pigtails. • Suitable for Wall-mounting or pole mounting application • 2pcs of inlet ports and 8x2 pcs of outlet ports • You can use LC or SC connectors • Dust and splash-proof: IP65 Application • FTTH, FTTB, FTTC. • Telecommunication network. • CATV.

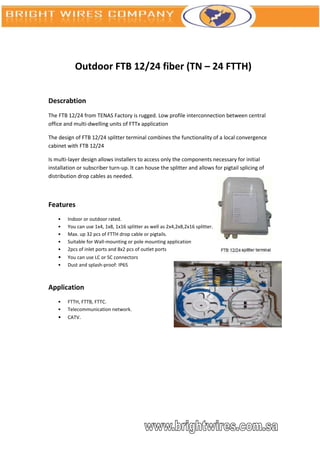

Outdoor FTB 12/24 fiber (TN – 24 FTTH) Descrabtion The FTB 12/24 from TENAS Factory is rugged. Low profile interconnection between central office and multi-dwelling units of FTTx application The design of FTB 12/24 splitter terminal combines the functionality of a local convergence cabinet with FTB 12/24 Is multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter and allows for pigtail splicing of distribution drop cables as needed. Features • Indoor or outdoor rated. • You can use 1x4, 1x8, 1x16 splitter as well as 2x4,2x8,2x16 splitter. • Max. up 32 pcs of FTTH drop cable or pigtails. • Suitable for Wall-mounting or pole mounting application • 2pcs of inlet ports and 8x2 pcs of outlet ports • You can use LC or SC connectors • Dust and splash-proof: IP65 Application • FTTH, FTTB, FTTC. • Telecommunication network. • CATV.

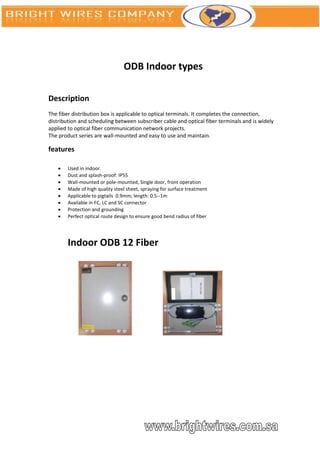

ODB Indoor types Description The fiber distribution box is applicable to optical terminals. It completes the connection, distribution and scheduling between subscriber cable and optical fiber terminals and is widely applied to optical fiber communication network projects. The product series are wall-mounted and easy to use and maintain. features  Used in indoor.  Dust and splash-proof: IP55  Wall-mounted or pole-mounted, Single door, front operation  Made of high quality steel sheet, spraying for surface treatment  Applicable to pigtails 0.9mm; length: 0.5--1m  Available in FC, LC and SC connector  Protection and grounding  Perfect optical route design to ensure good bend radius of fiber Indoor ODB 12 Fiber

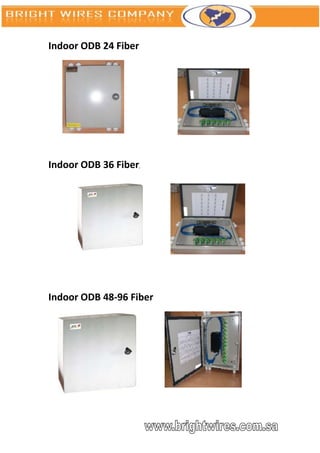

Indoor ODB 24 Fiber Indoor ODB 36 Fiber, Indoor ODB 48-96 Fiber

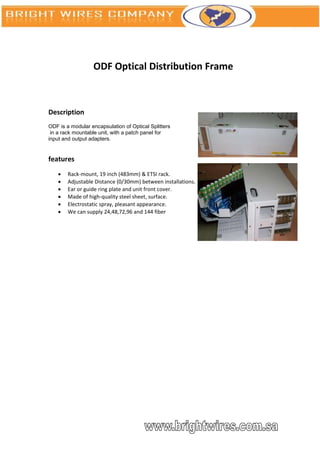

ODF Optical Distribution Frame Description ODF is a modular encapsulation of Optical Splitters in a rack mountable unit, with a patch panel for input and output adapters. features  Rack-mount, 19 inch (483mm) & ETSI rack.  Adjustable Distance (0/30mm) between installations.  Ear or guide ring plate and unit front cover.  Made of high-quality steel sheet, surface.  Electrostatic spray, pleasant appearance.  We can supply 24,48,72,96 and 144 fiber

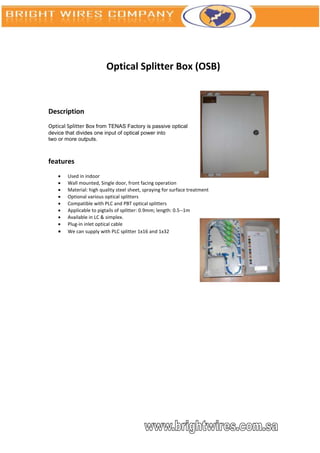

Optical Splitter Box (OSB) Description Optical Splitter Box from TENAS Factory is passive optical device that divides one input of optical power into two or more outputs. features  Used in indoor  Wall mounted, Single door, front facing operation  Material: high quality steel sheet, spraying for surface treatment  Optional various optical splitters  Compatible with PLC and PBT optical splitters  Applicable to pigtails of splitter: 0.9mm; length: 0.5--1m  Available in LC & simplex.  Plug-in inlet optical cable  We can supply with PLC splitter 1x16 and 1x32
Optical Splitter Frame (OSF) Description Optical Splitter Frame from TENAS Factory is passive optical device that divides one input of optical power into two or more outputs. OSF, 4 x 1:2, LC/APC connector OSF, 4 x 1:4, LC/APC connector OSF, 1:32, LC/APC connector OSF 16 x 1:2, LC/APC connector OSF, 8 x 1:2, LC/APC connector OSF, 2:32, LC/APC connector

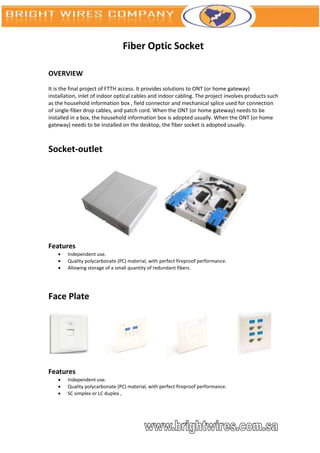

Fiber Optic Socket OVERVIEW It is the final project of FTTH access. It provides solutions to ONT (or home gateway) installation, inlet of indoor optical cables and indoor cabling. The project involves products such as the household information box , field connector and mechanical splice used for connection of single-fiber drop cables, and patch cord. When the ONT (or home gateway) needs to be installed in a box, the household information box is adopted usually. When the ONT (or home gateway) needs to be installed on the desktop, the fiber socket is adopted usually. Socket-outlet Features  Independent use.  Quality polycarbonate (PC) material, with perfect fireproof performance.  Allowing storage of a small quantity of redundant fibers. Face Plate Features  Independent use.  Quality polycarbonate (PC) material, with perfect fireproof performance.  SC simplex or LC duplex ,

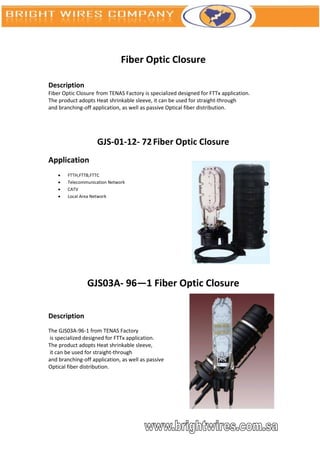

Fiber Optic Closure Description Fiber Optic Closure from TENAS Factory is specialized designed for FTTx application. The product adopts Heat shrinkable sleeve, it can be used for straight-through and branching-off application, as well as passive Optical fiber distribution. GJS-01-12- 72 Fiber Optic Closure Application  FTTH,FTTB,FTTC  Telecommunication Network  CATV  Local Area Network GJS03A- 96—1 Fiber Optic Closure Description The GJS03A-96-1 from TENAS Factory is specialized designed for FTTx application. The product adopts Heat shrinkable sleeve, it can be used for straight-through and branching-off application, as well as passive Optical fiber distribution.
Specification Height: 53cm, Net Weight: 1.64kg, Base diameter: 16cm, closet ring dia.:21cm 4 small holes +1 oval hole The diameter of the small holes is 2.0cm. The major axis of the oval hole(inside wall) is 6.cm,and the shorter axis of the oval hole is 4.cm. Application  FTTH,FTTB,FTTC  Telecommunication Network  CATV  Local Area Network GJS03S- JF144--1 Fiber Optic Closure Description The GJS03S-JF144-1 from TENAS Factory is specialized designed for FTTx application. The product adopts Heat shrinkable sleeve, it can be used for straight-through and branching-off application, as well as passive optical fiber distribution. Specification Weight: 1.78kg Height: 42cm Base diameter:16cm , closet ring dia. :21cm 4 small holes +1 oval hole The diameter of the small holes is 2.0cm. The major axis of the oval hole(inside wall) is 6.cm,and the shorter axis of the oval hole is 4.cm. Application  FTTH,FTTB,FTTC  Telecommunication Network  CATV  Local Area Network

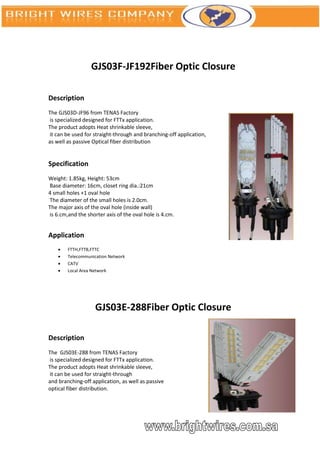

GJS03F-JF192Fiber Optic Closure Description The GJS03D-JF96 from TENAS Factory is specialized designed for FTTx application. The product adopts Heat shrinkable sleeve, it can be used for straight-through and branching-off application, as well as passive Optical fiber distribution Specification Weight: 1.85kg, Height: 53cm Base diameter: 16cm, closet ring dia.:21cm 4 small holes +1 oval hole The diameter of the small holes is 2.0cm. The major axis of the oval hole (inside wall) is 6.cm,and the shorter axis of the oval hole is 4.cm. Application  FTTH,FTTB,FTTC  Telecommunication Network  CATV  Local Area Network GJS03E-288Fiber Optic Closure Description The GJS03E-288 from TENAS Factory is specialized designed for FTTx application. The product adopts Heat shrinkable sleeve, it can be used for straight-through and branching-off application, as well as passive optical fiber distribution.
Specification Height: 71cm Weight:7.4kg Base diameter:28cm closet ring dia.:29.6cm5 small holes +1 oval hole The diameter of the small holes is 3.3 cm. The oval hole is the same as GJS03A Application  FTTH,FTTB,FTTC  Telecommunication Network  CATV  Local Area Network GPJ-04V7 Fiber Optic Splice Closure For FAT and BF-FAT GPJ-04V7
Cabinet Fiber Distribution Terminal (FDT), Outdoor, 288 & 576 Fiber

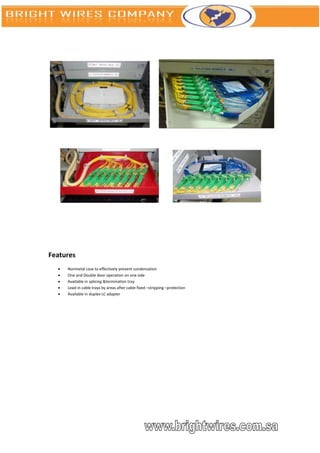

Features  Nonmetal case to effectively prevent condensation  One and Double door operation on one side  Available in splicing &termination tray  Lead-in cable trays by areas after cable fixed –stripping –protection  Available in duplex LC adapter

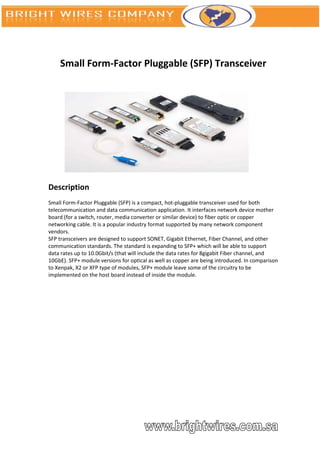

Small Form-Factor Pluggable (SFP) Transceiver Description Small Form-Factor Pluggable (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communication application. It interfaces network device mother board (for a switch, router, media converter or similar device) to fiber optic or copper networking cable. It is a popular industry format supported by many network component vendors. SFP transceivers are designed to support SONET, Gigabit Ethernet, Fiber Channel, and other communication standards. The standard is expanding to SFP+ which will be able to support data rates up to 10.0Gbit/s (that will include the data rates for 8gigabit Fiber channel, and 10GbE). SFP+ module versions for optical as well as copper are being introduced. In comparison to Xenpak, X2 or XFP type of modules, SFP+ module leave some of the circuitry to be implemented on the host board instead of inside the module.

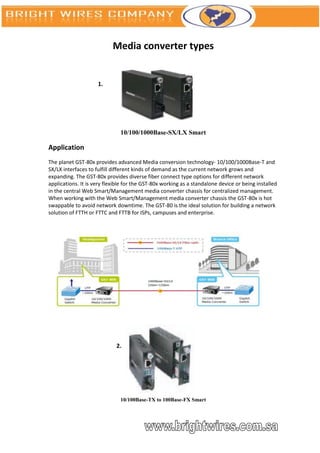

Media converter types 1. 10/100/1000Base-SX/LX Smart Application The planet GST-80x provides advanced Media conversion technology- 10/100/1000Base-T and SX/LX interfaces to fulfill different kinds of demand as the current network grows and expanding. The GST-80x provides diverse fiber connect type options for different network applications. It is very flexible for the GST-80x working as a standalone device or being installed in the central Web Smart/Management media converter chassis for centralized management. When working with the Web Smart/Management media converter chassis the GST-80x is hot swappable to avoid network downtime. The GST-80 is the ideal solution for building a network solution of FTTH or FTTC and FTTB for ISPs, campuses and enterprise. 2. 10/100Base-TX to 100Base-FX Smart

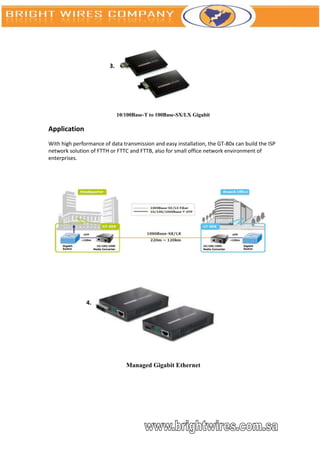

3. 10/100Base-T to 100Base-SX/LX Gigabit Application With high performance of data transmission and easy installation, the GT-80x can build the ISP network solution of FTTH or FTTC and FTTB, also for small office network environment of enterprises. 4. Managed Gigabit Ethernet

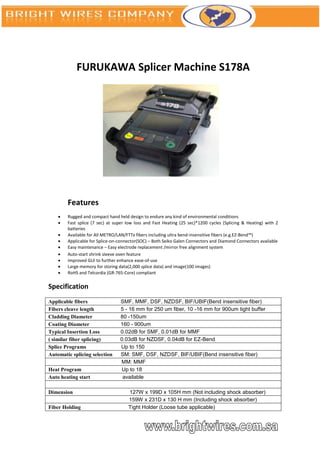

FURUKAWA Splicer Machine S178A Features  Rugged and compact hand held design to endure any kind of environmental conditions  Fast splice (7 sec) at super low loss and Fast Heating (25 sec)*1200 cycles (Splicing & Heating) with 2 batteries  Available for All METRO/LAN/FTTx fibers including ultra bend-insensitive fibers (e.g.EZ-Bend™)  Applicable for Splice-on-connector(SOC) – Both Seiko Galen Connectors and Diamond Connectors available  Easy maintenance – Easy electrode replacement /mirror free alignment system  Auto-start shrink sleeve oven feature  Improved GUI to further enhance ease-of-use  Large memory for storing data(2,000 splice data) and image(100 images)  RoHS and Telcordia (GR-765-Core) compliant Specification Applicable fibers SMF, MMF, DSF, NZDSF, BIF/UBIF(Bend insensitive fiber) Fibers cleave length 5 - 16 mm for 250 um fiber, 10 -16 mm for 900um tight buffer Cladding Diameter 80 -150um Coating Diameter 160 - 900um Typical Insertion Loss 0.02dB for SMF, 0.01dB for MMF ( similar fiber splicing) 0.03dB for NZDSF, 0.04dB for EZ-Bend Splice Programs Up to 150 Automatic splicing selection SM: SMF, DSF, NZDSF, BIF/UBIF(Bend insensitive fiber) MM: MMF Heat Program Up to 18 Auto heating start available Dimension 127W x 199D x 105H mm (Not including shock absorber) 159W x 231D x 130 H mm (Including shock absorber) Fiber Holding Tight Holder (Loose tube applicable)
or Fiber Holder System Weight 1.9 kg (without battery), 2.3kg (with two batteries) Splice time 7 seconds (Semi-auto mode), 9 seconds (Regular mode) Applicable Sleeves 40/60mm Heating time 25 seconds for 40mm and 60 mm sleeves 31 seconds for 40mm and 60 mm sleeves (Regular mode) Return loss >60dB Tension Test 1.96 N Magnification 101x, 304x or 608x Monitor 3.5" color LCD monitor Video output/Data interface USB 2.0 Splice memory maximum 2000 splices Image capture capacity Last 100 images to be automatically captured + Up to 24 Display user interface GUI Battery capacity 80 splice/heat cycles with single battery 200 splice/heat cycle with dual batteries Displaying language 20 languages (e.g. English, Spanish, Japanese, Chinese) Operating temperature -10 to + 50 degree C (without excessive humidity) Storage temperature -40 to +60 degree C (without excessive humidity) Power source AC 100 to 240V (50/60Hz), DC Input 11 to 17 V Worktable Available

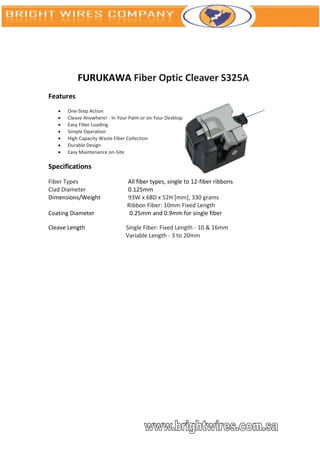

FURUKAWA Fiber Optic Cleaver S325A Features  One-Step Action  Cleave Anywhere! - In Your Palm or on Your Desktop  Easy Fiber Loading  Simple Operation  High Capacity Waste Fiber Collection  Durable Design  Easy Maintenance on-Site Specifications Fiber Types All fiber types, single to 12-fiber ribbons Clad Diameter 0.125mm Dimensions/Weight 93W x 68D x 52H [mm], 330 grams Ribbon Fiber: 10mm Fixed Length Coating Diameter 0.25mm and 0.9mm for single fiber Cleave Length Single Fiber: Fixed Length - 10 & 16mm Variable Length - 3 to 20mm

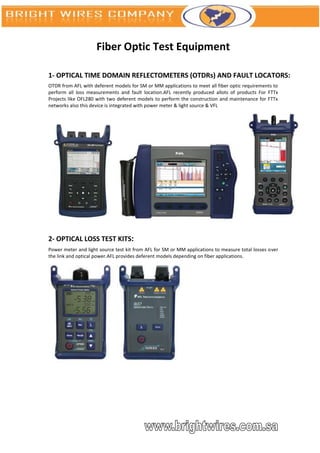

Fiber Optic Test Equipment 1- OPTICAL TIME DOMAIN REFLECTOMETERS (OTDRs) AND FAULT LOCATORS: OTDR from AFL with deferent models for SM or MM applications to meet all fiber optic requirements to perform all loss measurements and fault location.AFL recently produced allots of products For FTTx Projects like OFL280 with two deferent models to perform the construction and maintenance for FTTx networks also this device is integrated with power meter & light source & VFL 2- OPTICAL LOSS TEST KITS: Power meter and light source test kit from AFL for SM or MM applications to measure total losses over the link and optical power.AFL provides deferent models depending on fiber applications.
3- OPTICAL FIBER IDENTIFIERS: Optical Fiber Identifier from AFL designed to identify the presence or absence of fiber optic signal and to define direction of traffic and tone detection. AFL produced OFI-FTTx to identify the presence or absence of an active Optical Network Terminal (ONT) Thus the OFI-FTTx can verify whether a splitter pigtail at the FDH is connected to an active circuit before it is disconnected for fault location or re-use. 4- INSPECTION MICROSCOPES AND VIDEOSCOPES: Optical Fiber Scope from AFL is used for inspection of optical fiber connectors for scratches, dirt, or other problems normally associated with poor transmission performance.

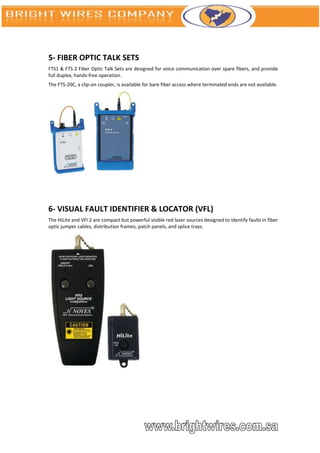

5- FIBER OPTIC TALK SETS FTS1 & FTS 2 Fiber Optic Talk Sets are designed for voice communication over spare fibers, and provide full duplex, hands-free operation. The FTS-20C, a clip-on coupler, is available for bare fiber access where terminated ends are not available. 6- VISUAL FAULT IDENTIFIER & LOCATOR (VFL) The HiLite and VFI 2 are compact but powerful visible red laser sources designed to identify faults in fiber optic jumper cables, distribution frames, patch panels, and splice trays.

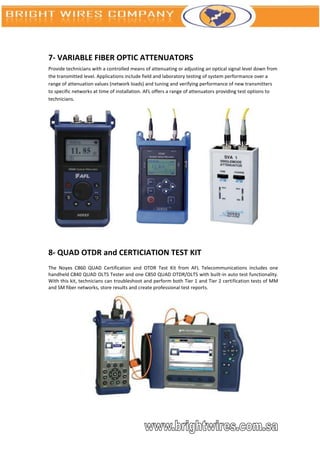

7- VARIABLE FIBER OPTIC ATTENUATORS Provide technicians with a controlled means of attenuating or adjusting an optical signal level down from the transmitted level. Applications include field and laboratory testing of system performance over a range of attenuation values (network loads) and tuning and verifying performance of new transmitters to specific networks at time of installation. AFL offers a range of attenuators providing test options to technicians. 8- QUAD OTDR and CERTICIATION TEST KIT The Noyes C860 QUAD Certification and OTDR Test Kit from AFL Telecommunications includes one handheld C840 QUAD OLTS Tester and one C850 QUAD OTDR/OLTS with built-in auto test functionality. With this kit, technicians can troubleshoot and perform both Tier 1 and Tier 2 certification tests of MM and SM fiber networks, store results and create professional test reports.

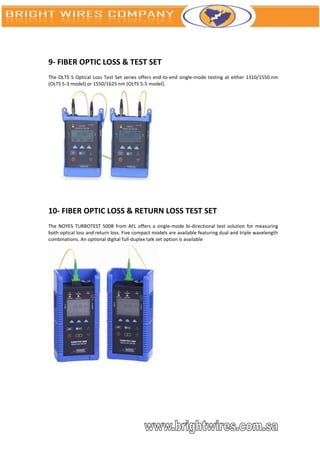

9- FIBER OPTIC LOSS & TEST SET The OLTS 5 Optical Loss Test Set series offers end-to-end single-mode testing at either 1310/1550 nm (OLTS 5-3 model) or 1550/1625 nm (OLTS 5-5 model). 10- FIBER OPTIC LOSS & RETURN LOSS TEST SET The NOYES TURBOTEST 500B from AFL offers a single-mode bi-directional test solution for measuring both optical loss and return loss. Five compact models are available featuring dual and triple wavelength combinations. An optional digital full-duplex talk set option is available

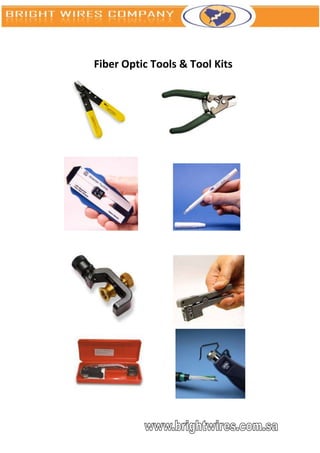

Fiber Optic Tools & Tool Kits

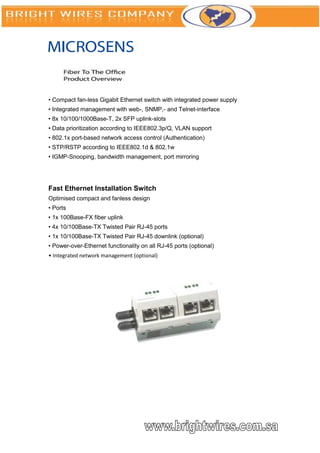

• Compact fan-less Gigabit Ethernet switch with integrated power supply • Integrated management with web-, SNMP,- and Telnet-interface • 8x 10/100/1000Base-T, 2x SFP uplink-slots • Data prioritization according to IEEE802.3p/Q, VLAN support • 802.1x port-based network access control (Authentication) • STP/RSTP according to IEEE802.1d & 802.1w • IGMP-Snooping, bandwidth management, port mirroring Fast Ethernet Installation Switch Optimised compact and fanless design • Ports • 1x 100Base-FX fiber uplink • 4x 10/100Base-TX Twisted Pair RJ-45 ports • 1x 10/100Base-TX Twisted Pair RJ-45 downlink (optional) • Power-over-Ethernet functionality on all RJ-45 ports (optional) • Integrated network management (optional)

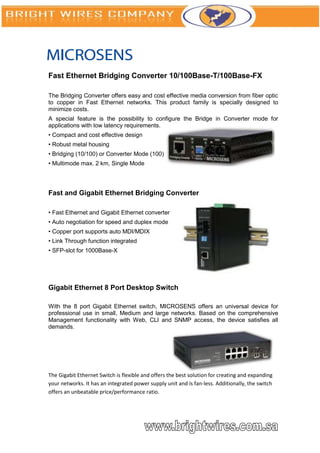

Fast Ethernet Bridging Converter 10/100Base-T/100Base-FX The Bridging Converter offers easy and cost effective media conversion from fiber optic to copper in Fast Ethernet networks. This product family is specially designed to minimize costs. A special feature is the possibility to configure the Bridge in Converter mode for applications with low latency requirements. • Compact and cost effective design • Robust metal housing • Bridging (10/100) or Converter Mode (100) • Multimode max. 2 km, Single Mode Fast and Gigabit Ethernet Bridging Converter • Fast Ethernet and Gigabit Ethernet converter • Auto negotiation for speed and duplex mode • Copper port supports auto MDI/MDIX • Link Through function integrated • SFP-slot for 1000Base-X Gigabit Ethernet 8 Port Desktop Switch With the 8 port Gigabit Ethernet switch, MICROSENS offers an universal device for professional use in small, Medium and large networks. Based on the comprehensive Management functionality with Web, CLI and SNMP access, the device satisfies all demands. The Gigabit Ethernet Switch is flexible and offers the best solution for creating and expanding your networks. It has an integrated power supply unit and is fan-less. Additionally, the switch offers an unbeatable price/performance ratio.
Fiber optic solution (bright wires)
