1. SmartNode™
VoIP Gateway/Router Solutions for Elastix
© 2013 Patton Electronics Co.

2. SmartNode™ | Elastix Solutions
Agenda
1.
Patton Corporate Overview
2.
SmartNode Product Line Overview
3.
Q&A
© 2013 Patton Electronics Co.

3. SmartNode™ | Elastix Solutions
Patton Corporate Overview
•
Over 1,000 products…
•
Designed
•
Manufactured
•
Patton Supported
•
Patton Certified
© 2013 Patton Electronics Co.

4. SmartNode™ | Elastix Solutions
Why SmartNode™?
•
Patton Quality and Reliability
•
Unrivalled Customer Support
•
Free Support and Upgrades
•
Robust Enterprise Feature Sets
•
Proven Interoperability
•
Swiss Engineered. Made in the USA.
“Your support team was fantastic. The best
support call I have ever had to make. You
guys are by far the best (and I have called
everyone) in the business. I can't thank you
enough for the great service.”
- Joe Santaniello- IT Manager at Wireless Zone
© 2013 Patton Electronics Co.

5. SmartNode™ | Elastix Solutions

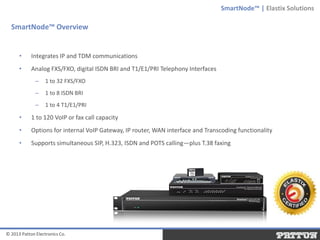

SmartNode™ Overview
•
Integrates IP and TDM communications
•
Analog FXS/FXO, digital ISDN BRI and T1/E1/PRI Telephony Interfaces
–
1 to 32 FXS/FXO
–
1 to 8 ISDN BRI
–
1 to 4 T1/E1/PRI
•
1 to 120 VoIP or fax call capacity
•
Options for internal VoIP Gateway, IP router, WAN interface and Transcoding functionality
•
Supports simultaneous SIP, H.323, ISDN and POTS calling—plus T.38 faxing
© 2013 Patton Electronics Co.

6. SmartNode™ | Elastix Solutions

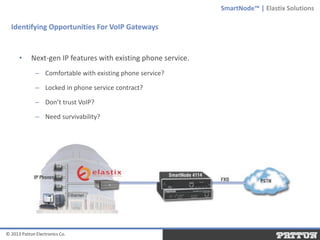

Identifying Opportunities For VoIP Gateways
•
Next-gen IP features with existing phone service.
– Comfortable with existing phone service?
– Locked in phone service contract?
– Don’t trust VoIP?
– Need survivability?
© 2013 Patton Electronics Co.

7. SmartNode™ | Elastix Solutions
Identifying Opportunities For VoIP Gateways
•
Next-gen IP features with existing phone service.
– Comfortable with existing phone service?
– Locked in phone service contract?
– Don’t trust VoIP?
– Need survivability?
© 2013 Patton Electronics Co.

8. SmartNode™ | Elastix Solutions
Identifying Opportunities For VoIP Gateways
•
Legacy phone, PBX and fax integration
© 2013 Patton Electronics Co.

9. SmartNode™ | Elastix Solutions

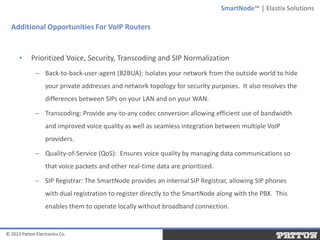

Additional Opportunities For VoIP Routers
•
Prioritized Voice, Security, Transcoding and SIP Normalization
– Back-to-back-user-agent (B2BUA): Isolates your network from the outside world to hide
your private addresses and network topology for security purposes. It also resolves the
differences between SIPs on your LAN and on your WAN.
– Transcoding: Provide any-to-any codec conversion allowing efficient use of bandwidth
and improved voice quality as well as seamless integration between multiple VoIP
providers.
– Quality-of-Service (QoS): Ensures voice quality by managing data communications so
that voice packets and other real-time data are prioritized.
– SIP Registrar: The SmartNode provides an internal SIP Registrar, allowing SIP phones
with dual registration to register directly to the SmartNode along with the PBX. This
enables them to operate locally without broadband connection.
© 2013 Patton Electronics Co.

10. SmartNode™ | Elastix Solutions

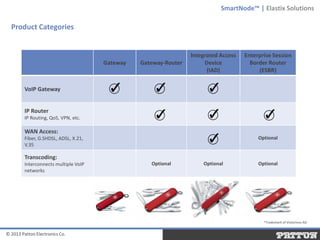

Product Categories
Gateway
Gateway-Router
Integrated Access
Device
(IAD)
Enterprise Session
Border Router
(ESBR)
VoIP Gateway
IP Router
IP Routing, QoS, VPN, etc.
WAN Access:
Optional
Fiber, G.SHDSL, ADSL, X.21,
V.35
Transcoding:
Interconnects multiple VoIP
networks
Optional
Optional
Optional
*Trademark of Victorinox AG
© 2013 Patton Electronics Co.

11. SmartNode™ | Elastix Solutions
Analog FXS/FXO Product Line
M-ATA
SN4110
SN4520
SN4830
SN4300
SN4400
SN4900*
Telephony Interfaces
FXS
FXS & FXO
FXS & FXO
FXS & FXO
FXS or FXO
FXS or FXO
FXS or FXO
# of Telephony Ports
1
2, 4, 6, or 8
2, 4, 6, or 8
2, 4, 6, or 8
12, 16, 24, or
32
12, 16, 24, or
32
12, 16, 24, or
32
1
1
2
2
1
2
2
SmartWare™
VoIP Gateway
IP Router
IP Routing, QoS, VPN, etc.
Number of Ethernet Ports
WAN Access
ADSL
G.SHDSL
Serial X.21
Serial V.35
(Optional)
Serial X.21
Serial V.35
*The SN4900 differs from the SN4400 in that it has a redundant internal power supply, optional WAN and 0° to 50° operating
temperature
© 2013 Patton Electronics Co.

12. SmartNode™ | Elastix Solutions

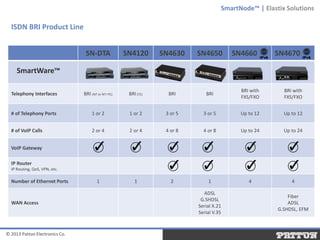

ISDN BRI Product Line
SN-DTA
SN4120
SN4630
SN4650
SN4660
SN4670
Telephony Interfaces
BRI (NT or NT+TE)
BRI (TE)
BRI
BRI
BRI with
FXS/FXO
BRI with
FXS/FXO
# of Telephony Ports
1 or 2
1 or 2
3 or 5
3 or 5
Up to 12
Up to 12
# of VoIP Calls
2 or 4
2 or 4
4 or 8
4 or 8
Up to 24
Up to 24
1
1
2
1
4
4
SmartWare™
VoIP Gateway
IP Router
IP Routing, QoS, VPN, etc.
Number of Ethernet Ports
WAN Access
© 2013 Patton Electronics Co.
ADSL
G.SHDSL
Serial X.21
Serial V.35
Fiber
ADSL
G.SHDSL, EFM

13. SmartNode™ | Elastix Solutions

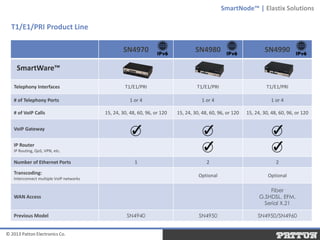

T1/E1/PRI Product Line
SN4970
SN4980
SN4990
Telephony Interfaces
T1/E1/PRI
T1/E1/PRI
T1/E1/PRI
# of Telephony Ports
1 or 4
1 or 4
1 or 4
15, 24, 30, 48, 60, 96, or 120
15, 24, 30, 48, 60, 96, or 120
15, 24, 30, 48, 60, 96, or 120
1
2
2
Optional
Optional
SmartWare™
# of VoIP Calls
VoIP Gateway
IP Router
IP Routing, QoS, VPN, etc.
Number of Ethernet Ports
Transcoding:
Interconnect multiple VoIP networks
Fiber
G.SHDSL, EFM,
Serial X.21
WAN Access
Previous Model
© 2013 Patton Electronics Co.
SN4940
SN4950
SN4950/SN4960

14. SmartNode™ | Elastix Solutions
Enterprise Session Border Router (ESBR) Product Line
SN5200
SN5480
SN5490
SIP Sessions
a back-to-back call using two SIP legs
Up to 32
Up to 196
Up to 196
Transcoded Calls
1 Transcoded Call = 2 Voice Channels
N/A
Up to 64
Up to 64
5
2
2
SmartWare™
Number of Ethernet Ports
IP Router
IP Routing, QoS, VPN, etc.
Transcoding:
Interconnects multiple VoIP networks
WAN Access
© 2013 Patton Electronics Co.
X.21
Fiber
G.SHDSL, EFM,
X.21

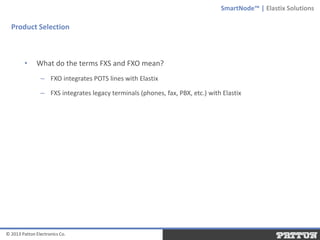

15. SmartNode™ | Elastix Solutions
Product Selection
•
What do the terms FXS and FXO mean?
– FXO integrates POTS lines with Elastix
– FXS integrates legacy terminals (phones, fax, PBX, etc.) with Elastix
© 2013 Patton Electronics Co.

16. SmartNode™ | Elastix Solutions

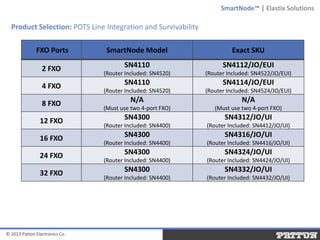

Product Selection: POTS Line Integration and Survivability
FXO Ports
SmartNode Model
Exact SKU
2 FXO
SN4110
SN4112/JO/EUI
(Router Included: SN4520)
(Router Included: SN4522/JO/EUI)
SN4110
SN4114/JO/EUI
(Router Included: SN4520)
(Router Included: SN4524/JO/EUI)
N/A
N/A
(Must use two 4-port FXO)
(Must use two 4-port FXO)
SN4300
SN4312/JO/UI
(Router Included: SN4400)
(Router Included: SN4412/JO/UI)
SN4300
SN4316/JO/UI
(Router Included: SN4400)
(Router Included: SN4416/JO/UI)
SN4300
SN4324/JO/UI
(Router Included: SN4400)
(Router Included: SN4424/JO/UI)
SN4300
SN4332/JO/UI
(Router Included: SN4400)
(Router Included: SN4432/JO/UI)
4 FXO
8 FXO
12 FXO
16 FXO
24 FXO
32 FXO
© 2013 Patton Electronics Co.

17. SmartNode™ | Elastix Solutions
Product Selection: POTS Line Integration and Survivability
BRI Ports
SmartNode Model
Exact SKU
1 BRI (2 Calls)
SN4120
SN4120/1BIS2V/EUI
2 BRI (4 Calls)
SN4120
SN4120/2BIS4V/EUI
2 BRI (4 Calls)
SN4630
SN4634/3BIS/EUI
(+1 for failover relay)
(Includes Router)
(Includes Router)
4 BRI (8 Calls)
SN4630
SN4638/5BIS/EUI
(+1 for failover relay)
(Includes Router)
(Includes Router)
SN4660
SN4660/8BIS16V/EUI
(Includes Router)
(Includes Router)
8 BRI (16 Calls)
© 2013 Patton Electronics Co.

18. SmartNode™ | Elastix Solutions
Product Selection: POTS Line Integration and Survivability
T1/E1/PRI Ports
SmartNode Model
Exact SKU
1 T1/E1
SN4970
SN4970/1E__V/EUI
(Router Included: SN4980)
(Router Included: SN4980/1E__V/EUI)
SN4970
SN4970/4E__V/EUI
(Router Included: SN4980)
(Router Included: SN4980/4E__V/EUI)
4 T1/E1
** SN4970 and SN4980 are available with 15, 24, 30, 48, 60, 96, or 120 voice channels
© 2013 Patton Electronics Co.

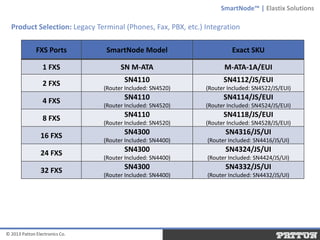

19. SmartNode™ | Elastix Solutions
Product Selection: Legacy Terminal (Phones, Fax, PBX, etc.) Integration
FXS Ports
SmartNode Model
Exact SKU
1 FXS
SN M-ATA
M-ATA-1A/EUI
2 FXS
SN4110
SN4112/JS/EUI
(Router Included: SN4520)
(Router Included: SN4522/JS/EUI)
SN4110
SN4114/JS/EUI
(Router Included: SN4520)
(Router Included: SN4524/JS/EUI)
SN4110
SN4118/JS/EUI
(Router Included: SN4520)
(Router Included: SN4528/JS/EUI)
SN4300
SN4316/JS/UI
(Router Included: SN4400)
(Router Included: SN4416/JS/UI)
SN4300
SN4324/JS/UI
(Router Included: SN4400)
(Router Included: SN4424/JS/UI)
SN4300
SN4332/JS/UI
(Router Included: SN4400)
(Router Included: SN4432/JS/UI)
4 FXS
8 FXS
16 FXS
24 FXS
32 FXS
© 2013 Patton Electronics Co.

20. SmartNode™ | Elastix Solutions
Product Selection: Legacy Terminal (Phones, Fax, PBX, etc.) Integration
BRI Ports
SmartNode Model
Exact SKU
1 BRI (2 Calls)
SN-DTA
SN-DTA/1BIS2V/EUI
2 BRI (4 Calls)
SN-DTA
SN-DTA/2BIS4V/EUI
2 BRI (4 Calls)
SN4630
SN4634/3BIS/EUI
(+1 for failover relay)
(Includes Router)
(Includes Router)
4 BRI (8 Calls)
SN4630
SN4638/5BIS/EUI
(+1 for failover relay)
(Includes Router)
(Includes Router)
SN4660
SN4660/8BIS16V/EUI
(Includes Router)
(Includes Router)
8 BRI (16 Calls)
© 2013 Patton Electronics Co.

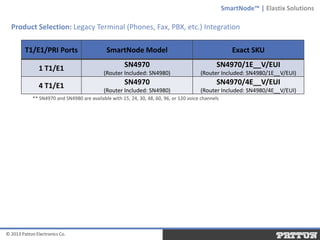

21. SmartNode™ | Elastix Solutions
Product Selection: Legacy Terminal (Phones, Fax, PBX, etc.) Integration
T1/E1/PRI Ports
SmartNode Model
Exact SKU
1 T1/E1
SN4970
SN4970/1E__V/EUI
(Router Included: SN4980)
(Router Included: SN4980/1E__V/EUI)
SN4970
SN4970/4E__V/EUI
(Router Included: SN4980)
(Router Included: SN4980/4E__V/EUI)
4 T1/E1
** SN4970 and SN4980 are available with 15, 24, 30, 48, 60, 96, or 120 voice channels
© 2013 Patton Electronics Co.

22. SmartNode™ | Elastix Solutions
Product Selection: POTS Lines AND Legacy Terminal (Phones, Fax, PBX, etc.) Integration
FXS/FXO Ports
SmartNode Model
Exact SKU
2 FXS, 2 FXO
SN4110
SN4114/2JS2JO/EUI
(Router Included: SN4520)
(Router Included: SN4524/2JS2JO/EUI)
SN4110
SN4116/4JS2JO/EUI
(Router Included: SN4520)
(Router Included: SN4526/4JS2JO/EUI)
SN4110
SN4118/4JS4JO/EUI
(Router Included: SN4520)
(Router Included: SN4528/4JS4JO/EUI)
SN4970
SN4970/4E**V/EUI
(Router Included: SN4980)
(Router Included: SN4980/4E**V/EUI)
4 FXS, 2 FXO
4 FXS, 4 FXO
4 T1/E1
** SN4970 and SN4980 are available with 15, 24, 30, 48, 60, 96, or 120 voice channels
© 2013 Patton Electronics Co.

23. SmartNode™ | Elastix Solutions
Contact Us
© 2013 Patton Electronics Co.

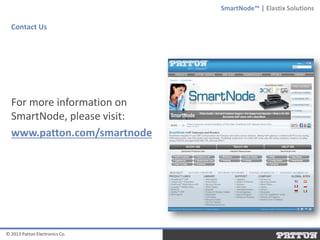

24. SmartNode™ | Elastix Solutions
Contact Us
For more information on
SmartNode, please visit:
www.patton.com/smartnode
