With a trivial bit of tuning, you can extract fairly amazing small message latencies out of TCP. This ain't your father's Ethernet (or TCP).

1. Ethernet: Hidden Secrets
Jeff Squyres
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1

2. First: some background
information…

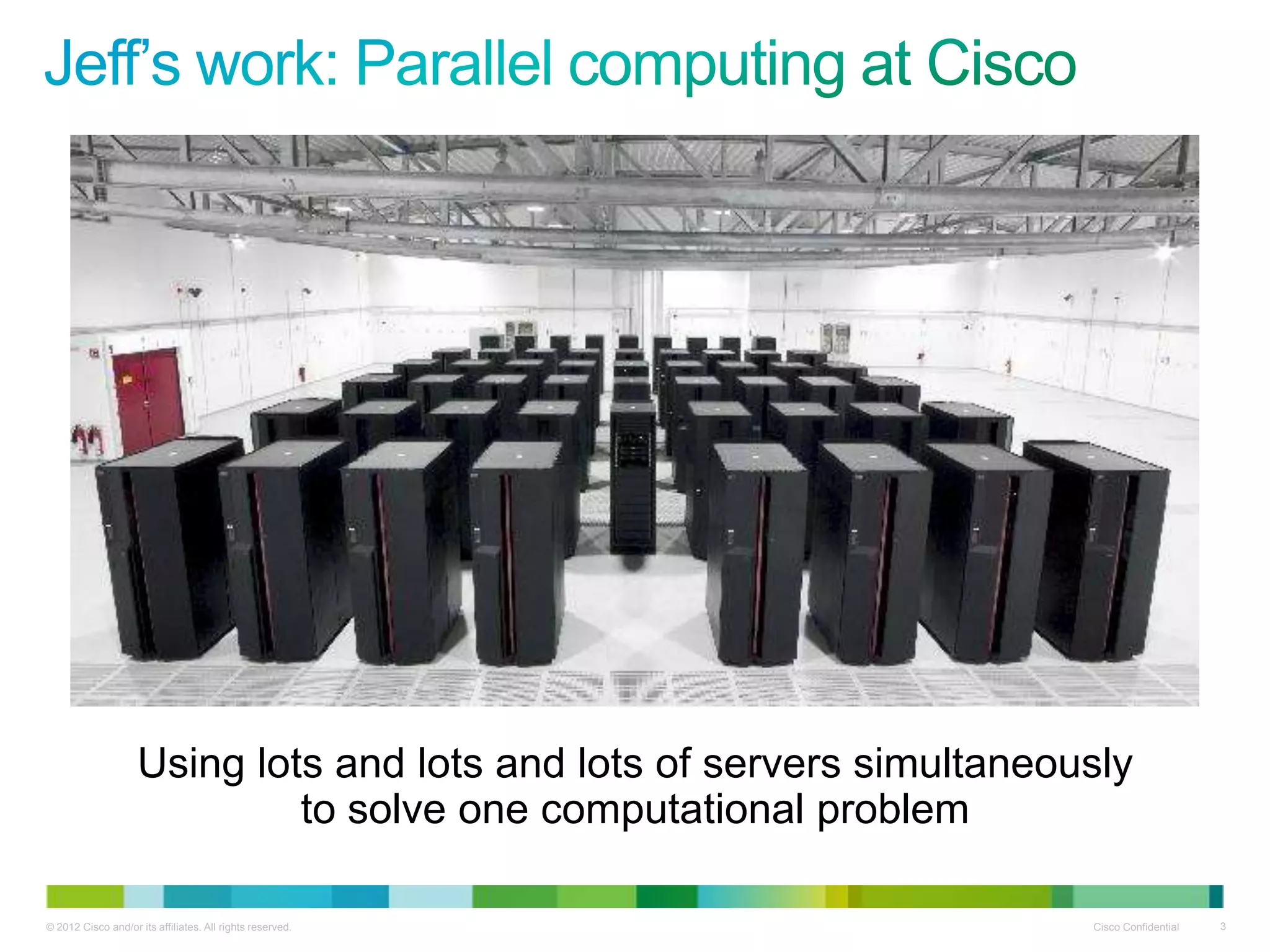

3. Using lots and lots and lots of servers simultaneously
to solve one computational problem
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3

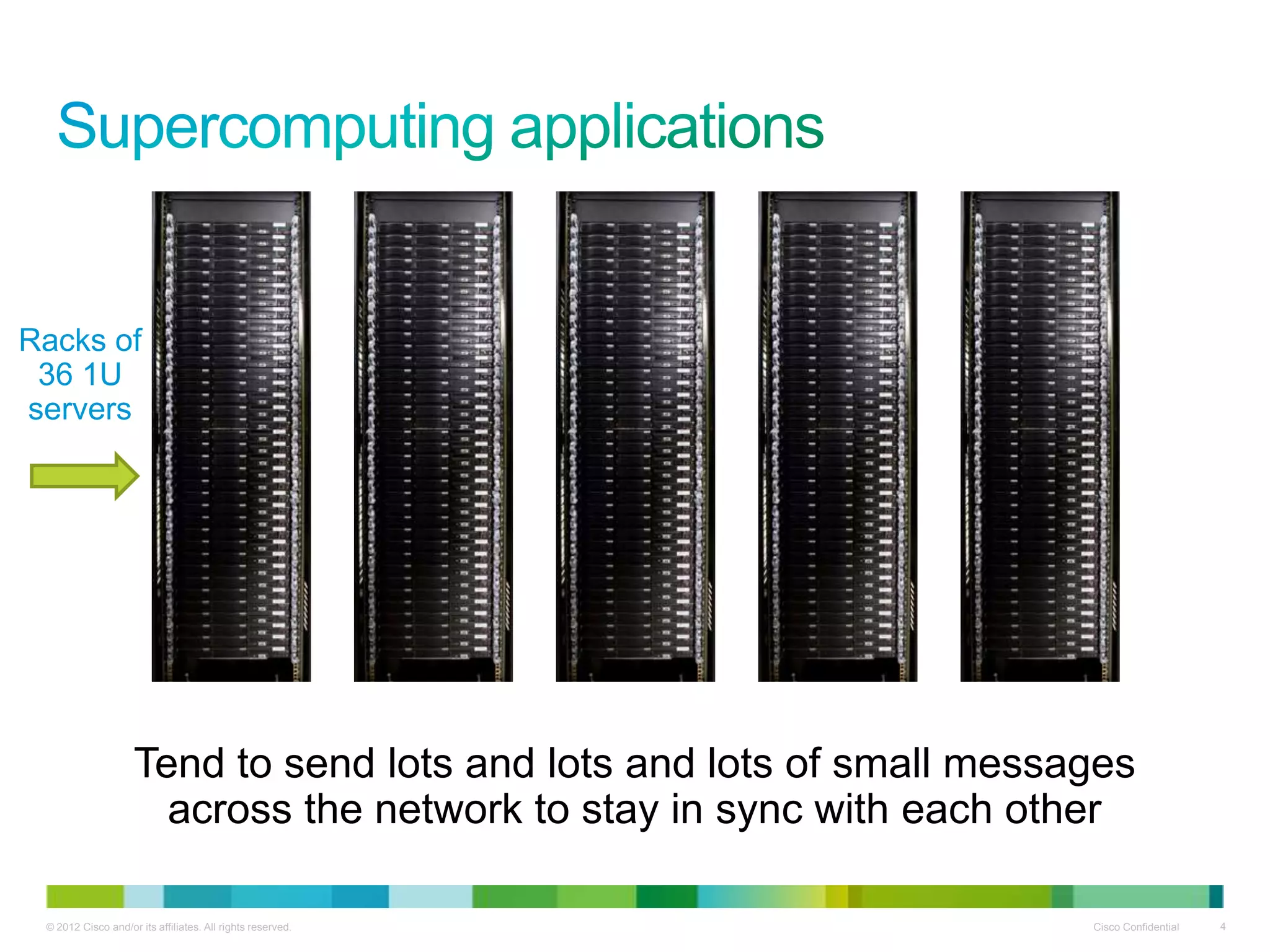

4. Racks of
36 1U
servers
Tend to send lots and lots and lots of small messages
across the network to stay in sync with each other
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4

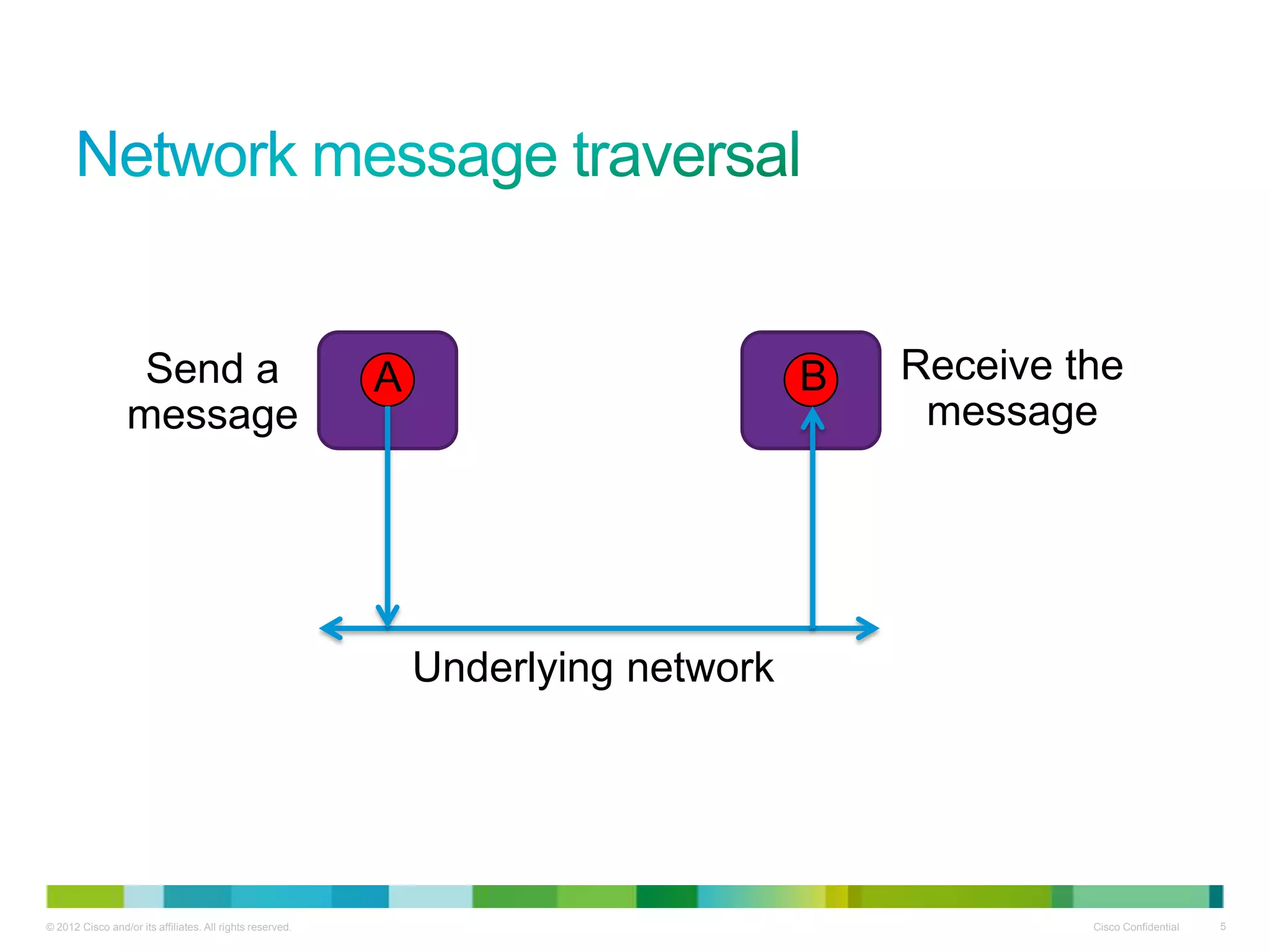

5. Send a A B Receive the
message message
Underlying network
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5

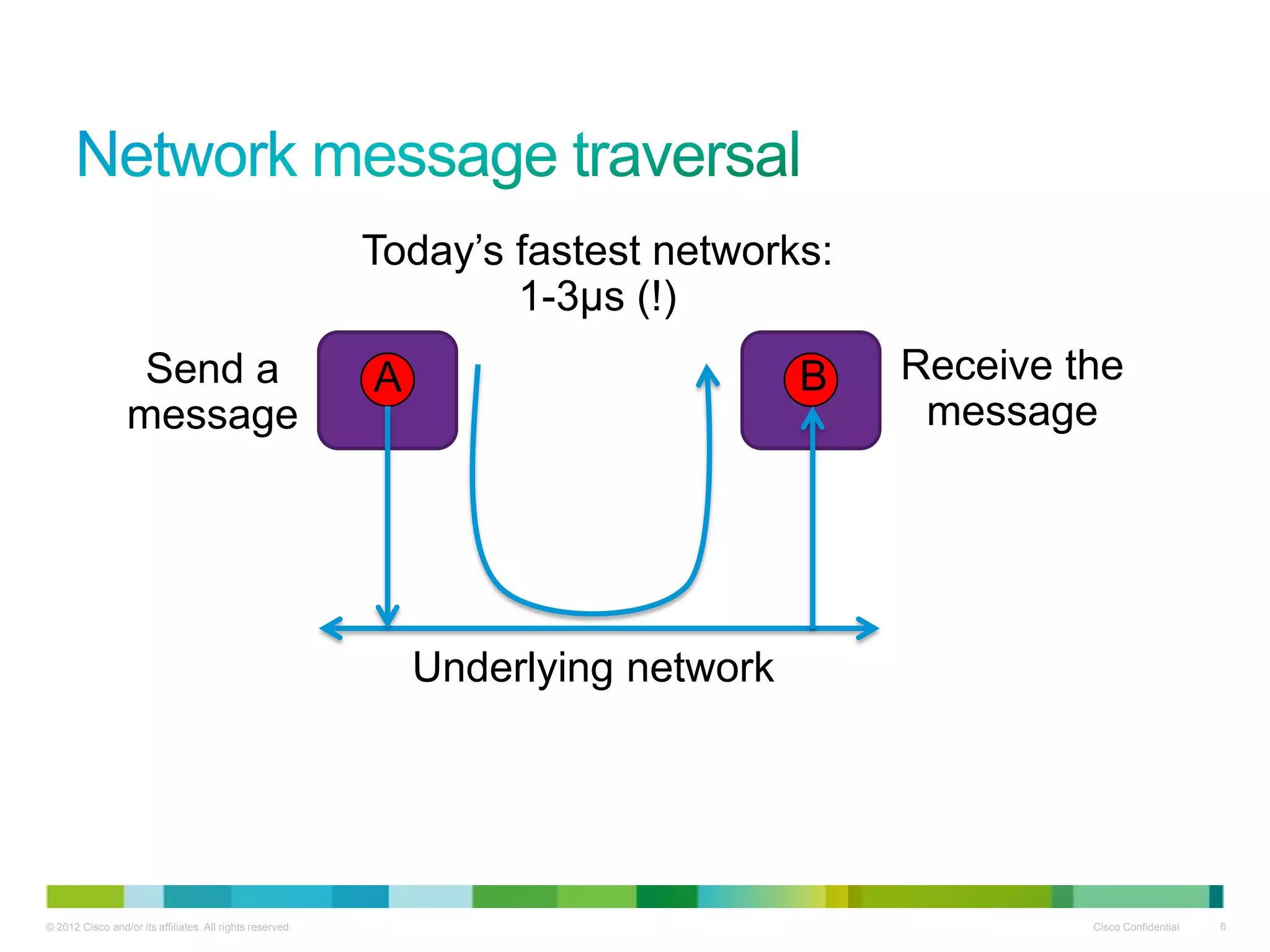

6. Today’s fastest networks:
1-3μs (!)
Send a A B Receive the
message message
Underlying network
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6

7. • Typically not Ethernet networks
• Usually have supercomputer-specific networks
Example: highly tuned for short message latency
• …but that is changing
Ethernet Ethernot
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7

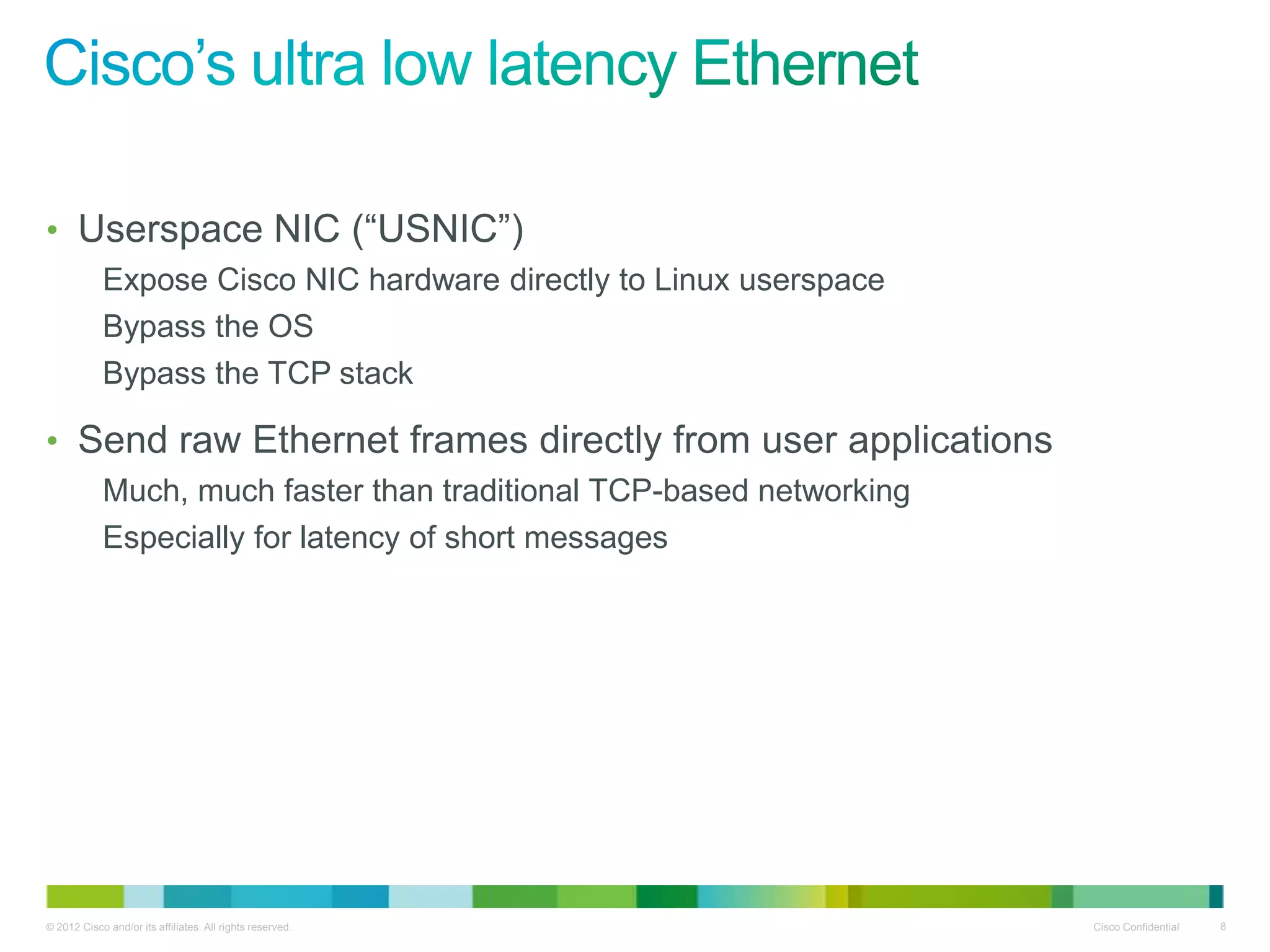

8. • Userspace NIC (“USNIC”)
Expose Cisco NIC hardware directly to Linux userspace
Bypass the OS
Bypass the TCP stack
• Send raw Ethernet frames directly from user applications
Much, much faster than traditional TCP-based networking
Especially for latency of short messages
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8

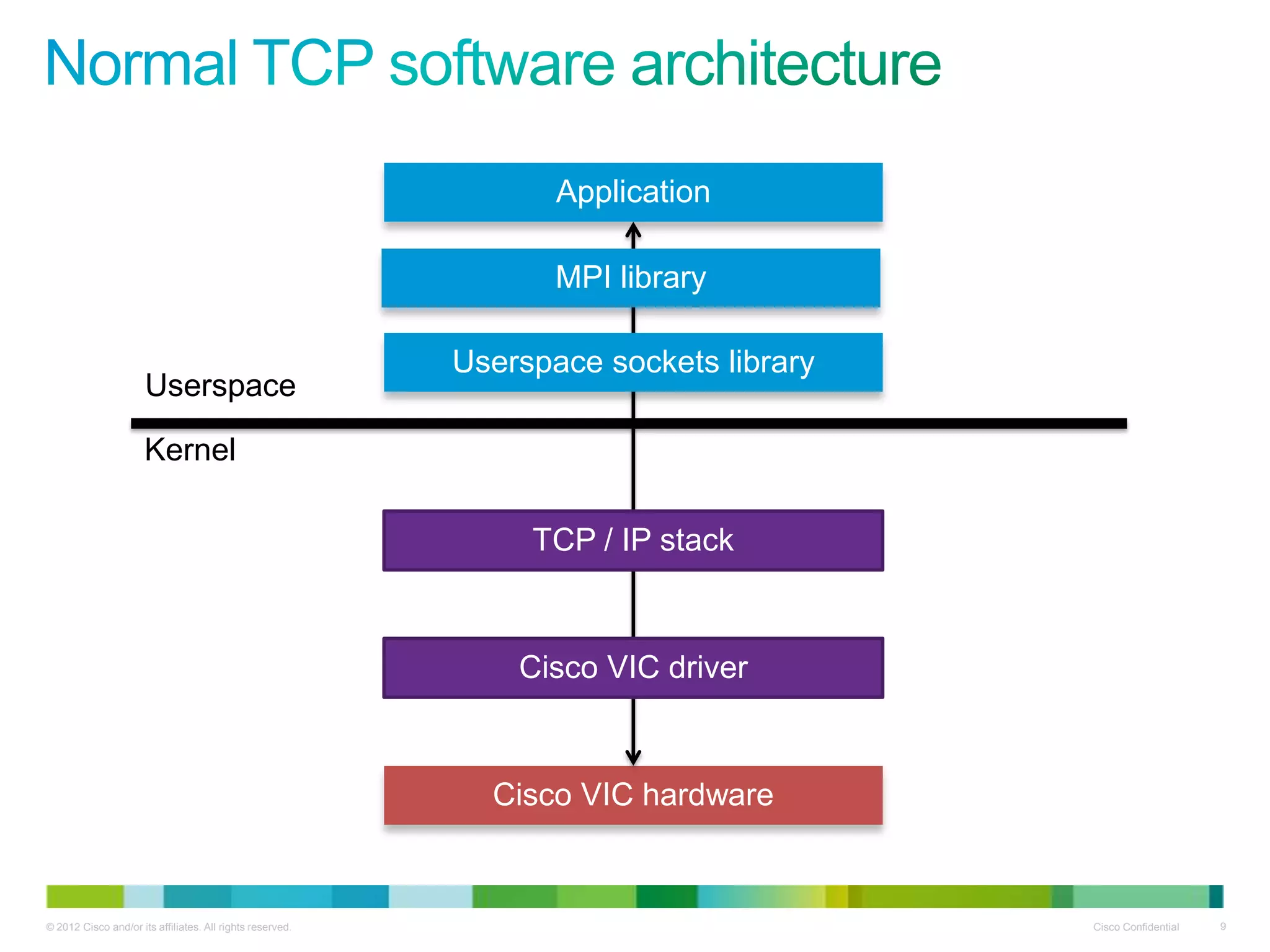

9. Application
MPI library
Userspace sockets library
Userspace
Kernel
TCP / IP stack
Cisco VIC driver
Cisco VIC hardware
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 9

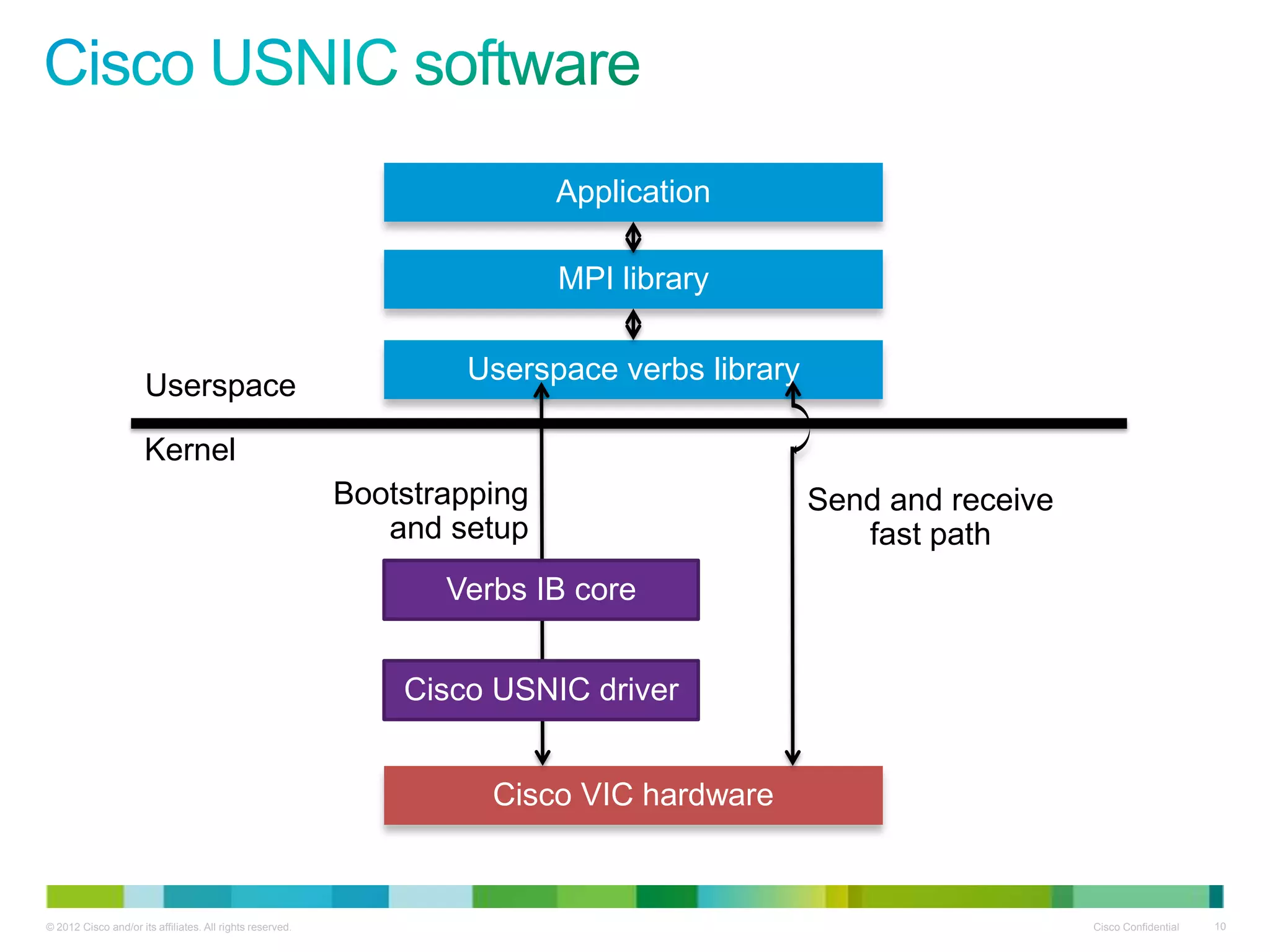

10. Application
MPI library
Userspace verbs library
Userspace
Kernel
Bootstrapping Send and receive
and setup fast path
Verbs IB core
Cisco USNIC driver
Cisco VIC hardware
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10

11. With all that background…

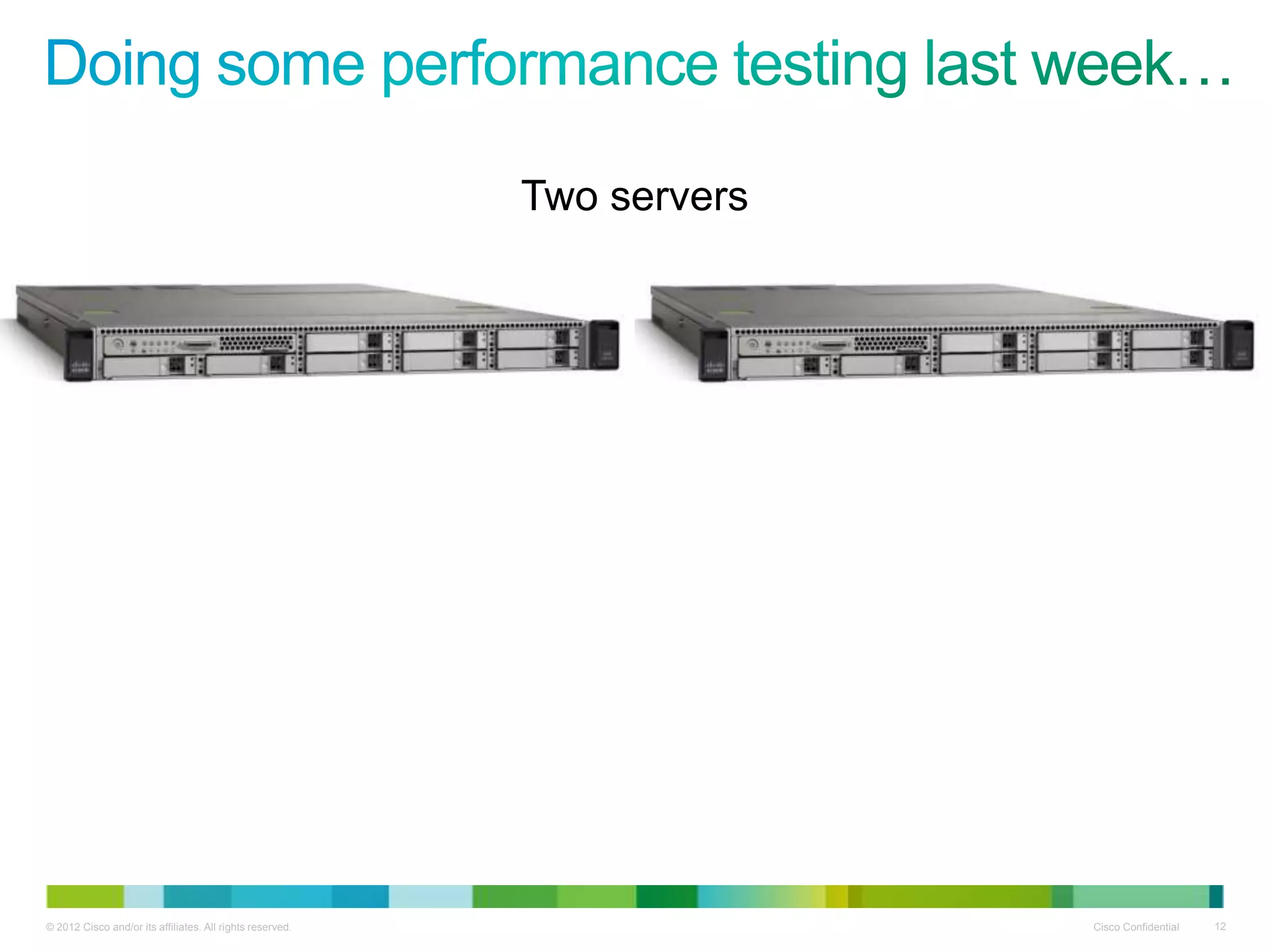

12. Two servers
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 12

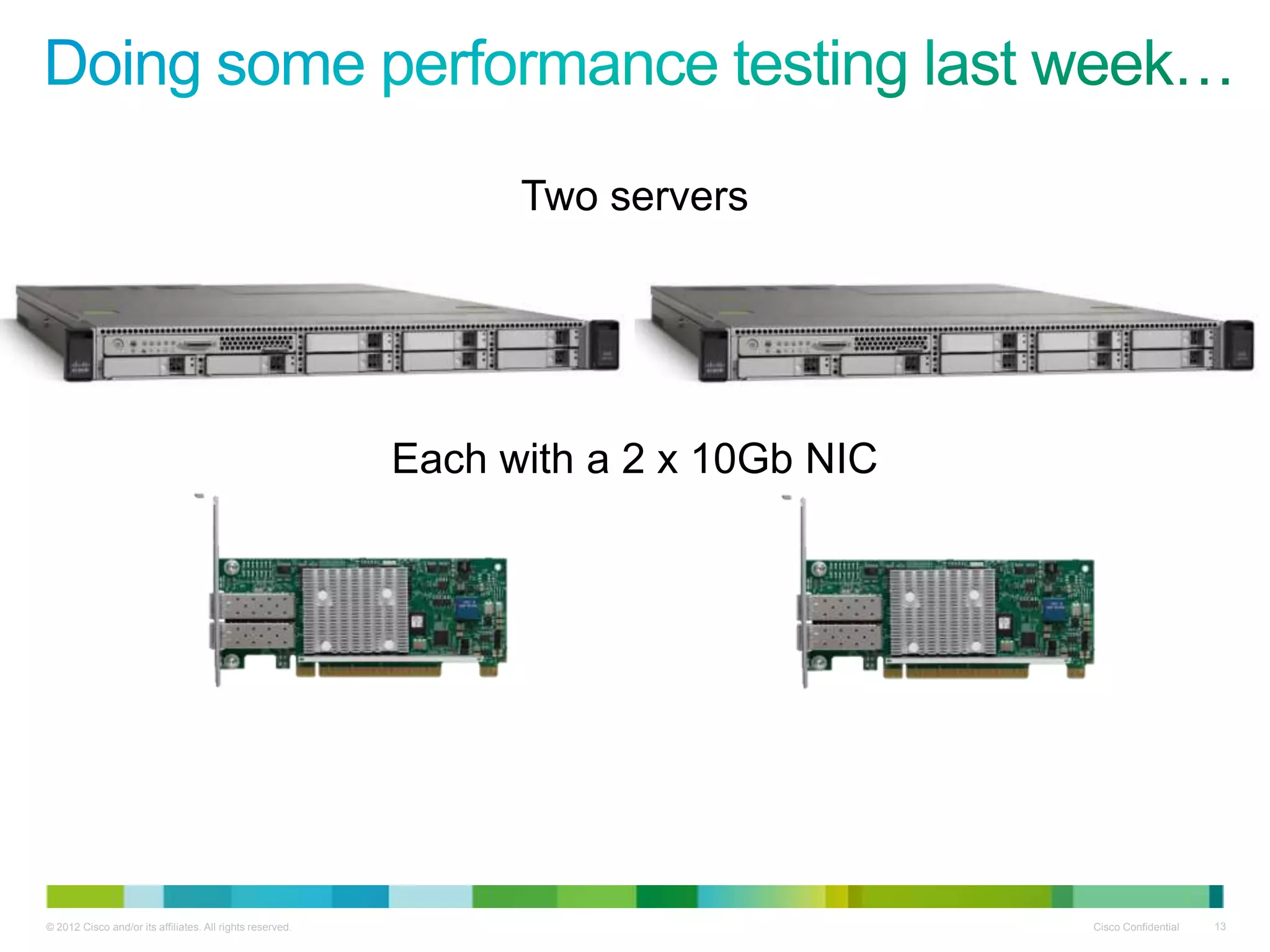

13. Two servers
Each with a 2 x 10Gb NIC
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13

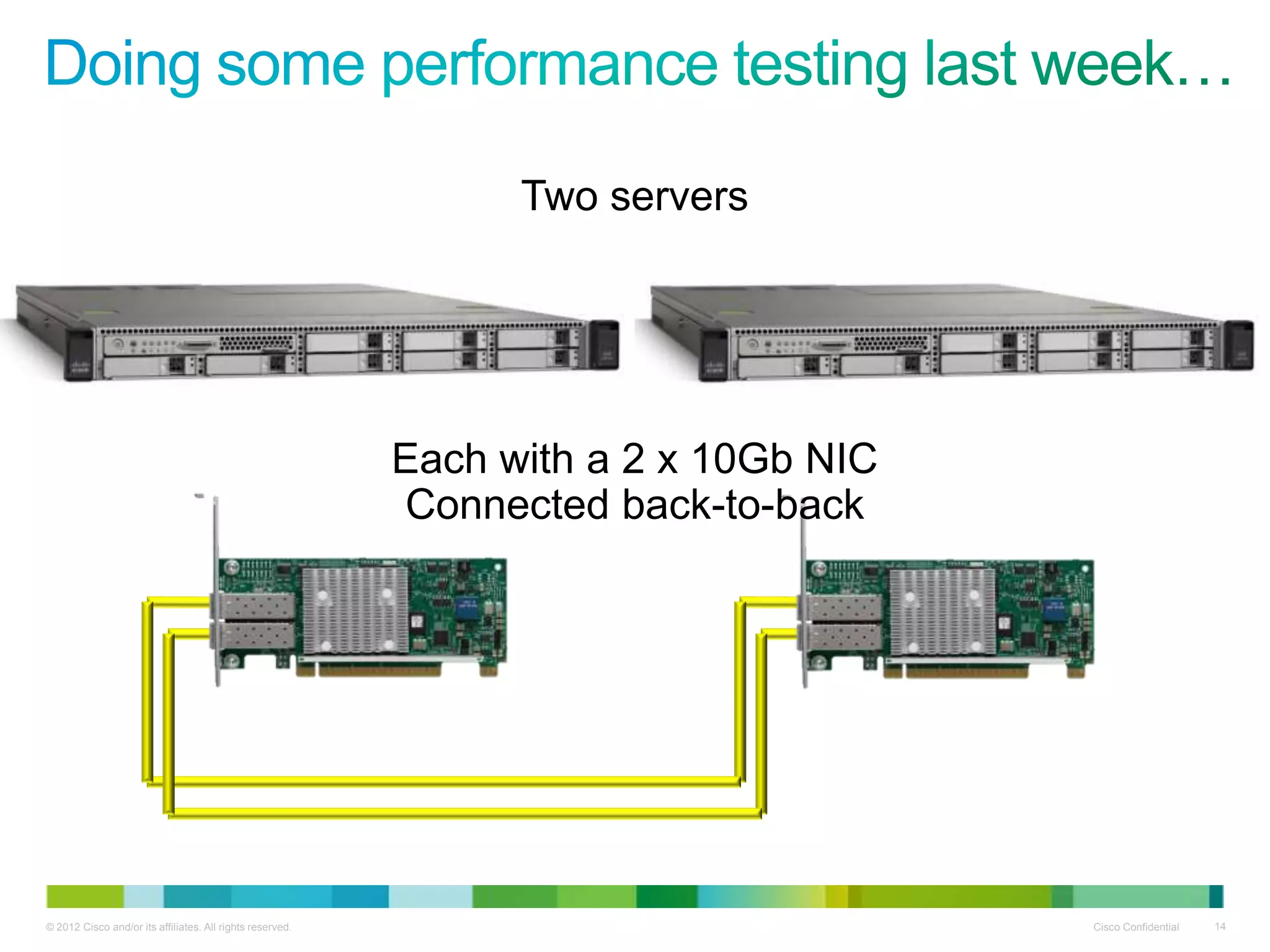

14. Two servers
Each with a 2 x 10Gb NIC
Connected back-to-back
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 14

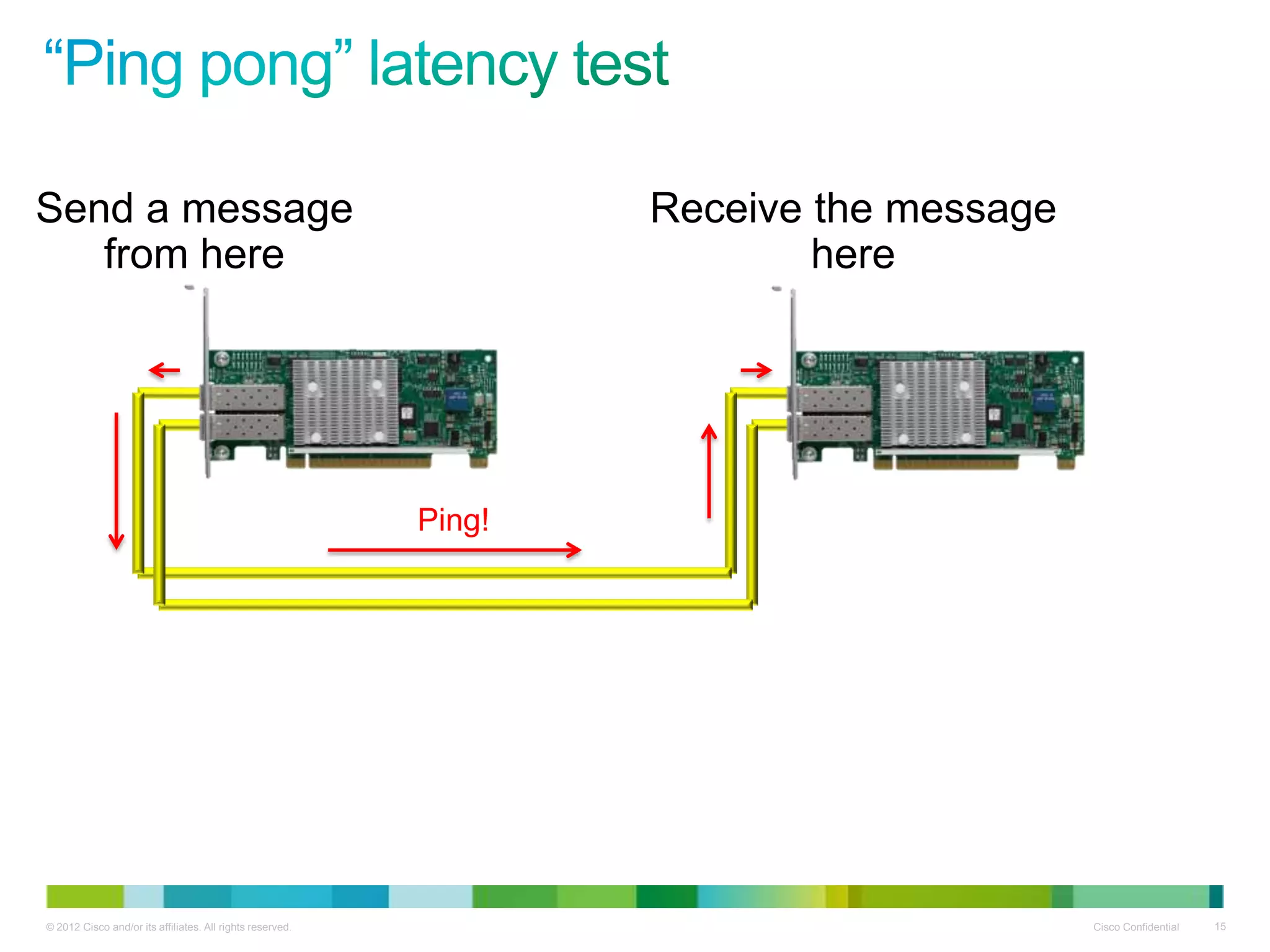

15. Send a message Receive the message
from here here
Ping!
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 15

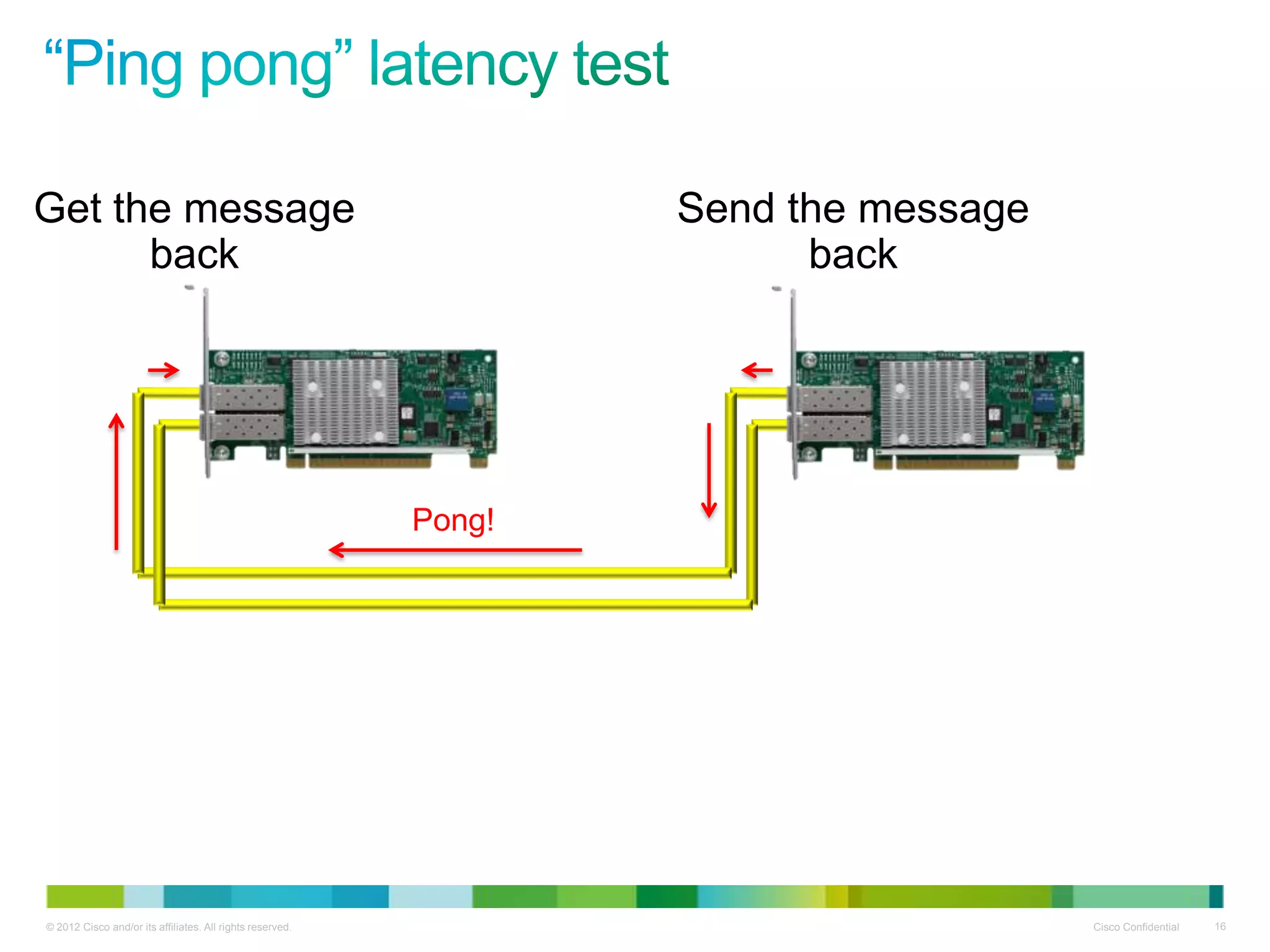

16. Get the message Send the message
back back
Pong!
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 16

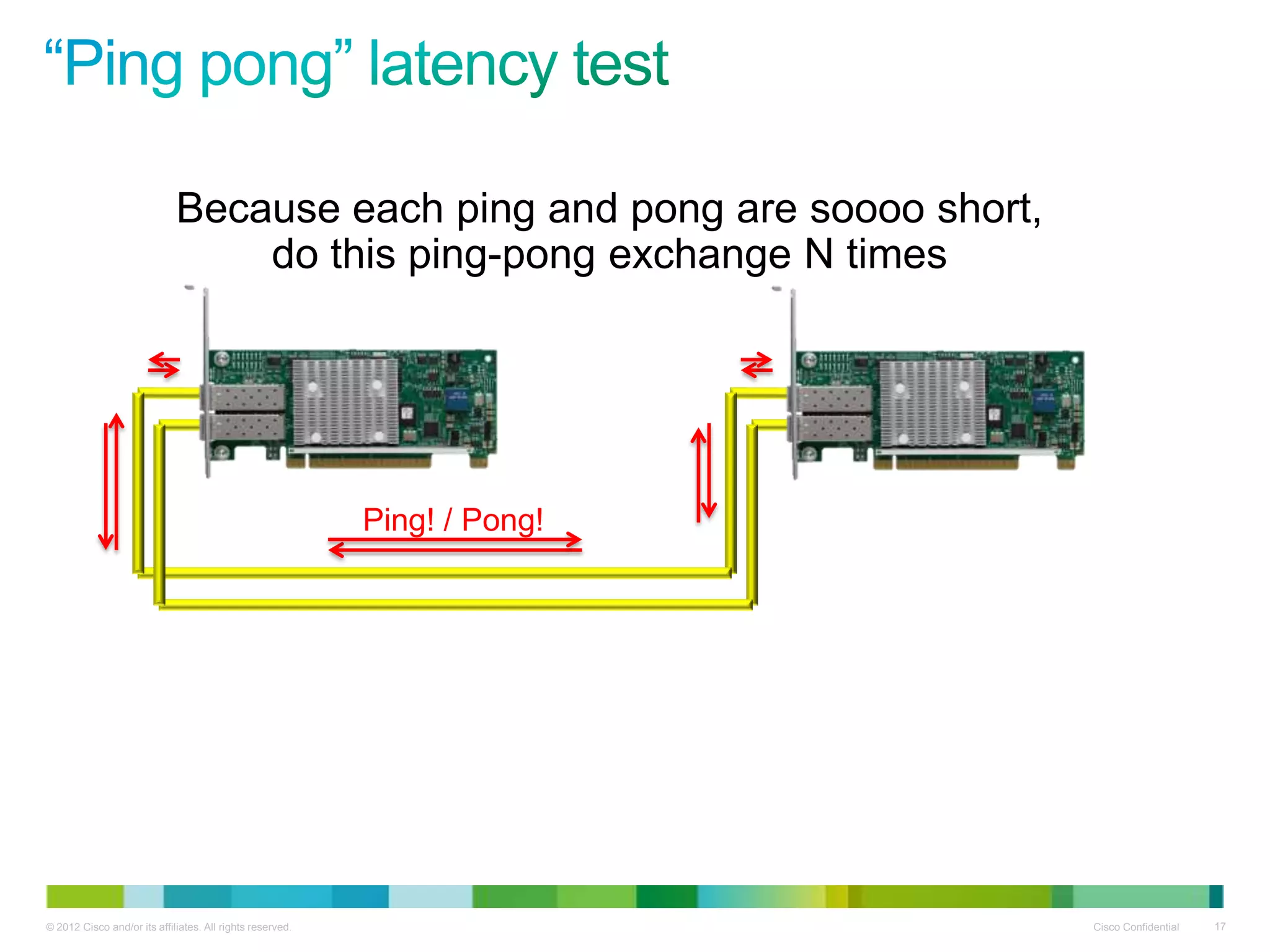

17. Because each ping and pong are soooo short,
do this ping-pong exchange N times
Ping! / Pong!
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 17

18. Total time for N ping-pongs
N
Time for one ping-pong
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 18

19. Total time for N ping-pongs
N
Time for one ping-pong
2
Time for one ping
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 19

20. Time for one ping
=
Half-round trip (HRT)
ping pong latency
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 20

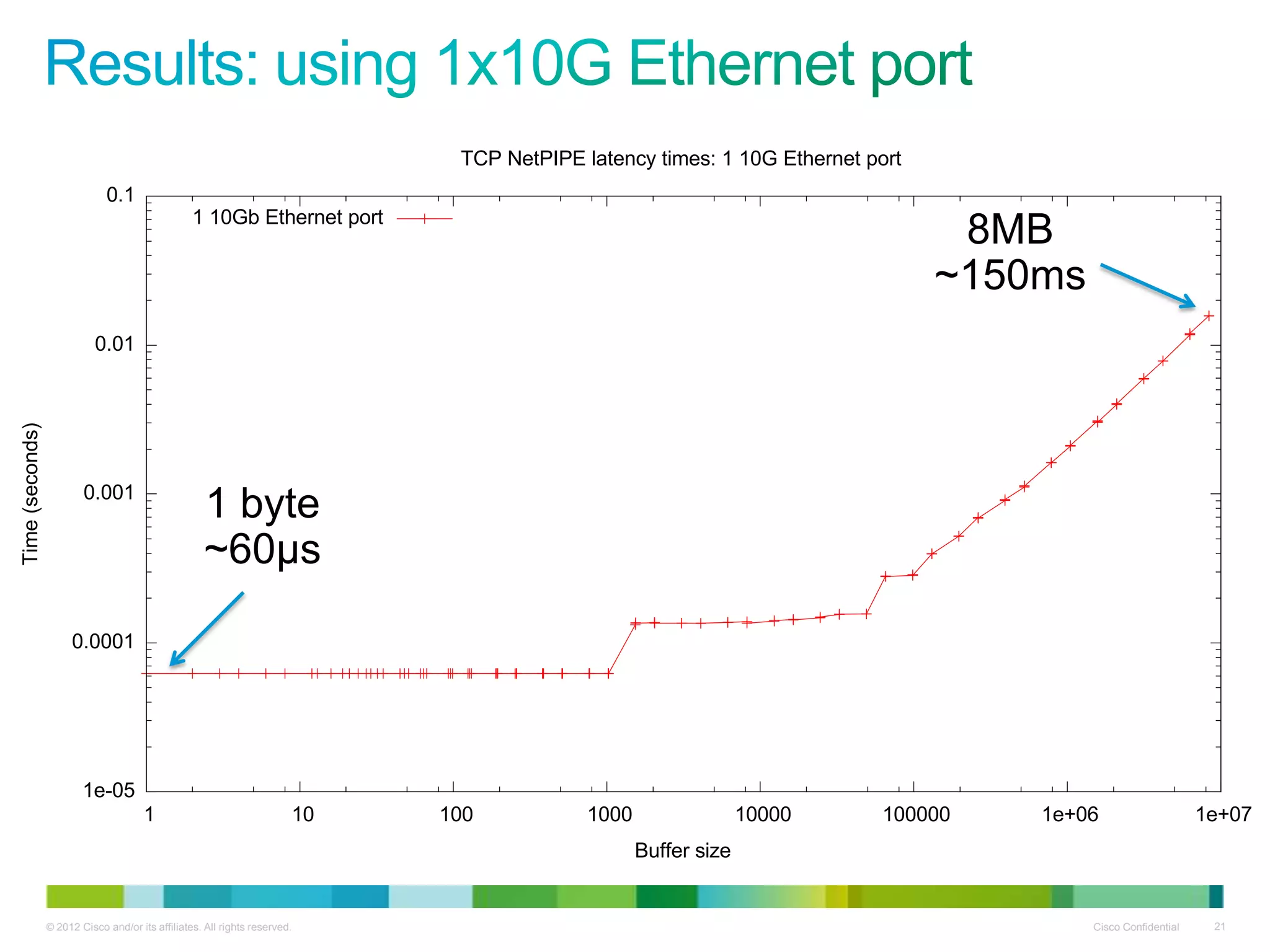

21. TCP NetPIPE latency times: 1 10G Ethernet port
0.1
1 10Gb Ethernet port
8MB
~150ms
0.01
Time (seconds)
0.001
1 byte
~60μs
0.0001
1e-05
1 10 100 1000 10000 100000 1e+06 1e+07
Buffer size
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 21

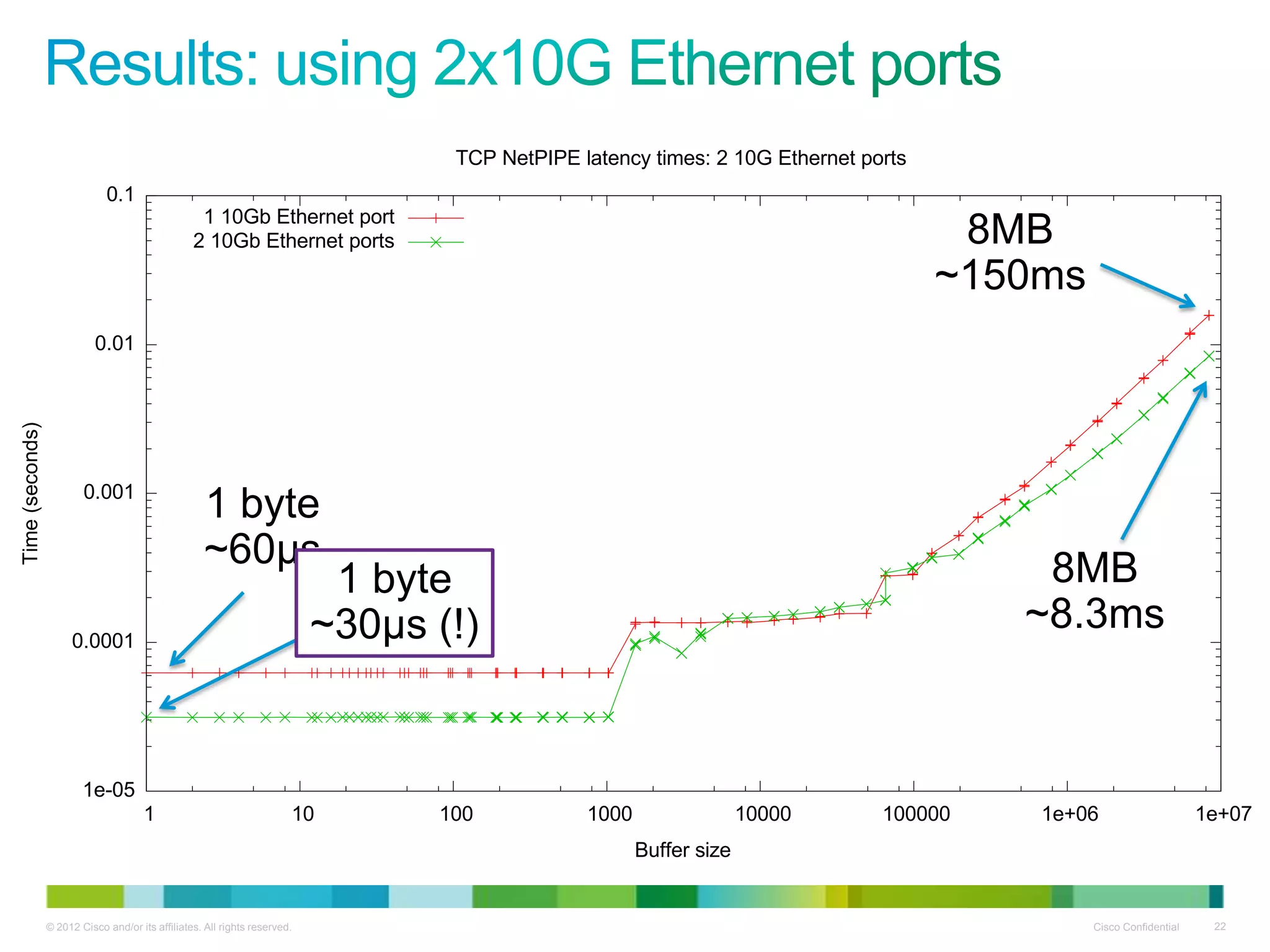

22. TCP NetPIPE latency times: 2 10G Ethernet ports
0.1
1 10Gb Ethernet port
2 10Gb Ethernet ports 8MB
~150ms
0.01
Time (seconds)
0.001
1 byte
~60μs 8MB
1 byte
0.0001 ~30μs (!) ~8.3ms
1e-05
1 10 100 1000 10000 100000 1e+06 1e+07
Buffer size
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 22

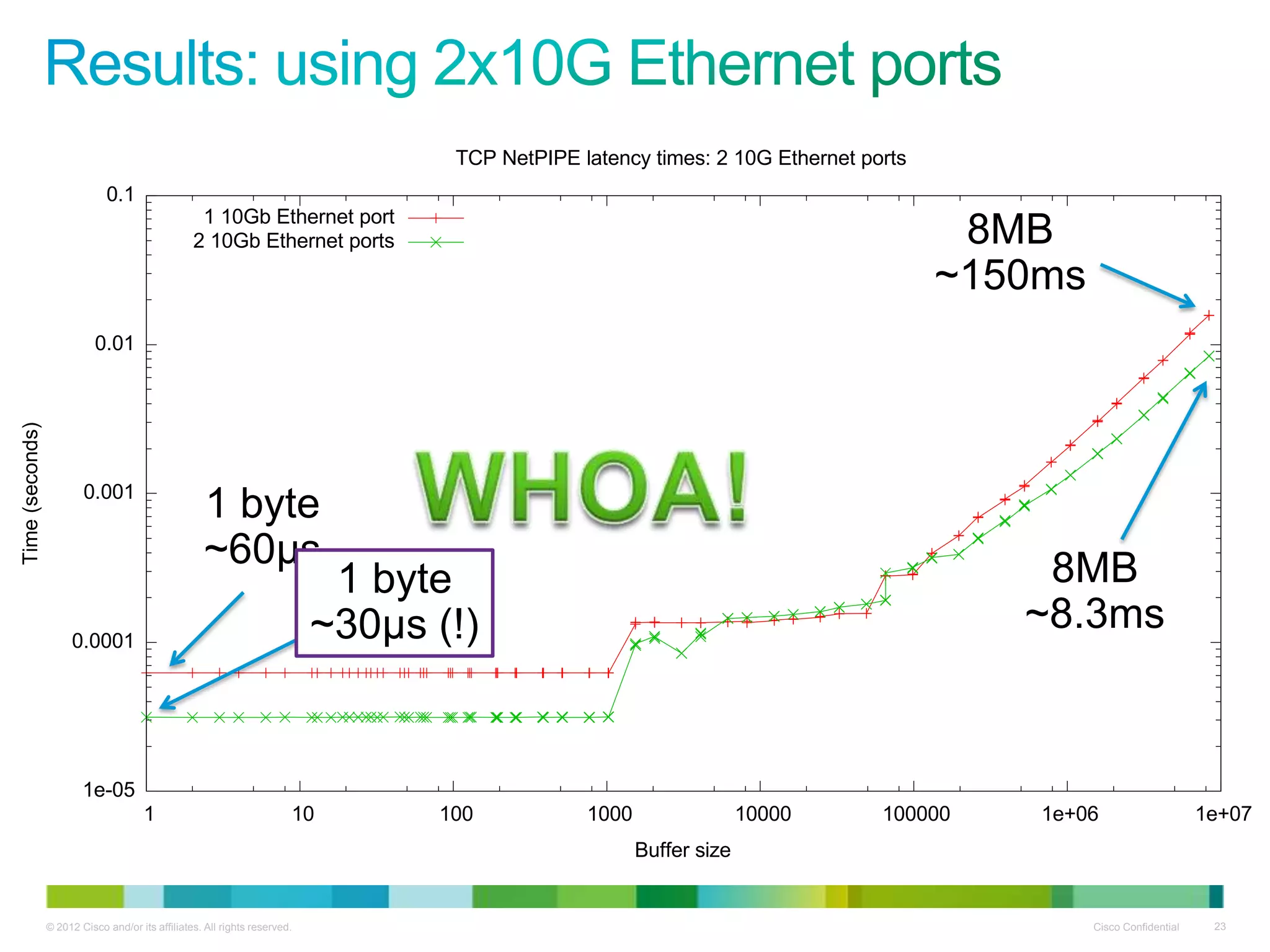

23. TCP NetPIPE latency times: 2 10G Ethernet ports
0.1
1 10Gb Ethernet port
2 10Gb Ethernet ports 8MB
~150ms
0.01
Time (seconds)
0.001
1 byte
~60μs 8MB
1 byte
0.0001 ~30μs (!) ~8.3ms
1e-05
1 10 100 1000 10000 100000 1e+06 1e+07
Buffer size
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 23

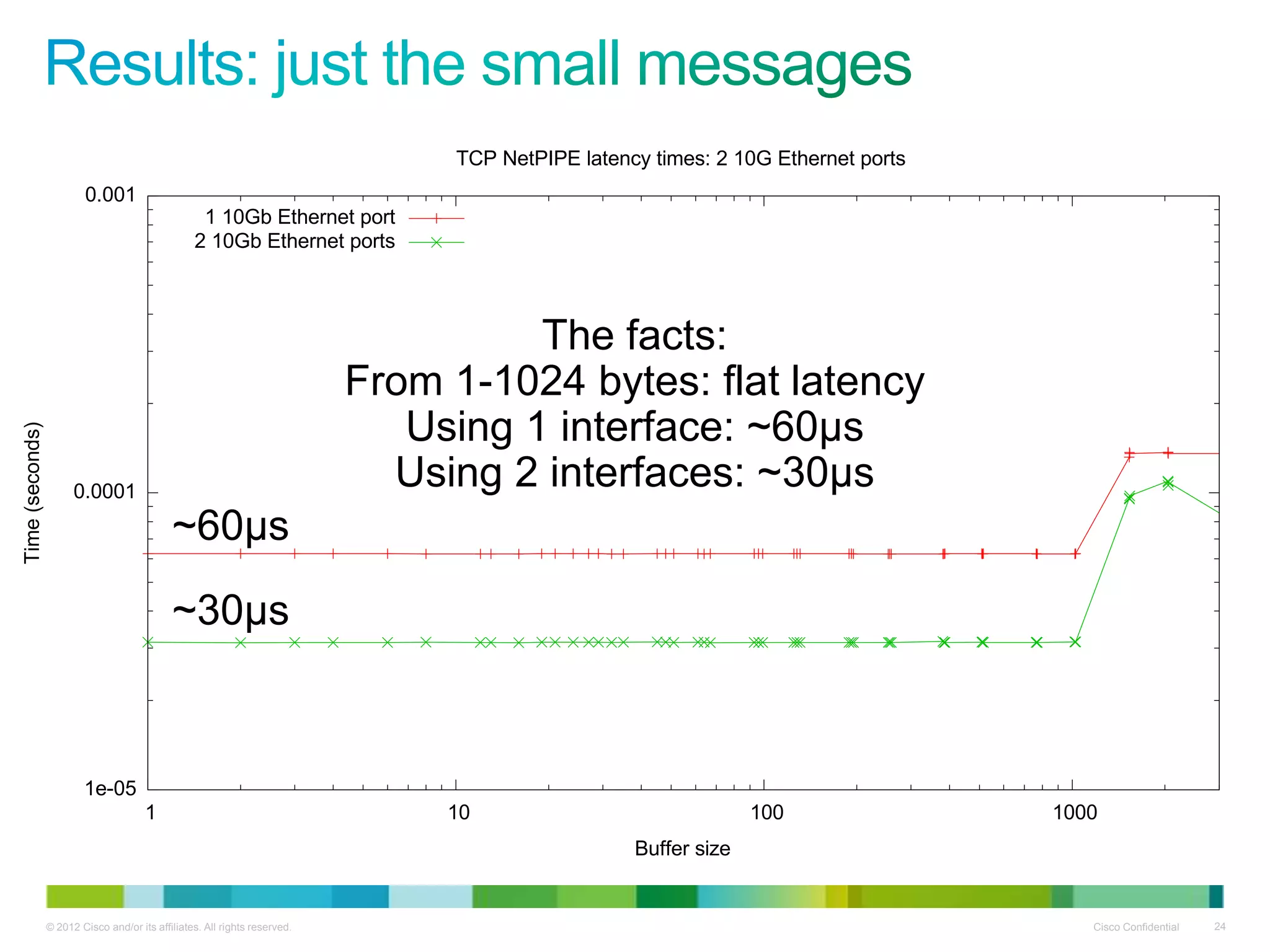

24. TCP NetPIPE latency times: 2 10G Ethernet ports
0.001
1 10Gb Ethernet port
2 10Gb Ethernet ports
The facts:
From 1-1024 bytes: flat latency
Using 1 interface: ~60μs
Time (seconds)
0.0001
Using 2 interfaces: ~30μs
~60μs
~30μs
1e-05
1 10 100 1000
Buffer size
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 24

25. TCP NetPIPE latency times: 2 10G Ethernet ports
0.001
1 10Gb Ethernet port
2 10Gb Ethernet ports
The facts:
From 1-1024 bytes: flat latency
Using 1 interface: ~60μs
Time (seconds)
0.0001
Using 2 interfaces: ~30μs
~60μs
~30μs
1e-05
1 10 100 1000
Buffer size
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 25

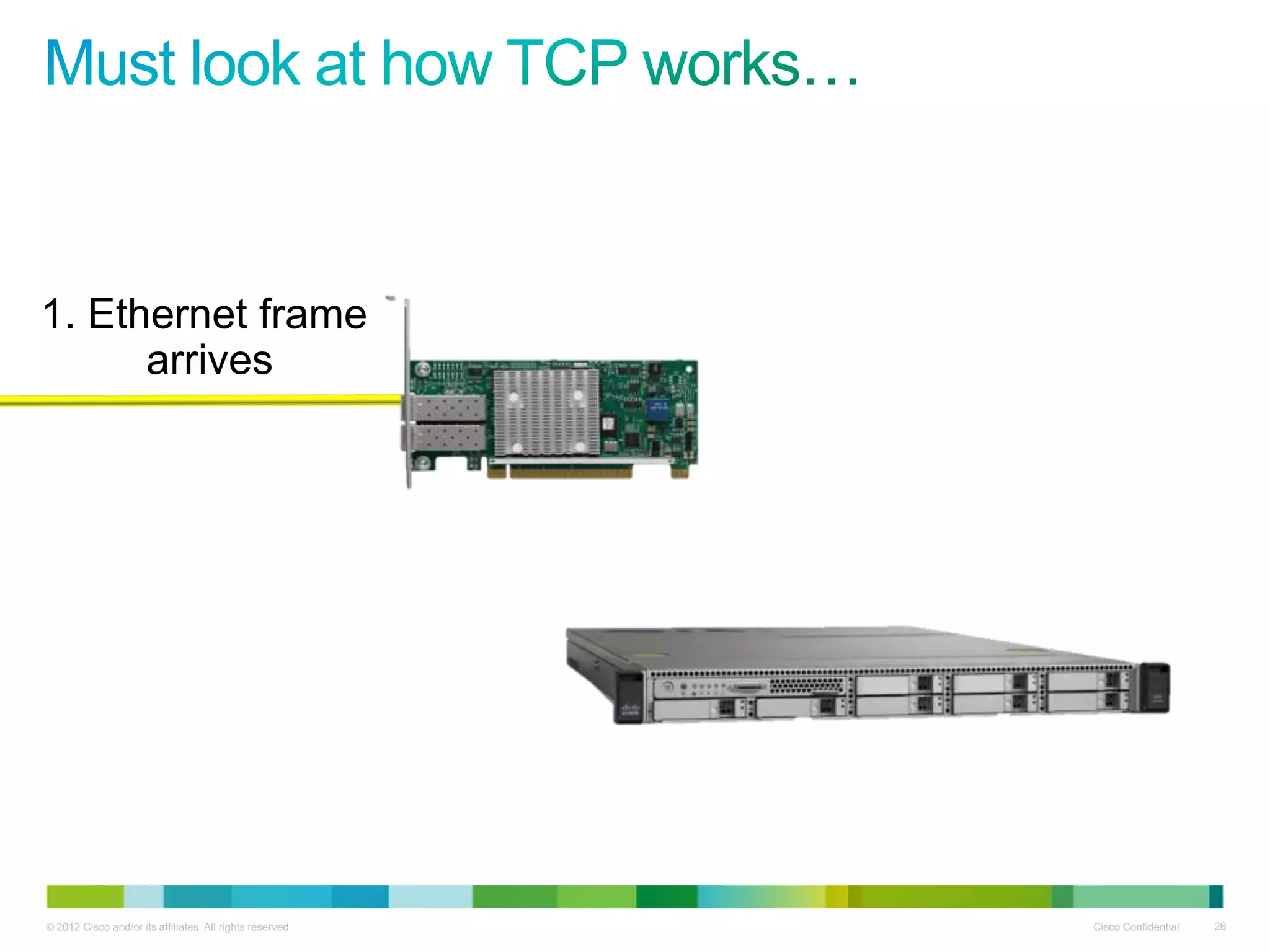

26. 1. Ethernet frame
arrives
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 26

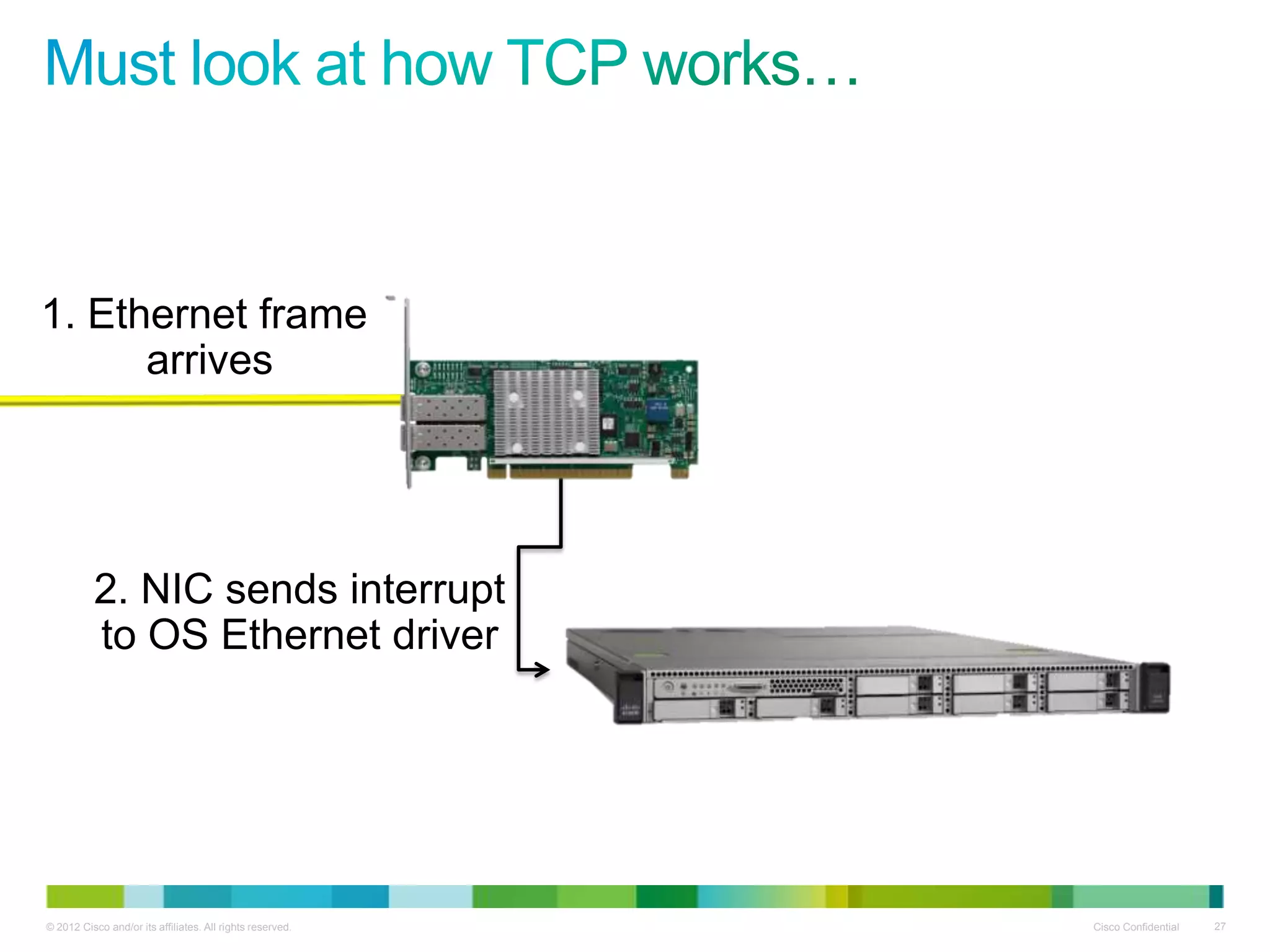

27. 1. Ethernet frame
arrives
2. NIC sends interrupt
to OS Ethernet driver
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 27

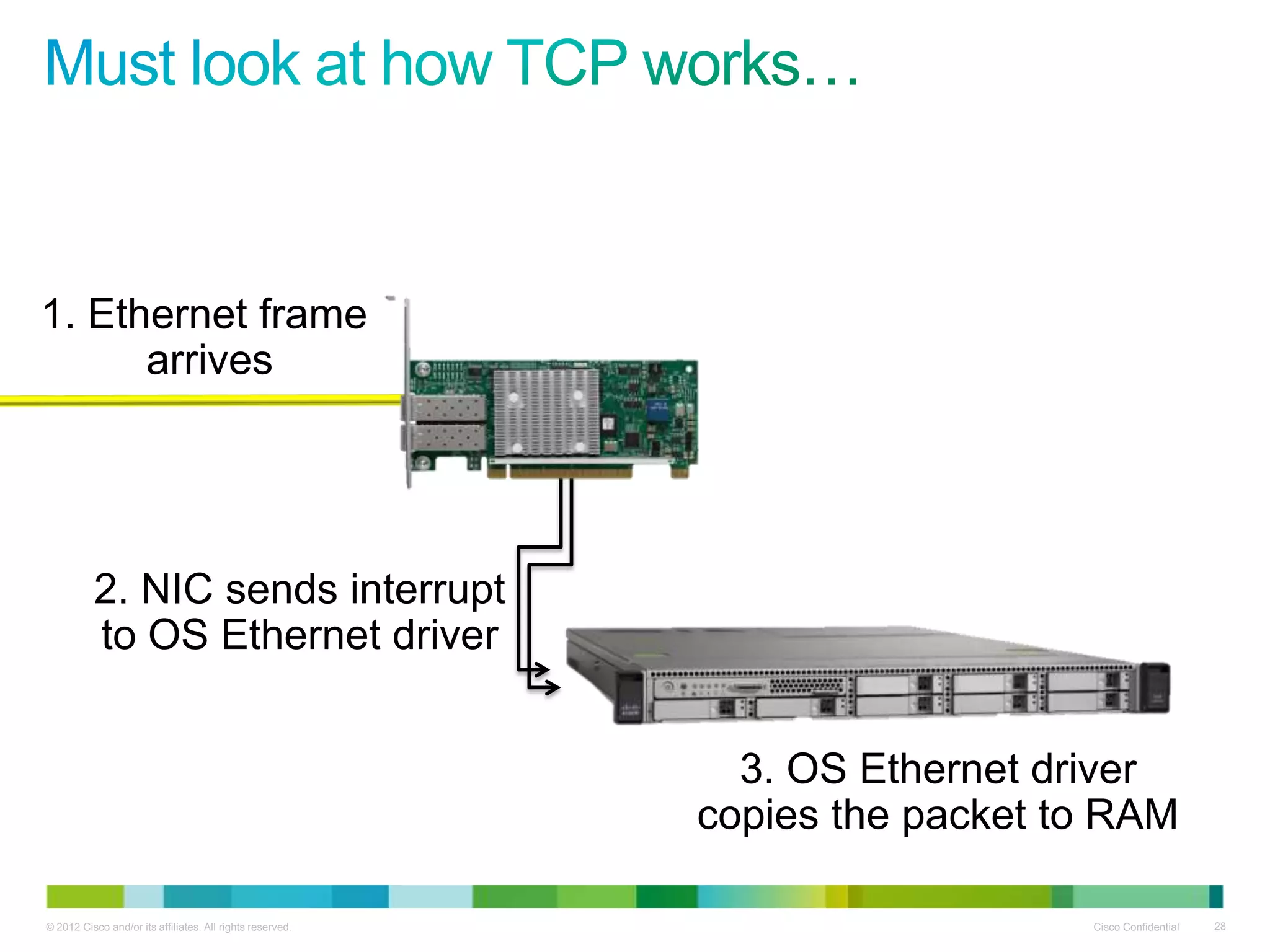

28. 1. Ethernet frame
arrives
2. NIC sends interrupt
to OS Ethernet driver
3. OS Ethernet driver
copies the packet to RAM
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 28

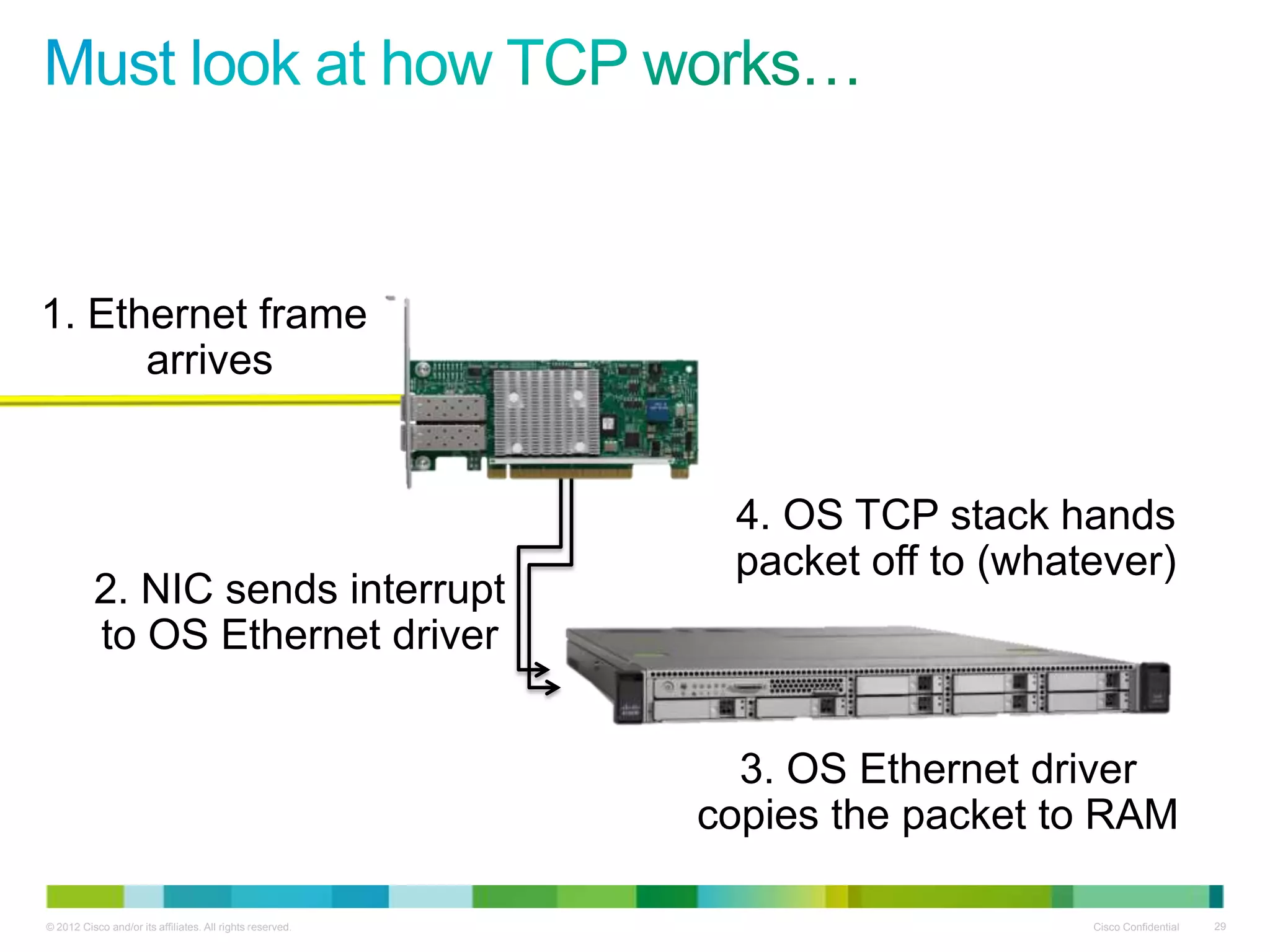

29. 1. Ethernet frame
arrives
4. OS TCP stack hands
packet off to (whatever)
2. NIC sends interrupt
to OS Ethernet driver
3. OS Ethernet driver
copies the packet to RAM
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 29

30. It’s always better in bulk
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 30

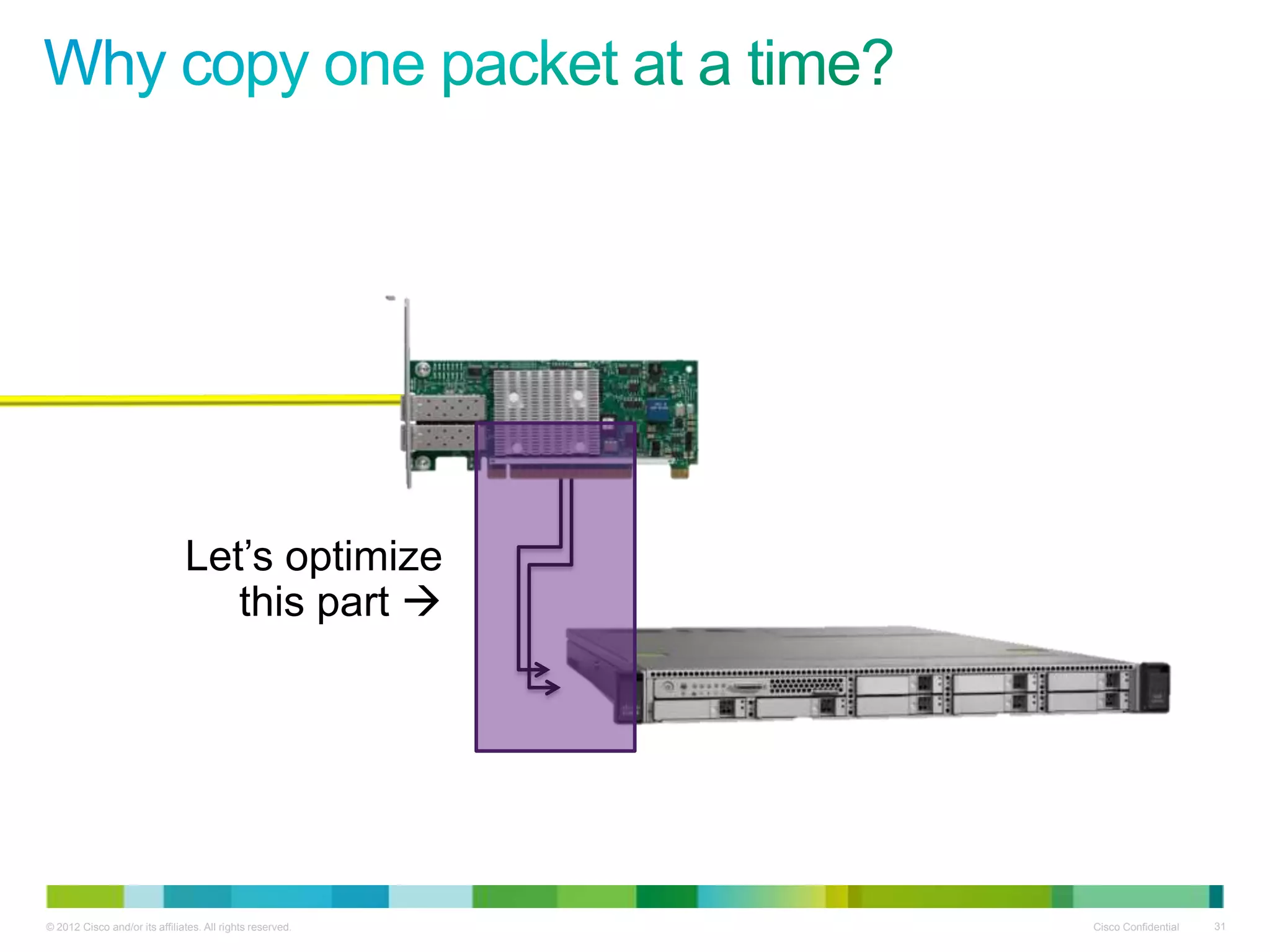

31. Let’s optimize
this part 
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 31

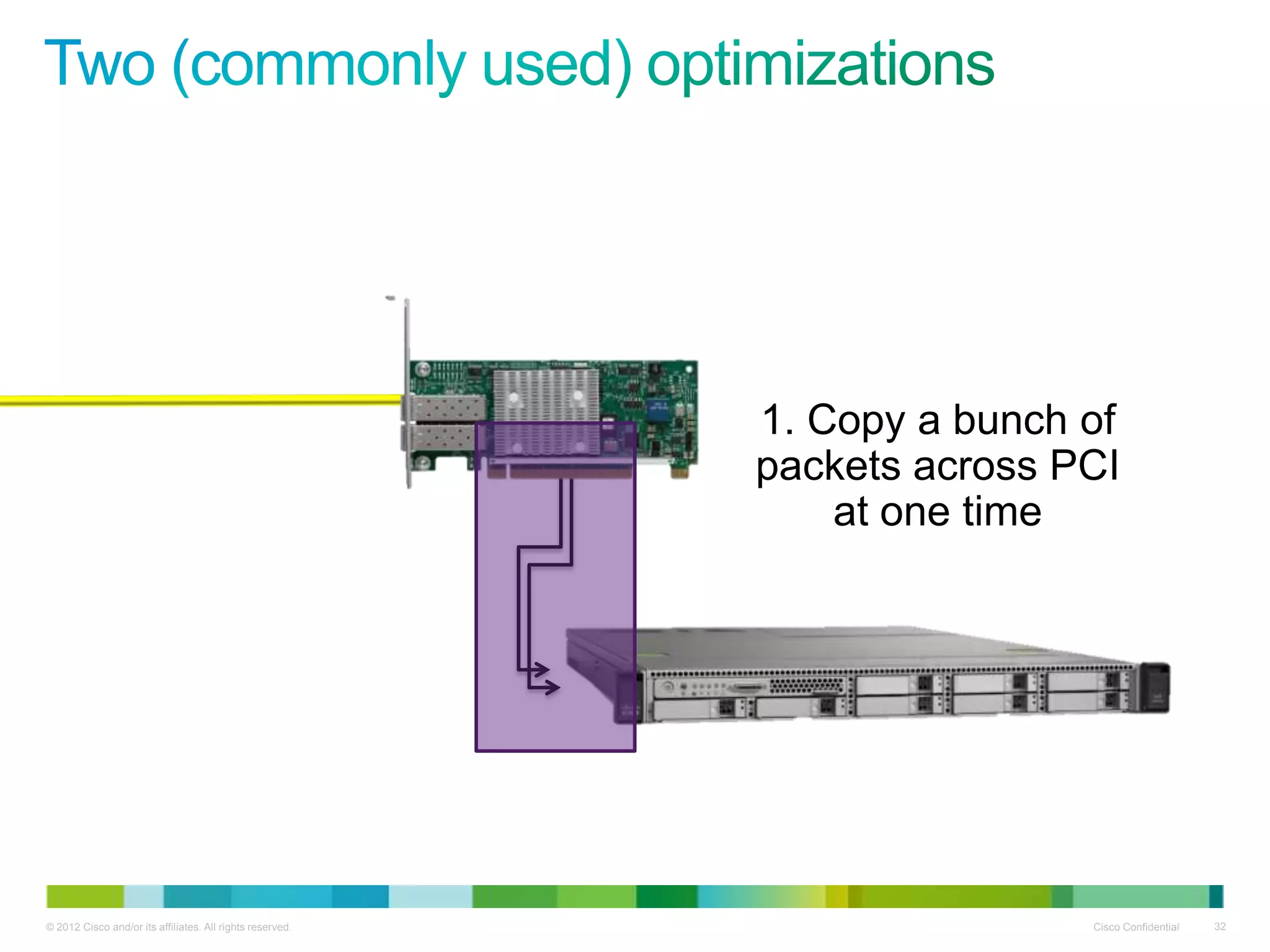

32. 1. Copy a bunch of
packets across PCI
at one time
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 32

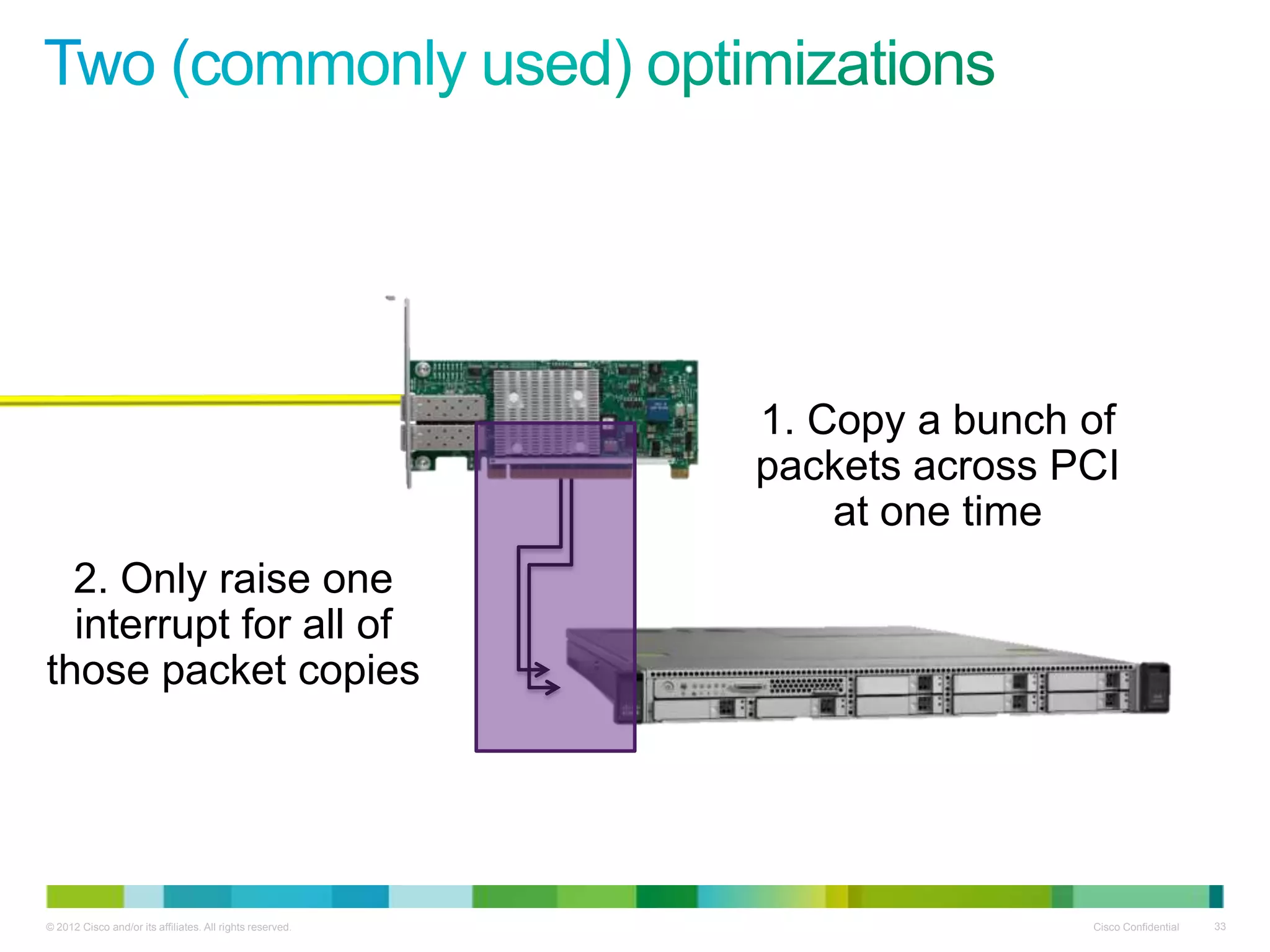

33. 1. Copy a bunch of
packets across PCI
at one time
2. Only raise one
interrupt for all of
those packet copies
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 33

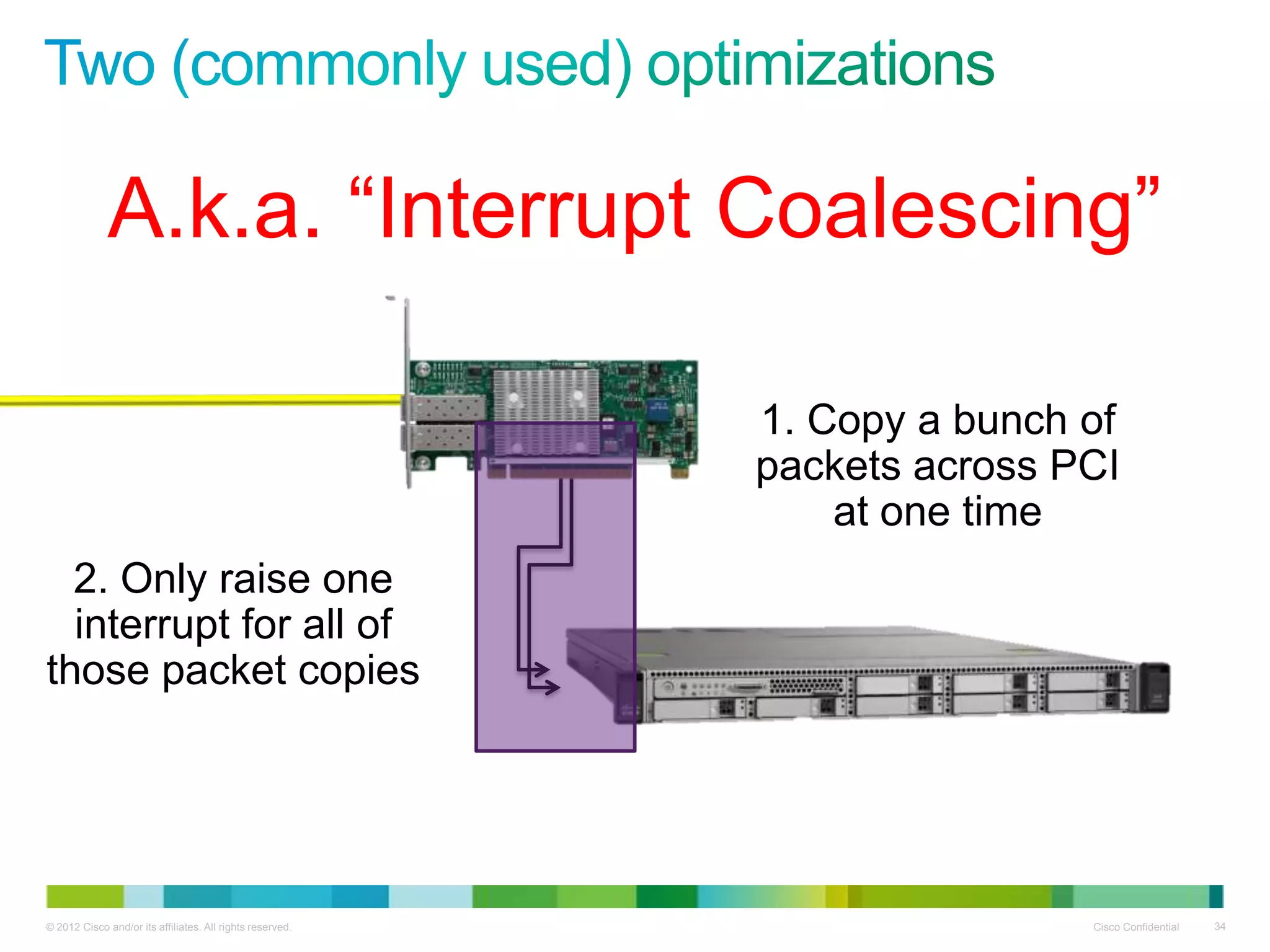

34. A.k.a. “Interrupt Coalescing”
1. Copy a bunch of
packets across PCI
at one time
2. Only raise one
interrupt for all of
those packet copies
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 34

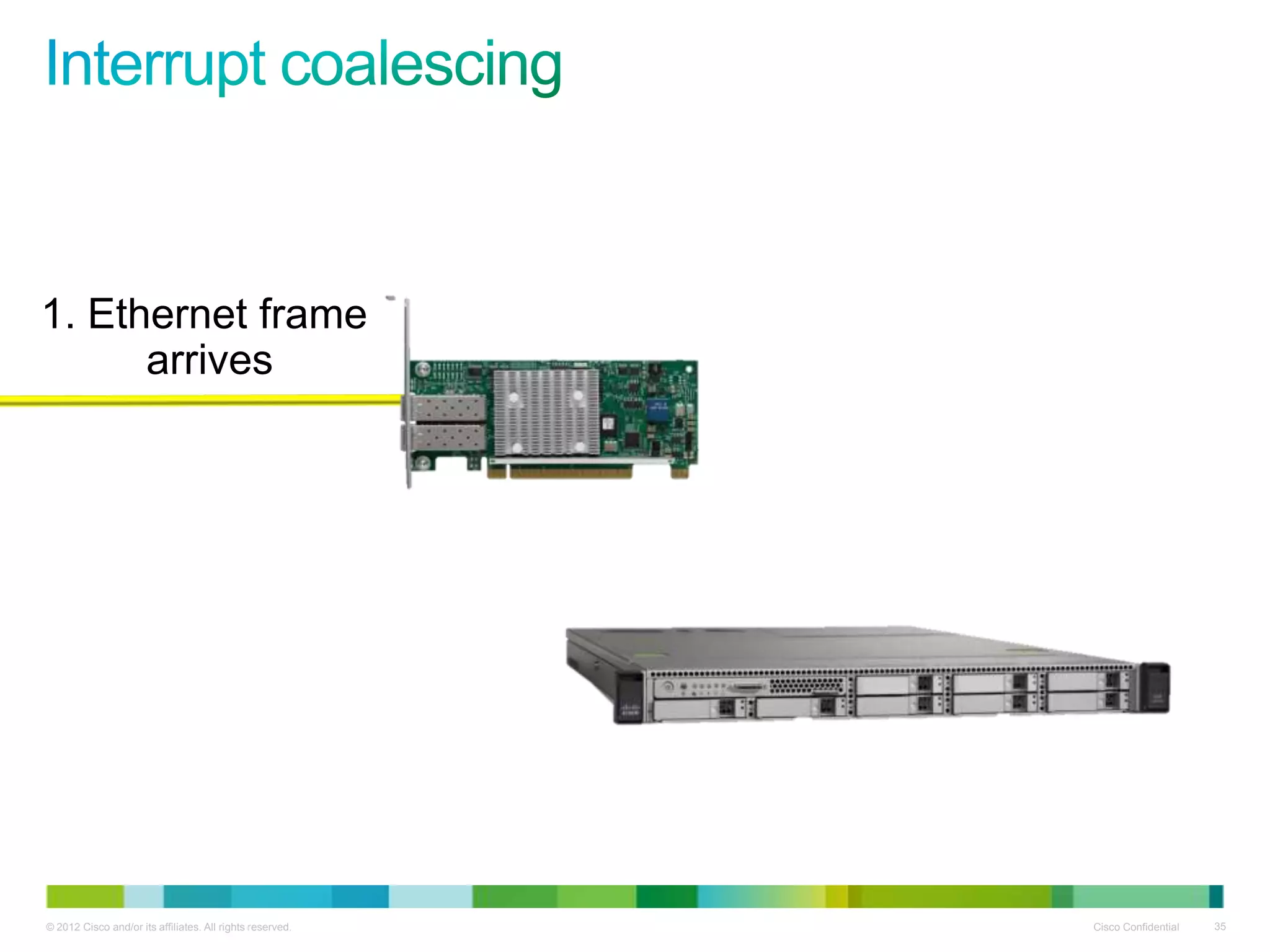

35. 1. Ethernet frame
arrives
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 35

36. 1. Ethernet frame
arrives
2. Has N time passed
since we sent an
interrupt to the OS?
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 36

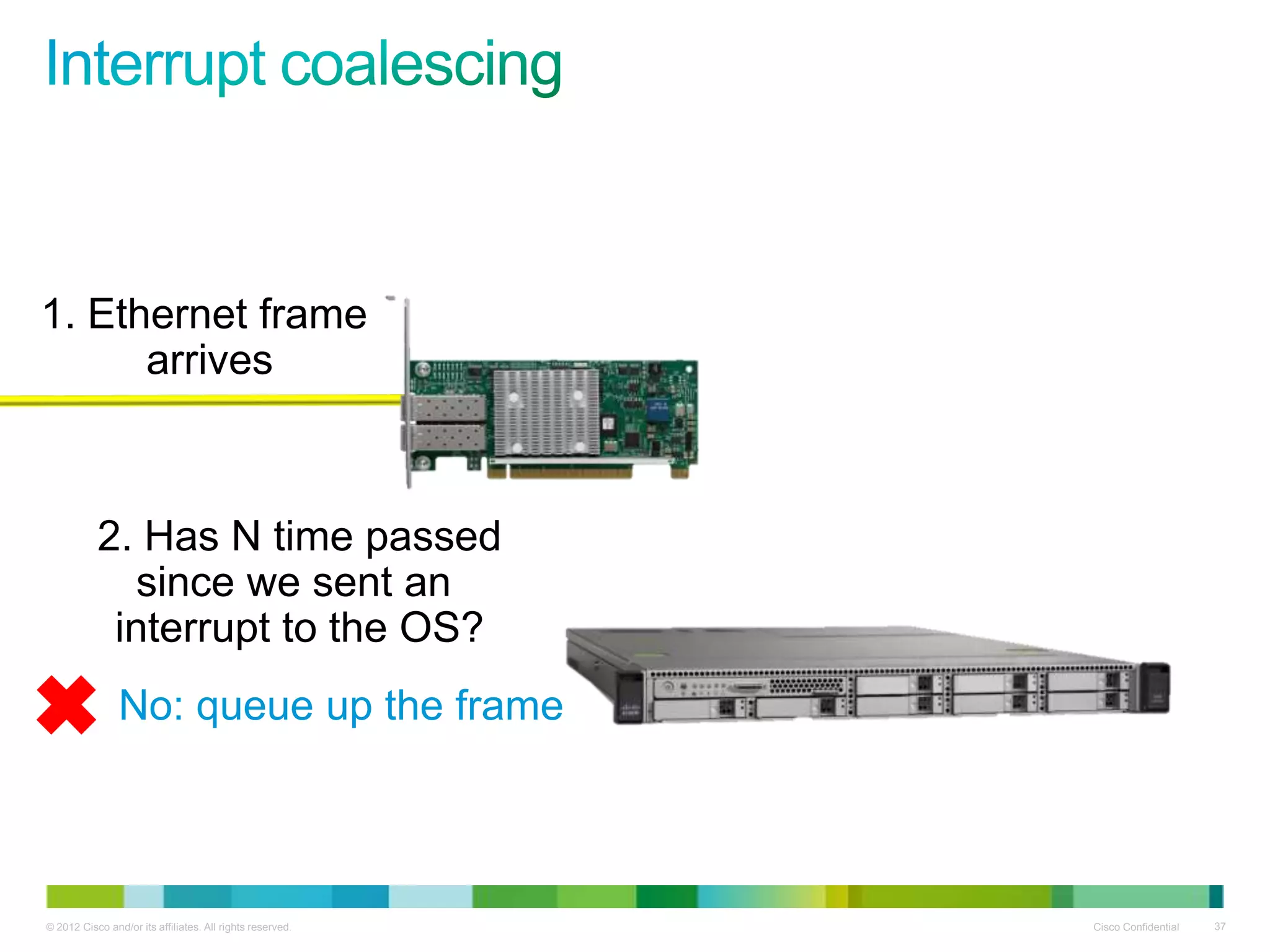

37. 1. Ethernet frame
arrives
2. Has N time passed
since we sent an
interrupt to the OS?
✖ No: queue up the frame
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 37

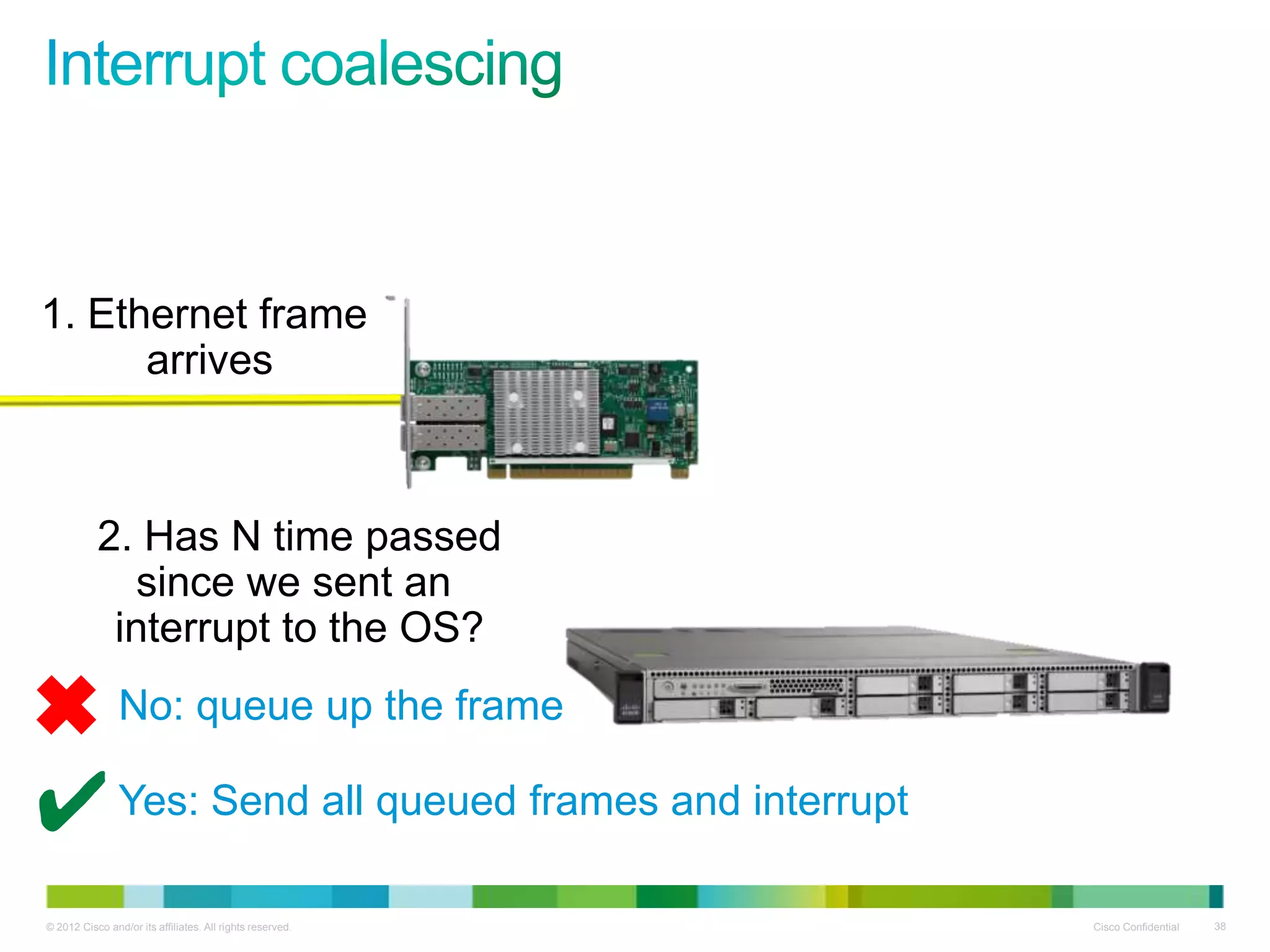

38. 1. Ethernet frame
arrives
2. Has N time passed
since we sent an
interrupt to the OS?
✖ No: queue up the frame
✔ Yes: Send all queued frames and interrupt
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 38

39. Ok… So what?

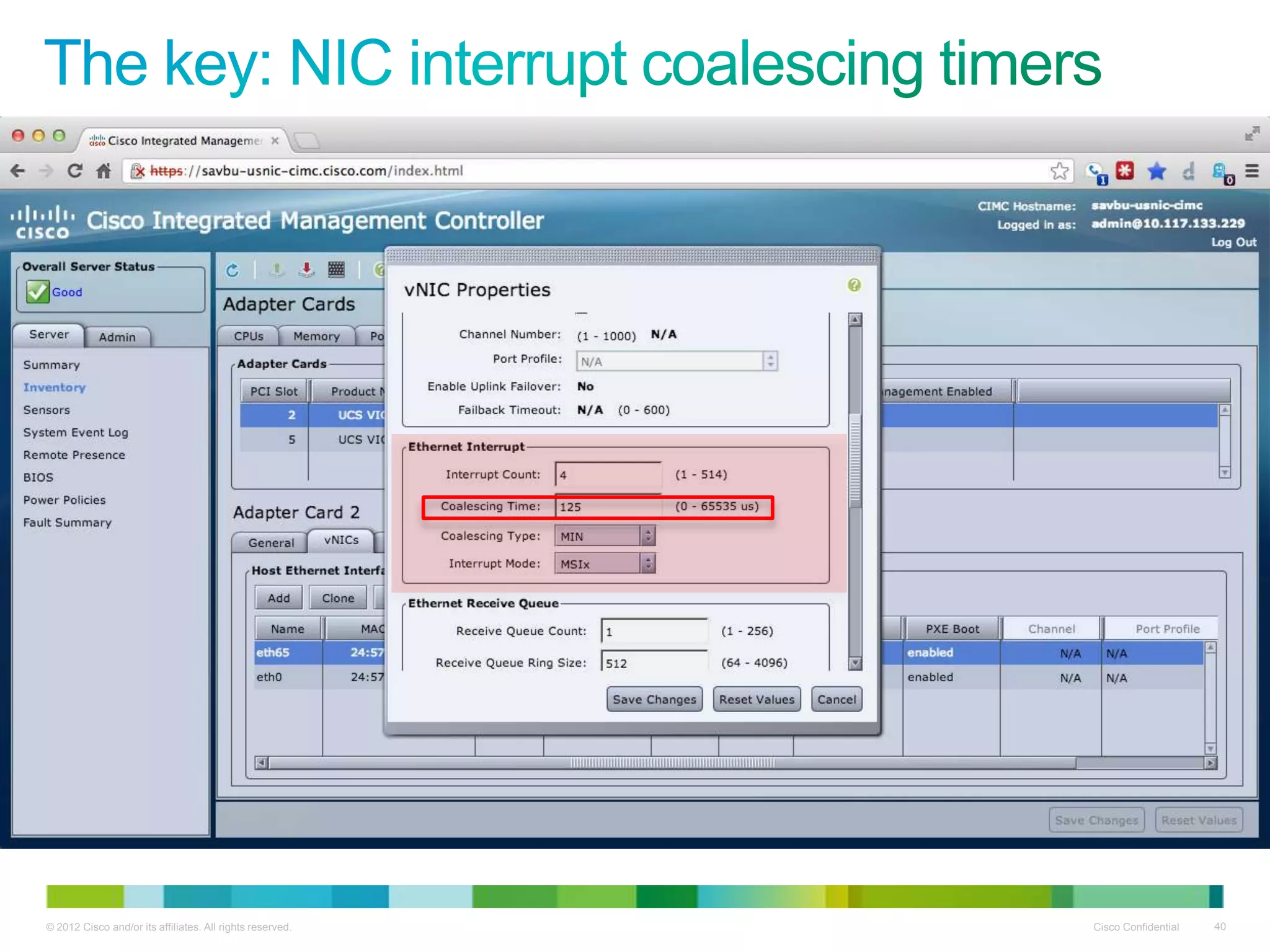

40. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 40

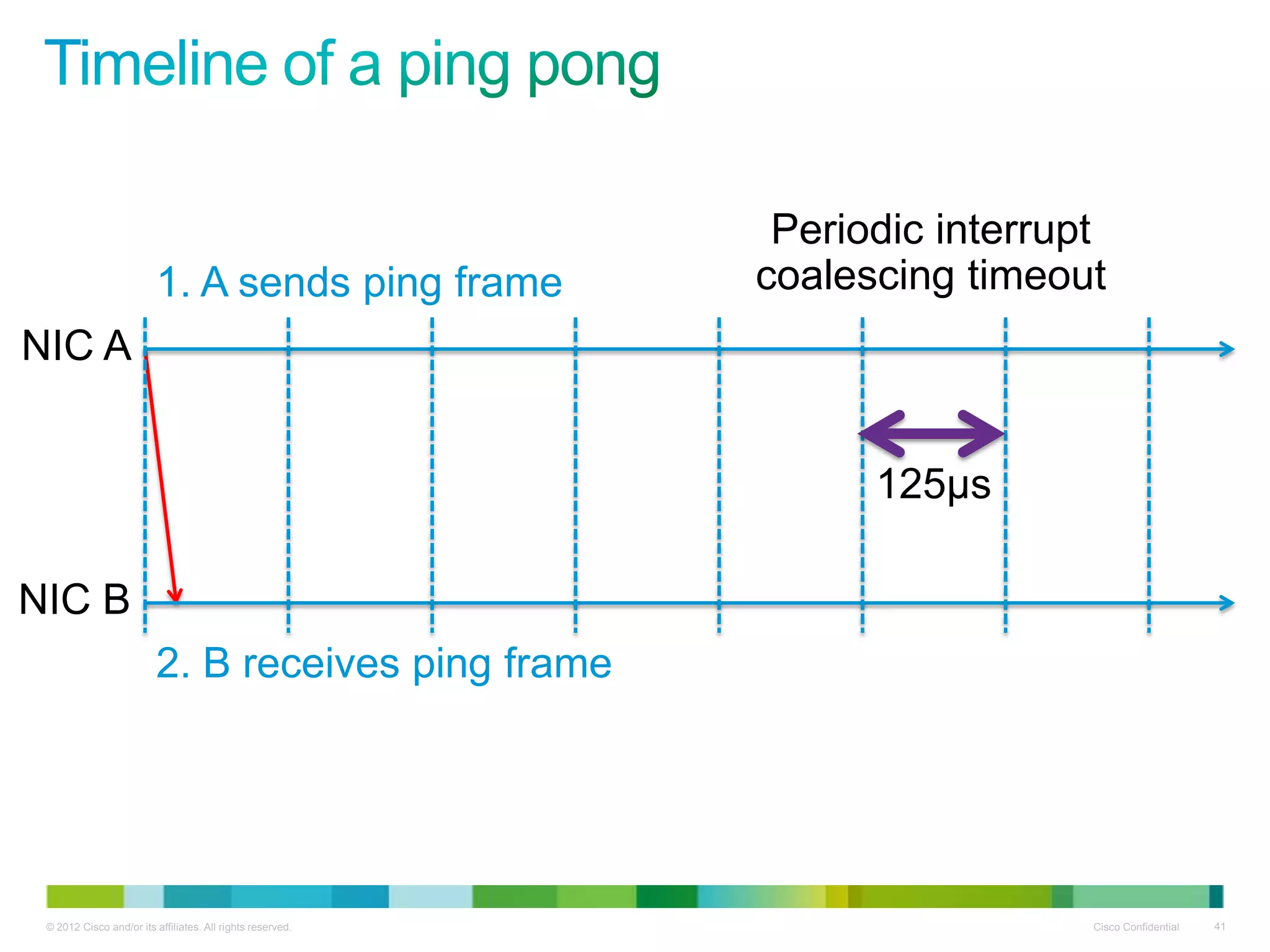

41. Periodic interrupt
1. A sends ping frame coalescing timeout
NIC A
125μs
NIC B
2. B receives ping frame
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 41

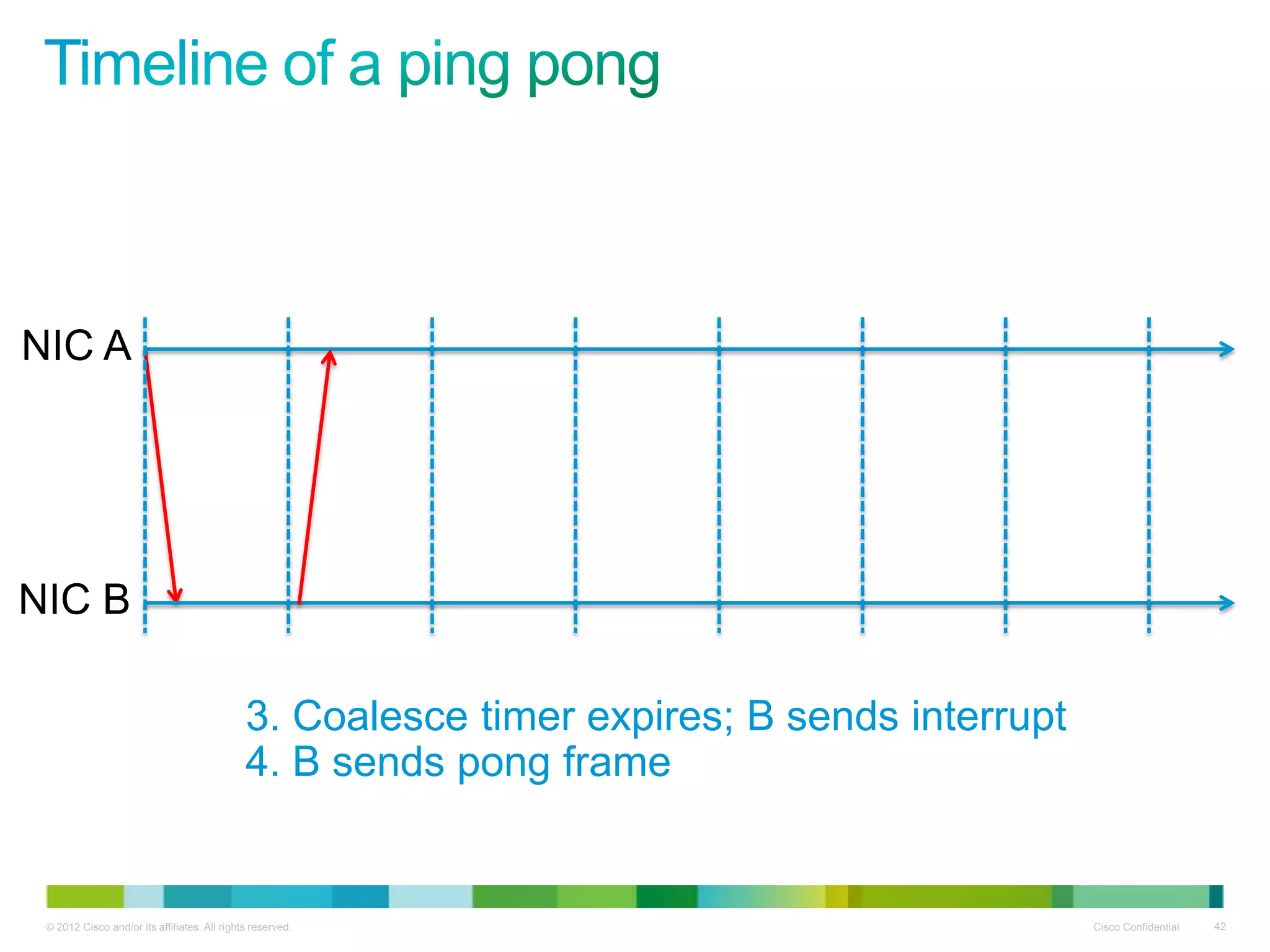

42. NIC A
NIC B
3. Coalesce timer expires; B sends interrupt
4. B sends pong frame
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 42

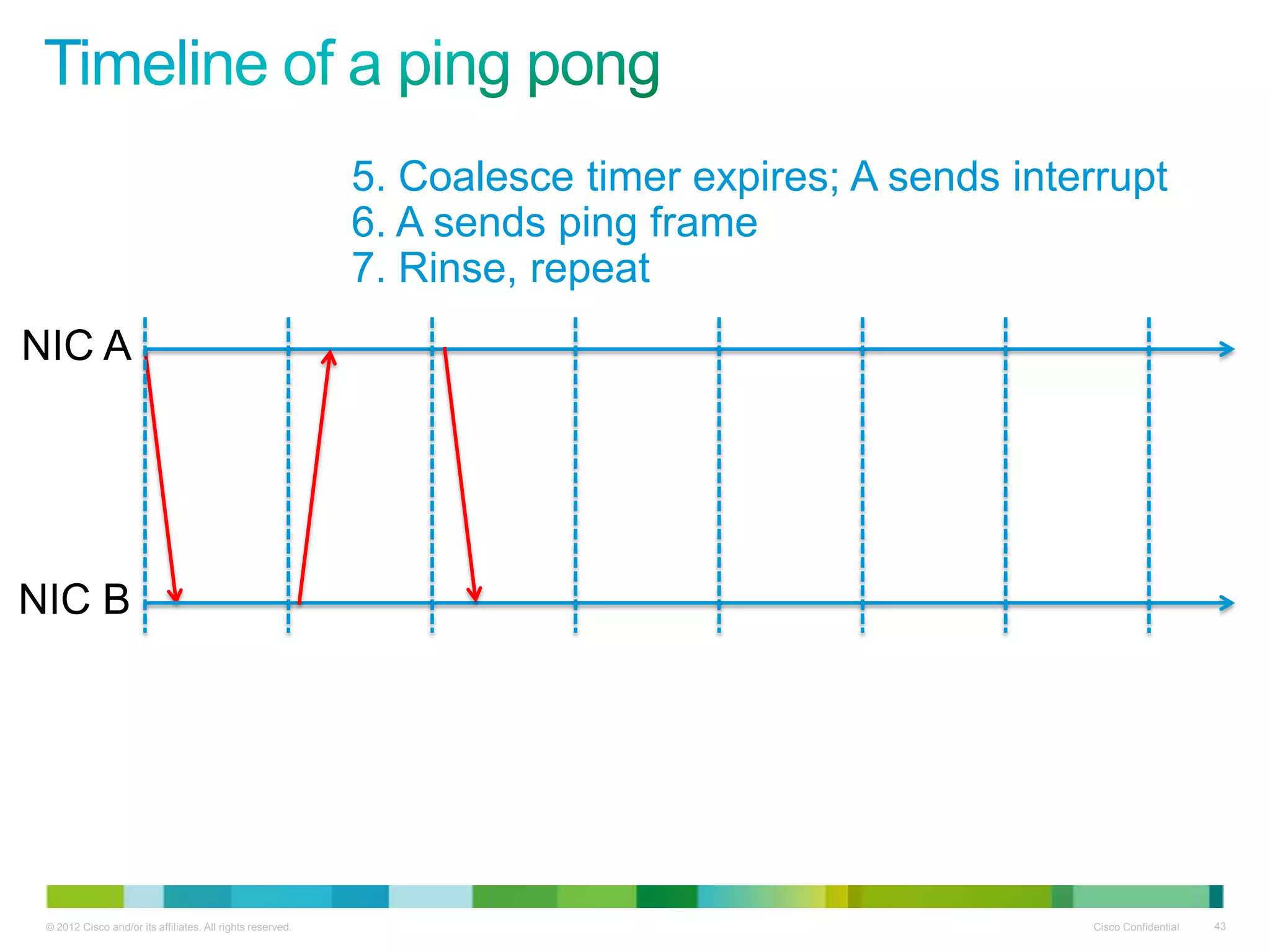

43. 5. Coalesce timer expires; A sends interrupt
6. A sends ping frame
7. Rinse, repeat
NIC A
NIC B
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 43

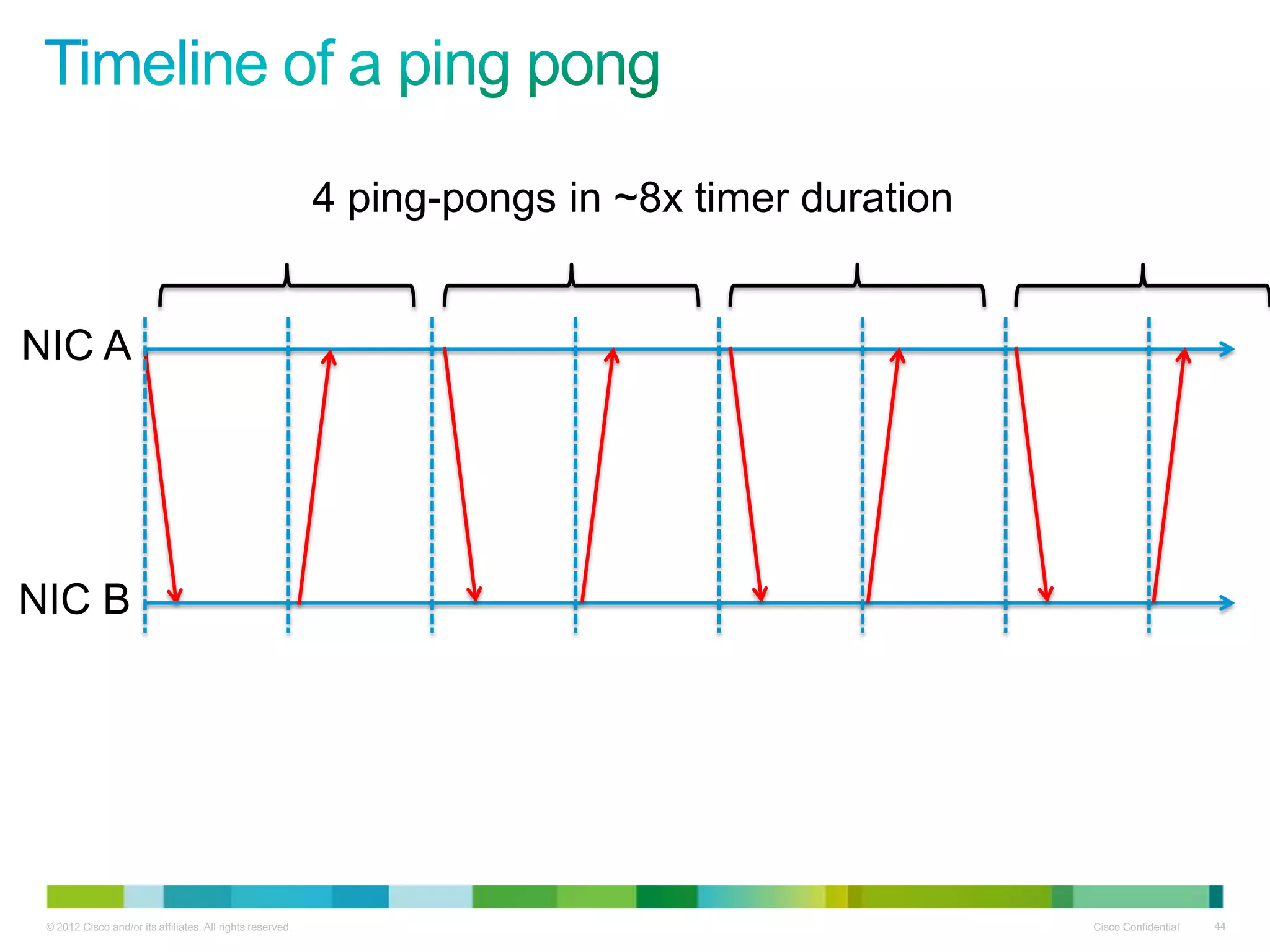

44. 4 ping-pongs in ~8x timer duration
NIC A
NIC B
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 44

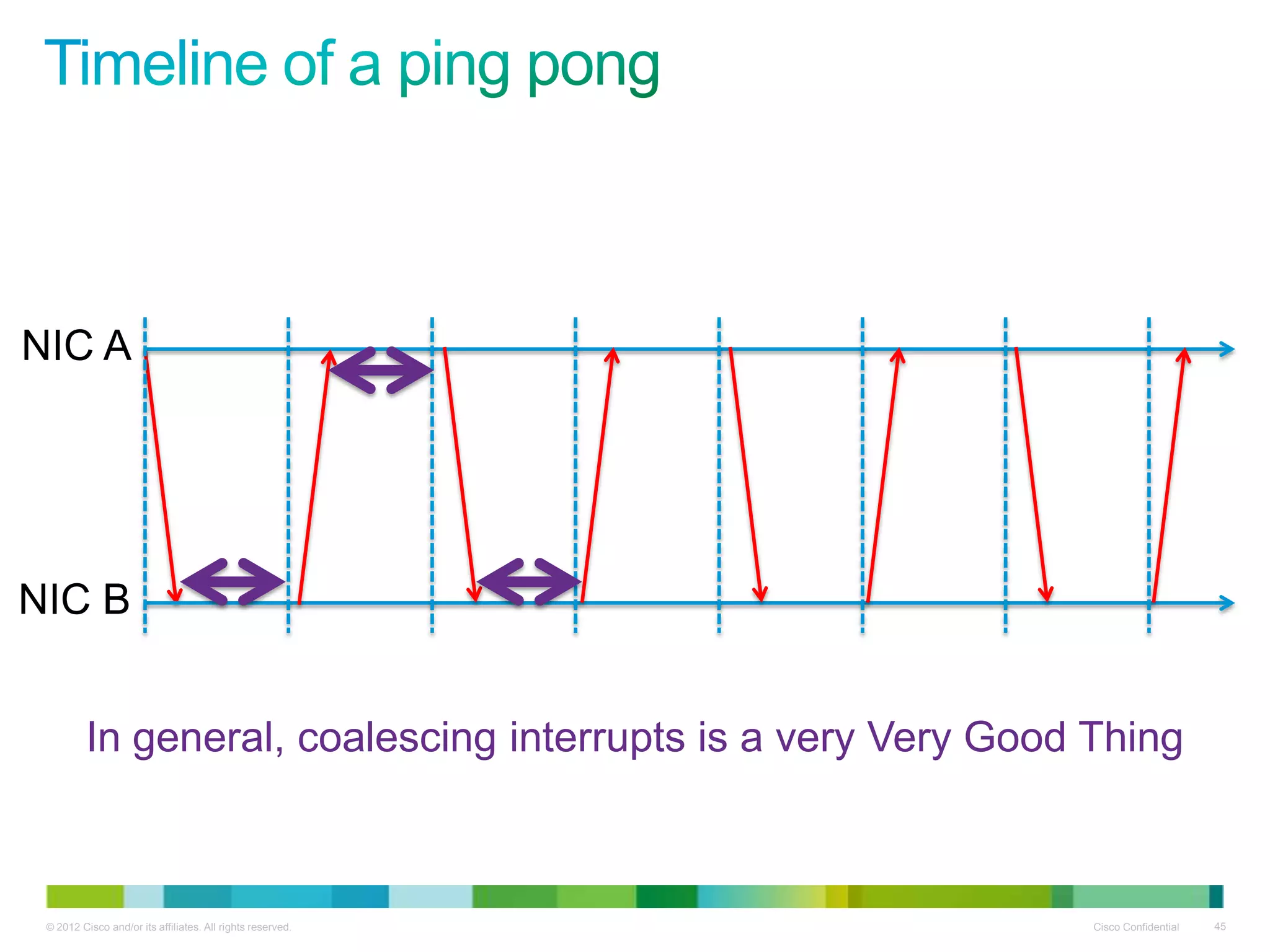

45. NIC A
NIC B
In general, coalescing interrupts is a very Very Good Thing
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 45

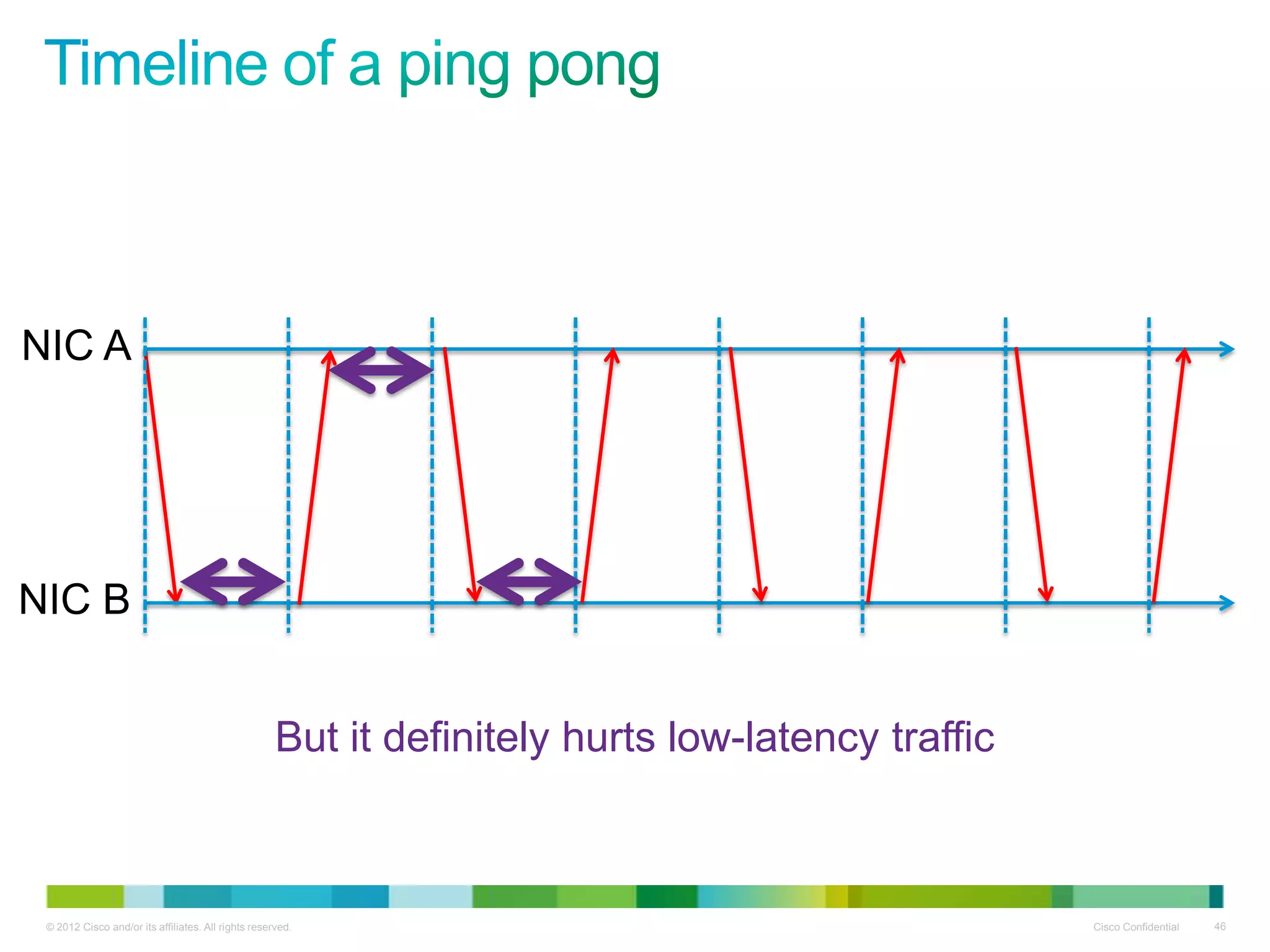

46. NIC A
NIC B
But it definitely hurts low-latency traffic
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 46

47. How do we reduce
those artificial delays?

48. NIC A
Port 0
NIC B
NIC A
Port 1
NIC B
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 48

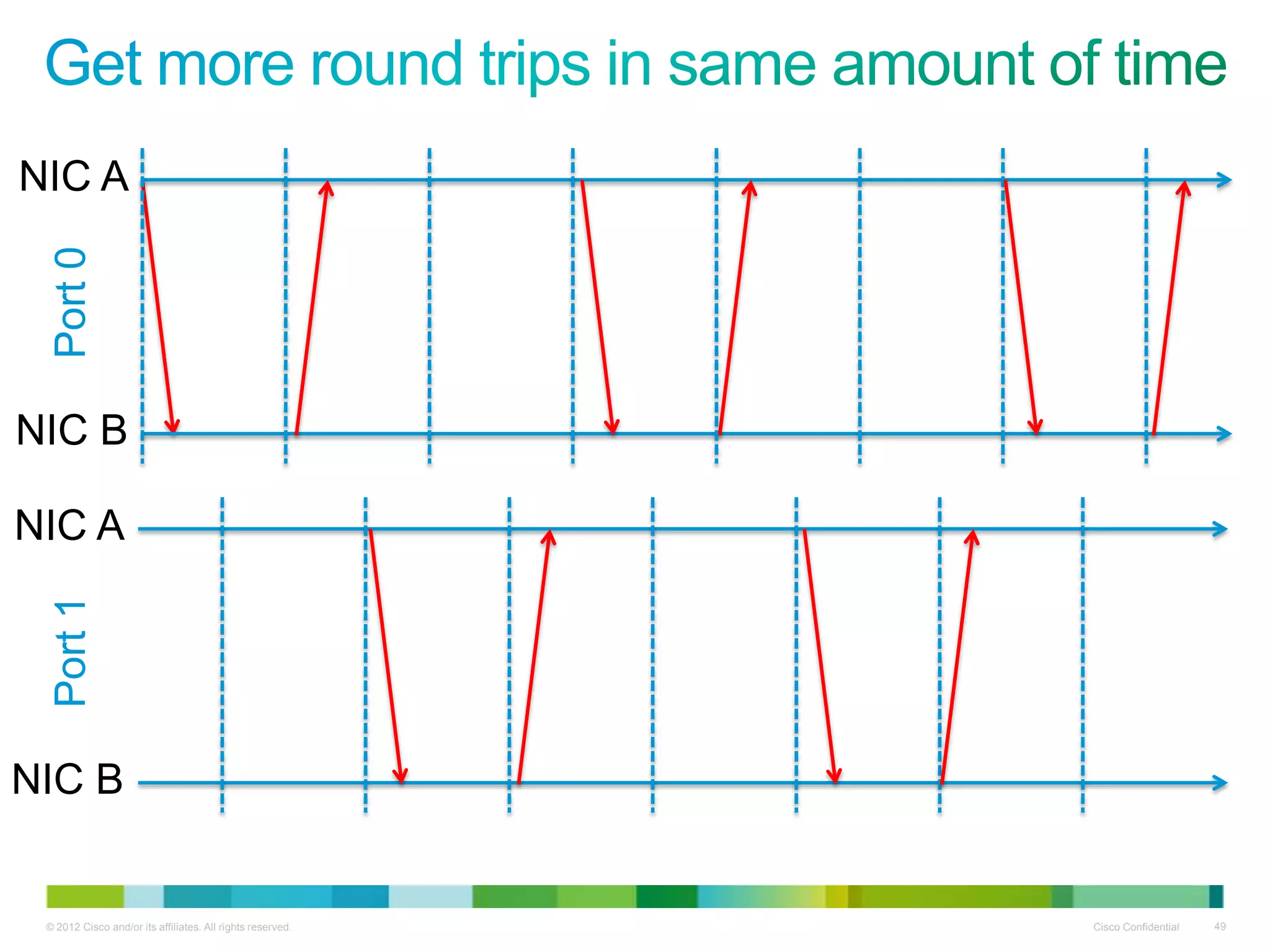

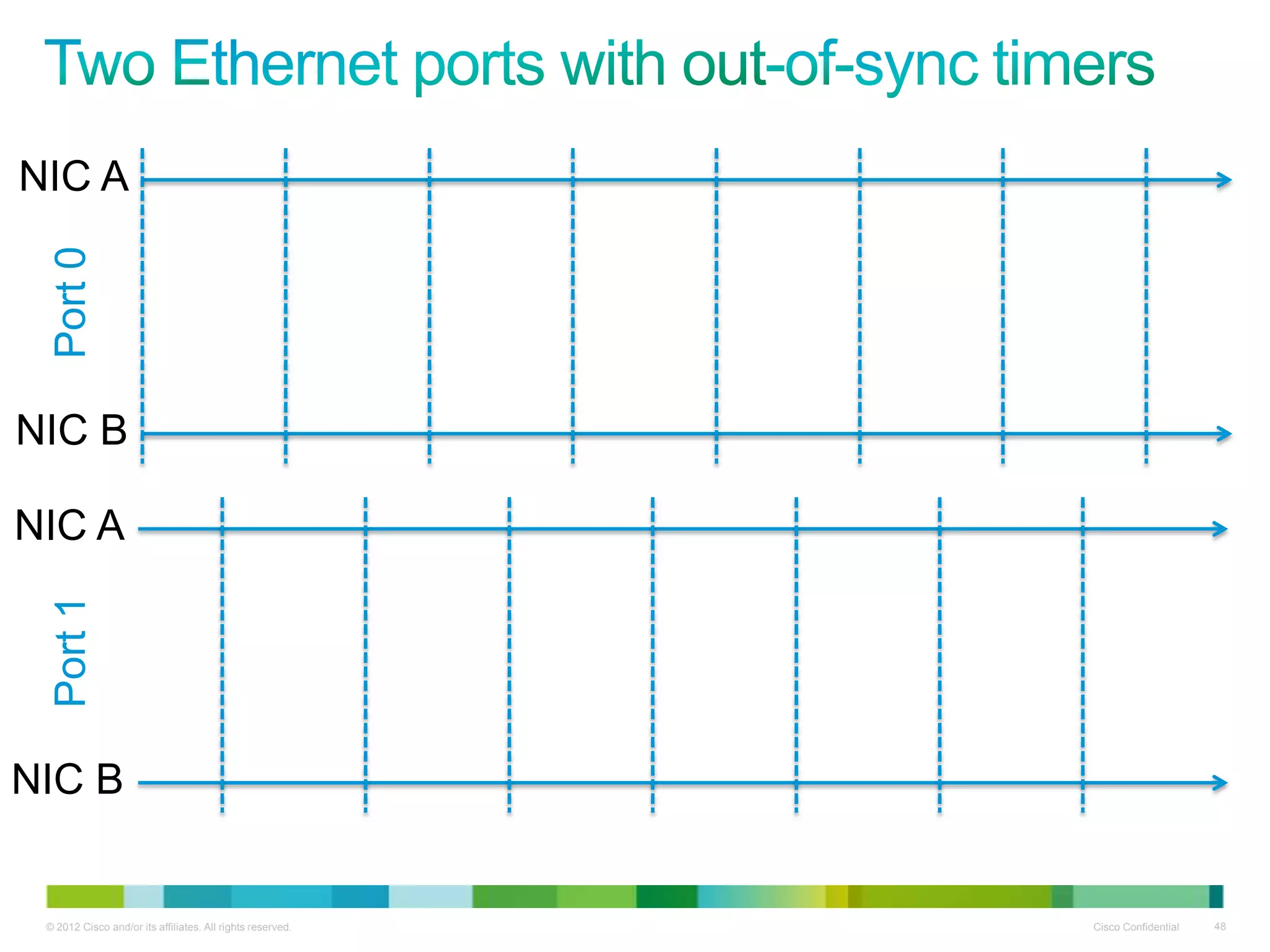

49. NIC A
Port 0
NIC B
NIC A
Port 1
NIC B
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 49

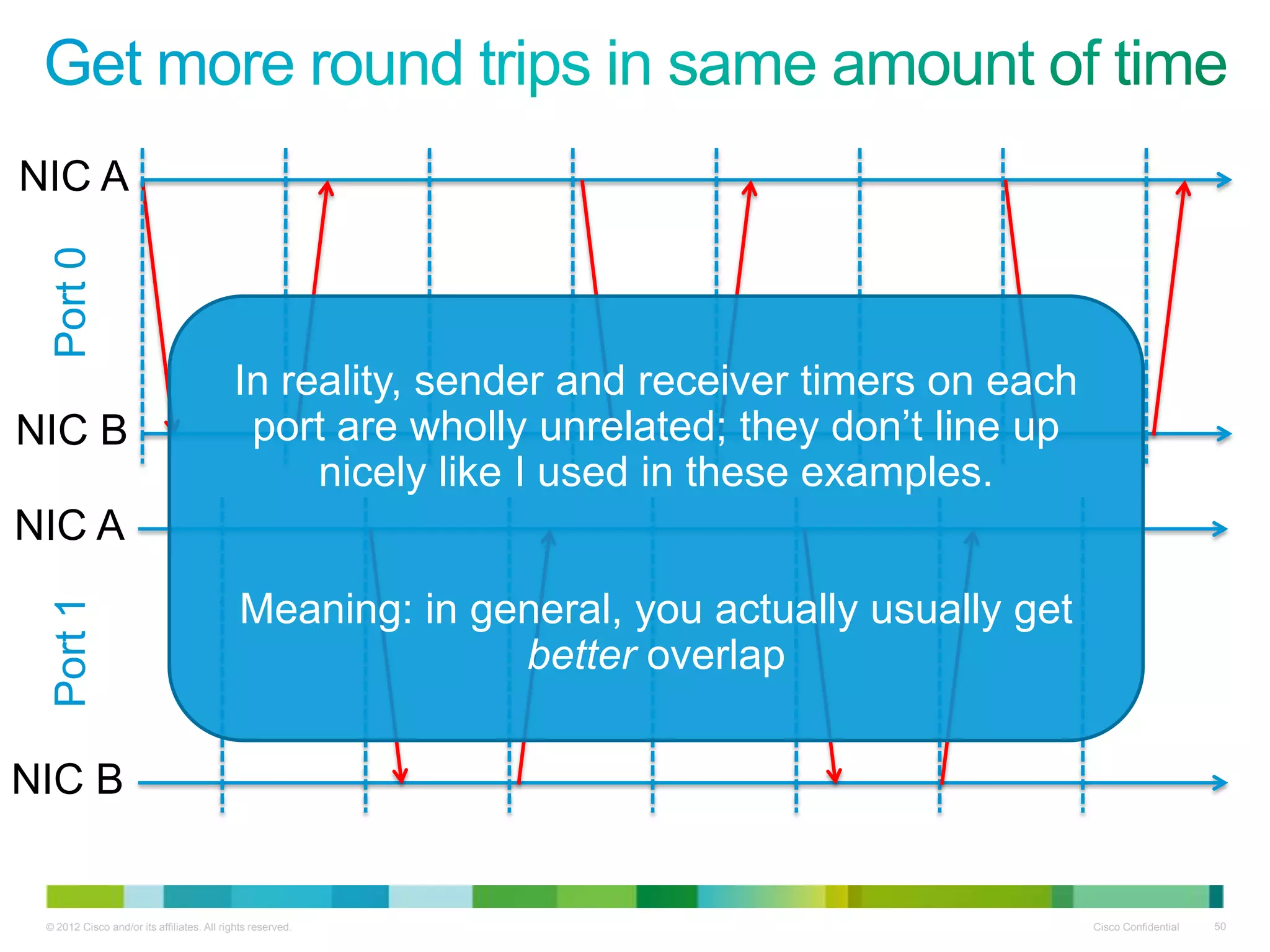

50. NIC A
Port 0
In reality, sender and receiver timers on each
NIC B port are wholly unrelated; they don’t line up
nicely like I used in these examples.
NIC A
Meaning: in general, you actually usually get
Port 1
better overlap
NIC B
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 50

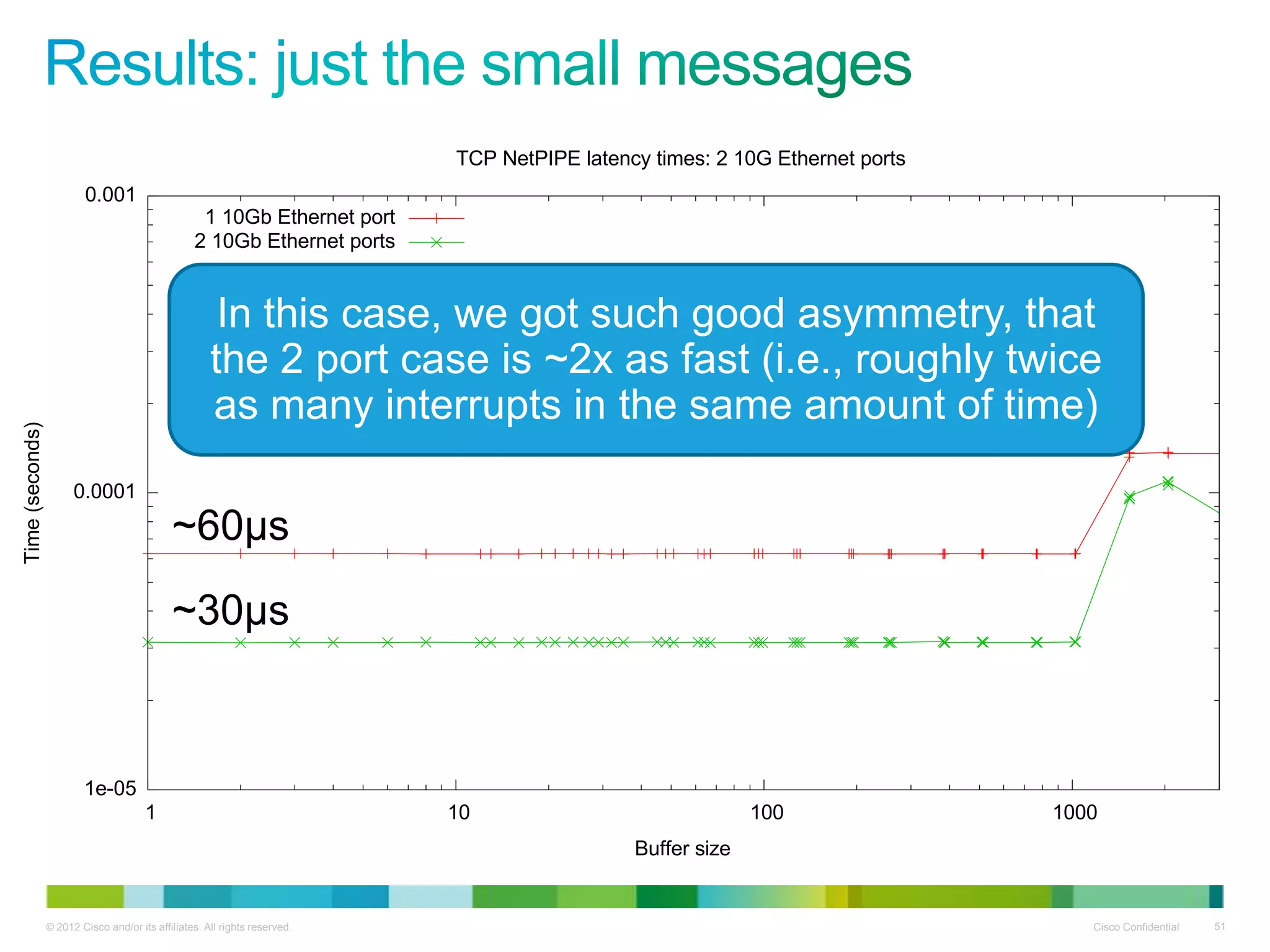

51. TCP NetPIPE latency times: 2 10G Ethernet ports
0.001
1 10Gb Ethernet port
2 10Gb Ethernet ports
In this case, we got such good asymmetry, that
the 2 port case is ~2x as fast (i.e., roughly twice
as many interrupts in the same amount of time)
Time (seconds)
0.0001
~60μs
~30μs
1e-05
1 10 100 1000
Buffer size
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 51

52. Remember:
these are AVERAGE
latencies!
Individual ping-pong times
are the same as the
1 port case (from the network)
…but you get higher throughput
because we’re reducing the
gaps between each ping-pong
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 52

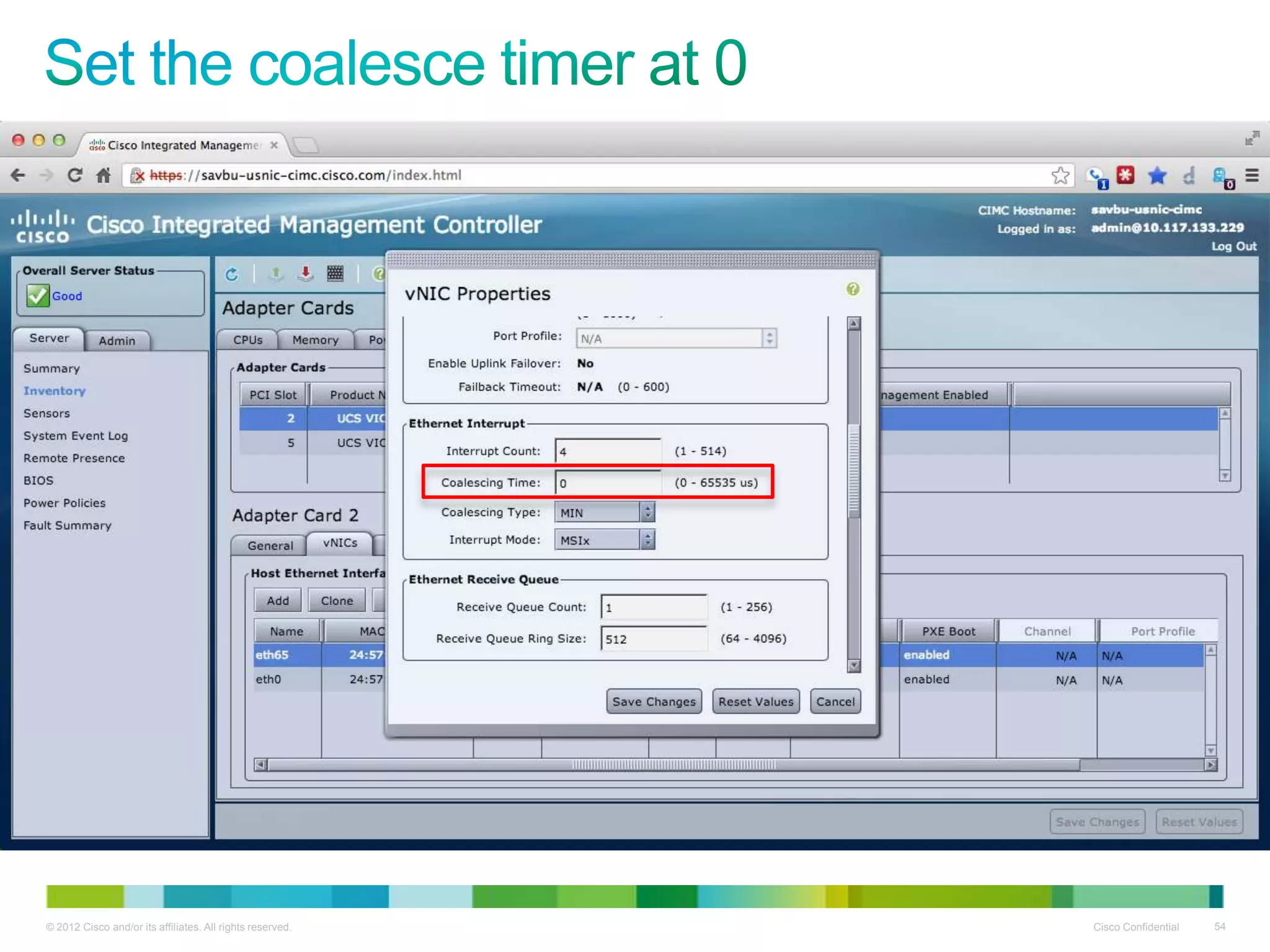

53. Now let’s try
something else…

54. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 54

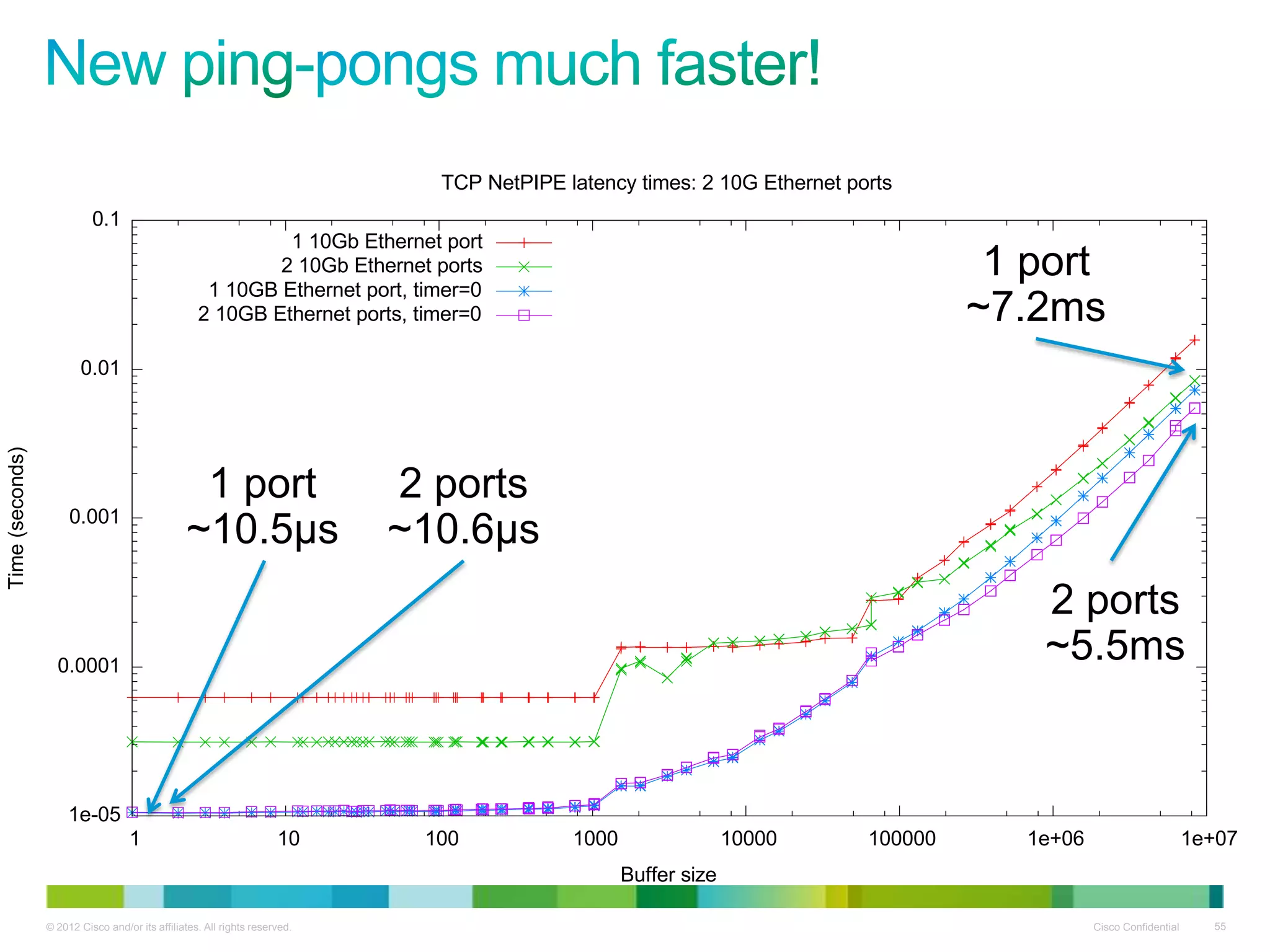

55. TCP NetPIPE latency times: 2 10G Ethernet ports
0.1
1 10Gb Ethernet port
2 10Gb Ethernet ports 1 port
1 10GB Ethernet port, timer=0
2 10GB Ethernet ports, timer=0 ~7.2ms
0.01
Time (seconds)
1 port 2 ports
0.001
~10.5μs ~10.6μs
2 ports
0.0001
~5.5ms
1e-05
1 10 100 1000 10000 100000 1e+06 1e+07
Buffer size
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 55

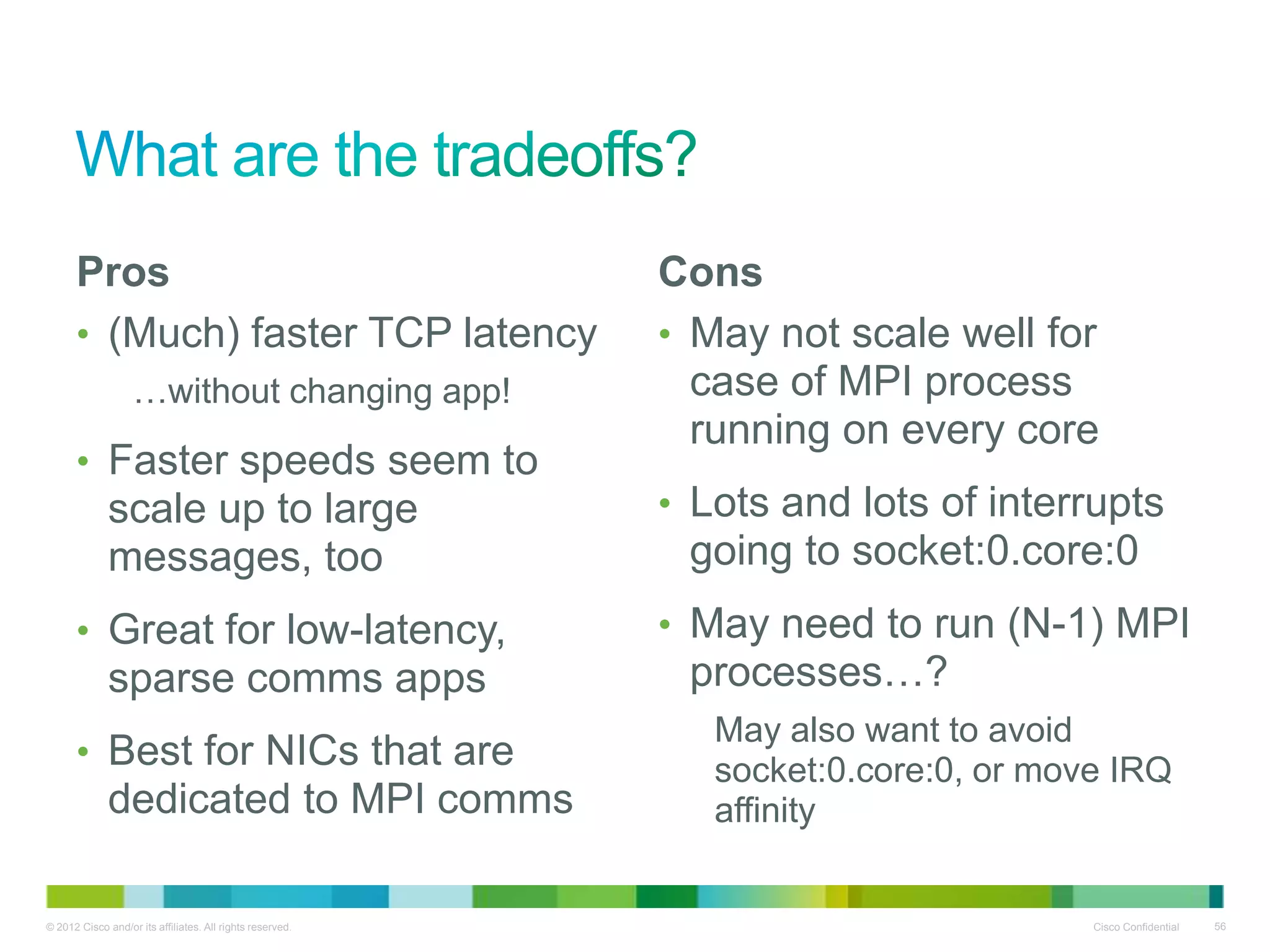

56. Pros Cons
• (Much) faster TCP latency • May not scale well for
…without changing app! case of MPI process
running on every core
• Faster speeds seem to
scale up to large • Lots and lots of interrupts
messages, too going to socket:0.core:0
• Great for low-latency, • May need to run (N-1) MPI
sparse comms apps processes…?
May also want to avoid
• Best for NICs that are socket:0.core:0, or move IRQ
dedicated to MPI comms affinity
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 56

58. • Some experimentation might be
worth trying with real world HPC
apps:
• Allow TCP to wholly utilize core 0
(i.e., run MPI processes only on
cores 1-15)
• Set the coalesce timer to something
more than 0μs, but less than 125μs
– there’s a whole spectrum with
which to play
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 58

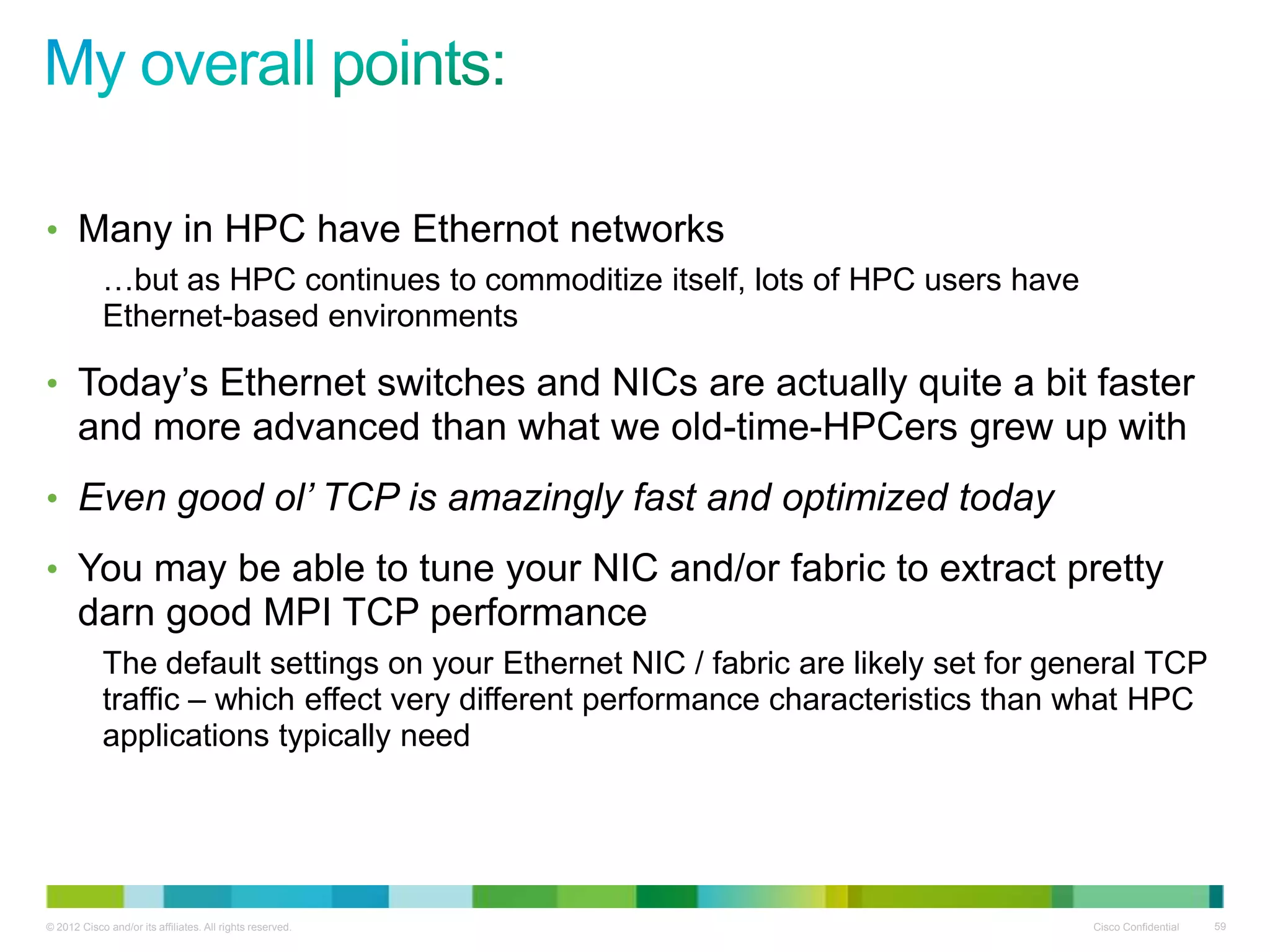

59. • Many in HPC have Ethernot networks
…but as HPC continues to commoditize itself, lots of HPC users have
Ethernet-based environments
• Today’s Ethernet switches and NICs are actually quite a bit faster
and more advanced than what we old-time-HPCers grew up with
• Even good ol’ TCP is amazingly fast and optimized today
• You may be able to tune your NIC and/or fabric to extract pretty
darn good MPI TCP performance
The default settings on your Ethernet NIC / fabric are likely set for general TCP
traffic – which effect very different performance characteristics than what HPC
applications typically need
© 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 59

60. Thank you.
