科技如何幫助建立
 優質、有效率的
 e-Learning 空間
  Clement Tam
  Territory Business Manager
  Cisco Systems (HK) Ltd

   6th Oct, 2012


© 2012 Cisco and/or its affiliates. All rights reserved.
© 2012 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential   1

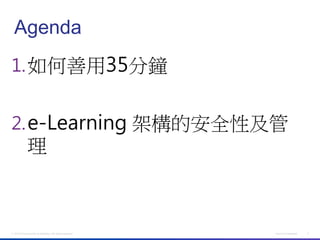

Agenda
1. 如何善用35分鐘


2. e-Learning 架構的安全性及管
              理



© 2012 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential   2

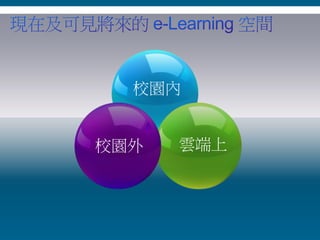

校園內


                                                                     校園外                                                 雲端上




© 2012 Cisco and/or its affiliates. All rights reserved.                                                                          Cisco Confidential   3
                 Presentation_ID                           © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                        3
校園內 - 如何善用35分鐘

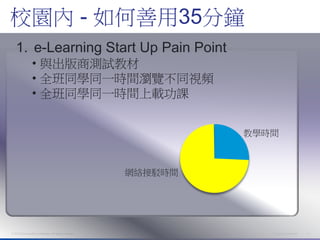

   1. e-Learning Start Up Pain Point
                  • 與出版商測試教材
                  • 全班同學同一時間瀏覽不同視頻
                  • 全班同學同一時間上載功課


                                                                    教學時間



                                                           網絡接駁時間




© 2012 Cisco and/or its affiliates. All rights reserved.               Cisco Confidential   4

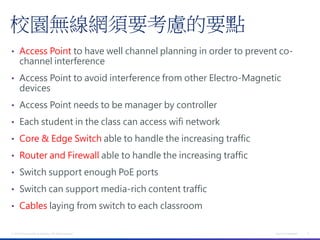

校園無線網須要考慮的要點
• Access Point to have well channel planning in order to prevent co-
       channel interference
• Access Point to avoid interference from other Electro-Magnetic
       devices
• Access Point needs to be manager by controller

• Each student in the class can access wifi network

• Core & Edge Switch able to handle the increasing traffic

• Router and Firewall able to handle the increasing traffic

• Switch support enough PoE ports

• Switch can support media-rich content traffic

• Cables laying from switch to each classroom


© 2012 Cisco and/or its affiliates. All rights reserved.       Cisco Confidential   5
有過之而無不及
                                                           Are you Ready ?




© 2012 Cisco and/or its affiliates. All rights reserved.                     Cisco Confidential   6
校園內及校園外 - 如何善用35分鐘
2. 跨地域協作 – High Quality Video Conference (VC) Class




                                                               C




                                                   Australia       Korea

© 2012 Cisco and/or its affiliates. All rights reserved.                   Cisco Confidential   7
校園內及校園外 - 如何善用35分鐘
2. 跨地域協作 – High Quality Video Conference (VC) Class
• Multi-point Collaboration (no limit….)
• Managed Video Conference – Concierge Service



                                                               Hong Kong




                                                   Australia               China




                                                                 Korea



© 2012 Cisco and/or its affiliates. All rights reserved.                           Cisco Confidential   8
校園內及校園外 - 如何善用35分鐘
2. 跨地域協作 – High Quality Video Conference (VC) Class

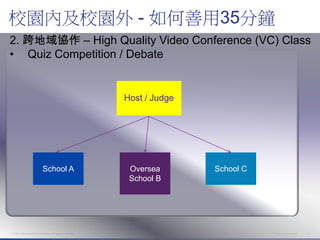

• Quiz Competition / Debate


                                                           Host / Judge




                           School A                         Oversea       School C
                                                            School B




© 2012 Cisco and/or its affiliates. All rights reserved.                             Cisco Confidential   9
校園內及校園外 - 如何善用35分鐘
2. 跨地域協作 – High Quality Video Conference (VC) Class
   • 通識 : 環保及個人發展




                                      School A             School B   School C




© 2012 Cisco and/or its affiliates. All rights reserved.                         Cisco Confidential   10
MOBILE                 SOCIAL
                           Rich secure collaboration           Learning networks to locate,
                           from any device, any location       connect and engage




                                         VISUAL                       VIRTUAL
                High quality video available
                                                           Hosted applications, voice & video
                everywhere; real-time & offline
                                                           Interaction with VDI economics



© 2012 Cisco and/or its affiliates. All rights reserved.                              Cisco Confidential   11

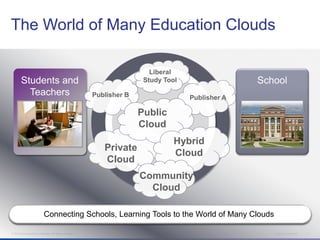

The World of Many Education Clouds

                                                                            Liberal
        Students and                                                      Study Tool                 School
          Teachers                                         Publisher B                 Publisher A

                                                                         Public
                                                                         Cloud
                                                                                   Hybrid
                                                              Private
                                                                                   Cloud
                                                              Cloud
                                                                         Community
                                                                           Cloud

                             Connecting Schools, Learning Tools to the World of Many Clouds

© 2012 Cisco and/or its affiliates. All rights reserved.                                                Cisco Confidential   12

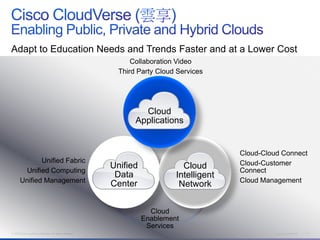

Adapt to Education Needs and Trends Faster and at a Lower Cost
                                                                 Collaboration Video
                                                             Third Party Cloud Services




                                                                    Cloud
                                                                  Applications


                                                                                            Cloud-Cloud Connect
              Unified Fabric                                                                Cloud-Customer
                                                           Unified              Cloud       Connect
        Unified Computing
                                                            Data              Intelligent
       Unified Management                                                                   Cloud Management
                                                           Center              Network


                                                                       Cloud
                                                                     Enablement
                                                                      Services
© 2012 Cisco and/or its affiliates. All rights reserved.                                              Cisco Confidential   13

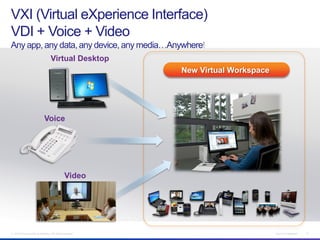

VXI (Virtual eXperience Interface)
VDI + Voice + Video
Any app, any data, any device, any media…Anywhere!
                                   Virtual Desktop
                                                           New Virtual Workspace




                             Voice




                                               Video




© 2012 Cisco and/or its affiliates. All rights reserved.                           Cisco Confidential   14

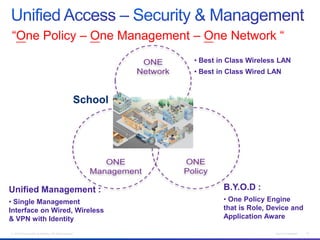

“One Policy – One Management – One Network “
                                                                • Best in Class Wireless LAN
                                                                • Best in Class Wired LAN



                                                       School




Unified Management :                                                    B.Y.O.D :
• Single Management                                                     • One Policy Engine
Interface on Wired, Wireless                                            that is Role, Device and
& VPN with Identity                                                     Application Aware

© 2012 Cisco and/or its affiliates. All rights reserved.                               Cisco Confidential   15

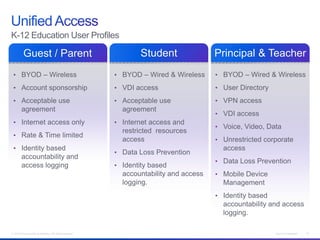

K-12 Education User Profiles

          Guest Mobility
          Basic / Parent                                         Student
                                                               Basic BYOD                Principal & Teacher
                                                                                          Advanced BYOD
 • BYOD – Wireless                                         • BYOD – Wired & Wireless     • BYOD – Wired & Wireless

 • Account sponsorship                                     • VDI access                  • User Directory

 • Acceptable use                                          • Acceptable use              • VPN access
        agreement                                            agreement
                                                                                         • VDI access
 • Internet access only                                    • Internet access and
                                                                                         • Voice, Video, Data
                                                             restricted resources
 • Rate & Time limited
                                                             access                      • Unrestricted corporate
 • Identity based                                                                          access
                                                           • Data Loss Prevention
        accountability and
                                                                                         • Data Loss Prevention
        access logging                                     • Identity based
                                                             accountability and access   • Mobile Device
                                                             logging.                      Management
                                                                                         • Identity based
                                                                                           accountability and access
                                                                                           logging.

© 2012 Cisco and/or its affiliates. All rights reserved.                                                    Cisco Confidential   16

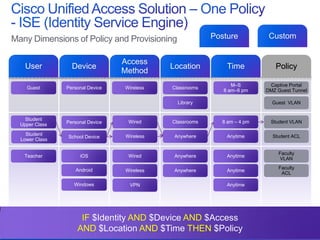

Many Dimensions of Policy and Provisioning                                                    Posture          Custom


                                                                     Access
            User                                      Device                     Location         Time           Policy
                                                                     Method
                                                                                                    M–S        Captive Portal
             Guest                               Personal Device      Wireless   Classrooms
                                                                                                 8 am–6 pm    DMZ Guest Tunnel

                                                                                   Library                      Guest VLAN


         Student
                                                 Personal Device       Wired     Classrooms     8 am – 4 pm    Student VLAN
       Upper Class
          Student                                                     Wireless    Anywhere        Anytime       Student ACL
                                                   School Device
        Lower Class

                                                                                                                   Faculty
           Teacher                                           iOS       Wired      Anywhere        Anytime
                                                                                                                   VLAN

                                                           Android                                                 Faculty
                                                                      Wireless    Anywhere        Anytime
                                                                                                                    ACL

                                                           Windows     VPN                        Anytime




                                                             IF $Identity AND $Device AND $Access
© 2012 Cisco and/or its affiliates. All rights reserved.
                                                            AND $Location AND $Time THEN $Policy                 Cisco Confidential   17

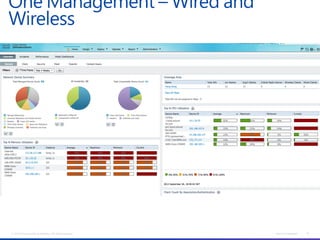

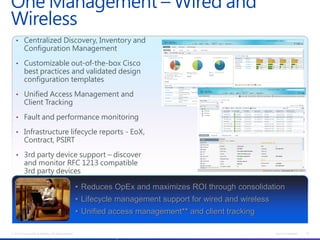

One Management – Wired and
Wireless
   • Centralized Discovery, Inventory and
           Configuration Management

   • Customizable out-of-the-box Cisco
           best practices and validated design
           configuration templates

   • Unified Access Management and
           Client Tracking

   • Fault and performance monitoring

   • Infrastructure lifecycle reports - EoX,
           Contract, PSIRT

   • 3rd party device support – discover
           and monitor RFC 1213 compatible
           3rd party devices

                                                           • Reduces OpEx and maximizes ROI through consolidation
                                                           • Lifecycle management support for wired and wireless
                                                           • Unified access management** and client tracking

© 2012 Cisco and/or its affiliates. All rights reserved.                                                                      Cisco Confidential   18
                                                           Prime LMS will provide some of these functions in the short term
One Management – Wired and
Wireless




© 2012 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential   19
如何善用35分鐘
                                                                                                 Security & Management

                                                           建構優質
                                                         ONE Network
                                                             校園內
                                                           有線及無
                                                             線網絡
                                                            Security
                                                          ONE Policy
                                                               &
                                                          Management
                                                      跨地域協作 雲架構      迎接
                                                        ONE Management
                                                        校園外 ‘Many Clouds’
                                                                   雲端上
                                                      (高清視像教學)       VXI
                                                                   的世界

© 2012 Cisco and/or its affiliates. All rights reserved.                                                                          Cisco Confidential   20
                 Presentation_ID                           © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                        20
Effective = $$$$



© 2012 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential   21
