Fun with Github webhooks: verifying Signed-off-by

Simple Ruby/Sinatra Github
webhook script
KYOSS July 2015
Jeff Squyres

Github: A popular Git-hosting service
www.github.com

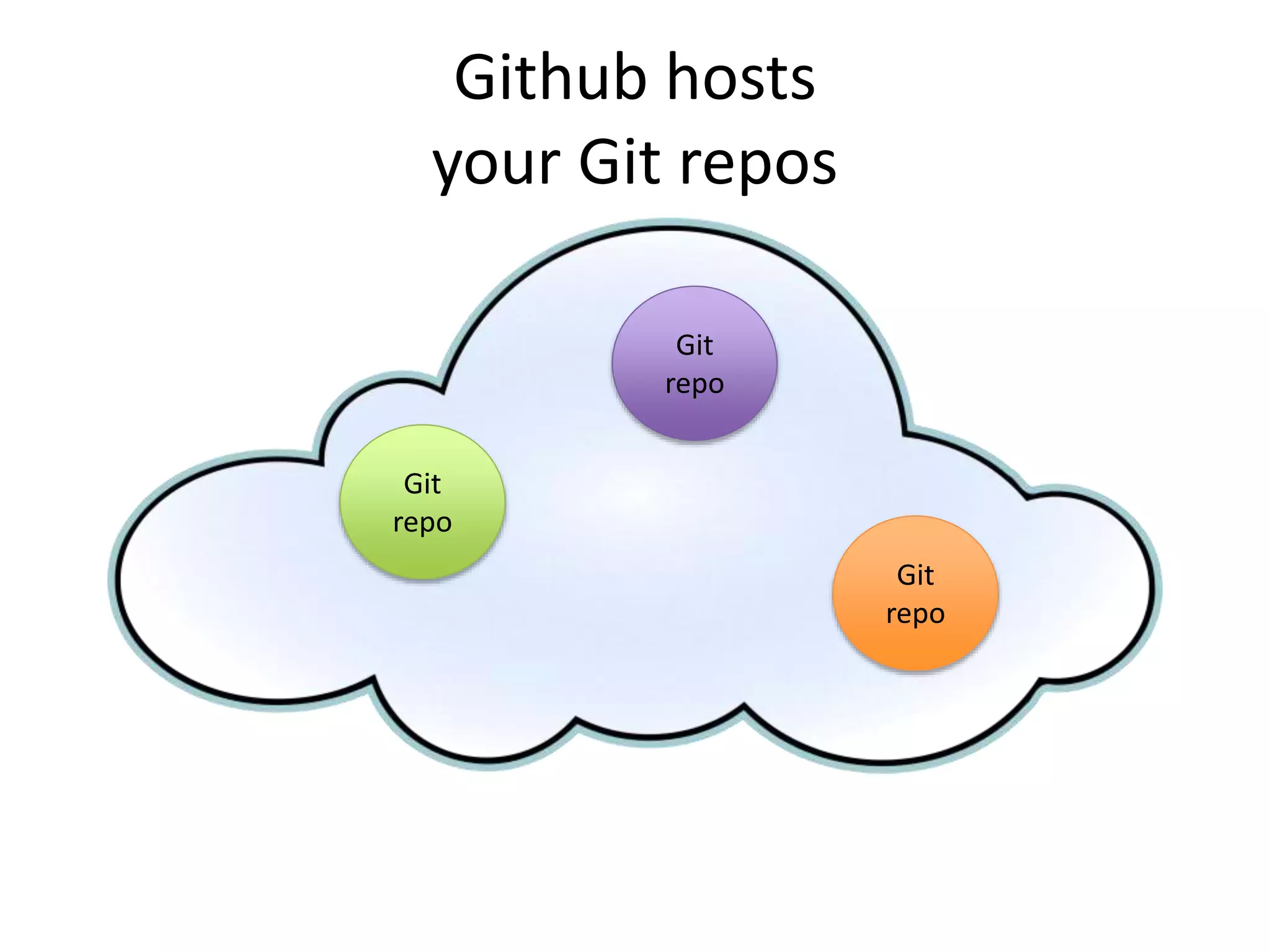

Github hosts
your Git repos
Git
repo
Git
repo
Git
repo

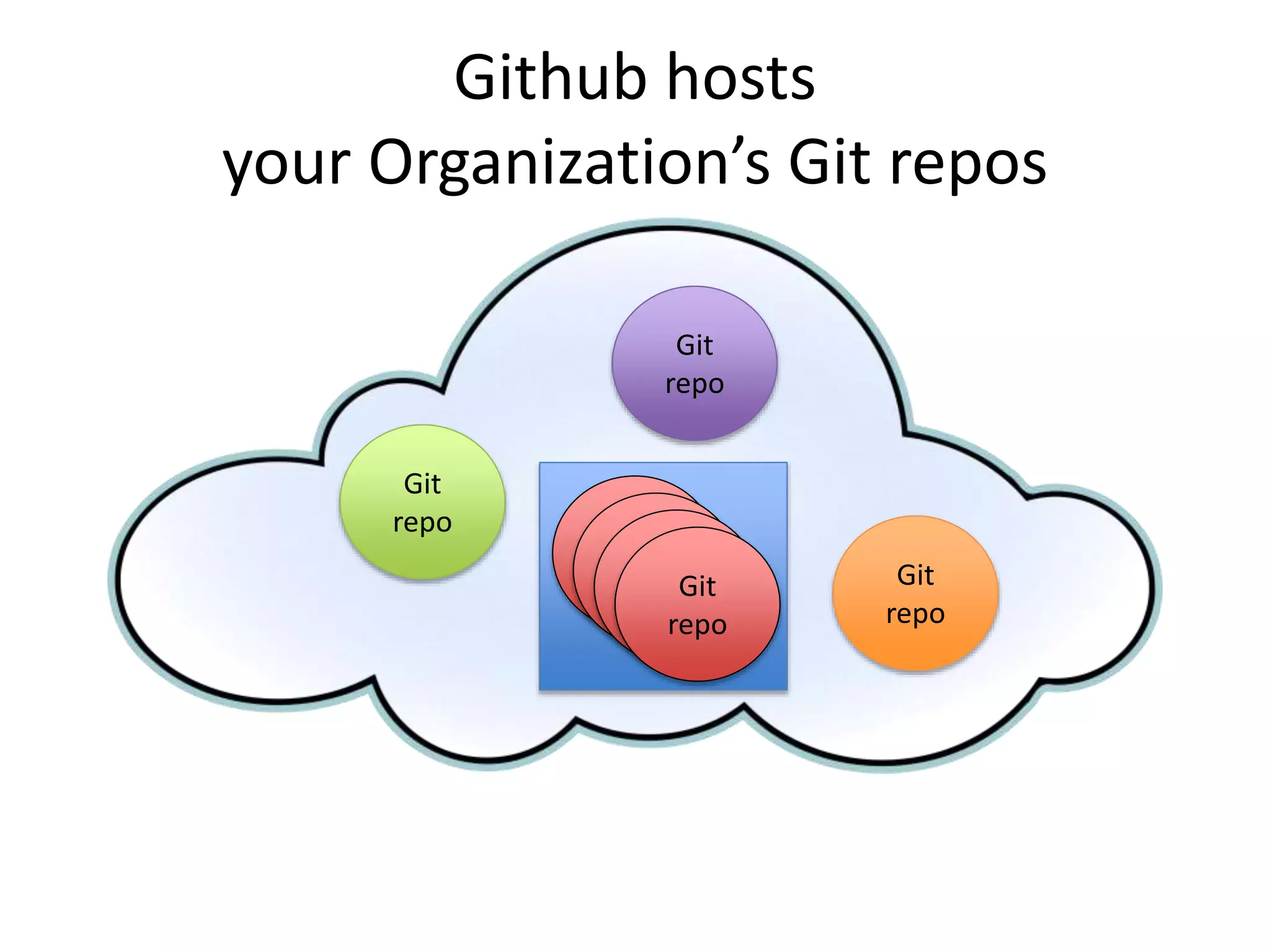

Github hosts
your Organization’s Git repos
Git
repo
Git
repo
Git
repo
Yoyodyne
Organization

Github hosts
your Organization’s Git repos
Git
repo
Git
repo
Git
repo
Yoyodyne
Organization
Git
repo
Git
repo
Git
repo
Git
repo

Github has other services
Wiki

Github has other services
WikiAPI hooks

The Github Webhook
Hey!
Something just
happened!

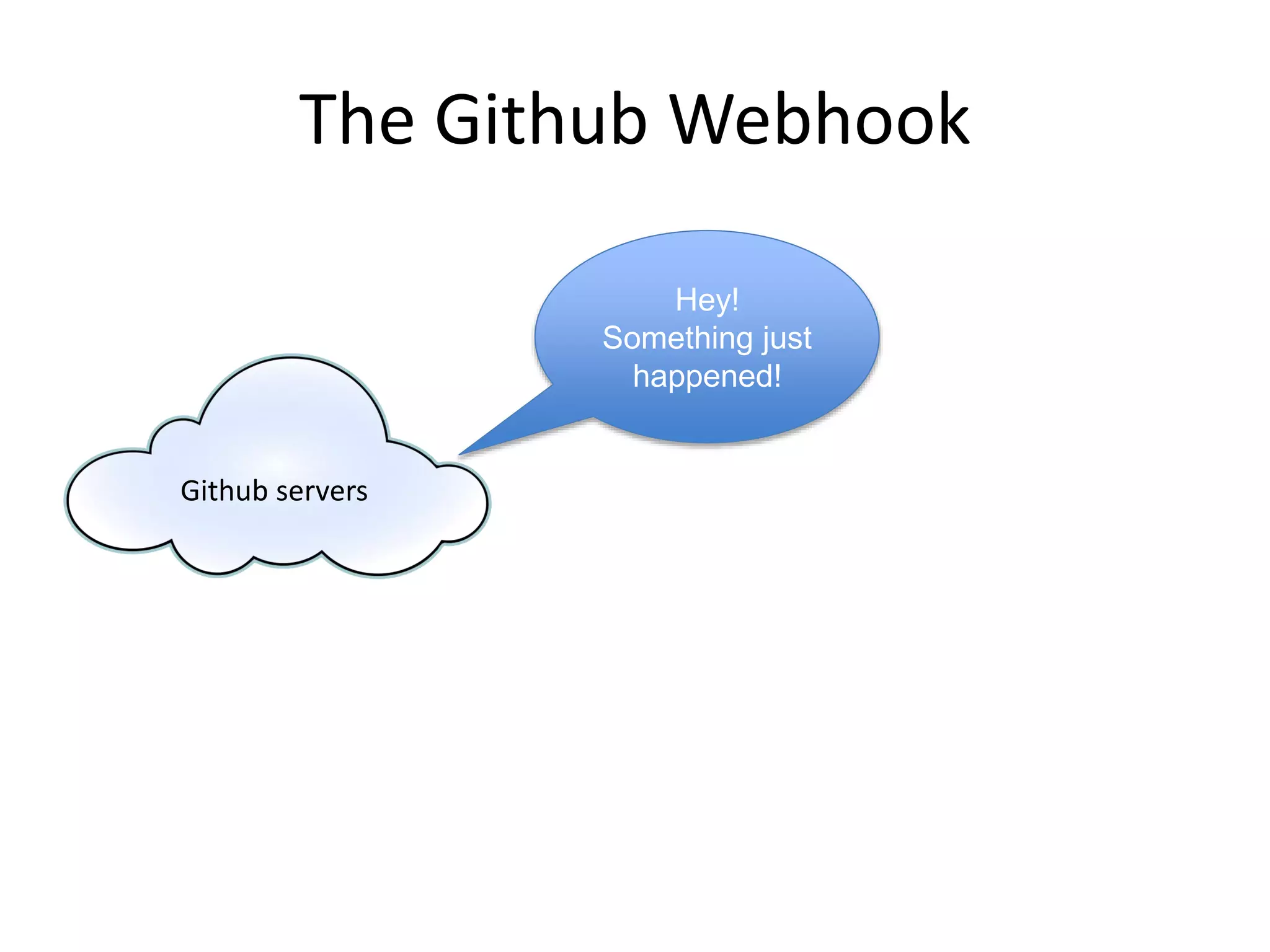

The Github Webhook
Hey!
Something just
happened!
Github servers

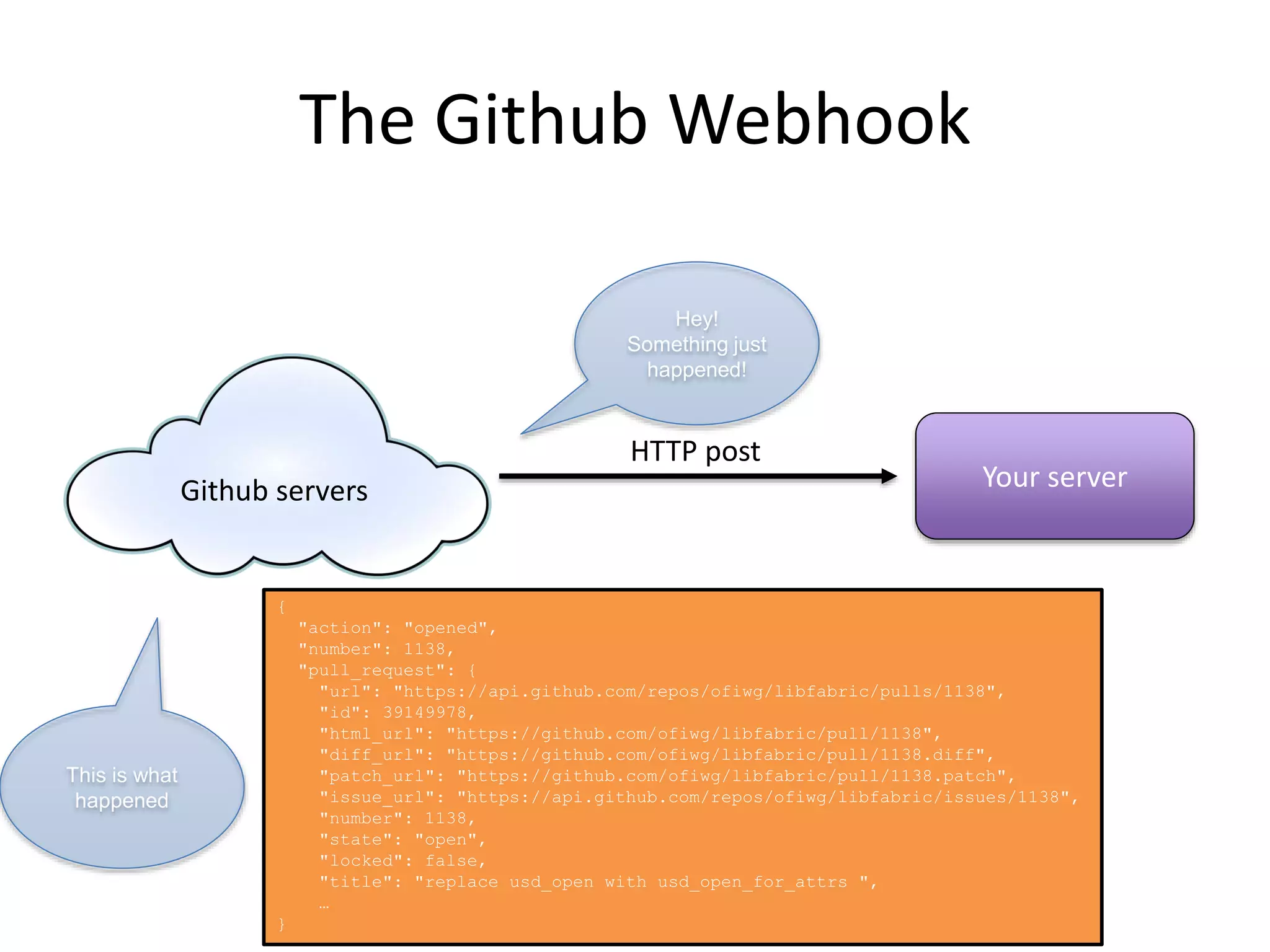

The Github Webhook
Your serverGithub servers
HTTP post
{
"action": "opened",
"number": 1138,
"pull_request": {
"url": "https://api.github.com/repos/ofiwg/libfabric/pulls/1138",
"id": 39149978,
"html_url": "https://github.com/ofiwg/libfabric/pull/1138",
"diff_url": "https://github.com/ofiwg/libfabric/pull/1138.diff",
"patch_url": "https://github.com/ofiwg/libfabric/pull/1138.patch",
"issue_url": "https://api.github.com/repos/ofiwg/libfabric/issues/1138",
"number": 1138,
"state": "open",
"locked": false,
"title": "replace usd_open with usd_open_for_attrs ",
…
}
Hey!
Something just
happened!
This is what
happened

What can you do with Github
webhooks?

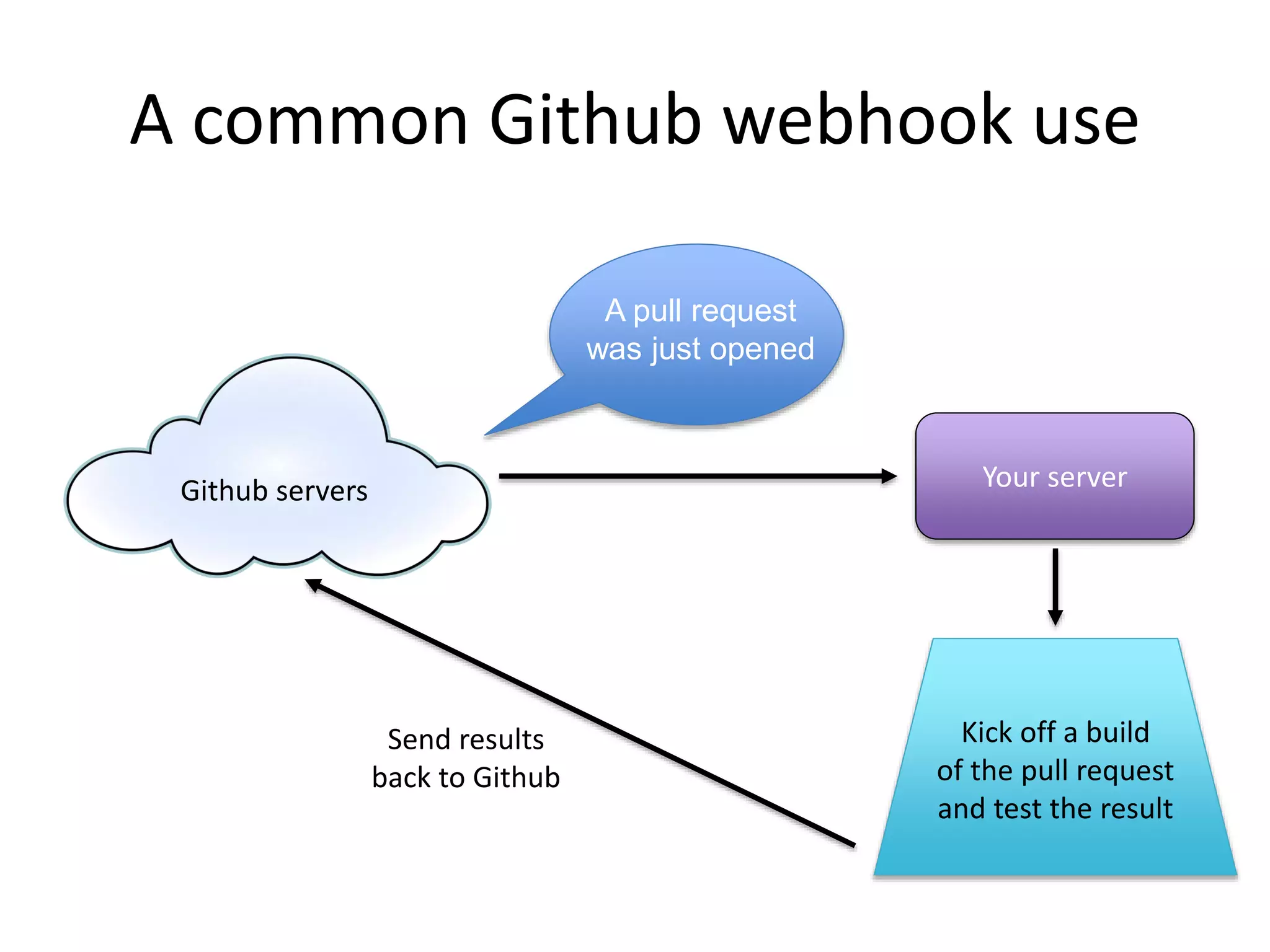

A common Github webhook use
A pull request
was just opened
Kick off a build
of the pull request
and test the result
Send results
back to Github

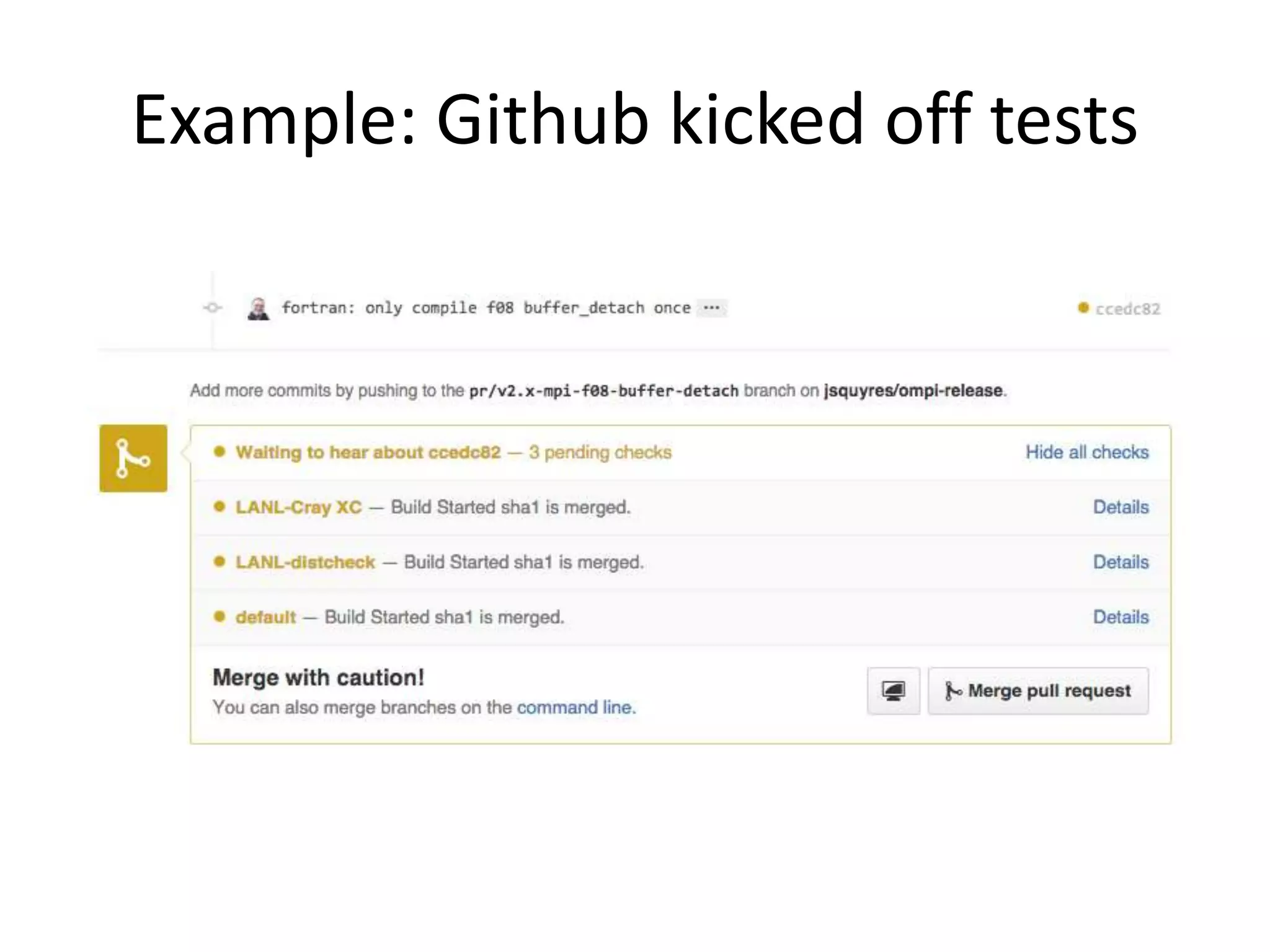

Example: Github kicked off tests

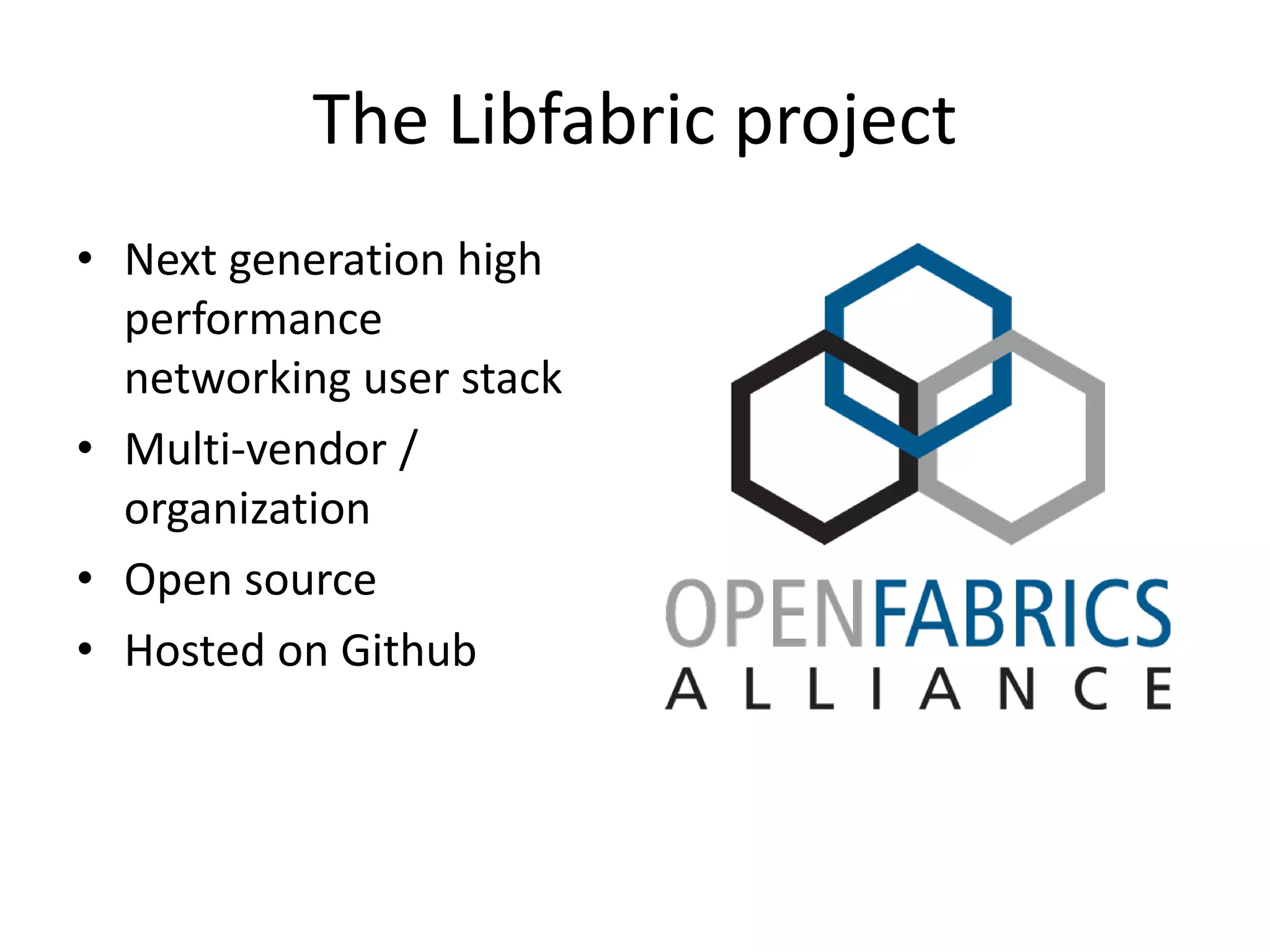

The Libfabric project
• Next generation high
performance
networking user stack
• Multi-vendor /
organization
• Open source
• Hosted on Github

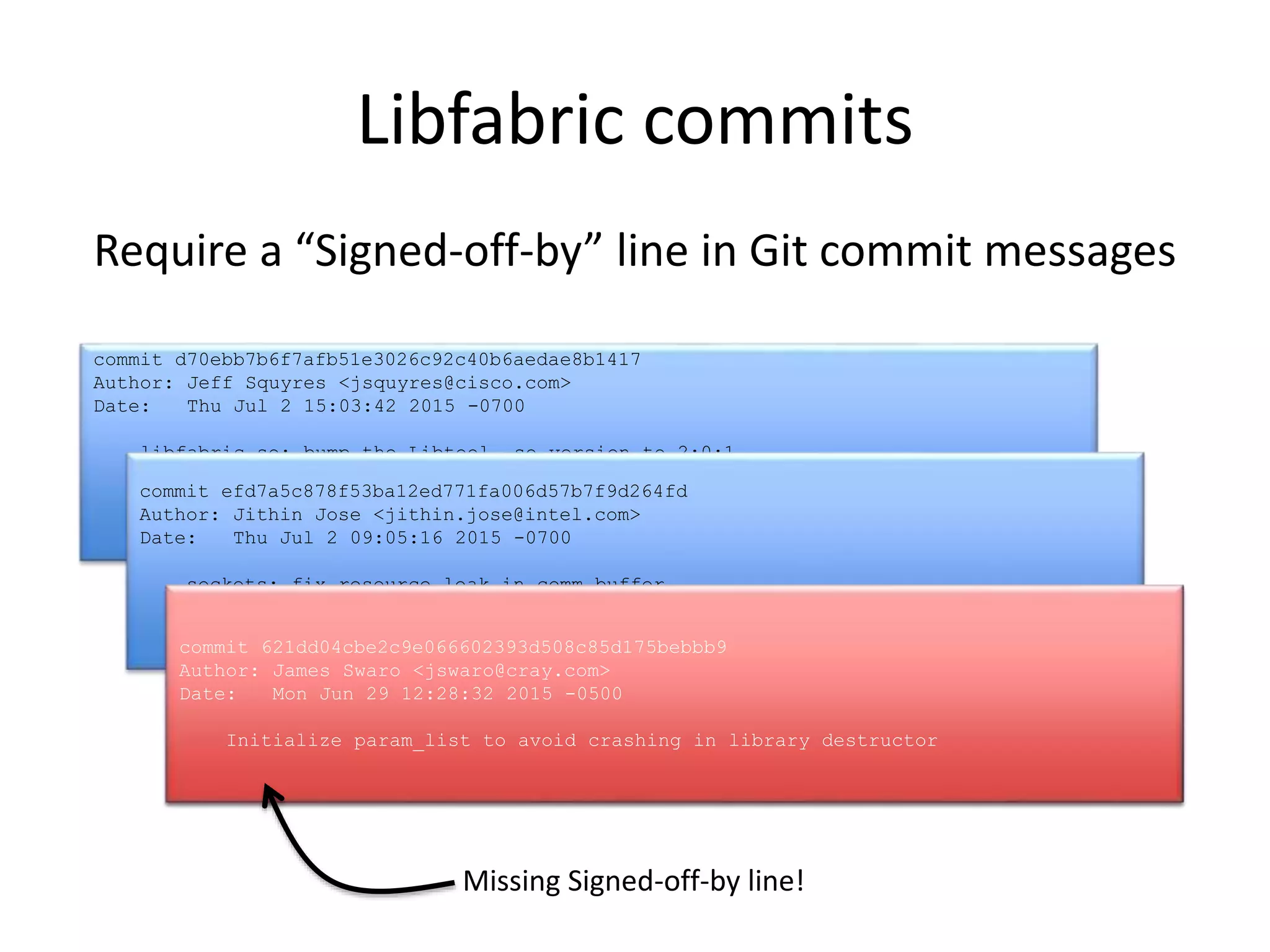

Libfabric commits
Require a “Signed-off-by” line in Git commit messages
commit d70ebb7b6f7afb51e3026c92c40b6aedae8b1417
Author: Jeff Squyres <jsquyres@cisco.com>
Date: Thu Jul 2 15:03:42 2015 -0700
libfabric.so: bump the Libtool .so version to 2:0:1
Per https://www.gnu.org/software/libtool/manual/libtool.html. Fixes #1118.
Signed-off-by: Jeff Squyres <jsquyres@cisco.com>

Libfabric commits
Date: Thu Jul 2 15:03:42 2015 -0700
commit efd7a5c878f53ba12ed771fa006d57b7f9d264fd
Author: Jithin Jose <jithin.jose@intel.com>
Date: Thu Jul 2 09:05:16 2015 -0700
sockets: fix resource leak in comm buffer
Signed-off-by: Jithin Jose <jithin.jose@intel.com>

Libfabric commits
Date: Thu Jul 2 15:03:42 2015 -0700
Date: Thu Jul 2 09:05:16 2015 -0700
commit 621dd04cbe2c9e066602393d508c85d175bebbb9
Author: James Swaro <jswaro@cray.com>
Date: Mon Jun 29 12:28:32 2015 -0500
Initialize param_list to avoid crashing in library destructor

Libfabric commits
Date: Thu Jul 2 15:03:42 2015 -0700
Date: Thu Jul 2 09:05:16 2015 -0700
Date: Mon Jun 29 12:28:32 2015 -0500
Date: Mon Jun 29 12:28:32 2015 -0500
Missing Signed-off-by line!

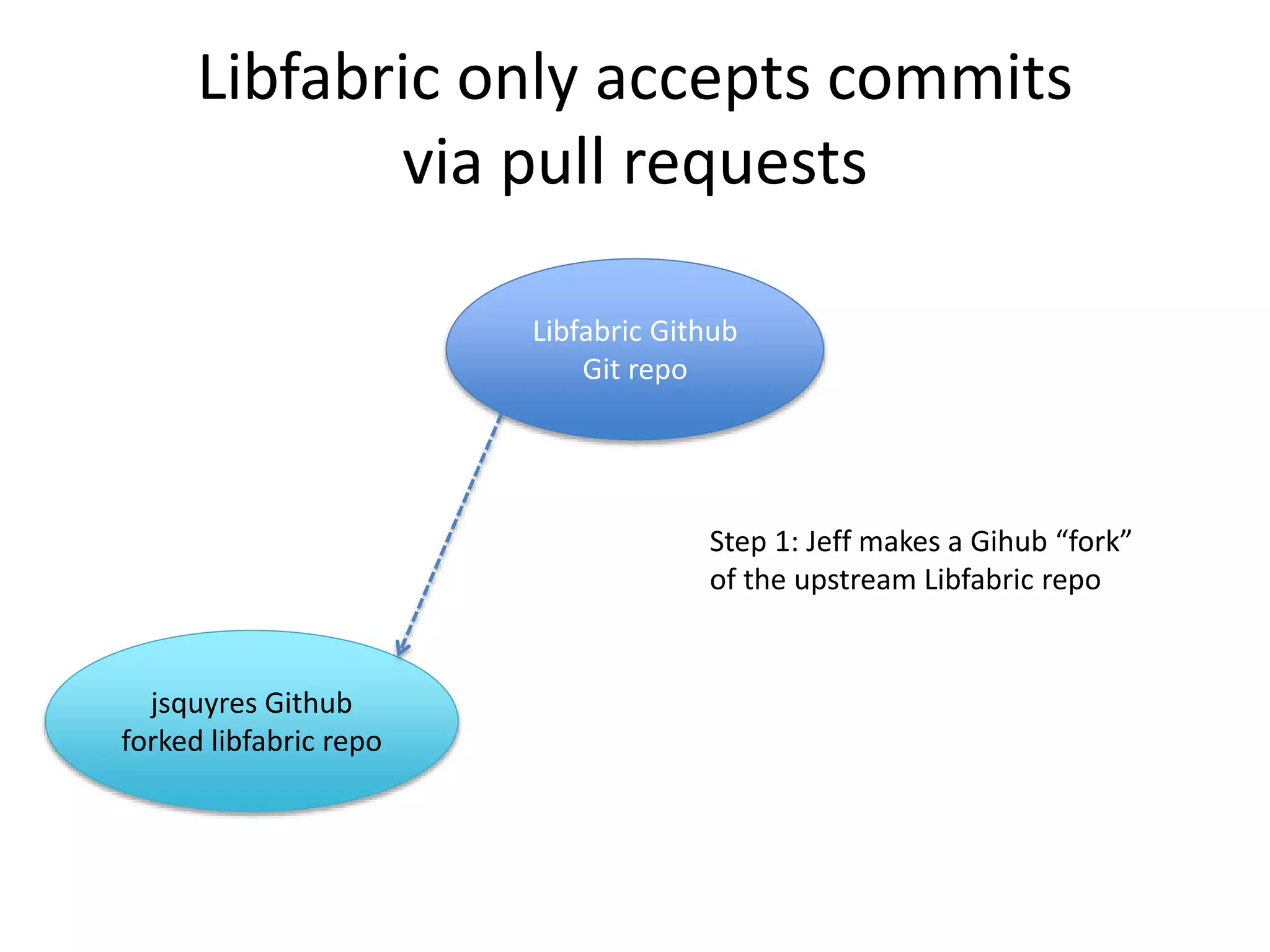

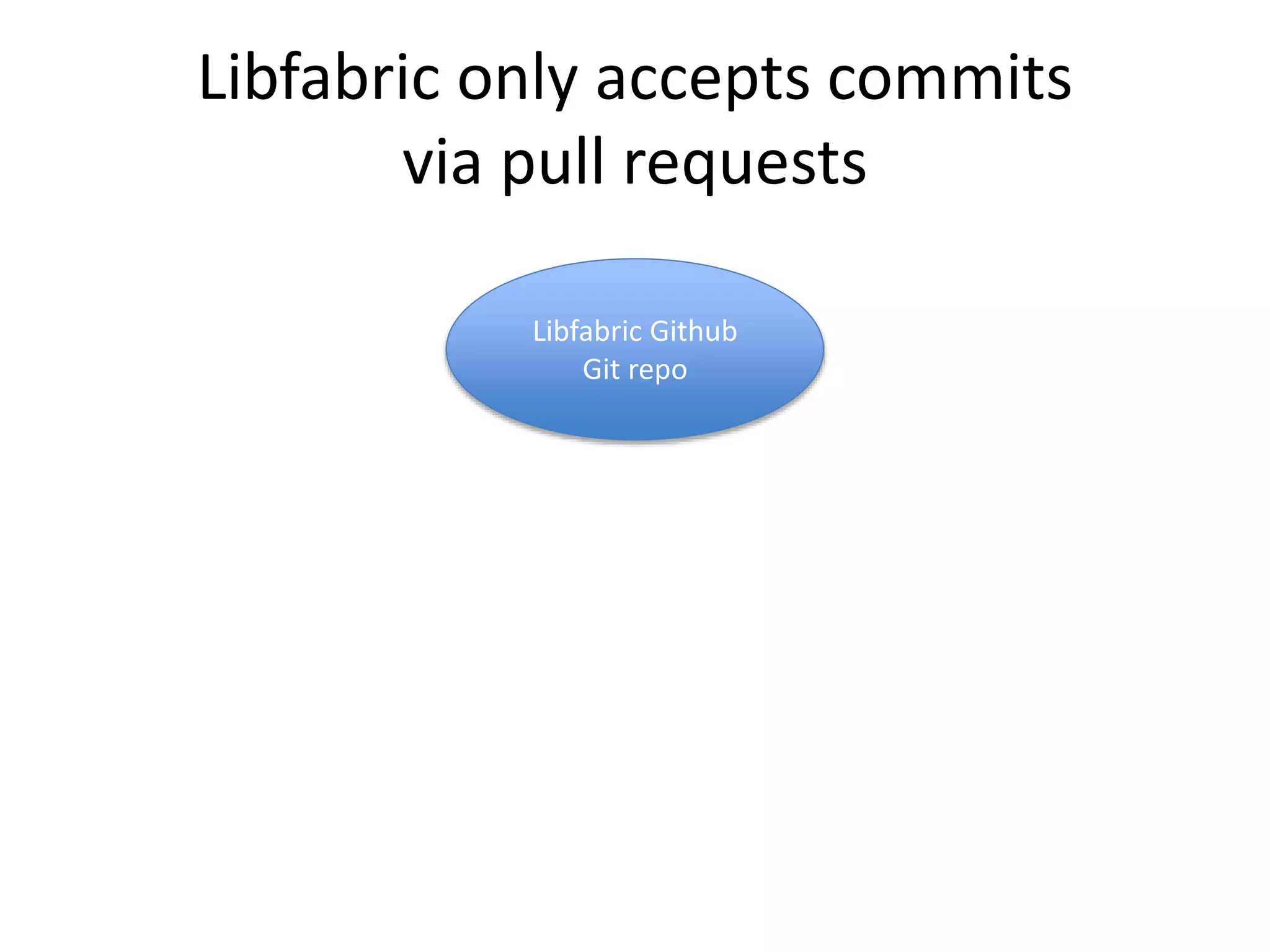

Libfabric only accepts commits
via pull requests
Libfabric Github
Git repo

via pull requests
Libfabric Github
Git repo
jsquyres Github
forked libfabric repo
Step 1: Jeff makes a Gihub “fork”
of the upstream Libfabric repo

via pull requests
Libfabric Github
Git repo
jsquyres Github
forked libfabric repo commit d70ebb7b6f7afb51e3026c92c40b6aedae8b1417
Date: Thu Jul 2 15:03:42 2015 -0700
Per https://www.gnu.org/software/libtool/manual/...

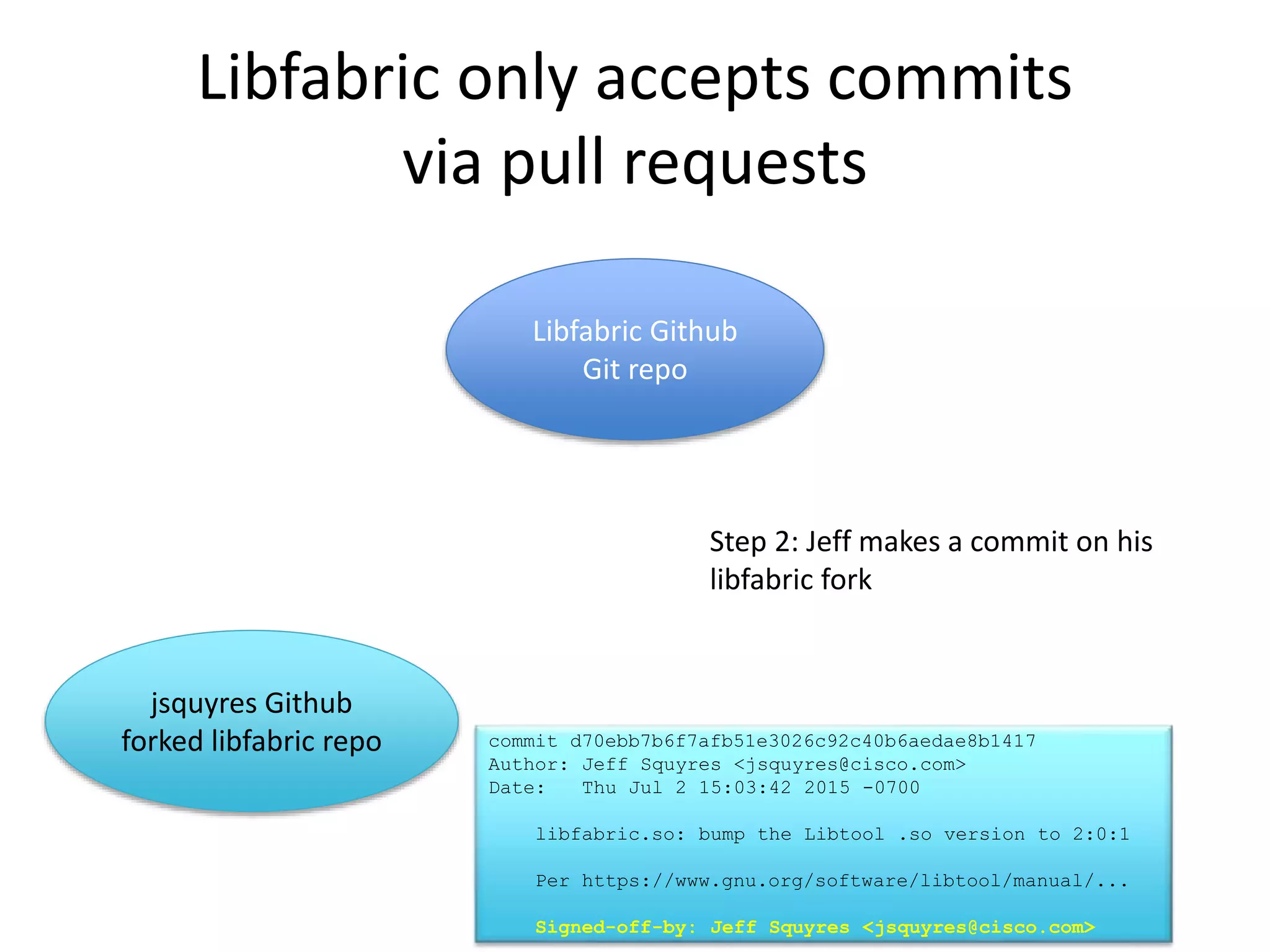

Step 2: Jeff makes a commit on his
libfabric fork

via pull requests
Libfabric Github
Git repo
jsquyres Github
Date: Thu Jul 2 15:03:42 2015 -0700
Step 3: Jeff files a pull request to ask
if his commit can be accepted into
the main Libfabric repo

via pull requests
Libfabric Github
Git repo
jsquyres Github
Date: Thu Jul 2 15:03:42 2015 -0700

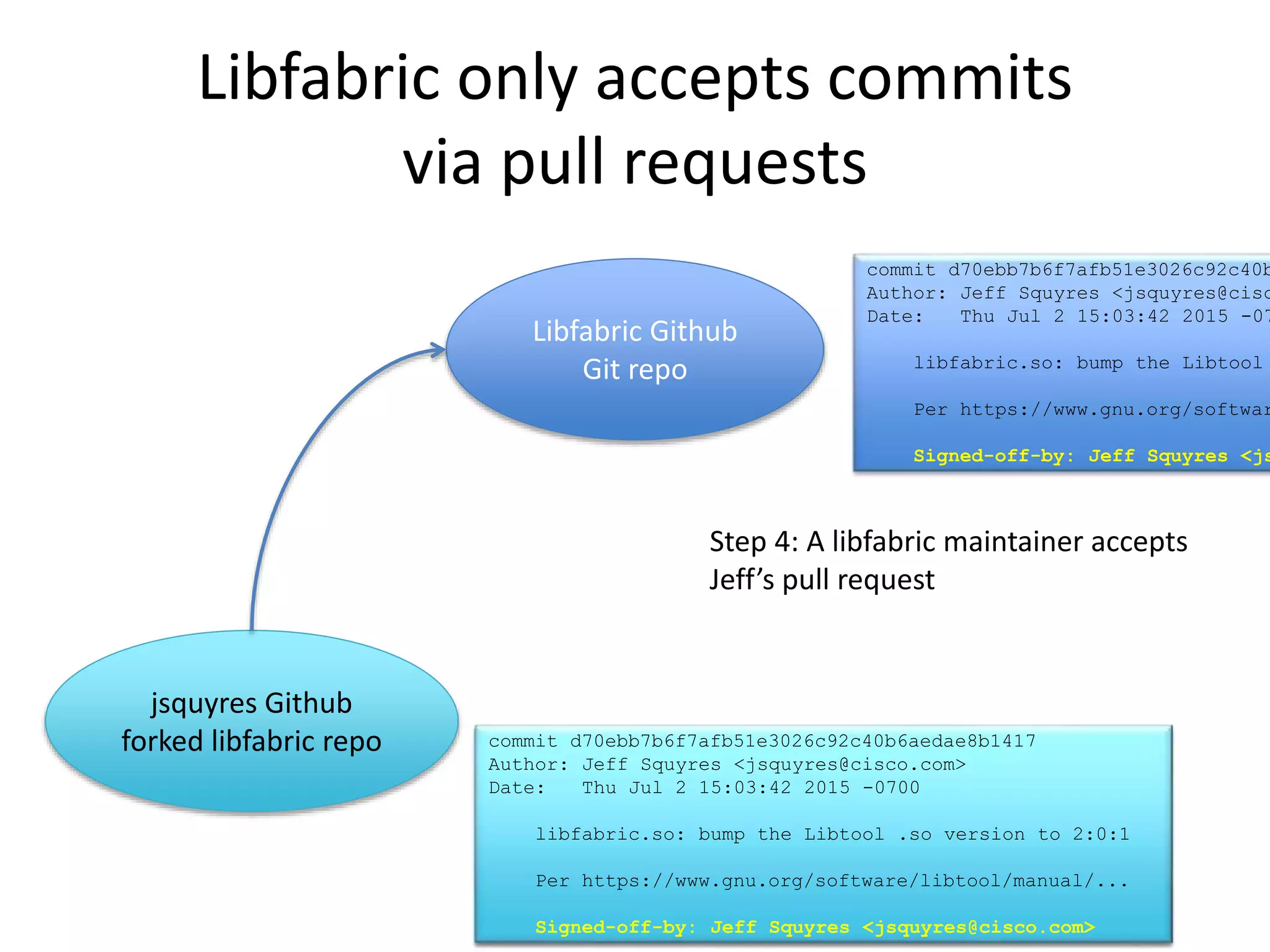

Step 4: A libfabric maintainer accepts
Jeff’s pull request
Date: Thu Jul 2 15:03:42 2015 -0700
commit d70ebb7b6f7afb51e3026c92c40b
Author: Jeff Squyres <jsquyres@cisc
Date: Thu Jul 2 15:03:42 2015 -07
libfabric.so: bump the Libtool
Per https://www.gnu.org/softwar
Signed-off-by: Jeff Squyres <js

The missing step
1. Jeff makes a Gihub “fork” of the upstream
Libfabric repo
2. Jeff makes a commit on his libfabric fork
3. Jeff files a pull request to ask if his commit
can be accepted into the main Libfabric repo
4. Libfabric maintainers review the pull request
commit(s)
5. A libfabric maintainer accepts Jeff’s pull
request

The missing step
1. Jeff makes a Gihub “fork” of the upstream
Libfabric repo
2. Jeff makes a commit on his libfabric fork
3. Jeff files a pull request to ask if his commit
can be accepted into the main Libfabric repo
4. Libfabric maintainers review the pull request
commit(s)
5. A libfabric maintainer accepts Jeff’s pull
request
Is there a Signed-off-by line?

The Signed-off-by line
It’s kind of a silly thing
It has nothing to do with the code itself

But the lawyers tell us we must have it

We developers don’t want to have to deal with it
We just want to make sure it happens, but at zero cost to us

Sounds like a perfect job
for automation

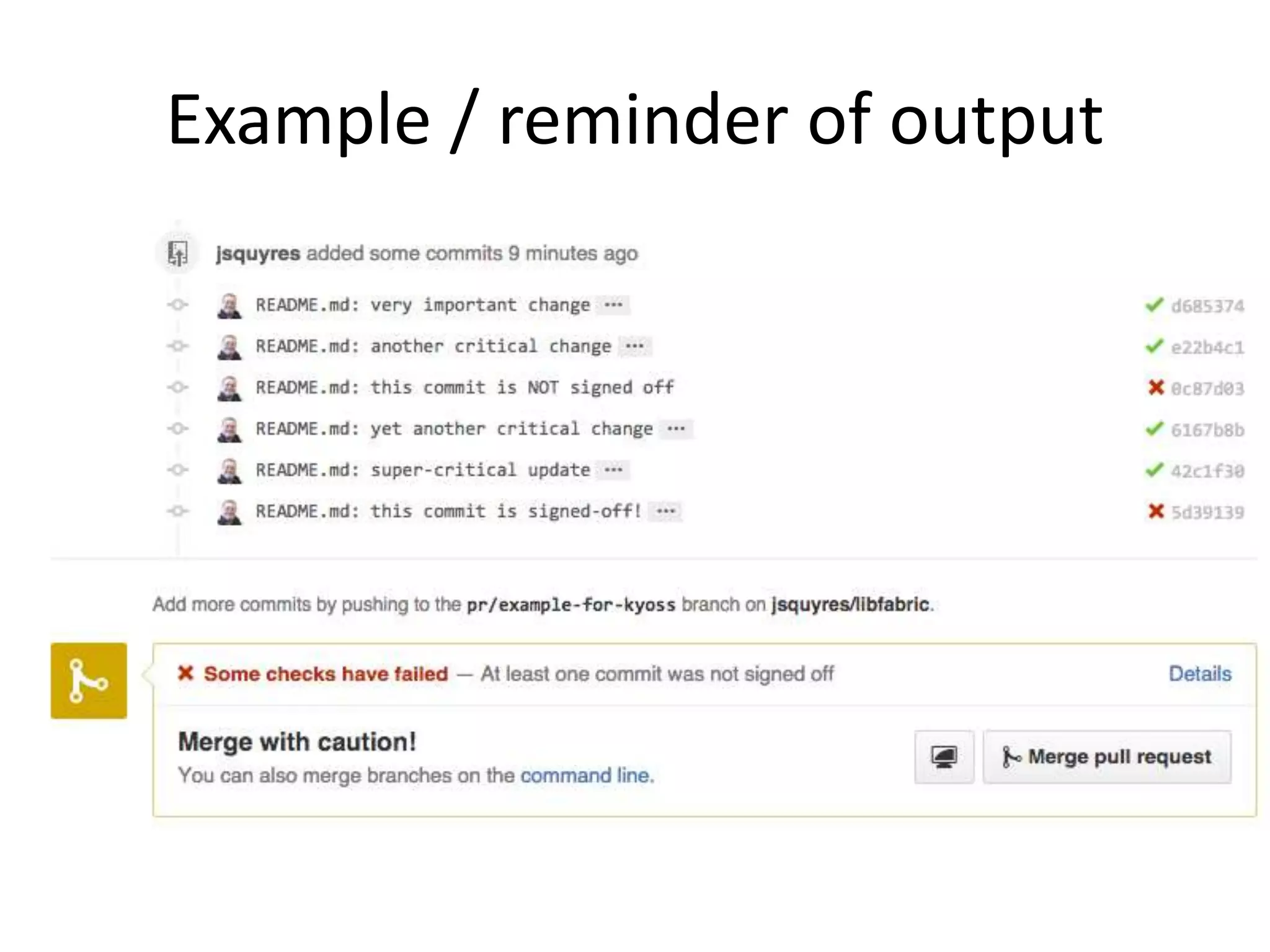

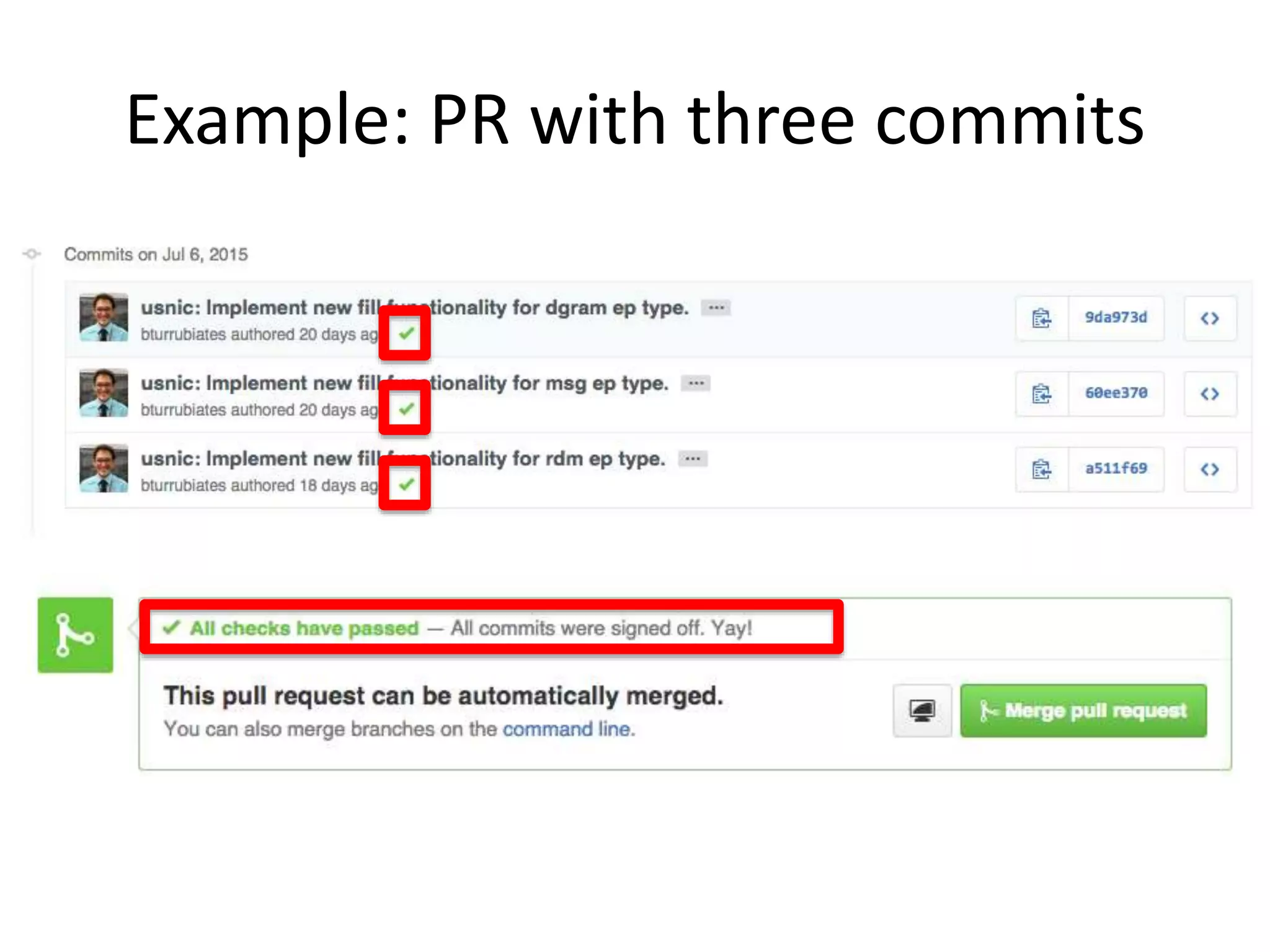

Example: PR with three commits

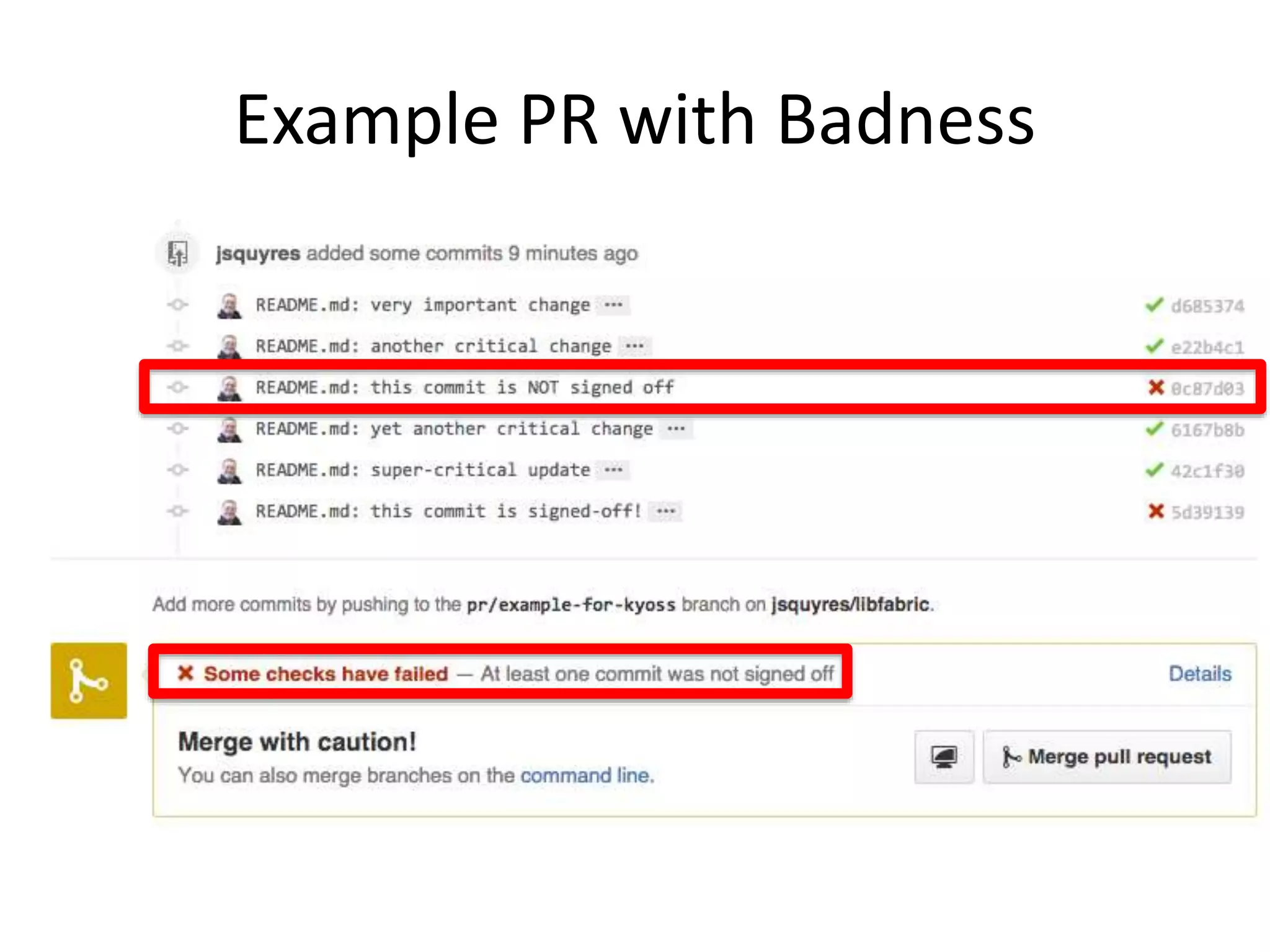

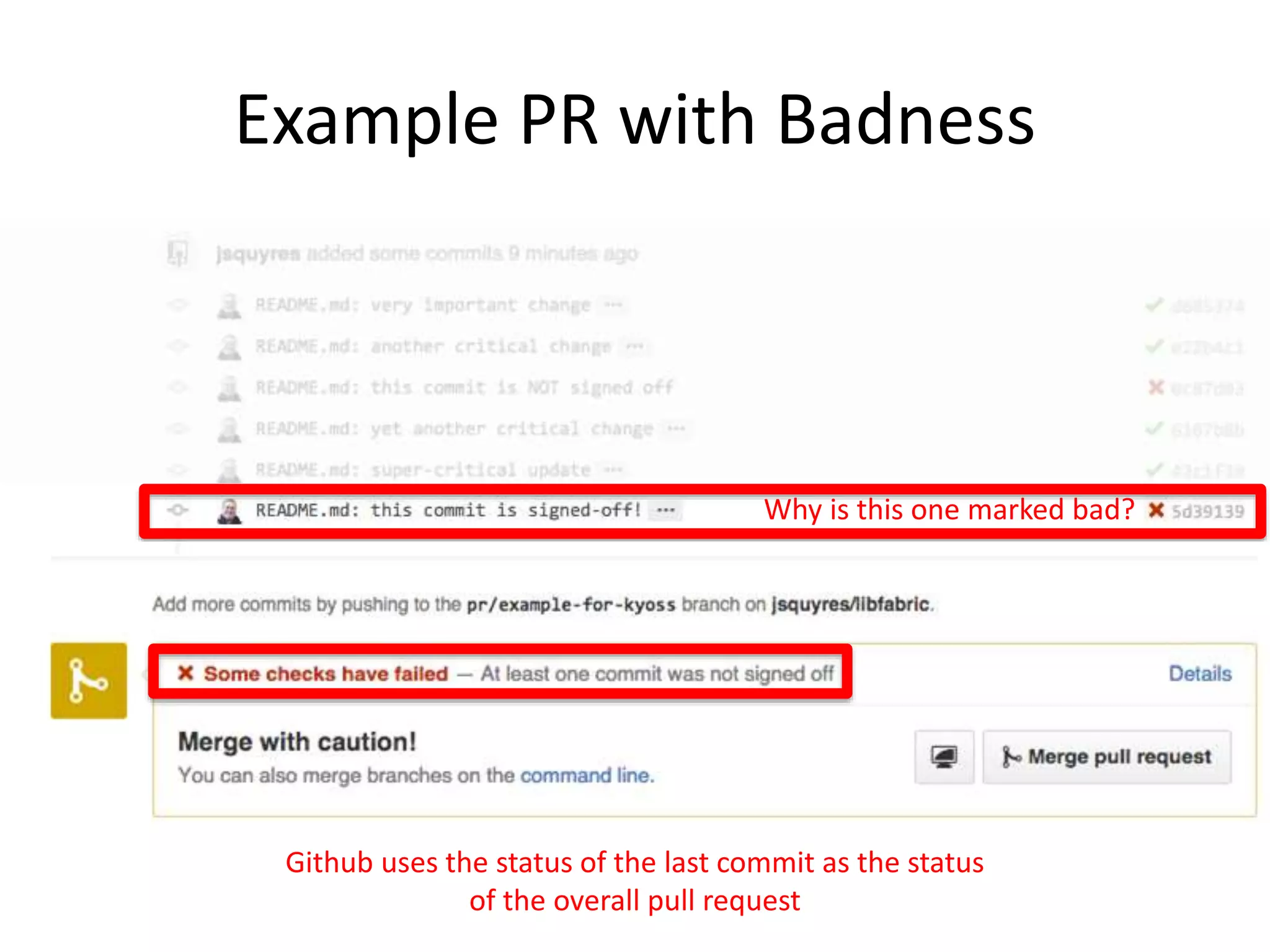

Example PR with Badness
Why is this one marked bad?

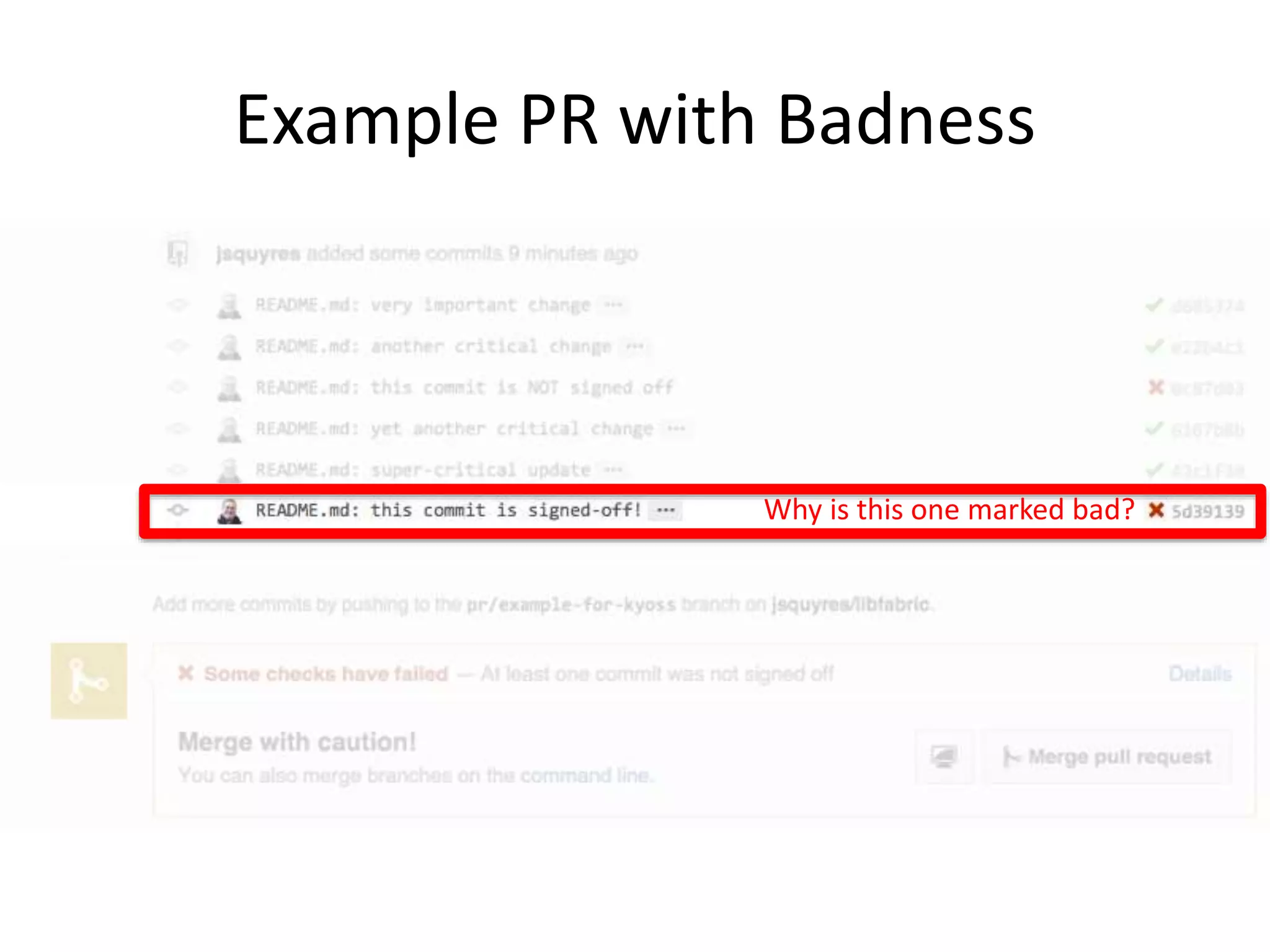

Example PR with Badness
Why is this one marked bad?
Github uses the status of the last commit as the status
of the overall pull request

That’s what it does
Now let’s look what it is

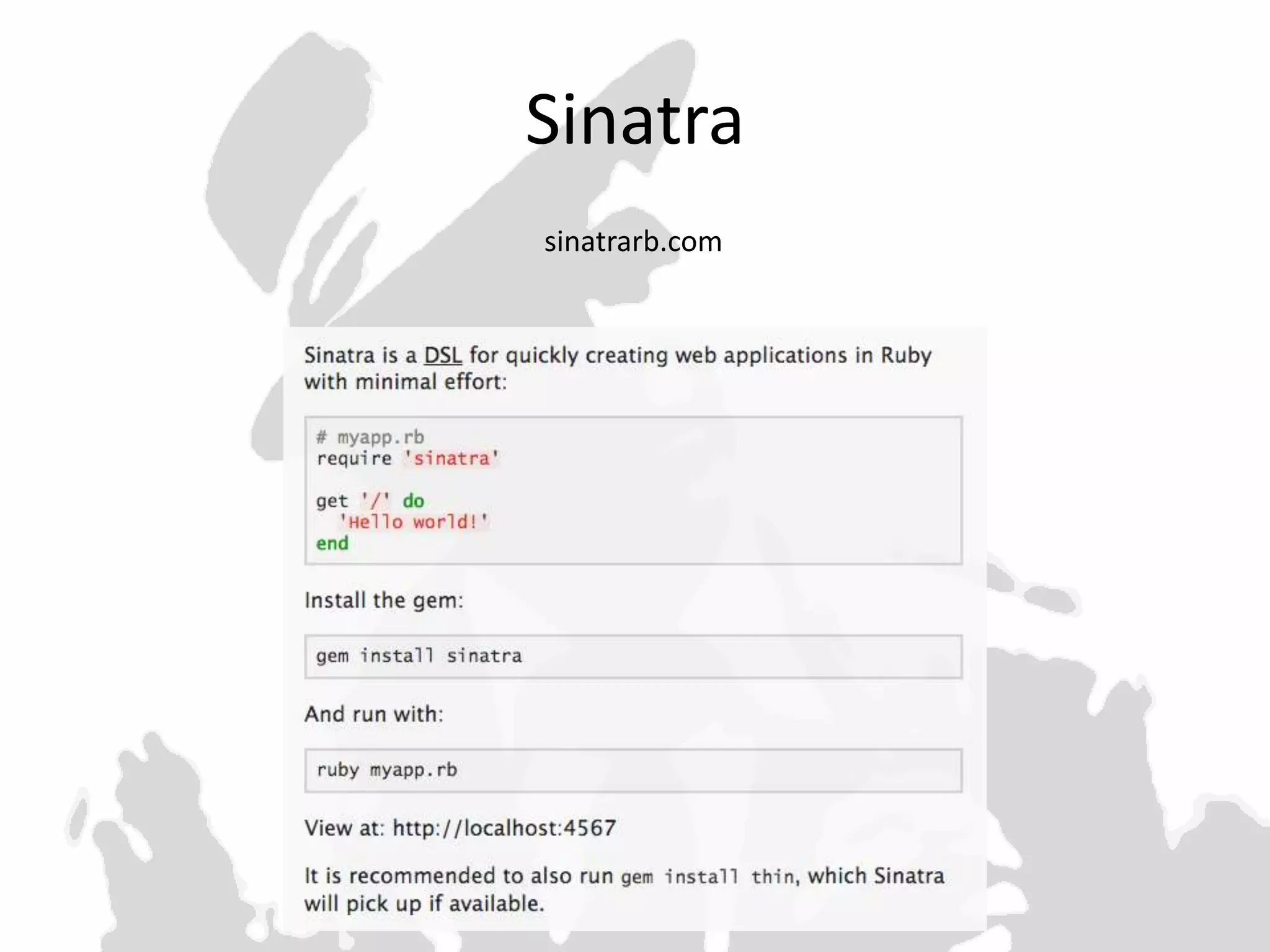

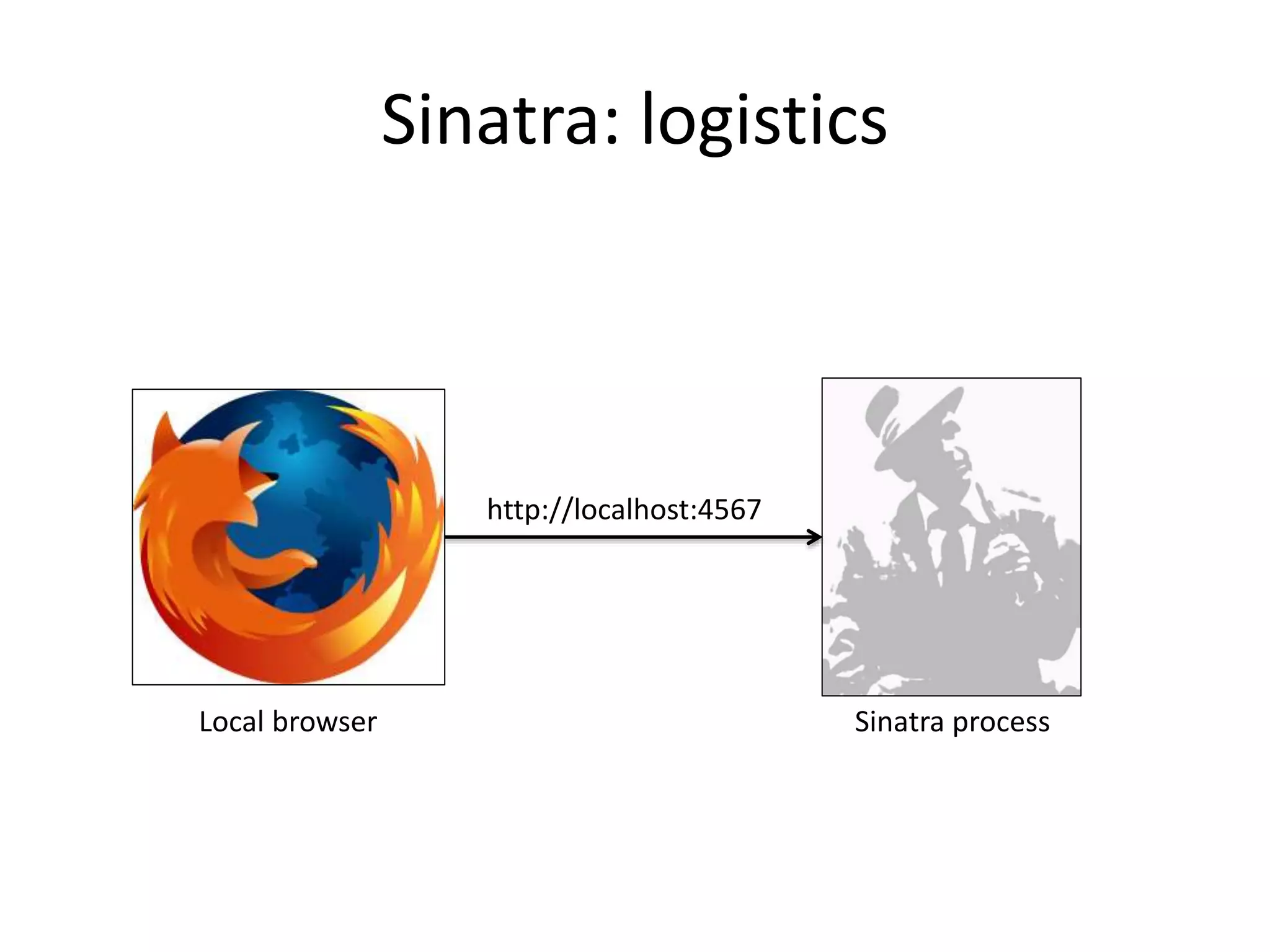

Sinatra: logistics
Sinatra processLocal browser
http://localhost:4567

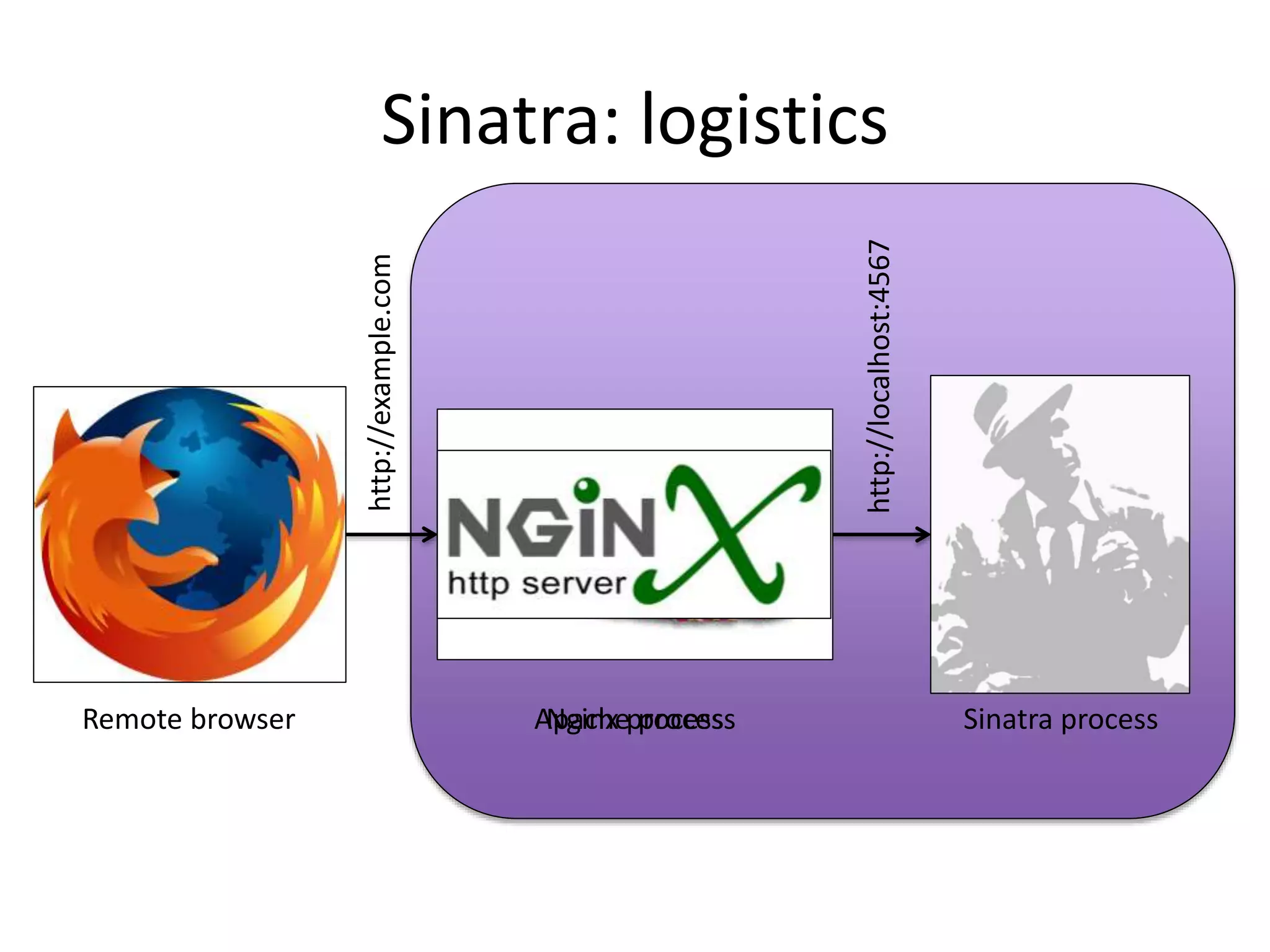

Sinatra: logistics
Sinatra process
http://localhost:4567
nginx processRemote browser
http://example.com

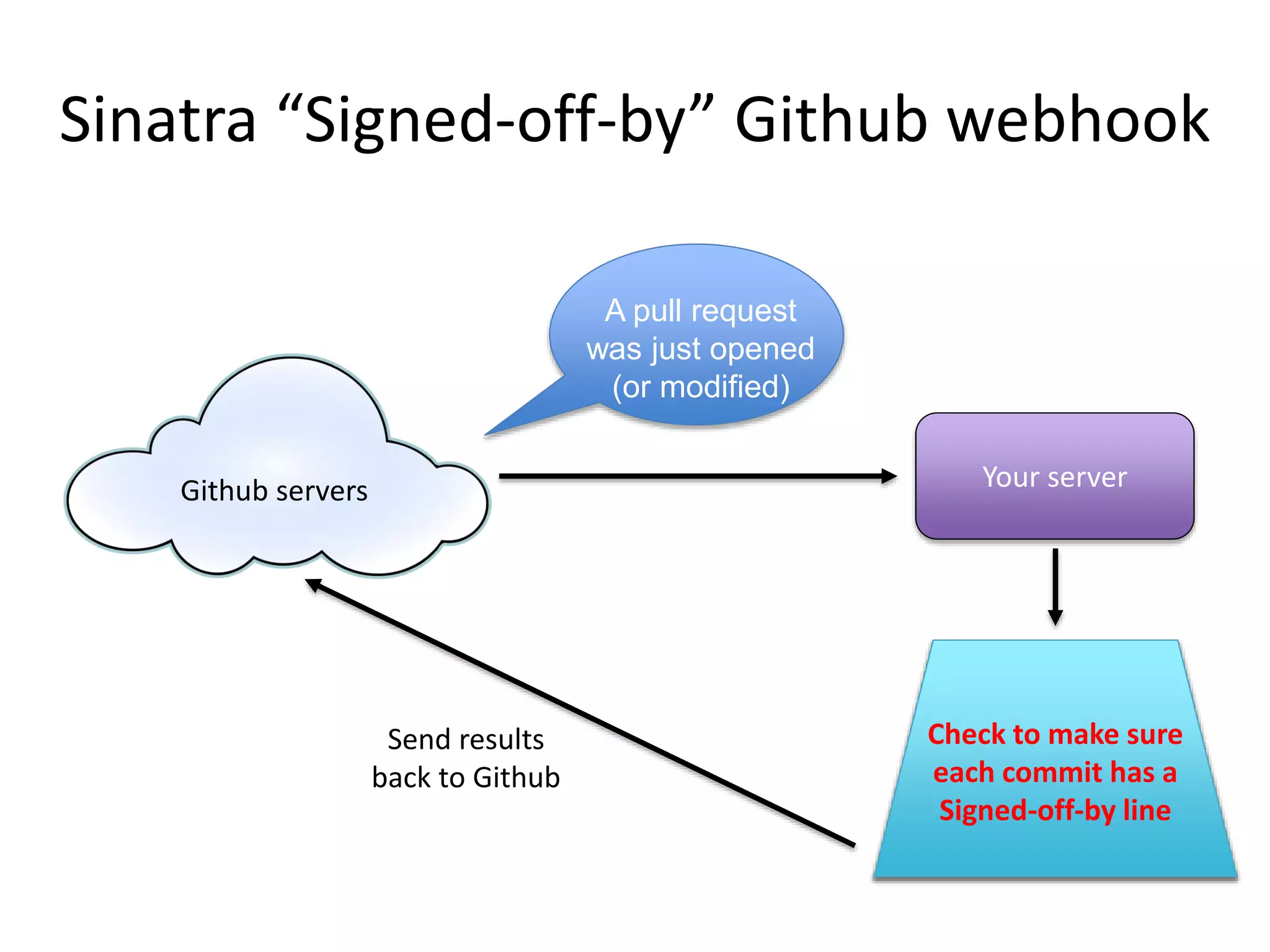

Sinatra “Signed-off-by” Github webhook
A pull request
was just opened
(or modified)
Check to make sure
each commit has a
Signed-off-by line
Send results
back to Github

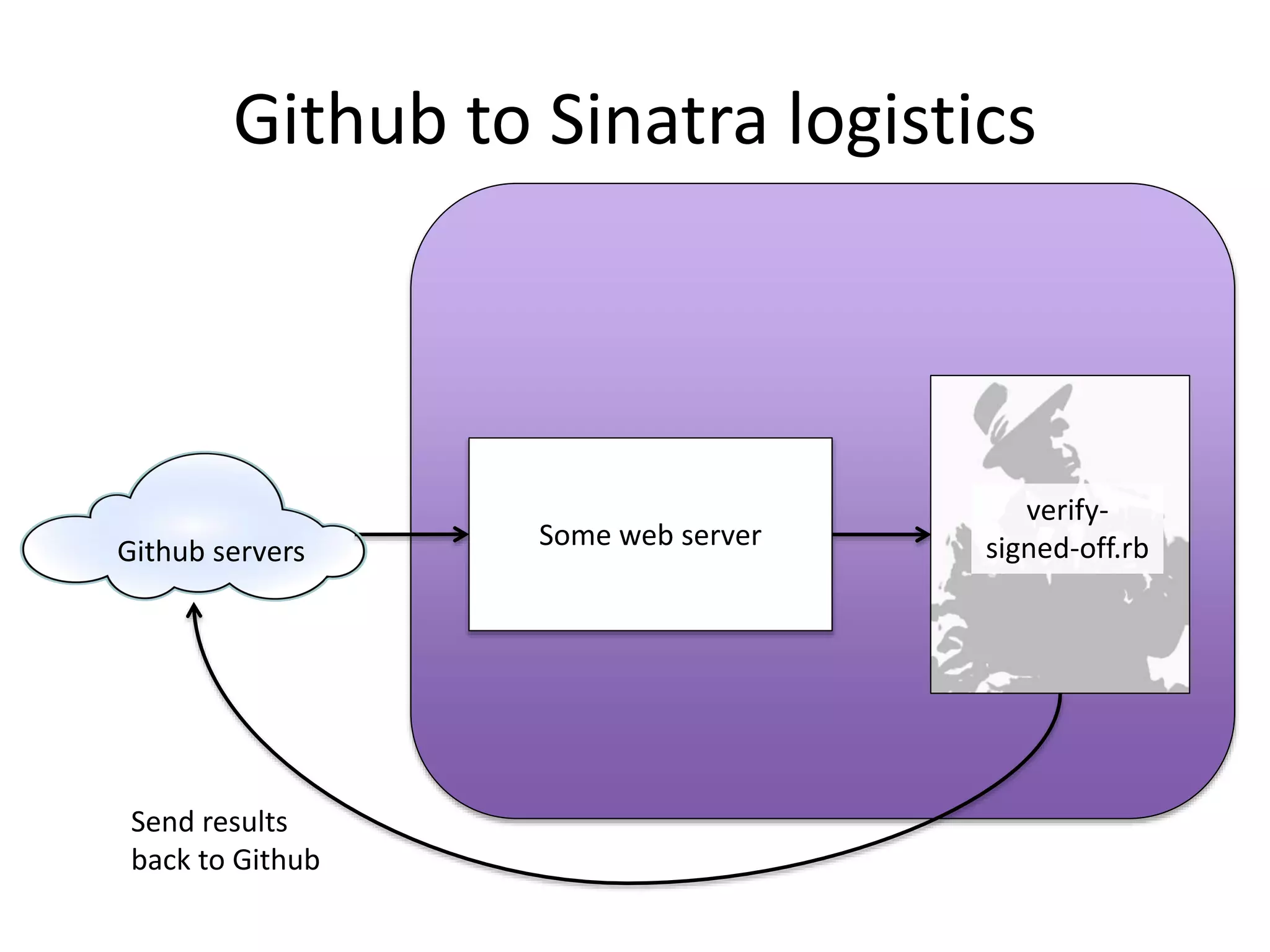

Github to Sinatra logistics
Github servers
Some web server
verify-
signed-off.rb
Send results
back to Github

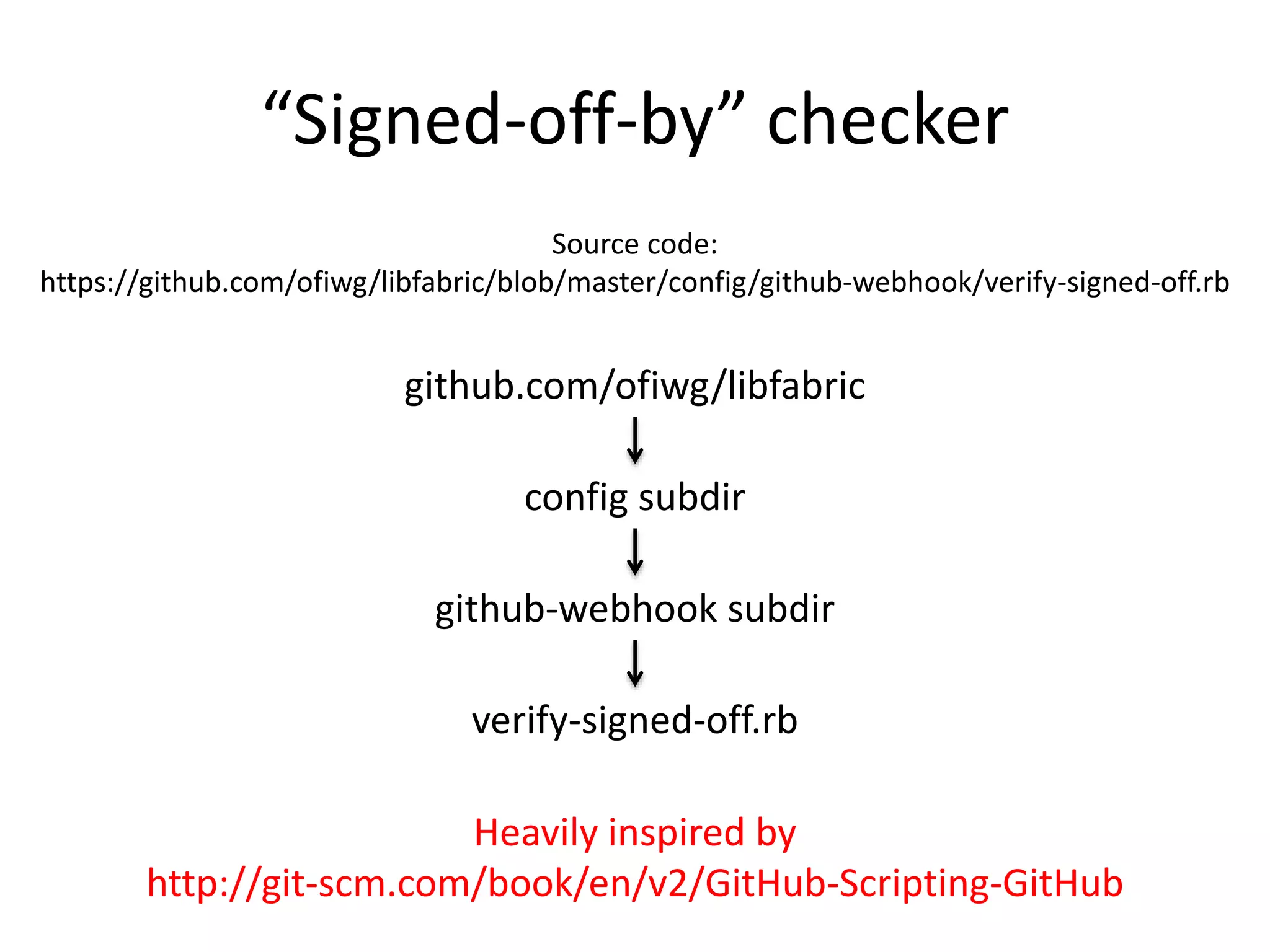

“Signed-off-by” checker
Source code:
https://github.com/ofiwg/libfabric/blob/master/config/github-webhook/verify-signed-off.rb
github.com/ofiwg/libfabric
config subdir
github-webhook subdir
verify-signed-off.rb
Heavily inspired by
http://git-scm.com/book/en/v2/GitHub-Scripting-GitHub

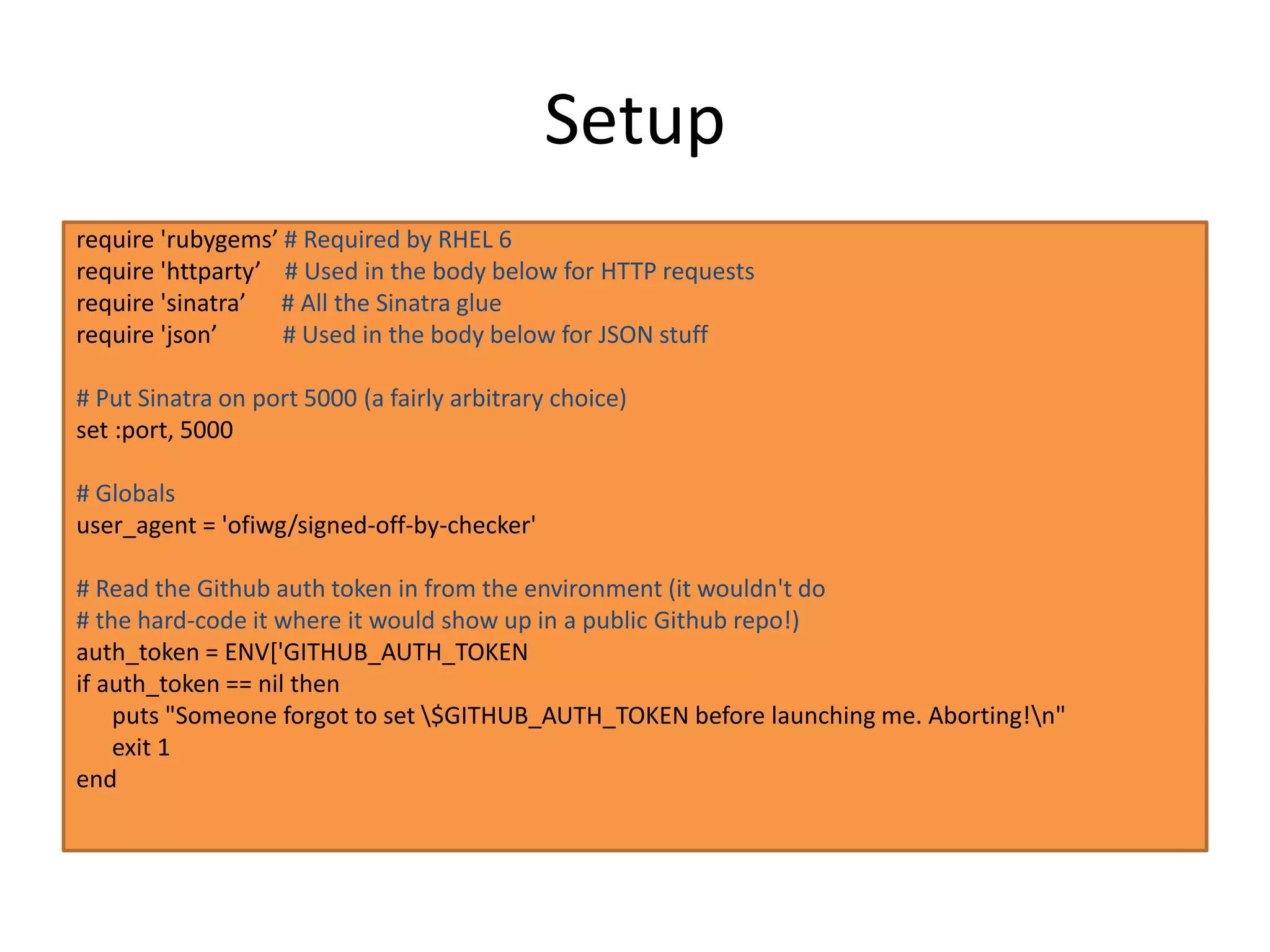

Setup
require 'rubygems’ # Required by RHEL 6
require 'httparty’ # Used in the body below for HTTP requests
require 'sinatra’ # All the Sinatra glue
require 'json’ # Used in the body below for JSON stuff
# Put Sinatra on port 5000 (a fairly arbitrary choice)
set :port, 5000
# Globals
user_agent = 'ofiwg/signed-off-by-checker'
# Read the Github auth token in from the environment (it wouldn't do
# the hard-code it where it would show up in a public Github repo!)
auth_token = ENV['GITHUB_AUTH_TOKEN
if auth_token == nil then
puts "Someone forgot to set $GITHUB_AUTH_TOKEN before launching me. Aborting!n"
exit 1
end

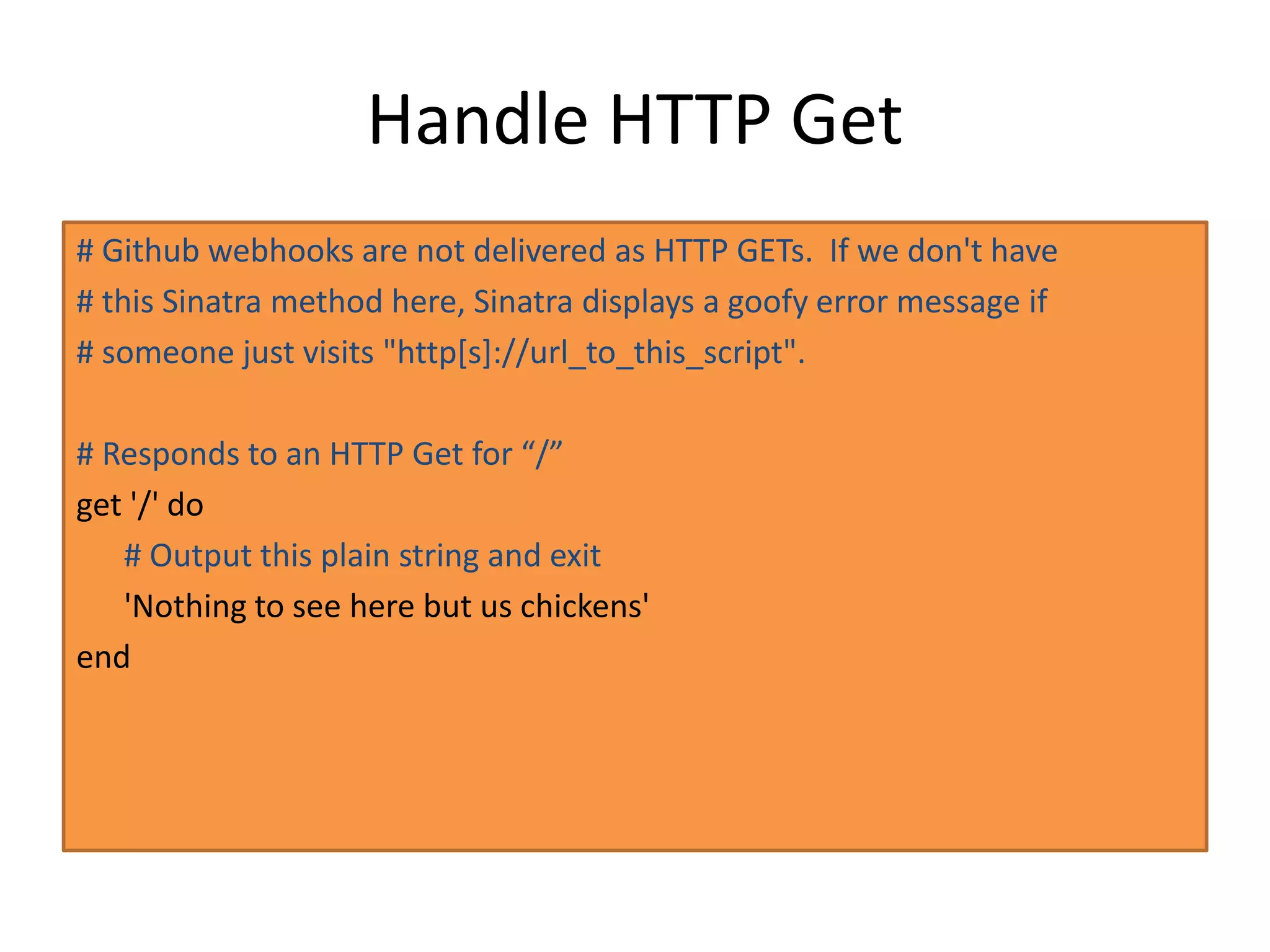

Handle HTTP Get
# Github webhooks are not delivered as HTTP GETs. If we don't have
# this Sinatra method here, Sinatra displays a goofy error message if
# someone just visits "http[s]://url_to_this_script".
# Responds to an HTTP Get for “/”
get '/' do
# Output this plain string and exit
'Nothing to see here but us chickens'
end

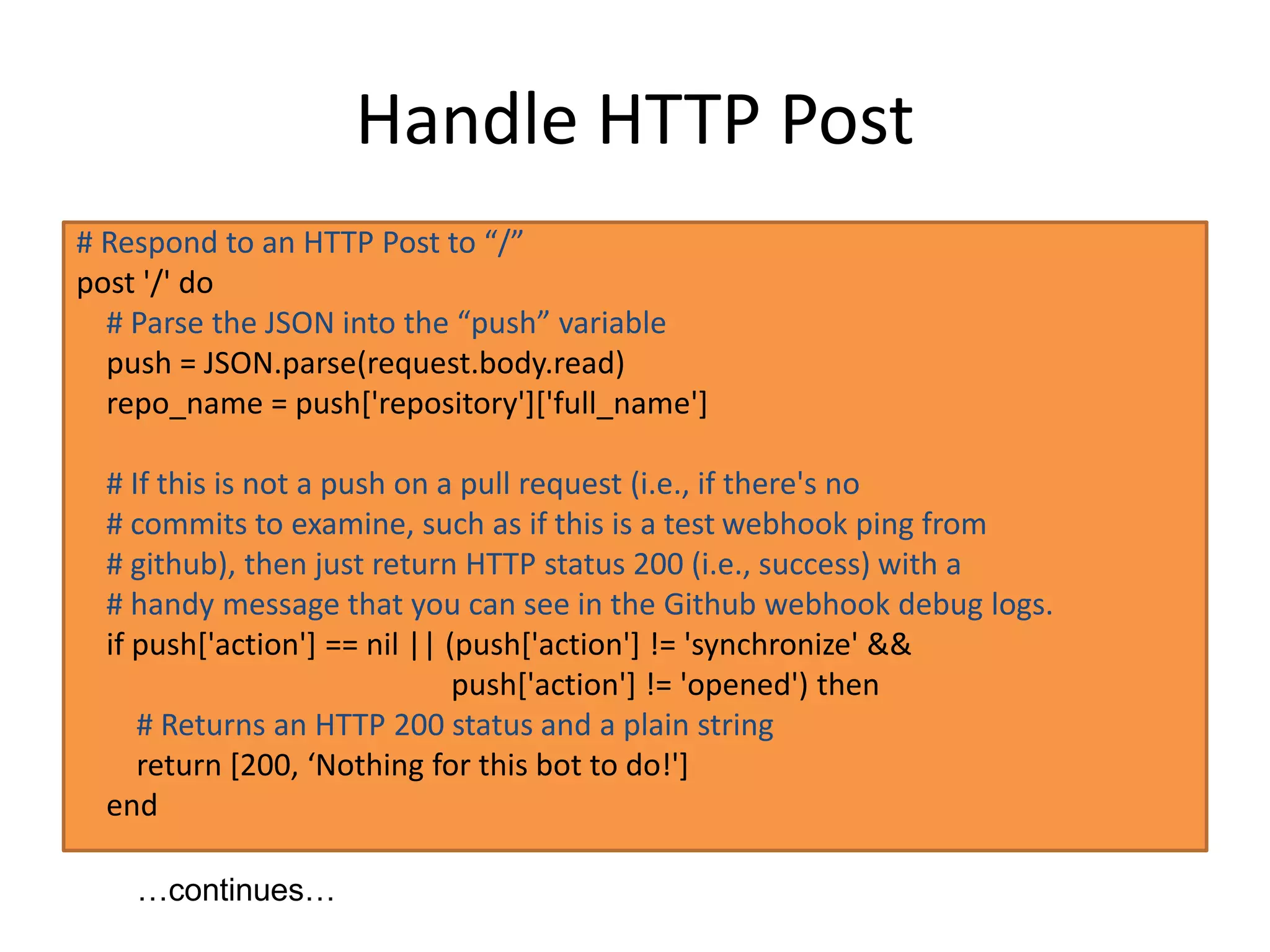

Handle HTTP Post
# Respond to an HTTP Post to “/”
post '/' do
# Parse the JSON into the “push” variable
push = JSON.parse(request.body.read)
repo_name = push['repository']['full_name']
# If this is not a push on a pull request (i.e., if there's no
# commits to examine, such as if this is a test webhook ping from
# github), then just return HTTP status 200 (i.e., success) with a
# handy message that you can see in the Github webhook debug logs.
if push['action'] == nil || (push['action'] != 'synchronize' &&
push['action'] != 'opened') then
# Returns an HTTP 200 status and a plain string
return [200, ‘Nothing for this bot to do!']
end
…continues…

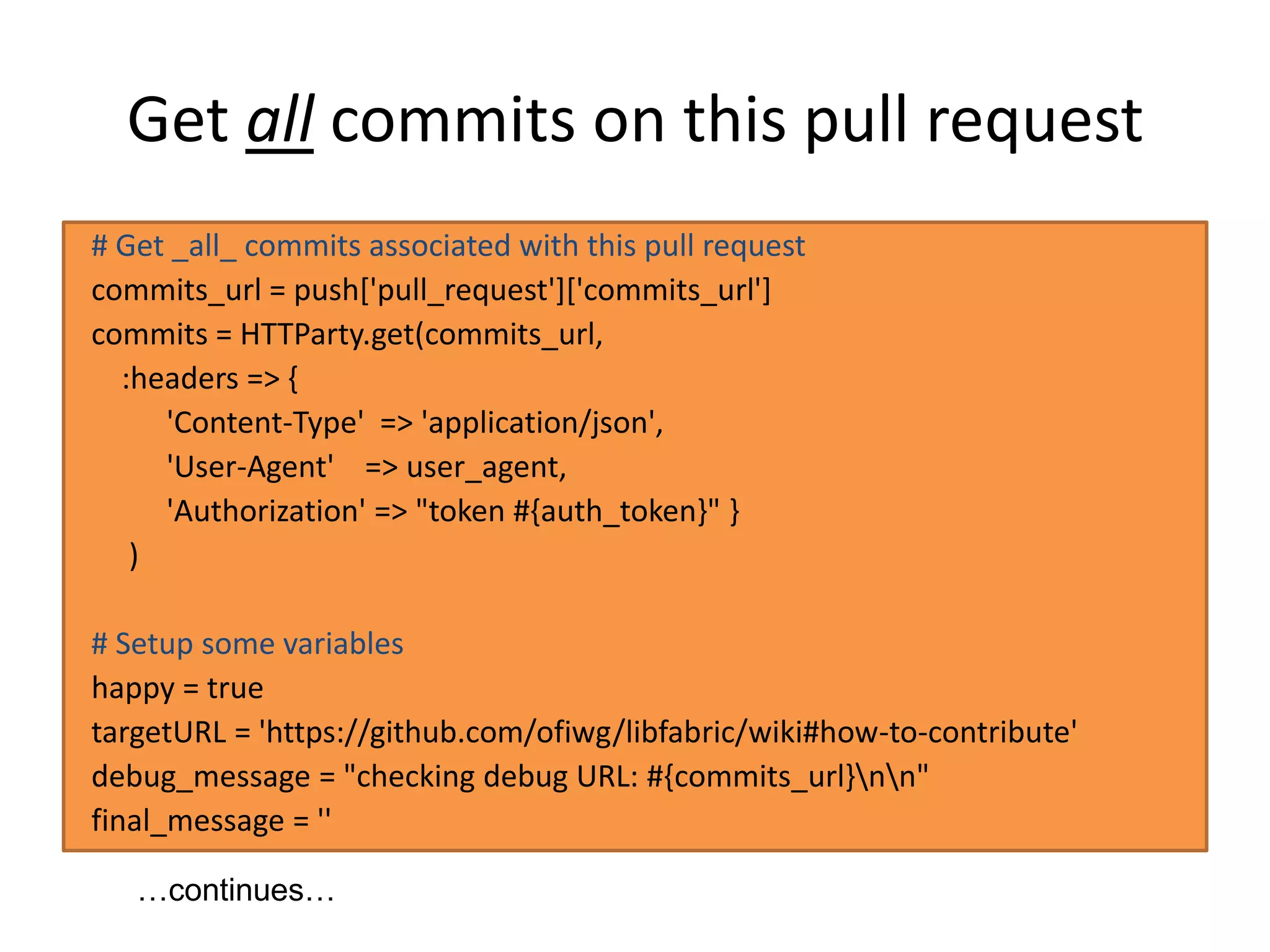

Get all commits on this pull request
# Get _all_ commits associated with this pull request
commits_url = push['pull_request']['commits_url']
commits = HTTParty.get(commits_url,
:headers => {
'Content-Type' => 'application/json',
'User-Agent' => user_agent,
'Authorization' => "token #{auth_token}" }
)
# Setup some variables
happy = true
targetURL = 'https://github.com/ofiwg/libfabric/wiki#how-to-contribute'
debug_message = "checking debug URL: #{commits_url}nn"
final_message = ''
…continues…

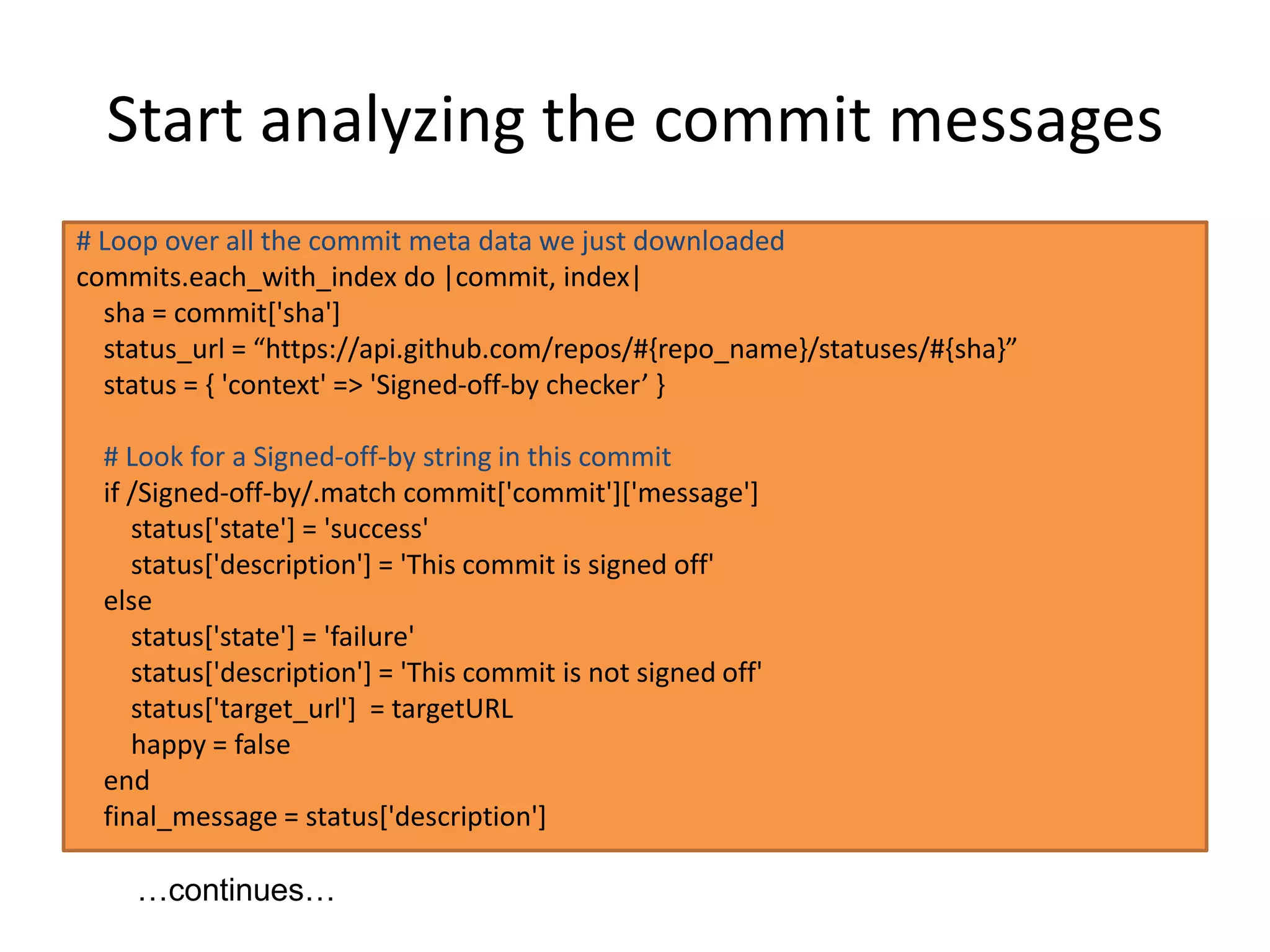

Start analyzing the commit messages
# Loop over all the commit meta data we just downloaded
commits.each_with_index do |commit, index|
sha = commit['sha']
status_url = “https://api.github.com/repos/#{repo_name}/statuses/#{sha}”
status = { 'context' => 'Signed-off-by checker’ }
# Look for a Signed-off-by string in this commit
if /Signed-off-by/.match commit['commit']['message']
status['state'] = 'success'
status['description'] = 'This commit is signed off'
else
status['state'] = 'failure'
status['description'] = 'This commit is not signed off'
status['target_url'] = targetURL
happy = false
end
final_message = status['description']
…continues…

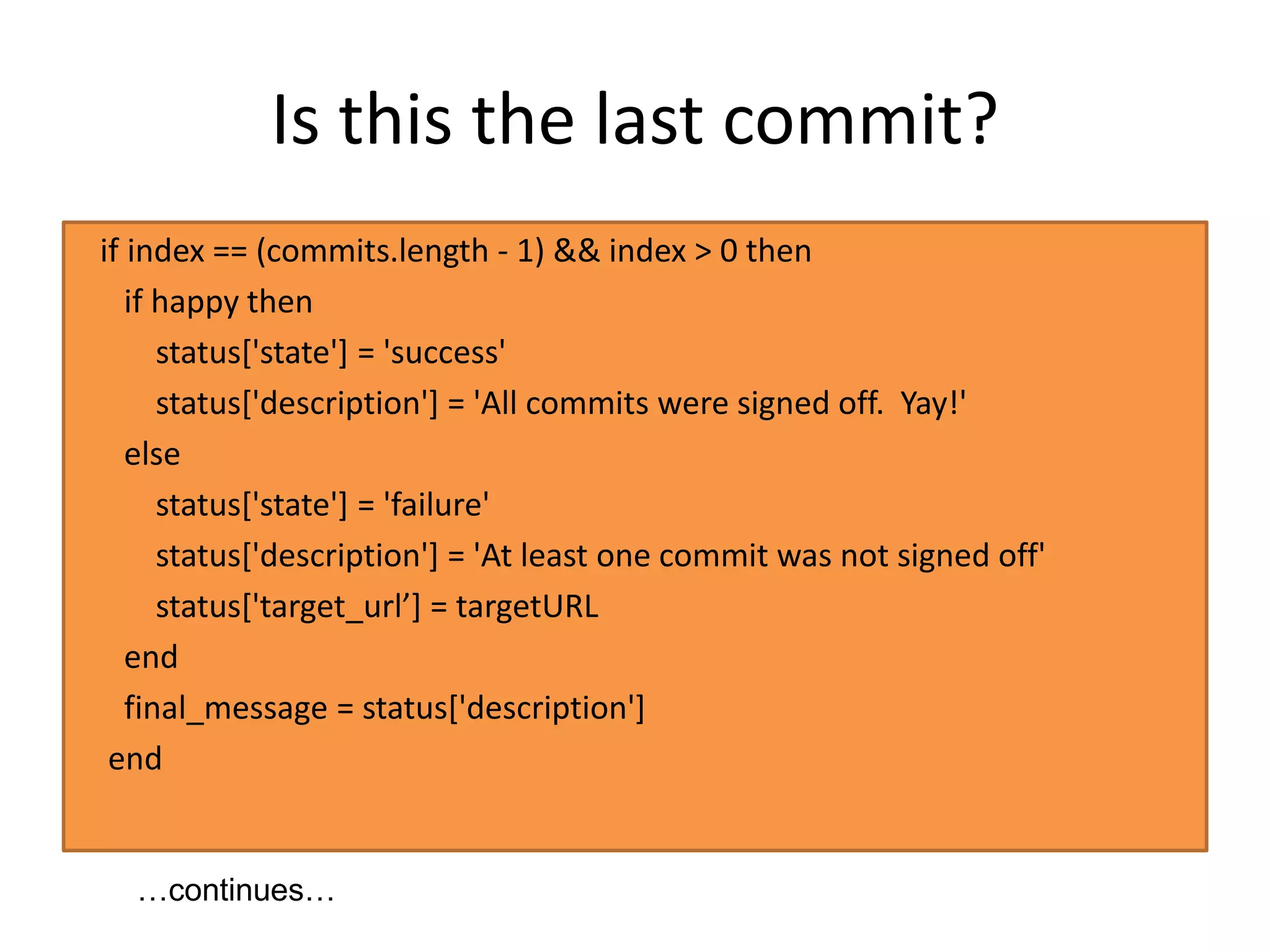

Is this the last commit?
if index == (commits.length - 1) && index > 0 then
if happy then
status['state'] = 'success'
status['description'] = 'All commits were signed off. Yay!'
else
status['state'] = 'failure'
status['description'] = 'At least one commit was not signed off'
status['target_url’] = targetURL
end
final_message = status['description']
end
…continues…

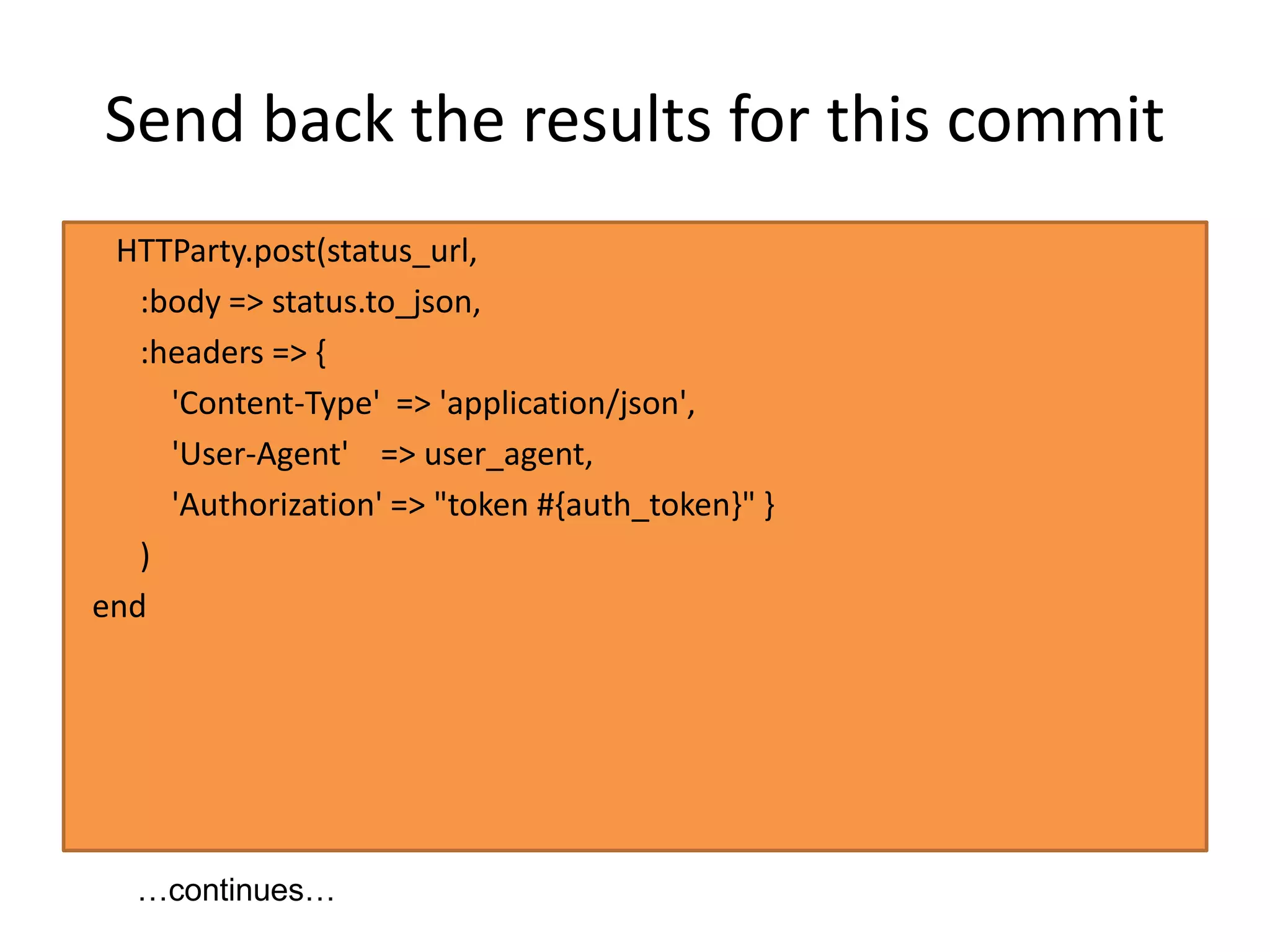

Send back the results for this commit
HTTParty.post(status_url,
:body => status.to_json,
:headers => {
'Content-Type' => 'application/json',
'User-Agent' => user_agent,
'Authorization' => "token #{auth_token}" }
)
end
…continues…

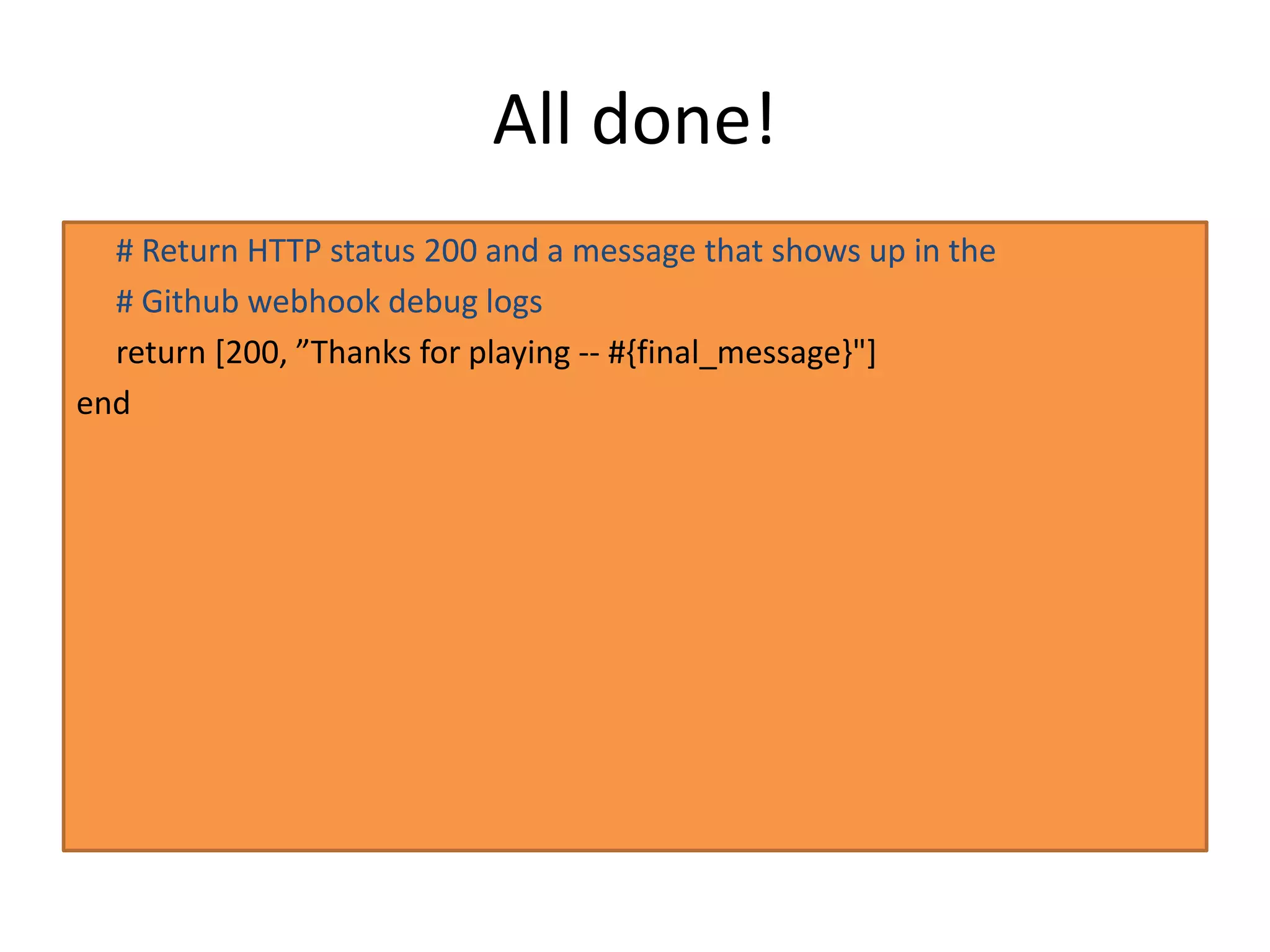

All done!
# Return HTTP status 200 and a message that shows up in the
# Github webhook debug logs
return [200, ”Thanks for playing -- #{final_message}"]
end
