This document summarizes Cisco's transition from using the Verbs API to using the Libfabric API for their usNIC network interface card. The Verbs API has limitations that make it difficult to support Ethernet features. Libfabric addresses these issues and more closely matches Cisco's hardware. Performance tests show Libfabric outperforming Verbs. Open MPI was adapted to support Libfabric through new plugins. This allows Libfabric to be used for both provider-specific and portable communication, benefiting MPI implementations. Cisco believes Libfabric is the best path forward as it matches their hardware, has performance benefits, and features MPI implementations have wanted.

1. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 1© 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 1
Cisco’s Journey
From Verbs to Libfabric
Abondon the shackles of Verbs
Embrace the freedom of Libfabric
Jeffrey M. Squyres
Cisco Systems
23 September 2015

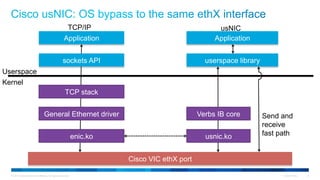

2. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 2
Application
Kernel
Cisco VIC ethX port
TCP stack
General Ethernet driver
enic.ko
Userspace
sockets API userspace library
Application
Verbs IB core
usnic.ko
Send and
receive
fast path
usNICTCP/IP

3. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 3© 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 3
Verbs is a fine API.
…if you make InfiniBand hardware.

4. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 4© 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 4
...but now there’s this libfabric thing
(see libfabric.org community for details)

5. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 5

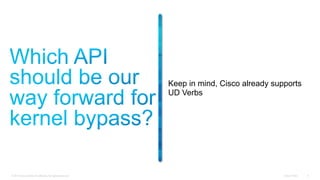

Keep in mind, Cisco already supports
UD Verbs

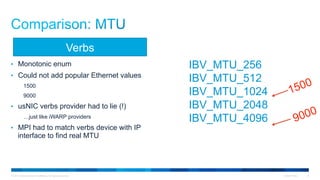

6. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 6
• Monotonic enum
• Could not add popular Ethernet values
1500
9000
• usNIC verbs provider had to lie (!)
…just like iWARP providers
• MPI had to match verbs device with IP
interface to find real MTU
Verbs
IBV_MTU_256
IBV_MTU_512
IBV_MTU_1024
IBV_MTU_2048
IBV_MTU_4096

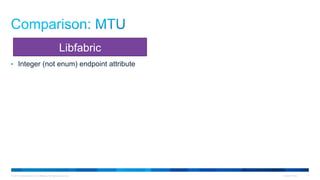

7. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 7
• Integer (not enum) endpoint attribute
Libfabric

8. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 8

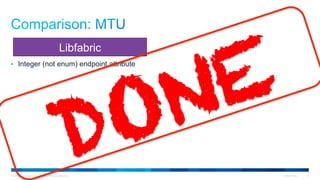

• Integer (not enum) endpoint attribute
Libfabric
DONE

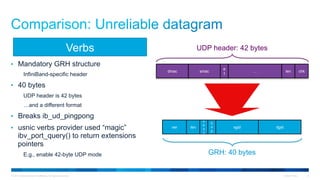

9. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 9
• Mandatory GRH structure
InfiniBand-specific header
• 40 bytes
UDP header is 42 bytes
…and a different format
• Breaks ib_ud_pingpong
• usnic verbs provider used “magic”
ibv_port_query() to return extensions
pointers
E.g., enable 42-byte UDP mode
Verbs
e
t
len chksmacdmac …
ver len
n
e
x
t
h
o
p
sgid dgid
UDP header: 42 bytes
GRH: 40 bytes

10. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 10

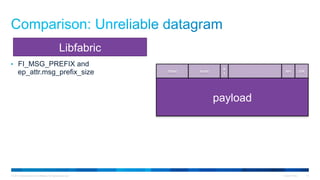

• FI_MSG_PREFIX and
ep_attr.msg_prefix_size
Libfabric
e
t
len chksmacdmac …
payload

11. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 11
• FI_MSG_PREFIX and
ep_attr.msg_prefix_size
Libfabric
e
t
len chksmacdmac …
payload
DONE

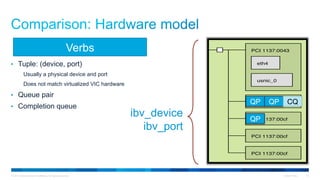

12. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 12
• Tuple: (device, port)
Usually a physical device and port
Does not match virtualized VIC hardware
• Queue pair
• Completion queue
Verbs
PU P#9
PCI 8086:1521
eth3
PCI 1137:0043
eth4
usnic_0
PCI 1137:00cf
PCI 1137:00cf
PCI 1137:00cf
PCI 1137:00cf
PCI 1137:0043
ibv_device
ibv_port
QP QP CQ
QP

13. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 13

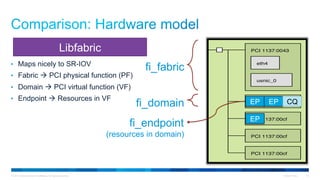

• Maps nicely to SR-IOV
• Fabric à PCI physical function (PF)
• Domain à PCI virtual function (VF)
• Endpoint à Resources in VF
PU P#9
PCI 8086:1521
eth3
PCI 1137:0043
eth4
usnic_0
PCI 1137:00cf
PCI 1137:00cf
PCI 1137:00cf
PCI 1137:00cf
PCI 1137:0043
Libfabric
fi_fabric
fi_domain
fi_endpoint
(resources in domain)
EP EP CQ
EP

14. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 14
• GID and GUID
No easy mapping back to IP interface
• usnic verbs provider encoded MAC in
GID
Still cumbersome to map back to IP interface
• Could use RDMA CM
…but that would be a ton more code
Verbs
mac[0] = gid->raw[8] ^ 2;
mac[1] = gid->raw[9];
mac[2] = gid->raw[10];
mac[3] = gid->raw[13];
mac[4] = gid->raw[14];
mac[5] = gid->raw[15];

15. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 15

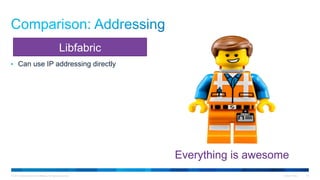

• Can use IP addressing directly
Libfabric
Everything is awesome

16. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 16

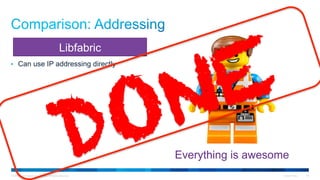

• Can use IP addressing directly
Libfabric
Everything is awesomeDONE

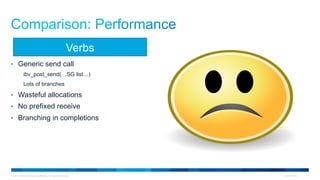

17. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 17
• Generic send call
ibv_post_send(…SG list…)
Lots of branches
• Wasteful allocations
• No prefixed receive
• Branching in completions
Verbs

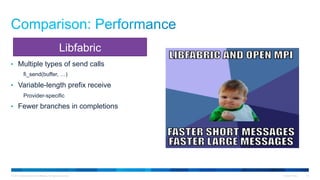

18. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 18
• Multiple types of send calls
fi_send(buffer, …)
• Variable-length prefix receive
Provider-specific
• Fewer branches in completions
Libfabric

19. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 19

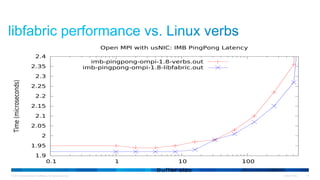

1.9
1.95
2
2.05
2.1
2.15
2.2
2.25
2.3
2.35
2.4
0.1 1 10 100
Time(microseconds)
Buffer size
Open MPI with usNIC: IMB PingPong Latency
imb-pingpong-ompi-1.8-verbs.out
imb-pingpong-ompi-1.8-libfabric.out

20. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 20

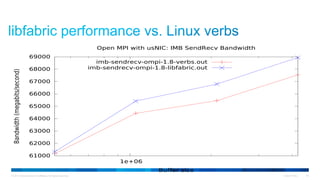

61000
62000
63000
64000
65000
66000
67000
68000
69000
1e+06
Bandwidth(megabits/second)
Buffer size
Open MPI with usNIC: IMB SendRecv Bandwidth
imb-sendrecv-ompi-1.8-verbs.out
imb-sendrecv-ompi-1.8-libfabric.out

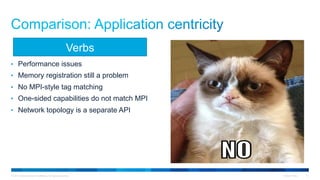

21. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 21
• Performance issues
• Memory registration still a problem
• No MPI-style tag matching
• One-sided capabilities do not match MPI
• Network topology is a separate API
Verbs

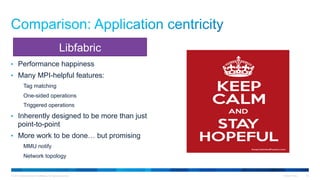

22. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 22
• Performance happiness
• Many MPI-helpful features:
Tag matching
One-sided operations
Triggered operations
• Inherently designed to be more than just
point-to-point
• More work to be done… but promising
MMU notify
Network topology
Libfabric

23. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 23

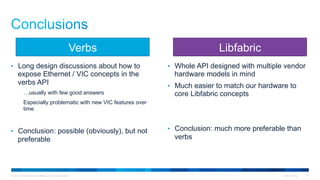

• Long design discussions about how to
expose Ethernet / VIC concepts in the
verbs API
…usually with few good answers
Especially problematic with new VIC features over
time
• Conclusion: possible (obviously), but not
preferable
• Whole API designed with multiple vendor
hardware models in mind
• Much easier to match our hardware to
core Libfabric concepts
• Conclusion: much more preferable than
verbs
LibfabricVerbs

24. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 24© 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 24
Ok, so let’s do libfabric!

25. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 25© 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 25
Does it play well with MPI?

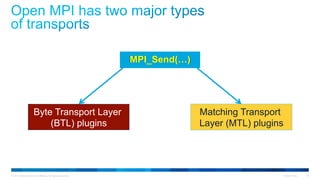

26. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 26
Byte Transport Layer
(BTL) plugins
Matching Transport
Layer (MTL) plugins
MPI_Send(…)

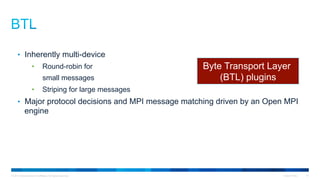

27. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 27
• Inherently multi-device
• Round-robin for
small messages
• Striping for large messages
• Major protocol decisions and MPI message matching driven by an Open MPI
engine
Byte Transport Layer
(BTL) plugins

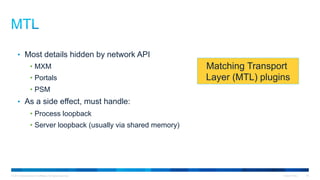

28. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 28
Matching Transport
Layer (MTL) plugins
• Most details hidden by network API
• MXM
• Portals
• PSM
• As a side effect, must handle:
• Process loopback
• Server loopback (usually via shared memory)

29. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 29

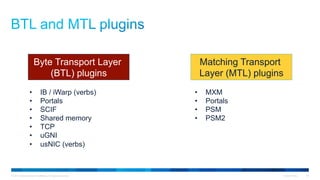

Byte Transport Layer
(BTL) plugins
Matching Transport
Layer (MTL) plugins
• IB / iWarp (verbs)
• Portals
• SCIF
• Shared memory
• TCP
• uGNI
• usNIC (verbs)
• MXM
• Portals
• PSM
• PSM2

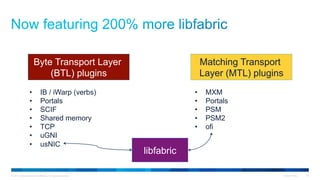

30. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 30
• IB / iWarp (verbs)
• Portals
• SCIF
• Shared memory
• TCP
• uGNI
• usNIC
Byte Transport Layer
(BTL) plugins
Matching Transport
Layer (MTL) plugins
• MXM
• Portals
• PSM
• PSM2
• ofi
libfabric

31. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 31

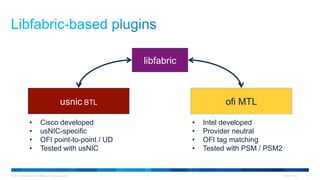

libfabric
usnic BTL ofi MTL
• Cisco developed
• usNIC-specific
• OFI point-to-point / UD
• Tested with usNIC
• Intel developed
• Provider neutral
• OFI tag matching
• Tested with PSM / PSM2

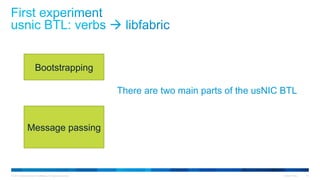

32. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 32
Bootstrapping
Message passing
There are two main parts of the usNIC BTL

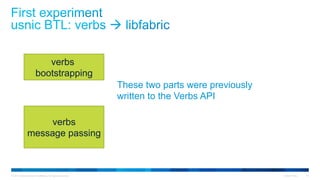

33. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 33
verbs
bootstrapping
verbs
message passing
These two parts were previously
written to the Verbs API

34. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 34

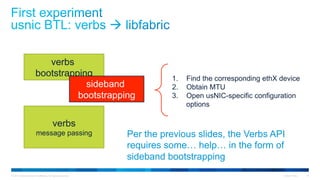

verbs
bootstrapping
verbs
message passing
sideband
bootstrapping
1. Find the corresponding ethX device
2. Obtain MTU
3. Open usNIC-specific configuration
options
Per the previous slides, the Verbs API
requires some… help… in the form of
sideband bootstrapping

35. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 35

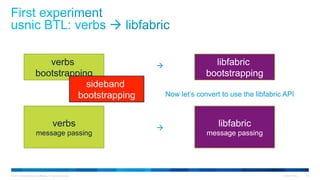

verbs
bootstrapping
verbs
message passing
sideband
bootstrapping
libfabric
bootstrapping
à
libfabric
message passing
à
Now let’s convert to use the libfabric API

36. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 36
verbs
bootstrapping
verbs
message passing
sideband
bootstrapping
libfabric
bootstrapping
à
libfabric
message passing
àPretty much a ~1:1 swap of verbs à libfabric calls
Bootstrapping sequence totally different / not comparable
…but libfabric needs no sideband bootstrapping
(got to delete several hundred lines of OMPI code – yay!)

37. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 37
• For a specific provider
Ask fi_getinfo() for
prov_name=“usnic”
• Use usNIC extensions
Netmask, link speed, IP device
name, etc.
• usNIC-specific error
messages
• For any tag-matching
provider
• No extension use
100% portable
• Generic error messages
usnic BTL ofi MTL

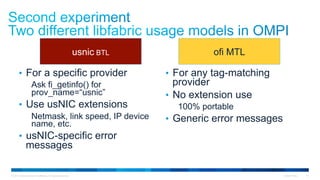

38. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 38
• For a specific provider
Ask fi_getinfo() for
prov_name=“usnic”
• Use usNIC extensions
Netmask, link speed, IP device
name, etc.
• usNIC-specific error
messages
• For any tag-matching
provider
• No extension use
100% portable
• Generic error messages
usnic BTL ofi MTL
Both libfabric usage models co-exist
(and play well with each other)
inside a single MPI implementation.
Proof positive
of successful co-design
of libfabric and MPI implementations.

39. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 39
• For a specific provider
Ask fi_getinfo() for
prov_name=“usnic”
• Use usNIC extensions
Netmask, link speed, IP device
name, etc.
• usNIC-specific error
messages
• For any tag-matching
provider
• No extension use
100% portable
• Generic error messages
usnic BTL ofi MTL

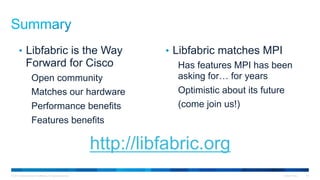

40. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 40
• Libfabric is the Way
Forward for Cisco
Open community
Matches our hardware
Performance benefits
Features benefits
• Libfabric matches MPI
Has features MPI has been
asking for… for years
Optimistic about its future
(come join us!)
http://libfabric.org

41. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco Public 41
Thank you.
