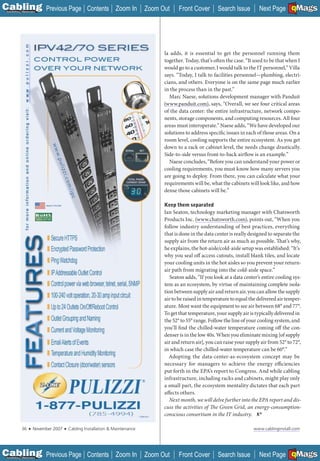

la adds, it is essential to get the personnel running them
together. Today, that’s often the case. “It used to be that when I
would go to a customer, I would talk to the IT personnel,” Villa
says. “Today, I talk to facilities personnel—plumbing, electri-
cians, and others. Everyone is on the same page much earlier
in the process than in the past.”
Marc Naese, solutions development manager with Panduit
(www.panduit.com), says, “Overall, we see four critical areas
of the data center: the entire infrastructure, network compo-
nents, storage components, and computing resources. All four
areas must interoperate.” Naese adds, “We have developed our
solutions to address specific issues in each of those areas. On a
room level, cooling supports the entire ecosystem. As you get
down to a rack or cabinet level, the needs change drastically.
Side-to-side versus front-to-back airflow is an example.”
Naese concludes, “Before you can understand your power or
cooling requirements, you must know how many servers you
are going to deploy. From there, you can calculate what your
requirements will be, what the cabinets will look like, and how
dense those cabinets will be.”
Keep them separated
Ian Seaton, technology marketing manager with Chatsworth
Products Inc. (www.chatsworth.com), points out, “When you
follow industry understanding of best practices, everything
that is done in the data center is really designed to separate the
supply air from the return air as much as possible. That’s why,
he explains, the hot-aisle/cold-aisle setup was established: “It’s
why you seal off access cutouts, install blank tiles, and locate
your cooling units in the hot aisles so you prevent your return-
air path from migrating into the cold-aisle space.”
Seaton adds, “If you look at a data center’s entire cooling sys-
tem as an ecosystem, by virtue of maintaining complete isola-
tion between supply air and return air, you can allow the supply
air to be raised in temperature to equal the delivered air temper-
ature. Most want the equipment to see air between 68° and 77°.
To get that temperature, your supply air is typically delivered in
the 52° to 55° range. Follow the line of your cooling system, and
you’ll find the chilled-water temperature coming off the con-
denser is in the low 40s. When you eliminate mixing [of supply
air and return air], you can raise your supply air from 52° to 72°,
in which case the chilled-water temperature can be 60°.”
Adopting the data-center-as-ecosystem concept may be
necessary for managers to achieve the energy efficiencies
put forth in the EPA’s report to Congress. And while cabling
infrastructure, including racks and cabinets, might play only
a small part, the ecosystem mentality dictates that each part
affects others.
Next month, we will delve further into the EPA report and dis-
cuss the activities of The Green Grid, an energy-consumption-
conscious consortium in the IT industry.
