Cisco EuroMPI'13 vendor session presentation
The document discusses Cisco's offerings for high performance computing (HPC) clusters, including Cisco UCS servers in various form factors, Cisco Nexus switches with low latency Ethernet, and Cisco's Virtual Interface Card (VIC) with the usNIC driver. It provides performance results showing ultra low latency of 2.16 microseconds for small Open MPI messages and 89.69% efficiency on High Performance Linpack across 512 cores on a 32 node cluster. Cisco positions its unified computing system as providing industry-leading compute performance for HPC workloads without compromise.
More Related Content
Similar to Cisco EuroMPI'13 vendor session presentation
![What is [Open] MPI?](https://cdn.slidesharecdn.com/ss_thumbnails/test-1230829557420508-1-thumbnail.jpg?width=640&height=640&fit=bounds)
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Cisco EuroMPI'13 vendor session presentation
- 1. Cisco Public 1©2013 Cisco and/or its affiliates. All rights reserved. WhyCiscoisAwesomeforYourNext HPCCluster Jeff Squyres Cisco Systems, Inc.

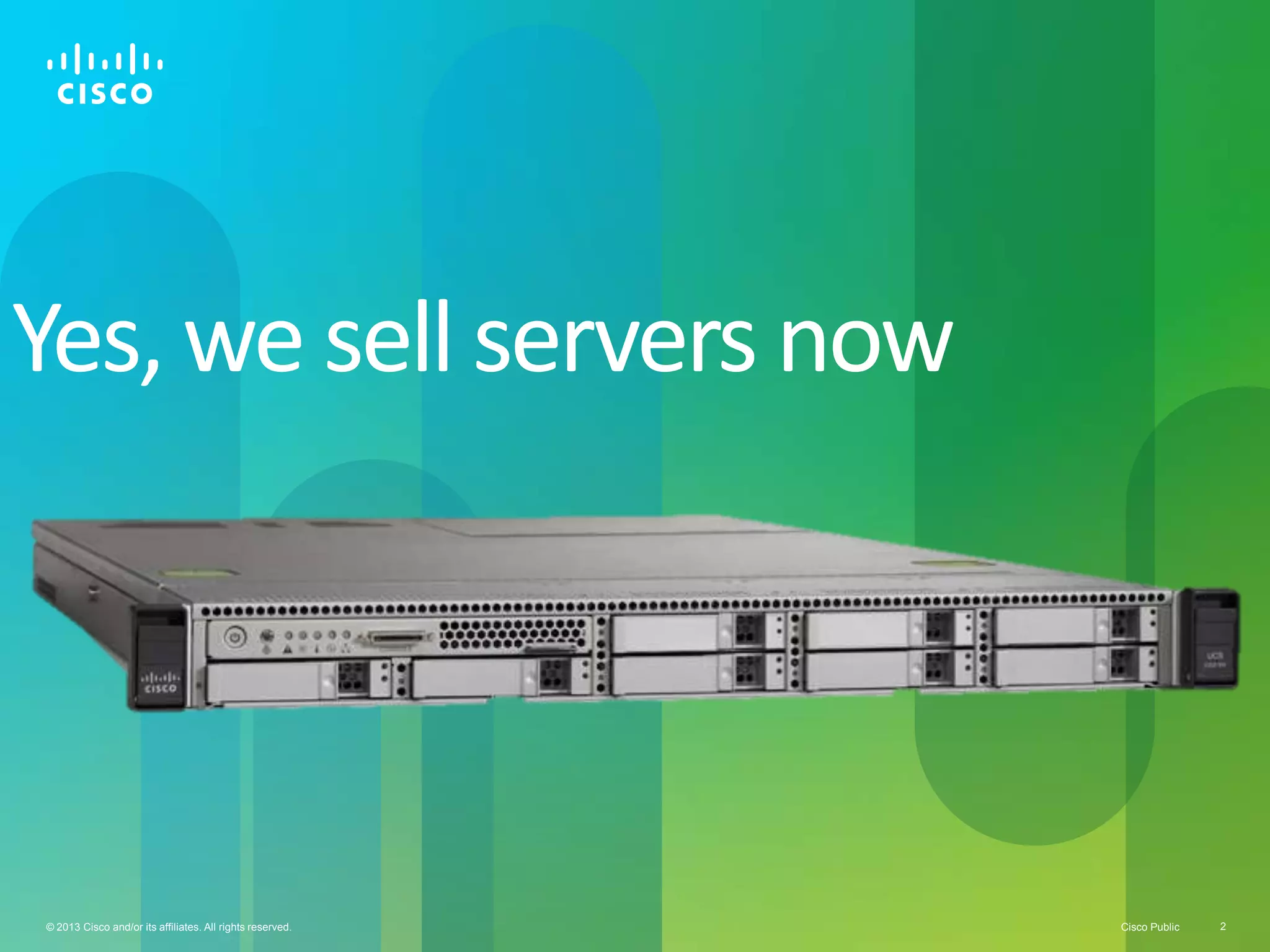

- 2. Cisco Public 2©2013 Cisco and/or its affiliates. All rights reserved. Yes, we sell servers now

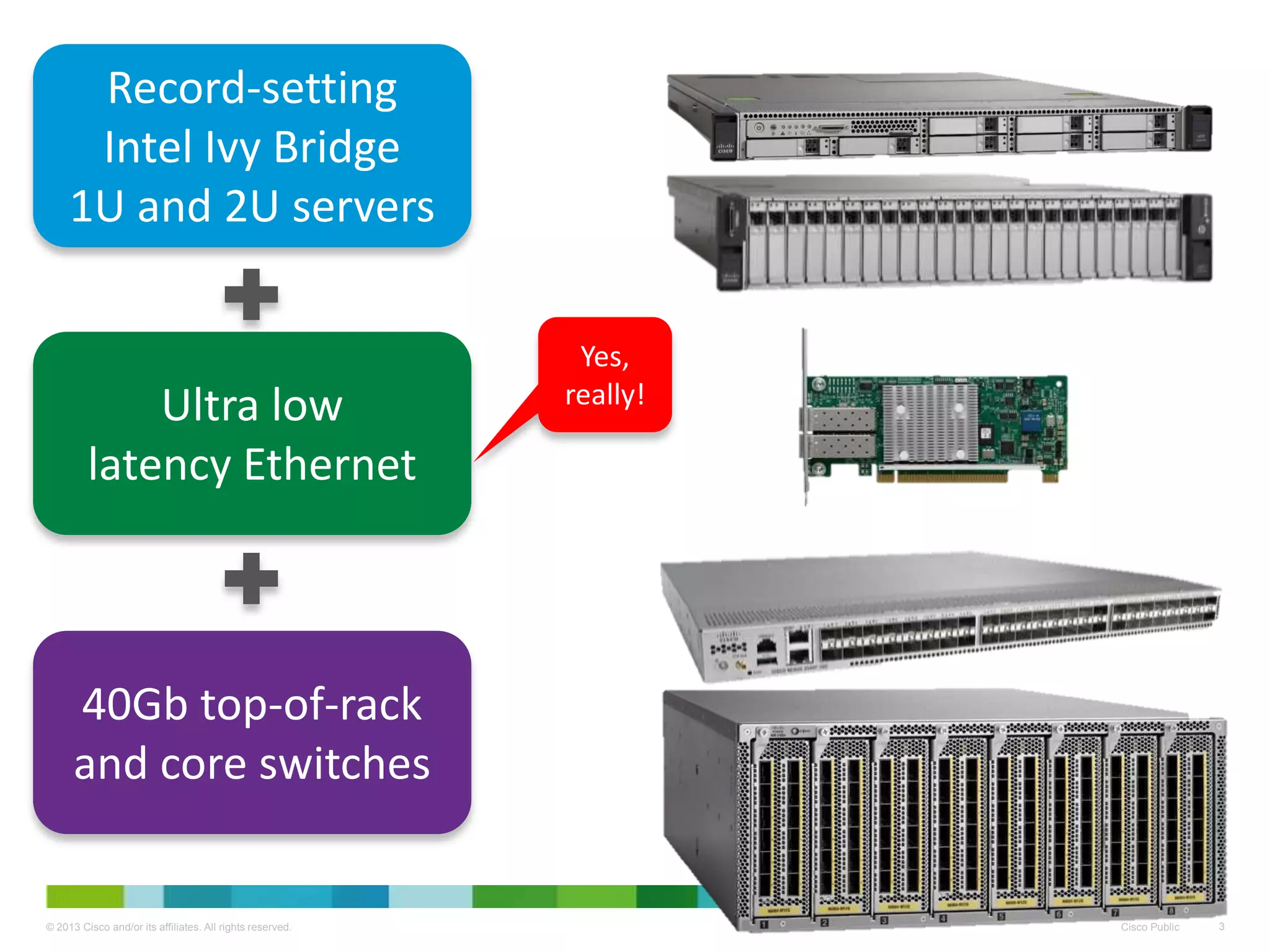

- 3. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 3 Cisco UCS servers Cisco 2 x 10Gb VIC Cisco 40Gb Nexus switches Record-setting Intel Ivy Bridge 1U and 2U servers Ultra low latency Ethernet Yes, really! 40Gb top-of-rack and core switches

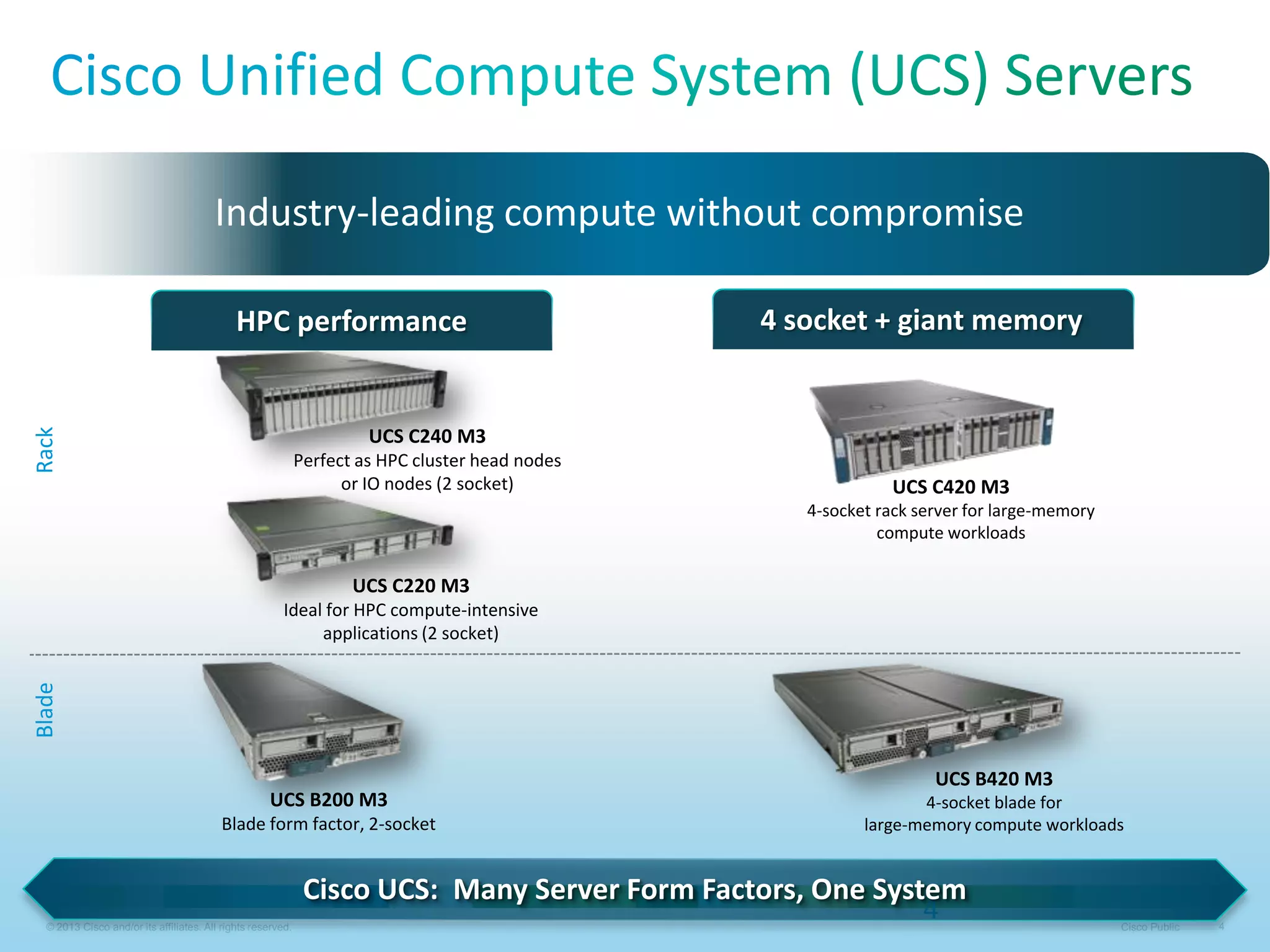

- 4. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 4 4 Rack 4 socket + giant memoryHPC performance Blade UCS B420 M3 4-socket blade for large-memory compute workloads Cisco UCS: Many Server Form Factors, One System UCS C240 M3 Perfect as HPC cluster head nodes or IO nodes (2 socket) UCS C220 M3 Ideal for HPC compute-intensive applications (2 socket) UCS B200 M3 Blade form factor, 2-socket UCS C420 M3 4-socket rack server for large-memory compute workloads Industry-leading compute without compromise

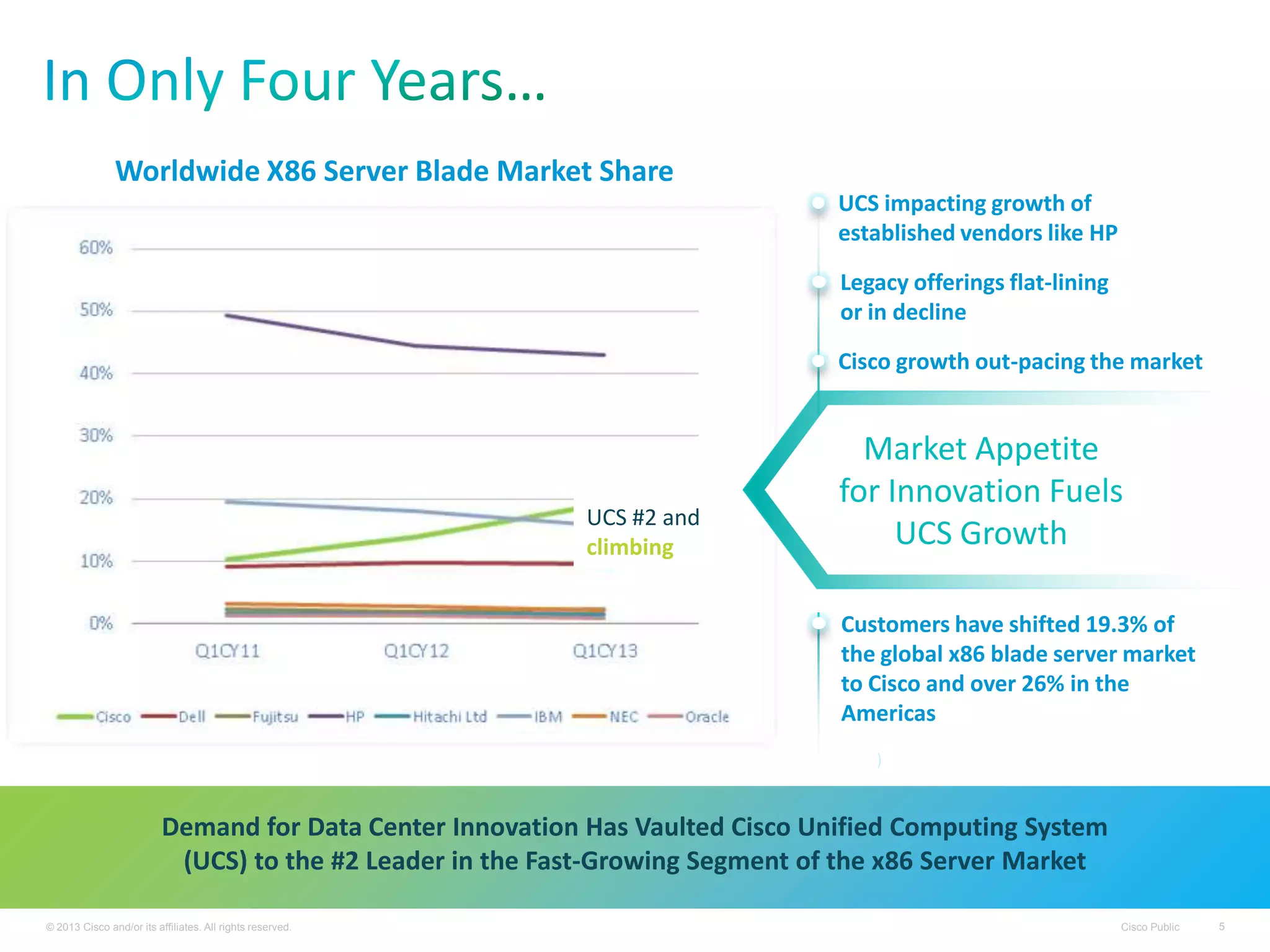

- 5. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 5 UCS impacting growth of established vendors like HP Legacy offerings flat-lining or in decline Cisco growth out-pacing the market Customers have shifted 19.3% of the global x86 blade server market to Cisco and over 26% in the Americas (Source: IDC Worldwide Quarterly Server Tracker, Q1 2013 Revenue Share, May 2013)Source: IDC Worldwide Quarterly Server Tracker, Q1 2013 Revenue Share, May 2013 Worldwide X86 Server Blade Market Share Demand for Data Center Innovation Has Vaulted Cisco Unified Computing System (UCS) to the #2 Leader in the Fast-Growing Segment of the x86 Server Market Market Appetite for Innovation Fuels UCS Growth UCS #2 and climbing

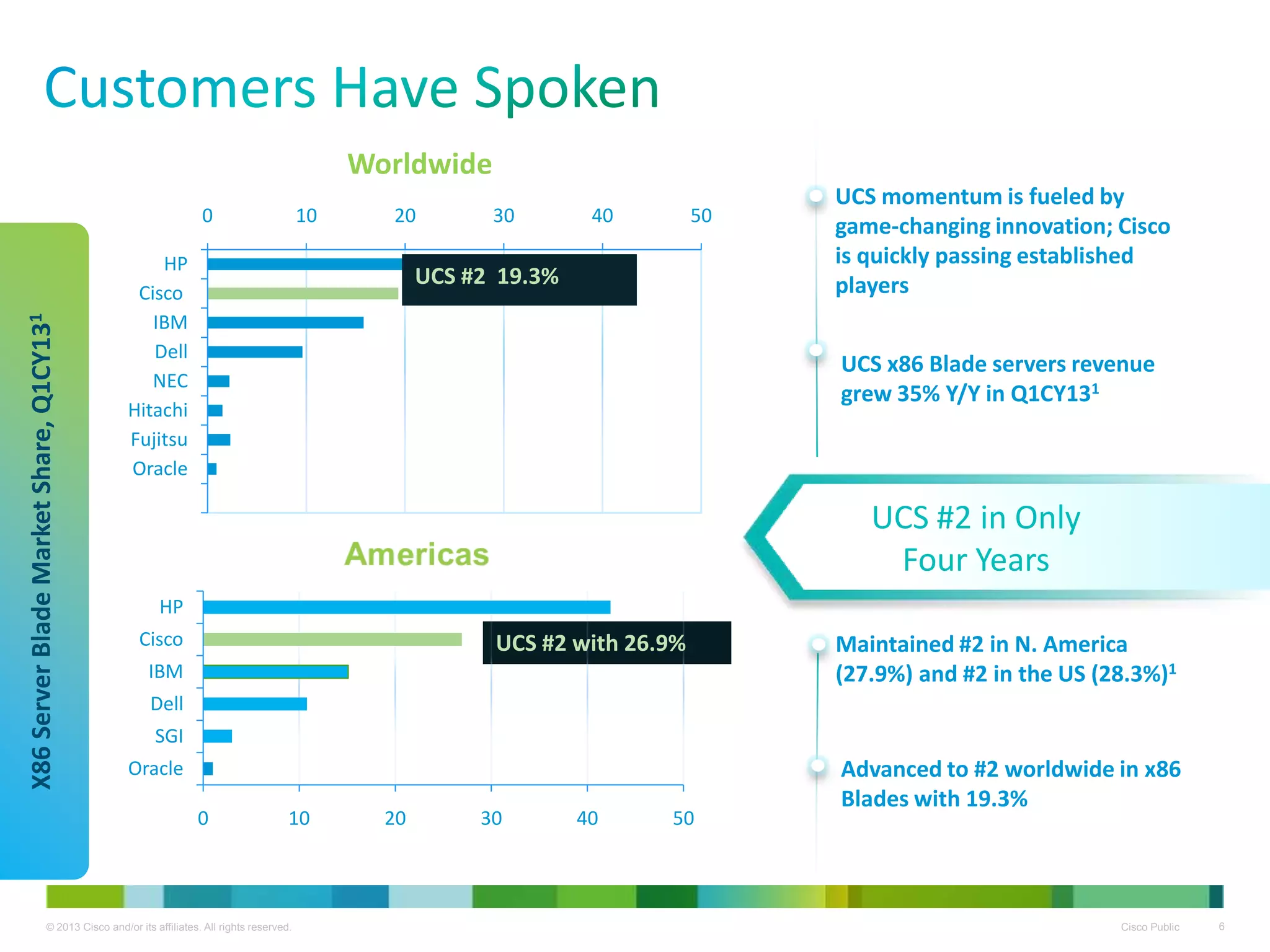

- 6. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 6 Maintained #2 in N. America (27.9%) and #2 in the US (28.3%)1 UCS x86 Blade servers revenue grew 35% Y/Y in Q1CY131 Advanced to #2 worldwide in x86 Blades with 19.3% UCS momentum is fueled by game-changing innovation; Cisco is quickly passing established players UCS #2 in Only Four Years X86ServerBladeMarketShare,Q1CY131 UCS #2 with 26.9% Source: 1 IDC Worldwide Quarterly Server Tracker, Q1 2013, May 2013, Revenue Share 0 10 20 30 40 50 HP Cisco IBM Dell NEC Hitachi Fujitsu Oracle Worldwide UCS #2 19.3% 0 10 20 30 40 50 Oracle SGI Dell IBM Cisco HP
- 7. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 7 Best CPU Performance 16 world records Best Virtualization & Cloud Performance 8 world records Best Database Performance 9 world records Best Enterprise Application Performance 18 world records Best Enterprise Middleware Performance 14 world records Best HPC Performance 15 world records

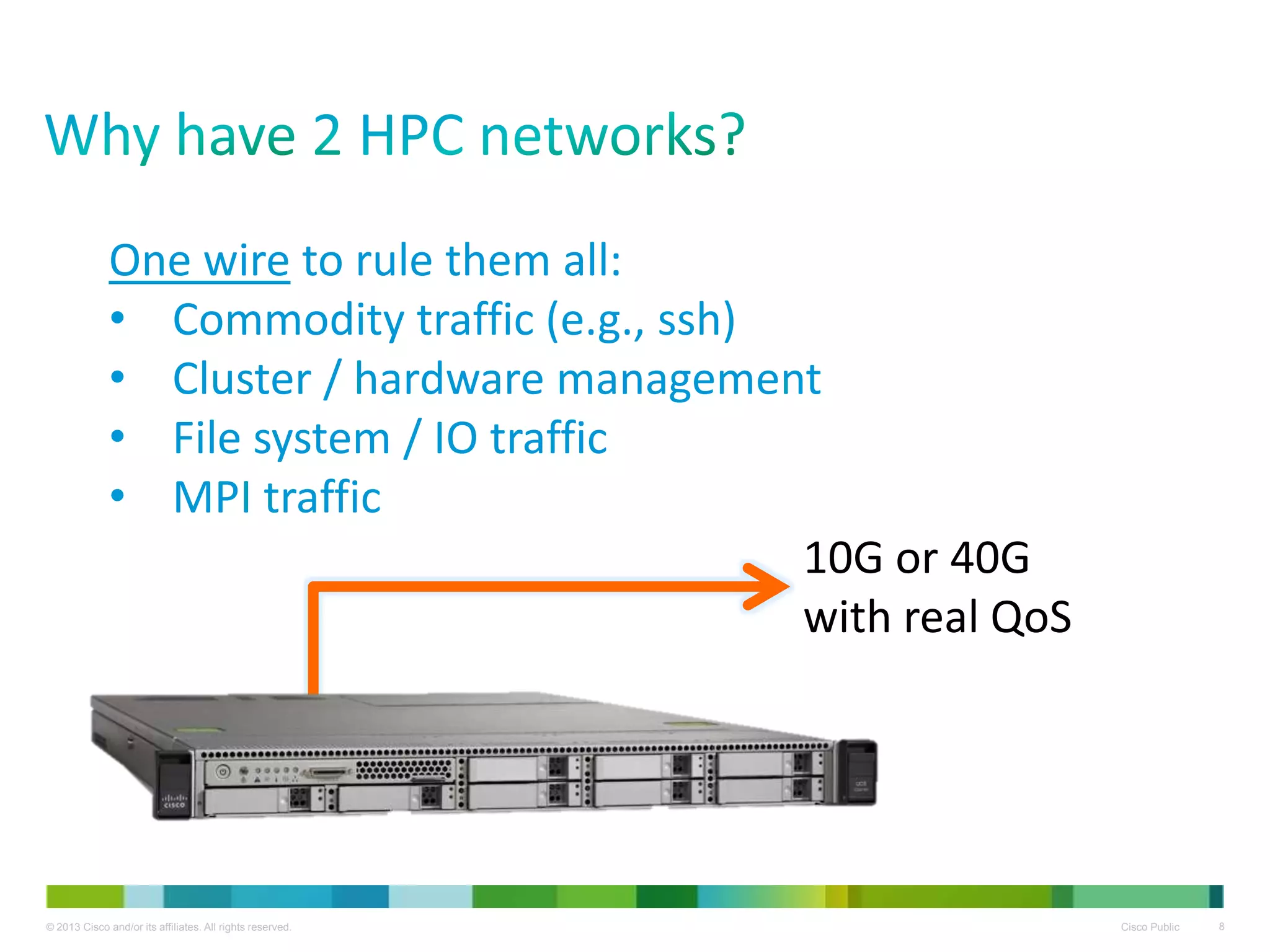

- 8. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 8 One wire to rule them all: • Commodity traffic (e.g., ssh) • Cluster / hardware management • File system / IO traffic • MPI traffic 10G or 40G with real QoS
- 9. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 9 9 High densityLow latency Cisco Nexus: Years of experience rolled into dependable solutions Nexus 3548 190ns port-to-port latency (L2 and L3) Created for HPC / HFT 48 10Gb / 12 40Gb ports Low latency, high density 10 / 40Gb switches Nexus 6004 1us port-to-port latency 384 10Gb / 96 40Gb ports

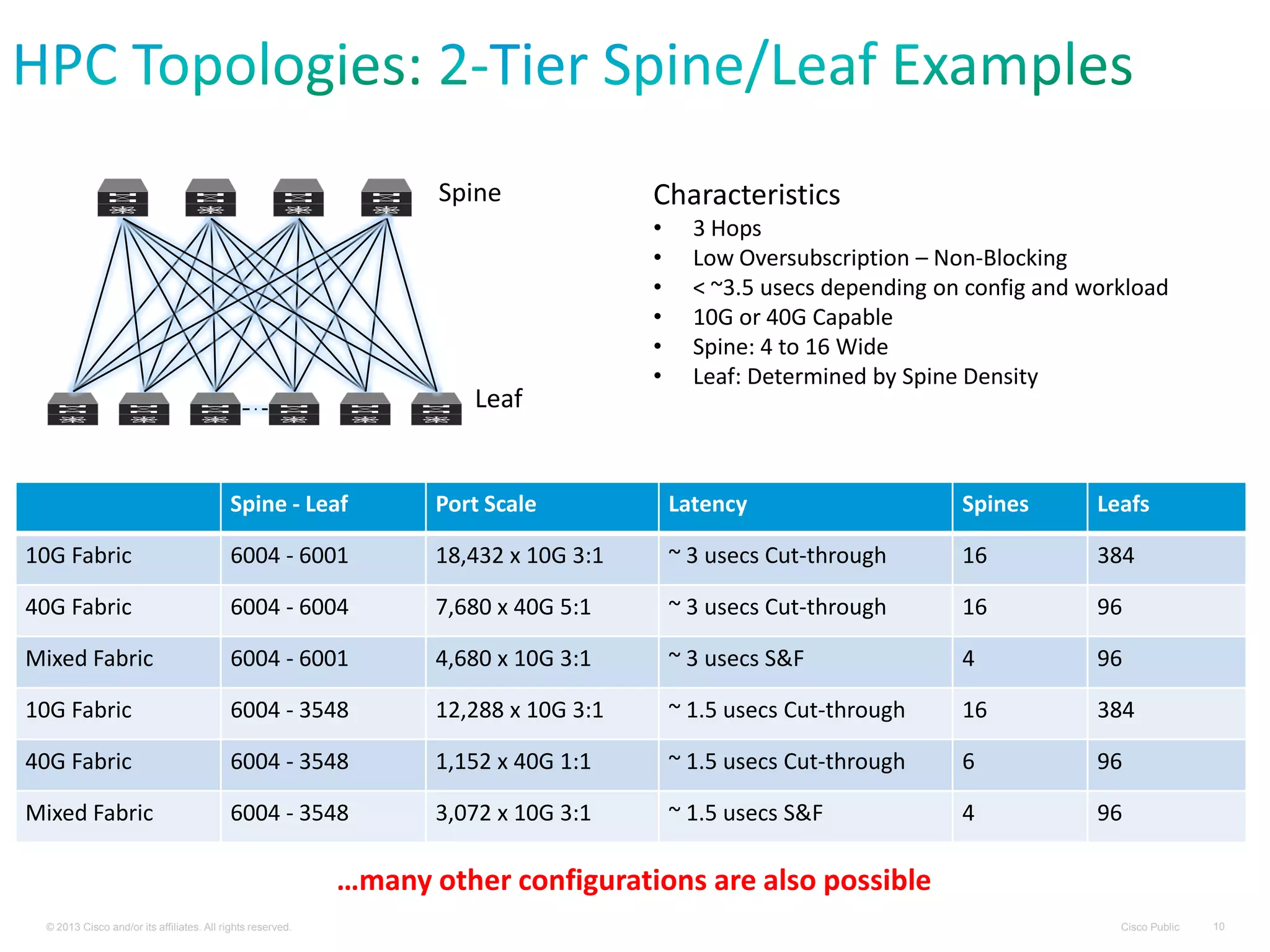

- 10. Cisco Public© 2013Cisco and/or its affiliates. All rights reserved. 10 Spine Leaf Characteristics • 3 Hops • Low Oversubscription – Non-Blocking • < ~3.5 usecs depending on config and workload • 10G or 40G Capable • Spine: 4 to 16 Wide • Leaf: Determined by Spine Density Spine - Leaf Port Scale Latency Spines Leafs 10G Fabric 6004 - 6001 18,432 x 10G 3:1 ~ 3 usecs Cut-through 16 384 40G Fabric 6004 - 6004 7,680 x 40G 5:1 ~ 3 usecs Cut-through 16 96 Mixed Fabric 6004 - 6001 4,680 x 10G 3:1 ~ 3 usecs S&F 4 96 10G Fabric 6004 - 3548 12,288 x 10G 3:1 ~ 1.5 usecs Cut-through 16 384 40G Fabric 6004 - 3548 1,152 x 40G 1:1 ~ 1.5 usecs Cut-through 6 96 Mixed Fabric 6004 - 3548 3,072 x 10G 3:1 ~ 1.5 usecs S&F 4 96 …many other configurations are also possible
- 11. Cisco Public© 2013Cisco and/or its affiliates. All rights reserved. 11 Leaf Spine2 Spine1 Spine2-Spine1-Leaf Port Scale Latency Spine2 Spine1 Leafs 10G Fabric 6004 - 6004 - 6001 55,296 x 10G 3:1 ~ 3-5 usecs Cut-through 48 16 x 6 192 40G Fabric 6004 - 6004 - 6004 23,040 x 40G 5:1 ~ 3-5 usecs Cut-through 48 16 48 Mixed Fabric 6004 - 6004 - 6001 18,432 x 10G 3:1 ~ 3-5 usecs S&F 32 4 x 8 48 10G Fabric 6004 - 6004 - 3548 24,576 x 10G 2:1 ~ 1.5-3.5 usecs Cut-through 32 16 x 4 192 40G Fabric 6004 - 6004 - 3548 2,304 x 40G 1:1 ~ 1.5-3.5 usecs Cut-through 24 6 x 8 48 Mixed Fabric 6004 - 6004 - 3548 9,216x 10G 2:1 ~ 1.5-3.5 usecs S&F 24 6 x 8 48 Characteristics • 3 Hops Pod – 5 hops DC east-west traffic • Low Oversubscription – Non-Blocking • < ~3.5 usecs depending on config and workload • 10G or 40G Capable • Two spine layers
- 12. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 12
- 13. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 13 • Direct access to NIC hardware from Linux userspace Operating System bypass Via the Linux Verbs API (UD) • Utilizes Cisco Virtual Interface Card (VIC) for ultra-low Ethernet latency 2nd generation 80Gbps Cisco ASIC 2 x 10Gbps Ethernet ports 2 x 40Gbps coming in Q4 2013 PCI and mezzanine form factors • Half-round trip (HRT) ping-pong latencies: Back to back: 1.7μs Through N3548: 1.9μs Through MPI+N3548: 2.16μs (*)

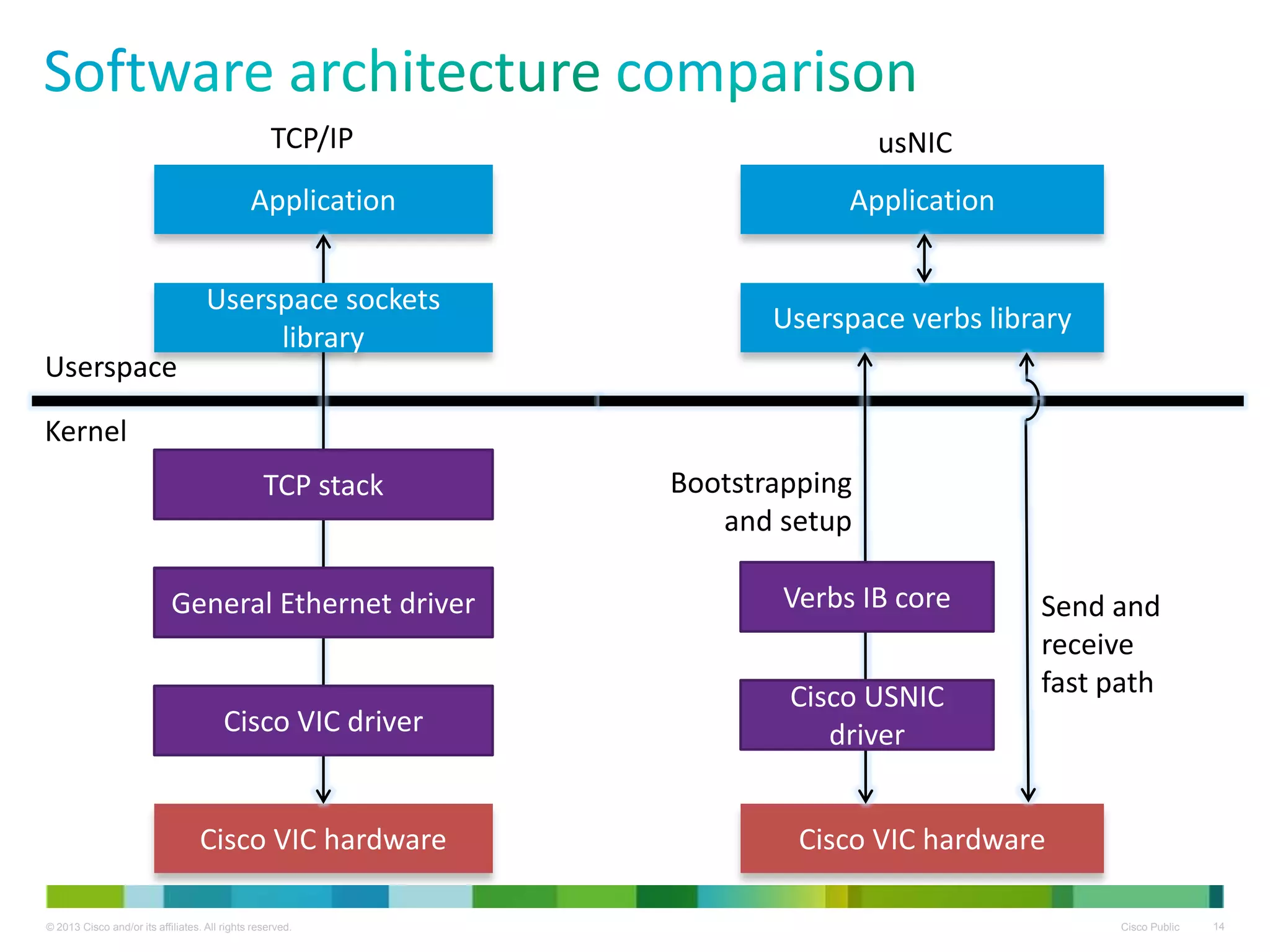

- 14. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 14 Application Kernel Cisco VIC hardware TCP stack General Ethernet driver Cisco VIC driver Userspace Userspace sockets library Userspace verbs library Cisco VIC hardware Application Verbs IB core Cisco USNIC driver Bootstrapping and setup Send and receive fast path usNICTCP/IP

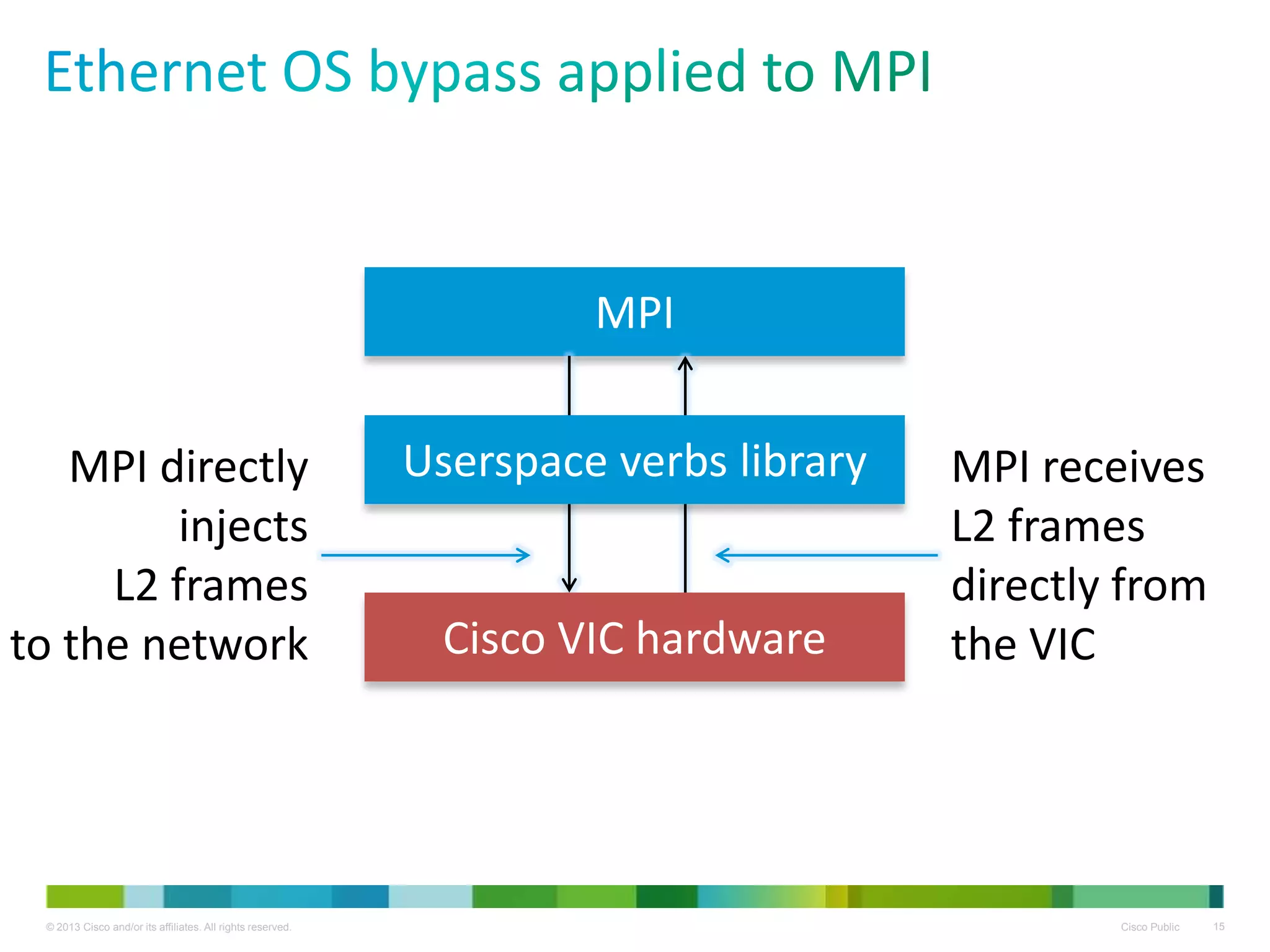

- 15. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 15 MPI MPI directly injects L2 frames to the network MPI receives L2 frames directly from the VIC Userspace verbs library Cisco VIC hardware
- 16. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 16 IO MMU SR-IOV NIC VIC Classifier x86 Chipset VT-d MPI process QPQP MPI process Inbound L2 frames Outbound L2 frames
- 17. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 17 VIC VF VF VF VF VF VF Physical port Physical port Physical Function (PF) Physical Function (PF) MAC address: aa:bb:cc:dd:ee:ff MAC address: aa:bb:cc:dd:ee:fe VF VF VF VF VF VF QPQP QPQP QPQP QPQP

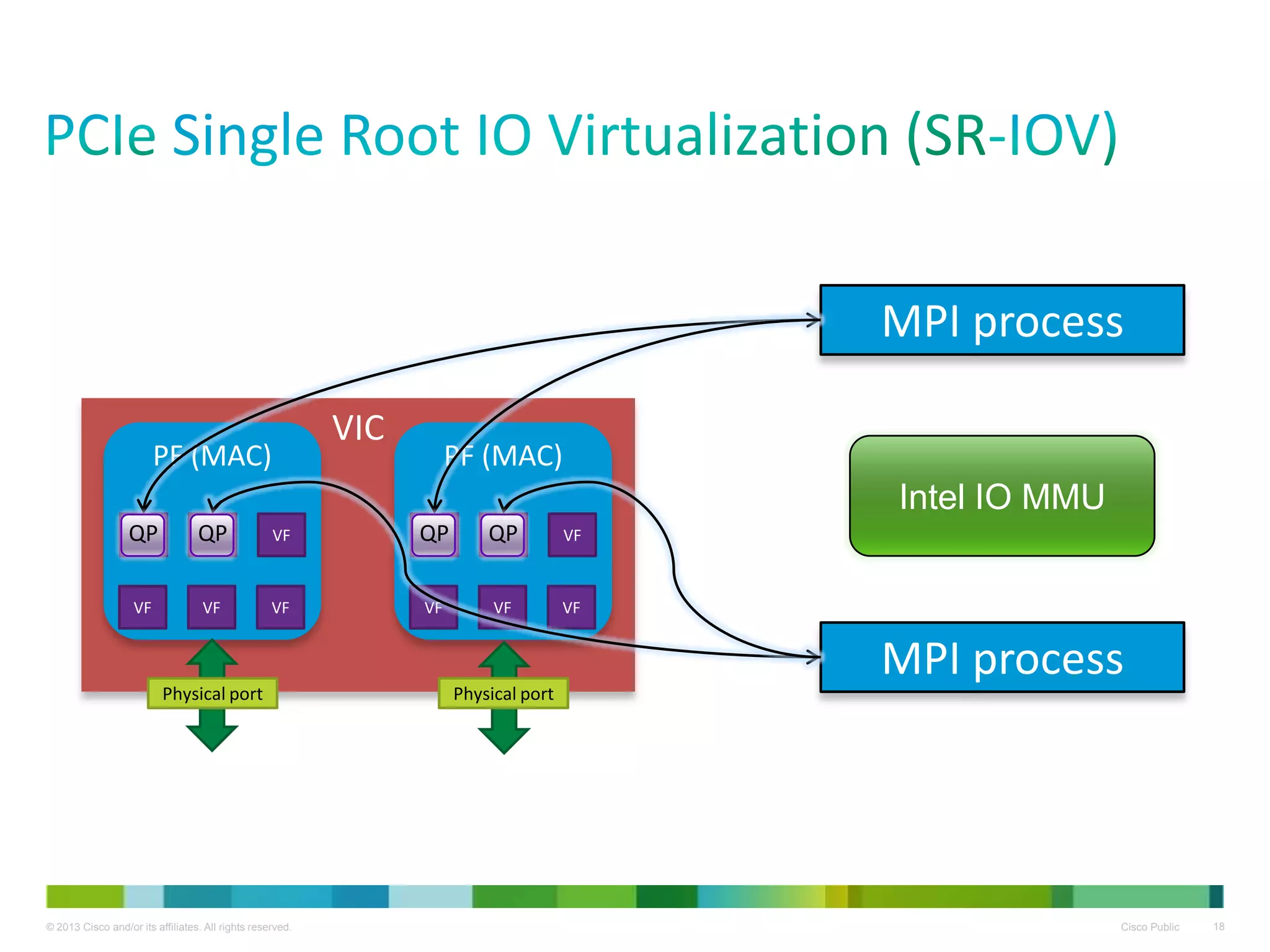

- 18. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 18 VIC PF (MAC) VF VF VF VF VF VF PF (MAC) VF VF VF VF VF VF MPI process MPI process Physical portPhysical port Intel IO MMU QP QP QP QP

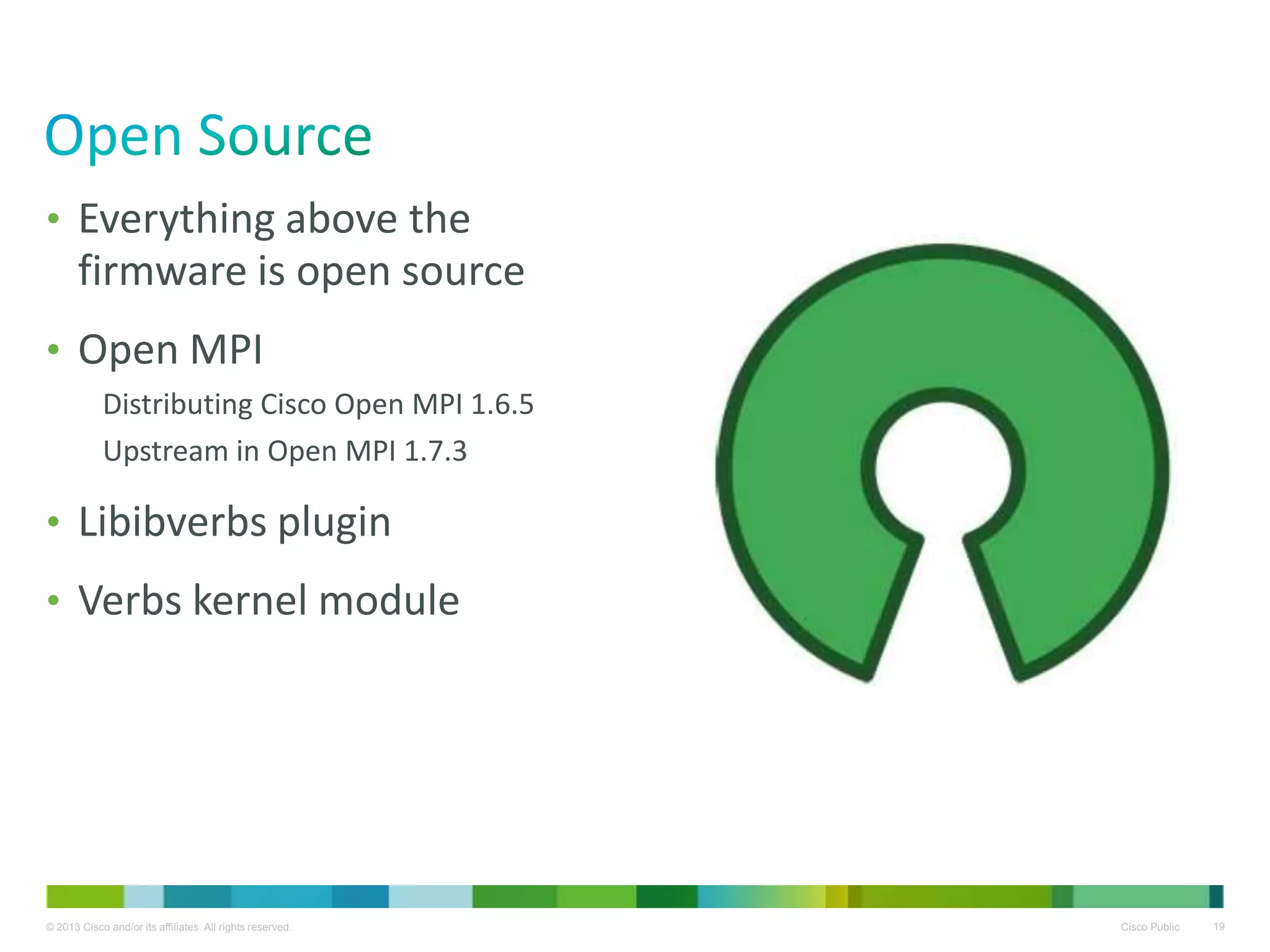

- 19. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 19 • Everything above the firmware is open source • Open MPI Distributing Cisco Open MPI 1.6.5 Upstream in Open MPI 1.7.3 • Libibverbs plugin • Verbs kernel module

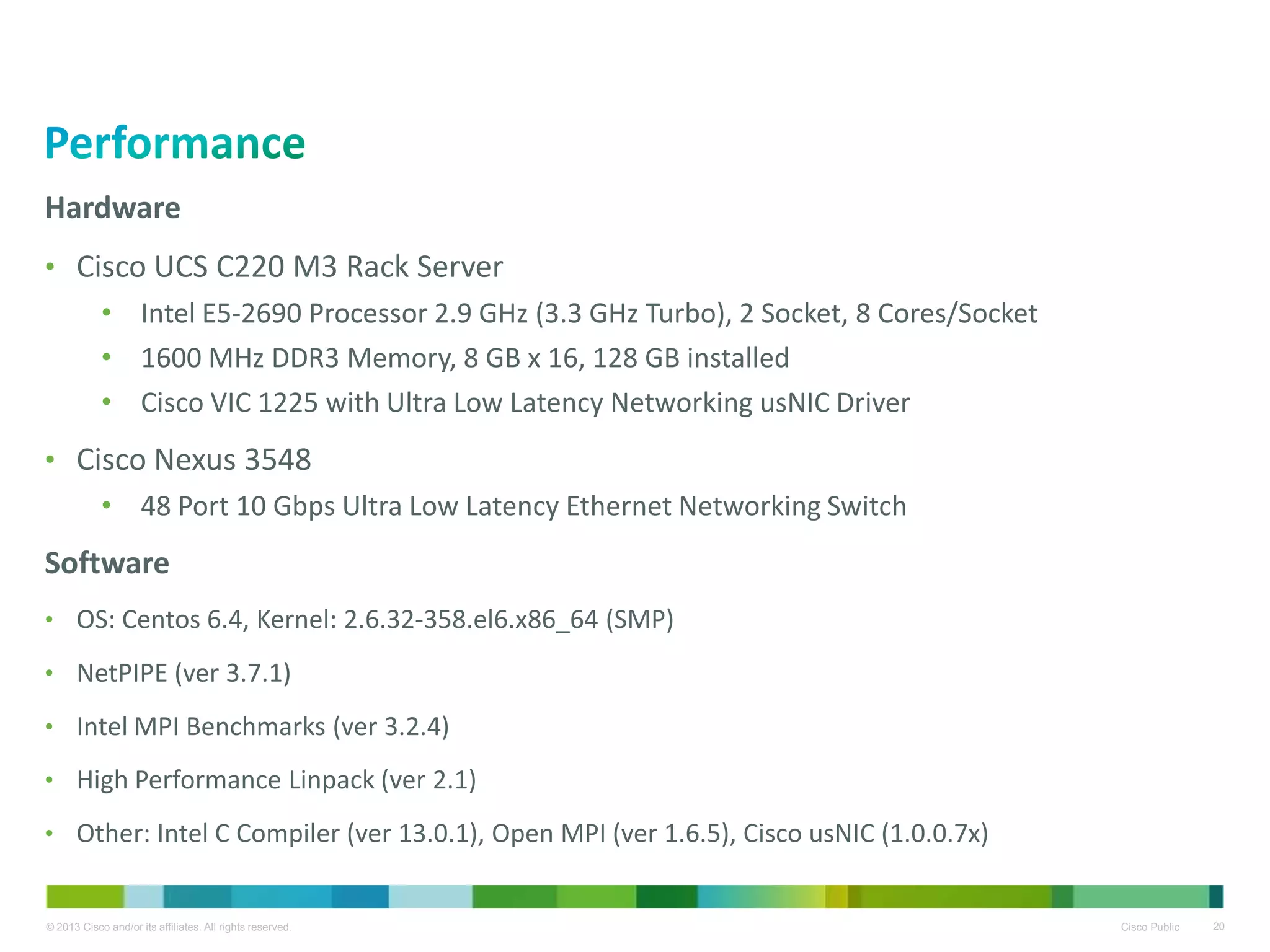

- 20. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 20 Hardware • Cisco UCS C220 M3 Rack Server • Intel E5-2690 Processor 2.9 GHz (3.3 GHz Turbo), 2 Socket, 8 Cores/Socket • 1600 MHz DDR3 Memory, 8 GB x 16, 128 GB installed • Cisco VIC 1225 with Ultra Low Latency Networking usNIC Driver • Cisco Nexus 3548 • 48 Port 10 Gbps Ultra Low Latency Ethernet Networking Switch Software • OS: Centos 6.4, Kernel: 2.6.32-358.el6.x86_64 (SMP) • NetPIPE (ver 3.7.1) • Intel MPI Benchmarks (ver 3.2.4) • High Performance Linpack (ver 2.1) • Other: Intel C Compiler (ver 13.0.1), Open MPI (ver 1.6.5), Cisco usNIC (1.0.0.7x)

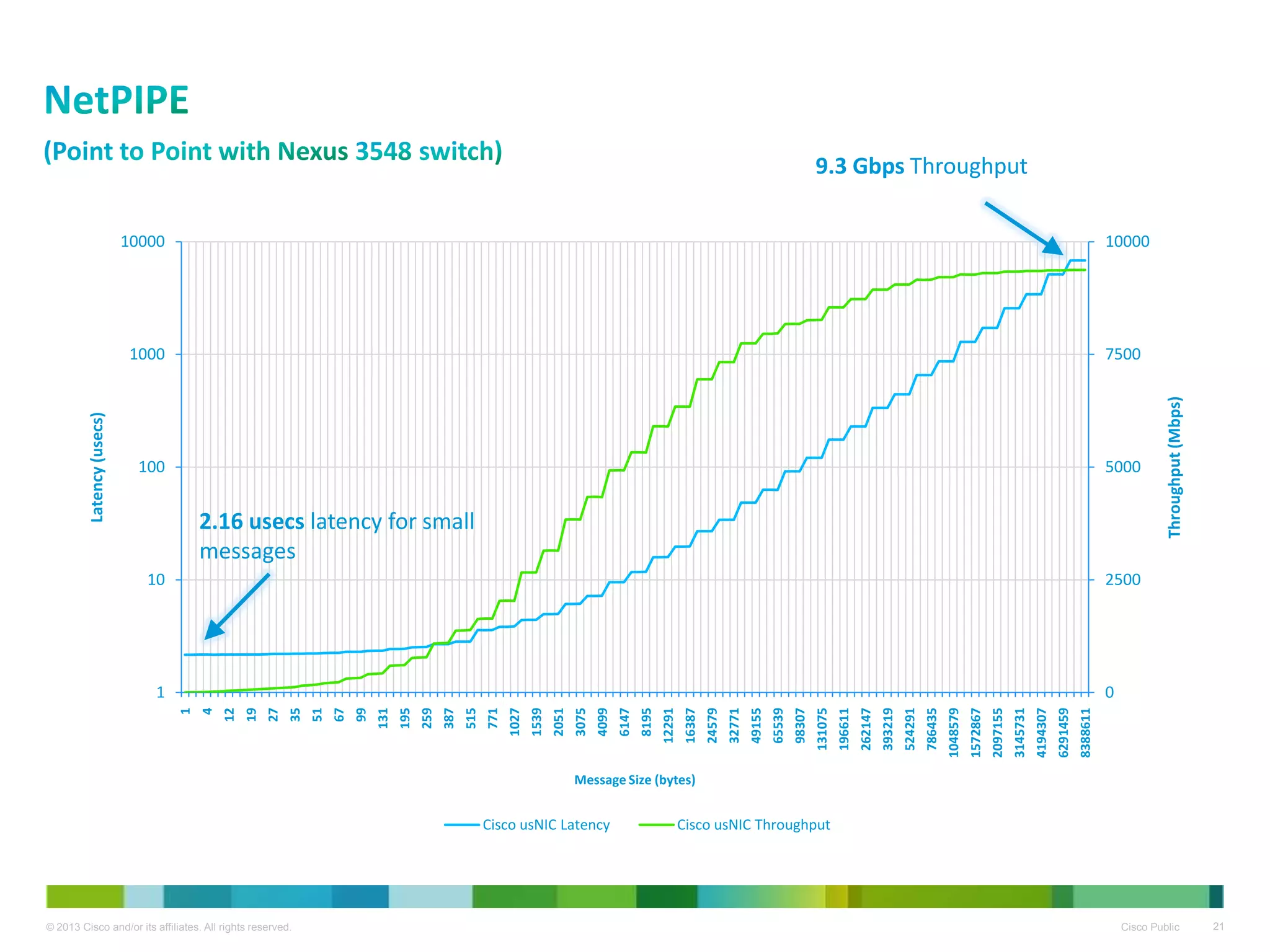

- 21. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 21 0 2500 5000 7500 10000 1 10 100 1000 10000 1 4 12 19 27 35 51 67 99 131 195 259 387 515 771 1027 1539 2051 3075 4099 6147 8195 12291 16387 24579 32771 49155 65539 98307 131075 196611 262147 393219 524291 786435 1048579 1572867 2097155 3145731 4194307 6291459 8388611 Throughput(Mbps) Latency(usecs) Message Size (bytes) Cisco usNIC Latency Cisco usNIC Throughput 2.16 usecs latency for small messages 9.3 Gbps Throughput
- 22. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 22 0 300 600 900 1200 1 10 100 1000 10000 4 16 64 256 1024 4096 16384 65536 262144 1048576 4194304 Throughput(MB/s) Latecny(usecs) Message Size (bytes) PingPong ThroughPut (MB/s) PingPing Througput (MB/s) PingPong Latency (usecs) PingPing Latency (usecs) 2.16 usecs PingPong Latency 2.21 usecs PingPing Latency PingPing and PingPong Latency track together!

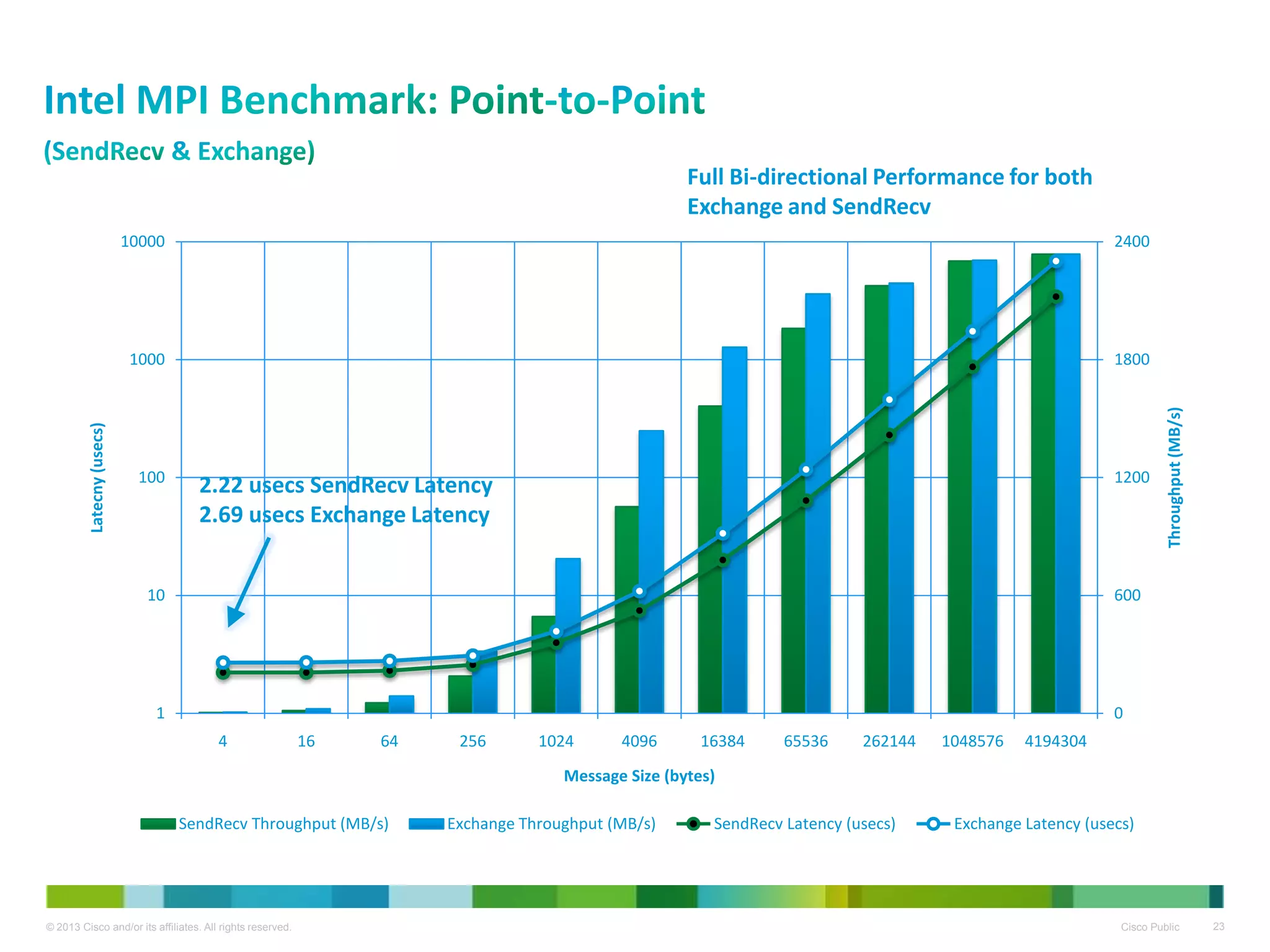

- 23. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 23 0 600 1200 1800 2400 1 10 100 1000 10000 4 16 64 256 1024 4096 16384 65536 262144 1048576 4194304 Throughput(MB/s) Latecny(usecs) Message Size (bytes) SendRecv Throughput (MB/s) Exchange Throughput (MB/s) SendRecv Latency (usecs) Exchange Latency (usecs) 2.22 usecs SendRecv Latency 2.69 usecs Exchange Latency Full Bi-directional Performance for both Exchange and SendRecv

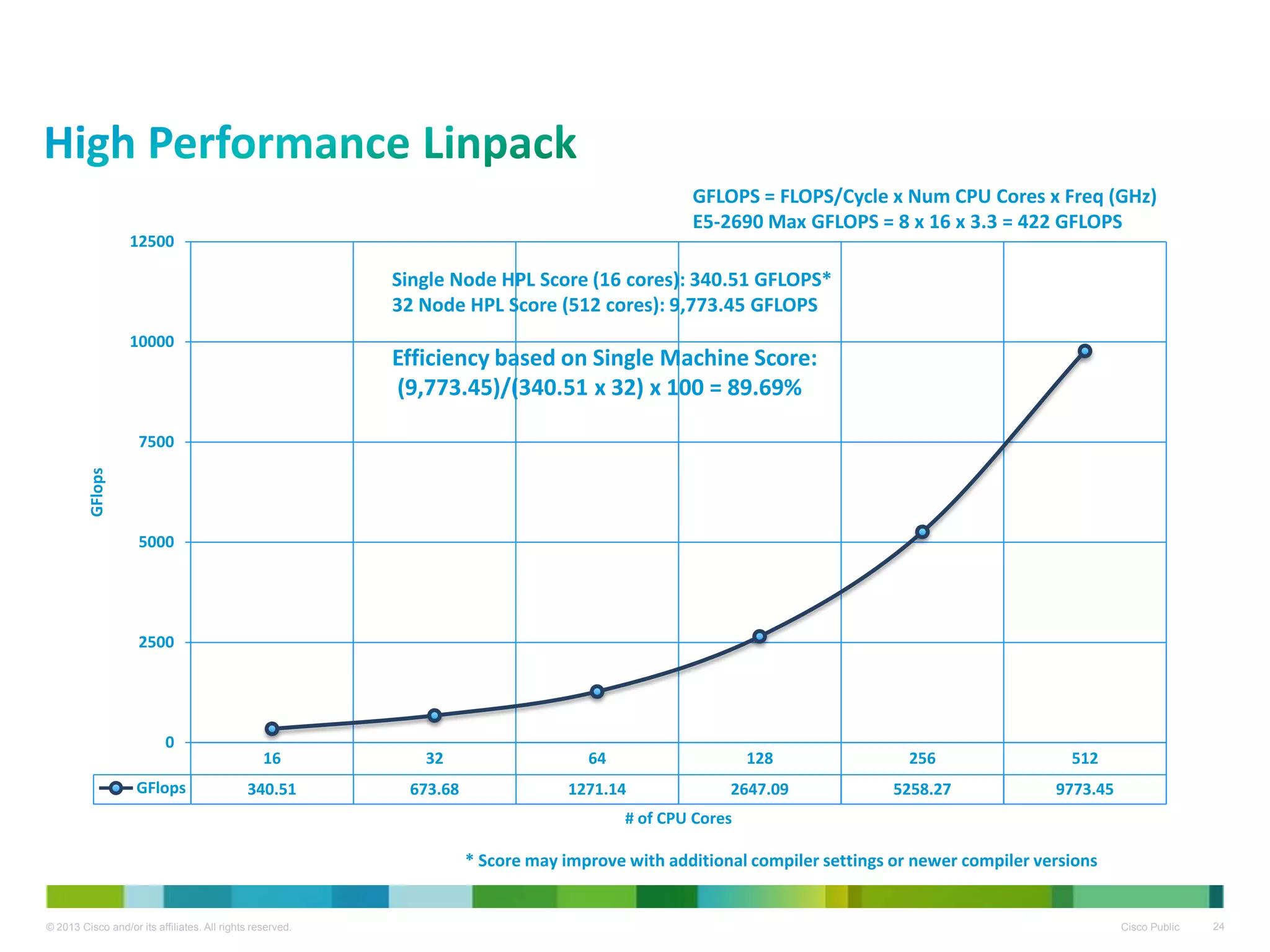

- 24. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 24 16 32 64 128 256 512 GFlops 340.51 673.68 1271.14 2647.09 5258.27 9773.45 0 2500 5000 7500 10000 12500 GFlops # of CPU Cores GFLOPS = FLOPS/Cycle x Num CPU Cores x Freq (GHz) E5-2690 Max GFLOPS = 8 x 16 x 3.3 = 422 GFLOPS Single Node HPL Score (16 cores): 340.51 GFLOPS* 32 Node HPL Score (512 cores): 9,773.45 GFLOPS Efficiency based on Single Machine Score: (9,773.45)/(340.51 x 32) x 100 = 89.69% * Score may improve with additional compiler settings or newer compiler versions

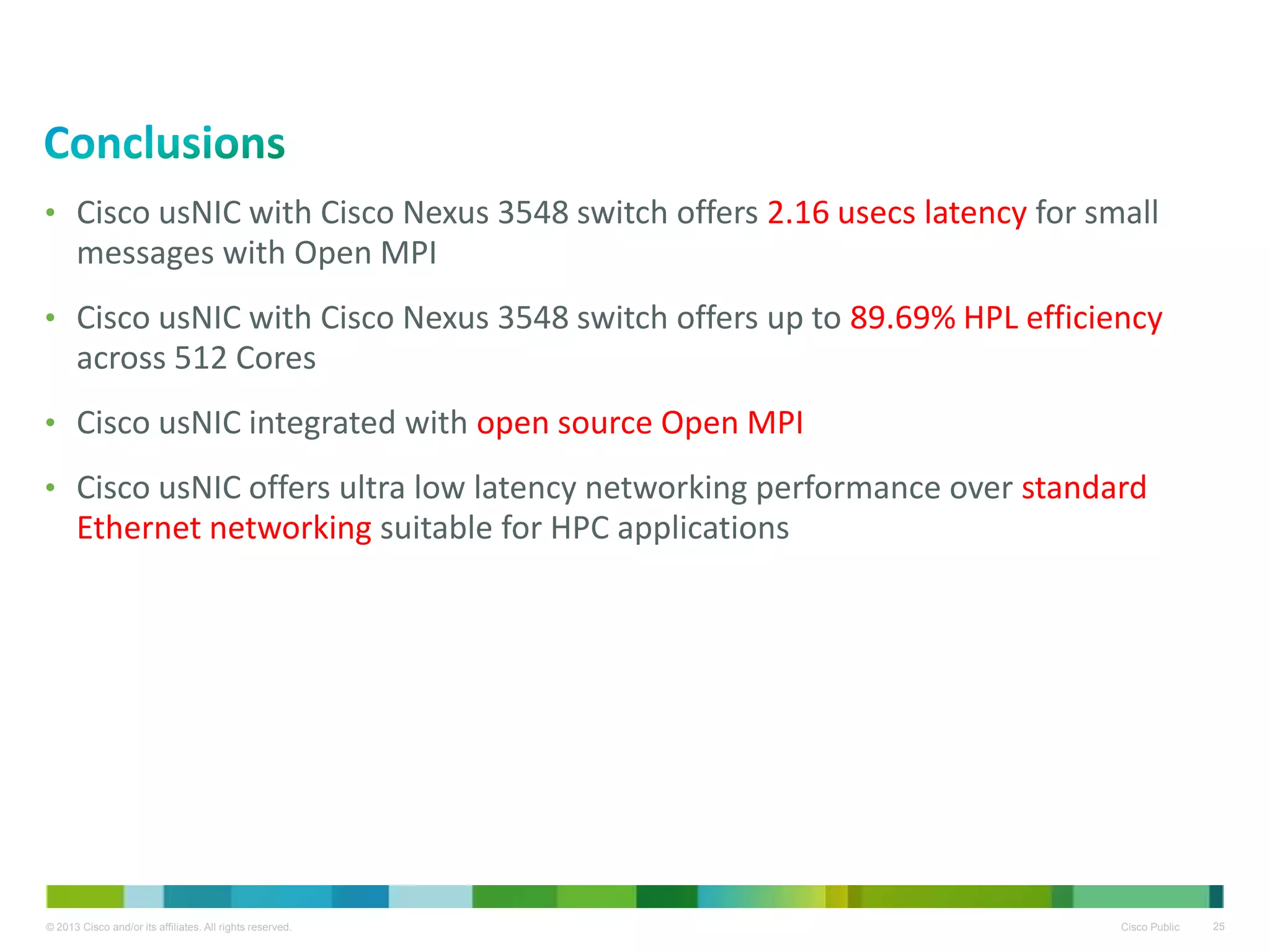

- 25. © 2013 Ciscoand/or its affiliates. All rights reserved. Cisco Public 25 • Cisco usNIC with Cisco Nexus 3548 switch offers 2.16 usecs latency for small messages with Open MPI • Cisco usNIC with Cisco Nexus 3548 switch offers up to 89.69% HPL efficiency across 512 Cores • Cisco usNIC integrated with open source Open MPI • Cisco usNIC offers ultra low latency networking performance over standard Ethernet networking suitable for HPC applications
- 26.
Editor's Notes
- #4 N3K: 48 ports of 10GB, 12 ports 40GB, 1RUN6K: 384 ports of 10GB, or 96 ports of 40GB, 4RU
- #5 C240: 2RU, 1.5TB RAM, B200: 768GB RAM, 80Gb uplinkB420: 1.5TB RAM, 160Gb uplink
- #6 Graph shows vendor revenue shares for three quarterly periods: Q1CY11, Q1CY12,Q1CY13.Since UCS first recorded IDC vendor revenue in Q3CY09, HP has lost 7.3% share (50.3% in Q3CY09 to 42.9% in Q1CY13) and IBM has lost 13.3% (29.1% to 15.8%).Cisco Americas share in Q1CY13 x86 blades was 26.9%.
- #7 x86 Blade Shares CQ1’13 - WW: HP 42.9%, Cisco 19.3%, IBM 15.8%, Dell 9.6%, Fujitsu 2.3%, NEC 2.2%, Hitachi Ltd. 1.5%, Oracle 0.9%x86 Blade Shares CQ1’13 - Americas: HP 42.4%, Cisco 26.9%, IBM 15.1%, Dell 10.8%
- #17 VT-d: Virtualization Technology for Directed I/OIO MMU: Input / output memory management unitSR-IOV: Single Root Input Output Virtualization
