Estimating 101

©2008 Protegra Inc. All rights reserved.

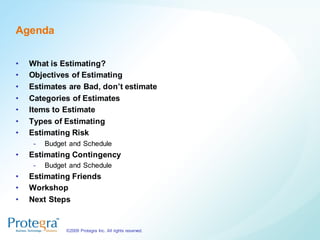

Agenda

• What is Estimating?
• Objectives of Estimating
• Estimates are Bad, don’t estimate
• Categories of Estimates
• Items to Estimate
• Types of Estimating
• Estimating Risk
- Budget and Schedule
• Estimating Contingency
- Budget and Schedule
• Estimating Friends
• Workshop
• Next Steps

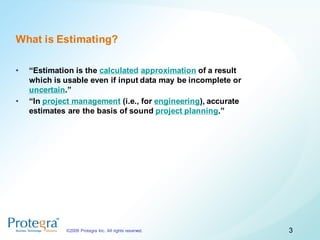

What is Estimating?

• “Estimation is the calculated approximation of a result
which is usable even if input data may be incomplete or
uncertain.”
• “In project management (i.e., for engineering), accurate
estimates are the basis of sound project planning.”

©2009 Protegra Inc. All rights reserved. 3

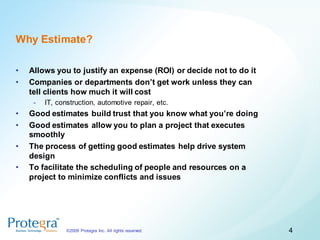

Why Estimate?

• Allows you to justify an expense (ROI) or decide not to do it
• Companies or departments don’t get work unless they can
tell clients how much it will cost
- IT, construction, automotive repair, etc.
• Good estimates build trust that you know what you’re doing
• Good estimates allow you to plan a project that executes
smoothly
• The process of getting good estimates help drive system
design
• To facilitate the scheduling of people and resources on a
project to minimize conflicts and issues


Standard Estimating Methods

• Many processes have been developed to aid engineers in
making accurate estimates, such as
- Analogy based estimation
- Compartmentalization (i.e., breakdown of tasks)
- Delphi method
- Documenting estimation results
- Educated assumptions
- Estimating each task
- Examining historical data
- Identifying dependencies
- Parametric estimating
- Risk assessment
- Structured planning


Software Development Estimating
Methods

• Popular estimation processes for software projects include:
- Cocomo - 1981
- Cosysmo - 2002
- Event chain methodology – 2002?
- Function points - 1979
- Program Evaluation and Review Technique (PERT) - 1951
- Proxy Based Estimation (PROBE) (from the Personal Software
Process) - 1996
- The Planning Game (from Extreme Programming) – 2006?
- Weighted Micro Function Points (WMFP) - 2009
- Wideband Delphi - 1950


Estimates are Bad, don’t estimate

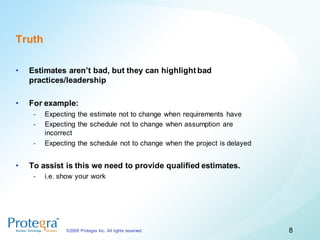

Truth

• Estimates aren’t bad, but they can highlight bad
practices/leadership

• For example:
- Expecting the estimate not to change when requirements have
- Expecting the schedule not to change when assumption are
incorrect
- Expecting the schedule not to change when the project is delayed

• To assist is this we need to provide qualified estimates.
- i.e. show your work


More Truth
• All estimates are limited by the experience of the estimator
- The more you estimate, the better you will get

• If you can’t envision the solution, you can’t estimate it
- Use assumptions to help with unknowns

• All estimates will be wrong
- Best you can hope for is you underestimate as much as you
overestimate
- Compensate for incorrect estimates with contingency budgets
- Compensate for risks with contingency budgets

• You need to be able to track actuals to estimate
- You can’t get better until you can measure where you went wrong
and why


Qualified Estimates


Don’t always blame the estimates

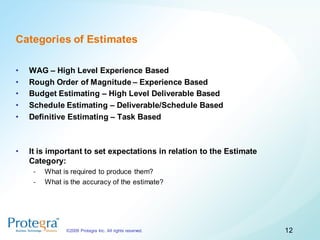

Categories of Estimates

• WAG – High Level Experience Based
• Rough Order of Magnitude – Experience Based
• Budget Estimating – High Level Deliverable Based
• Schedule Estimating – Deliverable/Schedule Based
• Definitive Estimating – Task Based

• It is important to set expectations in relation to the Estimate
Category:
- What is required to produce them?
- What is the accuracy of the estimate?

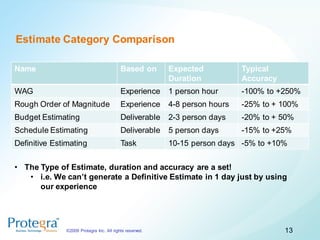

Estimate Category Comparison

Name Based on Expected Typical
Duration Accuracy
WAG Experience 1 person hour -100% to +250%
Rough Order of Magnitude Experience 4-8 person hours -25% to + 100%
Budget Estimating Deliverable 2-3 person days -20% to + 50%
Schedule Estimating Deliverable 5 person days -15% to +25%
Definitive Estimating Task 10-15 person days -5% to +10%

• The Type of Estimate, duration and accuracy are a set!
• i.e. We can’t generate a Definitive Estimate in 1 day just by using
our experience


Items to Estimate

Additive Friction Subtractive
Development Project Management Delays
Analysis Technical Management Vacation
Testing Meetings Sickness
Deployments Reality (6 hours a day) Defects
Planning Documentation Issues/Problems


Types of Estimates

• Task Based
- Technical tasks or processes
• Deliverable Based
- Documentation or solution functionality
• Schedule Based
- Roles by schedule

• All of these estimates can be either:
- Absolute
- Range
- Relative

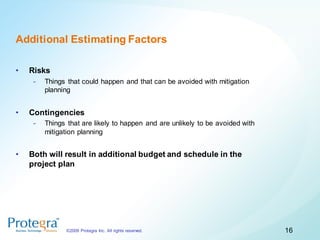

Additional Estimating Factors

• Risks
- Things that could happen and that can be avoided with mitigation
planning

• Contingencies
- Things that are likely to happen and are unlikely to be avoided with
mitigation planning

• Both will result in additional budget and schedule in the
project plan

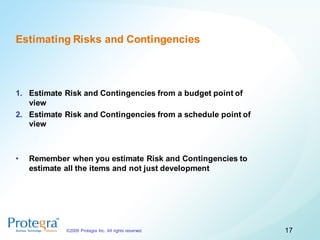

Estimating Risks and Contingencies

1. Estimate Risk and Contingencies from a budget point of
view
2. Estimate Risk and Contingencies from a schedule point of
view

• Remember when you estimate Risk and Contingencies to
estimate all the items and not just development

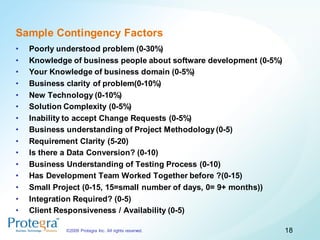

Sample Contingency Factors
• Poorly understood problem (0-30%)
• Knowledge of business people about software development (0-5%)
• Your Knowledge of business domain (0-5%)
• Business clarity of problem(0-10%)
• New Technology (0-10%)
• Solution Complexity (0-5%)
• Inability to accept Change Requests (0-5%)
• Business understanding of Project Methodology (0-5)
• Requirement Clarity (5-20)
• Is there a Data Conversion? (0-10)
• Business Understanding of Testing Process (0-10)
• Has Development Team Worked Together before ?(0-15)
• Small Project (0-15, 15=small number of days, 0= 9+ months))
• Integration Required? (0-5)
• Client Responsiveness / Availability (0-5)


Sample Risk Factors
• Schedule Creation
• Organization and Management
• Development Environment
• End Users
• Customer
• Contractors
• Requirements
• Product/Solution
• External Environment
• People
• Design and Implementation
• Process
• Project Risks.docx


Estimating Friends

Friends don’t let friends estimate alone

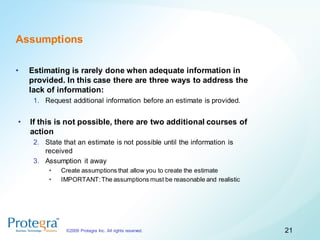

Assumptions

• Estimating is rarely done when adequate information in
provided. In this case there are three ways to address the
lack of information:
1. Request additional information before an estimate is provided.

• If this is not possible, there are two additional courses of
action
2. State that an estimate is not possible until the information is
received
3. Assumption it away
• Create assumptions that allow you to create the estimate
• IMPORTANT: The assumptions must be reasonable and realistic

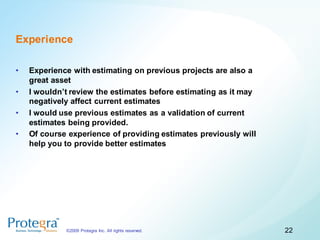

Experience

• Experience with estimating on previous projects are also a
great asset
• I wouldn’t review the estimates before estimating as it may
negatively affect current estimates
• I would use previous estimates as a validation of current
estimates being provided.
• Of course experience of providing estimates previously will
help you to provide better estimates

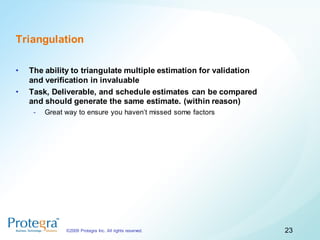

Triangulation

• The ability to triangulate multiple estimation for validation
and verification in invaluable
• Task, Deliverable, and schedule estimates can be compared
and should generate the same estimate. (within reason)
- Great way to ensure you haven’t missed some factors

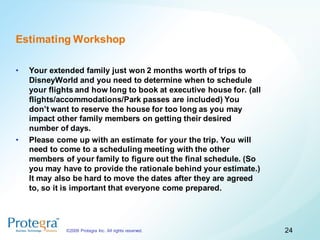

Estimating Workshop

• Your extended family just won 2 months worth of trips to
DisneyWorld and you need to determine when to schedule
your flights and how long to book at executive house for. (all
flights/accommodations/Park passes are included) You
don’t want to reserve the house for too long as you may
impact other family members on getting their desired
number of days.
• Please come up with an estimate for your the trip. You will
need to come to a scheduling meeting with the other
members of your family to figure out the final schedule. (So
you may have to provide the rationale behind your estimate.)
It may also be hard to move the dates after they are agreed
to, so it is important that everyone come prepared.


Workshop Questions
• What category of estimate did you do?
- WAG/ROM/Budget/Schedule/Definitive?
- Why?
• What type of estimate?
- Task/Deliverable/schedule?
- Why?
• What terms did you estimate in?
- Absolute/Range/Relative?
- Why?
• What Items did you estimate?
- Additive/Friction/Subtractive?
• Did you estimate for Risk?
• Did you estimate for Contingency?
• What estimating assumptions did you make?


Q&A

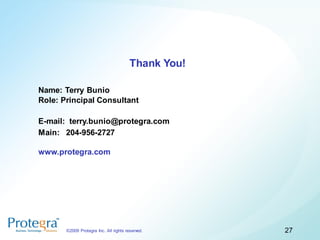

Thank You!

Name: Terry Bunio
Role: Principal Consultant

E-mail: terry.bunio@protegra.com
Main: 204-956-2727

www.protegra.com
