5. EPC Challenges
Execute EPC “mega-projects” within budget
and on schedule
Minimize construction delays due to lagging
information, material or equipment.
Track progress and maintain contingency
plans to stay on schedule.
Document project progress in terms of
installed quantities.
EPC Projects
By Robert N. Fox
6. The Challenge
• Intelligently apply IT/CAD to the EPC
environment.
• Overcome conservative mind-set of builders.
• Push progression of 2D to 3D, 4D and even 5D.
• Apply IT/CAD tools to the advantage of
constructors and their clients. Better
productivity leads to better gross margins.
EPC Projects
By Robert N. Fox

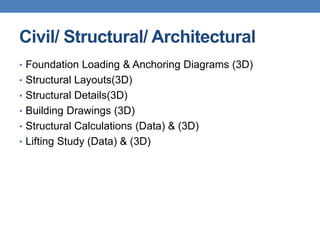

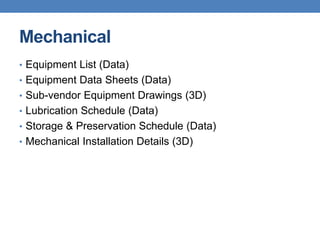

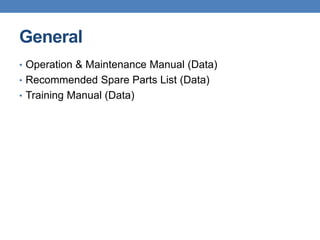

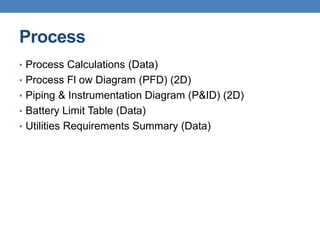

12. Piping & Layout
• Plot Plan / Elevation (General Arrangement) (3D)
• Piping General Arrangement (3D)
• Piping Isometrics (2D)
• Pipe Support Drawings (3D)
• Line Designation Table (Data)
• Valve List (Data)
• Special Piping Items List (Data)
• 3D Plant Model

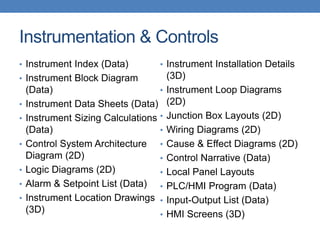

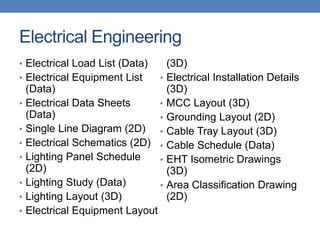

14. Instrumentation & Controls
• Instrument Index (Data)
• Instrument Block Diagram
(Data)
• Instrument Data Sheets (Data)
• Instrument Sizing Calculations
(Data)
• Control System Architecture
Diagram (2D)
• Logic Diagrams (2D)
• Alarm & Setpoint List (Data)
• Instrument Location Drawings
(3D)
• Instrument Installation Details
(3D)
• Instrument Loop Diagrams
(2D)
• Junction Box Layouts (2D)
• Wiring Diagrams (2D)
• Cause & Effect Diagrams (2D)
• Control Narrative (Data)
• Local Panel Layouts
• PLC/HMI Program (Data)
• Input-Output List (Data)
• HMI Screens (3D)

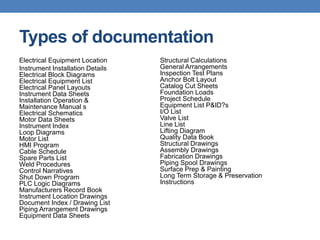

15. Types of documentation
Electrical Equipment Location
Instrument Installation Details
Electrical Block Diagrams
Electrical Equipment List
Electrical Panel Layouts
Instrument Data Sheets
Installation Operation &
Maintenance Manual s
Electrical Schematics
Motor Data Sheets
Instrument Index
Loop Diagrams
Motor List
HMI Program
Cable Schedule
Spare Parts List
Weld Procedures
Control Narratives
Shut Down Program
PLC Logic Diagrams
Manufacturers Record Book
Instrument Location Drawings
Document Index / Drawing List
Piping Arrangement Drawings
Equipment Data Sheets
Structural Calculations
General Arrangements
Inspection Test Plans
Anchor Bolt Layout
Catalog Cut Sheets
Foundation Loads
Project Schedule
Equipment List P&ID?s
I/O List
Valve List
Line List
Lifting Diagram
Quality Data Book
Structural Drawings
Assembly Drawings
Fabrication Drawings
Piping Spool Drawings
Surface Prep & Painting
Long Term Storage & Preservation
Instructions
17. Levels of Modelling
• (Data) Custom made forms
• 2D Drawings and Sketches (E)
• 3D CAD Model with data attribute links (E)
• 4D Construction Simulation Model (EC)
– 4Dc –Construction Planning & Sequencing
– 4Dr – Resource Management (and Lift Plans)
– 4Ds – Construction Status
• 5D Cost Tracking Model (EPC)
– 5Dm: material costs
– 5Dr: resource costs
EPC Projects
By Robert N. Fox

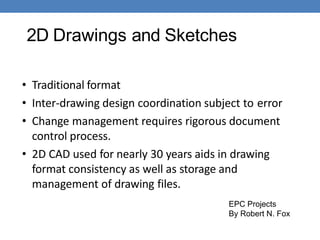

18. 2D Drawings and Sketches
• Traditional format
• Inter-drawing design coordination subject to error
• Change management requires rigorous document
control process.
• 2D CAD used for nearly 30 years aids in drawing
format consistency as well as storage and
management of drawing files.
EPC Projects
By Robert N. Fox

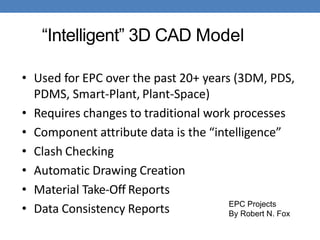

19. “Intelligent” 3D CAD Model
• Used for EPC over the past 20+ years (3DM, PDS,
PDMS, Smart-Plant, Plant-Space)
• Requires changes to traditional work processes
• Component attribute data is the “intelligence”
• Clash Checking
• Automatic Drawing Creation
• Material Take-Off Reports
• Data Consistency Reports EPC Projects
By Robert N. Fox
20. 4D Construction Simulation Model
• Links 3D model components with P3
schedule
• Assigns temporal dimension to each
“widget” in the 3D model
• Facilitates Construction Operations:
• Construction Sequencing
• Resource Management Planning
• Constructability Assessment
• Lift Plan Verification
• Visualization EPC Projects
By Robert N. Fox
21. 5D Cost Tracking Model
• Material Cost Model
• Resource Distribution Model
• Expended Cost Tracking Model
• . . . Others yet to be defined
EPC Projects
By Robert N. Fox

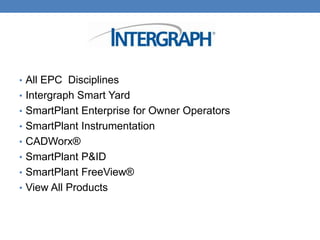

23. • All EPC Disciplines
• Intergraph Smart Yard
• SmartPlant Enterprise for Owner Operators
• SmartPlant Instrumentation
• CADWorx®
• SmartPlant P&ID
• SmartPlant FreeView®
• View All Products

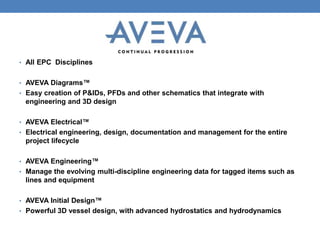

24. • All EPC Disciplines
• AVEVA Diagrams™
• Easy creation of P&IDs, PFDs and other schematics that integrate with
engineering and 3D design
• AVEVA Electrical™
• Electrical engineering, design, documentation and management for the entire
project lifecycle
• AVEVA Engineering™
• Manage the evolving multi-discipline engineering data for tagged items such as
lines and equipment
• AVEVA Initial Design™
• Powerful 3D vessel design, with advanced hydrostatics and hydrodynamics
25. • AVEVA Instrumentation™
• Instrumentation and Control systems engineering, design,
documentation and management software
• AVEVA P&ID™
• An intelligent, AutoCAD-based P&ID design application
• AVEVA Schematic 3D Integrator™
• Managed development and consistency of schematic and 3D data
• AVEVA Space Management™
• Create and manage the automatic subdivision of a ship into spaces.

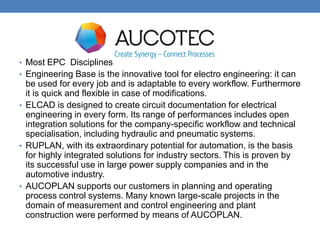

26. • Most EPC Disciplines
• Engineering Base is the innovative tool for electro engineering: it can
be used for every job and is adaptable to every workflow. Furthermore
it is quick and flexible in case of modifications.
• ELCAD is designed to create circuit documentation for electrical
engineering in every form. Its range of performances includes open
integration solutions for the company-specific workflow and technical
specialisation, including hydraulic and pneumatic systems.
• RUPLAN, with its extraordinary potential for automation, is the basis
for highly integrated solutions for industry sectors. This is proven by
its successful use in large power supply companies and in the
automotive industry.
• AUCOPLAN supports our customers in planning and operating
process control systems. Many known large-scale projects in the
domain of measurement and control engineering and plant
construction were performed by means of AUCOPLAN.

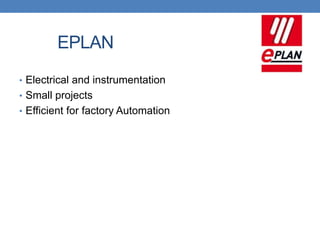

27. EPLAN
• Electrical and instrumentation
• Small projects
• Efficient for factory Automation

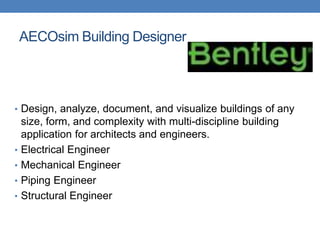

28. AECOsim Building Designer
• Design, analyze, document, and visualize buildings of any
size, form, and complexity with multi-discipline building
application for architects and engineers.
• Electrical Engineer
• Mechanical Engineer
• Piping Engineer
• Structural Engineer
