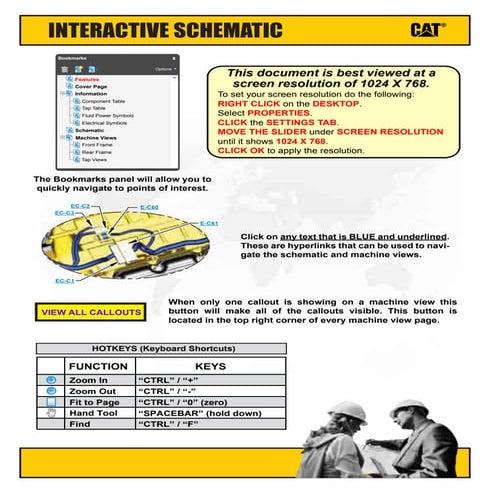

1. INTERACTIVE SCHEMATIC
The Bookmarks panel will allow you to
quickly navigate to points of interest.
Click on any text that is BLUE and underlined.
These are hyperlinks that can be used to navi-
gate the schematic and machine views.
When only one callout is showing on a machine view this
button will make all of the callouts visible. This button is
located in the top right corner of every machine view page.
VIEW ALL CALLOUTS
Cover Page
Information
Schematic
Machine Views
Component Table
Tap Table
Fluid Power Symbols
Electrical Symbols
Front Frame
Rear Frame
Tap Views
Features
Options
Bookmarks X
EC-C3
EC-C2 E-C60
EC-C1
E-C61
To set your screen resolution do the following:
RIGHT CLICK on the DESKTOP.
Select PROPERTIES.
CLICK the SETTINGS TAB.
MOVE THE SLIDER under SCREEN RESOLUTION
until it shows 1024 X 768.
CLICK OK to apply the resolution.
This document is best viewed at a
screen resolution of 1024 X 768.
FUNCTION
Zoom In
HOTKEYS (Keyboard Shortcuts)
Zoom Out
Fit to Page
Hand Tool
“CTRL” / “+”
KEYS
“CTRL” / “-”
“CTRL” / “0” (zero)
“SPACEBAR” (hold down)
Find “CTRL” / “F”

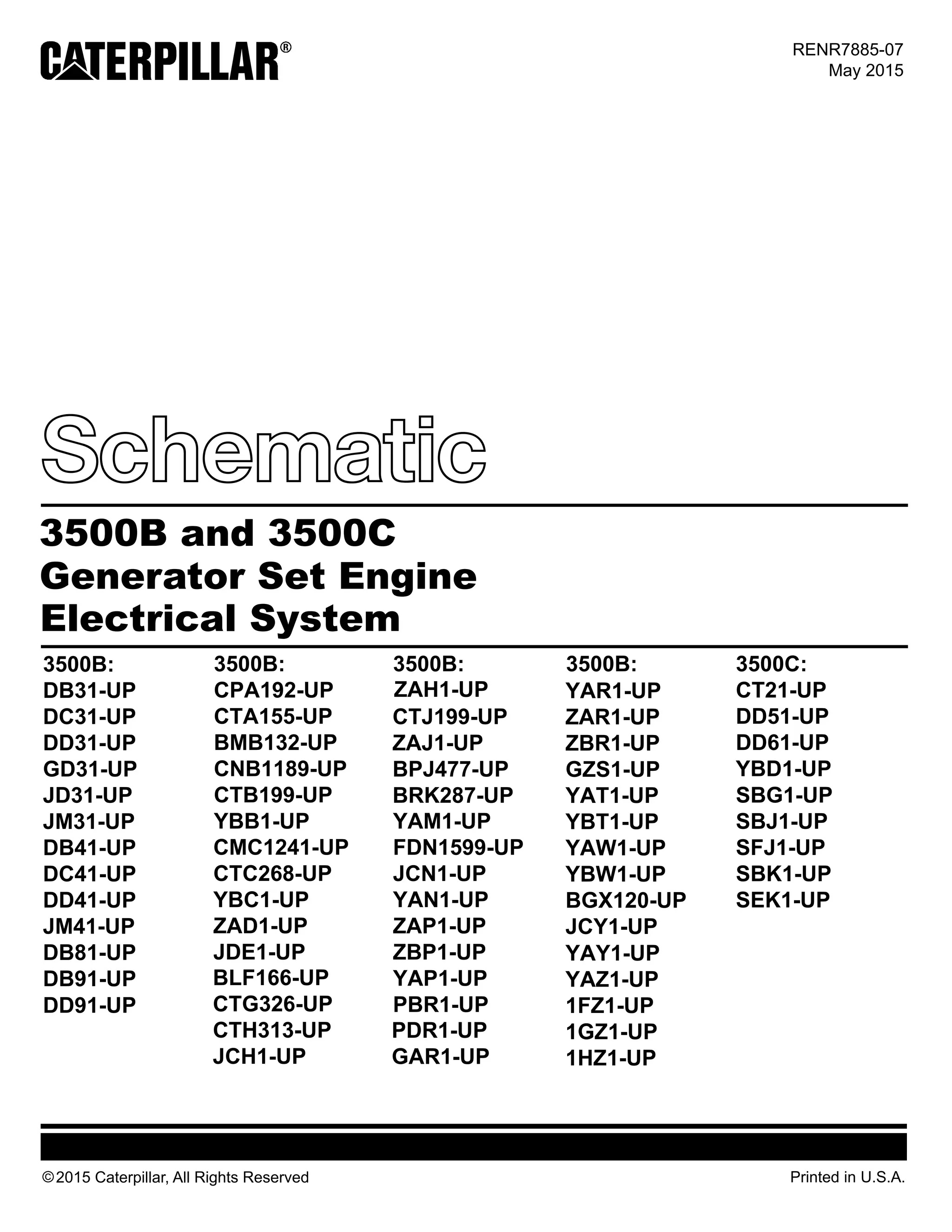

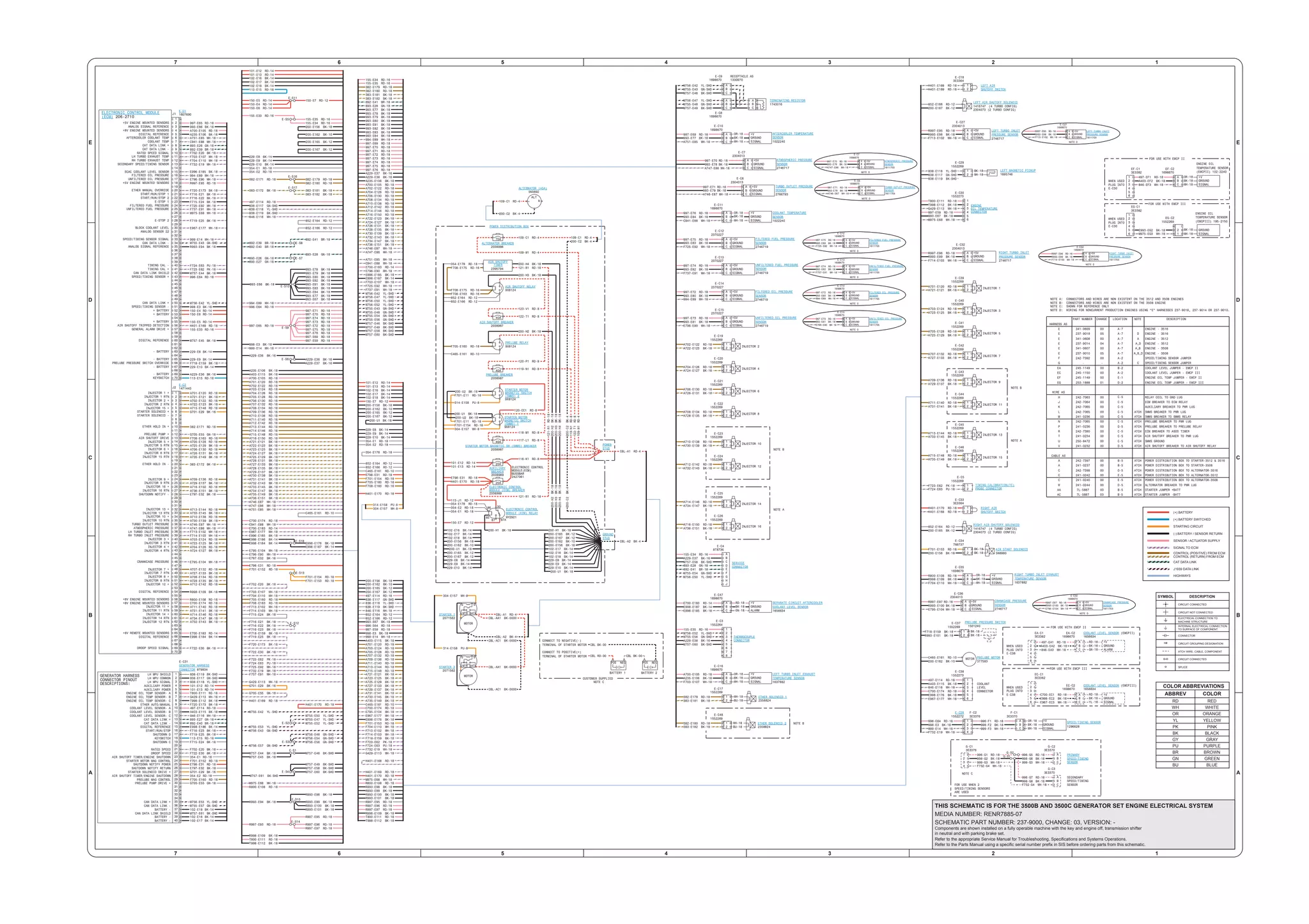

2. Electrical System
2015 Caterpillar, All Rights Reserved Printed in U.S.A.©
RENR7885-07
May 2015
3500B and 3500C
Generator Set Engine
3500B:
CPA192-UP
CTA155-UP
BMB132-UP
CNB1189-UP
CTB199-UP
YBB1-UP
CMC1241-UP
CTC268-UP
YBC1-UP
ZAD1-UP
JDE1-UP
BLF166-UP
CTG326-UP
CTH313-UP
JCH1-UP
ZAH1-UP
3500B:
CTJ199-UP
ZAJ1-UP
BPJ477-UP
BRK287-UP
YAM1-UP
FDN1599-UP
JCN1-UP
YAN1-UP
ZAP1-UP
ZBP1-UP
YAP1-UP
PBR1-UP
3500B:
PDR1-UP
GAR1-UP
YAR1-UP
ZAR1-UP
ZBR1-UP
GZS1-UP
YAT1-UP
YBT1-UP
YAW1-UP
YBW1-UP
BGX120-UP
JCY1-UP
YAY1-UP
YAZ1-UP
1FZ1-UP
1GZ1-UP
1HZ1-UP
3500C:
CT21-UP
DD51-UP
DD61-UP
YBD1-UP
3500B:
DB31-UP
DC31-UP
DD31-UP
GD31-UP
JD31-UP
JM31-UP
DB41-UP
DC41-UP
DD41-UP
JM41-UP
DB81-UP
DB91-UP
SBG1-UP
SBJ1-UP
SFJ1-UP
SBK1-UP
SEK1-UP
DD91-UP

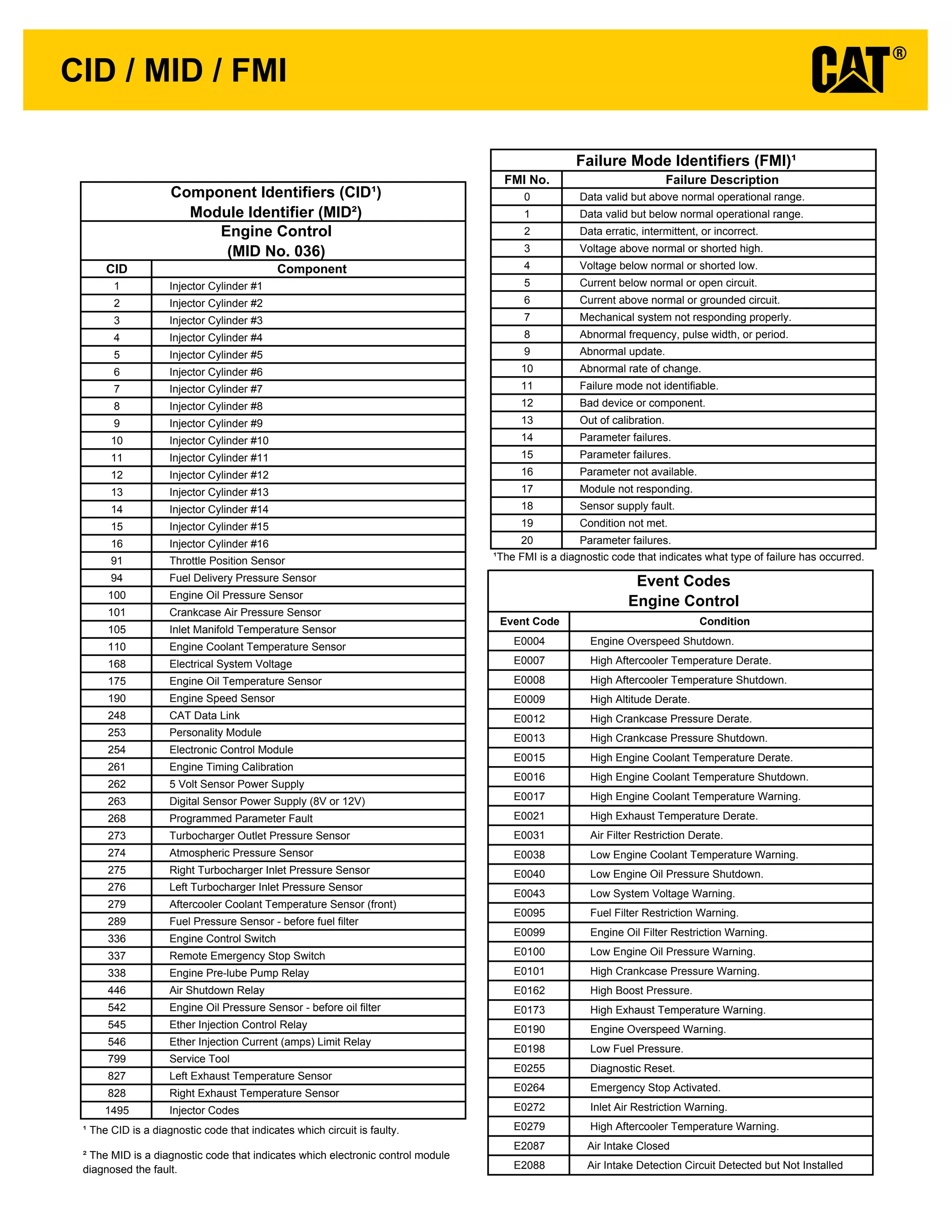

3. CID / MID / FMI
Failure Mode Identifiers (FMI)¹
FMI No. Failure Description
0 Data valid but above normal operational range.
1 Data valid but below normal operational range.
2 Data erratic, intermittent, or incorrect.
3 Voltage above normal or shorted high.
4 Voltage below normal or shorted low.
5 Current below normal or open circuit.
6 Current above normal or grounded circuit.
7 Mechanical system not responding properly.
8 Abnormal frequency, pulse width, or period.
9 Abnormal update.
10 Abnormal rate of change.
11 Failure mode not identifiable.
12 Bad device or component.
13 Out of calibration.
14 Parameter failures.
15 Parameter failures.
16 Parameter not available.
17 Module not responding.
18 Sensor supply fault.
19 Condition not met.
20 Parameter failures.
¹The FMI is a diagnostic code that indicates what type of failure has occurred.
Event Code Condition
E0004 Engine Overspeed Shutdown.
E0007 High Aftercooler Temperature Derate.
E0008 High Aftercooler Temperature Shutdown.
E0009 High Altitude Derate.
E0012 High Crankcase Pressure Derate.
E0013 High Crankcase Pressure Shutdown.
E0015 High Engine Coolant Temperature Derate.
E0016 High Engine Coolant Temperature Shutdown.
E0017 High Engine Coolant Temperature Warning.
E0021 High Exhaust Temperature Derate.
E0031 Air Filter Restriction Derate.
E0038 Low Engine Coolant Temperature Warning.
E0040 Low Engine Oil Pressure Shutdown.
E0043 Low System Voltage Warning.
E0095 Fuel Filter Restriction Warning.
E0099 Engine Oil Filter Restriction Warning.
E0100 Low Engine Oil Pressure Warning.
E0101 High Crankcase Pressure Warning.
E0162 High Boost Pressure.
E0173 High Exhaust Temperature Warning.
E0190 Engine Overspeed Warning.
E0198 Low Fuel Pressure.
E0255 Diagnostic Reset.
E0264 Emergency Stop Activated.
E0272 Inlet Air Restriction Warning.
E0279 High Aftercooler Temperature Warning.
E2087 Air Intake Closed
E2088 Air Intake Detection Circuit Detected but Not Installed
Event Codes
Engine Control
Component Identifiers (CID¹)
Module Identifier (MID²)
Engine Control
(MID No. 036)
CID Component
1 Injector Cylinder #1
2 Injector Cylinder #2
3 Injector Cylinder #3
4 Injector Cylinder #4
5 Injector Cylinder #5
6 Injector Cylinder #6
7 Injector Cylinder #7
8 Injector Cylinder #8
9 Injector Cylinder #9
10 Injector Cylinder #10
11 Injector Cylinder #11
12 Injector Cylinder #12
13 Injector Cylinder #13
14 Injector Cylinder #14
15 Injector Cylinder #15
16 Injector Cylinder #16
91 Throttle Position Sensor
94 Fuel Delivery Pressure Sensor
100 Engine Oil Pressure Sensor
101 Crankcase Air Pressure Sensor
105 Inlet Manifold Temperature Sensor
110 Engine Coolant Temperature Sensor
168 Electrical System Voltage
175 Engine Oil Temperature Sensor
190 Engine Speed Sensor
248 CAT Data Link
253 Personality Module
254 Electronic Control Module
261 Engine Timing Calibration
262 5 Volt Sensor Power Supply
263 Digital Sensor Power Supply (8V or 12V)
268 Programmed Parameter Fault
273 Turbocharger Outlet Pressure Sensor
274 Atmospheric Pressure Sensor
275 Right Turbocharger Inlet Pressure Sensor
276 Left Turbocharger Inlet Pressure Sensor
279 Aftercooler Coolant Temperature Sensor (front)
289 Fuel Pressure Sensor - before fuel filter
336 Engine Control Switch
337 Remote Emergency Stop Switch
338 Engine Pre-lube Pump Relay
446 Air Shutdown Relay
542 Engine Oil Pressure Sensor - before oil filter
545 Ether Injection Control Relay
546 Ether Injection Current (amps) Limit Relay
799 Service Tool
827 Left Exhaust Temperature Sensor
828 Right Exhaust Temperature Sensor
1495 Injector Codes
¹ The CID is a diagnostic code that indicates which circuit is faulty.
² The MID is a diagnostic code that indicates which electronic control module
diagnosed the fault.

4. RELATED MANUALS
Related Electrical Service Manuals
Form Number
Alternator: 5N-5692 SENR4978
Electric Starting Motor: 207-1562 SENR3581
Specifications RENR5057
Troubleshooting RENR5059
Title

5. WIRE DESCRIPTION
F732 WH Secondary SpeedTiming Sensor
Wire
Number
Wire Color Description
Wire
Number
Wire Color Description
Power Circuits Control Circuits (Continued)
101 RD Aux. Circuit Breaker A732 BK Injector 12 Return
109 RD Alternator A733 BK Injector 13 Return
113 RD Keyswitch A734 BK Injector 14 Return
115 RD ECM Relay A735 BK Injector 15 Return
116 RD Power To Breaker A736 BK Injector 16 Return
117 RD Power To SMMS Breaker A746 WH Turbo Outlet Pressure
118 RD Smms Breaker To SMMS Relay A747 WH Atmospheric Pressure
119 RD Power To Prelube Breaker A751 WH Aftercooler Coolant Temp
120 RD Smms1 To SMMS2 C700 RD +8v Engine Mounted Sensors
121 RD ECM Breaker To SOS Timer E700 RD +8v Remote Mounted Sensors
122 RD Power To ASOS Breaker E795 WH Crankcase Pressure
123 RD ASOS Breaker To ASOS Relay E796 WH Unfiltered Oil Pressure
150 RD ECM Relay E797 BK Shutdown Notify -
155 RD General Alarm E798 RD Shutdown Notify Return
Ground Circuits F701 RD Starter Motor Mag Control
102 BK Ground F702 BK Rated Speed
200 BK Ground F703 WH LH Turbo Exhaust Temp
229 BK Ground F704 WH RH Turbo Exhaust Temp
A229 BK - Battery F705 RD Prelube Mag Control
A235 BK Digital Reference F708 RD Air Shutoff Drive
Basic Circuits F713 WH LH Turbo Inlet Pressure
304 WH Starter 1 F714 WH RH Turbo Inlet Pressure
314 PU Starter 2 F715 BK Shutdown C
354 RD Shutoff Timer F716 BK Start / Run / Stop
382 RD Ether Aid Sol F718 BK Prelube Pressure Switch Override
383 BK Ether Hold In F719 BK E-stop 2
Monitoring Circuits F720 BK Ether Manual Override
497 RD Coolant Level + F722 BK Droop Speed Signal
A403 BK Coolant Level - F723 PK Timing Cal +
C465 RD Prelube Relay F724 PU Timing Cal -
G429 WH Oil Temp Signal F725 WH Filtered Fuel Pressure
H401 RD Air Shutoff Switch
Control Circuits F737 WH Unfiltered Fuel Pressure
A700 RD Engine Mounted Sensor Supply G701 BK Starter Solenoid +
A701 RD Injector 1 G705 GN Prelube Pump +
A702 RD Injector 2 M755 YL CAN Data Link +
A703 RD Injector 3 M756 GN CAN Data Link -
A704 RD Injector 4 M757 BK CAN Data Link Shield
A705 RD Injector 5 838 BK LH MPU Shield
A706 RD Injector 6 838 GN LH MPU Common
A707 RD Injector 7 838 YL LH MPU Signal
A708 RD Injector 8 846 WH Coolant Level Sensor
A709 RD Injector 9 852 RD Air Shutoff Solenoid
A710 RD Injector 10 892 BR CAT Data Link -
A711 RD Injector 11 893 GN CAT Data Link +
A712 RD Injector 12 R800 RD +8v Engine Mounted Sensors
A713 RD Injector 13 T800 RD Engine Oil Temp Sensor - A
A714 RD Injector 14 993 BK Analog Signal Reference
A715 RD Injector 15 994 WH Filtered Oil Pressure
A716 RD Injector 16 996 RD Speed/timing Sensor +
A721 BK Injector 1 Return 997 RD +5v Engine Mounted Sensors
A722 BK Injector 2 Return 998 BK Speed/timing Sensor -
A723 BK Injector 3 Return 999 WH Speed/timing Sensor Signal
A724 BK Injector 4 Return C941 WH Coolant Temp
A725 BK Injector 5 Return E967 WH Block Coolant Level
A726 BK Injector 6 Return E996 BK SCAC Coolant Level Sensor
A727 BK Injector 7 Return E998 BK Digital Reference
A728 BK Injector 8 Return M975 WH Engine Oil Temp
A729 BK Injector 9 Return R993 BK Analog Signal Reference
A730 BK Injector 10 Return R997 RD +5v Engine Mounted Sensors
A731 BK Injector 11 Return R998 BK Digital Reference
T998 BK Engine Oil Temp Sensor - C

6. HARNESS and WIRE
Electrical Schematic Symbols
1
2
AG-C4
111-7898
L-C12
3E-5179
9X-1123
Component
Part Number
Pin or Socket Number
Part Number: for
Connector Receptacle
Part Number: for
Connector Plug
Harness Identification Letter(s): (A, B, C, ..., AA, AB, AC, ...)
Plug
325-AG135 PK-14
Wire Color
Wire Gauge
Receptacle
Pressure
Symbol
T
Temperature
Symbol
Level
Symbol
Flow
Symbol
Circuit Breaker
Symbol
Harness and Wire Symbols
1
1
2
2
Sure-Seal connector: Typical representation
of a Sure-Seal connector. The plug and receptacle
contain both pins and sockets.
Deutsch connector: Typical representation
of a Deutsch connector. The plug contains all
sockets and the receptacle contains all pins.
Symbols
Symbols and Definitions
Fuse (5 Amps)
5A
T
Fuse: A component in an electrical circuit that will open the circuit if too much current flows through it.
Switch (Normally Open): A switch that will close at a specified point (temp, press, etc.). The circle indicates that the component has
screw terminals and a wire can be disconnected from it.
Switch (Normally Closed): A switch that will open at a specified point (temp, press, etc.). No circle indicates that the wire cannot be
disconnected from the component.
Ground (Wired): This indicates that the component is connected to a grounded wire. The grounded wire is fastened to the machine.
Ground (Case): This indicates that the component does not have a wire connected to ground. It is grounded by being fastened to the
machine.
Reed Switch: A switch whose contacts are controlled by a magnet. A magnet closes the contacts of a normally open reed switch; it
opens the contacts of a normally closed reed switch.
Sender: A component that is used with a temperature or pressure gauge. The sender measures the temperature or pressure. Its
resistance changes to give an indication to the gauge of the temperature or pressure.
Relay (Magnetic Switch): A relay is an electrical component that is activated by electricity. It has a coil that makes an electromagnet
when current flows through it. The electromagnet can open or close the switch part of the relay.
Solenoid: A solenoid is an electrical component that is activated by electricity. It has a coil that makes an electromagnet when current
flows through it. The electromagnet can open or close a valve or move a piece of metal that can do work.
Magnetic Latch Solenoid: A magnetic latch solenoid is an electrical component that is activated by electricity and held latched by a
permanent magnet. It has two coils (latch and unlatch) that make electromagnet when current flows through them. It also has an
internal switch that places the latch coil circuit open at the time the coil latches.
Harness identification code:
This example indicates wire group 325,
wire 135 in harness "AG".
L-C12
3E-5179
Wire, Cable, or Harness Assembly Identification:
Includes Harness Identification Letters and Harness
Connector Serialization Codes (see sample).
Harness Connector Serialization Code: The "C" stands for
"Connector" and the number indicates which connector in the
harness (C1, C2, C3, ...).

7. Components are shown installed on a fully operable machine with the key and engine off, transmission shifter
in neutral and with parking brake set.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
SCHEMATIC PART NUMBER: 237-9000, CHANGE: 03, VERSION: -
THIS SCHEMATIC IS FOR THE 3500B AND 3500C GENERATOR SET ENGINE ELECTRICAL SYSTEM
MEDIA NUMBER: RENR7885-07
Refer to the Parts Manual using a specific serial number prefix in SIS before ordering parts from this schematic.
A
B
C
D
E
1234567
A
B
C
D
E
1234567
SYMBOL DESCRIPTION
CIRCUIT CONNECTED
CIRCUIT NOT CONNECTED
ELECTRICAL CONNECTION TO
MACHINE STRUCTURE
INTERNAL ELECTRICAL CONNECTION
TO SURFACE OF COMPONENT
CONNECTOR
ATCH WIRE, CABLE, COMPONENT
CIRCUIT CONNECTED
SPLICE
CIRCUIT GROUPING DESIGNATIONH#
ABBREV
RD
WH
OR
YL
PK
BK
GY
PU
BR
GN
BU
COLOR
RED
WHITE
ORANGE
YELLOW
PINK
BLACK
GRAY
PURPLE
BROWN
GREEN
BLUE
COLOR ABBREVIATIONS
SENSOR / ACTUATOR SUPPLY
(+) BATTERY SWITCHED
SIGNAL TO ECM
(+) BATTERY
(-) BATTERY / SENSOR RETURN
STARTING CIRCUIT
CAT DATA LINK
CONTROL (POSITIVE) FROM ECM
CONTROL (RETURN) FROM ECM
J1939 DATA LINK
HIGHWAYS
NEGPOS
BATTERY 2
NEGPOS
BATTERY 1
354-E1 RD-18
354-E1 RD-18
354-E2 RD-18
354-E2 RD-18
150-E4 RD-14
150-E4 RD-14
150-E6 RD-14
150-E6 RD-14
150-E5 RD-14
150-E5 RD-14 150-E7 RD-12
150-E7 RD-12
229-E8 BK-14
229-E8 BK-14
229-E9 BK-14
229-E9 BK-14
229-E10 BK-14
229-E10 BK-14
101-E12 RD-14
101-E12 RD-14
101-E13 RD-14
101-E13 RD-14
102-E16 BK-14
102-E16 BK-14
102-E17 BK-14
102-E17 BK-14
102-E18 BK-14
102-E18 BK-14
113-E15 RD-18
113-E15 RD-18
113-E15 RD-18
F702-E20 BK-18
F702-E20 BK-18
F702-E20 BK-18
F716-E21 BK-18
F716-E21 BK-18
F716-E22 BK-18
F716-E22 BK-18
F716-E23 BK-18
F716-E23 BK-18
F715-E24 BK-18
F715-E24 BK-18
F715-E24 BK-18
F719-E25 BK-18
F719-E25 BK-18
F719-E25 BK-18
E700-E183 RD-14
E998-E184 BK-14
E996-E185 BK-18
G701-E29 BK-16
G701-E29 BK-16
G701-E29 BK-16
F722-E30 BK-18
F722-E30 BK-18
F722-E30 BK-18
E798-E31 RD-18
E798-E31 RD-18
E798-E31 RD-18
E797-E32 BK-18
E797-E32 BK-18
E797-E32 BK-18
155-E33 RD-16
155-E33 RD-16
155-E34 RD-16
155-E34 RD-16
155-E35 RD-16
155-E35 RD-16
A229-E36 BK-16
A229-E36 BK-16
A229-E37 BK-16
A229-E37 BK-16
A229-E38 BK-16
A229-E38 BK-16
893-E26 GN-18
893-E26 GN-18
893-E27 GN-18
893-E27 GN-18
893-E28 GN-18
893-E28 GN-18
892-E41 BR-18
892-E41 BR-18
892-E39 BR-18
892-E39 BR-18
892-E40 BR-18
892-E40 BR-18
M756-E42 YL-SHD
M755-E42 YL-SHD
M756-E42 YL-SHD
M755-E43 GN-SHD
M756-E43 GN-SHD
M755-E43 GN-SHD
M757-E44 BK-18
M757-E44 BK-18
M757-E45 BK-18
M757-E45 BK-18
M757-E46 BK-SHD
M757-E46 BK-SHD
M756-E47 YL-SHD
M755-E47 YL-SHD
M755-E50 YL-SHD
M756-E50 YL-SHD
M755-E52 YL-SHD
M756-E52 YL-SHD
M755-E53 YL-SHD
M756-E53 YL-SHD
M756-E48 GN-SHD
M755-E48 GN-SHD
M756-E54 GN-SHD
M755-E54 GN-SHD
M756-E56 GN-SHD
M755-E56 GN-SHD
M756-E57 GN-SHD
M755-E57 GN-SHD
M757-E49 BK-SHD
M757-E49 BK-SHD
M757-E58 BK-SHD
M757-E58 BK-SHD
M757-E60 BK-SHD
M757-E60 BK-SHD
M757-E61 BK-SHD
M757-E61 BK-SHD
F723-E62 PK-18
F723-E62 PK-18
F723-E62 PK-18
F724-E63 PU-18
F724-E63 PU-18
F724-E63 PU-18
996-E64 RD-18
996-E64 RD-18
996-E64 RD-18
997-E65 RD-18
997-E65 RD-18
997-E69 RD-18
997-E69 RD-18
997-E70 RD-18
997-E70 RD-18
997-E71 RD-18
997-E71 RD-18
997-E72 RD-18
997-E72 RD-18
997-E76 RD-18
997-E76 RD-18
997-E73 RD-18
997-E73 RD-18
997-E74 RD-18
997-E74 RD-18
997-E75 RD-18
997-E75 RD-18
993-E66 BK-18
993-E66 BK-18
993-E77 BK-18
993-E77 BK-18
993-E78 BK-18
993-E78 BK-18
993-E79 BK-18
993-E79 BK-18
993-E80 BK-18
993-E80 BK-18
993-E84 BK-18
993-E84 BK-18
993-E81 BK-18
993-E81 BK-18
993-E82 BK-18
993-E82 BK-18
993-E83 BK-18
993-E83 BK-18
A751-E85 WH-18
A751-E85 WH-18
A751-E85 WH-18
A747-E86 WH-18
A747-E86 WH-18
A747-E86 WH-18
A746-E87 WH-18
A746-E87 WH-18
A746-E87 WH-18
C941-E88 WH-18
C941-E88 WH-18
C941-E88 WH-18
994-E89 WH-18
994-E89 WH-18
994-E89 WH-18
E796-E90 WH-18
E796-E90 WH-18
E796-E90 WH-18
F737-E91 WH-18
F737-E91 WH-18
F737-E91 WH-18
F725-E92 WH-18
F725-E92 WH-18
F725-E92 WH-18
R997-E93 RD-18
R997-E93 RD-18
R997-E95 RD-18
R997-E95 RD-18
R997-E96 RD-18
R997-E96 RD-18
R997-E97 RD-18
R997-E97 RD-18
R993-E94 BK-18
R993-E94 BK-18
R993-E98 BK-18
R993-E98 BK-18
R993-E99 BK-18
R993-E99 BK-18
R993-E100 BK-18
R993-E100 BK-18
R993-E101 BK-18
R993-E101 BK-18
F713-E102 WH-18
F713-E102 WH-18
F713-E102 WH-18
F714-E103 WH-18
F714-E103 WH-18
F714-E103 WH-18
E795-E104 WH-18
E795-E104 WH-18
E795-E104 WH-18
A700-E105 RD-18
A700-E105 RD-18
A700-E105 RD-18
A235-E106 BK-18
A235-E106 BK-18
A235-E106 BK-18
F703-E107 WH-18
F703-E107 WH-18
F703-E107 WH-18
R800-E108 RD-18
R800-E108 RD-18
R800-E108 RD-18
R998-E109 BK-18
R998-E109 BK-18
R998-E109 BK-18
F704-E110 WH-18
F704-E110 WH-18
F704-E110 WH-18
T800-E111 RD-18
T800-E111 RD-18
T800-E111 RD-18
T998-E112 BK-18
T998-E112 BK-18
T998-E112 BK-18
G429-E113 WH-18
G429-E113 WH-18
G429-E113 WH-18
497-E114 RD-18
497-E114 RD-18
497-E114 RD-18
A403-E115 BK-18
A403-E115 BK-18
A403-E115 BK-18
846-E116 WH-18
846-E116 WH-18
846-E116 WH-18
838-E117 GN-SHD
838-E117 GN-SHD
838-E117 GN-SHD
838-E118 YL-SHD
838-E118 YL-SHD
838-E118 YL-SHD
838-E119 BK-SHD
838-E119 BK-SHD
838-E119 BK-SHD
A701-E120 RD-18
A701-E120 RD-18
A701-E120 RD-18
A702-E122 RD-18
A702-E122 RD-18
A702-E122 RD-18
A703-E124 RD-18
A703-E124 RD-18
A703-E124 RD-18
A704-E126 RD-18
A704-E126 RD-18
A704-E126 RD-18
A705-E128 RD-18
A705-E128 RD-18
A705-E128 RD-18
A706-E130 RD-18
A706-E130 RD-18
A706-E130 RD-18
A707-E132 RD-18
A707-E132 RD-18
A707-E132 RD-18
A708-E134 RD-18
A708-E134 RD-18
A708-E134 RD-18
A709-E136 RD-18
A709-E136 RD-18
A709-E136 RD-18
A710-E138 RD-18
A710-E138 RD-18
A710-E138 RD-18
A711-E140 RD-18
A711-E140 RD-18
A711-E140 RD-18
A712-E142 RD-18
A712-E142 RD-18
A712-E142 RD-18
A713-E144 RD-18
A713-E144 RD-18
A713-E144 RD-18
A714-E146 RD-18
A714-E146 RD-18
A714-E146 RD-18
A715-E148 RD-18
A715-E148 RD-18
A715-E148 RD-18
A716-E150 RD-18
A716-E150 RD-18
A716-E150 RD-18
A721-E121 BK-18
A721-E121 BK-18
A721-E121 BK-18
A722-E123 BK-18
A722-E123 BK-18
A722-E123 BK-18
A723-E125 BK-18
A723-E125 BK-18
A723-E125 BK-18
A724-E127 BK-18
A724-E127 BK-18
A724-E127 BK-18
A725-E129 BK-18
A725-E129 BK-18
A725-E129 BK-18
A726-E131 BK-18
A726-E131 BK-18
A726-E131 BK-18
A727-E133 BK-18
A727-E133 BK-18
A727-E133 BK-18
A728-E135 BK-18
A728-E135 BK-18
A728-E135 BK-18
A729-E137 BK-18
A729-E137 BK-18
A729-E137 BK-18
A730-E139 BK-18
A730-E139 BK-18
A730-E139 BK-18
A731-E141 BK-18
A731-E141 BK-18
A731-E141 BK-18
A732-E143 BK-18
A732-E143 BK-18
A732-E143 BK-18
A733-E145 BK-18
A733-E145 BK-18
A733-E145 BK-18
A734-E147 BK-18
A734-E147 BK-18
A734-E147 BK-18
A735-E149 BK-18
A735-E149 BK-18
A735-E149 BK-18
A736-E151 BK-18
A736-E151 BK-18
A736-E151 BK-18
F701-E152 RD-18
F701-E152 RD-18
F701-E153 RD-18
F701-E153 RD-18
F701-E154 RD-18
F701-E154 RD-18
200-E156 BK-18
304-E157 WH-8
F718-E159 BK-18
F718-E159 BK-18
F718-E159 BK-18
F705-E160 RD-18
F705-E160 RD-18
F705-E160 RD-18
C465-E161 RD-10
C465-E161 RD-10
C465-E161 RD-10
200-E162 BK-10
200-E162 BK-10
200-E162 BK-10
F708-E163 RD-16
F708-E163 RD-16
F708-E163 RD-16
852-E164 RD-12
852-E164 RD-12
852-E164 RD-12
852-E166 RD-12
852-E166 RD-12
852-E166 RD-12
200-E167 BK-12
200-E167 BK-12
200-E167 BK-12
200-E165 BK-12
200-E165 BK-12
200-E165 BK-12
H401-E170 RD-18
H401-E170 RD-18
H401-E170 RD-18
H401-E168 RD-18
H401-E169 RD-18
H401-E169 RD-18
H401-E169 RD-18
382-E171 RD-18
382-E171 RD-18
383-E172 BK-18
383-E172 BK-18
F720-E173 BK-18
F720-E173 BK-18
F720-E173 BK-18
200-E162 BK-10
C465-E161 RD-10
314-E158 PU-8
304-E157 WH-8
354-E1 RD-18
354-E1 RD-18
354-E2 RD-18
354-E2 RD-18
354-E178 RD-18
354-E178 RD-18
354-E178 RD-18
E798-E31 RD-18
150-E7 RD-12
F701-E154 RD-18
200-E156 BK-18
F705-E160 RD-18
101-E12 RD-14
101-E12 RD-14
101-E13 RD-14
101-E13 RD-14
102-E16 BK-14
102-E16 BK-14
102-E17 BK-14
102-E17 BK-14
102-E18 BK-14
102-E18 BK-14
F708-E163 RD-16
F708-E175 RD-16
F708-E175 RD-16
852-E164 RD-12
H401-E170 RD-18
200-E165 BK-12
200-E167 BK-12
998-E3 BK-18
998-E3 BK-18
998-E3 BK-18
999-E14 WH-18
999-E14 WH-18
999-E14 WH-18
F732-E19 WH-18
F732-E19 WH-18
F732-E19 WH-18
382-E179 RD-18
382-E179 RD-18
382-E180 RD-18
382-E180 RD-18
383-E181 BK-18
383-E181 BK-18
383-E182 BK-18
383-E182 BK-18

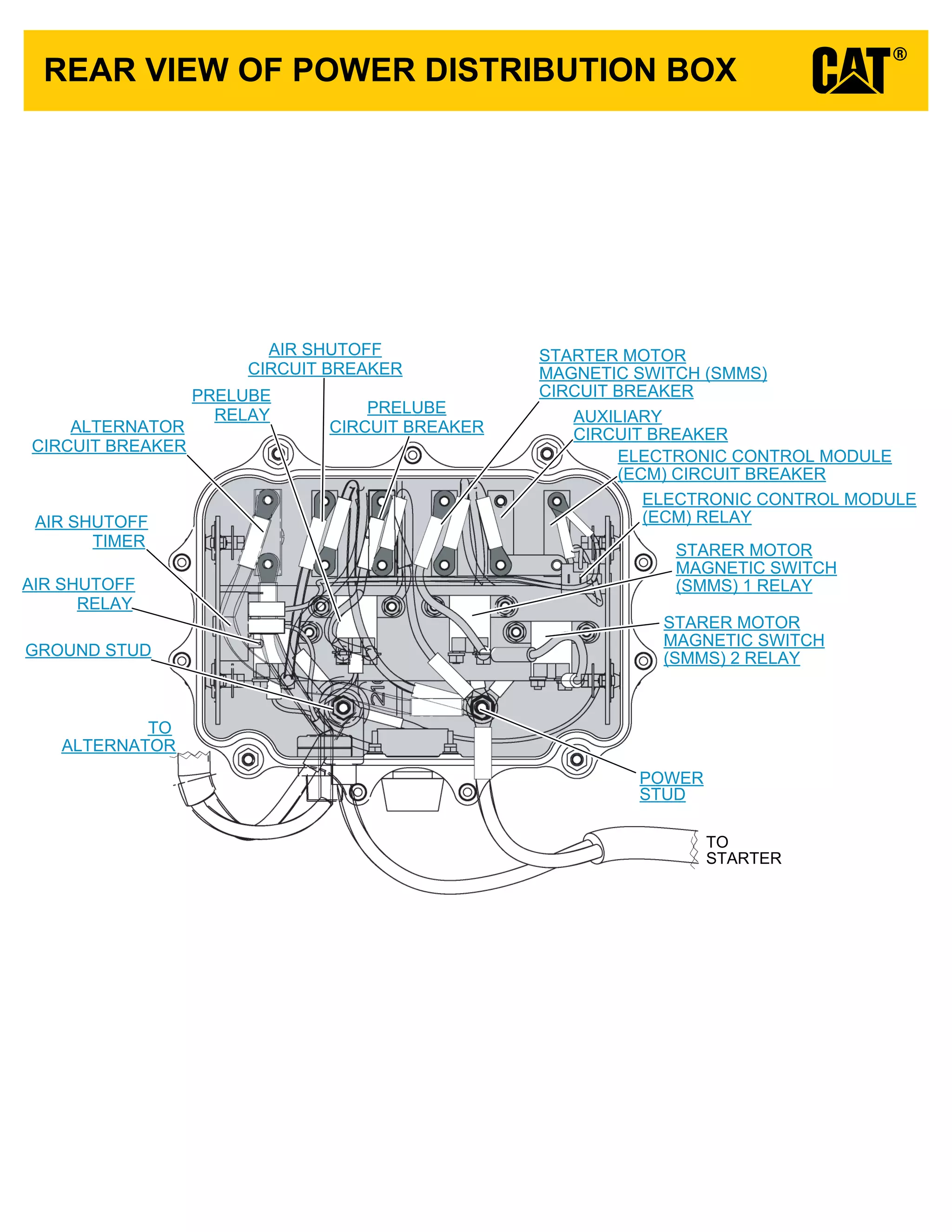

POWER DISTRIBUTION BOX
229-E8 BK-14
229-E8 BK-14
229-E9 BK-14
229-E9 BK-14
229-E10 BK-14
229-E10 BK-14
852-E166 RD-12
F701-E11 RD-18
F701-E11 RD-18
200-E156 BK-18
200-E156 BK-18
304-E157 WH-8
314-E158 PU-8
314-E158 PU-8
200-H1 BK-18
200-H2 BK-18
200-H3 BK-18
200-H4 BK-18
200-H2BK-18
200-H3BK-18
200-H4BK-18
115-J1 RD-12
116-K1 RD-8
117-L1 RD-8
118-M1 RD-8
120-P1 RD-8
119-N1 RD-8
121-R1 RD-18
121-R1 RD-18
122-T1RD-8
122-T1 RD-8
123-V1 RD-8
109-W1 RD-4
109-W1RD-4
109-C1 RD-4
200-C2BK-4
200-C2 BK-4
109-C1 RD-4
109-C1 RD-4
200-C2 BK-4
200-H1 BK-18
229-E10 BK-14
229-E9 BK-14
229-E8 BK-14
102-E18 BK-14
102-E16 BK-14
102-E17 BK-14
200-E156 BK-18
200-E162 BK-10
200-E167 BK-12
200-E165 BK-12
119-N1RD-8
200-C2BK-4
200-H4BK-18
200-H3BK-18
200-H2BK-18
121-R1RD-18
CBL-A2 BK-4
CBL-A1 RD-4
CBL-A1 RD-4
CBL-A2 BK-4
GENERATOR HARNESS
CONNECTOR PINOUT
DESCRIPTIONS:
LH MPU SHIELD
LH MPU COMMON
LH MPU SIGNAL
AUXILIARY POWER
AUXILIARY POWER
ENGINE OIL TEMP SENSOR- A
ENGINE OIL TEMP SENSOR- B
ENGINE OIL TEMP SENSOR- C
ETHER AUTO/MANUAL
COOLANT LEVEL SENSOR- A
COOLANT LEVEL SENSOR- B
COOLANT LEVEL SENSOR- C
CAT DATA LINK +
CAT DATA LINK -
DIGITAL REFERENCE
START/RUN/STOP
SHUTDOWN D
KEYSWITCH
SHUTDOWN C
AIR SHUTOFF TIMER/ENGINE SHUTDOWN
STARTER MOTOR MAG CONTROL
SHUTDOWN NOTIFY POWER
STARTER SOLENOID DRIVE +
AIR SHUTOFF TIMER/ENGINE SHUTDOWN
RATED SPEED
DROOP SPEED
CAN DATA LINK +
CAN DATA LINK -
BATTERY -
CAN DATA LINK SHIELD
BATTERY -
BATTERY -
E700-E183 RD-14
E700-E183 RD-14
E996-E185 BK-18
E996-E185 BK-18
E998-E186 BK-14
E998-E186 BK-14
E998-E187 BK-14
E998-E187 BK-14
E998-E184 BK-14
SHUTDOWN NOTIFY RETURN
C700-E174 RD-18
C700-E174 RD-18
C700-E174 RD-18
E998-E176 BK-18
E998-E176 BK-18
E967-E177 WH-18
E967-E177 WH-18
E967-E177 WH-18
M975-E68 WH-18
M975-E68 WH-18
M975-E68 WH-18
993-E67 BK-18
993-E67 BK-18
997-E59 RD-18
997-E59 RD-18
G705-E55 GN-18
G705-E55 GN-18
G705-E55 GN-18
PRELUBE MAG CONTROL
PRELUBE PUMP DRIVE +
CBL-AA1 BK-0000
CBL-AC1 BK-0000
CBL-AA1 BK-0000
CBL-AC1 BK-0000
CBL BK-00
CBL BK-00CBL RD-00
CONNECT TO NEGATIVE(-)
TERMINAL OF STARTER MOTOR
CUSTOMER SUPPLIED
NOTE C
200-U1 BK-18
200-U2 BK-18
120-CC1 RD-8
200-U1 BK-18
200-U1 BK-18
200-U2 BK-18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
E-C1
1607690
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
E-C2
1471443
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
E-C31
GENERATOR HARNESS
CONNECTOR 8T9834
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
E-S11
E-S6
E-S12
E-S7
E-S8
E-S1
E-S2
E-S5
E-S3
E-S4
E-S9
E-S10
E-S14
E-S15
E-S13
E-S16
E-S17
E-S18
20A
ELECTRONIC CONTROL
MODULE (ECM) BREAKER
2038989
20A
AUXILIARY
BREAKER
2038989
ELECTRONIC CONTROL
MODULE (ECM) RELAY
9Y2921
86
85
30
87 87A
ELECTRONIC CONTROL
MODULE(ECM)
BUSSBAR
2427061
PRELUBE RELAY
9X8124
AIR SHUTOFF RELAY
9X8124
40A
STARTER MOTOR MAGNETIC SW (SMMS) BREAKER
2038987
40A
PRELUBE BREAKER
2038987
40A
AIR SHUTOFF BREAKER
2038987
70A
ALTERNATOR BREAKER
2038986
STARTER MOTOR
MAGNETIC SWITCH
(SMMS) 2
9X8124
STARTER MOTOR
MAGNETIC SWITCH
(SMMS) 1
9X8124
POWER
STUD
G S
MTR BAT
MOTOR
STARTER 1
2071562
DIGITAL REFERENCE
+8V ENGINE MOUNTED SENSORS
ANALOG SIGNAL REFERENCE
+5V ENGINE MOUNTED SENSORS
UNFILTERED OIL PRESSURE
SECONDARY SPEED/TIMING SENSOR
SCAC COOLANT LEVEL SENSOR
+5V ENGINE MOUNTED SENSORS
INJECTOR 5 +
INJECTOR 9 RTN
UNFILTERED FUEL PRESSURE
BLOCK COOLANT LEVEL
FILTERED OIL PRESSURE
CAN DATA LINK -
INJECTOR 2 RTN
SPEED/TIMING SENSOR SIGNAL
STARTER SOLENOID -
FILTERED FUEL PRESSURE
PRELUBE PUMP +
START/RUN/STOP 1
E-STOP 1
RH TURBO EXHAUST TEMP
E-STOP 2
STARTER SOLENOID +
INJECTOR 9 +
LH TURBO EXHAUST TEMP
RATED SPEED SIGNAL
INJECTOR 16 +
INJECTOR 10 RTN
ANALOG SENSOR 22
INJECTOR 15 RTN
AIR SHUTOFF DRIVE
ETHER HOLD IN -
INJECTOR 6 RTN
ETHER HOLD IN +
INJECTOR 15 +
ETHER MANUAL OVERRIDE
START/RUN/STOP 2
INJECTOR 5 RTN
INJECTOR 6 +
INJECTOR 1 +
ELECTRONIC CONTROL MODULE
(ECM) 206-2710
ANALOG SIGNAL REFERENCE
TIMING CAL -
CAT DATA LINK -
CAT DATA LINK +
COOLANT TEMP
INJECTOR 2 +
INJECTOR 1 RTN
INJECTOR 16 RTN
SHUTDOWN NOTIFY -
INJECTOR 13 +
INJECTOR 13 RTN
INJECTOR 10 +
TURBO OUTLET PRESSURE
ATMOSPHERIC PRESSURE
LH TURBO INLET PRESSURE
RH TURBO INLET PRESSURE
INJECTOR 3 +
TIMING CAL +
INJECTOR 3 RTN
CAN DATA LINK SHIELD
INJECTOR 4 +
SPEED/TIMING SENSOR +
INJECTOR 4 RTN
CRANKCASE PRESSURE
INJECTOR 7 +
INJECTOR 7 RTN
CAN DATA LINK +
INJECTOR 8 +
SPEED/TIMING SENSOR -
INJECTOR 8 RTN
+ BATTERY
INJECTOR 12 +
+ BATTERY
DIGITAL REFERENCE
+ BATTERY
AIR SHUTOFF TRIPPED DETECTION
+8V ENGINE MOUNTED SENSORS
GENERAL ALARM DRIVE +
+8V ENGINE MOUNTED SENSORS
INJECTOR 11 +
INJECTOR 11 RTN
DIGITAL REFERENCE
INJECTOR 14 +
INJECTOR 14 RTN
INJECTOR 12 RTN
- BATTERY
- BATTERY
+8V REMOTE MOUNTED SENSORS
PRELUBE PRESSURE SWITCH OVERRIDE
DIGITAL REFERENCE
- BATTERY
- BATTERY
DROOP SPEED SIGNAL
KEYSWITCH
J1
J2
AFTERCOOLER COOLANT TEMP
AIR SHUTOFF
TIMER
2395794
ALT
+ R
ALTERNATOR (45A)
5N5692
G S
MTR BAT
MOTOR
STARTER 2
2071562
200-U1 BK-18
PART NUMBER CHANGE LOCATION NOTE DESCRIPTION

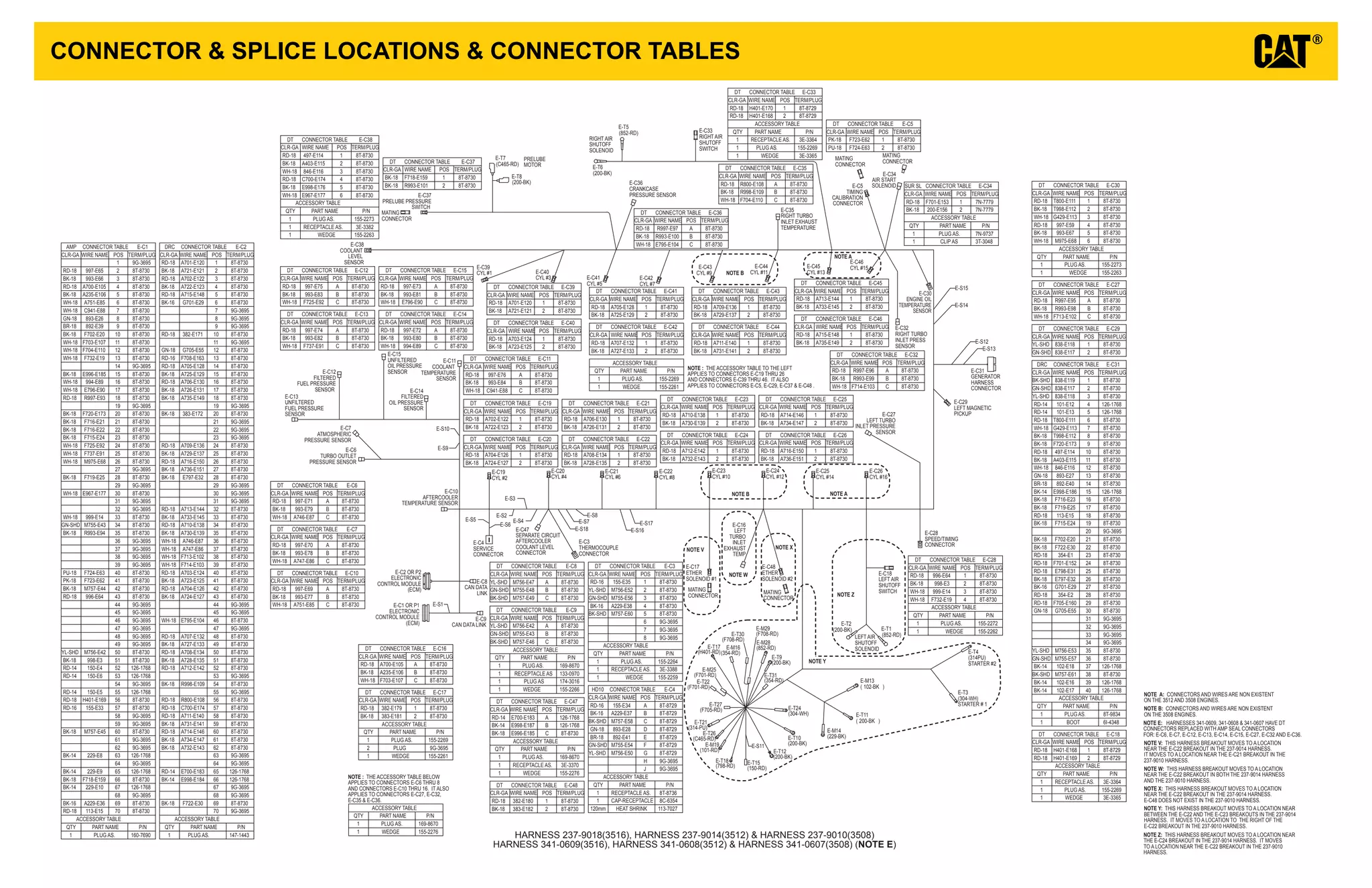

HARNESS AS
E 237-9018 05 A-7 ENGINE - 3516
E 237-9014 04 A-7 A,D ENGINE - 3512
E 237-9010 05 A-7 A,B,D ENGINE - 3508
F 242-7392 00 A-2 SPEED/TIMING SENSOR JUMPER
G - - A-2 C SPEED/TIMING SENSOR JUMPER
EA 245-1149 00 B-2 COOLANT LEVEL JUMPER - EMCP II
EC 245-1150 00 A-2 COOLANT LEVEL JUMPER - EMCP III
EF 245-1149 00 E-1 ENGINE OIL TEMP JUMPER - EMCP II
EG 253-1888 01 D-2 ENGINE OIL TEMP JUMPER - EMCP III
WIRE AS
H 242-7063 00 C-5 RELAY COIL TO GND LUG
J 242-7064 00 C-5 ECM BREAKER TO ECM RELAY
K 242-7065 00 C-5 AUXILIARY BREAKER TO PWR LUG
L 242-7065 00 C-5 ATCH SMMS BREAKER TO PWR LUG
M 241-0236 00 C-5 ATCH SMMS BREAKER TO SMMS RELAY
N 242-7065 00 C-5 ATCH PRELUBE BREAKER TO PWR LUG
P 241-0236 00 D-5 ATCH PRELUBE BREAKER TO PRELUBE RELAY
R 242-7390 00 C-5 ATCH ECM BREAKER TO ASOS TIMER
T 241-0234 00 C-5 ATCH AIR SHUTOFF BREAKER TO PWR LUG
U 250-8472 00 C-5 ATCH SMMS GROUND
V 241-0232 00 D-5 ATCH AIR SHUTOFF BREAKER TO AIR SHUTOFF RELAY
CABLE AS
A 242-7397 00 B-5 ATCH POWER DISTRIBUTION BOX TO STARTER-3512 & 3516
A 241-0237 00 B-5 ATCH POWER DISTRIBUTION BOX TO STARTER-3508
C 242-7398 00 D-5 ATCH POWER DISTRIBUTION BOX TO ALTERNATOR-3516
C 241-0242 00 E-5 ATCH POWER DISTRIBUTION BOX TO ALTERNATOR-3512
C 241-0240 00 E-5 ATCH POWER DISTRIBUTION BOX TO ALTERNATOR-3508
W 241-0244 00 D-5 ATCH ALTERNATOR BREAKER TO PWR LUG
AA 7L-5887 03 B-5 ATCH STARTER JUMPER +BATT
AC 7L-5887 03 B-5 ATCH STARTER JUMPER -BATT
1
2
3
4
G-C1
3E3376
G-C2
3E3370
A
B
C
G-C3
3E3370
A
B
C
G-S1
G-S2
F-C1
3E3370
A
B
C
1
2
3
4
F-C2
3E3376
SERVICE
CONNECTOR
THERMOCOUPLE
CONNECTOR
TIMING CALIBRATION(TC)
PROBE CONNECTOR
LEFT AIR
SHUTOFF SWITCH
RIGHT AIR
SHUTOFF SWITCH
155-E34 RD-16
155-E35 RD-16
A229-E37 BK-16
A229-E38 BK-16
893-E28 GN-18
892-E41 BR-18
M756-E42 YL-SHD
M755-E43 GN-SHD
M757-E46 BK-SHD
M756-E47 YL-SHD
M756-E50 YL-SHD
M756-E52 YL-SHD
M755-E48 GN-SHD
M755-E54 GN-SHD
M755-E56 GN-SHD
M757-E49 BK-SHD
M757-E58 BK-SHD
M757-E60 BK-SHD
F723-E62 PK-18
F724-E63 PU-18
996-E64 RD-18
997-E69 RD-18
997-E70 RD-18
997-E71 RD-18
997-E72 RD-18
997-E76 RD-18
997-E73 RD-18
997-E74 RD-18
997-E75 RD-18
993-E77 BK-18
993-E78 BK-18
993-E79 BK-18
993-E80 BK-18
993-E84 BK-18
993-E81 BK-18
993-E82 BK-18
993-E83 BK-18
A751-E85 WH-18
A747-E86 WH-18
A746-E87 WH-18
C941-E88 WH-18
994-E89 WH-18
E796-E90 WH-18
F737-E91 WH-18
F725-E92 WH-18
R997-E95 RD-18
R997-E96 RD-18
R997-E97 RD-18
R993-E98 BK-18
R993-E99 BK-18
R993-E100 BK-18
R993-E101 BK-18
F713-E102 WH-18
F714-E103 WH-18
E795-E104 WH-18
A700-E105 RD-18
A235-E106 BK-18
F703-E107 WH-18
R800-E108 RD-18
R998-E109 BK-18
F704-E110 WH-18
T800-E111 RD-18
T998-E112 BK-18
G429-E113 WH-18
497-E114 RD-18
A403-E115 BK-18
846-E116 WH-18
838-E117 GN-SHD
838-E118 YL-SHD
838-E119 BK-SHD
A701-E120 RD-18
A702-E122 RD-18
A703-E124 RD-18
A704-E126 RD-18
A705-E128 RD-18
A706-E130 RD-18
A707-E132 RD-18
A708-E134 RD-18
A709-E136 RD-18
A710-E138 RD-18
A711-E140 RD-18
A712-E142 RD-18
A713-E144 RD-18
A714-E146 RD-18
A715-E148 RD-18
A716-E150 RD-18
A721-E121 BK-18
A722-E123 BK-18
A723-E125 BK-18
A724-E127 BK-18
A725-E129 BK-18
A726-E131 BK-18
A727-E133 BK-18
A728-E135 BK-18
A729-E137 BK-18
A730-E139 BK-18
A731-E141 BK-18
A732-E143 BK-18
A733-E145 BK-18
A734-E147 BK-18
A735-E149 BK-18
A736-E151 BK-18
F701-E153 RD-18
200-E156 BK-18
F718-E159 BK-18
C465-E161 RD-10
200-E162 BK-10
852-E164 RD-12
852-E166 RD-12
200-E167 BK-12
200-E165 BK-12
H401-E170 RD-18
H401-E168 RD-18
H401-E168 RD-18
H401-E169 RD-18
998-E3 BK-18
999-E14 WH-18
F732-E19 WH-18
382-E179 RD-18
382-E180 RD-18
383-E181 BK-18
383-E182 BK-18
996-F1 RD-18
998-F2 BK-18
999-F3 WH-18
999-G3 WH-18
F732-G4 WH-18
996-G1 RD-18 996-G5 RD-18
996-G7 RD-18
998-G2 BK-18 998-G6 BK-18
998-G8 BK-18
F732-G4 WH-18
999-G3 WH-18
PRIMARY
SPEED/TIMING
SENSOR
SECONDARY
SPEED/TIMING
SENSORFOR USE WHEN 2
SPEED/TIMING SENSORS
ARE USED
NOTE B
NOTE A
NOTE B
NOTE A
NOTE A: CONNECTORS AND WIRES ARE NON EXISTENT ON THE 3512 AND 3508 ENGINES
NOTE B: CONNECTORS AND WIRES ARE NON EXISTENT ON THE 3508 ENGINE
NOTE C: SHOWN FOR REFERENCE ONLY
NOTE C
E700-E183 RD-14
E996-E185 BK-18
E998-E187 BK-14
NOTE B
497-EA1 RD-18
A403-EA2 BK-18
846-EA3 WH-18
E967-EC3 WH-18
E998-EC2 BK-18
C700-EC1 RD-18
FOR USE WITH EMCP II
FOR USE WITH EMCP III
WHEN USED
PLUG INTO
E-C38
WHEN USED
PLUG INTO
E-C38
FOR USE WITH EMCP II
FOR USE WITH EMCP III
WHEN USED
PLUG INTO
E-C30
WHEN USED
PLUG INTO
E-C30
497-EF1 RD-18
A403-EF2 BK-18
E993-EG2 BK-18
846-EF3 WH-18
M975-EG3 WH-18
C700-E174 RD-18
E998-E176 BK-18
E967-E177 WH-18
M975-E68 WH-18
993-E67 BK-18
997-E59 RD-18
ENGINE
OIL TEMPERATURE
CONNECTOR
COOLANT
LEVEL
CONNECTOR
1
2
E-C3
1552264
3
4
5
6
7
8
A
B
E-C4
8T8736
C
D
E
F
G
H
J
1
2
E-C5
1552269
E-C6
2304013
A
B
C
E-C7
2304013
A
B
C
E-C8
1698670
A
B
C
E-C9
1698670
A
B
C
E-C10
1698670
E-C11
1698670
A
B
C
E-C12
2370227
A
B
C
E-C13
2370227
A
B
C
E-C14
2370227
A
B
C
E-C15
2370227
A
B
C
E-C16
1698670
A
B
C
1
2
E-C18
3E3364
1
2
E-C19
1552269
1
2
E-C20
1552269
1
2
E-C21
1552269
1
2
E-C22
1552269
1
2
E-C23
1552269
1
2
E-C24
1552269
1
2
E-C25
1552269
1
2
E-C26
1552269
E-C27
2304013
A
B
C
1
2
E-C29
1552269
E-C30
1552273
1
2
3
4
5
6
1
2
E-C17
1552269
1
2
E-C34
7N9737
1
2
E-C33
3E3364
E-C32
2304013
A
B
C
E-C35
1698670
A
B
C
E-C36
2304013
A
B
C
1
2
E-C37
1552269
E-C38
1552273
1
2
3
4
5
6
1
2
E-C39
1552269
1
2
E-C40
1552269
1
2
E-C41
1552269
1
2
E-C42
1552269
1
2
E-C43
1552269
1
2
E-C44
1552269
1
2
E-C45
1552269
1
2
E-C46
1552269
E-C28
1552272
1
2
E-C48
1552269
E-C47
1698670
A
B
C
A
B
C
RECEPTACLE AS
1330970
TERMINATING RESISTOR
1743016
WH-18
BK-18
OR-18 +V
GROUND
SIGNAL
AFTERCOOLER TEMPERATURE
SENSOR
1022240
+5V
SIGNAL
GROUND
ATMOSPHERIC PRESSURE
SENSOR
2746717
+5V
SIGNAL
GROUND
TURBO OUTLET PRESSURE
SENSOR
2766793
+V
GROUND
SIGNAL
COOLANT TEMPERATURE
SENSOR
1022240
+5V
SIGNAL
GROUND
FILTERED FUEL PRESSURE
SENSOR
2746719
+5V
SIGNAL
GROUND
UNFILTERED FUEL PRESSURE
SENSOR
2746719
+5V
SIGNAL
GROUND
FILTERED OIL PRESSURE
SENSOR
2746719
+5V
SIGNAL
GROUND
UNFILTERED OIL PRESSURE
SENSOR
2746719
WH-18
BK-18
OR-18 +V
GROUND
SIGNAL
LEFT TURBO INLET EXHAUST
TEMPERATURE SENSOR
1637882
ETHER SOLENOID 1
2358824
WH-18
BU-18
ETHER SOLENOID 2
2358824
WH-18
BU-18
OR-18
BK-18 GROUND
+V
SIGNALWH-18
SPEED/TIMING SENSOR
1296628
+5V
SIGNAL
GROUND
CRANKCASE PRESSURE
SENSOR
2746717
WH-18
BK-18
OR-18 +V
GROUND
SIGNAL
RIGHT TURBO INLET EXHAUST
TEMPERATURE SENSOR
1637882
+5V
SIGNAL
GROUND
RIGHT TURBO INLET
PRESSURE SENSOR
2746717
BK-18
WH-18
LEFT MAGNETIC PICKUP
1895746
+5V
SIGNAL
GROUND
LEFT TURBO INLET
PRESSURE SENSOR
2746717
MOTOR PRELUBE MOTOR
3T7583
BK-18
BK-18
AIR START SOLENOID
5N8980
RIGHT AIR SHUTOFF SOLENOID
1416747 (4 TURBO CONFIG)
2304073 (2 TURBO CONFIG)
LEFT AIR SHUTOFF SOLENOID
1416747 (4 TURBO CONFIG)
2304073 (2 TURBO CONFIG)
INJECTOR 2
INJECTOR 4
INJECTOR 6
INJECTOR 8
INJECTOR 10
INJECTOR 12
INJECTOR 14
INJECTOR 16
INJECTOR 1
INJECTOR 3
INJECTOR 5
INJECTOR 7
INJECTOR 9
INJECTOR 11
INJECTOR 13
INJECTOR 15
BK-18
BK-18
PRELUBE PRESSURE SWITCH
1501240
GN-18
BK-18
RD-18 +V
GROUND
ALARM
SEPARATE CIRCUIT AFTERCOOLER
COOLANT LEVEL SENSOR
1656634
1
2
3
4
5
6
EG-C1
3E3382
EG-C2
1552269
2
1 WH-18
BK-18 GROUND
SIGNAL
ENGINE OIL
TEMPERATURE SENSOR
(EMCPIII) 195-2150
1
2
3
4
5
6
EF-C1
3E3382
EF-C2
1698670
A
B
C WH-18
BK-18
OR-18 +V
GROUND
SIGNAL
ENGINE OIL
TEMPERATURE SENSOR
(EMCPII) 102-2240
YL-18
BK-18
RD-18 +V
GROUND
SIGNAL
COOLANT LEVEL SENSOR (EMCPIII)
1656634
1
2
3
4
5
6
EC-C1
3E3382
EC-C2
1698670
A
B
C
GN-18
BK-18
RD-18 +V
GROUND
ALARM
COOLANT LEVEL SENSOR (EMCPII)
1656634
1
2
3
4
5
6
EA-C1
3E3382
EA-C2
1698670
A
B
C
GROUND
STUD
CONNECT TO POSITIVE(+)
TERMINAL OF STARTER MOTOR
997-E70 RD-18
993-E78 BK-18
A747-E86 WH-18
E-C7
1698670
A
B
C
+5V
SIGNAL
GROUND
ATMOSPHERIC PRESSURE
SENSOR
1611703
997-E71 RD-18
993-E79 BK-18
A746-E87 WH-18
E-C6
1698670
A
B
C
+5V
SIGNAL
GROUND
TURBO OUTLET PRESSURE
SENSOR
1611704
997-E75 RD-18
993-E83 BK-18
F725-E92 WH-18
E-C12
1698670
A
B
C
+5V
SIGNAL
GROUND
FILTERED FUEL PRESSURE
SENSOR
1611705
997-E74 RD-18
993-E82 BK-18
F737-E91 WH-18
E-C13
1698670
A
B
C
+5V
SIGNAL
GROUND
UNFILTERED FUEL PRESSURE
SENSOR
1611705
997-E72 RD-18
993-E80 BK-18
994-E89 WH-18
E-C14
1698670
A
B
C
+5V
SIGNAL
GROUND
FILTERED OIL PRESSURE
SENSOR
1611705
997-E73 RD-18
993-E81 BK-18
E796-E90 WH-18
E-C15
1698670
A
B
C
+5V
SIGNAL
GROUND
UNFILTERED OIL PRESSURE
SENSOR
1611705
A
B
C
WH-18
BK-18
OR-18
R997-E95 RD-18
R993-E98 BK-18
F713-E102 WH-18
E-C27
1698670
A
B
C
+5V
SIGNAL
GROUND
LEFT TURBO INLET
PRESSURE SENSOR
1611703
R997-E96 RD-18
R993-E99 BK-18
F714-E103 WH-18
E-C32
1698670
A
B
C
+5V
SIGNAL
GROUND
RIGHT TURBO INLET
PRESSURE SENSOR
1611703
R997-E97 RD-18
R993-E100 BK-18
E795-E104 WH-18
E-C32
1698670
A
B
C
+5V
SIGNAL
GROUND
CRANKCASE PRESSURE
SENSOR
1611703
NOTE D
NOTE D
NOTE D
NOTE D
NOTE D
NOTE D
NOTE D
NOTE D
NOTE D
E 341-0609 00 A-7 ENGINE - 3516
E 341-0608 00 A-7 A ENGINE - 3512
E 341-0607 00 A-7 A,B ENGINE - 3508
D
NOTE D: WIRING FOR NONCURRENT PRODUCTION ENGINES USING “E” HARNESSES 237-9018, 237-9014 OR 237-9010.

8. FRONT AND REAR VIEW
FRONT VIEW REAR VIEW
GENERATOR
HARNESS
CONNECTOR
E-C31
LEFT MAGNETIC
PICKUP
E-C29
RIGHT TURBO INLET
PRESSURE SENSOR
E-C32
LEFT TURBO INLET
PRESSURE SENSOR
E-C27
CAN DATA LINK
TERMINATING
RESISTOR
E-C8 & E-C9
ELECTRONIC CONTROL
MODULE (ECM) E-C1
ELECTRONIC CONTROL
MODULE (ECM) E-C2
AFTERCOOLER
TEMPERATURE SENSOR
E-C10
TURBO OUTLET
PRESSURE SENSOR
E-C6
ATMOSPHERIC
PRESSURE SENSOR
E-C7
FILTERED OIL
PRESSURE SENSOR
E-C14
COOLANT TEMPERATURE
SENSOR
E-C11
VIEW ALL CALLOUTS

9. LEFT SIDE VIEW
LEFT TURBO
INLET EXHAUST
TEMPERATURE
SENSOR
E-C16
LEFT AIR SHUTOFF
SOLENOID
LEFT AIR SHUTOFF SWITCH
CONNECTOR
E-C18
SPEED/TIMING
CONNECTOR
E-C28
SPEED/TIMING
SENSOR
F-C1 OR G-C2
STARTER 2
STARTER 1
ETHER SOLENOID 2
E-C48
POWER DISTRIBUTION BOX
ETHER SOLENOID 1
E-C17
THERMOCOUPLE
CONNECTOR
E-C3
SEPARATE CIRCUIT
AFTERCOOLER
COOLANT LEVEL
CONNECTOR
E-C47
SERVICE
CONNECTOR
E-C4
ELECTRONIC
CONTROL
MODULE (ECM)
UNFILTERED OIL
PRESSURE
SENSOR
E-C15
UNFILTERED
FUEL
PRESSURE
SENSOR
E-C13
FILTERED FUEL
PRESSURE
SENSOR
E-C12
LEFT TURBO INLET
PRESSURE
SENSOR
E-C27
AFTERCOOLER
TEMPERATURE
SENSOR
E-C10
FILTERED OIL
PRESSURE
SENSOR
E-C14
VIEW ALL CALLOUTS

10. REAR VIEW OF POWER DISTRIBUTION BOX
TO
STARTER
PRELUBE
RELAY
AIR SHUTOFF
CIRCUIT BREAKER
PRELUBE
CIRCUIT BREAKER
STARTER MOTOR
MAGNETIC SWITCH (SMMS)
CIRCUIT BREAKER
AUXILIARY
CIRCUIT BREAKER
ELECTRONIC CONTROL MODULE
(ECM) CIRCUIT BREAKER
ELECTRONIC CONTROL MODULE
(ECM) RELAY
STARER MOTOR
MAGNETIC SWITCH
(SMMS) 2 RELAY
STARER MOTOR
MAGNETIC SWITCH
(SMMS) 1 RELAY
POWER
STUD
TO
ALTERNATOR
GROUND STUD
AIR SHUTOFF
RELAY
AIR SHUTOFF
TIMER
ALTERNATOR
CIRCUIT BREAKER
VIEW ALL CALLOUTS

11. RIGHT SIDE VIEW
RIGHT AIR
SHUTOFF SWITCH
CONNECTOR
E-C33
RIGHT AIR
SHUTOFF SOLENOID
RIGHT TURBO
INLET EXHAUST
TEMPERATURE
SENSOR E-C35
CRANKCASE PRESSURE
SENSOR E-C36
COOLANT LEVEL
SENSOR E-C38
PRELUBE PRESSURE
SWITCH E-C37
PRELUBE MOTOR
AIR START SOLENOID
CONNECTOR E-C34
TIMING CALIBRATION
CONNECTOR E-C5
ENGINE OIL
TEMPERATURE
CONNECTOR E-C30
GENERATOR
HARNESS
CONNECTOR
E-C31
RIGHT TURBO
INLET PRESSURE
SENSOR E-C32
VIEW ALL CALLOUTS

12. CONNECTOR & SPLICE LOCATIONS & CONNECTOR TABLES
HARNESS 237-9018(3516), HARNESS 237-9014(3512) & HARNESS 237-9010(3508)
HARNESS 341-0609(3516), HARNESS 341-0608(3512) & HARNESS 341-0607(3508) (NOTE E)
E-C13
UNFILTERED
FUEL PRESSURE
SENSOR
E-C12
FILTERED
FUEL PRESSURE
SENSOR
E-C11
COOLANT
TEMPERATURE
SENSOR
E-C6
TURBO OUTLET
PRESSURE SENSOR
E-C7
ATMOSPHERIC
PRESSURE SENSOR
E-C9
CAN DATA LINK
E-C8
CAN DATA
LINK
E-C4
SERVICE
CONNECTOR
E-C47
SEPARATE CIRCUIT
AFTERCOOLER
COOLANT LEVEL
CONNECTOR
E-C3
THERMOCOUPLE
CONNECTOR
E-C19
CYL #2
E-C20
CYL #4
E-C21
CYL #6
E-S1
E-S9
E-S10
E-C22
CYL #8
E-C23
CYL #10
E-C24
CYL #12
E-C17
ETHER
SOLENOID #1
E-C48
ETHER
SOLENOID #2
E-S17
E-S16
E-S8
E-S7
E-S18
E-S4
E-S3
E-S2
E-S6
E-S5
E-C15
UNFILTERED
OIL PRESSURE
SENSOR
E-C14
FILTERED
OIL PRESSURE
SENSOR
E-C16
LEFT
TURBO
INLET
EXHAUST
TEMP
MATING
CONNECTOR
MATING
CONNECTOR
LEFT AIR
SHUTOFF
SOLENOID
RIGHT AIR
SHUTOFF
SOLENOID
PRELUBE
MOTOR
E-C2 OR P2
ELECTRONIC
CONTROL MODULE
(ECM)
E-C1 OR P1
ELECTRONIC
CONTROL MODULE
(ECM)
E-M13
( 102-BK )
E-T11
( 200-BK )
E-M14
(229-BK)
E-T4
(314PU)
STARTER #2
E-T3
(304-WH)
STARTER # 1
E-T2
(200-BK) E-T1
(852-RD)
E-C18
LEFT AIR
SHUTOFF
SWITCH
E-C28
SPEED/TIMING
CONNECTOR
NOTE Z: THIS HARNESS BREAKOUT MOVES TO A LOCATION NEAR
THE E-C24 BREAKOUT IN THE 237-9014 HARNESS. IT MOVES
TO A LOCATION NEAR THE E-C22 BREAKOUT IN THE 237-9010
HARNESS.
NOTE B: CONNECTORS AND WIRES ARE NON EXISTENT
ON THE 3508 ENGINES.
NOTE X: THIS HARNESS BREAKOUT MOVES TO A LOCATION
NEAR THE E-C22 BREAKOUT IN THE 237-9014 HARNESS.
E-C48 DOES NOT EXIST IN THE 237-9010 HARNESS.
NOTE Y: THIS HARNESS BREAKOUT MOVES TO A LOCATION NEAR
BETWEEN THE E-C22 AND THE E-C23 BREAKOUTS IN THE 237-9014
HARNESS. IT MOVES TO A LOCATION TO THE RIGHT OF THE
E-C22 BREAKOUT IN THE 237-9010 HARNESS.
NOTE V: THIS HARNESS BREAKOUT MOVES TO A LOCATION
NEAR THE E-C22 BREAKOUT IN THE 237-9014 HARNESS.
IT MOVES TO A LOCATION NEAR THE E-C21 BREAKOUT IN THE
237-9010 HARNESS.
NOTE W: THIS HARNESS BREAKOUT MOVES TO A LOCATION
NEAR THE E-C22 BREAKOUT IN BOTH THE 237-9014 HARNESS
AND THE 237-9010 HARNESS.
NOTE : THE ACCESSORY TABLE TO THE LEFT
APPLIES TO CONNECTORS E-C19 THRU 26
AND CONNECTORS E-C39 THRU 46. IT ALSO
APPLIES TO CONNECTORS E-C5, E-C29, E-C37 & E-C48 .
NOTE : THE ACCESSORY TABLE BELOW
APPLIES TO CONNECTORS E-C6 THRU 8
AND CONNECTORS E-C10 THRU 16. IT ALSO
APPLIES TO CONNECTORS E-C27, E-C32,
E-C35 & E-C36.
NOTE W
NOTE V NOTE X
NOTE Y
NOTE Z
E-C25
CYL #14
E-C26
CYL #16
E-C27
LEFT TURBO
INLET PRESSURE
SENSOR
E-C32
RIGHT TURBO
INLET PRESS
SENSOR
E-C29
LEFT MAGNETIC
PICKUP
E-C30
ENGINE OIL
TEMPERATURE
SENSOR
E-S12
E-S14
E-S15
E-S13
E-C31
GENERATOR
HARNESS
CONNECTOR
E-C46
CYL #15E-C45
CYL #13
E-C44
CYL #11
E-C42
CYL #7
E-C43
CYL #9
E-C41
CYL #5
E-C40
CYL #3
E-C39
CYL #1
E-C38
COOLANT
LEVEL
SENSOR
E-C34
AIR START
SOLENOIDE-C5
TIMING
CALIBRATION
CONNECTOR
MATING
CONNECTOR
MATING
CONNECTOR
E-T6
(200-BK)
E-T5
(852-RD)
E-C35
RIGHT TURBO
INLET EXHAUST
TEMPERATURE
E-C36
CRANKCASE
PRESSURE SENSORE-C37
PRELUBE PRESSURE
SWITCH
E-T8
(200-BK)
E-T7
(C465-RD)
MATING
CONNECTOR
E-C33
RIGHT AIR
SHUTOFF
SWITCH
E-C10
AFTERCOOLER
TEMPERATURE SENSOR
E-T10
(200-BK)
E-T12
(200-BK)
E-S11
E-T24
(304-WH)
E-T31
(354-RD)
E-T27
(F705-RD)
E-T22
(F701-RD)
E-T21
(314-PU)
E-M25
(F701-RD)
E-M16
(354-RD)
E-M19
(101-RD)
E-T17
(H401-RD)
E-T15
(150-RD)
E-T26
(C465-RD)
E-T18
(798-RD)
E-M28
(852-RD)
E-M29
(F708-RD)E-T30
(F708-RD)
E-T9
(200-BK)
AMP CONNECTOR TABLE E-C1
CLR-GA WIRE NAME POS TERM/PLUG
1 9G-3695
RD-18 997-E65 2 8T-8730
BK-18 993-E66 3 8T-8730
RD-18 A700-E105 4 8T-8730
BK-18 A235-E106 5 8T-8730
WH-18 A751-E85 6 8T-8730
WH-18 C941-E88 7 8T-8730
GN-18 893-E26 8 8T-8730
BR-18 892-E39 9 8T-8730
BK-18 F702-E20 10 8T-8730
WH-18 F703-E107 11 8T-8730
WH-18 F704-E110 12 8T-8730
WH-18 F732-E19 13 8T-8730
14 9G-3695
BK-18 E996-E185 15 8T-8730
WH-18 994-E89 16 8T-8730
WH-18 E796-E90 17 8T-8730
RD-18 R997-E93 18 8T-8730
19 9G-3695
BK-18 F720-E173 20 8T-8730
BK-18 F716-E21 21 8T-8730
BK-18 F716-E22 22 8T-8730
BK-18 F715-E24 23 8T-8730
WH-18 F725-E92 24 8T-8730
WH-18 F737-E91 25 8T-8730
WH-18 M975-E68 26 8T-8730
27 9G-3695
BK-18 F719-E25 28 8T-8730
29 9G-3695
WH-18 E967-E177 30 8T-8730
31 9G-3695
32 9G-3695
WH-18 999-E14 33 8T-8730
GN-SHD M755-E43 34 8T-8730
BK-18 R993-E94 35 8T-8730
36 9G-3695
37 9G-3695
38 9G-3695
39 9G-3695
PU-18 F724-E63 40 8T-8730
PK-18 F723-E62 41 8T-8730
BK-18 M757-E44 42 8T-8730
RD-18 996-E64 43 8T-8730
44 9G-3695
45 9G-3695
46 9G-3695
47 9G-3695
48 9G-3695
49 9G-3695
YL-SHD M756-E42 50 8T-8730
BK-18 998-E3 51 8T-8730
RD-14 150-E4 52 126-1768
RD-14 150-E6 53 126-1768
54 9G-3695
RD-14 150-E5 55 126-1768
RD-18 H401-E169 56 8T-8730
RD-16 155-E33 57 8T-8730
58 9G-3695
59 9G-3695
BK-18 M757-E45 60 8T-8730
61 9G-3695
62 9G-3695
BK-14 229-E8 63 126-1768
64 9G-3695
BK-14 229-E9 65 126-1768
BK-18 F718-E159 66 8T-8730
BK-14 229-E10 67 126-1768
68 9G-3695
BK-16 A229-E36 69 8T-8730
RD-18 113-E15 70 8T-8730
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 160-7690
DT CONNECTOR TABLE E-C3
CLR-GA WIRE NAME POS TERM/PLUG
RD-16 155-E35 1 8T-8730
YL-SHD M756-E52 2 8T-8730
GN-SHD M755-E56 3 8T-8730
BK-16 A229-E38 4 8T-8730
BK-SHD M757-E60 5 8T-8730
6 9G-3695
7 9G-3695
8 9G-3695
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 155-2264
1 RECEPTACLE AS. 3E-3388
1 WEDGE 155-2259
DRC CONNECTOR TABLE E-C2
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A701-E120 1 8T-8730
BK-18 A721-E121 2 8T-8730
RD-18 A702-E122 3 8T-8730
BK-18 A722-E123 4 8T-8730
RD-18 A715-E148 5 8T-8730
BK-16 G701-E29 6 8T-8730
7 9G-3695
8 9G-3695
9 9G-3695
RD-18 382-E171 10 8T-8730
11 9G-3695
GN-18 G705-E55 12 8T-8730
RD-16 F708-E163 13 8T-8730
RD-18 A705-E128 14 8T-8730
BK-18 A725-E129 15 8T-8730
RD-18 A706-E130 16 8T-8730
BK-18 A726-E131 17 8T-8730
BK-18 A735-E149 18 8T-8730
19 9G-3695
BK-18 383-E172 20 8T-8730
21 9G-3695
22 9G-3695
23 9G-3695
RD-18 A709-E136 24 8T-8730
BK-18 A729-E137 25 8T-8730
RD-18 A716-E150 26 8T-8730
BK-18 A736-E151 27 8T-8730
BK-18 E797-E32 28 8T-8730
29 9G-3695
30 9G-3695
31 9G-3695
RD-18 A713-E144 32 8T-8730
BK-18 A733-E145 33 8T-8730
RD-18 A710-E138 34 8T-8730
BK-18 A730-E139 35 8T-8730
WH-18 A746-E87 36 8T-8730
WH-18 A747-E86 37 8T-8730
WH-18 F713-E102 38 8T-8730
WH-18 F714-E103 39 8T-8730
RD-18 A703-E124 40 8T-8730
BK-18 A723-E125 41 8T-8730
RD-18 A704-E126 42 8T-8730
BK-18 A724-E127 43 8T-8730
44 9G-3695
45 9G-3695
WH-18 E795-E104 46 8T-8730
47 9G-3695
RD-18 A707-E132 48 8T-8730
BK-18 A727-E133 49 8T-8730
RD-18 A708-E134 50 8T-8730
BK-18 A728-E135 51 8T-8730
RD-18 A712-E142 52 8T-8730
53 9G-3695
BK-18 R998-E109 54 8T-8730
55 9G-3695
RD-18 R800-E108 56 8T-8730
RD-18 C700-E174 57 8T-8730
RD-18 A711-E140 58 8T-8730
BK-18 A731-E141 59 8T-8730
RD-18 A714-E146 60 8T-8730
BK-18 A734-E147 61 8T-8730
BK-18 A732-E143 62 8T-8730
63 9G-3695
64 9G-3695
RD-14 E700-E183 65 126-1768
BK-14 E998-E184 66 126-1768
67 9G-3695
68 9G-3695
BK-18 F722-E30 69 8T-8730
70 9G-3695
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 147-1443
HD10 CONNECTOR TABLE E-C4
CLR-GA WIRE NAME POS TERM/PLUG
RD-16 155-E34 A 8T-8729
BK-16 A229-E37 B 8T-8729
BK-SHD M757-E58 C 8T-8729
GN-18 893-E28 D 8T-8729
BR-18 892-E41 E 8T-8729
GN-SHD M755-E54 F 8T-8729
YL-SHD M756-E50 G 8T-8729
H 9G-3695
J 9G-3695
ACCESSORY TABLE
QTY PART NAME P/N
.SAELCATPECER1 8T-8736
1 CAP-RECEPTACLE 8C-6354
120mm HEAT SHRINK 113-7027
DT CONNECTOR TABLE E-C29
CLR-GA WIRE NAME POS TERM/PLUG
YL-SHD 838-E118 1 8T-8730
GN-SHD 838-E117 2 8T-8730
DT CONNECTOR TABLE E-C30
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 T800-E111 1 8T-8730
BK-18 T998-E112 2 8T-8730
WH-18 G429-E113 3 8T-8730
RD-18 997-E59 4 8T-8730
BK-18 993-E67 5 8T-8730
WH-18 M975-E68 6 8T-8730
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 155-2273
1 WEDGE 155-2263
DRC CONNECTOR TABLE E-C31
CLR-GA WIRE NAME POS TERM/PLUG
BK-SHD 838-E119 1 8T-8730
GN-SHD 838-E117 2 8T-8730
YL-SHD 838-E118 3 8T-8730
RD-14 101-E12 4 126-1768
RD-14 101-E13 5 126-1768
RD-18 T800-E111 6 8T-8730
WH-18 G429-E113 7 8T-8730
BK-18 T998-E112 8 8T-8730
BK-18 F720-E173 9 8T-8730
RD-18 497-E114 10 8T-8730
BK-18 A403-E115 11 8T-8730
WH-18 846-E116 12 8T-8730
GN-18 893-E27 13 8T-8730
BR-18 892-E40 14 8T-8730
BK-14 E998-E186 15 126-1768
BK-18 F716-E23 16 8T-8730
BK-18 F719-E25 17 8T-8730
RD-18 113-E15 18 8T-8730
BK-18 F715-E24 19 8T-8730
20 9G-3695
BK-18 F702-E20 21 8T-8730
BK-18 F722-E30 22 8T-8730
RD-18 354-E1 23 8T-8730
RD-18 F701-E152 24 8T-8730
RD-18 E798-E31 25 8T-8730
BK-18 E797-E32 26 8T-8730
BK-16 G701-E29 27 8T-8730
RD-18 354-E2 28 8T-8730
RD-18 F705-E160 29 8T-8730
GN-18 G705-E55 30 8T-8730
31 9G-3695
32 9G-3695
33 9G-3695
34 9G-3695
YL-SHD M756-E53 35 8T-8730
GN-SHD M755-E57 36 8T-8730
BK-14 102-E18 37 126-1768
BK-SHD M757-E61 38 8T-8730
BK-14 102-E16 39 126-1768
BK-14 102-E17 40 126-1768
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 8T-9834
1 BOOT 6I-4348
DT CONNECTOR TABLE E-C32
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 R997-E96 A 8T-8730
BK-18 R993-E99 B 8T-8730
WH-18 F714-E103 C 8T-8730
DT CONNECTOR TABLE E-C33
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 H401-E170 1 8T-8729
RD-18 H401-E168 2 8T-8729
ACCESSORY TABLE
QTY PART NAME P/N
.SAELCATPECER1 3E-3364
1 PLUG AS. 155-2269
1 WEDGE 3E-3365
SUR SL CONNECTOR TABLE E-C34
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 F701-E153 1 7N-7779
BK-18 200-E156 2 7N-7779
ACCESSORY TABLE
QTY PART NAME P/N
1 .SAGULP 7N-9737
1 CLIP AS 3T-3048
DT CONNECTOR TABLE E-C35
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 R800-E108 A 8T-8730
BK-18 R998-E109 B 8T-8730
WH-18 F704-E110 C 8T-8730
DT CONNECTOR TABLE E-C36
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 R997-E97 A 8T-8730
BK-18 R993-E100 B 8T-8730
WH-18 E795-E104 C 8T-8730
DT CONNECTOR TABLE E-C37
CLR-GA WIRE NAME POS TERM/PLUG
BK-18 F718-E159 1 8T-8730
BK-18 R993-E101 2 8T-8730
DT CONNECTOR TABLE E-C38
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 497-E114 1 8T-8730
BK-18 A403-E115 2 8T-8730
WH-18 846-E116 3 8T-8730
RD-18 C700-E174 4 8T-8730
BK-18 E998-E176 5 8T-8730
WH-18 E967-E177 6 8T-8730
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 155-2273
1 RECEPTACLE AS. 3E-3382
1 WEDGE 155-2263
DT CONNECTOR TABLE E-C39
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A701-E120 1 8T-8730
BK-18 A721-E121 2 8T-8730
DT CONNECTOR TABLE E-C40
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A703-E124 1 8T-8730
BK-18 A723-E125 2 8T-8730
DT CONNECTOR TABLE E-C41
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A705-E128 1 8T-8730
BK-18 A725-E129 2 8T-8730
DT CONNECTOR TABLE E-C42
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A707-E132 1 8T-8730
BK-18 A727-E133 2 8T-8730
DT CONNECTOR TABLE E-C43
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A709-E136 1 8T-8730
BK-18 A729-E137 2 8T-8730
DT CONNECTOR TABLE E-C44
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A711-E140 1 8T-8730
BK-18 A731-E141 2 8T-8730
DT CONNECTOR TABLE E-C45
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A713-E144 1 8T-8730
BK-18 A733-E145 2 8T-8730
DT CONNECTOR TABLE E-C46
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A715-E148 1 8T-8730
BK-18 A735-E149 2 8T-8730
DT CONNECTOR TABLE E-C47
CLR-GA WIRE NAME POS TERM/PLUG
RD-14 E700-E183 A 126-1768
BK-14 E998-E187 B 126-1768
BK-18 E996-E185 C 8T-8730
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 169-8670
1 RECEPTACLE AS. 3E-3370
1 WEDGE 155-2276
DT CONNECTOR TABLE E-C48
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 382-E180 1 8T-8730
BK-18 383-E182 2 8T-8730
NOTE B NOTE A
NOTE B
NOTE A
DT CONNECTOR TABLE E-C5
CLR-GA WIRE NAME POS TERM/PLUG
PK-18 F723-E62 1 8T-8730
PU-18 F724-E63 2 8T-8730
DT CONNECTOR TABLE E-C6
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 997-E71 A 8T-8730
BK-18 993-E79 B 8T-8730
WH-18 A746-E87 C 8T-8730
DT CONNECTOR TABLE E-C7
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 997-E70 A 8T-8730
BK-18 993-E78 B 8T-8730
WH-18 A747-E86 C 8T-8730
DT CONNECTOR TABLE E-C8
CLR-GA WIRE NAME POS TERM/PLUG
YL-SHD M756-E47 A 8T-8730
GN-SHD M755-E48 B 8T-8730
BK-SHD M757-E49 C 8T-8730
DT CONNECTOR TABLE E-C9
CLR-GA WIRE NAME POS TERM/PLUG
YL-SHD M756-E42 A 8T-8730
GN-SHD M755-E43 B 8T-8730
BK-SHD M757-E46 C 8T-8730
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 169-8670
1 RECEPTACLE AS 133-0970
1 PLUG AS 174-3016
1 WEDGE 155-2266
DT CONNECTOR TABLE E-C10
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 997-E69 A 8T-8730
BK-18 993-E77 B 8T-8730
WH-18 A751-E85 C 8T-8730
DT CONNECTOR TABLE E-C11
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 997-E76 A 8T-8730
BK-18 993-E84 B 8T-8730
WH-18 C941-E88 C 8T-8730
DT CONNECTOR TABLE E-C12
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 997-E75 A 8T-8730
BK-18 993-E83 B 8T-8730
WH-18 F725-E92 C 8T-8730
DT CONNECTOR TABLE E-C13
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 997-E74 A 8T-8730
BK-18 993-E82 B 8T-8730
WH-18 F737-E91 C 8T-8730
DT CONNECTOR TABLE E-C14
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 997-E72 A 8T-8730
BK-18 993-E80 B 8T-8730
WH-18 994-E89 C 8T-8730
DT CONNECTOR TABLE E-C15
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 997-E73 A 8T-8730
BK-18 993-E81 B 8T-8730
WH-18 E796-E90 C 8T-8730
DT CONNECTOR TABLE E-C16
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A700-E105 A 8T-8730
BK-18 A235-E106 B 8T-8730
WH-18 F703-E107 C 8T-8730
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 169-8670
1 WEDGE 155-2276
DT CONNECTOR TABLE E-C17
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 382-E179 1 8T-8730
BK-18 383-E181 2 8T-8730
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 155-2269
2 PLUG 9G-3695
1 WEDGE 155-2261
DT CONNECTOR TABLE E-C18
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 H401-E168 1 8T-8729
RD-18 H401-E169 2 8T-8729
ACCESSORY TABLE
QTY PART NAME P/N
.SAELCATPECER1 3E-3364
1 PLUG AS. 155-2269
1 WEDGE 3E-3365
DT CONNECTOR TABLE E-C19
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A702-E122 1 8T-8730
BK-18 A722-E123 2 8T-8730
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 155-2269
1 WEDGE 155-2261
DT CONNECTOR TABLE E-C20
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A704-E126 1 8T-8730
BK-18 A724-E127 2 8T-8730
DT CONNECTOR TABLE E-C21
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A706-E130 1 8T-8730
BK-18 A726-E131 2 8T-8730
DT CONNECTOR TABLE E-C22
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A708-E134 1 8T-8730
BK-18 A728-E135 2 8T-8730
DT CONNECTOR TABLE E-C23
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A710-E138 1 8T-8730
BK-18 A730-E139 2 8T-8730
DT CONNECTOR TABLE E-C24
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A712-E142 1 8T-8730
BK-18 A732-E143 2 8T-8730
DT CONNECTOR TABLE E-C25
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A714-E146 1 8T-8730
BK-18 A734-E147 2 8T-8730
DT CONNECTOR TABLE E-C26
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 A716-E150 1 8T-8730
BK-18 A736-E151 2 8T-8730
DT CONNECTOR TABLE E-C27
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 R997-E95 A 8T-8730
BK-18 R993-E98 B 8T-8730
WH-18 F713-E102 C 8T-8730
DT CONNECTOR TABLE E-C28
CLR-GA WIRE NAME POS TERM/PLUG
RD-18 996-E64 1 8T-8730
BK-18 998-E3 2 8T-8730
WH-18 999-E14 3 8T-8730
WH-18 F732-E19 4 8T-8730
ACCESSORY TABLE
QTY PART NAME P/N
.SAGULP1 155-2272
1 WEDGE 155-2262
NOTE A: CONNECTORS AND WIRES ARE NON EXISTENT
ON THE 3512 AND 3508 ENGINES.
NOTE E: HARNESSES 341-0609, 341-0608 & 341-0607 HAVE DT
CONNECTORS REPLACED WITH AMP SEAL CONNECTORS
FOR: E-C6, E-C7, E-C12, E-C13, E-C14, E-C15, E-C27, E-C32 AND E-C36.
