Engineering design parameters and requirement for hospitals
1. Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

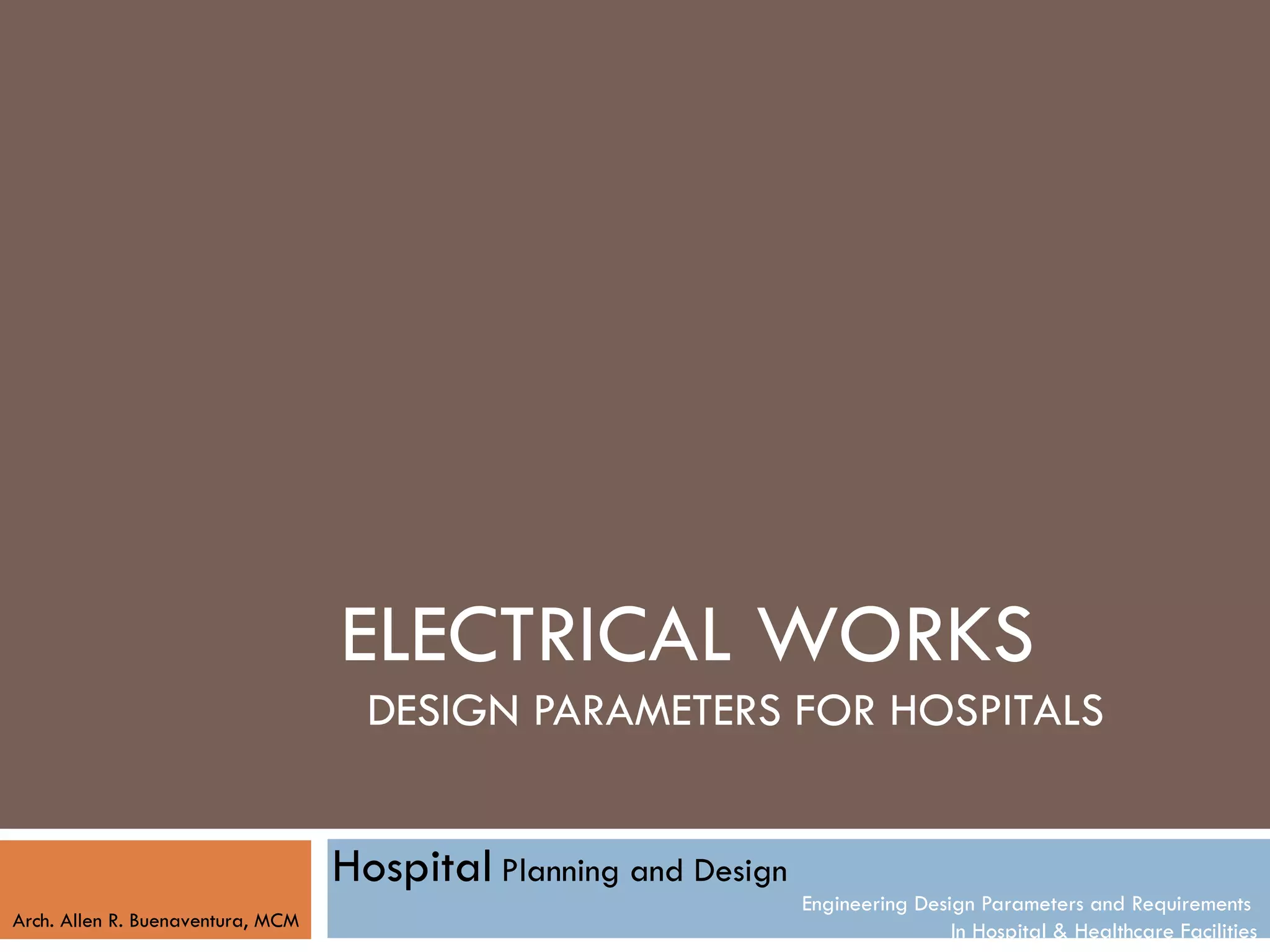

2. ELECTRICAL WORKS
DESIGN PARAMETERS FOR HOSPITALS
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

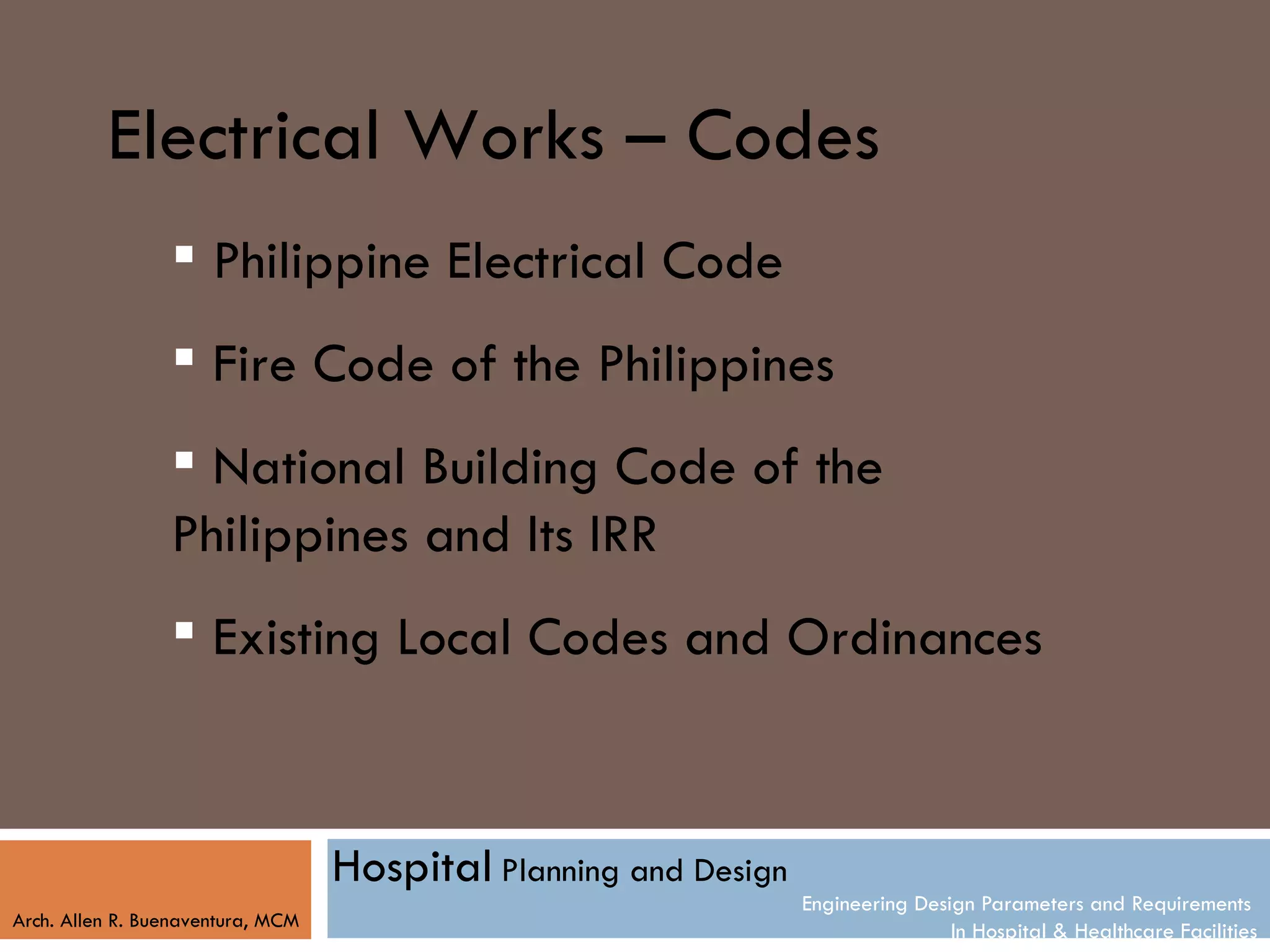

3. Electrical Works – Codes
Philippine Electrical Code
Fire Code of the Philippines
National Building Code of the
Philippines and Its IRR
Existing Local Codes and Ordinances
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
4. Electrical Works – Standards
Bureau of Product Standards (BPS)
Underwriters Laboratory (UL)
International Electro-Technical Commission (IEC)
Illumination Engineering Society
National Electrical Manufacturer’s Association
(NEMA)
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

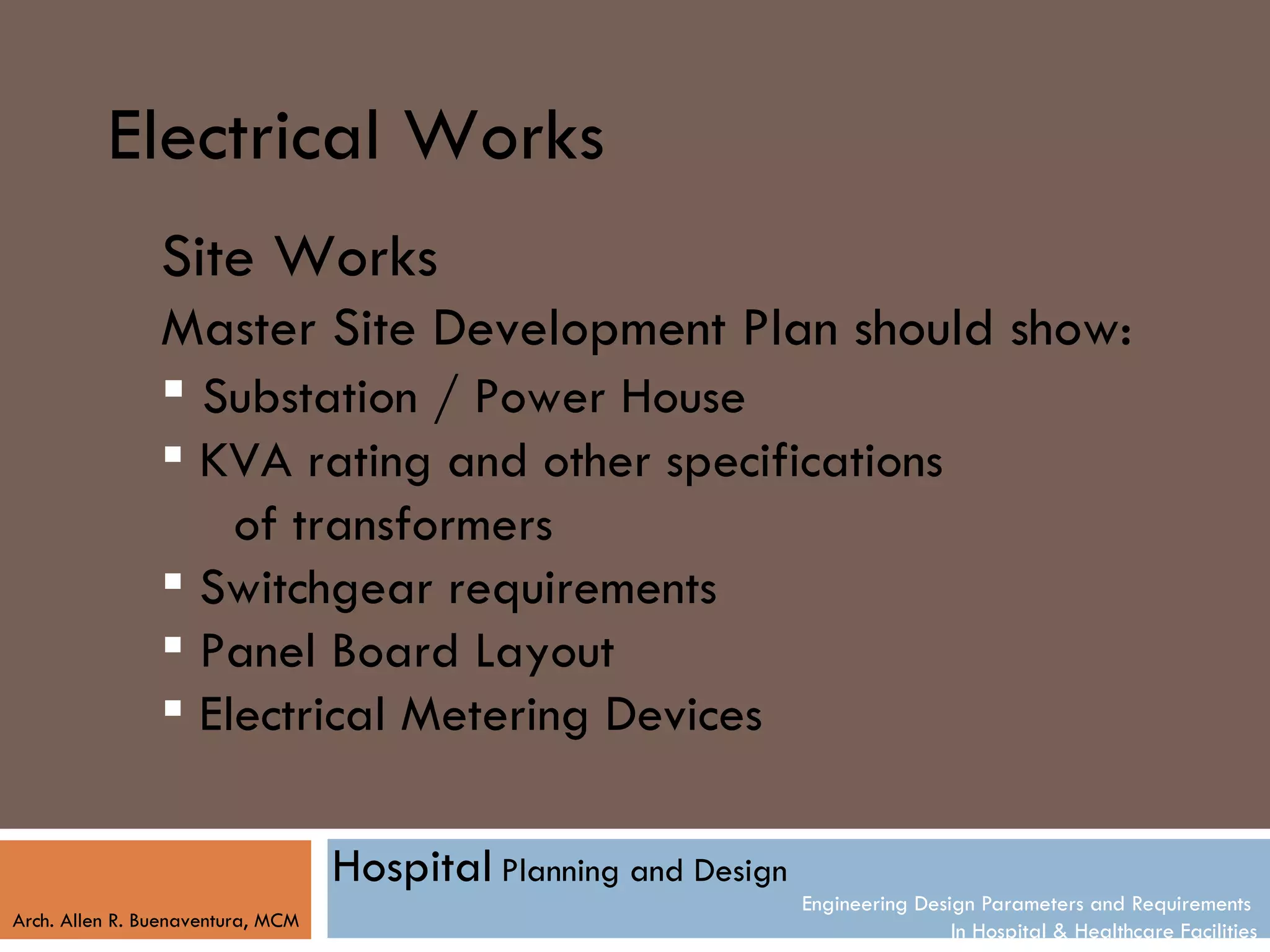

5. Electrical Works
Site Works
Master Site Development Plan should show:
Substation / Power House
KVA rating and other specifications
of transformers
Switchgear requirements
Panel Board Layout
Electrical Metering Devices
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
6. Electrical Works
Site Works (cont)

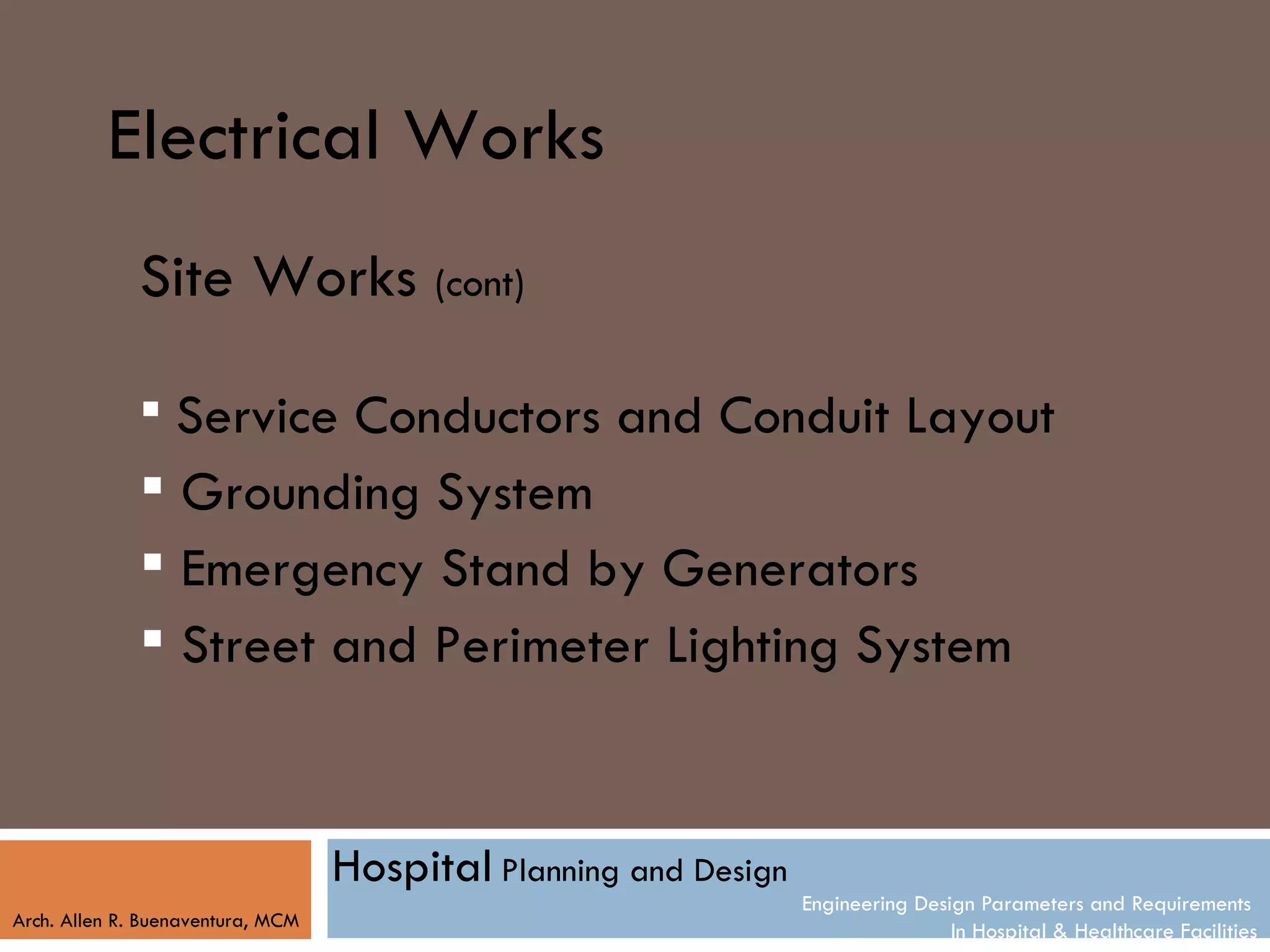

Service Conductors and Conduit Layout
Grounding System
Emergency Stand by Generators
Street and Perimeter Lighting System
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

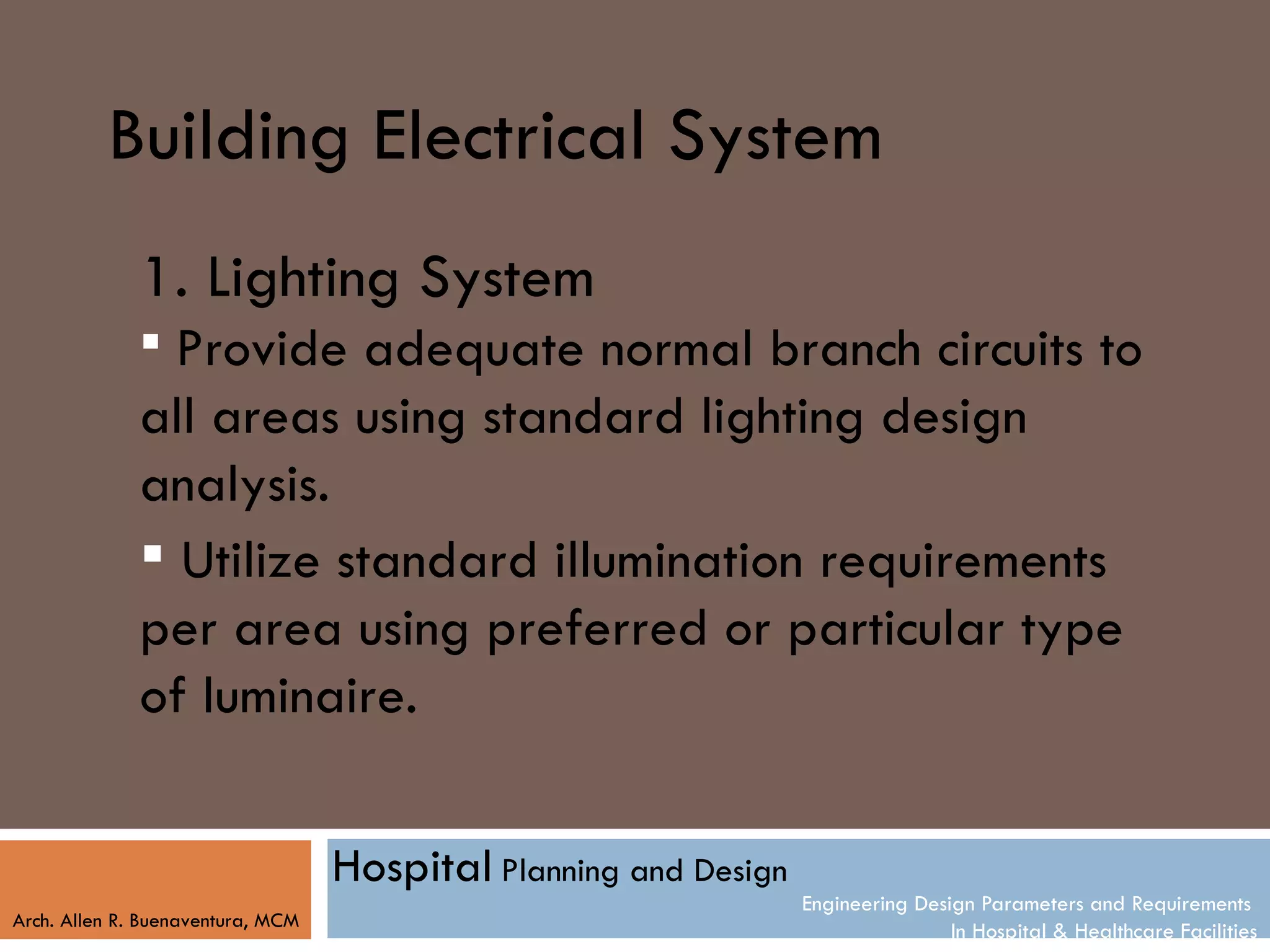

7. Building Electrical System
1. Lighting System
Provide adequate normal branch circuits to
all areas using standard lighting design
analysis.
Utilize standard illumination requirements
per area using preferred or particular type
of luminaire.
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

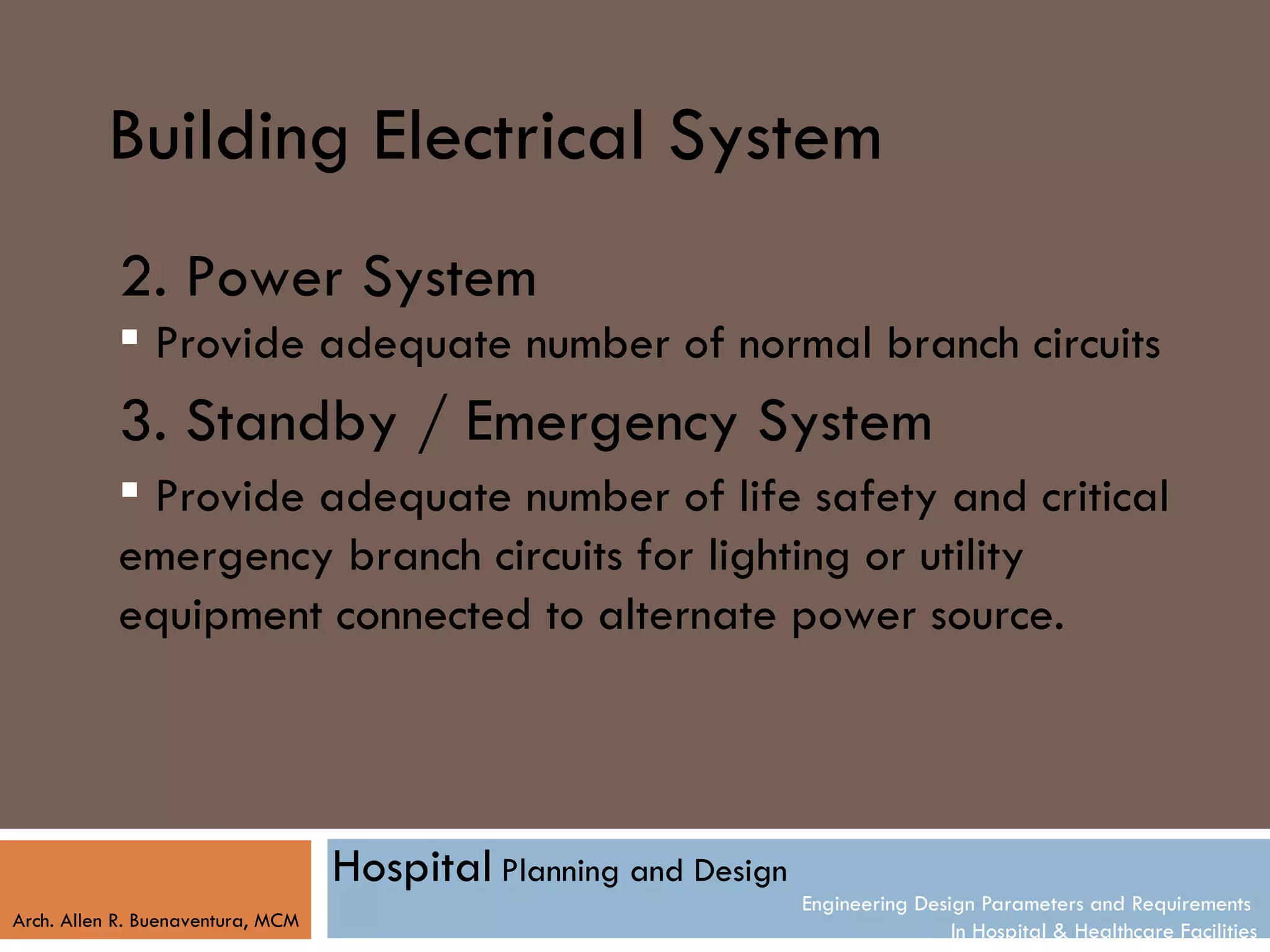

8. Building Electrical System
2. Power System
Provide adequate number of normal branch circuits
3. Standby / Emergency System
Provide adequate number of life safety and critical
emergency branch circuits for lighting or utility
equipment connected to alternate power source.
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

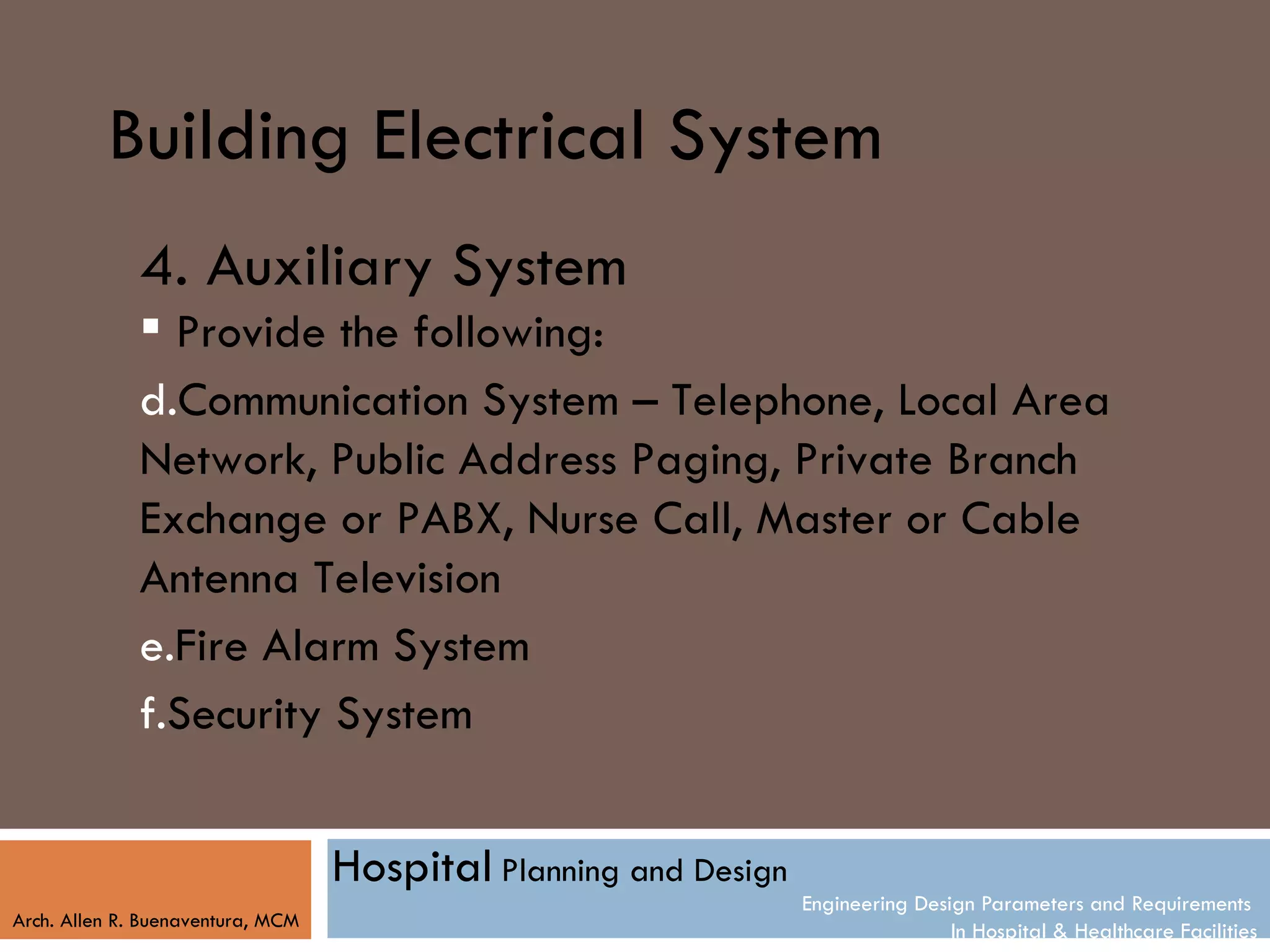

9. Building Electrical System
4. Auxiliary System
Provide the following:
d.Communication System – Telephone, Local Area
Network, Public Address Paging, Private Branch
Exchange or PABX, Nurse Call, Master or Cable
Antenna Television
e.Fire Alarm System
f.Security System
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
10. Building Electrical System

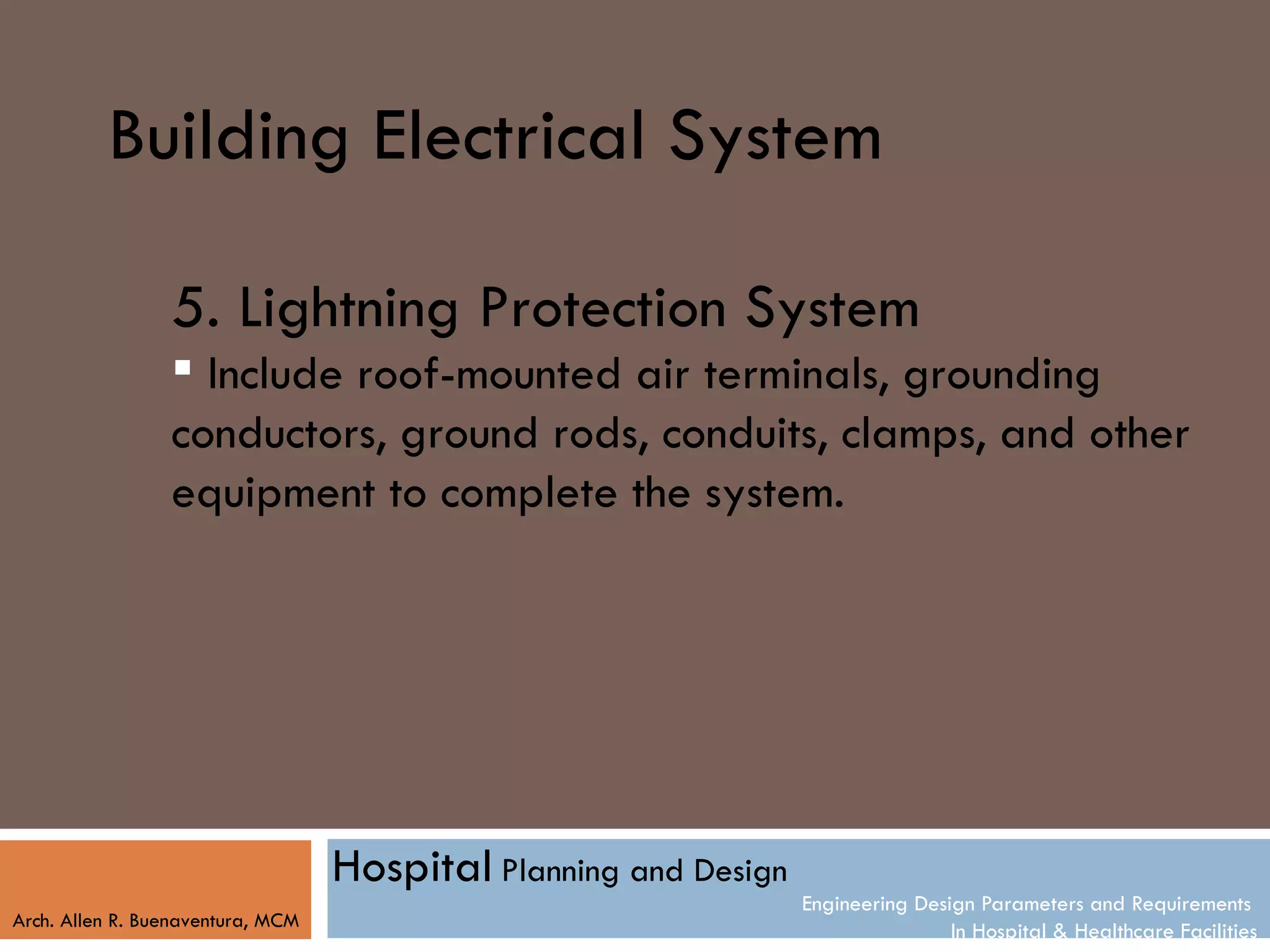

5. Lightning Protection System
Include roof-mounted air terminals, grounding
conductors, ground rods, conduits, clamps, and other
equipment to complete the system.
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

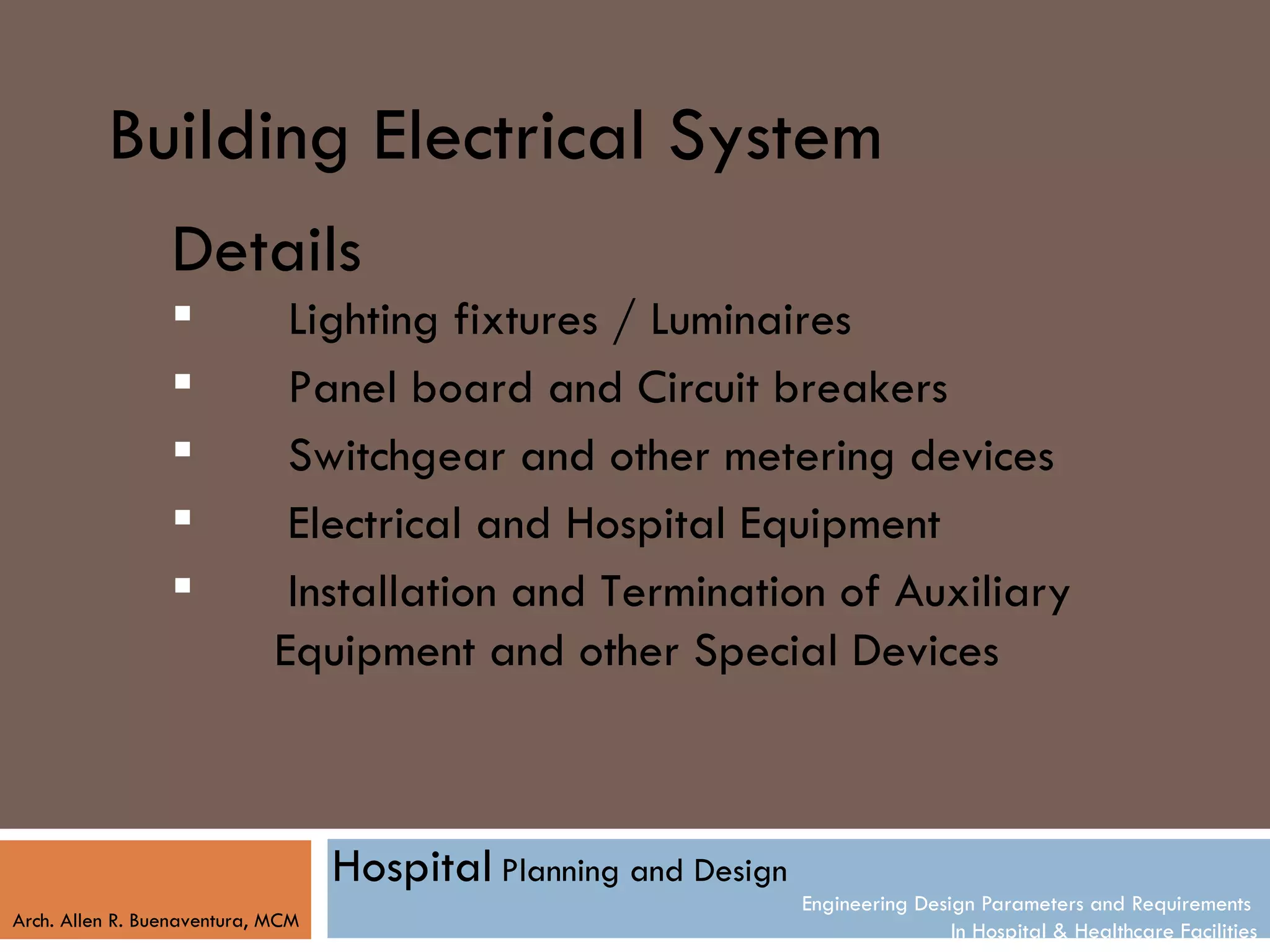

11. Building Electrical System
Details
Lighting fixtures / Luminaires
Panel board and Circuit breakers
Switchgear and other metering devices
Electrical and Hospital Equipment
Installation and Termination of Auxiliary
Equipment and other Special Devices
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

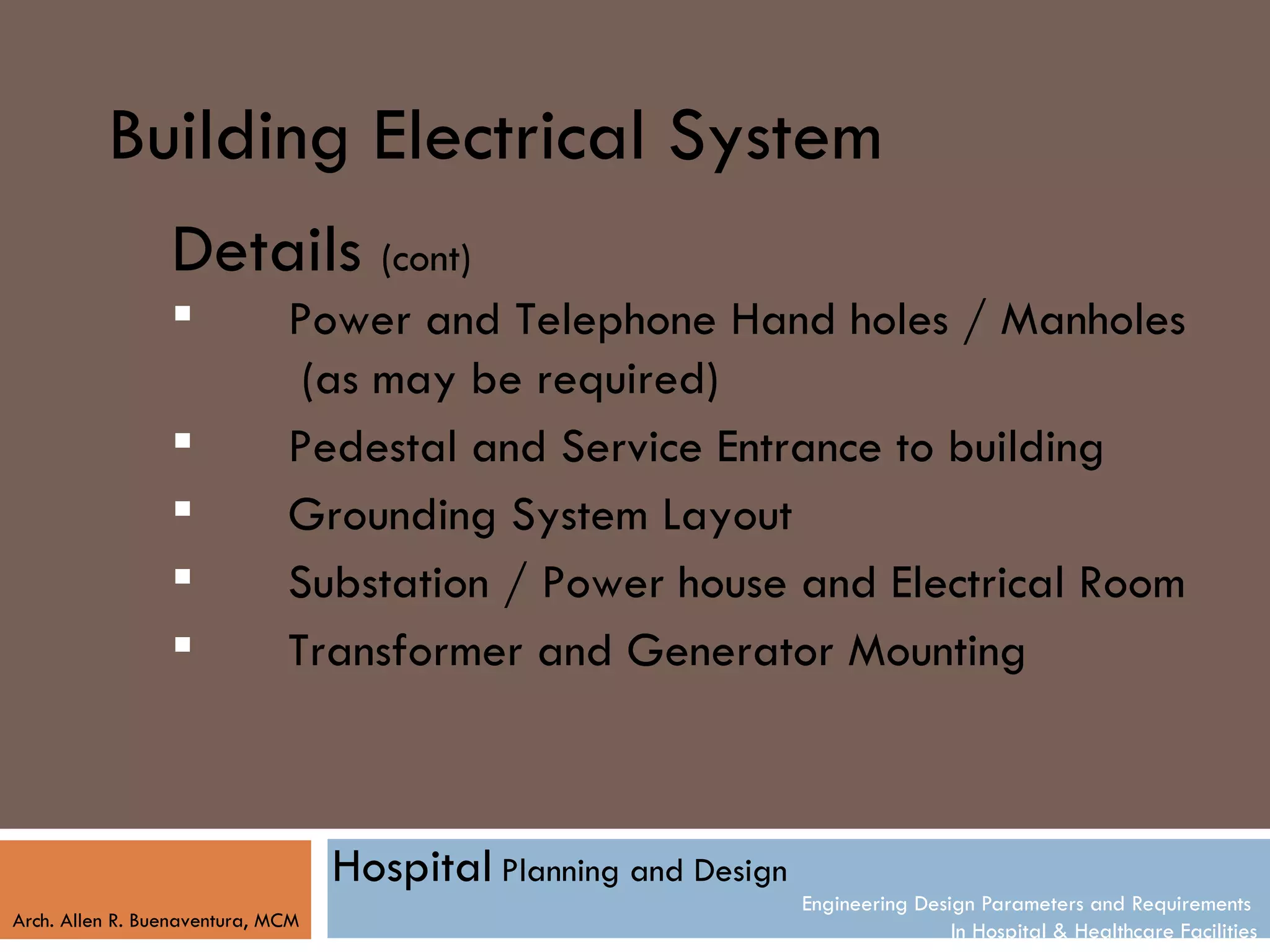

12. Building Electrical System
Details (cont)
Power and Telephone Hand holes / Manholes
(as may be required)
Pedestal and Service Entrance to building
Grounding System Layout
Substation / Power house and Electrical Room
Transformer and Generator Mounting
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

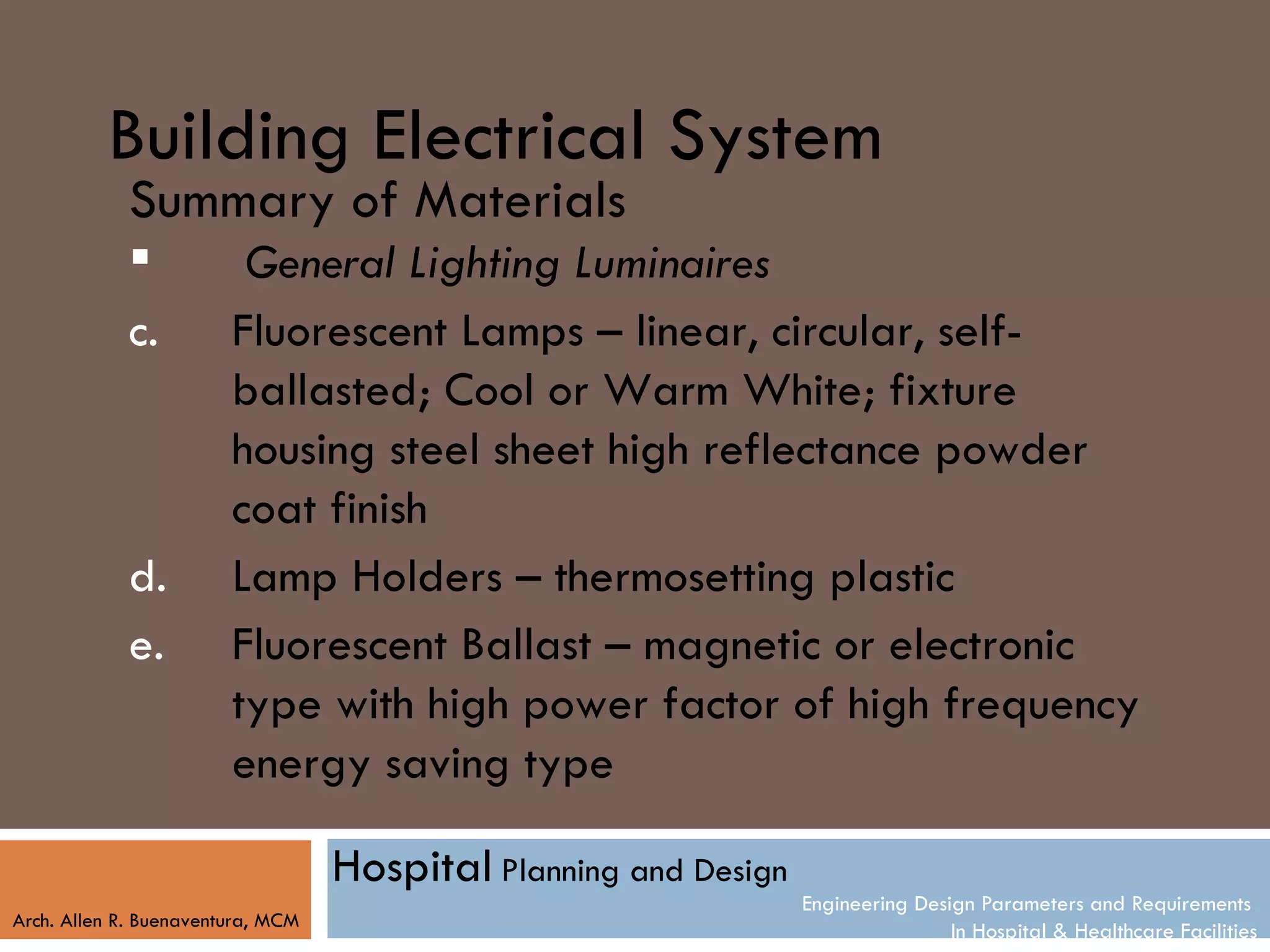

13. Building Electrical System
Summary of Materials
General Lighting Luminaires
c. Fluorescent Lamps – linear, circular, self-
ballasted; Cool or Warm White; fixture
housing steel sheet high reflectance powder
coat finish
d. Lamp Holders – thermosetting plastic
e. Fluorescent Ballast – magnetic or electronic
type with high power factor of high frequency
energy saving type
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
14. Building Electrical System
Summary of Materials (cont)
General Lighting Luminaires (cont)

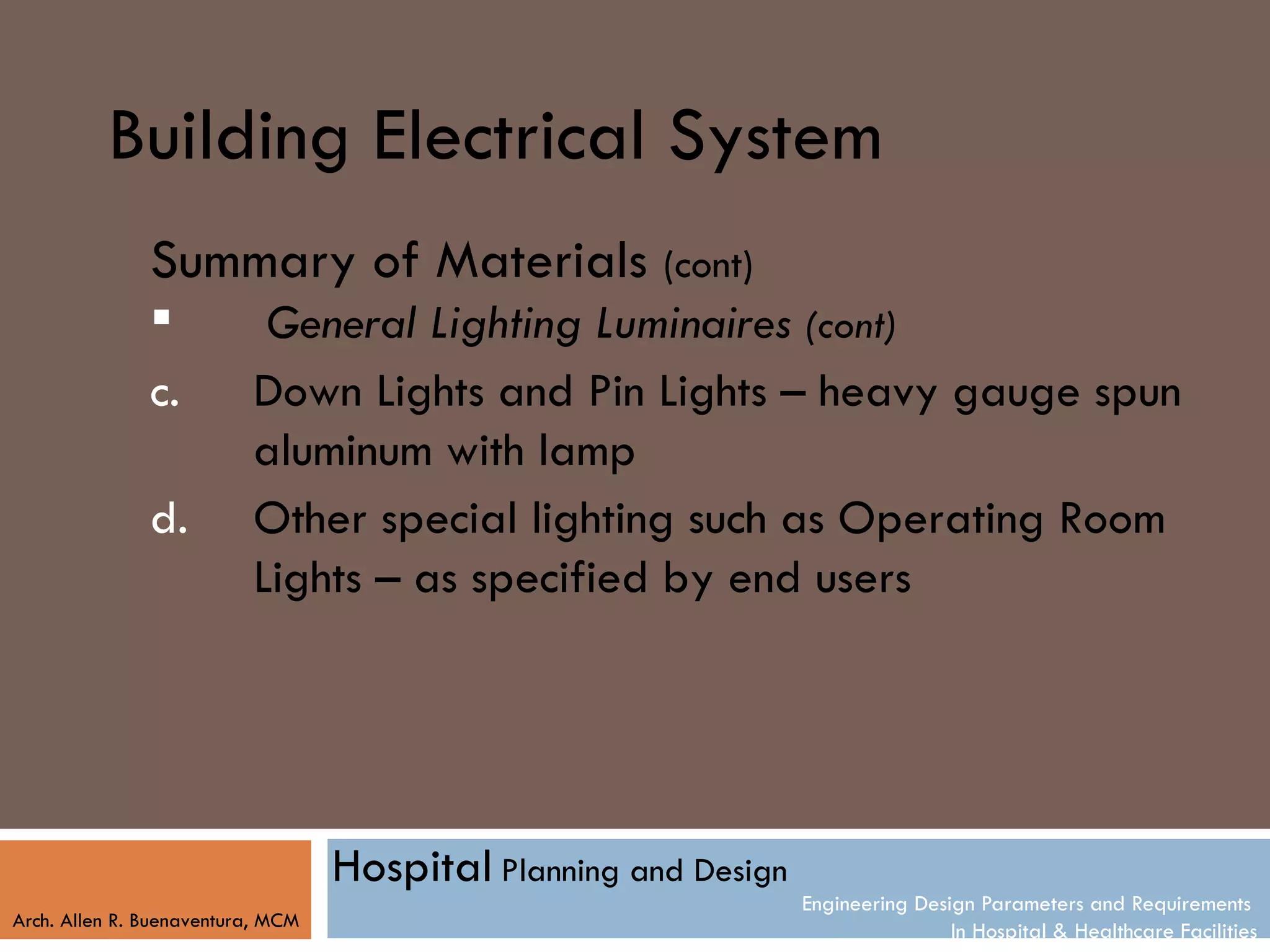

c. Down Lights and Pin Lights – heavy gauge spun
aluminum with lamp
d. Other special lighting such as Operating Room
Lights – as specified by end users
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

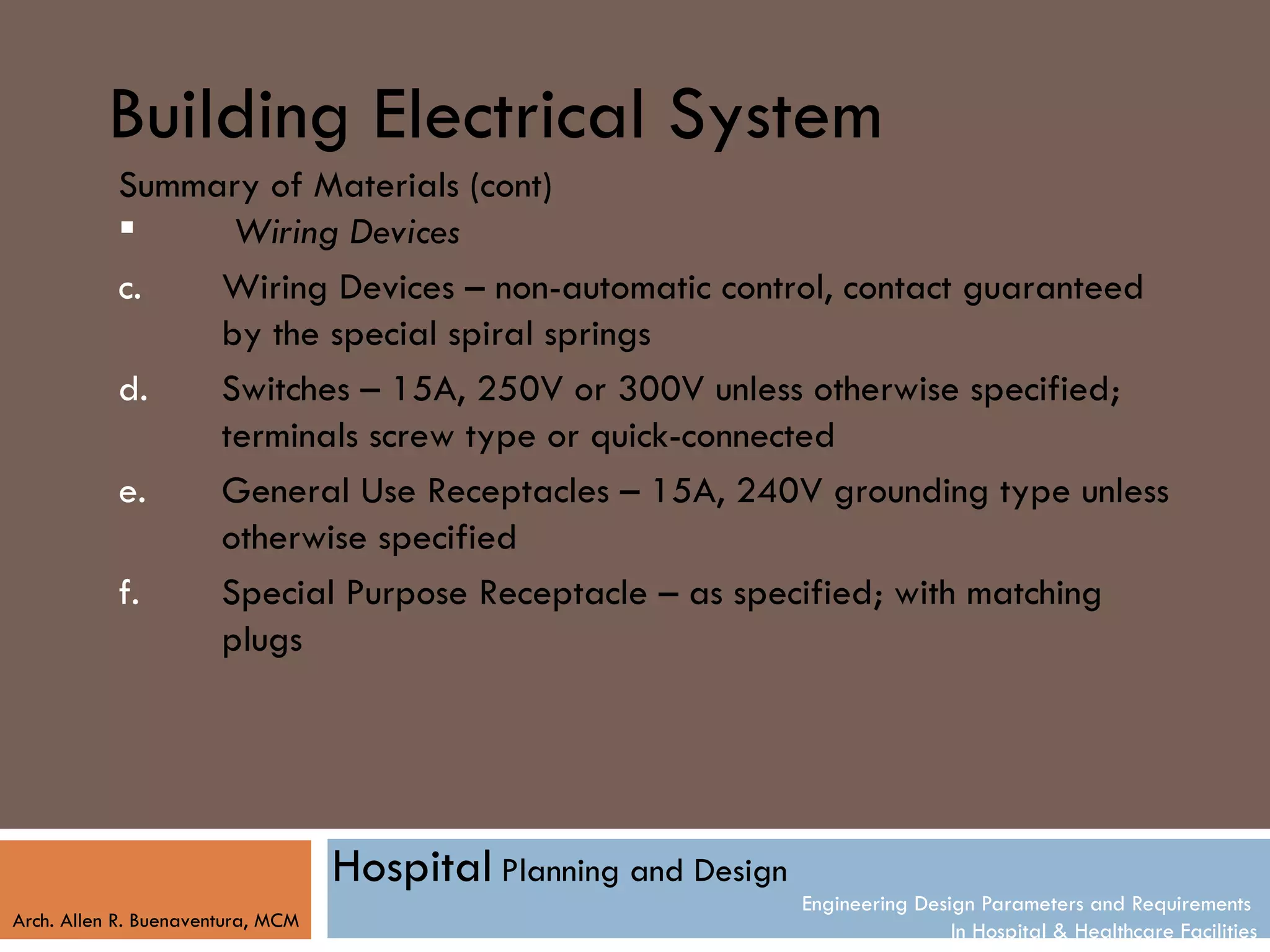

15. Building Electrical System
Summary of Materials (cont)
Wiring Devices
c. Wiring Devices – non-automatic control, contact guaranteed
by the special spiral springs
d. Switches – 15A, 250V or 300V unless otherwise specified;
terminals screw type or quick-connected
e. General Use Receptacles – 15A, 240V grounding type unless
otherwise specified
f. Special Purpose Receptacle – as specified; with matching
plugs
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
16. Building Electrical System
Summary of Materials (cont)

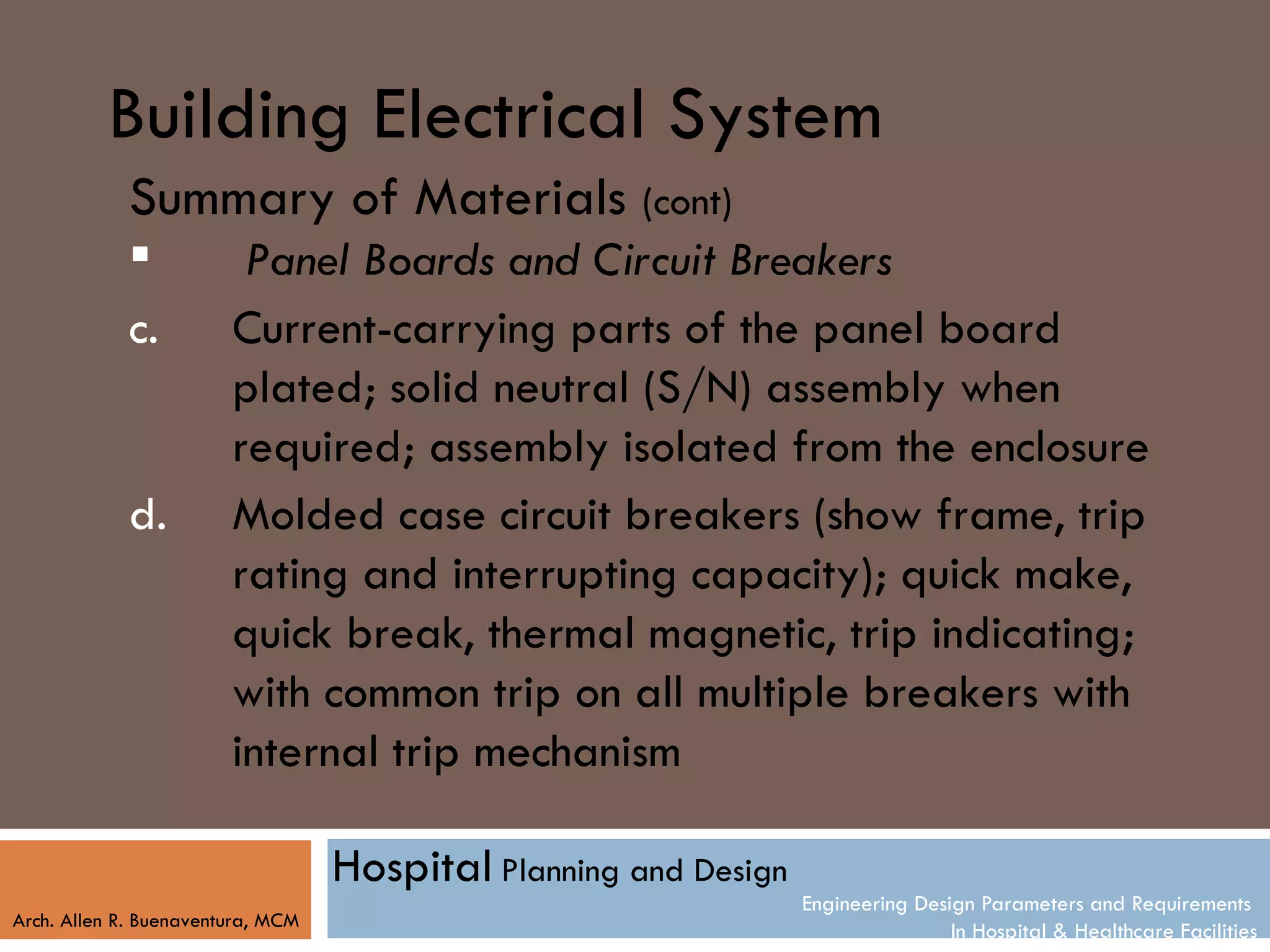

Panel Boards and Circuit Breakers
c. Current-carrying parts of the panel board
plated; solid neutral (S/N) assembly when
required; assembly isolated from the enclosure
d. Molded case circuit breakers (show frame, trip
rating and interrupting capacity); quick make,
quick break, thermal magnetic, trip indicating;
with common trip on all multiple breakers with
internal trip mechanism
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
17. Building Electrical System
Summary of Materials (cont)

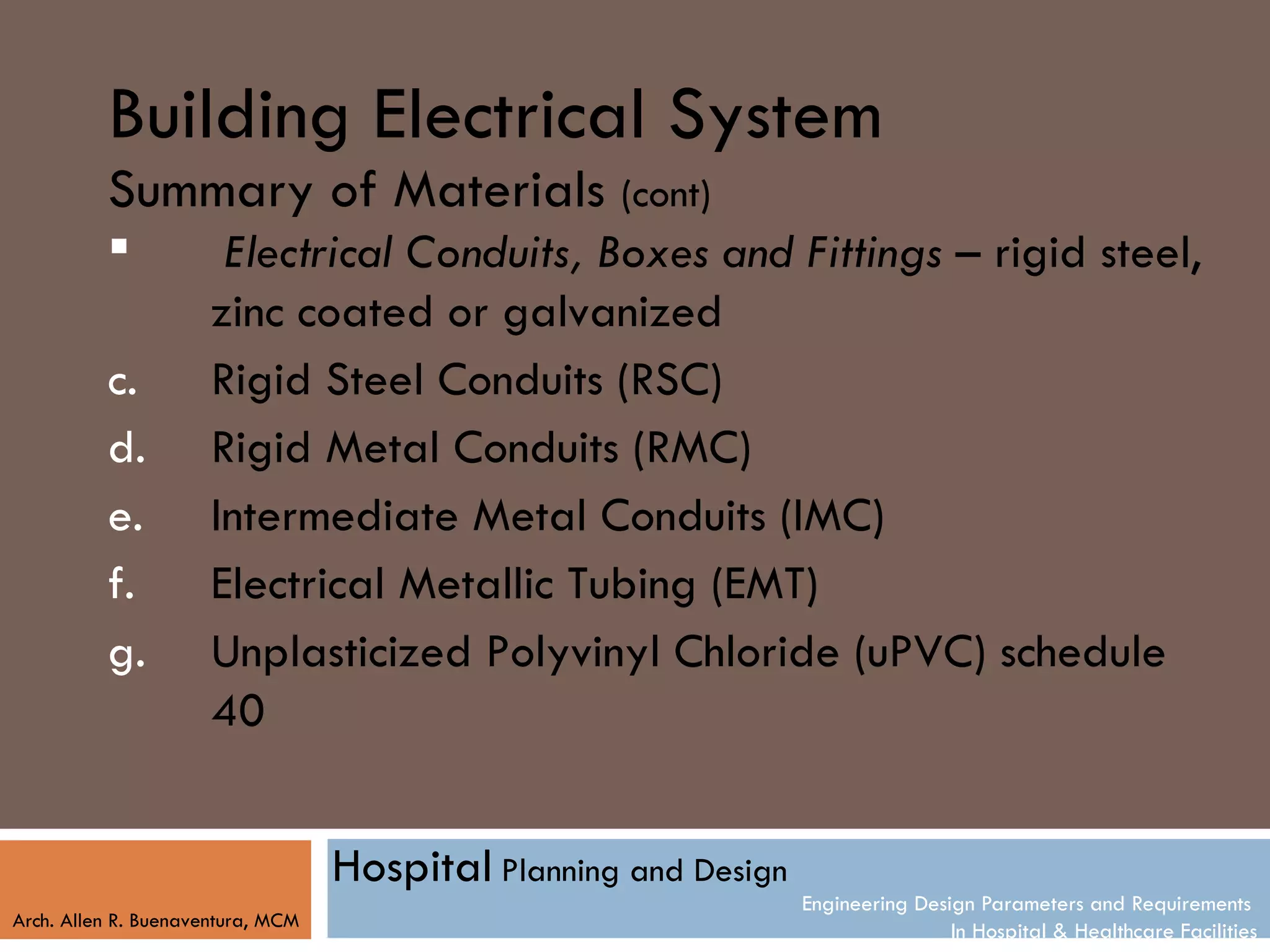

Electrical Conduits, Boxes and Fittings – rigid steel,
zinc coated or galvanized
c. Rigid Steel Conduits (RSC)
d. Rigid Metal Conduits (RMC)
e. Intermediate Metal Conduits (IMC)
f. Electrical Metallic Tubing (EMT)
g. Unplasticized Polyvinyl Chloride (uPVC) schedule
40
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

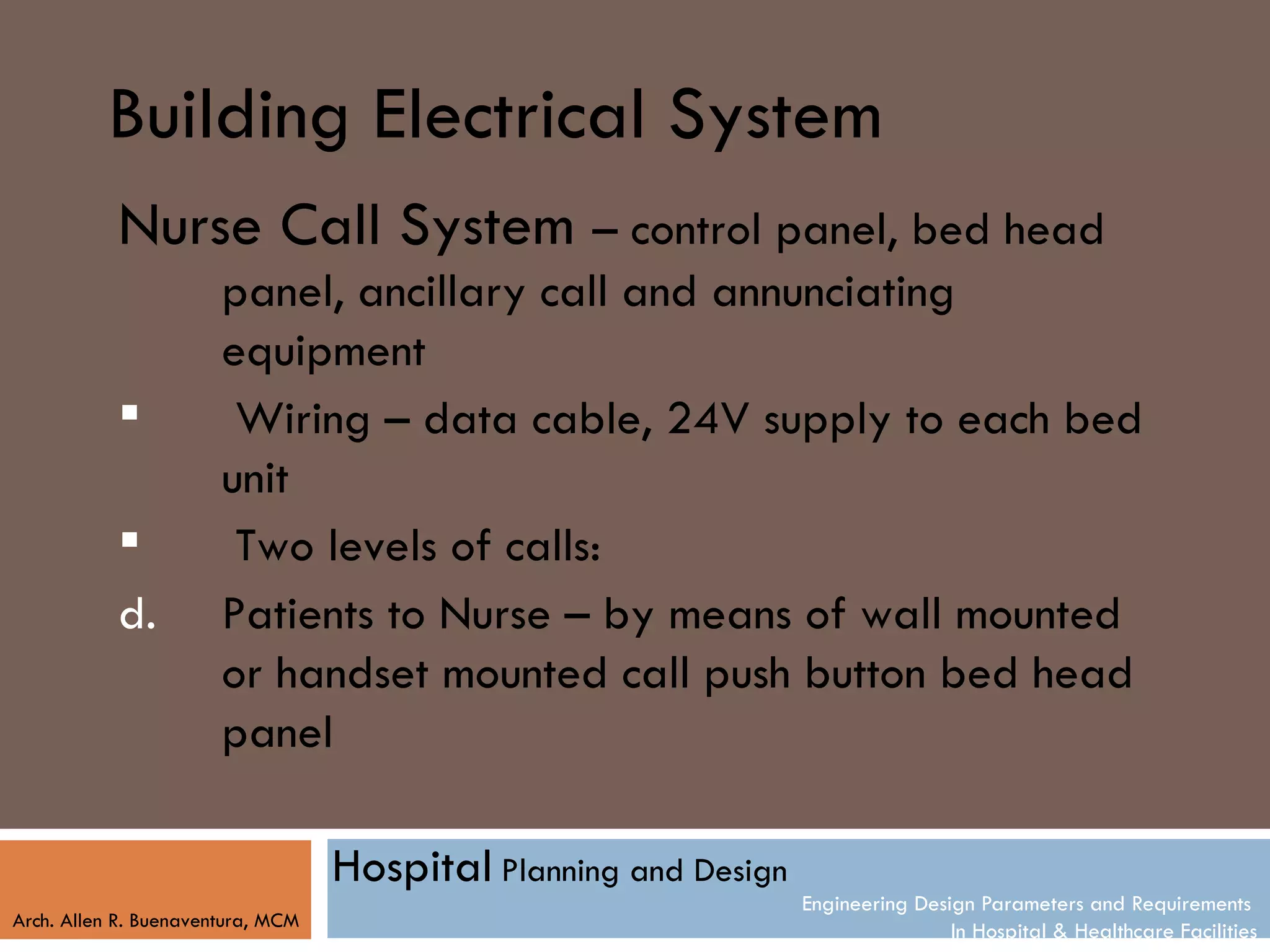

18. Building Electrical System
Nurse Call System – control panel, bed head
panel, ancillary call and annunciating
equipment
Wiring – data cable, 24V supply to each bed
unit
Two levels of calls:
d. Patients to Nurse – by means of wall mounted
or handset mounted call push button bed head
panel
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
19. Building Electrical System
Nurse Call System (cont)

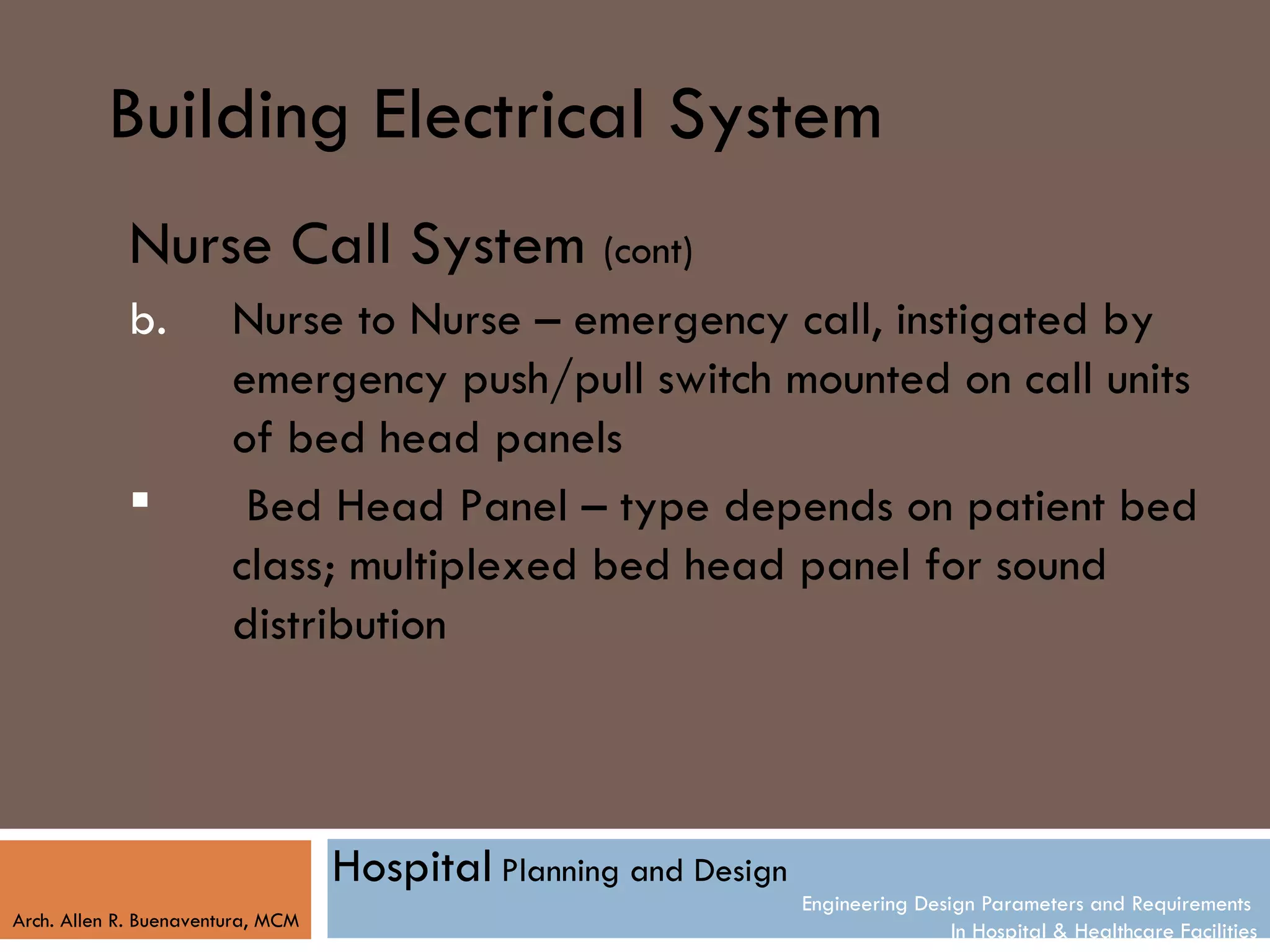

b. Nurse to Nurse – emergency call, instigated by
emergency push/pull switch mounted on call units
of bed head panels
Bed Head Panel – type depends on patient bed
class; multiplexed bed head panel for sound
distribution
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

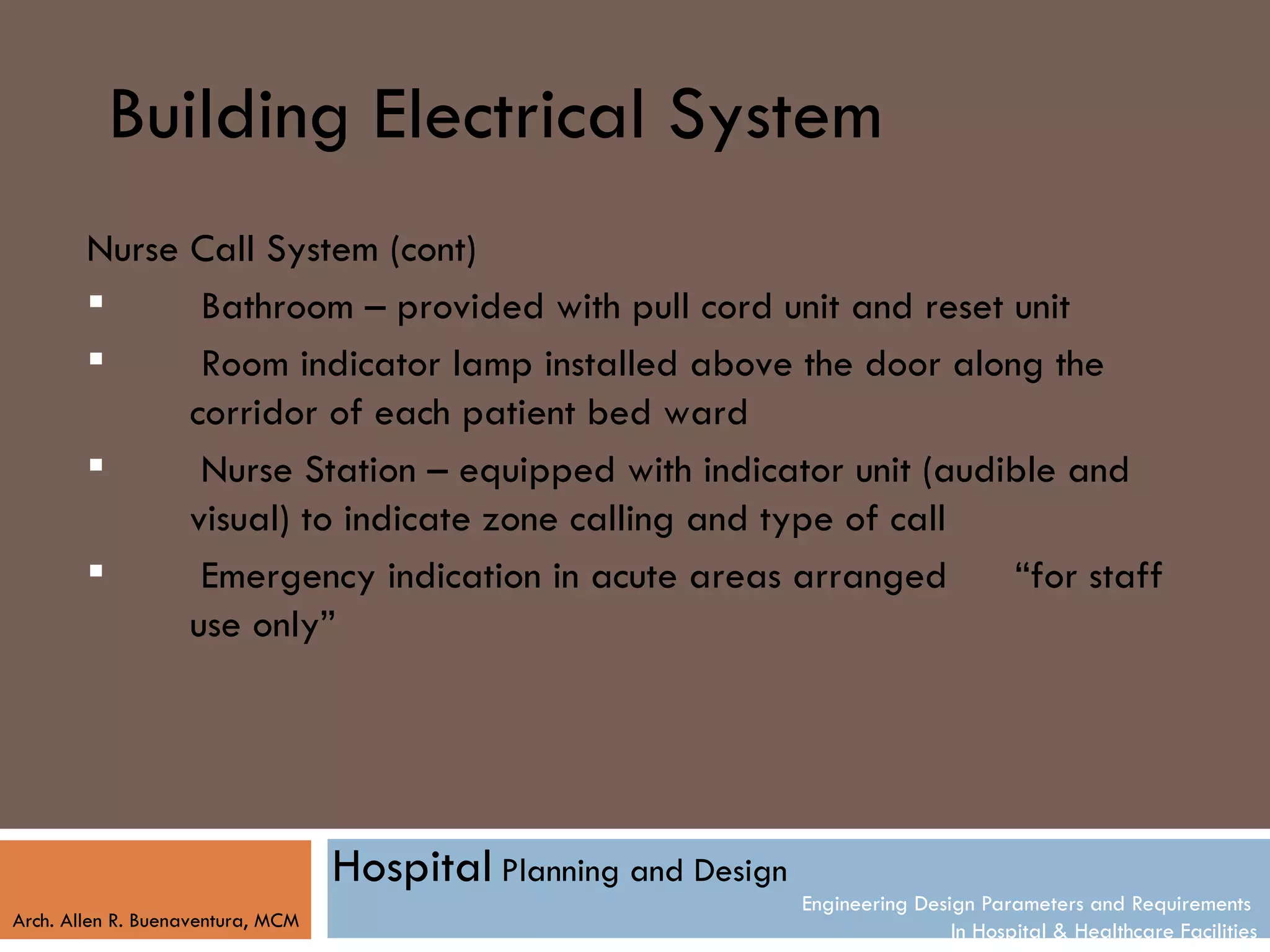

20. Building Electrical System
Nurse Call System (cont)
Bathroom – provided with pull cord unit and reset unit
Room indicator lamp installed above the door along the
corridor of each patient bed ward
Nurse Station – equipped with indicator unit (audible and
visual) to indicate zone calling and type of call
Emergency indication in acute areas arranged “for staff
use only”
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

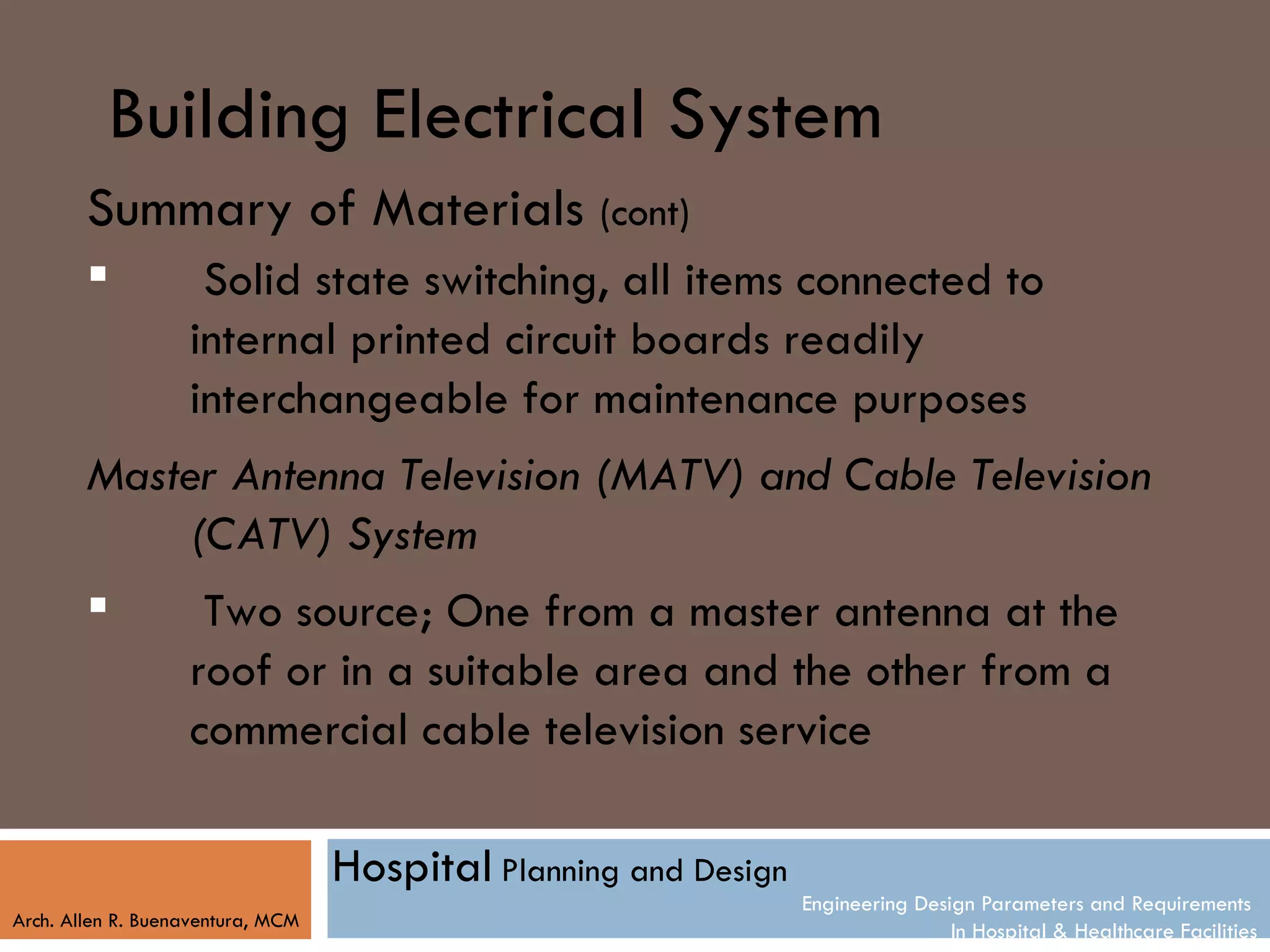

21. Building Electrical System
Summary of Materials (cont)
Solid state switching, all items connected to
internal printed circuit boards readily
interchangeable for maintenance purposes
Master Antenna Television (MATV) and Cable Television
(CATV) System
Two source; One from a master antenna at the
roof or in a suitable area and the other from a
commercial cable television service
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

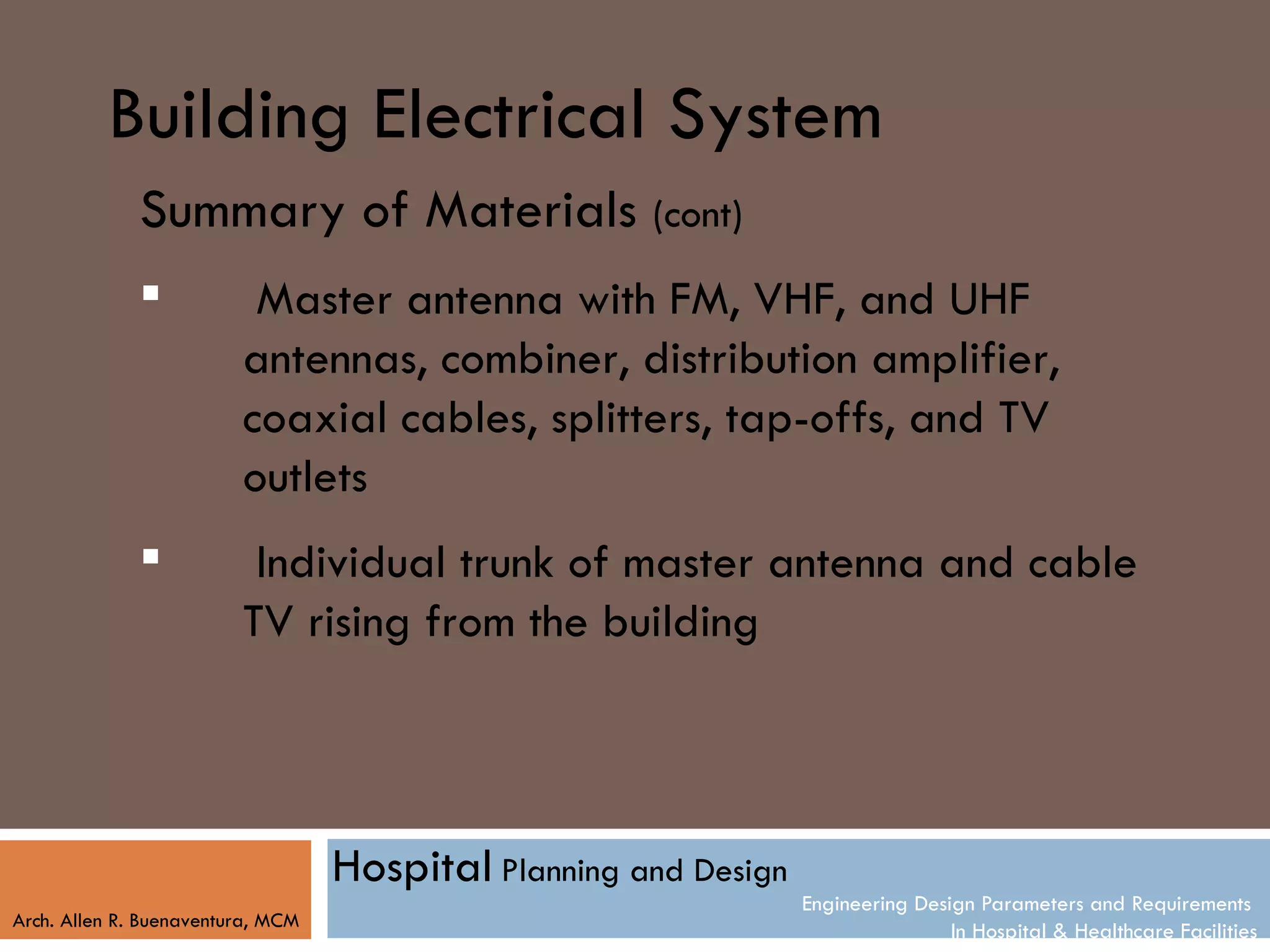

22. Building Electrical System
Summary of Materials (cont)
Master antenna with FM, VHF, and UHF
antennas, combiner, distribution amplifier,
coaxial cables, splitters, tap-offs, and TV
outlets
Individual trunk of master antenna and cable
TV rising from the building
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
23. Building Electrical System
Summary of Materials (cont)

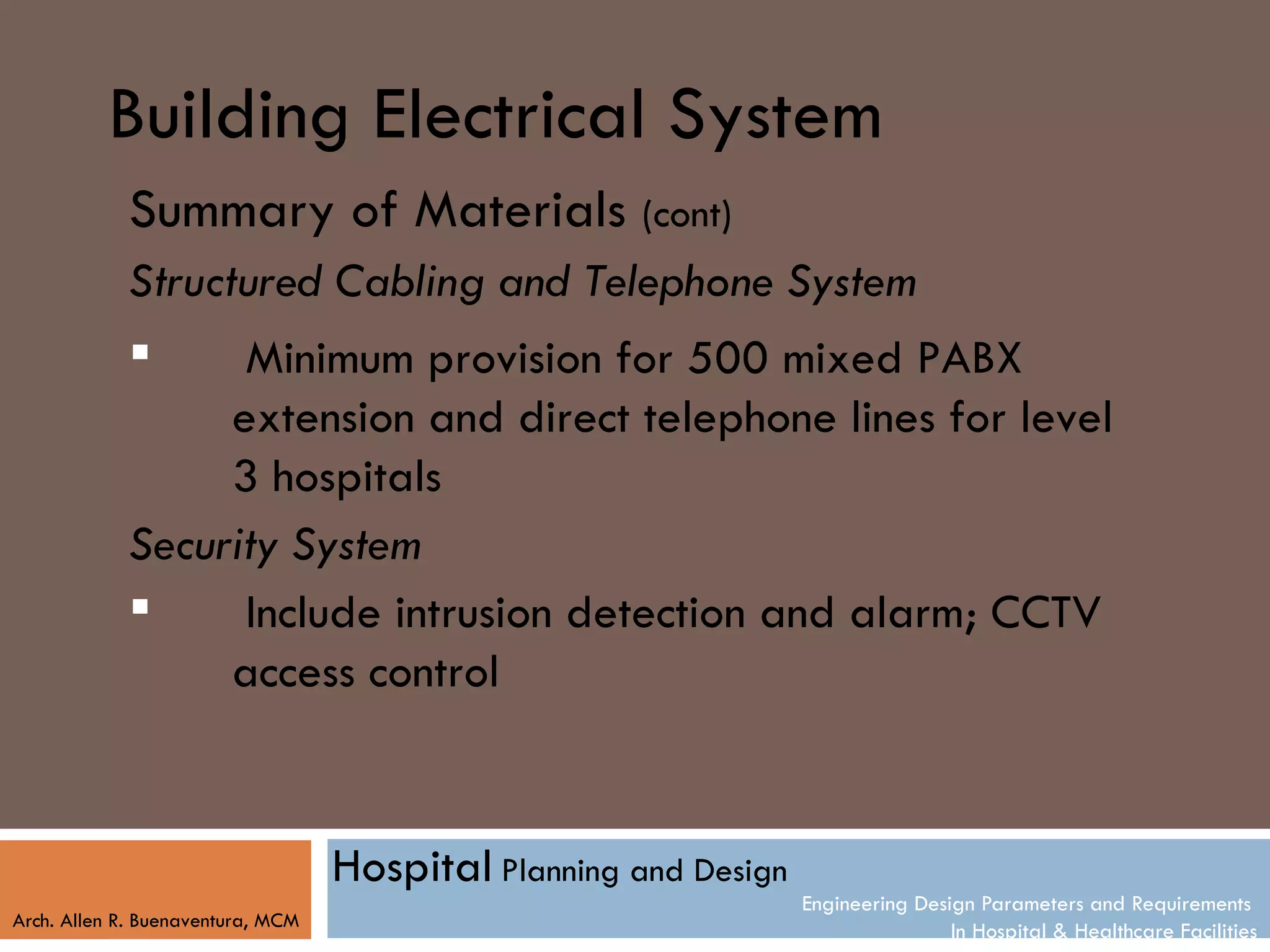

Structured Cabling and Telephone System
Minimum provision for 500 mixed PABX
extension and direct telephone lines for level
3 hospitals
Security System
Include intrusion detection and alarm; CCTV
access control
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

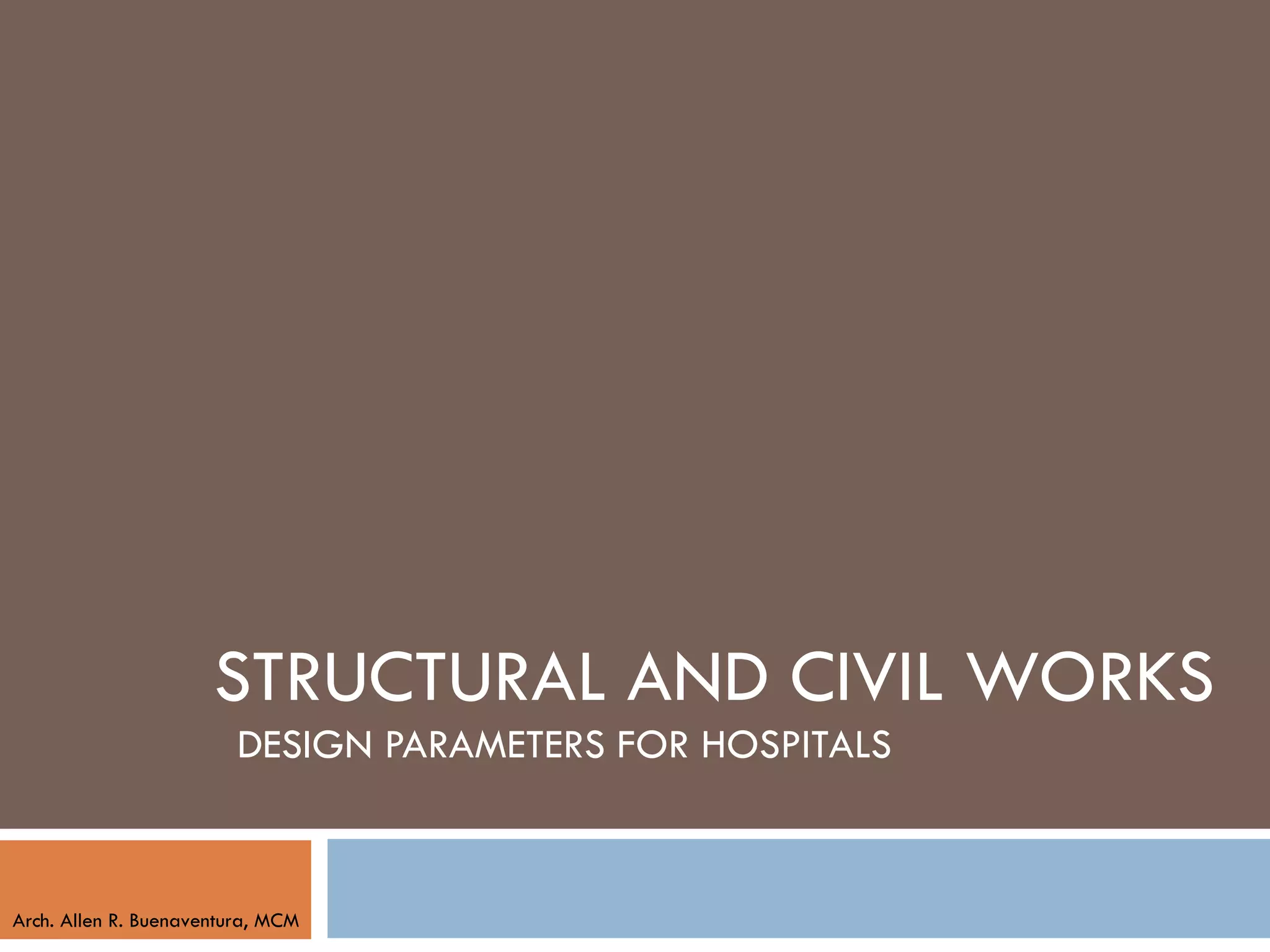

24. STRUCTURAL AND CIVIL WORKS
DESIGN PARAMETERS FOR HOSPITALS
Arch. Allen R. Buenaventura, MCM

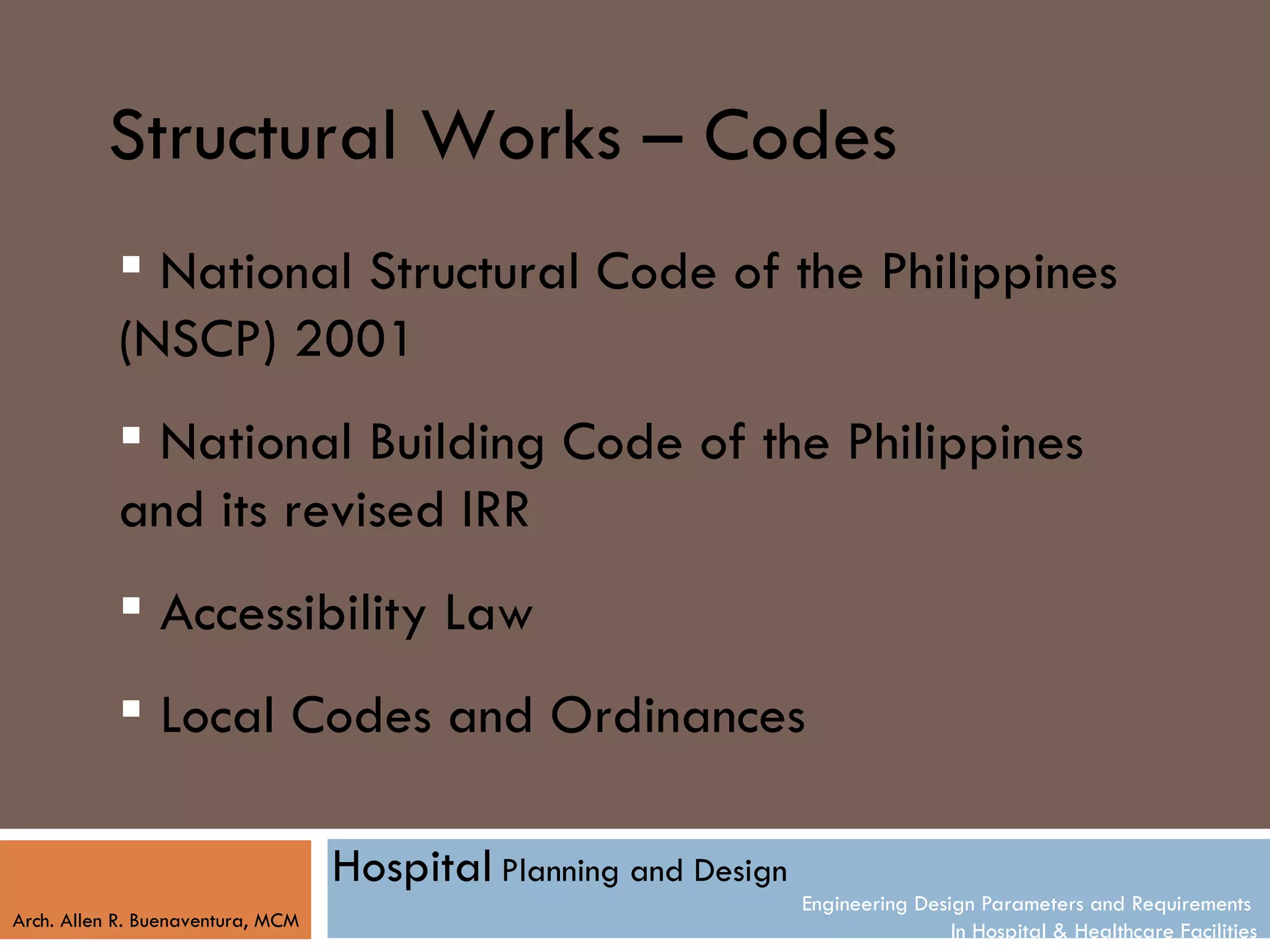

25. Structural Works – Codes
National Structural Code of the Philippines
(NSCP) 2001
National Building Code of the Philippines
and its revised IRR
Accessibility Law
Local Codes and Ordinances
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

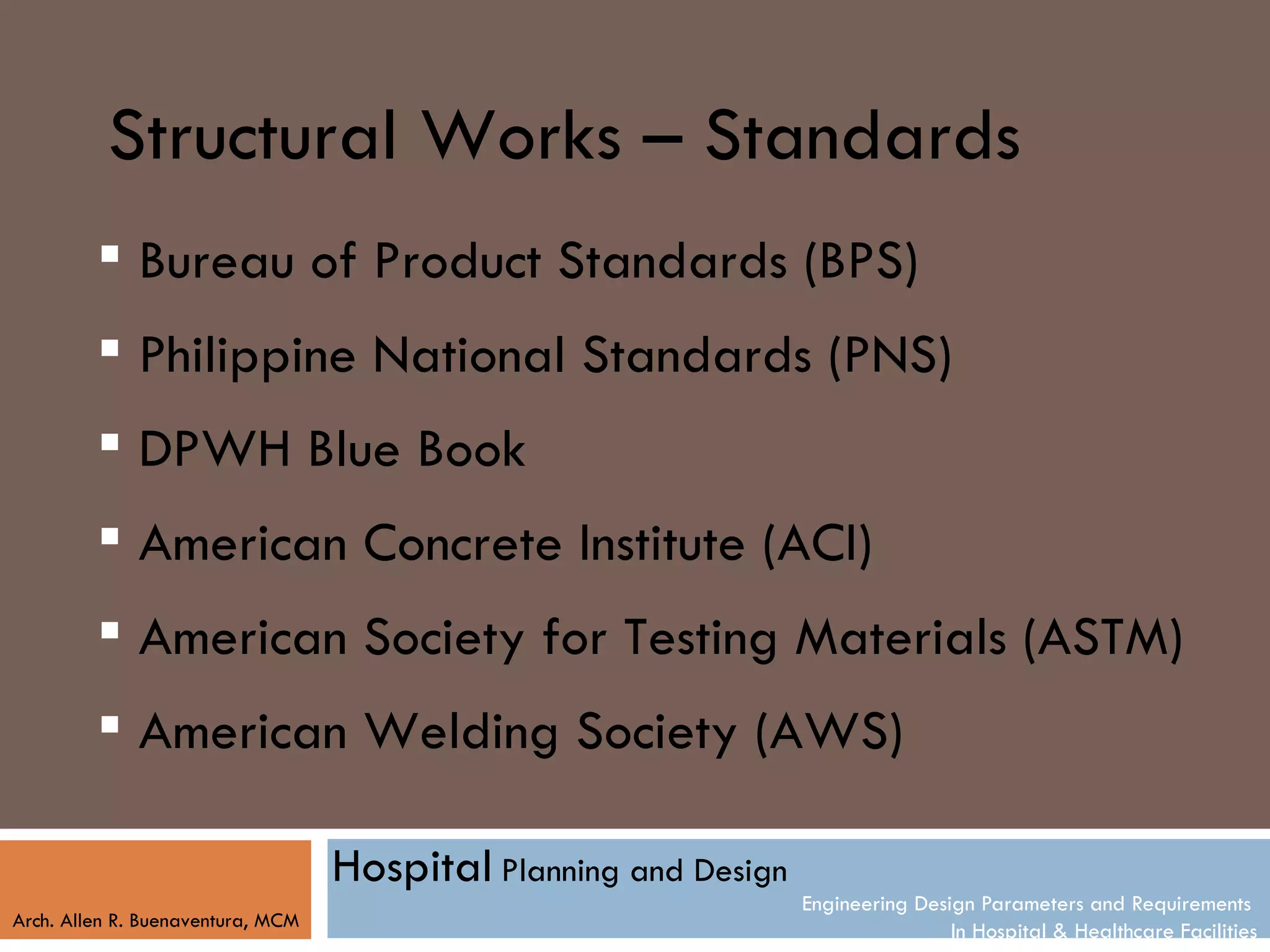

26. Structural Works – Standards
Bureau of Product Standards (BPS)
Philippine National Standards (PNS)
DPWH Blue Book
American Concrete Institute (ACI)
American Society for Testing Materials (ASTM)
American Welding Society (AWS)
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

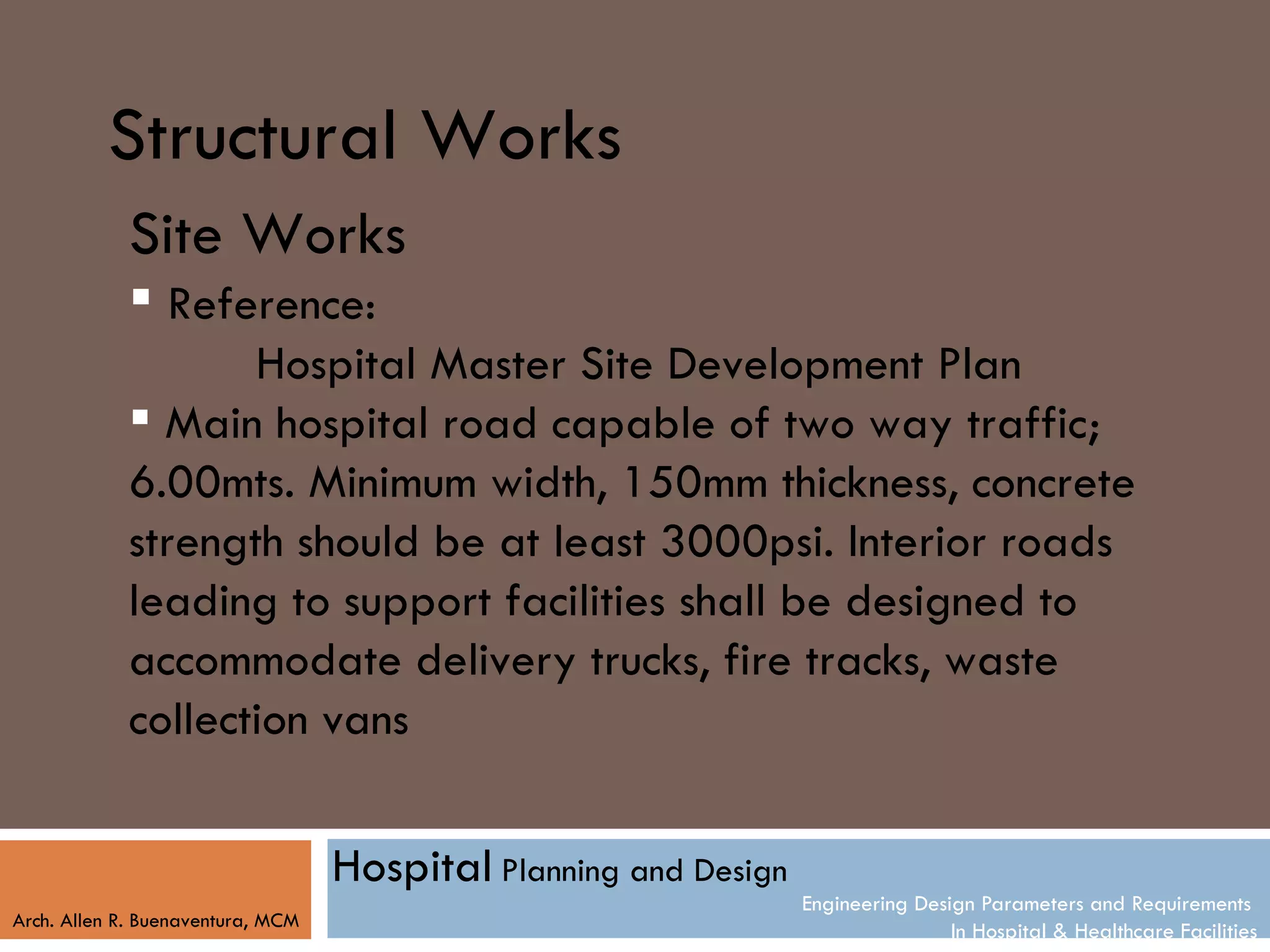

27. Structural Works
Site Works
Reference:
Hospital Master Site Development Plan
Main hospital road capable of two way traffic;
6.00mts. Minimum width, 150mm thickness, concrete
strength should be at least 3000psi. Interior roads
leading to support facilities shall be designed to
accommodate delivery trucks, fire tracks, waste
collection vans
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

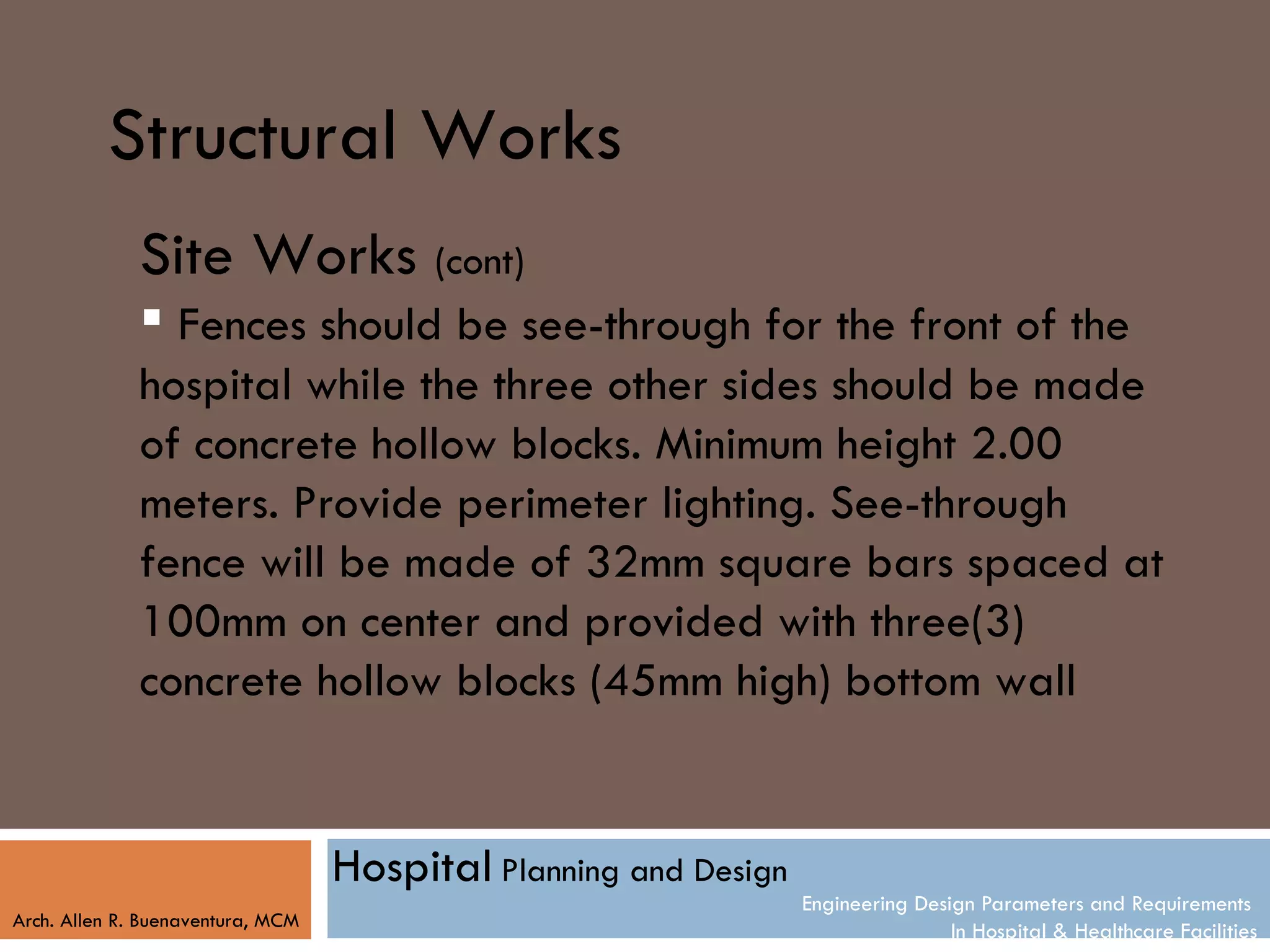

28. Structural Works
Site Works (cont)
Fences should be see-through for the front of the
hospital while the three other sides should be made
of concrete hollow blocks. Minimum height 2.00
meters. Provide perimeter lighting. See-through
fence will be made of 32mm square bars spaced at
100mm on center and provided with three(3)
concrete hollow blocks (45mm high) bottom wall
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
29. Building Structural System
Buildings

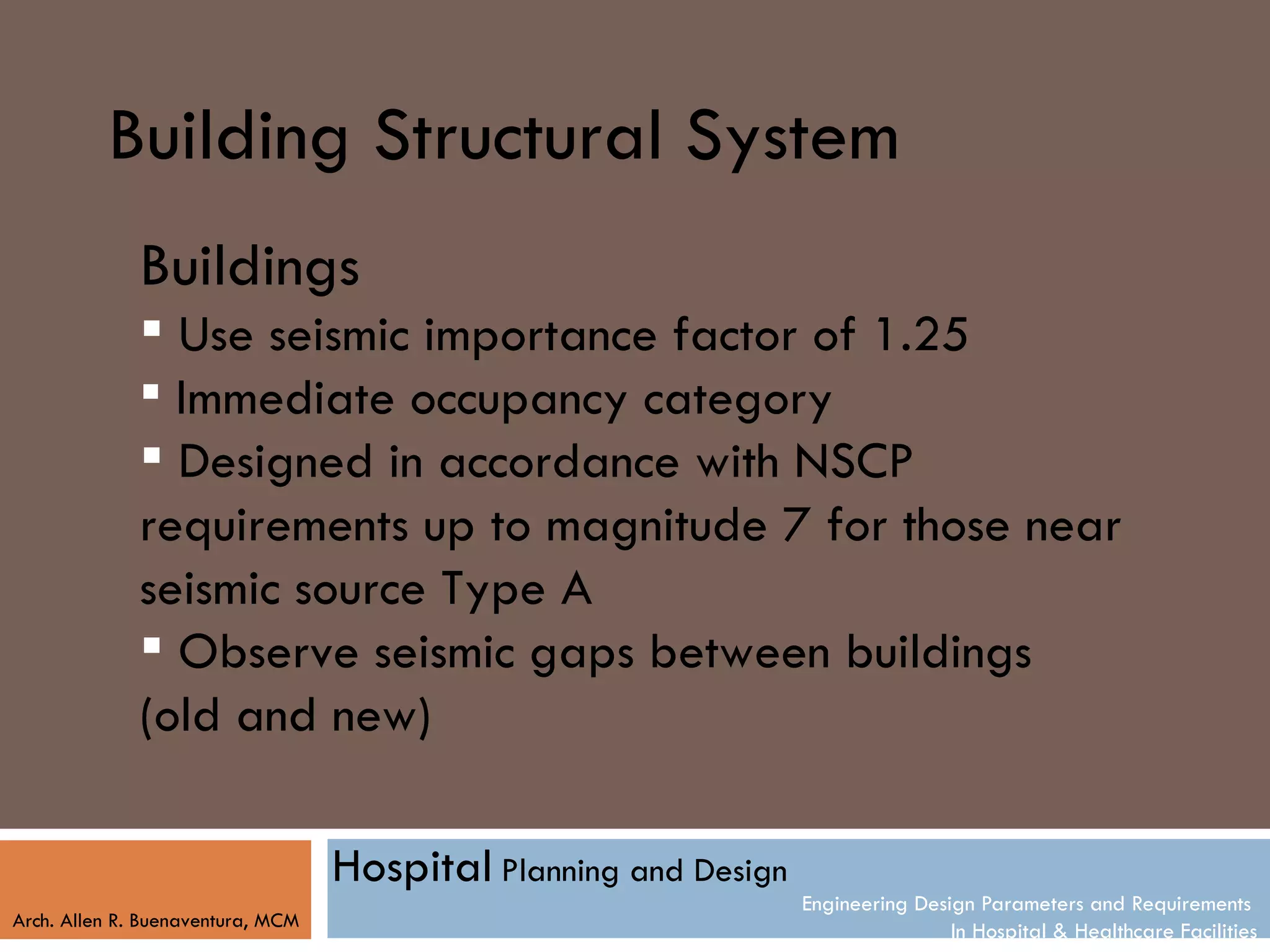

Use seismic importance factor of 1.25
Immediate occupancy category
Designed in accordance with NSCP
requirements up to magnitude 7 for those near
seismic source Type A
Observe seismic gaps between buildings
(old and new)
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
30. Building Structural System
Buildings

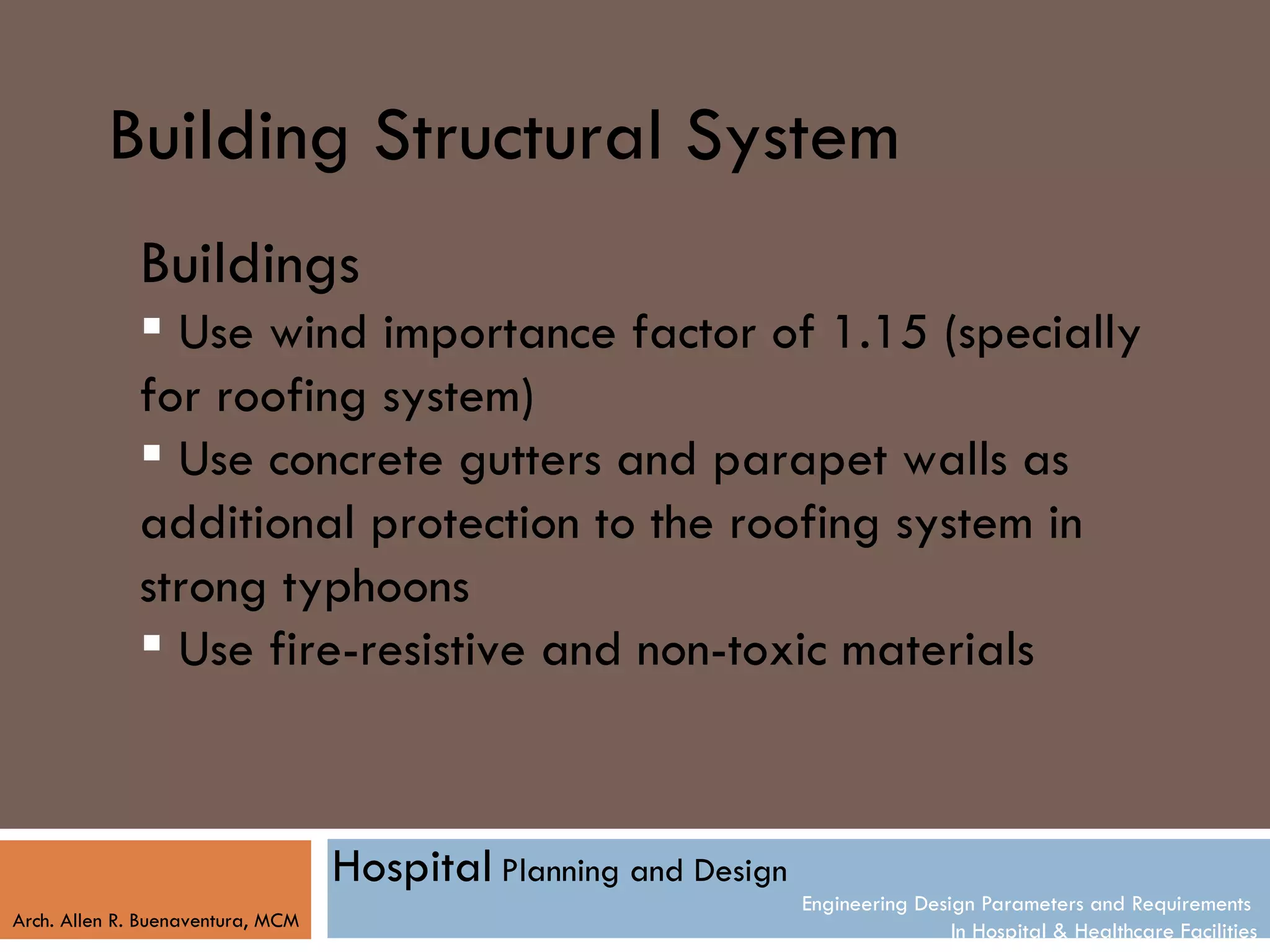

Use wind importance factor of 1.15 (specially
for roofing system)
Use concrete gutters and parapet walls as
additional protection to the roofing system in
strong typhoons
Use fire-resistive and non-toxic materials
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

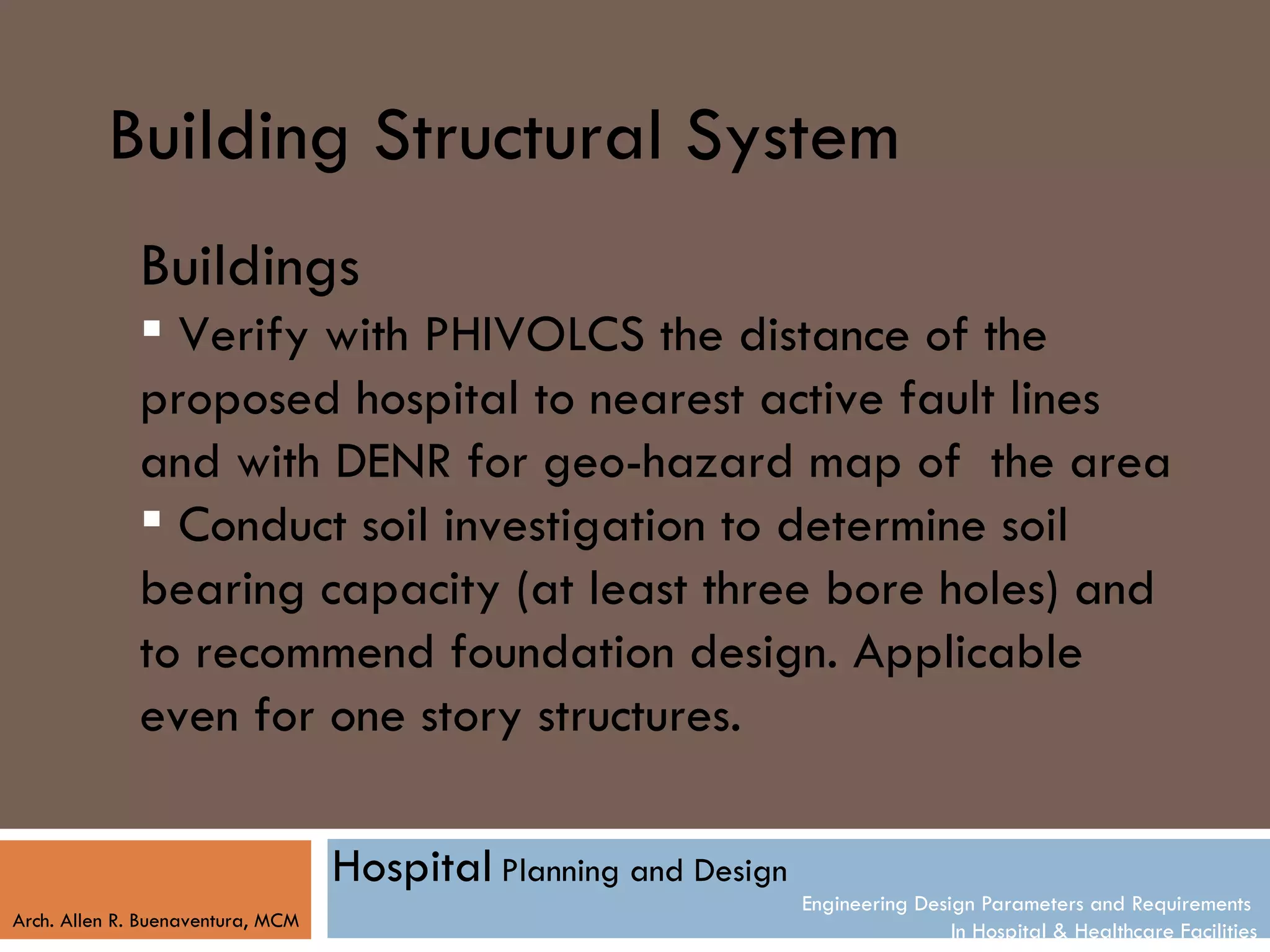

31. Building Structural System
Buildings
Verify with PHIVOLCS the distance of the
proposed hospital to nearest active fault lines
and with DENR for geo-hazard map of the area
Conduct soil investigation to determine soil
bearing capacity (at least three bore holes) and
to recommend foundation design. Applicable
even for one story structures.
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

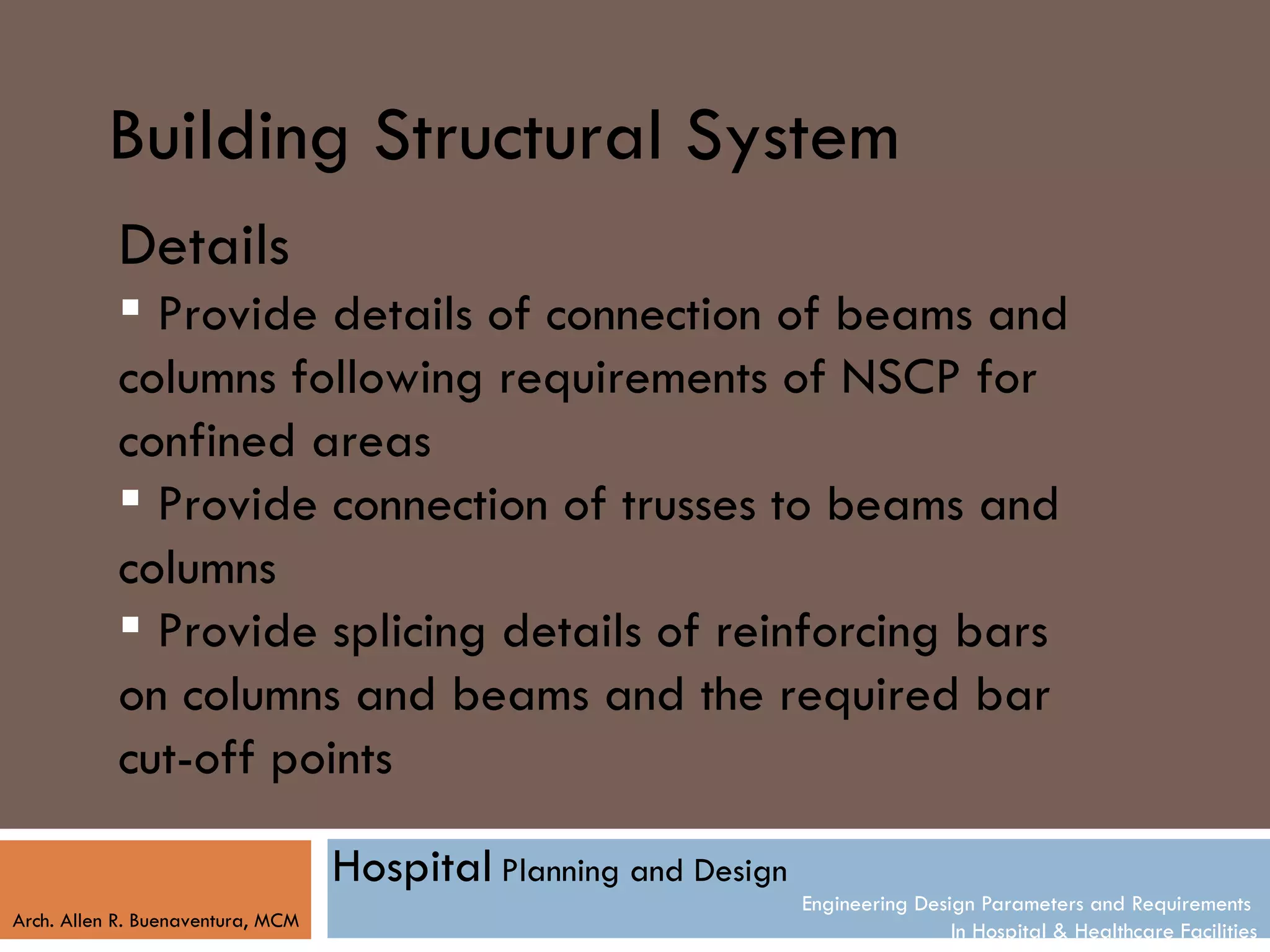

32. Building Structural System
Details
Provide details of connection of beams and
columns following requirements of NSCP for
confined areas
Provide connection of trusses to beams and
columns
Provide splicing details of reinforcing bars
on columns and beams and the required bar
cut-off points
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
33. Building Structural System
Summary of Materials

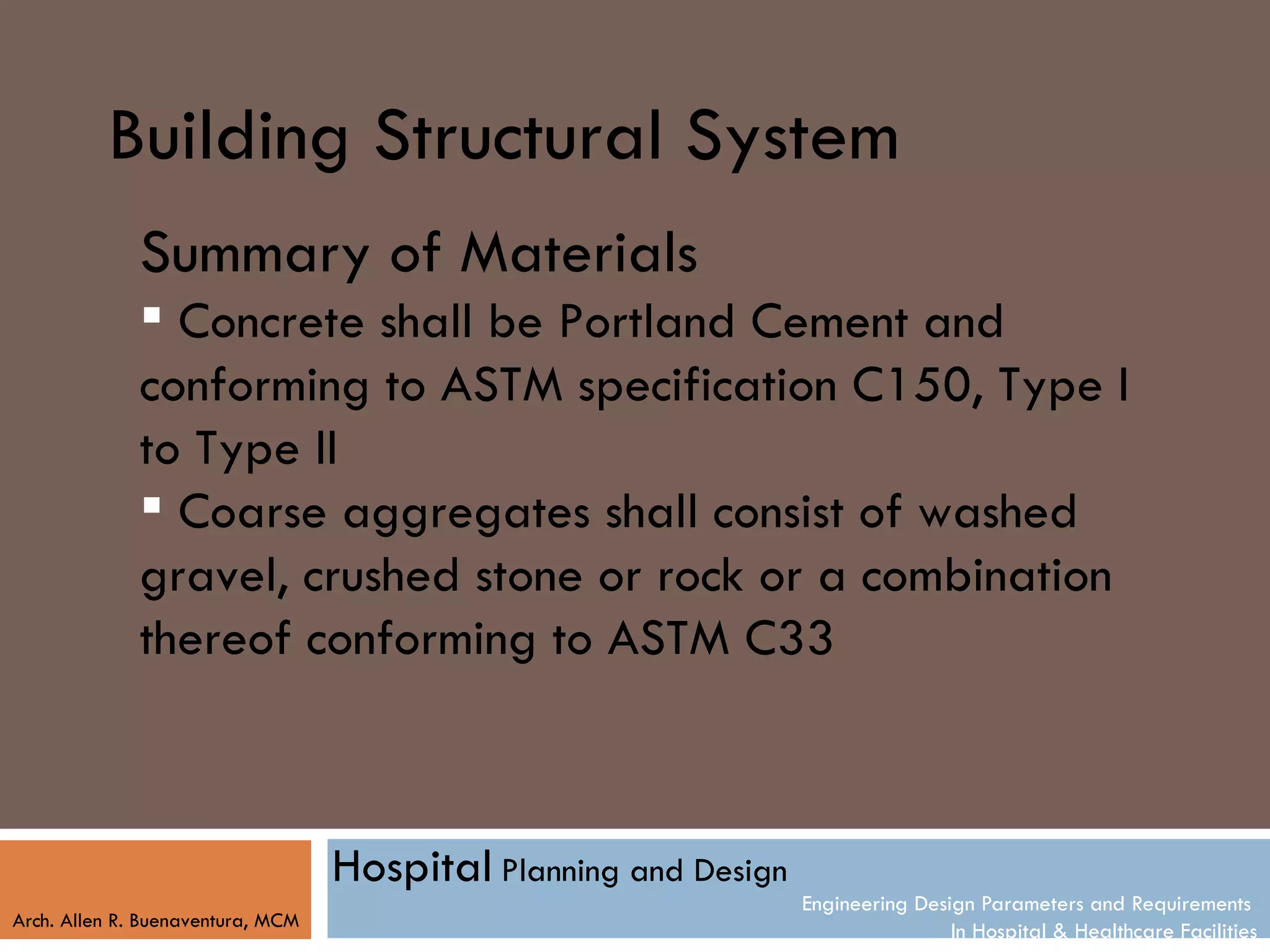

Concrete shall be Portland Cement and
conforming to ASTM specification C150, Type I
to Type II
Coarse aggregates shall consist of washed
gravel, crushed stone or rock or a combination
thereof conforming to ASTM C33
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
34. Building Structural System
Summary of Materials (cont)

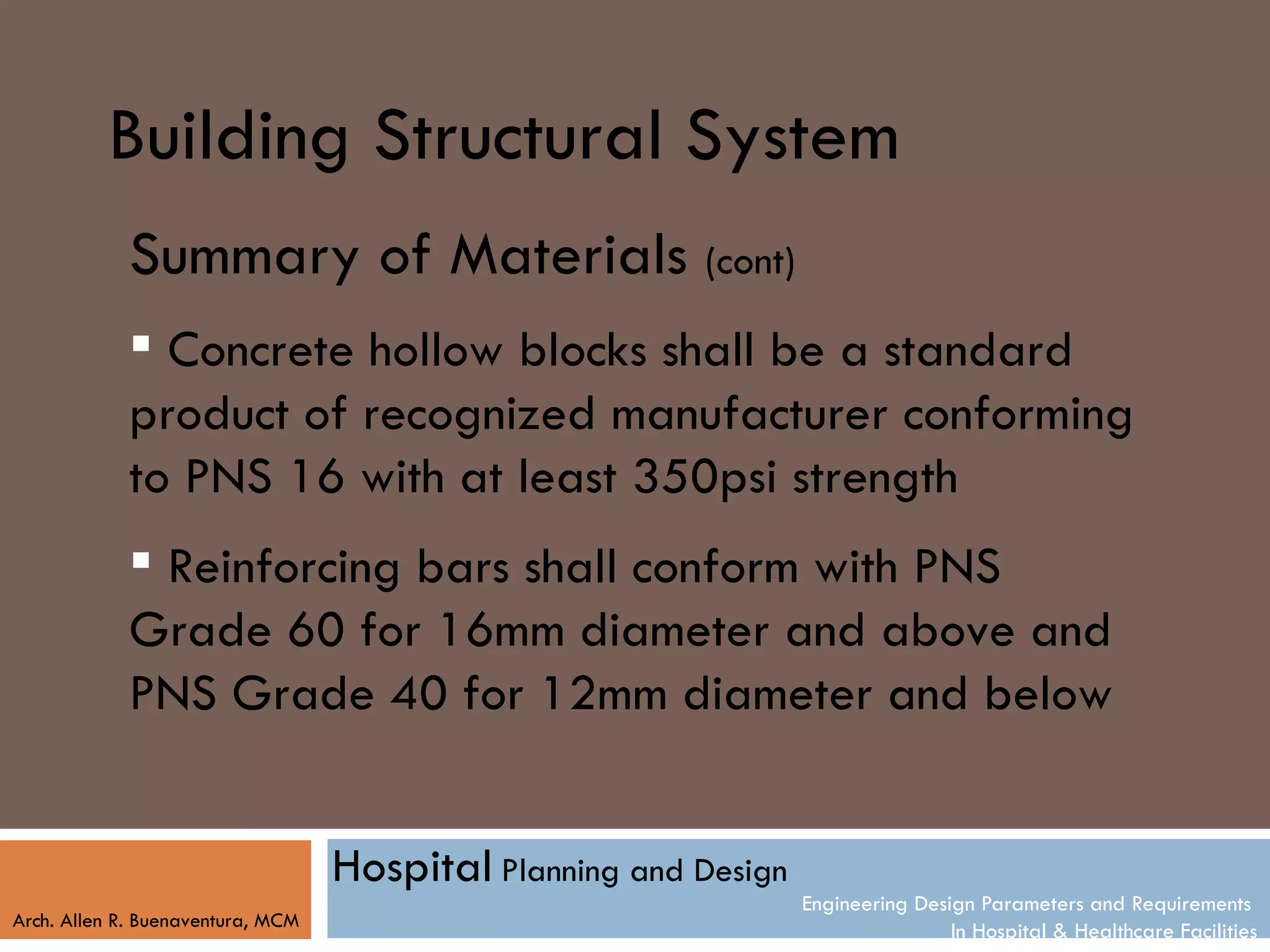

Concrete hollow blocks shall be a standard
product of recognized manufacturer conforming
to PNS 16 with at least 350psi strength
Reinforcing bars shall conform with PNS
Grade 60 for 16mm diameter and above and
PNS Grade 40 for 12mm diameter and below
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
35. Building Structural System

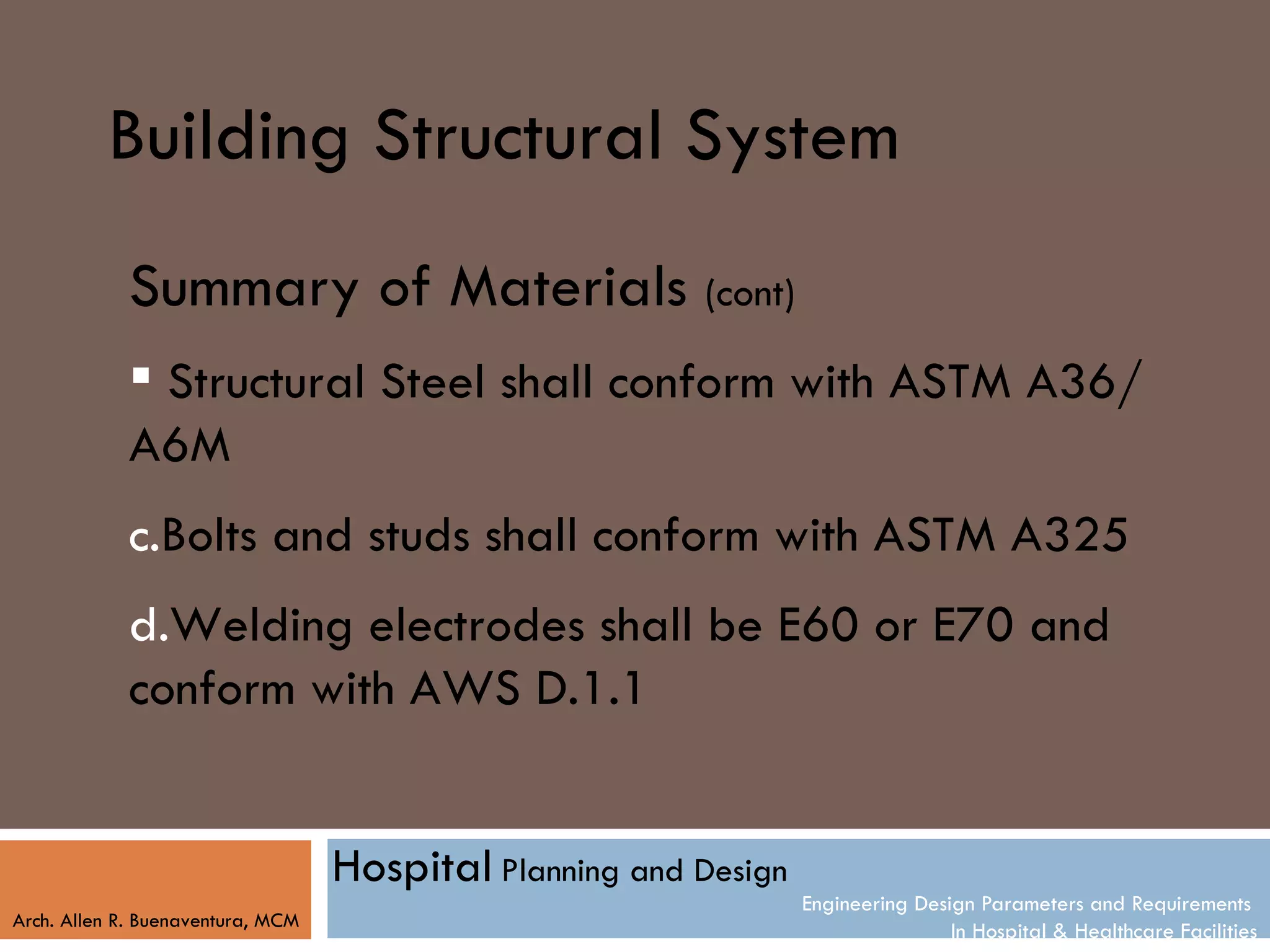

Summary of Materials (cont)
Structural Steel shall conform with ASTM A36/
A6M
c.Bolts and studs shall conform with ASTM A325
d.Welding electrodes shall be E60 or E70 and
conform with AWS D.1.1
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

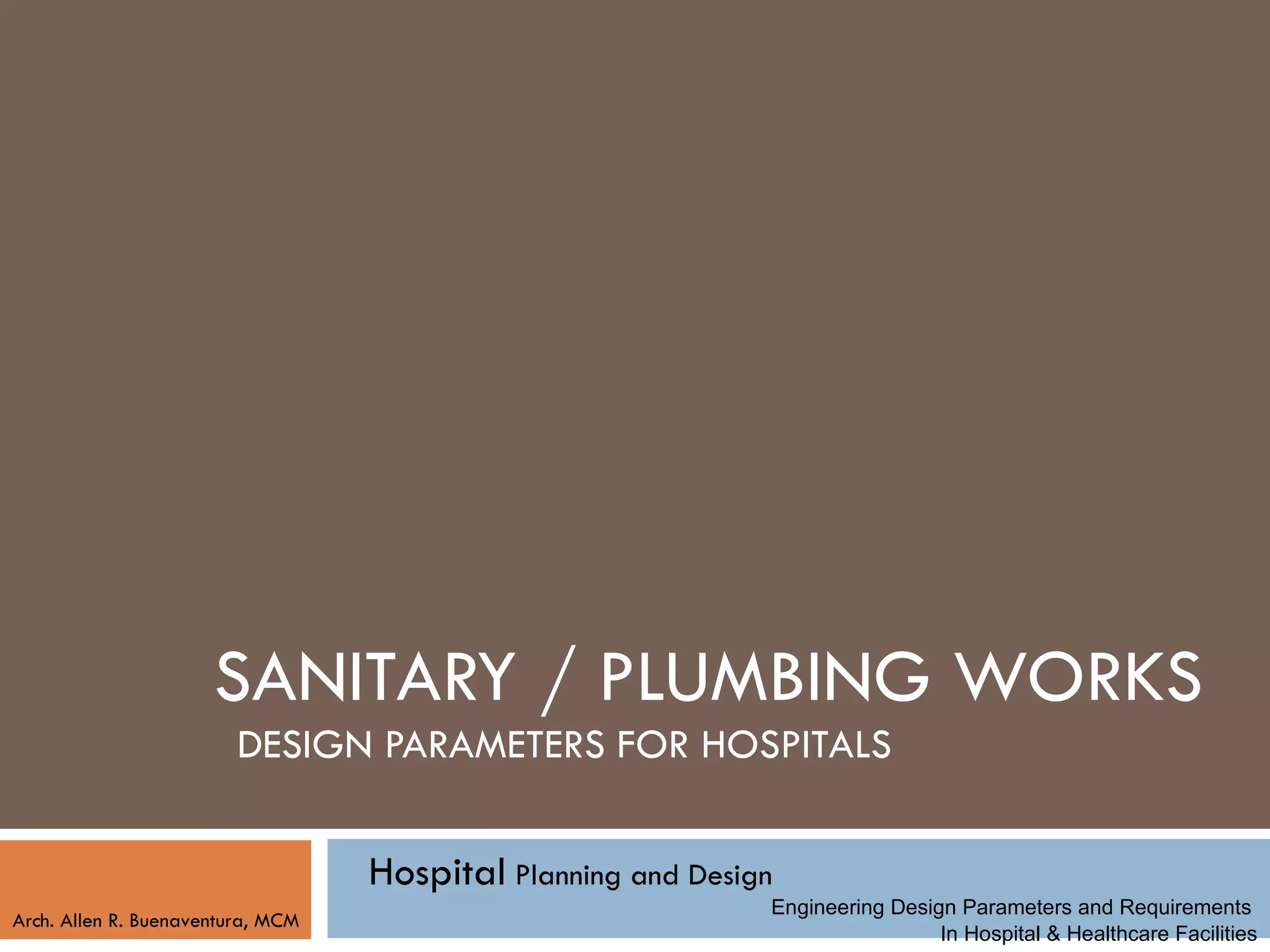

36. SANITARY / PLUMBING WORKS
DESIGN PARAMETERS FOR HOSPITALS
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
37. Sanitary Works – Codes

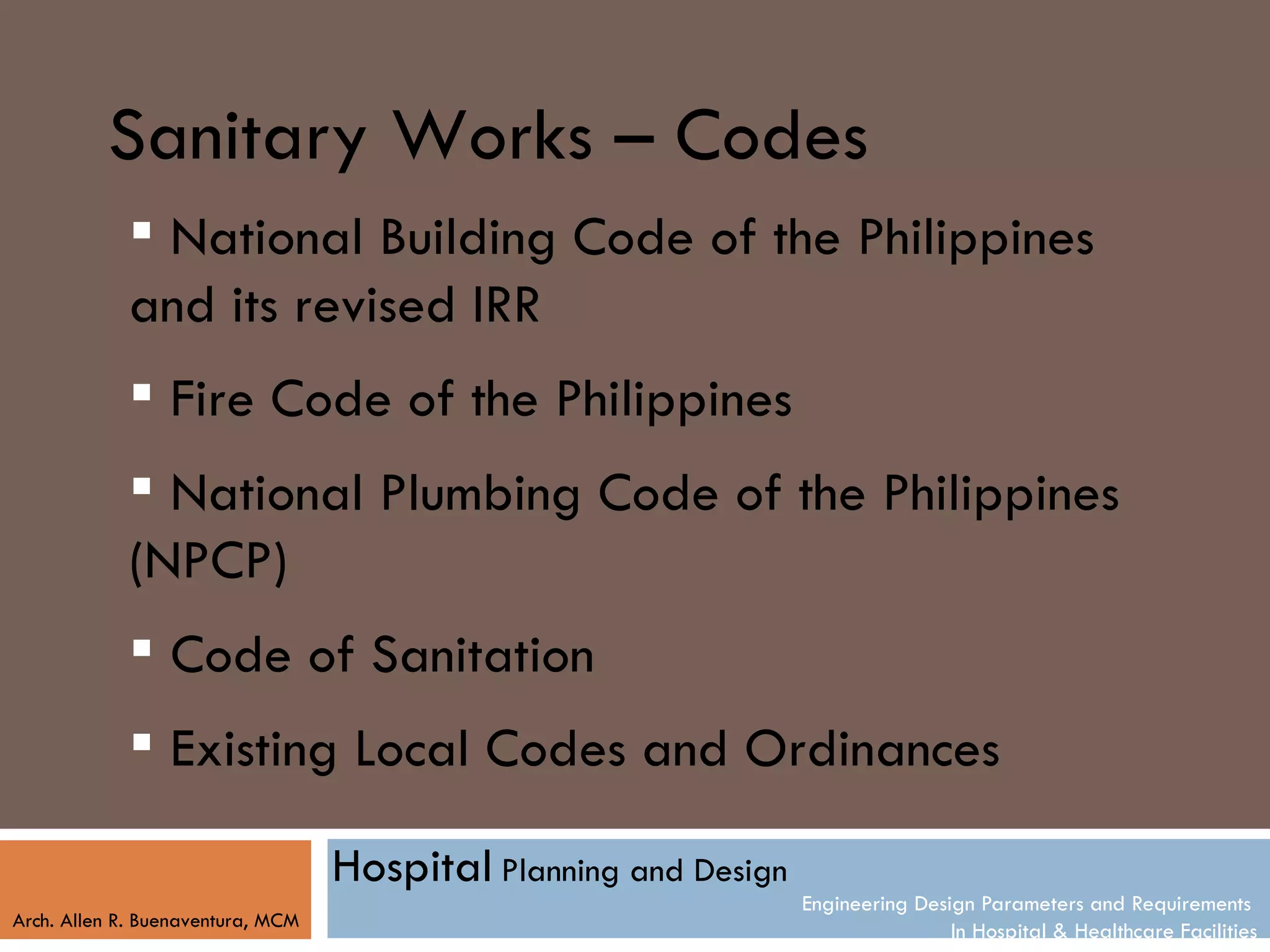

National Building Code of the Philippines
and its revised IRR
Fire Code of the Philippines
National Plumbing Code of the Philippines
(NPCP)
Code of Sanitation
Existing Local Codes and Ordinances
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

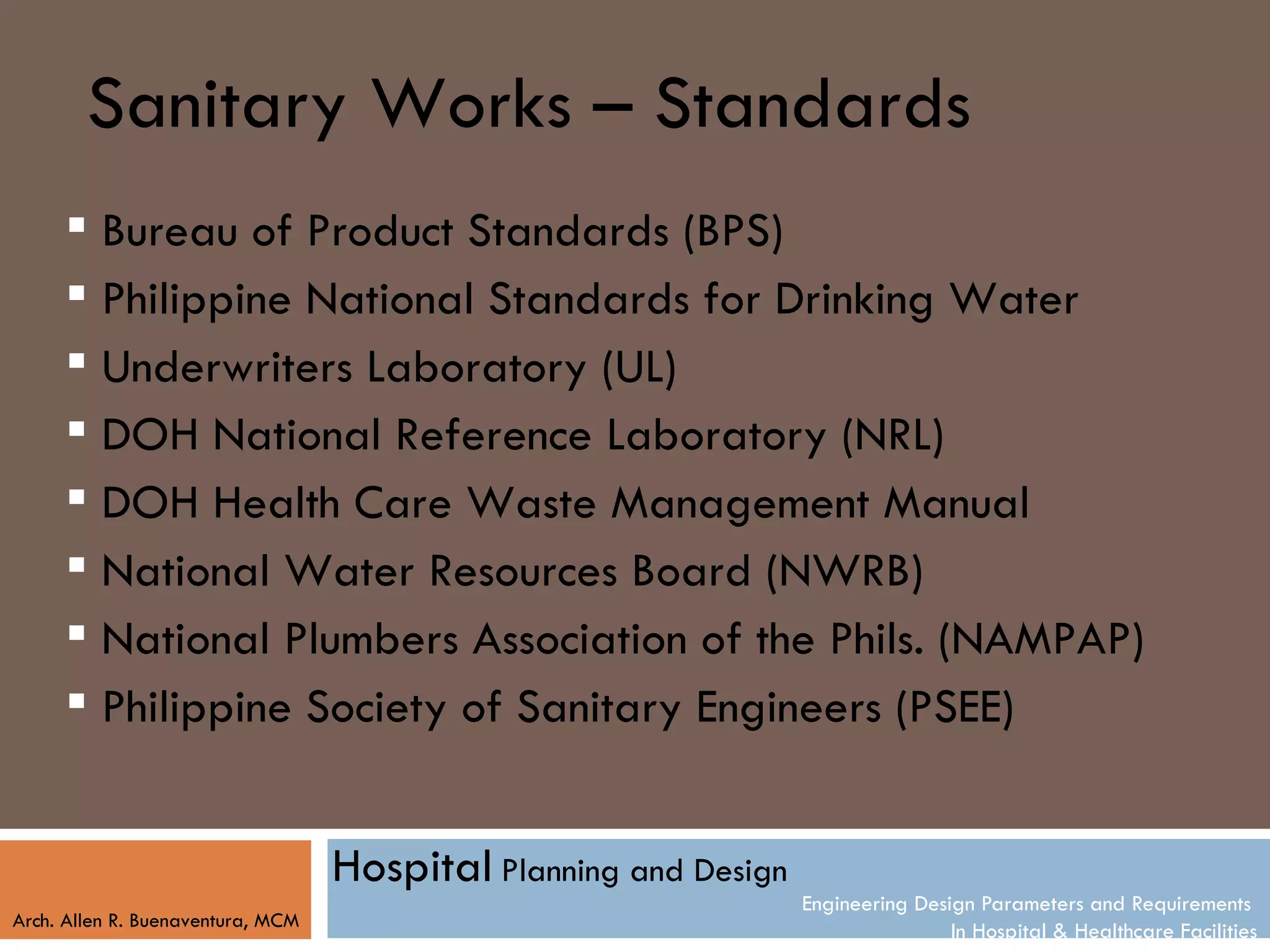

38. Sanitary Works – Standards
Bureau of Product Standards (BPS)
Philippine National Standards for Drinking Water
Underwriters Laboratory (UL)
DOH National Reference Laboratory (NRL)
DOH Health Care Waste Management Manual
National Water Resources Board (NWRB)
National Plumbers Association of the Phils. (NAMPAP)
Philippine Society of Sanitary Engineers (PSEE)
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

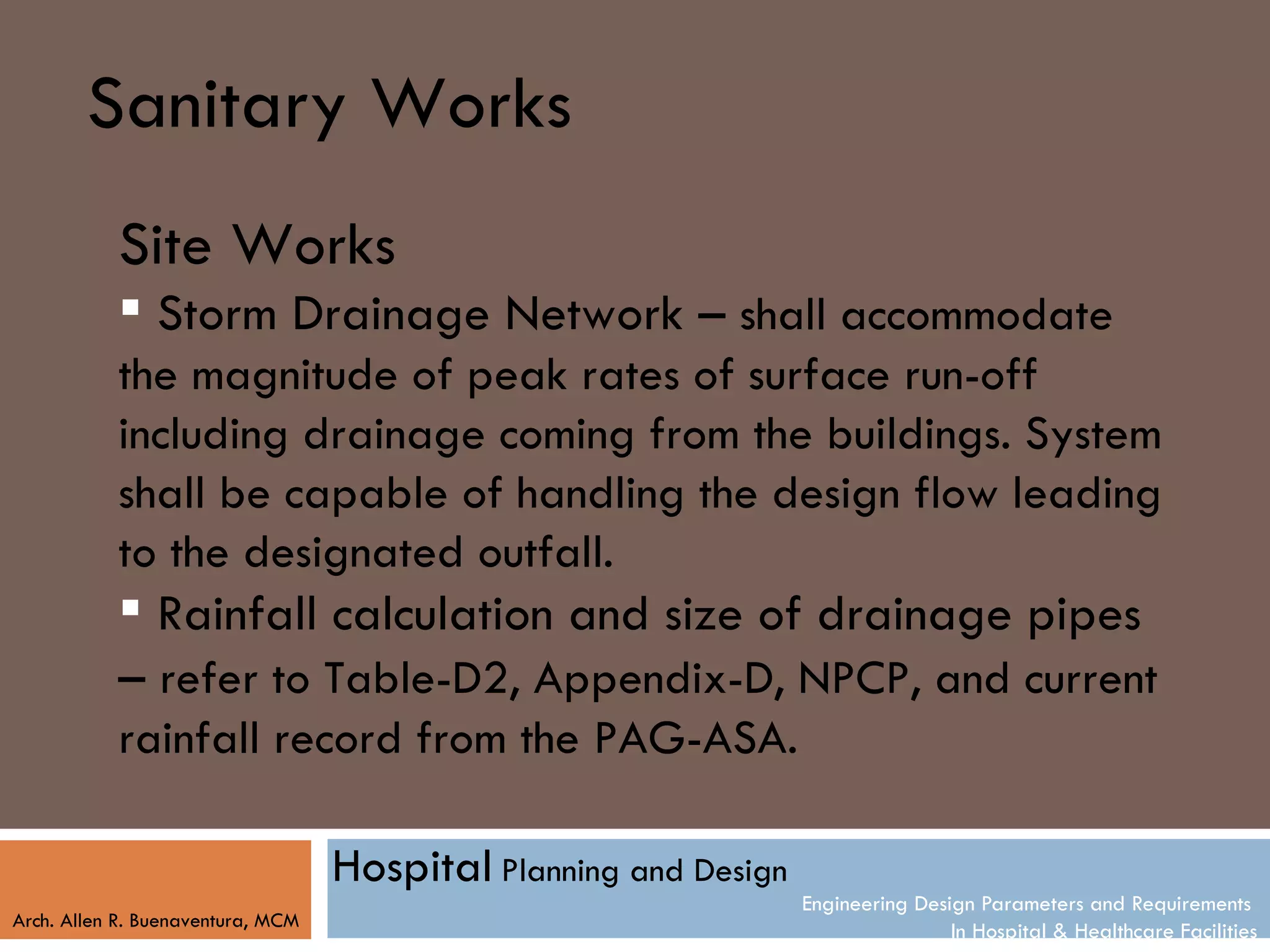

39. Sanitary Works
Site Works
Storm Drainage Network – shall accommodate
the magnitude of peak rates of surface run-off
including drainage coming from the buildings. System
shall be capable of handling the design flow leading
to the designated outfall.
Rainfall calculation and size of drainage pipes
– refer to Table-D2, Appendix-D, NPCP, and current
rainfall record from the PAG-ASA.
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
40. Sanitary Works
Site Works (cont)

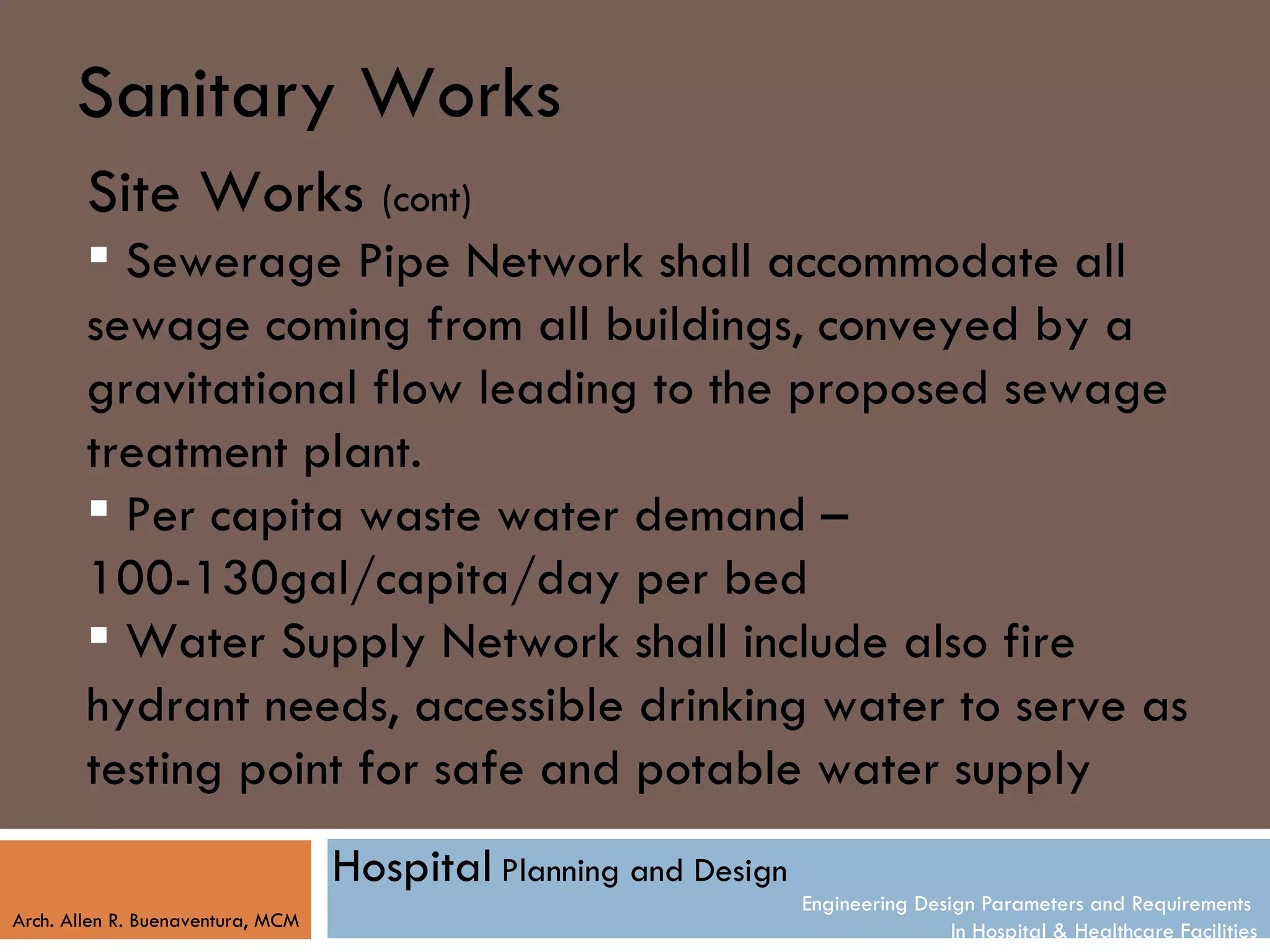

Sewerage Pipe Network shall accommodate all
sewage coming from all buildings, conveyed by a
gravitational flow leading to the proposed sewage
treatment plant.
Per capita waste water demand –
100-130gal/capita/day per bed
Water Supply Network shall include also fire
hydrant needs, accessible drinking water to serve as
testing point for safe and potable water supply
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

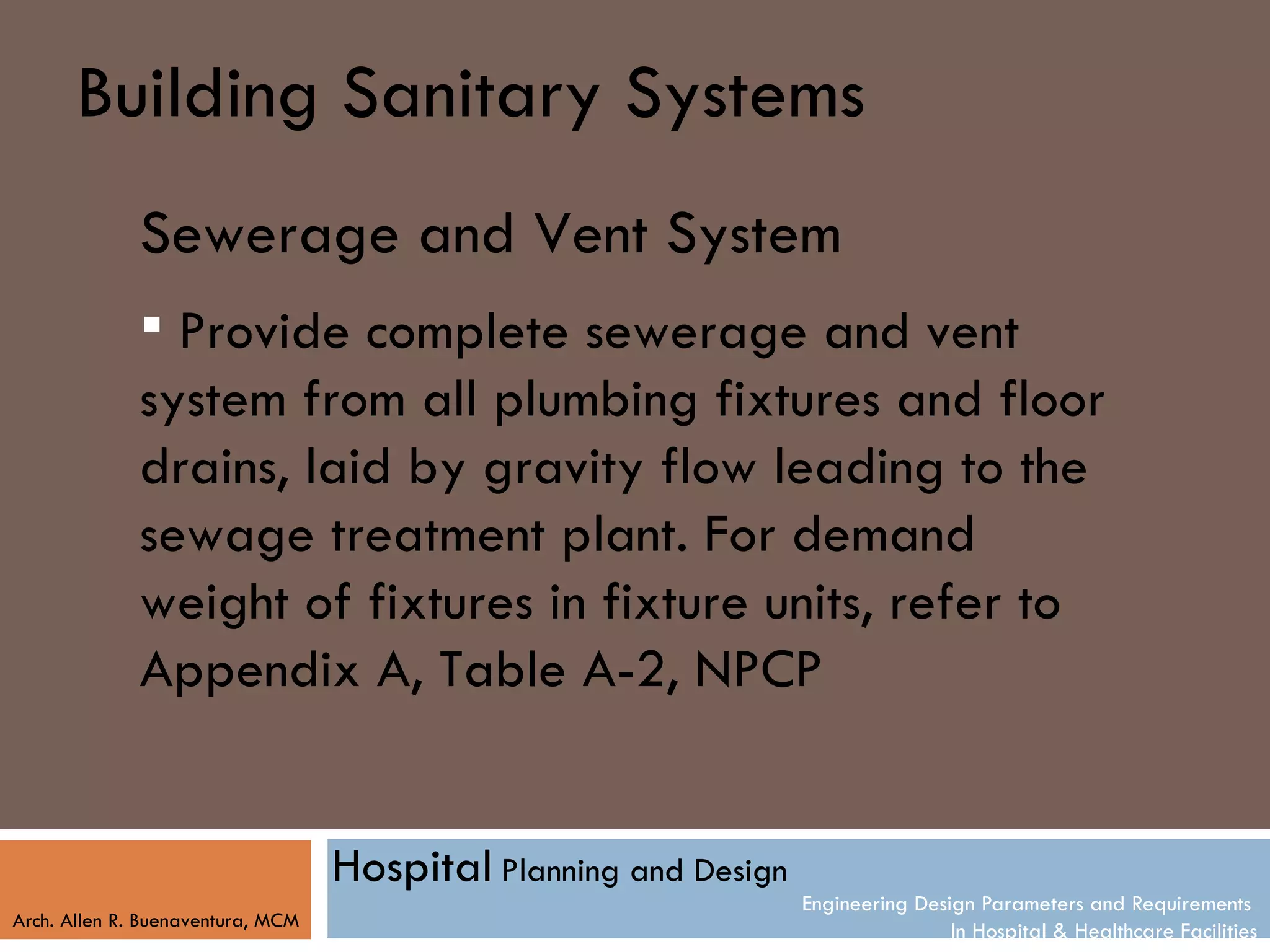

41. Building Sanitary Systems
Sewerage and Vent System
Provide complete sewerage and vent
system from all plumbing fixtures and floor
drains, laid by gravity flow leading to the
sewage treatment plant. For demand
weight of fixtures in fixture units, refer to
Appendix A, Table A-2, NPCP
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

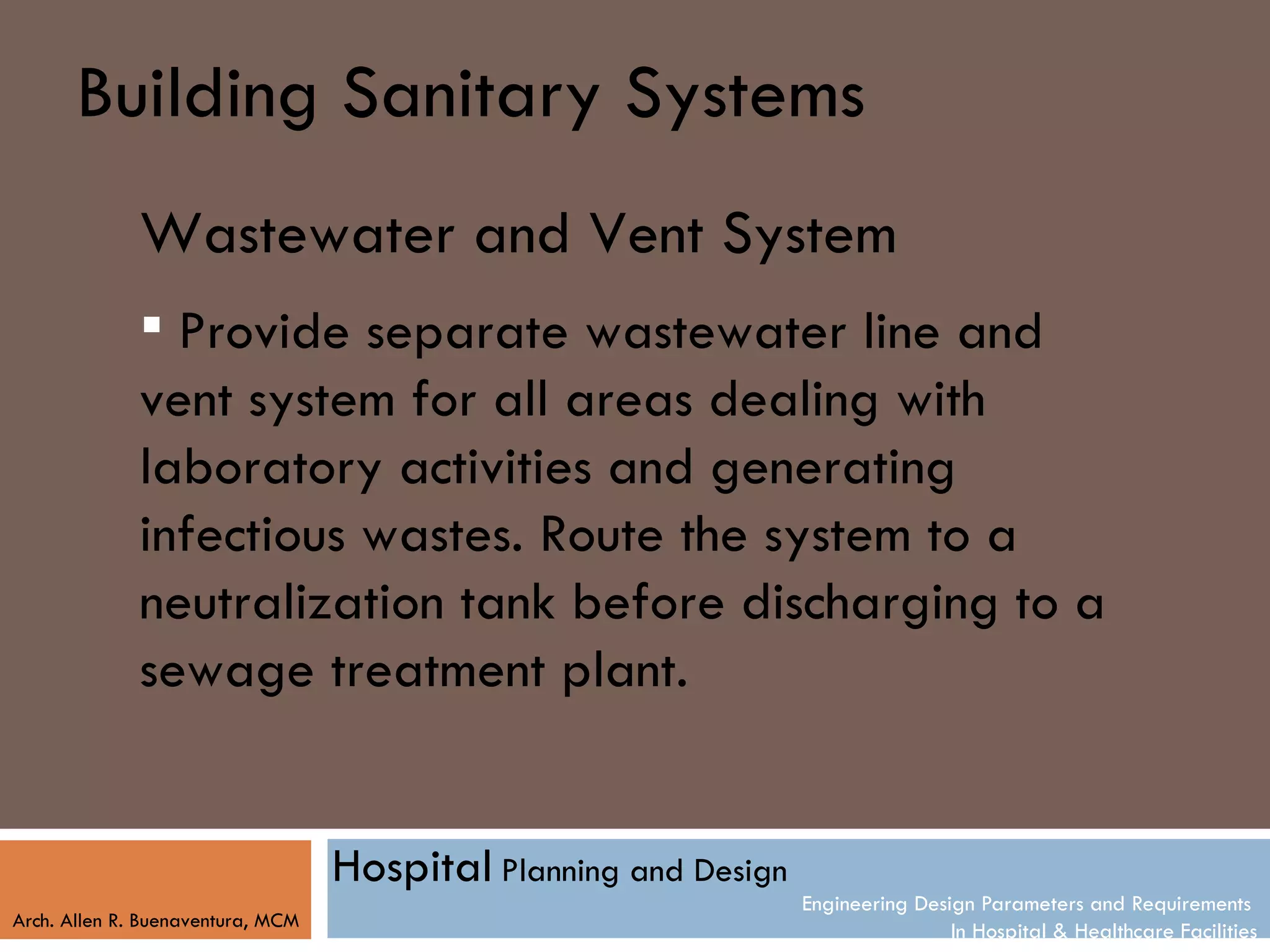

42. Building Sanitary Systems
Wastewater and Vent System
Provide separate wastewater line and
vent system for all areas dealing with
laboratory activities and generating
infectious wastes. Route the system to a
neutralization tank before discharging to a
sewage treatment plant.
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

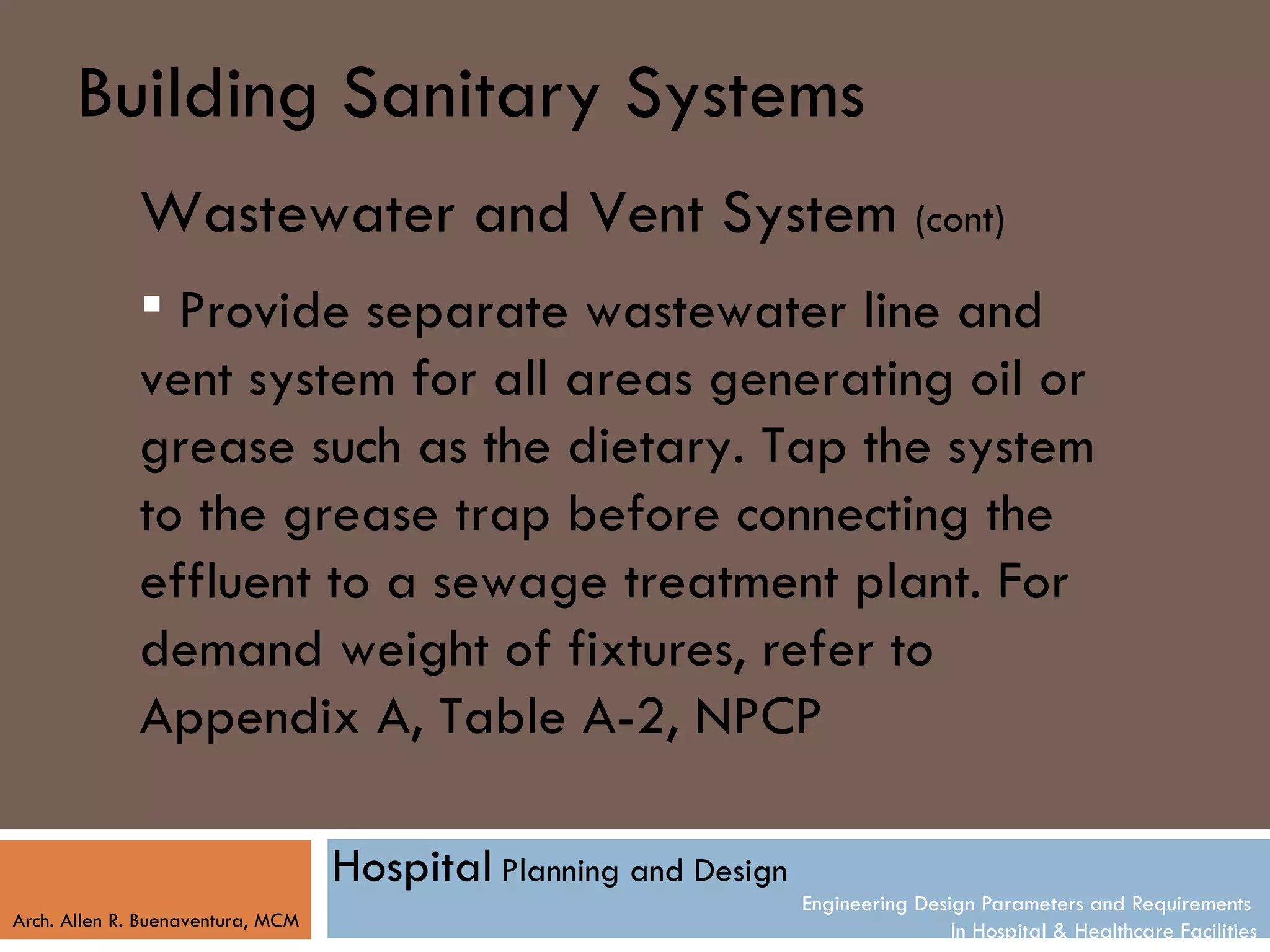

43. Building Sanitary Systems
Wastewater and Vent System (cont)
Provide separate wastewater line and
vent system for all areas generating oil or
grease such as the dietary. Tap the system
to the grease trap before connecting the
effluent to a sewage treatment plant. For
demand weight of fixtures, refer to
Appendix A, Table A-2, NPCP
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
44. Building Sanitary Systems

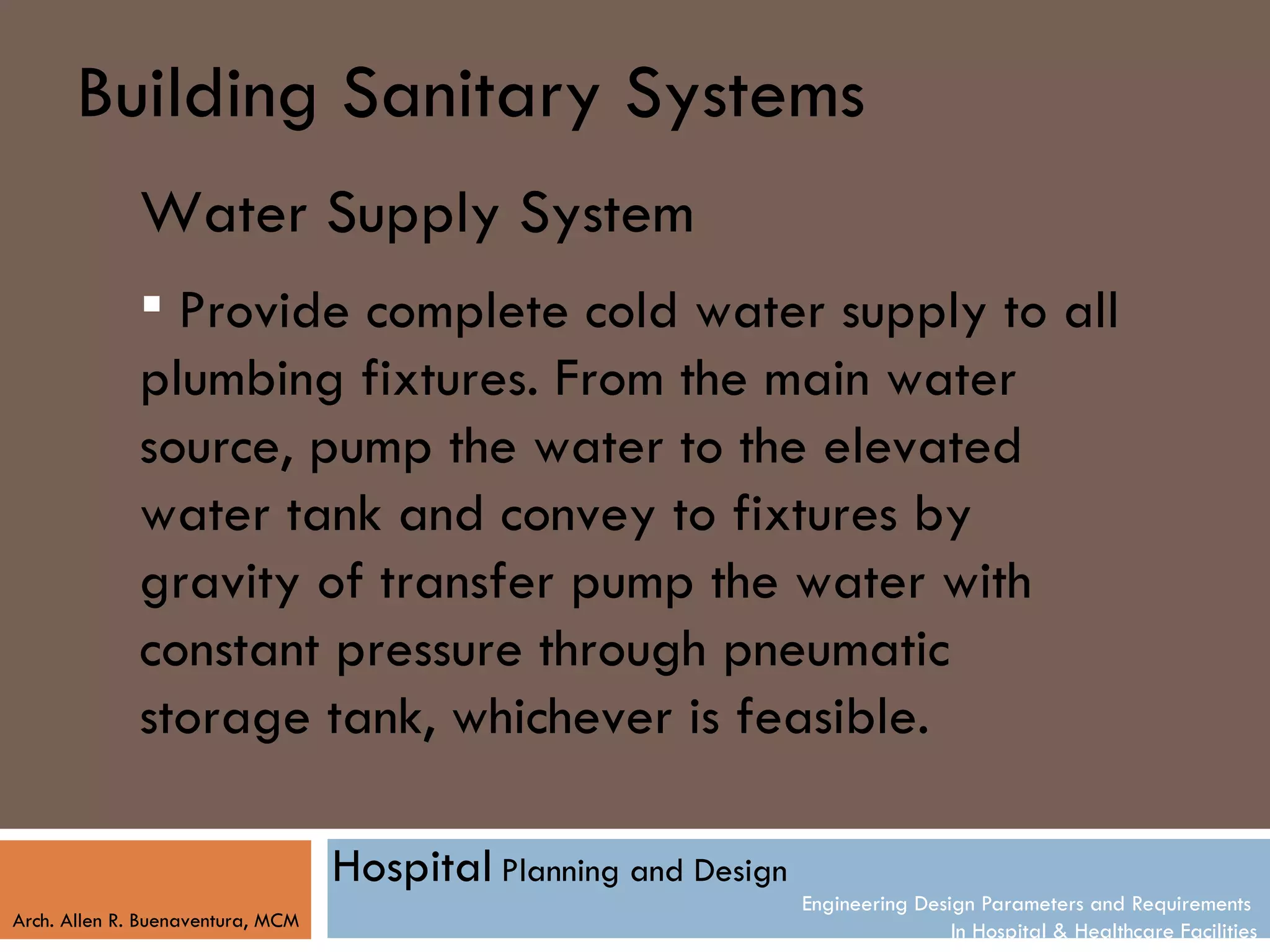

Water Supply System
Provide complete cold water supply to all
plumbing fixtures. From the main water
source, pump the water to the elevated
water tank and convey to fixtures by
gravity of transfer pump the water with
constant pressure through pneumatic
storage tank, whichever is feasible.
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
45. Building Sanitary Systems
Water Supply System (cont)

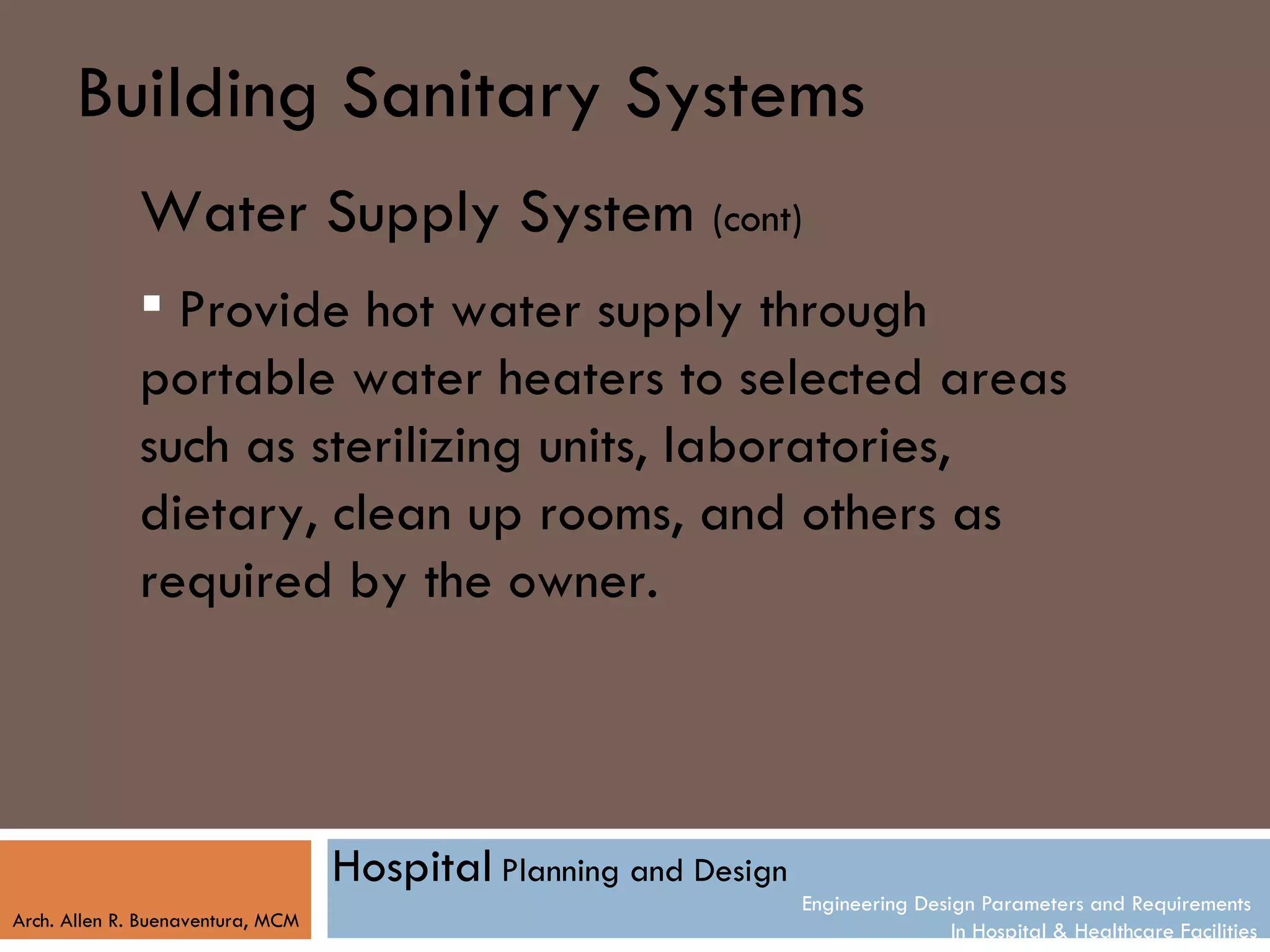

Provide hot water supply through
portable water heaters to selected areas
such as sterilizing units, laboratories,
dietary, clean up rooms, and others as
required by the owner.
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
46. Building Sanitary Systems

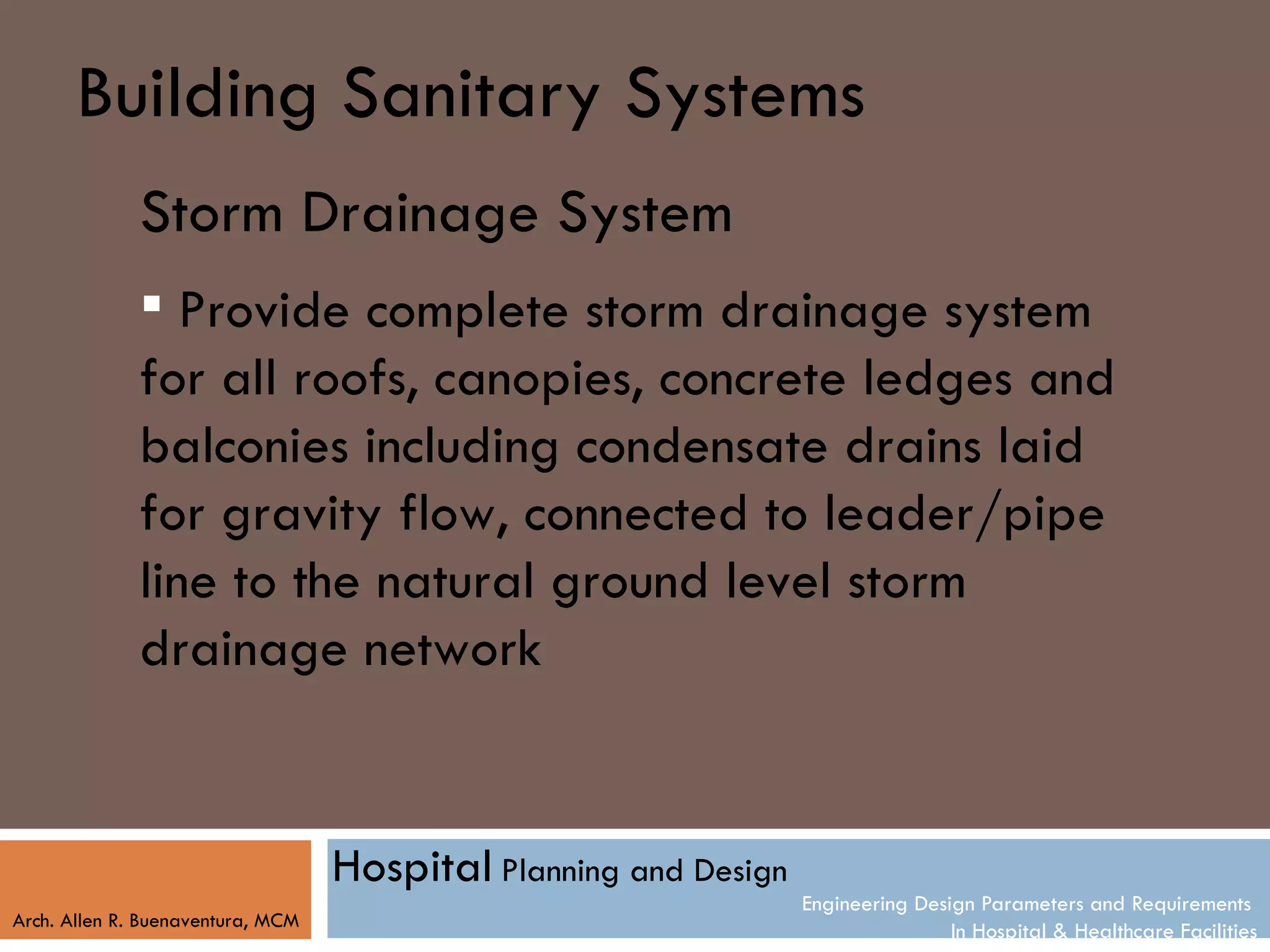

Storm Drainage System
Provide complete storm drainage system
for all roofs, canopies, concrete ledges and
balconies including condensate drains laid
for gravity flow, connected to leader/pipe
line to the natural ground level storm
drainage network
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
47. Building Sanitary Systems

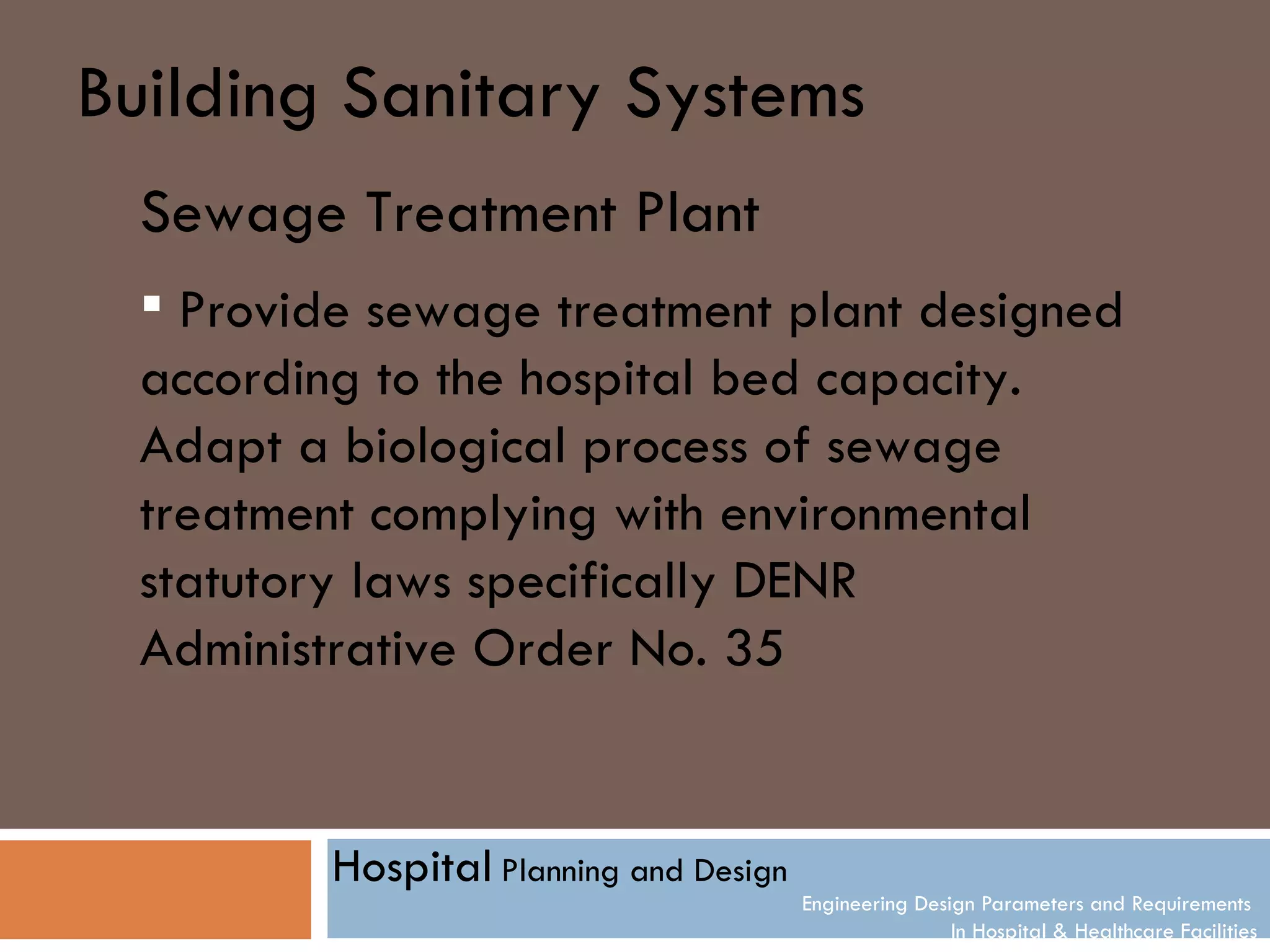

Sewage Treatment Plant
Provide sewage treatment plant designed
according to the hospital bed capacity.
Adapt a biological process of sewage
treatment complying with environmental
statutory laws specifically DENR
Administrative Order No. 35
Hospital Planning and Design
Engineering Design Parameters and Requirements
In Hospital & Healthcare Facilities
48. Building Sanitary Systems

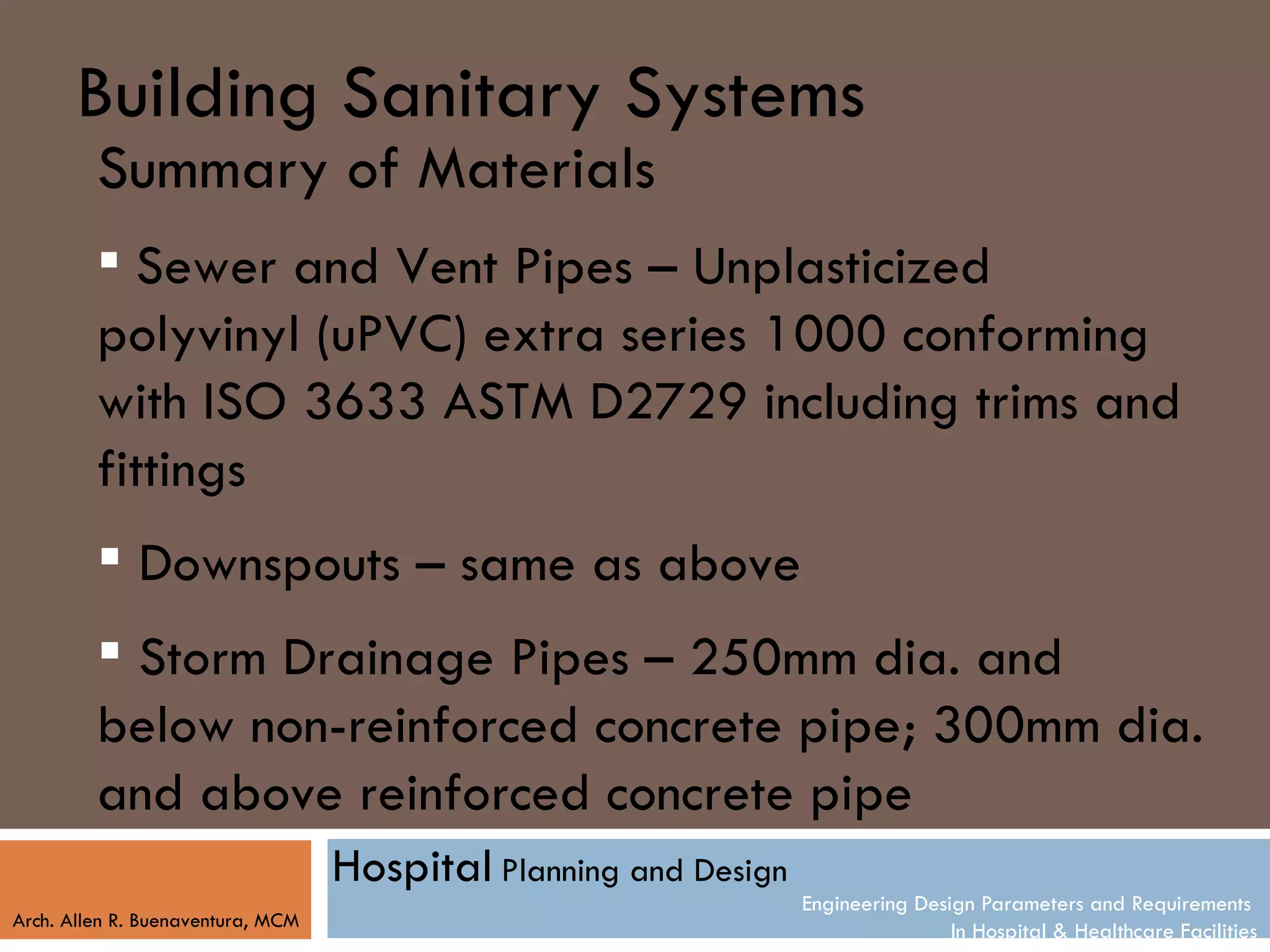

Summary of Materials
Sewer and Vent Pipes – Unplasticized
polyvinyl (uPVC) extra series 1000 conforming
with ISO 3633 ASTM D2729 including trims and
fittings
Downspouts – same as above
Storm Drainage Pipes – 250mm dia. and
below non-reinforced concrete pipe; 300mm dia.
and above reinforced concrete pipe
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

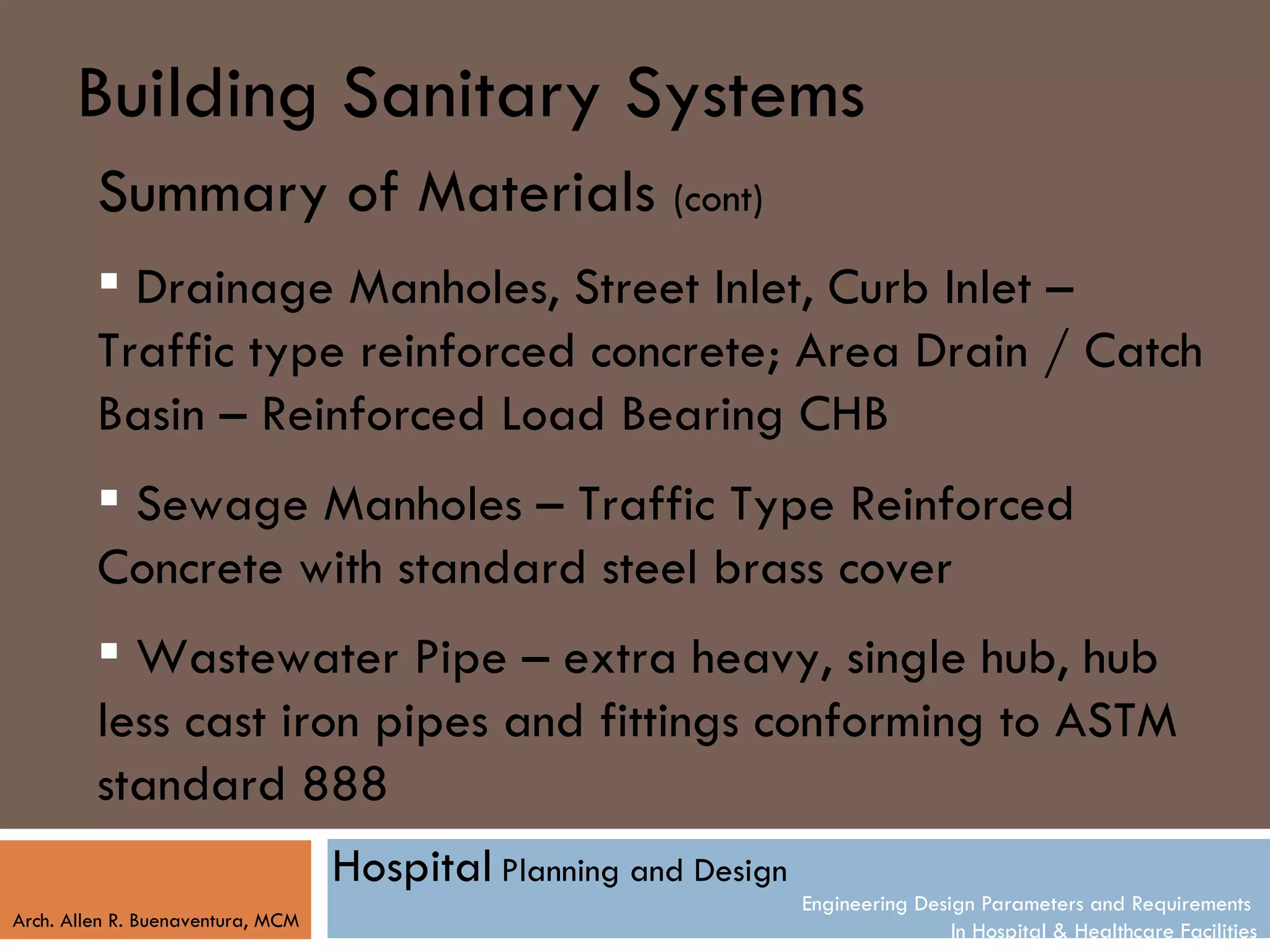

49. Building Sanitary Systems
Summary of Materials (cont)
Drainage Manholes, Street Inlet, Curb Inlet –
Traffic type reinforced concrete; Area Drain / Catch
Basin – Reinforced Load Bearing CHB
Sewage Manholes – Traffic Type Reinforced
Concrete with standard steel brass cover
Wastewater Pipe – extra heavy, single hub, hub
less cast iron pipes and fittings conforming to ASTM
standard 888
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

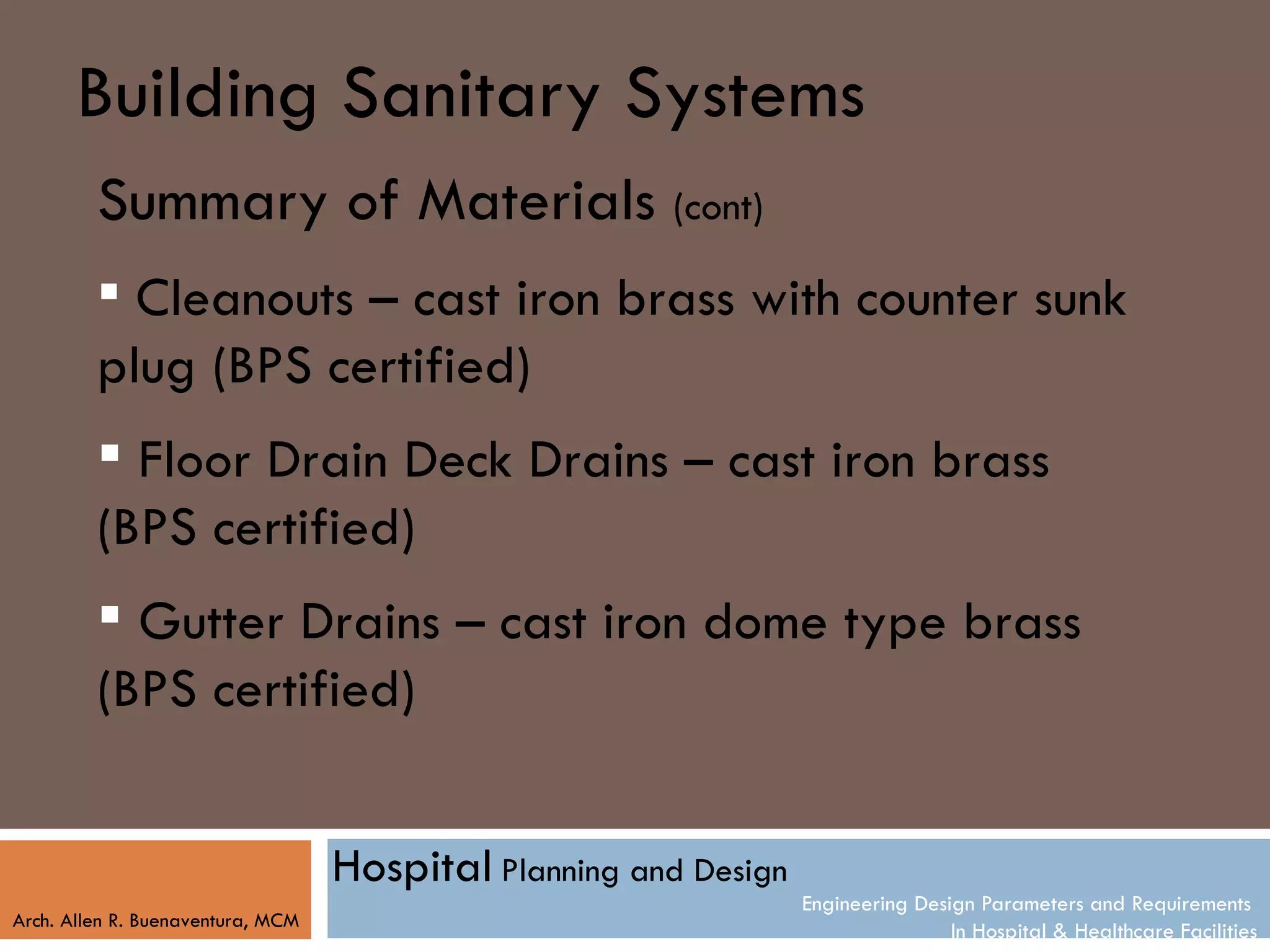

50. Building Sanitary Systems
Summary of Materials (cont)
Cleanouts – cast iron brass with counter sunk
plug (BPS certified)
Floor Drain Deck Drains – cast iron brass
(BPS certified)
Gutter Drains – cast iron dome type brass
(BPS certified)
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

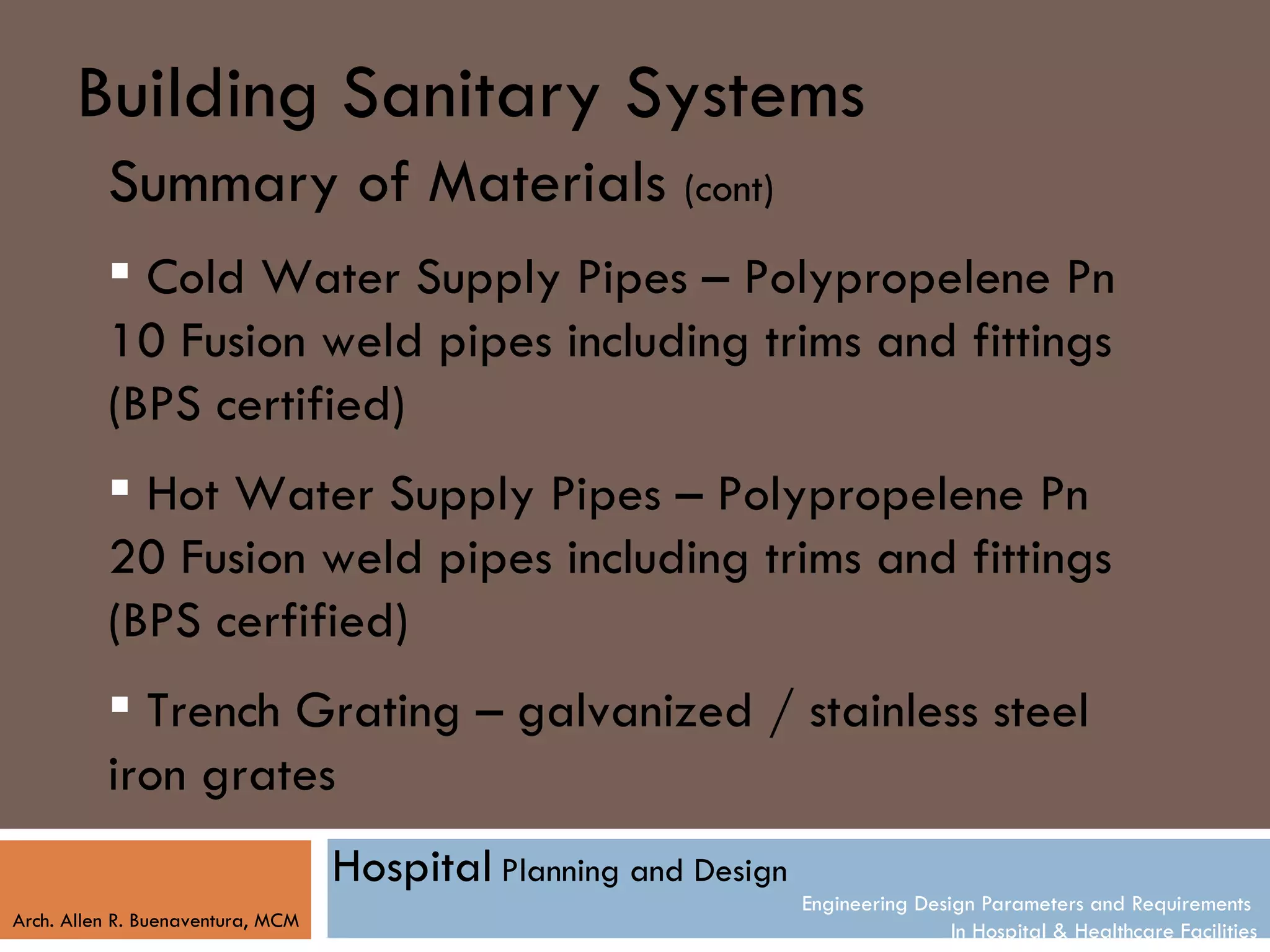

51. Building Sanitary Systems
Summary of Materials (cont)
Cold Water Supply Pipes – Polypropelene Pn
10 Fusion weld pipes including trims and fittings
(BPS certified)
Hot Water Supply Pipes – Polypropelene Pn
20 Fusion weld pipes including trims and fittings
(BPS cerfified)
Trench Grating – galvanized / stainless steel
iron grates
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
52. Building Sanitary Systems

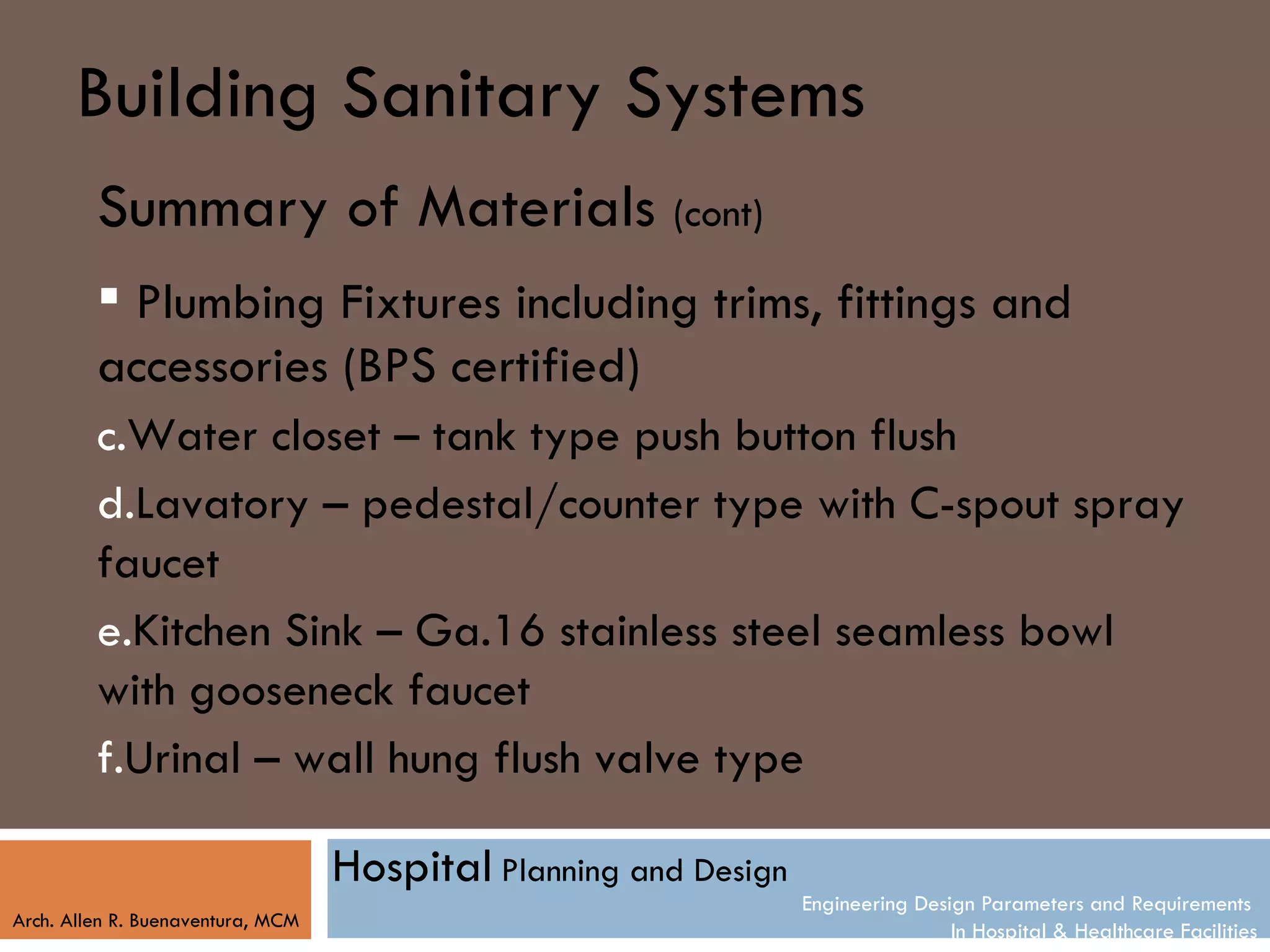

Summary of Materials (cont)
Plumbing Fixtures including trims, fittings and
accessories (BPS certified)
c.Water closet – tank type push button flush
d.Lavatory – pedestal/counter type with C-spout spray
faucet
e.Kitchen Sink – Ga.16 stainless steel seamless bowl
with gooseneck faucet
f.Urinal – wall hung flush valve type
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
53. Building Sanitary Systems
Summary of Materials (cont)

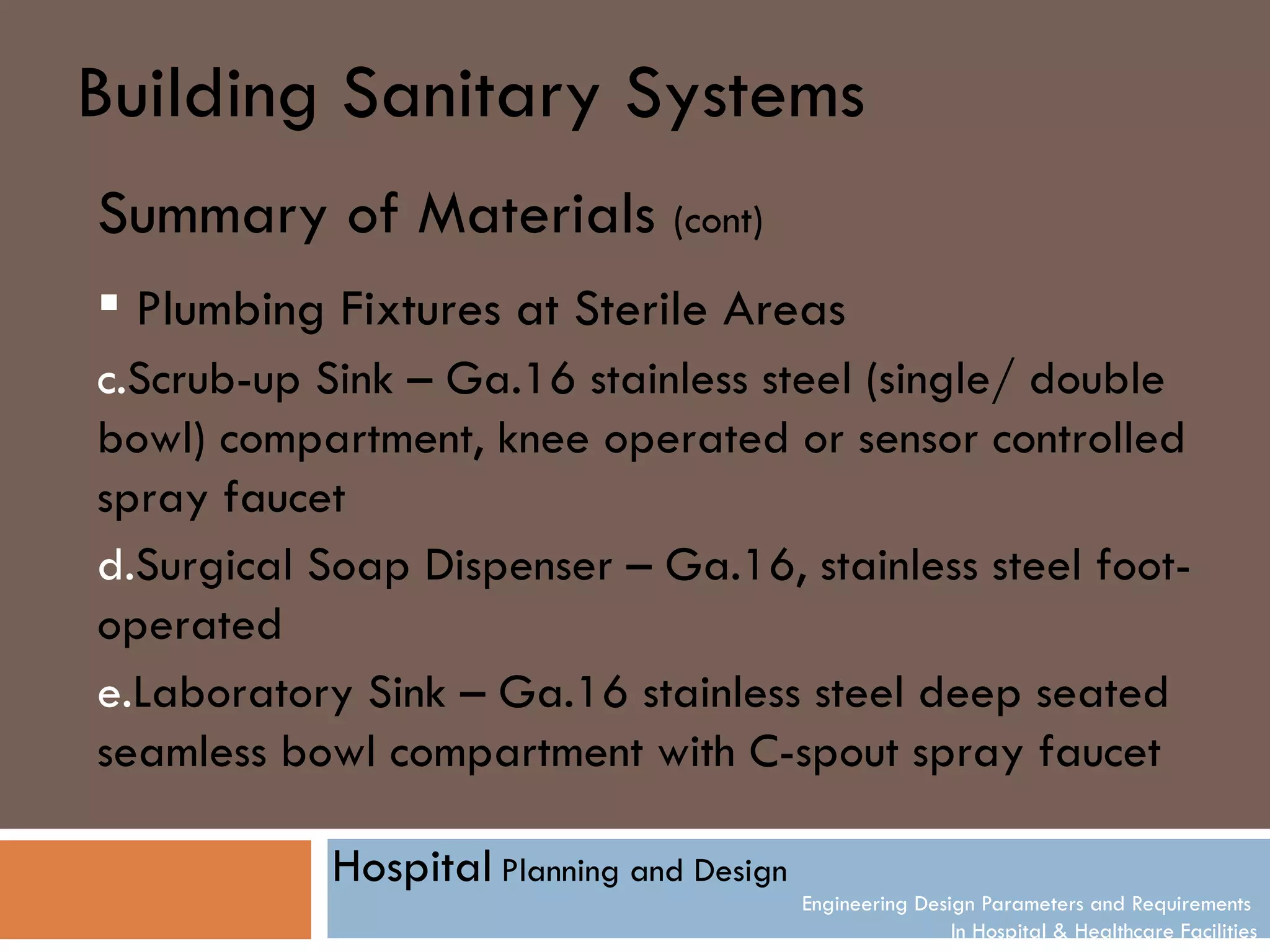

Plumbing Fixtures at Sterile Areas
c.Scrub-up Sink – Ga.16 stainless steel (single/ double
bowl) compartment, knee operated or sensor controlled
spray faucet
d.Surgical Soap Dispenser – Ga.16, stainless steel foot-
operated
e.Laboratory Sink – Ga.16 stainless steel deep seated
seamless bowl compartment with C-spout spray faucet
Hospital Planning and Design
Engineering Design Parameters and Requirements
In Hospital & Healthcare Facilities

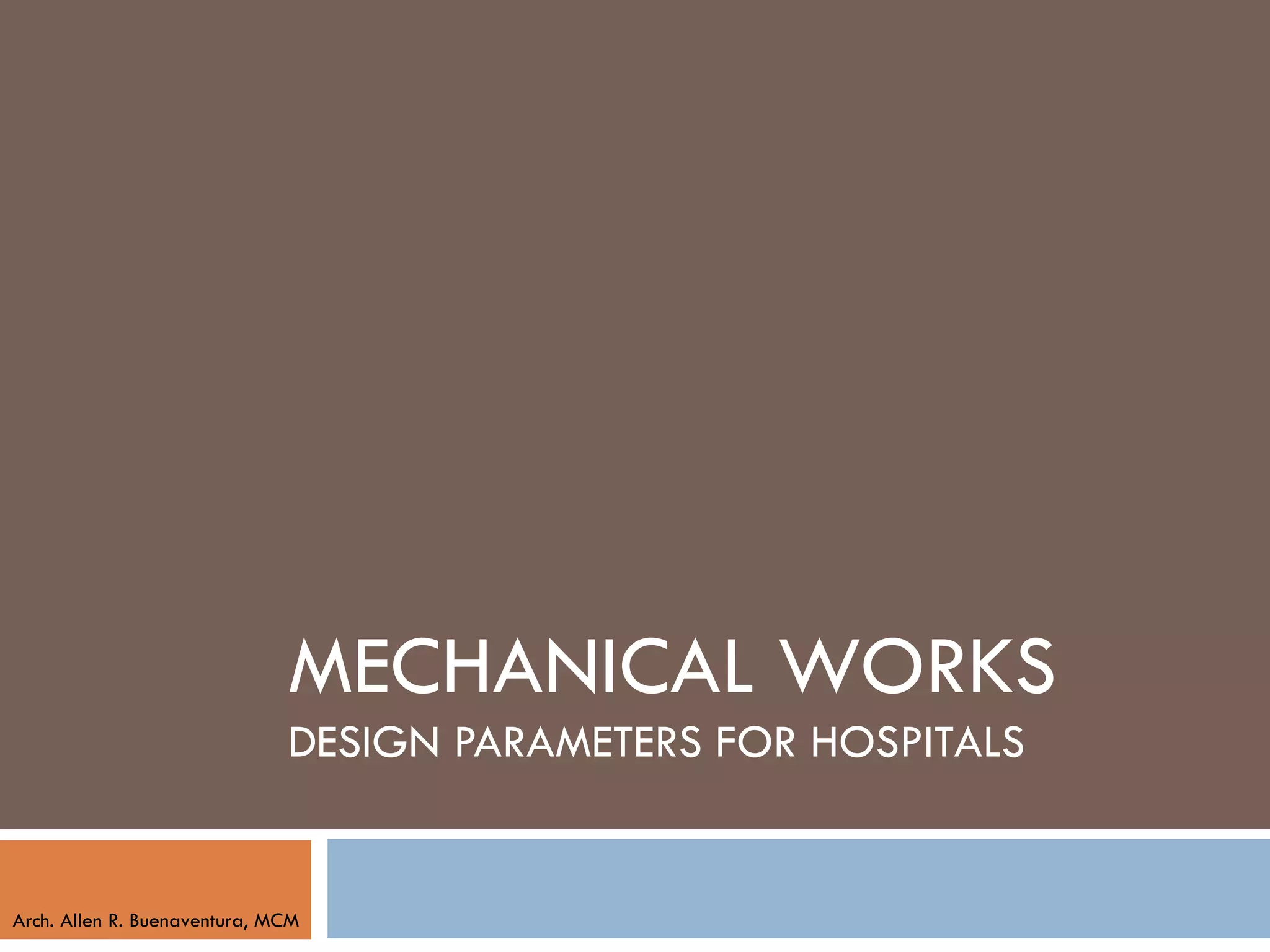

54. MECHANICAL WORKS
DESIGN PARAMETERS FOR HOSPITALS
Arch. Allen R. Buenaventura, MCM

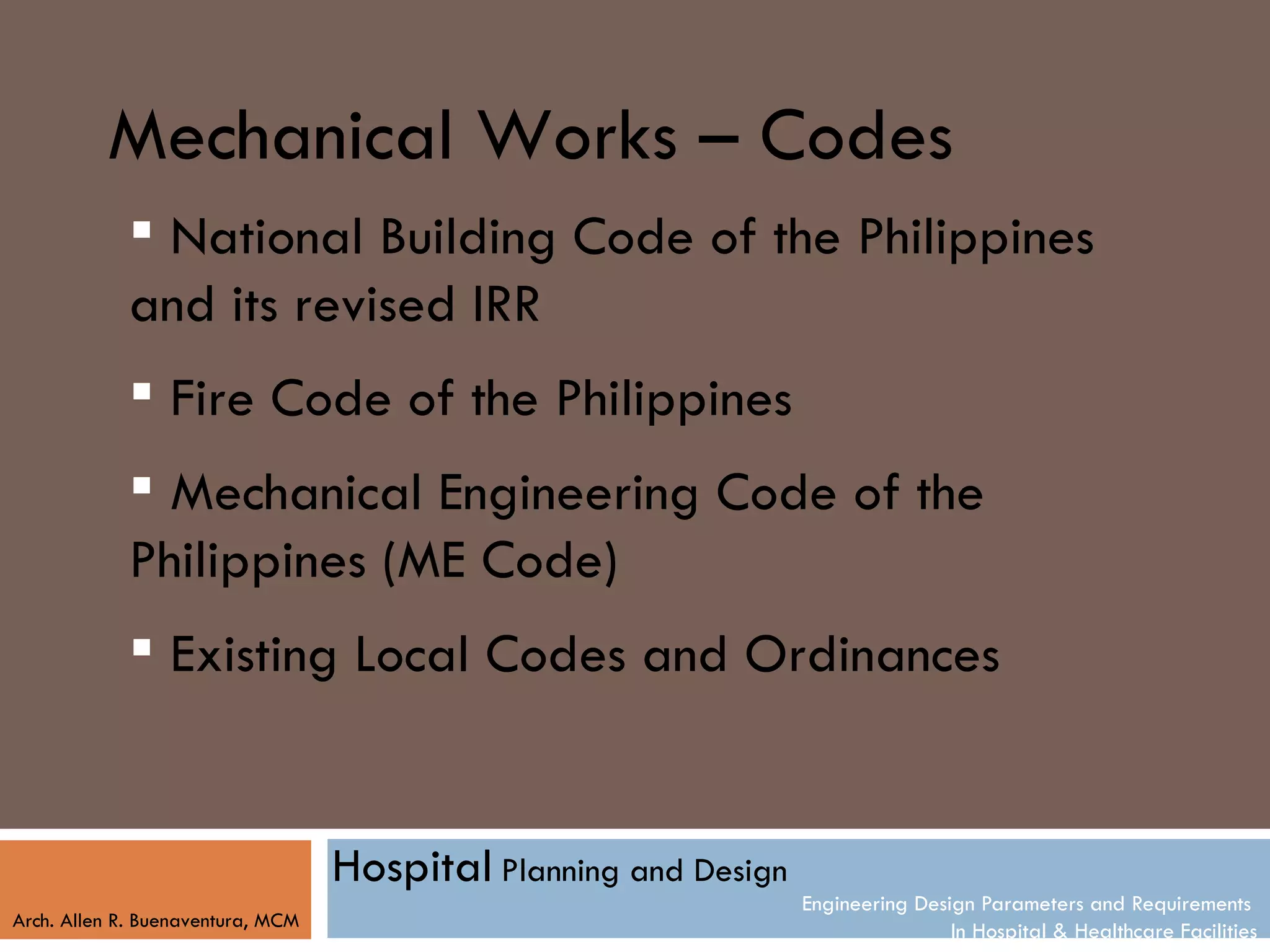

55. Mechanical Works – Codes
National Building Code of the Philippines
and its revised IRR
Fire Code of the Philippines
Mechanical Engineering Code of the
Philippines (ME Code)
Existing Local Codes and Ordinances
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

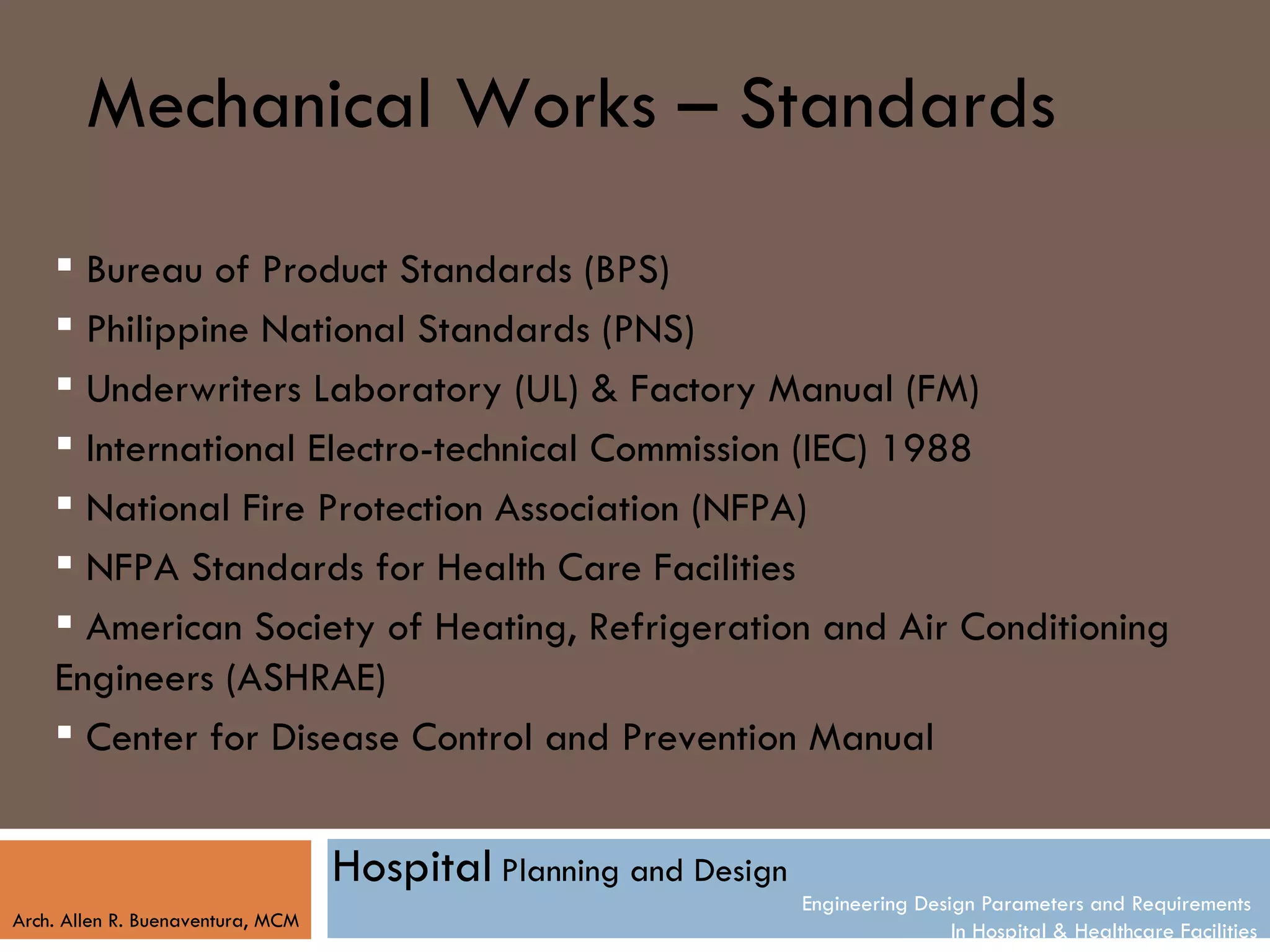

56. Mechanical Works – Standards
Bureau of Product Standards (BPS)
Philippine National Standards (PNS)
Underwriters Laboratory (UL) & Factory Manual (FM)
International Electro-technical Commission (IEC) 1988
National Fire Protection Association (NFPA)
NFPA Standards for Health Care Facilities
American Society of Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE)
Center for Disease Control and Prevention Manual
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

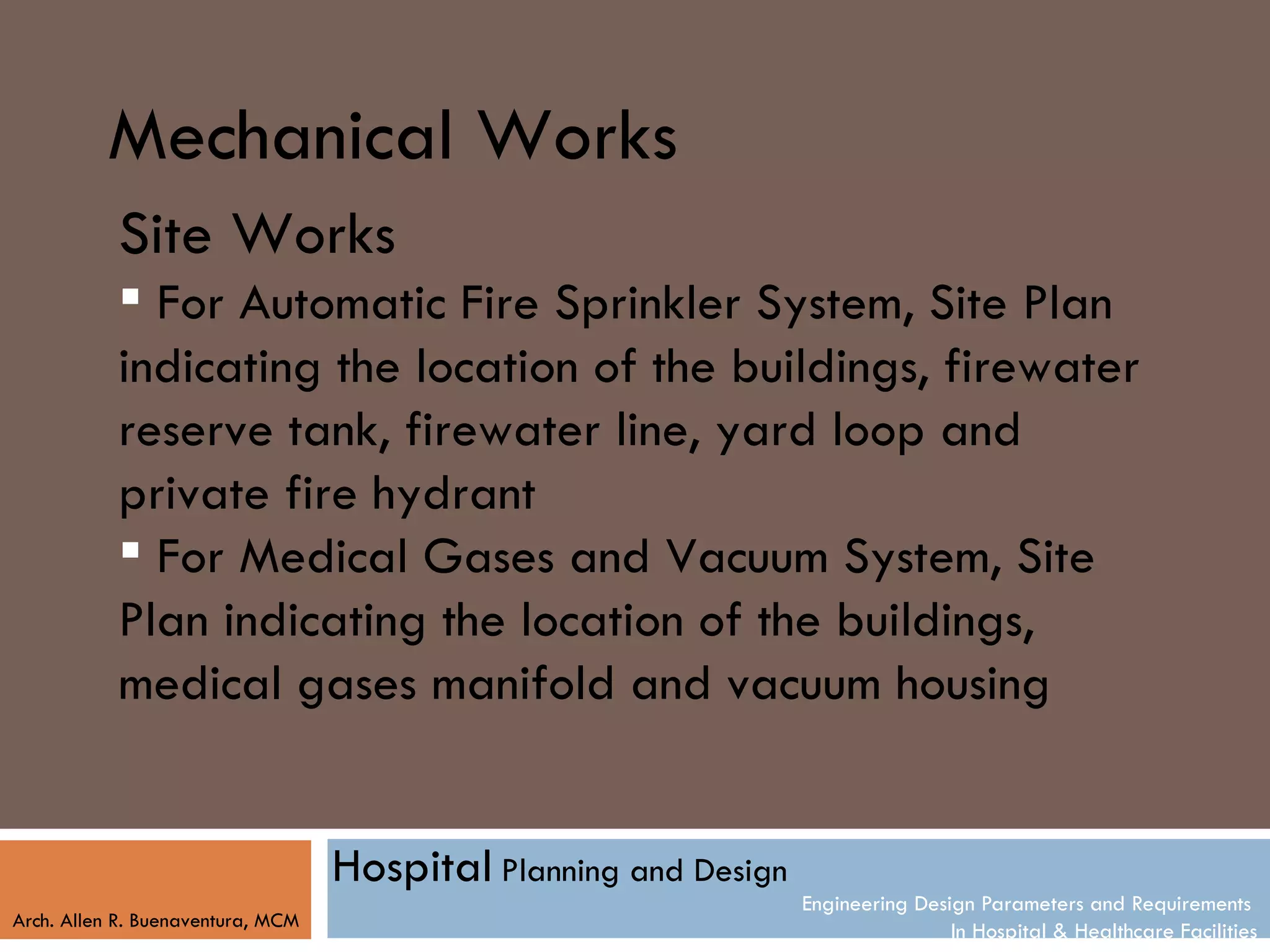

57. Mechanical Works
Site Works
For Automatic Fire Sprinkler System, Site Plan
indicating the location of the buildings, firewater
reserve tank, firewater line, yard loop and
private fire hydrant
For Medical Gases and Vacuum System, Site
Plan indicating the location of the buildings,
medical gases manifold and vacuum housing
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
58. Building Mechanical Systems

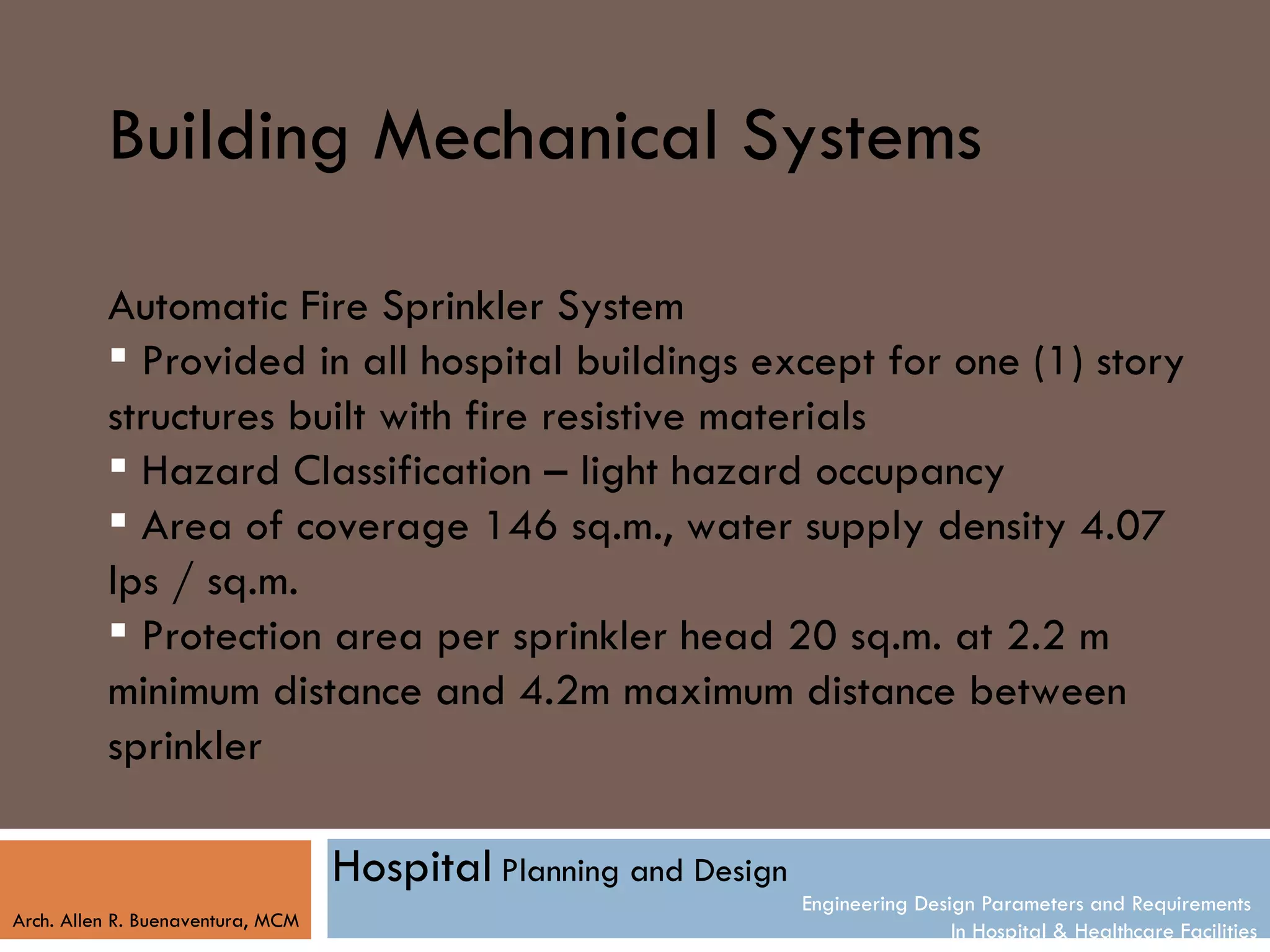

Automatic Fire Sprinkler System
Provided in all hospital buildings except for one (1) story
structures built with fire resistive materials
Hazard Classification – light hazard occupancy
Area of coverage 146 sq.m., water supply density 4.07
lps / sq.m.
Protection area per sprinkler head 20 sq.m. at 2.2 m
minimum distance and 4.2m maximum distance between
sprinkler
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
59. Building Mechanical Systems

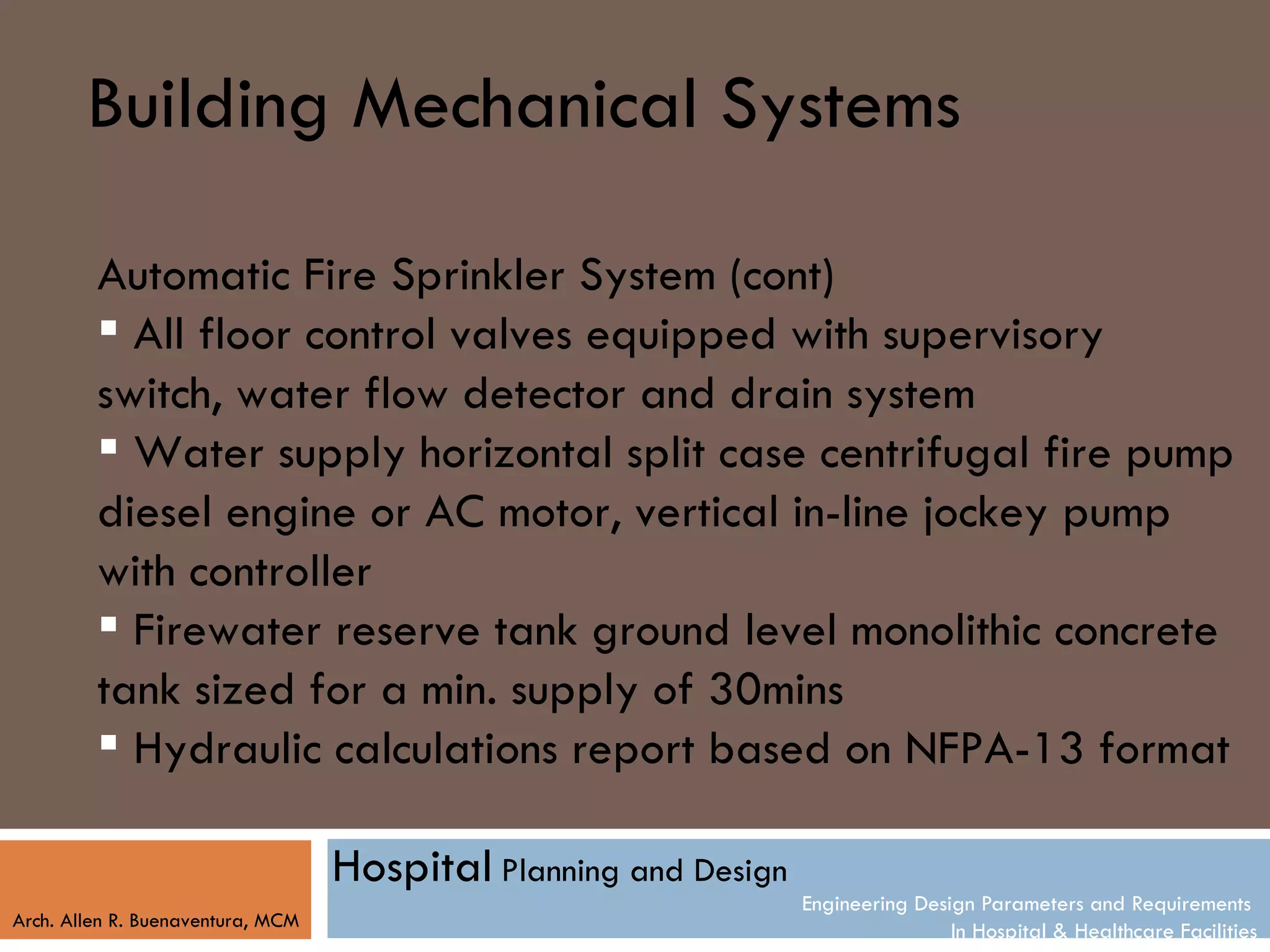

Automatic Fire Sprinkler System (cont)
All floor control valves equipped with supervisory
switch, water flow detector and drain system
Water supply horizontal split case centrifugal fire pump
diesel engine or AC motor, vertical in-line jockey pump
with controller
Firewater reserve tank ground level monolithic concrete
tank sized for a min. supply of 30mins
Hydraulic calculations report based on NFPA-13 format
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
60. Building Mechanical Systems
Ventilation and Air Conditioning System

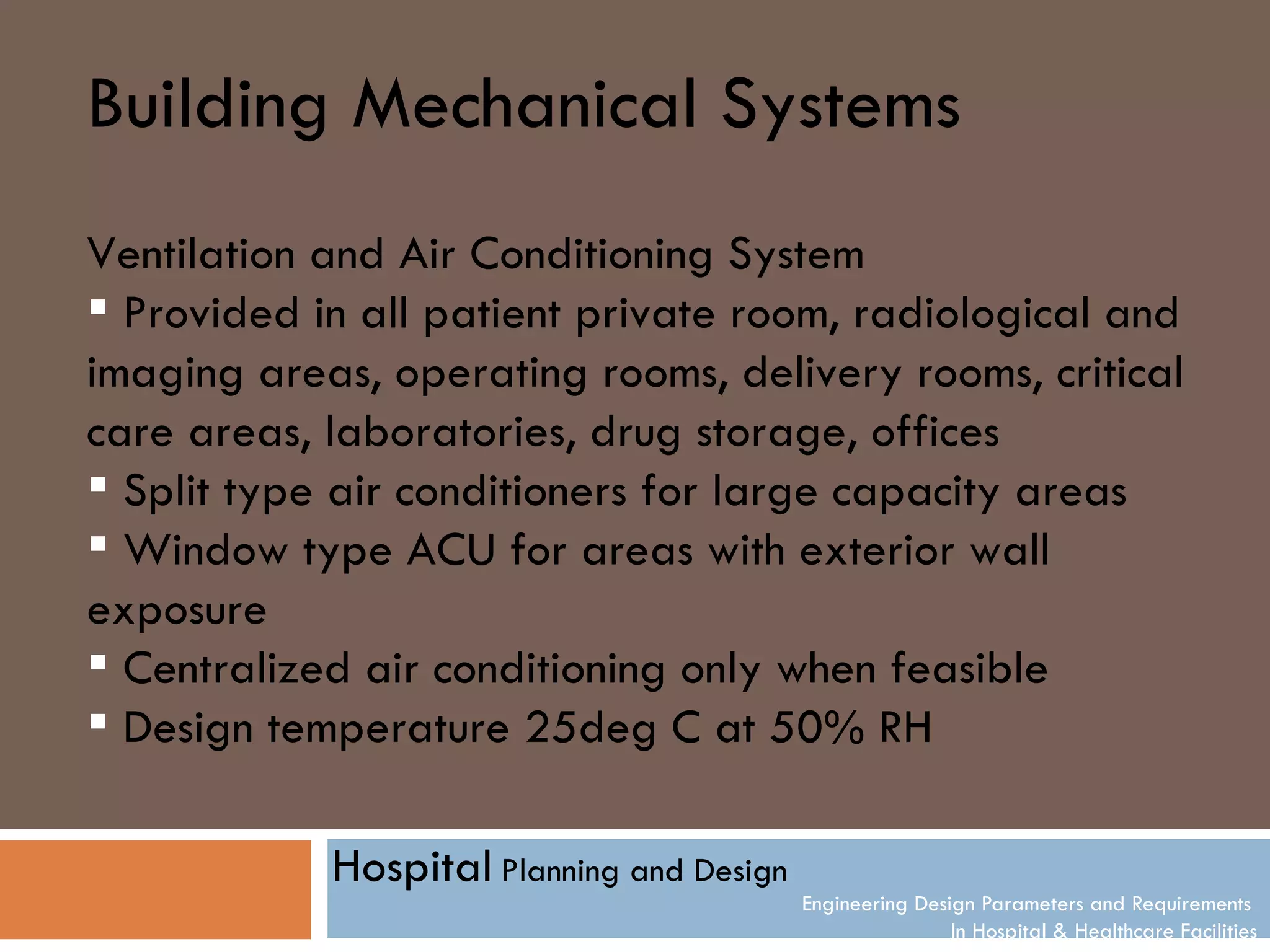

Provided in all patient private room, radiological and
imaging areas, operating rooms, delivery rooms, critical
care areas, laboratories, drug storage, offices
Split type air conditioners for large capacity areas
Window type ACU for areas with exterior wall
exposure
Centralized air conditioning only when feasible
Design temperature 25deg C at 50% RH
Hospital Planning and Design
Engineering Design Parameters and Requirements
In Hospital & Healthcare Facilities
61. Building Mechanical Systems
Ventilation and Air Conditioning System
(cont)

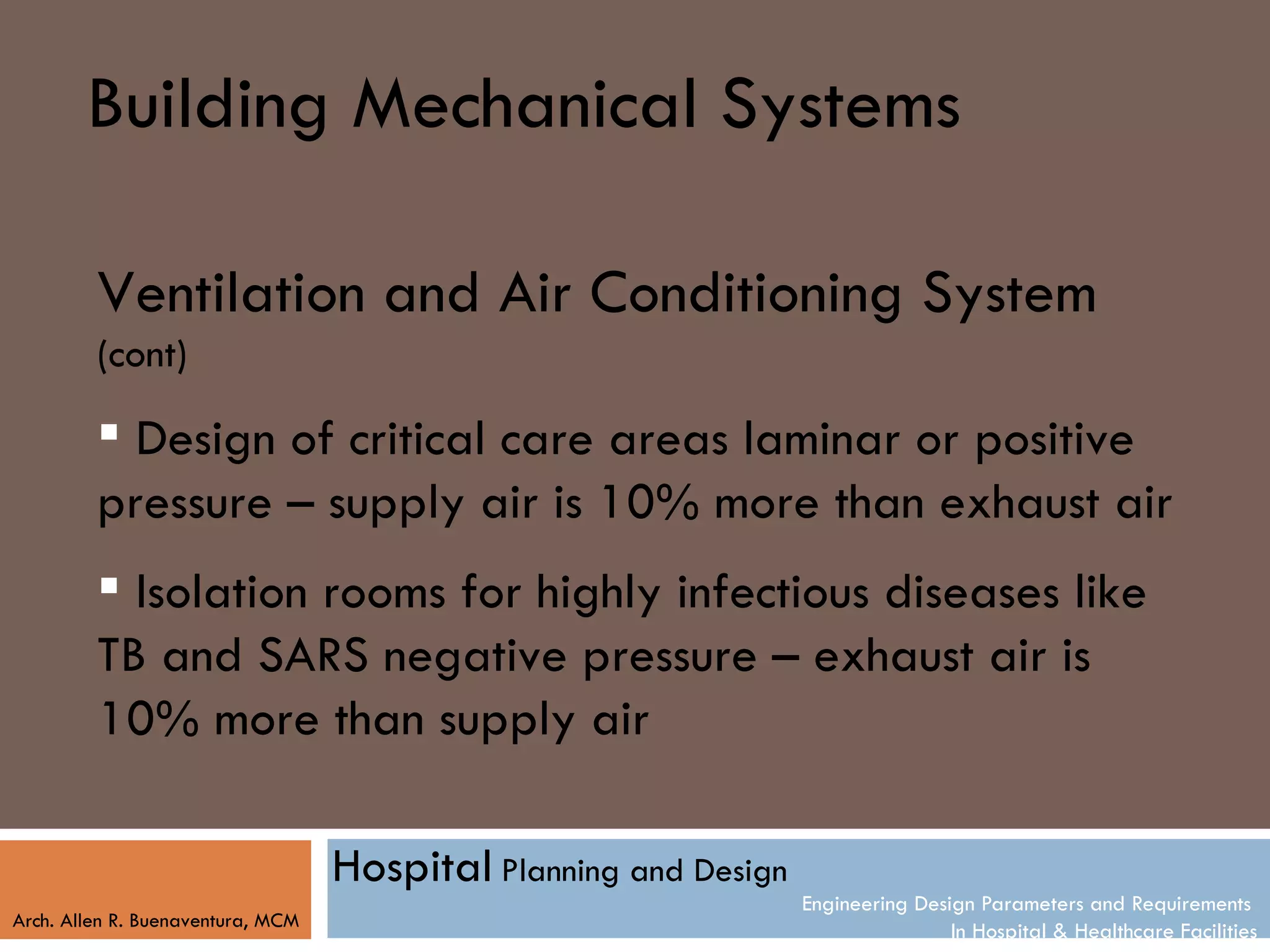

Design of critical care areas laminar or positive
pressure – supply air is 10% more than exhaust air
Isolation rooms for highly infectious diseases like
TB and SARS negative pressure – exhaust air is
10% more than supply air
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
62. Building Mechanical Systems
Ventilation and Air Conditioning System (cont)

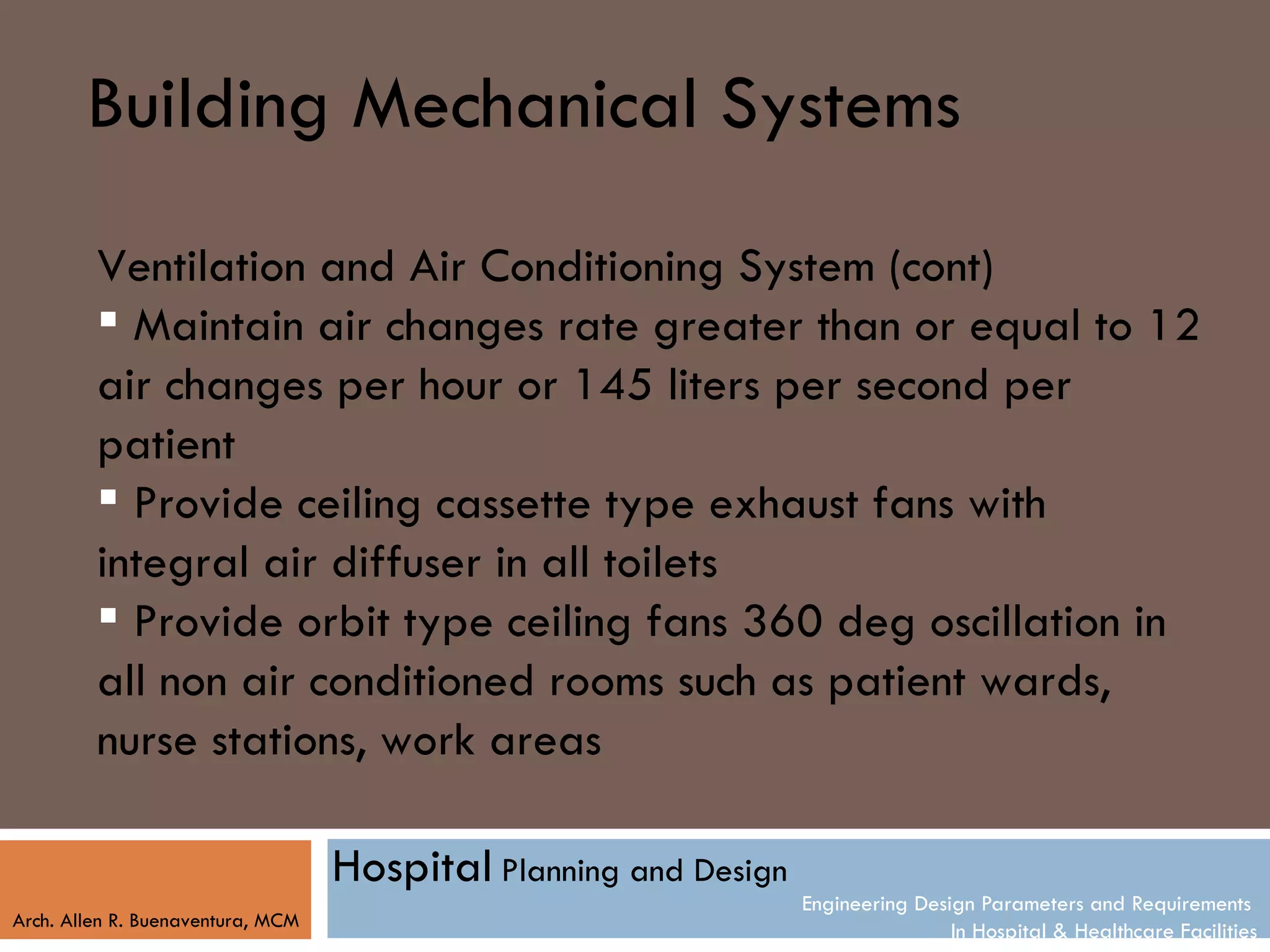

Maintain air changes rate greater than or equal to 12
air changes per hour or 145 liters per second per
patient
Provide ceiling cassette type exhaust fans with
integral air diffuser in all toilets
Provide orbit type ceiling fans 360 deg oscillation in
all non air conditioned rooms such as patient wards,
nurse stations, work areas
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
63. Building Mechanical Systems
Medical Gases and Vacuum System
Medical gases and vacuum system – provided
throughout the hospital
Medical gas supply – provided through manifold
system and bulk system
Pipeline system shall be equipped with zone valves
and alarm system
Vacuum pumps – duplex type each-capacity to
handle the total load without loss of vacuum in the
system
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
64. Building Mechanical Systems
Medical Gases and Vacuum System (cont)

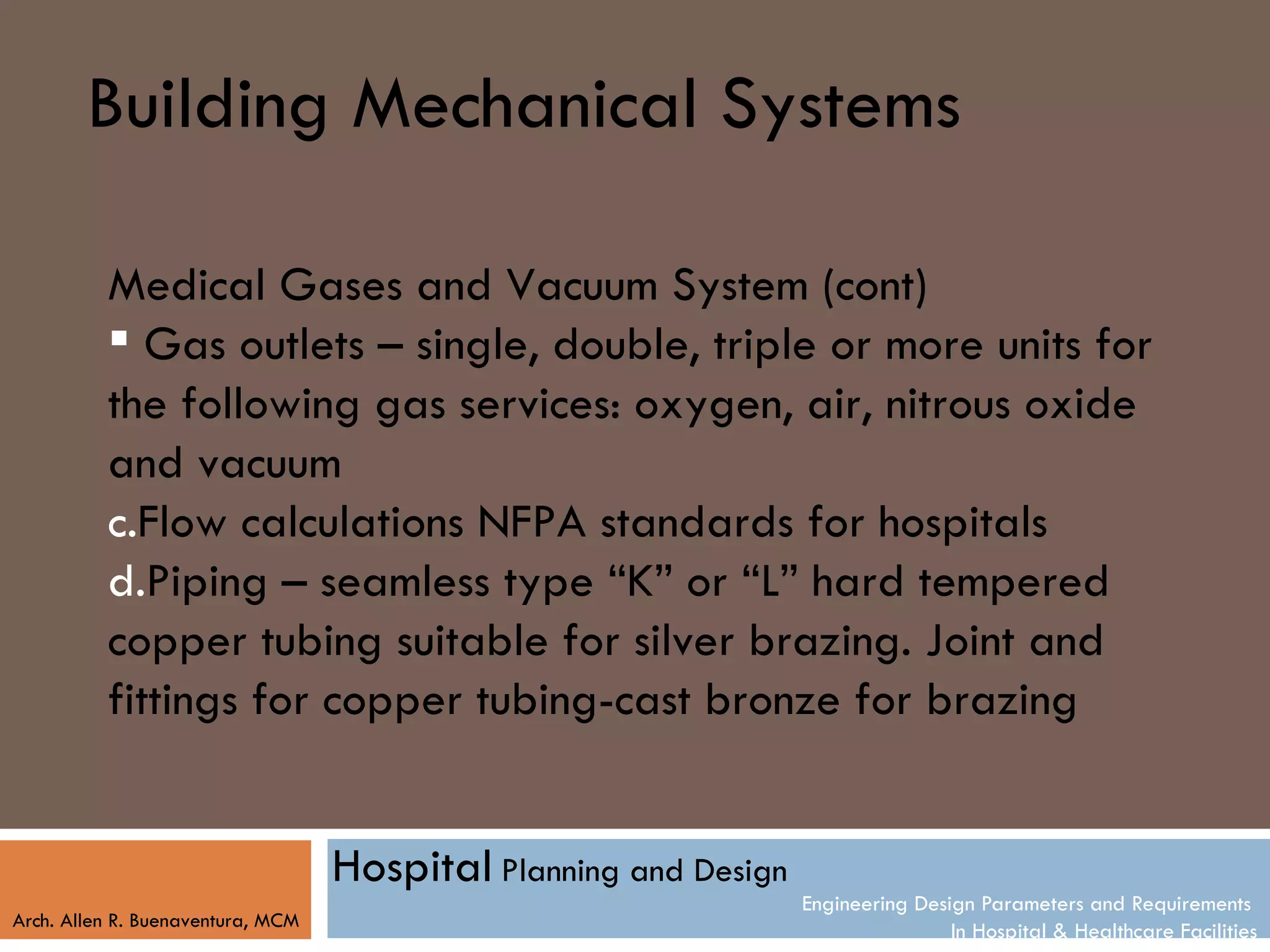

Gas outlets – single, double, triple or more units for
the following gas services: oxygen, air, nitrous oxide
and vacuum
c.Flow calculations NFPA standards for hospitals
d.Piping – seamless type “K” or “L” hard tempered
copper tubing suitable for silver brazing. Joint and
fittings for copper tubing-cast bronze for brazing
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
65. Building Mechanical Systems

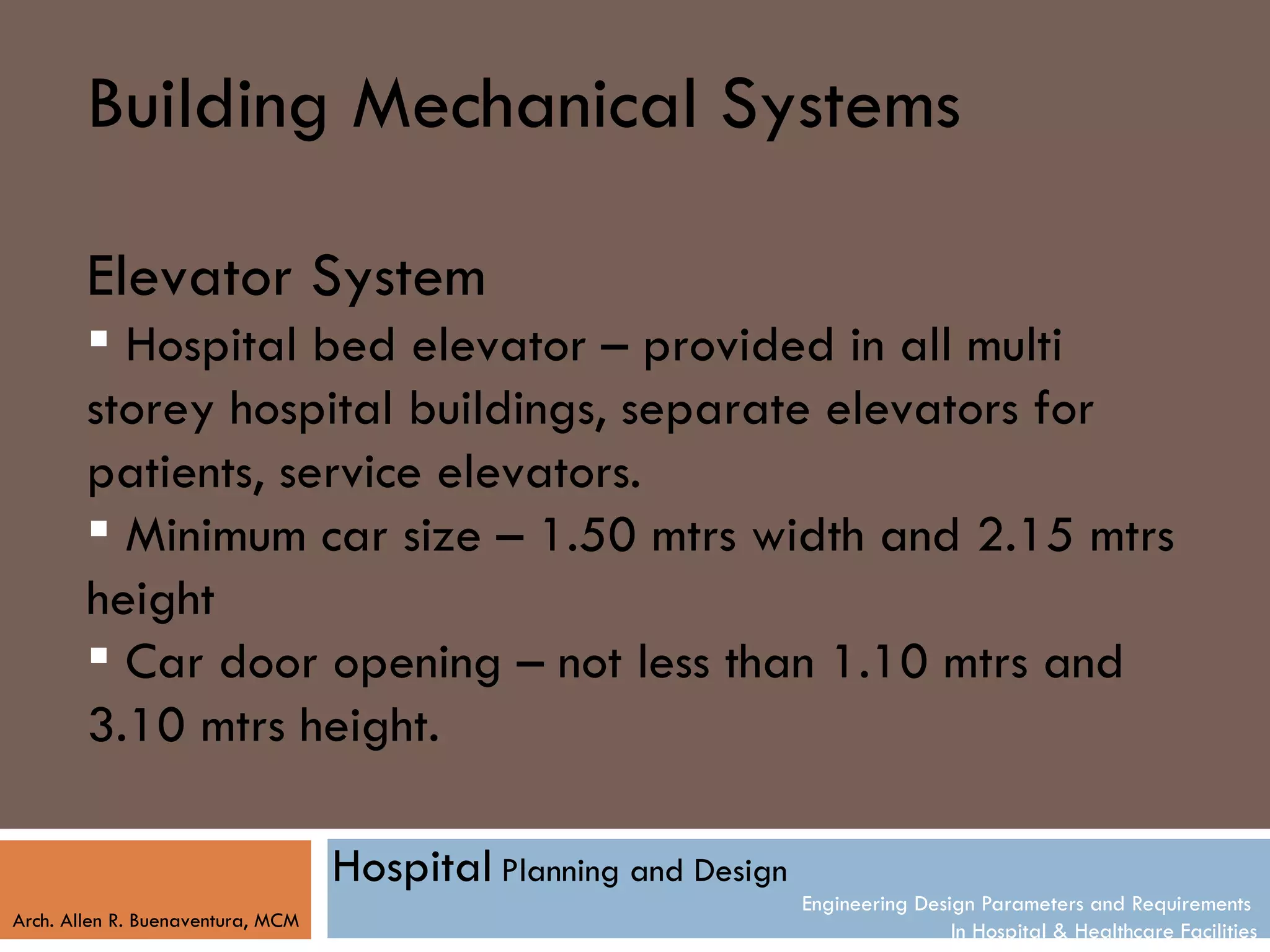

Elevator System
Hospital bed elevator – provided in all multi
storey hospital buildings, separate elevators for
patients, service elevators.
Minimum car size – 1.50 mtrs width and 2.15 mtrs
height
Car door opening – not less than 1.10 mtrs and
3.10 mtrs height.
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
66. Building Mechanical Systems
Summary of Materials

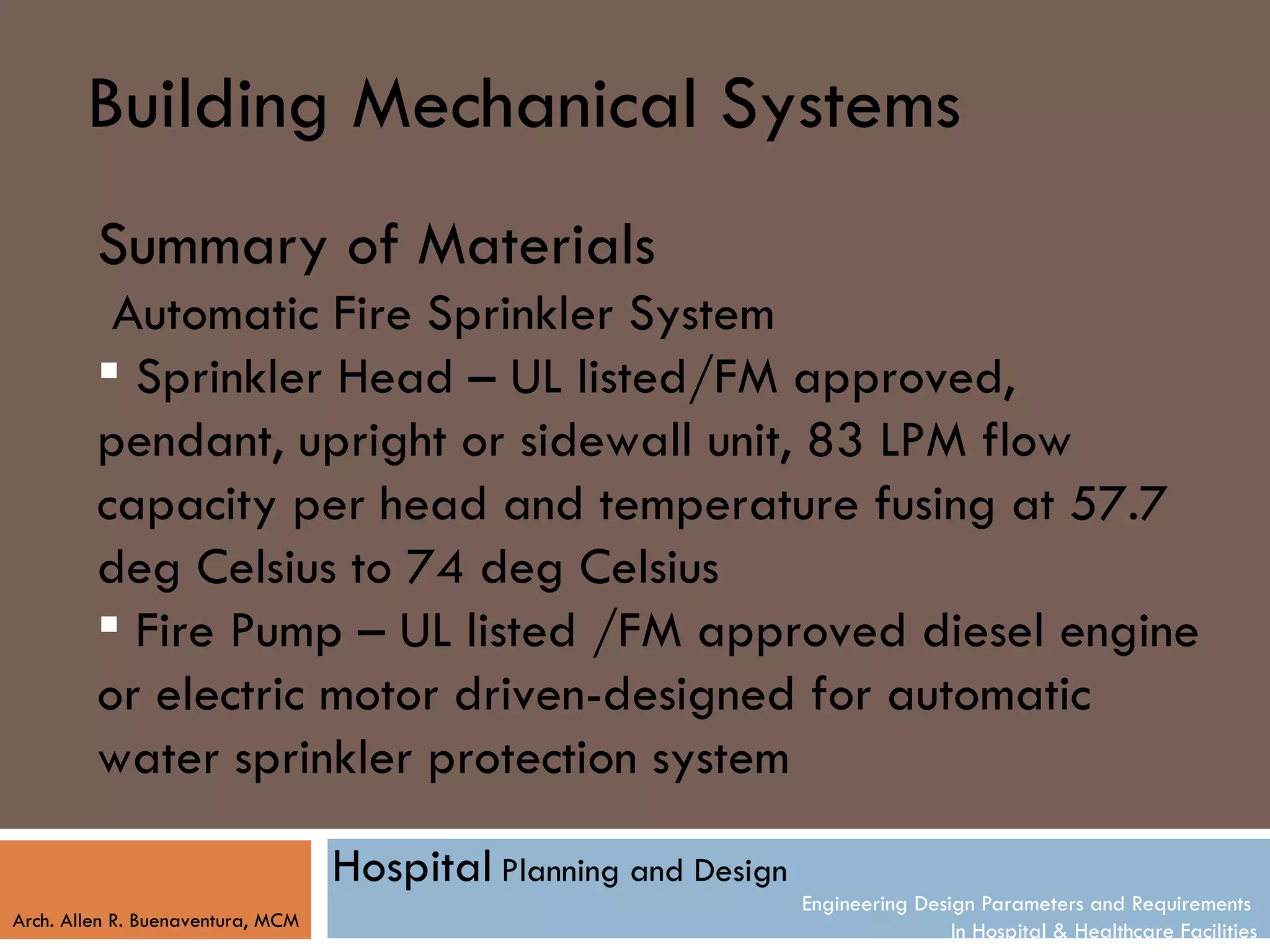

Automatic Fire Sprinkler System
Sprinkler Head – UL listed/FM approved,
pendant, upright or sidewall unit, 83 LPM flow
capacity per head and temperature fusing at 57.7
deg Celsius to 74 deg Celsius
Fire Pump – UL listed /FM approved diesel engine
or electric motor driven-designed for automatic
water sprinkler protection system
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
67. Building Mechanical Systems
Summary of Materials
Automatic Fire Sprinkler System (cont)

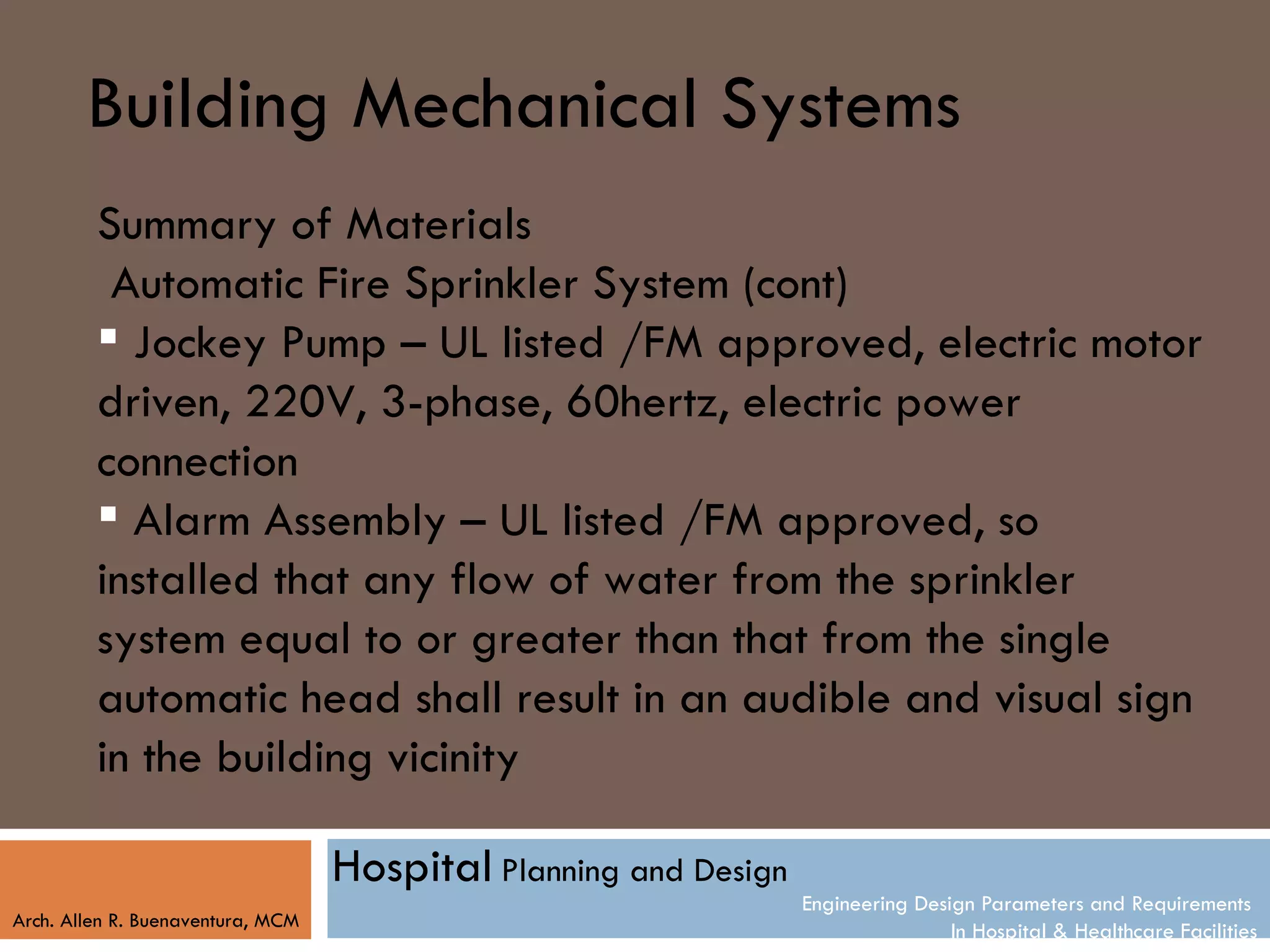

Jockey Pump – UL listed /FM approved, electric motor
driven, 220V, 3-phase, 60hertz, electric power
connection
Alarm Assembly – UL listed /FM approved, so
installed that any flow of water from the sprinkler
system equal to or greater than that from the single
automatic head shall result in an audible and visual sign
in the building vicinity
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
68. Building Mechanical Systems
Summary of Materials
Automatic Fire Sprinkler System (cont)

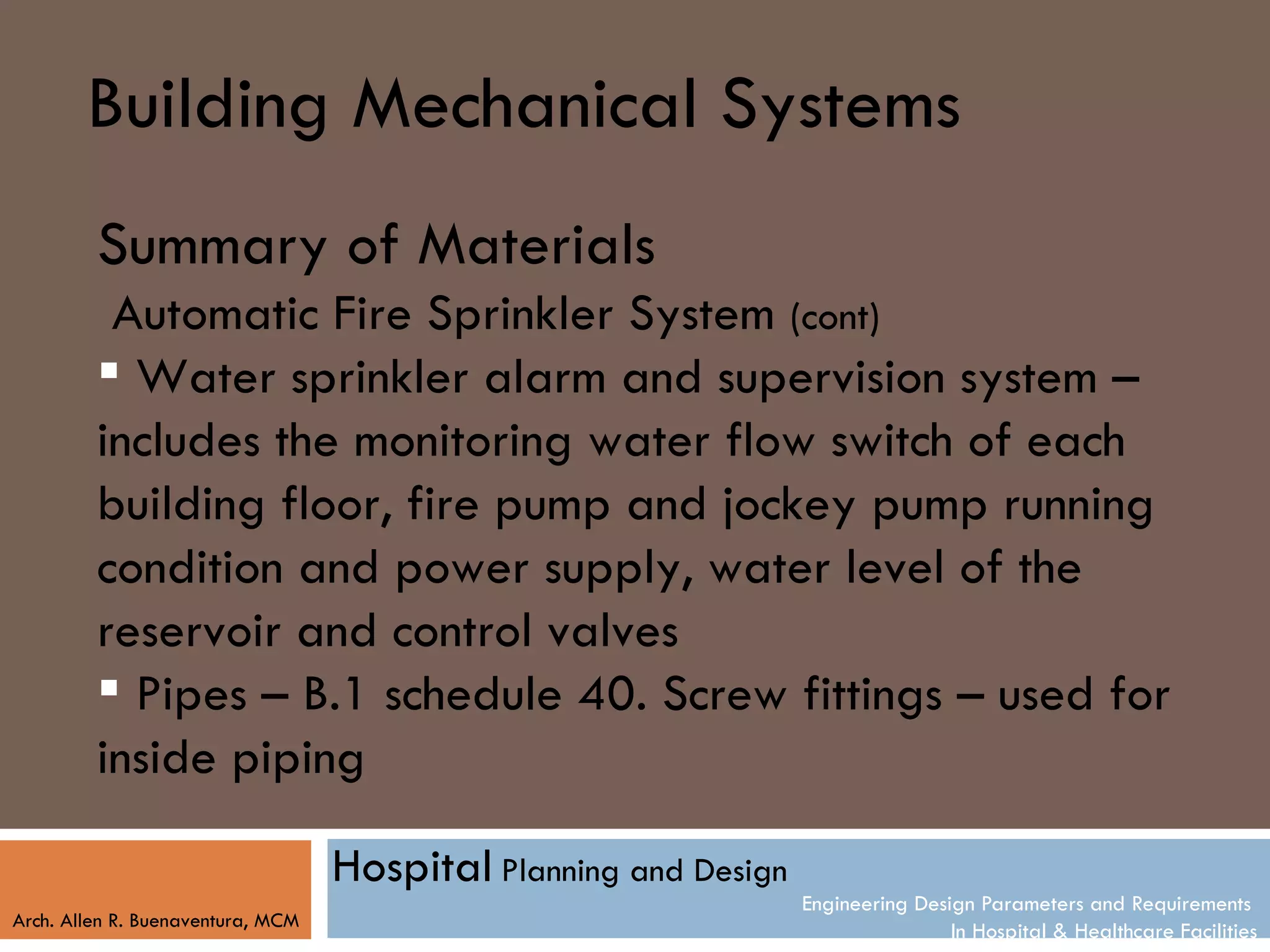

Water sprinkler alarm and supervision system –
includes the monitoring water flow switch of each
building floor, fire pump and jockey pump running
condition and power supply, water level of the
reservoir and control valves
Pipes – B.1 schedule 40. Screw fittings – used for
inside piping
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
69. Building Mechanical Systems
Summary of Materials

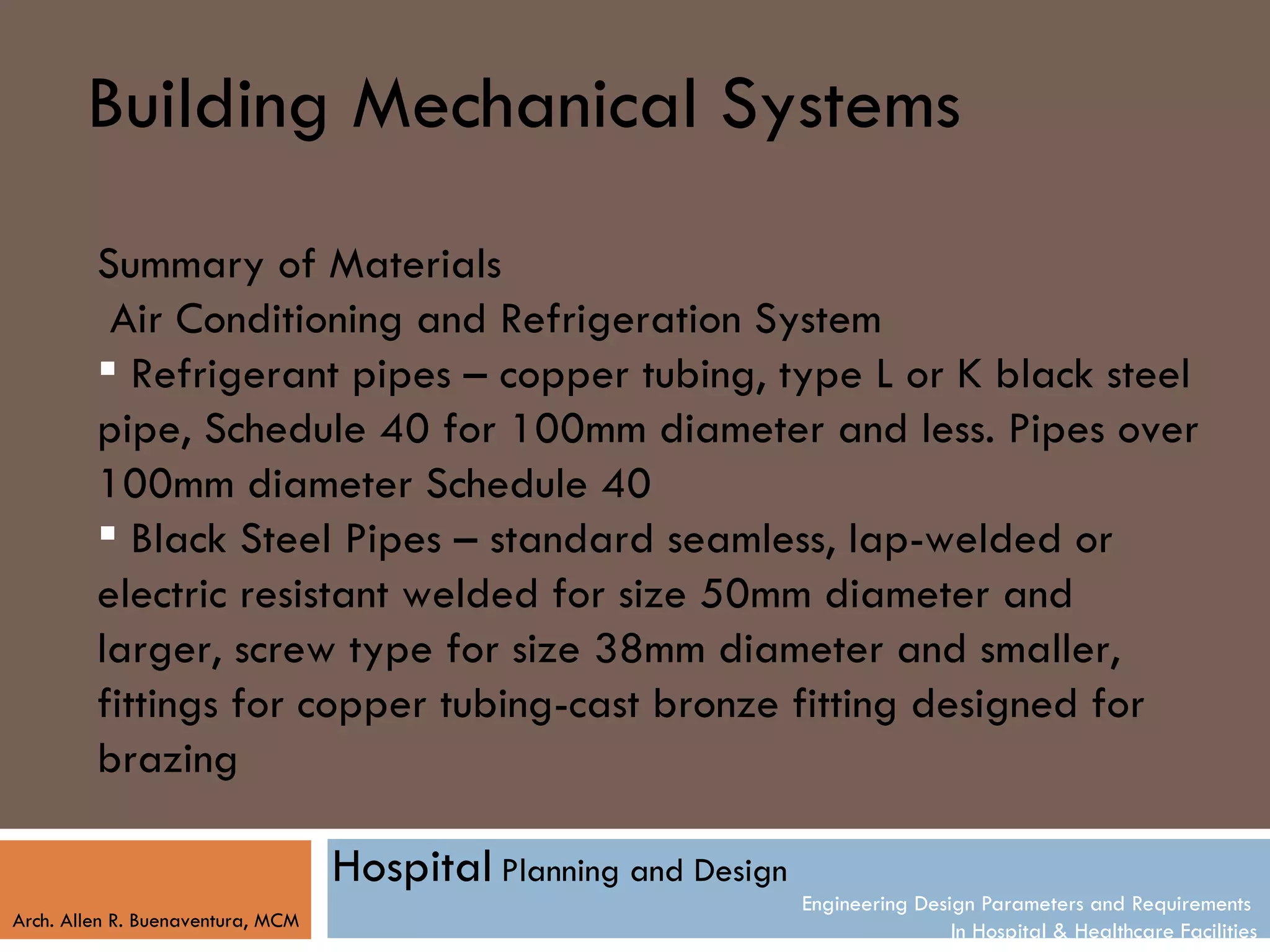

Air Conditioning and Refrigeration System
Refrigerant pipes – copper tubing, type L or K black steel
pipe, Schedule 40 for 100mm diameter and less. Pipes over
100mm diameter Schedule 40
Black Steel Pipes – standard seamless, lap-welded or
electric resistant welded for size 50mm diameter and
larger, screw type for size 38mm diameter and smaller,
fittings for copper tubing-cast bronze fitting designed for
brazing
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
70. Building Mechanical Systems
Summary of Materials
Air Conditioning and Refrigeration System (cont)

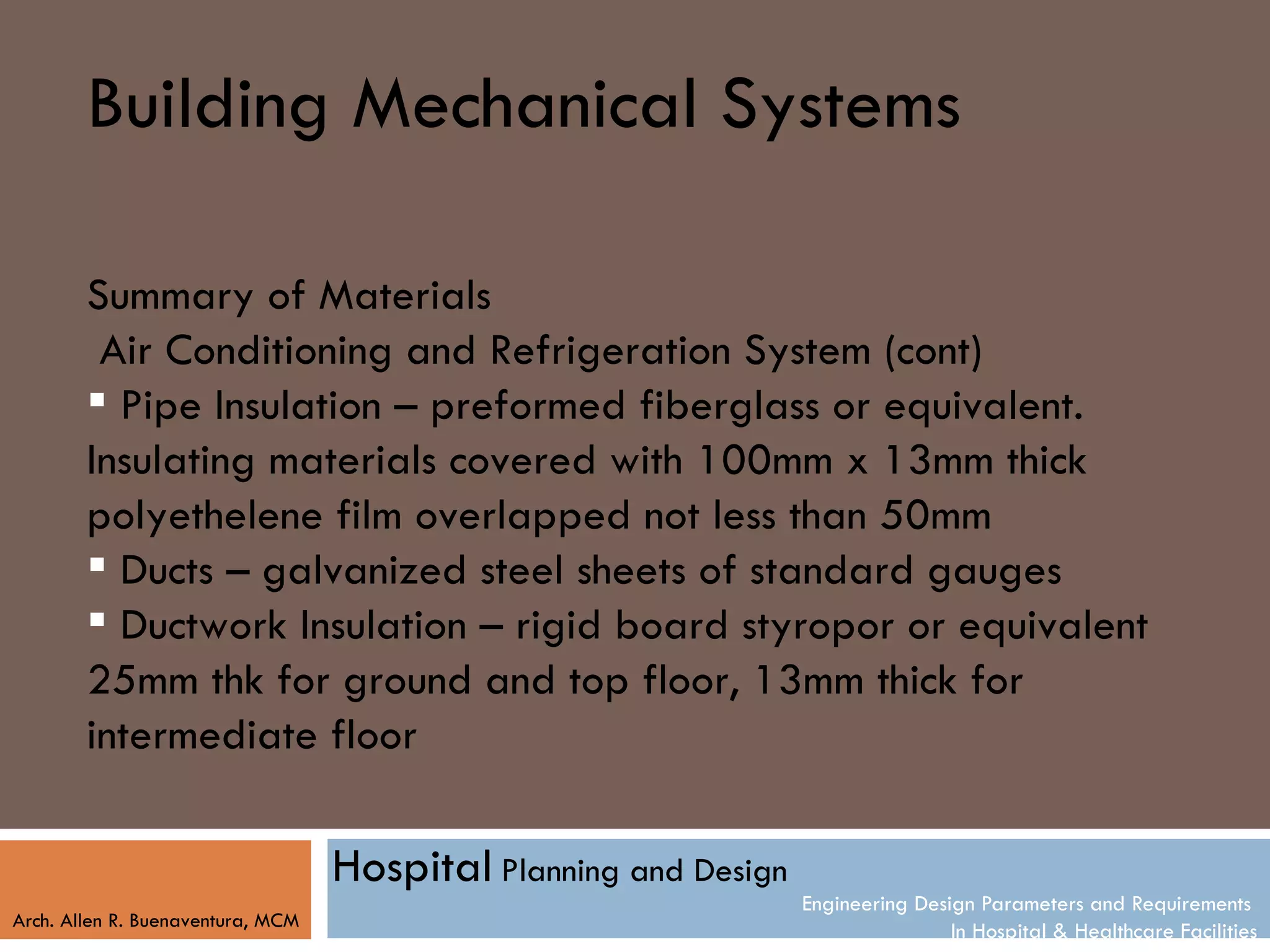

Pipe Insulation – preformed fiberglass or equivalent.
Insulating materials covered with 100mm x 13mm thick
polyethelene film overlapped not less than 50mm
Ducts – galvanized steel sheets of standard gauges
Ductwork Insulation – rigid board styropor or equivalent
25mm thk for ground and top floor, 13mm thick for
intermediate floor
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

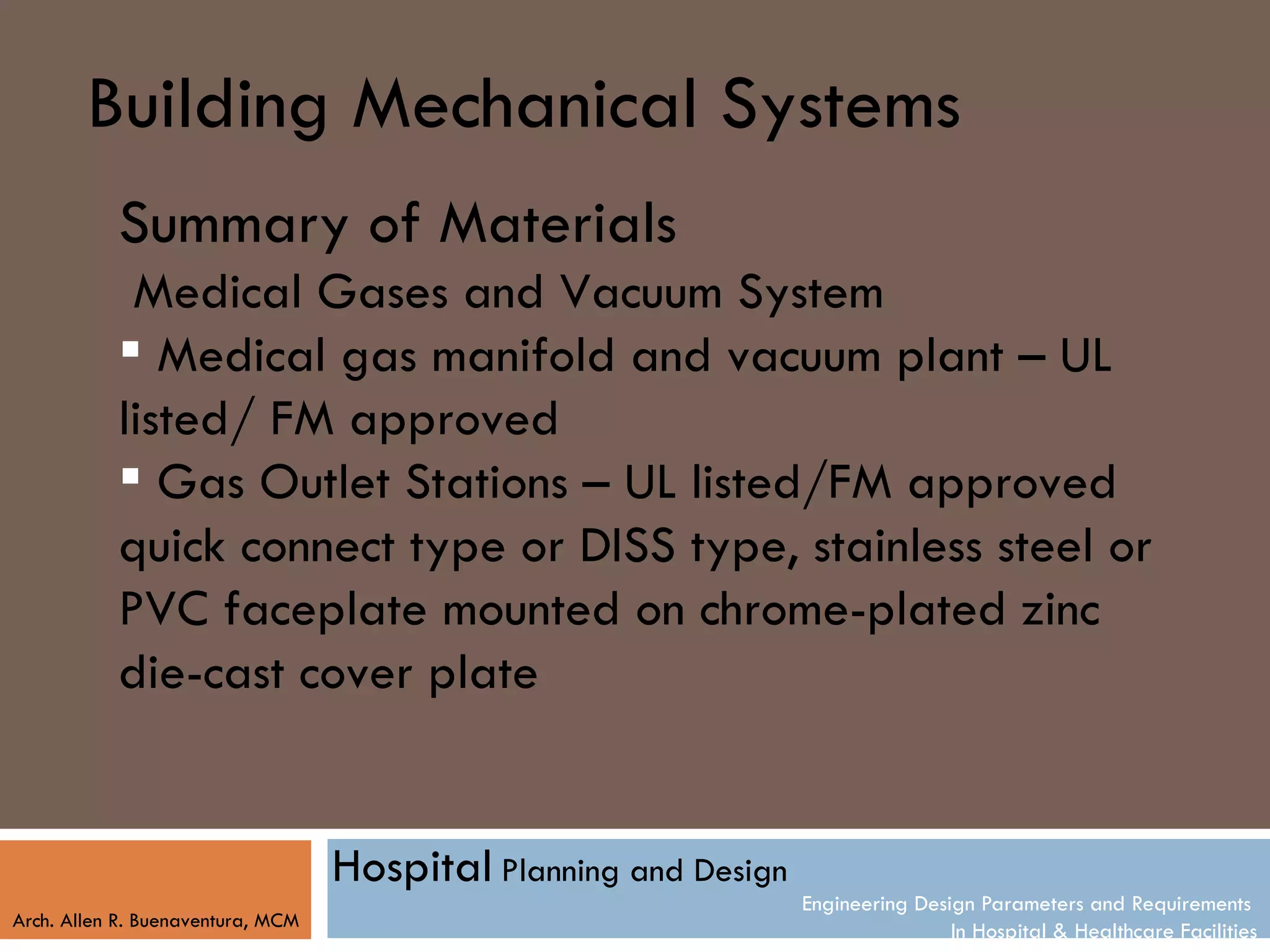

71. Building Mechanical Systems
Summary of Materials
Medical Gases and Vacuum System
Medical gas manifold and vacuum plant – UL
listed/ FM approved
Gas Outlet Stations – UL listed/FM approved
quick connect type or DISS type, stainless steel or
PVC faceplate mounted on chrome-plated zinc
die-cast cover plate
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities

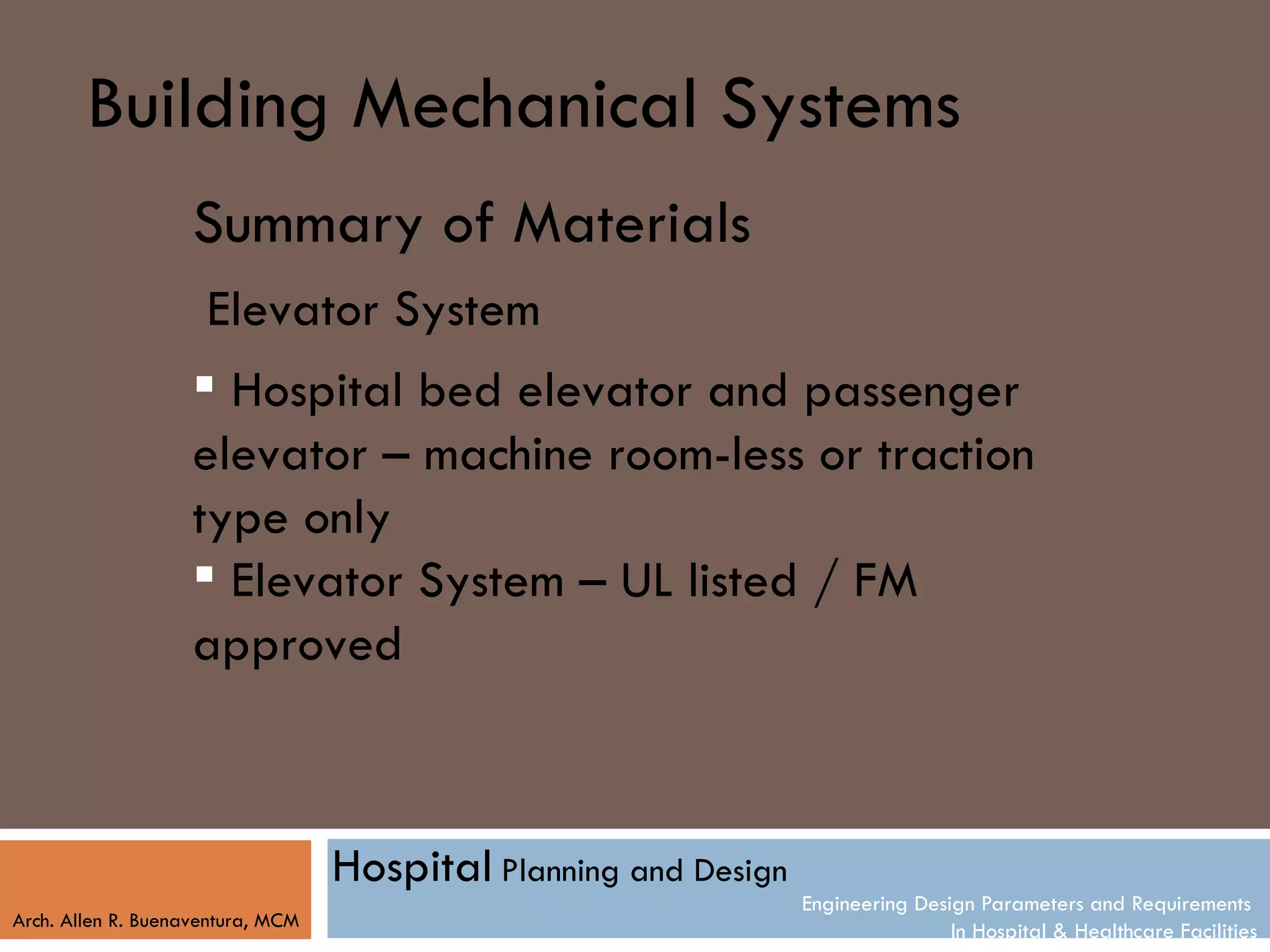

72. Building Mechanical Systems
Summary of Materials
Elevator System
Hospital bed elevator and passenger
elevator – machine room-less or traction
type only
Elevator System – UL listed / FM
approved
Hospital Planning and Design
Engineering Design Parameters and Requirements
Arch. Allen R. Buenaventura, MCM
In Hospital & Healthcare Facilities
