This document provides information about endodontics and pulp space morphology. It defines endodontics as the study and treatment of the dental pulp and tissues surrounding the roots of the teeth. The document discusses the histology, physiology, microbiology, diagnosis and treatment of various pulp and periradicular conditions. It also describes the morphology of the pulp space, including the size, shape, number and curvature of root canals, for different types of teeth. Principles of access cavity preparation are outlined to locate all root canal orifices while conserving tooth structure. Potential errors during access cavity preparation are also noted.

1. Endodontics…Dr. Ashraf RefaiBDS MSc DD HMDLecturer of EndodonticsAl-Azhar University / MIU

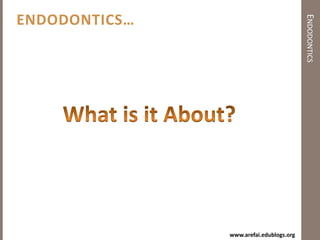

2. Endodontics…EndodonticsWhat is it About?

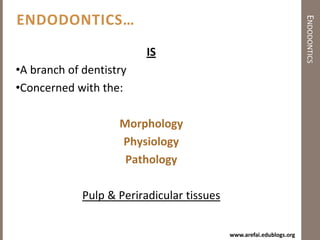

3. EndodonticsEndodontics…ISA branch of dentistry

4. Concerned with the:MorphologyPhysiologyPathologyPulp & Periradicular tissues

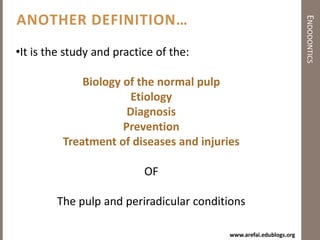

5. EndodonticsAnother Definition…It is the study and practice of the:Biology of the normal pulpEtiologyDiagnosisPreventionTreatment of diseases and injuries OFThe pulp and periradicular conditions

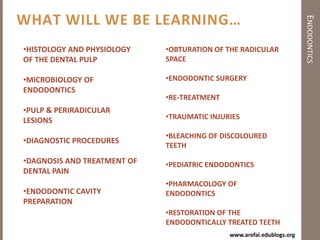

6. EndodonticsWhat will we be learning…HISTOLOGY AND PHYSIOLOGY OF THE DENTAL PULP

7. MICROBIOLOGY OF ENDODONTICS

8. PULP & PERIRADICULAR LESIONS

9. DIAGNOSTIC PROCEDURES

10. DAGNOSIS AND TREATMENT OF DENTAL PAIN

11. ENDODONTIC CAVITY PREPARATION

12. OBTURATION OF THE RADICULAR SPACE

13. ENDODONTIC SURGERY

14. RE-TREATMENT

15. TRAUMATIC INJURIES

16. BLEACHING OF DISCOLOURED TEETH

17. PEDIATRIC ENDODONTICS

18. PHARMACOLOGY OF ENDODONTICS

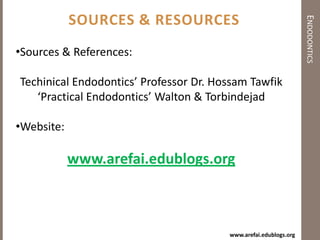

19. RESTORATION OF THE ENDODONTICALLY TREATED TEETHEndodonticsSources & ResourcesSources & References:Techinical Endodontics’ Professor Dr. HossamTawfik‘Practical Endodontics’ Walton & TorbindejadWebsite:www.arefai.edublogs.org

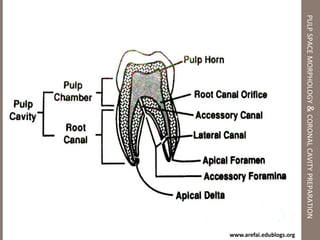

20. Pulp Space Morphology & Coronal Cavity Preparation

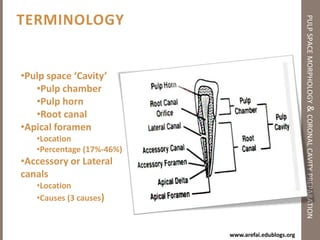

21. Terminologypulp space morphology & coronal cavity preparation‘تعالو الى كلمة سواء بينانا و بينكم‘Pulp space ‘Cavity’

22. Pulp chamber

23. Pulp horn

24. Root canal

25. Apical foramen

26. Location

27. Percentage (17%-46%)

28. Accessory or Lateral canals

29. Location

30. Causes (3 causes)pulp space morphology & coronal cavity preparation

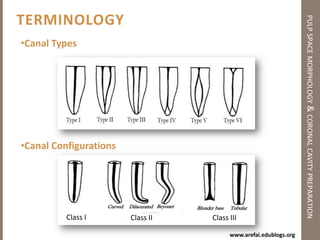

31. Terminologypulp space morphology & coronal cavity preparationCanal Types

32. Canal ConfigurationsClass IClass IIClass III

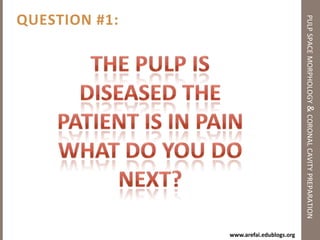

33. Question #1:pulp space morphology & coronal cavity preparationThe pulp is diseased the patient is in pain what do you do next?

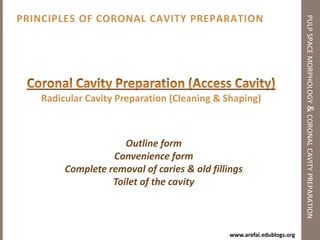

34. Principles of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationCoronal Cavity Preparation (Access Cavity)Radicular Cavity Preparation (Cleaning & Shaping)Outline formConvenience formComplete removal of caries & old fillingsToilet of the cavity

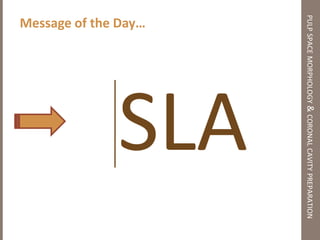

35. Message of the Day…pulp space morphology & coronal cavity preparationSLA

36. Objectives of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationStraight line access (SLA) to apical foramen or to the initial curvature of the canalTo locate all root canal orificesTo conserve sound tooth structure

37. Principles of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationOutline formSize of the pulp chamberShape of the pulp chamberNumber, position & curvatures of the root canals

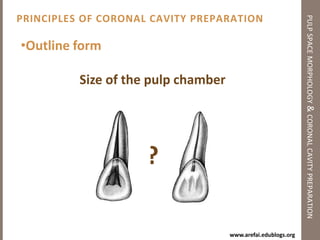

38. Principles of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationOutline formSize of the pulp chamber?

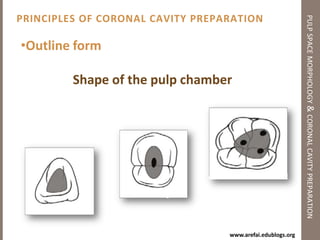

39. Principles of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationOutline formShape of the pulp chamber

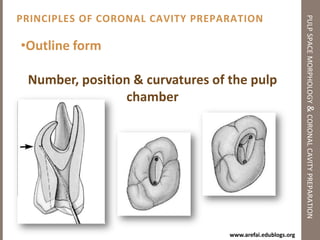

40. Principles of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationOutline formNumber, position & curvatures of the pulp chamber

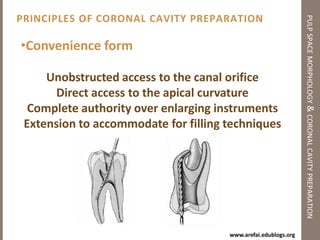

41. Principles of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationConvenience formUnobstructed access to the canal orificeDirect access to the apical curvatureComplete authority over enlarging instrumentsExtension to accommodate for filling techniques

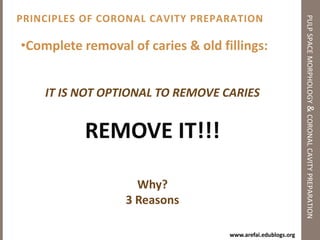

42. Principles of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationComplete removal of caries & old fillings:IT IS NOT OPTIONAL TO REMOVE CARIESREMOVE IT!!!Why? 3 Reasons

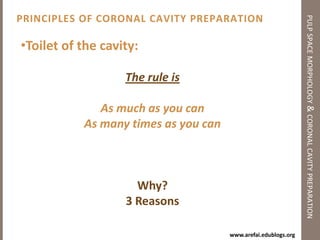

43. Principles of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationToilet of the cavity:The rule isAs much as you canAs many times as you canWhy? 3 Reasons

44. Principles of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationCoronal Cavity Preparation (Access Cavity)Radicular Cavity Preparation (Cleaning & Shaping)Outline formConvenience formComplete removal of caries & old fillingsToilet of the cavity

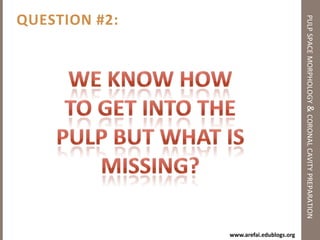

45. Question #2:pulp space morphology & coronal cavity preparationWe know how to get into the pulp but what is missing?

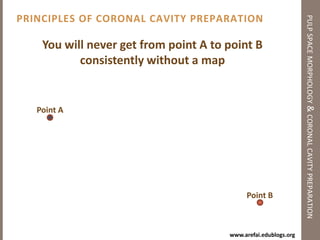

46. Principles of Coronal Cavity Preparationpulp space morphology & coronal cavity preparationYou will never get from point A to point B consistently without a map Point A Point B

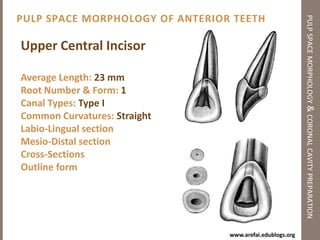

47. Pulp Space Morphology of Anterior Teethpulp space morphology & coronal cavity preparationUpper Central IncisorAverage Length: 23 mmRoot Number & Form: 1Canal Types: Type ICommon Curvatures: StraightLabio-Lingual sectionMesio-Distal sectionCross-SectionsOutline form

48. Pulp Space Morphology of Anterior Teethpulp space morphology & coronal cavity preparationUpper Lateral IncisorAverage Length: 22.5 mmRoot Number & Form: 1Canal Types: Type ICommon Curvatures: Distal, StraightLabio-Lingual sectionMesio-Distal sectionCross-SectionsOutline form

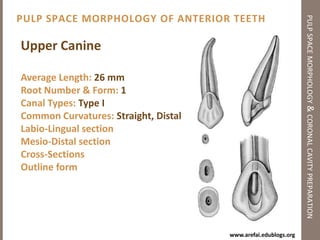

49. Pulp Space Morphology of Anterior Teethpulp space morphology & coronal cavity preparationUpper CanineAverage Length: 26 mmRoot Number & Form: 1Canal Types: Type ICommon Curvatures: Straight, DistalLabio-Lingual sectionMesio-Distal sectionCross-SectionsOutline form

50. Pulp Space Morphology of Anterior Teethpulp space morphology & coronal cavity preparationLower Central & Lateral IncisorAverage Length: 21 mmRoot Number & Form: 1Canal Types: Type I 60% Type II 30% Type III 10% Common Curvatures: Straight, DistalLabio-Lingual sectionMesio-Distal sectionCross-SectionsOutline form

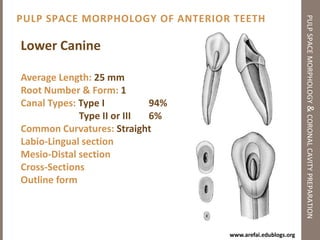

51. Pulp Space Morphology of Anterior Teethpulp space morphology & coronal cavity preparationLower CanineAverage Length: 25 mmRoot Number & Form: 1Canal Types: Type I 94% Type II or III 6%Common Curvatures: StraightLabio-Lingual sectionMesio-Distal sectionCross-SectionsOutline form

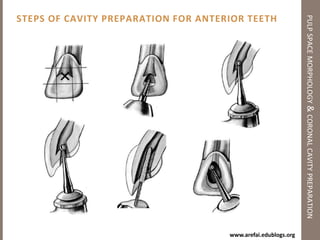

52. Steps of Cavity Preparation for Anterior Teethpulp space morphology & coronal cavity preparation

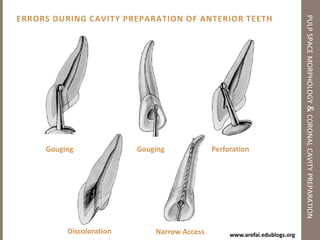

53. errors during Cavity Preparation of Anterior Teethpulp space morphology & coronal cavity preparationGougingGougingPerforationDiscolorationNarrow Access

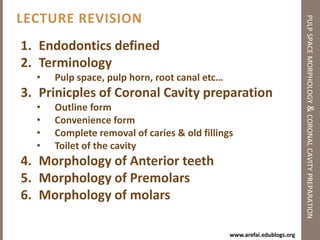

54. pulp space morphology & coronal cavity preparationRevision of Anterior teeth
