Getting started with the Enterprise Mobility Suite (EMS)
This document summarizes an Enterprise Mobility Suite roadshow presentation. It discusses key topics like why mobile management is important, what EMS is and why enterprises need it, and how to configure and get started with EMS. The presentation provides an overview of EMS components like Microsoft Intune, Azure Active Directory Premium, and Azure Rights Management. It demonstrates how to set up subscriptions, configure Azure AD sync, enroll devices, and manage settings and applications with Intune.
More Related Content
Similar to Getting started with the Enterprise Mobility Suite (EMS)
Getting started with the Enterprise Mobility Suite (EMS)
- 1. MVP Roadshow 2015 EnterpriseMobility Suite

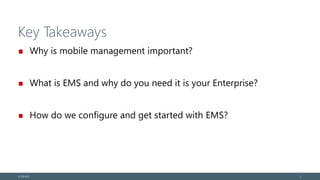

- 2. Key Takeaways Why ismobile management important? What is EMS and why do you need it is your Enterprise? How do we configure and get started with EMS? © EG A/S 2

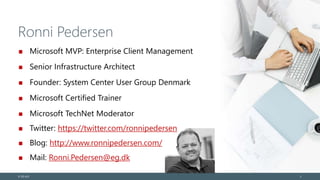

- 3. Ronni Pedersen Microsoft MVP:Enterprise Client Management Senior Infrastructure Architect Founder: System Center User Group Denmark Microsoft Certified Trainer Microsoft TechNet Moderator Twitter: https://twitter.com/ronnipedersen Blog: http://www.ronnipedersen.com/ Mail: Ronni.Pedersen@eg.dk © EG A/S 3
- 4. Kenny Buntinx Managing Consultant Kenny.Buntinx@kbsolutions.be ©EG A/S https://twitter.com/KennyBuntinx http://be.linkedin.com/KennyBuntinx http://scug.be/blogs/sccm
- 5. Demo Environment Powered byHyper-V in the Cloud DC01 Domain Controller DNS Server DHCP Server CLIENT02 Windows 10 TP CM01 SQL 2012 ConfigMgr 2012 R2 CLIENT01 Windows 8.1 MDT01
- 6.

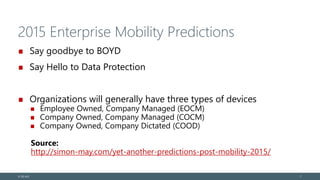

- 7. 2015 Enterprise MobilityPredictions Say goodbye to BOYD Say Hello to Data Protection Organizations will generally have three types of devices Employee Owned, Company Managed (EOCM) Company Owned, Company Managed (COCM) Company Owned, Company Dictated (COOD) Source: http://simon-may.com/yet-another-predictions-post-mobility-2015/ © EG A/S 7

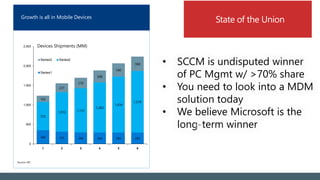

- 8. • SCCM isundisputed winner of PC Mgmt w/ >70% share • You need to look into a MDM solution today • We believe Microsoft is the long-term winner Growth is all in Mobile Devices 349 315 296 294 293 292 725 1,010 1,131 1,283 1,434 1,579 162 231 270 308 340 368 0 500 1,000 1,500 2,000 2,500 1 2 3 4 5 6 Series3 Series2 Series1 Devices Shipments (MM) Source: IDC
- 9. Licensing Microsoft Intune (Standalone) EnterpriseMobility Suite Microsoft Intune Azure Active Directory Premium Azure Rights Management Enterprise Cloud Suite Enterprise Mobility Suite Office 365 Enterprise E3 Windows Software Assurance (Per http://www.microsoft.com/licensing/about- licensing/briefs/enterprise-cloud-suite.aspx © EG A/S 9

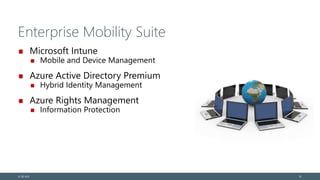

- 10. Enterprise Mobility Suite MicrosoftIntune Mobile and Device Management Azure Active Directory Premium Hybrid Identity Management Azure Rights Management Information Protection © EG A/S 10

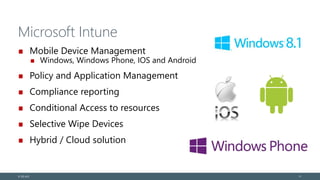

- 11. Microsoft Intune Mobile DeviceManagement Windows, Windows Phone, IOS and Android Policy and Application Management Compliance reporting Conditional Access to resources Selective Wipe Devices Hybrid / Cloud solution © EG A/S 11

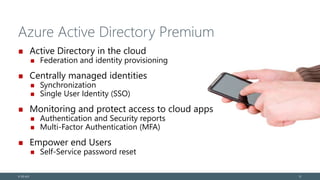

- 12. Azure Active DirectoryPremium Active Directory in the cloud Federation and identity provisioning Centrally managed identities Synchronization Single User Identity (SSO) Monitoring and protect access to cloud apps Authentication and Security reports Multi-Factor Authentication (MFA) Empower end Users Self-Service password reset © EG A/S 12

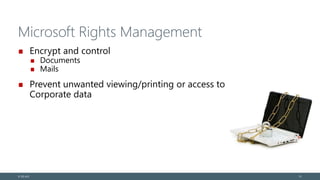

- 13. Microsoft Rights Management Encryptand control Documents Mails Prevent unwanted viewing/printing or access to Corporate data © EG A/S 13
- 14. Getting Started withIntune Setting up the environment
- 15.

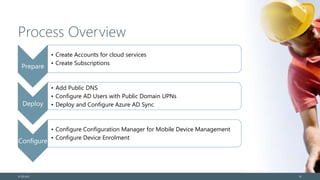

- 16. Process Overview Prepare • CreateAccounts for cloud services • Create Subscriptions Deploy • Add Public DNS • Configure AD Users with Public Domain UPNs • Deploy and Configure Azure AD Sync Configure • Configure Configuration Manager for Mobile Device Management • Configure Device Enrolment © EG A/S 16

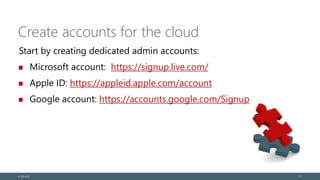

- 17. Create accounts forthe cloud Start by creating dedicated admin accounts: Microsoft account: https://signup.live.com/ Apple ID: https://appleid.apple.com/account Google account: https://accounts.google.com/Signup © EG A/S 17

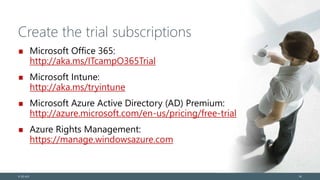

- 18. Create the trialsubscriptions Microsoft Office 365: http://aka.ms/ITcampO365Trial Microsoft Intune: http://aka.ms/tryintune Microsoft Azure Active Directory (AD) Premium: http://azure.microsoft.com/en-us/pricing/free-trial Azure Rights Management: https://manage.windowsazure.com © EG A/S 18
- 19. DEMO Create accounts andsubscriptions
- 20. Azure AD Syncand ADFS Connect your Active Directory to the Cloud

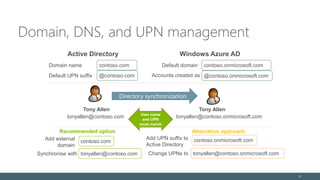

- 21. Domain, DNS, andUPN management 21 Tony Allen tonyallen@contoso.com Add external domain contoso.com tonyallen@contoso.onmicrosoft.com Tony Allen tonyallen@contoso.com tonyallen@contoso.onmicrosoft.com Add UPN suffix to Active Directory contoso.onmicrosoft.com Change UPNs toSynchronise with Directory synchronization Alternative approachRecommended option User name and UPN must match Active Directory Windows Azure AD contoso.onmicrosoft.comcontoso.com Default domain Default UPN suffix Domain name @contoso.com @contoso.onmicrosoft.comAccounts created as

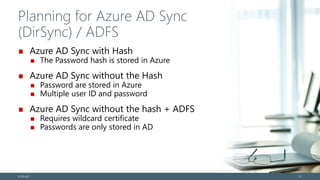

- 22. Planning for AzureAD Sync (DirSync) / ADFS Azure AD Sync with Hash The Password hash is stored in Azure Azure AD Sync without the Hash Password are stored in Azure Multiple user ID and password Azure AD Sync without the hash + ADFS Requires wildcard certificate Passwords are only stored in AD © EG A/S 22

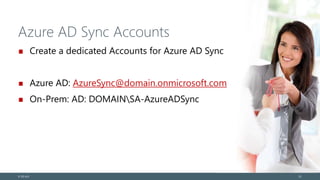

- 23. Azure AD SyncAccounts Create a dedicated Accounts for Azure AD Sync Azure AD: AzureSync@domain.onmicrosoft.com On-Prem: AD: DOMAINSA-AzureADSync © EG A/S 23

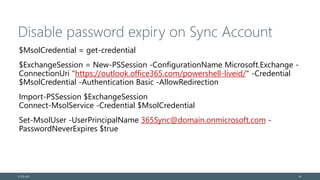

- 24. Disable password expiryon Sync Account $MsolCredential = get-credential $ExchangeSession = New-PSSession -ConfigurationName Microsoft.Exchange - ConnectionUri "https://outlook.office365.com/powershell-liveid/" -Credential $MsolCredential -Authentication Basic -AllowRedirection Import-PSSession $ExchangeSession Connect-MsolService -Credential $MsolCredential Set-MsolUser -UserPrincipalName 365Sync@domain.onmicrosoft.com - PasswordNeverExpires $true © EG A/S 24
- 25. DEMO Setting up AzureAD Sync

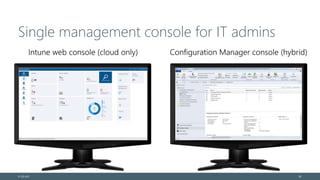

- 26. Single management consolefor IT admins © EG A/S 26

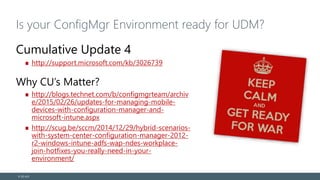

- 27. Is your ConfigMgrEnvironment ready for UDM? Cumulative Update 4 http://support.microsoft.com/kb/3026739 Why CU’s Matter? http://blogs.technet.com/b/configmgrteam/archiv e/2015/02/26/updates-for-managing-mobile- devices-with-configuration-manager-and- microsoft-intune.aspx http://scug.be/sccm/2014/12/29/hybrid-scenarios- with-system-center-configuration-manager-2012- r2-windows-intune-adfs-wap-ndes-workplace- join-hotfixes-you-really-need-in-your- environment/ © EG A/S
- 28.
- 29. Single management consolefor IT admins © EG A/S 29
- 30.

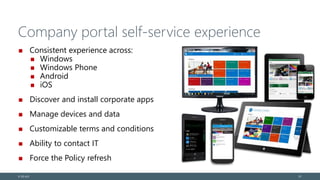

- 31. Company portal self-serviceexperience Consistent experience across: Windows Windows Phone Android iOS Discover and install corporate apps Manage devices and data Customizable terms and conditions Ability to contact IT Force the Policy refresh © EG A/S 3131
- 32. Mobile Device –Portals All portals offer the same experience (except for Windows Phone)
- 33.

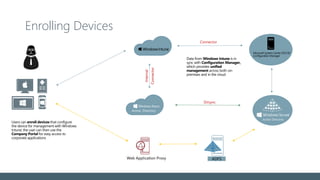

- 34. Enrolling Devices Users canenroll devices that configure the device for management with Windows Intune; the user can then use the Company Portal for easy access to corporate applications Data from Windows Intune is in sync with Configuration Manager, which provides unified management across both on- premises and in the cloud Dirsync w Pwd Sync Connector Internal Connector
- 35. Expanding device supportwith Workplace Join Limited access No IT Control Active Directory Not Joined to AD Workplace Joined Domain Joined

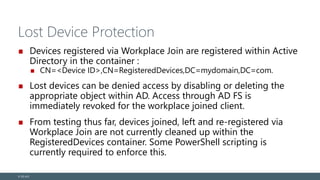

- 36. Lost Device Protection Devicesregistered via Workplace Join are registered within Active Directory in the container : CN=<Device ID>,CN=RegisteredDevices,DC=mydomain,DC=com. Lost devices can be denied access by disabling or deleting the appropriate object within AD. Access through AD FS is immediately revoked for the workplace joined client. From testing thus far, devices joined, left and re-registered via Workplace Join are not currently cleaned up within the RegisteredDevices container. Some PowerShell scripting is currently required to enforce this. © EG A/S

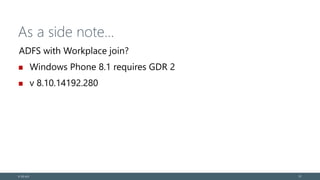

- 37. As a sidenote… ADFS with Workplace join? Windows Phone 8.1 requires GDR 2 v 8.10.14192.280 © EG A/S 37
- 38. Mobile Device –Personal vs Corporate App Management By default, user-enrolled devices are “Personal” Complete inventory of all Apps on the device only when set to Corporate Only the admin can specify corporate-owned devices ! Personal vs. Corporate Owned Devices
- 39. Collecting IMEI fromdevices Retrieve International Mobile Equipment Identity (IMEI) Through custom MOF Windows Phone 8.1 Full Details: http://blogs.technet.com/b/configmgrteam/archive/2014/07/30/collecting-imei-from- devices-enrolled-in-windows-intune-with-sc-2012-r2-configmgr.aspx © EG A/S
- 40. DEMO Enrollment Walkthrough /Workplace Join / Lost Devices
- 41. Workplace Join Hitmantool Beta available via TechNet Galleries: http://gallery.technet.microsoft.com/WorkPlace-Join-Hitman-8c691238#content
- 42.
- 43.

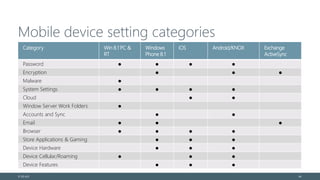

- 44. Mobile device settingcategories © EG A/S 44 Category Win 8.1 PC & RT Windows Phone 8.1 iOS Android/KNOX Exchange ActiveSync Password ● ● ● ● Encryption ● ● ● Malware ● System Settings ● ● ● ● Cloud ● ● Window Server Work Folders ● Accounts and Sync ● ● Email ● ● ● Browser ● ● ● ● Store Applications & Gaming ● ● ● Device Hardware ● ● ● Device Cellular/Roaming ● ● ● Device Features ● ● ●
- 45.
- 46.

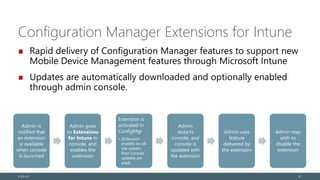

- 47. Configuration Manager Extensionsfor Intune Rapid delivery of Configuration Manager features to support new Mobile Device Management features through Microsoft Intune Updates are automatically downloaded and optionally enabled through admin console. © EG A/S 47 Admin is notified that an extension is available when console is launched Admin goes to Extensions for Intune in console, and enables the extension Extension is activated in ConfigMgr • (Extension enables on all site system, then console updates are avail) Admin restarts console, and console is updated with the extension Admin uses feature delivered by the extension Admin may wish to disable the extension

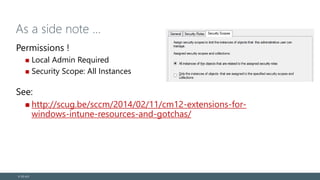

- 48. As a sidenote … Permissions ! Local Admin Required Security Scope: All Instances See: http://scug.be/sccm/2014/02/11/cm12-extensions-for- windows-intune-resources-and-gotchas/ © EG A/S
- 49. Extending Settings managementThrough OMA-DM

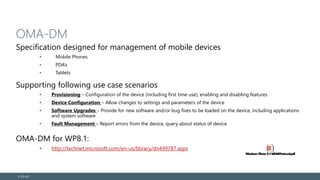

- 50. OMA-DM Specification designed formanagement of mobile devices • Mobile Phones • PDA’s • Tablets Supporting following use case scenarios • Provisioning – Configuration of the device (including first time use), enabling and disabling features • Device Configuration – Allow changes to settings and parameters of the device • Software Upgrades – Provide for new software and/or bug fixes to be loaded on the device, including applications and system software • Fault Management – Report errors from the device, query about status of device OMA-DM for WP8.1: • http://technet.microsoft.com/en-us/library/dn499787.aspx © EG A/S
- 51.

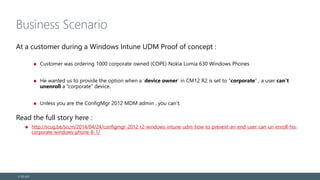

- 52. Business Scenario At acustomer during a Windows Intune UDM Proof of concept : Customer was ordering 1000 corporate owned (COPE) Nokia Lumia 630 Windows Phones He wanted us to provide the option when a ‘device owner’ in CM12 R2 is set to “corporate” , a user can’t unenroll a “corporate” device. Unless you are the ConfigMgr 2012 MDM admin , you can’t. Read the full story here : http://scug.be/sccm/2014/04/24/configmgr-2012-r2-windows-intune-udm-how-to-prevent-an-end-user-can-un-enroll-his- corporate-windows-phone-8-1/ © EG A/S

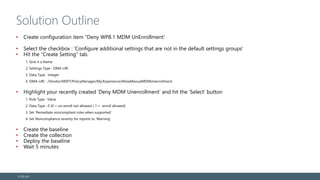

- 53. Solution Outline • Createconfiguration item “Deny WP8.1 MDM UnEnrollment’ • Select the checkbox : ‘Configure additional settings that are not in the default settings groups’ • Hit the “Create Setting” tab. 1. Give it a Name 2. Settings Type : OMA-URI 3. Data Type : Integer 4. OMA-URI : ./Vendor/MSFT/PolicyManager/My/Experience/AllowManualMDMUnenrollment • Highlight your recently created ‘Deny MDM Unenrollment’ and hit the ‘Select’ button 1. Rule Type : Value 2. Data Type : 0 (0 = un-enroll not allowed / 1 = enroll allowed) 3. Set ‘Remediate noncompliant rules when supported’ 4. Set Noncompliance severity for reports to ‘Warning’ • Create the baseline • Create the collection • Deploy the baseline • Wait 5 minutes © EG A/S
- 54.

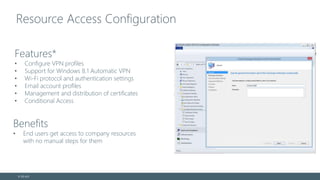

- 55. Resource Access Configuration ©EG A/S Benefits • End users get access to company resources with no manual steps for them Features* • Configure VPN profiles • Support for Windows 8.1 Automatic VPN • Wi-Fi protocol and authentication settings • Email account profiles • Management and distribution of certificates • Conditional Access

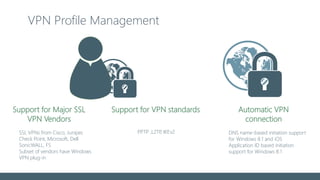

- 56. VPN Profile Management DNSname-based initiation support for Windows 8.1 and iOS Application ID based initiation support for Windows 8.1 Automatic VPN connection Support for VPN standards SSL VPNs from Cisco, Juniper, Check Point, Microsoft, Dell SonicWALL, F5 Subset of vendors have Windows VPN plug-in PPTP ,L2TP, IKEv2 Support for Major SSL VPN Vendors

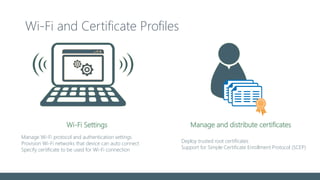

- 57. Wi-Fi and CertificateProfiles Manage and distribute certificates Deploy trusted root certificates Support for Simple Certificate Enrollment Protocol (SCEP) Manage Wi-Fi protocol and authentication settings Provision Wi-Fi networks that device can auto connect Specify certificate to be used for Wi-Fi connection Wi-Fi Settings
- 58.
- 59. N-What ? NDES? SCEP ??? WTH …

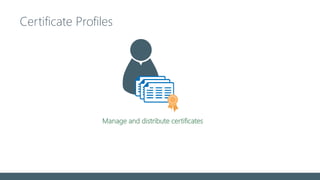

- 60. Certificate Profiles Manage anddistribute certificates Deploy trusted root certificates Support for Simple Certificate Enrollment Protocol (SCEP)

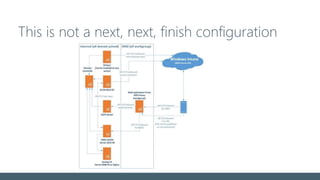

- 61. This is nota next, next, finish configuration

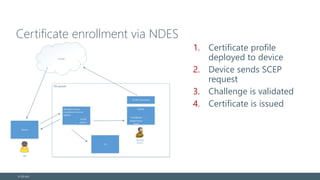

- 62. Certificate enrollment viaNDES 1. Certificate profile deployed to device 2. Device sends SCEP request 3. Challenge is validated 4. Certificate is issued © EG A/S

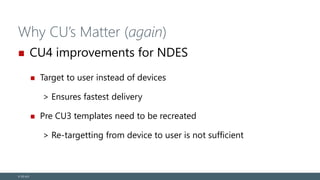

- 63. Why CU’s Matter(again) CU4 improvements for NDES Target to user instead of devices > Ensures fastest delivery Pre CU3 templates need to be recreated > Re-targetting from device to user is not sufficient © EG A/S
- 64. As a sidenote … Certificate deployment to iOS 8 Required modification to template: Remove Signature in proof of origin See: http://blog.coretech.dk/kea/troubleshooting- certificate-deployment-on-ios-devices-with- configmgr-intune/ © EG A/S

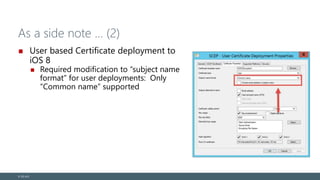

- 65. As a sidenote … (2) User based Certificate deployment to iOS 8 Required modification to “subject name format” for user deployments: Only “Common name” supported © EG A/S
- 66.

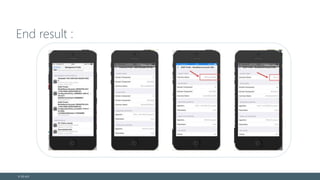

- 67. End result : ©EG A/S
- 68. Custom iOS policy ©EG A/S 68
- 69.

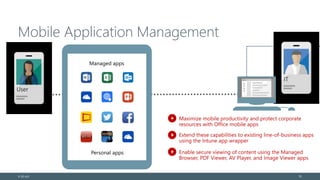

- 70. Mobile Application Management ©EG A/S 70 Personal apps

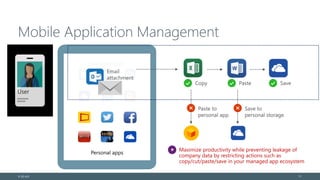

- 71. Mobile Application Management ©EG A/S 71

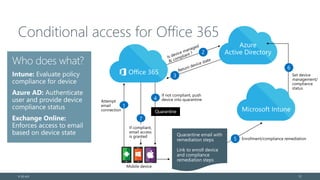

- 72. Conditional access forOffice 365 © EG A/S 72 7 5 4 2 1 3 6
- 73.

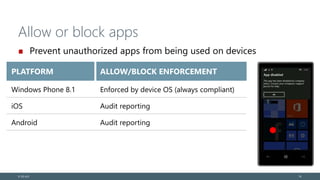

- 74. Allow or blockapps Prevent unauthorized apps from being used on devices © EG A/S 74

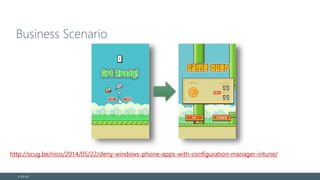

- 75. Business Scenario © EGA/S http://scug.be/nico/2014/05/22/deny-windows-phone-apps-with-configuration-manager-intune/
- 76. Solution Outline • Createconfiguration item “Deny Windows Phone Apps” • Select the checkbox : ‘Configure additional settings that are not in the default settings groups’ • Hit the “Create Setting” tab. - Give it a Name - Settings Type : OMA-URI - Data Type : String - OMA-URI : ./Vendor/MSFT/PolicyManager/My/ApplicationManagement/ApplicationRestrictions - <AppPolicy Version=”1″ xmlns=”http://schemas.microsoft.com/phone/2013/policy”><Deny><App ProductId=”{2e59d843-22e4-4df1-869e- 22adadb8005b}”/></Deny></AppPolicy> • Highlight your recently created ‘Deny Windows Phone Apps’ and hit the ‘Select’ button - Rule Type : Value - Data Type : 0 (0 = application not allowed / 1 = application allowed) - Set ‘Remediate noncompliant rules when supported’ - Set Noncompliance severity for reports to ‘Warning’ • Create the baseline • Create the collection • Deploy the baseline • Wait 5 minutes © EG A/S
- 77.

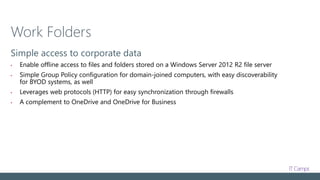

- 78. Work Folders Simple accessto corporate data • Enable offline access to files and folders stored on a Windows Server 2012 R2 file server • Simple Group Policy configuration for domain-joined computers, with easy discoverability for BYOD systems, as well • Leverages web protocols (HTTP) for easy synchronization through firewalls • A complement to OneDrive and OneDrive for Business

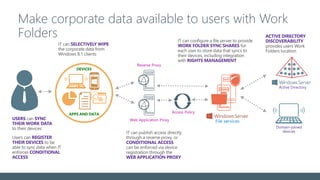

- 79. Make corporate dataavailable to users with Work Folders
- 80. Https://support.microsoft.com/kb/2891638 Windows 7 support 1.Must be joined to the domain 2. Install the Work Folders client Ipad support Https://itunes.apple.com/us/app/work- folders/id950878067?mt=8
- 81.
- 82. Corporate Data Removal FullWipe vs. Selective Wipe

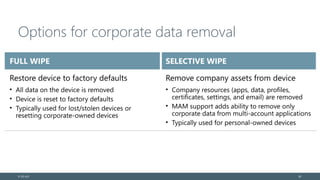

- 83. Options for corporatedata removal © EG A/S 83

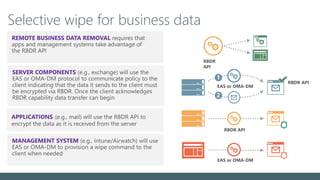

- 84. Selective wipe forbusiness data
- 85.
- 86.
- 87. © EG A/S87
